The document provides specifications for a zero-button audio module featuring a black faceplate designed for various audio speaker units. It includes details on dimensions, hardware specifications, compatibility with different systems, and mounting options. The product is customizable and suitable for a range of operating temperatures.

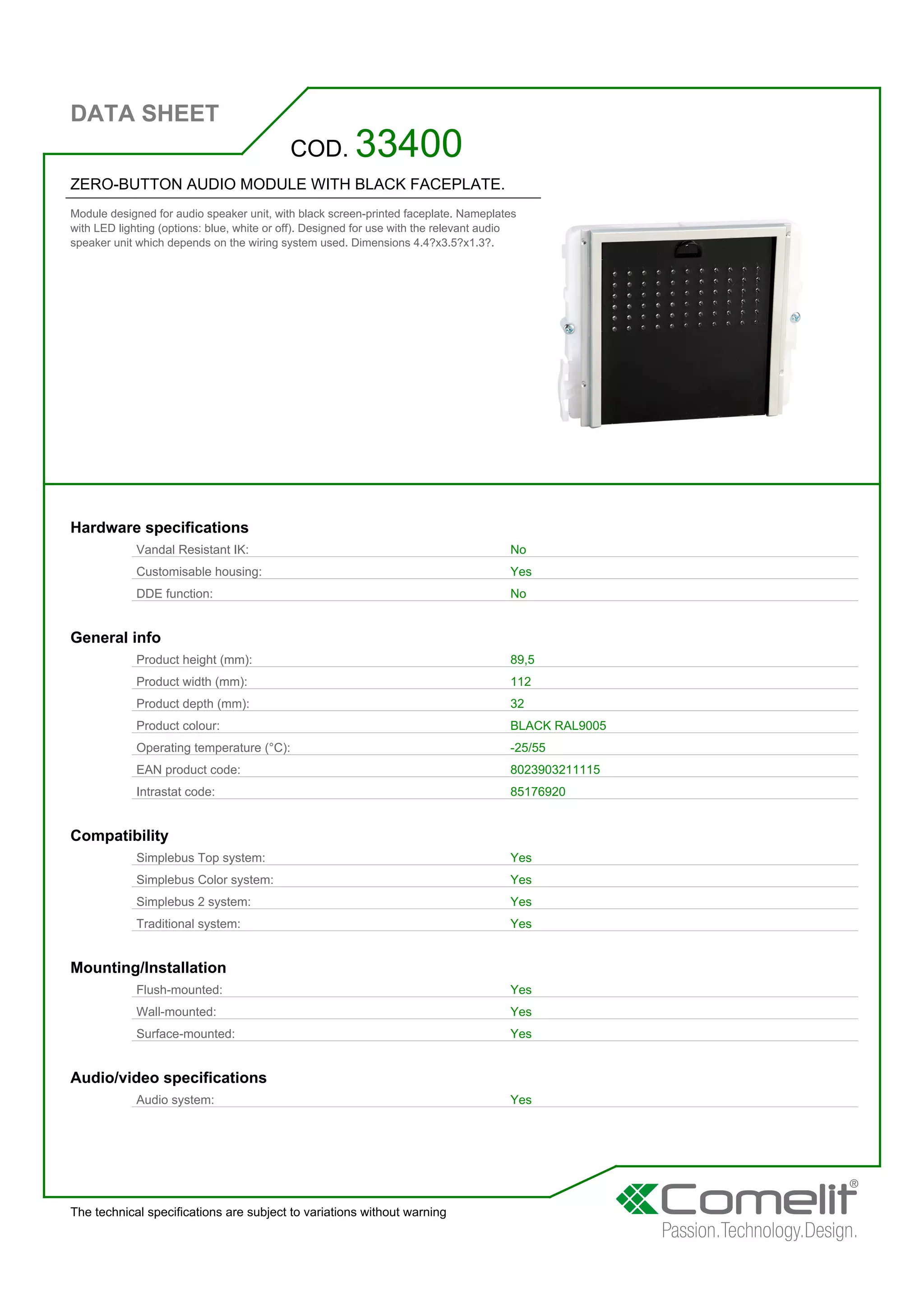

1. DATA SHEET
The technical specifications are subject to variations without warning
ZERO-BUTTON AUDIO MODULE WITH BLACK FACEPLATE.
Module designed for audio speaker unit, with black screen-printed faceplate. Nameplates
with LED lighting (options: blue, white or off). Designed for use with the relevant audio
speaker unit which depends on the wiring system used. Dimensions 4.4?x3.5?x1.3?.
COD. 33400
Hardware specifications
Vandal Resistant IK: No
Customisable housing: Yes
DDE function: No
General info
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: BLACK RAL9005
Operating temperature (°C): -25/55
EAN product code: 8023903211115
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio system: Yes

2. DATA SHEET
The technical specifications are subject to variations without warning
Audio/video system: Yes
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,142
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
