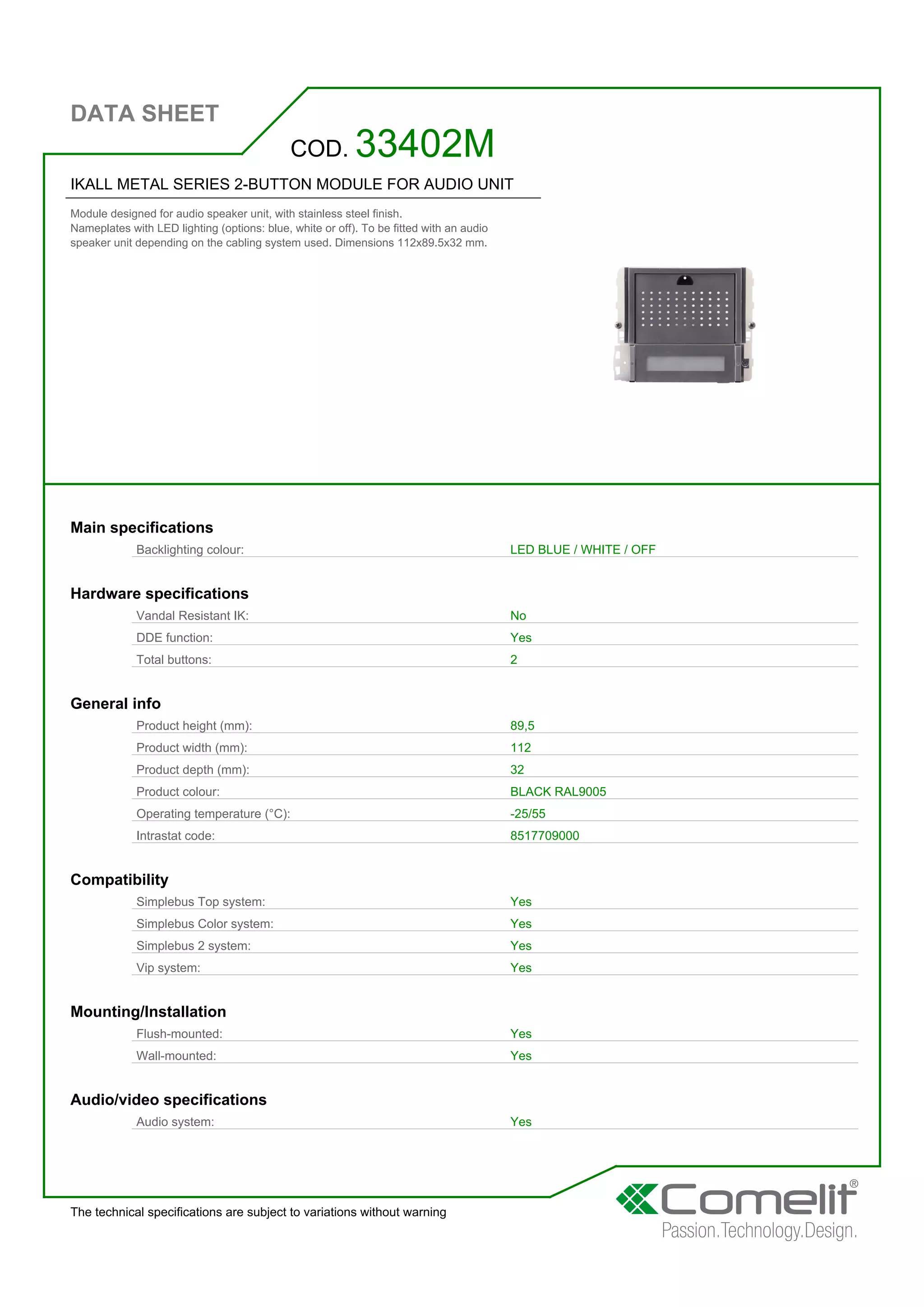

1. DATA SHEET
The technical specifications are subject to variations without warning
IKALL METAL SERIES 2-BUTTON MODULE FOR AUDIO UNIT
Module designed for audio speaker unit, with stainless steel finish.
Nameplates with LED lighting (options: blue, white or off). To be fitted with an audio
speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.
COD. 33402M
Main specifications
Backlighting colour: LED BLUE / WHITE / OFF
Hardware specifications
Vandal Resistant IK: No
DDE function: Yes
Total buttons: 2
General info
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: BLACK RAL9005
Operating temperature (°C): -25/55
Intrastat code: 8517709000
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Audio/video specifications
Audio system: Yes

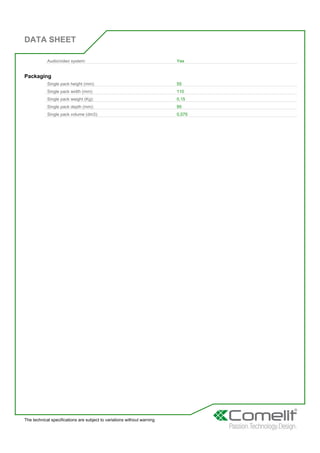

2. DATA SHEET
The technical specifications are subject to variations without warning
Audio/video system: Yes
Packaging
Single pack height (mm): 55
Single pack width (mm): 110
Single pack weight (Kg): 0,15
Single pack depth (mm): 95
Single pack volume (dm3): 0,575
