The document outlines the technical specifications and compatibility of a module with an anodized aluminum frame, designed for extreme environments like marine settings. Its dimensions are 4.9'' x 4.9'' x 1.5'', and it supports various systems including Simplebus and traditional systems. The packaging details include dimensions and weight for single pack configurations.

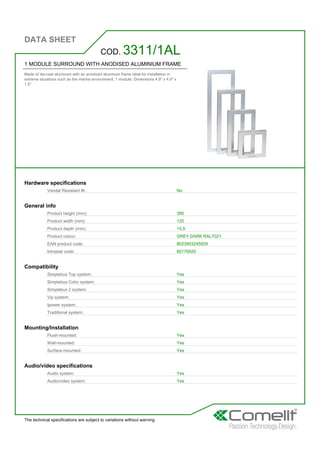

1. DATA SHEET
The technical specifications are subject to variations without warning
1 MODULE SURROUND WITH ANODISED ALUMINIUM FRAME
Made of die-cast aluminum with an anodized aluminum frame ideal for installation in
extreme situations such as the marine environment, 1 module. Dimensions 4.9'' x 4.9'' x
1,5''
COD. 3311/1AL
Hardware specifications
Vandal Resistant IK: No
General info
Product height (mm): 395
Product width (mm): 125
Product depth (mm): 15,5
Product colour: GREY DARK RAL7021
EAN product code: 8023903245929
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Ipower system: Yes
Traditional system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes

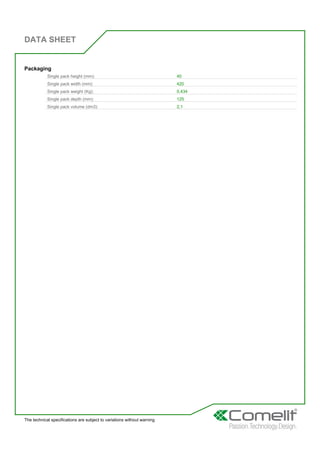

2. DATA SHEET
The technical specifications are subject to variations without warning
Packaging
Single pack height (mm): 40
Single pack width (mm): 420
Single pack weight (Kg): 0,434
Single pack depth (mm): 125
Single pack volume (dm3): 2,1
