1. DATA SHEET
The technical specifications are subject to variations without warning
SING.-FAM. KIT WITH IKALL METAL, PLANUX+SLAVE
GATEWAY.VIP
The kit consists of 1 colour audio/video unit art. 4682KC, 1 module with 1 button art.
33411M, 1 flush-mounted box art. 3110/1, 1 frame complete with finishing frame art.
3311/1S, 1 power supply unit art. 1595, 1 power supply unit art. 1441B, 1 slave gateway
art. 1456S, 1 white Planux art. 6202WK, 1 backplate art. 6231, 1 black faceplate art.
6202N, 1 flush-mounted box art. 6117, 1 wall-mounted bracket art. 6120. The kit is
pre-programmed and ready to use, except for 1456S gateway configuration which must be
carried out via internal web server. The kit can be expanded with other products from the
VIP catalogue.
COD. 8512IM
Main specifications
Backlighting colour: White / Blue
Single Family: Yes
N° external units: 1
External units: 1
N° internal units: 1
Internal units: 1
Software/firmware specifications
IP assignment: DHCP enabled
Hardware specifications
Vandal Resistant IK: No
: 8 GB (extra)
Total buttons: 1
Sensitive Touch technology: Yes
Functions
Privacy function: Yes
Display brightness control: Yes
Actuator control function: Yes
Privacy conversation function: Yes
Intercom function: Yes
Key button function: Yes
Full Duplex hands-free function: Yes
Display contrast control: Yes
Loudspeaker volume control: Yes

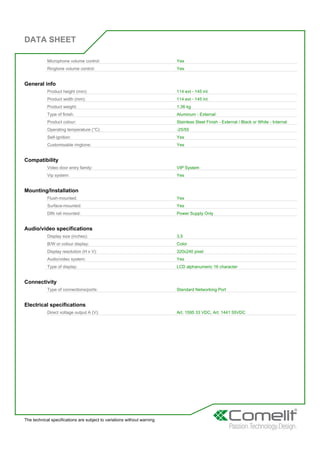

2. DATA SHEET
The technical specifications are subject to variations without warning
Microphone volume control: Yes
Ringtone volume control: Yes
General info
Product height (mm): 114 ext - 145 int
Product width (mm): 114 ext - 145 int
Product weight: 1,36 kg
Type of finish: Aluminum - External
Product colour: Stainless Steel Finish - External / Black or White - Internal
Operating temperature (°C): -25/55
Self-ignition: Yes
Customisable ringtone: Yes
Compatibility
Video door entry family: VIP System
Vip system: Yes
Mounting/Installation
Flush-mounted: Yes
Surface-mounted: Yes
DIN rail mounted: Power Supply Only
Audio/video specifications
Display size (inches): 3,5
B/W or colour display: Color
Display resolution (H x V): 320x240 pixel
Audio/video system: Yes
Type of display: LCD alphanumeric 16 character
Connectivity
Type of connections/ports: Standard Networking Port
Electrical specifications
Direct voltage output A (V): Art. 1595 33 VDC, Art. 1441 55VDC
