1. Deployment Best Practices
and Architecture
Dave Deutschman, Alan Percy, George
Niculae, Joegen Baclor
Moderated by Martin Steinmann

2. Introduction to the Presenters
Session 1: Deployment Best Practices and Architecture
Joegen Baclor Dave Deutschman
George Niculae Alan Percy

3. Best Practices for a Next Generation Solution
Transition to all software and an IT application imply profound changes
IT / all software solution managed as part of the IT stack
Not vertically integrated: Standards based and interoperable
Datacenter or cloud deployments, centrally managed
Tolerant to hardware failures – resiliency in the SW
architecture
Focus on communications enablement of applications (single
sign-on, user profiles, social graphs, presence, activity
streams)
3

4. IT Best Practices Demand a New Architecture
SIP Session Oriented Architecture - SSOA
Internet Scale Communications
• Native Session Initiation Protocol (SIP)
architecture for a modern, highly scalable and
resilient communications infrastructure
• Based on a distributed and load-sharing network
of SIP proxy servers
• Geo-redundant redundancy reduces complexity
and number of servers required
• Peer-to-peer media for industry leading voice
and video quality
• Introducing presence based communications
that facilitates social business integration and
multi-media interactions > Scalable
• Pushing communication and collaboration into
the cloud > Resilient
> Cost efficient

5. New Session State Server (SSS)
Modern and scalable presence solution
What is new in SSS ?
 Load-sharing redundancy and scale for line state presence
and session state
 New technology from the ground up:
• Fast and modern SIP Stack using reSIProcate
• Multiple Watchers and State Agents
• Load-balanced subscriptions via DNS/SRV
• Shared Subscription State – no single point of failure
• Centralized Event Queue
5

6. Session State Server (SSS) Architecture
Fully redundant highly available deployment
Failure cases addressed:
 Ability to detect failure of a node via real-time notification
 Standard SIP fail-over for transaction failures
 Load sharing using standard SIP DNS/SRV transaction spreading
 Bottle neck free fairly-queued task distribution
6

7. New in 4.6: Redundant Media Services
Seamless global resiliency and scale
openUC 4.4: Configuration and voicemail server tightly coupled –
both reading data from local file system
openUC 4.6:
 Improved voicemail REST API, configuration server retrieves data using
voicemail REST API
 New voicemail architecture – abstract connector layer to allow pluggable
storage types
 Decoupled voicemail + ability to read / write from external storages =
foundation for redundant voicemail
 Efficient memory & disk usage, built in replication - GridFS storage connector
 Moving forward to cloud - Amazon S3 storage connector
7

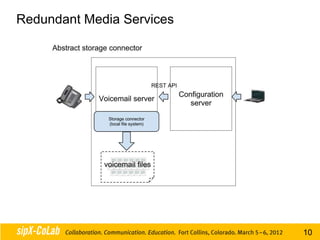

8. Redundant Media Services
8

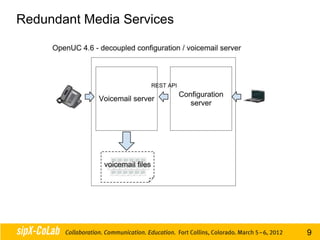

9. Redundant Media Services
9

10. Redundant Media Services
10

11. Redundant Media Services
11

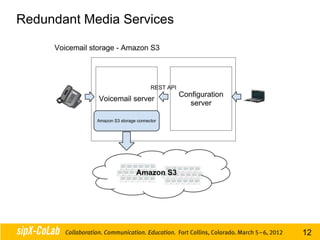

12. Redundant Media Services
12

13. Redundant Media Services: How Does It Work?
Seamless user experience with geo-redundancy
Redundancy achieved at:
Proxy level (DNS)
Media Services level (DNS)
Voicemail level via FreeSWITCH dial plan
Distributed voicemail storage
13

14. Redundant Media Services
14

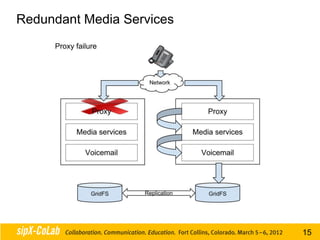

15. Redundant Media Services
15

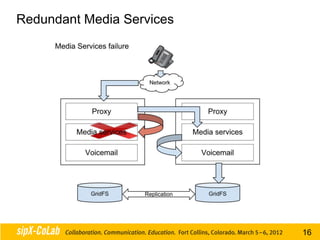

16. Redundant Media Services
16

17. Redundant Media Services
17

18. Deployment Best Practices
How to build a system
18

19. Health Provider with 10 Locations
Design Considerations
- Single data center
- Reliable corporate network with QoS
- Locations have different telco providers
- Need for groups in the same location to use different
caller IDs
- 24 emergency hot lines
- Limited remote worker support (IT)
- Instant Messaging (IM)
19

20. Single Multi-Server Cluster
Health Provider with 10 Locations
20

21. Deployment Model Benefits
Single Multi-Server Cluster
- Distributed services to support scalability and availability
- Registration and call processing balanced across master and
distributed proxy
- ACD deployed on separate server
- Centralized management of all locations
- Local services
- Network applications (DHCP and DNS)
- PSTN access
- Remote support through VPNs
21

22. Large Corporation with Many Locations
Design Considerations
- Multiple corporate data centers
- Many locations with a large number of users
- Reliable corporate network with QoS
- Need for location survivability
- Customer uses basic telephony services and voicemail
- Large scale remote worker support
22

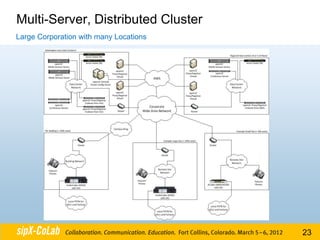

23. Multi-Server, Distributed Cluster
Large Corporation with many Locations
23

24. Deployment Model Benefits
Multi-Server, Distributed Cluster
- Scalability and availability
- Geo-redundancy for call processing service
- Centralized management
- Flexible PSTN options
- Media Gateways
- SIP Trunking
- Scalable Remote Worker support through use of Session
Border Controller
24

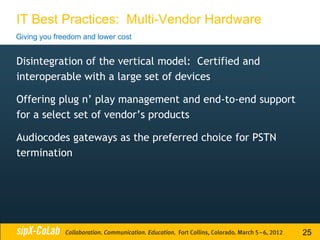

25. IT Best Practices: Multi-Vendor Hardware
Giving you freedom and lower cost
Disintegration of the vertical model: Certified and
interoperable with a large set of devices
Offering plug n’ play management and end-to-end support
for a select set of vendor’s products
Audiocodes gateways as the preferred choice for PSTN
termination
25

26. AudioCodes Gateways and openUC
Connecting TDM Networks to SIP Applications
Key Benefits:
• Plug & play configuration with openUC
• Modularity, Scalability & Flexibility
Mediant ™ 1000
• Interoperability Mediant ™ 800
mix-and-match
Gateway/E-SBC
for Business
Cost effective
• Survivability (SAS) MediaPack™ 124
Branch office
Gateway/E-SBC
With 24 FXS
• Wide Availability MediaPack™ 11X
with FXS/FXO
interfaces
via Distribution
interfaces
26

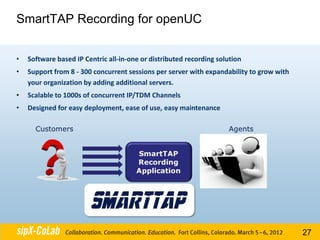

27. SmartTAP Recording for openUC
• Software based IP Centric all-in-one or distributed recording solution
• Support from 8 - 300 concurrent sessions per server with expandability to grow with
your organization by adding additional servers.
• Scalable to 1000s of concurrent IP/TDM Channels
• Designed for easy deployment, ease of use, easy maintenance
27

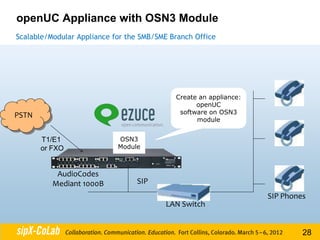

28. openUC Appliance with OSN3 Module
Scalable/Modular Appliance for the SMB/SME Branch Office
Create an appliance:
openUC
software on OSN3
PSTN
module
T1/E1 OSN3
or FXO Module
AudioCodes
Mediant 1000B SIP
SIP Phones
LAN Switch
28

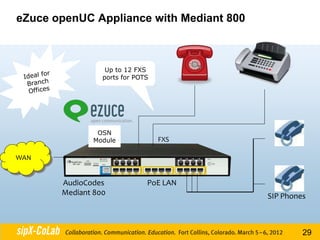

29. eZuce openUC Appliance with Mediant 800
Up to 12 FXS
ports for POTS
OSN
Module FXS
WAN
AudioCodes PoE LAN
Mediant 800 SIP Phones
29

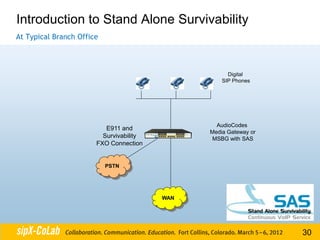

30. Introduction to Stand Alone Survivability
At Typical Branch Office
Digital
SIP Phones
AudioCodes
E911 and
Media Gateway or
Survivability MSBG with SAS
FXO Connection
PSTN
WAN
30

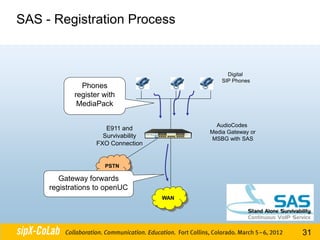

31. SAS - Registration Process
Digital
SIP Phones
Phones
register with
MediaPack
AudioCodes
E911 and
Media Gateway or
Survivability MSBG with SAS
FXO Connection
PSTN
Gateway forwards
registrations to openUC
WAN
31

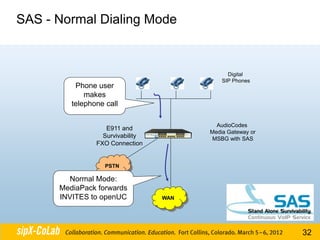

32. SAS - Normal Dialing Mode
Digital
SIP Phones
Phone user
makes
telephone call
AudioCodes
E911 and
Media Gateway or
Survivability MSBG with SAS
FXO Connection
PSTN
Normal Mode:
MediaPack forwards
INVITES to openUC WAN
32

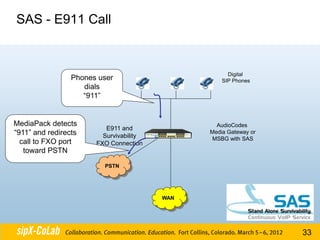

33. SAS - E911 Call
Digital
Phones user SIP Phones
dials
“911”
MediaPack detects AudioCodes
E911 and
“911” and redirects Survivability
Media Gateway or
MSBG with SAS
call to FXO port FXO Connection
toward PSTN
PSTN
WAN
33

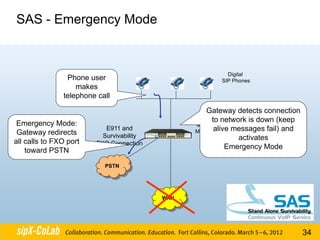

34. SAS - Emergency Mode
Digital
Phone user SIP Phones
makes
telephone call
Gateway detects connection
to network is down (keep
Emergency Mode: MediaPack MP-112/FXO
E911 and alive messages fail) and
Media Gateway With SAS
Gateway redirects Survivability activates
all calls to FXO port FXO Connection
Emergency Mode
toward PSTN
PSTN
WAN
34

35. Simplicity matters
It is measured in operating expense
openUC is an order of magnitude
simpler than previous generation
solutions and therefore cheaper to
operate and develop
35
