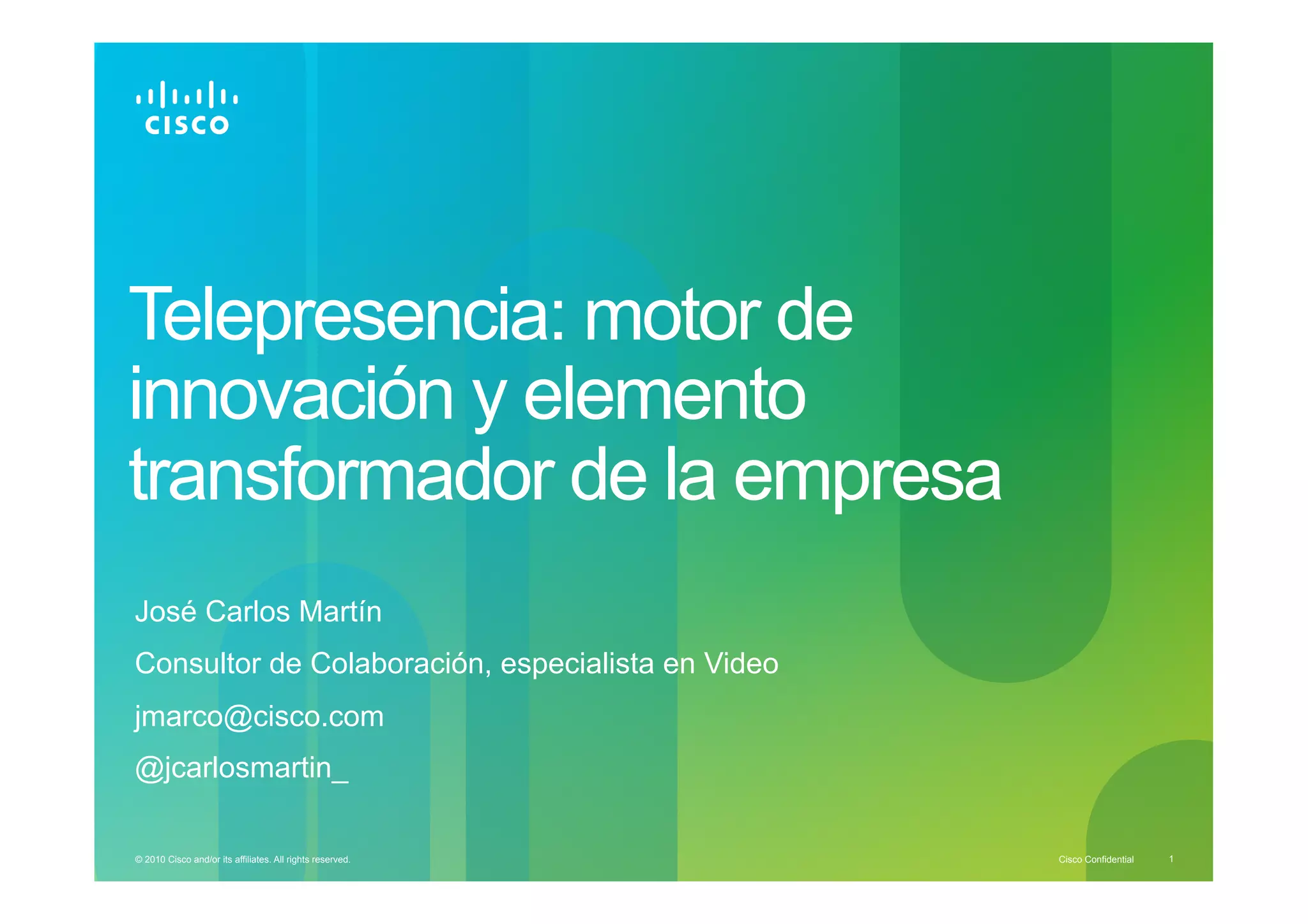

- 1. Telepresencia: motor de innovacióny elemento transformador de la empresa José Carlos Martín Consultor de Colaboración, especialista en Video jmarco@cisco.com @jcarlosmartin_ © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1
- 2. Distinguishing Immersive TelePresencefrom Video Conferencing • Remote participants were considered second tier • Remote Controls/GUI too complicated • Unreliable • Remote participants life size • Spatial audio • Simplified user interface, minimal action needed by end user • Reliable © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2

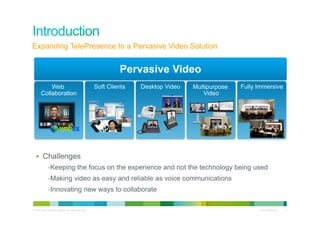

- 3. Expanding TelePresence toa Pervasive Video Solution Pervasive Video Web Soft Clients Desktop Video Multipurpose Fully Immersive Collaboration Video § Challenges - Keeping the focus on the experience and not the technology being used - Making video as easy and reliable as voice communications - Innovating new ways to collaborate © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

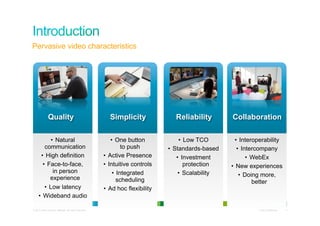

- 4. Pervasive video characteristics Quality Simplicity Reliability Collaboration • Natural • One button • Low TCO • Interoperability communication to push • Standards-based • Intercompany • High definition • Active Presence • Investment • WebEx • Face-to-face, • Intuitive controls protection • New experiences in person • Integrated • Scalability • Doing more, experience scheduling better • Low latency • Ad hoc flexibility • Wideband audio © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

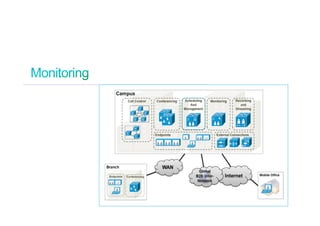

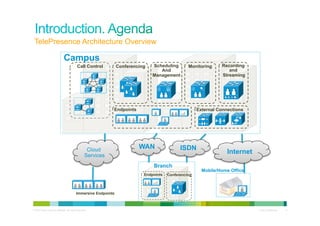

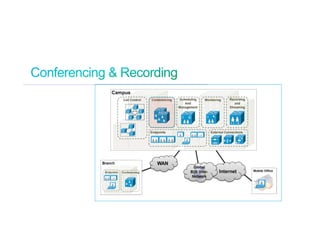

- 5. TelePresence Architecture Overview Campus Call Control Conferencing Scheduling Monitoring Recording And and Management Streaming Endpoints External Connections Cloud WAN ISDN Services Internet Branch Mobile/Home Office Endpoints Conferencing Immersive Endpoints © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

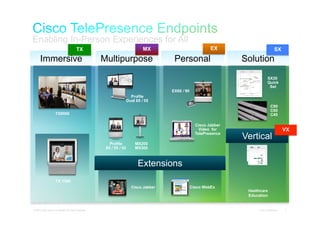

- 7. Enabling In-Person Experiencesfor All TX MX EX SX Immersive Multipurpose Personal Solution SX20 Quick Set EX60 / 90 Profile Dual 65 / 55 C90 C60 TX9000 C40 Cisco Jabber Video for VX TelePresence Vertical Profile MX200 65 / 55 / 42 MX300 Extensions TX 1300 Cisco Jabber Cisco WebEx Healthcare Education © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7
- 8. TX 9000 series ©2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8

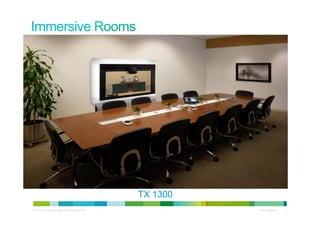

- 9. TX 1300 © 2010Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9
- 10. New Immersive Benchmark Award Winning Video Products Native 1080p TelePresence Native 1080p/60fps Cameras 65’ Native 1080p Plasmas 3 x 2-Seat Table Segments (6 people) Cisco TelePresence Experience Full Size, Life Like Spatial Audio Auto Collaborate for Data Video Sharing One Button to Push for Scheduled Meetings Audio Add-in © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10

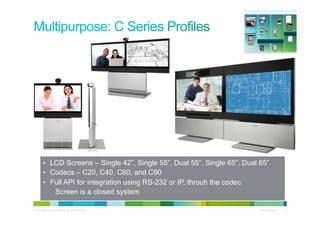

- 11. • LCD Screens– Single 42”, Single 55”, Dual 55”, Single 65”, Dual 65” • Codecs – C20, C40, C60, and C90 • Full API for integration using RS-232 or IP, throuh the codec. Screen is a closed system © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11
- 12. © 2010 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 12

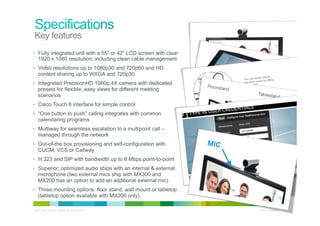

- 13. Key features • Fullyintegrated unit with a 55” or 42” LCD screen with clear 1920 x 1080 resolution; including clean cable management • Video resolutions up to 1080p30 and 720p60 and HD content sharing up to WXGA and 720p30 • Integrated PrecisionHD 1080p 4X camera with dedicated presets for flexible, easy views for different meeting scenarios • Cisco Touch 8 interface for simple control • “One button to push” calling integrates with common calendaring programs • Multiway for seamless escalation to a multipoint call – managed through the network • Out-of-the box provisioning and self-configuration with CUCM, VCS or Callway • H.323 and SIP with bandwidth up to 6 Mbps point-to-point • Superior, optimized audio ships with an internal & external microphone (two external mics ship with MX300 and MX200 has an option to add an additional external mic) • Three mounting options: floor stand, wall mount or tabletop (tabletop option available with MX200 only) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13
- 14. Personal TelePresence for knowledge workers © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14
- 15. • EX90 and EX60 are personal desktop products • LCD Screen – Single 25” and 20.5” • Codec – built-in. • EX90 has options for Dual Display and MultiSite. Also has an extra HDMI input © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15
- 16. Cisco Jabber Videocomplements the Cisco TelePresence portfolio with a global solution to allow customers to simply add external contacts into their video calling network. Extend video network to: Vendors, partners, and suppliers. E.g. ad agencies, logistics/parts vendors, boutique services firms Interviewees, guest speakers Highly mobile or remote employees Send a simple invite to connect on video with others © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16

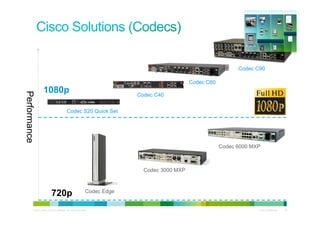

- 17. Codec C90 Codec C60 1080p Performance Codec C40 Codec S20 Quick Set Codec 6000 MXP Codec 3000 MXP 720p Codec Edge © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17

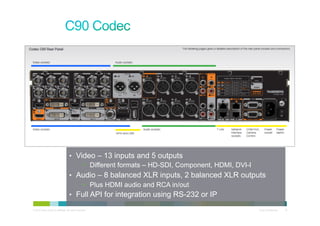

- 18. • Video –13 inputs and 5 outputs • Different formats – HD-SDI, Component, HDMI, DVI-I • Audio – 8 balanced XLR inputs, 2 balanced XLR outputs • Plus HDMI audio and RCA in/out • Full API for integration using RS-232 or IP © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 18
- 19. Small, medium orlarge conference rooms © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19
- 20. High Performance andFlexibility Key features • Transforms a flat panel display into a 1080p HD meeting space • Provides up to 1080p60 main video and 1080p15 content sharing • 4-way embedded MultiSite. • Sleek, compact design • Same UI, feature set, and APIs as C-Series portfolio (TC 5.0) • Cisco Telepresence Touch 8 (optional) Customer benefits • Best value offering in the market • Compact and flexible for your individual video needs. • Consistent and easy – Part of the Cisco Total Solution © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 20

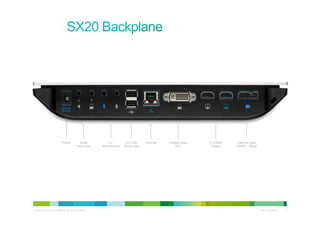

- 21. Power Audio 2x 2 x USB Ethernet Content input 2 x HDMI Camera Input Line in/out Microphones (future use) DVI-I Output (HDMI + Visca) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 21
- 22. • Consulta a especialistaremoto • Equipo virtual de atención • Educación médica • Tradución de idiomas • Sanidad rural • Teleasistencia © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 22

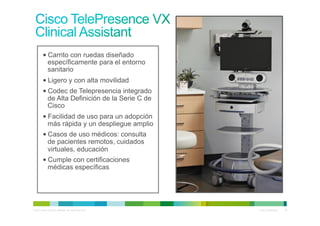

- 23. • Carrito con ruedasdiseñado específicamente para el entorno sanitario • Ligero y con alta movilidad • Codec de Telepresencia integrado de Alta Definición de la Serie C de Cisco • Facilidad de uso para un adopción más rápida y un despliegue amplio • Casos de uso médicos: consulta de pacientes remotos, cuidados virtuales, educación • Cumple con certificaciones médicas específicas © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23
- 24. Expand the Learning ©2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24

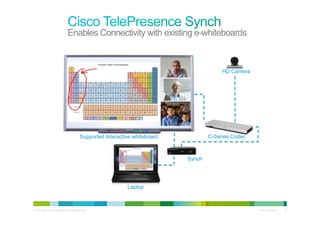

- 25. Enables Connectivity withexisting e-whiteboards HD Camera Supported Interactive whiteboard C-Series Codec Synch Laptop © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25
- 26. © 2010 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 26
- 27. All-in-one UC Application Collaborate from Any Workspace Presence & IM PC, Mac, tablet, smart phone Voice, Video, voice messaging On-premise and Cloud models Desktop sharing, conferencing Integration with Microsoft Office © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28

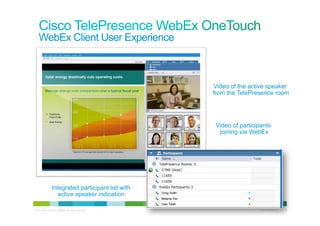

- 28. WebEx Client UserExperience Video of the active speaker from the TelePresence room Video of participants joining via WebEx Integrated participant list with active speaker indication © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 29

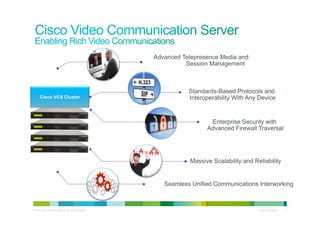

- 30. Advanced Telepresence Mediaand Session Management Standards-Based Protocols and Cisco VCS Cluster Interoperability With Any Device Enterprise Security with Advanced Firewall Traversal Massive Scalability and Reliability Seamless Unified Communications Interworking © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31
- 31. VCS VCS VCS Starter Pack Express Control Expressway Entry-Level Medium-Large B2B Communications / Small-Medium Enterprises Enterprises Service Providers © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 32

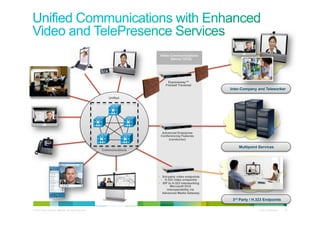

- 32. Video Communications Server (VCS) Expressway™ Firewall Traversal Inter-Company and Teleworker Unified Advanced Enterprise Conferencing Features (conductor) Multipoint Services Communications SIP • 3rd-party video endpoints • H.323 video endpoints • SIP to H.323 interworking • Microsoft OCS interoperability via Advanced Media Gateway 3rd Party / H.323 Endpoints © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 33

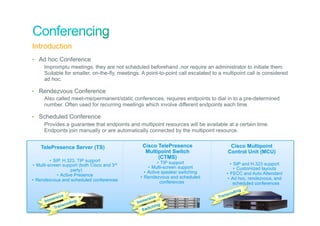

- 34. Introduction • Ad hocConference Impromptu meetings, they are not scheduled beforehand ,nor require an administrator to initiate them. Suitable for smaller, on-the-fly, meetings. A point-to-point call escalated to a multipoint call is considered ad hoc. • Rendezvous Conference Also called meet-me/permanent/static conferences, requires endpoints to dial in to a pre-determined number. Often used for recurring meetings which involve different endpoints each time. • Scheduled Conference Provides a guarantee that endpoints and multipoint resources will be available at a certain time. Endpoints join manually or are automatically connected by the multipoint resource. TelePresence Server (TS) Cisco TelePresence Cisco Multipoint Multipoint Switch Control Unit (MCU) (CTMS) • SIP, H.323, TIP support • TIP support • Multi-screen support (both Cisco and 3rd • SIP and H.323 support • Multi-screen support • Customized layouts party) • Active speaker switching • Active Presence • FECC and Auto Attendant • Rendezvous and scheduled • Ad hoc, rendezvous, and • Rendezvous and scheduled conferences conferences scheduled conferences ing cod sive ve Tr ans Immer ersi ing Imm cod Tr ans hing © 2010 Cisco and/or its affiliates. All rights reserved. S witc Cisco Confidential 35

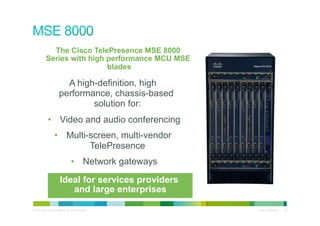

- 35. The Cisco TelePresenceMSE 8000 Series with high performance MCU MSE blades A high-definition, high performance, chassis-based solution for: • Video and audio conferencing • Multi-screen, multi-vendor TelePresence • Network gateways Ideal for services providers and large enterprises © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 36

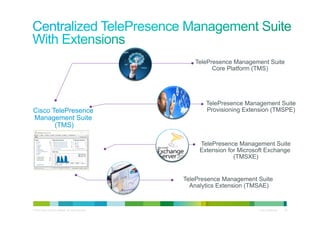

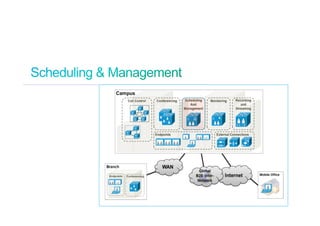

- 37. TelePresence Management Suite Core Platform (TMS) TelePresence Management Suite Cisco TelePresence Provisioning Extension (TMSPE) Management Suite (TMS) TelePresence Management Suite Extension for Microsoft Exchange (TMSXE) TelePresence Management Suite Analytics Extension (TMSAE) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 38

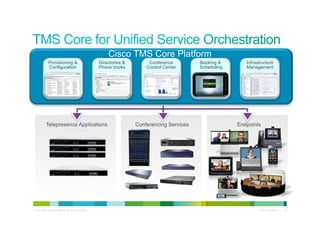

- 38. Cisco TMS CorePlatform Provisioning & Directories & Conference Booking & Infrastructure Configuration Phone books Control Center Scheduling Management Telepresence Applications Conferencing Services Endpoints © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 39

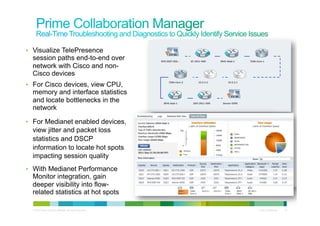

- 40. • Visualize TelePresence session paths end-to-end over network with Cisco and non- Cisco devices • For Cisco devices, view CPU, memory and interface statistics and locate bottlenecks in the network • For Medianet enabled devices, view jitter and packet loss statistics and DSCP information to locate hot spots impacting session quality • With Medianet Performance Monitor integration, gain deeper visibility into flow- related statistics at hot spots © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 41

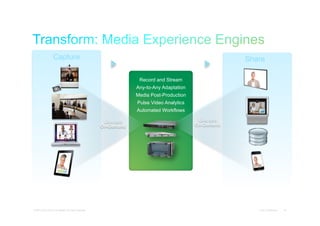

- 42. Capture Share Transform Record and Stream Any-to-Any Adaptation Media Post-Production Pulse Video Analytics Automated Workflows Live and Live and On-Demand On-Demand © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 43

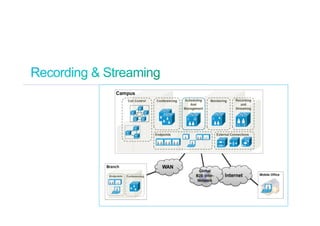

- 43. Record Manage Distribute Share • Create media • Web based media • External Streaming • Standards-based H. outputs portal – on demand or live: 323 and SIP automatically endpoints • Onboard Windows • Windows Media • Create additional Media Streaming • Wowza Media • Studio mode, outputs as required Server – on demand Server Meetings and Event – no lock in or live • QuickTime recording Streaming Server • Local and NAS • Downloadable • Integrated endpoint Storage outputs • Content Delivery record control Networks • Local and Active • Portable device • Synchronized video Directory specifc outputs • Unicast & multicast and presentation authentication and access control • Playback to • Podcast Producer • Five concurrent Endpoints calls, up to two of • Cluster for scale • iTunes U which can be and resilience streamed live • Show and Share © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 44
