1. CloudStack European User Group
27 February 2020 -Berlin
Giles Sirett
Chairman - CEUG
Twitter:@Cloudstack

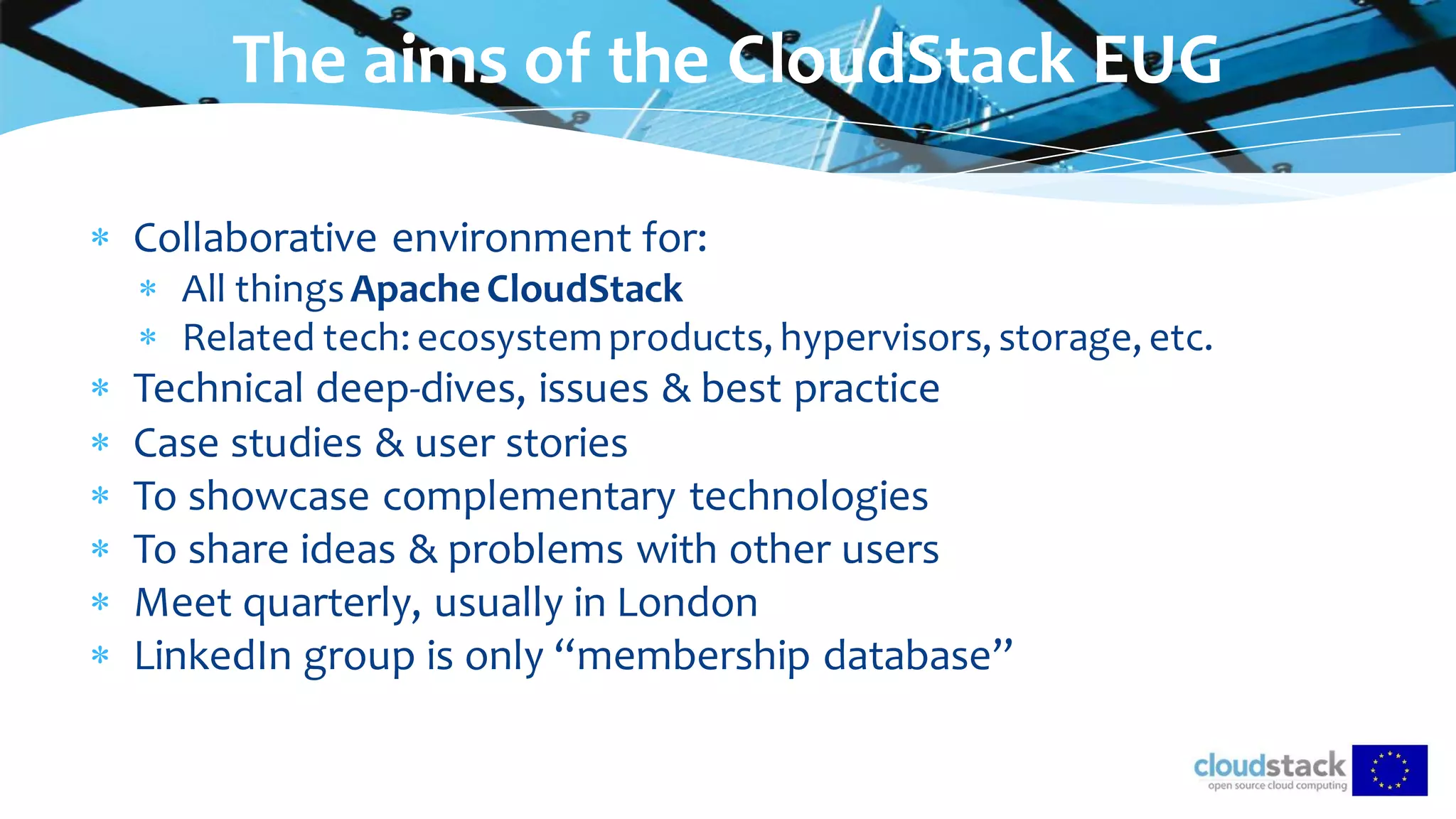

2.  Collaborative environment for:
 All thingsApache CloudStack
 Related tech: ecosystemproducts, hypervisors, storage, etc.
 Technical deep-dives, issues & best practice
 Case studies & user stories
 To showcase complementary technologies
 To share ideas & problems with other users
 Meet quarterly, usually in London
 LinkedIn group is only “membership database”
The aims of the CloudStack EUG

3. Thanks to today’s sponsors

4.  13:00 Welcome and CloudStack news – Giles Sirett
 13:15 Importing VMware infrastructures into CloudStack - Andre
Paul, Itelligence
 14:00 CloudStack and Terraform – Robert Sander, Heinlein-
Support
 14:45-15:15 Break
 15:15 Primate, a new CloudStack UI - Paul Angus, ShapeBlue
 16:00 Running Cloudstack and OpenShift with NetApp on KVM-
Sven Vogel, Ewerk
 17:00 Drinks
Today’s Agenda

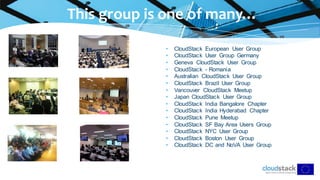

5. • CloudStack European User Group
• CloudStack User Group Germany
• Geneva CloudStack User Group
• CloudStack - Romania
• Australian CloudStack User Group
• CloudStack Brazil User Group
• Vancouver CloudStack Meetup
• Japan CloudStack User Group
• CloudStack India Bangalore Chapter
• CloudStack India Hyderabad Chapter
• CloudStack Pune Meetup
• CloudStack SF Bay Area Users Group
• CloudStack NYC User Group
• CloudStack Boston User Group
• CloudStack DC and NoVA User Group
This group is one of many…

6. C l i c k t o e d i t
 CloudStack Collaboration Conferences
http://Cloudstackcollab.org

7. Development
community
EUUG
User
Group
User
Group
User
Group
User
Group
User
Group
Cloudstack
collaboration
conference

8. First time here?

9. C l i c k t o e d i t
@CloudStack @GilesSirett
 W h at i s C l ou d S t ac k ?
Apache CloudStackis a scalable, multi-
tenant, open-source, purpose-built,
cloud orchestration platform for
delivering turnkeyInfrastructure-as-a-
Service clouds

10. C l i c k t o e d i t
@CloudStack @GilesSirett
 Cl o u d st ack “ k n o w n u s e r s ”

11. C l i c k t o e d i t
@CloudStack @GilesSirett
 Cl ou d s t ac k *k n own u s er s ”

12. C l i c k t o e d i t
@CloudStack @GilesSirett
 C l ou d S t ac k * k n ow n * u s er s

13. C l i c k t o e d i t
@CloudStack @GilesSirett

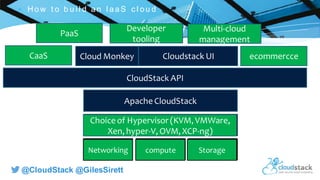

 H ow t o b u i l d an IaaS c l ou d
compute StorageNetworking
Hypervisor
CMP - Orchestration layer
orchestrationAPI
eCommerce Platform
Choice of Hypervisor (KVM, VMWare,
Xen, hyper-V, OVM, XCP-ng)
Apache CloudStack
Cloudstack UI
CloudStack API
CaaS ecommercce
Networking compute Storage
PaaS
Developer
tooling
Multi-cloud
management
Cloud Monkey

14. C l i c k t o e d i t
@CloudStack @GilesSirett
 K ey c l ou d S t ac k f eat u r es
• Broad & deep Hypervisor support
• XenServer, KVM, VMware, OracleVM, Hyper-V, XCP-ng
• Enterprisegrade tenant Virtual Networking model
• Scalable architecture
• Support thousands of hosts and virtual machine
guests
• Largest known production cloud 35k+ physical hosts
• High availability
• Configurations that provide automatic failover for
virtualmachines
• Choice of interfaces
• Web UI, command line, REST-based API

15. C l i c k t o e d i t

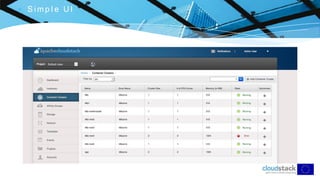

 S i m p l e U I

16. C l i c k t o e d i t

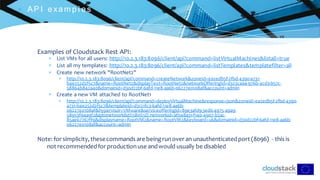

 AP I exam p l es
Examples of Cloudstack Rest API:
 List VMs for all users: http://10.2.3.183:8096/client/api?command=listVirtualMachines&listall=true
 List all my templates: http://10.2.3.183:8096/client/api?command=listTemplates&templatefilter=all
 Create new network "RootNet2"
 http://10.2.3.183:8096/client/api?command=createNetwork&zoneId=ea2edb5f-2fbd-4390-a731-
b4e252d2f5c7&name=RootNet2&displayText=RootNet2&networkOfferingId=d323caa4-976b-4cd3-b57c-
58864b842a40&domainid=d30d22bf-6afd-11e8-aa6b-06227e0108af&account=admin
 Create a new VM attached to RootNet1
 http://10.2.3.183:8096/client/api?command=deployVirtualMachine&response=json&zoneid=ea2edb5f-2fbd-4390-
a731-b4e252d2f5c7&templateid=d3121fc3-6afd-11e8-aa6b-
06227e0108af&hypervisor=VMware&serviceofferingid=89e3afd9-3ed6-4975-a9a9-
58953f94a9f2&iptonetworklist%5B0%5D.networkid=af048a31-f140-4907-b2ac-
85ae67767ff9&displayname=RootVM2&name=RootVM2&keyboard=uk&domainid=d30d22bf-6afd-11e8-aa6b-
06227e0108af&account=admin
Note: for simplicity, thesecommands are beingrunover an unauthenticatedport (8096) - this is
not recommendedfor productionuse andwould usually be disabled

17. C l i c k t o e d i t

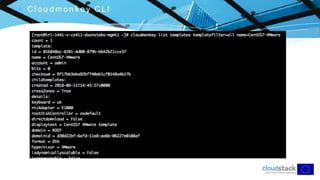

 C l ou d m on k ey C L I

18. C l i c k t o e d i t

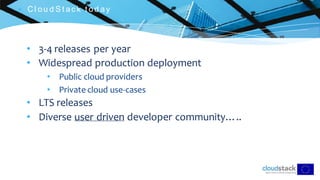

 C l ou d S t ac k t od ay
• 3-4 releases per year
• Widespread production deployment
• Public cloud providers
• Private cloud use-cases
• LTS releases
• Diverse user driven developer community…..

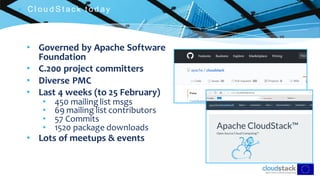

19. C l i c k t o e d i t
 C l ou d S t ac k t od ay
• Governed by Apache Software
Foundation
• C.200 project committers
• Diverse PMC
• Last 4 weeks (to 25 February)
• 450 mailing list msgs
• 69 mailing list contributors
• 57 Commits
• 1520 package downloads
• Lots of meetups & events

20. CloudStack News

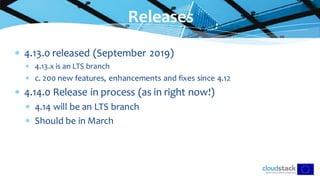

21.  4.13.0 released (September 2019)
 4.13.x is an LTS branch
 c. 200 new features, enhancements and fixes since 4.12
 4.14.0 Release in process (as in right now!)
 4.14 will be an LTS branch
 Should be in March
Releases

22. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists

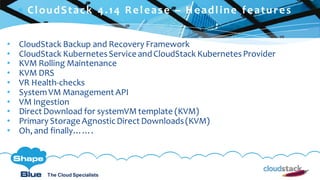

• CloudStack Backup and Recovery Framework
• CloudStack KubernetesService andCloudStack KubernetesProvider
• KVM Rolling Maintenance
• KVM DRS
• VR Health-checks
• SystemVM Management API
• VM Ingestion
• Direct Download for systemVM template (KVM)
• Primary Storage AgnosticDirect Downloads(KVM)
• Oh, and finally…….
 CloudStack 4.14 Release – Headline features

23. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists

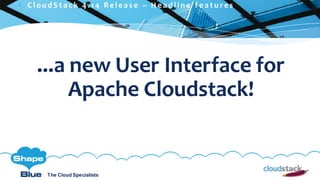

...a new User Interface for
Apache Cloudstack!
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

24. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists
KVM Rolling Maintenance
• Select a zone, pod or cluster
• Supply upgrade/patching scripts to KVM hosts
• Instruct CloudStack to run scripts on the hosts one by one in a
cluster, evacuating a host and putting it into maintenance
mode where necessary
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

25. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists

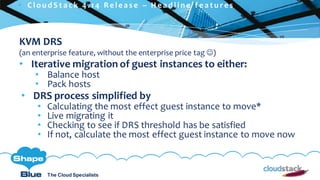

KVM DRS
(an enterprise feature, without the enterprise price tag ☺)
• Iterative migration of guest instances to either:
• Balance host
• Pack hosts
• DRS process simplified by
• Calculating the most effect guest instance to move*
• Live migrating it
• Checking to see if DRS threshold has be satisfied
• If not, calculate the most effect guest instance to move now
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

26. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists

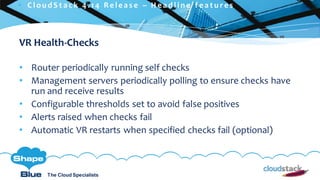

VR Health-Checks
• Router periodically running self checks
• Management servers periodically polling to ensure checks have
run and receive results
• Configurable thresholds set to avoid false positives
• Alerts raised when checks fail
• Automatic VR restarts when specified checks fail (optional)
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

27. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists

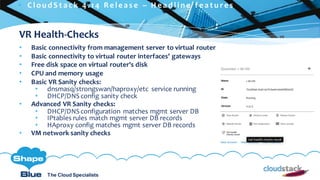

VR Health-Checks
• Basic connectivity from management server to virtual router
• Basic connectivity to virtual router interfaces' gateways
• Free disk space on virtual router's disk
• CPU and memory usage
• Basic VR Sanity checks:
• dnsmasq/strongswan/haproxy/etc service running
• DHCP/DNS config sanity check
• Advanced VR Sanity checks:
• DHCP/DNS configuration matches mgmt server DB
• IPtables rules match mgmt server DB records
• HAproxy config matches mgmt server DB records
• VM network sanity checks
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

28. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists
System VM Management API
• Enables granular management over systemVM templates
 Register many, change the “active” one at any time
• Define systemVM template during zone deployment
 no more pre-seeding of the template required
• Decouple ACS upgrades from systemVM upgrade
• Allow for easy setup of new/customized systemVM template
 Security patches, port opening, other customizations
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

29. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists
System VM Management API
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

30. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists

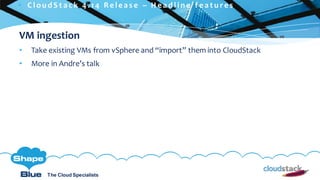

VM ingestion
• Take existing VMs from vSphere and “import” them into CloudStack
• More in Andre’s talk
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

31. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists

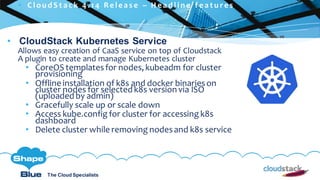

• CloudStack Kubernetes Service
Allows easy creation of CaaS service on top of Cloudstack
A plugin to create and manage Kubernetes cluster
• CoreOS templatesfor nodes, kubeadm for cluster
provisioning
• Offline installation of k8s and docker binarieson
cluster nodes for selected k8s version via ISO
(uploaded by admin)
• Gracefully scale up or scale down
• Access kube.config for cluster for accessing k8s
dashboard
• Delete cluster while removing nodesand k8s service
 C l ou d S t a c k 4 . 1 4 R e l e a s e – H e a d l i n e f e a t u r e s

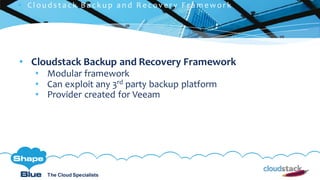

32. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists
• Cloudstack Backup and Recovery Framework
• Modular framework
• Can exploit any 3rd party backup platform
• Provider created for Veeam
 C l ou d s t a c k B a c k u p a n d R e c ov e r y F r a m e wor k

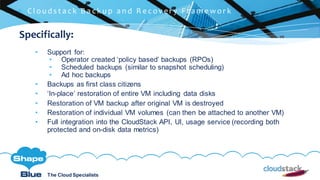

33. C l i c k t o e d i t
The Cloud Specialists
ShapeBlue.com @ShapeBlueThe Cloud Specialists
Specifically:
• Support for:
• Operator created ‘policy based’ backups (RPOs)
• Scheduled backups (similar to snapshot scheduling)
• Ad hoc backups
• Backups as first class citizens
• ‘In-place’ restoration of entire VM including data disks
• Restoration of VM backup after original VM is destroyed
• Restoration of individual VM volumes (can then be attached to another VM)
• Full integration into the CloudStack API, UI, usage service (recording both
protected and on-disk data metrics)
 C l ou d s t a c k B a c k u p a n d R e c ov e r y F r a m e wor k

34. C l i c k t o e d i t
The Cloud Specialists
@ShapeBlueShapeBlue.comThe Cloud Specialists
 C l ou d s t a c k B a c k u p a n d R e c ov e r y F r a m e wor k

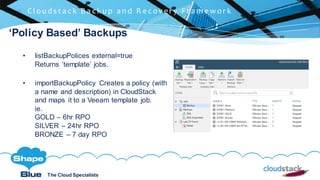

‘Policy Based’ Backups
• listBackupPolices external=true
Returns ‘template’ jobs.
• importBackupPolicy Creates a policy (with
a name and description) in CloudStack
and maps it to a Veeam template job.
ie.
GOLD – 6hr RPO
SILVER – 24hr RPO
BRONZE – 7 day RPO

35. C l i c k t o e d i t
The Cloud Specialists
@ShapeBlueShapeBlue.comThe Cloud Specialists
 C l ou d s t a c k B a c k u p a n d R e c ov e r y F r a m e wor k
‘Ad-hoc’ & Scheduled Backups
• CloudStack will send command to carry
out an ad-hoc run of the policy based job
or create one as required.
• Ad-hoc and scheduled jobs will be driven
by CloudStack
• One VM to one Veeam job mapping allows
for simpler accounting and unified
incremental backups

36. New User Interface

37. C l i c k t o e d i t
 C om m u n i t y n ew s
• Special Interest Group (SIG) created for Primate UI
Provided effective way of accelerating development
Has proved successful, although lessons learnt
• Sig currently being setup for SDN
• New VP/Chair of Apache Cloudstack
Currently being selected by PMC

38. CloudStack Events

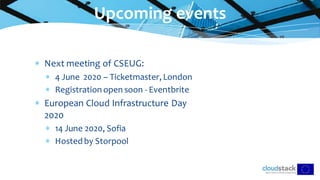

39.  Next meeting of CSEUG:
 4 June 2020 – Ticketmaster, London
 Registration open soon - Eventbrite
 European Cloud Infrastructure Day
2020
 14 June 2020, Sofia
 Hosted by Storpool
Upcoming events

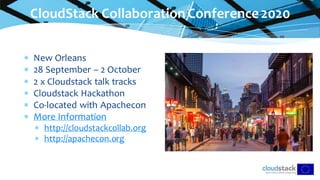

40. CloudStack CollaborationConference2020
 New Orleans
 28 September – 2 October
 2 x Cloudstack talk tracks
 Cloudstack Hackathon
 Co-located with Apachecon
 More Information
 http://cloudstackcollab.org
 http://apachecon.org

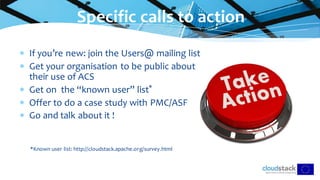

41.  If you’re new: join the Users@ mailing list
 Get your organisation to be public about
their use of ACS
 Get on the “known user” list*
 Offer to do a case study with PMC/ASF
 Go and talk about it !
*Known user list: http://cloudstack.apache.org/survey.html
Specific calls to action

42. Our first speaker(s)
Andre Paul
Itelligence
Importing VMware infrastructures into CloudStack
