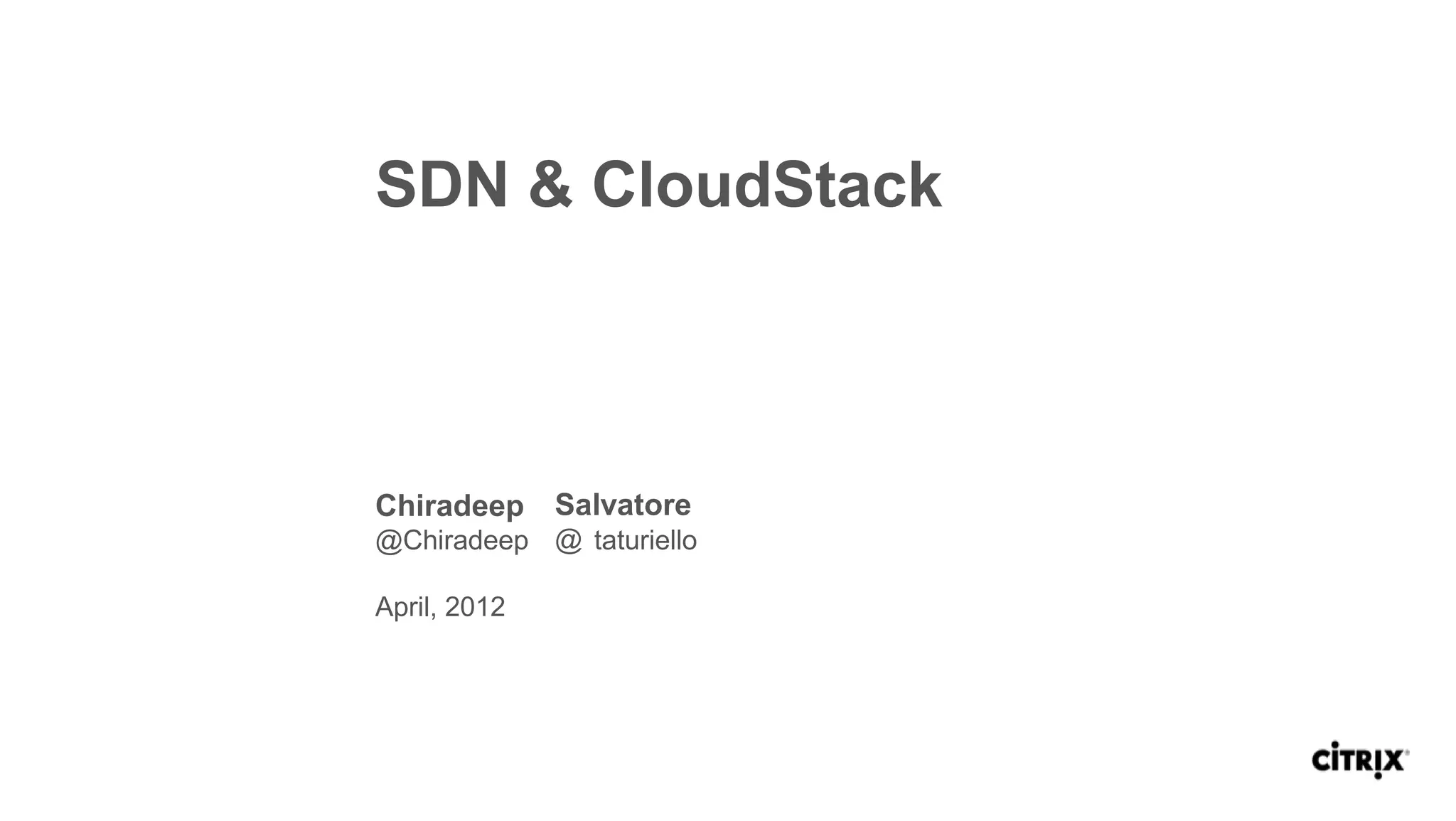

1. SDN & CloudStack
Chiradeep Salvatore
@Chiradeep @ taturiello
April, 2012

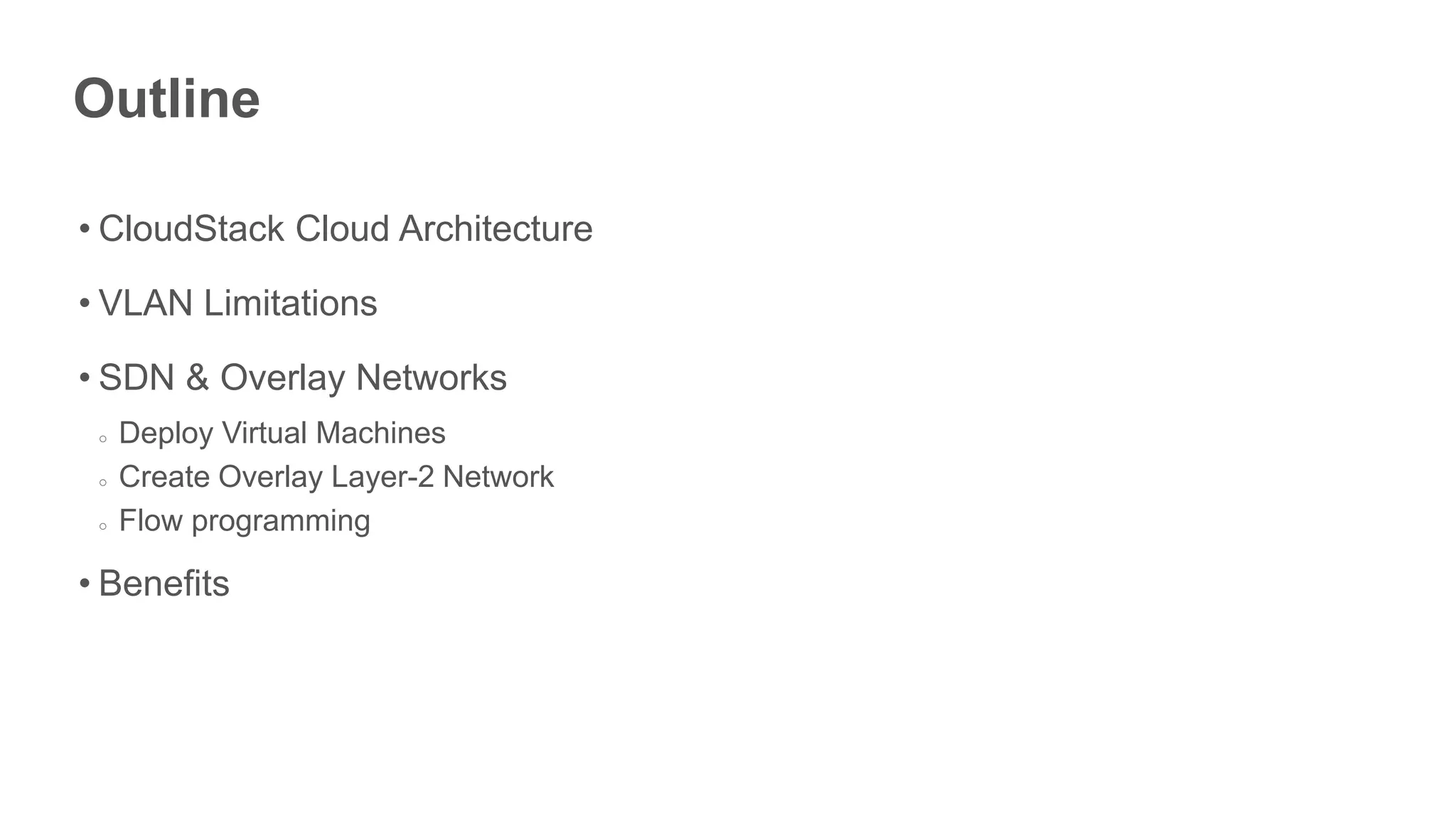

2. Outline
• CloudStack Cloud Architecture
• VLAN Limitations
• SDN & Overlay Networks
○ Deploy Virtual Machines
○ Create Overlay Layer-2 Network
○ Flow programming
• Benefits

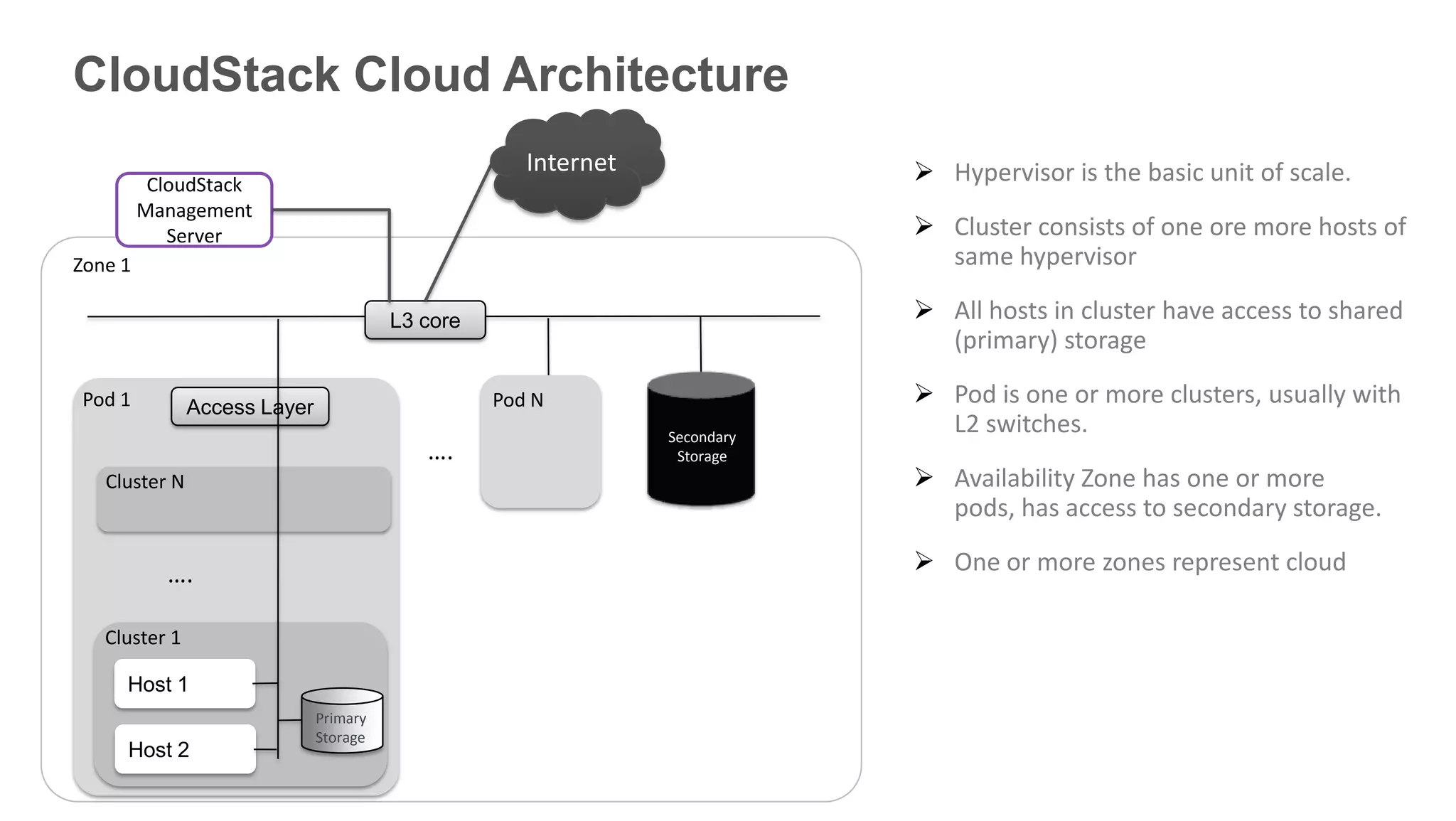

3. CloudStack Cloud Architecture
Internet  Hypervisor is the basic unit of scale.
CloudStack
Management
Server  Cluster consists of one ore more hosts of
Zone 1 same hypervisor
L3 core  All hosts in cluster have access to shared
(primary) storage
Pod 1 Access Layer Pod N  Pod is one or more clusters, usually with
Secondary
L2 switches.
…. Storage
Cluster N  Availability Zone has one or more
pods, has access to secondary storage.
….  One or more zones represent cloud
Cluster 1
Host 1
Primary
Storage
Host 2

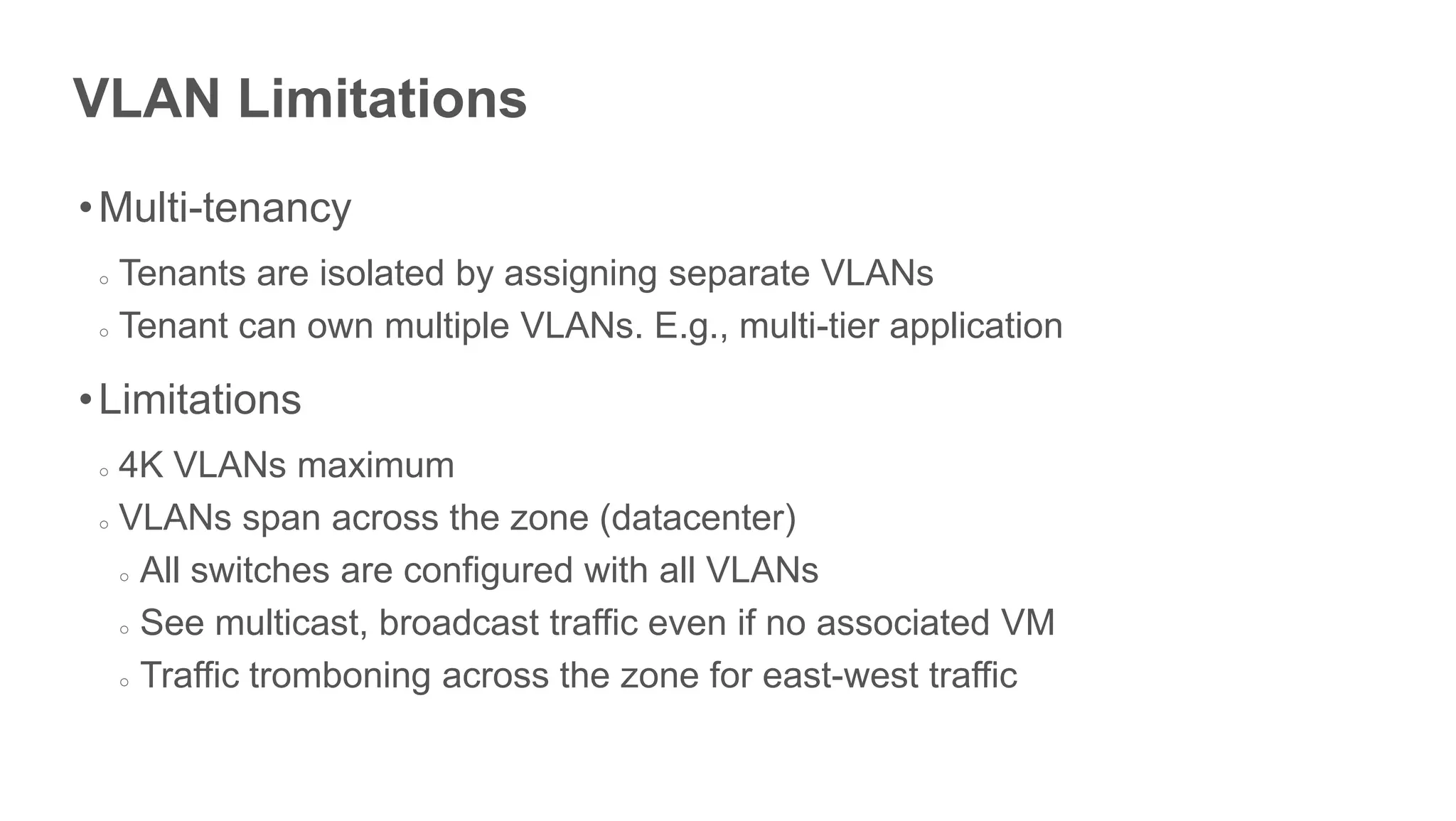

4. VLAN Limitations
• Multi-tenancy
○ Tenants are isolated by assigning separate VLANs
○ Tenant can own multiple VLANs. E.g., multi-tier application
• Limitations
○ 4K VLANs maximum
○ VLANs span across the zone (datacenter)
○ All switches are configured with all VLANs
○ See multicast, broadcast traffic even if no associated VM
○ Traffic tromboning across the zone for east-west traffic
Limit few hundred tenants per zone

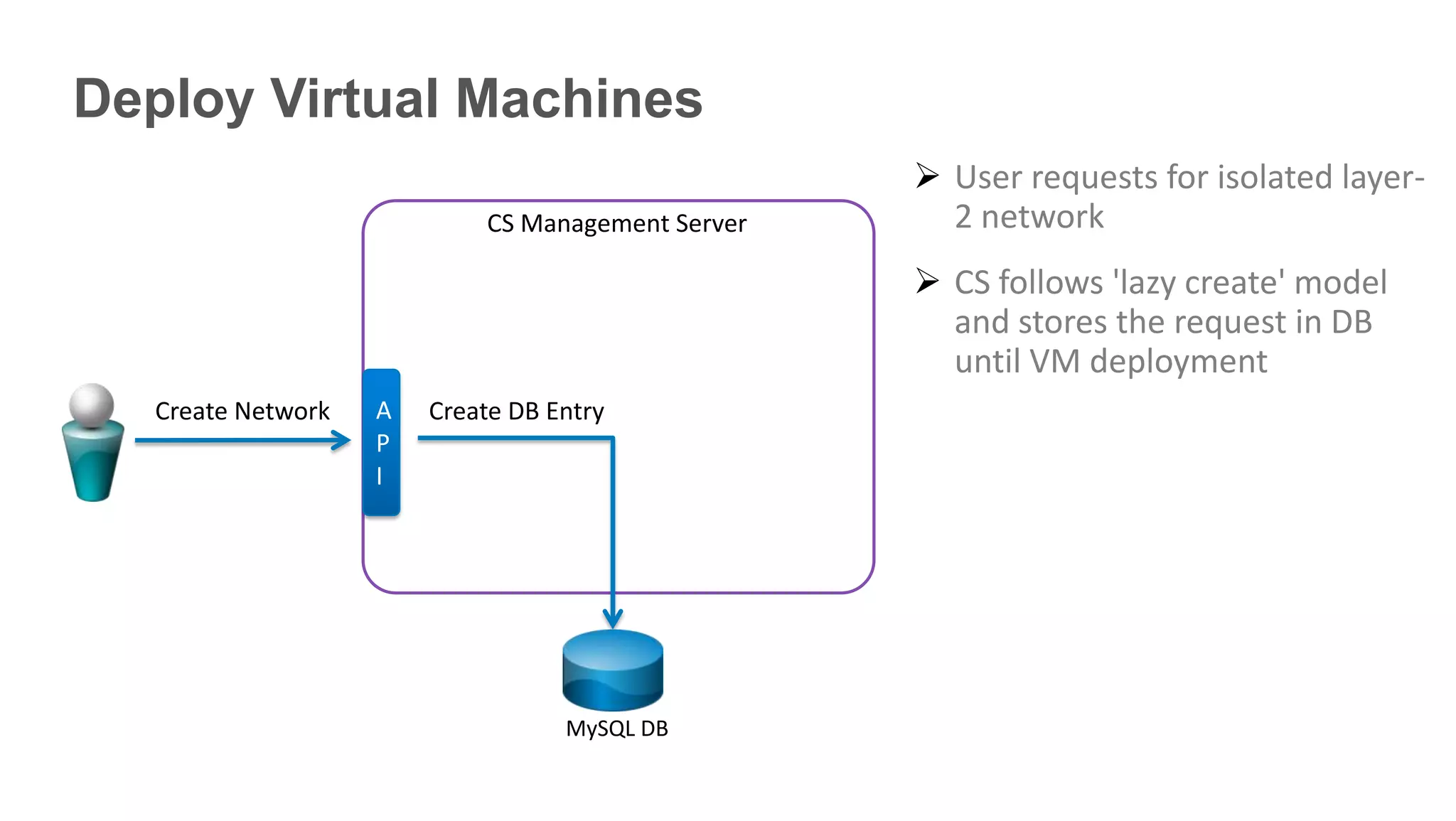

5. Deploy Virtual Machines
 User requests for isolated layer-
CS Management Server 2 network
 CS follows 'lazy create' model
and stores the request in DB
until VM deployment
Create Network A Create DB Entry
P
I
MySQL DB

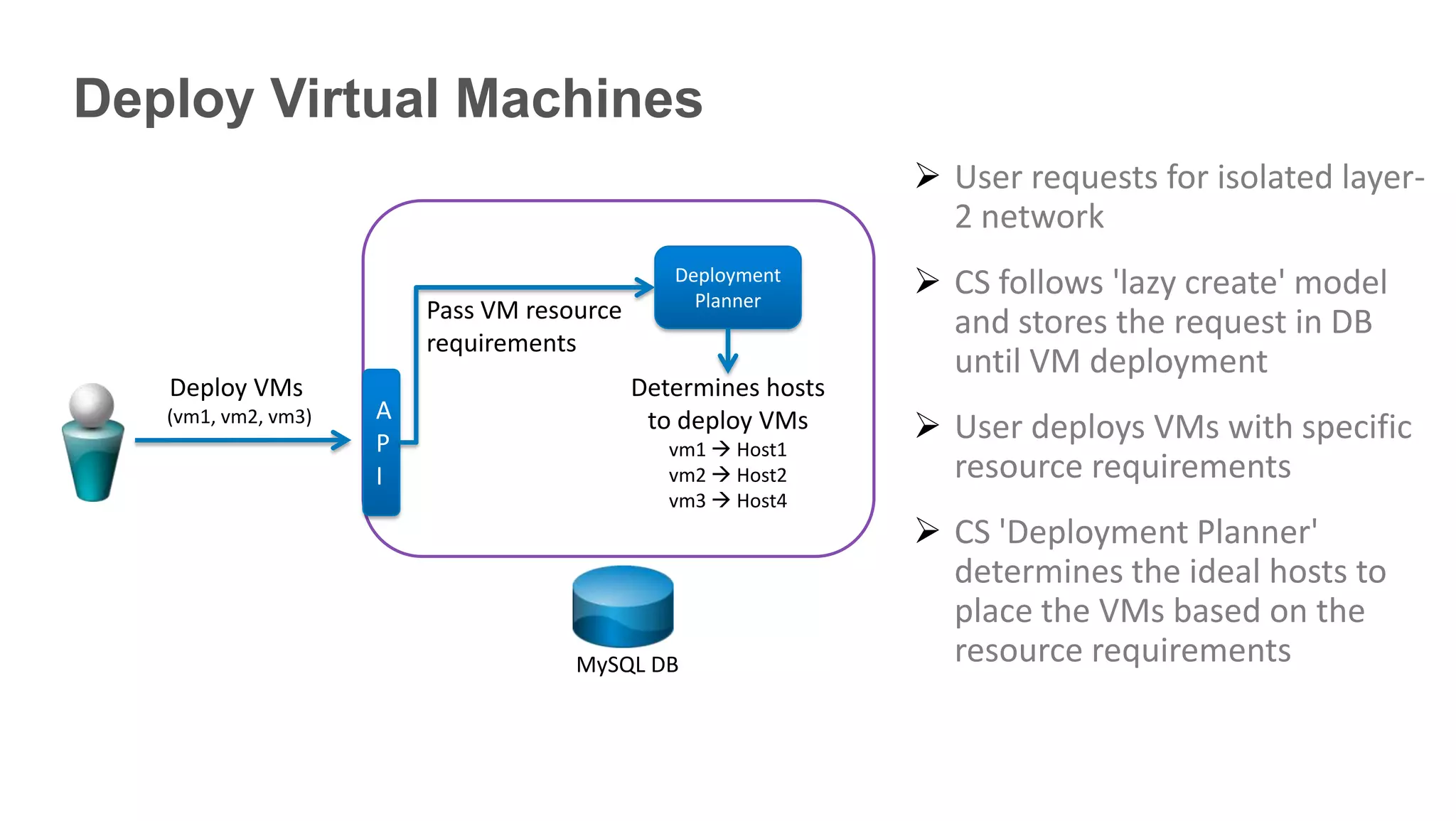

6. Deploy Virtual Machines
 User requests for isolated layer-
2 network
Deployment
Planner
 CS follows 'lazy create' model
Pass VM resource
and stores the request in DB
requirements
until VM deployment
Deploy VMs Determines hosts
A
(vm1, vm2, vm3)
P
to deploy VMs
vm1  Host1
 User deploys VMs with specific
I vm2  Host2 resource requirements
vm3  Host4
 CS 'Deployment Planner'
determines the ideal hosts to
place the VMs based on the
MySQL DB resource requirements

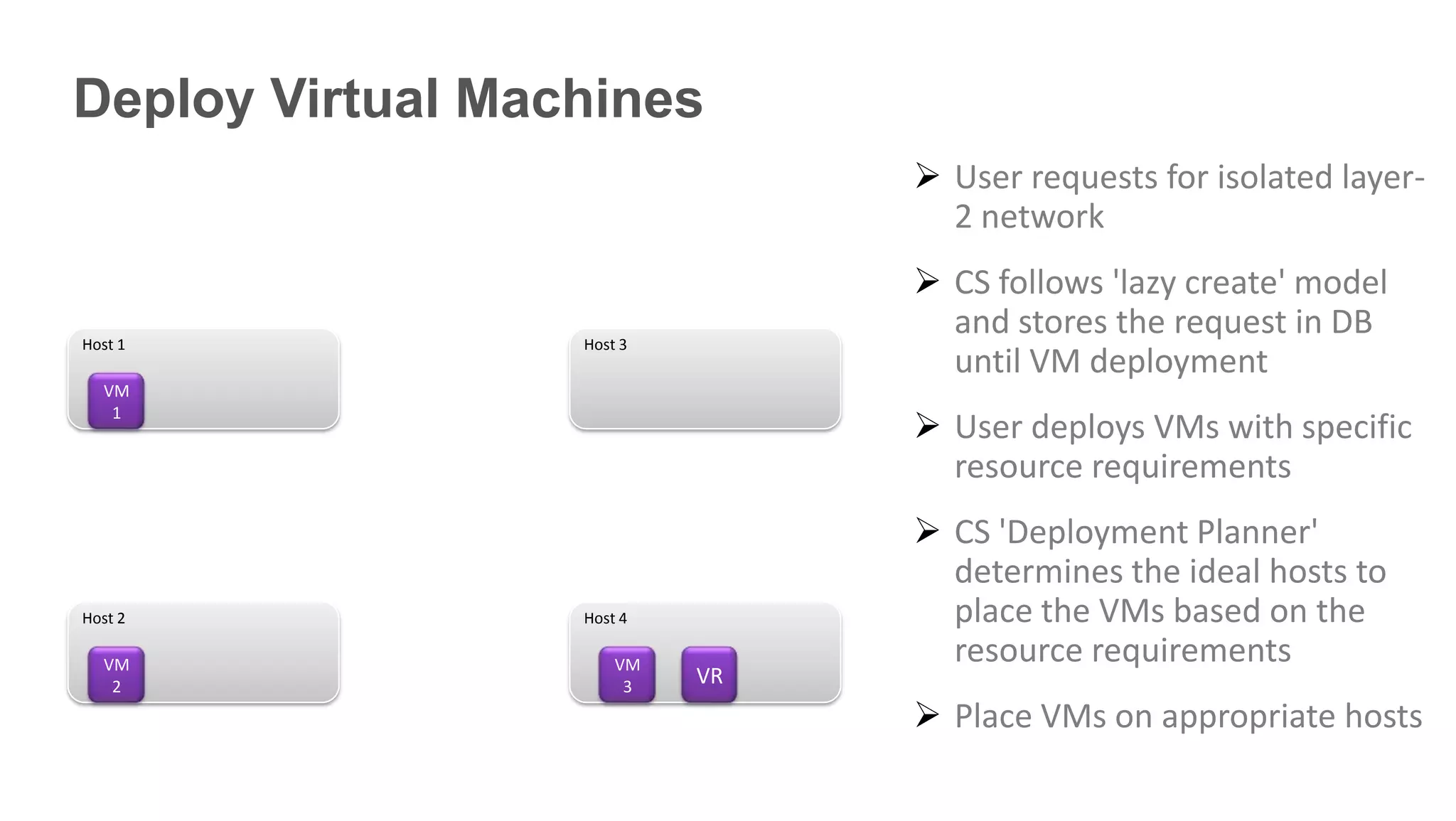

7. Deploy Virtual Machines
 User requests for isolated layer-
2 network
 CS follows 'lazy create' model
Host 1 Host 3
and stores the request in DB
until VM deployment
VM
1
 User deploys VMs with specific
resource requirements
 CS 'Deployment Planner'
determines the ideal hosts to
Host 2 Host 4 place the VMs based on the
VM VM resource requirements
2 3 VR
 Place VMs on appropriate hosts

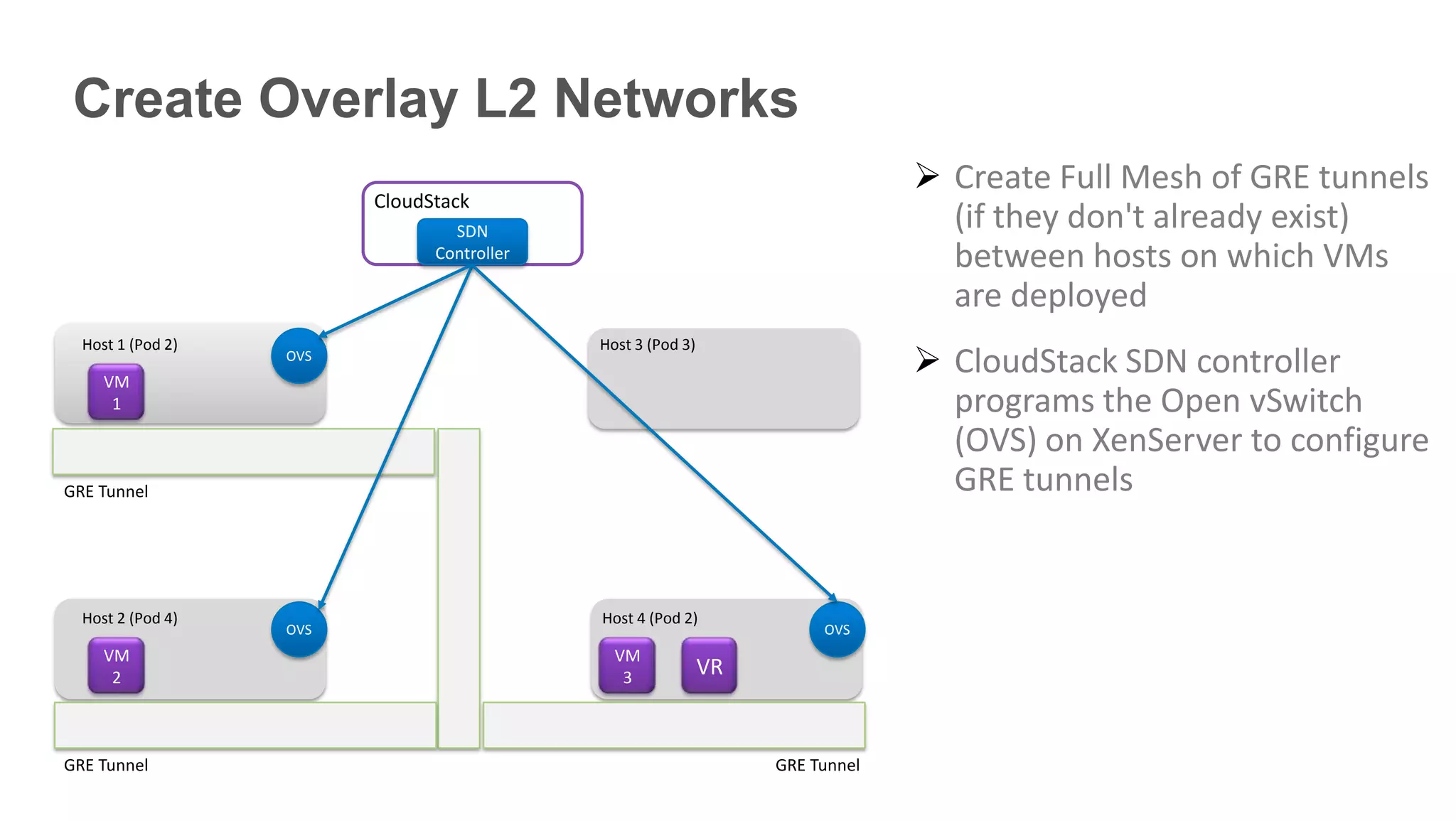

8. Create Overlay L2 Networks
 Create Full Mesh of GRE tunnels
CloudStack
SDN
(if they don't already exist)
Controller between hosts on which VMs
are deployed
Host 1 (Pod 2) Host 3 (Pod 3)
VM
OVS
 CloudStack SDN controller
1 programs the Open vSwitch
(OVS) on XenServer to configure
GRE Tunnel GRE tunnels
Host 2 (Pod 4) Host 4 (Pod 2)
OVS OVS
VM VM
2 3 VR
GRE Tunnel GRE Tunnel

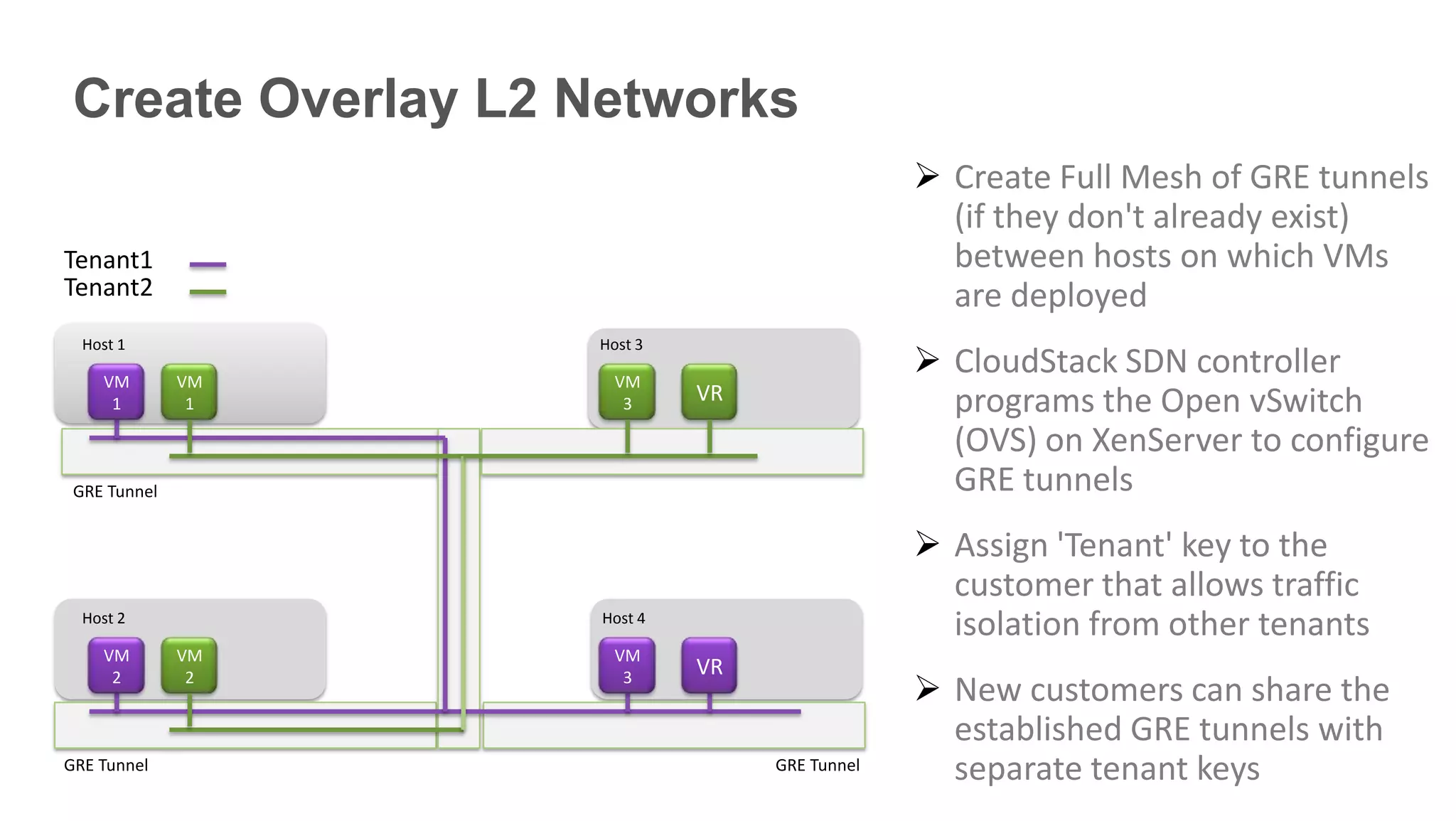

9. Create Overlay L2 Networks
 Create Full Mesh of GRE tunnels
(if they don't already exist)
Tenant1 between hosts on which VMs
Tenant2 are deployed
Host 1 Host 3
VM VM VM
 CloudStack SDN controller
1 1 3 VR programs the Open vSwitch
(OVS) on XenServer to configure
GRE Tunnel GRE tunnels
 Assign 'Tenant' key to the
customer that allows traffic
Host 2 Host 4
isolation from other tenants
VM VM VM
VR
2 2 3
 New customers can share the
established GRE tunnels with
GRE Tunnel GRE Tunnel separate tenant keys

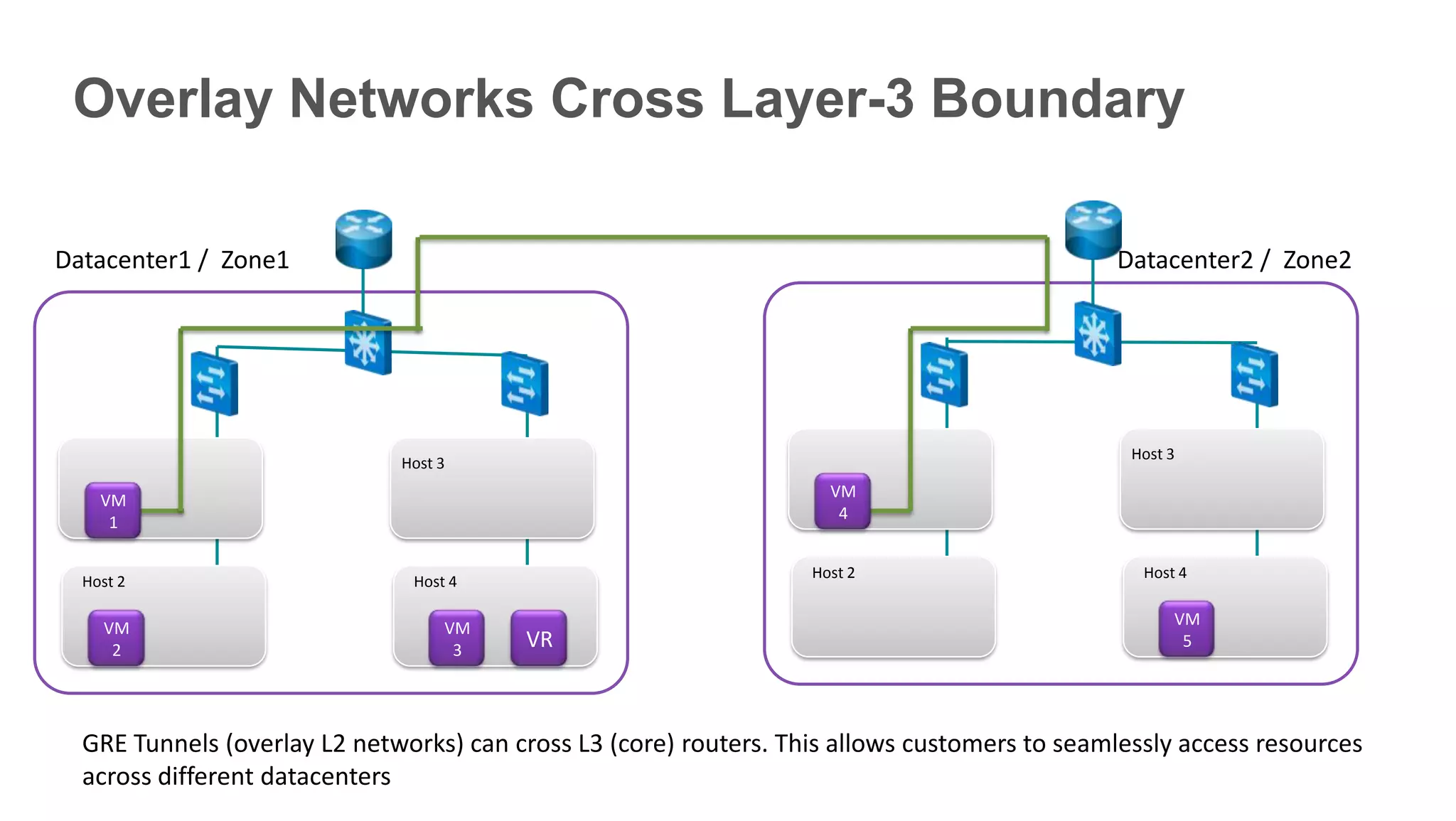

10. Overlay Networks Cross Layer-3 Boundary
Datacenter1 / Zone1 Datacenter2 / Zone2
Host 3
Host 3
Host 1
Host 1
VM
VM
4
1
Host 2 Host 4
Host 2 Host 4
VM
VM VM
2 3 VR 5
GRE Tunnels (overlay L2 networks) can cross L3 (core) routers. This allows customers to seamlessly access resources
across different datacenters

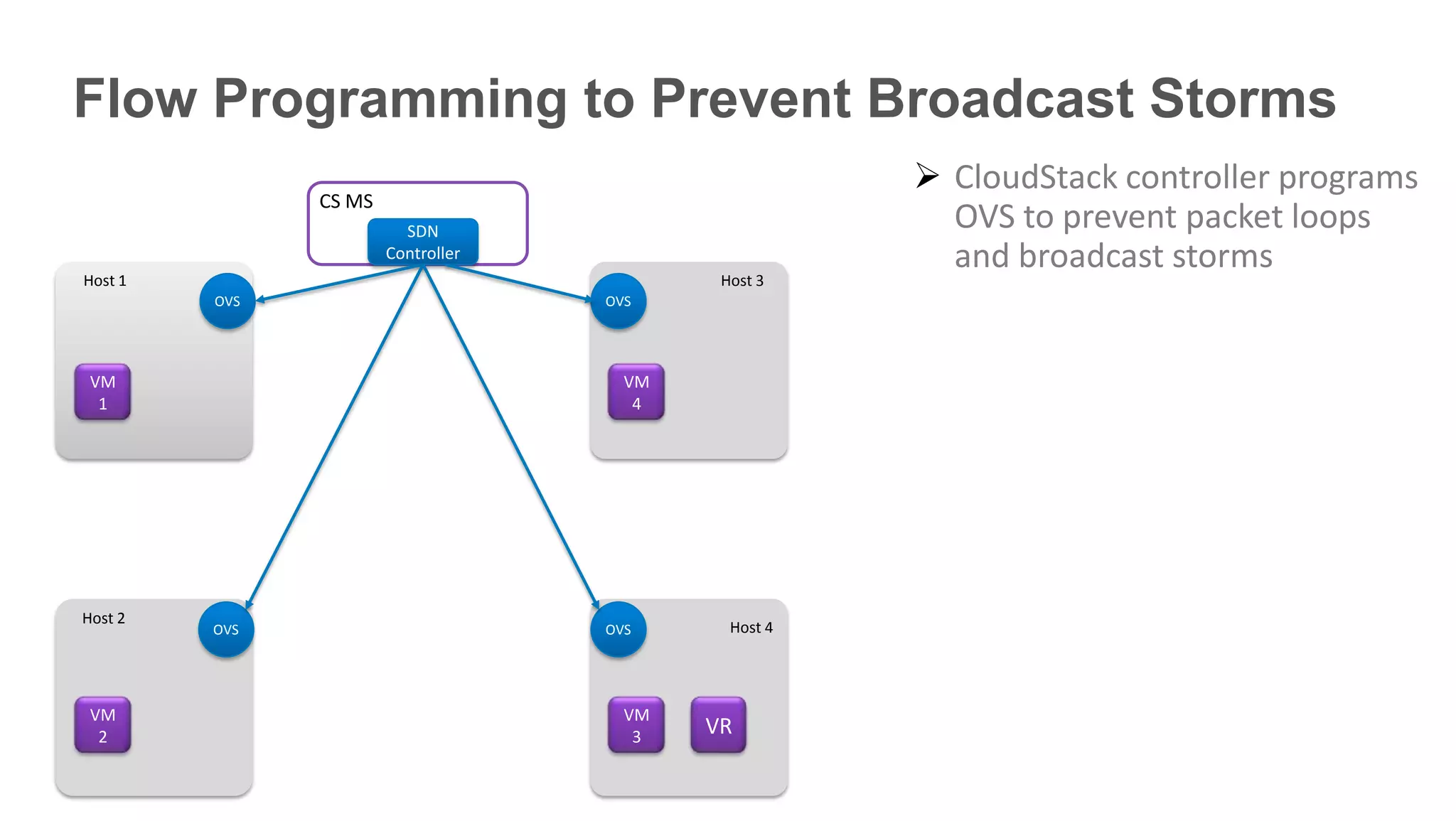

11. Flow Programming to Prevent Broadcast Storms
 CloudStack controller programs
CS MS
SDN
OVS to prevent packet loops
Controller and broadcast storms
Host 1 Host 3
OVS OVS
VM VM
1 4
Host 2
OVS OVS Host 4
VM VM
2 3 VR

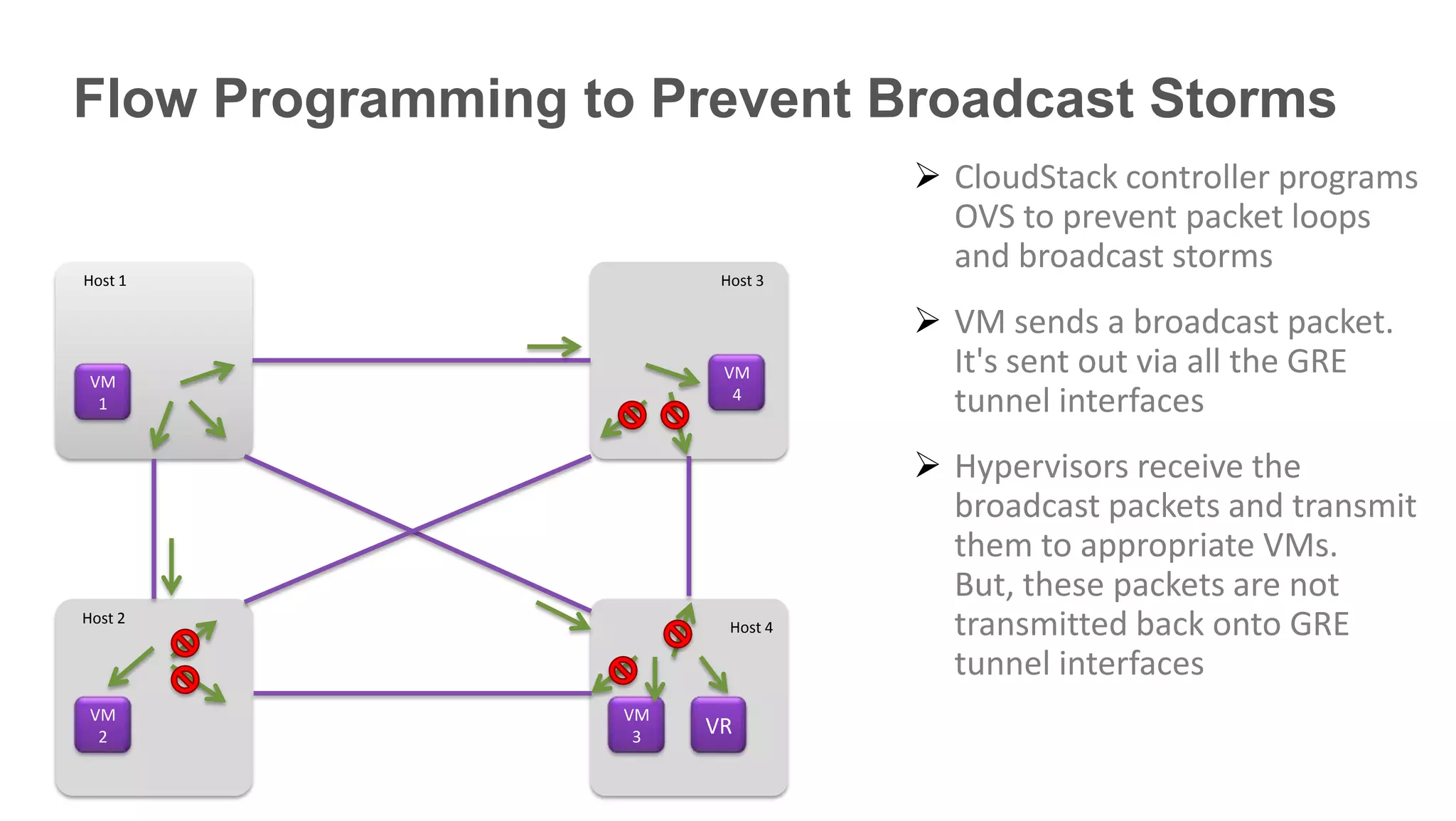

12. Flow Programming to Prevent Broadcast Storms
 CloudStack controller programs
OVS to prevent packet loops
and broadcast storms
Host 1 Host 3
 VM sends a broadcast packet.
VM VM It's sent out via all the GRE
1 4
tunnel interfaces
 Hypervisors receive the
broadcast packets and transmit
them to appropriate VMs.
But, these packets are not
Host 2
Host 4 transmitted back onto GRE
tunnel interfaces
VM VM
2 3 VR

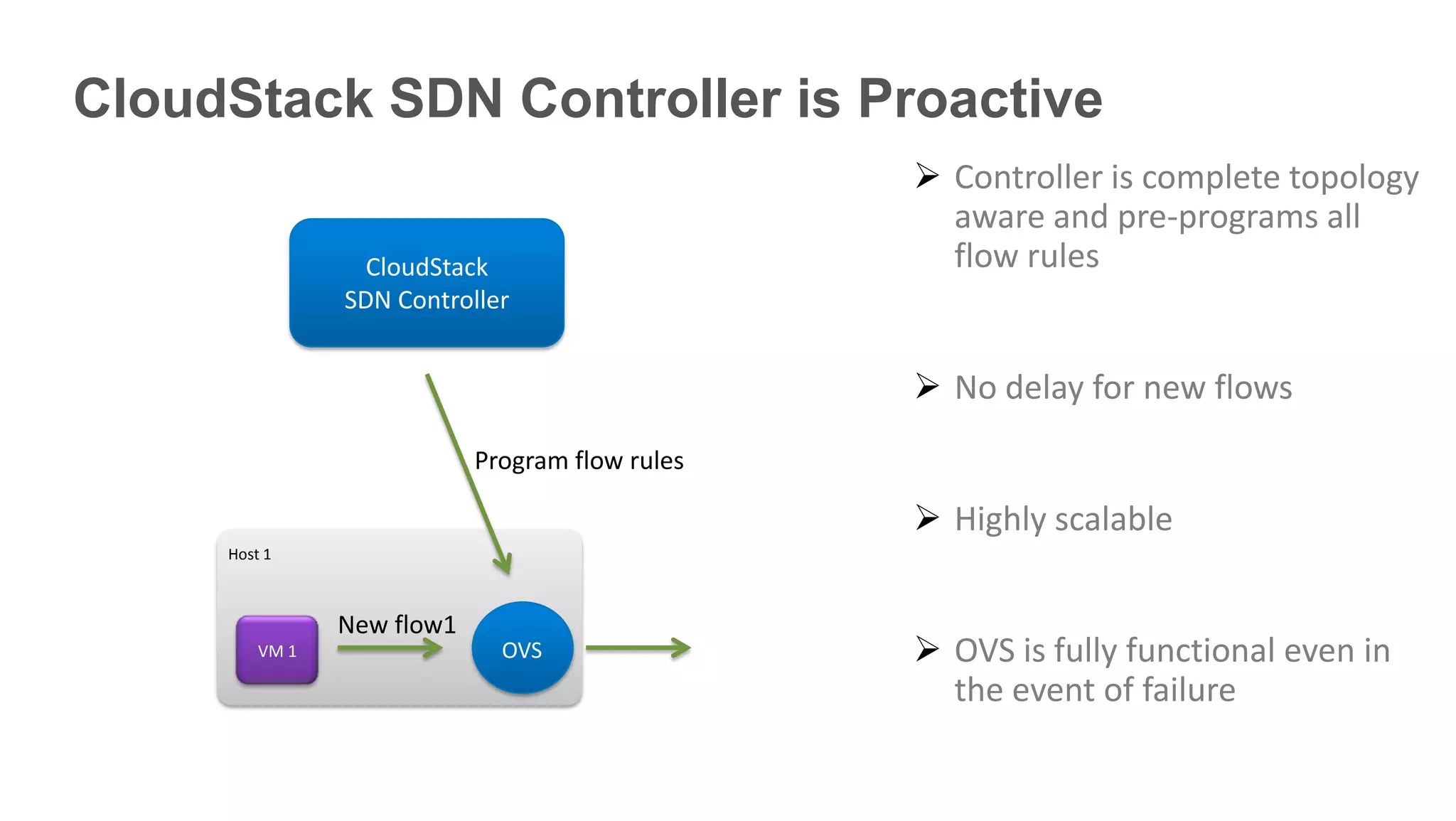

13. CloudStack SDN Controller is Proactive
 Controller is complete topology
aware and pre-programs all
CloudStack flow rules
SDN Controller
 No delay for new flows
Program flow rules
 Highly scalable
Host 1
New flow1
VM 1 OVS  OVS is fully functional even in
the event of failure

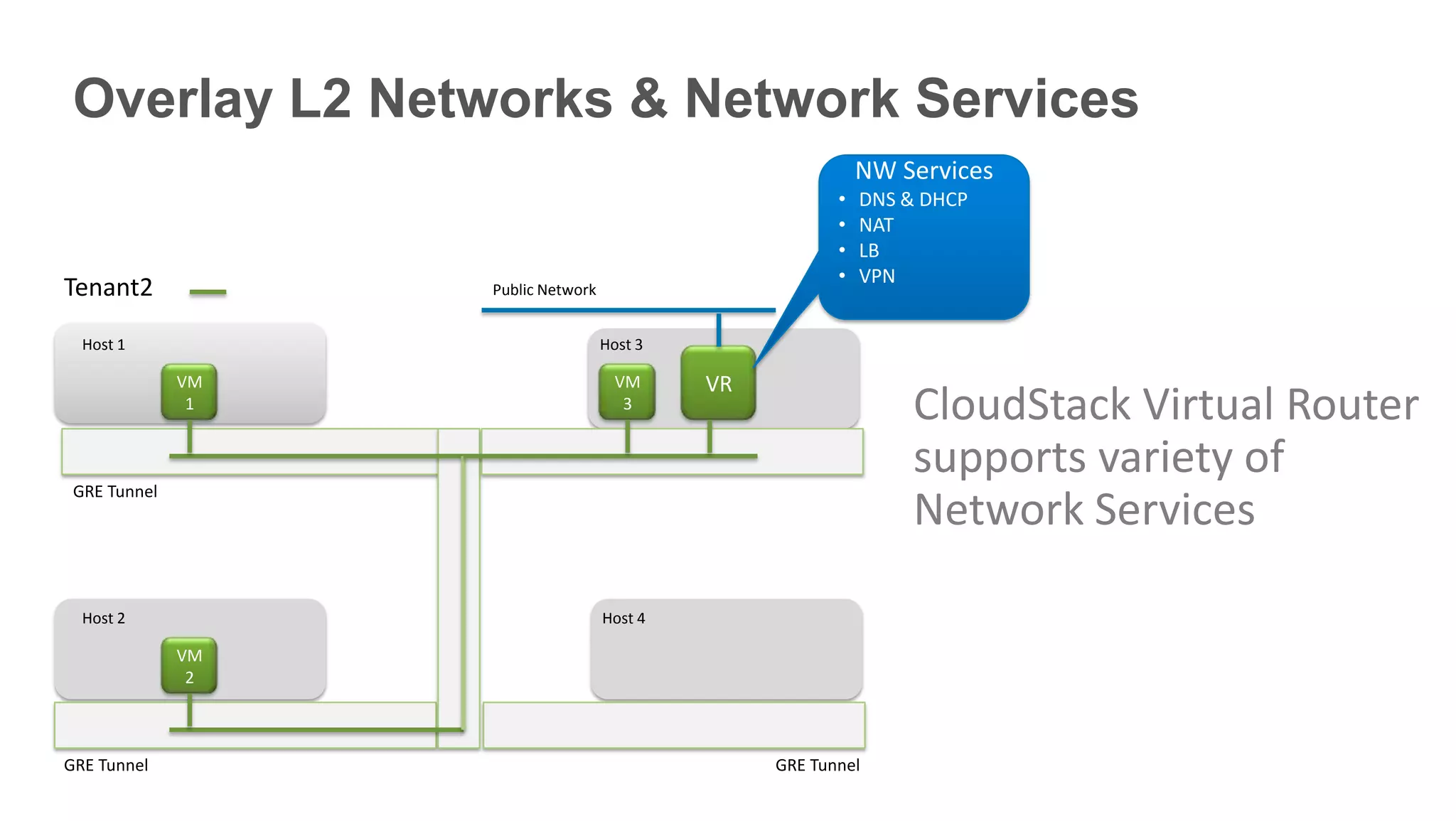

14. Overlay L2 Networks & Network Services
NW Services
• DNS & DHCP
• NAT
• LB
• VPN
Tenant2 Public Network
Host 1 Host 3
VM VM VR
1 3
CloudStack Virtual Router
supports variety of
GRE Tunnel
Network Services
Host 2 Host 4
VM
2
GRE Tunnel GRE Tunnel

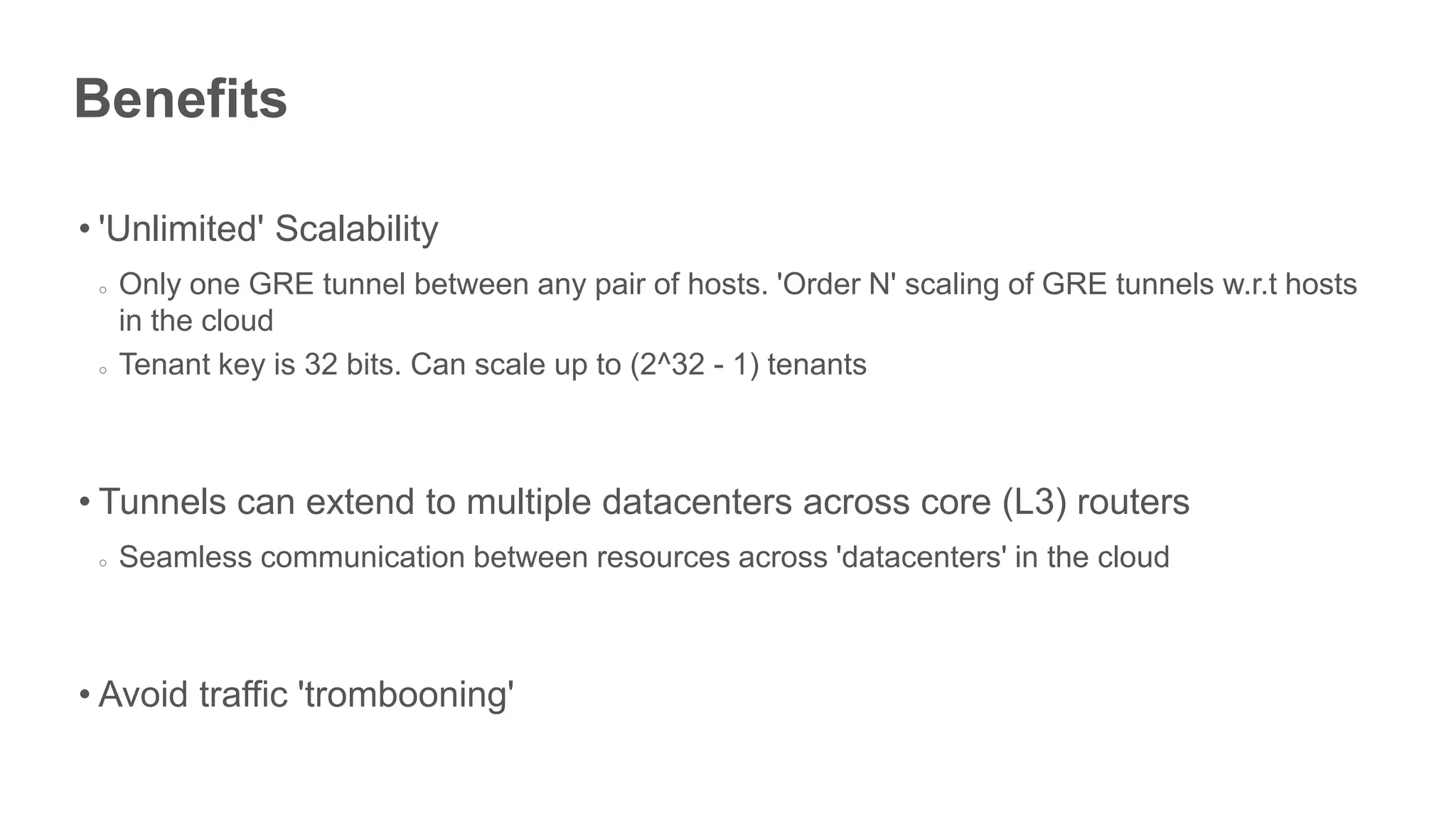

15. Benefits
• 'Unlimited' Scalability
○ Only one GRE tunnel between any pair of hosts. 'Order N' scaling of GRE tunnels w.r.t hosts
in the cloud
○ Tenant key is 32 bits. Can scale up to (2^32 - 1) tenants
• Tunnels can extend to multiple datacenters across core (L3) routers
○ Seamless communication between resources across 'datacenters' in the cloud
• Avoid traffic 'trombooning'

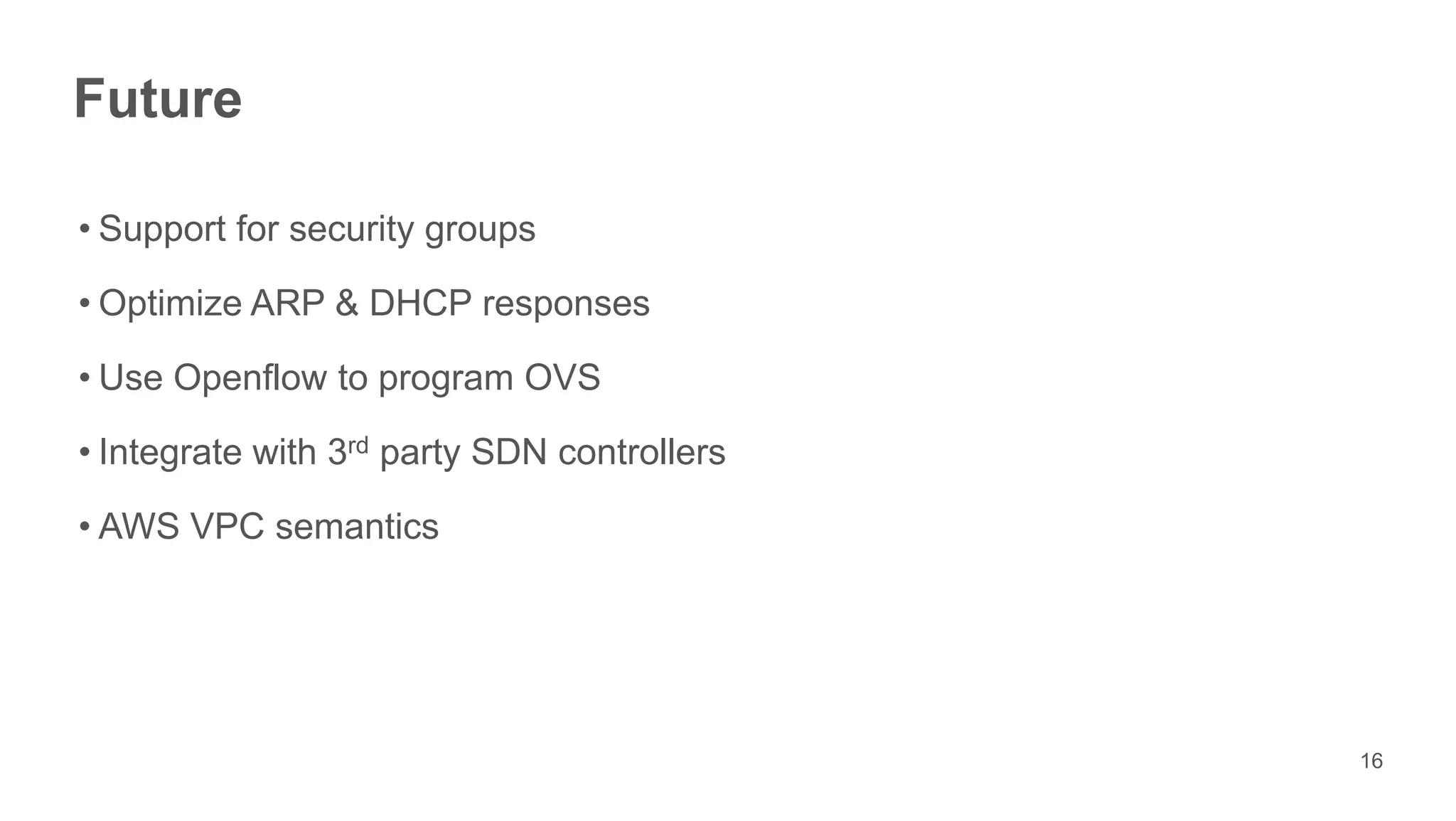

16. Future
• Support for security groups
• Optimize ARP & DHCP responses
• Use Openflow to program OVS
• Integrate with 3rd party SDN controllers
• AWS VPC semantics
16
