12th Japan CloudStack User Group Meetup MidoNet with scalable virtual router
The document presents an overview of CloudStack's default virtual router and the limitations it faces, including scalability issues and bottlenecks caused by VLAN configurations. Midonet is introduced as a solution that leverages a clustered network state database to enhance scalability and efficiency in network management. The presentation encourages discussion on potential features to further improve its integration with CloudStack.
More Related Content
Similar to 12th Japan CloudStack User Group Meetup MidoNet with scalable virtual router
12th Japan CloudStack User Group Meetup MidoNet with scalable virtual router
- 1. CloudStack Networking: - With and Without MidoNet - 12th CloudStack User Group Meet-up 2013.3.22
- 2. Introduction Dave Cahill Software Engineer ●MidoNet CloudStack Integration Team

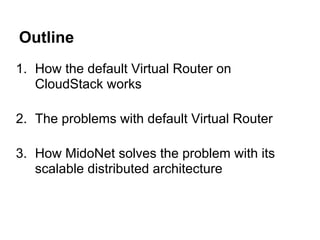

- 3. Outline 1. How thedefault Virtual Router on CloudStack works 2. The problems with default Virtual Router 3. How MidoNet solves the problem with its scalable distributed architecture

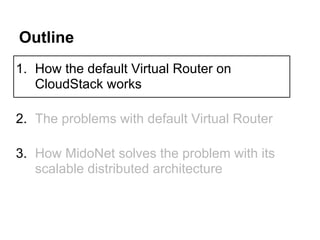

- 4. Outline 1. How thedefault Virtual Router on CloudStack works 2. The problems with default Virtual Router 3. How MidoNet solves the problem with its scalable distributed architecture

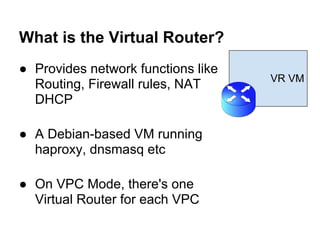

- 5. What is theVirtual Router? ● Provides network functions like VR VM Routing, Firewall rules, NAT DHCP ● A Debian-based VM running haproxy, dnsmasq etc ● On VPC Mode, there's one Virtual Router for each VPC

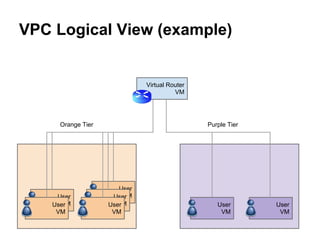

- 6. VPC Logical View(example) Virtual Router VM Orange Tier Purple Tier User User UserVM VM User VM User User User VM VM VM VM

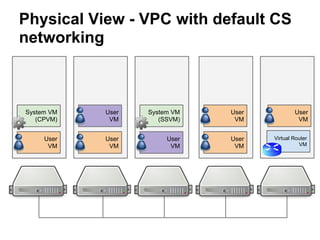

- 7. Physical View -VPC with default CS networking System VM User System VM User User (CPVM) VM (SSVM) VM VM User User User User Virtual Router VM VM VM VM VM

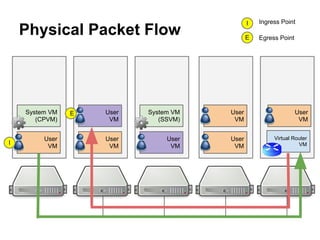

- 8. I Ingress Point Physical Packet Flow E Egress Point System VM E User System VM User User (CPVM) VM (SSVM) VM VM User User User User Virtual Router I VM VM VM VM VM
- 9. I Ingress Point Physical Packet Flow E Egress Point System VM E User System VM User User (CPVM) VM (SSVM) VM VM User User User User Virtual Router I VM VM VM VM VM

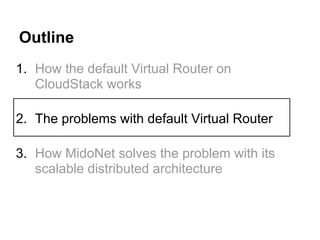

- 10. Outline 1. How thedefault Virtual Router on CloudStack works 2. The problems with default Virtual Router 3. How MidoNet solves the problem with its scalable distributed architecture

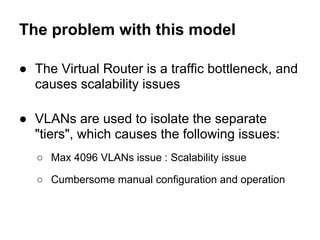

- 11. The problem withthis model ● The Virtual Router is a traffic bottleneck, and causes scalability issues ● VLANs are used to isolate the separate "tiers", which causes the following issues: ○ Max 4096 VLANs issue : Scalability issue ○ Cumbersome manual configuration and operation
- 12. Outline 1. How thedefault Virtual Router on CloudStack works 2. The problems with default Virtual Router 3. How MidoNet solves the problem with its scalable distributed architecture

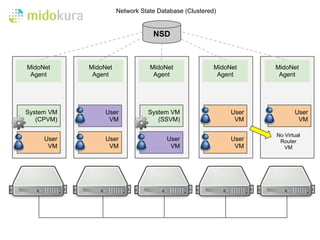

- 13. Network State Database(Clustered) NSD MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent System VM User System VM User User (CPVM) VM (SSVM) VM VM No Virtual User User User User Router VM VM VM VM VM

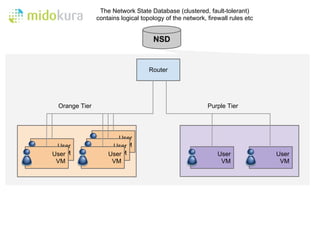

- 14. The Network StateDatabase (clustered, fault-tolerant) contains logical topology of the network, firewall rules etc NSD Router Orange Tier Purple Tier User User UserVM VM User VM User User User VM VM VM VM

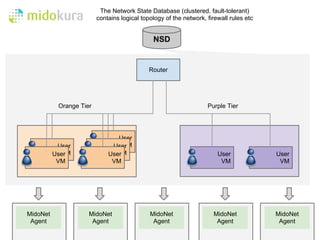

- 15. The Network StateDatabase (clustered, fault-tolerant) contains logical topology of the network, firewall rules etc NSD Router Orange Tier Purple Tier User User UserVM VM User VM User User User VM VM VM VM MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent

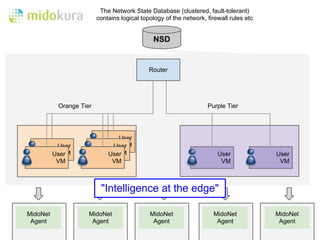

- 16. The Network StateDatabase (clustered, fault-tolerant) contains logical topology of the network, firewall rules etc NSD Router Orange Tier Purple Tier User User UserVM VM User VM User User User VM VM VM VM "Intelligence at the edge" MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent

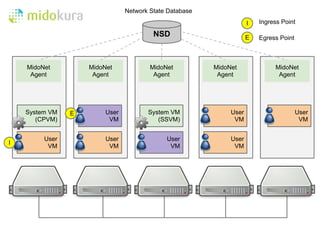

- 17. Network State Database I Ingress Point NSD E Egress Point MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent System VM E User System VM User User (CPVM) VM (SSVM) VM VM User User User User I VM VM VM VM

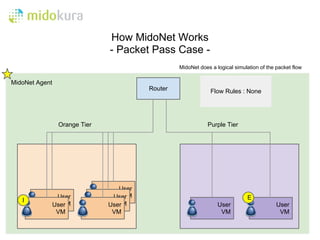

- 18. How MidoNet Works - Packet Pass Case - MidoNet does a logical simulation of the packet flow MidoNet Agent Router Flow Rules : None Orange Tier Purple Tier User 出 VM User User E I VM User VM User User User VM VM VM VM

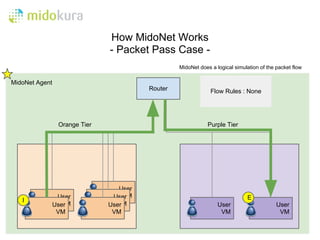

- 19. How MidoNet Works - Packet Pass Case - MidoNet does a logical simulation of the packet flow MidoNet Agent Router Flow Rules : None Orange Tier Purple Tier User 出 VM User User E I VM User VM User User User VM VM VM VM
- 20. Network State Database(Clustered) I Ingress Point NSD E Egress Point MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent System VM E User System VM User User (CPVM) VM (SSVM) VM VM User User User User I VM VM VM VM IP Tunnel

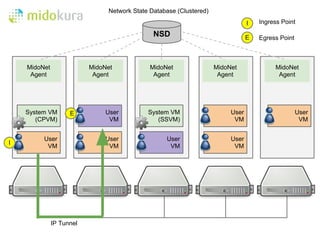

- 21. Network State Database(Clustered) I Ingress Point NSD E Egress Point MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent System VM E User System VM User User (CPVM) VM (SSVM) VM VM User User User User I VM VM VM VM IP Tunnel

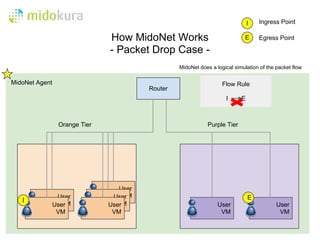

- 22. I Ingress Point How MidoNet Works E Egress Point - Packet Drop Case - MidoNet does a logical simulation of the packet flow MidoNet Agent Flow Rule Router I E Orange Tier Purple Tier User 出 VM User User E I VM User VM User User User VM VM VM VM
- 23. I Ingress Point How MidoNet Works E Egress Point - Packet Drop Case - MidoNet does a logical simulation of the packet flow MidoNet Agent Flow Rule Router I E Orange Tier Purple Tier User 出 VM User User E I VM User VM User User User VM VM VM VM

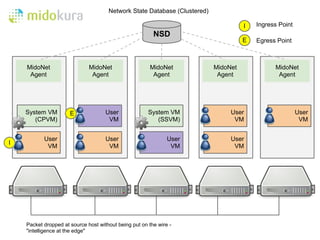

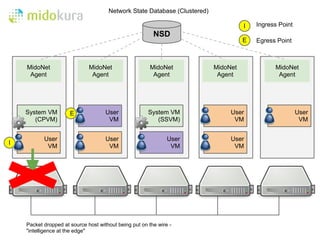

- 24. Network State Database(Clustered) I Ingress Point NSD E Egress Point MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent System VM E User System VM User User (CPVM) VM (SSVM) VM VM User User User User I VM VM VM VM Packet dropped at source host without being put on the wire - "intelligence at the edge"
- 25. Network State Database(Clustered) I Ingress Point NSD E Egress Point MidoNet MidoNet MidoNet MidoNet MidoNet Agent Agent Agent Agent Agent System VM E User System VM User User (CPVM) VM (SSVM) VM VM User User User User I VM VM VM VM Packet dropped at source host without being put on the wire - "intelligence at the edge"

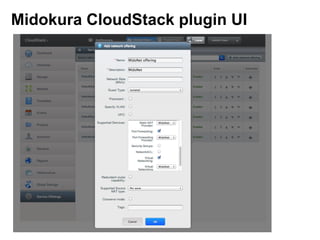

- 26.

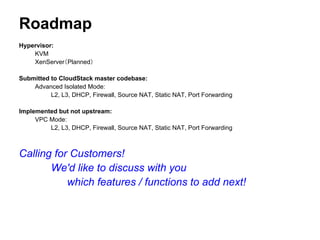

- 27. Roadmap Hypervisor: KVM XenServer（Planned） Submitted to CloudStack master codebase: Advanced Isolated Mode: L2, L3, DHCP, Firewall, Source NAT, Static NAT, Port Forwarding Implemented but not upstream: VPC Mode: L2, L3, DHCP, Firewall, Source NAT, Static NAT, Port Forwarding Calling for Customers! We'd like to discuss with you which features / functions to add next!

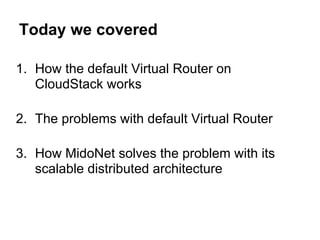

- 28. Today we covered 1.How the default Virtual Router on CloudStack works 2. The problems with default Virtual Router 3. How MidoNet solves the problem with its scalable distributed architecture
- 29. Thanks for listening. Website www.midokura.jp Email info@midokura.jp Twitter @MidokuraJapan @davecahill Book "CloudStack徹底入門" Chapter 10 (10.3.3) "Midokura"
