Cloud Foundry Summit 2015: Building a Robust Cloud Foundry (HA, Security and DR)
The document discusses building a robust high availability (HA) infrastructure for Cloud Foundry, emphasizing the importance of performance, reliability, and timely error detection. It covers various deployment scenarios, security measures, and disaster recovery strategies, highlighting the role of critical and less-critical jobs within the architecture. Key takeaways include the necessity of trade-offs in design and the importance of backing up configuration, databases, and blobstores.
More Related Content
Similar to Cloud Foundry Summit 2015: Building a Robust Cloud Foundry (HA, Security and DR)
![Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/apachesparkgettingstarted-260203175547-8361bcc3-thumbnail.jpg?width=640&height=640&fit=bounds)
Cloud Foundry Summit 2015: Building a Robust Cloud Foundry (HA, Security and DR)
- 2. Building a RobustCloud Foundry HA, Security and DR Haydon Ryan | Duncan Winn

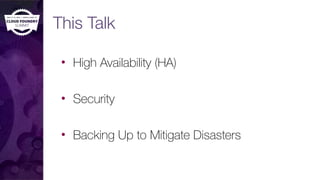

- 3. This Talk • HighAvailability (HA) • Security • Backing Up to Mitigate Disasters
- 4. © Copyright 2014Pivotal. All rights reserved.© Copyright 2014 Pivotal. All rights reserved. HA
- 5. High Availability Focus Keepapps and services running in a performant, reliable and recoverable manner with timely error detection 1. Application Instances 2. Platform Processes 3. Platform VMs 4. Availability Zones Keep Cloud Foundry running in a performant, reliable and recoverable manner with timely error detection

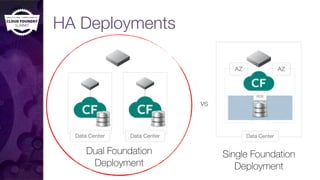

- 6. HA Deployments Data CenterData Center vs Single Foundation Deployment Dual Foundation Deployment Data Center AZ AZ RDS
- 7. WHAT IF ITOLD YOU IT’S POSSIBLE TO SANELY STREACH LAYER 2

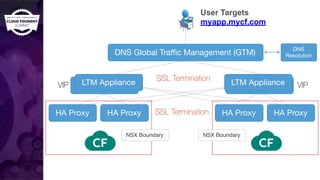

- 8. User Targets myapp.mycf.com DNS Resolution NSX BoundaryNSX Boundary VIP VIP SSL Termination SSL Termination DNS Global Traffic Management (GTM) HA ProxyHA Proxy LTM ApplianceLTM Appliance HA ProxyHA Proxy LTM Appliance LTM Appliance

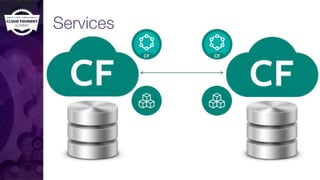

- 9. Domains System Application myapp.mycf.comtargetsClient cf1.comcf pushmyappDeveloperapi.runtime-cf1.comcf apiDeveloper CF1 cf2.comcf push myappDeveloperapi.runtime-cf2.comcf apiDeveloper CF2 myapp.mycf.comtargetsClient myapp.mycf.comtargetsClient myapp.mycf.comtargetsClient
- 10.

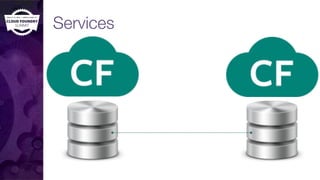

- 11.

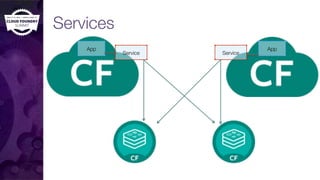

- 12.
- 13.

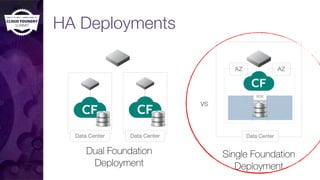

- 14. HA Deployments Data CenterData Center vs Single Foundation Deployment Dual Foundation Deployment Data Center AZ AZ RDS

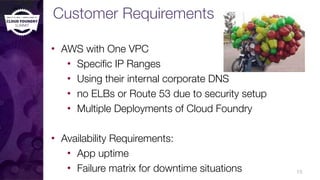

- 15. Customer Requirements • AWSwith One VPC • Specific IP Ranges • Using their internal corporate DNS • no ELBs or Route 53 due to security setup • Multiple Deployments of Cloud Foundry • Availability Requirements: • App uptime • Failure matrix for downtime situations 15
- 16. 16 HA Proxy HAProxy Bind DNS CF Router CF Router HA Proxy HA ProxySSL Termination
- 17. Who does thedeployment need to be highly available for? • Users 17 • Developers • Operations

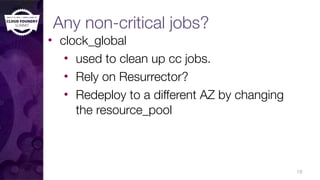

- 18. Any non-critical jobs? •clock_global • used to clean up cc jobs. • Rely on Resurrector? • Redeploy to a different AZ by changing the resource_pool 18
- 19. Critical Jobs &VMs • haproxy • router • nats • cloud controller • uaa/login? • doppler? 19

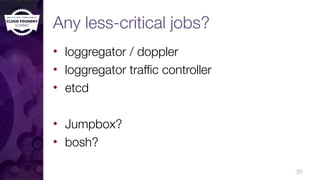

- 20. Any less-critical jobs? •loggregator / doppler • loggregator traffic controller • etcd • Jumpbox? • bosh? 20
- 21. Caveats with thisdesign • Single points of failure? • DNS • Bosh • Jumpbox • Human interaction required in outage • Bind DNS does not do health monitoring. Monitoring scripts were outside the scope of the engagement. 21

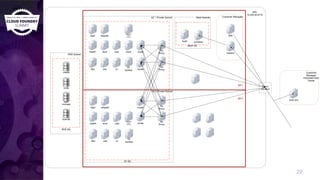

- 22. 22 AZ 2 PrivateSubnet Customer Managed Interstate Data Center VPC 10.202.64.0/19 AZ 1 Private Subnet Bosh Subnet jumpbox CF SG Direct connect Bosh SG login uaa bosh router dea cc natshealth etcd doppler cc worker loggregator traffic controller clock RDS Subnet RDS SG boshdb uaadb ccdb apps manager router bind dns Customer Managed NAT bastion ha Proxy ha Proxy ha Proxy ha Proxy router router login uaadea cc natshealth etcd doppler cc worker loggregator traffic controller AZ 1 AZ 2

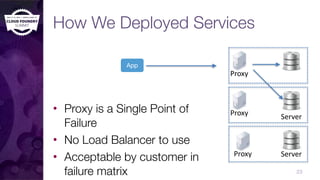

- 23. How We DeployedServices • Proxy is a Single Point of Failure • No Load Balancer to use • Acceptable by customer in failure matrix 23 Proxy Server Server App Proxy Proxy

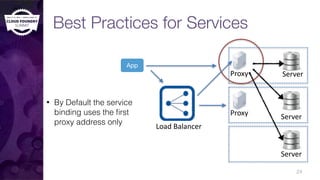

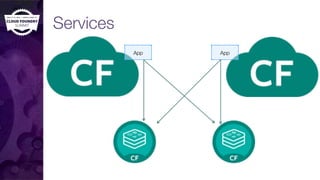

- 24. Best Practices forServices 24 • By Default the service binding uses the first proxy address only Proxy Proxy Server Server Server App Load Balancer
- 25. Which Deployment 25 Data CenterData Center Dual Foundation Deployment Single Foundation Dual AZs Data Center Single Foundation Single DC Data Center AZ AZ RDS
- 26. © Copyright 2014Pivotal. All rights reserved.© Copyright 2014 Pivotal. All rights reserved. Security and Networking (on AWS)
- 27. Security • Security isHard • Three main concepts • Restrict • Limit scope if Compromised • Mitigate • Feedback Loop

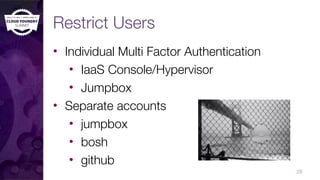

- 28. Restrict Users • IndividualMulti Factor Authentication • IaaS Console/Hypervisor • Jumpbox • Separate accounts • jumpbox • bosh • github 28
- 29. Restrict Packets • IaaS •Security Groups (Instance Level) (better) • ACLs (Subnet Level) • Routes 29

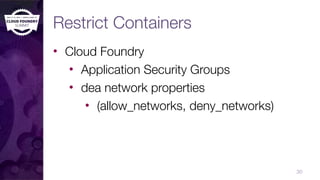

- 30. Restrict Containers • CloudFoundry • Application Security Groups • dea network properties • (allow_networks, deny_networks) 30

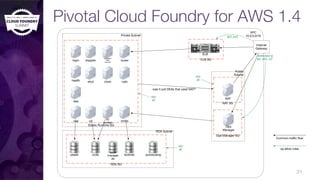

- 31. Pivotal Cloud Foundryfor AWS 1.4 31 VPC 10.0.0.0/16 RDS Subnet Private Subnet Public Subnet Ops Manager Elastic Runtime SG ELB Internet Gateway NAT SG Ops Manager SG RDS SG login uaa micro router vpc all NAT restricted ip 80, 443, 22* dea Common traffic flow sg allow rules cc natshealth etcd doppler cc worker loggregator traffic controller clock boshdbuaadb ccdb apps manager db autoscaling ELB SG 80?,443 vpc all vpc all was it just DEAs that used NAT?
- 32. Limit Scope ifCompromised • Different user/pass for each component • Strong passwords (and usernames) • 20 Characters Long • RANDOM • Both Cases • best avoid special characters • eg: YxLIodYrUBQJrvMRYSQL • Avoid cloud cow 32 http://vanmethod.deviantart.com/art/Purple-‐Cow-‐on-‐a-‐Cloud-‐146265642

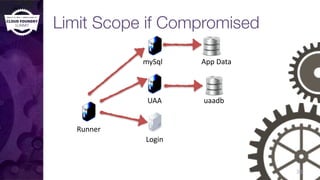

- 33. Limit Scope ifCompromised 33 Runner UAA Login uaadb mySql App Data

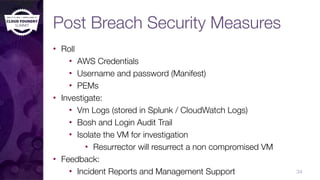

- 34. Post Breach SecurityMeasures • Roll • AWS Credentials • Username and password (Manifest) • PEMs • Investigate: • Vm Logs (stored in Splunk / CloudWatch Logs) • Bosh and Login Audit Trail • Isolate the VM for investigation • Resurrector will resurrect a non compromised VM • Feedback: • Incident Reports and Management Support 34
- 35. Paranoid Level Securityfor AWS • Cloudtrail • Alerts • Audit Logs • Rollback’ • Remove ability to delete • s3 buckets • subnets / vpc • backups • Everything else can be recovered from a backup… 35
- 36. © Copyright 2014Pivotal. All rights reserved.© Copyright 2014 Pivotal. All rights reserved. Disaster Recovery

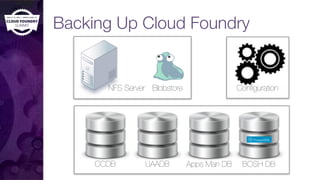

- 37. Backing Up CloudFoundry Configuration CCDB UAADB Apps Man DB BOSH DB BlobstoreNFS Server
- 38. SCENARIO ONE LOSE PCFOPS-MGR OR CF DEPLOYMENT

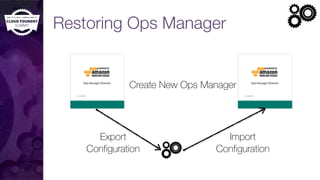

- 39. Restoring Ops Manager Export Configuration CreateNew Ops Manager Import Configuration
- 40. Configuration Backup Ops Manager scpubuntu@<OPS MRG HOST>:/var/tempest/workspaces/default/deployments/*yml . Backup Deployment Manifests

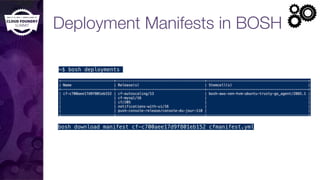

- 41. Deployment Manifests inBOSH ~$ bosh deployments bosh download manifest cf-c700aee17d9f801eb152 cfmanifest.yml
- 42.

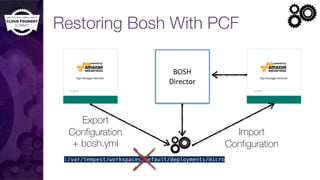

- 43. Restoring Bosh WithPCF Export Configuration Import Configuration :/var/tempest/workspaces/default/deployments/micro BOSH Director + bosh.yml

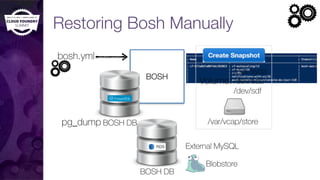

- 44. Restoring Bosh Manually BOSH BOSHDB bosh.yml pg_dump /var/vcap/store /dev/xvda /dev/sdb /dev/sdf Volume: BOSH DB External MySQL Blobstore

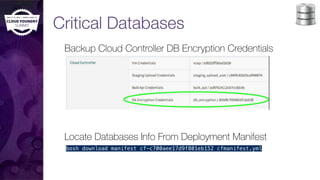

- 45. Critical Databases Backup CloudController DB Encryption Credentials Locate Databases Info From Deployment Manifest bosh download manifest cf-c700aee17d9f801eb152 cfmanifest.yml

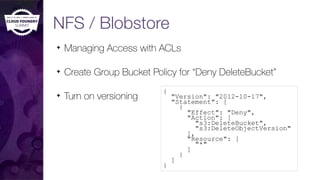

- 46. NFS / Blobstore ✦Managing Access with ACLs ✦ Create Group Bucket Policy for “Deny DeleteBucket” ✦ Turn on versioning { "Version": "2012-10-17", "Statement": [ { "Effect": "Deny", "Action": [ "s3:DeleteBucket", "s3:DeleteObjectVersion" ], "Resource": [ "*" ] } ] }
- 47. © Copyright 2014Pivotal. All rights reserved.© Copyright 2014 Pivotal. All rights reserved. Takeaway

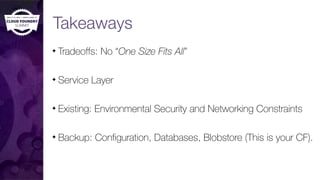

- 48. Takeaways ✦ Tradeoffs: No“One Size Fits All” ✦ Service Layer ✦ Existing: Environmental Security and Networking Constraints ✦ Backup: Configuration, Databases, Blobstore (This is your CF).
- 49.
