1. Cloud based DLMS COSEM
Metering Head end

2. 1. Cloud bases SaaS concepts & benefits
2. Introduction to kalki.io Metering Pack
3. Benefits of kalki.io Metering Pack
4. Solution Architecture
5. Key Features
6. Application use cases
Copyright © Kalkitech / ASE. All rights reserved. 2

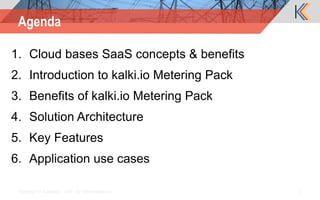

Agenda

3. Copyright © Kalkitech / ASE. All rights reserved. 3

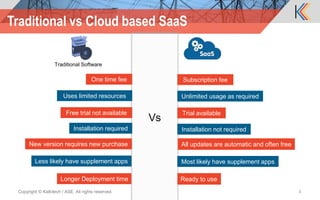

Traditional vs Cloud based SaaS
Vs
Traditional Software
One time fee Subscription fee
Uses limited resources Unlimited usage as required
Free trial not available Trial available
Installation required Installation not required
New version requires new purchase All updates are automatic and often free
Less likely have supplement apps Most likely have supplement apps
Longer Deployment time Ready to use

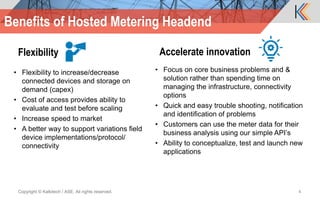

4. Flexibility
• Flexibility to increase/decrease
connected devices and storage on
demand (capex)
• Cost of access provides ability to
evaluate and test before scaling
• Increase speed to market
• A better way to support variations field
device implementations/protocol/
connectivity
Accelerate innovation
• Focus on core business problems and &
solution rather than spending time on
managing the infrastructure, connectivity
options
• Quick and easy trouble shooting, notification
and identification of problems
• Customers can use the meter data for their
business analysis using our simple API’s
• Ability to conceptualize, test and launch new
applications
Copyright © Kalkitech / ASE. All rights reserved. 4
Benefits of Hosted Metering Headend

5. Increase consumer Engagement
• Any time, anywhere access to services improve
customer experience
• Independent app providers makes new
applications/solutions
Security/ Privacy
• SaaS solution offers best in class security and
compliance tools
• Provides high end security tools, control options with
SaaS
• Not mandatory to build cloud/IT/security expertise
inhouse
• SaaS solution have matured to ensure data privacy
concerns with standard based solutions
Copyright © Kalkitech / ASE. All rights reserved. 5
Benefits of Hosted Metering Headend
Optimization
• Optimize IT ROI, budget spends by avoiding
Capex expenditure
• Taking out the burden of maintaining the
software availability, data migration, disaster
recovery etc
• Significant saving compared to On-premise
solutions will drive adoption

6. Cloud based DLMS Head end
Copyright © Kalkitech / ASE. All rights reserved. 6
Kalki.io Meter Data Pack
www.kalki.io

7. Copyright © Kalkitech / ASE. All rights reserved. 7

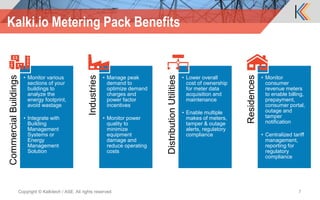

Kalki.io Metering Pack Benefits
CommercialBuildings
• Monitor various
sections of your
buildings to
analyze the
energy footprint,
avoid wastage
• Integrate with
Building
Management
Systems or
Energy
Management
Solution
Industries
• Manage peak
demand to
optimize demand
charges and
power factor
incentives
• Monitor power
quality to
minimize
equipment
damage and
reduce operating
costs
DistributionUtilities
• Lower overall
cost of ownership
for meter data
acquisition and
maintenance
• Enable multiple
makes of meters,
tamper & outage
alerts, regulatory
compliance
Residences
• Monitor
consumer
revenue meters
to enable billing,
prepayment,
consumer portal,
outage and
tamper
notification
• Centralized tariff
management,
reporting for
regulatory
compliance

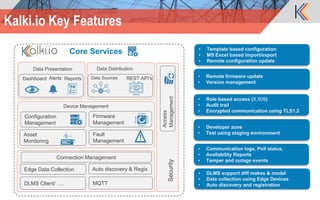

8. Data Distribution
Kalki.io Key Features
Dashboard Alerts Reports Data Sources REST API's
Configuration
Management
Firmware
Management
Fault
Management
Security
Device Management
Data Presentation
Asset
Monitoring
Access
Management
DLMS Client/ …. MQTT
Edge Data Collection
Connection Management
Auto discovery & Regis
• Template based configuration
• MS Excel based import/export
• Remote configuration update
• Remote firmware update
• Version management
• DLMS support diff makes & model
• Data collection using Edge Devices
• Auto discovery and registration
• Role based access (X.509)
• Audit trail
• Encrypted communication using TLS1.2
• Developer zone
• Test using staging environment
• Communication logs, Poll status,
• Availability Reports
• Tamper and outage events
Core Services

9. Connectivity Options
Internet
Meter connected to internet (static IP)
configured in DLMS client/ server Mode
Private
Network
Meter connected to private network
configured in DLMS Client/ server Mode
Private Network
extension using
IP Sec Tunnel
Private
Network
Meter connected to private network
configured in DLMS Client/ server Mode
Sync Proxy
Custom VPC
Sync Proxy
On Premises
Sync Connect/ Edge
On Premises
Meter connected to last mile network
(LPRF, PLC, RS485)
Internet Dynamic IP
DLMS server Mode
Device Agent

10. Copyright © Kalkitech / ASE. All rights reserved. 10
Meter Data Pack – DLMS COSEM
Meter Data
Collection
• Profile and
register reads
• HDLC & TCP
profile
• Scheduled Polls
• On demand Poll
• Push from Meter
(scheduled &
event based)
• Gaps fill poll
Meter
Programming
• Meteorology
configuration
• Billing
configuration
(schedule )
• Protocol Settings
(comm setup)
• Time distribution
(clock set/shift)
• Firmware OTA
(image transfer)
Advanced
Metering
Capabilities
• TOU Tariff
management
(Activity
calendar)
• Connect/
disconnect
• Load limiting
(limiter)
Security
• Sign on
Authentication
(LLS, HLS)
• Data transport
security -
encryption and
authentication
(security suite
0/1/ 2)
• Key transfer
(security setup)

11. Copyright © Kalkitech / ASE. All rights reserved. 11

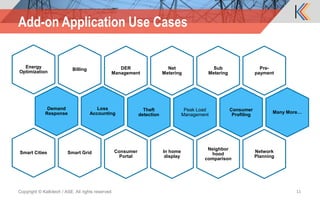

Add-on Application Use Cases
Billing
Energy
Optimization
Demand
Response
Loss
Accounting
Smart GridSmart Cities
Net
Metering
DER
Management
Theft
detection
Peak Load
Management
In home
display
Consumer
Portal
Pre-
payment
Sub
Metering
Consumer
Profiling
Many More…
Network
Planning
Neighbor
hood
comparison

12. Copyright © Kalkitech / ASE. All rights reserved. 12

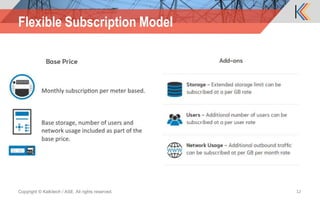

Flexible Subscription Model

13. Copyright © Kalkitech / ASE. All rights reserved. 13
Signup Process

14. Copyright © Kalkitech / ASE. All rights reserved. 14

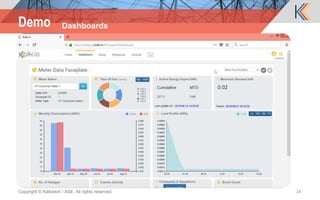

Demo Dashboards

15. Copyright © Kalkitech / ASE. All rights reserved. 15

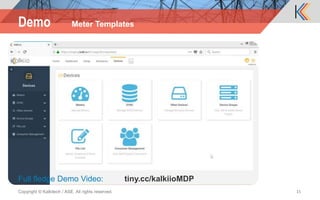

Demo Meter Templates
Full fledge Demo Video: tiny.cc/kalkiioMDP

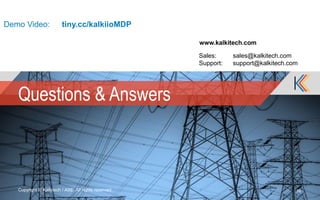

16. Questions & Answers
Copyright © Kalkitech / ASE. All rights reserved. 16
www.kalkitech.com
Sales: sales@kalkitech.com
Support: support@kalkitech.com
Demo Video: tiny.cc/kalkiioMDP
