The document provides an overview of Novell Storage Services features and architecture when implemented on Linux using Novell Open Enterprise Server. It discusses features such as trustee models, quotas, compression. It describes the architecture which uses components like EVMS, NSS storage subsystem, NCP server, and VFS. It also covers tuning, troubleshooting, and clustering aspects of Novell Storage Services on Linux.

1. Novell Storage Services ™ File System Performance, Clustering and Auditing in Novell ® Open Enterprise Server on Linux Marcus Gould Premium Support Engineer Novell, Inc. [email_address] Bart Schoofs WorldWide Support Engineer Novell, Inc. [email_address] Adam Jerome Senior Software Engineer Novell, Inc. [email_address] Vijai Babu Madhavan Filesystem Engineer Novell, Inc. [email_address]

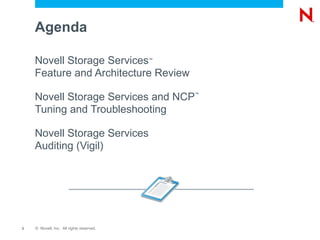

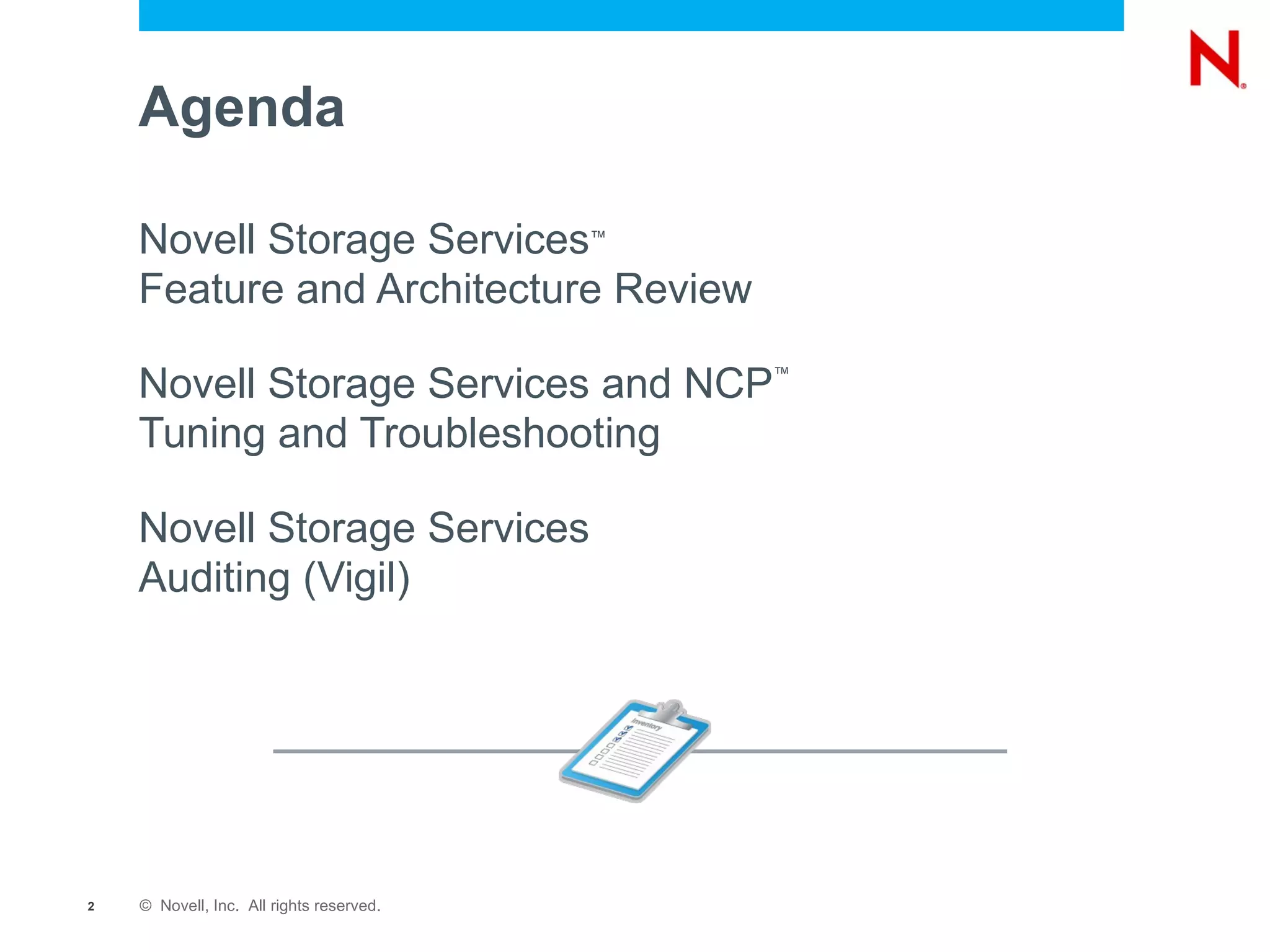

2. Agenda Novell Storage Services ™ Feature and Architecture Review

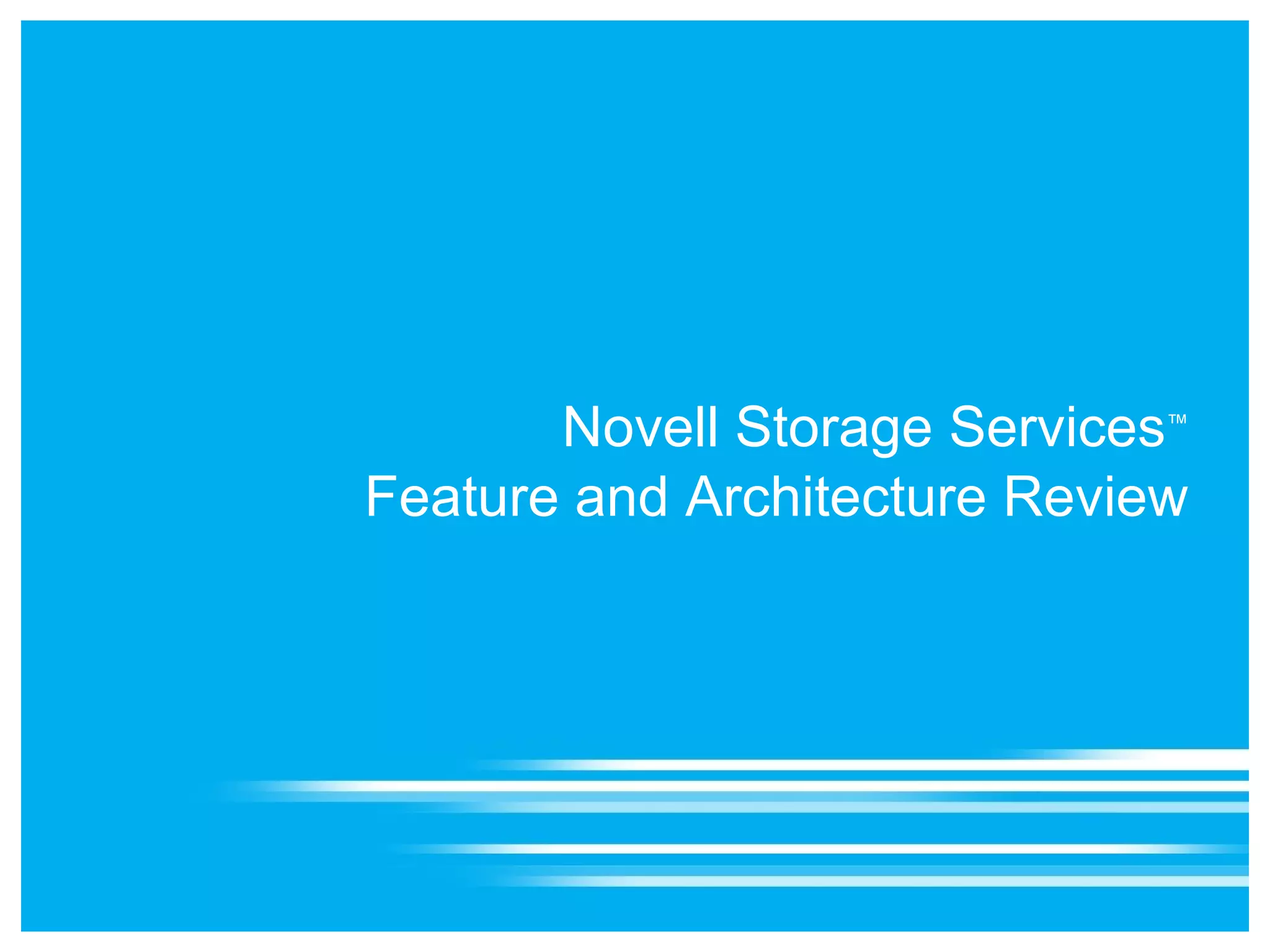

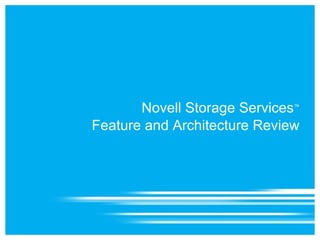

3. Novell Storage Services and NCP ™ Tuning and Troubleshooting

4. Novell Storage Services Auditing (Vigil)

5. Novell Storage Services ™ Feature and Architecture Review

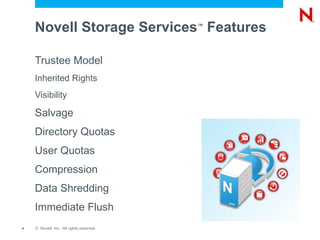

6. Novell Storage Services ™ Features Trustee Model Inherited Rights

7. Visibility Salvage

8. Directory Quotas

9. User Quotas

10. Compression

11. Data Shredding

12. Immediate Flush

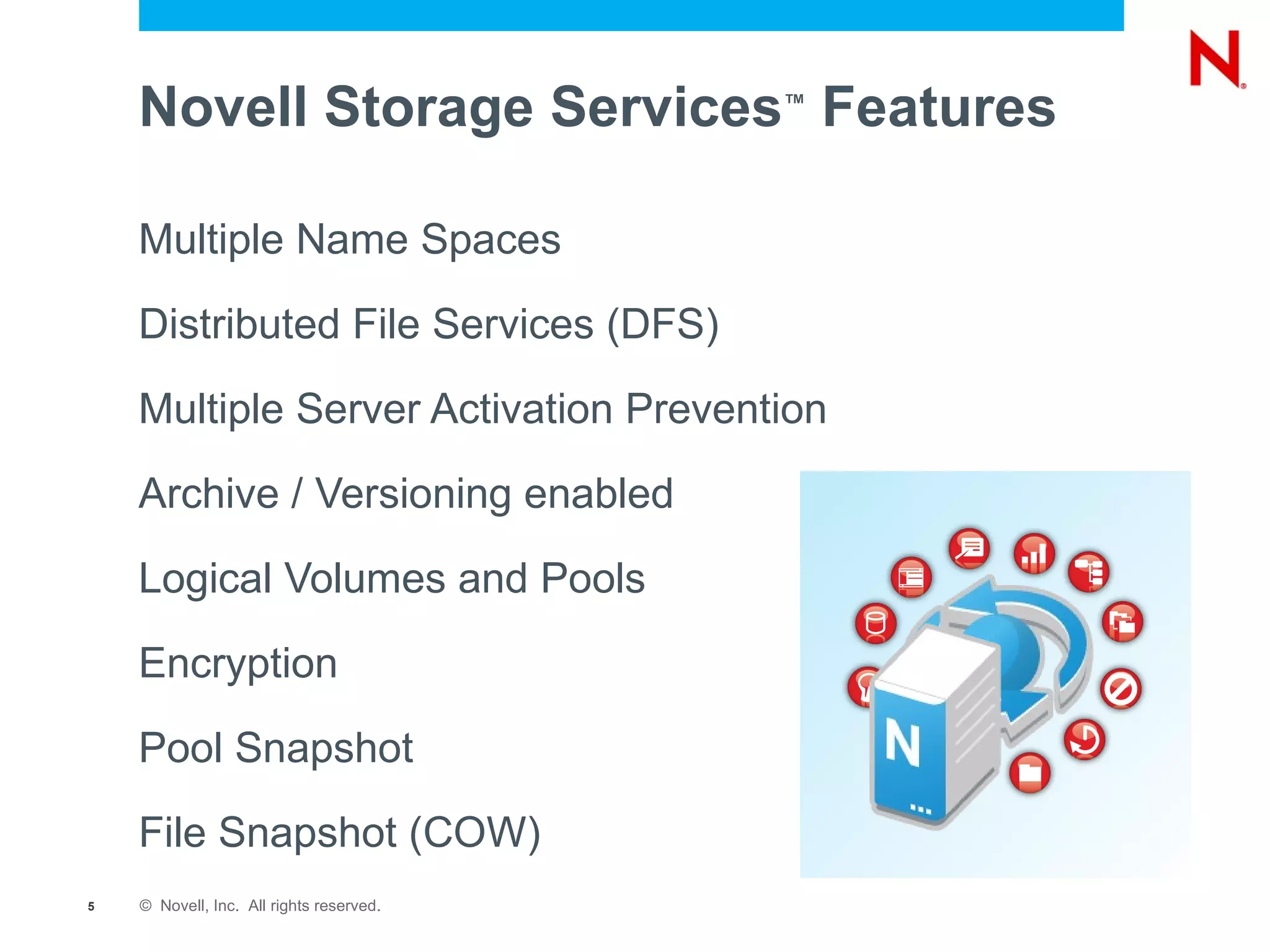

13. Novell Storage Services ™ Features Multiple Name Spaces

14. Distributed File Services (DFS)

15. Multiple Server Activation Prevention

16. Archive / Versioning enabled

17. Logical Volumes and Pools

18. Encryption

19. Pool Snapshot

20. File Snapshot (COW)

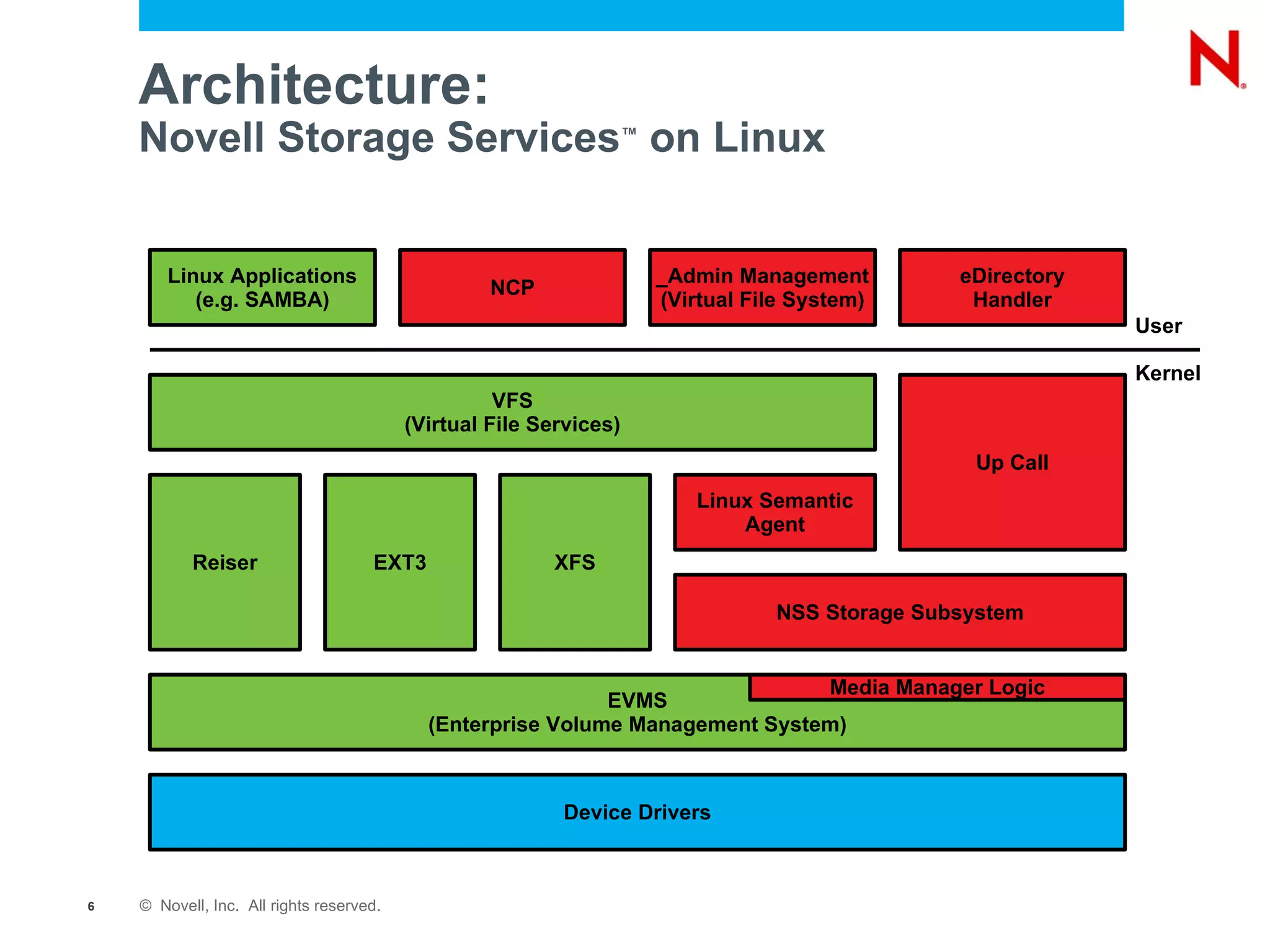

21. Architecture: Novell Storage Services ™ on Linux User Kernel Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

22. Architecture: Novell Storage Services ™ on Linux Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

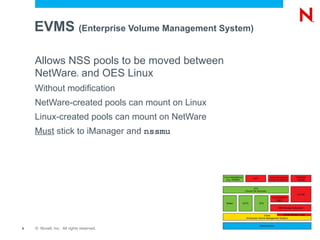

23. EVMS (Enterprise Volume Management System) Allows NSS pools to be moved between NetWare ® and OES Linux Without modification

24. NetWare-created pools can mount on Linux

25. Linux-created pools can mount on NetWare

26. Must stick to iManager and nssmu Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

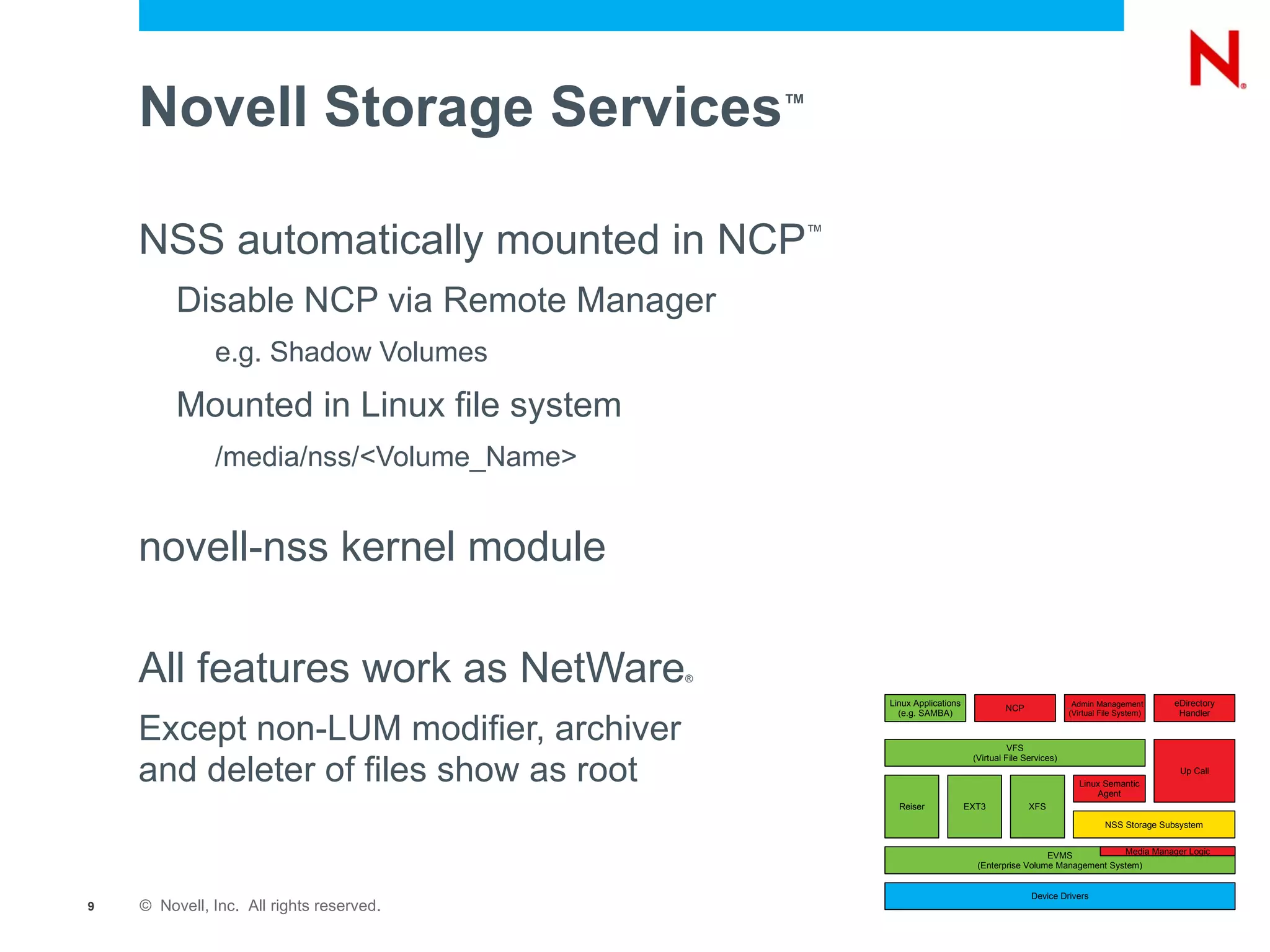

27. Novell Storage Services ™ NSS automatically mounted in NCP ™ Disable NCP via Remote Manager e.g. Shadow Volumes Mounted in Linux file system /media/nss/<Volume_Name> novell-nss kernel module

28. All features work as NetWare ® Except non-LUM modifier, archiver and deleter of files show as root Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

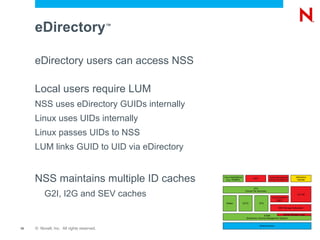

29. eDirectory ™ eDirectory users can access NSS

30. Local users require LUM NSS uses eDirectory GUIDs internally

31. Linux uses UIDs internally

32. Linux passes UIDs to NSS

33. LUM links GUID to UID via eDirectory NSS maintains multiple ID caches G2I, I2G and SEV caches Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

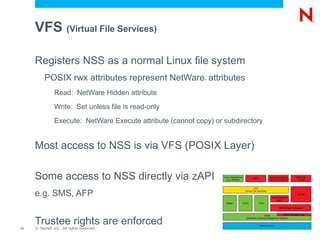

34. VFS (Virtual File Services) Registers NSS as a normal Linux file system POSIX rwx attributes represent NetWare ® attributes Read: NetWare Hidden attribute

35. Write: Set unless file is read-only

36. Execute: NetWare Execute attribute (cannot copy) or subdirectory Most access to NSS is via VFS (POSIX Layer)

37. Some access to NSS directly via zAPI e.g. SMS, AFP Trustee rights are enforced Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

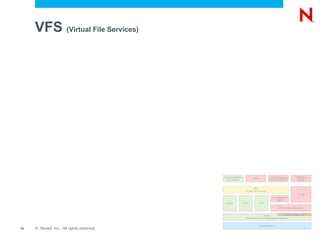

38. VFS (Virtual File Services) Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

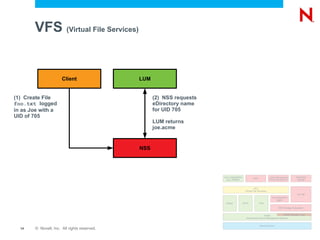

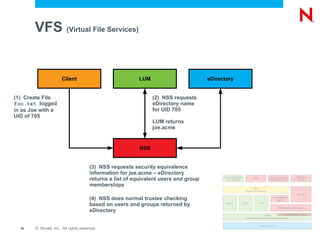

39. VFS (Virtual File Services) (1) Create File foo.txt logged in as Joe with a UID of 705 Client NSS Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

40. VFS (Virtual File Services) (1) Create File foo.txt logged in as Joe with a UID of 705 (2) NSS requests eDirectory name for UID 705 LUM returns joe.acme Client LUM NSS Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

41. VFS (Virtual File Services) (1) Create File foo.txt logged in as Joe with a UID of 705 (2) NSS requests eDirectory name for UID 705 LUM returns joe.acme (3) NSS requests security equivalence information for joe.acme – eDirectory returns a list of equivalent users and group memberships Client LUM eDirectory NSS Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

42. VFS (Virtual File Services) (1) Create File foo.txt logged in as Joe with a UID of 705 (2) NSS requests eDirectory name for UID 705 LUM returns joe.acme (3) NSS requests security equivalence information for joe.acme – eDirectory returns a list of equivalent users and group memberships (4) NSS does normal trustee checking based on users and groups returned by eDirectory Client LUM eDirectory NSS Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

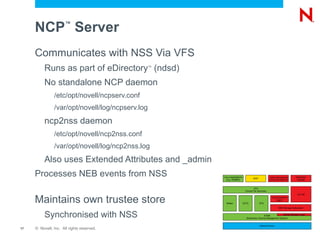

43. NCP ™ Server Communicates with NSS Via VFS Runs as part of eDirectory ™ (ndsd)

44. No standalone NCP daemon /etc/opt/novell/ncpserv.conf

45. /var/opt/novell/log/ncpserv.log ncp2nss daemon /etc/opt/novell/ncp2nss.conf

46. /var/opt/novell/log/ncp2nss.log Also uses Extended Attributes and _admin

47. Processes NEB events from NSS Maintains own trustee store Synchronised with NSS Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

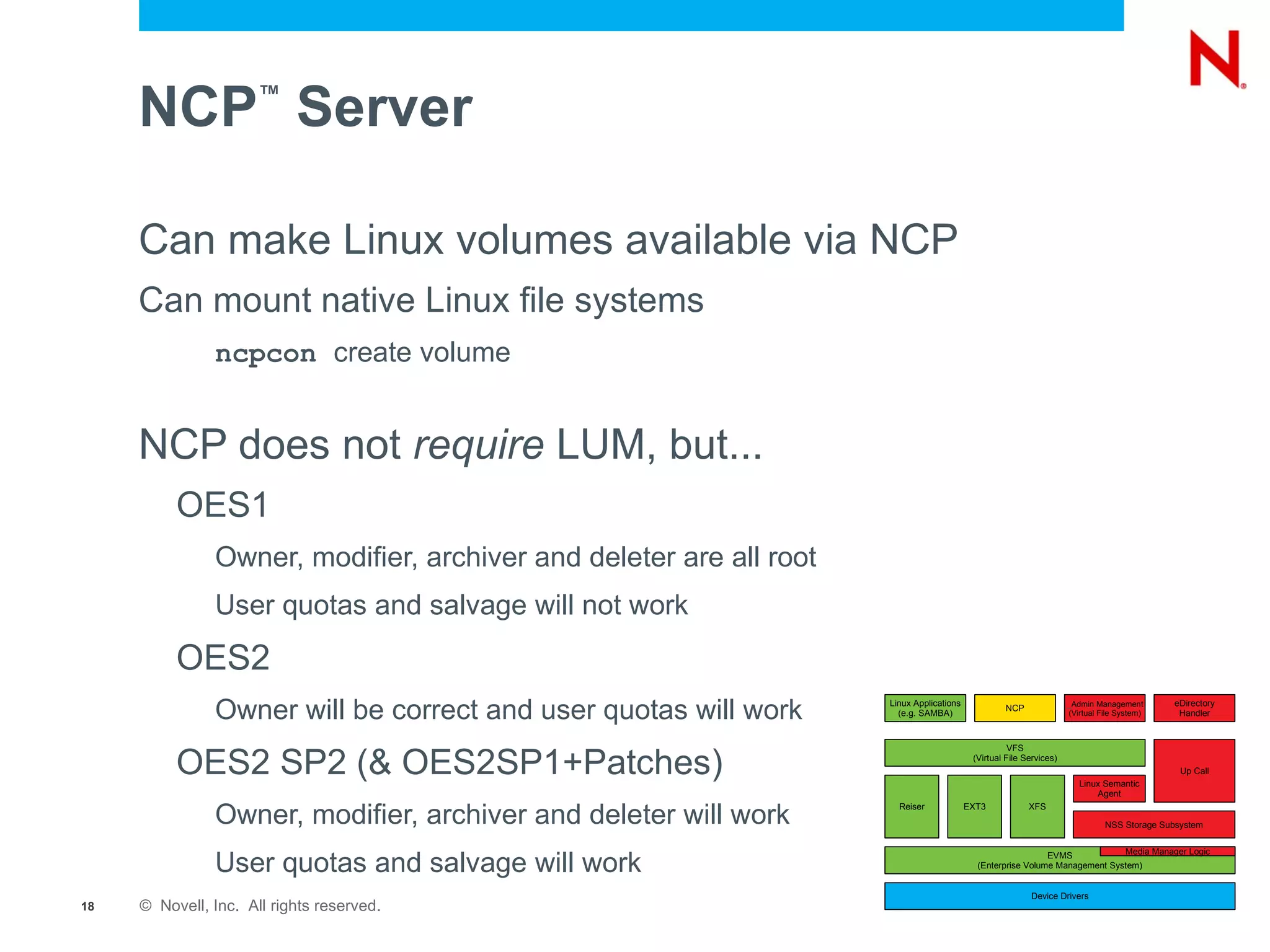

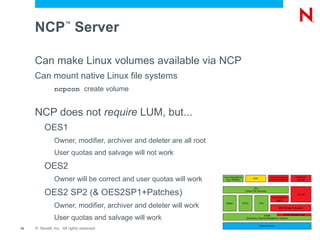

48. NCP ™ Server Can make Linux volumes available via NCP Can mount native Linux file systems ncpcon create volume NCP does not require LUM, but... OES1 Owner, modifier, archiver and deleter are all root

49. User quotas and salvage will not work OES2 Owner will be correct and user quotas will work OES2 SP2 (& OES2SP1+Patches) Owner, modifier, archiver and deleter will work

50. User quotas and salvage will work Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

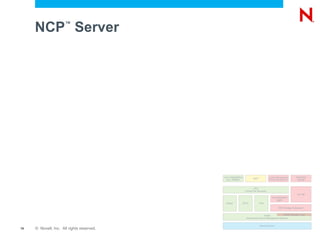

51. NCP ™ Server Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

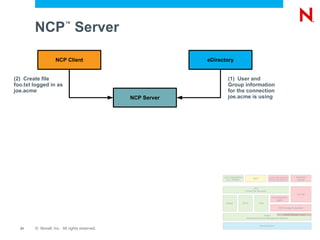

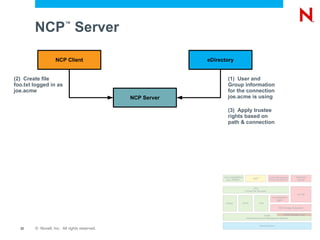

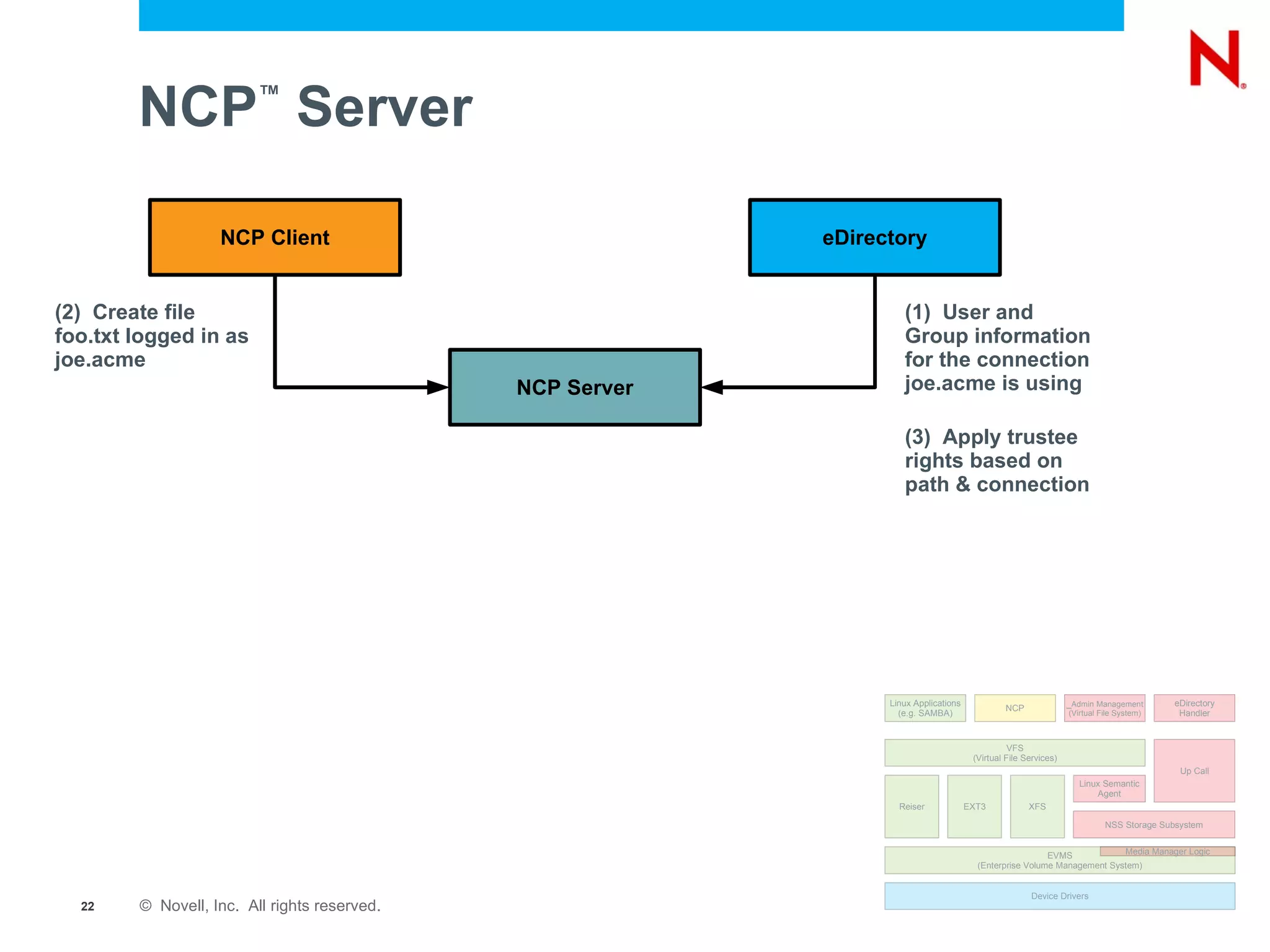

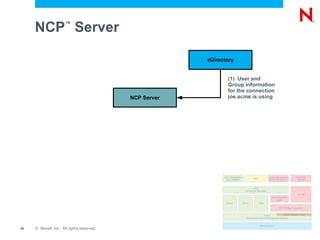

52. NCP ™ Server (1) User and Group information for the connection joe.acme is using NCP Server eDirectory Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

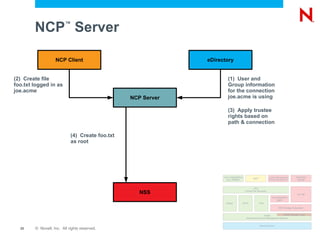

53. NCP ™ Server (2) Create file foo.txt logged in as joe.acme (1) User and Group information for the connection joe.acme is using NCP Client NCP Server eDirectory Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

54. NCP ™ Server (2) Create file foo.txt logged in as joe.acme (1) User and Group information for the connection joe.acme is using (3) Apply trustee rights based on path & connection NCP Client NCP Server eDirectory Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

55. NCP ™ Server (2) Create file foo.txt logged in as joe.acme (1) User and Group information for the connection joe.acme is using (3) Apply trustee rights based on path & connection (4) Create foo.txt as root NCP Client NCP Server eDirectory NSS Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

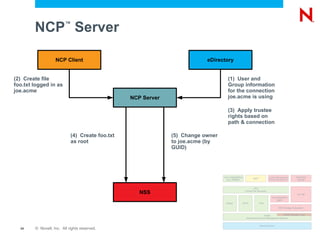

56. NCP ™ Server (2) Create file foo.txt logged in as joe.acme (1) User and Group information for the connection joe.acme is using (3) Apply trustee rights based on path & connection (4) Create foo.txt as root (5) Change owner to joe.acme (by GUID) NCP Client NCP Server eDirectory NSS Device Drivers EVMS (Enterprise Volume Management System) Media Manager Logic NSS Storage Subsystem Linux Semantic Agent Linux Applications (e.g. SAMBA) NCP _ Admin Management (Virtual File System) eDirectory Handler Up Call VFS (Virtual File Services) Reiser EXT3 XFS

57. Tuning Novell Storage Services ™

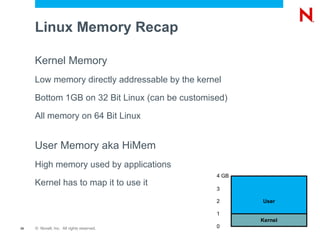

58. Linux Memory Recap Kernel Memory Low memory directly addressable by the kernel

59. Bottom 1GB on 32 Bit Linux (can be customised)

60. All memory on 64 Bit Linux User Memory aka HiMem High memory used by applications

61. Kernel has to map it to use it 0 1 4 GB 2 3 User Kernel

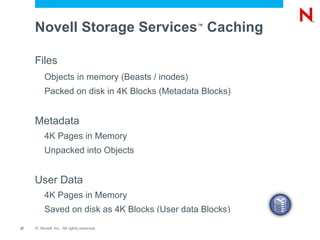

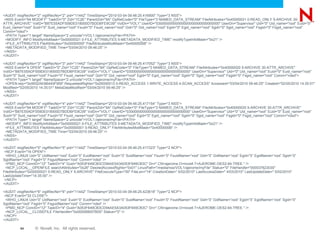

62. Novell Storage Services ™ Caching Files Objects in memory (Beasts / inodes)

63. Packed on disk in 4K Blocks (Metadata Blocks) Metadata 4K Pages in Memory

64. Unpacked into Objects User Data 4K Pages in Memory

65. Saved on disk as 4K Blocks (User data Blocks)

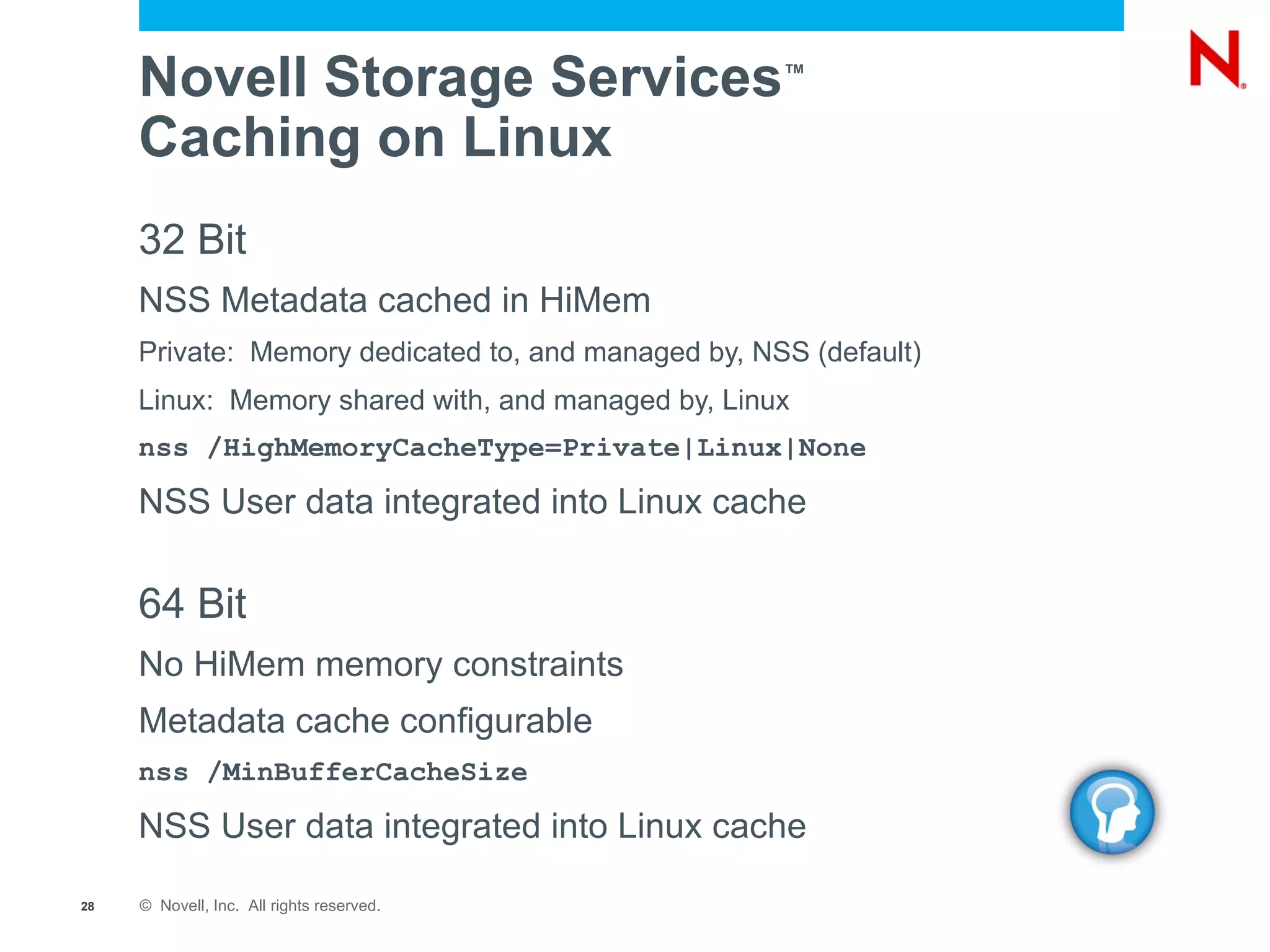

66. Novell Storage Services ™ Caching on Linux 32 Bit NSS Metadata cached in HiMem Private: Memory dedicated to, and managed by, NSS (default)

67. Linux: Memory shared with, and managed by, Linux

68. nss /HighMemoryCacheType=Private|Linux|None NSS User data integrated into Linux cache 64 Bit No HiMem memory constraints

69. Metadata cache configurable nss /MinBufferCacheSize NSS User data integrated into Linux cache

70. Previous Versions of Novell Storage Services ™ on Linux Open Enterprise Server (OES) All user and metadata in kernel memory OES SP1 NSS Metadata cached in kernel memory

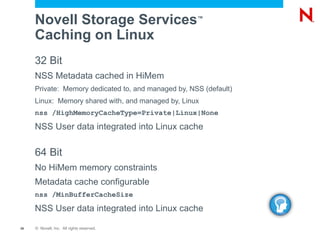

71. NSS user data integrated into Linux cache OES SP2 NSS Metadata cached in HiMem nss /HighMemoryCacheType NSS User data integrated into Linux cache

72. Previous Versions of Novell Storage Services ™ on Linux OES2 64 bit OES2 SP1 Enhanced version of OES2 OES2 SP2 Improved Read-ahead algorithm (Stepping Window) OES2 SP3 Improved I/O Scheduler interactions

73. Multi-page BIO support

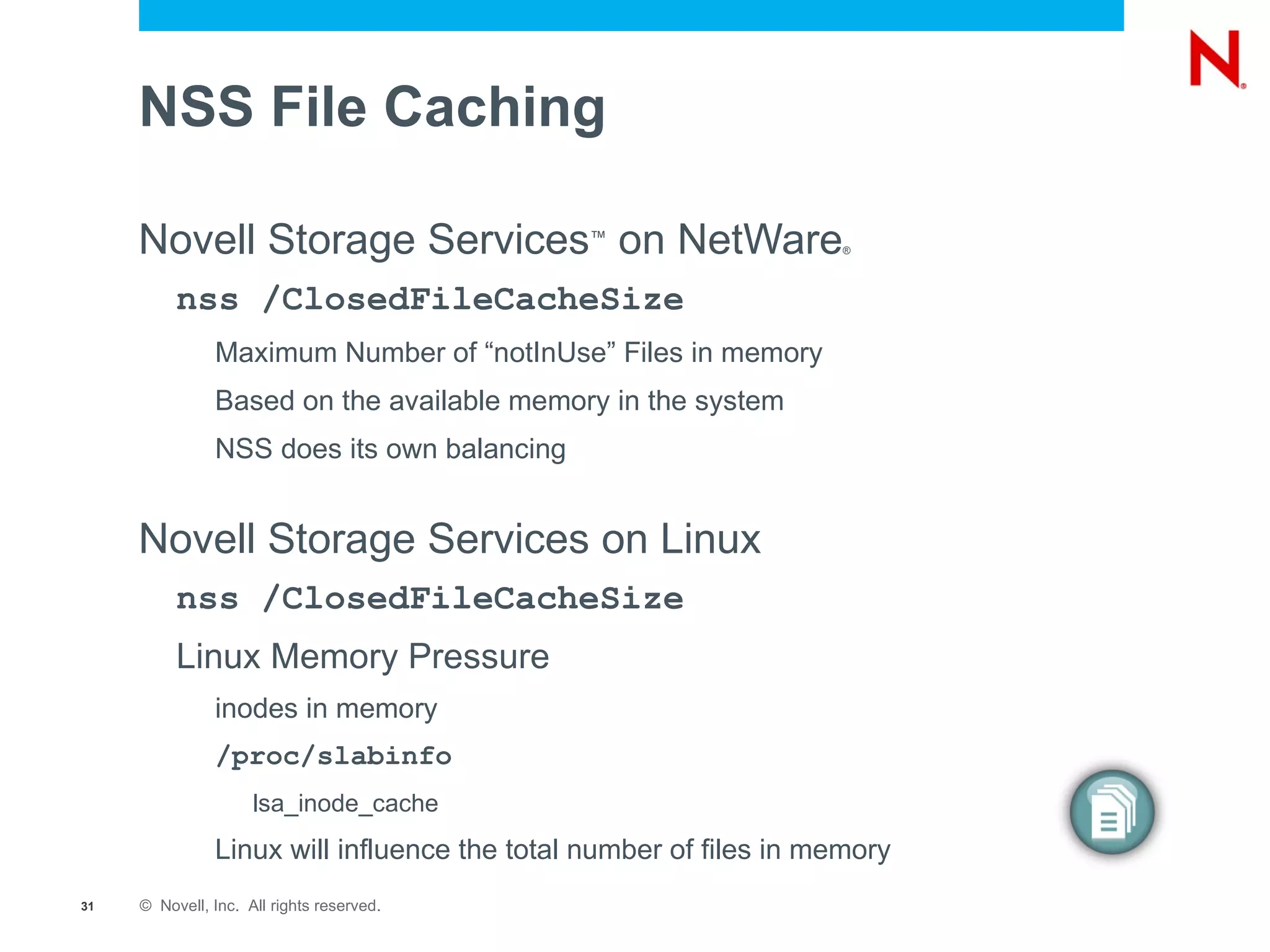

74. NSS File Caching Novell Storage Services ™ on NetWare ® nss /ClosedFileCacheSize Maximum Number of “notInUse” Files in memory

75. Based on the available memory in the system

76. NSS does its own balancing Novell Storage Services on Linux nss /ClosedFileCacheSize

77. Linux Memory Pressure inodes in memory

78. /proc/slabinfo lsa_inode_cache Linux will influence the total number of files in memory

79. Novell Storage Services ™ ID Cache ID Cache Tuning Parameters Per server

80. Reset various ID caches nss /ResetIDCache Modify the reset intervals of ID caches nss /IDCacheResetInterval=value ( Default: 25 hours) Modify the size of ID caches Requires latest patches for SP1/SP2

81. nss /IDCacheSize=value (Default: 16384) OES2SP3 Monitor ID cache statistics

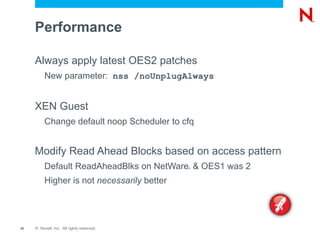

82. Performance Always apply latest OES2 patches New parameter: nss /noUnplugAlways XEN Guest Change default noop Scheduler to cfq Modify Read Ahead Blocks based on access pattern Default ReadAheadBlks on NetWare ® & OES1 was 2

83. Higher is not necessarily better

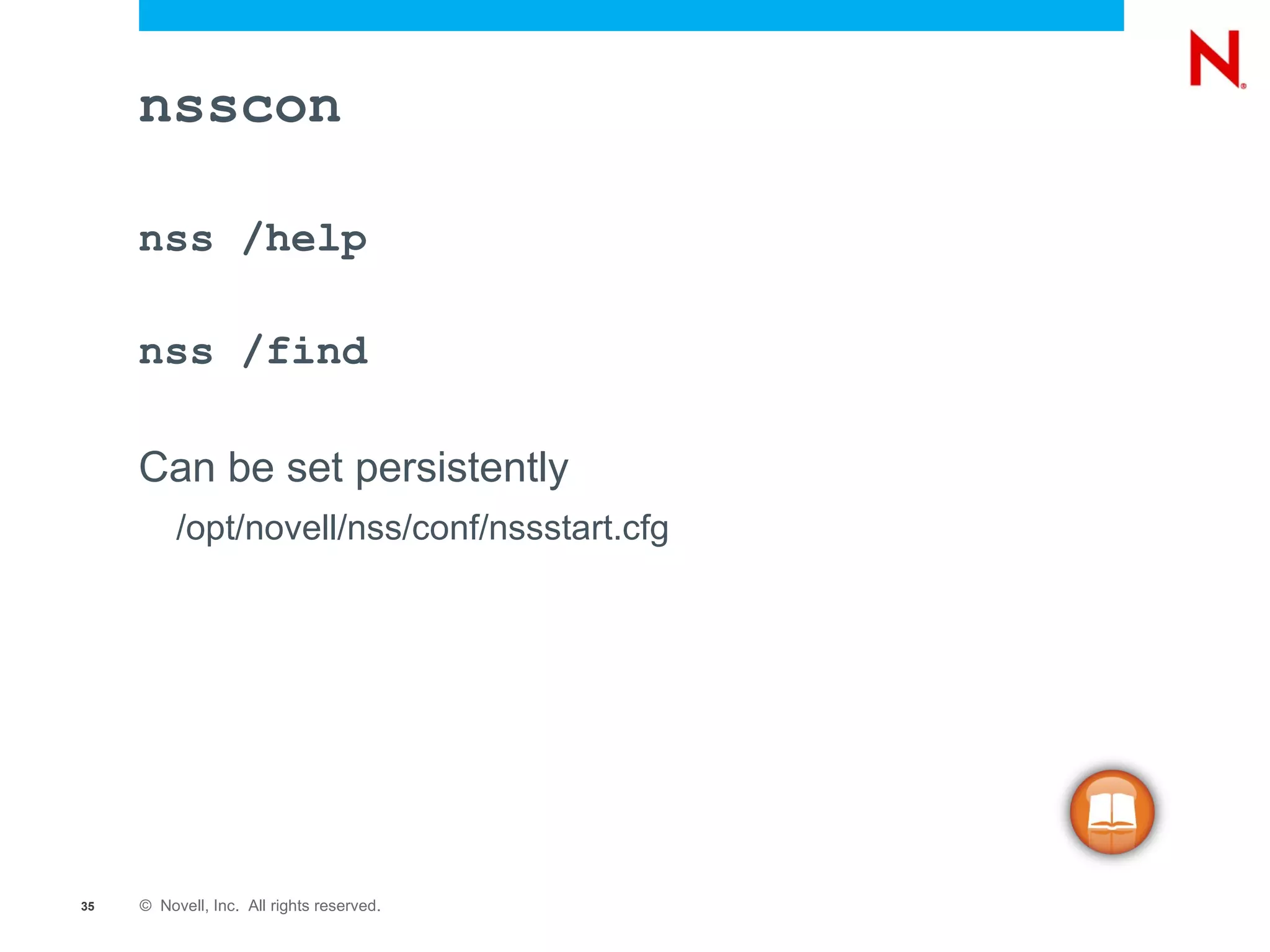

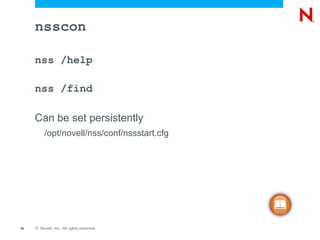

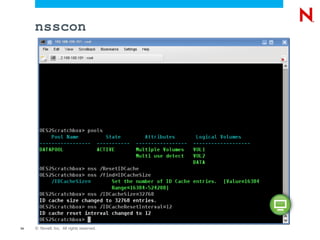

84. nsscon

85. nsscon nss /help

86. nss /find

87. Can be set persistently /opt/novell/nss/conf/nssstart.cfg

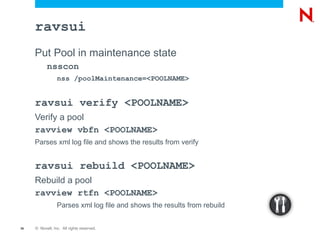

88. ravsui Put Pool in maintenance state nsscon nss /poolMaintenance=<POOLNAME> ravsui verify <POOLNAME> Verify a pool

89. ravview vbfn <POOLNAME> Parses xml log file and shows the results from verify ravsui rebuild <POOLNAME> Rebuild a pool

90. ravview rtfn <POOLNAME> Parses xml log file and shows the results from rebuild

91. NetWare Core Protocol ™

92. NCP ™ Improvements NCP Server Engine Largely Rewritten No IPX Support

93. Large memory model

94. NCP on Linux can outperform NCP on NetWare ®

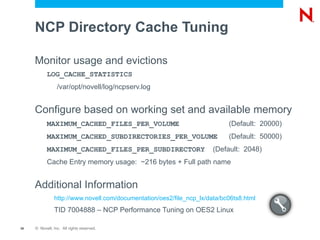

95. NCP Directory Cache Tuning Monitor usage and evictions LOG_CACHE_STATISTICS /var/opt/novell/log/ncpserv.log Configure based on working set and available memory MAXIMUM_CACHED_FILES_PER_VOLUME (Default: 20000)

96. MAXIMUM_CACHED_SUBDIRECTORIES_PER_VOLUME (Default: 50000)

97. MAXIMUM_CACHED_FILES_PER_SUBDIRECTORY (Default: 2048)

98. Cache Entry memory usage: ~216 bytes + Full path name Additional Information http://www.novell.com/documentation/oes2/file_ncp_lx/data/bc06ts8.html

99. TID 7004888 – NCP Performance Tuning on OES2 Linux

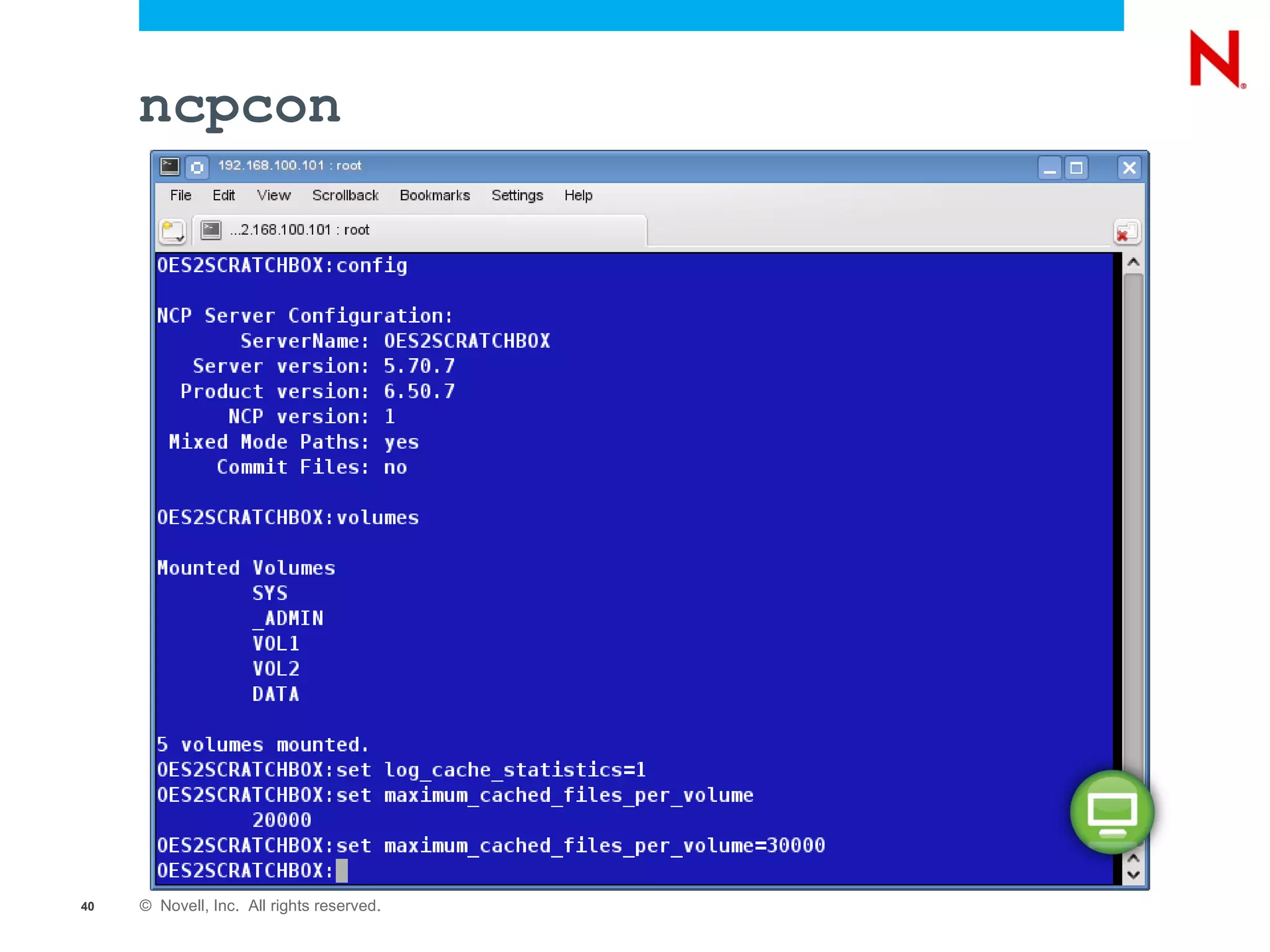

100. ncpcon

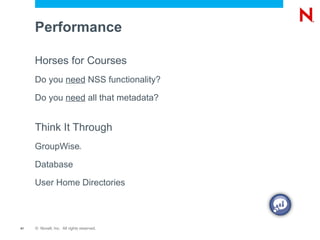

101. Performance Horses for Courses Do you need NSS functionality?

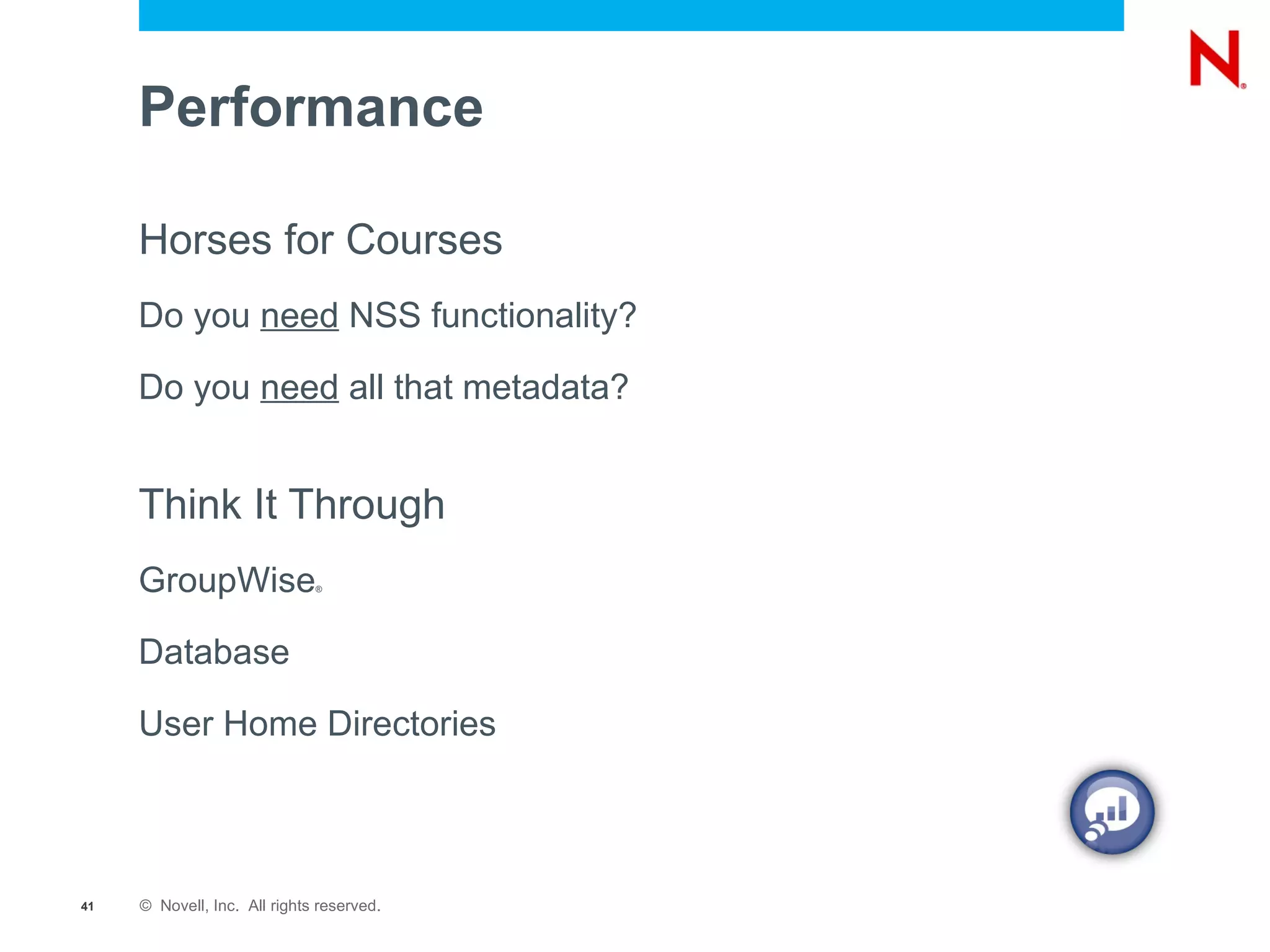

102. Do you need all that metadata? Think It Through GroupWise ®

103. Database

104. User Home Directories

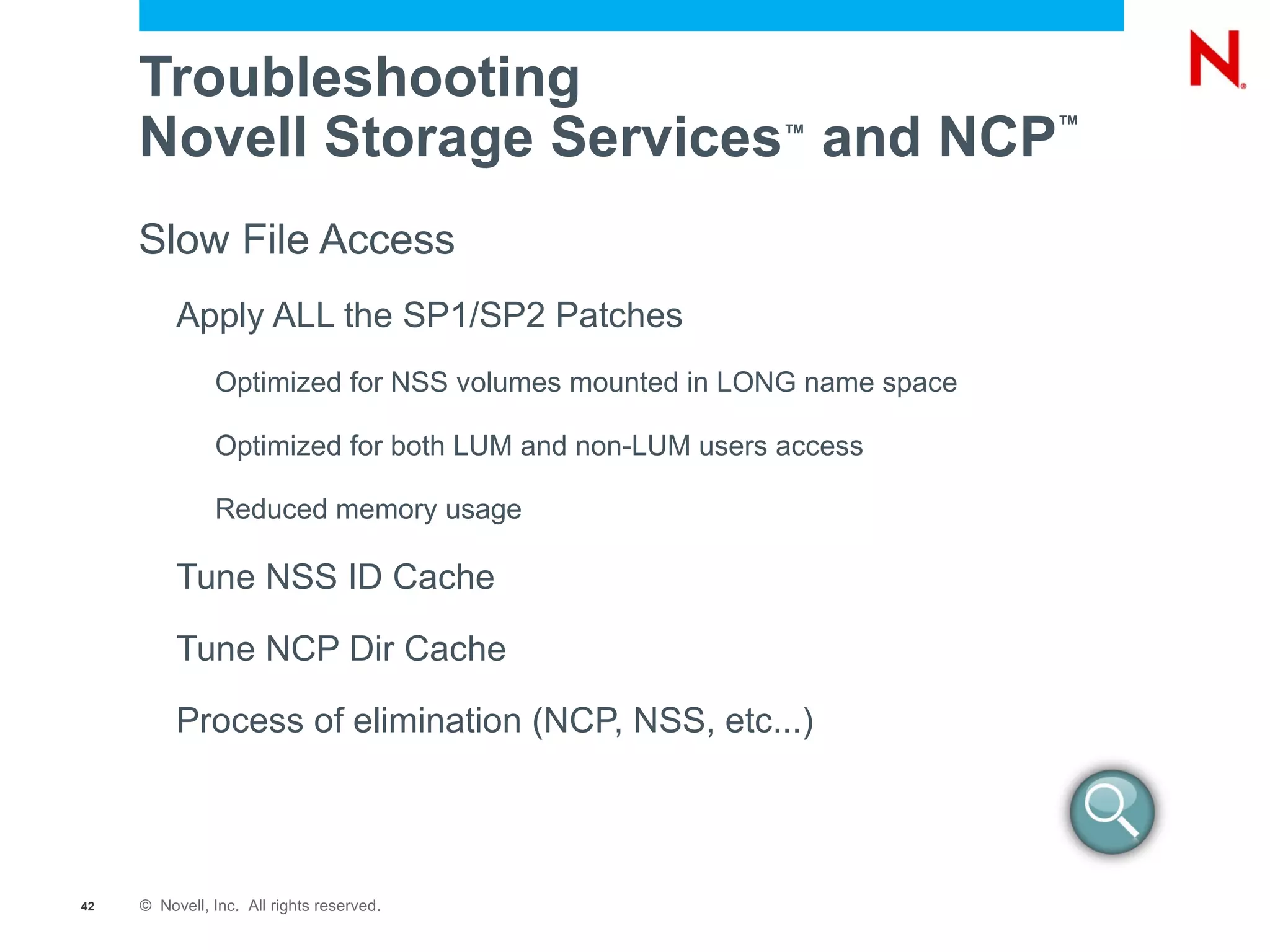

105. Troubleshooting Novell Storage Services ™ and NCP ™ Slow File Access Apply ALL the SP1/SP2 Patches Optimized for NSS volumes mounted in LONG name space

106. Optimized for both LUM and non-LUM users access

107. Reduced memory usage Tune NSS ID Cache

108. Tune NCP Dir Cache

109. Process of elimination (NCP, NSS, etc...)

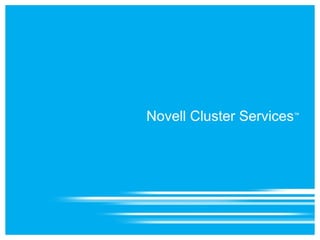

110. Novell Cluster Services ™

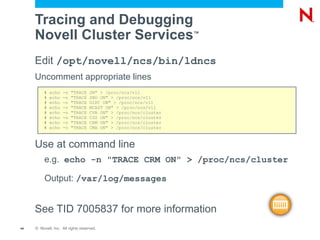

111. Tracing and Debugging Novell Cluster Services ™ Edit /opt/novell/ncs/bin/ldncs Uncomment appropriate lines Use at command line e.g. echo -n &quot;TRACE CRM ON&quot; > /proc/ncs/cluster

112. Output: /var/log/messages See TID 7005837 for more information # echo -n &quot;TRACE ON&quot; > /proc/ncs/vll # echo -n &quot;TRACE SBD ON&quot; > /proc/ncs/vll # echo -n &quot;TRACE GIPC ON&quot; > /proc/ncs/vll # echo -n &quot;TRACE MCAST ON&quot; > /proc/ncs/vll # echo -n &quot;TRACE CVB ON&quot; > /proc/ncs/cluster # echo -n &quot;TRACE CSS ON&quot; > /proc/ncs/cluster # echo -n &quot;TRACE CRM ON&quot; > /proc/ncs/cluster # echo -n &quot;TRACE CMA ON&quot; > /proc/ncs/cluster

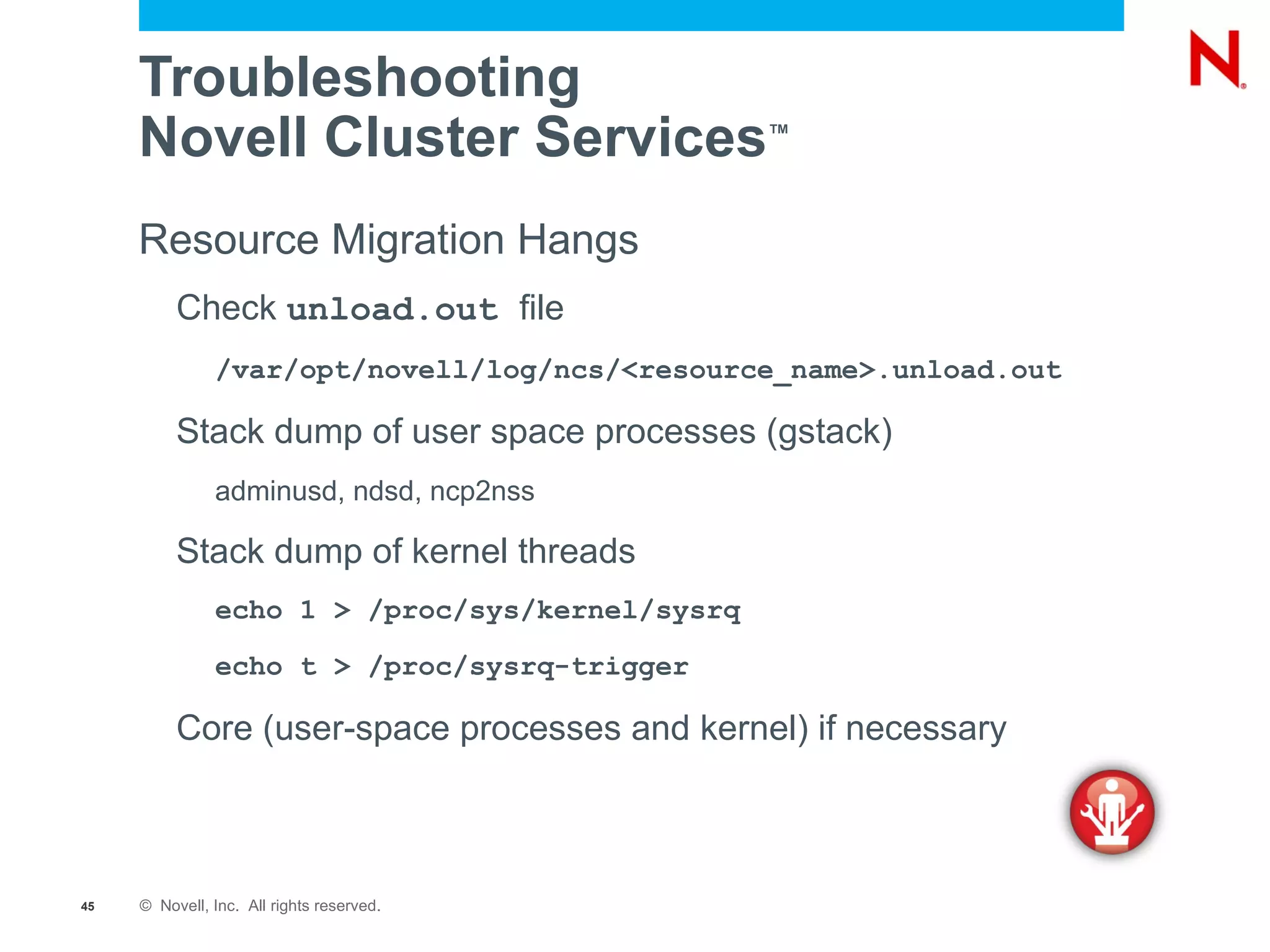

113. Troubleshooting Novell Cluster Services ™ Resource Migration Hangs Check unload.out file /var/opt/novell/log/ncs/<resource_name>.unload.out Stack dump of user space processes (gstack) adminusd, ndsd, ncp2nss Stack dump of kernel threads echo 1 > /proc/sys/kernel/sysrq

114. echo t > /proc/sysrq-trigger Core (user-space processes and kernel) if necessary

115. Novell Storage Services ™ Auditing (Vigil)

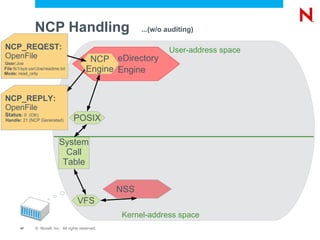

116. NCP Handling ...(w/o auditing) User-address space Kernel-address space eDirectory Engine POSIX System Call Table VFS NSS NCP Engine NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated)

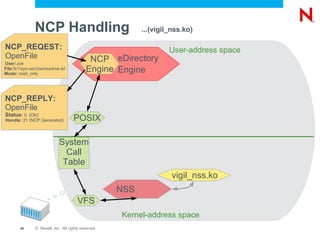

117. NCP Handling ...(vigil_nss.ko) User-address space Kernel-address space eDirectory Engine POSIX System Call Table VFS NSS NCP Engine vigil_nss.ko NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated)

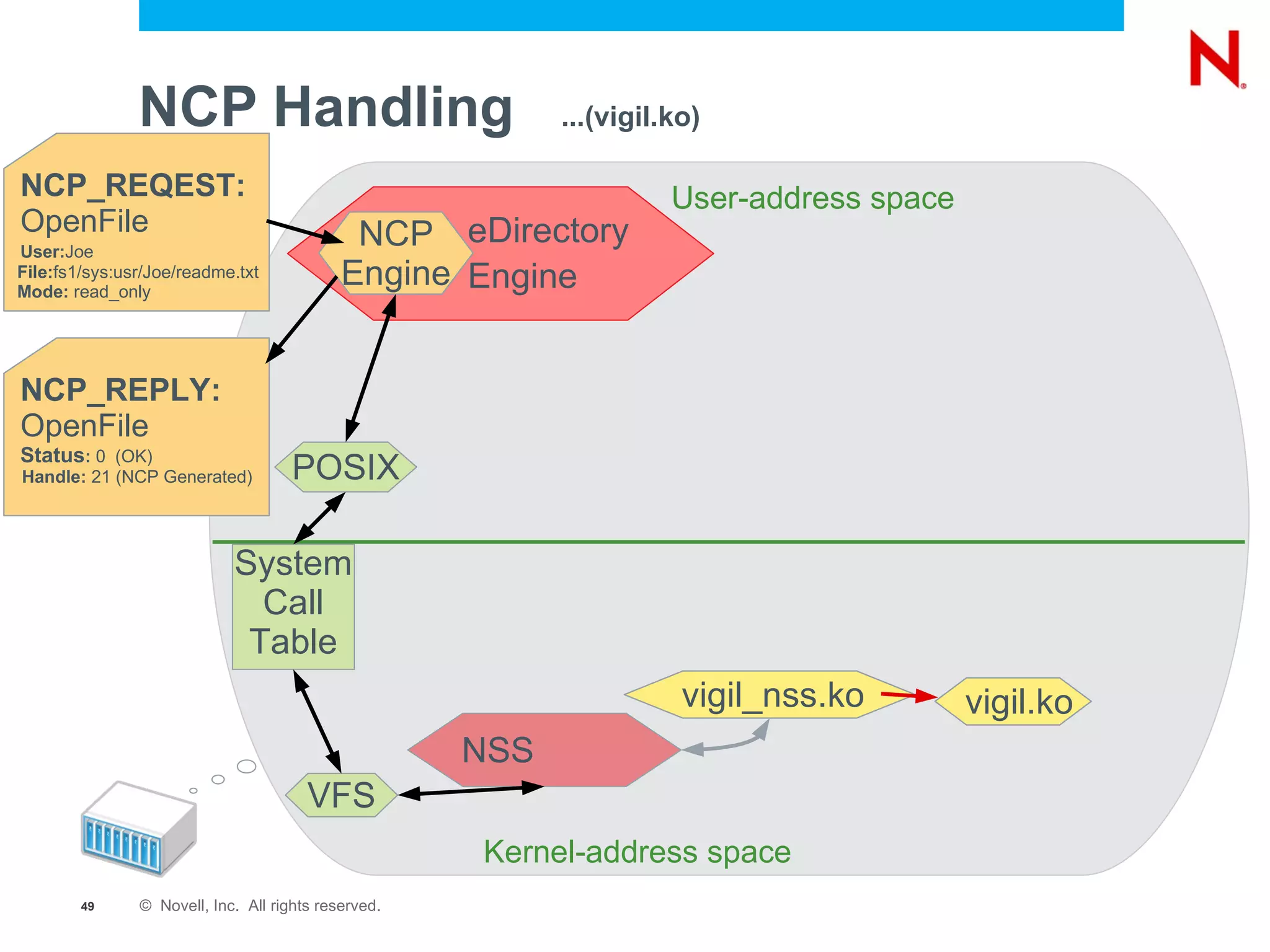

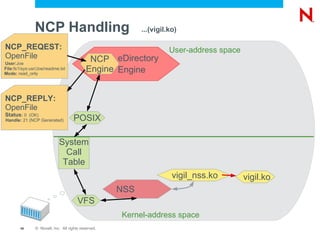

118. NCP Handling ...(vigil.ko) User-address space Kernel-address space eDirectory Engine POSIX System Call Table VFS NSS NCP Engine vigil_nss.ko vigil.ko NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated)

119. NCP Handling ...(vigil.ko API) User-address space Kernel-address space eDirectory Engine POSIX System Call Table VFS NSS NCP Engine vigil_nss.ko sysfs API vigil.ko NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated)

120. NCP Handling ...(libvigil) User-address space Kernel-address space eDirectory Engine POSIX System Call Table VFS NSS NCP Engine vigil_nss.ko sysfs API vigil.ko libvigil NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated)

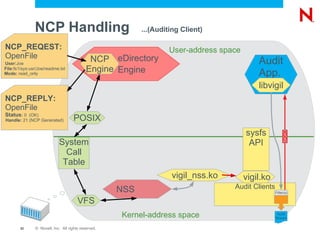

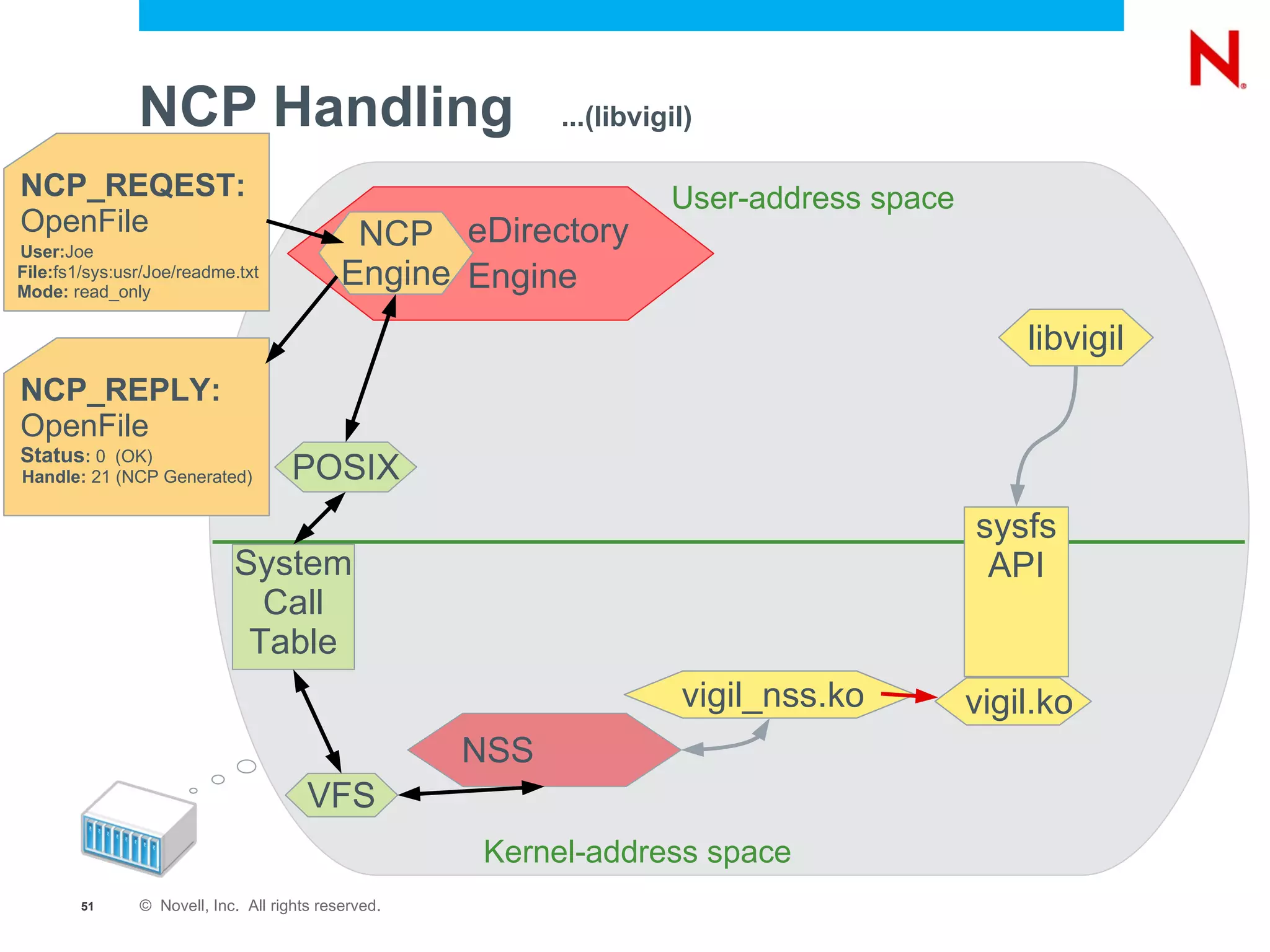

121. NCP Handling ...(Auditing Client) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated)

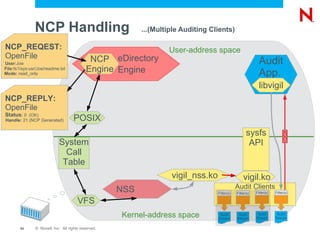

122. NCP Handling ...(Multiple Auditing Clients) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream

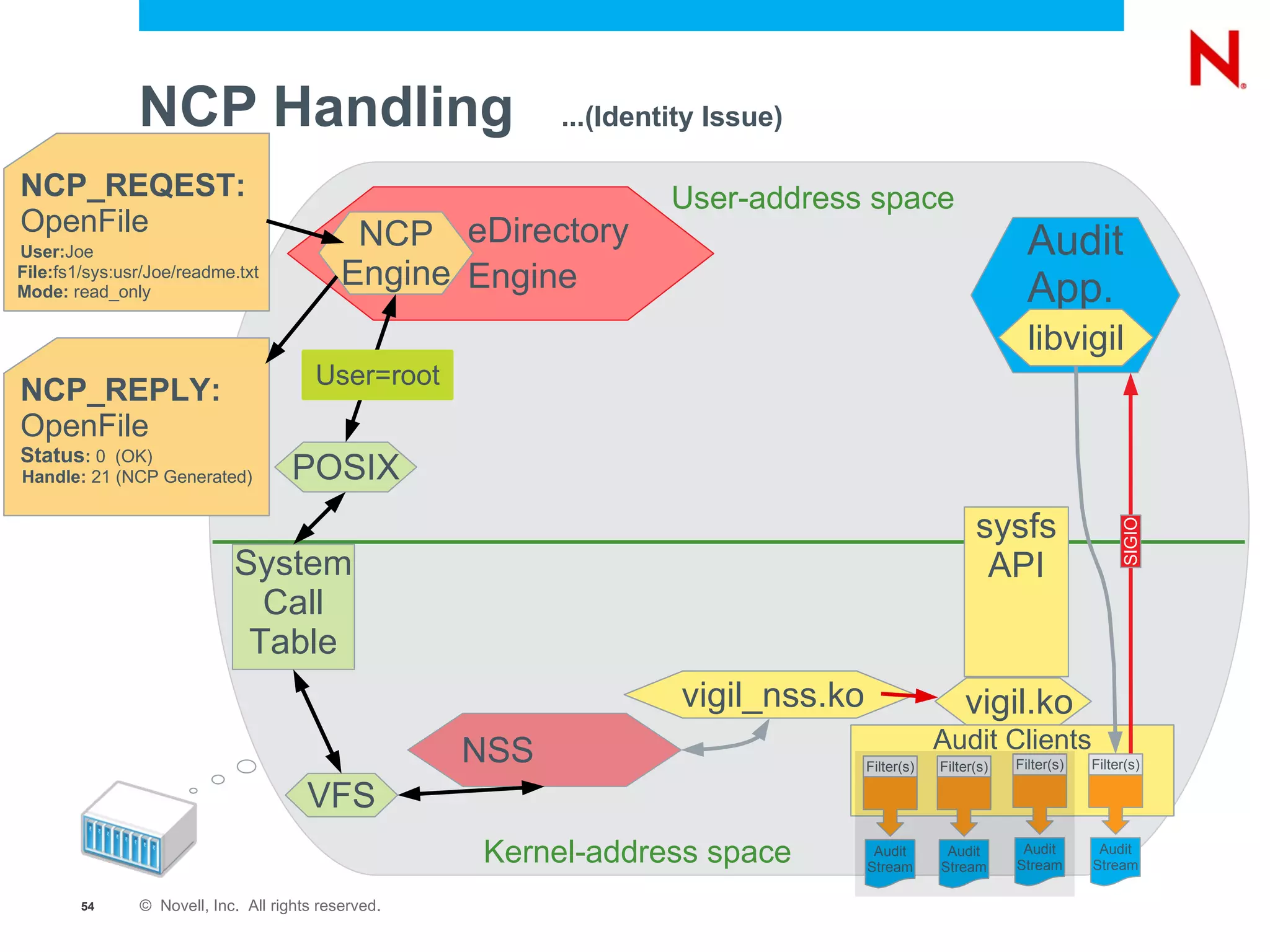

123. NCP Handling ...(Identity Issue) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream User=root

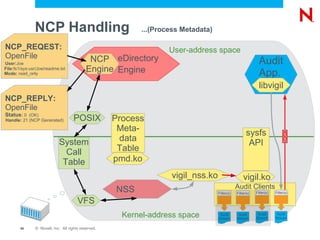

124. NCP Handling ...(Process Metadata) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine pmd.ko Process Meta- data Table vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream

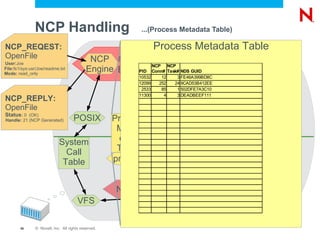

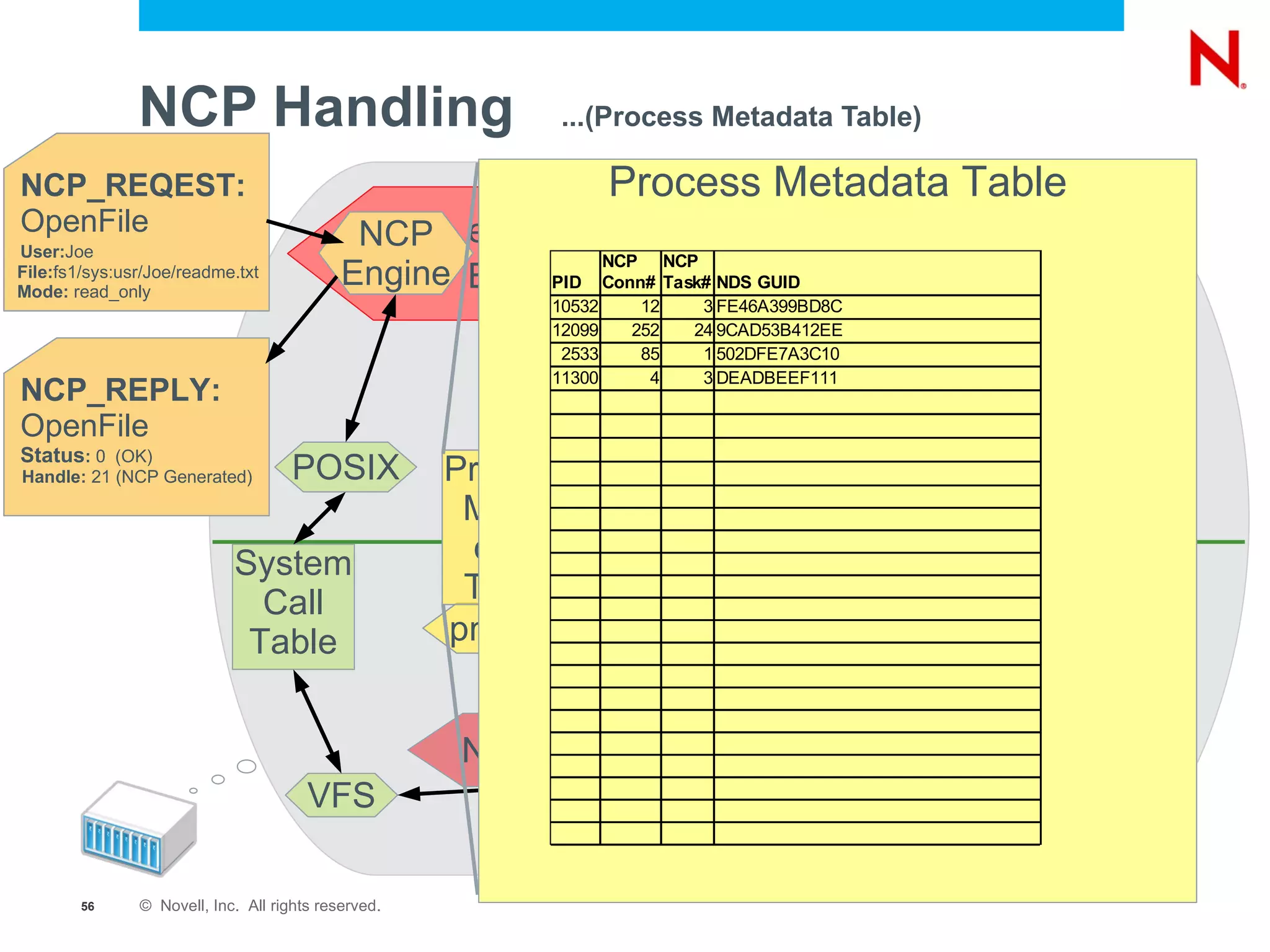

125. NCP Handling ...(Process Metadata Table) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine pmd.ko Process Meta- data Table vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream Process Metadata Table

126. NCP Handling ...(Process Metadata Logging) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine pmd.ko Process Meta- data Table vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil Linux Process NCP/NDS Client Metadata NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream

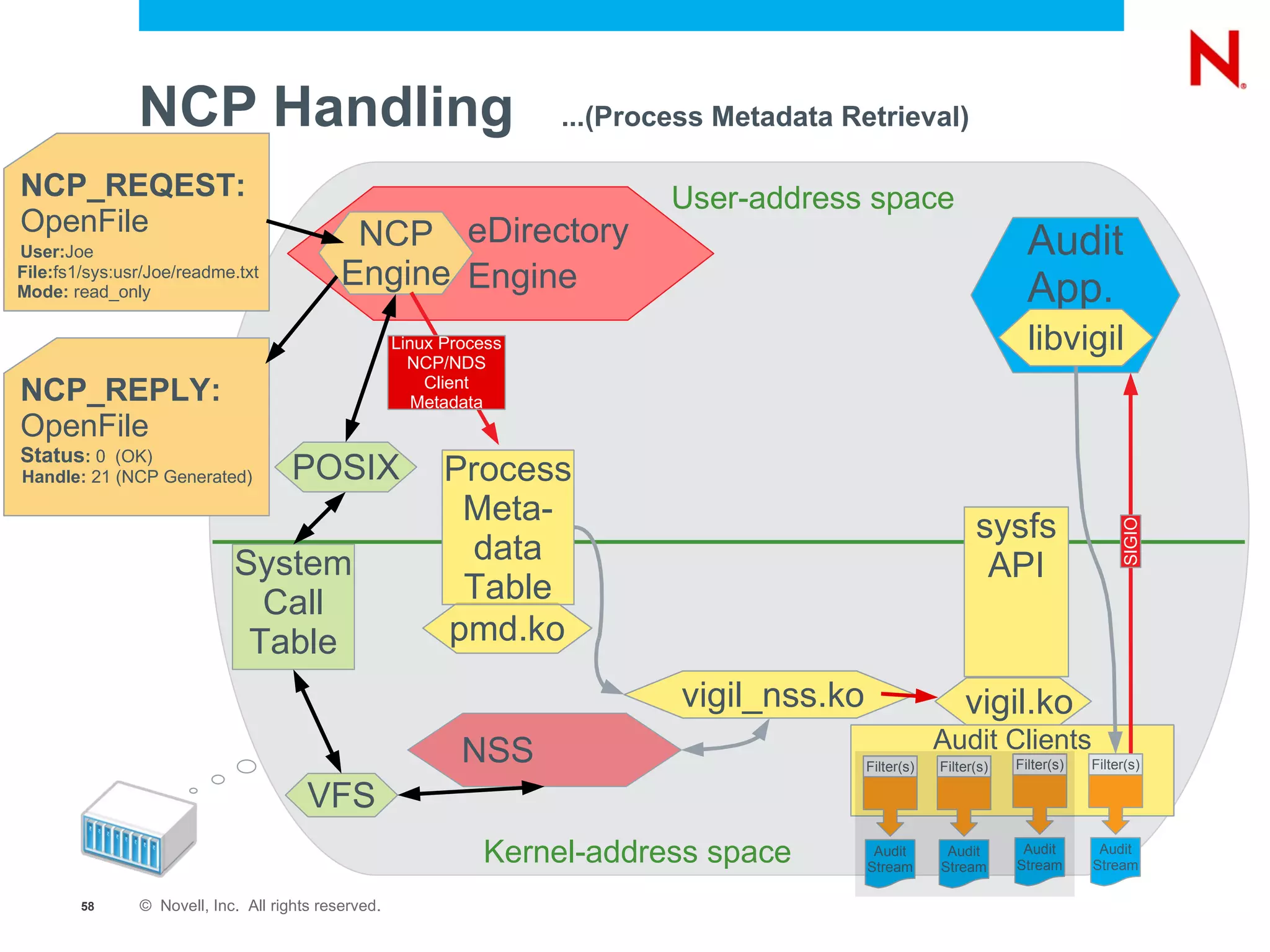

127. NCP Handling ...(Process Metadata Retrieval) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine pmd.ko Process Meta- data Table vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil Linux Process NCP/NDS Client Metadata NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream

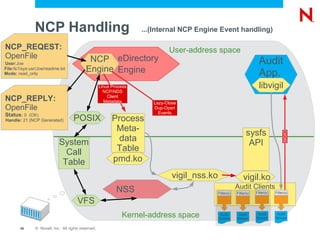

128. NCP Handling ...(Internal NCP Engine Event handling) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine pmd.ko Process Meta- data Table vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil Lazy-Close Dup-Open Events Linux Process NCP/NDS Client Metadata NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream

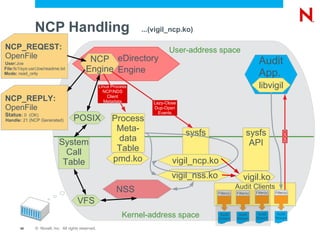

129. NCP Handling ...(vigil_ncp.ko) User-address space Kernel-address space SIGIO eDirectory Engine POSIX System Call Table VFS NSS NCP Engine pmd.ko Process Meta- data Table vigil_nss.ko vigil_ncp.ko sysfs sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil Lazy-Close Dup-Open Events Linux Process NCP/NDS Client Metadata NCP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only NCP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream

130. CIFS Handling User-address space Kernel-address space SIGIO POSIX System Call Table VFS NSS CIFS Engine pmd.ko Process Meta- data Table vigil_nss.ko vigil_cifs.ko sysfs sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil Lazy-Close Dup-Open Events Linux Process NCP/NDS Client Metadata CIFS_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only CIFS_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream

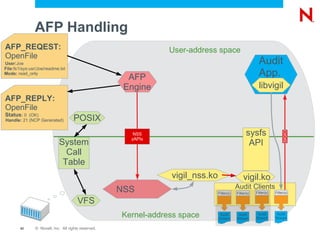

131. AFP Handling User-address space Kernel-address space SIGIO POSIX System Call Table VFS NSS vigil_nss.ko sysfs API vigil.ko Audit Clients Filter(s) Audit Stream Audit App. libvigil NSS zAPIs AFP_REQEST: OpenFile User: Joe File: fs1/sys:usr/Joe/readme.txt Mode: read_only AFP_REPLY: OpenFile Status : 0 (OK) Handle: 21 (NCP Generated) Filter(s) Audit Stream Filter(s) Audit Stream Filter(s) Audit Stream AFP Engine

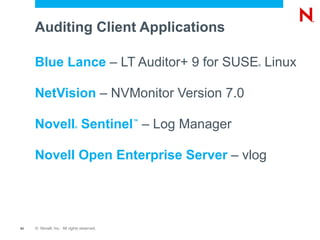

132. Auditing Client Applications Blue Lance – LT Auditor+ 9 for SUSE ® Linux NetVision – NVMonitor Version 7.0 Novell ® Sentinel ™ – Log Manager Novell Open Enterprise Server – vlog

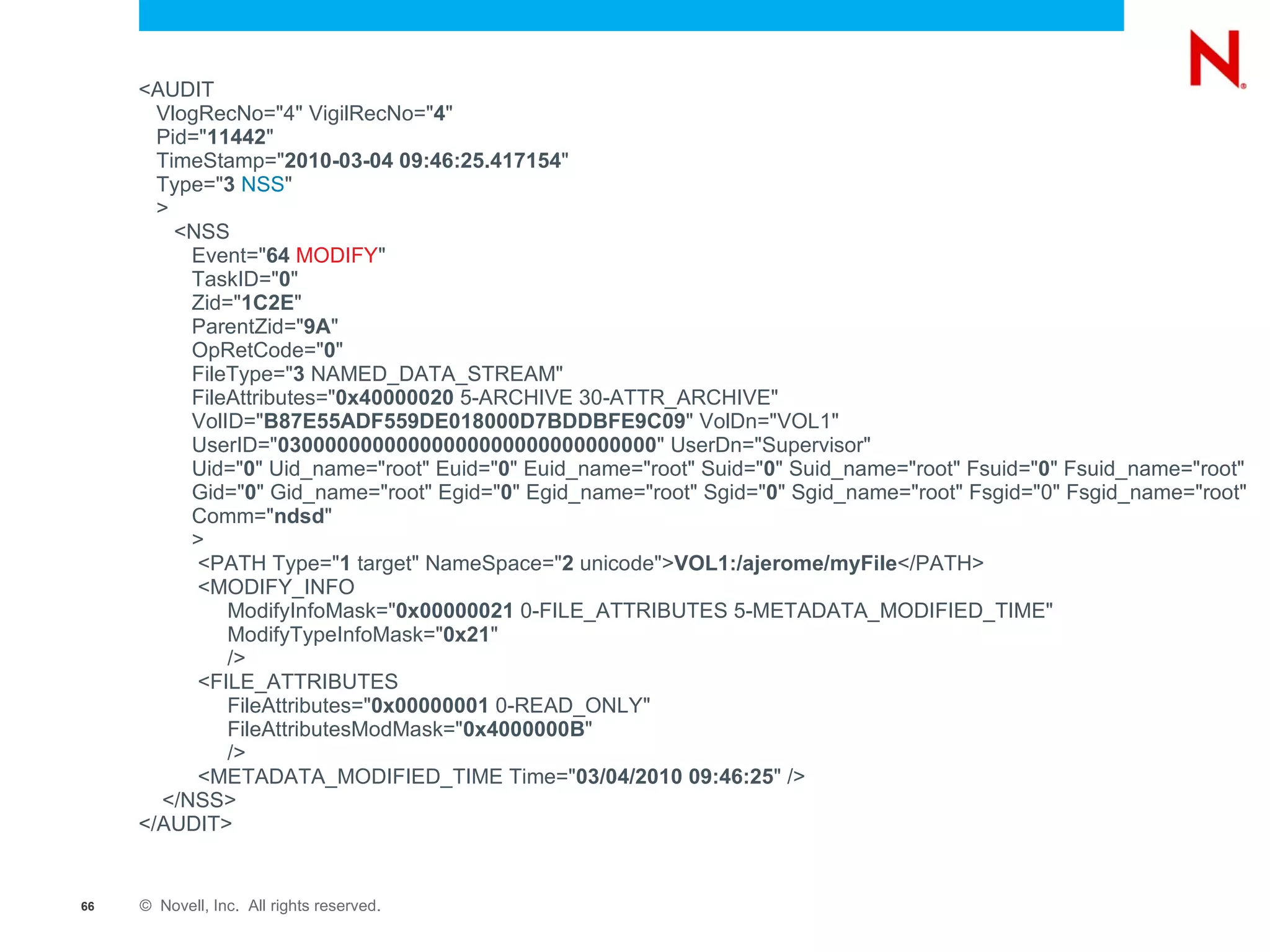

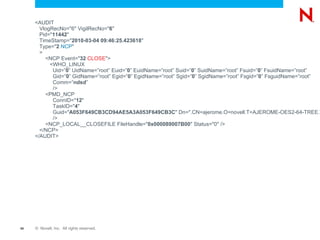

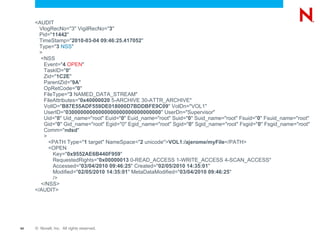

133. <AUDIT vlogRecNo=&quot;2&quot; vigilRecNo=&quot;2&quot; pid=&quot;11442&quot; TimeStamp=&quot;2010-03-04 09:46:25.416900&quot; Type=&quot;3 NSS&quot;> <NSS Event=&quot;64 MODIFY&quot; TaskID=&quot;0&quot; Zid=&quot;1C2E&quot; ParentZid=&quot;9A&quot; OpRetCode=&quot;0&quot; FileType=&quot;3 NAMED_DATA_STREAM&quot; FileAttributes=&quot;0x40000021 0-READ_ONLY 5-ARCHIVE 30-ATTR_ARCHIVE&quot; VolID=&quot;B87E55ADF559DE018000D7BDDBFE9C09&quot; VolDn=&quot;VOL1&quot; UserID=&quot;03000000000000000000000000000000&quot; UserDn=&quot;Supervisor&quot; Uid=&quot;0&quot; Uid_name=&quot;root&quot; Euid=&quot;0&quot; Euid_name=&quot;root&quot; Suid=&quot;0&quot; Suid_name=&quot;root&quot; Fsuid=&quot;0&quot; Fsuid_name=&quot;root&quot; Gid=&quot;0&quot; Gid_name=&quot;root&quot; Egid=&quot;0&quot; Egid_name=&quot;root&quot; Sgid=&quot;0&quot; Sgid_name=&quot;root&quot; Fsgid=&quot;0&quot; Fsgid_name=&quot;root&quot; Comm=&quot;ndsd&quot;> <PATH Type=&quot;1 target&quot; NameSpace=&quot;2 unicode&quot;>VOL1:/ajerome/myFile</PATH> <MODIFY_INFO ModifyInfoMask=&quot;0x00000021 0-FILE_ATTRIBUTES 5-METADATA_MODIFIED_TIME&quot; modifyTypeInfoMask=&quot;0x21&quot; /> <FILE_ATTRIBUTES FileAttributes=&quot;0x00000000&quot; FileAttributesModMask=&quot;0x4000000B&quot; /> <METADATA_MODIFIED_TIME Time=&quot;03/04/2010 09:46:25&quot; /> </NSS> </AUDIT> <AUDIT vlogRecNo=&quot;3&quot; vigilRecNo=&quot;3&quot; pid=&quot;11442&quot; TimeStamp=&quot;2010-03-04 09:46:25.417052&quot; Type=&quot;3 NSS&quot;> <NSS Event=&quot;4 OPEN&quot; TaskID=&quot;0&quot; Zid=&quot;1C2E&quot; ParentZid=&quot;9A&quot; OpRetCode=&quot;0&quot; FileType=&quot;3 NAMED_DATA_STREAM&quot; FileAttributes=&quot;0x40000020 5-ARCHIVE 30-ATTR_ARCHIVE&quot; VolID=&quot;B87E55ADF559DE018000D7BDDBFE9C09&quot; VolDn=&quot;VOL1&quot; UserID=&quot;03000000000000000000000000000000&quot; UserDn=&quot;Supervisor&quot; Uid=&quot;0&quot; Uid_name=&quot;root&quot; Euid=&quot;0&quot; Euid_name=&quot;root&quot; Suid=&quot;0&quot; Suid_name=&quot;root&quot; Fsuid=&quot;0&quot; Fsuid_name=&quot;root&quot; Gid=&quot;0&quot; Gid_name=&quot;root&quot; Egid=&quot;0&quot; Egid_name=&quot;root&quot; Sgid=&quot;0&quot; Sgid_name=&quot;root&quot; Fsgid=&quot;0&quot; Fsgid_name=&quot;root&quot; Comm=&quot;ndsd&quot;> <PATH Type=&quot;1 target&quot; NameSpace=&quot;2 unicode&quot;>VOL1:/ajerome/myFile</PATH> <OPEN key=&quot;0x9552AE6B440F959&quot; RequestedRights=&quot;0x00000013 0-READ_ACCESS 1-WRITE_ACCESS 4-SCAN_ACCESS&quot; Accessed=&quot;03/04/2010 09:46:25&quot; Created=&quot;02/05/2010 14:35:01&quot; Modified=&quot;02/05/2010 14:35:01&quot; MetaDataModified=&quot;03/04/2010 09:46:25&quot; /> </NSS> </AUDIT> <AUDIT vlogRecNo=&quot;4&quot; vigilRecNo=&quot;4&quot; pid=&quot;11442&quot; TimeStamp=&quot;2010-03-04 09:46:25.417154&quot; Type=&quot;3 NSS&quot;> <NSS Event=&quot;64 MODIFY&quot; TaskID=&quot;0&quot; Zid=&quot;1C2E&quot; ParentZid=&quot;9A&quot; OpRetCode=&quot;0&quot; FileType=&quot;3 NAMED_DATA_STREAM&quot; FileAttributes=&quot;0x40000020 5-ARCHIVE 30-ATTR_ARCHIVE&quot; VolID=&quot;B87E55ADF559DE018000D7BDDBFE9C09&quot; VolDn=&quot;VOL1&quot; UserID=&quot;03000000000000000000000000000000&quot; UserDn=&quot;Supervisor&quot; Uid=&quot;0&quot; Uid_name=&quot;root&quot; Euid=&quot;0&quot; Euid_name=&quot;root&quot; Suid=&quot;0&quot; Suid_name=&quot;root&quot; Fsuid=&quot;0&quot; Fsuid_name=&quot;root&quot; Gid=&quot;0&quot; Gid_name=&quot;root&quot; Egid=&quot;0&quot; Egid_name=&quot;root&quot; Sgid=&quot;0&quot; Sgid_name=&quot;root&quot; Fsgid=&quot;0&quot; Fsgid_name=&quot;root&quot; Comm=&quot;ndsd&quot;> <PATH Type=&quot;1 target&quot; NameSpace=&quot;2 unicode&quot;>VOL1:/ajerome/myFile</PATH> <MODIFY_INFO ModifyInfoMask=&quot;0x00000021 0-FILE_ATTRIBUTES 5-METADATA_MODIFIED_TIME&quot; modifyTypeInfoMask=&quot;0x21&quot; /> <FILE_ATTRIBUTES FileAttributes=&quot;0x00000001 0-READ_ONLY&quot; FileAttributesModMask=&quot;0x4000000B&quot; /> <METADATA_MODIFIED_TIME Time=&quot;03/04/2010 09:46:25&quot; /> </NSS> </AUDIT> <AUDIT vlogRecNo=&quot;5&quot; vigilRecNo=&quot;5&quot; pid=&quot;11442&quot; TimeStamp=&quot;2010-03-04 09:46:25.417323&quot; Type=&quot;2 NCP&quot;> <NCP Event=&quot;16 OPEN&quot;> <WHO_LINUX Uid=”0” UidName=”root” Euid=”0” EuidName=”root” Suid=”0” SuidName=”root” Fsuid=”0” FsuidName=”root” Gid=”0” GidName=”root” Egid=”0” EgidName=”root” Sgid=”0” SgidName=”root” Fsgid=”0” FsguidName=”root” Comm=”ndsd” /> <PMD_NCP ConnID=&quot;12&quot; TaskID=&quot;4&quot; Guid=&quot;A053F649CB3CD94AE5A3A053F649CB3C&quot; Dn=&quot;.CN=ajerome.O=novell.T=AJEROME-OES2-64-TREE.&quot; /> <NCP_LOCAL__OPENFILE searchAttributes=&quot;0x26&quot; DesiredAccessRights=&quot;0x01&quot; LinuxPath=&quot;/media/nss/VOL1/ajerome/myFile&quot; Status=&quot;0&quot; FileHandle=&quot;000037623030&quot; FileAttributes=&quot;0x00000021 0-READ_ONLY 5-ARCHIVE&quot; FileExecuteType=&quot;00&quot; FileLen=&quot;14&quot; CreationDate=&quot; 5/02/2010&quot; LastAccessDate=&quot; 4/03/2010&quot; LastUpdateDate=&quot; 5/02/2010&quot; LastUpdateTime=&quot;14:35:00&quot; /> </NCP> </AUDIT> <AUDIT vlogRecNo=&quot;6&quot; vigilRecNo=&quot;6&quot; pid=&quot;11442&quot; TimeStamp=&quot;2010-03-04 09:46:25.423618&quot; Type=&quot;2 NCP&quot;> <NCP Event=&quot;32 CLOSE&quot;> <WHO_LINUX Uid=”0” UidName=”root” Euid=”0” EuidName=”root” Suid=”0” SuidName=”root” Fsuid=”0” FsuidName=”root” Gid=”0” GidName=”root” Egid=”0” EgidName=”root” Sgid=”0” SgidName=”root” Fsgid=”0” FsguidName=”root” Comm=”ndsd” /> <PMD_NCP ConnID=&quot;12&quot; TaskID=&quot;4&quot; Guid=&quot;A053F649CB3CD94AE5A3A053F649CB3C&quot; Dn=&quot;.CN=ajerome.O=novell.T=AJEROME-OES2-64-TREE.&quot; /> <NCP_LOCAL__CLOSEFILE FileHandle=&quot;0x000089007B00&quot; Status=&quot;0&quot; /> </NCP> </AUDIT>

134. <AUDIT VlogRecNo=&quot;3&quot; VigilRecNo=&quot; 3 &quot; Pid=&quot; 11442 &quot; TimeStamp=&quot; 2010-03-04 09:46:25.417052 &quot; Type=&quot; 3 NSS &quot; > <NSS Event=&quot; 4 OPEN &quot; TaskID=&quot; 0 &quot; Zid=&quot; 1C2E &quot; ParentZid=&quot; 9A &quot; OpRetCode=&quot; 0 &quot; FileType=&quot; 3 NAMED_DATA_STREAM&quot; FileAttributes=&quot; 0x40000020 5-ARCHIVE 30-ATTR_ARCHIVE&quot; VolID=&quot; B87E55ADF559DE018000D7BDDBFE9C09 &quot; VolDn=&quot;VOL1&quot; UserID=&quot; 03000000000000000000000000000000 &quot; UserDn=&quot;Supervisor&quot; Uid=&quot; 0 &quot; Uid_name=&quot;root&quot; Euid=&quot; 0 &quot; Euid_name=&quot;root&quot; Suid=&quot; 0 &quot; Suid_name=&quot;root&quot; Fsuid=&quot; 0 &quot; Fsuid_name=&quot;root&quot; Gid=&quot; 0 &quot; Gid_name=&quot;root&quot; Egid=&quot;0&quot; Egid_name=&quot;root&quot; Sgid=&quot; 0 &quot; Sgid_name=&quot;root&quot; Fsgid=&quot; 0 &quot; Fsgid_name=&quot;root&quot; Comm=&quot; ndsd &quot; > <PATH Type=&quot; 1 target&quot; NameSpace=&quot; 2 unicode&quot;> VOL1:/ajerome/myFile </PATH> <OPEN Key=&quot; 0x9552AE6B440F959 &quot; RequestedRights=&quot; 0x00000013 0-READ_ACCESS 1-WRITE_ACCESS 4-SCAN_ACCESS&quot; Accessed=&quot; 03/04/2010 09:46:25 &quot; Created=&quot; 02/05/2010 14:35:01 &quot; Modified=&quot; 02/05/2010 14:35:01 &quot; MetaDataModified=&quot; 03/04/2010 09:46:25 &quot; /> </NSS> </AUDIT>

135. <AUDIT VlogRecNo=&quot; 4 &quot; VigilRecNo=&quot; 4 &quot; Pid=&quot; 11442 &quot; TimeStamp=&quot; 2010-03-04 09:46:25.417154 &quot; Type=&quot; 3 NSS &quot; > <NSS Event=&quot; 64 MODIFY &quot; TaskID=&quot; 0 &quot; Zid=&quot; 1C2E &quot; ParentZid=&quot; 9A &quot; OpRetCode=&quot; 0 &quot; FileType=&quot; 3 NAMED_DATA_STREAM&quot; FileAttributes=&quot; 0x40000020 5-ARCHIVE 30-ATTR_ARCHIVE&quot; VolID=&quot; B87E55ADF559DE018000D7BDDBFE9C09 &quot; VolDn=&quot;VOL1&quot; UserID=&quot; 03000000000000000000000000000000 &quot; UserDn=&quot;Supervisor&quot; Uid=&quot; 0 &quot; Uid_name=&quot;root&quot; Euid=&quot; 0 &quot; Euid_name=&quot;root&quot; Suid=&quot; 0 &quot; Suid_name=&quot;root&quot; Fsuid=&quot; 0 &quot; Fsuid_name=&quot;root&quot; Gid=&quot; 0 &quot; Gid_name=&quot; root &quot; Egid=&quot; 0 &quot; Egid_name=&quot;root&quot; Sgid=&quot; 0 &quot; Sgid_name=&quot;root&quot; Fsgid=&quot;0&quot; Fsgid_name=&quot;root&quot; Comm=&quot; ndsd &quot; > <PATH Type=&quot; 1 target&quot; NameSpace=&quot; 2 unicode&quot;> VOL1:/ajerome/myFile </PATH> <MODIFY_INFO ModifyInfoMask=&quot; 0x00000021 0-FILE_ATTRIBUTES 5-METADATA_MODIFIED_TIME&quot; ModifyTypeInfoMask =&quot; 0x21 &quot; /> <FILE_ATTRIBUTES FileAttributes=&quot; 0x00000001 0-READ_ONLY&quot; FileAttributesModMask=&quot; 0x4000000B &quot; /> <METADATA_MODIFIED_TIME Time=&quot; 03/04/2010 09:46:25 &quot; /> </NSS> </AUDIT>

136. <AUDIT VlogRecNo=&quot;5&quot; VigilRecNo=&quot; 5 &quot; Pid=&quot; 11442 &quot; TimeStamp=&quot; 2010-03-04 09:46:25.417323 &quot; Type=&quot; 2 NCP &quot; > <NCP Event=&quot; 16 OPEN &quot; > <WHO_LINUX Uid=” 0 ” UidName=”root” Euid=” 0 ” EuidName=”root” Suid=” 0 ” SuidName=”root” Fsuid=” 0 ” FsuidName=”root” Gid=” 0 ” GidName=”root” Egid=” 0 ” EgidName=”root” Sgid=” 0 ” SgidName=”root” Fsgid=” 0 ” FsguidName=”root” Comm=” ndsd ” /> <PMD_NCP ConnID=&quot; 12 &quot; TaskID=&quot; 4 &quot; Guid=&quot; A053F649CB3CD94AE5A3A053F649CB3C &quot; Dn=&quot;.CN=ajerome.O=novell.T=AJEROME-OES2-64-TREE.&quot; /> <NCP_LOCAL__OPENFILE SearchAttributes=&quot; 0x26 &quot; DesiredAccessRights=&quot; 0x01 &quot; LinuxPath=&quot; /media/nss/VOL1/ajerome/myFile &quot; Status=&quot; 0 &quot; FileHandle=&quot; 000037623030 &quot; FileAttributes=&quot; 0x00000021 0-READ_ONLY 5-ARCHIVE&quot; FileExecuteType=&quot; 00 &quot; FileLen=&quot; 14 &quot; CreationDate=&quot; 5/02/2010 &quot; LastAccessDate=&quot; 4/03/2010 &quot; LastUpdateDate=&quot; 5/02/2010 &quot; LastUpdateTime=&quot; 14:35:00 &quot; /> </NCP> </AUDIT>

137. <AUDIT VlogRecNo=&quot;6&quot; VigilRecNo=&quot; 6 &quot; Pid=&quot; 11442 &quot; TimeStamp=&quot; 2010-03-04 09:46:25.423618 &quot; Type=&quot; 2 NCP &quot; > <NCP Event=&quot; 32 CLOSE &quot;> <WHO_LINUX Uid=” 0 ” UidName=”root” Euid=” 0 ” EuidName=”root” Suid=” 0 ” SuidName=”root” Fsuid=” 0 ” FsuidName=”root” Gid=” 0 ” GidName=”root” Egid=” 0 ” EgidName=”root” Sgid=” 0 ” SgidName=”root” Fsgid=” 0 ” FsguidName=”root” Comm=” ndsd ” /> <PMD_NCP ConnID=&quot; 12 &quot; TaskID=&quot; 4 &quot; Guid=&quot; A053F649CB3CD94AE5A3A053F649CB3C &quot; Dn=&quot;.CN=ajerome.O=novell.T=AJEROME-OES2-64-TREE.&quot; /> <NCP_LOCAL__CLOSEFILE FileHandle=&quot; 0x000089007B00 &quot; Status=&quot;0&quot; /> </NCP> </AUDIT>

138. Reference NCP ™ Tuning http://www.novell.com/documentation/oes2/file_ncp_lx/data/bc06ts8.html Novell Storage Services ™ Tuning http://www.novell.com/documentation/oes2/stor_nss_lx_nw/data/btbkjyi.html Auditing http://developer.novell.com/wiki/index.php/NSS_Auditing_SDK TIDs TID#7004888 - NCP Performance Tuning

139. TID#7004877 – NSS takes time to load and slow access

140. http://support.novell.com

141. Question and Answer

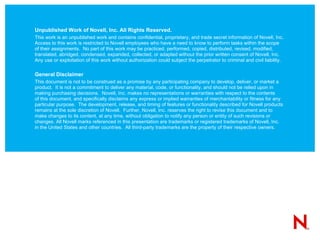

143. Unpublished Work of Novell, Inc. All Rights Reserved. This work is an unpublished work and contains confidential, proprietary, and trade secret information of Novell, Inc. Access to this work is restricted to Novell employees who have a need to know to perform tasks within the scope of their assignments. No part of this work may be practiced, performed, copied, distributed, revised, modified, translated, abridged, condensed, expanded, collected, or adapted without the prior written consent of Novell, Inc. Any use or exploitation of this work without authorization could subject the perpetrator to criminal and civil liability. General Disclaimer This document is not to be construed as a promise by any participating company to develop, deliver, or market a product. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. Novell, Inc. makes no representations or warranties with respect to the contents of this document, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The development, release, and timing of features or functionality described for Novell products remains at the sole discretion of Novell. Further, Novell, Inc. reserves the right to revise this document and to make changes to its content, at any time, without obligation to notify any person or entity of such revisions or changes. All Novell marks referenced in this presentation are trademarks or registered trademarks of Novell, Inc. in the United States and other countries. All third-party trademarks are the property of their respective owners.
