An operating system provides an interface between users and computer hardware. It implements a virtual machine that is easier and safer to program than raw hardware. The key functions of an operating system include resource management, coordination of applications and users, and providing protection between processes. Operating systems abstract away hardware complexity and provide standard services to applications through virtualization layers. They juggle resources to provide the illusion of dedicated hardware and protect users from each other through mechanisms like address translation and dual mode operation.

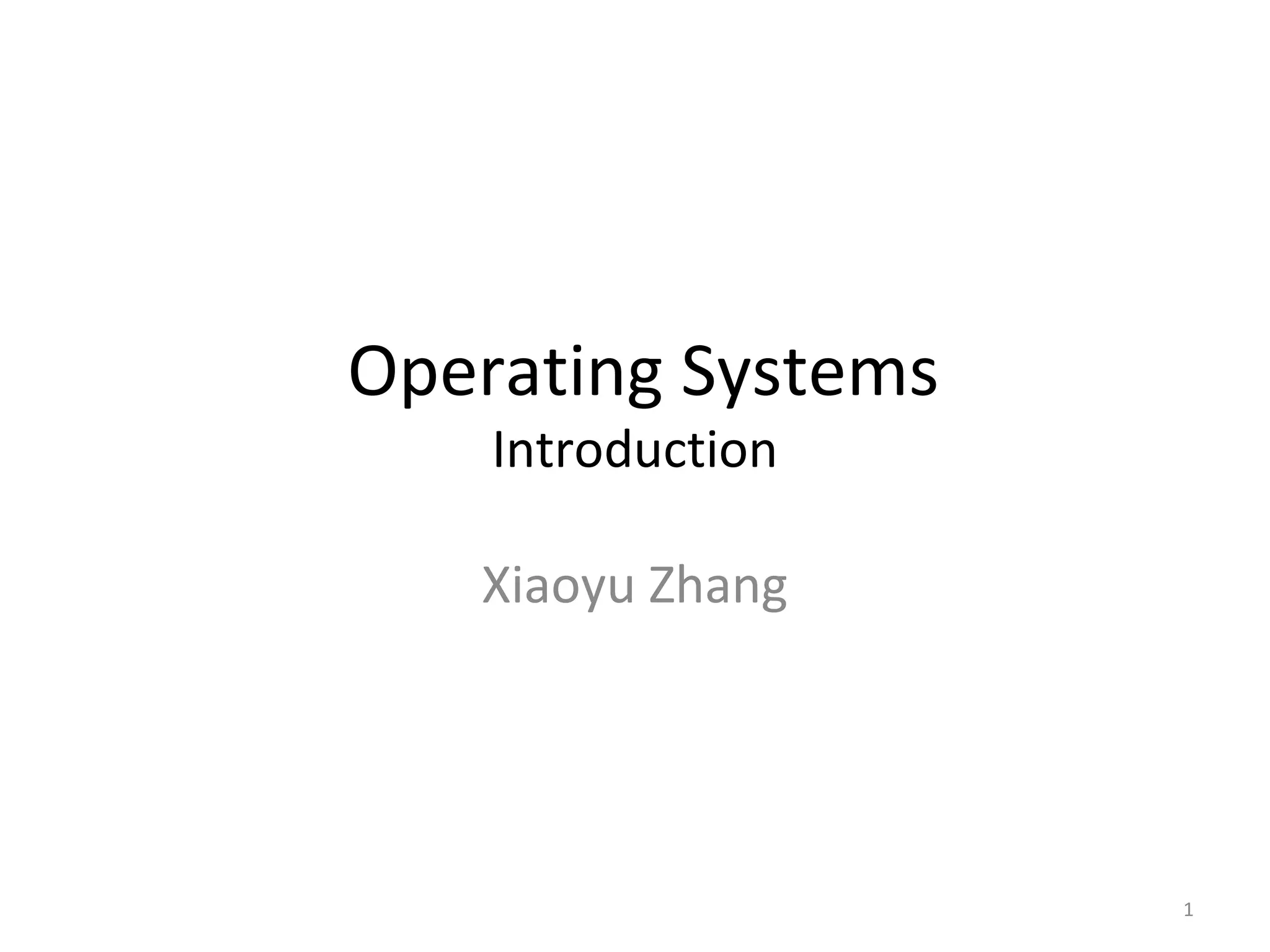

1. Operating Systems
Introduction
Xiaoyu Zhang
1

2. Computing Devices Everywhere
2

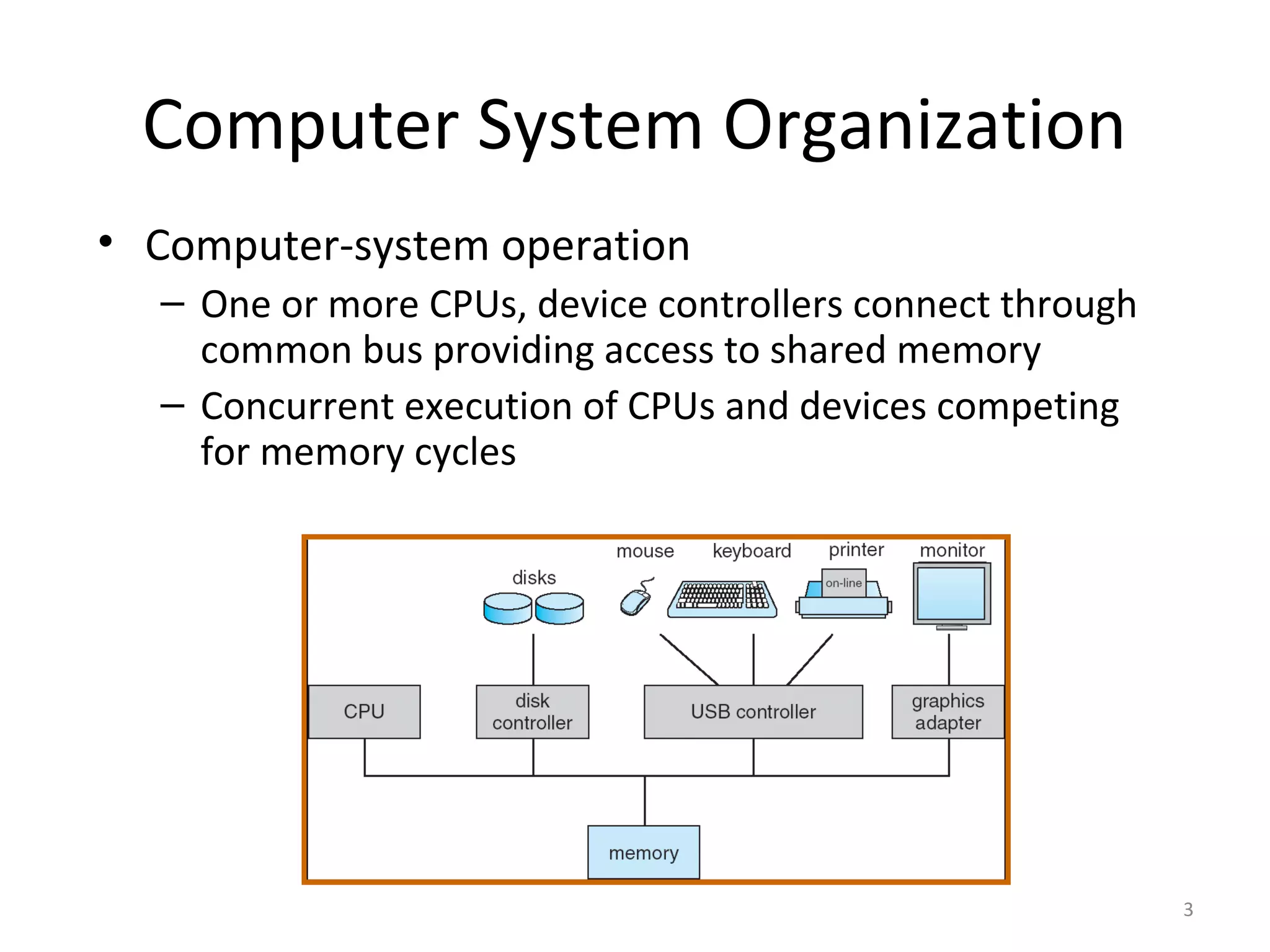

3. Computer System Organization
• Computer-system operation
– One or more CPUs, device controllers connect through
common bus providing access to shared memory
– Concurrent execution of CPUs and devices competing
for memory cycles
3

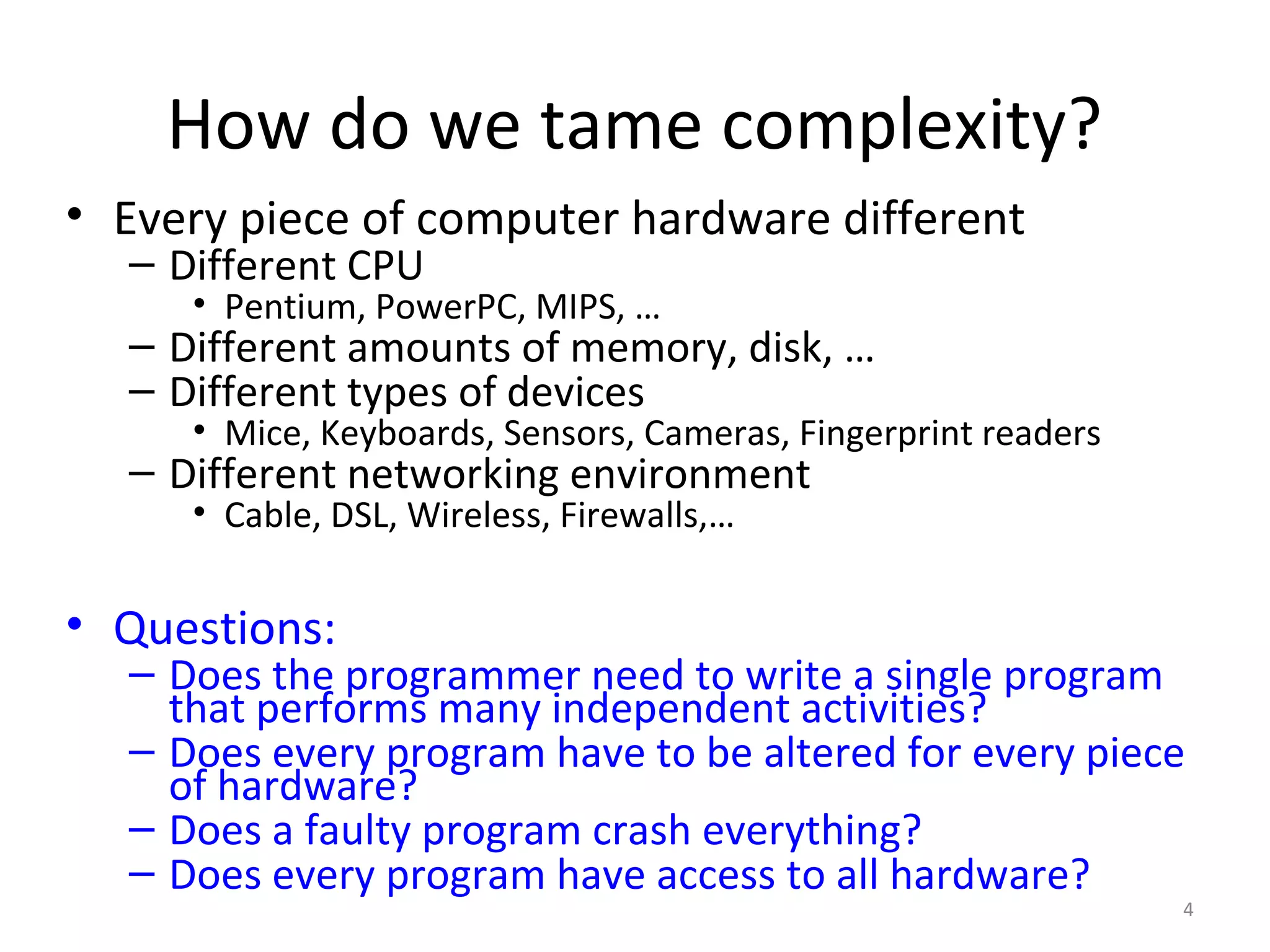

4. How do we tame complexity?
• Every piece of computer hardware different
– Different CPU
• Pentium, PowerPC, MIPS, …
– Different amounts of memory, disk, …
– Different types of devices
• Mice, Keyboards, Sensors, Cameras, Fingerprint readers
– Different networking environment
• Cable, DSL, Wireless, Firewalls,…
• Questions:
– Does the programmer need to write a single program
that performs many independent activities?
– Does every program have to be altered for every piece
of hardware?
– Does a faulty program crash everything?
– Does every program have access to all hardware?
4

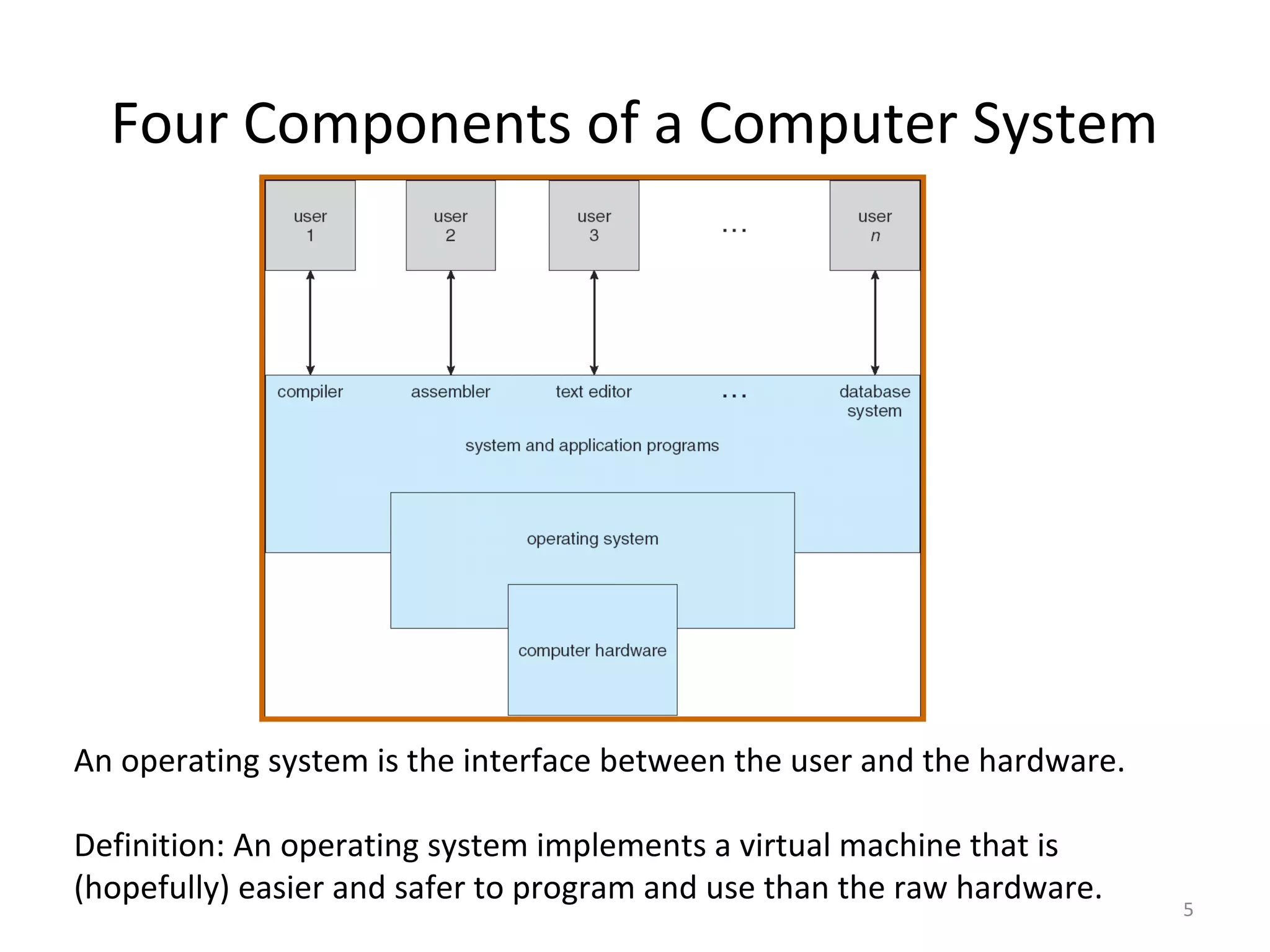

5. Four Components of a Computer System
An operating system is the interface between the user and the hardware.
Definition: An operating system implements a virtual machine that is
(hopefully) easier and safer to program and use than the raw hardware. 5

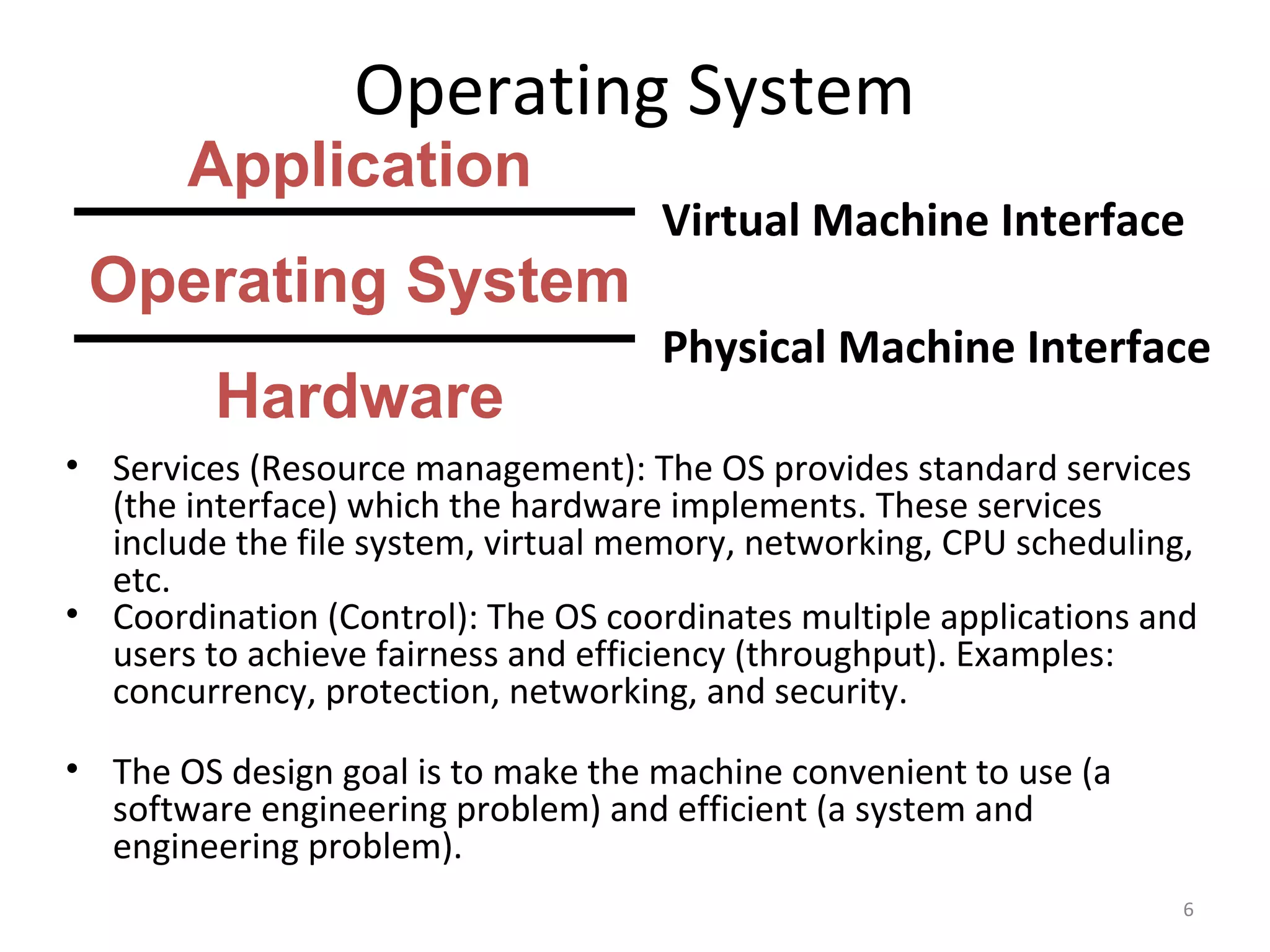

6. Operating System
Application
Virtual Machine Interface
Operating System
Physical Machine Interface
Hardware
• Services (Resource management): The OS provides standard services
(the interface) which the hardware implements. These services
include the file system, virtual memory, networking, CPU scheduling,
etc.
• Coordination (Control): The OS coordinates multiple applications and
users to achieve fairness and efficiency (throughput). Examples:
concurrency, protection, networking, and security.
• The OS design goal is to make the machine convenient to use (a
software engineering problem) and efficient (a system and
engineering problem).
6

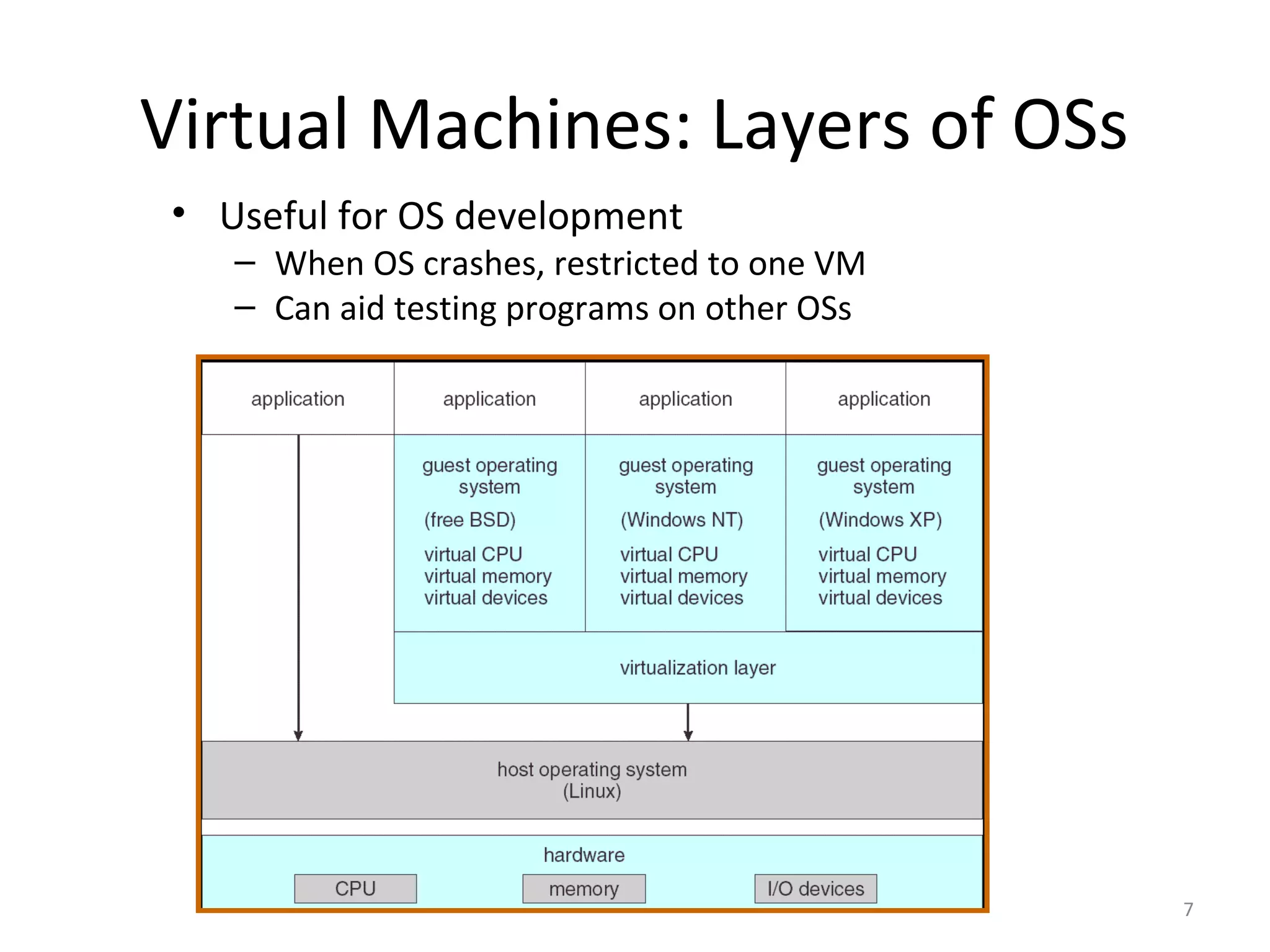

7. Virtual Machines: Layers of OSs
• Useful for OS development
– When OS crashes, restricted to one VM
– Can aid testing programs on other OSs
7

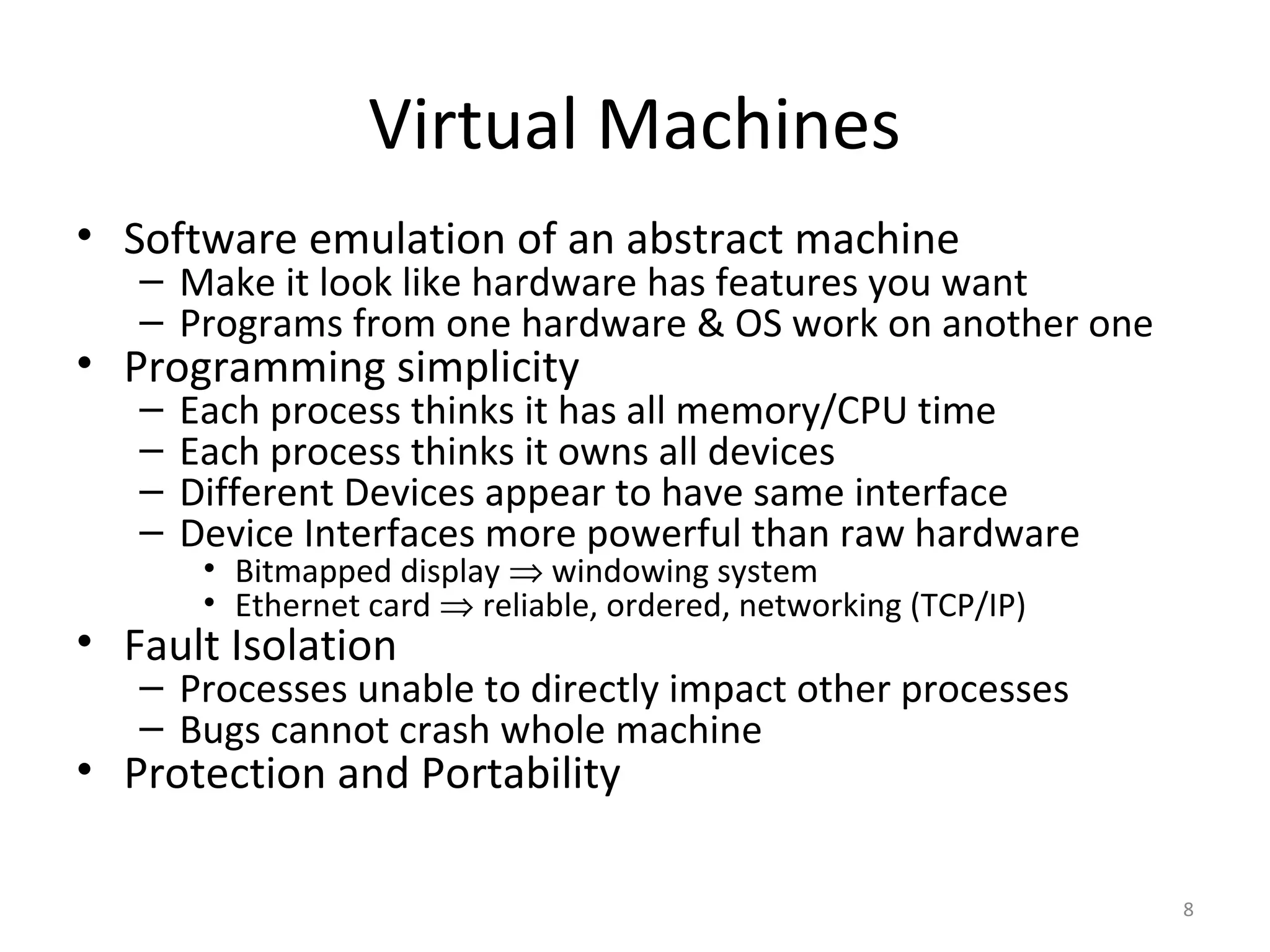

8. Virtual Machines
• Software emulation of an abstract machine
– Make it look like hardware has features you want
– Programs from one hardware & OS work on another one
• Programming simplicity
– Each process thinks it has all memory/CPU time
– Each process thinks it owns all devices
– Different Devices appear to have same interface
– Device Interfaces more powerful than raw hardware
• Bitmapped display ⇒ windowing system
• Ethernet card ⇒ reliable, ordered, networking (TCP/IP)
• Fault Isolation
– Processes unable to directly impact other processes
– Bugs cannot crash whole machine
• Protection and Portability
8

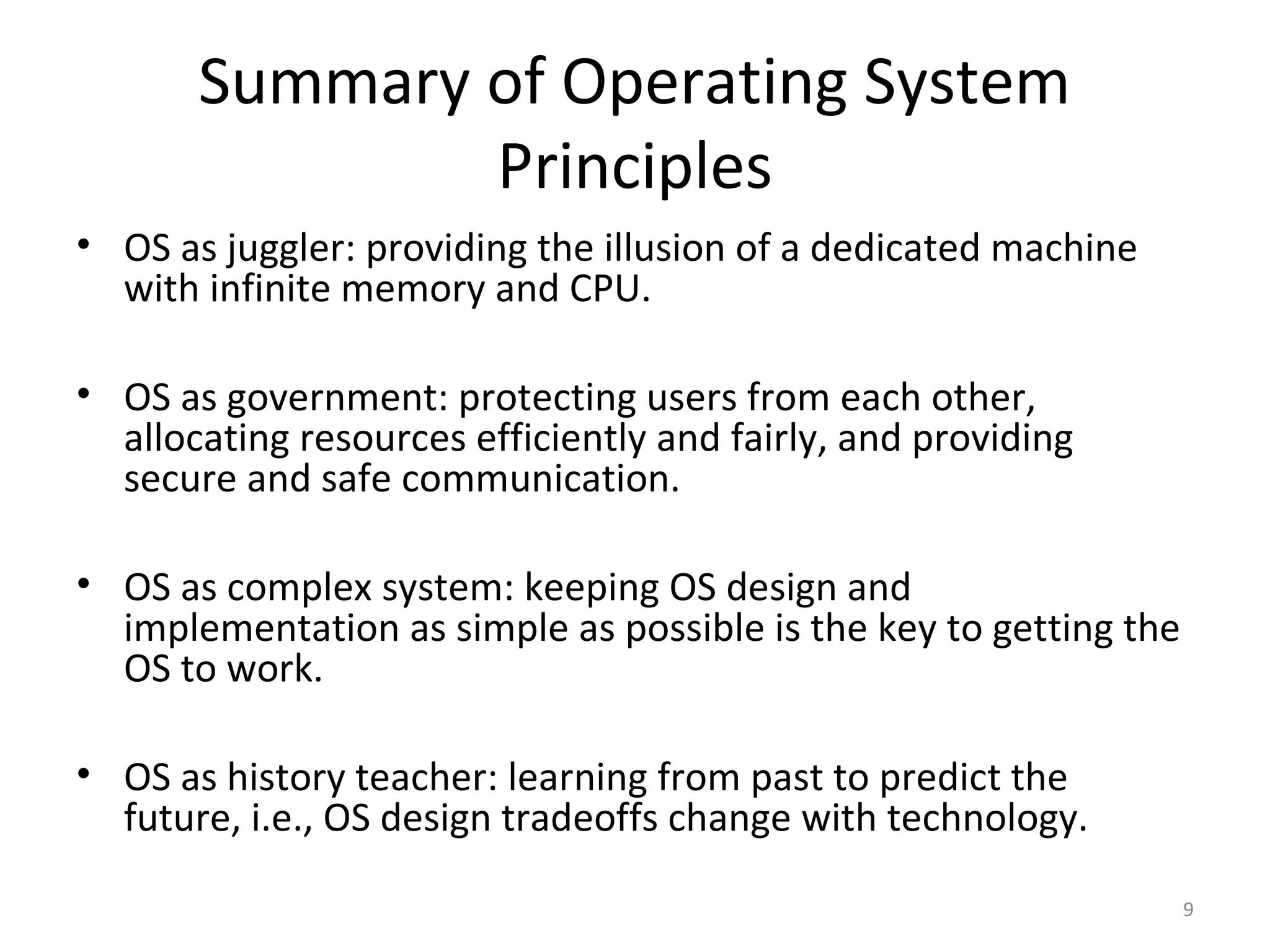

9. Summary of Operating System
Principles
• OS as juggler: providing the illusion of a dedicated machine
with infinite memory and CPU.
• OS as government: protecting users from each other,
allocating resources efficiently and fairly, and providing
secure and safe communication.
• OS as complex system: keeping OS design and
implementation as simple as possible is the key to getting the
OS to work.
• OS as history teacher: learning from past to predict the
future, i.e., OS design tradeoffs change with technology.
9

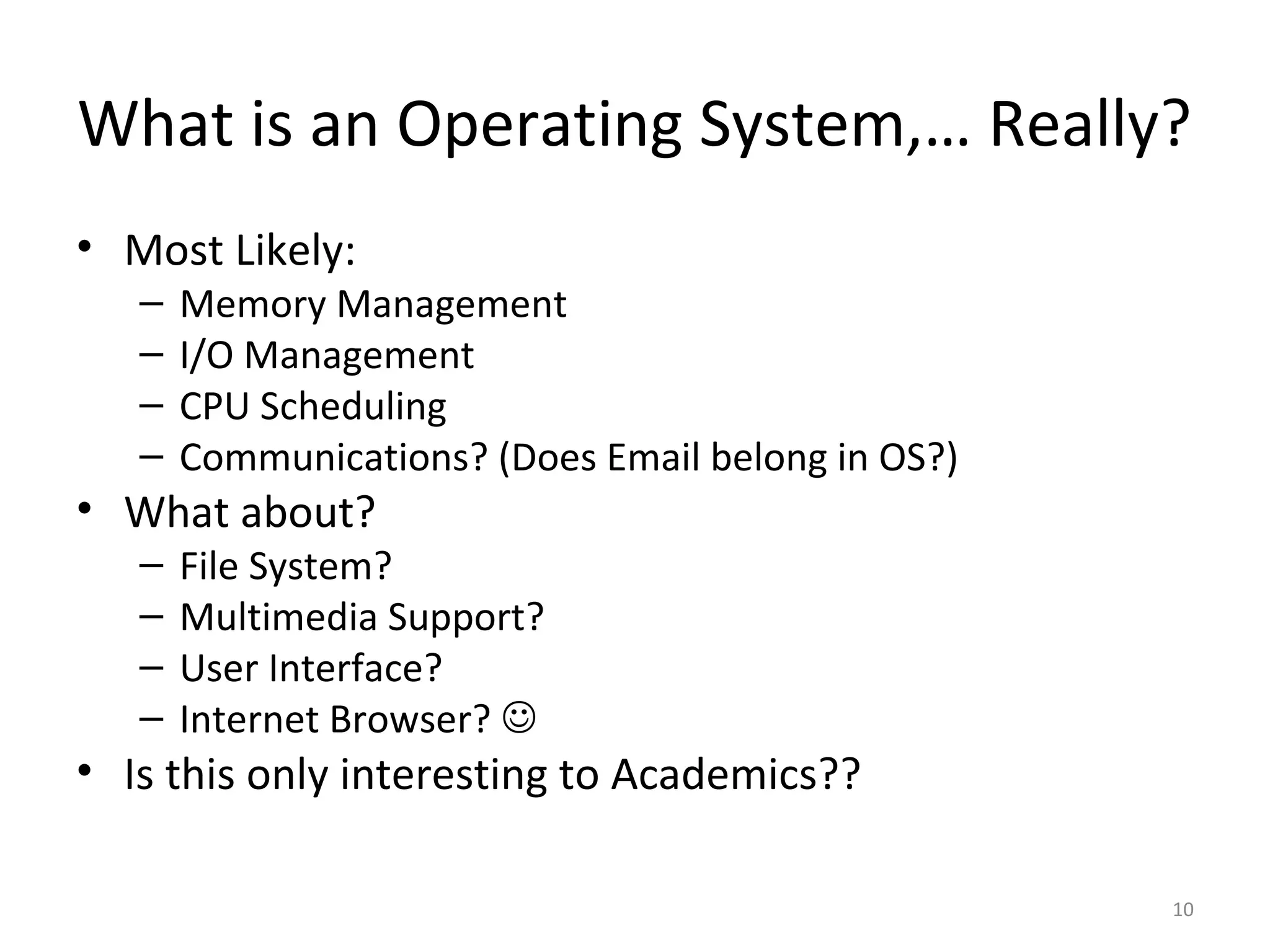

10. What is an Operating System,… Really?
• Most Likely:
– Memory Management
– I/O Management
– CPU Scheduling
– Communications? (Does Email belong in OS?)
• What about?
– File System?
– Multimedia Support?
– User Interface?
– Internet Browser? 
• Is this only interesting to Academics??
10

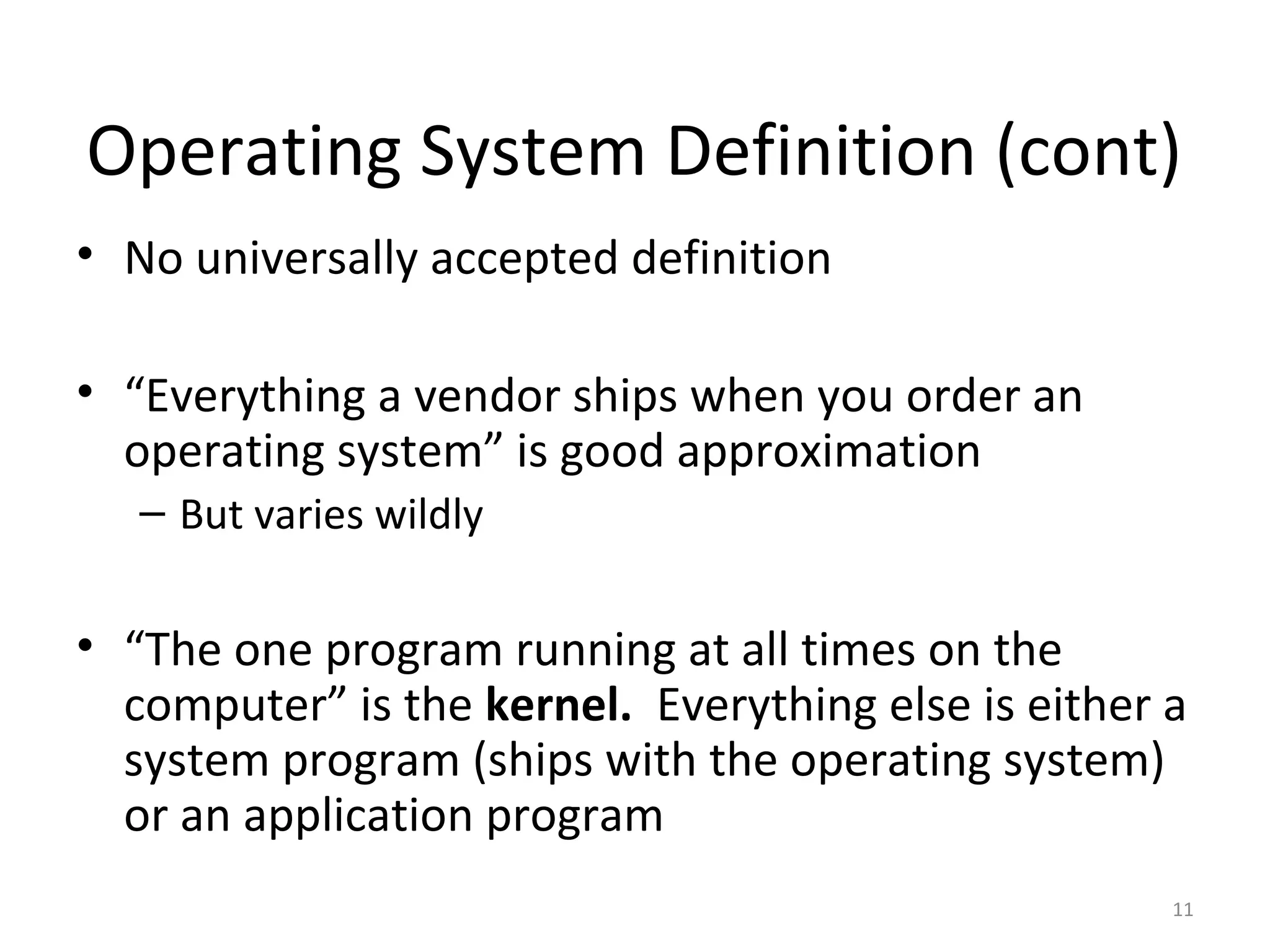

11. Operating System Definition (cont)
• No universally accepted definition
• “Everything a vendor ships when you order an
operating system” is good approximation
– But varies wildly
• “The one program running at all times on the
computer” is the kernel. Everything else is either a
system program (ships with the operating system)
or an application program
11

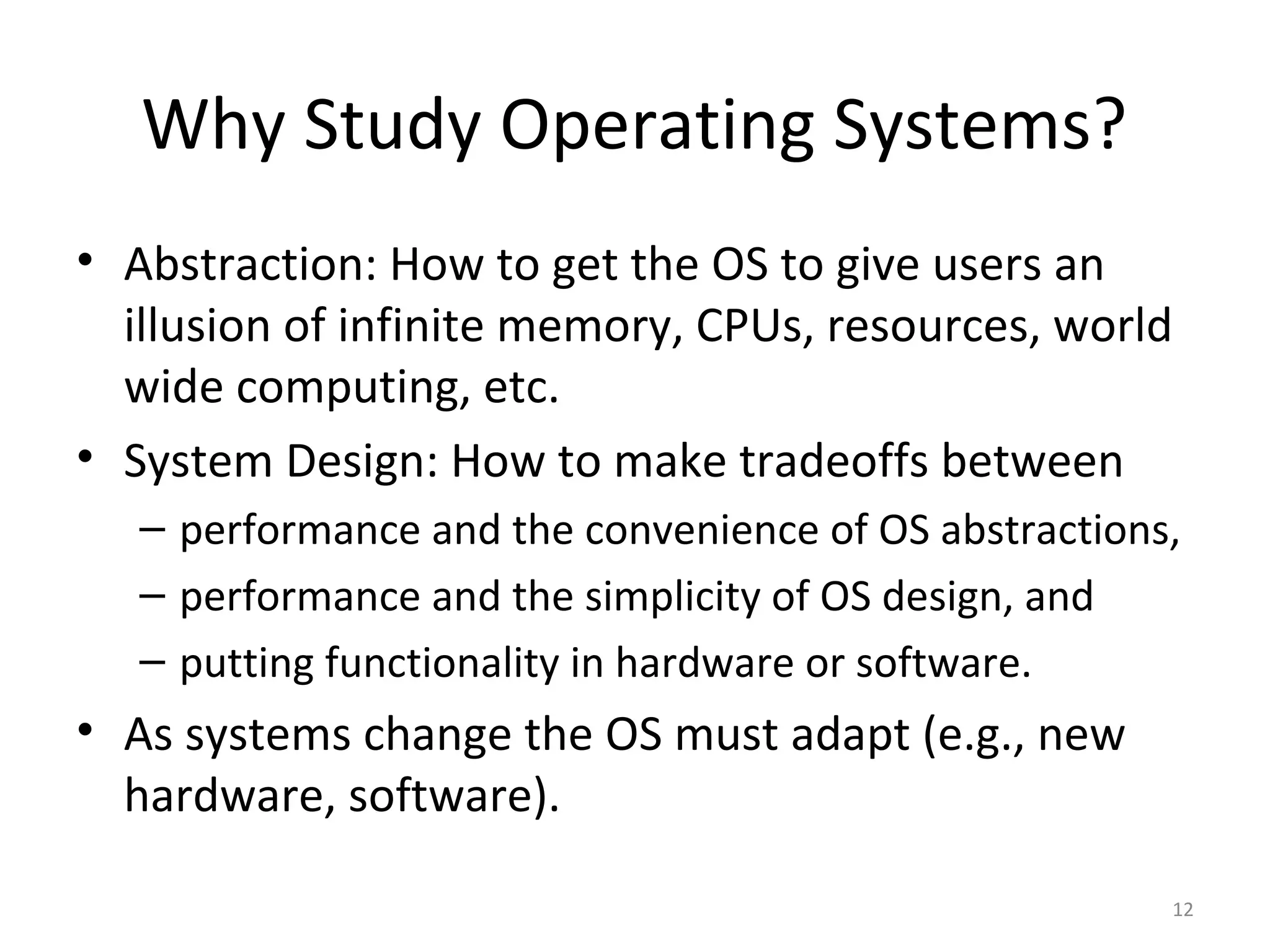

12. Why Study Operating Systems?
• Abstraction: How to get the OS to give users an
illusion of infinite memory, CPUs, resources, world
wide computing, etc.
• System Design: How to make tradeoffs between
– performance and the convenience of OS abstractions,
– performance and the simplicity of OS design, and
– putting functionality in hardware or software.
• As systems change the OS must adapt (e.g., new
hardware, software).
12

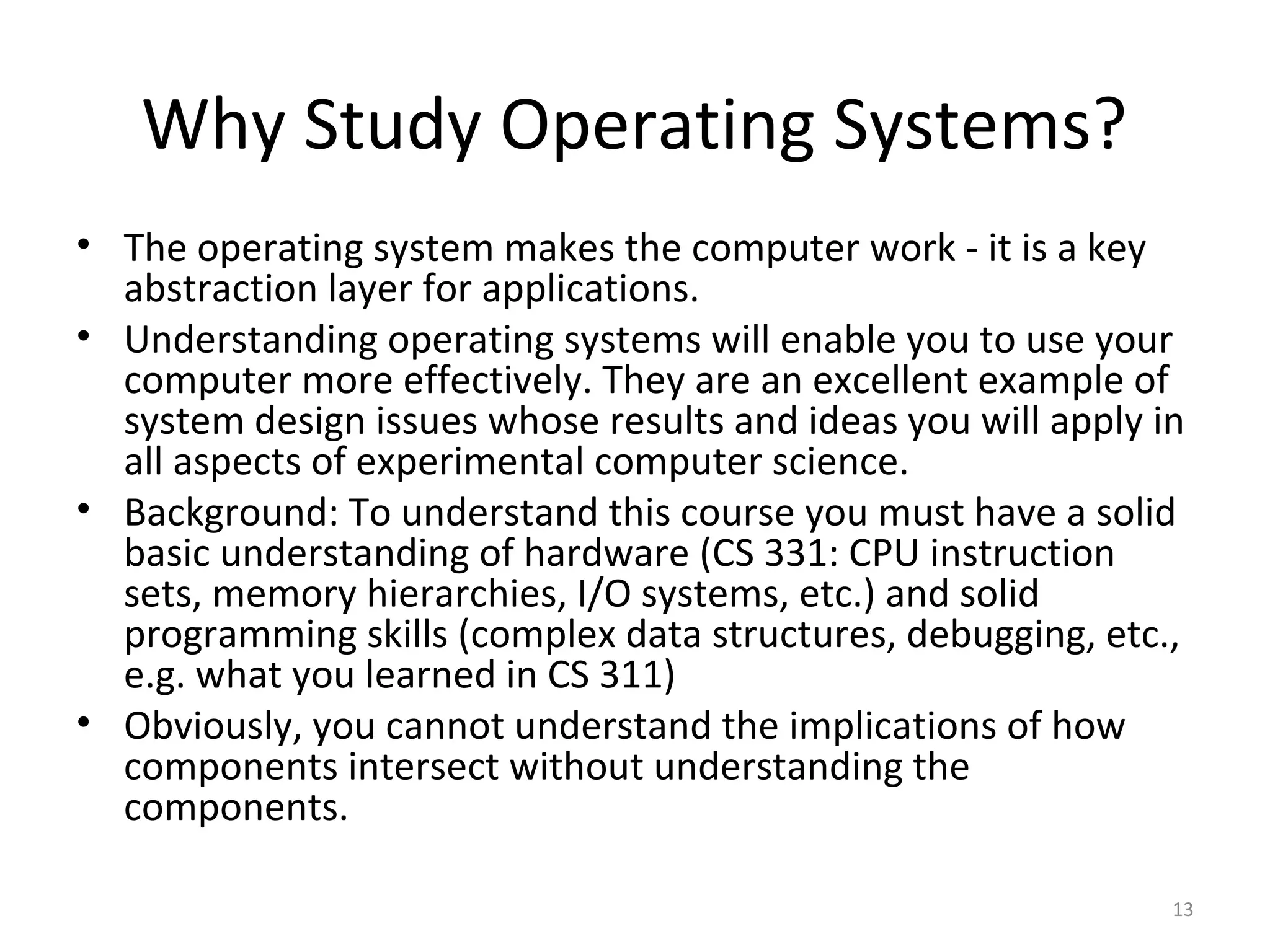

13. Why Study Operating Systems?
• The operating system makes the computer work - it is a key
abstraction layer for applications.
• Understanding operating systems will enable you to use your
computer more effectively. They are an excellent example of
system design issues whose results and ideas you will apply in
all aspects of experimental computer science.
• Background: To understand this course you must have a solid
basic understanding of hardware (CS 331: CPU instruction
sets, memory hierarchies, I/O systems, etc.) and solid
programming skills (complex data structures, debugging, etc.,
e.g. what you learned in CS 311)
• Obviously, you cannot understand the implications of how
components intersect without understanding the
components.
13

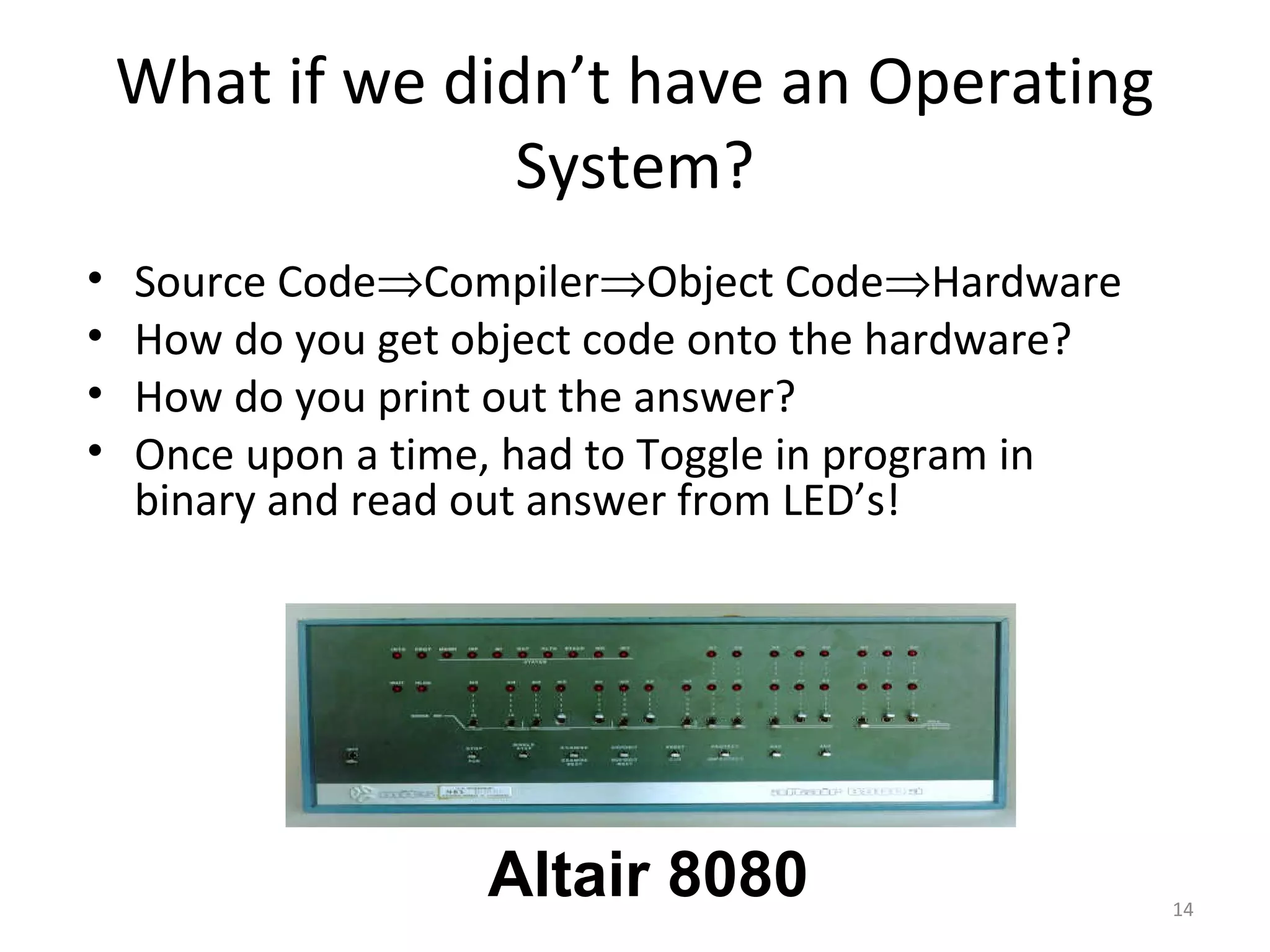

14. What if we didn’t have an Operating
System?
• Source Code⇒Compiler⇒Object Code⇒Hardware
• How do you get object code onto the hardware?
• How do you print out the answer?
• Once upon a time, had to Toggle in program in
binary and read out answer from LED’s!
Altair 8080 14

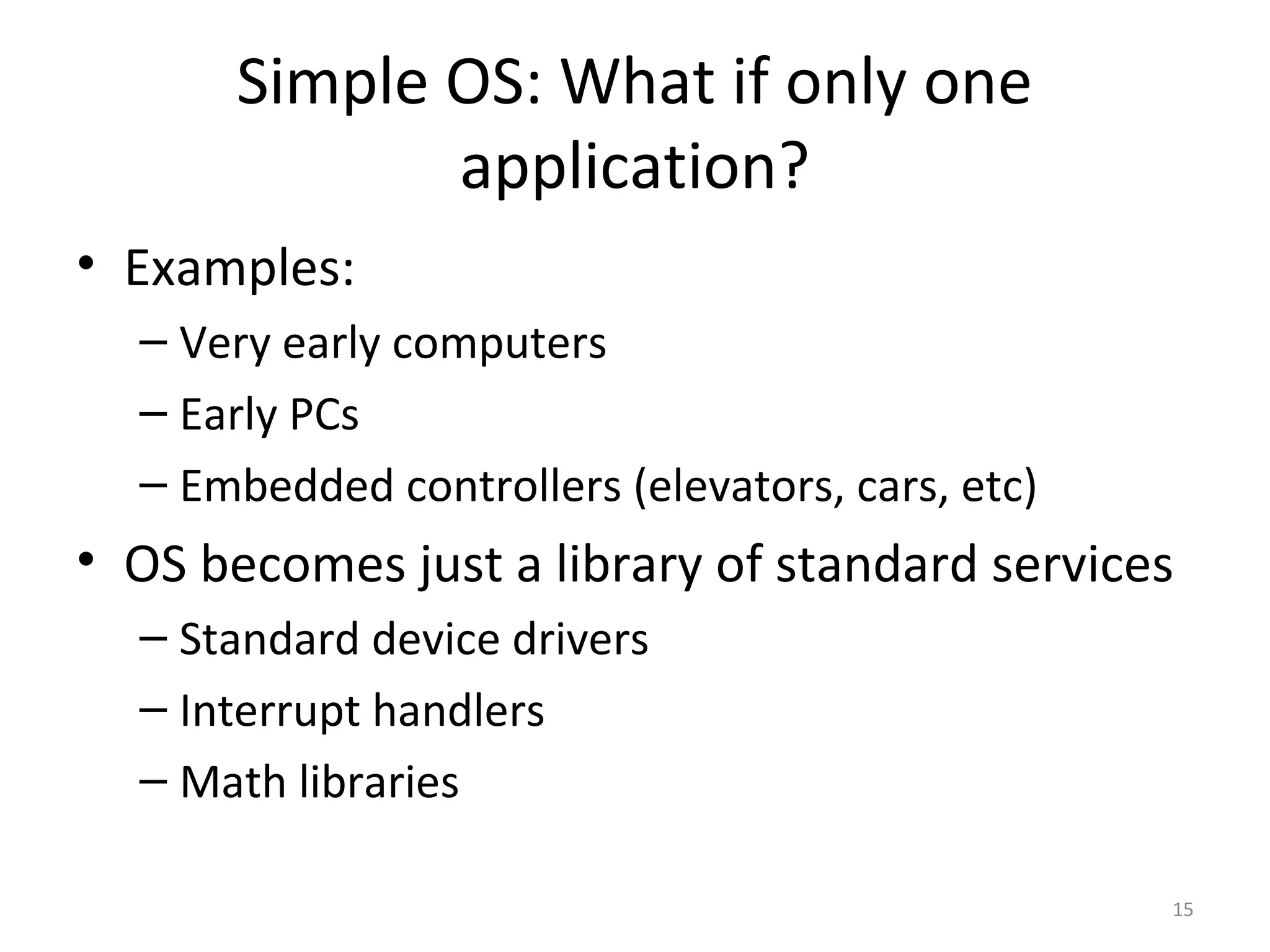

15. Simple OS: What if only one
application?
• Examples:
– Very early computers
– Early PCs
– Embedded controllers (elevators, cars, etc)
• OS becomes just a library of standard services
– Standard device drivers
– Interrupt handlers
– Math libraries
15

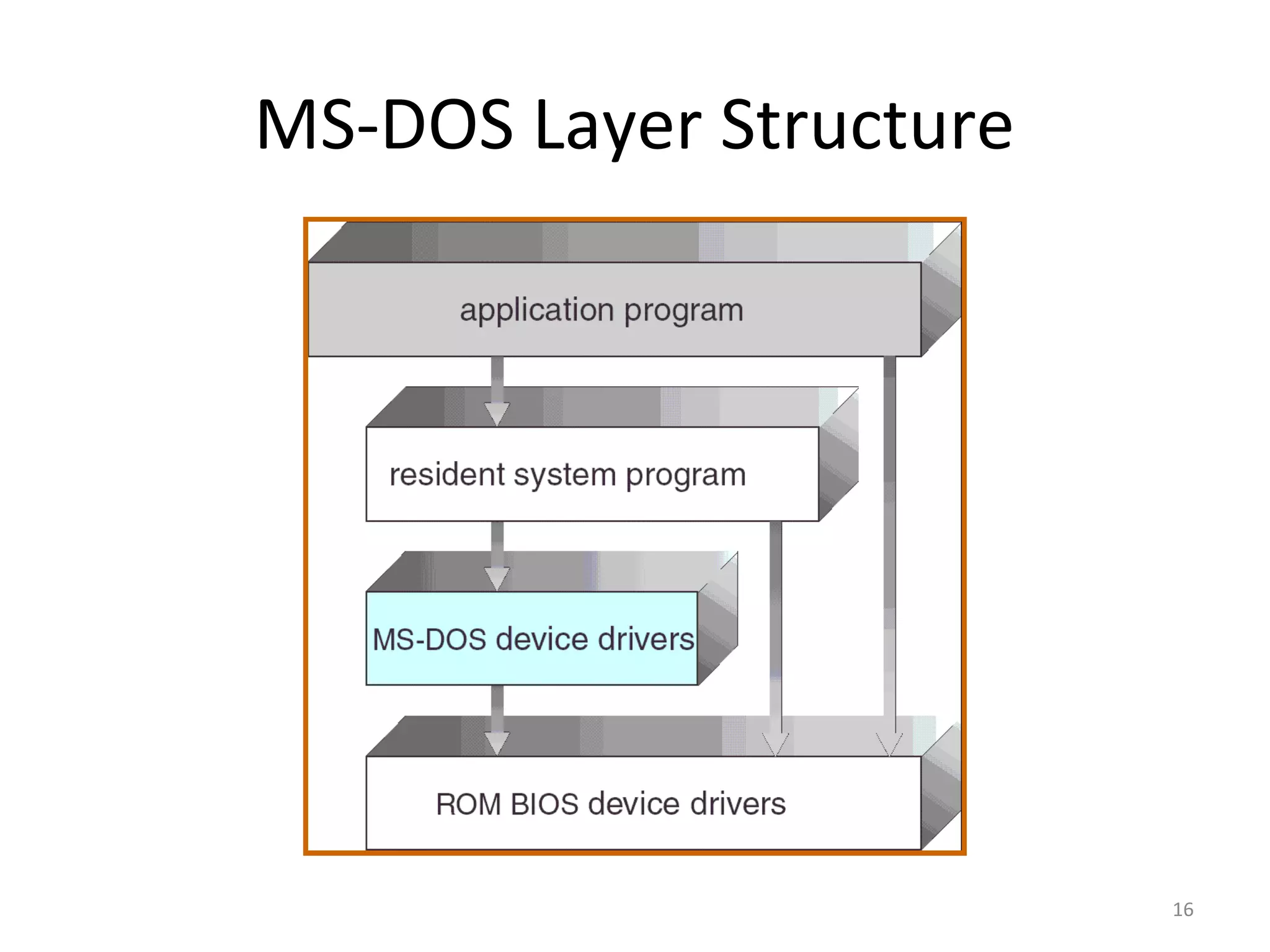

16. MS-DOS Layer Structure
16

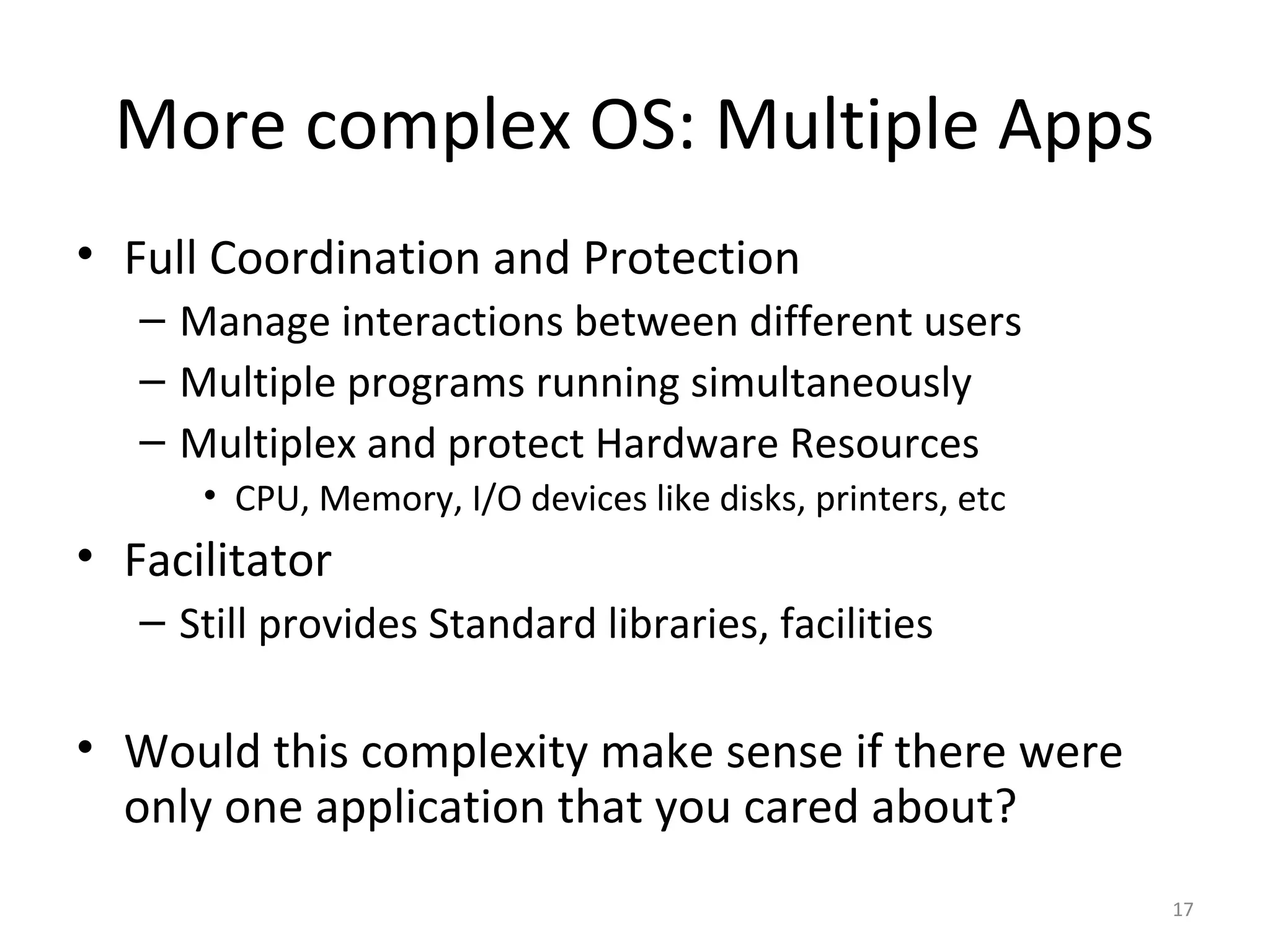

17. More complex OS: Multiple Apps
• Full Coordination and Protection
– Manage interactions between different users
– Multiple programs running simultaneously
– Multiplex and protect Hardware Resources
• CPU, Memory, I/O devices like disks, printers, etc
• Facilitator
– Still provides Standard libraries, facilities
• Would this complexity make sense if there were
only one application that you cared about?
17

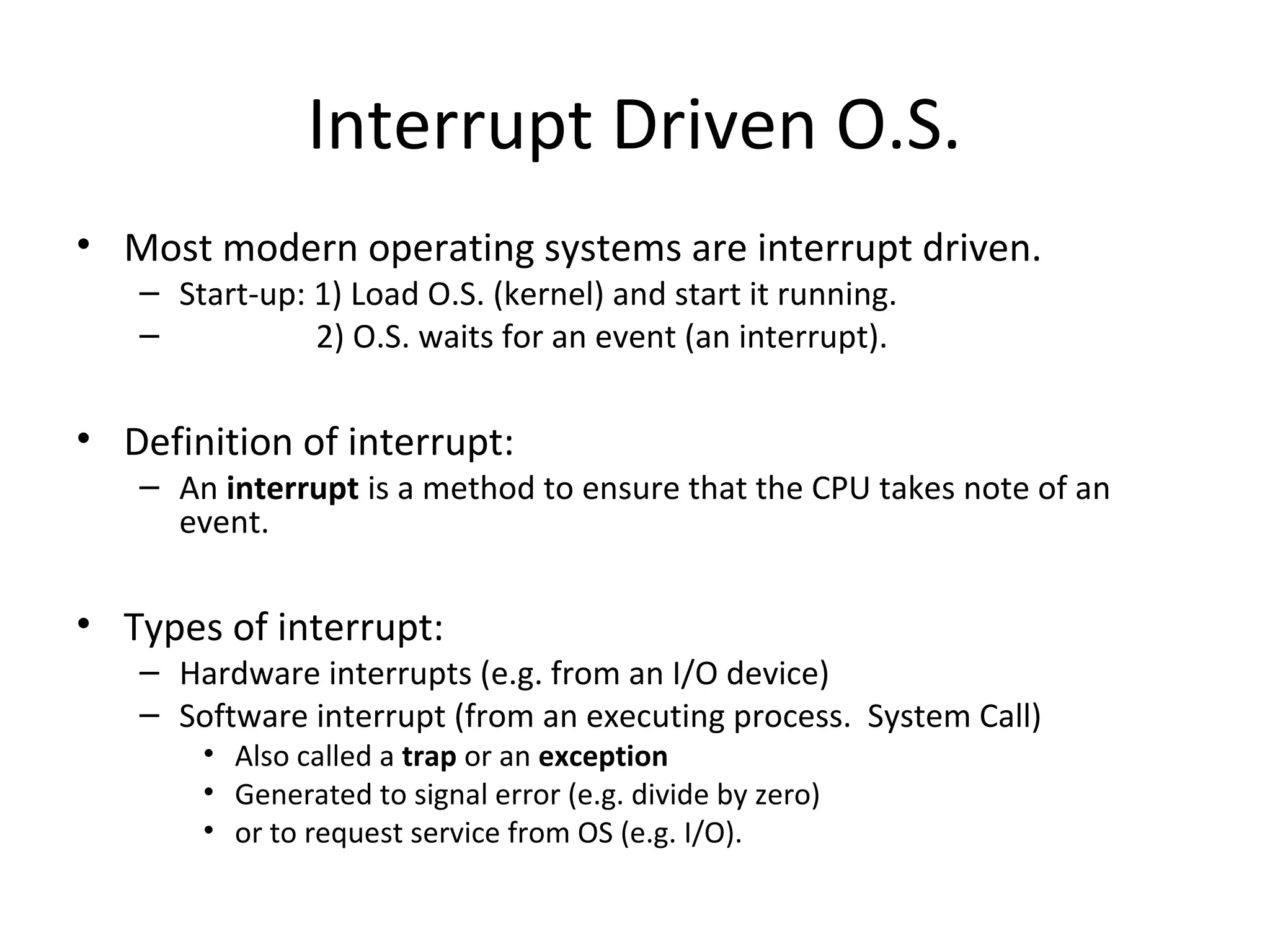

18. Interrupt Driven O.S.
• Most modern operating systems are interrupt driven.
– Start-up: 1) Load O.S. (kernel) and start it running.
– 2) O.S. waits for an event (an interrupt).
• Definition of interrupt:
– An interrupt is a method to ensure that the CPU takes note of an
event.
• Types of interrupt:
– Hardware interrupts (e.g. from an I/O device)
– Software interrupt (from an executing process. System Call)
• Also called a trap or an exception
• Generated to signal error (e.g. divide by zero)
• or to request service from OS (e.g. I/O).

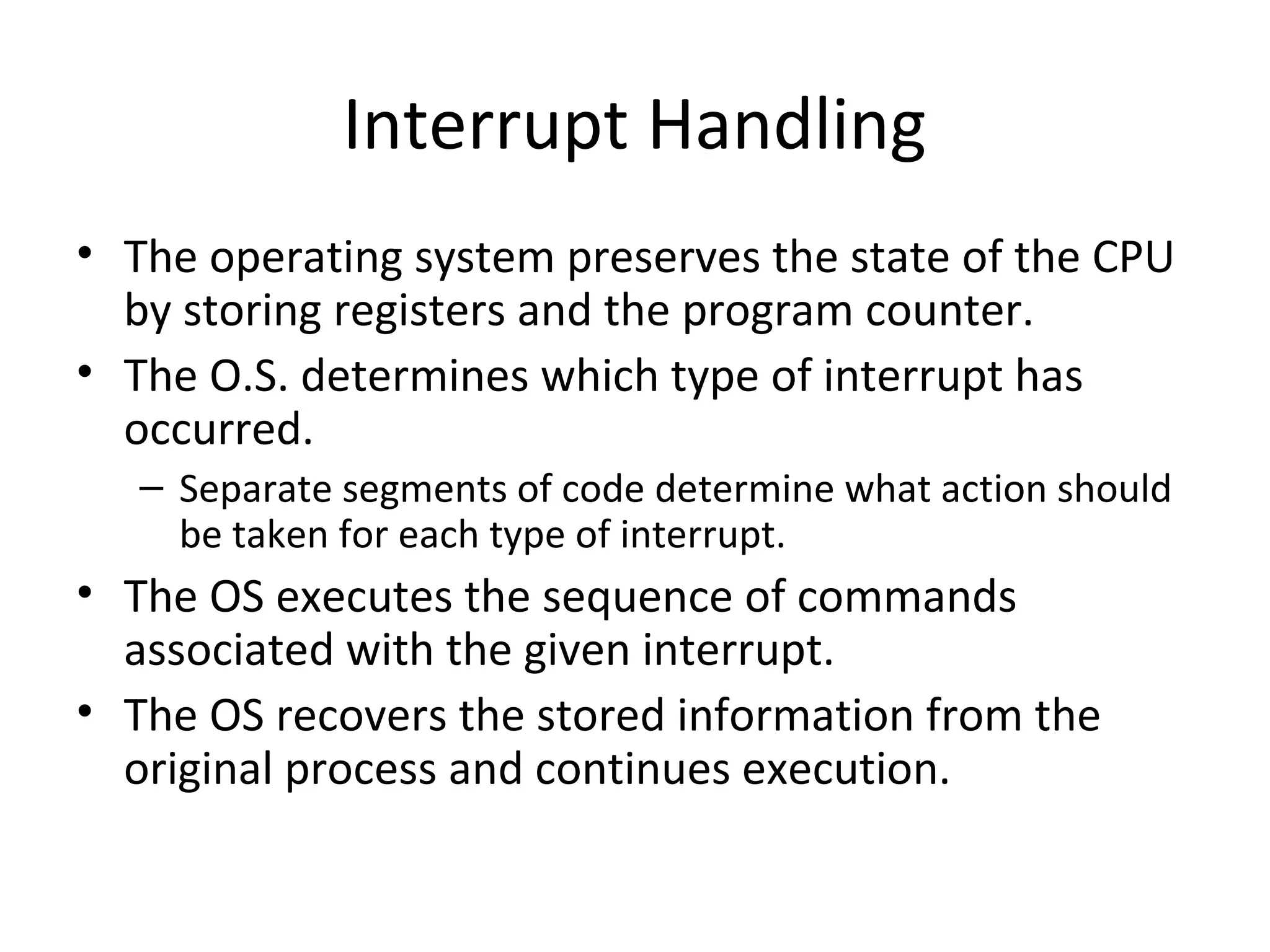

19. Interrupt Handling
• The operating system preserves the state of the CPU
by storing registers and the program counter.
• The O.S. determines which type of interrupt has
occurred.
– Separate segments of code determine what action should
be taken for each type of interrupt.
• The OS executes the sequence of commands
associated with the given interrupt.
• The OS recovers the stored information from the
original process and continues execution.

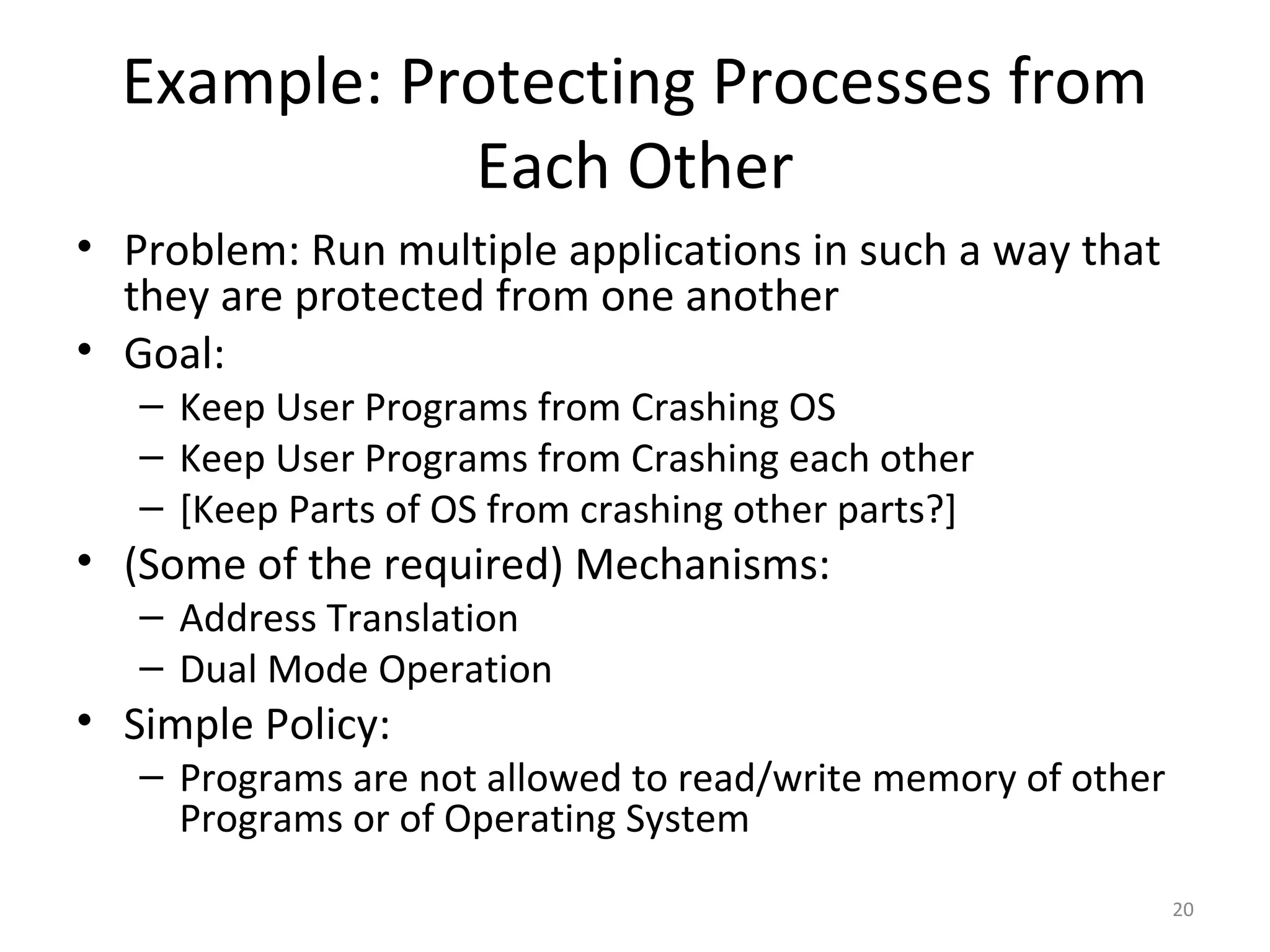

20. Example: Protecting Processes from
Each Other
• Problem: Run multiple applications in such a way that
they are protected from one another
• Goal:
– Keep User Programs from Crashing OS
– Keep User Programs from Crashing each other
– [Keep Parts of OS from crashing other parts?]
• (Some of the required) Mechanisms:
– Address Translation
– Dual Mode Operation
• Simple Policy:
– Programs are not allowed to read/write memory of other
Programs or of Operating System
20

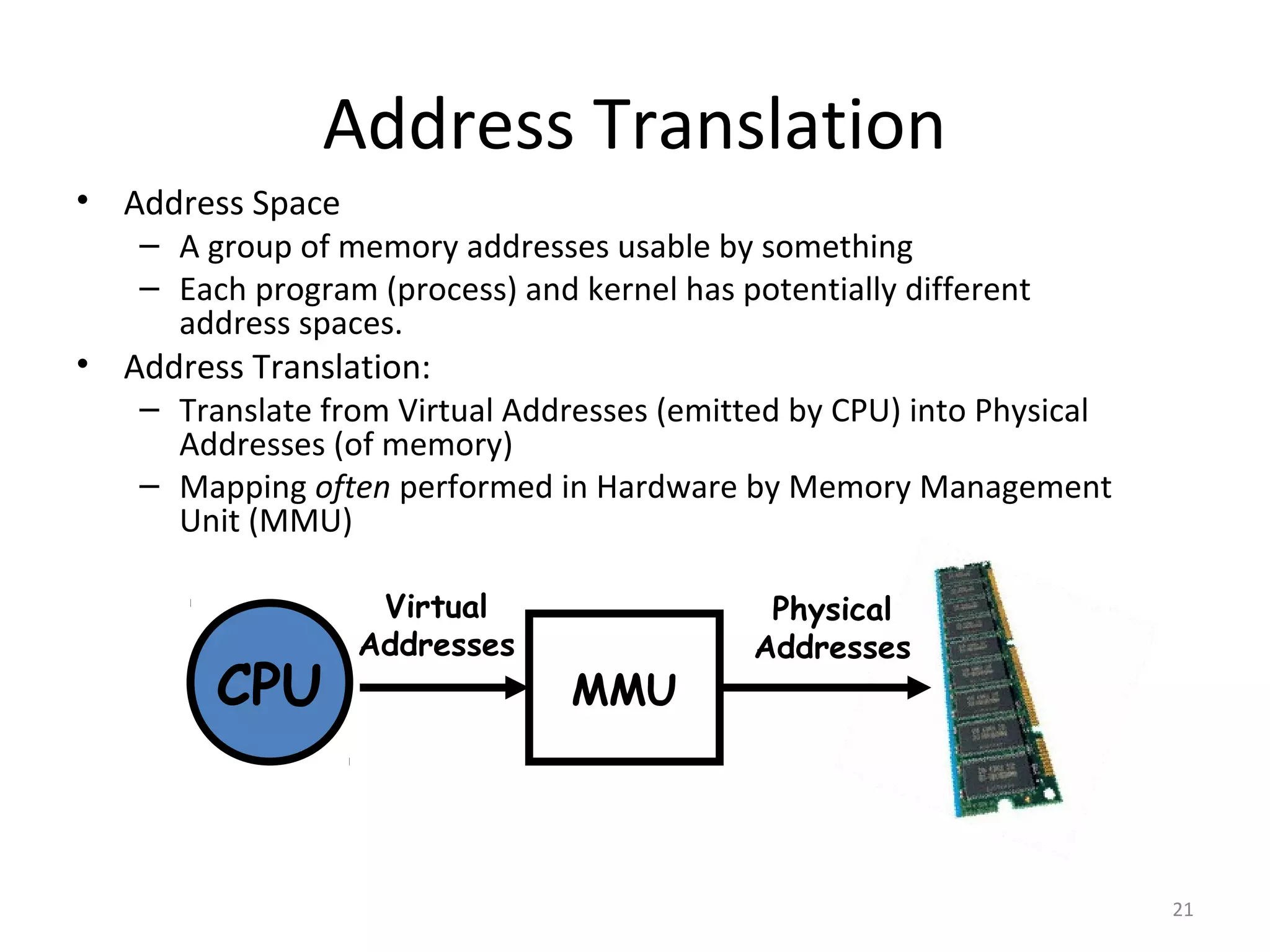

21. Address Translation
• Address Space
– A group of memory addresses usable by something
– Each program (process) and kernel has potentially different
address spaces.
• Address Translation:
– Translate from Virtual Addresses (emitted by CPU) into Physical
Addresses (of memory)
– Mapping often performed in Hardware by Memory Management
Unit (MMU)
Virtual Physical
Addresses Addresses
CPU MMU
21

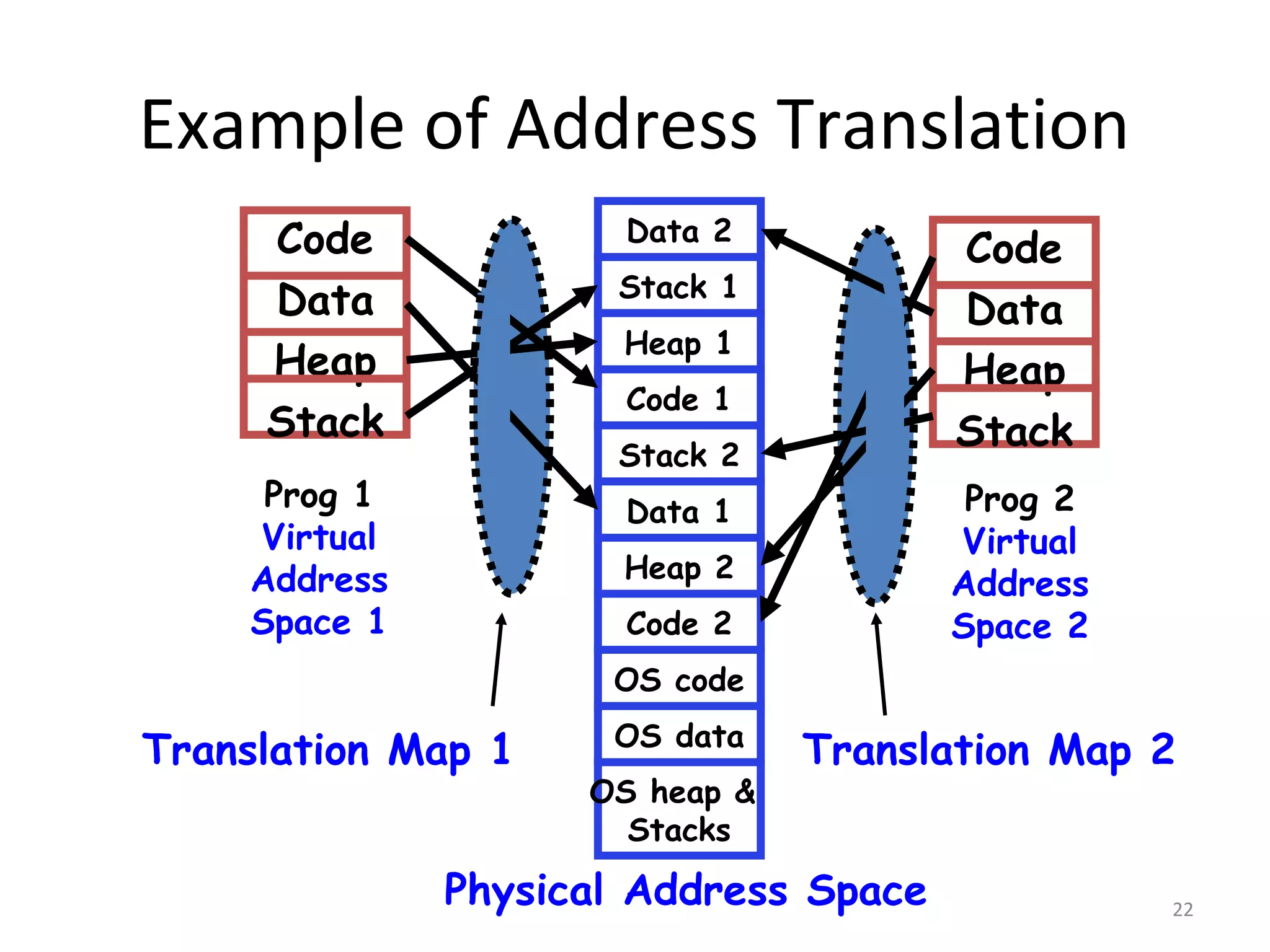

22. Example of Address Translation
Code Data 2
Code
Stack 1
Data Data
Heap 1
Heap Heap
Code 1
Stack Stack
Stack 2
Prog 1 Data 1 Prog 2
Virtual Virtual
Address Heap 2
Address
Space 1 Code 2 Space 2
OS code
OS data
Translation Map 1 Translation Map 2
OS heap &
Stacks
Physical Address Space 22

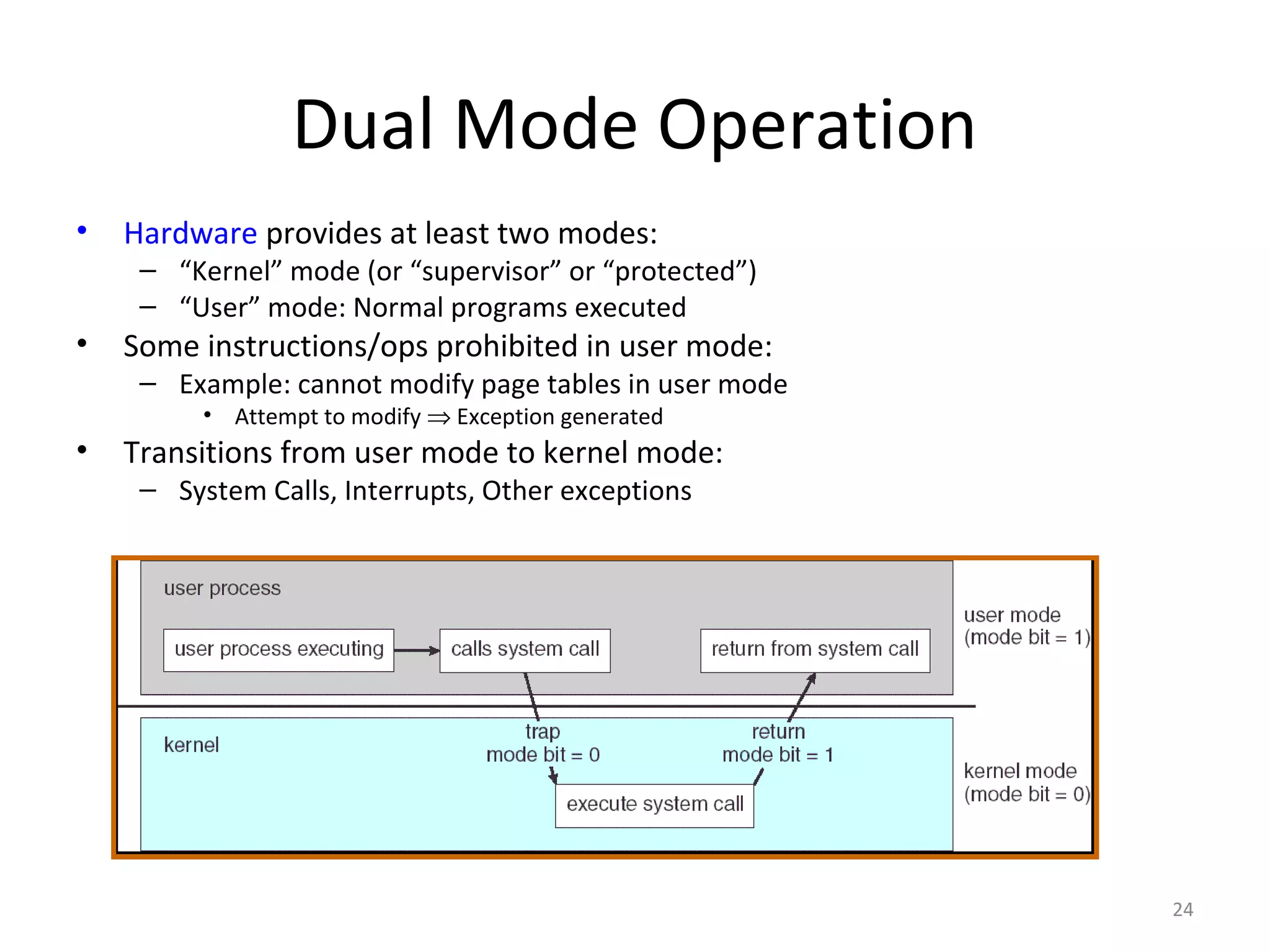

23. Dual Mode Operation
• Hardware provides at least two modes:
– “Kernel” mode (or “supervisor” or “protected”)
– “User” mode: Normal programs executed
• Some instructions/ops prohibited in user mode:
– Example: cannot modify page tables in user mode
• Attempt to modify ⇒ Exception generated
• Transitions from user mode to kernel mode:
– System Calls, Interrupts, Other exceptions
24

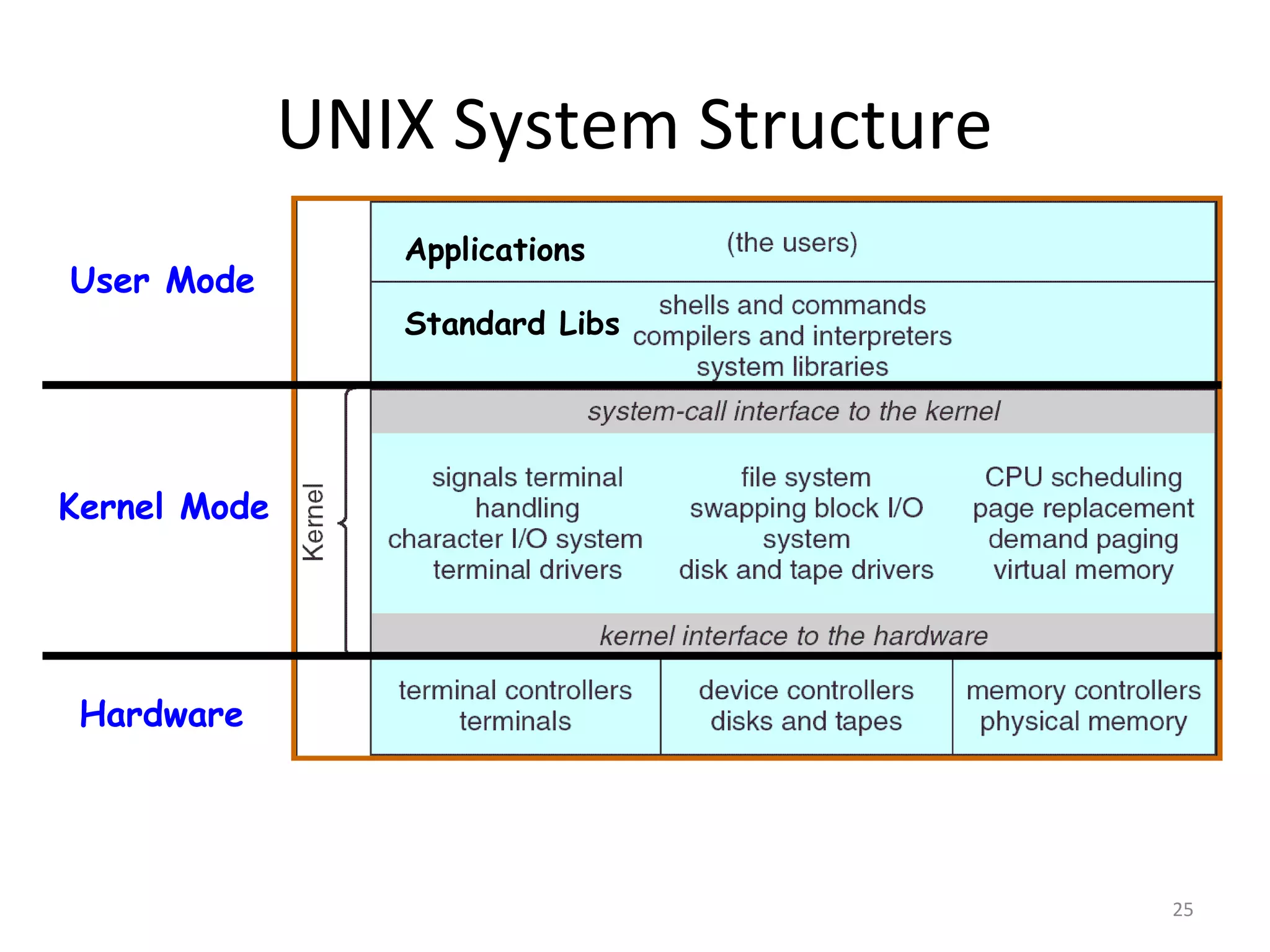

24. UNIX System Structure
Applications
User Mode
Standard Libs
Kernel Mode
Hardware
25

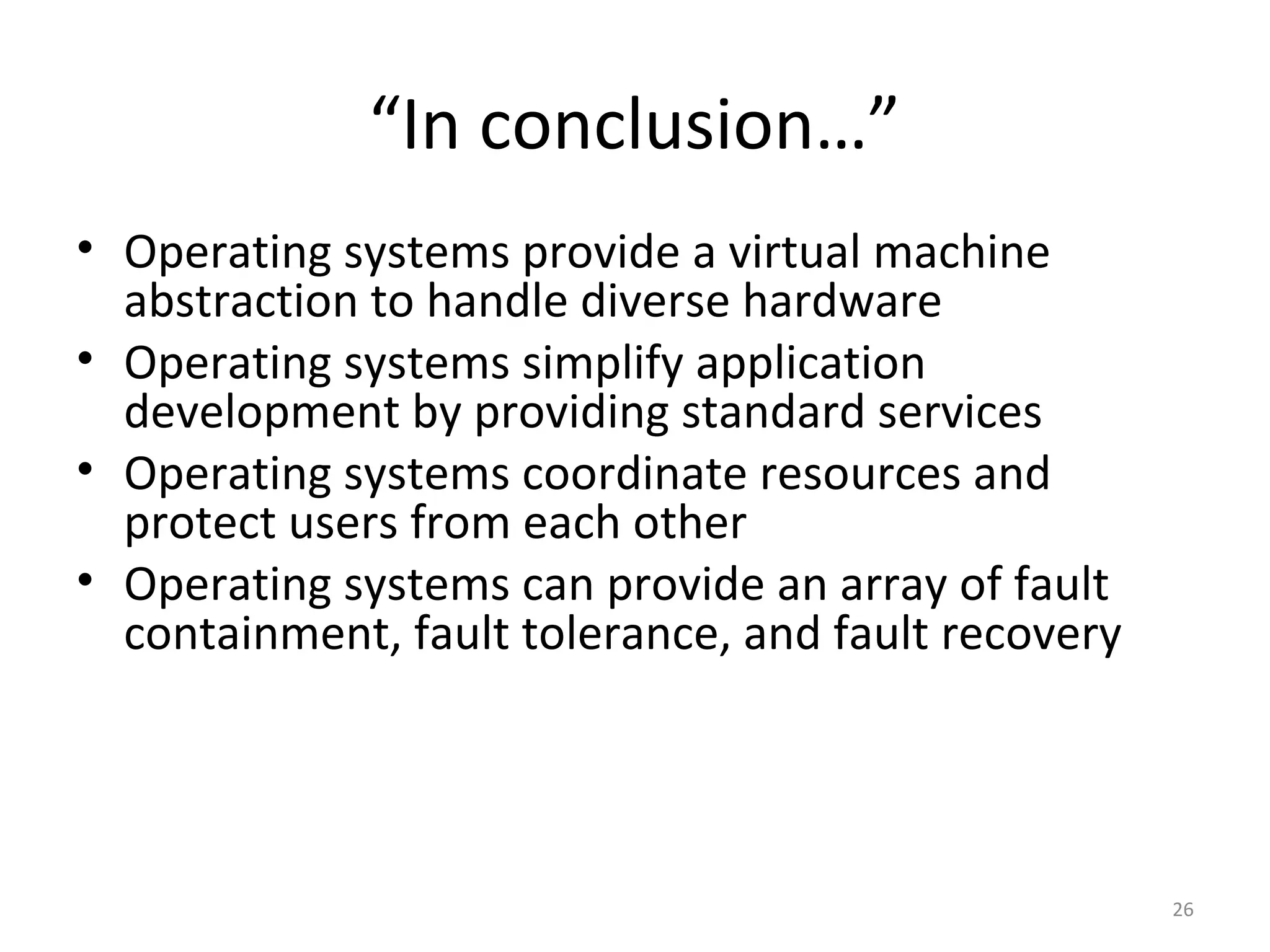

25. “In conclusion…”
• Operating systems provide a virtual machine
abstraction to handle diverse hardware
• Operating systems simplify application
development by providing standard services
• Operating systems coordinate resources and
protect users from each other
• Operating systems can provide an array of fault
containment, fault tolerance, and fault recovery
26

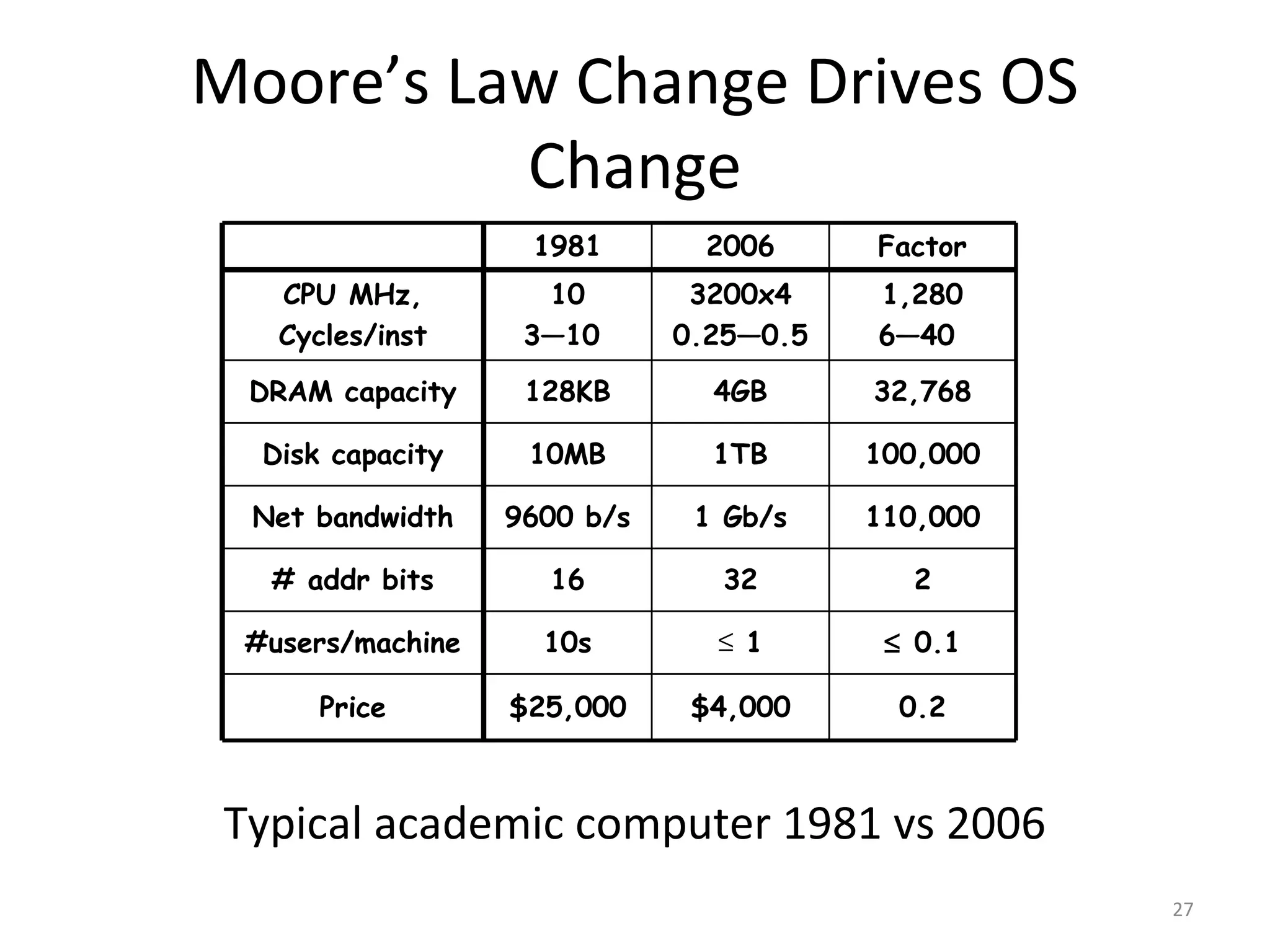

26. Moore’s Law Change Drives OS
Change
1981 2006 Factor
CPU MHz, 10 3200x4 1,280
Cycles/inst 3—10 0.25—0.5 6—40
DRAM capacity 128KB 4GB 32,768
Disk capacity 10MB 1TB 100,000
Net bandwidth 9600 b/s 1 Gb/s 110,000
# addr bits 16 32 2
#users/machine 10s ≤ 1 ≤ 0.1
Price $25,000 $4,000 0.2
Typical academic computer 1981 vs 2006
27

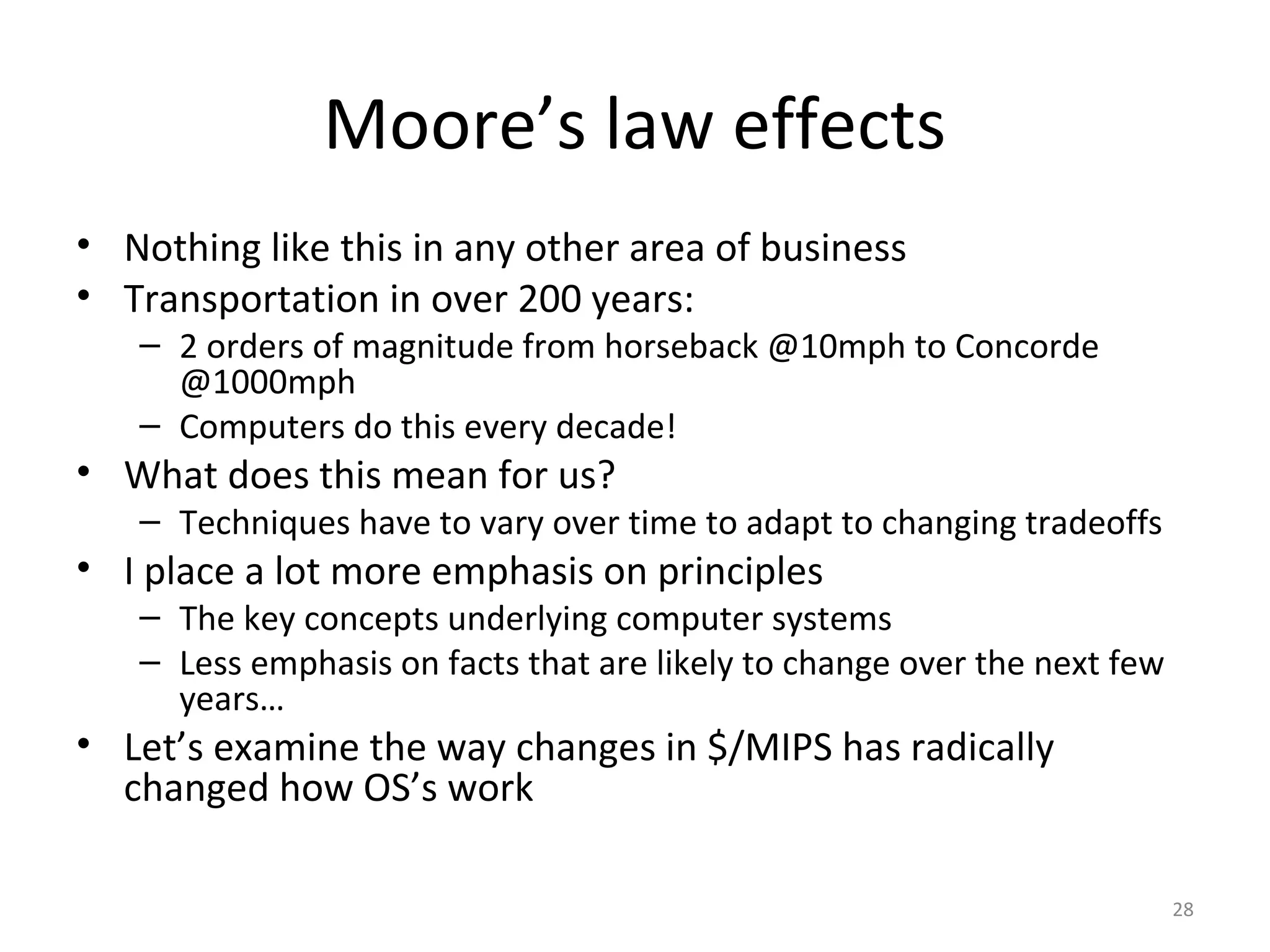

27. Moore’s law effects
• Nothing like this in any other area of business
• Transportation in over 200 years:
– 2 orders of magnitude from horseback @10mph to Concorde
@1000mph
– Computers do this every decade!
• What does this mean for us?
– Techniques have to vary over time to adapt to changing tradeoffs
• I place a lot more emphasis on principles
– The key concepts underlying computer systems
– Less emphasis on facts that are likely to change over the next few
years…
• Let’s examine the way changes in $/MIPS has radically
changed how OS’s work
28

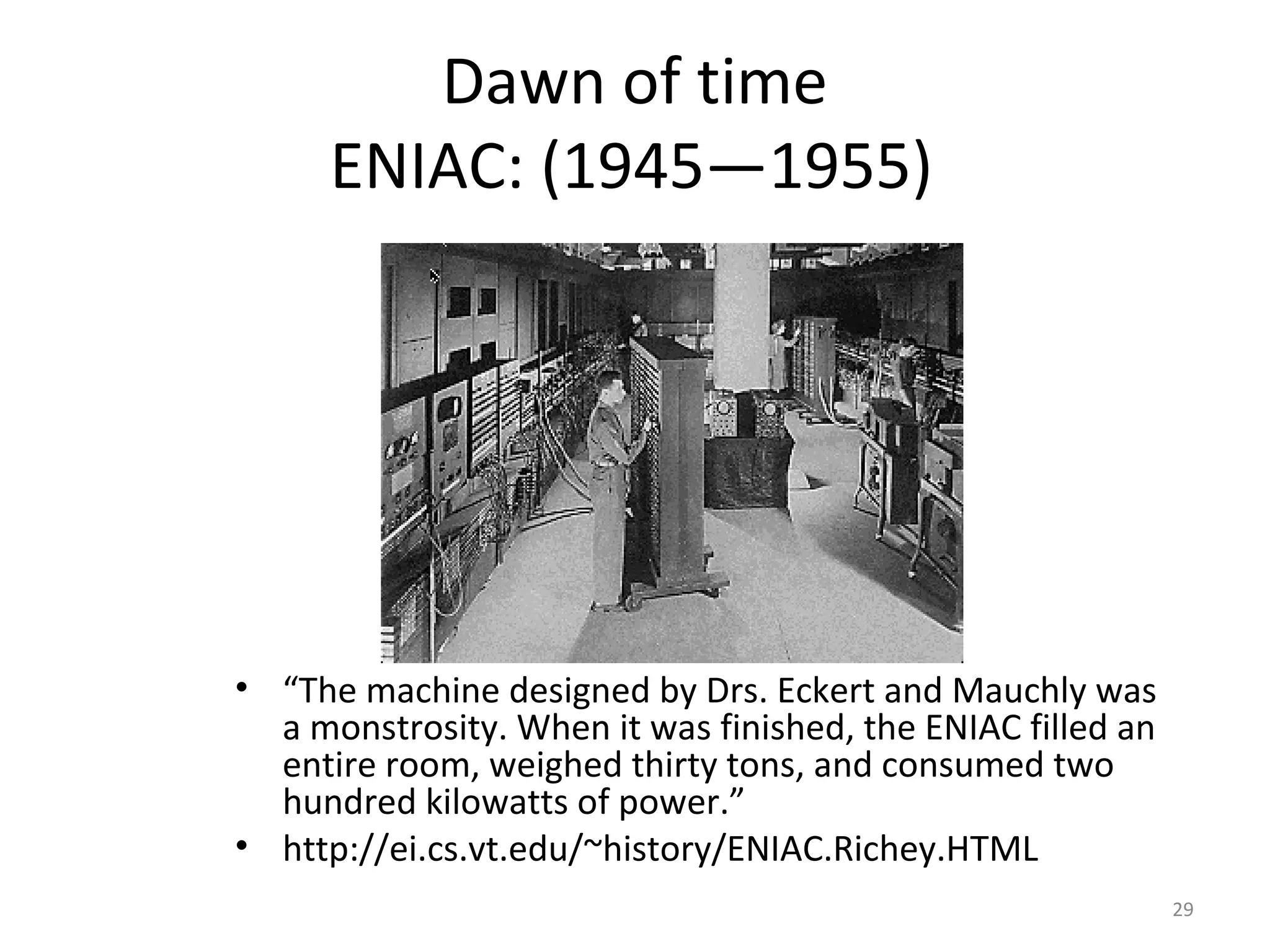

28. Dawn of time
ENIAC: (1945—1955)
• “The machine designed by Drs. Eckert and Mauchly was
a monstrosity. When it was finished, the ENIAC filled an
entire room, weighed thirty tons, and consumed two
hundred kilowatts of power.”
• http://ei.cs.vt.edu/~history/ENIAC.Richey.HTML
29

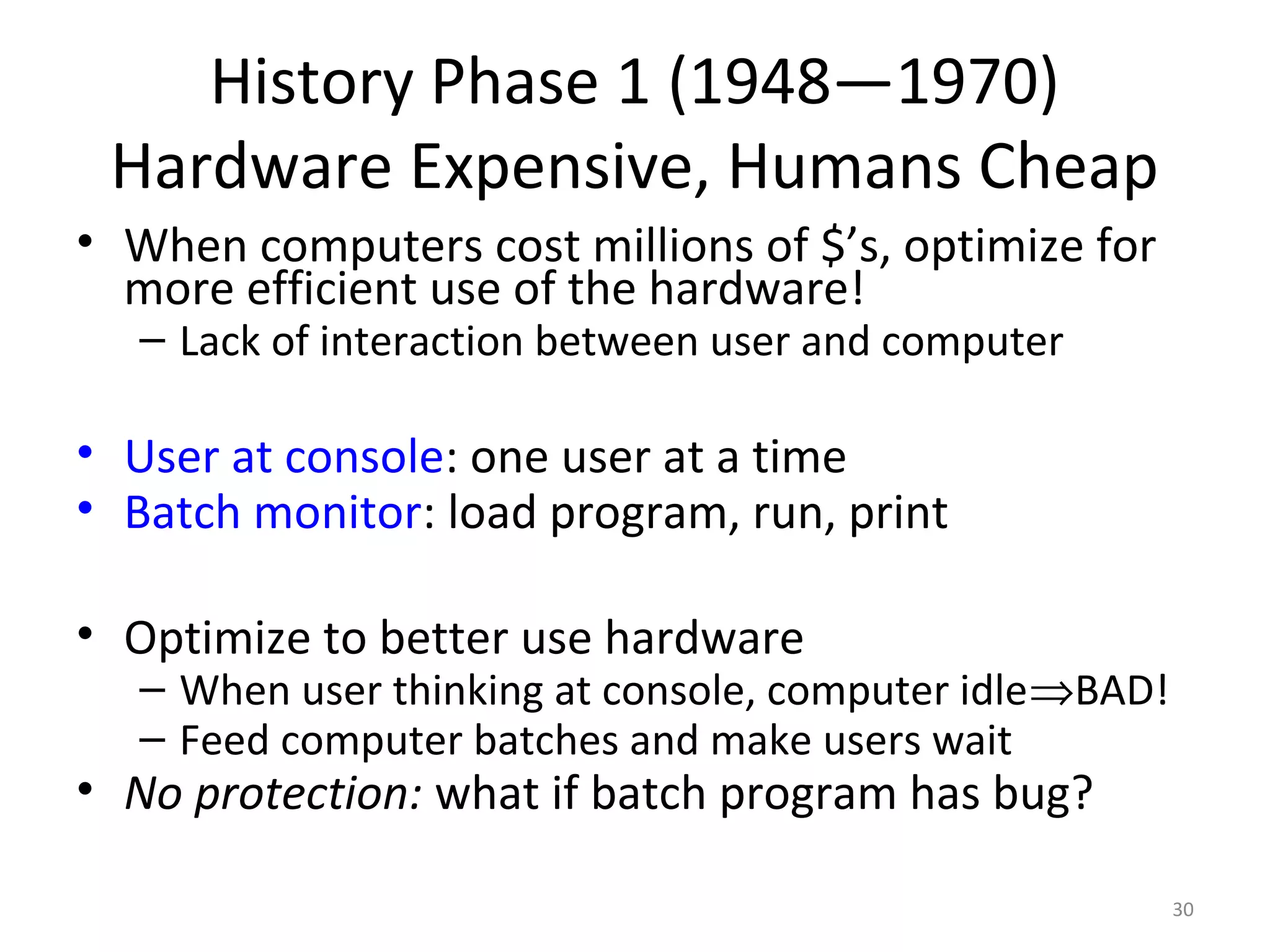

29. History Phase 1 (1948—1970)
Hardware Expensive, Humans Cheap
• When computers cost millions of $’s, optimize for
more efficient use of the hardware!
– Lack of interaction between user and computer
• User at console: one user at a time
• Batch monitor: load program, run, print
• Optimize to better use hardware
– When user thinking at console, computer idle⇒BAD!
– Feed computer batches and make users wait
• No protection: what if batch program has bug?
30

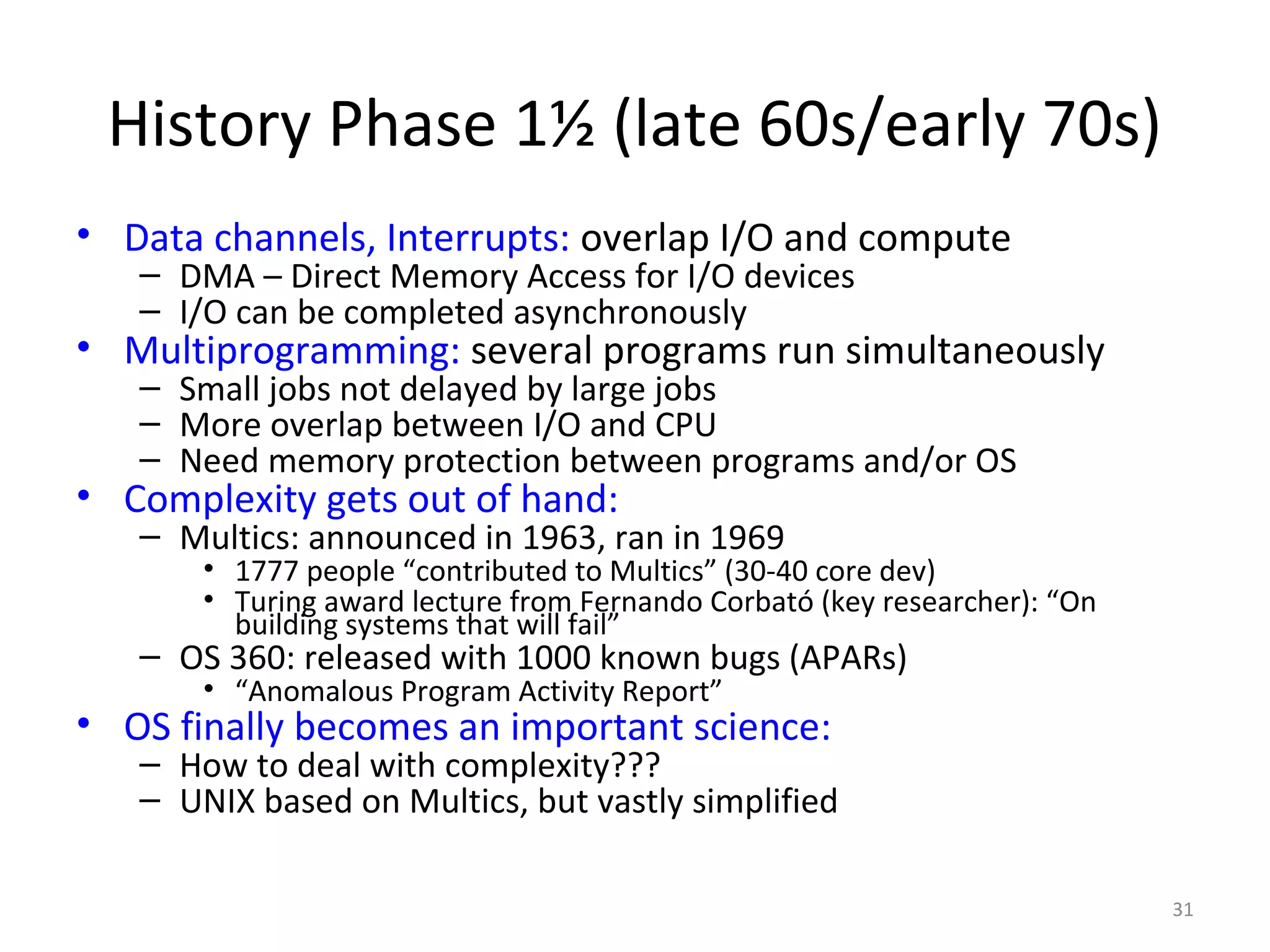

30. History Phase 1½ (late 60s/early 70s)
• Data channels, Interrupts: overlap I/O and compute
– DMA – Direct Memory Access for I/O devices
– I/O can be completed asynchronously
• Multiprogramming: several programs run simultaneously
– Small jobs not delayed by large jobs
– More overlap between I/O and CPU
– Need memory protection between programs and/or OS
• Complexity gets out of hand:
– Multics: announced in 1963, ran in 1969
• 1777 people “contributed to Multics” (30-40 core dev)
• Turing award lecture from Fernando Corbató (key researcher): “On
building systems that will fail”
– OS 360: released with 1000 known bugs (APARs)
• “Anomalous Program Activity Report”
• OS finally becomes an important science:
– How to deal with complexity???
– UNIX based on Multics, but vastly simplified
31

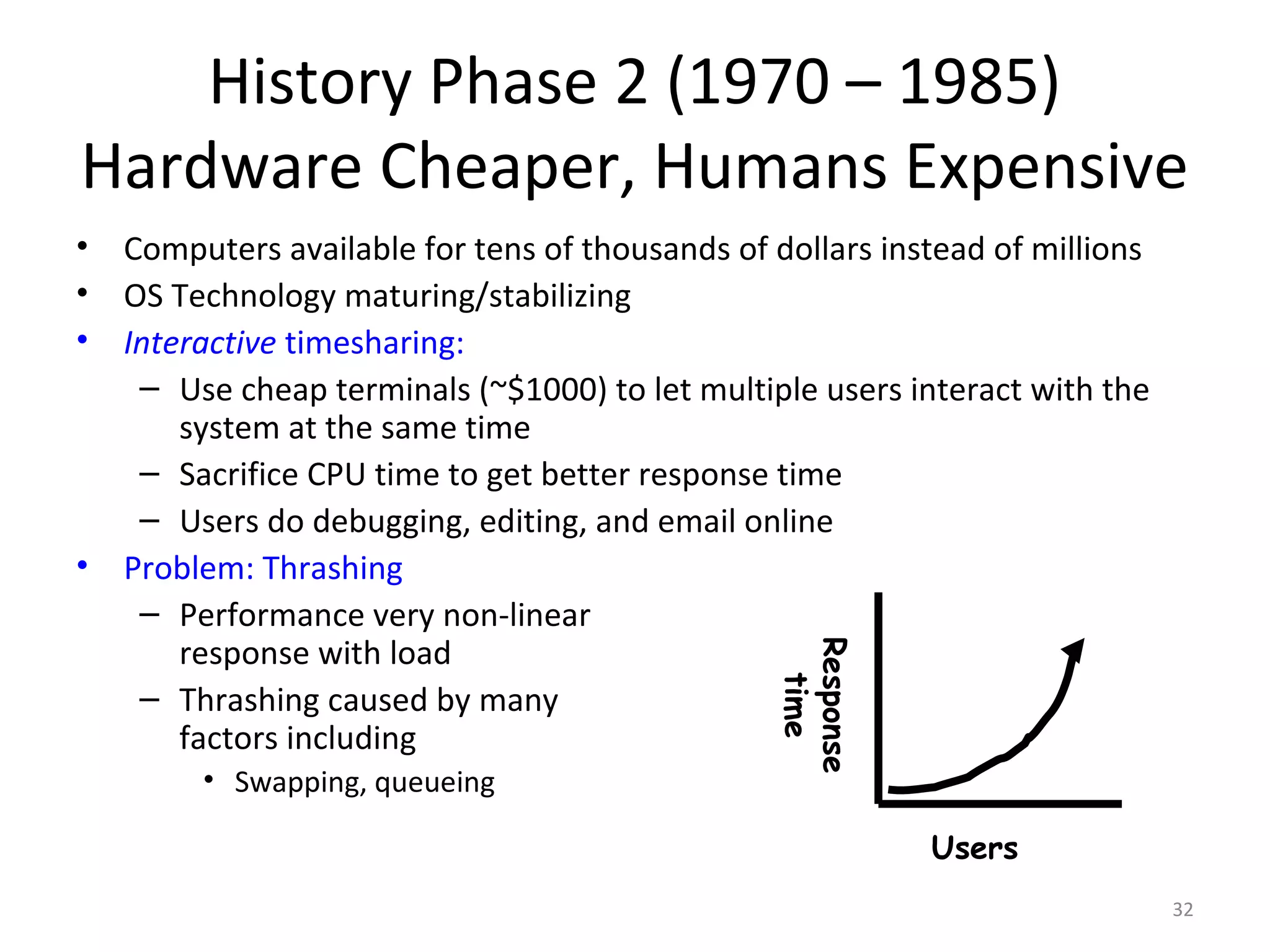

31. History Phase 2 (1970 – 1985)
Hardware Cheaper, Humans Expensive
• Computers available for tens of thousands of dollars instead of millions
• OS Technology maturing/stabilizing
• Interactive timesharing:
– Use cheap terminals (~$1000) to let multiple users interact with the
system at the same time
– Sacrifice CPU time to get better response time
– Users do debugging, editing, and email online
• Problem: Thrashing
– Performance very non-linear
response with load
Response
time
– Thrashing caused by many
factors including
• Swapping, queueing
Users
32

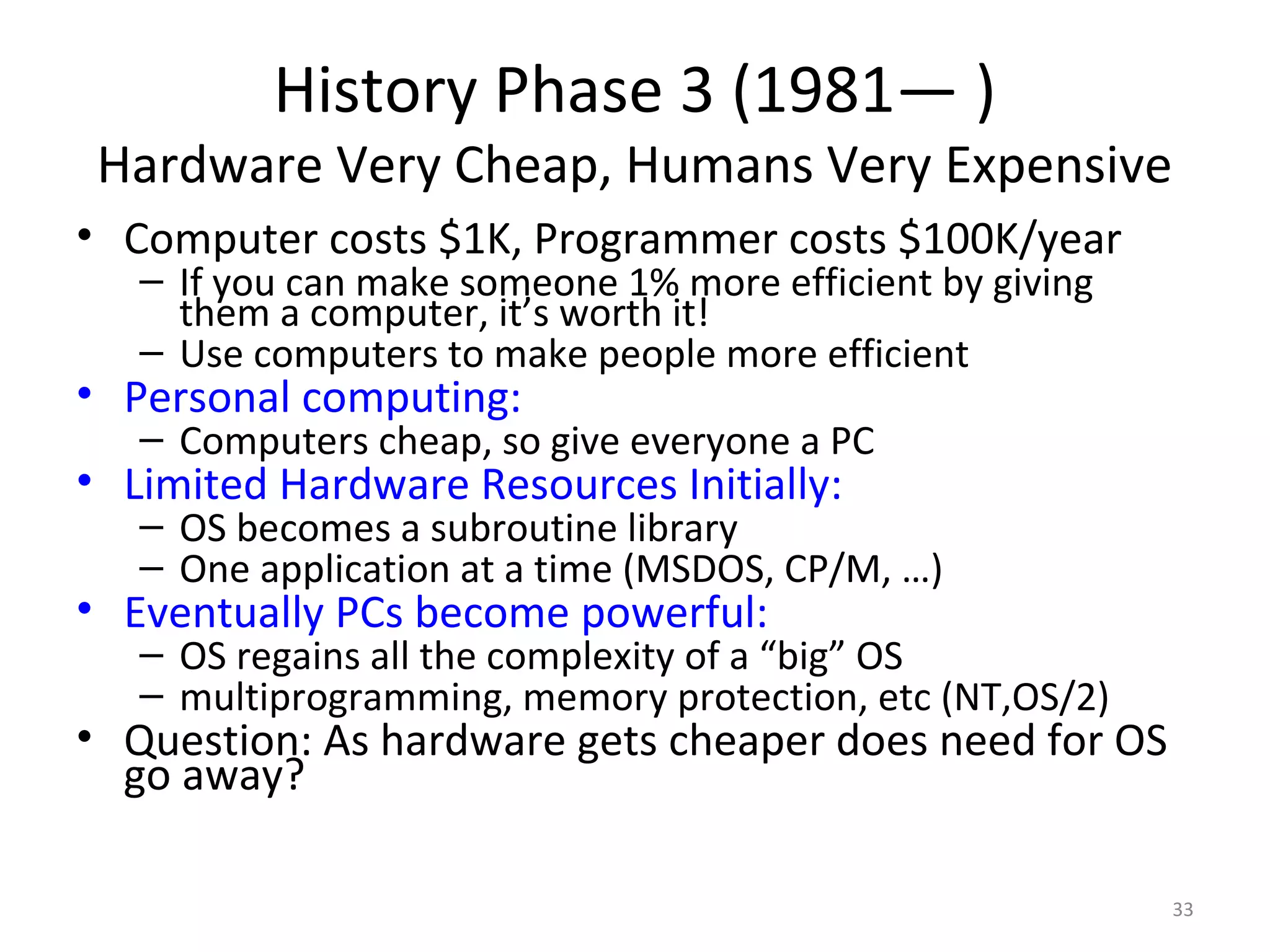

32. History Phase 3 (1981— )
Hardware Very Cheap, Humans Very Expensive
• Computer costs $1K, Programmer costs $100K/year
– If you can make someone 1% more efficient by giving
them a computer, it’s worth it!
– Use computers to make people more efficient
• Personal computing:
– Computers cheap, so give everyone a PC
• Limited Hardware Resources Initially:
– OS becomes a subroutine library
– One application at a time (MSDOS, CP/M, …)
• Eventually PCs become powerful:
– OS regains all the complexity of a “big” OS
– multiprogramming, memory protection, etc (NT,OS/2)
• Question: As hardware gets cheaper does need for OS
go away?
33

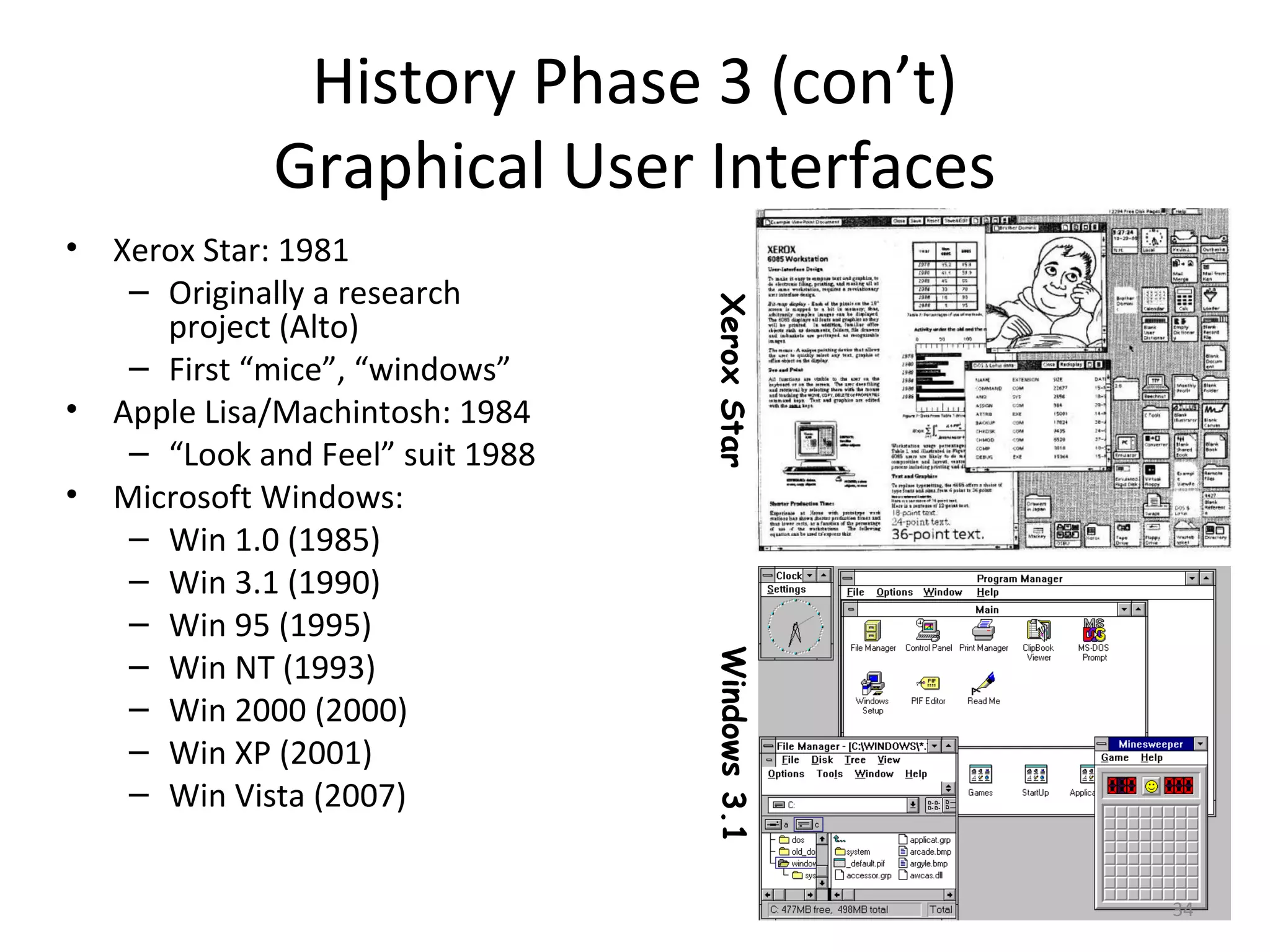

33. History Phase 3 (con’t)
Graphical User Interfaces
• Xerox Star: 1981
– Originally a research
Xerox Star
project (Alto)
– First “mice”, “windows”
• Apple Lisa/Machintosh: 1984
– “Look and Feel” suit 1988
• Microsoft Windows:
– Win 1.0 (1985)
– Win 3.1 (1990)
– Win 95 (1995)
– Win NT (1993)
– Win 2000 (2000) Windows 3.1
– Win XP (2001)
– Win Vista (2007)
34

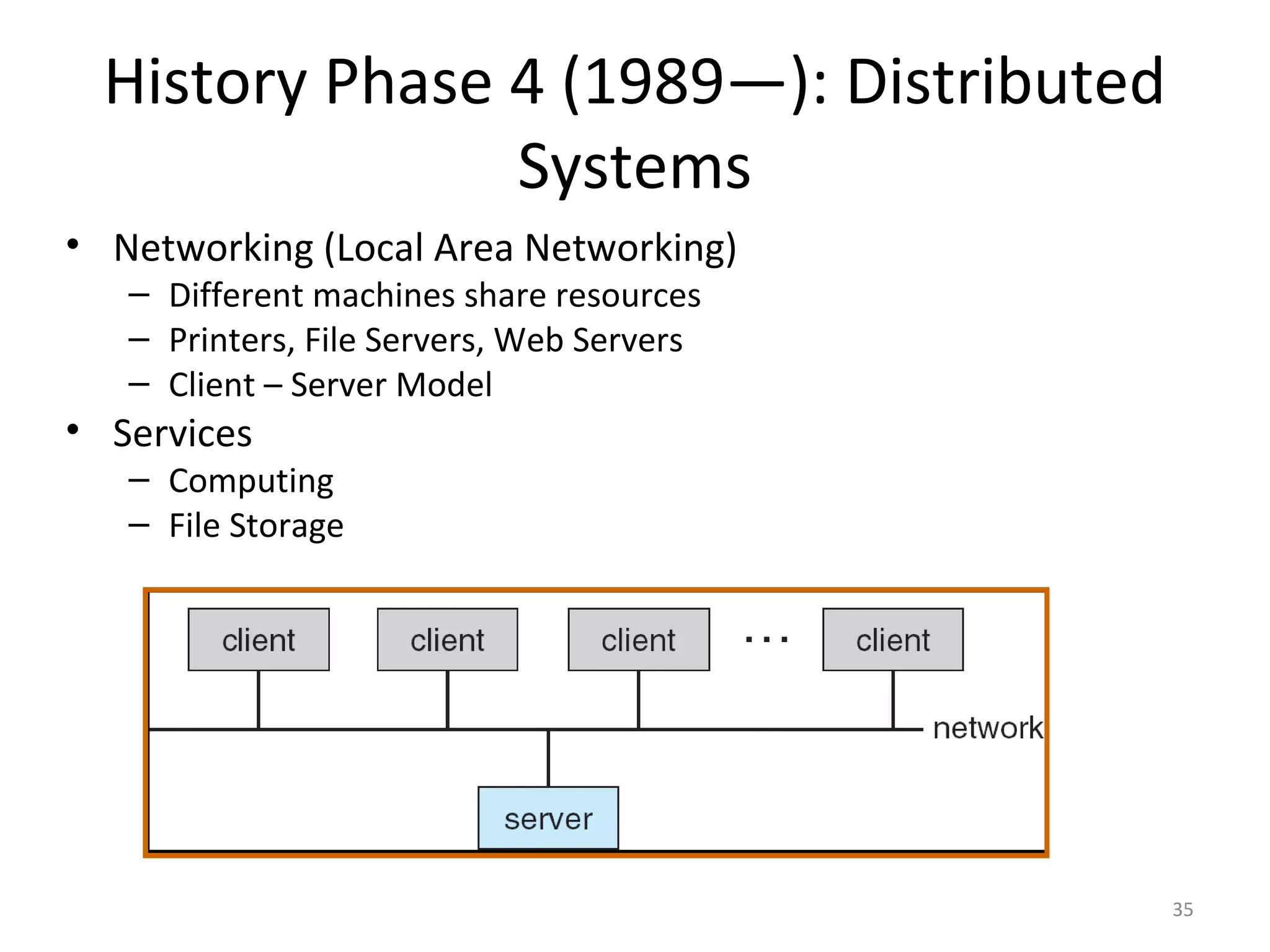

34. History Phase 4 (1989—): Distributed
Systems
• Networking (Local Area Networking)
– Different machines share resources
– Printers, File Servers, Web Servers
– Client – Server Model
• Services
– Computing
– File Storage
35

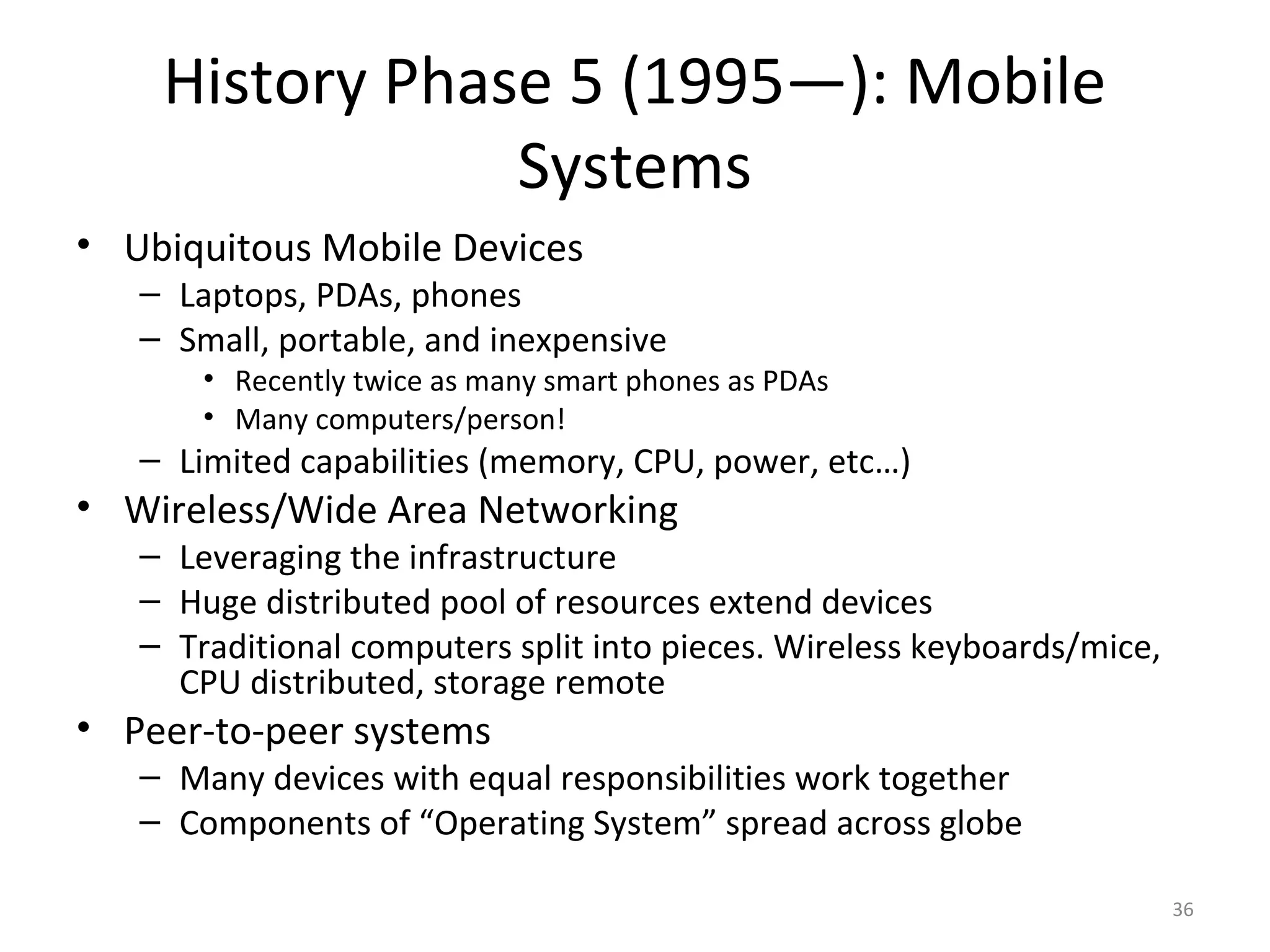

35. History Phase 5 (1995—): Mobile
Systems
• Ubiquitous Mobile Devices
– Laptops, PDAs, phones
– Small, portable, and inexpensive
• Recently twice as many smart phones as PDAs
• Many computers/person!
– Limited capabilities (memory, CPU, power, etc…)
• Wireless/Wide Area Networking
– Leveraging the infrastructure
– Huge distributed pool of resources extend devices
– Traditional computers split into pieces. Wireless keyboards/mice,
CPU distributed, storage remote
• Peer-to-peer systems
– Many devices with equal responsibilities work together
– Components of “Operating System” spread across globe
36

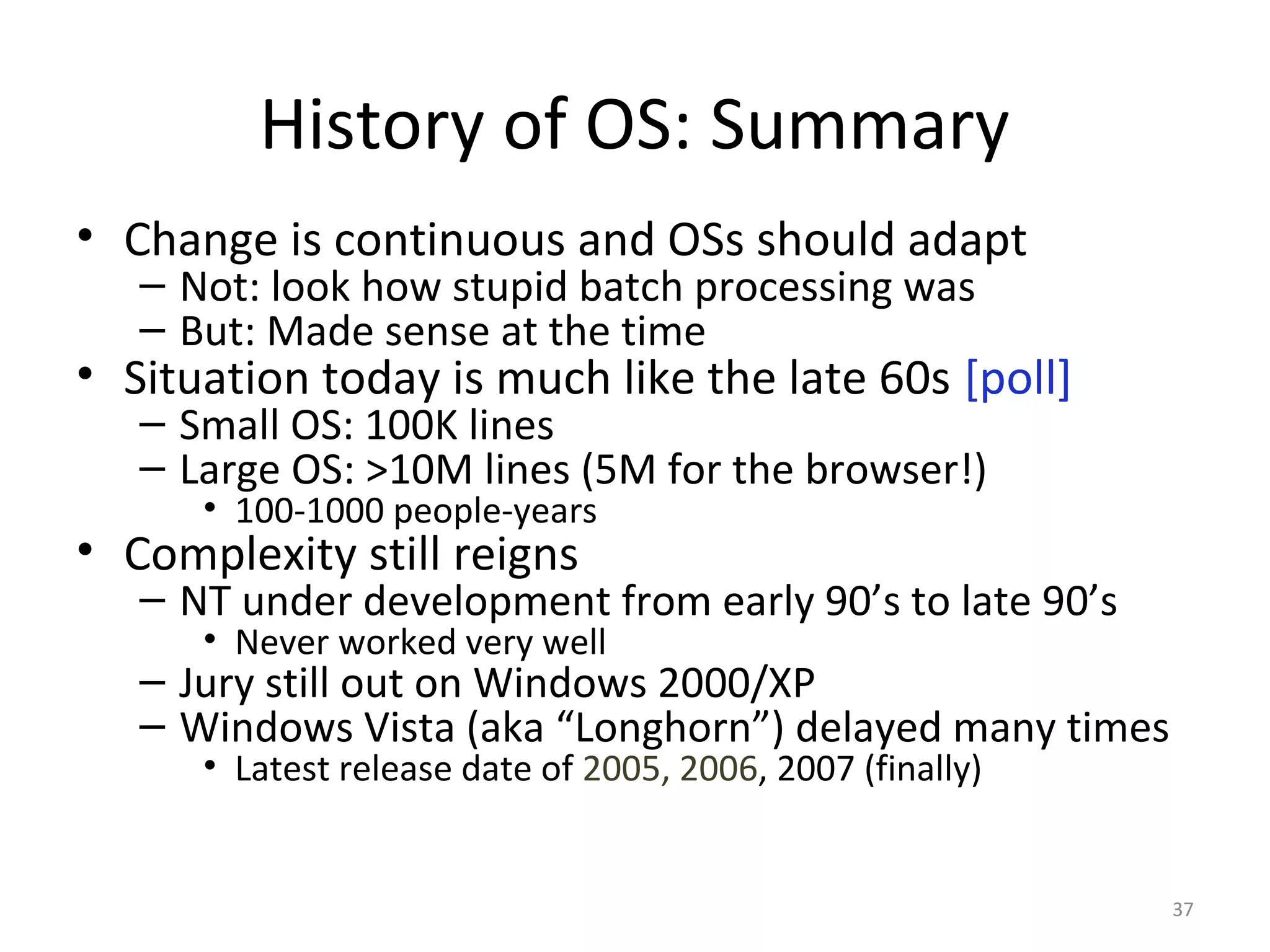

36. History of OS: Summary
• Change is continuous and OSs should adapt
– Not: look how stupid batch processing was
– But: Made sense at the time
• Situation today is much like the late 60s [poll]
– Small OS: 100K lines
– Large OS: >10M lines (5M for the browser!)
• 100-1000 people-years
• Complexity still reigns
– NT under development from early 90’s to late 90’s
• Never worked very well
– Jury still out on Windows 2000/XP
– Windows Vista (aka “Longhorn”) delayed many times
• Latest release date of 2005, 2006, 2007 (finally)
37

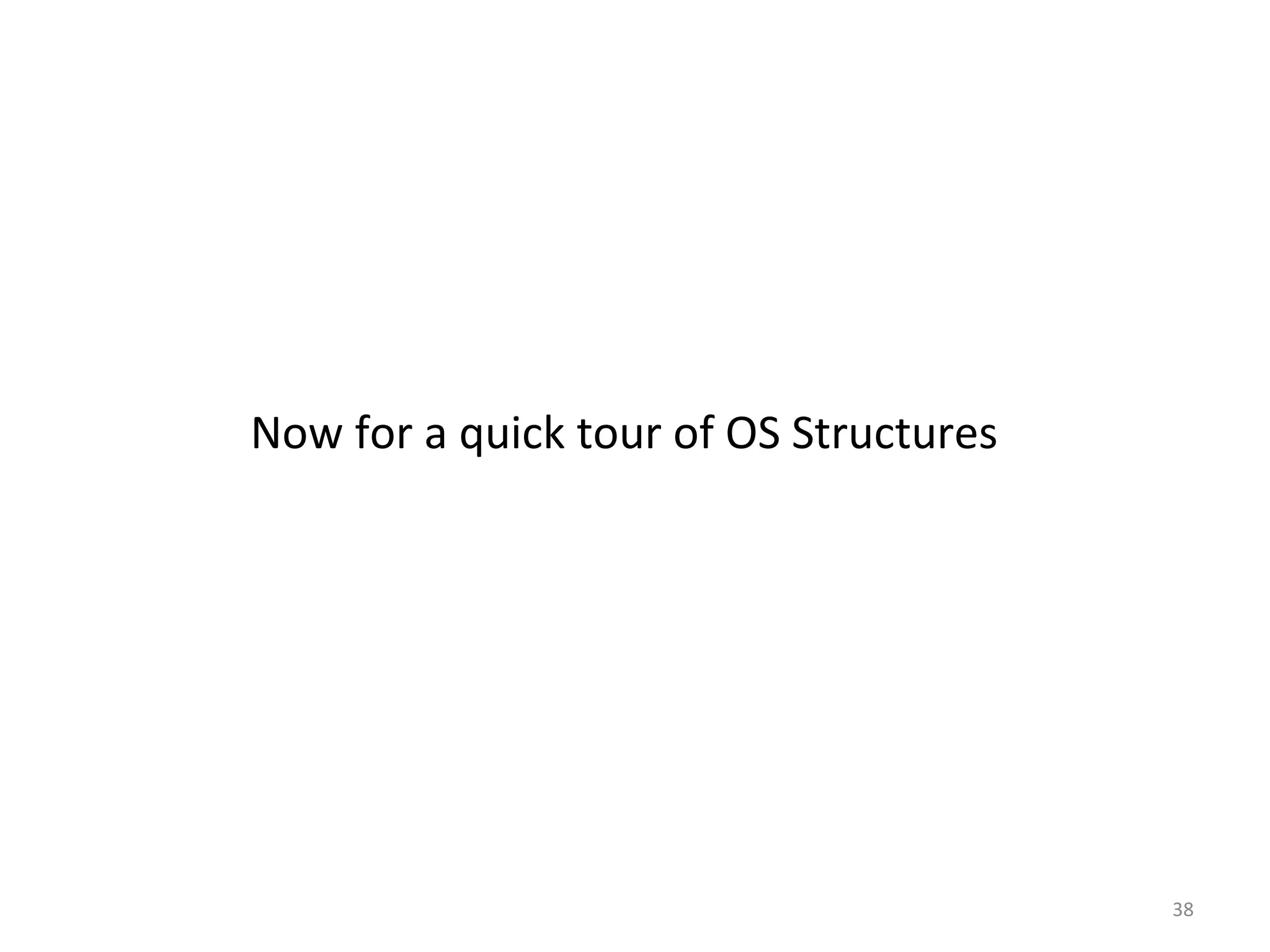

37. Now for a quick tour of OS Structures
38

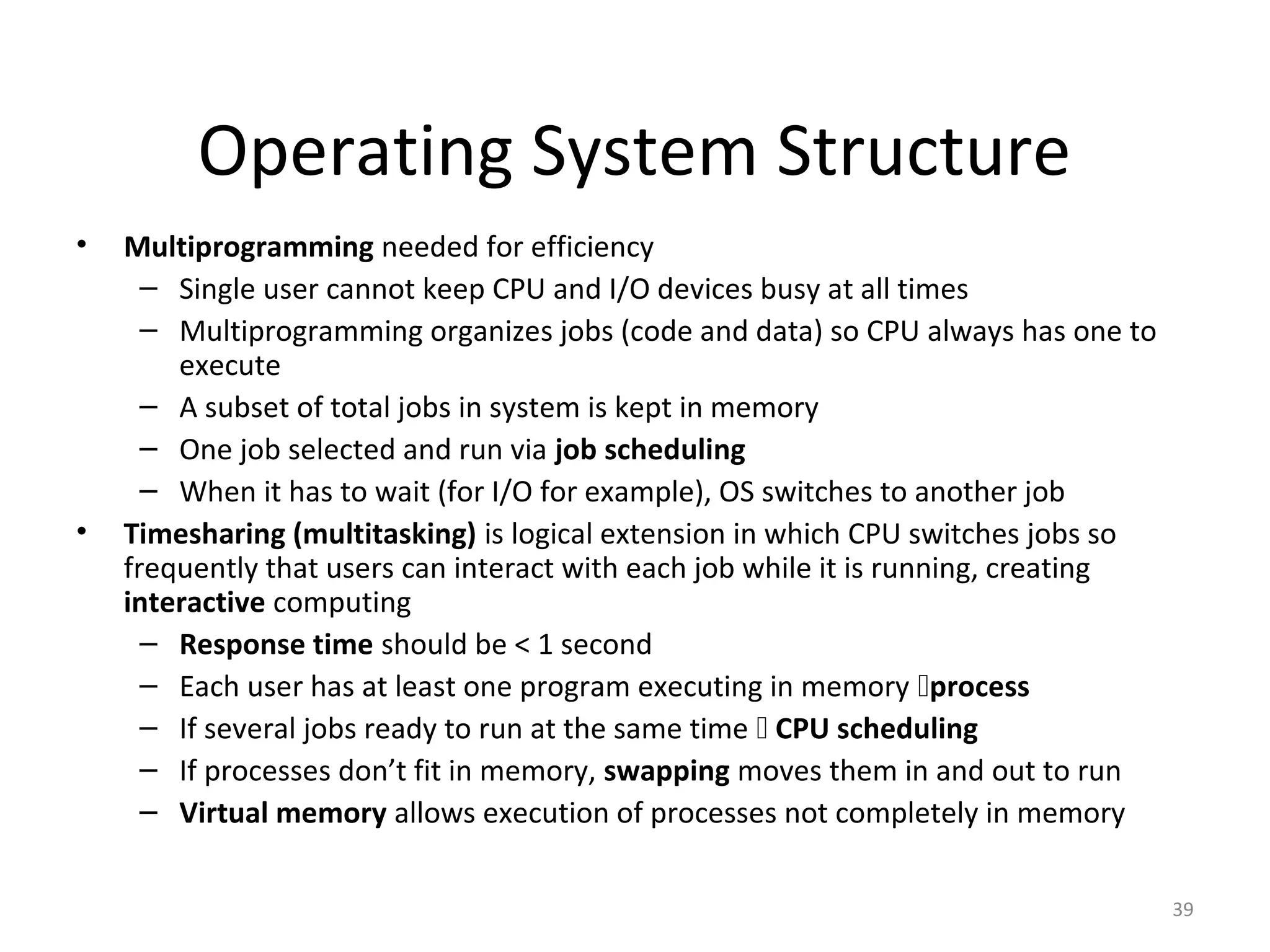

38. Operating System Structure
• Multiprogramming needed for efficiency
– Single user cannot keep CPU and I/O devices busy at all times
– Multiprogramming organizes jobs (code and data) so CPU always has one to
execute
– A subset of total jobs in system is kept in memory
– One job selected and run via job scheduling
– When it has to wait (for I/O for example), OS switches to another job
• Timesharing (multitasking) is logical extension in which CPU switches jobs so
frequently that users can interact with each job while it is running, creating
interactive computing
– Response time should be < 1 second
– Each user has at least one program executing in memory process
– If several jobs ready to run at the same time  CPU scheduling
– If processes don’t fit in memory, swapping moves them in and out to run
– Virtual memory allows execution of processes not completely in memory
39

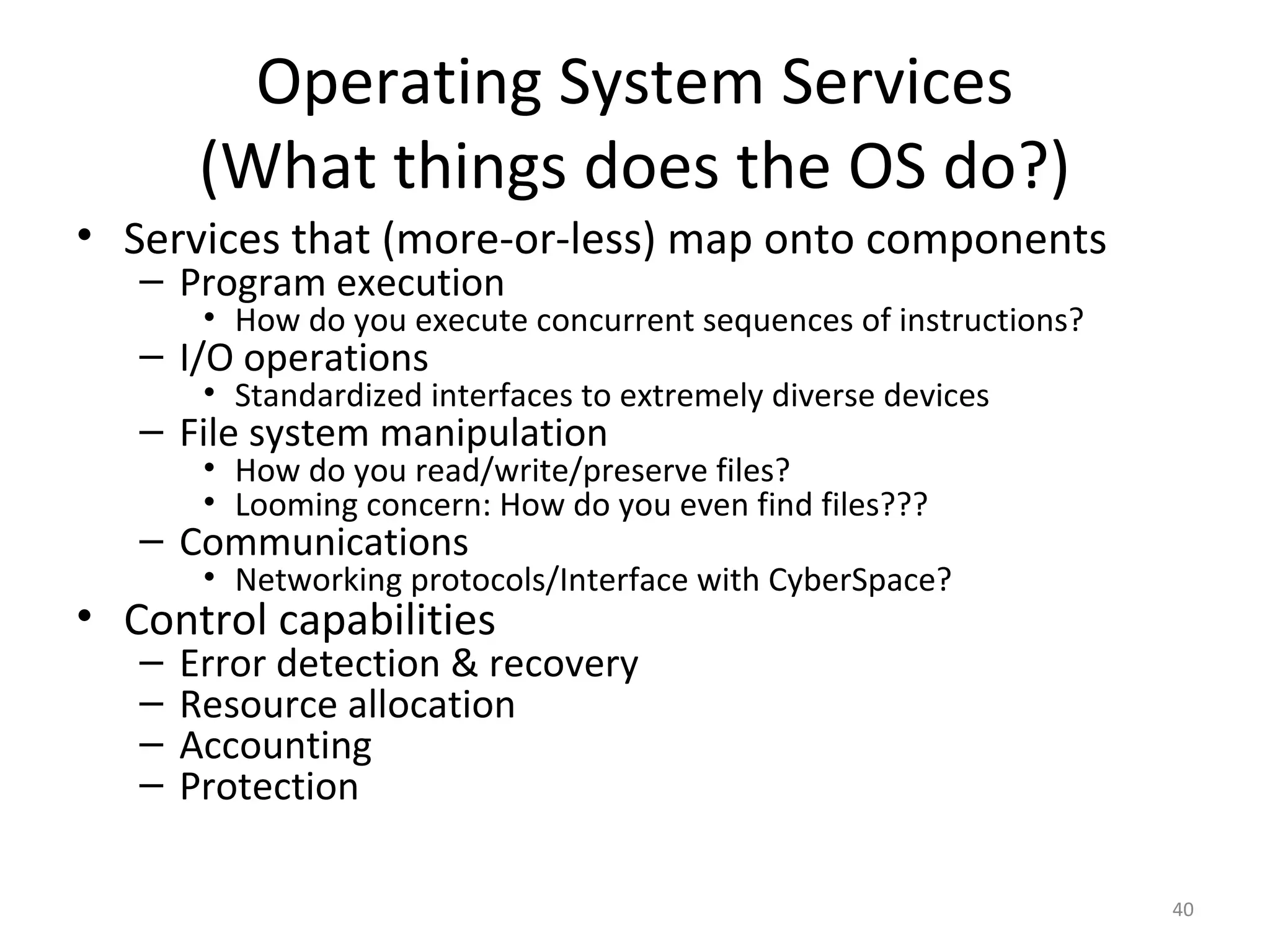

39. Operating System Services
(What things does the OS do?)
• Services that (more-or-less) map onto components
– Program execution
• How do you execute concurrent sequences of instructions?
– I/O operations
• Standardized interfaces to extremely diverse devices
– File system manipulation
• How do you read/write/preserve files?
• Looming concern: How do you even find files???
– Communications
• Networking protocols/Interface with CyberSpace?
• Control capabilities
– Error detection & recovery
– Resource allocation
– Accounting
– Protection
40

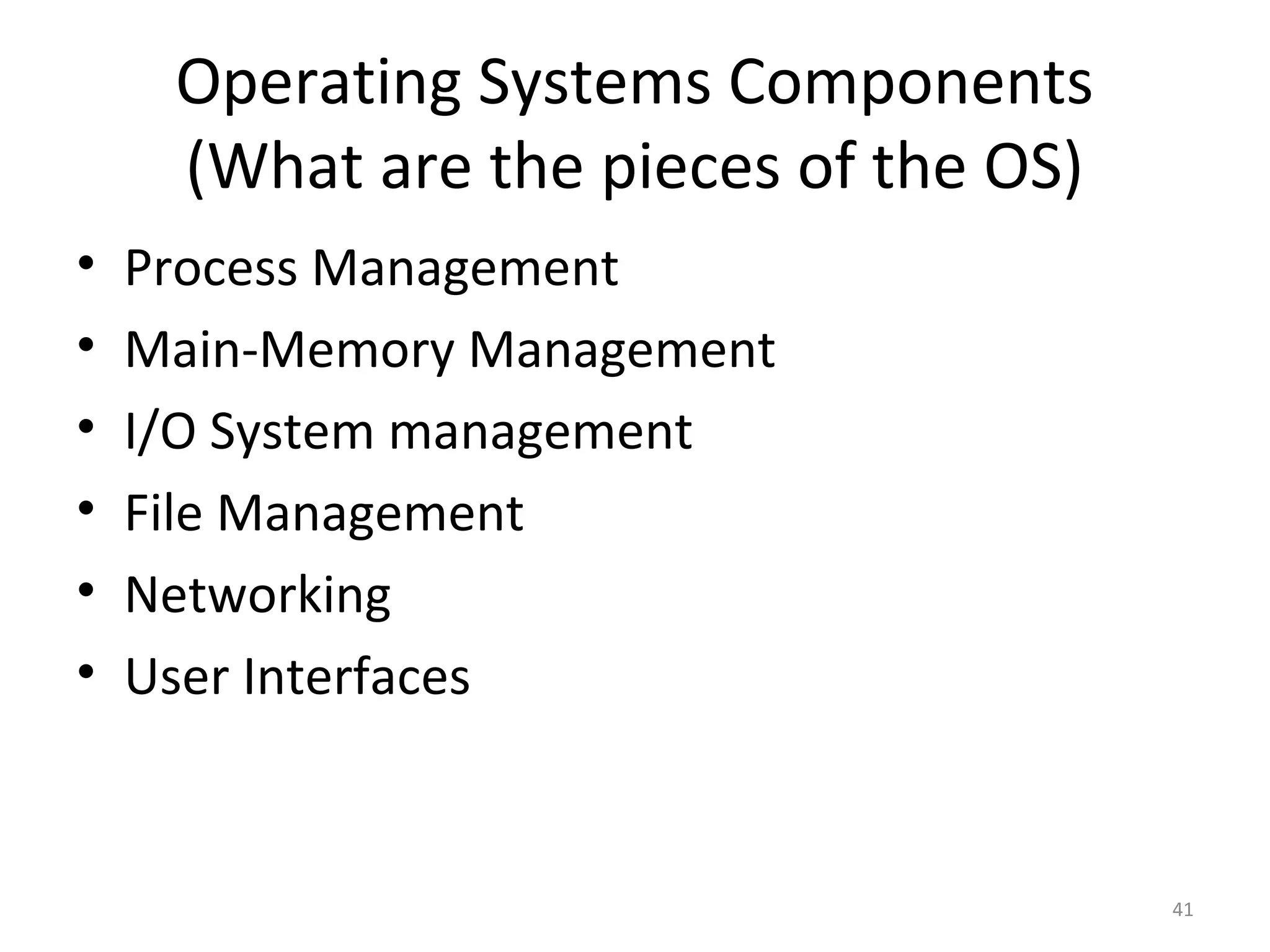

40. Operating Systems Components
(What are the pieces of the OS)
• Process Management
• Main-Memory Management
• I/O System management
• File Management
• Networking
• User Interfaces
41

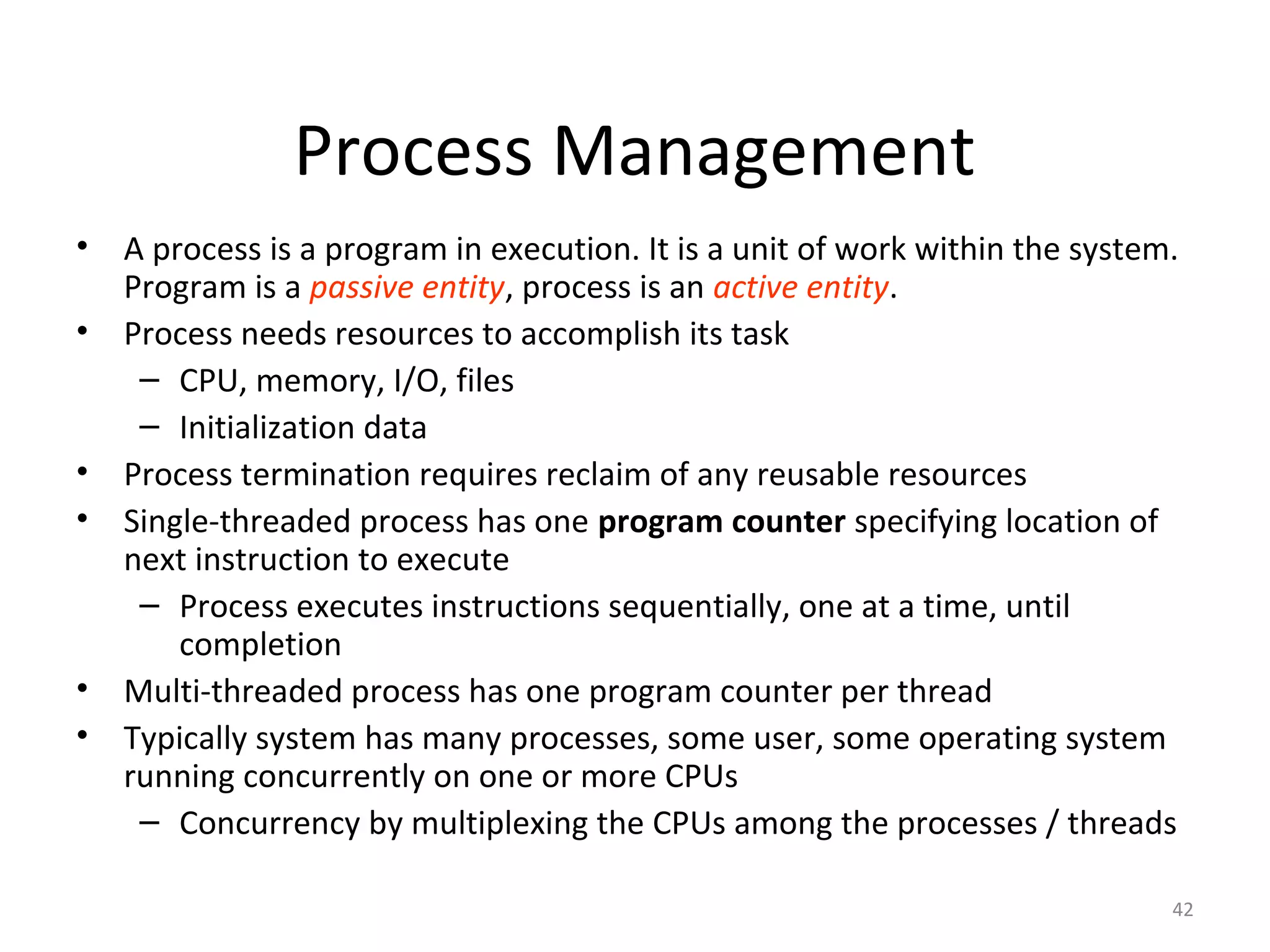

41. Process Management
• A process is a program in execution. It is a unit of work within the system.
Program is a passive entity, process is an active entity.
• Process needs resources to accomplish its task
– CPU, memory, I/O, files
– Initialization data
• Process termination requires reclaim of any reusable resources
• Single-threaded process has one program counter specifying location of
next instruction to execute
– Process executes instructions sequentially, one at a time, until
completion
• Multi-threaded process has one program counter per thread
• Typically system has many processes, some user, some operating system
running concurrently on one or more CPUs
– Concurrency by multiplexing the CPUs among the processes / threads
42

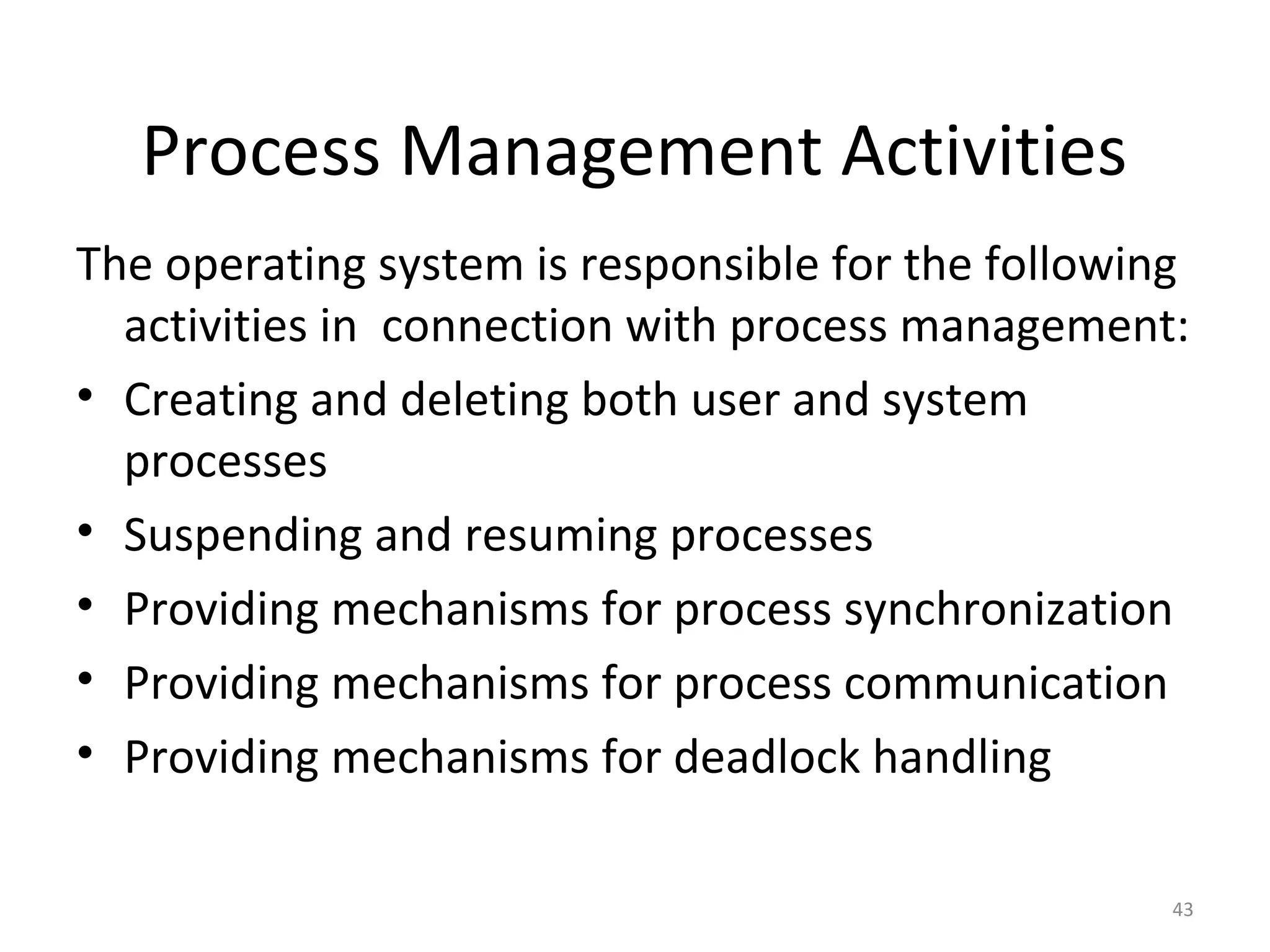

42. Process Management Activities
The operating system is responsible for the following
activities in connection with process management:
• Creating and deleting both user and system
processes
• Suspending and resuming processes
• Providing mechanisms for process synchronization
• Providing mechanisms for process communication
• Providing mechanisms for deadlock handling
43

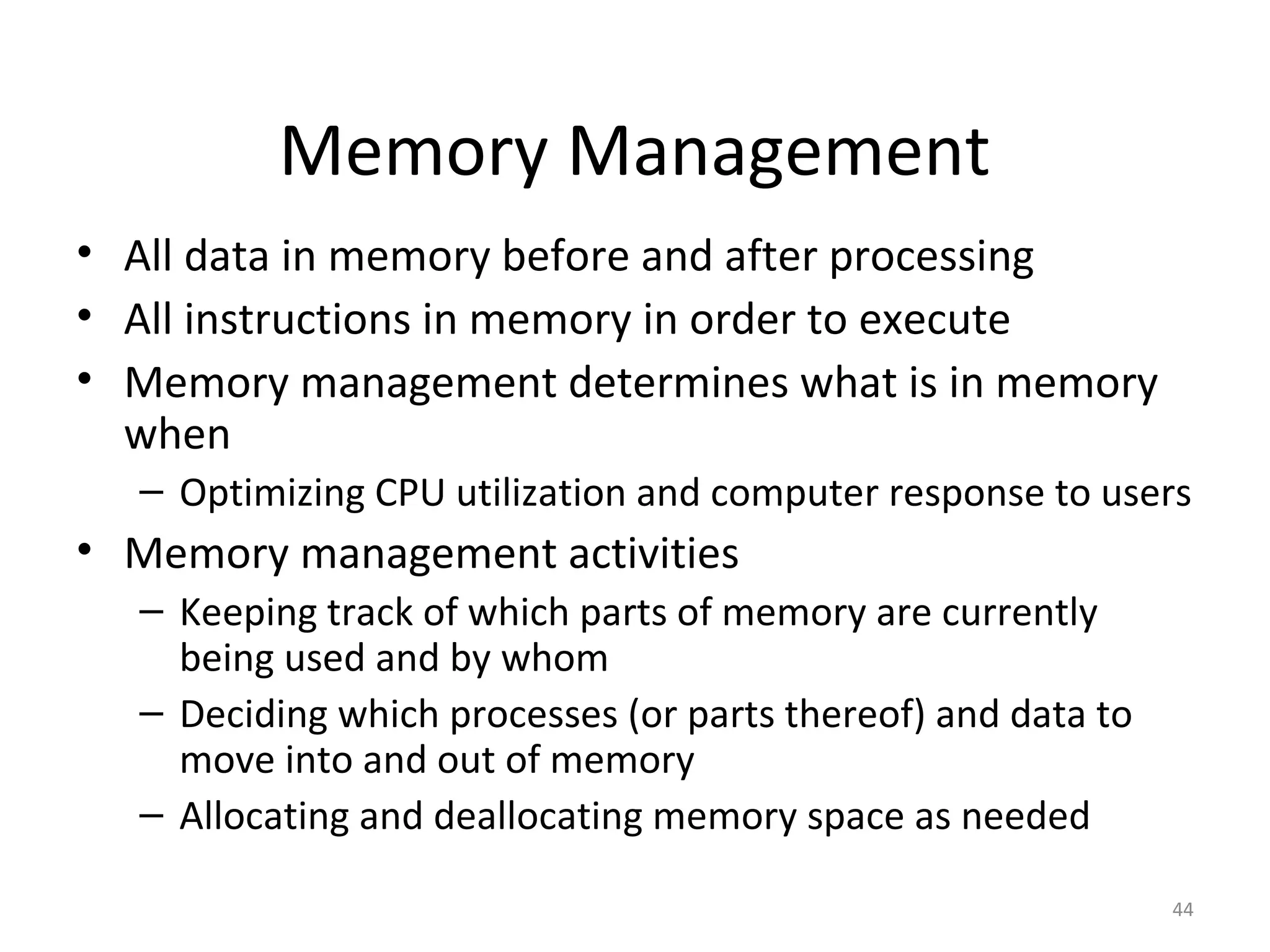

43. Memory Management
• All data in memory before and after processing
• All instructions in memory in order to execute
• Memory management determines what is in memory
when
– Optimizing CPU utilization and computer response to users
• Memory management activities
– Keeping track of which parts of memory are currently
being used and by whom
– Deciding which processes (or parts thereof) and data to
move into and out of memory
– Allocating and deallocating memory space as needed
44

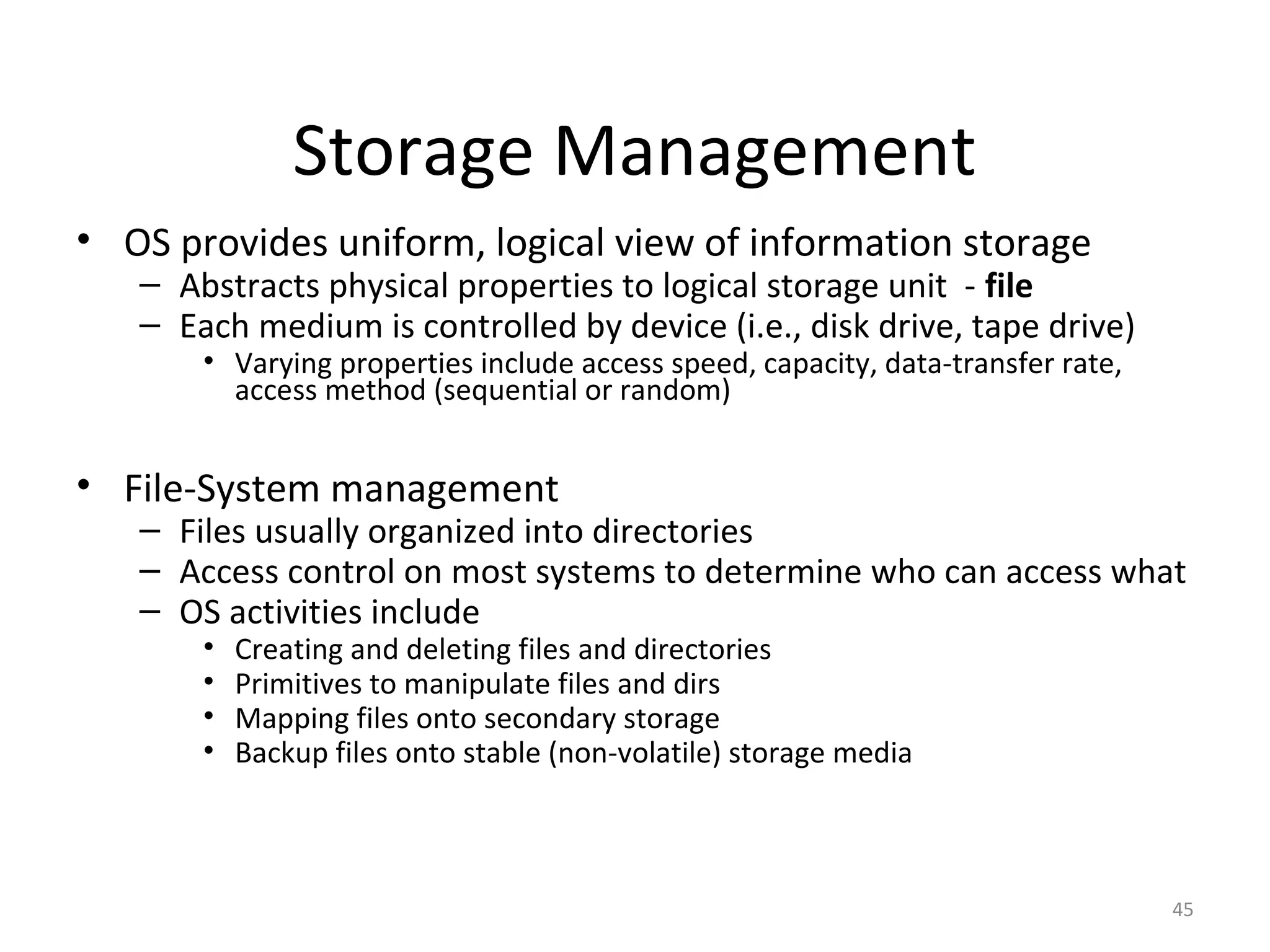

44. Storage Management
• OS provides uniform, logical view of information storage
– Abstracts physical properties to logical storage unit - file
– Each medium is controlled by device (i.e., disk drive, tape drive)
• Varying properties include access speed, capacity, data-transfer rate,
access method (sequential or random)
• File-System management
– Files usually organized into directories
– Access control on most systems to determine who can access what
– OS activities include
• Creating and deleting files and directories
• Primitives to manipulate files and dirs
• Mapping files onto secondary storage
• Backup files onto stable (non-volatile) storage media
45

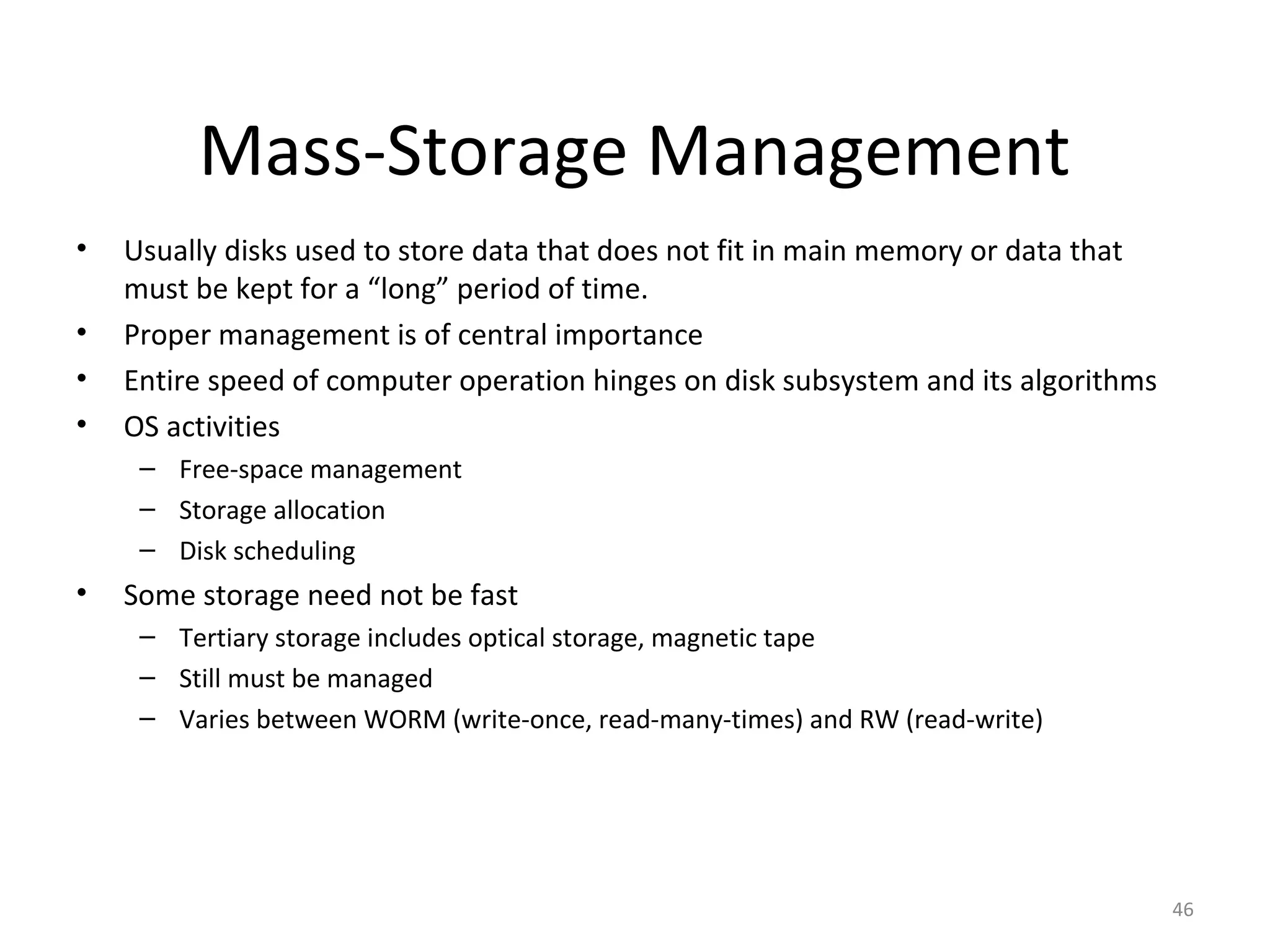

45. Mass-Storage Management
• Usually disks used to store data that does not fit in main memory or data that
must be kept for a “long” period of time.
• Proper management is of central importance
• Entire speed of computer operation hinges on disk subsystem and its algorithms
• OS activities
– Free-space management
– Storage allocation
– Disk scheduling
• Some storage need not be fast
– Tertiary storage includes optical storage, magnetic tape
– Still must be managed
– Varies between WORM (write-once, read-many-times) and RW (read-write)
46

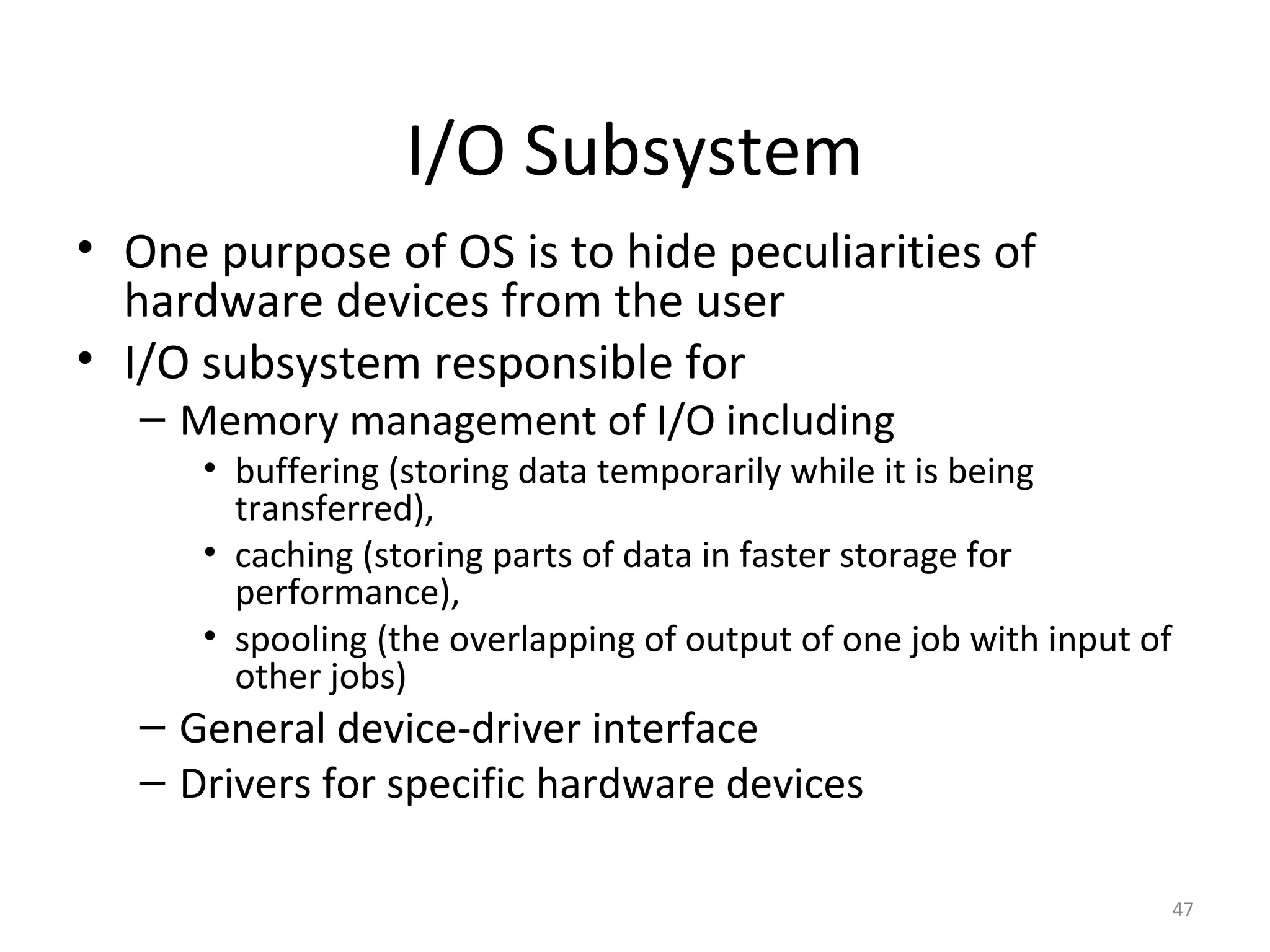

46. I/O Subsystem
• One purpose of OS is to hide peculiarities of
hardware devices from the user
• I/O subsystem responsible for
– Memory management of I/O including
• buffering (storing data temporarily while it is being
transferred),
• caching (storing parts of data in faster storage for
performance),
• spooling (the overlapping of output of one job with input of
other jobs)
– General device-driver interface
– Drivers for specific hardware devices
47

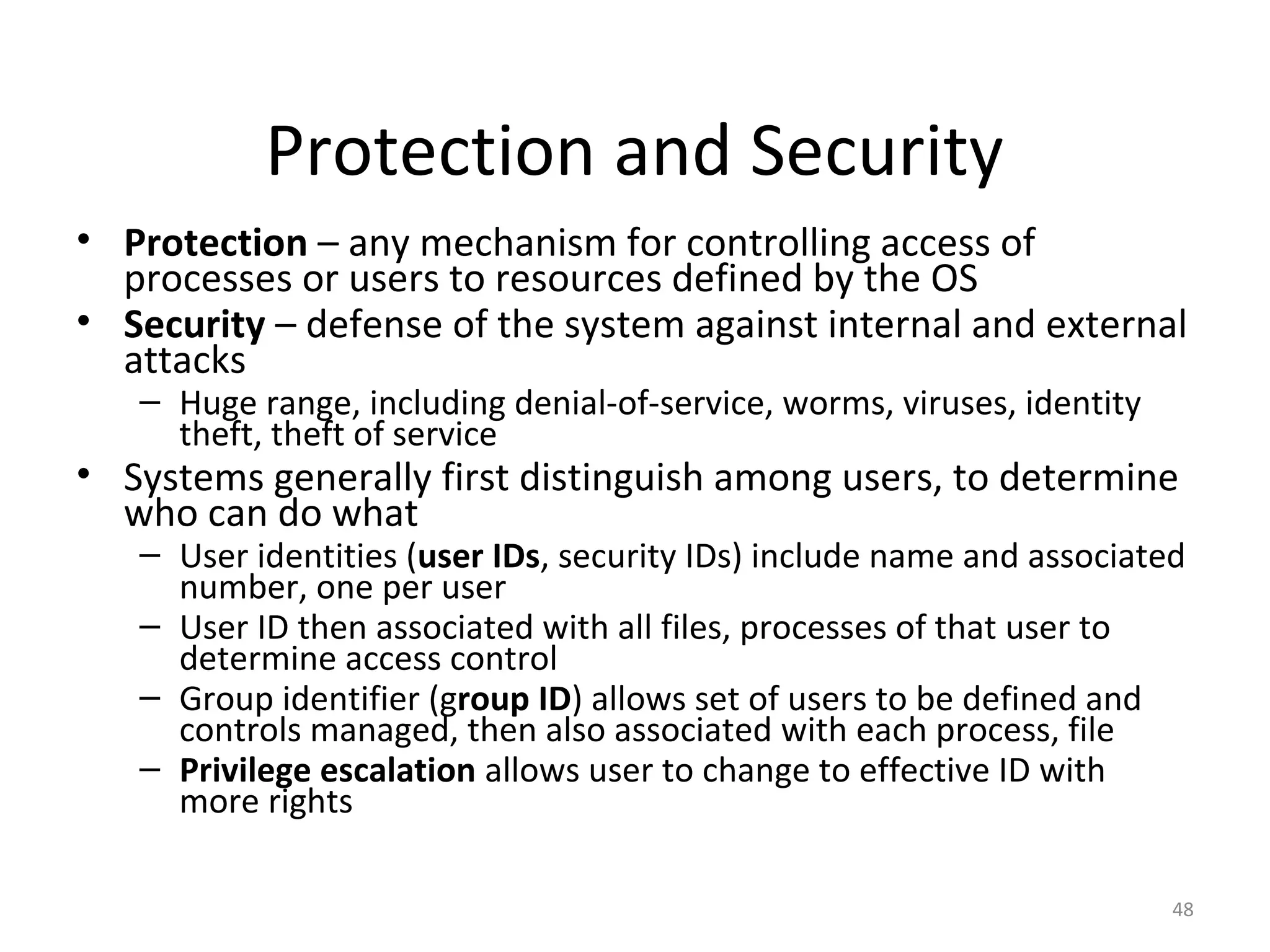

47. Protection and Security
• Protection – any mechanism for controlling access of
processes or users to resources defined by the OS
• Security – defense of the system against internal and external
attacks
– Huge range, including denial-of-service, worms, viruses, identity
theft, theft of service
• Systems generally first distinguish among users, to determine
who can do what
– User identities (user IDs, security IDs) include name and associated
number, one per user
– User ID then associated with all files, processes of that user to
determine access control
– Group identifier (group ID) allows set of users to be defined and
controls managed, then also associated with each process, file
– Privilege escalation allows user to change to effective ID with
more rights
48

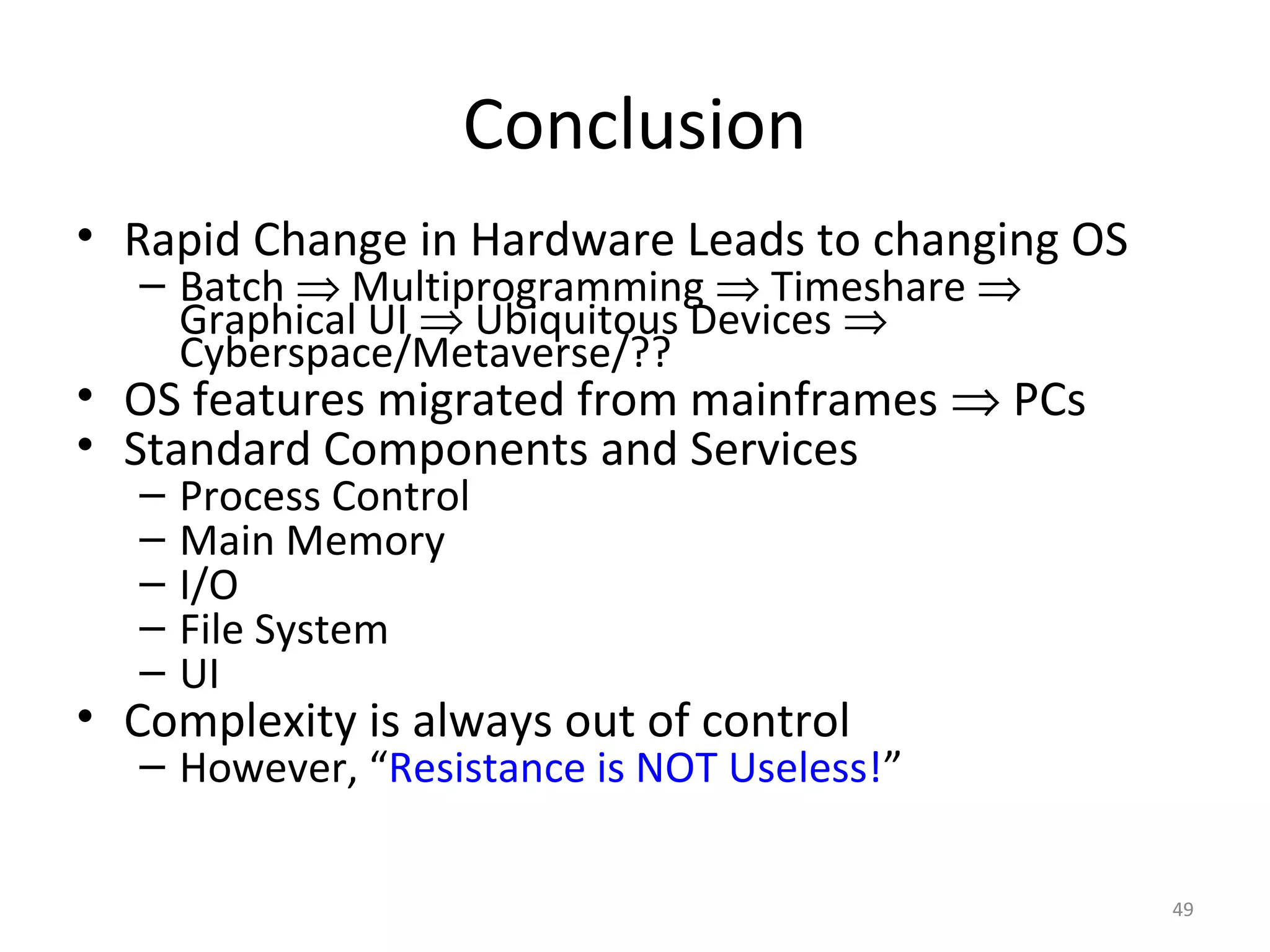

48. Conclusion
• Rapid Change in Hardware Leads to changing OS
– Batch ⇒ Multiprogramming ⇒ Timeshare ⇒
Graphical UI ⇒ Ubiquitous Devices ⇒
Cyberspace/Metaverse/??
• OS features migrated from mainframes ⇒ PCs
• Standard Components and Services
– Process Control
– Main Memory
– I/O
– File System
– UI
• Complexity is always out of control
– However, “Resistance is NOT Useless!”
49
