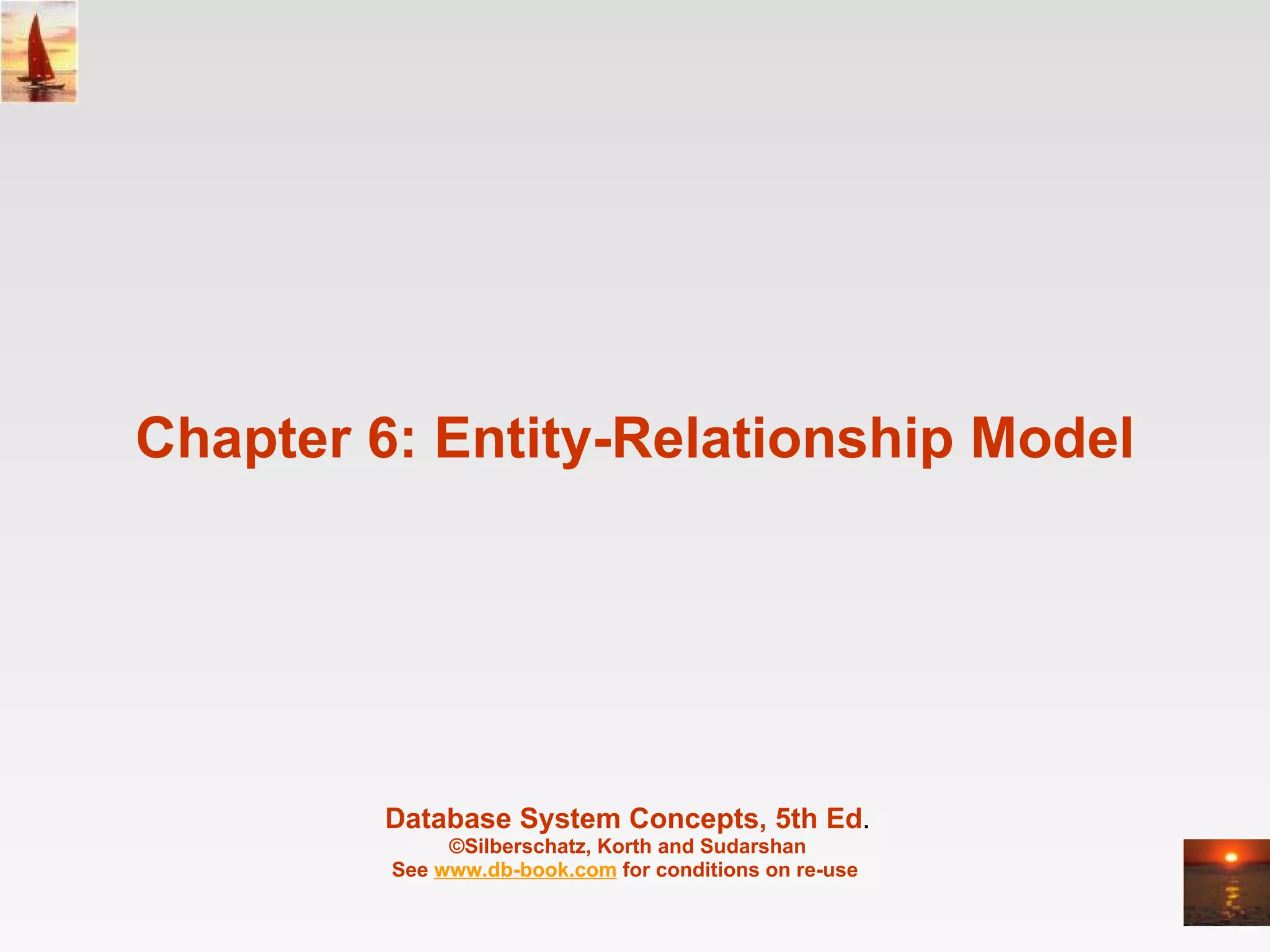

The document discusses entity-relationship (E-R) modeling concepts for database design. It defines entities, attributes, relationship sets, and keys. It describes how E-R diagrams visually represent entities, relationships, and attributes using shapes and connections. It also covers modeling concepts like cardinality constraints, participation constraints, and the choice between binary and non-binary relationships.
If find how to create
E-R Diagrams ? Here is a Doc making things for you simple and easy .
Entity Relationship Diagrams (ERDs) illustrate the logical structure of databases.
I find many students find uneasiness in creating ER-Diagrams conceptually , but they understand how to create tables and columns for a Software project . Here is an approach creating to first create Tables and from tables ..ER Diagrams
Steps in Database Design Process
ER Concepts (Entities, Attributes, Associations, etc)
ER Notations
Class Hierarchies
ER concepts, notations with appropriate examples. how to model databases using ER techniques.
