Ch5 beeing an application
- 1. Τεχνολογίες Παγκόσμιου Ιστού 5η διάλεξη

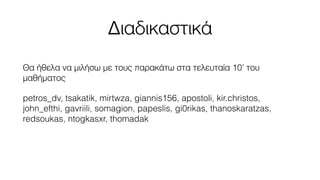

- 2. Διαδικαστικά Θα ήθελα να μιλήσω με τους παρακάτω στα τελευταία 10’ του μαθήματος petros_dv, tsakatik, mirtwza, giannis156, apostoli, kir.christos, john_efthi, gavriili, somagion, papeslis, gi0rikas, thanoskaratzas, redsoukas, ntogkasxr, thomadak

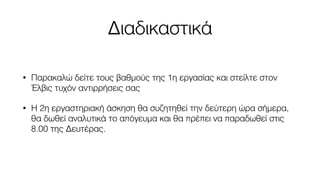

- 3. Διαδικαστικά • Παρακαλώ δείτε τους βαθμούς της 1η εργασίας και στείλτε στον Έλβις τυχόν αντιρρήσεις σας • Η 2η εργαστηριακή άσκηση θα συζητηθεί την δεύτερη ώρα σήμερα, θα δωθεί αναλυτικά το απόγευμα και θα πρέπει να παραδωθεί στις 8.00 της Δευτέρας.

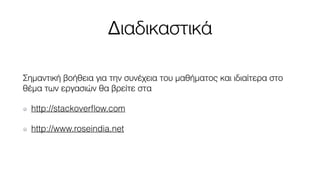

- 4. Διαδικαστικά Σημαντική βοήθεια για την συνέχεια του μαθήματος και ιδιαίτερα στο θέμα των εργασιών θα βρείτε στα http://stackoverflow.com http://www.roseindia.net

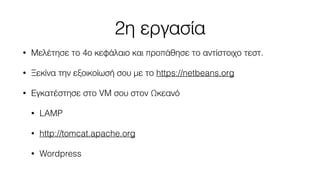

- 5. 2η εργασία • Μελέτησε το 4ο κεφάλαιο και προπάθησε το αντίστοιχο τεστ. • Ξεκίνα την εξοικοίωσή σου με το https://netbeans.org • Εγκατέστησε στο VM σου στον Ωκεανό • LAMP • http://tomcat.apache.org • Wordpress

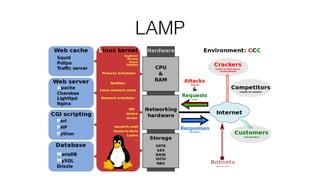

- 6. LAMP
- 7. Being a Servlet Chapter 4

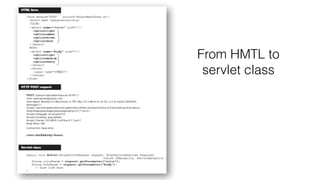

- 8. From HMTL to servlet class

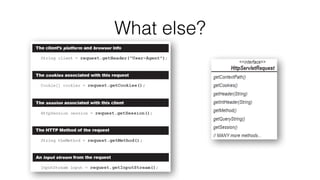

- 9. What else?

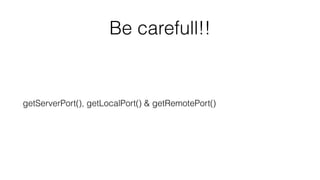

- 10. Be carefull!! getServerPort(), getLocalPort() & getRemotePort()
- 11. Response now Use the response for I/O when • There is no JSP • No JSP is allowed • Do not want to use JSP • Do not send HTML

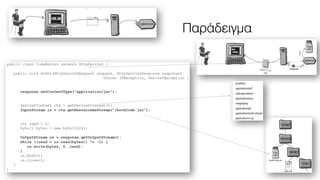

- 12. Παράδειγμα

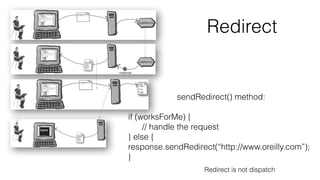

- 13. Redirect sendRedirect() method: if (worksForMe) { // handle the request } else { response.sendRedirect(“http://www.oreilly.com”); } Redirect is not dispatch
- 14. Being a Web Application Chapter 5
- 15. Protecting my e-mail address PrintWriter out = response.getWriter(); out.println(“mav@uth.gr”); <servlet> <servlet-name>BeerParamTests</servlet-name> <servlet-class>TestInitParams</servlet-class> <init-param> <param-name>adminEmail</param-name> <param-value>mav@uth.gr</param-value> </init-param> </servlet> out.println(getServletConfig().getInitParameter(“adminEmail”));

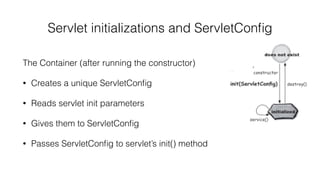

- 16. Servlet initializations and ServletConfig The Container (after running the constructor) • Creates a unique ServletConfig • Reads servlet init parameters • Gives them to ServletConfig • Passes ServletConfig to servlet’s init() method

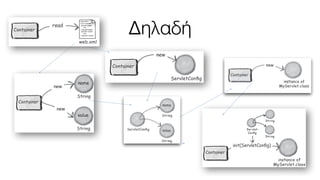

- 17. Δηλαδή

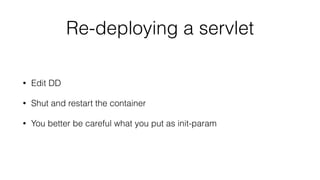

- 19. Re-deploying a servlet • Edit DD • Shut and restart the container • You better be careful what you put as init-param

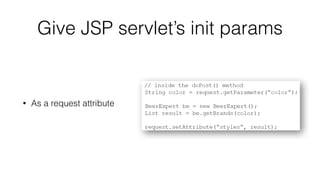

- 20. Give JSP servlet’s init params • As a request attribute

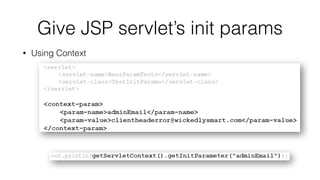

- 21. Give JSP servlet’s init params • Using Context

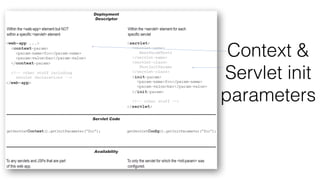

- 22. Context & Servlet init parameters

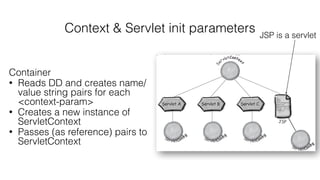

- 23. Context & Servlet init parameters Container • Reads DD and creates name/ value string pairs for each <context-param> • Creates a new instance of ServletContext • Passes (as reference) pairs to ServletContext JSP is a servlet

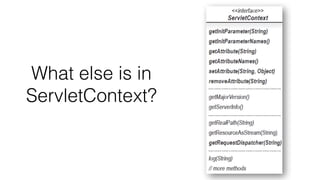

- 24. What else is in ServletContext?

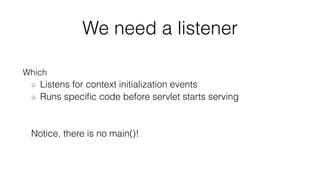

- 25. We need a listener Which Listens for context initialization events Runs specific code before servlet starts serving Notice, there is no main()!

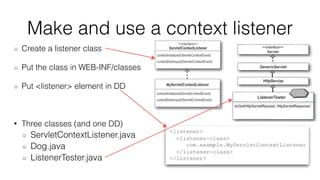

- 27. Make and use a context listener Create a listener class Put the class in WEB-INF/classes Put <listener> element in DD • Three classes (and one DD) ServletContextListener.java Dog.java ListenerTester.java

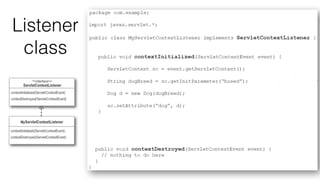

- 28. Listener class

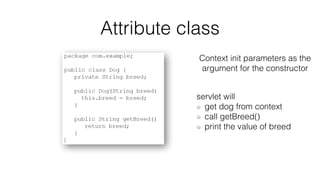

- 29. Attribute class Context init parameters as the argument for the constructor servlet will get dog from context call getBreed() print the value of breed

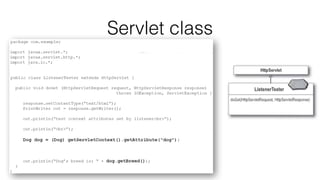

- 30. Servlet class
- 31. The DD (web.xml in WEB-INF)
- 32. Compile and Deploy Compile the three classes Create a new web app in Tomcat Create ListenerTest and WEB-INF Put web.xml in WEB-INF Make a classes directory underneath. Create a directory structure that matches your package structure Put web.xml and the three compiled files into their space Shutdown and restart Tomcat

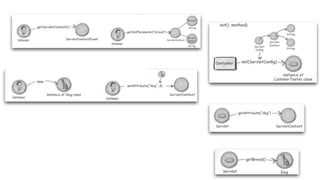

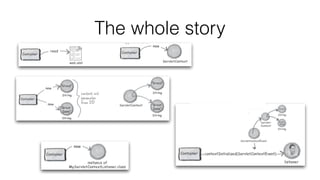

- 33. The whole story

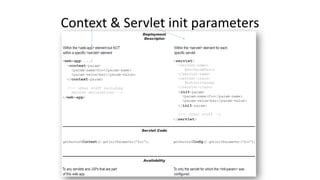

- 35. Context & Servlet init parameters

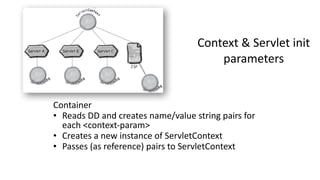

- 36. Context & Servlet init parameters Container • Reads DD and creates name/value string pairs for each <context-‐param> • Creates a new instance of ServletContext • Passes (as reference) pairs to ServletContext
- 37. What else is in ServletContext? You may get them but NOT set them later

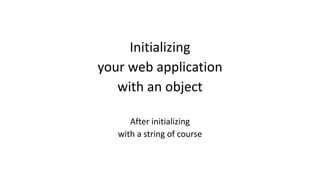

- 38. Initializing your web application with an object After initializing with a string of course

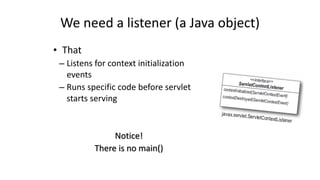

- 39. We need a listener (a Java object) • That – Listens for context initialization events – Runs specific code before servlet starts serving Notice! There is no main()

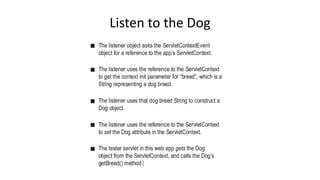

- 41. Listen to the Dog

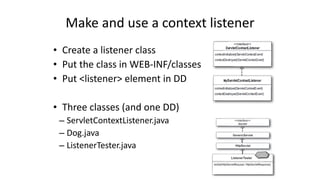

- 42. Make and use a context listener • Create a listener class • Put the class in WEB-‐INF/classes • Put <listener> element in DD • Three classes (and one DD) – ServletContextListener.java – Dog.java – ListenerTester.java

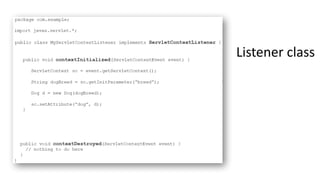

- 43. Listener class
- 44. Attribute class

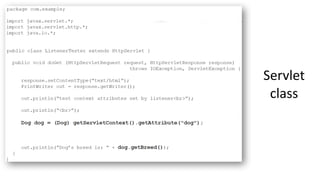

- 45. Servlet class

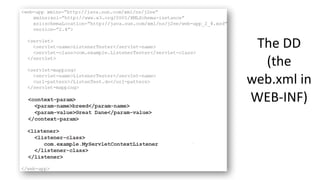

- 46. The DD (the web.xml in WEB-‐INF)

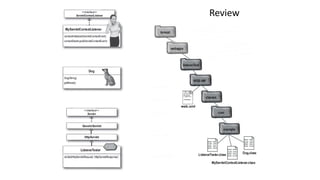

- 47. Review

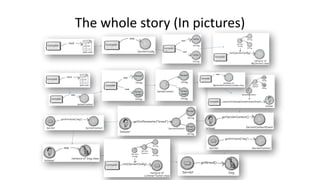

- 48. The whole story (In pictures)

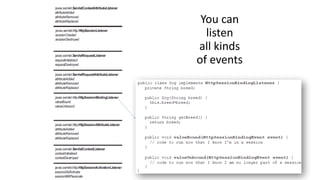

- 49. You can listen all kinds of events
- 50. Attributes • Who can put (and remove)? • Who can see? • For how long? SCOPE

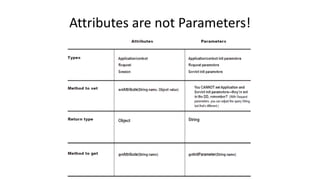

- 51. Attributes are not Parameters!
- 52. The 3 Scopes
- 53. The 3 Scopes (API)

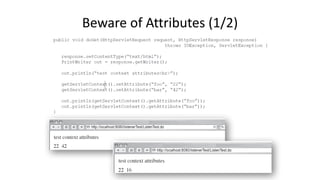

- 54. Beware of Attributes (1/2)

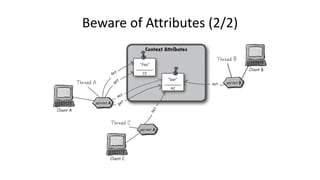

- 55. Beware of Attributes (2/2)

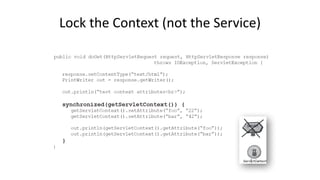

- 58. Lock the Context (not the Service)

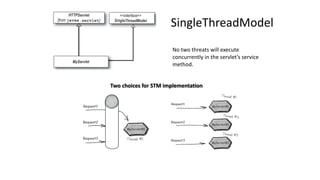

- 60. SingleThreadModel No two threats will execute concurrently in the servlet’s service method. Two choices for STM implementation
- 61. Only request attributes and local variables are thread-‐safe • Instance variables aren’t thread-‐safe • Classes aren’t thread-‐safe

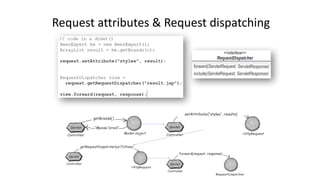

- 62. Request attributes & Request dispatching
- 63. What is wrong here?
