Purposes for which drilling are performed vary a great deal from performed vary a great deal from general to highly specialized general to highly specialized applications applications. It is desirable to select the It is desirable to select the equipment and methods that are equipment and methods that are best suited to the specific service:
Cement, Cement manufacturing, Types of cementNaresh Kumar
Cement, in general, adhesive substances of all kinds, but, in a narrower sense, the binding materials used in building and civil engineering construction. Cements of this kind are finely ground powders that, when mixed with water, set to a hard mass. Setting and hardening result from hydration, which is a chemical combination of the cement compounds with water that yields submicroscopic crystals or a gel-like material with a high surface area. Because of their hydrating properties, constructional cements, which will even set and harden under water, are often called hydraulic cements. The most important of these is portland cement.
Cement refers to the commodities that are produced by burning mixtures of limestone and other
minerals or additives at high temperature in a rotary kiln, followed by cooling, finish mixing, and
grinding. This is the manner in which the vast majority of commercially-important cementations
materials are produced in the United States. Cements are used to chemically bind different
materials together. The most commonly produced cement type is "Portland" cement, though
other standard cement types are also produced on a limited basis.
Cement plants produced 99.8 million metric tons of cement. Worldwide production accounted
for about 2.5 billion metric tons. As with most large manufacturing industries, by-product
materials are generated. These industrial by-product and waste materials must be managed
responsibly to insure a clean and safe environment.
Cement, Cement manufacturing, Types of cementNaresh Kumar
Cement, in general, adhesive substances of all kinds, but, in a narrower sense, the binding materials used in building and civil engineering construction. Cements of this kind are finely ground powders that, when mixed with water, set to a hard mass. Setting and hardening result from hydration, which is a chemical combination of the cement compounds with water that yields submicroscopic crystals or a gel-like material with a high surface area. Because of their hydrating properties, constructional cements, which will even set and harden under water, are often called hydraulic cements. The most important of these is portland cement.
Cement refers to the commodities that are produced by burning mixtures of limestone and other
minerals or additives at high temperature in a rotary kiln, followed by cooling, finish mixing, and
grinding. This is the manner in which the vast majority of commercially-important cementations
materials are produced in the United States. Cements are used to chemically bind different
materials together. The most commonly produced cement type is "Portland" cement, though
other standard cement types are also produced on a limited basis.
Cement plants produced 99.8 million metric tons of cement. Worldwide production accounted
for about 2.5 billion metric tons. As with most large manufacturing industries, by-product
materials are generated. These industrial by-product and waste materials must be managed
responsibly to insure a clean and safe environment.
CEMENT , TYPES OF CEMENTS , PORTLAND CEMENT
TYPES OF PORTLAND CEMENT, GENERAL FEATURES OF THE MAIN TYPES OF PORTLAND CEMENT, ORDINARY PORTLAND CEMENT (OPC), RAPID HARDENING PORTLAND CEMENT, SPECIAL TYPES OF RAPID HARDENING PORTLAND CEMENT, MANUFACTURE OF PORTLAND CEMENT, Raw Materials, Crushing & Grinding of Raw Materials,Type of cement processes, Wet Process, Dry process, Burning Process, Grinding, storage, packing, dispatch,CEMENT CHEMISTRY,Chemical Compositions,Bogue’s Equations, Fineness of cement
Can you write an essay of 350 words about the history of bitumen..pdfAmansupan
Can you write an essay of 350 words about the history of bitumen.
Solution
HISTORY OF BITUMEN
Bitumen has been used for centuries in variety of ways that include the preservation of
mummies by the Egyptians and the waterproofing of baths by Babylonians. Bitumen was used in
its natural state until the early 1900s when the distillation of crude oil began. The use of asphalt
in built up roofing was normally restricted to use on steep slope roofs (1 inch to 3 inches per
foot) prior to the late 1940s and early 1950s when, by modification during the manufacturing
process, a product was developed that was suitable for use of low slope roofs (1/4 inch per foot
or greater)
HISTORY OF THE DEVELOPMENT OF MODIFIED BITUMEN ROOFING
DEFINITION: Perhaps it is appropriate to define MB roofing as used for this paper. A
modified Bitumen roofing membrane is not usually a true single ply roofing membrane, but is
usually used in conjunction with a base ply of similar or different roofing material. Under strictly
controlled circumstances, it may be used as a pure single ply roofing membrane.
DEVELOPMENT DATES
Other important dates for European bitumen development include:
Bitumen is still the preferred geological term for naturally occurring deposits of the solid or
semi-solid form of petroleum. Bituminous rock is a form of sandstone impregnated with
bitumen. The oil sands of Alberta, Canada are a similar material. Bitumen is sometimes
incorrectly called \"tar\" (tar is a black viscous material obtained from the destructive distillation
of coal and is chemically distinct from bitumen). In Australian English, bitumen is sometimes
used as the generic term for road surfaces. In Canadian English, the word bitumen is used to
refer to the vast Canadian deposits of extremely heavy crude oil, while asphalt is used for the oil
refinery product used to pave roads and manufacture roof shingles and various waterproofing
products. Diluted bitumen (diluted with naphtha to make it flow in pipelines) is known as Dilbert
in the Canadian petroleum industry, while bitumen \"upgraded\" to synthetic crude oil is known
as sync rude and sync rude blended with bitumen as \"synbit\".
Bitumen (or asphalt) is primarily used, when mixed with mineral aggregates, to produce paving
materials. Its other main uses are for bituminous waterproofing products, including production of
roofing felt and for sealing flat roofs.
Most natural bitumen contain sulfur and several heavy metals such as nickel, vanadium, lead,
chromium, mercury and also arsenic, selenium, and other toxic elements. Bitumen can provide
good preservation of plants and animal fossils.
Naturally occurring crude bitumen impregnated in sedimentary rock is the prime feed stock for
petroleum production from \"oil sands\", currently under development in Alberta, Canada.
Canada has most of the world´s supply of natural bitumen, covering 140,000 square kilometers
(an area larger than England), giving it the second largest proven oil reserves.
The figure shows the section of a gravity dam built with concrete. Examine the stability of this section at the base. The earthquake forces may be taken as equivalent to 0.1g for horizontal forces and 0.05g for vertical forces. The uplift may be taken as equal to the hydrostatic pressure at the either ends and is considered to act over 60% of the area of the section. 1 in 10 6m A tail water depth of 6m is assumed to be present when the reservoir is full and there is no tail water when the reservoir is empty. Also indicate the values of various kinds of stresses that are developed at heel and toe. Assume weight of concrete = 24 kN/m³; and weight of water = 10 kN/m³
great deal from general to highly specialized applications. A contractor engaged in highway construction must usually drill rock under varying conditions; therefore, equipment that is suitable for various services would be selected.
MANUFACTURING AND UNDERSTANDING ABOUT CEMENT ITS COMPOSITION, INTERNAL MECHANICS, VARIOUS METHODS OF MANUFACTURING, USES AND VARIOUS COMPOUNDS PRESENT IN CEMENT AND ITS IMPORTANCE
CHECKOUT MY YOUTUBE CHANNEL
http://www.youtube.com/c/beaCIVILEngineergovindsir_onlineclasses
The owner is required by law to:
o post the fire safety plan on the inside of every apartment front door.
o post the fire safety plan in a conspicuous space in the common area.
o distribute a copy to each dwelling unit in the building.
o provide a copy to new tenants at the time of the lease.
o re-distribute the fire safety plan annually during fire prevention week
tend to form in some materials
•
Since
the fine materials are usually sensitive to moisture
the field Engineer must be extremely weather
conscious
•
If
heavy rain is expected the surface of the fine material
should be rolled smooth with sufficient gradient to shed
water from the working area
More Related Content
Similar to CE6503_Highway_Materials_Lec1_April21.pptx.pdf
CEMENT , TYPES OF CEMENTS , PORTLAND CEMENT
TYPES OF PORTLAND CEMENT, GENERAL FEATURES OF THE MAIN TYPES OF PORTLAND CEMENT, ORDINARY PORTLAND CEMENT (OPC), RAPID HARDENING PORTLAND CEMENT, SPECIAL TYPES OF RAPID HARDENING PORTLAND CEMENT, MANUFACTURE OF PORTLAND CEMENT, Raw Materials, Crushing & Grinding of Raw Materials,Type of cement processes, Wet Process, Dry process, Burning Process, Grinding, storage, packing, dispatch,CEMENT CHEMISTRY,Chemical Compositions,Bogue’s Equations, Fineness of cement
Can you write an essay of 350 words about the history of bitumen..pdfAmansupan
Can you write an essay of 350 words about the history of bitumen.
Solution
HISTORY OF BITUMEN
Bitumen has been used for centuries in variety of ways that include the preservation of
mummies by the Egyptians and the waterproofing of baths by Babylonians. Bitumen was used in
its natural state until the early 1900s when the distillation of crude oil began. The use of asphalt
in built up roofing was normally restricted to use on steep slope roofs (1 inch to 3 inches per
foot) prior to the late 1940s and early 1950s when, by modification during the manufacturing
process, a product was developed that was suitable for use of low slope roofs (1/4 inch per foot
or greater)
HISTORY OF THE DEVELOPMENT OF MODIFIED BITUMEN ROOFING
DEFINITION: Perhaps it is appropriate to define MB roofing as used for this paper. A
modified Bitumen roofing membrane is not usually a true single ply roofing membrane, but is
usually used in conjunction with a base ply of similar or different roofing material. Under strictly
controlled circumstances, it may be used as a pure single ply roofing membrane.
DEVELOPMENT DATES
Other important dates for European bitumen development include:
Bitumen is still the preferred geological term for naturally occurring deposits of the solid or
semi-solid form of petroleum. Bituminous rock is a form of sandstone impregnated with
bitumen. The oil sands of Alberta, Canada are a similar material. Bitumen is sometimes
incorrectly called \"tar\" (tar is a black viscous material obtained from the destructive distillation
of coal and is chemically distinct from bitumen). In Australian English, bitumen is sometimes
used as the generic term for road surfaces. In Canadian English, the word bitumen is used to
refer to the vast Canadian deposits of extremely heavy crude oil, while asphalt is used for the oil
refinery product used to pave roads and manufacture roof shingles and various waterproofing
products. Diluted bitumen (diluted with naphtha to make it flow in pipelines) is known as Dilbert
in the Canadian petroleum industry, while bitumen \"upgraded\" to synthetic crude oil is known
as sync rude and sync rude blended with bitumen as \"synbit\".
Bitumen (or asphalt) is primarily used, when mixed with mineral aggregates, to produce paving
materials. Its other main uses are for bituminous waterproofing products, including production of
roofing felt and for sealing flat roofs.
Most natural bitumen contain sulfur and several heavy metals such as nickel, vanadium, lead,
chromium, mercury and also arsenic, selenium, and other toxic elements. Bitumen can provide
good preservation of plants and animal fossils.
Naturally occurring crude bitumen impregnated in sedimentary rock is the prime feed stock for
petroleum production from \"oil sands\", currently under development in Alberta, Canada.
Canada has most of the world´s supply of natural bitumen, covering 140,000 square kilometers
(an area larger than England), giving it the second largest proven oil reserves.
The figure shows the section of a gravity dam built with concrete. Examine the stability of this section at the base. The earthquake forces may be taken as equivalent to 0.1g for horizontal forces and 0.05g for vertical forces. The uplift may be taken as equal to the hydrostatic pressure at the either ends and is considered to act over 60% of the area of the section. 1 in 10 6m A tail water depth of 6m is assumed to be present when the reservoir is full and there is no tail water when the reservoir is empty. Also indicate the values of various kinds of stresses that are developed at heel and toe. Assume weight of concrete = 24 kN/m³; and weight of water = 10 kN/m³
great deal from general to highly specialized applications. A contractor engaged in highway construction must usually drill rock under varying conditions; therefore, equipment that is suitable for various services would be selected.
MANUFACTURING AND UNDERSTANDING ABOUT CEMENT ITS COMPOSITION, INTERNAL MECHANICS, VARIOUS METHODS OF MANUFACTURING, USES AND VARIOUS COMPOUNDS PRESENT IN CEMENT AND ITS IMPORTANCE
CHECKOUT MY YOUTUBE CHANNEL
http://www.youtube.com/c/beaCIVILEngineergovindsir_onlineclasses
Similar to CE6503_Highway_Materials_Lec1_April21.pptx.pdf (20)
The owner is required by law to:
o post the fire safety plan on the inside of every apartment front door.
o post the fire safety plan in a conspicuous space in the common area.
o distribute a copy to each dwelling unit in the building.
o provide a copy to new tenants at the time of the lease.
o re-distribute the fire safety plan annually during fire prevention week
tend to form in some materials
•
Since
the fine materials are usually sensitive to moisture
the field Engineer must be extremely weather
conscious
•
If
heavy rain is expected the surface of the fine material
should be rolled smooth with sufficient gradient to shed
water from the working area
Purposes for which drilling are performed vary a great deal from performed vary a great deal from general to highly specialized general to highly specialized applications applications. It is desirable to select the It is desirable to select the equipment and methods that are equipment and methods that are best suited to the specific service:
11. A concrete dam can be assumed to be trapezoidal in section having a top width of 2 m and bottom width of 10 m. Its height is 12 m and the upstream face has a batter of 1: 10. Give an analysis of the stability of the dam for the base section for overturning and sliding in the full reservoir condition assuming no free-board allowance but allowing for uplift pressures. Assume uplift intensity factor ast 100%. Also determine the compressive stresses at the toe and the heel, and major principal and shear stress developed at the toe. Assume weight of concrete to be 24 kN/m³, unit shear strength of concrete
to be 1400 KN/m³, and the coefficient of friction between concrete and foundation soil to be 0.7.
12. The following data refer to the non-overflow section of a gravity dam:
R.L. of top of the dam
315 m.
R.L. of bottom of the dam
260 m
Full reservoir level
= 312 m
Top width of the dam
= 12 m.
Unstream face is vertical. Downstream face is vertical upto R.L. 304 m; and thereafter, the
11. A concrete dam can be assumed to be trapezoidal in section having a top width of 2 m and bottom width of 10 m. Its height is 12 m and the upstream face has a batter of 1: 10. Give an analysis of the stability of the dam for the base section for overturning and sliding in the full reservoir condition assuming no free-board allowance but allowing for uplift pressures. Assume uplift intensity factor ast 100%. Also determine the compressive stresses at the toe and the heel, and major principal and shear stress developed at the toe. Assume weight of concrete to be 24 kN/m³, unit shear strength of concrete
to be 1400 KN/m³, and the coefficient of friction between concrete and foundation soil to be 0.7.
12. The following data refer to the non-overflow section of a gravity dam:
R.L. of top of the dam
315 m.
R.L. of bottom of the dam
260 m
Full reservoir level
= 312 m
Top width of the dam
= 12 m.
Unstream face is vertical. Downstream face is vertical upto R.L. 304 m; and thereafter, the
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfKamal Acharya
The College Bus Management system is completely developed by Visual Basic .NET Version. The application is connect with most secured database language MS SQL Server. The application is develop by using best combination of front-end and back-end languages. The application is totally design like flat user interface. This flat user interface is more attractive user interface in 2017. The application is gives more important to the system functionality. The application is to manage the student’s details, driver’s details, bus details, bus route details, bus fees details and more. The application has only one unit for admin. The admin can manage the entire application. The admin can login into the application by using username and password of the admin. The application is develop for big and small colleges. It is more user friendly for non-computer person. Even they can easily learn how to manage the application within hours. The application is more secure by the admin. The system will give an effective output for the VB.Net and SQL Server given as input to the system. The compiled java program given as input to the system, after scanning the program will generate different reports. The application generates the report for users. The admin can view and download the report of the data. The application deliver the excel format reports. Because, excel formatted reports is very easy to understand the income and expense of the college bus. This application is mainly develop for windows operating system users. In 2017, 73% of people enterprises are using windows operating system. So the application will easily install for all the windows operating system users. The application-developed size is very low. The application consumes very low space in disk. Therefore, the user can allocate very minimum local disk space for this application.
Automobile Management System Project Report.pdfKamal Acharya
The proposed project is developed to manage the automobile in the automobile dealer company. The main module in this project is login, automobile management, customer management, sales, complaints and reports. The first module is the login. The automobile showroom owner should login to the project for usage. The username and password are verified and if it is correct, next form opens. If the username and password are not correct, it shows the error message.
When a customer search for a automobile, if the automobile is available, they will be taken to a page that shows the details of the automobile including automobile name, automobile ID, quantity, price etc. “Automobile Management System” is useful for maintaining automobiles, customers effectively and hence helps for establishing good relation between customer and automobile organization. It contains various customized modules for effectively maintaining automobiles and stock information accurately and safely.
When the automobile is sold to the customer, stock will be reduced automatically. When a new purchase is made, stock will be increased automatically. While selecting automobiles for sale, the proposed software will automatically check for total number of available stock of that particular item, if the total stock of that particular item is less than 5, software will notify the user to purchase the particular item.
Also when the user tries to sale items which are not in stock, the system will prompt the user that the stock is not enough. Customers of this system can search for a automobile; can purchase a automobile easily by selecting fast. On the other hand the stock of automobiles can be maintained perfectly by the automobile shop manager overcoming the drawbacks of existing system.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Quality defects in TMT Bars, Possible causes and Potential Solutions.PrashantGoswami42
Maintaining high-quality standards in the production of TMT bars is crucial for ensuring structural integrity in construction. Addressing common defects through careful monitoring, standardized processes, and advanced technology can significantly improve the quality of TMT bars. Continuous training and adherence to quality control measures will also play a pivotal role in minimizing these defects.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
CE6503_Highway_Materials_Lec1_April21.pptx.pdf
1. CE 6503 : Highway Materials
Dr. M. Neaz Murshed
Dept. of C.E.

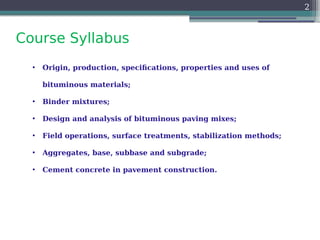

2. Course Syllabus
2
• Origin, production, specifications, properties and uses of
bituminous materials;
• Binder mixtures;
• Design and analysis of bituminous paving mixes;
• Field operations, surface treatments, stabilization methods;
• Aggregates, base, subbase and subgrade;
• Cement concrete in pavement construction.

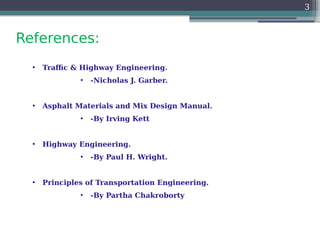

3. References:
3
• Traffic & Highway Engineering.
• -Nicholas J. Garber.
• Asphalt Materials and Mix Design Manual.
• -By Irving Kett
• Highway Engineering.
• -By Paul H. Wright.
• Principles of Transportation Engineering.
• -By Partha Chakroborty

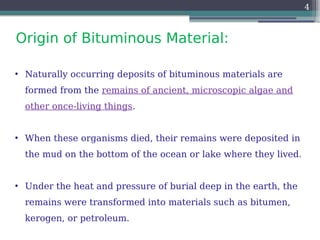

4. Origin of Bituminous Material:
4
• Naturally occurring deposits of bituminous materials are
formed from the remains of ancient, microscopic algae and
other once-living things.
• When these organisms died, their remains were deposited in
the mud on the bottom of the ocean or lake where they lived.
• Under the heat and pressure of burial deep in the earth, the
remains were transformed into materials such as bitumen,
kerogen, or petroleum.

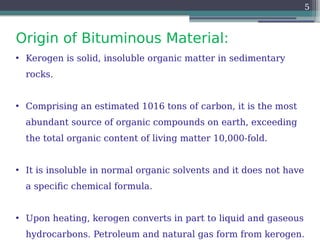

5. Origin of Bituminous Material:
5
• Kerogen is solid, insoluble organic matter in sedimentary
rocks.
• Comprising an estimated 1016 tons of carbon, it is the most
abundant source of organic compounds on earth, exceeding
the total organic content of living matter 10,000-fold.
• It is insoluble in normal organic solvents and it does not have
a specific chemical formula.
• Upon heating, kerogen converts in part to liquid and gaseous
hydrocarbons. Petroleum and natural gas form from kerogen.
6. Origin of Bituminous Material:
6
• During the early and mid 20th century when “Town gas” was
produced, tar was a readily available product and extensively
used as the binder for road aggregates.
• The addition of tar to macadam roads led to the word
Tarmac, which is now used in common parlance to refer to
road-making materials.
• However, since the 1970s, when natural gas succeeded town
gas, asphalt has completely overtaken the use of tar in these
applications.

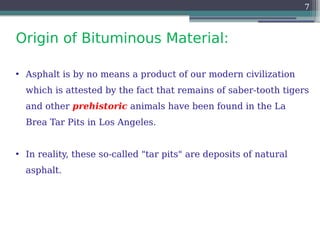

7. Origin of Bituminous Material:
7
• Asphalt is by no means a product of our modern civilization
which is attested by the fact that remains of saber-tooth tigers
and other prehistoric animals have been found in the La
Brea Tar Pits in Los Angeles.
• In reality, these so-called "tar pits" are deposits of natural
asphalt.

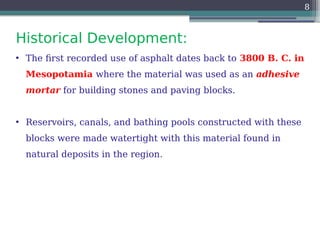

8. Historical Development:
8
• The first recorded use of asphalt dates back to 3800 B. C. in
Mesopotamia where the material was used as an adhesive
mortar for building stones and paving blocks.
• Reservoirs, canals, and bathing pools constructed with these
blocks were made watertight with this material found in
natural deposits in the region.

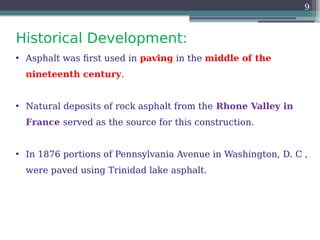

9. Historical Development:
9
• Asphalt was first used in paving in the middle of the
nineteenth century.
• Natural deposits of rock asphalt from the Rhone Valley in
France served as the source for this construction.
• In 1876 portions of Pennsylvania Avenue in Washington, D. C ,
were paved using Trinidad lake asphalt.

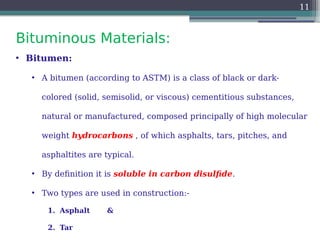

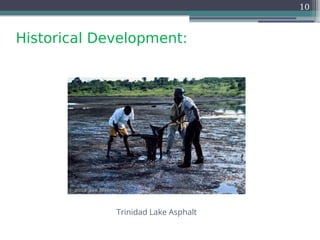

11. Bituminous Materials:
11
• Bitumen:
• A bitumen (according to ASTM) is a class of black or dark-
colored (solid, semisolid, or viscous) cementitious substances,
natural or manufactured, composed principally of high molecular
weight hydrocarbons , of which asphalts, tars, pitches, and
asphaltites are typical.
• By definition it is soluble in carbon disulfide.
• Two types are used in construction:-
1. Asphalt &
2. Tar

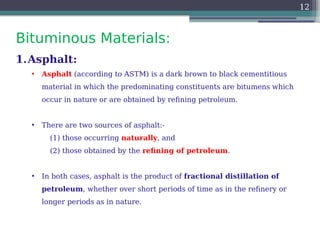

12. Bituminous Materials:
12
1.Asphalt:
• Asphalt (according to ASTM) is a dark brown to black cementitious
material in which the predominating constituents are bitumens which
occur in nature or are obtained by refining petroleum.
• There are two sources of asphalt:-
(1) those occurring naturally, and
(2) those obtained by the refining of petroleum.
• In both cases, asphalt is the product of fractional distillation of
petroleum, whether over short periods of time as in the refinery or
longer periods as in nature.

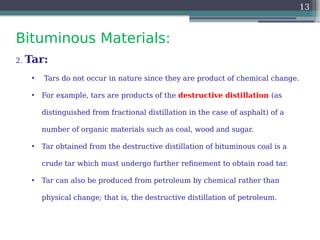

13. Bituminous Materials:
13
2. Tar:
• Tars do not occur in nature since they are product of chemical change.
• For example, tars are products of the destructive distillation (as
distinguished from fractional distillation in the case of asphalt) of a
number of organic materials such as coal, wood and sugar.
• Tar obtained from the destructive distillation of bituminous coal is a
crude tar which must undergo further refinement to obtain road tar.
• Tar can also be produced from petroleum by chemical rather than
physical change; that is, the destructive distillation of petroleum.

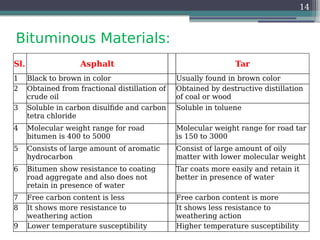

14. Bituminous Materials:
14
Sl. Asphalt Tar
1 Black to brown in color Usually found in brown color
2 Obtained from fractional distillation of
crude oil
Obtained by destructive distillation
of coal or wood
3 Soluble in carbon disulfide and carbon
tetra chloride
Soluble in toluene
4 Molecular weight range for road
bitumen is 400 to 5000
Molecular weight range for road tar
is 150 to 3000
5 Consists of large amount of aromatic
hydrocarbon
Consist of large amount of oily
matter with lower molecular weight
6 Bitumen show resistance to coating
road aggregate and also does not
retain in presence of water
Tar coats more easily and retain it
better in presence of water
7 Free carbon content is less Free carbon content is more
8 It shows more resistance to
weathering action
It shows less resistance to
weathering action
9 Lower temperature susceptibility Higher temperature susceptibility

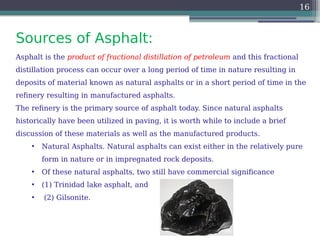

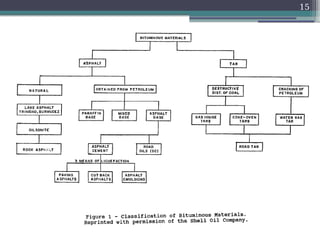

16. Sources of Asphalt:
16
Asphalt is the product of fractional distillation of petroleum and this fractional
distillation process can occur over a long period of time in nature resulting in
deposits of material known as natural asphalts or in a short period of time in the
refinery resulting in manufactured asphalts.
The refinery is the primary source of asphalt today. Since natural asphalts
historically have been utilized in paving, it is worth while to include a brief
discussion of these materials as well as the manufactured products.

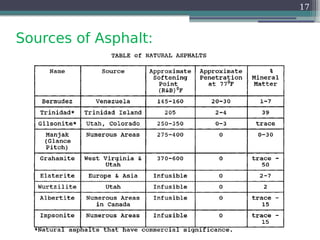

• Natural Asphalts. Natural asphalts can exist either in the relatively pure
form in nature or in impregnated rock deposits.
• Of these natural asphalts, two still have commercial significance
• (1) Trinidad lake asphalt, and
• (2) Gilsonite.

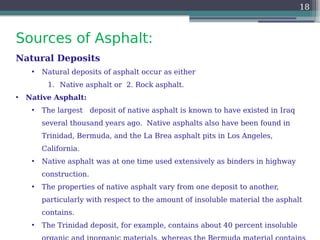

18. Sources of Asphalt:
18
Natural Deposits
• Natural deposits of asphalt occur as either
1. Native asphalt or 2. Rock asphalt.
• Native Asphalt:
• The largest deposit of native asphalt is known to have existed in Iraq
several thousand years ago. Native asphalts also have been found in
Trinidad, Bermuda, and the La Brea asphalt pits in Los Angeles,
California.
• Native asphalt was at one time used extensively as binders in highway
construction.
• The properties of native asphalt vary from one deposit to another,
particularly with respect to the amount of insoluble material the asphalt
contains.
• The Trinidad deposit, for example, contains about 40 percent insoluble

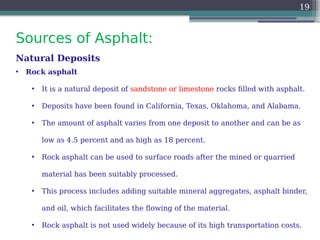

19. Sources of Asphalt:
19
Natural Deposits
• Rock asphalt
• It is a natural deposit of sandstone or limestone rocks filled with asphalt.
• Deposits have been found in California, Texas, Oklahoma, and Alabama.
• The amount of asphalt varies from one deposit to another and can be as
low as 4.5 percent and as high as 18 percent.
• Rock asphalt can be used to surface roads after the mined or quarried
material has been suitably processed.
• This process includes adding suitable mineral aggregates, asphalt binder,
and oil, which facilitates the flowing of the material.
• Rock asphalt is not used widely because of its high transportation costs.

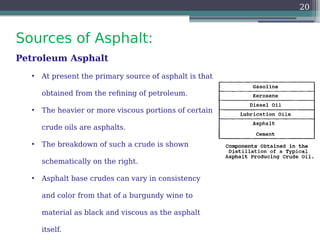

20. Sources of Asphalt:
20
Petroleum Asphalt
• At present the primary source of asphalt is that
obtained from the refining of petroleum.
• The heavier or more viscous portions of certain
crude oils are asphalts.

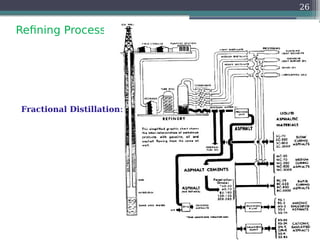

• The breakdown of such a crude is shown
schematically on the right.
• Asphalt base crudes can vary in consistency
and color from that of a burgundy wine to
material as black and viscous as the asphalt
itself.

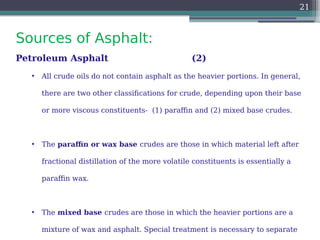

21. Sources of Asphalt:
21
Petroleum Asphalt (2)
• All crude oils do not contain asphalt as the heavier portions. In general,
there are two other classifications for crude, depending upon their base
or more viscous constituents- (1) paraffin and (2) mixed base crudes.
• The paraffin or wax base crudes are those in which material left after
fractional distillation of the more volatile constituents is essentially a
paraffin wax.
• The mixed base crudes are those in which the heavier portions are a
mixture of wax and asphalt. Special treatment is necessary to separate
22. Sources of Asphalt:
22

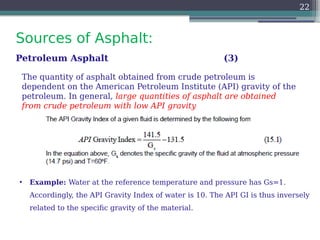

Petroleum Asphalt (3)
• Example: Water at the reference temperature and pressure has Gs=1.
Accordingly, the API Gravity Index of water is 10. The API GI is thus inversely
related to the specific gravity of the material.
The quantity of asphalt obtained from crude petroleum is
dependent on the American Petroleum Institute (API) gravity of the
petroleum. In general, large quantities of asphalt are obtained
from crude petroleum with low API gravity

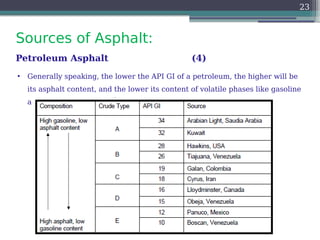

23. Sources of Asphalt:
23
Petroleum Asphalt (4)
• Generally speaking, the lower the API GI of a petroleum, the higher will be
its asphalt content, and the lower its content of volatile phases like gasoline
and kerosene.

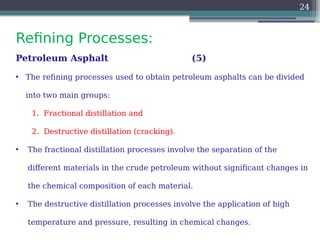

24. Refining Processes:
24
Petroleum Asphalt (5)
• The refining processes used to obtain petroleum asphalts can be divided
into two main groups:
1. Fractional distillation and
2. Destructive distillation (cracking).
• The fractional distillation processes involve the separation of the
different materials in the crude petroleum without significant changes in
the chemical composition of each material.
• The destructive distillation processes involve the application of high
temperature and pressure, resulting in chemical changes.

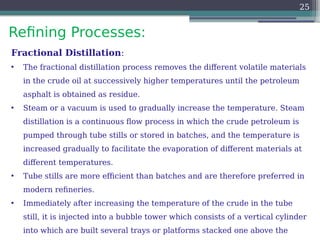

25. Refining Processes:
25
Fractional Distillation:
• The fractional distillation process removes the different volatile materials
in the crude oil at successively higher temperatures until the petroleum
asphalt is obtained as residue.
• Steam or a vacuum is used to gradually increase the temperature. Steam
distillation is a continuous flow process in which the crude petroleum is
pumped through tube stills or stored in batches, and the temperature is
increased gradually to facilitate the evaporation of different materials at
different temperatures.
• Tube stills are more efficient than batches and are therefore preferred in
modern refineries.
• Immediately after increasing the temperature of the crude in the tube
still, it is injected into a bubble tower which consists of a vertical cylinder
into which are built several trays or platforms stacked one above the

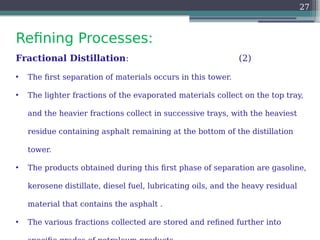

27. Refining Processes:
27
Fractional Distillation: (2)
• The first separation of materials occurs in this tower.
• The lighter fractions of the evaporated materials collect on the top tray,
and the heavier fractions collect in successive trays, with the heaviest
residue containing asphalt remaining at the bottom of the distillation
tower.
• The products obtained during this first phase of separation are gasoline,
kerosene distillate, diesel fuel, lubricating oils, and the heavy residual
material that contains the asphalt .
• The various fractions collected are stored and refined further into

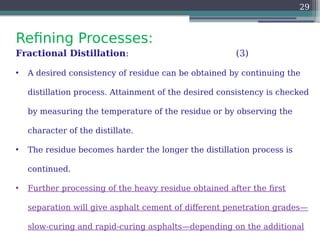

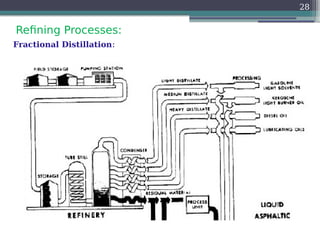

29. Refining Processes:
29
Fractional Distillation: (3)
• A desired consistency of residue can be obtained by continuing the
distillation process. Attainment of the desired consistency is checked
by measuring the temperature of the residue or by observing the
character of the distillate.
• The residue becomes harder the longer the distillation process is
continued.
• Further processing of the heavy residue obtained after the first
separation will give asphalt cement of different penetration grades—
slow-curing and rapid-curing asphalts—depending on the additional

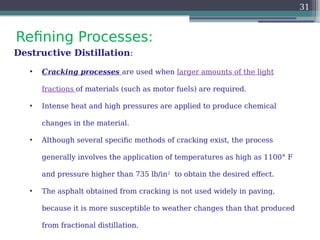

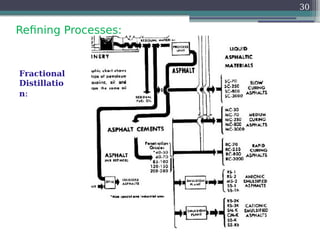

31. Refining Processes:
31
Destructive Distillation:
• Cracking processes are used when larger amounts of the light
fractions of materials (such as motor fuels) are required.
• Intense heat and high pressures are applied to produce chemical
changes in the material.
• Although several specific methods of cracking exist, the process
generally involves the application of temperatures as high as 1100° F
and pressure higher than 735 lb/in2
to obtain the desired effect.
• The asphalt obtained from cracking is not used widely in paving,
because it is more susceptible to weather changes than that produced
from fractional distillation.
32. Description And Uses Of Bituminous Binders:
32
Bituminous binders can be classified into three general
groups:
1. Asphalt cement,
2. Asphalt cutbacks, and
3. Emulsified asphalt.
Blown asphalt and road tars are also other types of
bituminous material that now are not used commonly in
highway construction.
33. Description And Uses Of Bituminous Binders:
33
1. Asphalt cement:
• Obtained after separation of the lubricating oils.
• They are semisolid hydrocarbons with certain physiochemical
characteristics that make them good cementing agents.
• They are also very viscous, and when used as a binder for
aggregates in pavement construction, it is necessary to heat both
the aggregates and the asphalt cement prior to mixing the two
materials.
• For several decades, the particular grade of asphalt cement has
been designated by its penetration and viscosity, both of which
give an indication of the consistency of the material at a given
temperature.
• The penetration is the distance in 0.1 mm that a standard needle
will penetrate a given sample under specific conditions of loading,

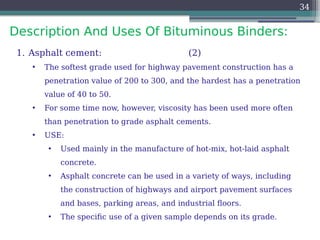

34. Description And Uses Of Bituminous Binders:
34
1. Asphalt cement: (2)
• The softest grade used for highway pavement construction has a
penetration value of 200 to 300, and the hardest has a penetration
value of 40 to 50.
• For some time now, however, viscosity has been used more often
than penetration to grade asphalt cements.
• USE:
• Used mainly in the manufacture of hot-mix, hot-laid asphalt
concrete.
• Asphalt concrete can be used in a variety of ways, including
the construction of highways and airport pavement surfaces
and bases, parking areas, and industrial floors.
• The specific use of a given sample depends on its grade.

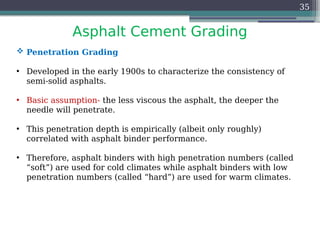

35. Asphalt Cement Grading
35
Penetration Grading
• Developed in the early 1900s to characterize the consistency of
semi-solid asphalts.
• Basic assumption- the less viscous the asphalt, the deeper the
needle will penetrate.
• This penetration depth is empirically (albeit only roughly)
correlated with asphalt binder performance.
• Therefore, asphalt binders with high penetration numbers (called
“soft”) are used for cold climates while asphalt binders with low
penetration numbers (called “hard”) are used for warm climates.

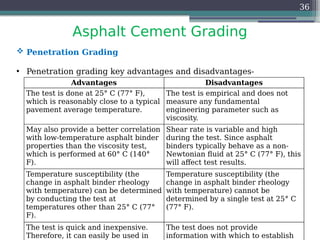

36. Asphalt Cement Grading
36
Penetration Grading
• Penetration grading key advantages and disadvantages-
Advantages Disadvantages
The test is done at 25° C (77° F),
which is reasonably close to a typical
pavement average temperature.
The test is empirical and does not
measure any fundamental
engineering parameter such as
viscosity.
May also provide a better correlation
with low-temperature asphalt binder
properties than the viscosity test,
which is performed at 60° C (140°
F).
Shear rate is variable and high
during the test. Since asphalt
binders typically behave as a non-
Newtonian fluid at 25° C (77° F), this
will affect test results.
Temperature susceptibility (the
change in asphalt binder rheology
with temperature) can be determined
by conducting the test at
temperatures other than 25° C (77°
F).
Temperature susceptibility (the
change in asphalt binder rheology
with temperature) cannot be
determined by a single test at 25° C
(77° F).
The test is quick and inexpensive.
Therefore, it can easily be used in
The test does not provide
information with which to establish

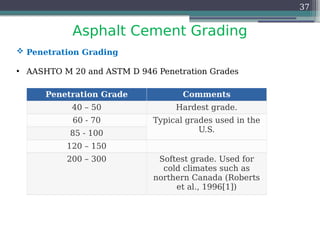

37. Asphalt Cement Grading
37
Penetration Grading
• AASHTO M 20 and ASTM D 946 Penetration Grades
Penetration Grade Comments
40 – 50 Hardest grade.
60 - 70 Typical grades used in the
U.S.
85 - 100
120 – 150
200 – 300 Softest grade. Used for
cold climates such as
northern Canada (Roberts
et al., 1996[1])

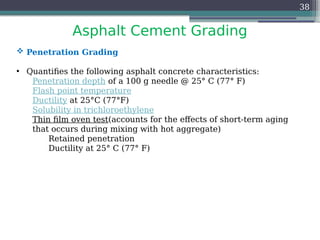

38. Asphalt Cement Grading
38
Penetration Grading
• Quantifies the following asphalt concrete characteristics:
Penetration depth of a 100 g needle @ 25° C (77° F)
Flash point temperature
Ductility at 25°C (77°F)
Solubility in trichloroethylene
Thin film oven test(accounts for the effects of short-term aging
that occurs during mixing with hot aggregate)
Retained penetration
Ductility at 25° C (77° F)

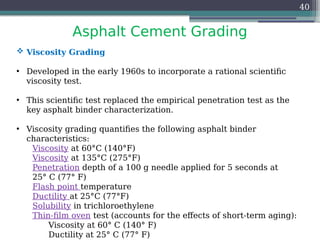

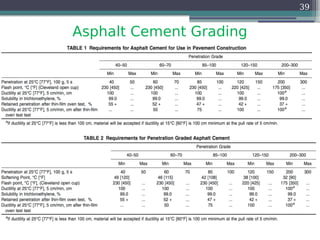

40. Asphalt Cement Grading
40
Viscosity Grading
• Developed in the early 1960s to incorporate a rational scientific
viscosity test.
• This scientific test replaced the empirical penetration test as the
key asphalt binder characterization.
• Viscosity grading quantifies the following asphalt binder
characteristics:
Viscosity at 60°C (140°F)
Viscosity at 135°C (275°F)
Penetration depth of a 100 g needle applied for 5 seconds at
25° C (77° F)
Flash point temperature
Ductility at 25°C (77°F)
Solubility in trichloroethylene
Thin-film oven test (accounts for the effects of short-term aging):
Viscosity at 60° C (140° F)
Ductility at 25° C (77° F)

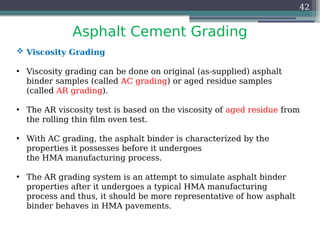

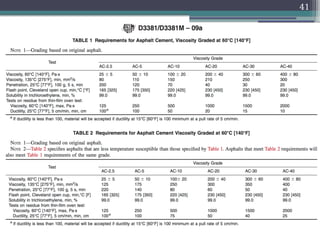

42. Asphalt Cement Grading
42
Viscosity Grading
• Viscosity grading can be done on original (as-supplied) asphalt
binder samples (called AC grading) or aged residue samples
(called AR grading).
• The AR viscosity test is based on the viscosity of aged residue from
the rolling thin film oven test.
• With AC grading, the asphalt binder is characterized by the
properties it possesses before it undergoes
the HMA manufacturing process.
• The AR grading system is an attempt to simulate asphalt binder
properties after it undergoes a typical HMA manufacturing
process and thus, it should be more representative of how asphalt
binder behaves in HMA pavements.

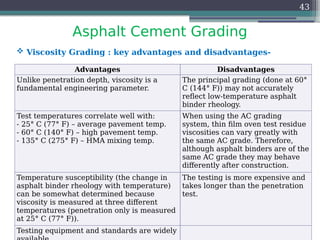

43. Asphalt Cement Grading
43
Viscosity Grading : key advantages and disadvantages-
Advantages Disadvantages
Unlike penetration depth, viscosity is a
fundamental engineering parameter.
The principal grading (done at 60°
C (144° F)) may not accurately
reflect low-temperature asphalt
binder rheology.
Test temperatures correlate well with:
- 25° C (77° F) – average pavement temp.
- 60° C (140° F) – high pavement temp.
- 135° C (275° F) – HMA mixing temp.
When using the AC grading
system, thin film oven test residue
viscosities can vary greatly with
the same AC grade. Therefore,
although asphalt binders are of the
same AC grade they may behave
differently after construction.
Temperature susceptibility (the change in
asphalt binder rheology with temperature)
can be somewhat determined because
viscosity is measured at three different
temperatures (penetration only is measured
at 25° C (77° F)).
The testing is more expensive and
takes longer than the penetration
test.
Testing equipment and standards are widely

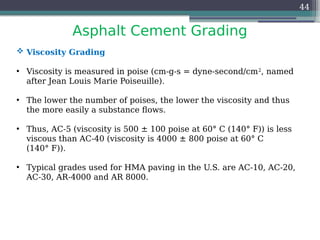

44. Asphalt Cement Grading
44
Viscosity Grading
• Viscosity is measured in poise (cm-g-s = dyne-second/cm2
, named
after Jean Louis Marie Poiseuille).
• The lower the number of poises, the lower the viscosity and thus
the more easily a substance flows.
• Thus, AC-5 (viscosity is 500 ± 100 poise at 60° C (140° F)) is less
viscous than AC-40 (viscosity is 4000 ± 800 poise at 60° C
(140° F)).
• Typical grades used for HMA paving in the U.S. are AC-10, AC-20,
AC-30, AR-4000 and AR 8000.

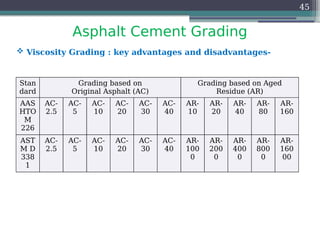

45. Asphalt Cement Grading
45
Viscosity Grading : key advantages and disadvantages-
Stan
dard
Grading based on
Original Asphalt (AC)
Grading based on Aged
Residue (AR)
AAS
HTO
M
226
AC-
2.5
AC-
5
AC-
10
AC-
20
AC-
30
AC-
40
AR-
10
AR-
20
AR-
40
AR-
80
AR-
160
AST
M D
338
1
AC-
2.5
AC-
5
AC-
10
AC-
20
AC-
30
AC-
40
AR-
100
0
AR-
200
0
AR-
400
0
AR-
800
0
AR-
160
00
46. Asphalt Cement Grading
46
Superpave Performance Grade (PG)
• Due to inadequacy of penetration and viscosity based grading
systems, the Strategic Highway Research Program (SHRP) in US
conducted a Project between 1987 and 1993 in order to overcome
the shortcomings of empirical systems.
• One consequence of this Project was a performance based binder
specification with a new set of tests.
• The final product of the SHRP bitumen research program is a new
system referred to as SUPERPAVE, which stands for Superior
Performing Asphalt Pavements and called as binder specification
because it is intended to function equally well for modified and
unmodified bitumen.
• These tests and specifications are specifically designed to address
HMA pavement performance parameters such as rutting, fatigue
cracking and thermal cracking.

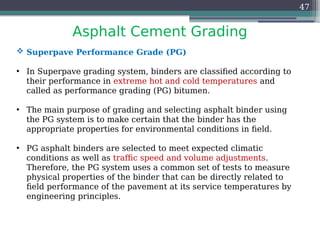

47. Asphalt Cement Grading
47
Superpave Performance Grade (PG)
• In Superpave grading system, binders are classified according to
their performance in extreme hot and cold temperatures and
called as performance grading (PG) bitumen.
• The main purpose of grading and selecting asphalt binder using
the PG system is to make certain that the binder has the
appropriate properties for environmental conditions in field.
• PG asphalt binders are selected to meet expected climatic
conditions as well as traffic speed and volume adjustments.
Therefore, the PG system uses a common set of tests to measure
physical properties of the binder that can be directly related to
field performance of the pavement at its service temperatures by
engineering principles.

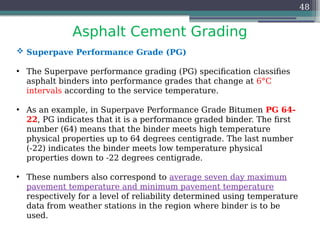

48. Asphalt Cement Grading
48
Superpave Performance Grade (PG)
• The Superpave performance grading (PG) specification classifies
asphalt binders into performance grades that change at 6°C
intervals according to the service temperature.

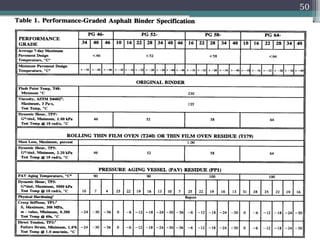

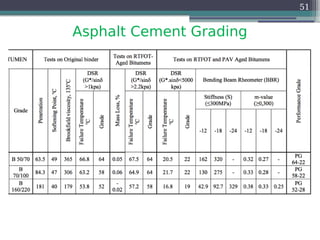

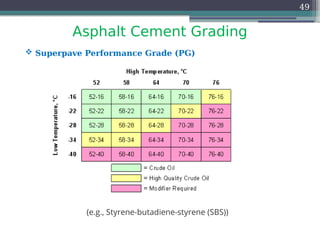

• As an example, in Superpave Performance Grade Bitumen PG 64-
22, PG indicates that it is a performance graded binder. The first
number (64) means that the binder meets high temperature
physical properties up to 64 degrees centigrade. The last number
(-22) indicates the binder meets low temperature physical
properties down to -22 degrees centigrade.
• These numbers also correspond to average seven day maximum
pavement temperature and minimum pavement temperature
respectively for a level of reliability determined using temperature
data from weather stations in the region where binder is to be
used.

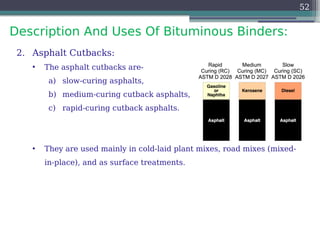

52. Description And Uses Of Bituminous Binders:
52
2. Asphalt Cutbacks:
• The asphalt cutbacks are-
a) slow-curing asphalts,
b) medium-curing cutback asphalts, and
c) rapid-curing cutback asphalts.
• They are used mainly in cold-laid plant mixes, road mixes (mixed-
in-place), and as surface treatments.

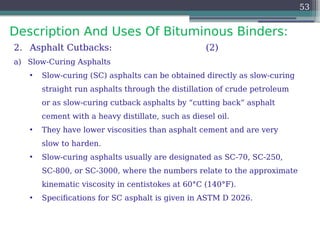

53. Description And Uses Of Bituminous Binders:
53
2. Asphalt Cutbacks: (2)
a) Slow-Curing Asphalts
• Slow-curing (SC) asphalts can be obtained directly as slow-curing
straight run asphalts through the distillation of crude petroleum
or as slow-curing cutback asphalts by “cutting back” asphalt
cement with a heavy distillate, such as diesel oil.
• They have lower viscosities than asphalt cement and are very
slow to harden.
• Slow-curing asphalts usually are designated as SC-70, SC-250,
SC-800, or SC-3000, where the numbers relate to the approximate
kinematic viscosity in centistokes at 60°C (140°F).

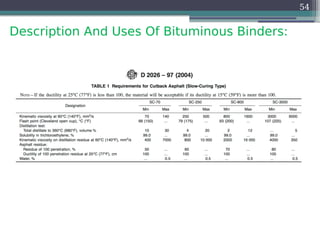

• Specifications for SC asphalt is given in ASTM D 2026.

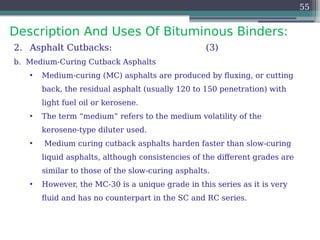

55. Description And Uses Of Bituminous Binders:
55
2. Asphalt Cutbacks: (3)
b. Medium-Curing Cutback Asphalts
• Medium-curing (MC) asphalts are produced by fluxing, or cutting
back, the residual asphalt (usually 120 to 150 penetration) with
light fuel oil or kerosene.
• The term “medium” refers to the medium volatility of the
kerosene-type diluter used.
• Medium curing cutback asphalts harden faster than slow-curing
liquid asphalts, although consistencies of the different grades are
similar to those of the slow-curing asphalts.
• However, the MC-30 is a unique grade in this series as it is very
fluid and has no counterpart in the SC and RC series.

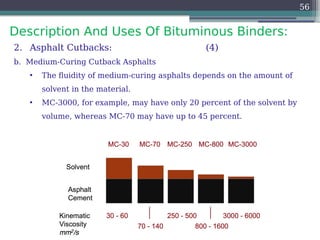

56. Description And Uses Of Bituminous Binders:
56
2. Asphalt Cutbacks: (4)
b. Medium-Curing Cutback Asphalts
• The fluidity of medium-curing asphalts depends on the amount of
solvent in the material.
• MC-3000, for example, may have only 20 percent of the solvent by
volume, whereas MC-70 may have up to 45 percent.

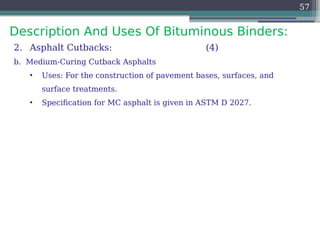

57. Description And Uses Of Bituminous Binders:
57
2. Asphalt Cutbacks: (4)
b. Medium-Curing Cutback Asphalts
• Uses: For the construction of pavement bases, surfaces, and
surface treatments.
• Specification for MC asphalt is given in ASTM D 2027.

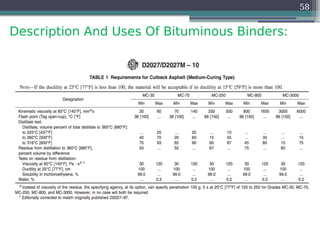

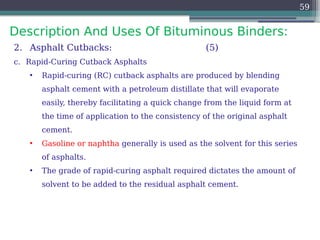

59. Description And Uses Of Bituminous Binders:
59
2. Asphalt Cutbacks: (5)
c. Rapid-Curing Cutback Asphalts
• Rapid-curing (RC) cutback asphalts are produced by blending
asphalt cement with a petroleum distillate that will evaporate
easily, thereby facilitating a quick change from the liquid form at
the time of application to the consistency of the original asphalt
cement.
• Gasoline or naphtha generally is used as the solvent for this series
of asphalts.
• The grade of rapid-curing asphalt required dictates the amount of
solvent to be added to the residual asphalt cement.

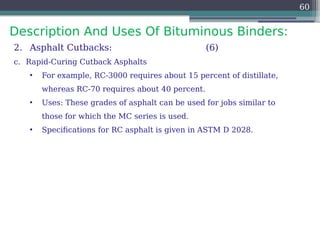

60. Description And Uses Of Bituminous Binders:
60
2. Asphalt Cutbacks: (6)
c. Rapid-Curing Cutback Asphalts
• For example, RC-3000 requires about 15 percent of distillate,
whereas RC-70 requires about 40 percent.
• Uses: These grades of asphalt can be used for jobs similar to
those for which the MC series is used.

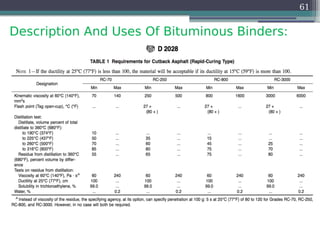

• Specifications for RC asphalt is given in ASTM D 2028.
62. Description And Uses Of Bituminous Binders:
62
3. Emulsified Asphalt:
• Emulsified asphalts are produced by breaking asphalt cement,
usually of 100 to 250 penetration range, into minute particles and
dispersing them in water with an emulsifier.
• These minute particles have like-electrical charges and therefore
do not coalesce. They remain in suspension in the liquid phase as
long as the water does not evaporate or the emulsifier does not
break.
• In asphalt emulsions, lightly heated asphalt is run through a
colloidal mill together with an emulsifying agent to produce 5-10
μm sized globules. The asphalt globules are mixed with water to
form a liquid mixture of roughly 75% asphalt and 25% water by
mass. The emulsifying agent coats the asphalt globules and
imparts a surface charge that makes the globules repel rather

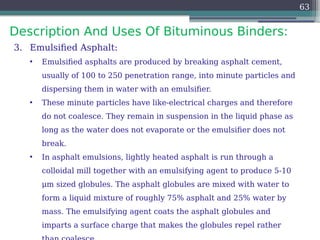

63. Description And Uses Of Bituminous Binders:
63
3. Emulsified Asphalt:
• Emulsified asphalts are produced by breaking asphalt cement,
usually of 100 to 250 penetration range, into minute particles and
dispersing them in water with an emulsifier.
• These minute particles have like-electrical charges and therefore
do not coalesce. They remain in suspension in the liquid phase as
long as the water does not evaporate or the emulsifier does not
break.
• In asphalt emulsions, lightly heated asphalt is run through a
colloidal mill together with an emulsifying agent to produce 5-10
μm sized globules. The asphalt globules are mixed with water to
form a liquid mixture of roughly 75% asphalt and 25% water by
mass. The emulsifying agent coats the asphalt globules and
imparts a surface charge that makes the globules repel rather

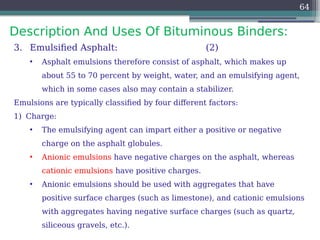

64. Description And Uses Of Bituminous Binders:
64
3. Emulsified Asphalt: (2)
• Asphalt emulsions therefore consist of asphalt, which makes up
about 55 to 70 percent by weight, water, and an emulsifying agent,
which in some cases also may contain a stabilizer.
Emulsions are typically classified by four different factors:
1) Charge:
• The emulsifying agent can impart either a positive or negative
charge on the asphalt globules.
• Anionic emulsions have negative charges on the asphalt, whereas
cationic emulsions have positive charges.
• Anionic emulsions should be used with aggregates that have
positive surface charges (such as limestone), and cationic emulsions
with aggregates having negative surface charges (such as quartz,
siliceous gravels, etc.).

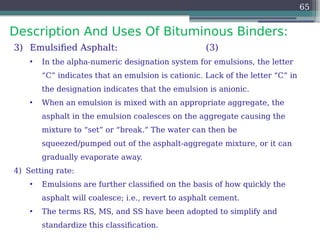

65. Description And Uses Of Bituminous Binders:
65
3) Emulsified Asphalt: (3)
• In the alpha-numeric designation system for emulsions, the letter
“C” indicates that an emulsion is cationic. Lack of the letter “C” in
the designation indicates that the emulsion is anionic.
• When an emulsion is mixed with an appropriate aggregate, the
asphalt in the emulsion coalesces on the aggregate causing the
mixture to “set” or “break.” The water can then be
squeezed/pumped out of the asphalt-aggregate mixture, or it can
gradually evaporate away.
4) Setting rate:
• Emulsions are further classified on the basis of how quickly the
asphalt will coalesce; i.e., revert to asphalt cement.
• The terms RS, MS, and SS have been adopted to simplify and
standardize this classification.

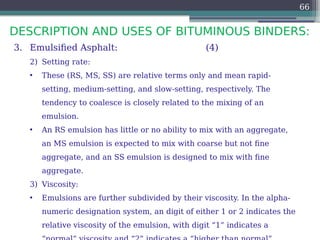

66. DESCRIPTION AND USES OF BITUMINOUS BINDERS:
66
3. Emulsified Asphalt: (4)
2) Setting rate:
• These (RS, MS, SS) are relative terms only and mean rapid-
setting, medium-setting, and slow-setting, respectively. The
tendency to coalesce is closely related to the mixing of an
emulsion.
• An RS emulsion has little or no ability to mix with an aggregate,
an MS emulsion is expected to mix with coarse but not fine
aggregate, and an SS emulsion is designed to mix with fine
aggregate.
3) Viscosity:
• Emulsions are further subdivided by their viscosity. In the alpha-
numeric designation system, an digit of either 1 or 2 indicates the
relative viscosity of the emulsion, with digit “1” indicates a

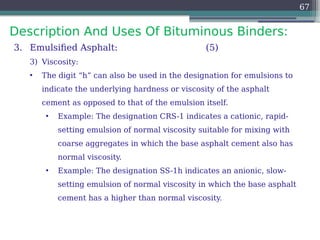

67. Description And Uses Of Bituminous Binders:
67
3. Emulsified Asphalt: (5)
3) Viscosity:
• The digit “h” can also be used in the designation for emulsions to
indicate the underlying hardness or viscosity of the asphalt
cement as opposed to that of the emulsion itself.
• Example: The designation CRS-1 indicates a cationic, rapid-
setting emulsion of normal viscosity suitable for mixing with
coarse aggregates in which the base asphalt cement also has
normal viscosity.
• Example: The designation SS-1h indicates an anionic, slow-
setting emulsion of normal viscosity in which the base asphalt
cement has a higher than normal viscosity.

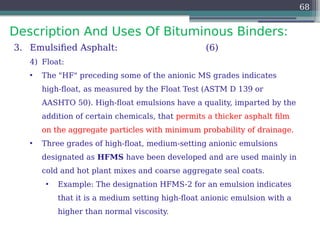

68. Description And Uses Of Bituminous Binders:
68
3. Emulsified Asphalt: (6)

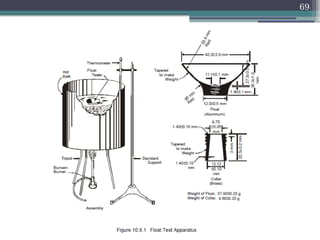

4) Float:
• The "HF" preceding some of the anionic MS grades indicates
high-float, as measured by the Float Test (ASTM D 139 or
AASHTO 50). High-float emulsions have a quality, imparted by the
addition of certain chemicals, that permits a thicker asphalt film
on the aggregate particles with minimum probability of drainage.
• Three grades of high-float, medium-setting anionic emulsions
designated as HFMS have been developed and are used mainly in
cold and hot plant mixes and coarse aggregate seal coats.
• Example: The designation HFMS-2 for an emulsion indicates
that it is a medium setting high-float anionic emulsion with a
higher than normal viscosity.

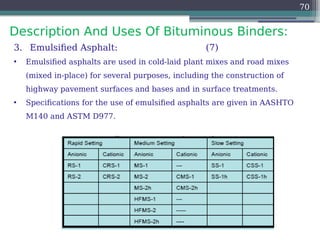

70. Description And Uses Of Bituminous Binders:
70
3. Emulsified Asphalt: (7)
• Emulsified asphalts are used in cold-laid plant mixes and road mixes
(mixed in-place) for several purposes, including the construction of
highway pavement surfaces and bases and in surface treatments.
• Specifications for the use of emulsified asphalts are given in AASHTO
M140 and ASTM D977.
71. Description And Uses Of Bituminous Binders:
71
3. Emulsified Asphalt: (7)
• Emulsified asphalts are used in cold-laid plant mixes and road mixes
(mixed in-place) for several purposes, including the construction of
highway pavement surfaces and bases and in surface treatments.
• Specifications for the use of emulsified asphalts are given in AASHTO
M140 and ASTM D977.

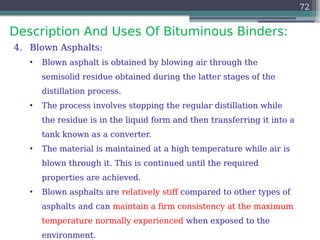

72. Description And Uses Of Bituminous Binders:
72
4. Blown Asphalts:
• Blown asphalt is obtained by blowing air through the
semisolid residue obtained during the latter stages of the
distillation process.
• The process involves stopping the regular distillation while
the residue is in the liquid form and then transferring it into a
tank known as a converter.
• The material is maintained at a high temperature while air is
blown through it. This is continued until the required
properties are achieved.
• Blown asphalts are relatively stiff compared to other types of
asphalts and can maintain a firm consistency at the maximum
temperature normally experienced when exposed to the
environment.

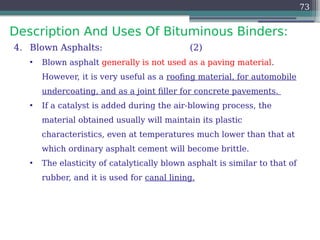

73. Description And Uses Of Bituminous Binders:
73
4. Blown Asphalts: (2)
• Blown asphalt generally is not used as a paving material.
However, it is very useful as a roofing material, for automobile
undercoating, and as a joint filler for concrete pavements.
• If a catalyst is added during the air-blowing process, the
material obtained usually will maintain its plastic
characteristics, even at temperatures much lower than that at
which ordinary asphalt cement will become brittle.
• The elasticity of catalytically blown asphalt is similar to that of
rubber, and it is used for canal lining.

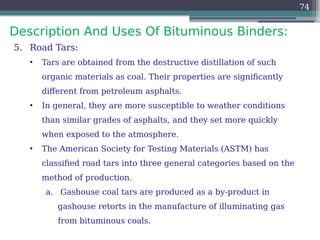

74. Description And Uses Of Bituminous Binders:
74
5. Road Tars:
• Tars are obtained from the destructive distillation of such
organic materials as coal. Their properties are significantly
different from petroleum asphalts.
• In general, they are more susceptible to weather conditions
than similar grades of asphalts, and they set more quickly
when exposed to the atmosphere.
• The American Society for Testing Materials (ASTM) has
classified road tars into three general categories based on the
method of production.
a. Gashouse coal tars are produced as a by-product in
gashouse retorts in the manufacture of illuminating gas
from bituminous coals.

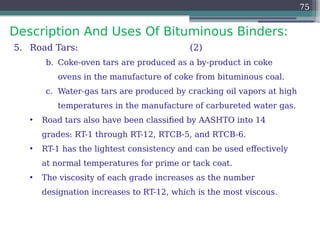

75. Description And Uses Of Bituminous Binders:
75
5. Road Tars: (2)
b. Coke-oven tars are produced as a by-product in coke
ovens in the manufacture of coke from bituminous coal.
c. Water-gas tars are produced by cracking oil vapors at high
temperatures in the manufacture of carbureted water gas.
• Road tars also have been classified by AASHTO into 14
grades: RT-1 through RT-12, RTCB-5, and RTCB-6.
• RT-1 has the lightest consistency and can be used effectively
at normal temperatures for prime or tack coat.
• The viscosity of each grade increases as the number
designation increases to RT-12, which is the most viscous.
76. Description And Uses Of Bituminous Binders:
76
5. Road Tars: (3)
• RTCB-5 and RTCB-6 are suitable for application during cold
weather, since they are produced by cutting back the specific
grade of tar with easily evaporating solvent. Detailed
specifications for the use of tars are given by
• AASHTO Designation M52-78.

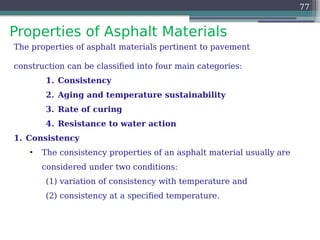

77. Properties of Asphalt Materials
77
The properties of asphalt materials pertinent to pavement
construction can be classified into four main categories:
1. Consistency
2. Aging and temperature sustainability
3. Rate of curing
4. Resistance to water action
1. Consistency
• The consistency properties of an asphalt material usually are
considered under two conditions:
(1) variation of consistency with temperature and
(2) consistency at a specified temperature.

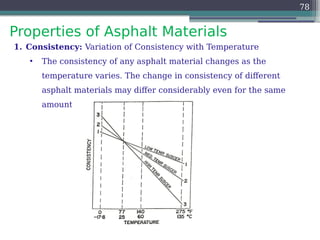

78. Properties of Asphalt Materials
78
1. Consistency: Variation of Consistency with Temperature
• The consistency of any asphalt material changes as the
temperature varies. The change in consistency of different
asphalt materials may differ considerably even for the same
amount of temperature change.

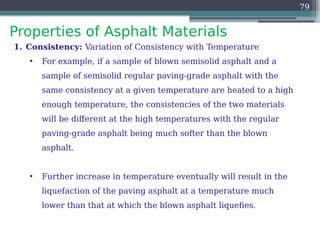

79. Properties of Asphalt Materials
79
1. Consistency: Variation of Consistency with Temperature
• For example, if a sample of blown semisolid asphalt and a
sample of semisolid regular paving-grade asphalt with the
same consistency at a given temperature are heated to a high
enough temperature, the consistencies of the two materials
will be different at the high temperatures with the regular
paving-grade asphalt being much softer than the blown
asphalt.
• Further increase in temperature eventually will result in the
liquefaction of the paving asphalt at a temperature much
lower than that at which the blown asphalt liquefies.

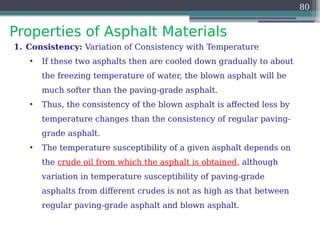

80. Properties of Asphalt Materials
80
1. Consistency: Variation of Consistency with Temperature
• If these two asphalts then are cooled down gradually to about
the freezing temperature of water, the blown asphalt will be
much softer than the paving-grade asphalt.
• Thus, the consistency of the blown asphalt is affected less by
temperature changes than the consistency of regular paving-
grade asphalt.
• The temperature susceptibility of a given asphalt depends on
the crude oil from which the asphalt is obtained, although
variation in temperature susceptibility of paving-grade
asphalts from different crudes is not as high as that between
regular paving-grade asphalt and blown asphalt.
81. Properties of Asphalt Materials
81

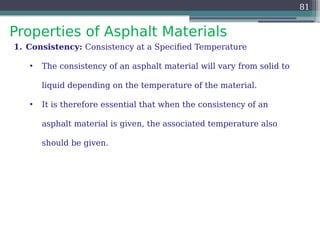

1. Consistency: Consistency at a Specified Temperature
• The consistency of an asphalt material will vary from solid to
liquid depending on the temperature of the material.
• It is therefore essential that when the consistency of an
asphalt material is given, the associated temperature also
should be given.

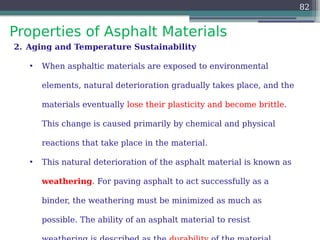

82. Properties of Asphalt Materials
82
2. Aging and Temperature Sustainability
• When asphaltic materials are exposed to environmental
elements, natural deterioration gradually takes place, and the
materials eventually lose their plasticity and become brittle.
This change is caused primarily by chemical and physical
reactions that take place in the material.
• This natural deterioration of the asphalt material is known as
weathering. For paving asphalt to act successfully as a
binder, the weathering must be minimized as much as
possible. The ability of an asphalt material to resist

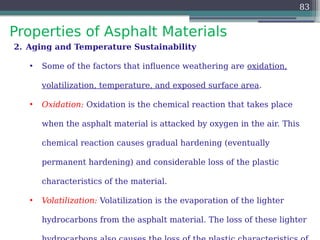

83. Properties of Asphalt Materials
83
2. Aging and Temperature Sustainability
• Some of the factors that influence weathering are oxidation,
volatilization, temperature, and exposed surface area.
• Oxidation: Oxidation is the chemical reaction that takes place
when the asphalt material is attacked by oxygen in the air. This
chemical reaction causes gradual hardening (eventually
permanent hardening) and considerable loss of the plastic
characteristics of the material.
• Volatilization: Volatilization is the evaporation of the lighter
hydrocarbons from the asphalt material. The loss of these lighter
84. Properties of Asphalt Materials
84

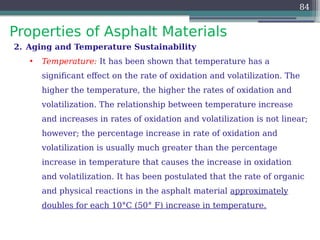

2. Aging and Temperature Sustainability
• Temperature: It has been shown that temperature has a
significant effect on the rate of oxidation and volatilization. The
higher the temperature, the higher the rates of oxidation and
volatilization. The relationship between temperature increase
and increases in rates of oxidation and volatilization is not linear;
however; the percentage increase in rate of oxidation and
volatilization is usually much greater than the percentage
increase in temperature that causes the increase in oxidation
and volatilization. It has been postulated that the rate of organic
and physical reactions in the asphalt material approximately
doubles for each 10°C (50° F) increase in temperature.

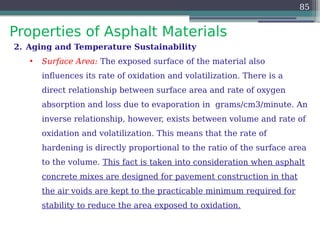

85. Properties of Asphalt Materials
85
2. Aging and Temperature Sustainability
• Surface Area: The exposed surface of the material also
influences its rate of oxidation and volatilization. There is a
direct relationship between surface area and rate of oxygen
absorption and loss due to evaporation in grams/cm3/minute. An
inverse relationship, however, exists between volume and rate of
oxidation and volatilization. This means that the rate of
hardening is directly proportional to the ratio of the surface area
to the volume. This fact is taken into consideration when asphalt
concrete mixes are designed for pavement construction in that
the air voids are kept to the practicable minimum required for
stability to reduce the area exposed to oxidation.
86. Properties of Asphalt Materials
86

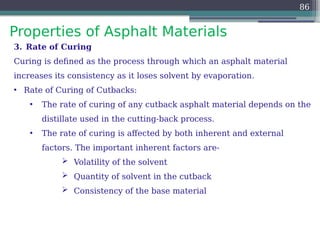

3. Rate of Curing
Curing is defined as the process through which an asphalt material
increases its consistency as it loses solvent by evaporation.
• Rate of Curing of Cutbacks:
• The rate of curing of any cutback asphalt material depends on the
distillate used in the cutting-back process.
• The rate of curing is affected by both inherent and external
factors. The important inherent factors are-
Volatility of the solvent
Quantity of solvent in the cutback
Consistency of the base material

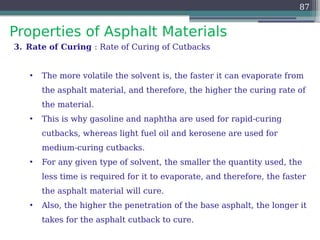

87. Properties of Asphalt Materials
87
3. Rate of Curing : Rate of Curing of Cutbacks
• The more volatile the solvent is, the faster it can evaporate from
the asphalt material, and therefore, the higher the curing rate of
the material.
• This is why gasoline and naphtha are used for rapid-curing
cutbacks, whereas light fuel oil and kerosene are used for
medium-curing cutbacks.
• For any given type of solvent, the smaller the quantity used, the
less time is required for it to evaporate, and therefore, the faster
the asphalt material will cure.
• Also, the higher the penetration of the base asphalt, the longer it
takes for the asphalt cutback to cure.

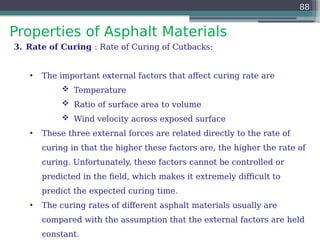

88. Properties of Asphalt Materials
88
3. Rate of Curing : Rate of Curing of Cutbacks:
• The important external factors that affect curing rate are
Temperature
Ratio of surface area to volume
Wind velocity across exposed surface
• These three external forces are related directly to the rate of
curing in that the higher these factors are, the higher the rate of
curing. Unfortunately, these factors cannot be controlled or
predicted in the field, which makes it extremely difficult to
predict the expected curing time.
• The curing rates of different asphalt materials usually are
compared with the assumption that the external factors are held
constant.
89. Properties of Asphalt Materials
89
3. Rate of Curing: Rate of Curing for Emulsified Asphalts
• The curing and adhesion characteristics of emulsions (anionic
and cationic) used for pavement construction depend on the rate
at which the water evaporates from the mixture.
• When weather conditions are favorable, the water is displaced
relatively rapidly, and so curing progresses rapidly. When
weather conditions include high humidity, low temperature, or
rainfall immediately following the application of the emulsion, its
ability to properly cure is affected adversely.
• Although the effect of surface and weather conditions on proper
curing is more critical for anionic emulsions, favorable weather
conditions also are required to obtain optimum results for
cationic emulsions. A major advantage of cationic emulsions is
that they release their water more readily.

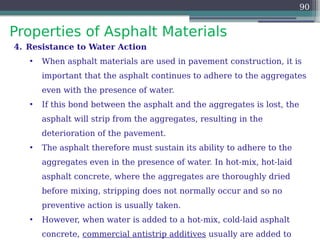

90. Properties of Asphalt Materials
90
4. Resistance to Water Action
• When asphalt materials are used in pavement construction, it is
important that the asphalt continues to adhere to the aggregates
even with the presence of water.
• If this bond between the asphalt and the aggregates is lost, the
asphalt will strip from the aggregates, resulting in the
deterioration of the pavement.
• The asphalt therefore must sustain its ability to adhere to the
aggregates even in the presence of water. In hot-mix, hot-laid
asphalt concrete, where the aggregates are thoroughly dried
before mixing, stripping does not normally occur and so no
preventive action is usually taken.
• However, when water is added to a hot-mix, cold-laid asphalt
concrete, commercial antistrip additives usually are added to
91. Properties of Asphalt Materials
91

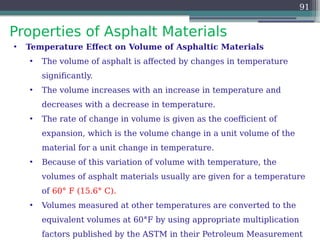

• Temperature Effect on Volume of Asphaltic Materials
• The volume of asphalt is affected by changes in temperature
significantly.
• The volume increases with an increase in temperature and
decreases with a decrease in temperature.
• The rate of change in volume is given as the coefficient of
expansion, which is the volume change in a unit volume of the
material for a unit change in temperature.
• Because of this variation of volume with temperature, the
volumes of asphalt materials usually are given for a temperature
of 60° F (15.6° C).
• Volumes measured at other temperatures are converted to the
equivalent volumes at 60°F by using appropriate multiplication
factors published by the ASTM in their Petroleum Measurement
