1. ALARM SECURITY
Products and Solutions

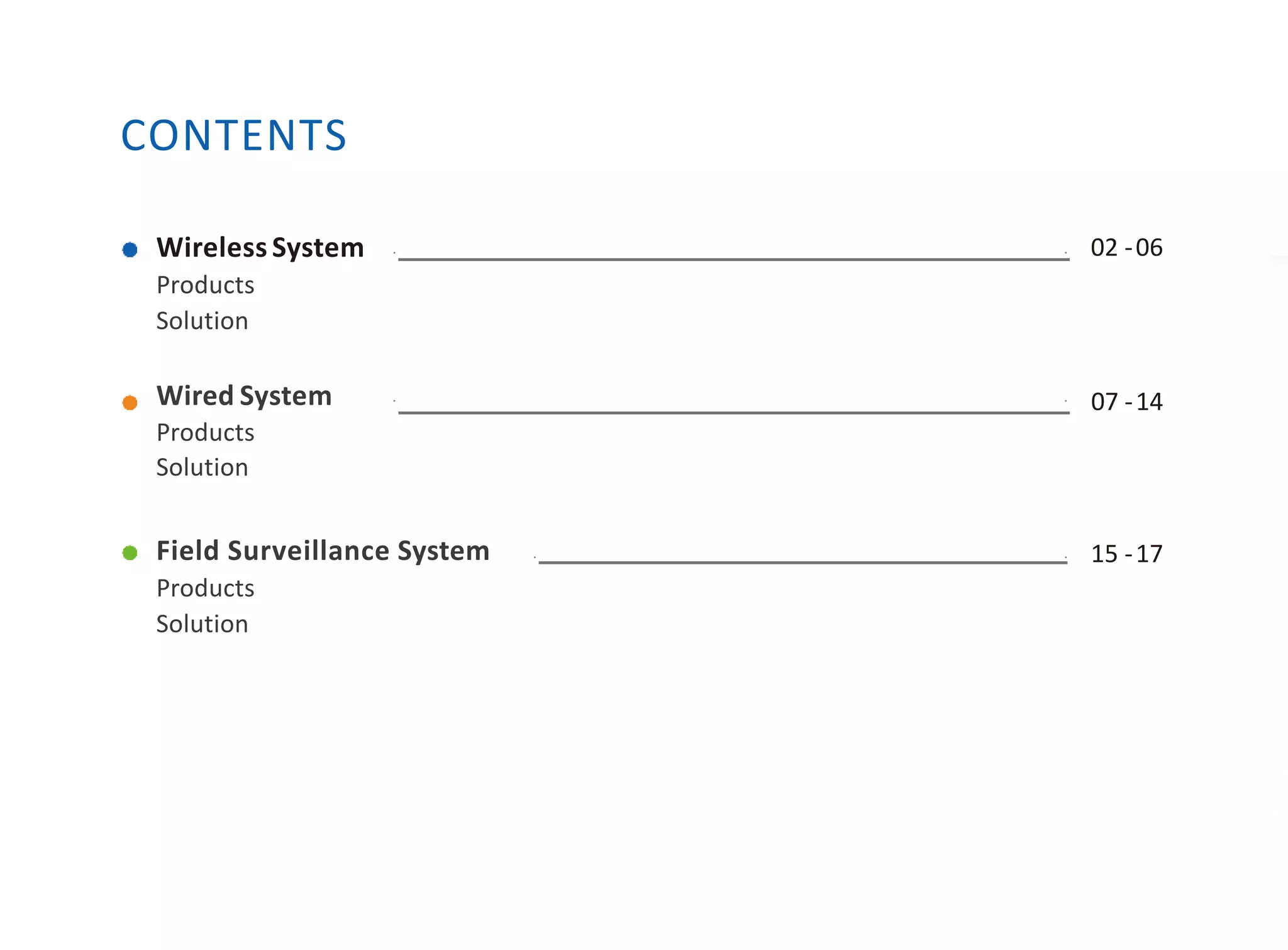

2. CONTENTS
Wireless System
Products
Solution
Wired System
Products
Solution
Field Surveillance System
Products
Solution
02 -06
07 -14
15 -17

3. Door/Window
Detector
PanicButton
Siren
Wireless
The whole system can be installed in afew quick
steps. Two-way communicationwith a long
transmissionrange.
Alarm + Video
Detectorsplus Wi-Ficamerato minimize the
probabilities of missand falsealarm effectively
Easy
Enjoyyour home security system with easy paring
and friendly userinterface
APP
Whereveryou are, you can controland monitor
your home security with your cellphone
AlarmHub
Match
with
Wi-FiCamera
Wireless System
PIRDetector
2
DMSS

4. • 32 wireless zones, up to 150mtransmission
distance (openspace/nointerference)
• 16 wireless key fobs(ARA22-W)
• 4 wirelesssirens
• Built-inspeaker
• Wi-Fi (IEEE802.11)
• DC5V, Max10W
• 2 wired zones
• 32 wireless zones, up to 150mtransmission
distance (open space/no interference)
• 8 wireless key fobs(ARA22-W)
• 4 wireless sirens
• 4CH IPC Surveillance
• 10s voice message
• Wi-Fi (IEEE802.11)
• PSTN, GSM and TCP/IP
• RFID reader(arm/disarm)
• Micro SD card that records in aloop
• DC12V, Max12W
ARC2000B-W
Alarm Hub
ARC5402A-GW
Video Alarm Control Panel
Remote 4CHRemote
GSM
MicroSD
Controller
3
Controller
• The “brain” of your intrusion securitysystem.
• Control all of your sensors andsirens.
• Report abnormal situation toyour smartphone.

5. • 25mm magnetgap
• Screwor 3M glue tomount
• Built-in tamperswitch
• 1×CR123A battery
ARD311-W
Door/Window
MagneticDetector
• Arm/ Stayarm / Disarm/ SOS
• LED indicator
• Work withARC2000B-W,
ARC5402A-GW
ARA22-W
Four-KeyRemoteControl
• 85 dB/m
• Built-intamperswitch
• Wallmount
• 4×CR123A battery
• Activation via one
easy-to-usebutton
• IntegratedLED toindicate
signaltransmission
• Neck strapincluded
• Long-life lithiumbattery
included
ARA10-W
Siren
ARD800-W
PanicButton
• 12m/ 90°detecting
range/angle
• Pet immunity18kg
• Built-intamperswitch
• Wall mount,2.2-2.5m
installationheight
• 1×CR123A battery
• ABS plastic
ARD1231-W
PIRDetector
KIT Devices
The wireless intrusion alarm system is based on Dahua Airfly technology. It delivers
large transmission range, ensures ‘Two-way’ security communication. It adopts
green design to save energy, enabling up to 3 years battery life for thedetectors.
4
ARD1611-W
Curtain PIRDetector
• 10m/15°detecting
range/angle
• Built-in tamperswitch
• Ceiling/Wallmount,
2.2-2.5m installationheight
• 1xCR123A battery
• ABS plastic

6. KIT
DHI-ART-ARC2000B-06-C35
DHI-ART-ARC2000B-03
5
DHI-ART-ARC5402A-GW-10-A35-C35
DHI-ART-ARC5402A-GW-06-A35
● New stylish package, newexperience
● Complete accessories, easy installation andoperation
● Excellent cost performance

7. Place wireless sensors
anywhere and batteries
last three years. No
phone line is needed,
when an alarm is
triggered it uses Wi-Fi
or cellular technology
to instantlytell usof any
break-insin your home.
Youcontrol your
system, arming and
disarming it using
eithera handykeychain
remotely, or using
smartphone APP.
Cutting-edge wireless
communication. No
installation fees.No
contracts and monthly
fees. Just intelligent
home security.
Wi-Fi
Airfly
Airfly
AlarmSensor
IPCWi-Fi
Features Recommended
ARC5402A-GW
Video Alarm Control Panel
LCD Screen， TouchButtons
Wi-Fi，IPCsurveillance
ARD1231-W
MotionDetector
12m(40feet)and90
degrees
Petimmunity18kg(40lbs)
ARD311-W
Door/WindowContact
25mmmagnetgap
CAT5e
GSM
EasyInstallationAlarm DevicesDahuaAirfly
IPC Surveillance Smartphone APP EventMessage
Internet
Wireless HomeSecurity
• Mangealarmsystemincludingarm/disarm,
eventlist, and media files
• Receive&respondtoalarmnotifications
APP

8. Wired System
Reliability
EOL resisters allow the control panel to supervise the field
wiring for open or short circuitconditions.
Completeness
Wide product portfolio includes motion detector, door/window
detector, keypad, siren, and module
Alarm + Video
Integration of surveillance cameras with alarm controller to
view your home/store fromanywhere.
Software
The PC alarm client can configure ,manage and monitor
dozens of controllers
CurtainPIR
Detector
Siren
Camera
Alarm
ControllerKeypad
Triple-Tech
PIRDetector
7

9. Controller
Controller
•High performance controllers are embedded
with Linux OS, high reliability
• Whole series can be used in variousapplications
• Alarm plus CCTV can minimize the probabilities
of miss alarm and false alarmeffectively
Controller
2 Series GeneralController
Model
ARC2016C-(G) ARC2008C-(G)
On-board Zones 16 8
HardwireExpansionZone — —
PGMOutput 4, expansion to 20(ARM708/ARM716) 4, expansion to 20 (ARM708/ARM716)
Keypad 8 8
Wireless KeyFob 8 (ARA21-W) 8 (ARA21-W)
TamperSwitch 1 1
Video Input — —
Max RecordRate — —
Display — —
Audio In/Out — —
Ethernet 1×100M port 1×100Mport
PSTN 1, Contact IDprotocol 1, Contact IDprotocol
GPRS/WCDMA GPRS(-G) GPRS(-G)
Max HDD — —
Battery Required Max.DC12V 7Ah Max.DC12V 7Ah
Dimensions 275mm×275mm×75mm 275mm×275mm×75mm
WorkingTemperature -10°C~＋55°C -10°C~＋55°C
Power
AC 100-240V,50/60Hz
Max 35W
AC 100-240V,50/60Hz
Max 35W
8

10. Controller
Controller
5 Series VideoController 9 Series MBusController
Model
ARC5808C-(C) ARC5408C-(C) ARC5408C-(C)W ARC9016C-(G)
On-board Zones 8 8 8 (wired) + 32 (wireless) 16
Hardwire Expansion Zone expansion to 72(ARM808-S) expansion to 72(ARM808-S) - expansion to 256(ARM801/ARM802)
PGM Output 4 4 1 + 4 wireless sirens 8,exapnsaion to 64 (ARM708/ARM716)
Keypad 8 8 8 8
Wireless Key Fob 16 (ARA21-W) 16 (ARA21-W) 16 (ARA20-W) —
Tamper Switch 1 1 1 1
Video Input 8CH CVBS/IPC 4CH CVBS/IPC 4CH HDCVI/CVBS/IPC —
Max Record Rate 240fps@720P 120fps@720P 120fps@720P —
Display HDMI,VGA,TV HDMI,VGA,TV - —
Audio In/Out 4/1 4/1 1/1 —
Ethernet 1×100M port 1x100M port 1x100M port 1×100M port
PSTN 1, Contact IDprotocol 1, Contact IDprotocol 1, Contact IDprotocol 1, Contact IDprotocol
GPRS/WCDMA WCDMA(-C) WCDMA(-C) WCDMA(-C) GPRS(-G)
Max HDD 2x3.5-inch HDD 4TB 2x3.5-inch HDD 4TB 1x2.5-inch HDD 2TB —
BatteryRequired Max.DC12V 7Ah Max.DC12V 7Ah Max.DC12V 7Ah Max.DC12V 7Ah
Dimensions 350mm×350mm×93mm 350mm×350mm×93mm 275mmx275mmx75mm 280mm×280mm×90mm
Working temperature -10°C~＋55°C -10°C~＋55°C -10°C~＋55°C -10°C~＋55°C
Power
AC 100-240V, 50/60Hz
Max 50W
AC 100-240V, 50/60Hz
Max 50W
AC 100-240V, 50/60Hz
Max 50W
AC 100-240V, 50/60Hz
Max 35W
9

11. Detector
Detector
PetImmunity
PIRDetector
Ceiling PIRDetector Triple-Tech
PIRDetector
OutdoorTriple-Tech
PIR Detector
Triple -TechCeiling
PIR Detector
Curtain PIRDetector CurtainPIRDetector
(86box)
Model
DH-ARD1232 DH-ARD1111C LH-928BC LH-650IC DH-ARD2111C DH-ARD1631 DH-ARD1612
Detecting Range/angle 12m/90° 6m/360° 12m/90° 12m/110° 8m/360° 6m,10m optional/15° 6m/15°
Microwave Frequency — — 10.525GHz 10.525GHz 10.525GHz — —
Mounting Type Wallmount Ceiling mount Wallmount Wall mount Ceiling mount Wallmount Ceiling/Wallmount
Installation Height 2.2m 2.5-3.6m 2.2m 2.2m 2.5-3.6m 2.2m <3.6m
Pet Immunity 25kg — 35kg 35kg — — —
Relay Output N.C./N.O. optional N.C. N.C./N.O. optional N.C./N.O. optional N.C./N.O. optional N.C./N.O. optional N.C./N.O. optional
Tamper Switch N.C. N.C. N.C. N.C. N.C. N.C. N.C.
Material ABS plastic ABS plastic ABS plastic ABS plastic ABS plastic ABS plastic ABS plastic
Working temperature -10°C~＋50°C -10°C~＋50°C -10°C~＋50°C -10°C~＋50°C -10°C~＋50°C -10°C~＋50°C -10℃~＋50℃
Dimensions 107mm×52mm×36.5mm 116mm×28.2mm 120mm×60mm×40.6mm 129.8mm×62.7mm×51.4mm 135mm×38mm 90mm×50mm×33mm 80mmx34.5mmx28mm
Power Requirements DC9-16V, 20mA DC9-16V, 20mA DC9-16V, 30mA DC9-16V, 30mA DC12-24V, 35mA DC9-16V, 22mA DC9-16V,20mA
10

12. Detector
QuadBeamDetector Dual BeamDetector
Model
LHP-200Q LHP-30D
Distance 200m 60m
Beams 4 2
DetectionSystem 4 beamscutsimultaneously 2 beamscutsimultaneously
RelayOutput N.C./N.O.optional N.C./N.O.optional
TamperSwitch N.C. N.C.
IngressProtection IP55(outdoor) IP55(outdoor)
Axis RotationAngle
Horizontally180(±90°)
Vertically20(±10°)
Horizontally 180(±90°)
Vertically20(±10°)
Material ABS plastic ABS plastic
Workingtemperature -25°C~＋55°C -25°C~＋55°C
Dimensions 345mm×110mm×105mm 195mm×80mm×77mm
PowerRequirements DC12-24V, 35mA DC12-24V, 35mA
Detector
Glass BreakDetector Wooden Door/
WindowContact
Iron DoorContact
Model
DH-ARD511 DH-ARD313 DH-ARD312
DetectingRange/Angle 5m,9m optional >20mm >40mm
Mounting Type Ceiling/Wallmount Surface mount Surface mount
RelayOutput N.C. N.C. N.C.
TamperSwitch N.C. — —
Material ABS plastic ABS plastic Plated metal
Workingtemperature -10°C~＋80°C -10°C~＋50°C -10°C~＋50°C
Dimensions 92mm×67mm×26.4mm 63.5mm×12.5mm×12.5mm 50mm×18mm×10mm
PowerRequirements DC9-16V, 150mA <DC100V,500mA <DC100V,500mA
Detector
11

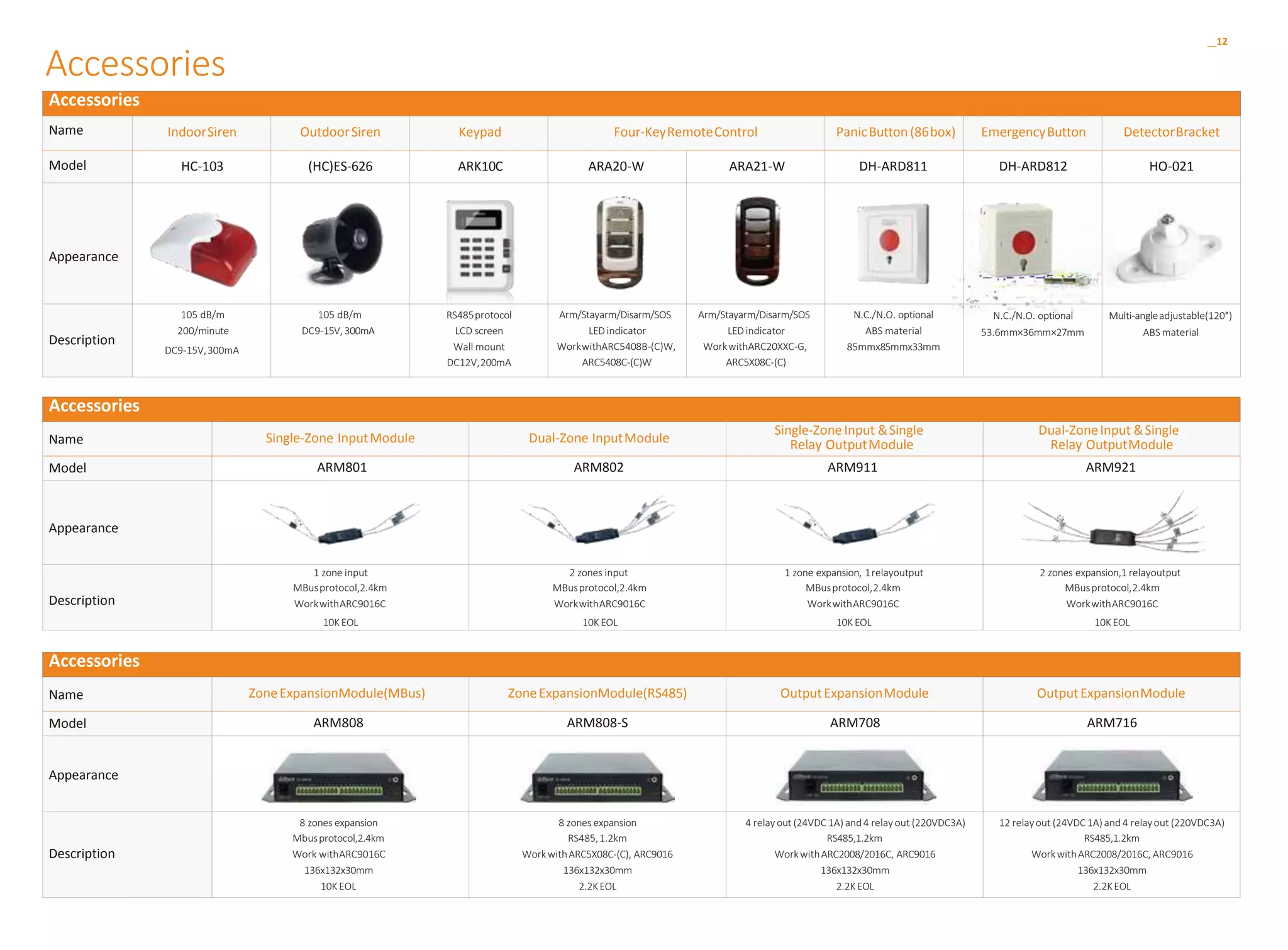

13. Accessories
Name Single-Zone InputModule Dual-Zone InputModule
Single-ZoneInput &Single
Relay OutputModule
Dual-ZoneInput &Single
Relay OutputModule
Model ARM801 ARM802 ARM911 ARM921
Appearance
Description
1 zone input
MBusprotocol,2.4km
WorkwithARC9016C
10K EOL
2 zones input
MBusprotocol,2.4km
WorkwithARC9016C
10K EOL
1 zone expansion, 1relayoutput
MBusprotocol,2.4km
WorkwithARC9016C
10K EOL
2 zones expansion,1 relayoutput
MBusprotocol,2.4km
WorkwithARC9016C
10K EOL
Accessories
Name IndoorSiren OutdoorSiren Keypad Four-KeyRemoteControl PanicButton(86box) EmergencyButton DetectorBracket
Model HC-103 (HC)ES-626 ARK10C ARA20-W ARA21-W DH-ARD811 DH-ARD812 HO-021
Appearance
Description
105 dB/m
200/minute
DC9-15V,300mA
105 dB/m
DC9-15V,300mA
RS485protocol
LCD screen
Wall mount
DC12V,200mA
Arm/Stayarm/Disarm/SOS
LED indicator
WorkwithARC5408B-(C)W,
ARC5408C-(C)W
Arm/Stayarm/Disarm/SOS
LED indicator
WorkwithARC20XXC-G,
ARC5X08C-(C)
N.C./N.O. optional
ABS material
85mmx85mmx33mm
N.C./N.O. optional
53.6mm×36mm×27mm
Multi-angleadjustable(120°)
ABS material
Accessories
12
Accessories
Name ZoneExpansionModule(MBus) ZoneExpansionModule(RS485) OutputExpansionModule OutputExpansionModule
Model ARM808 ARM808-S ARM708 ARM716
Appearance
Description
8 zones expansion 8 zones expansion 4 relayout (24VDC 1A) and4 relayout (220VDC3A) 12 relayout (24VDC1A) and4 relayout (220VDC3A)
Mbusprotocol,2.4km RS485,1.2km RS485,1.2km RS485,1.2km
Work withARC9016C WorkwithARC5X08C-(C), ARC9016 WorkwithARC2008/2016C, ARC9016 WorkwithARC2008/2016C, ARC9016
136x132x30mm 136x132x30mm 136x132x30mm 136x132x30mm
10K EOL 2.2KEOL 2.2KEOL 2.2KEOL

14. SOFTWARE & MANAGEMENTDEVICE
Alarm Client
AlarmClient
Open, Free
Monitor and control youralarmsystem
Friendly UIdesign
Devices
Supported Devices
ARC2008C-(G), ARC2016C-(G),
ARC5408C-(C), ARC5808C-(C)
Max. AlarmControllers 50
Functions
Configuration Zone config, Devicesetup
Control Arm, Stayarm,Disarm
Monitor Zone status,Livepreview
Push Alarm
Log Event,Local
AlarmType Detectorevents, Video events, Localalarm
Video Alarm
PushType Pop up, Video,Text
Video DisplaySplit 4
LivePreview
Video DisplaySplit 1/9
OS Windows7/8
Minimum
System
Requirements
GPU Intel(R) HD Graphicsor above
CPU Intel(R)Core(TM)i3or above
Main Memory 2GB orabove
DisplayResolution 1280×1024 orabove
AMS5000
Alarm ManagementSystem
Alarm visualization
Intelligent distribution
Windows splitautomatically
Video privacyprotection
Devices
Supported Devices
Alarm Controller,NVR,HDCVIRecorder,IP
Camera,VideoMatrix
Add DeviceMethod IP/Domain,AutoRegister
System
Performance
Max. CascadeLevel 2-level
Max. DistributedServer 50
Max. ManagementChannels 5000
Max. NumberofAlarm
ProcessPerSecond 1000
Max. RegisteredUsers 5000
Max. OnlineUsers 500
LivePreview Video DisplaySplit 1/4/6/8/9/13/16/20/25/36split
13

15. Integration of alarm system,
CCTV system with other
devices, achieving 24 hours
monitoring. AMS can
euectively confirm alarm
and arrange security guard
to handle events in time,
according to alarm level. It
can be widely used in
shopping mall, bankoutlets,
ATM,storage and other
places, where alarm system
need to be constructed or
upgraded.
Features Recommended
AMS5000
5000 channels(Detectors&Cameras)
Intelligent DistributionAlarmVisualization WindowsSplited
Automatically
Privacy Protection
Internet
AlarmController
Shopping Mall Oflce Building
AlarmController
PIRDetector
Siren
Wi-FiCamera
PanicButton
Door/Window
Detector
Camera
CurtainPIR
Detector
Keypad
Siren
Dual-Tech
PIRDetector
Alarm ManagementSolution

16. Field Surveillance Unit
Model
ARC6416U-C FSU2004H-F
Analog Alarm Inputs 8 AI,4-20mAcurrenttype 4 AI,4-20mAcurrenttype
Digital AlarmInputs 16 DI(drycontact)interface 4 DI(drycontact)interface
Smoke Detector 1 1
RS485Inputs 8 3
RS232Inputs 2 1
ITU-Bus - 1 group, up to 64temperatureprobes(detectors)
IR Control - 1 group,connect with infraredemitter
Protocol Modbus-RTU,Modbus-AS6CII,1363,Modbus-TCP,etc. Modbus-RTU,Modbus-AS6CII,1363,Modbus-TCP,etc.
Alarm Outputs 4 NO/NC programmableoutputs 2 NO/NC programmableoutputs
IP CameraInput 4CH@1080P 2CH@1080P
HDD 2x4TB 1x2TB
SDCard 32GBincluding 32GBincluding
Network Interface 4x100MPorts,2GigabitPorts 1x100MPort
Cellular IP modem
WCDMA/GPRS/GSM (-C) LTE/WCDMA/CDMA/GPRS/GSMandmore(-F)
Power
DC 12V/DC -48V/DC 8~48V
20W (Loadpowersupply<60W)
DC 12V/DC8~48V
15W (Loadpowersupply<30W)
Working Tempurature
-10°C ~ +55°C
(+14°F~+131°F)
-10°C ~ +55°C
(+14°F~+131°F)
Installation Rack-mounted Wallmount,desktop
Field SurveillanceSystem
● Power & environment supervision
● Optional user-defined linkages and alertsagainst
physical , environmentalor human threats
● Video surveillance
Field SurveillanceSystem
15

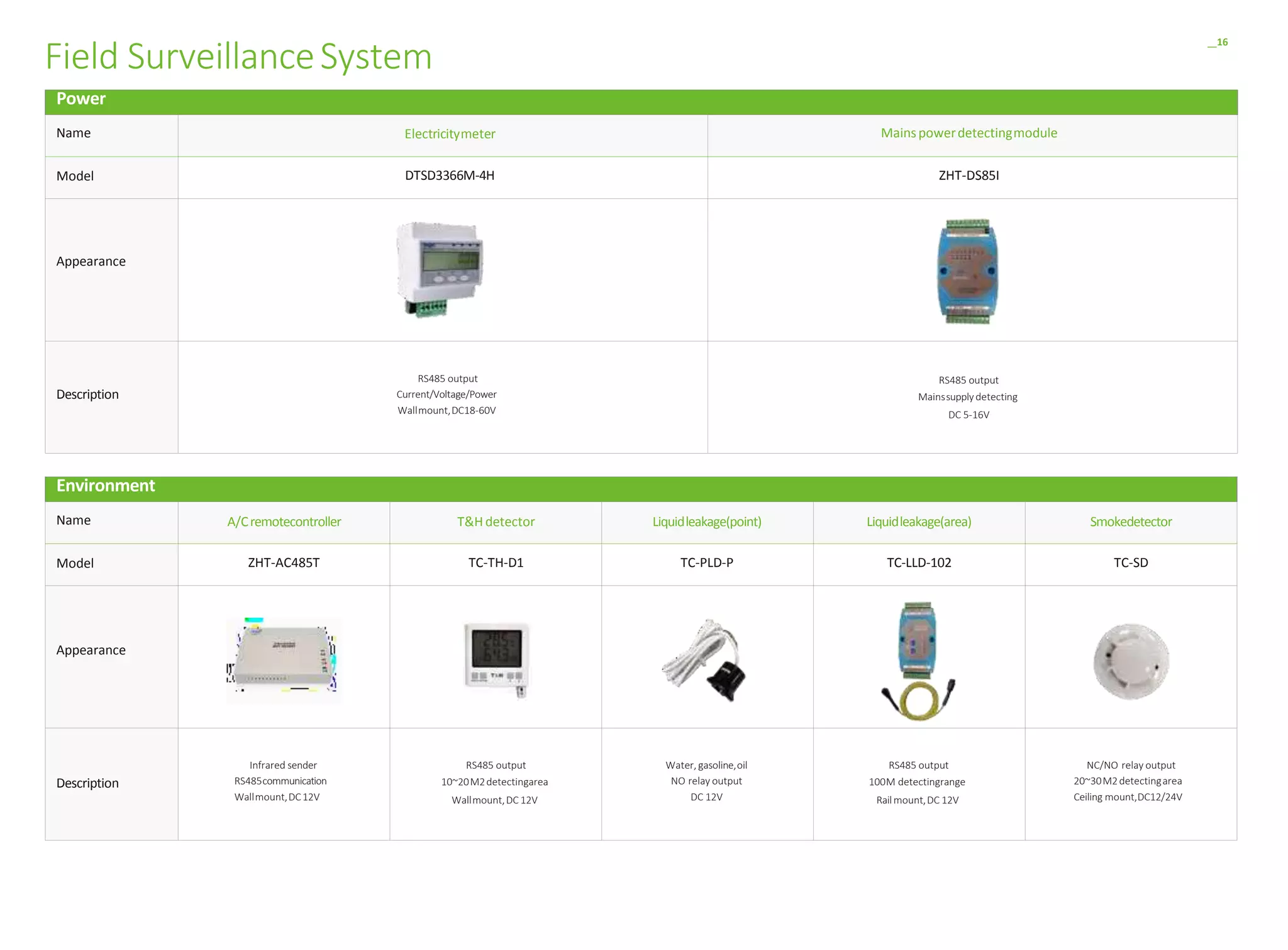

17. Power
Name Electricitymeter Mainspowerdetectingmodule
Model DTSD3366M-4H ZHT-DS85I
Appearance
Description
RS485 output
Current/Voltage/Power
Wallmount,DC18-60V
RS485 output
Mainssupplydetecting
DC 5-16V
Environment
Name A/Cremotecontroller T&Hdetector Liquidleakage(point) Liquidleakage(area) Smokedetector
Model ZHT-AC485T TC-TH-D1 TC-PLD-P TC-LLD-102 TC-SD
Appearance
Description
Infrared sender
RS485communication
Wallmount,DC12V
RS485 output
10~20M2detectingarea
Wallmount,DC 12V
Water, gasoline,oil
NO relay output
DC 12V
RS485 output
100M detectingrange
Railmount,DC 12V
NC/NO relay output
20~30M2detectingarea
Ceiling mount,DC12/24V
Field SurveillanceSystem
16

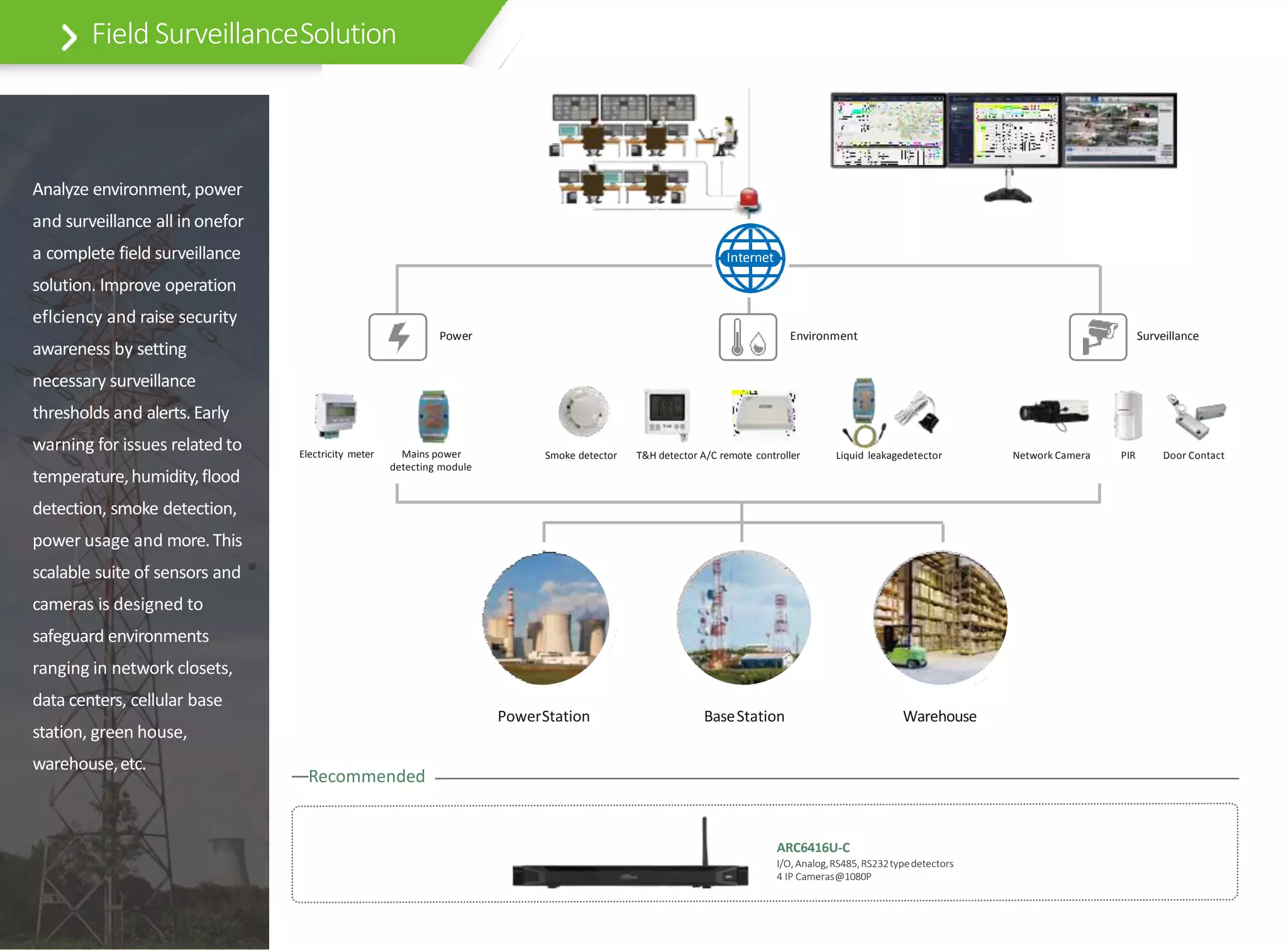

18. Analyze environment, power
and surveillance all in onefor
a complete field surveillance
solution. Improve operation
eflciency and raise security
awareness by setting
necessary surveillance
thresholds and alerts. Early
warning for issues related to
temperature,humidity,flood
detection, smoke detection,
power usage and more.This
scalable suite of sensors and
cameras is designed to
safeguard environments
ranging in network closets,
data centers, cellular base
station, green house,
warehouse,etc.
Recommended
ARC6416U-C
I/O, Analog,RS485,RS232typedetectors
4 IP Cameras@1080P
Power Environment Surveillance
Liquid leakagedetectorT&H detector A/C remote controllerSmoke detectorElectricity meter Mains power
detecting module
Network Camera PIR Door Contact
Internet
BaseStationPowerStation Warehouse
Field SurveillanceSolution

19. QUALITY BY DESIGN
© Dahua Technology, All rights
reserved
* Design and specifications are subject to change without notice.
BONANJO, ATRIUM Mall - SPAR 2e Etage, Douala - Cameroon
Phone : +237 696 27 07 36
E-mail : contact@dahuasecurity.cm
Website : www.dahuasecurity.com
