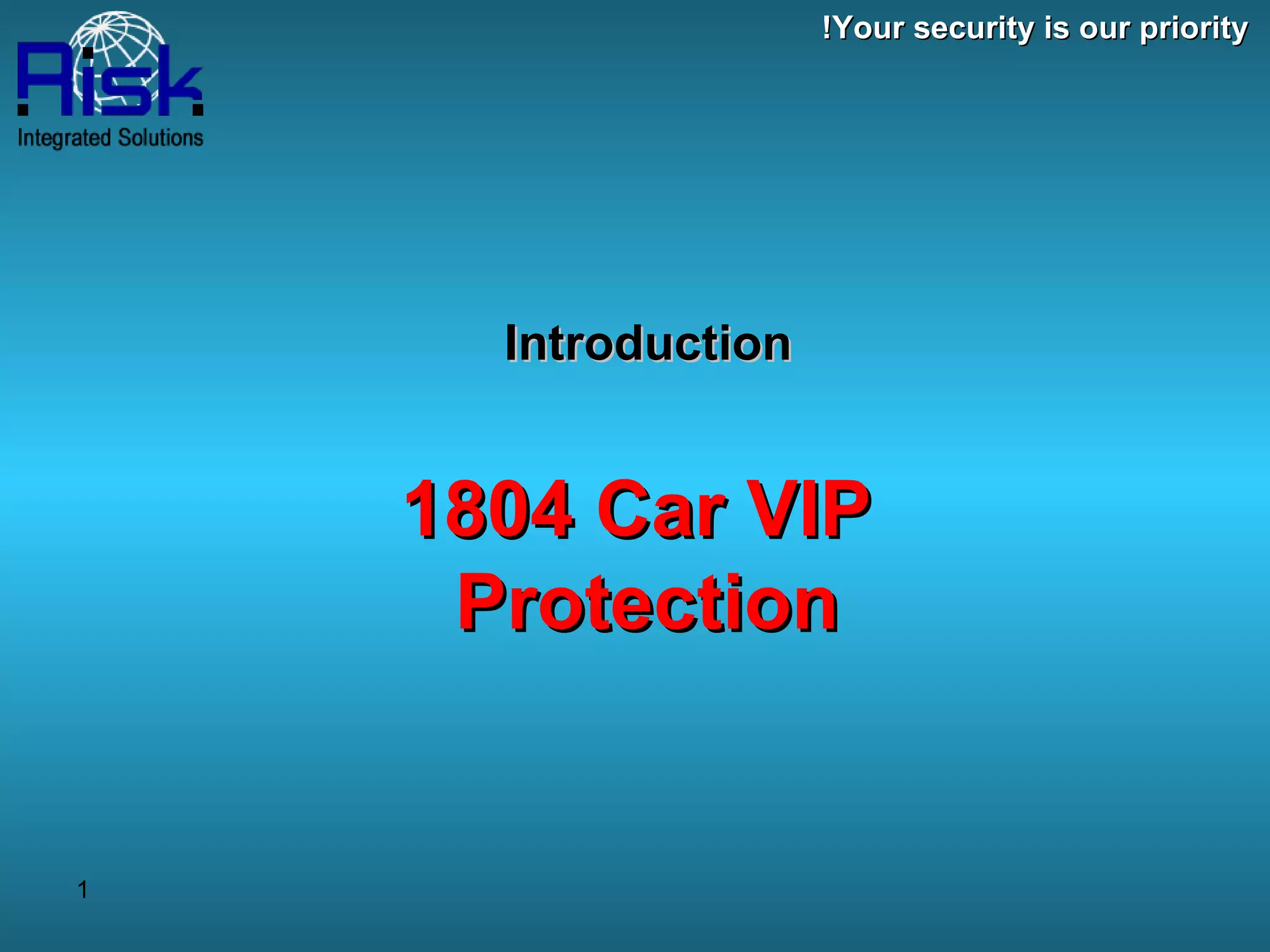

1. Introduction 1804 Car VIP Protection Your security is our priority!

2. CAR VIP PROTECTION with Jammer – Very High Output Power 1360 Watts Modular System Your security is our priority!

3. The jammer is a vehicle mounted very high power jammer designed for blocking remote controlled improvised explosive devices Used by terrorist. The jammer is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs. The unit controlled by Microprocessor for PLL programming and use unique modulation technique based on mixed signal for maximum jamming efficiency. Each module of the jammer transmits unique noise signal which create "firewall” between the transmitter and its receiver. The jamming signal is being generated by Multi-VCO chain which results very high sweeping time along the bands hence create high RF density in each part of protected frequency band. Jamming radius of the jammer depends on several conditions such as transmitter frequency and output power, distance to receiver and obstacles between. System modularity allows flexible usage in different applications. The system use Broadband Omni-Directional antennas for 360º protection. Your security is our priority! The Jammer

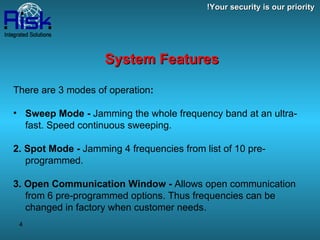

4. System Features There are 3 modes of operation : Sweep Mode - Jamming the whole frequency band at an ultra-fast. Speed continuous sweeping. 2. Spot Mode - Jamming 4 frequencies from list of 10 pre-programmed. 3. Open Communication Window - Allows open communication from 6 pre-programmed options. Thus frequencies can be changed in factory when customer needs. Your security is our priority!

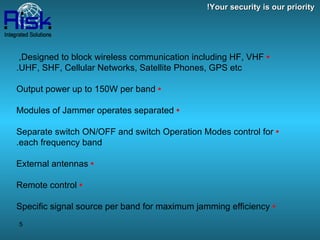

5. • Designed to block wireless communication including HF, VHF, UHF, SHF, Cellular Networks, Satellite Phones, GPS etc. • Output power up to 150W per band • Modules of Jammer operates separated • Separate switch ON/OFF and switch Operation Modes control for each frequency band. • External antennas • Remote control • Specific signal source per band for maximum jamming efficiency Your security is our priority!

6. Applications • Special Military Units • Special Police Units • VIP Protection • Bomb Disposal • Convoy Protection etc. Your security is our priority!

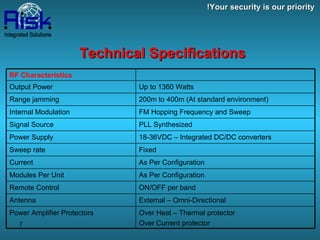

7. Technical Specifications Your security is our priority! RF Characteristics Up to 1360 Watts Output Power 200m to 400m (At standard environment) Range jamming FM Hopping Frequency and Sweep Internal Modulation PLL Synthesized Signal Source 18-36VDC – Integrated DC/DC converters Power Supply Fixed Sweep rate As Per Configuration Current As Per Configuration Modules Per Unit ON/OFF per band Remote Control External – Omni-Directional Antenna Over Heat – Thermal protector Over Current protector Power Amplifier Protectors

8. Your security is our priority! Jamming Frequency Range 20-3000 MHz Full band jamming – No Gaps Using Multi-VCO Frequency Band 2 Way Radio DTMF Cellular Pagers Etc. Air Interface Standards Physical Data 500 x 430 x 176 mm – 19” x 4U (9 Racks) Dimensions Approx. 135Kg Weight

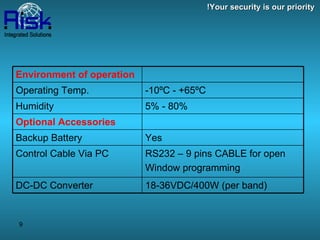

9. Your security is our priority! Environment of operation -10ºC - +65ºC Operating Temp. 5% - 80% Humidity Optional Accessories Yes Backup Battery RS232 – 9 pins CABLE for open Window programming Control Cable Via PC 18-36VDC/400W (per band) DC-DC Converter

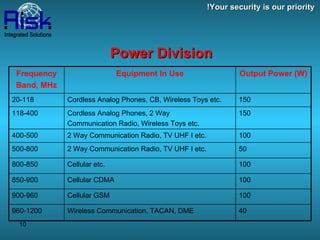

10. Power Division Your security is our priority! Output Power (W) Equipment In Use Frequency Band, MHz 150 Cordless Analog Phones, CB, Wireless Toys etc. 20-118 150 Cordless Analog Phones, 2 Way Communication Radio, Wireless Toys etc. 118-400 100 2 Way Communication Radio, TV UHF I etc. 400-500 50 2 Way Communication Radio, TV UHF I etc. 500-800 100 Cellular etc. 800-850 100 Cellular CDMA 850-900 100 Cellular GSM 900-960 40 Wireless Communication, TACAN, DME 960-1200

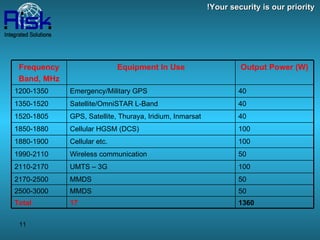

11. Your security is our priority! Output Power (W) Equipment In Use Frequency Band, MHz 40 Emergency/Military GPS 1200-1350 40 Satellite/OmniSTAR L-Band 1350-1520 40 GPS, Satellite, Thuraya, Iridium, Inmarsat 1520-1805 100 Cellular HGSM (DCS) 1850-1880 100 Cellular etc. 1880-1900 50 Wireless communication 1990-2110 100 UMTS – 3G 2110-2170 50 MMDS 2170-2500 50 MMDS 2500-3000 1360 17 Total

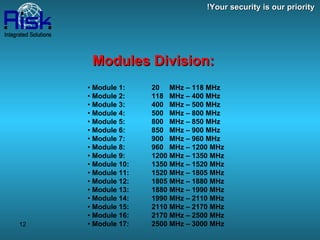

12. • Module 1: 20 MHz – 118 MHz • Module 2: 118 MHz – 400 MHz • Module 3: 400 MHz – 500 MHz • Module 4: 500 MHz – 800 MHz • Module 5: 800 MHz – 850 MHz • Module 6: 850 MHz – 900 MHz • Module 7: 900 MHz – 960 MHz • Module 8: 960 MHz – 1200 MHz • Module 9: 1200 MHz – 1350 MHz • Module 10: 1350 MHz – 1520 MHz • Module 11: 1520 MHz – 1805 MHz • Module 12: 1805 MHz – 1880 MHz • Module 13: 1880 MHz – 1990 MHz • Module 14: 1990 MHz – 2110 MHz • Module 15: 2110 MHz – 2170 MHz • Module 16: 2170 MHz – 2500 MHz • Module 17: 2500 MHz – 3000 MHz Modules Division: Your security is our priority!

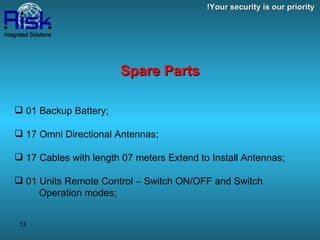

13. 01 Backup Battery; 17 Omni Directional Antennas; 17 Cables with length 07 meters Extend to Install Antennas; 01 Units Remote Control – Switch ON/OFF and Switch Operation modes; Spare Parts Your security is our priority!
