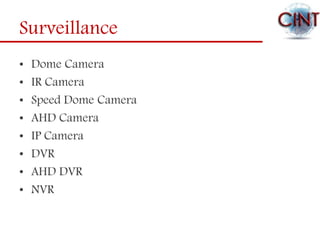

Surveillance

Surveillance
• Dome Camera
• IR Camera
• Speed Dome Camera
• AHD Camera
• IP Camera

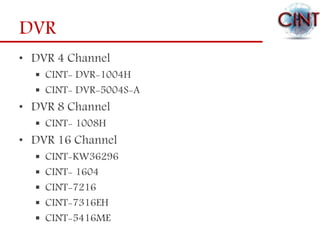

• DVR
• AHD DVR

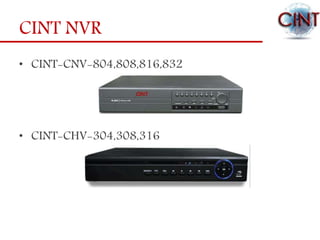

• NVR

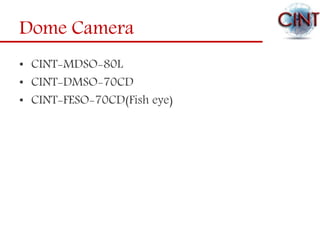

Dome Camera
• CINT-MDSO-80L
• CINT-DMSO-70CD
• CINT-FESO-70CD(Fish eye)

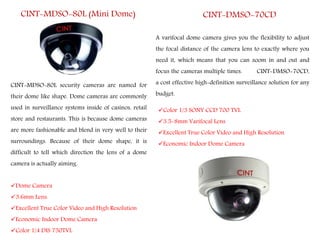

CINT-MDSO-80L (Mini Dome)
Dome Camera
3.6mm Lens.
Excellent True Color Video and High Resolution
Economic Indoor Dome Camera
Color 1/4 DIS 750TVL
CINT-MDSO-80L security cameras are named for
their dome like shape. Dome cameras are commonly
used in surveillance systems inside of casinos, retail
store and restaurants. This is because dome cameras
are more fashionable and blend in very well to their
surroundings. Because of their dome shape, it is
difficult to tell which direction the lens of a dome
camera is actually aiming.
A varifocal dome camera gives you the flexibility to adjust
the focal distance of the camera lens to exactly where you
need it, which means that you can zoom in and out and
focus the cameras multiple times. CINT-DMSO-70CD,
a cost effective high-definition surveillance solution for any
budget.
CINT-DMSO-70CD
Color 1/3 SONY CCD 700 TVL
3.5-8mm Varifocal Lens
Excellent True Color Video and High Resolution
Economic Indoor Dome Camera

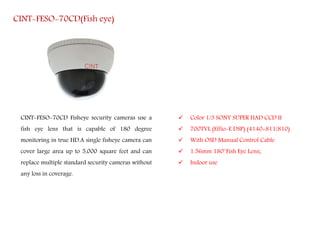

CINT-FESO-70CD(Fish eye)
CINT-FESO-70CD Fisheye security cameras use a
fish eye lens that is capable of 180 degree
monitoring in true HD.A single fisheye camera can
cover large area up to 5,000 square feet and can
replace multiple standard security cameras without
any loss in coverage.
 Color 1/3 SONY SUPER HAD CCD II
 700TVL (Effio-E DSP) (4140+811/810)
 With OSD Manual Control Cable
 1.56mm 180°Fish Eye Lens;
 Indoor use

Model : CINT-MDSO-80L (Mini Dome) CINT-DMSO-70CD CINT-FESO-70CD
Image Sensor Color 1/4 SONY SUPER HAD CCD DSP Color 1/3 SONY CCD
Color 1/3″ Sony Ex-view CCD II
EFFIO-E DSP (960H)
Resolution/DSP 750 TV Lines 700 TV Lines
Color: 700TVL; B/W: 750TVL /
Sony Enhanced EFFIO-E
Pixels PAL=752(H) x 582(V); NTSC= 768(H) x
494(V),
PAL NTSC:976(H )×494(V)
Effective Pixels-570K
(976H*582V) 480K (976H*494V)
Total Pixels:610K (1020H*596V)
520K (1020H*508V)
TV System PAL/NTSC PAL/NTSC PAL/NTSC
Sync System Internal synchronization Internal synchronization Internal synchronization
Min. Illumination 0.5 Lux 0.1Lux
Color: 0.01 Lux (F1.2) B/W: 0.001
Lux (F1.2)
Electronic Shutter
PAL = 1/50 – 1/100,000 seconds,
NTSC = 1/60 – 1/100,000 seconds
PAL = 1/50 – 1/100,000 seconds
NTSC = 1/60 – 1/100,000 seconds
Auto: 1/50~1/10,000
Manual:1/50, 1/100, 1/250,
1/500,1/1000, 1/2000,
1/4000,1/10000
Auto: 1/60~1/10,000 Manual:
1/60, 1/100, 1/250, 1/500, 1/1000,
1/2000, 1/4000,1/10000
Lens 3.6mm board lens 3.5-8mm Varifocal Lens 1.56mm 180°Fish Eye Lens
Power Supply 12V DC, 120mA 12V DC DC 12V, Consumption-1A
Dimension 117 x 77(mm) 124mm(H) x 138mm(W)td> 95mm (H) x 110mm (W)
Weight 250g 420g N/A
Operation temp -10°C ~ 50°C(Humidity: 95% max)
-10°C ~ 50°C(Humidity: 95%
max)
-10℃ ~50℃, Maximum: RH80% ;
RH90%
Storage temp -20°C ~ 60°C(Humidity: 95% max)
-20°C ~ 60°C(Humidity: 95%
max) -30℃ ~60℃ / 20% ~90%

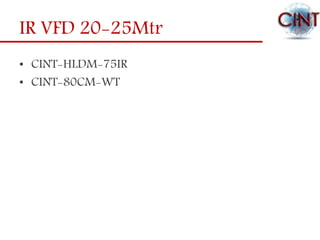

IR VFD 20-25Mtr
• CINT-HLDM-75IR
• CINT-80CM-WT

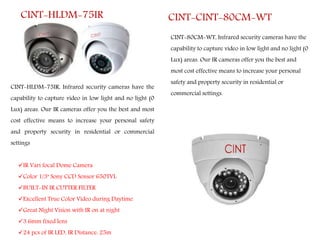

CINT-HLDM-75IR
CINT-HLDM-75IR, Infrared security cameras have the
capability to capture video in low light and no light (0
Lux) areas. Our IR cameras offer you the best and most
cost effective means to increase your personal safety
and property security in residential or commercial
settings
IR Vari focal Dome Camera
Color 1/3" Sony CCD Sensor 650TVL
BUILT-IN IR CUTTER FILTER
Excellent True Color Video during Daytime
Great Night Vision with IR on at night
3.6mm fixed lens
24 pcs of IR LED, IR Distance: 25m
CINT-80CM-WT, Infrared security cameras have the
capability to capture video in low light and no light (0
Lux) areas. Our IR cameras offer you the best and
most cost effective means to increase your personal
safety and property security in residential or
commercial settings.
CINT-CINT-80CM-WT

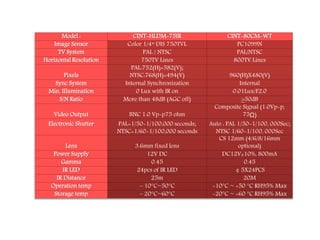

Model : CINT-HLDM-75IR CINT-80CM-WT
Image Sensor Color 1/4″ DIS 750TVL PC1099N
TV System PAL / NTSC PAL/NTSC
Horizontal Resolution 750TV Lines 800TV Lines
Pixels
PAL:752(H)×582(V);
NTSC:768(H)×494(V) 960(H)X480(V)
Sync System Internal Synchronization Internal
Min. Illumination 0 Lux with IR on 0.01Lux/F2.0
S/N Ratio More than 48dB (AGC off) ≥50dB
Video Output BNC 1.0 Vp-p75 ohm
Composite Signal (1.0Vp-p,
75Ω)
Electronic Shutter PAL=1/50-1/100,000 seconds;
NTSC=1/60-1/100,000 seconds
Auto : PAL 1/50-1/100, 000Sec;
NTSC 1/60-1/100, 000Sec
Lens 3.6mm fixed lens
CS 12mm (4/6/8/16mm
optional)
Power Supply 12V DC DC12V±10%, 800mA
Gamma 0.45 0.45
IR LED 24pcs of IR LED ￠5X24PCS
IR Distance 25m 20M
Operation temp – 10°C~50°C -10°C ~ +50 °C RH95% Max
Storage temp – 20°C~60°C -20°C ~ +60 °C RH95% Max

IR 25 Mtr
• CINT-BRSO-75DS
• CINT-BL24-80CM

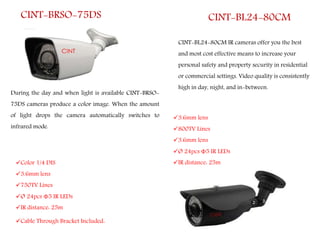

CINT-BRSO-75DS
During the day and when light is available CINT-BRSO-
75DS cameras produce a color image. When the amount
of light drops the camera automatically switches to
infrared mode.
CINT-BL24-80CM
CINT-BL24-80CM IR cameras offer you the best
and most cost effective means to increase your
personal safety and property security in residential
or commercial settings. Video quality is consistently
high in day, night, and in-between.
Color 1/4 DIS
3.6mm lens
750TV Lines
Ø 24pcs Φ5 IR LEDs
IR distance: 25m
Cable Through Bracket Included.
3.6mm lens
800TV Lines
3.6mm lens
Ø 24pcs Φ5 IR LEDs
IR distance: 25m

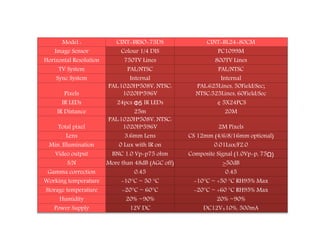

Model : CINT-BRSO-75DS CINT-BL24-80CM
Image Sensor Colour 1/4 DIS PC1099M
TV System PAL/NTSC PAL/NTSC
Sync System Internal Internal
Pixels
PAL:1020H*508V, NTSC:
1020H*596V
PAL:625Lines, 50Field/Sec;
NTSC:525Lines, 60Field/Sec
IR LEDs 24pcs Φ5 IR LEDs ￠5X24PCS
IR Distance 25m 20M
Total pixel
PAL:1020H*508V, NTSC:
1020H*596V 2M Pixels
Lens 3.6mm Lens CS 12mm (4/6/8/16mm optional)
Min. Illumination 0 Lux with IR on 0.01Lux/F2.0
Video output BNC 1.0 Vp-p75 ohm Composite Signal (1.0Vp-p, 75Ω)
S/N More than 48dB (AGC off) ≥50dB
Gamma correction 0.45 0.45
Working temperature -10°C ~ 50 °C -10°C ~ +50 °C RH95% Max
Storage temperature -20°C ~ 60°C -20°C ~ +60 °C RH95% Max
Humidity 20% ~90% 20% ~90%
Power Supply 12V DC DC12V±10%, 500mA

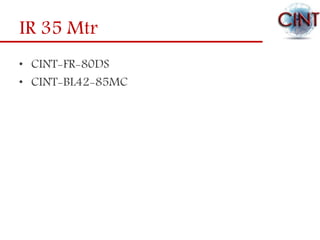

IR 35 Mtr

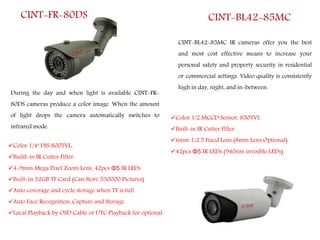

• CINT-FR-80DS
• CINT-BL42-85MC

CINT-FR-80DS
Color 1/4" DIS 800TVL,
Build-in IR Cutter Filter
4-9mm Mega Pixel Zoom Lens, 42pcs Φ5 IR LEDs
Built-in 32GB TF Card (Can Store 530000 Pictures)
Auto coverage and cycle storage when TF is full
Auto Face Recognition, Capture and Storage
Local Playback by OSD Cable or UTC Playback for optional
During the day and when light is available CINT-FR-
80DS cameras produce a color image. When the amount
of light drops the camera automatically switches to
infrared mode.
CINT-BL42-85MC
CINT-BL42-85MC IR cameras offer you the best
and most cost effective means to increase your
personal safety and property security in residential
or commercial settings. Video quality is consistently
Color 1/2 MCCD Sensor, 850TVL
Built-in IR Cutter Filter
6mm 1/2.5 Fixed Lens (8mm Lens Optional)
42pcs Φ5 IR LEDs (940nm invisible LEDs)

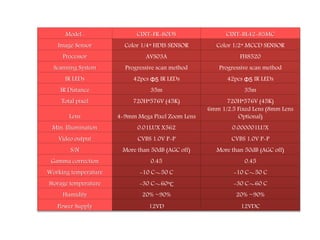

Model : CINT-FR-80DS CINT-BL42-85MC
Image Sensor Color 1/4″ HDIS SENSOR Color 1/2″ MCCD SENSOR
Processor AVS03A FH8520
Scanning System Progressive scan method Progressive scan method
IR LEDs 42pcs Φ5 IR LEDs 42pcs Φ5 IR LEDs
IR Distance 35m 35m
Total pixel 720H*576V (45K) 720H*576V (45K)
Lens 4-9mm Mega Pixel Zoom Lens
6mm 1/2.5 Fixed Lens (8mm Lens
Optional)
Min. Illumination 0.01LUX X562 0.000001LUX
Video output CVBS 1.0V P-P CVBS 1.0V P-P
S/N More than 50dB (AGC off) More than 50dB (AGC off)
Gamma correction 0.45 0.45
Working temperature -10 C～50 C -10 C～50 C
Storage temperature -30 C～60℃ -30 C～60 C
Humidity 20% ~90% 20% ~90%
Power Supply 12VD 12VDC

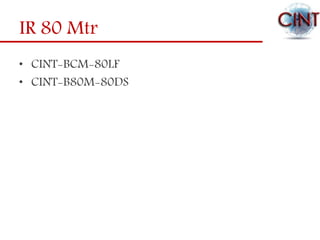

IR 80 Mtr
• CINT-BCM-80LF
• CINT-B80M-80DS

A CINT-BCM-80LF camera offers the best and
most cost effective means to increase your personal
safety and property security in residential or
commercial settings. Video quality is consistently
CINT-BCM-80LF
800TV Lines
￠42X4PCS
IR distance 80M
CINT-B80M-80-DS camera offers the best and most cost
effective means to increase your personal safety and
property security in residential or commercial settings.
Video quality is consistently high in day, night, and in-
between.
CINT-CINT-B80M-80DS
Economic Array IR Camera
Color 1/4" Digital Image Sensor (DIS) 800TVL
BUILT-IN IR CUTTER FILTER
Excellent True Color Video during Daytime
Great Night Vision with IR on at night
16mm Fixed Iris lens
4pcs Array IR LEDs, IR distance: 60

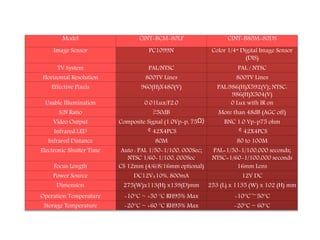

Model CINT-BCM-80LF CINT-B80M-80DS
Image Sensor PC1099N Color 1/4″ Digital Image Sensor
(DIS)
TV System PAL/NTSC PAL / NTSC
Effective Pixels 960(H)X480(V) PAL:986(H)X592(V); NTSC:
986(H)X504(V)
Usable Illumination 0.01Lux/F2.0 0 Lux with IR on
S/N Ratio ≥50dB More than 48dB (AGC off)
Video Output Composite Signal (1.0Vp-p, 75Ω) BNC 1.0 Vp-p75 ohm
Infrared LED ￠42X4PCS ￠42X4PCS
Infrared Distance 80M 80 to 100M
Electronic Shutter Time Auto : PAL 1/50-1/100, 000Sec;
NTSC 1/60-1/100, 000Sec
PAL=1/50-1/100,000 seconds;
NTSC=1/60-1/100,000 seconds
Focus Length CS 12mm (4/6/8/16mm optional) 16mm Lens
Power Source DC12V±10%, 800mA 12V DC
Dimension 275(W)x113(H) x139(D)mm 253 (L) x 1135 (W) x 102 (H) mm
Operation Temperature -10°C ~ +50 °C RH95% Max -10°C～50°C
Storage Temperature -20°C ~ +60 °C RH95% Max -20°C ~ 60°C

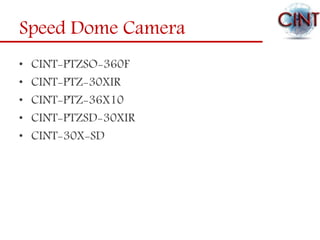

Speed Dome Camera
• CINT-PTZSO-360F
• CINT-PTZ-30XIR
• CINT-PTZ-36X10
• CINT-PTZSD-30XIR
• CINT-30X-SD

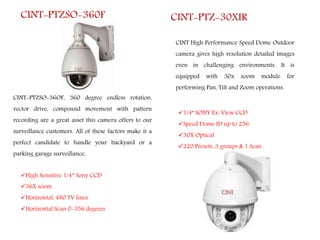

CINT-PTZSO-36OF, 360 degree endless rotation,
vector drive, compound movement with pattern
recording are a great asset this camera offers to our
surveillance customers. All of these factors make it a
perfect candidate to handle your backyard or a
parking garage surveillance.
CINT-PTZSO-360F
High Sensitive 1/4″ Sony CCD
36X zoom
Horizontal: 480 TV lines
Horizontal Scan 0-356 degrees
CINT High Performance Speed Dome Outdoor
camera gives high resolution detailed images
even in challenging environments. It is
equipped with 30x zoom module for
performing Pan, Tilt and Zoom operations.
CINT-PTZ-30XIR
1/4” SONY Ex-View CCD
Speed Dome ID up to 256
30X Optical
220 Presets, 3 groups & 1 Scan

CINT-30X-SD, 360 degree endless rotation, vector
drive, compound movement with pattern recording
are a great assets this camera offers to our
perfect candidate to handle your backyard or
parking garage surveillance.
CINT-30X-SD
1/4” SONY Ex-View CCD
Speed Dome ID up to 256
30X Optical
Auto Temperature Control

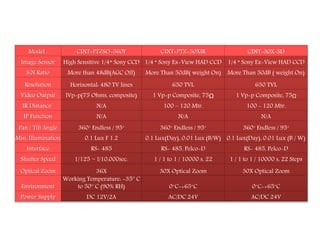

Model : CINT-PTZSO-360F CINT-PTZ-30XIR CINT-30X-SD
Image Sensor High Sensitive 1/4″ Sony CCD 1/4 “ Sony Ex-View HAD CCD 1/4 “ Sony Ex-View HAD CCD
S/N Ratio More than 48dB(AGC Off) More Than 50dB( weight On) More Than 50dB ( weight On)
Resolution Horizontal: 480 TV lines 650 TVL 650 TVL
Video Output lVp-p(75 Ohms, composite) 1 Vp-p Composite, 75Ω 1 Vp-p Composite, 75Ω
IR Distance` N/A 100 – 120 Mtr. 100 - 120 Mtr.
IP Function N/A N/A N/A
Pan / Tilt Angle 360˚ Endless / 95˚ 360˚ Endless / 95˚ 360˚ Endless / 95˚
Min. Illumination 0.1 Lux F 1.2 0.1 Lux(Day), 0.01 Lux (B/W) 0.1 Lux(Day), 0.01 Lux (B / W)
Interface RS- 485 RS- 485, Pelco-D RS- 485, Pelco-D
Shutter Speed 1/125 ~ l/10,000sec. 1 / 1 to 1 / 10000 s, 22 1 / 1 to 1 / 10000 s, 22 Steps
Optical Zoom 36X 30X Optical Zoom 30X Optical Zoom
Environment
Working Temperature: -35° C
to 50° C (90% RH) 0˚C-+65˚C 0˚C-+65˚C
Power Supply DC 12V/2A AC/DC 24V AC/DC 24V

CINT-PTZ-36×10, 360 degree endless rotation,
vector drive, compound movement with pattern
recording are a great assets this camera offers to our
perfect candidate to handle your backyard or
parking garage surveillance
CINT-PTZ-36X10
1/4” Ex-view HAD CCD (SONY)
36X optical zoom with auto focus (12X
digital zoom)
360˚ continuous rotation
CINT-PTZSD-30XIR
CINT-PTZSD-30XIR, High Performance Speed Dome Outdoor
camera gives high resolution detailed images even in challenging
environments. It is equipped with 30x zoom module for
performing Pan, Tilt and Zoom operations.
20x/30x optical zoom
Support dual-streams encoding
Max. 25/30fps@1080P(1920×1080) & 50/60fps@720P
resolution
DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS

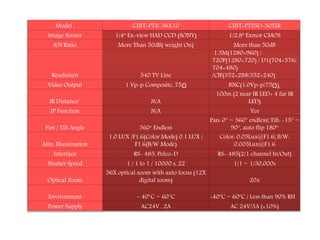

Model : CINT-PTZ-36X10 CINT-PTZSD-30XIR
Image Sensor 1/4” Ex-view HAD CCD (SONY) 1/2.8” Exmor CMOS
S/N Ratio More Than 50dB( weight On) More than 50dB
Resolution 540 TV Line
1.3M(1280×960) /
720P(1280×720) / D1(704×576/
704×480)
/CIF(352×288/352×240)
Video Output 1 Vp-p Composite, 75Ω BNC(1.0Vp-p/75Ω),
IR Distance` N/A
100m (2 near IR LED+ 4 far IR
LED)
IP Function N/A Yes
Pan / Tilt Angle 360˚ Endless
Pan: 0° ~ 360° endless; Tilt: -15° ~
90°, auto flip 180°
Min. Illumination
1.0 LUX /F1.6(Color Mode) 0.1 LUX /
F1.6(B/W Mode)
Color: 0.05Lux@F1.6; B/W:
0.005Lux@F1.6
Interface RS- 485, Pelco-D RS- 485(2/1 channel In/Out)
Shutter Speed 1 / 1 to 1 / 10000 s, 22 1/1 ~ 1/30,000s
Optical Zoom
36X optical zoom with auto focus (12X
digital zoom) 20x
Environment – 40°C ~ 60°C -40ºC ~ 60ºC / Less than 90% RH
Power Supply AC24V , 2A AC 24V/3A (±10%)

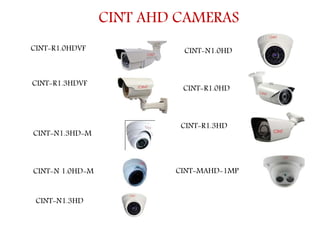

CINT AHD CAMERAS
CINT-R1.0HDVF
CINT-R1.0HD
CINT-N1.3HD
CINT-N1.3HD-M
CINT-N 1.0HD-M
CINT-N1.0HD
CINT-R1.3HDVF
CINT-R1.3HD
CINT-MAHD-1MP

CINT-R1.0HDVF
CINT-R1.0HDVF produces rich & bright colours
with high contrast ratio. Extremely high resolution
picture enables the user to identify each & every
detail. The Camera offers aesthetically brilliant
design to match the user interior
1.0 Mega Pixel Image Sensor
AHD IR Vari-Focal Tube Camera
Vari Focal Lens 2.8-12mm
72 Pcs IR LED With Minimum 70 Mtr effective range
0.02 LUX @ F1.2/0(IR ON)
Industrial design and production, precise circuit &
structure
Easy for installation, nice streamline design
CINT-R1.3HD produces rich & bright colours with
high contrast ratio. Extremely high resolution picture
enables the user to identify each & every detail. The
Camera offers aesthetically brilliant design to match
the user interior
CINT-N1.3HD
AHD IR Vari-Focal Tube Camera
Vari Focal Lens 2.8-12mm
72 Pcs IR LED With Minimum 70 Mtr effective range
0.02 LUX @ F1.2/0(IR ON)
structure

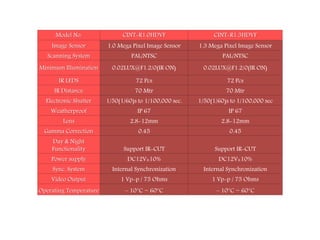

Model No. CINT-R1.0HDVF CINT-R1.3HDVF
Image Sensor 1.0 Mega Pixel Image Sensor 1.3 Mega Pixel Image Sensor
Scanning System PAL/NTSC PAL/NTSC
Minimum Illumination 0.02LUX@F1.2/0(IR ON) 0.02LUX@F1.2/0(IR ON)
IR LEDS 72 Pcs 72 Pcs
IR Distance 70 Mtr 70 Mtr
Electronic Shutter 1/50(1/60)s to 1/100,000 sec. 1/50(1/60)s to 1/100,000 sec
Weatherproof IP 67 IP 67
Lens 2.8-12mm 2.8-12mm
Gamma Correction 0.45 0.45
Day & Night
Functionality Support IR-CUT Support IR-CUT
Power supply DC12V±10% DC12V±10%
Sync. System Internal Synchronization Internal Synchronization
Video Output 1 Vp-p / 75 Ohms 1 Vp-p / 75 Ohms
Operating Temperature – 10°C ~ 60°C – 10°C ~ 60°C

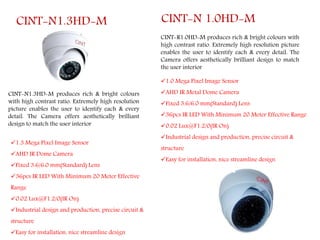

CINT-N1.3HD-M
CINT-N1.3HD-M produces rich & bright colours
AHD IR Dome Camera
Fixed 3.6/6.0 mm(Standard) Lens
36pcs IR LED With Minimum 20 Meter Effective
Range
0.02 Lux@F1.2/0(IR On)
structure
CINT-R1.0HD-M produces rich & bright colours with
the user interior
CINT-N 1.0HD-M
AHD IR Metal Dome Camera
36pcs IR LED With Minimum 20 Meter Effective Range
0.02 Lux@F1.2/0(IR On)
structure

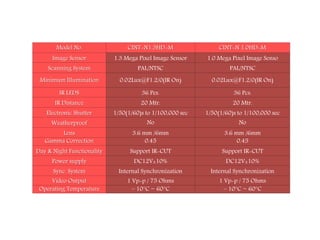

Model No. CINT-N1.3HD-M CINT-N 1.0HD-M
Image Sensor 1.3 Mega Pixel Image Sensor 1.0 Mega Pixel Image Senso
Minimum Illumination 0.02Lux@F1.2/0(IR On) 0.02Lux@F1.2/0(IR On)
IR LEDS 36 Pes. 36 Pcs.
IR Distance 20 Mtr. 20 Mtr.
Electronic Shutter 1/50(1/60)s to 1/100,000 sec 1/50(1/60)s to 1/100,000 sec
Weatherproof No No
Lens 3.6 mm /6mm 3.6 mm /6mm
Day & Night Functionality Support IR-CUT Support IR-CUT

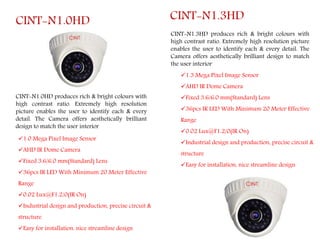

CINT-N1.0HD
CINT-N1.0HD produces rich & bright colours with
high contrast ratio. Extremely high resolution
Range
0.02 Lux@F1.2/0(IR On)
structure
CINT-N1.3HD produces rich & bright colours with
the user interior
CINT-N1.3HD
Range
0.02 Lux@F1.2/0(IR On)
structure

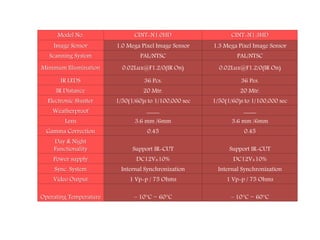

Model No. CINT-N1.0HD CINT-N1.3HD
Minimum Illumination 0.02Lux@F1.2/0(IR On) 0.02Lux@F1.2/0(IR On)
IR LEDS 36 Pcs. 36 Pes.
IR Distance 20 Mtr. 20 Mtr.
Electronic Shutter 1/50(1/60)s to 1/100,000 sec 1/50(1/60)s to 1/100,000 sec
Weatherproof ____ ____
Day & Night

CINT-R1.0HD
CINT-R1.0HD produces rich & bright colours with
high contrast ratio. Extremely high resolution
¼” 1.0 Mega Pixel CMOS Image Sensor
720P Resolution
Built in 2 MP 3.6 mm/6 mm Lens optional
36 Pcs IR LED
Metal Housing
External OSD Interface
DC12V Power
structure
CINT-R1.3HD produces rich & bright colours with high
contrast ratio. Extremely high resolution picture enables the
user to identify each & every detail. The Camera offers
aesthetically brilliant design to match the user interior
CINT-R1.3HD
⅓” 1.3 Mega Pixel CMOS Image Sensor
960P Resolution
Built in 2 MP 3.6 mm/6 mm Lens optional
36 Pcs IR LED
Metal Housing
External OSD Interface
DC12V Power
Weatherproof IP 66
Industrial design and production, precise circuit & structure

Model No. CINT-R1.0HD CINT-R1.3HD
Image Sensor
¼” 1.0 Mega Pixel CMOS Image
Sensor
⅓” 1.3 Mega Pixel CMOS Image
Sensor
Minimum Illumination
Color : 0. 1 Lux@ (F1.2, AGC ON) ,
0Lux with IR & Black white : 0.01
Lux@ (F1.2, AGC ON) , 0Lux with IR
Color : 0. 1 Lux@ (F1.2, AGC ON) ,
0Lux with IR & Black white : 0.01
Lux@ (F1.2, AGC ON) , 0Lux with IR
IR LEDS 36 Pes. 36 Pes.
IR Distance ____ 70 Mtr
Electronic Shutter 1/50(1/60)s to 1/100,000 sec. 1/50(1/60)s to 1/100,000 sec
Weatherproof IP 66 IP 66
Day & Night

CINT-MAHD-1MP “Analog High Definition”
camera is a new HD surveillance video standard
for CCTV cameras and enable seamless transition
of video surveillance system from analog to
digital.
CINT-MAHD-1MP
1280H*720V HD video output
Use traditional CCTV coaxial cable
transmission
The maximum transmission distance up to
500 meters
Easy installation
3.6mm lens
Built-in IR Cutter Filter
1pc Array LED, IR distance: 25m
Model No. CINT-MAHD-1MP
Image Sensor Color 1/4″ Mega Pixel Sensor
Scanning System Progressive scan method
Minimum Illumination 0.01LUX
IR LEDS 1pc Array LED
IR Distance 25m
Electronic Shutter 1/50- 1/100,000sn
Weatherproof ____
Lens 3.6mm
Gamma Correction 0.45
Day & Night Functionality
yes
Power supply 12VDC
Sync. System Internal Synchronization
Video Output CVBS AHD
Operating Temperature -10℃～50℃

IP Camera
• CINT-IP2.0 N-P
• CINT-IP1.0N-M
• CINT-IP2.0-R
• CINT-IP1.3R
• CINT-IP1.0RVF
• CINT-IP1.0N

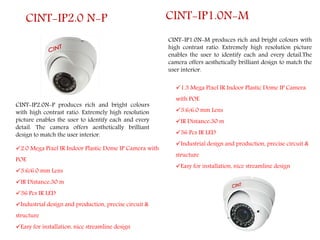

CINT-IP2.0N-P produces rich and bright colours
picture enables the user to identify each and every
detail. The camera offers aesthetically brilliant
design to match the user interior.
CINT-IP2.0 N-P
2.0 Mega Pixel IR Indoor Plastic Dome IP Camera with
POE
3.6/6.0 mm Lens
IR Distance:30 m
36 Pcs IR LED
structure
CINT-IP1.0N-M produces rich and bright colours with
enables the user to identify each and every detail.The
camera offers aesthetically brilliant design to match the
user interior.
CINT-IP1.0N-M
1.3 Mega Pixel IR Indoor Plastic Dome IP Camera
with POE
3.6/6.0 mm Lens
IR Distance:30 m
36 Pcs IR LED
structure

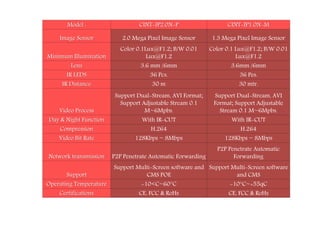

Model : CINT-IP2.0N-P CINT-IP1.0N-M
Color 0.1Lux@F1.2; B/W 0.01
Lux@F1.2
Color 0.1 Lux@F1.2; B/W 0.01
Lux@F1.2
Lens 3.6 mm /6mm 3.6mm /6mm
IR LEDS 36 Pcs. 36 Pes.
IR Distance 30 m 30 mtr.
Video Process
Support Dual-Stream, AVI Format;
Support Adjustable Stream 0.1
M~6Mpbs.
Support Dual-Stream, AVI
Format; Support Adjustable
Stream 0.1 M~6Mpbs.
Day & Night Function With IR-CUT With IR-CUT
Compression H.264 H.264
Video Bit Rate 128Kbps ~ 8Mbps 128Kbps ~ 8Mbps
Network transmission P2P Penetrate Automatic Forwarding
P2P Penetrate Automatic
Forwarding
Support
Support Multi-Screen software and
CMS POE
Support Multi-Screen software
and CMS
Operating Temperature -10<C~60°C -10°C~+55qC
Certifications CE, FCC & RoHs CE, FCC & RoHs

CINT-IP2.0-R produces rich and bright colours
CINT-IP2.0-R
2.0 Mega Pixel IR Outdoor Bullet IP Camera
3.6/6.0 mm Lens
IR Distance:40 m
48 Pcs IR LED
Weatherproof IP66
structure
CINT-IP1.3R produces rich and bright colours with high
contrast ratio. Extremely high resolution picture enables the
user to identify each and every detail.The camera offers
aesthetically brilliant design to match the user interior.
CINT-IP1.3R
1.3 Mega Pixel IR Outdoor Bullet IP Camera
3.6/6.0 mm Lens
IR Distance:30 m
36 Pcs IR LED
structure

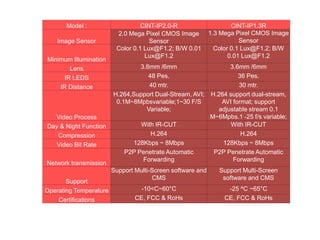

Model : CINT-IP2.0-R CINT-IP1.3R
Image Sensor
2.0 Mega Pixel CMOS Image
Sensor
1.3 Mega Pixel CMOS Image
Sensor
Color 0.1 Lux@F1.2; B/W 0.01
Lux@F1.2
Color 0.1 Lux@F1.2; B/W
0.01 Lux@F1.2
Lens 3.6mm /6mm 3.6mm /6mm
IR Distance 40 mtr. 30 mtr.
Video Process
H.264,Support Dual-Stream, AVI;
0.1M~8Mpbsvariable;1~30 F/S
Variable;
H.264 support dual-stream,
AVI format; support
adjustable stream 0.1
M~6Mpbs.1 -25 f/s variable;
Network transmission
Forwarding
Forwarding
Support
CMS
Support Multi-Screen
software and CMS
Operating Temperature -10<C~60°C -25 ^C ~65°C

CINT-IP2.0-R produces rich and bright colours

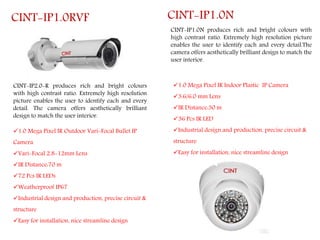

CINT-IP1.0RVF
1.0 Mega Pixel IR Outdoor Vari-Focal Bullet IP
Camera
Vari-Focal 2.8-12mm Lens
IR Distance:70 m
72 Pcs IR LEDs
structure
CINT-IP1.0N produces rich and bright colours with
enables the user to identify each and every detail.The
camera offers aesthetically brilliant design to match the
user interior.
CINT-IP1.0N
1.0 Mega Pixel IR Indoor Plastic IP Camera
3.6/6.0 mm Lens
IR Distance:30 m
36 Pcs IR LED
structure

Model : CINT-IP1.0RVF CINT-IP1.0N
Image Sensor 1.0 Mega Pixel CMOS Image Sensor 1.0 Mega Pixel Image Sensor
Color 0.1 Lux@F1.2; B/W 0.01
Lux@F1.2.
Color 0.1 Lux@F1.2; B/W 0.01
Lux@F1.2
Lens 2.8-12 mm 3.6mm /6mm
IR Distance 70 mtr. 30 mtr.
Video Process
support dual-stream, AVI format;
support adjustable stream 0.1
M~6Mpbs.
Support Dual-Stream, AVI
Format; Support Adjustable
Stream 0.1 M~6Mpbs.
Network transmission P2P Penetrate Automatic Forwarding
Forwarding
Support
CMS
Support Multi-Screen software
and CMS
Operating Temperature -25° C ~65°C -25° C ~65°C

DVR
• DVR 4 Channel
 CINT- DVR-1004H
 CINT- DVR-5004S-A
• DVR 8 Channel
 CINT- 1008H
• DVR 16 Channel
 CINT-KW36296
 CINT- 1604
 CINT-7216
 CINT-7316EH
 CINT-5416ME

DVR 4 Channel
• CINT- DVR-1004H
• CINT- DVR-5004S-A

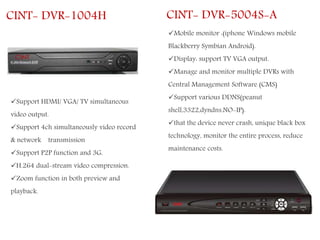

CINT- DVR-1004H
Support HDMI/ VGA/ TV simultaneous
video output.
Support 4ch simultaneously video record
& network transmission
Support P2P function and 3G.
H.264 dual-stream video compression.
Zoom function in both preview and
playback.
CINT- DVR-5004S-A
Mobile monitor :(iphone Windows mobile
Blackberry Symbian Android).
Display: support TV VGA output.
Manage and monitor multiple DVRs with
Central Management Software (CMS)
Support various DDNS(peanut
shell,3322,dyndns.NO-IP).
that the device never crash, unique black box
technology, monitor the entire process, reduce
maintenance costs.

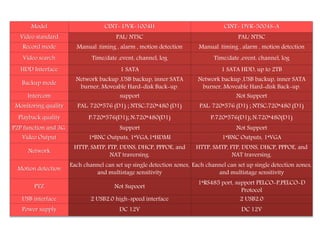

Model CINT- DVR-1004H CINT- DVR-5004S-A
Video standard PAL/ NTSC PAL/ NTSC
Record mode Manual .timing , alarm , motion detection Manual .timing , alarm , motion detection
Video search Time/date ,event, channel, log Time/date ,event, channel, log
HDD Interface 1 SATA 1 SATA HDD, up to 2TB
Backup mode
Network backup ,USB backup, inner SATA
burner, Moveable Hard-disk Back-up.
Intercom support Not Support
Monitoring quality PAL: 720*576 (D1) ; NTSC:720*480 (D1) PAL: 720*576 (D1) ; NTSC:720*480 (D1)
Playback quality P:720*576(D1); N:720*480(D1) P:720*576(D1); N:720*480(D1)
P2P function and 3G. Support Not Support
Video Output 1*BNC Outputs, 1*VGA,1*HDMI 1*BNC Outputs, 1*VGA
Network
HTTP, SMTP, FTP, DDNS, DHCP, PPPOE, and
NAT traversing.
NAT traversing.
Motion detection
Each channel can set up single detection zones,
and multistage sensitivity
Each channel can set up single detection zones,
and multistage sensitivity
PTZ Not Supoort
1*RS485 port, support PELCO-P,PELCO-D
Protocol
USB interface 2 USB2.0 high-speed interface 2 USB2.0
Power supply DC 12V DC 12V

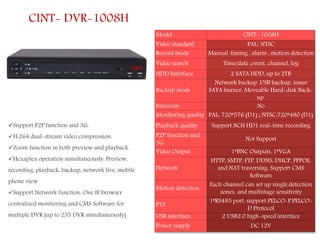

CINT- DVR-1008H
Support P2P function and 3G.
H.264 dual-stream video compression.
Zoom function in both preview and playback.
Hexaplex operation simultaneously: Preview,
recording, playback, backup, network live, mobile
phone view
Support Network function: One IE browser
centralized monitoring and CMS Software for
multiple DVR (up to 255 DVR simultaneously)
Model CINT- 1008H
Video standard PAL/ NTSC
Record mode Manual .timing , alarm , motion detection
Video search Time/date ,event, channel, log
HDD Interface 2 SATA HDD, up to 2TB
Backup mode
Network backup ,USB backup, inner
SATA burner, Moveable Hard-disk Back-
up.
Intercom No
Monitoring quality PAL: 720*576 (D1) ; NTSC:720*480 (D1)
Playback quality Support 8CH HD1 real-time recording
P2P function and
3G.
Not Support
Video Output 1*BNC Outputs, 1*VGA
Network
HTTP, SMTP, FTP, DDNS, DHCP, PPPOE,
and NAT traversing. Support CMS
Software
Motion detection
Each channel can set up single detection
zones, and multistage sensitivity
PTZ
1*RS485 port, support PELCO-P,PELCO-
D Protocol
USB interface 2 USB2.0 high-speed interface
Power supply DC 12V

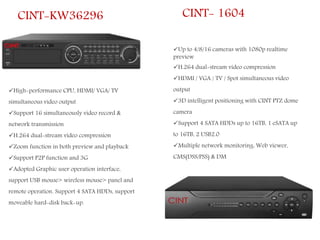

CINT-KW36296
High-performance CPU, HDMI/ VGA/ TV
simultaneous video output
Support 16 simultaneously video record &
network transmission
H.264 dual-stream video compression
Zoom function in both preview and playback
Support P2P function and 3G
Adopted Graphic user operation interface,
support USB mouse> wireless mouse> panel and
remote operation. Support 4 SATA HDDs, support
moveable hard-disk back-up.
CINT- 1604
Up to 4/8/16 cameras with 1080p realtime
preview
HDMI / VGA / TV / Spot simultaneous video
output
3D intelligent positioning with CINT PTZ dome
camera
Support 4 SATA HDDs up to 16TB, 1 eSATA up
to 16TB, 2 USB2.0
Multiple network monitoring: Web viewer,
CMS(DSS/PSS) & DM

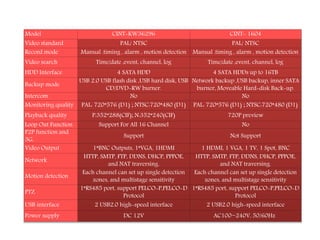

Model CINT-KW36296 CINT- 1604
HDD Interface 4 SATA HDD 4 SATA HDDs up to 16TB
Backup mode
USB 2.0 USB flash disk ,USB hard disk, USB
CD/DVD-RW burner.
Intercom No No
Playback quality P:352*288(CIF); N:352*240(CIF) 720P preview
Loop Out Function Support For All 16 Channel No
P2P function and
3G.
Support Not Support
Video Output 1*BNC Outputs, 1*VGA, 1HDMI 1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC
Network
and NAT traversing.
and NAT traversing.
Motion detection
PTZ
Protocol
Protocol
USB interface 2 USB2.0 high-speed interface 2 USB2.0 high-speed interface
Power supply DC 12V AC100~240V, 50/60Hz

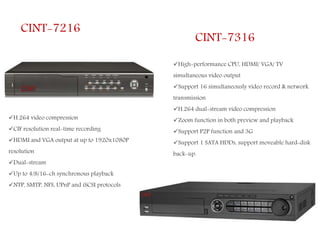

CINT-7216
H.264 video compression
CIF resolution real-time recording
HDMI and VGA output at up to 1920x1080P
resolution
Dual-stream
Up to 4/8/16-ch synchronous playback
NTP, SMTP, NFS, UPnP and iSCSI protocols
CINT-7316
High-performance CPU, HDMI/ VGA/ TV
simultaneous video output
Support 16 simultaneously video record & network
transmission
Support P2P function and 3G
Support 1 SATA HDDs, support moveable hard-disk
back-up.

Model CINT- 7216 CINT- 7316EH
HDD Interface 1 SATA interface, Up to 4TB capacity 1 SATA interface, Up to 4TB capacity
Backup mode
Intercom No Support
Playback quality real-time recording
P:352*288(CIF) / 720*576(D1)
N:352*240(CIF) / 720*140(D1)
P2P function and
3G.
Not Support Not Support
Video Output 1*BNC Outputs, 1*VGA,1*HDMI BNC Outputs, 1*VGA,1*HDMI
Network
NAT traversing. Support CMS Software
and NAT traversing.
Motion detection
PTZ
Protocol
Protocol
USB interface 2 USB2.0 high-speed interface 2 USB2.0 high-speed interface
Power supply DC 12V DC 12V

CINT-5416ME
High-performance CPU, HDMI/ VGA/ TV simultaneous video output
Support 16 simultaneously video record & network transmission
Adopted Graphic user operation interface, support USB mouse> panel and remote
operation. Support 2 SATA HDDs, support moveable hard-disk back-up.

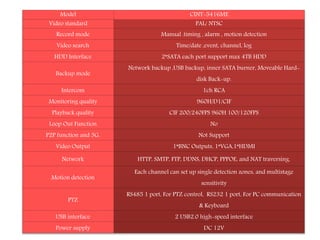

Model CINT-5416ME
Video standard PAL/ NTSC
Record mode Manual .timing , alarm , motion detection
Video search Time/date ,event, channel, log
HDD Interface 2*SATA each port support max 4TB HDD
Backup mode
Network backup ,USB backup, inner SATA burner, Moveable Hard-
disk Back-up.
Intercom 1ch RCA
Monitoring quality 960H/D1/CIF
Playback quality CIF 200/240FPS 960H 100/120FPS
Loop Out Function No
P2P function and 3G. Not Support
Video Output 1*BNC Outputs, 1*VGA,1*HDMI
Network HTTP, SMTP, FTP, DDNS, DHCP, PPPOE, and NAT traversing.
Motion detection
Each channel can set up single detection zones, and multistage
sensitivity
PTZ
RS485 1 port, For PTZ control, RS232 1 port, For PC communication
& Keyboard
Power supply DC 12V

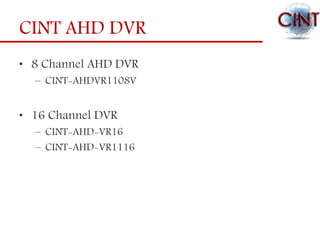

CINT AHD DVR
• 8 Channel AHD DVR
– CINT-AHDVR1108V
• 16 Channel DVR
– CINT-AHD-VR16
– CINT-AHD-VR1116

H.264 video compression & G.711 audio compression.
Support 720P preview, recording & playback.
Analog video transmission technology, coaxial cable as the transmission medium
Support coaxial two-way data communication, you can send control signals such as pan, tilt, zoom control, etc
Reliable long distances transmission, Through 75-3 coaxial line can ensure the quality of 500 meters high reliable
HD video signal transmission
Strong anti-jamming capability, under strong interference environment, to ensure high-definition video
transmission display, distortion does not occur and dropped frames
Using a new UI, more intuitive and simple user experience, the use of style three comprehensive menu display
Support CVBS, VGA & HDMI simultaneous output, VGA, HDMI full HD 1080P output. USB Backup.

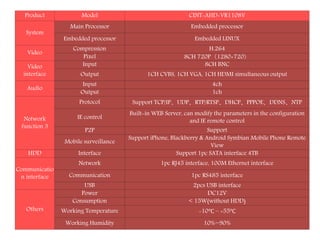

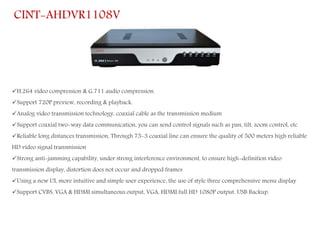

CINT-AHDVR1108V

Product Model CINT-AHD-VR1108V
System
Main Processor Embedded processor
Embedded processor Embedded LINUX
Video
Compression H.264
Pixel 8CH 720P（1280×720）
Video
interface
Input 8CH BNC
Output 1CH CVBS, 1CH VGA, 1CH HDMI simultaneous output
Audio
Input 4ch
Output 1ch
Network
function 3
Protocol Support TCP/IP、UDP、RTP/RTSP、DHCP、PPPOE、DDNS、NTP
IE control
Built-in WEB Server, can modify the parameters in the configuration
and IE remote control
P2P Support
Mobile surveillance
Support iPhone, Blackberry & Android Symbian Mobile Phone Remote
View
HDD Interface Support 1pc SATA interface 4TB
Communicatio
n interface
Network 1pc RJ45 interface, 100M Ethernet interface
Communication 1pc RS485 interface
USB 2pcs USB interface
Others
Power DC12V
Consumption < 15W(without HDD)
Working Temperature -10℃ – +55℃
Working Humidity 10%~90%

Analog video transmission technology, coaxial cable as the
transmission medium
Support coaxial two-way data communication, you can
send control signals such as pan, tilt, zoom control, etc
Strong anti-jamming capability, under strong interference
environment, to ensure high-definition video transmission
display, distortion does not occur and dropped frames
Using a new UI, more intuitive and simple user experience,
the use of style three comprehensive menu display
Support CVBS, VGA & HDMI simultaneous output, VGA,
HDMI full HD 1080P output. USB Backup.
Support 4CH playback (any 1CH real-time + 3CH Non-
real-time synchronous playback)
Support P2P cloud server.

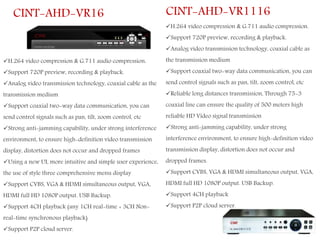

CINT-AHD-VR16
Analog video transmission technology, coaxial cable as
the transmission medium
Support coaxial two-way data communication, you can
send control signals such as pan, tilt, zoom control, etc
Reliable long distances transmission, Through 75-3
coaxial line can ensure the quality of 500 meters high
reliable HD Video signal transmission
Strong anti-jamming capability, under strong
interference environment, to ensure high-definition video
transmission display, distortion does not occur and
dropped frames.
Support CVBS, VGA & HDMI simultaneous output, VGA,
HDMI full HD 1080P output. USB Backup.
Support 4CH playback
Support P2P cloud server.
CINT-AHD-VR1116

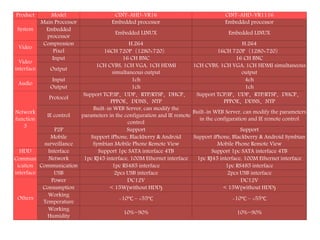

Product Model CINT-AHD-VR16 CINT-AHD-VR1116
System
Main Processor Embedded processor Embedded processor
Embedded
processor
Embedded LINUX Embedded LINUX
Video
Pixel 16CH 720P（1280×720） 16CH 720P（1280×720）
Video
interface
Input 16 CH BNC 16 CH BNC
Output
1CH CVBS, 1CH VGA, 1CH HDMI
simultaneous output
1CH CVBS, 1CH VGA, 1CH HDMI simultaneous
output
Audio
Input 1ch 4ch
Output 1ch 1ch
Network
function
3
Protocol
Support TCP/IP、UDP、RTP/RTSP、DHCP、
PPPOE、DDNS、NTP
Support TCP/IP、UDP、RTP/RTSP、DHCP、
PPPOE、DDNS、NTP
IE control
Built-in WEB Server, can modify the
parameters in the configuration and IE remote
control
Built-in WEB Server, can modify the parameters
in the configuration and IE remote control
P2P Support Support
Mobile
surveillance
Support iPhone, Blackberry & Android
Symbian Mobile Phone Remote View
Support iPhone, Blackberry & Android Symbian
Mobile Phone Remote View
HDD Interface Support 1pc SATA interface 4TB Support 1pc SATA interface 4TB
Commun
ication
interface
Network 1pc RJ45 interface, 100M Ethernet interface 1pc RJ45 interface, 100M Ethernet interface
Communication 1pc RS485 interface 1pc RS485 interface
USB 2pcs USB interface 2pcs USB interface
Others
Power DC12V DC12V
Consumption < 15W(without HDD) < 15W(without HDD)
Working
Temperature
-10℃ – +55℃ -10℃ – +55℃
Working
Humidity
10%~90% 10%~90%

CINT NVR
• CINT-CNV-804,808,816,832
• CINT-CHV-304,308,316

CINT-CNV-804,808,816,832
Support ONVIF protocol at the same time, compatible with ONVIF protocol standard network cameras.
Support P2P Internet access, Built-in free DDNS.
High-performance processors, support TV. VGA. HDMI output at the same time.
Adopt h. 264 video compression standard and G. 711 audio compression standard, can support hd resolution of
video decoding.
Support the front panel, the remote control, the mouse, and other operating mode; A simple, intuitive graphical
interactive interface.
Video retrieval can be realized by a variety of conditions ，Local and network playback.
Support the TCP/IP, UDP, RTP/RTSP, DHCP, PPPoE, DDNS, NTP such rich network protocol Support mobile phone
remote monitoring.

Model CINT-804-CNV CINT-808-CNV CINT-816-CNV CINT-832-CNV
Main Processor Hi3515A Hi3520A Hi3521 Hi3531
IPC input 4ch D1 / 4ch 720P
/4ch 1080P@30fps
8ch D1 / 8ch 720P
/8ch 1080P@30fps
16ch D1 / 16ch
720P /8ch
1080P@30fps
32ch D1 / 26ch 720P /
16ch 1080P@30fps
protocol support ONVIF Core Spec 2.2 Compatible with composite ONVIF protocol standard IP cameras
Voice Intercom NO 1CH RCA Interface
CVBS Output 1ch BNC（1.0Vp-p,75ohms）
VGA Output 1ch ,resolution optional (1920×1080,1280×1024,1280×720,1024×768,800×600)
HDMI Output resolution optional(1920×1080,1280×1024,1280×720,1024×768,800×600)
video coding standard H.264/MPEG 4 AVC，up to Main Profile 5.0
Stream type Composite audio stream
Local playback 4ch D1 / 2ch 720P/ 1ch
1080P
8ch D1 / 4ch 720P/ 2ch
1080P
16ch D1 / 8ch 720P/ 4ch
1080P
Support The domain name, P2P
SATA interface 2HDD （EACH UP TO 4 TB）
Network interface 1 RJ45 10M/100M adjust-
automatically Ethernet interface
1 RJ45 10M/100M/1000M adjust-
automatically Ethernet interface
Alarm input 4ch 8ch 16ch
Alarm output 1ch 3ch 3ch
RS-485 Support 1CH RS485
Power supply DC 12V, 50/60Hz

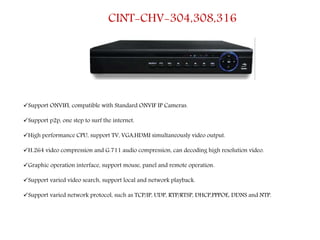

CINT-CHV-304,308,316
Support ONVIFI, compatible with Standard ONVIF IP Cameras.
Support p2p, one step to surf the internet.
High performance CPU, support TV, VGA,HDMI simultaneously video output.
H.264 video compression and G.711 audio compression, can decoding high resolution video.
Graphic operation interface, support mouse, panel and remote operation.
Support varied video search, support local and network playback.
Support varied network protocol, such as TCP/IP, UDP, RTP/RTSP, DHCP,PPPOE, DDNS and NTP.

Model CINT-304-CHV CINT-308-CHV CINT-316-CHV
Main Processor Dual-core embedded processor
IPC input
4ch D1 / 4ch 720P /
4ch 1080P@30fps
8ch D1 / 8ch 720P /
4ch 1080P@30fps
16ch D1 / 8ch 720P / 4ch
1080P@30fps
Protocol ONVIF Core Spec 2.2, Compatible with standard ONVIF cameras
Voice Intercom 1ch RCA
CVBS output 1ch BNC
VGA output 1ch (1920*1080,1280*1024,1280*720,1024*768,800*600 option)
HDMI output 1ch (1920*1080,1280*1024,1280*720,1024*768,800*600 option)
video coding standard H.264/MPEG 4 AVC ,up to Main profile 5.0
Stream type Compound flow/ video streaming
local playback 1-4ch 1-8ch 1-16ch
DDNS ,P2P support
HDD 2 SATA interface
Network
1 RJ45 10M/100M adjust-automatically
Ethernet interface
1 RJ45 10M/100M/1000M
adjust-automatically Ethernet
interface
USB 2 USB 2.0
Alarm input 8ch 16ch
Alarm output 3ch
Power Supply DC 12V

Surveillance

More Related Content

What's hot

Viewers also liked

Similar to Surveillance

Recently uploaded

Surveillance
