The IGEP COM ELECTRON is an industrial processor board. It can be used as a computer-on-module for your product but also as a stand alone computer without the need of a baseboard. You don't need anything else than a USB cable to power the IGEP COM ELECTRON and communicate with it by using Ethernet over USB gadget implemented on Linux Kernel. The IGEP COM ELECTRON provides a lot of features in a small size. You can build your project anywhere you want.

1. IGEP™ COM ELECTRON
INDUSTRIAL LONG LIFE
Temperature range -40ºC to 85ºC
Pop Memory
Power management Micro-SD (DDR RAM + FLASH)
and audio codec
USB 2.0 OTG
AM3703
overview"#$"%#&
pay for only what you need
ARM Cortex-A8 AM3703 CPU 1GHZ / 256 Megabytes RAM + 512 Megabytes FLASH

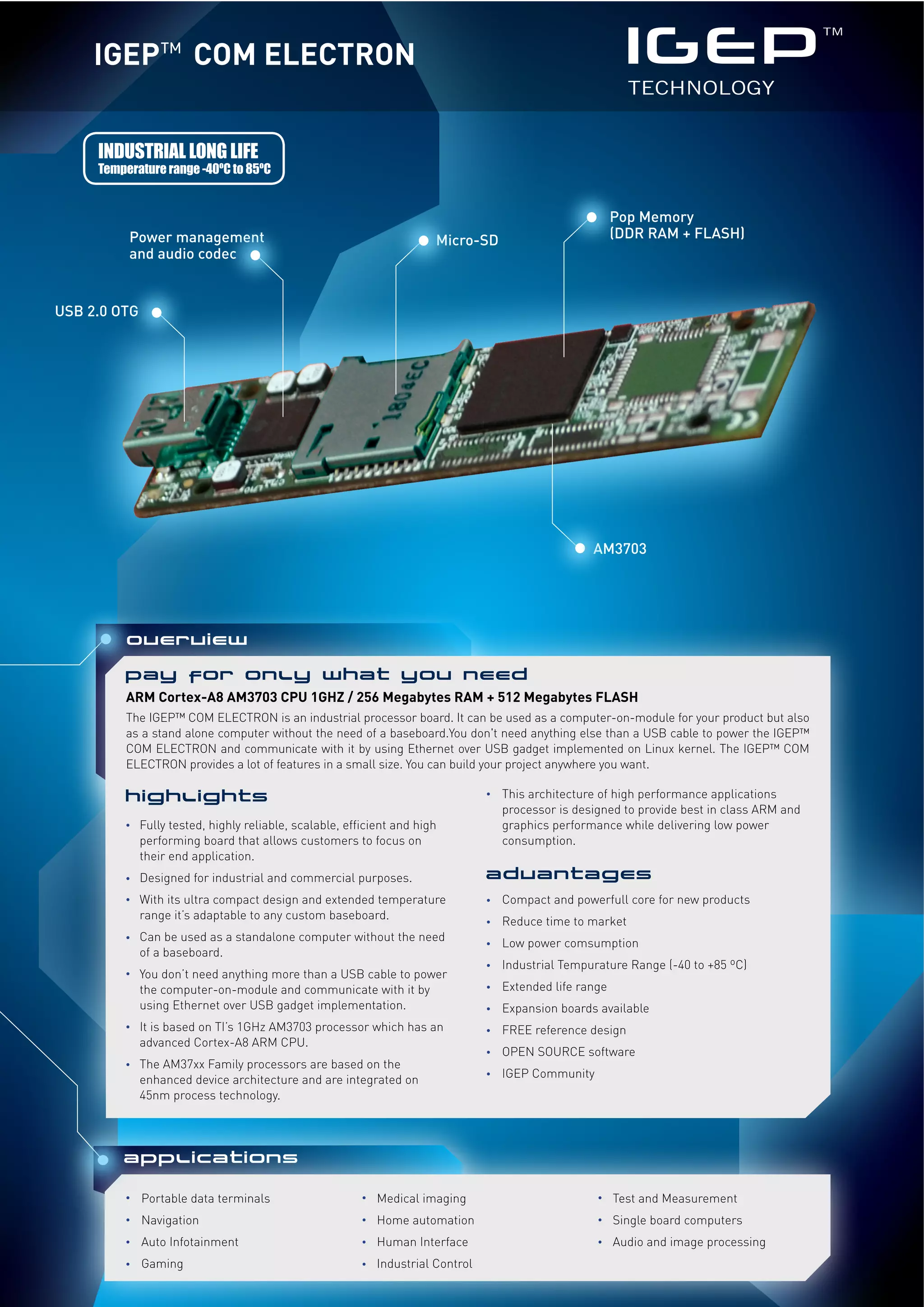

The IGEP™ COM ELECTRON is an industrial processor board. It can be used as a computer-on-module for your product but also
as a stand alone computer without the need of a baseboard.You don't need anything else than a USB cable to power the IGEP™
COM ELECTRON and communicate with it by using Ethernet over USB gadget implemented on Linux kernel. The IGEP™ COM
ELECTRON provides a lot of features in a small size. You can build your project anywhere you want.
highlights This architecture of high performance applications
processor is designed to provide best in class ARM and
Fully tested, highly reliable, scalable, efficient and high graphics performance while delivering low power
performing board that allows customers to focus on consumption.
their end application.
Designed for industrial and commercial purposes. advantages
With its ultra compact design and extended temperature Compact and powerfull core for new products
range it’s adaptable to any custom baseboard.
Reduce time to market
Can be used as a standalone computer without the need
Low power comsumption
of a baseboard.
Industrial Tempurature Range (-40 to +85 ºC)
You don’t need anything more than a USB cable to power
the computer-on-module and communicate with it by Extended life range
using Ethernet over USB gadget implementation. Expansion boards available
It is based on TI’s 1GHz AM3703 processor which has an FREE reference design
advanced Cortex-A8 ARM CPU.
OPEN SOURCE software
The AM37xx Family processors are based on the
enhanced device architecture and are integrated on IGEP Community
45nm process technology.
applications
Portable data terminals Medical imaging Test and Measurement
Navigation Home automation Single board computers
Auto Infotainment Human Interface Audio and image processing
Gaming Industrial Control

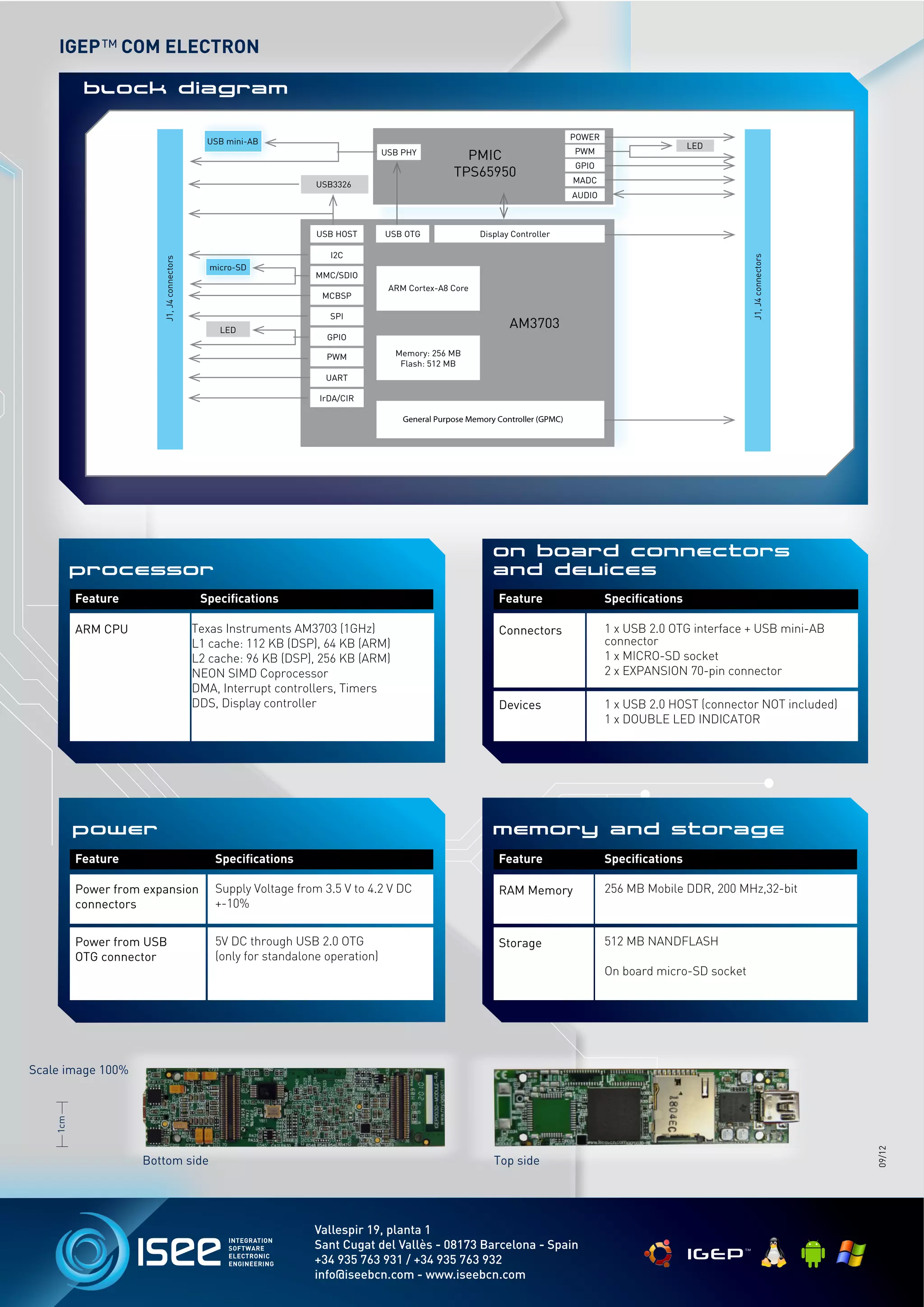

2. IGEP™ COM ELECTRON
block diagram
USB mini-AB POWER
LED
USB PHY
PMIC PWM
GPIO
TPS65950 MADC
USB3326
AUDIO
USB HOST USB OTG Display Controller
I2C
J1, J4 connectors
J1, J4 connectors
micro-SD
MMC/SDIO
ARM Cortex-A8 Core
MCBSP
SPI
LED
AM3703
GPIO
PWM Memory: 256 MB
Flash: 512 MB
UART
IrDA/CIR
General Purpose Memory Controller (GPMC)
on board connectors
processor and devices
Feature Specifications Feature Specifications
ARM CPU Texas Instruments AM3703 (1GHz) Connectors 1 x USB 2.0 OTG interface + USB mini-AB
L1 cache: 112 KB (DSP), 64 KB (ARM) connector
L2 cache: 96 KB (DSP), 256 KB (ARM) 1 x MICRO-SD socket
NEON SIMD Coprocessor 2 x EXPANSION 70-pin connector
DMA, Interrupt controllers, Timers
DDS, Display controller Devices 1 x USB 2.0 HOST (connector NOT included)
1 x DOUBLE LED INDICATOR
power memory and storage
Feature Specifications Feature Specifications
Power from expansion Supply Voltage from 3.5 V to 4.2 V DC RAM Memory 256 MB Mobile DDR, 200 MHz,32-bit
connectors +-10%
Power from USB 5V DC through USB 2.0 OTG Storage 512 MB NANDFLASH
OTG connector (only for standalone operation)
On board micro-SD socket
Scale image 100%
1cm
09/12
Bottom side Top side
