The document explains how to use a coordinate system to precisely locate points on a flat surface. It introduces the x-axis and y-axis, which intersect at the origin point (0,0) and divide the plane into four quadrants. Any point can be specified with an ordered pair of numbers representing its distance from each axis, like (4,2), which would be four units from the y-axis and two units from the x-axis. Several examples are given of plotting and translating points between different locations on the grid.

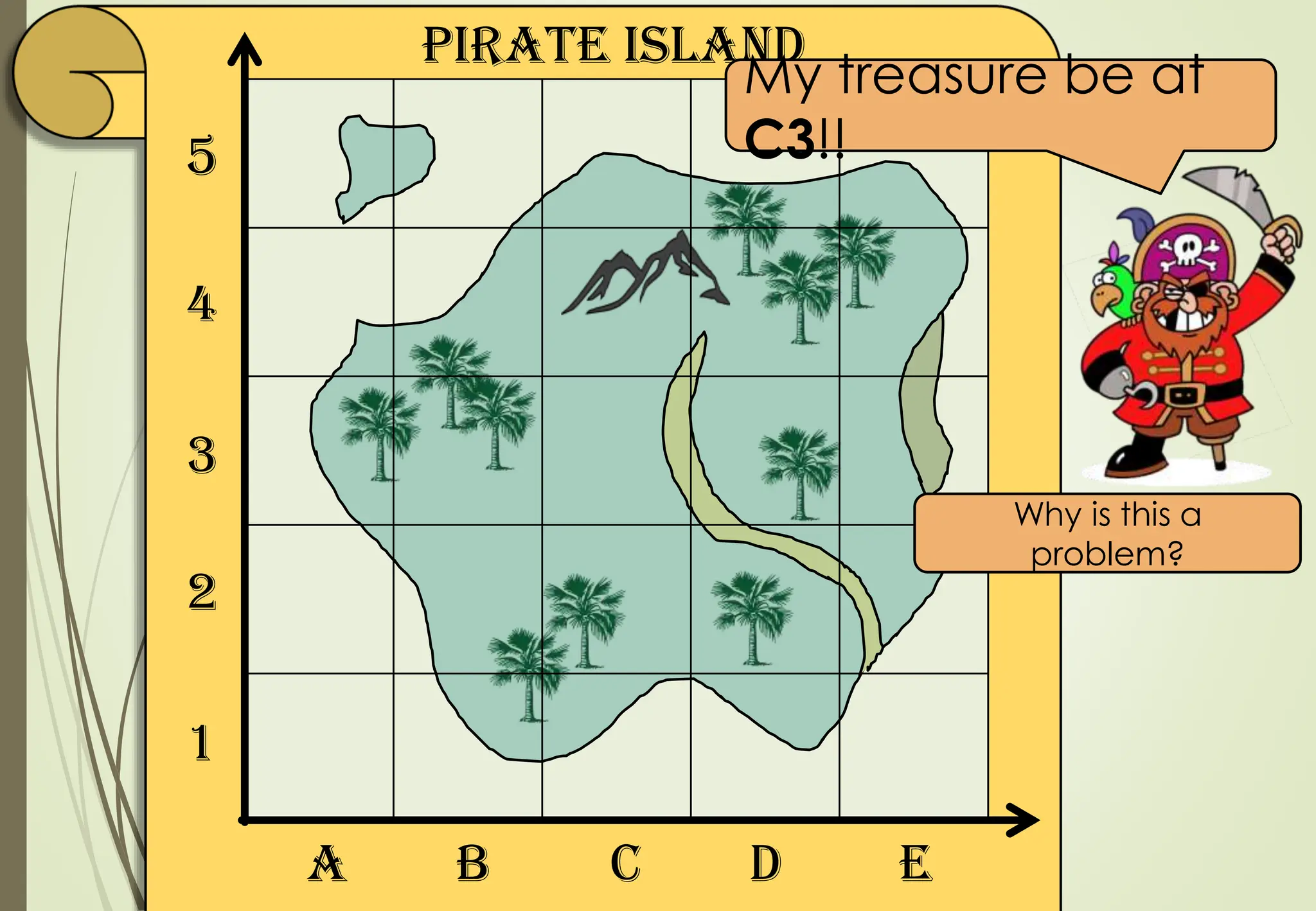

2. Pirate Island
1
2
3
4
5
A B C D E
My treasure be at
C3!!
Why is this a
problem?

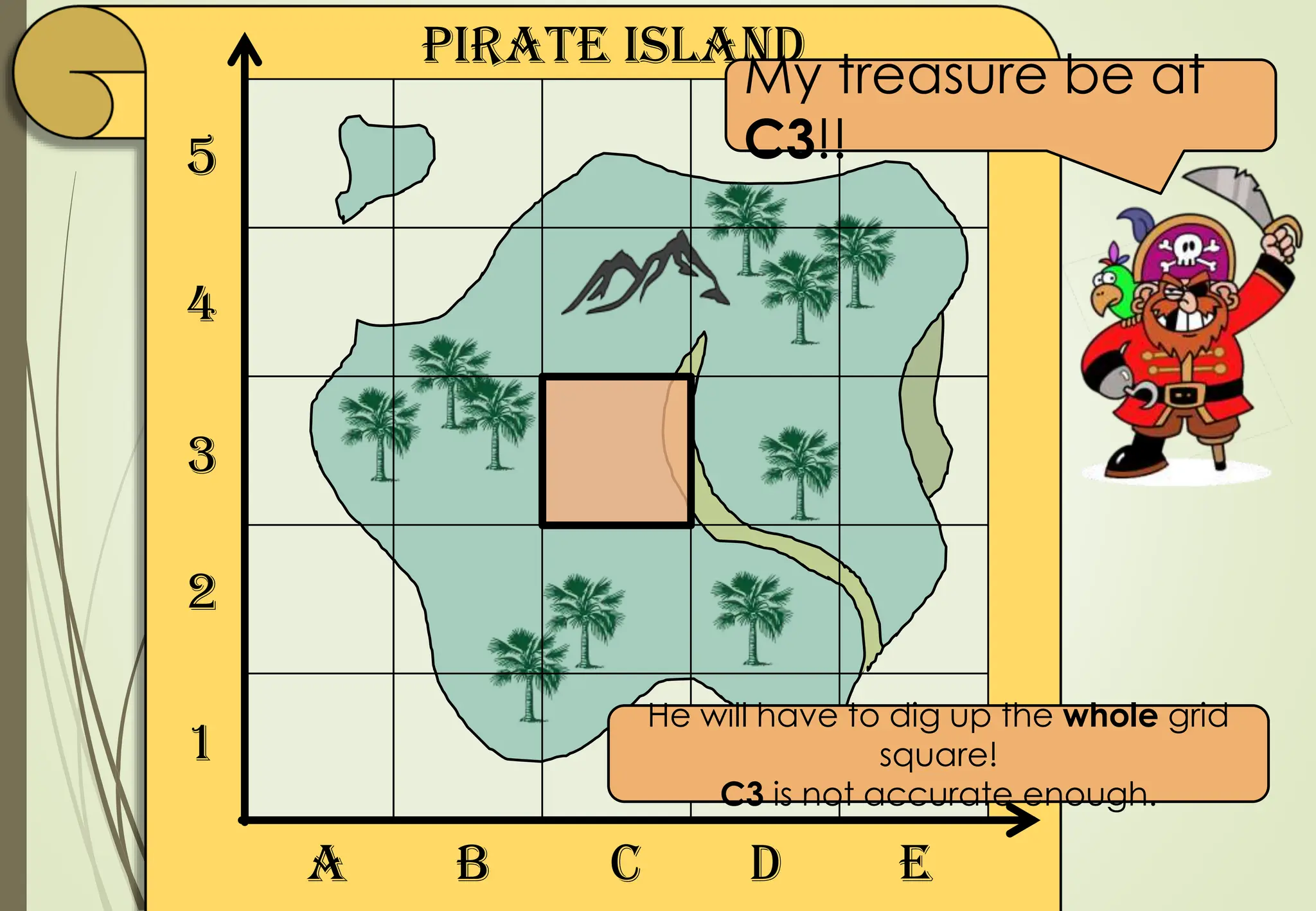

3. Pirate Island
1
2
3
4
5
A B C D E
My treasure be at
C3!!
He will have to dig up the whole grid
square!
C3 is not accurate enough.

4. 1
2
3
4
5
1 2 3 4 5
0
0
To name points on a flat surface we
use
a pair of coordinates.
A pair of coordinates:
(4,2)
Where is this?
(4,2) means
4 across, 2 up

5. A Rectangular Coordinate System or
Cartesian Plane is constructed by drawing
two perpendicular lines wherein the point
of intersection is called origin.

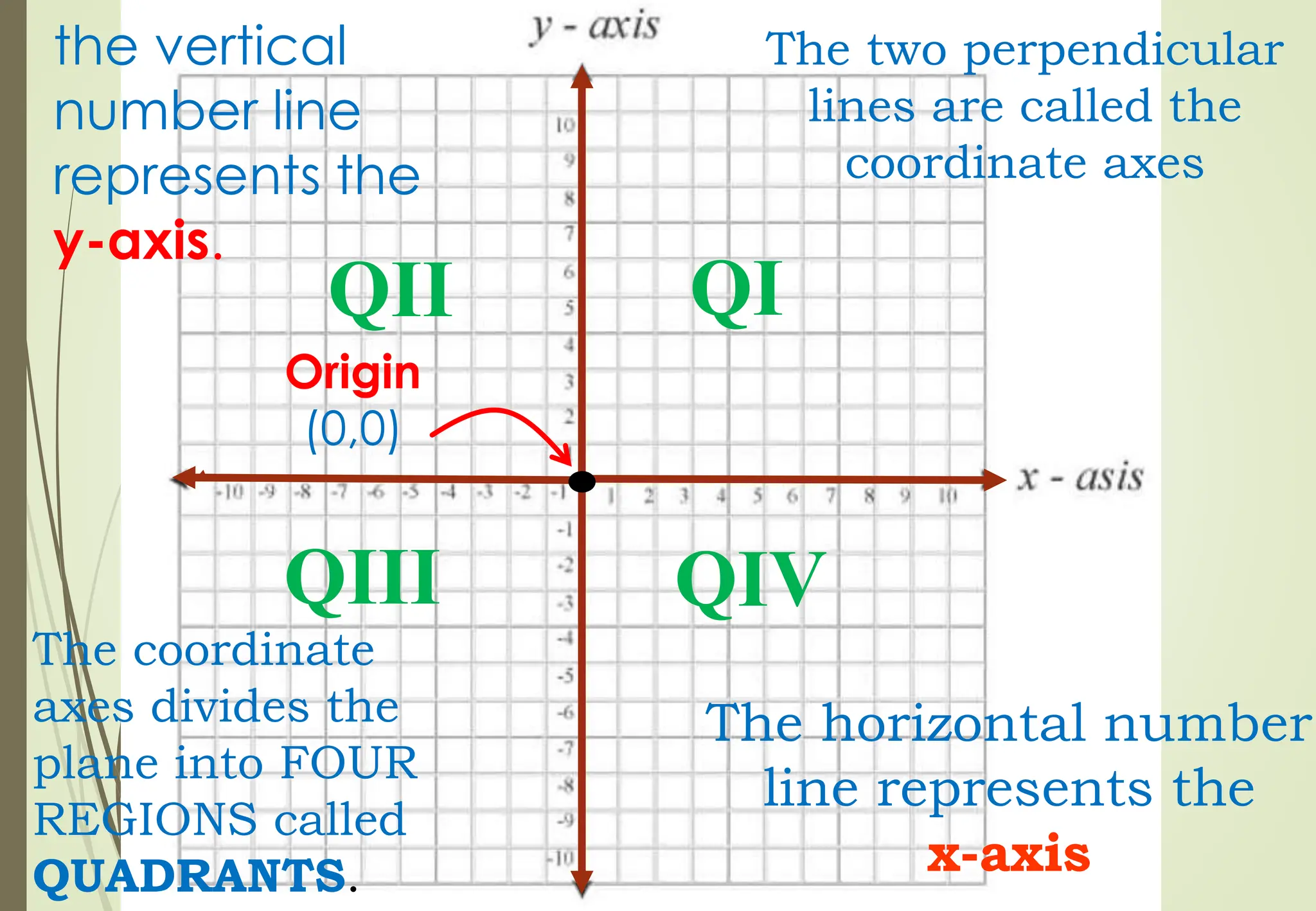

7. The two perpendicular
lines are called the
coordinate axes
The horizontal number
line represents the
x-axis
the vertical
number line
represents the
y-axis.

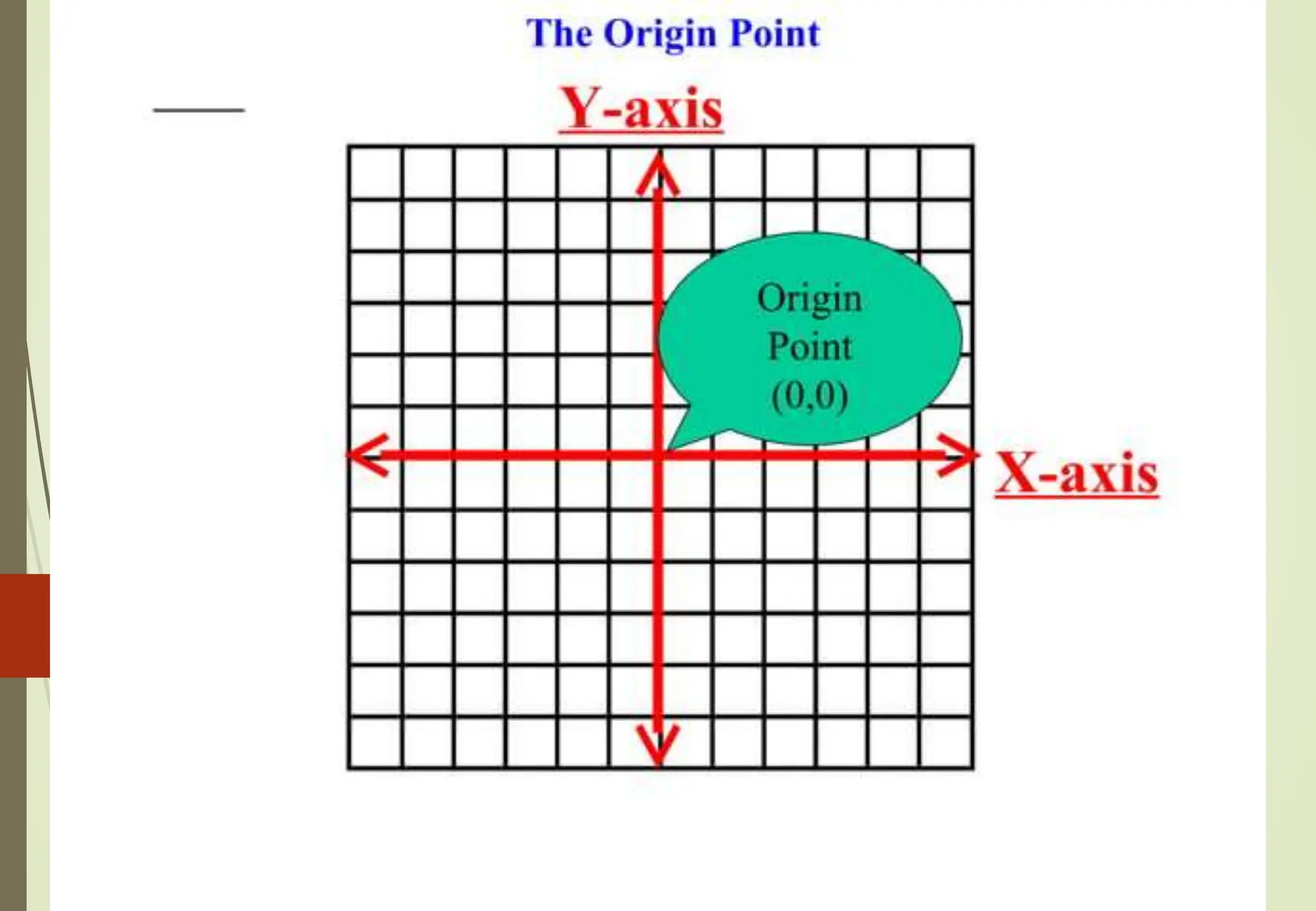

Origin
(0,0)
The coordinate
axes divides the
plane into FOUR
REGIONS called
QUADRANTS.
QI
QII
QIII QIV

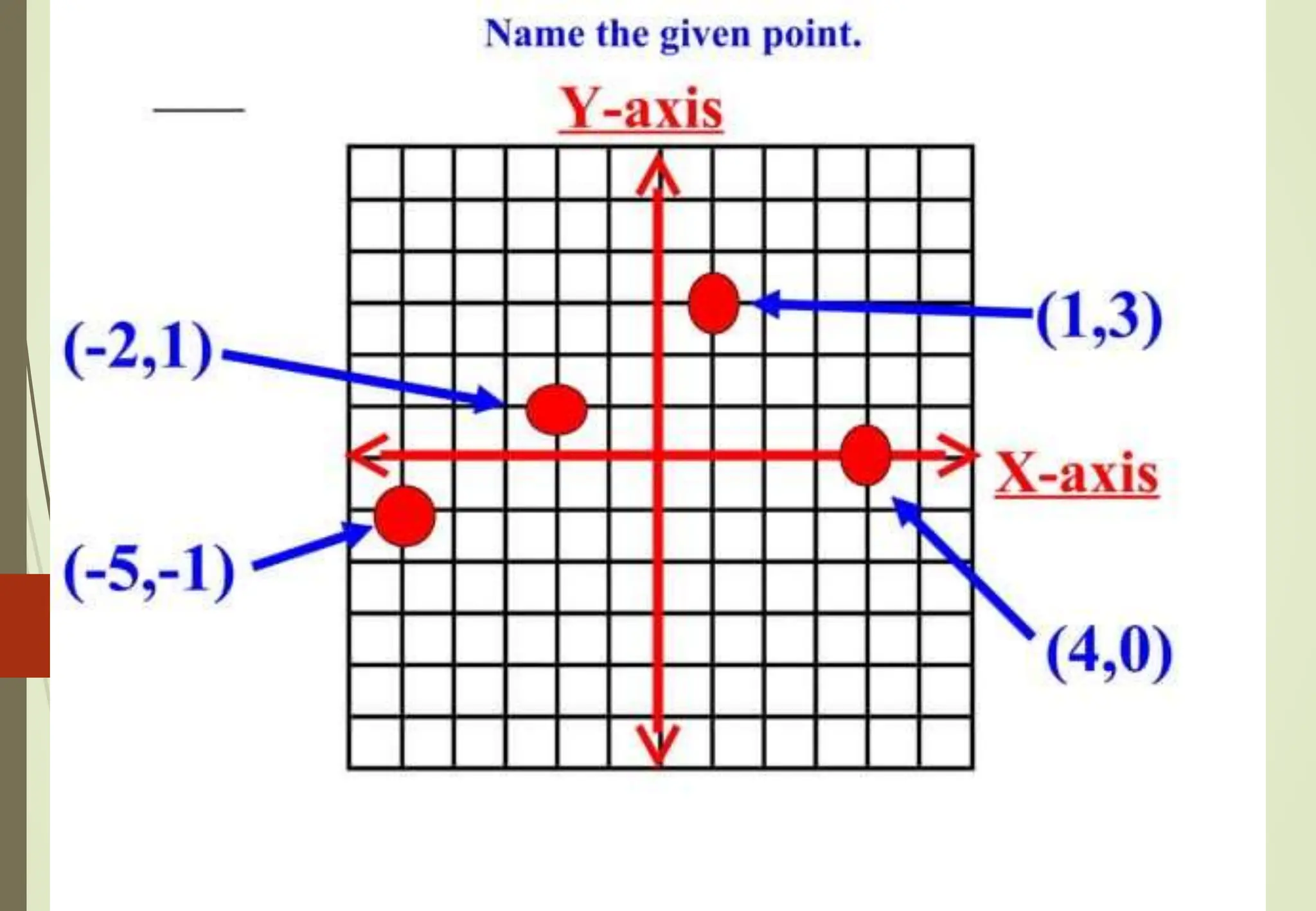

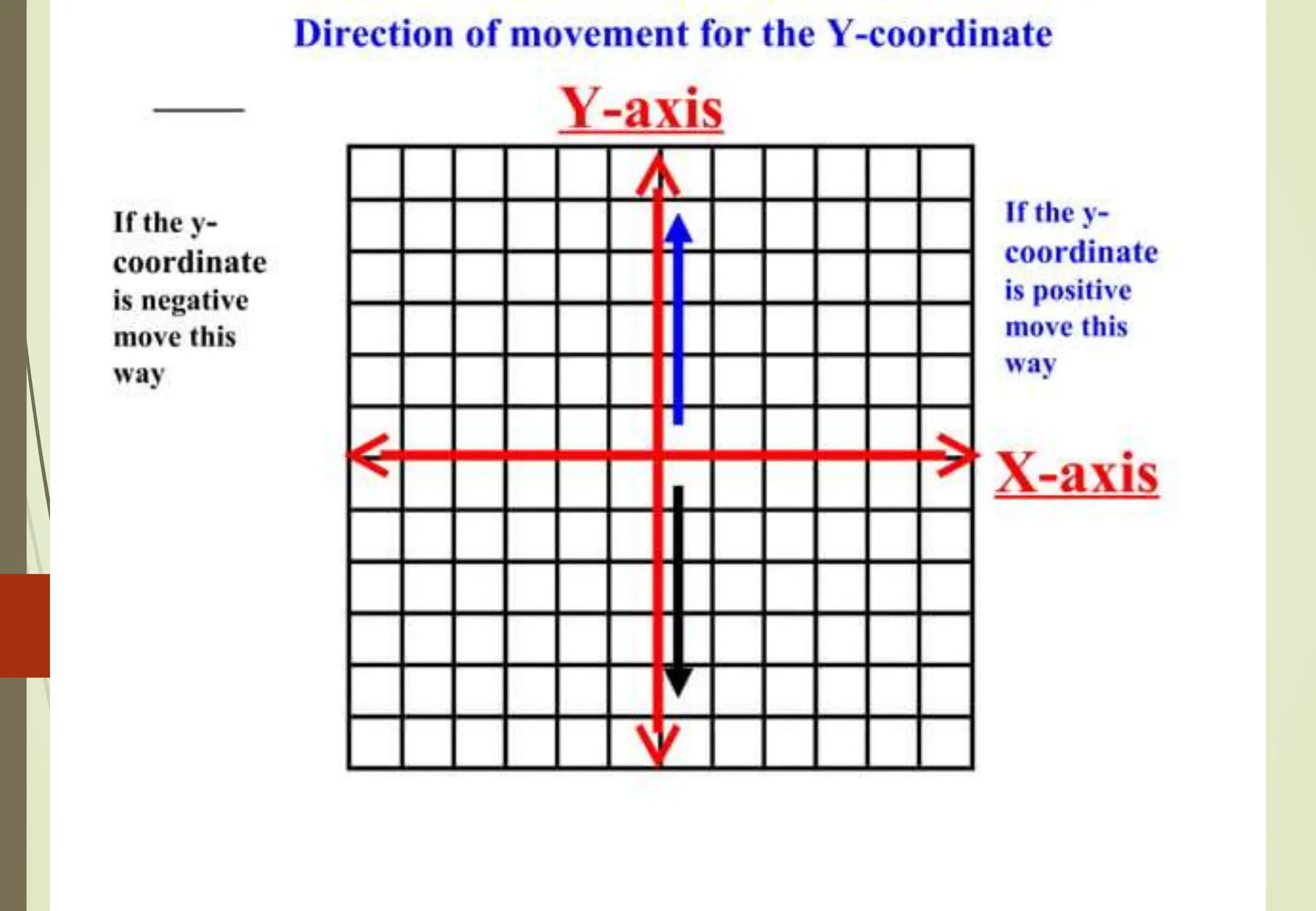

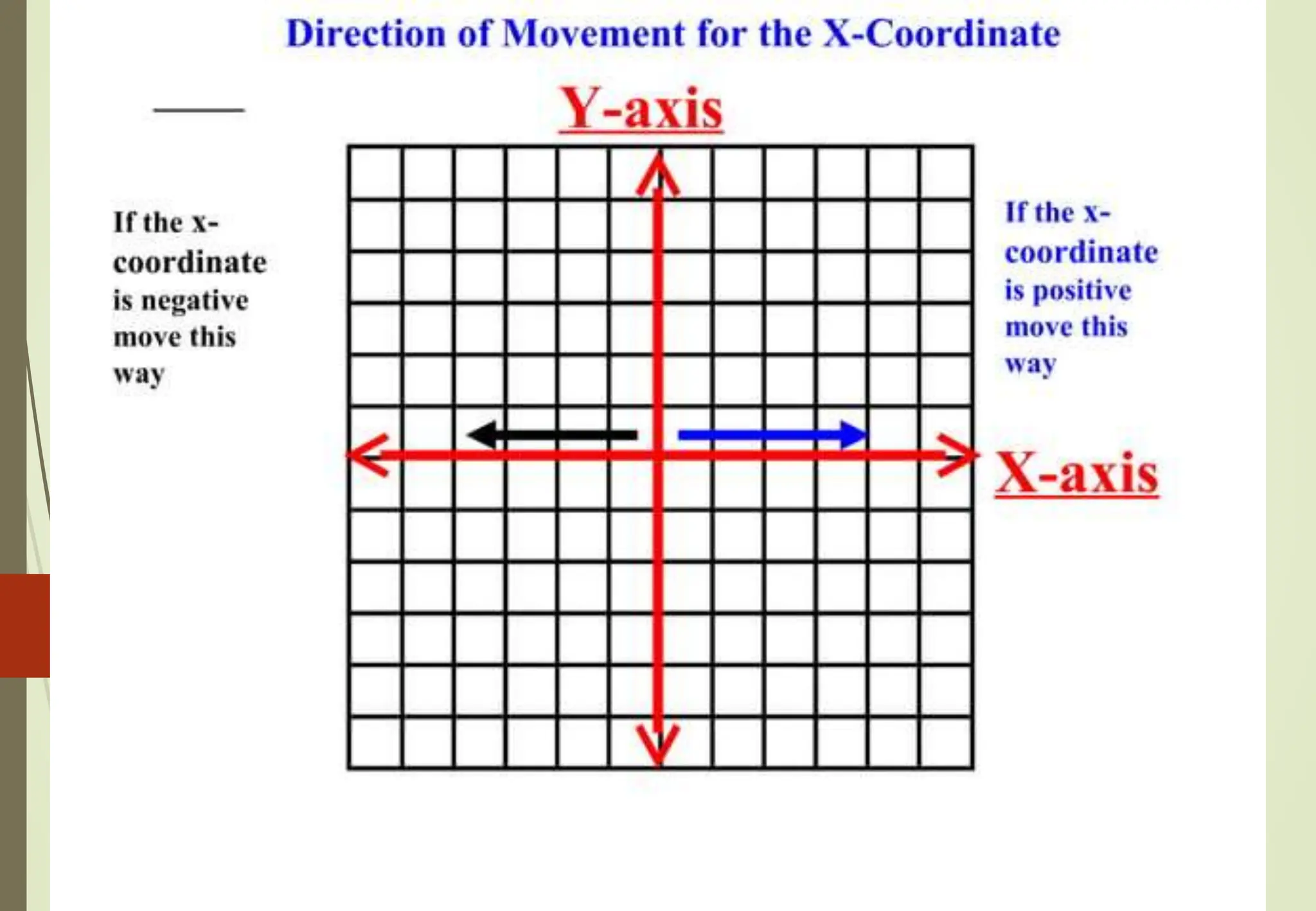

15. (2 , 5)
This is called a COORDINATE
Found in the
x-axis
Found in the
y-axis
Also called an
ordered pair
A

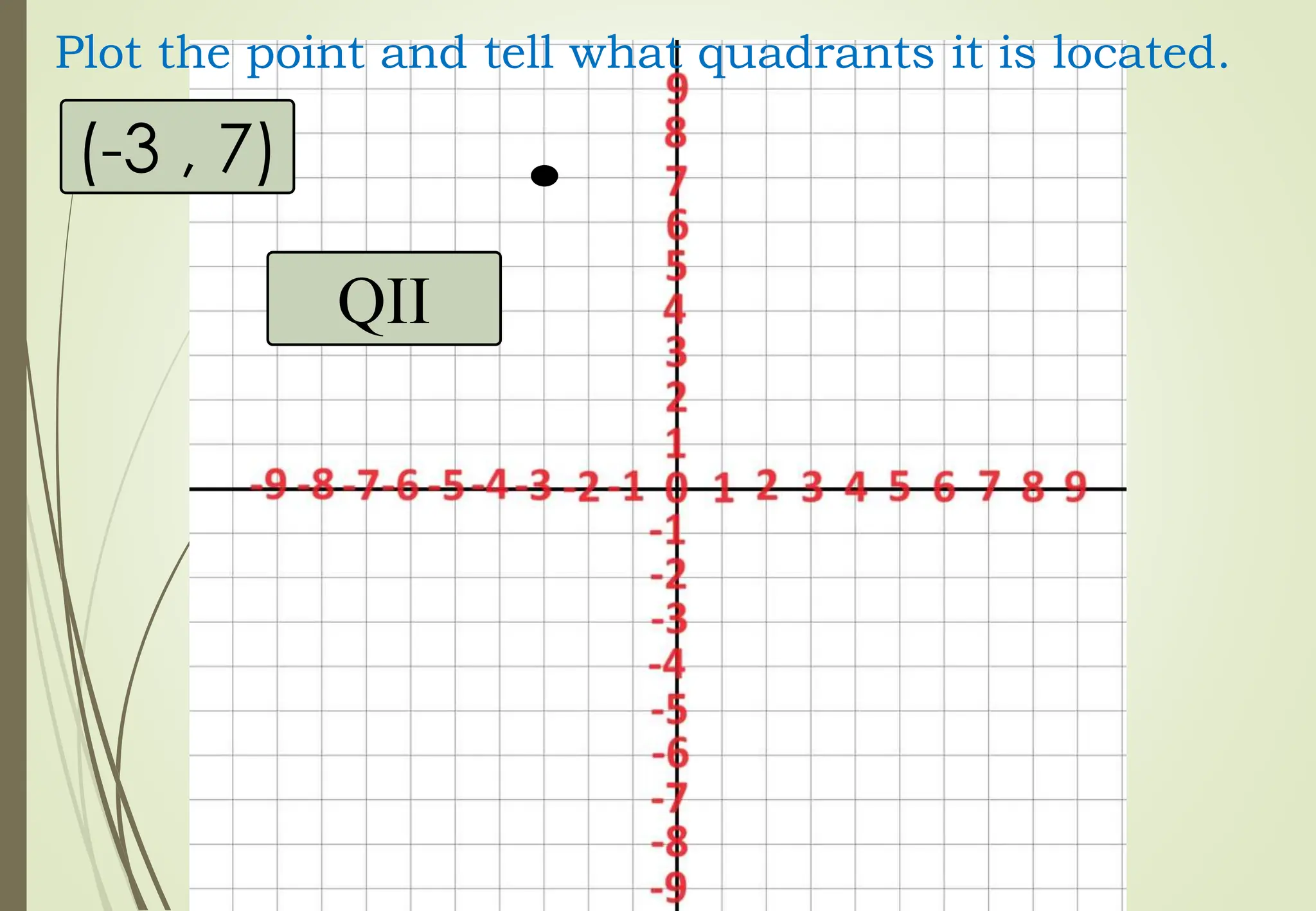

16. (-3 , 7)
Plot the point and tell what quadrants it is located.
QII

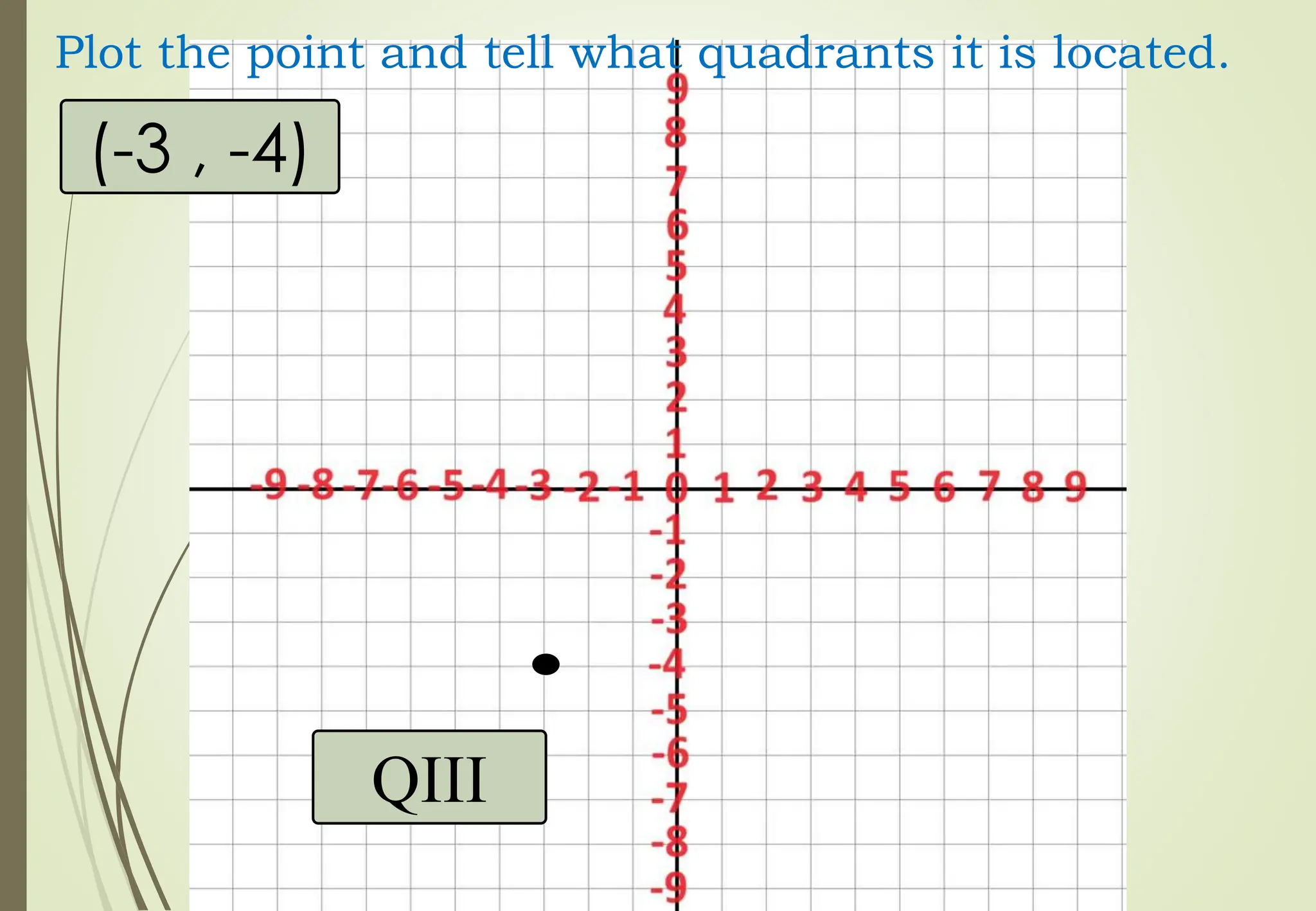

17. (-3 , -4)
Plot the point and tell what quadrants it is located.
QIII

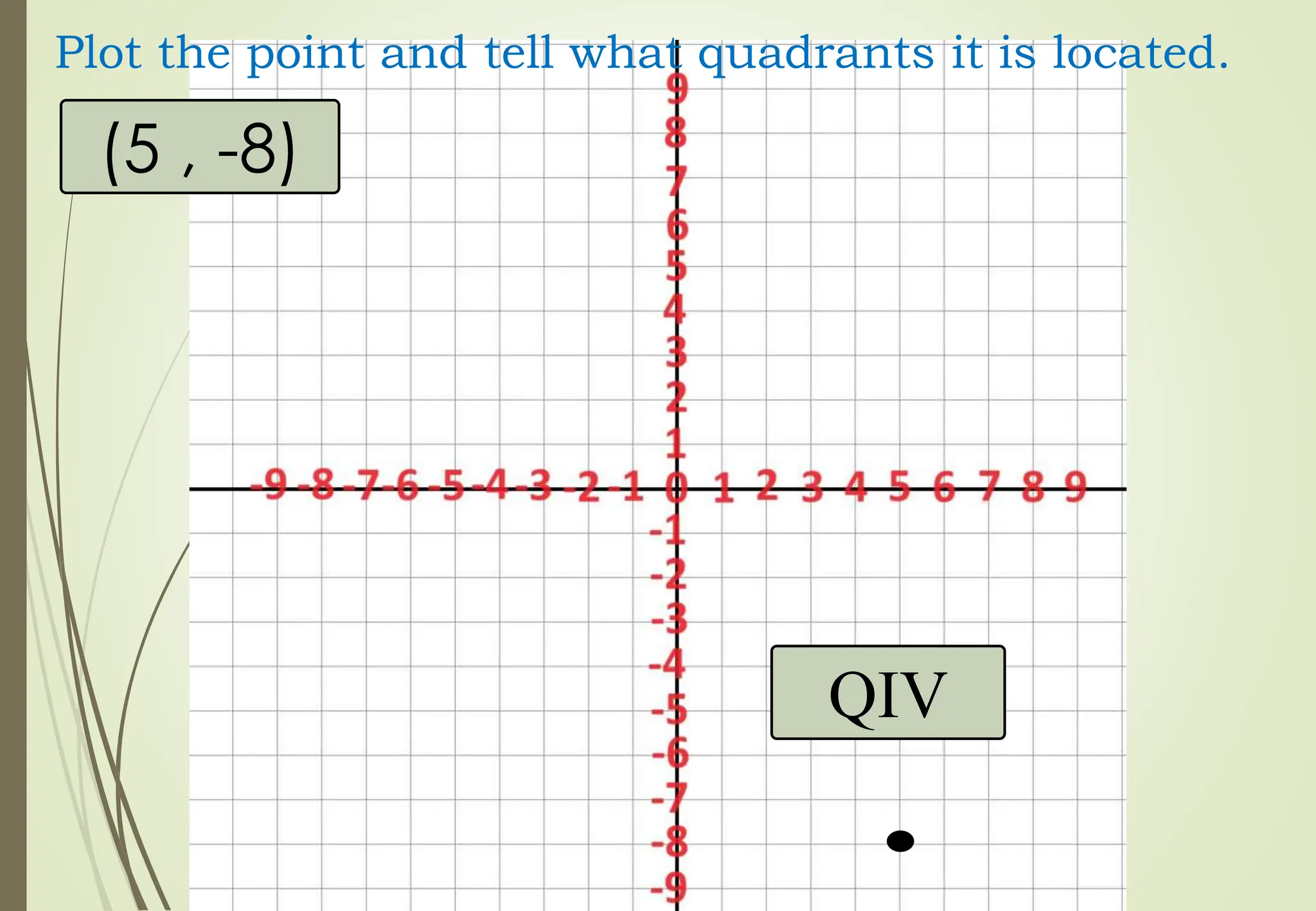

18. (5 , -8)
Plot the point and tell what quadrants it is located.
QIV

19. (6 , 0)
Plot the point and tell what quadrants it is located.
x-axis

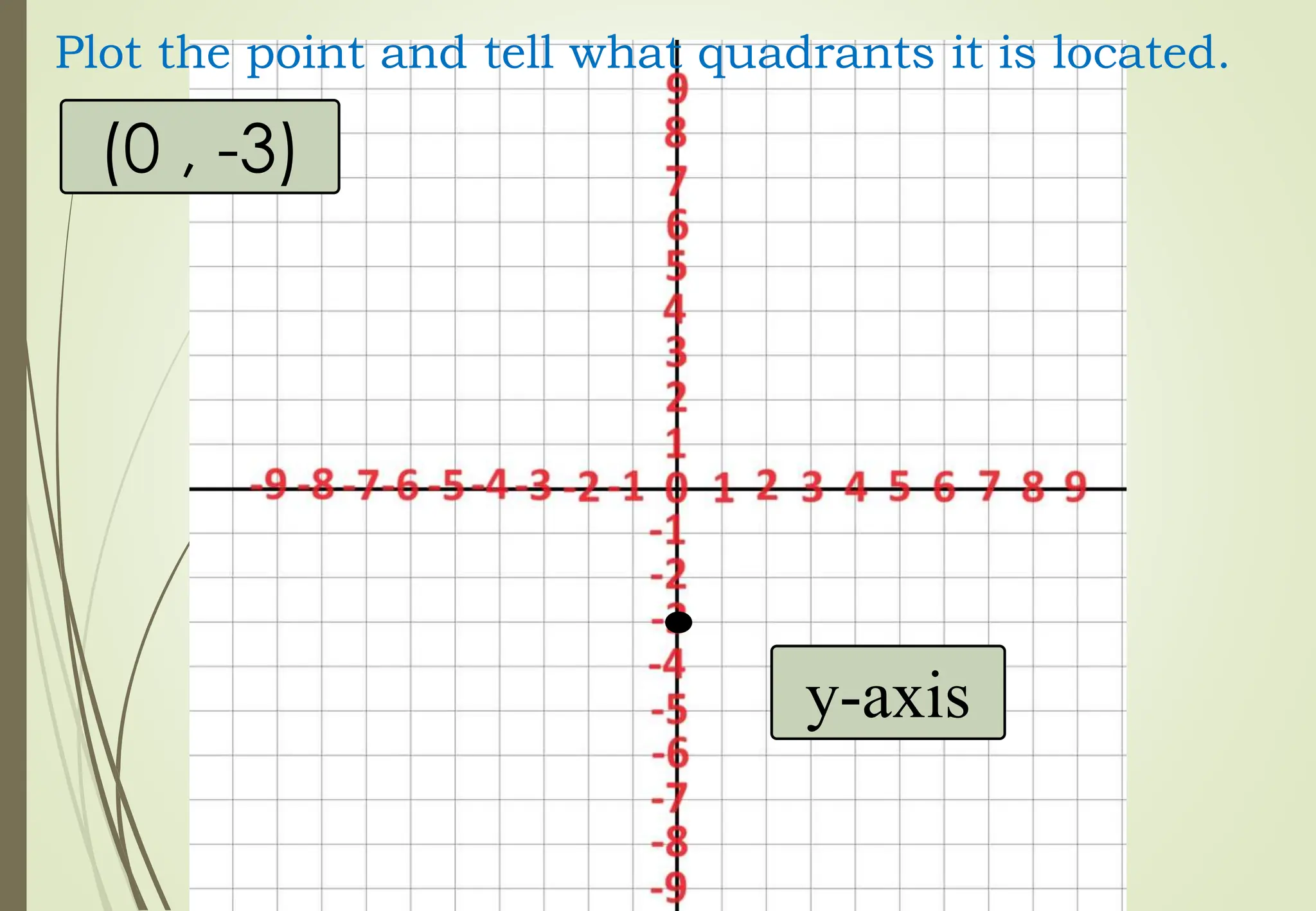

20. (0 , -3)
Plot the point and tell what quadrants it is located.
y-axis

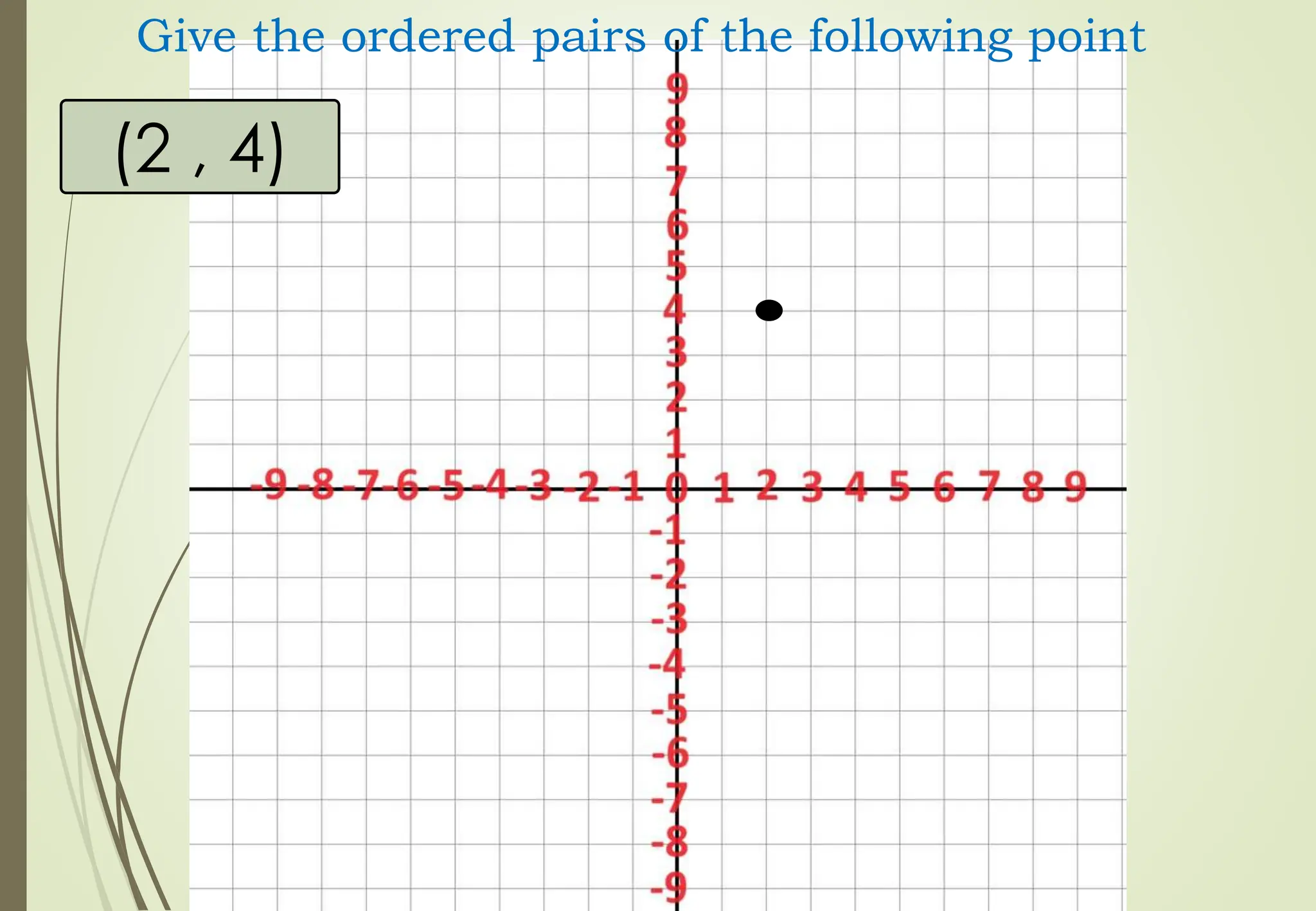

21. (2 , 4)
Give the ordered pairs of the following point

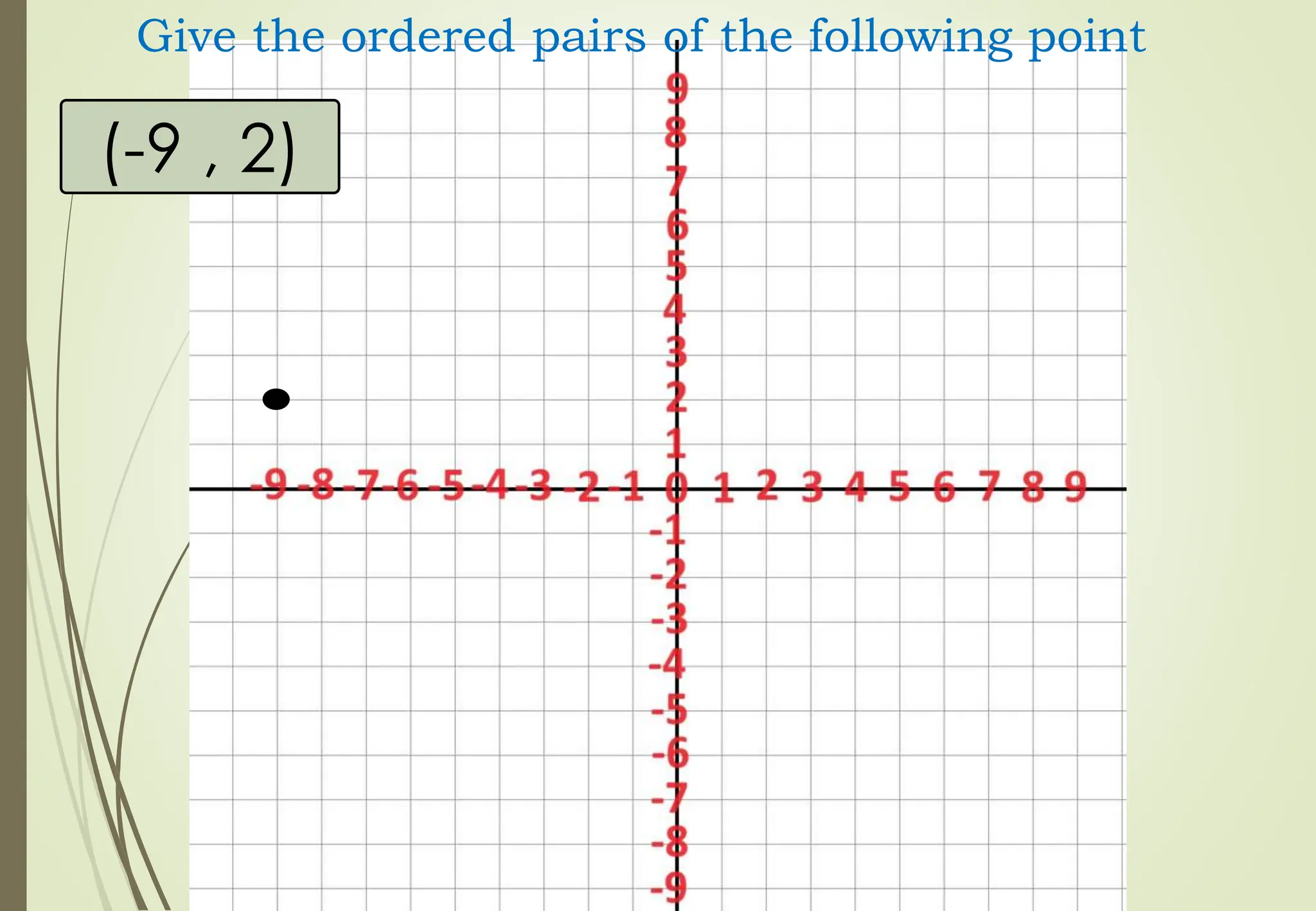

22. (-9 , 2)
Give the ordered pairs of the following point

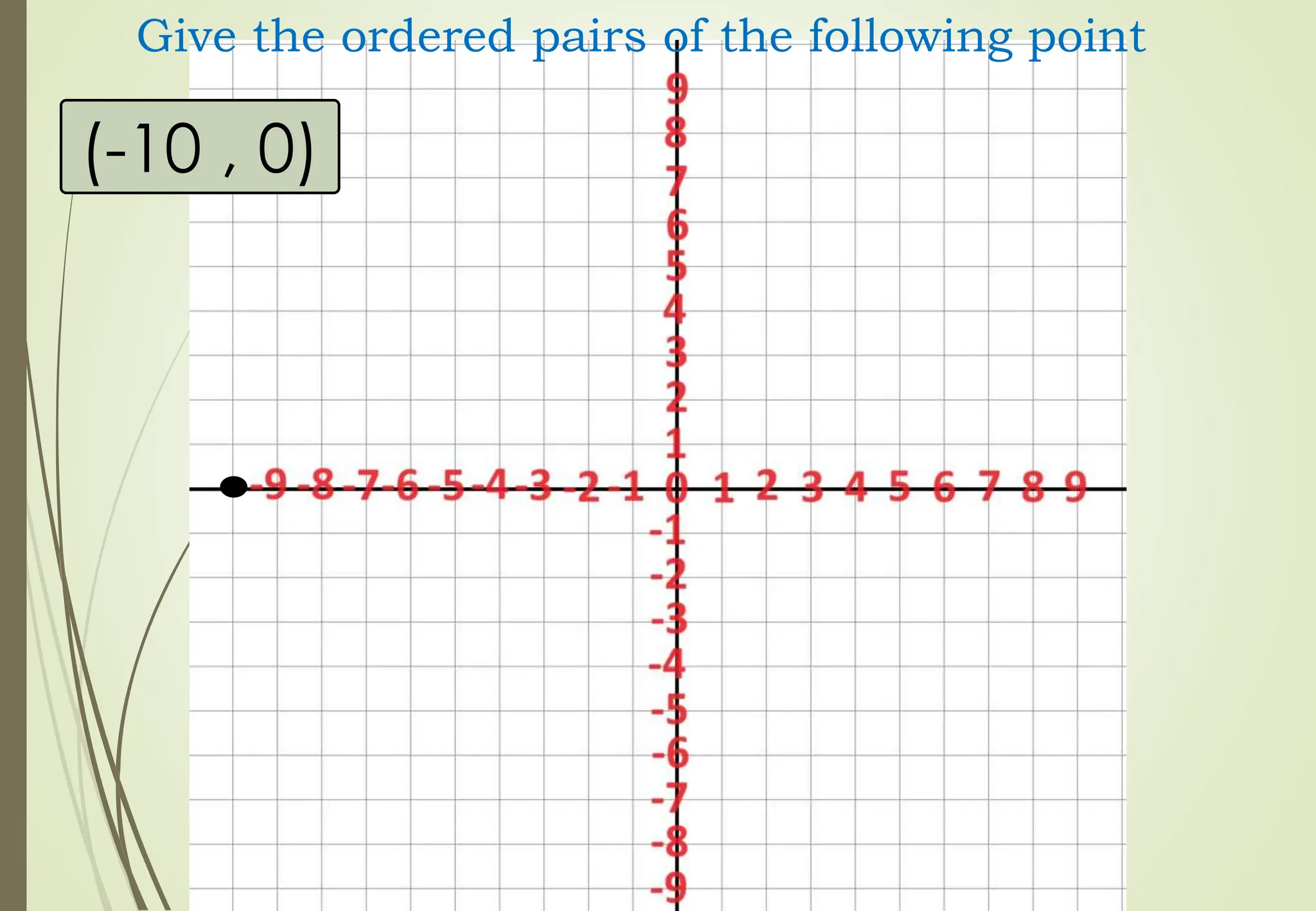

23. (-10 , 0)
Give the ordered pairs of the following point

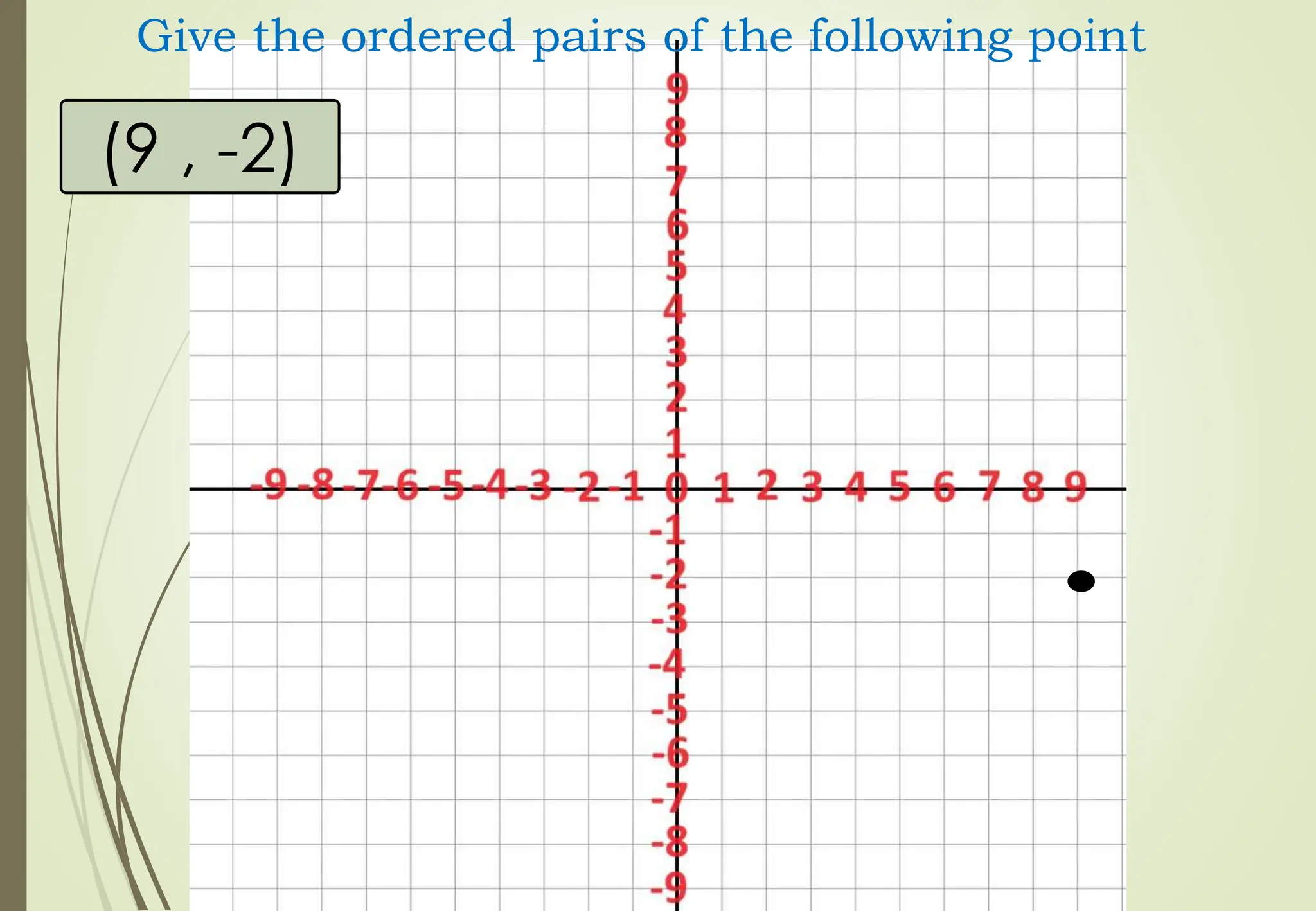

24. (9 , -2)
Give the ordered pairs of the following point

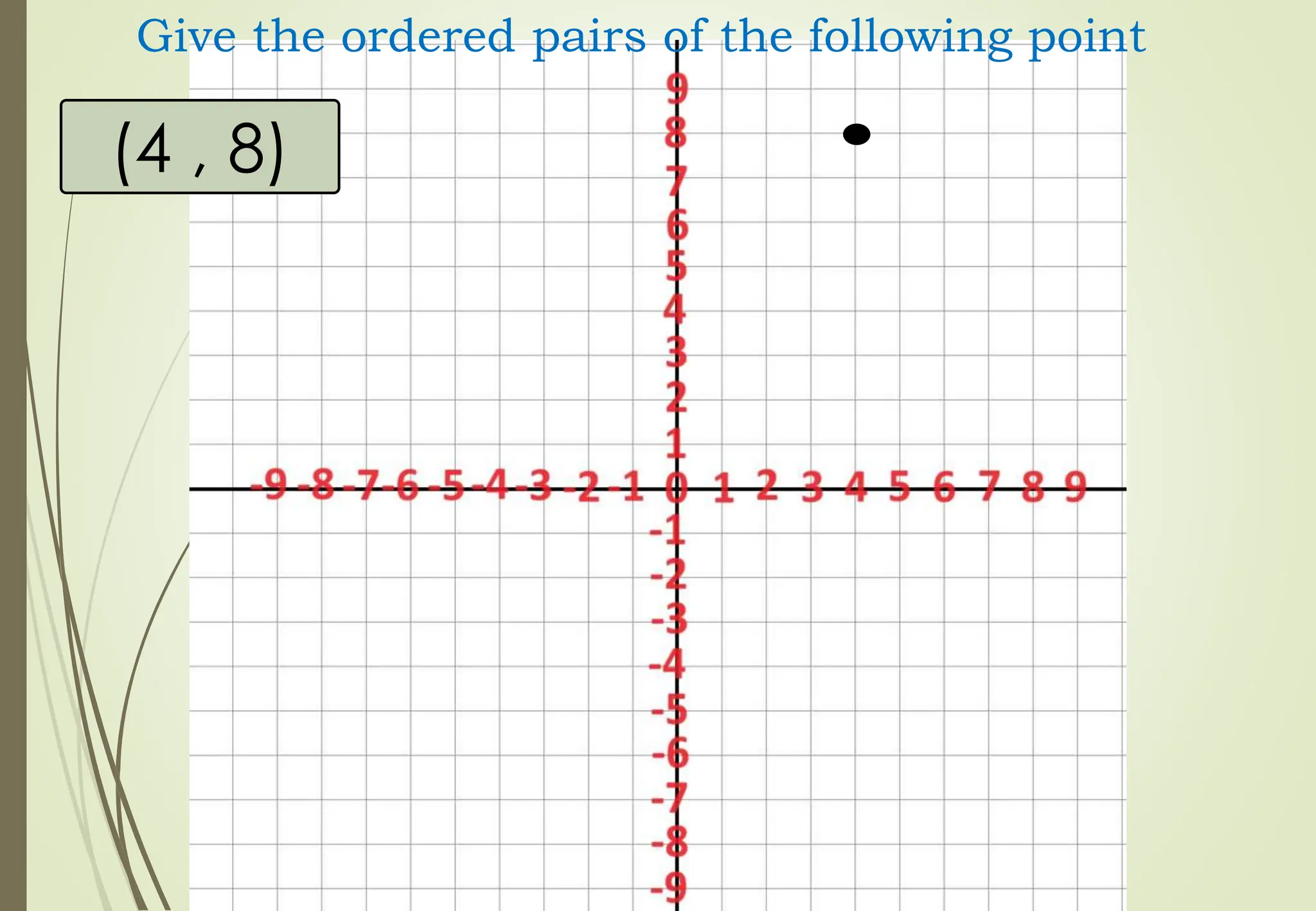

25. (4 , 8)
Give the ordered pairs of the following point

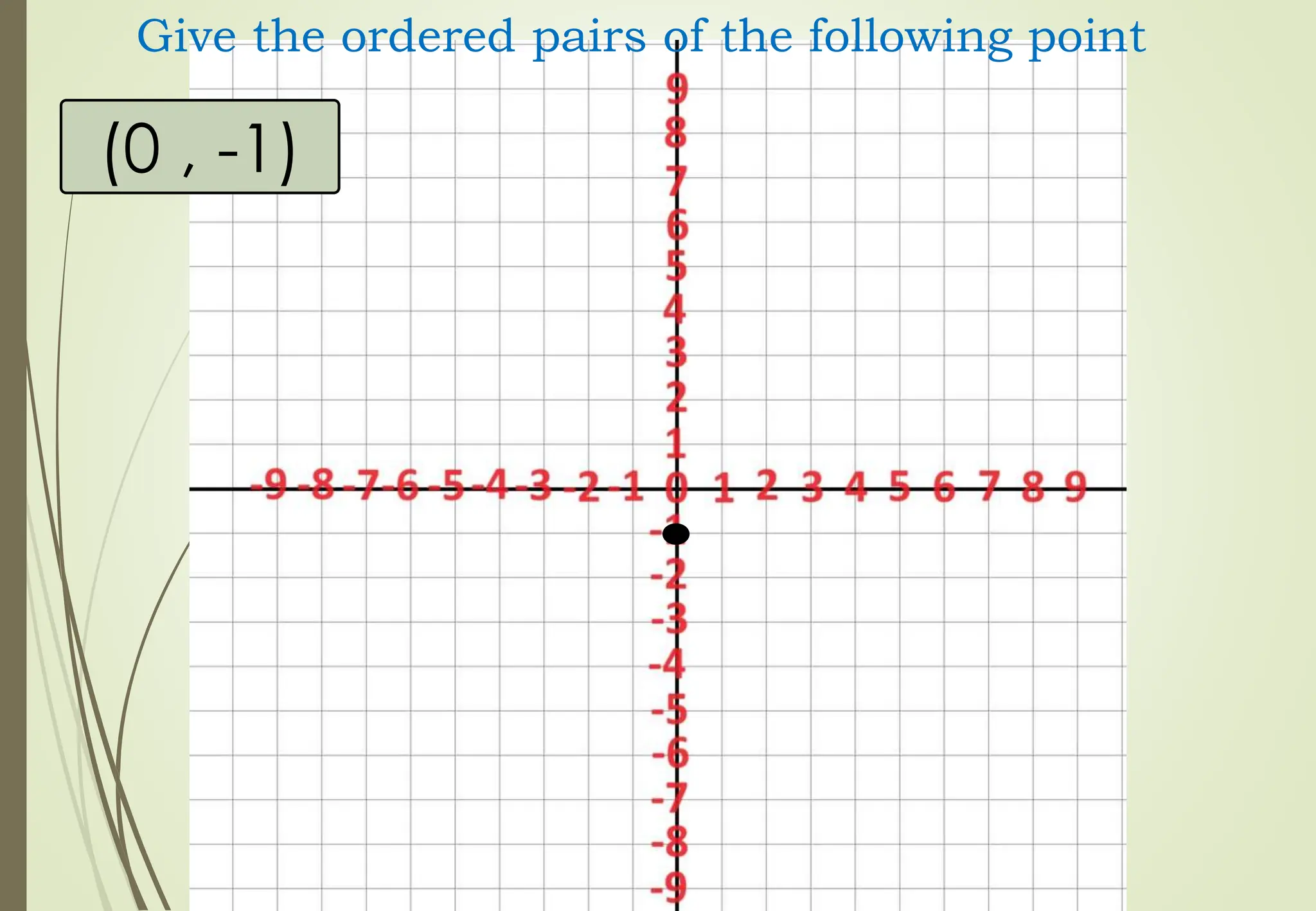

26. (0 , -1)
Give the ordered pairs of the following point

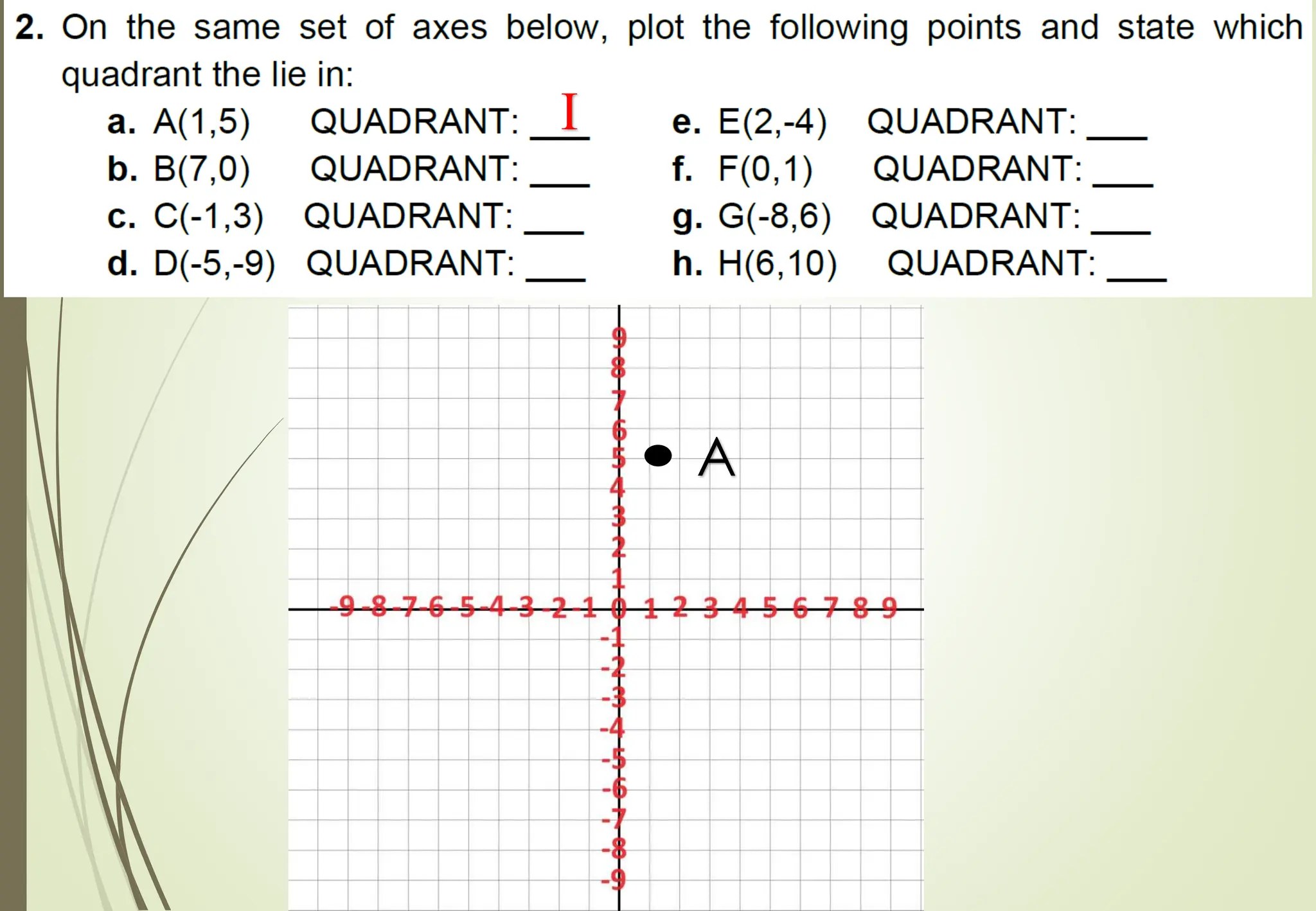

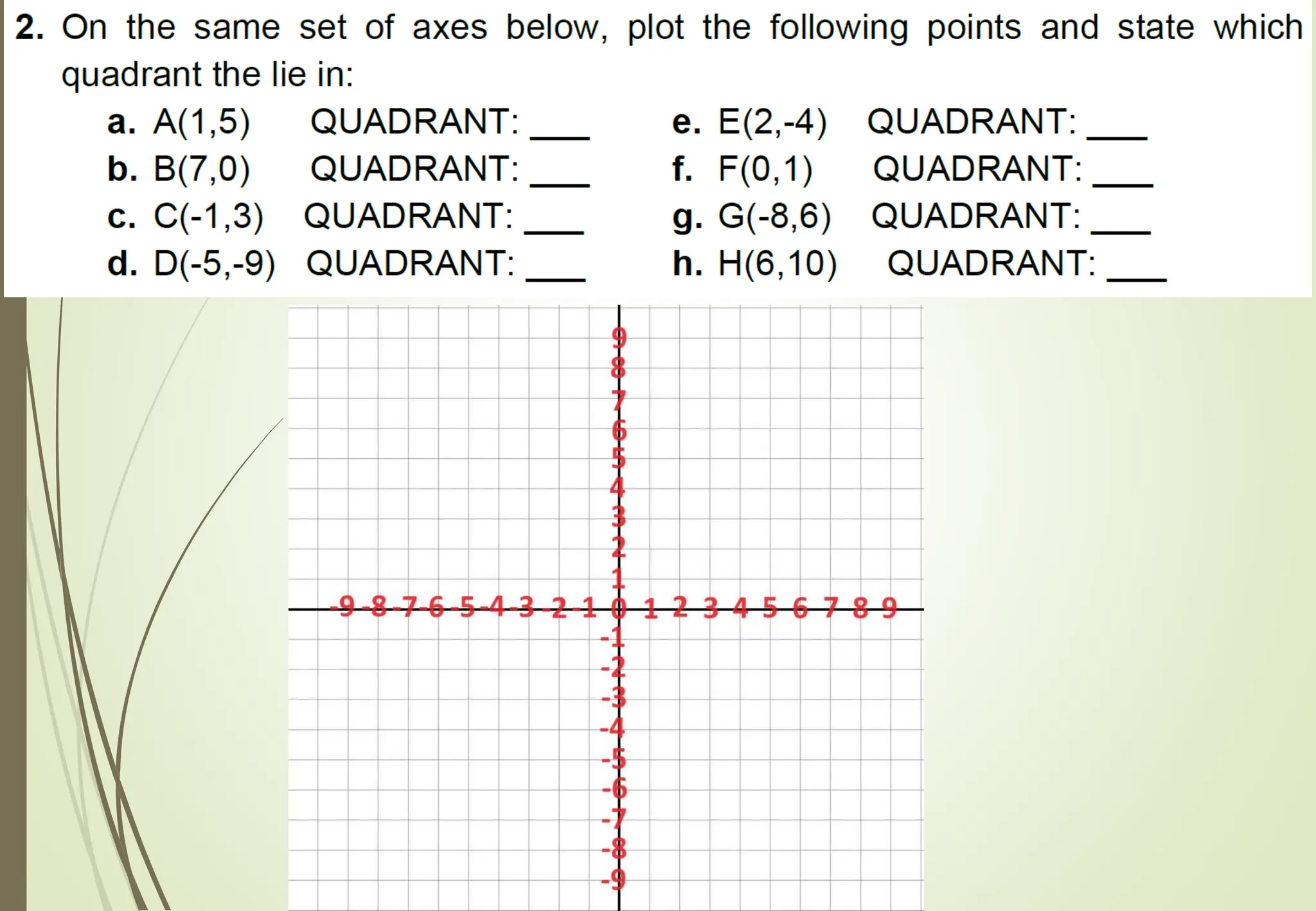

29. A
I

30. B
I
x-axis

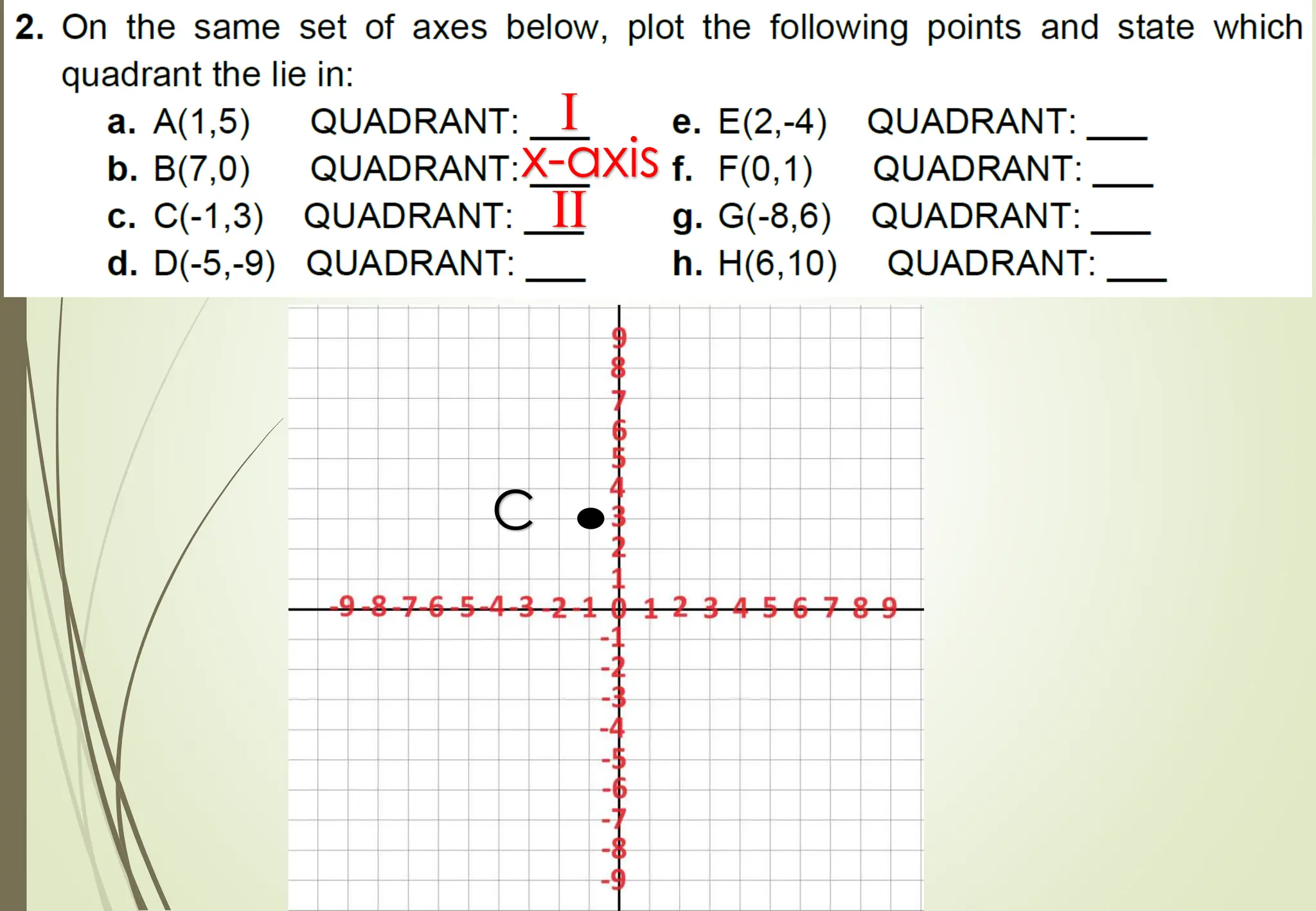

31. C
I
x-axis
II

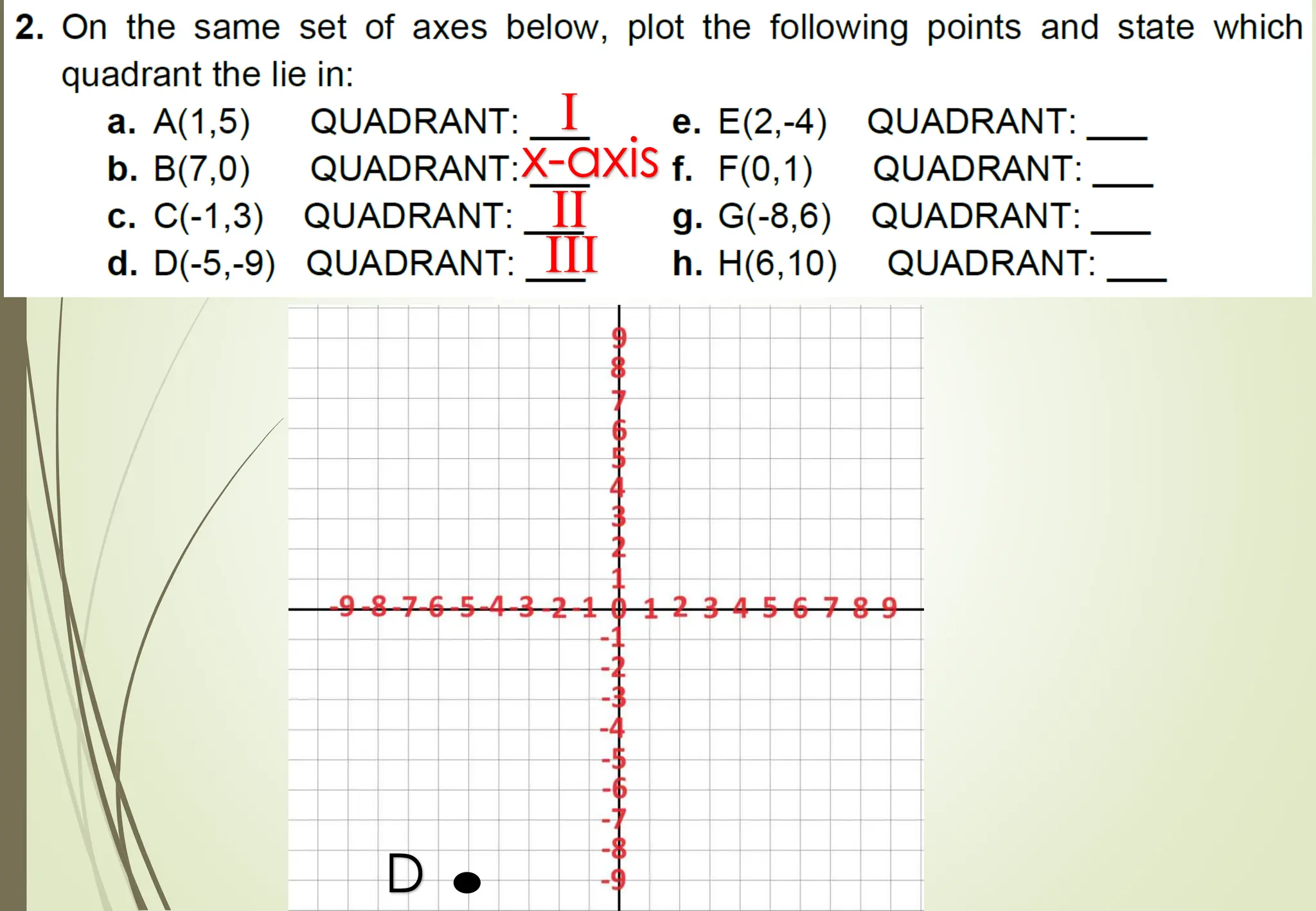

32. D
I
x-axis
II
III

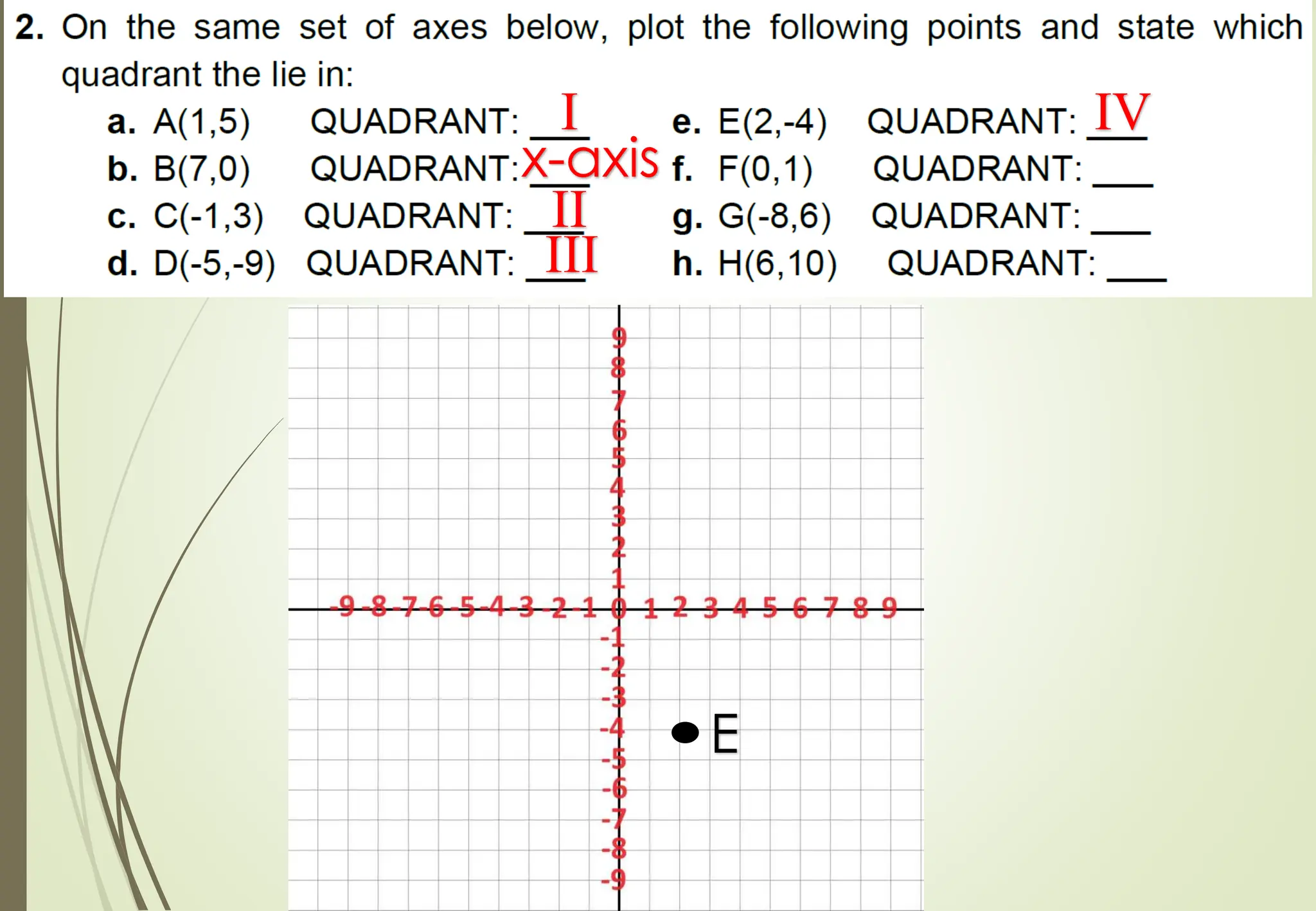

33. E
I
x-axis
II
III
IV

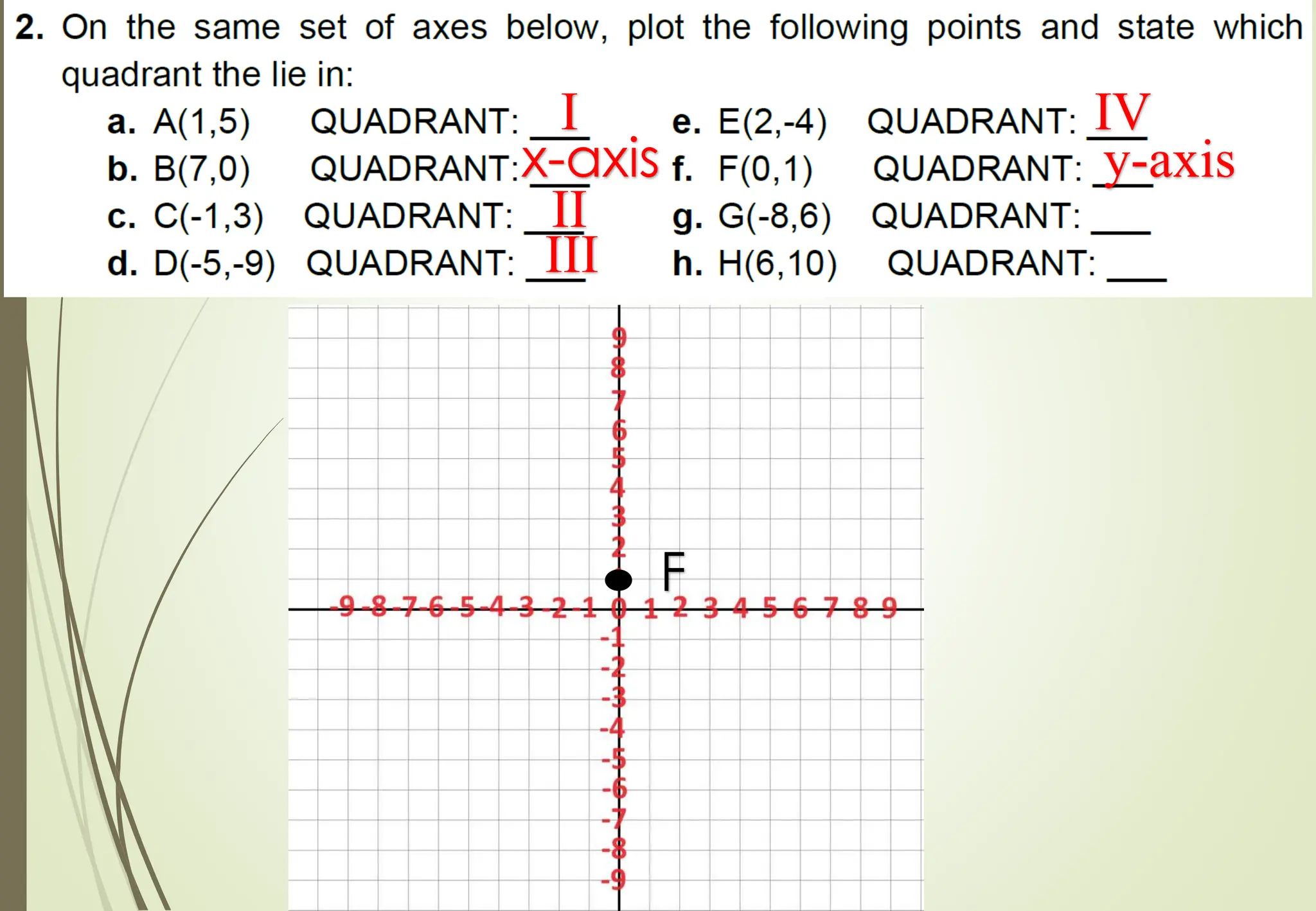

34. F
I
x-axis
II
III
IV
y-axis

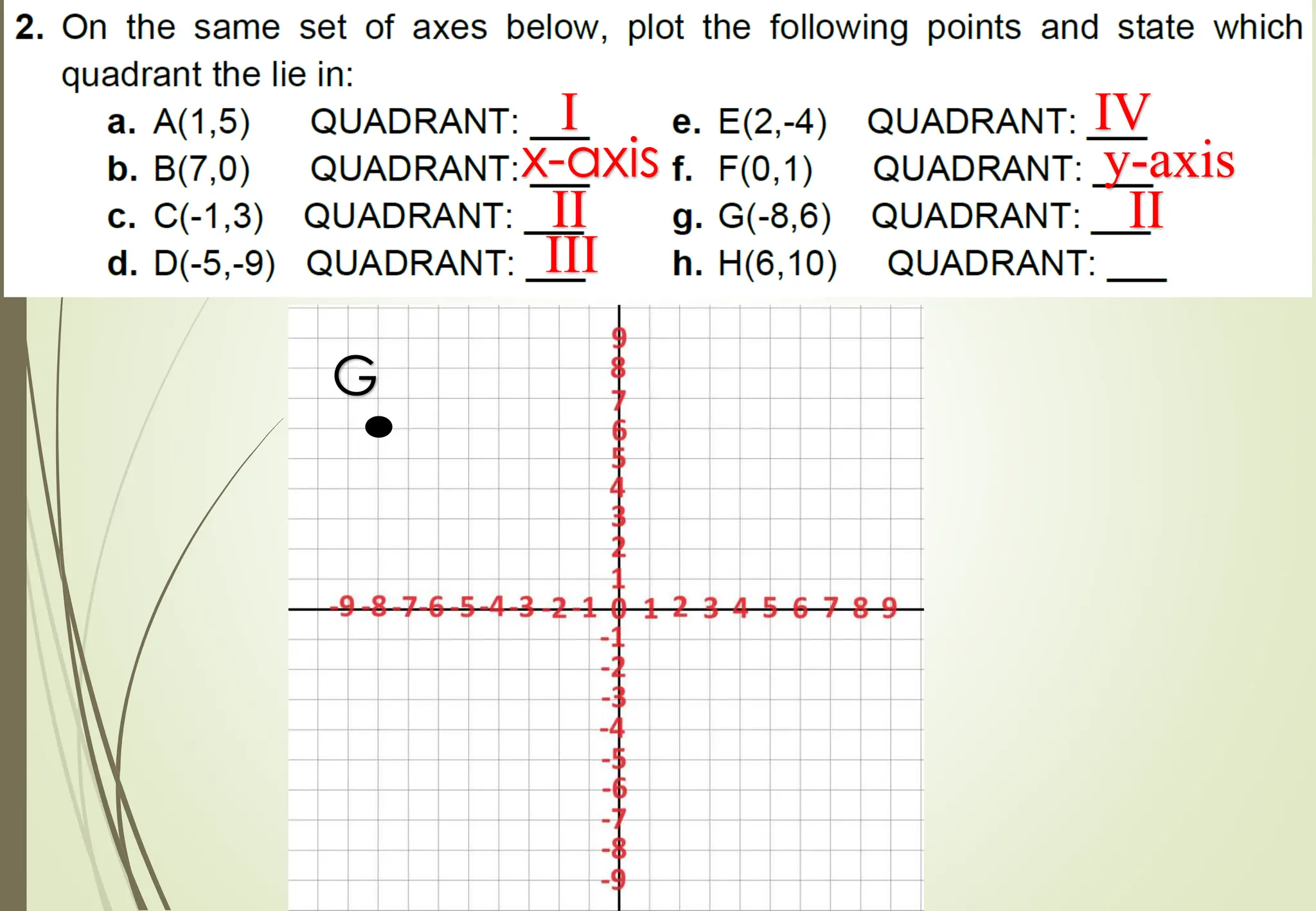

35. G
I
x-axis
II
III
IV
y-axis
II

36. H
I
x-axis
II
III
IV
y-axis
II
I

39. Write down the coordinates of …
Coordinates
A pair of coordinates: (4, 1)
4 is the horizontal position: left or right
1 is the vertical position: up or down
Point A ( 3 , 5 )
Point B ( 4 , 0 )
Point D ( 5 , −4 )
Point C ( −2 , 2 )
Point E ( −4 , −2 )
Point F ( −3 , −4.5 )
1) Point A is moved 5 units left.
What are its new coordinates?
2) Point E is moved 2 units up.
What are its new coordinates?
3) Point C is moved 5 units down
& 3 units right.
What are its new coordinates?
A
B
C
D
E
F

40. Write down the coordinates of …
Coordinates
A pair of coordinates: (4, 1)
4 is the horizontal position: left or right
1 is the vertical position: up or down
Point A ( 3 , 5 )
Point B ( 4 , 0 )
Point D ( 5 , −4 )
Point C ( −2 , 2 )
Point E ( −4 , −2 )
Point F ( −3 , −4.5 )
1) Point A is moved 5 units left.
What are its new coordinates?
( −2 , 5 )
2) Point E is moved 2 units up.
What are its new coordinates?
( −4 , 0 )
3) Point C is moved 5 units down
& 3 units right.
What are its new coordinates?
( 1 , −3 )
A
B
C
D
E
F
Answers

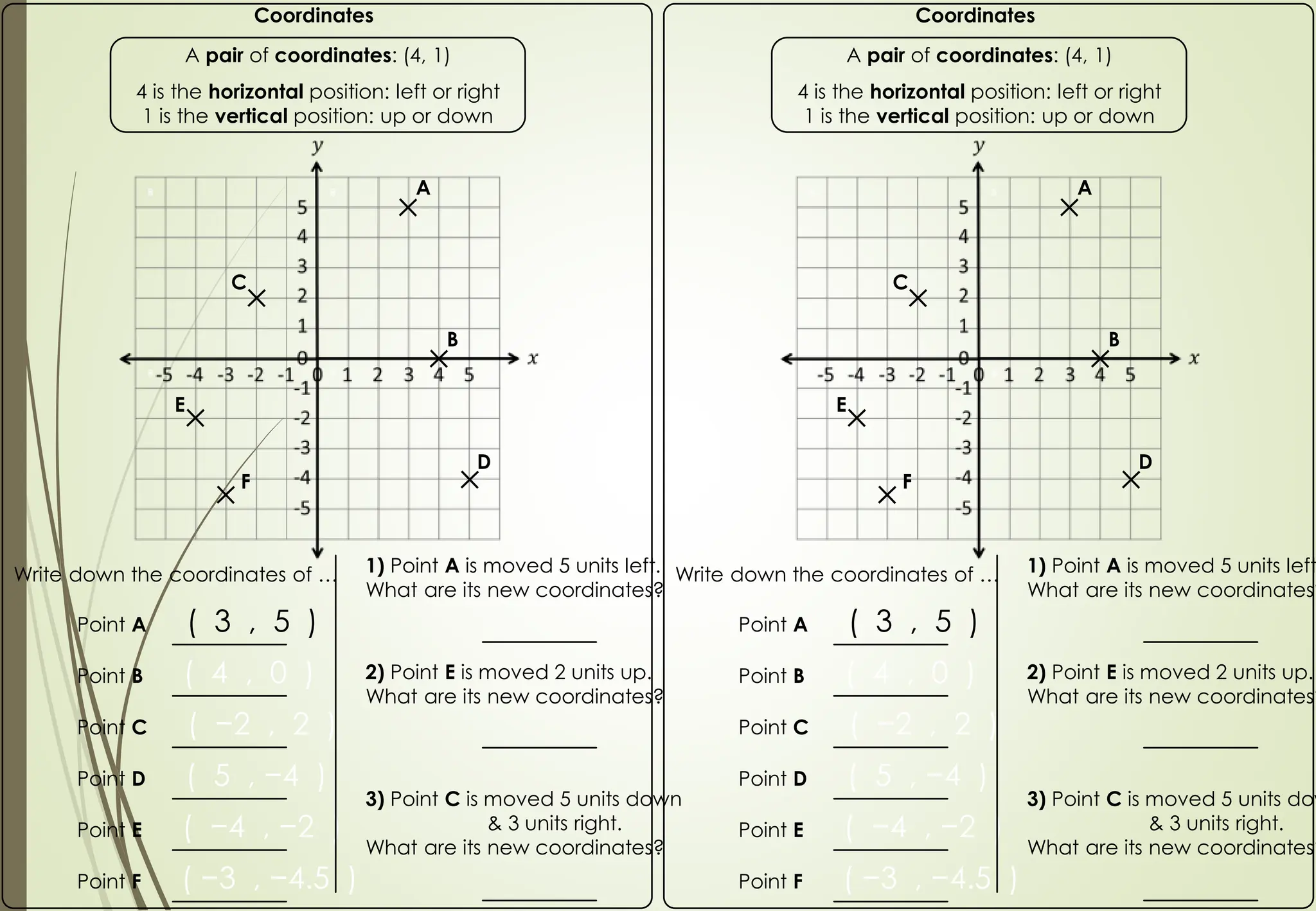

41. Write down the coordinates of …
Coordinates
A pair of coordinates: (4, 1)
4 is the horizontal position: left or right
1 is the vertical position: up or down
Point A ( 3 , 5 )
Point B ( 4 , 0 )
Point D ( 5 , −4 )
Point C ( −2 , 2 )
Point E ( −4 , −2 )
Point F ( −3 , −4.5 )
1) Point A is moved 5 units left.
What are its new coordinates?
2) Point E is moved 2 units up.
What are its new coordinates?
3) Point C is moved 5 units down
& 3 units right.
What are its new coordinates?
A
B
C
D
E
F
Write down the coordinates of …
Coordinates
A pair of coordinates: (4, 1)
4 is the horizontal position: left or right
1 is the vertical position: up or down
Point A ( 3 , 5 )
Point B ( 4 , 0 )
Point D ( 5 , −4 )
Point C ( −2 , 2 )
Point E ( −4 , −2 )
Point F ( −3 , −4.5 )
1) Point A is moved 5 units left
What are its new coordinates?
2) Point E is moved 2 units up.
What are its new coordinates?
3) Point C is moved 5 units dow
& 3 units right.
What are its new coordinates?
A
B
C
D
E
F
