STL stands for Standard Template Library. It provides common programming data structures and algorithms. The key components of STL are containers like vector and list that store data, iterators that access elements in containers, and algorithms that perform operations on data structures. STL aims to provide generic functions that work on different data types through templates. Common STL algorithms include searching, sorting, copying, and erasing elements from containers.

1. Overview
Ping-Lun Liao
S T
L

2. Outline
STL
Container
Iterator
Algorithm
Function Object

3. What is STL
Standard Template Library.
ANSI/ISO C++
Key Person
Alexander A. Stepanov

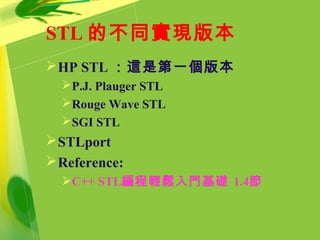

4. STL 的不同實現版本
HP STL ：這是第一個版本
P.J. Plauger STL
Rouge Wave STL
SGI STL
STLport
Reference:
C++ STL編程輕鬆入門基礎 1.4節

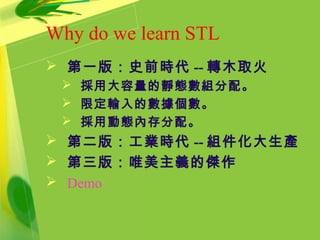

5. Why do we learn STL
 第一版：史前時代 -- 轉木取火
 採用大容量的靜態數組分配。
 限定輸入的數據個數。
 採用動態內存分配。
 第二版：工業時代 -- 組件化大生產
 第三版：唯美主義的傑作
 Demo

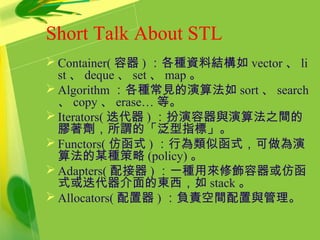

6. Short Talk About STL
 Container( 容器 ) ：各種資料結構如 vector 、 li
st 、 deque 、 set 、 map 。
 Algorithm ：各種常見的演算法如 sort 、 search
、 copy 、 erase… 等。
 Iterators( 迭代器 ) ：扮演容器與演算法之間的
膠著劑，所謂的「泛型指標」。
 Functors( 仿函式 ) ：行為類似函式，可做為演
算法的某種策略 (policy) 。
 Adapters( 配接器 ) ：一種用來修飾容器或仿函
式或迭代器介面的東西，如 stack 。
 Allocators( 配置器 ) ：負責空間配置與管理。

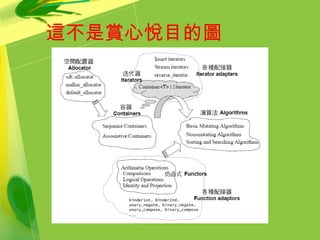

7. 這不是賞心悅目的圖

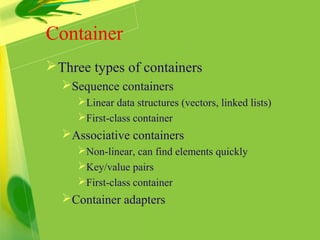

8. Container
Three types of containers
Sequence containers
Linear data structures (vectors, linked lists)
First-class container
Associative containers
Non-linear, can find elements quickly
Key/value pairs
First-class container
Container adapters

9. STL Container Classes
 Sequence containers
 vector
 deque
 list
 Associative containers
 set
 multiset
 map
 multimap
 Container adapters
 stack
 queue
 priority_queue

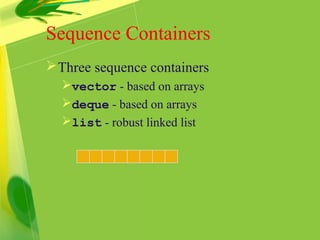

10. Sequence Containers
Three sequence containers
vector - based on arrays
deque - based on arrays
list - robust linked list

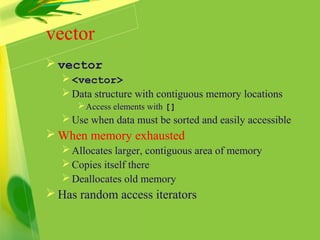

11. vector
 vector
<vector>
Data structure with contiguous memory locations
Access elements with []
Use when data must be sorted and easily accessible
 When memory exhausted
Allocates larger, contiguous area of memory
Copies itself there
Deallocates old memory
 Has random access iterators

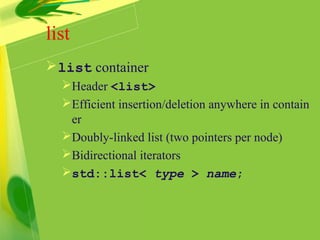

12. list
list container
Header <list>
Efficient insertion/deletion anywhere in contain
er
Doubly-linked list (two pointers per node)
Bidirectional iterators
std::list< type > name;

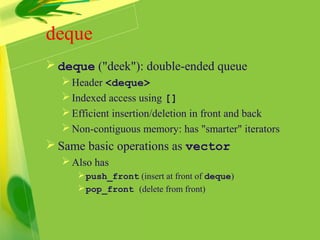

13. deque
 deque ("deek"): double-ended queue
Header <deque>
Indexed access using []
Efficient insertion/deletion in front and back
Non-contiguous memory: has "smarter" iterators
 Same basic operations as vector
Also has
push_front (insert at front of deque)
pop_front (delete from front)

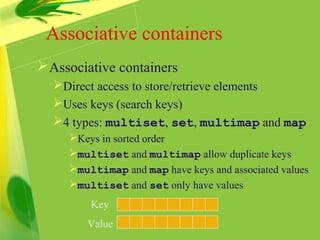

14. Associative containers
Associative containers
Direct access to store/retrieve elements
Uses keys (search keys)
4 types: multiset, set, multimap and map
Keys in sorted order
multiset and multimap allow duplicate keys
multimap and map have keys and associated values
multiset and set only have values
Key
Value

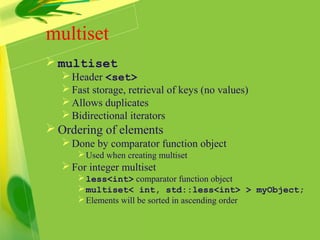

15. multiset
 multiset
Header <set>
Fast storage, retrieval of keys (no values)
Allows duplicates
Bidirectional iterators
 Ordering of elements
Done by comparator function object
Used when creating multiset
For integer multiset
less<int> comparator function object
multiset< int, std::less<int> > myObject;
Elements will be sorted in ascending order

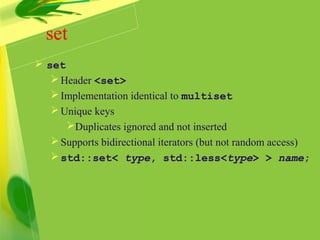

16. set
 set
Header <set>
Implementation identical to multiset
Unique keys
Duplicates ignored and not inserted
Supports bidirectional iterators (but not random access)
std::set< type, std::less<type> > name;

17. multimap
 multimap
Header <map>
Fast storage and retrieval of keys and associated values
Has key/value pairs
Duplicate keys allowed (multiple values for a single ke
y)
One-to-many relationship
I.e., one student can take many courses
Insert pair objects (with a key and value)
Bidirectional iterators

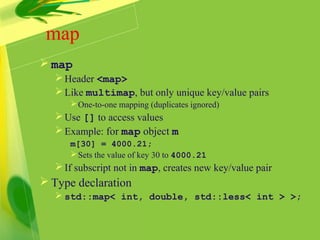

18. map
 map
Header <map>
Like multimap, but only unique key/value pairs
One-to-one mapping (duplicates ignored)
Use [] to access values
Example: for map object m
m[30] = 4000.21;
Sets the value of key 30 to 4000.21
If subscript not in map, creates new key/value pair
 Type declaration
 std::map< int, double, std::less< int > >;

19. Container Adapters
Container adapters
stack, queue and priority_queue
Not first class containers
Do not support iterators
Do not provide actual data structure
Programmer can select implementation
Member functions push and pop

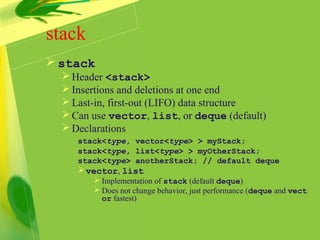

20. stack
 stack
Header <stack>
Insertions and deletions at one end
Last-in, first-out (LIFO) data structure
Can use vector, list, or deque (default)
Declarations
stack<type, vector<type> > myStack;
stack<type, list<type> > myOtherStack;
stack<type> anotherStack; // default deque
vector, list
 Implementation of stack (default deque)
 Does not change behavior, just performance (deque and vect
or fastest)

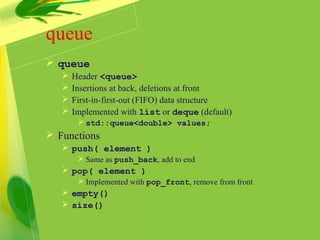

21. queue
 queue
 Header <queue>
 Insertions at back, deletions at front
 First-in-first-out (FIFO) data structure
 Implemented with list or deque (default)
 std::queue<double> values;
 Functions
 push( element )
 Same as push_back, add to end
 pop( element )
 Implemented with pop_front, remove from front
 empty()
 size()

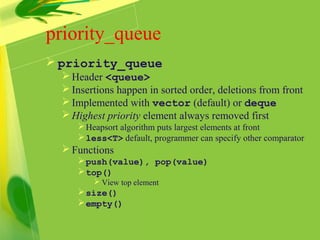

22. priority_queue
 priority_queue
Header <queue>
Insertions happen in sorted order, deletions from front
Implemented with vector (default) or deque
Highest priority element always removed first
Heapsort algorithm puts largest elements at front
less<T> default, programmer can specify other comparator
Functions
push(value), pop(value)
top()
 View top element
size()
empty()

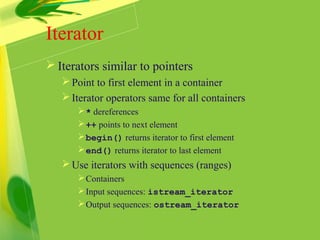

23. Iterator
 Iterators similar to pointers
Point to first element in a container
Iterator operators same for all containers
* dereferences
++ points to next element
begin() returns iterator to first element
end() returns iterator to last element
Use iterators with sequences (ranges)
Containers
Input sequences: istream_iterator
Output sequences: ostream_iterator

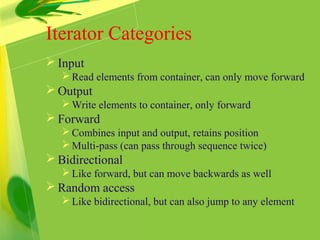

24. Iterator Categories
 Input
Read elements from container, can only move forward
 Output
Write elements to container, only forward
 Forward
Combines input and output, retains position
Multi-pass (can pass through sequence twice)
 Bidirectional
Like forward, but can move backwards as well
 Random access
Like bidirectional, but can also jump to any element

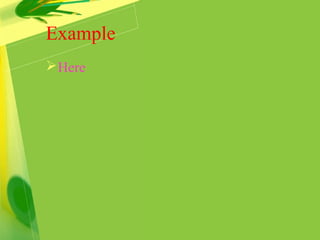

25. Example
Here

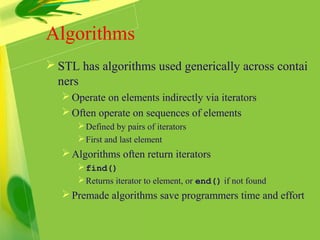

26. Algorithms
 STL has algorithms used generically across contai
ners
Operate on elements indirectly via iterators
Often operate on sequences of elements
Defined by pairs of iterators
First and last element
Algorithms often return iterators
find()
Returns iterator to element, or end() if not found
Premade algorithms save programmers time and effort

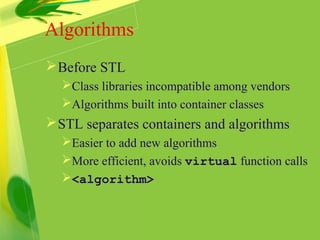

27. Before STL
Class libraries incompatible among vendors
Algorithms built into container classes
STL separates containers and algorithms
Easier to add new algorithms
More efficient, avoids virtual function calls
<algorithm>
Algorithms

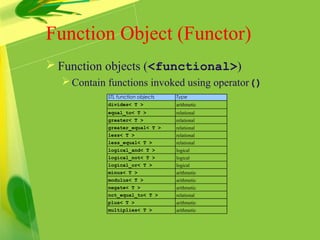

28. Function Object (Functor)
 Function objects (<functional>)
Contain functions invoked using operator()
STL function objects Type
divides< T > arithmetic
equal_to< T > relational
greater< T > relational
greater_equal< T > relational
less< T > relational
less_equal< T > relational
logical_and< T > logical
logical_not< T > logical
logical_or< T > logical
minus< T > arithmetic
modulus< T > arithmetic
negate< T > arithmetic
not_equal_to< T > relational
plus< T > arithmetic
multiplies< T > arithmetic

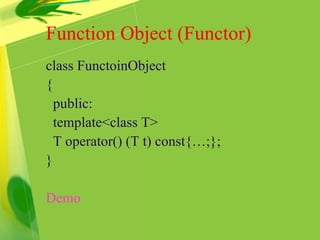

29. class FunctoinObject
{
public:
template<class T>
T operator() (T t) const{…;};
}
Demo
Function Object (Functor)

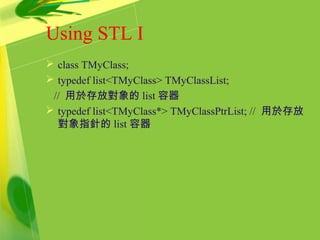

30. Using STL I
 class TMyClass;
 typedef list<TMyClass> TMyClassList;
// 用於存放對象的 list 容器
 typedef list<TMyClass*> TMyClassPtrList; // 用於存放
對象指針的 list 容器

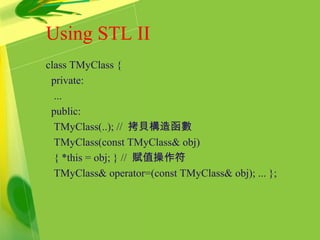

31. Using STL II
class TMyClass {
private:
...
public:
TMyClass(..); // 拷貝構造函數
TMyClass(const TMyClass& obj)
{ *this = obj; } // 賦值操作符
TMyClass& operator=(const TMyClass& obj); ... };

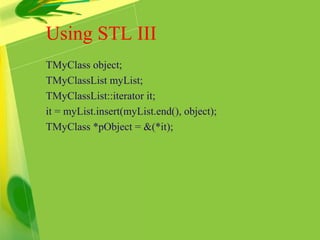

32. Using STL III
TMyClass object;
TMyClassList myList;
TMyClassList::iterator it;
it = myList.insert(myList.end(), object);
TMyClass *pObject = &(*it);

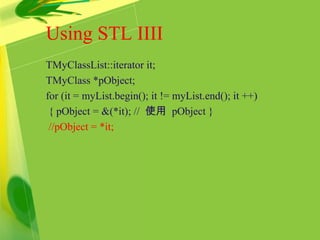

33. Using STL IIII
TMyClassList::iterator it;
TMyClass *pObject;
for (it = myList.begin(); it != myList.end(); it ++)
{ pObject = &(*it); // 使用 pObject }
//pObject = *it;

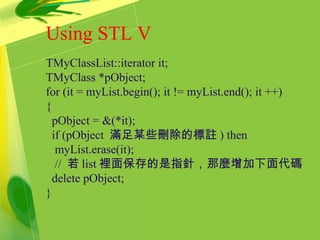

34. Using STL V
TMyClassList::iterator it;
TMyClass *pObject;
for (it = myList.begin(); it != myList.end(); it ++)
{
pObject = &(*it);
if (pObject 滿足某些刪除的標註 ) then
myList.erase(it);
// 若 list 裡面保存的是指針，那麼增加下面代碼
delete pObject;
}

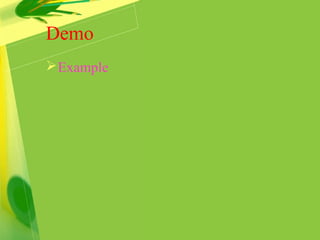

35. Demo
Example

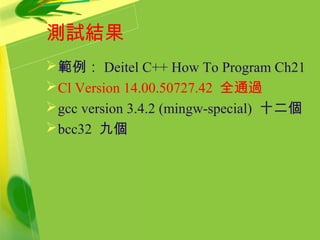

36. 測試結果
範例： Deitel C++ How To Program Ch21
Cl Version 14.00.50727.42 全通過
gcc version 3.4.2 (mingw-special) 十二個
bcc32 九個

37. Reference
C++ How to Program 3rd.
STL 源碼剖析
STL中文站

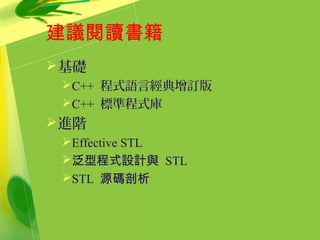

38. 建議閱讀書籍
基礎
C++ 程式語言經典增訂版
C++ 標準程式庫
進階
Effective STL
泛型程式設計與 STL
STL 源碼剖析

39. Q & A

40. END
