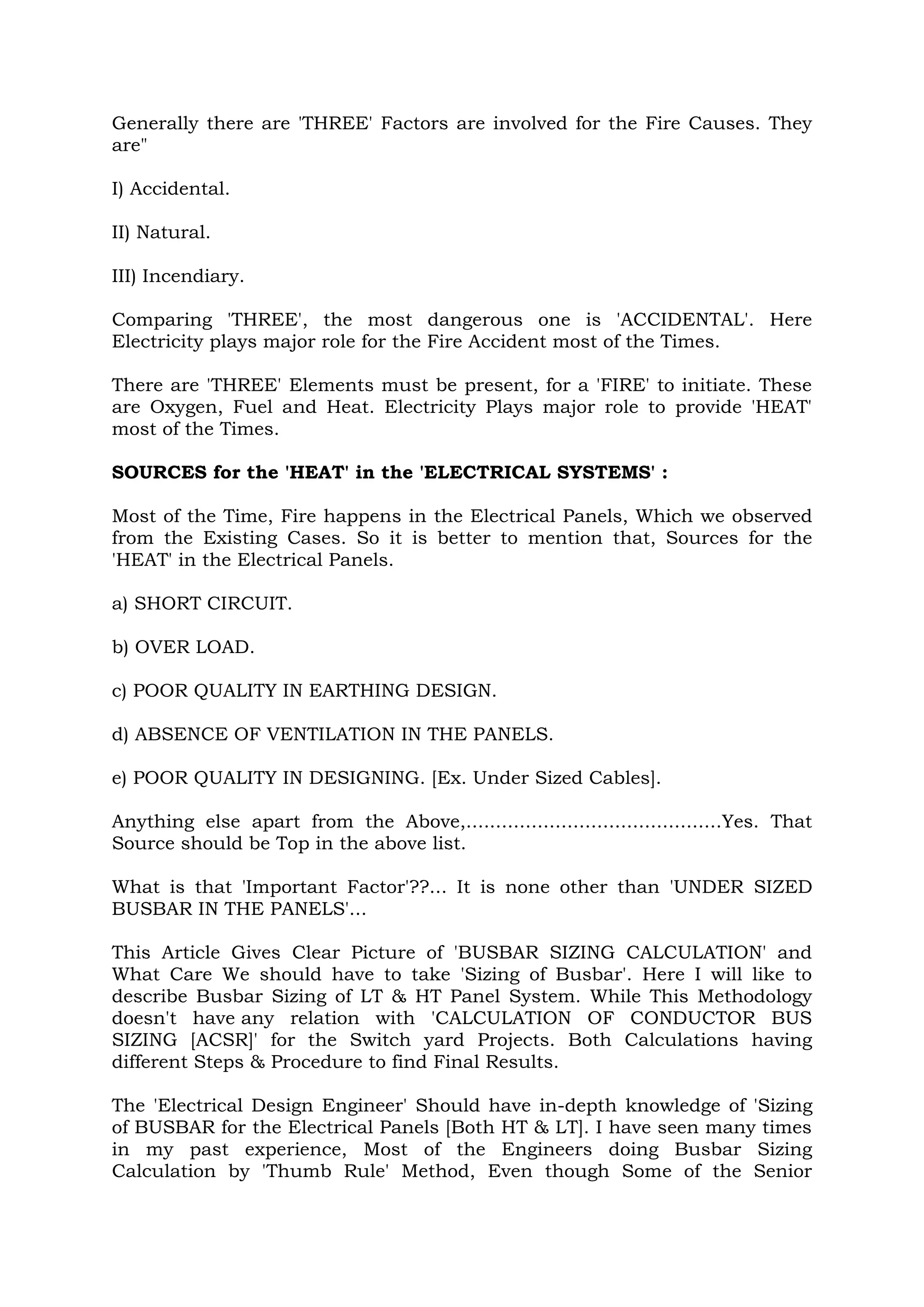

![Generally there are 'THREE' Factors are involved for the Fire Causes. They
are"
I) Accidental.
II) Natural.
III) Incendiary.
Comparing 'THREE', the most dangerous one is 'ACCIDENTAL'. Here
Electricity plays major role for the Fire Accident most of the Times.
There are 'THREE' Elements must be present, for a 'FIRE' to initiate. These
are Oxygen, Fuel and Heat. Electricity Plays major role to provide 'HEAT'
most of the Times.
SOURCES for the 'HEAT' in the 'ELECTRICAL SYSTEMS' :
Most of the Time, Fire happens in the Electrical Panels, Which we observed
from the Existing Cases. So it is better to mention that, Sources for the
'HEAT' in the Electrical Panels.
a) SHORT CIRCUIT.
b) OVER LOAD.
c) POOR QUALITY IN EARTHING DESIGN.
d) ABSENCE OF VENTILATION IN THE PANELS.
e) POOR QUALITY IN DESIGNING. [Ex. Under Sized Cables].
Anything else apart from the Above,...........................................Yes. That
Source should be Top in the above list.
What is that 'Important Factor'??... It is none other than 'UNDER SIZED
BUSBAR IN THE PANELS'...
This Article Gives Clear Picture of 'BUSBAR SIZING CALCULATION' and
What Care We should have to take 'Sizing of Busbar'. Here I will like to
describe Busbar Sizing of LT & HT Panel System. While This Methodology
doesn't have any relation with 'CALCULATION OF CONDUCTOR BUS
SIZING [ACSR]' for the Switch yard Projects. Both Calculations having
different Steps & Procedure to find Final Results.
The 'Electrical Design Engineer' Should have in-depth knowledge of 'Sizing
of BUSBAR for the Electrical Panels [Both HT & LT]. I have seen many times
in my past experience, Most of the Engineers doing Busbar Sizing
Calculation by 'Thumb Rule' Method, Even though Some of the Senior](https://image.slidesharecdn.com/busbarsizing-180524062341/85/Busbar-sizing-1-320.jpg)
![Generally there are 'THREE' Factors are involved for the Fire Causes. They
are"
I) Accidental.
II) Natural.
III) Incendiary.
Comparing 'THREE', the most dangerous one is 'ACCIDENTAL'. Here
Electricity plays major role for the Fire Accident most of the Times.
There are 'THREE' Elements must be present, for a 'FIRE' to initiate. These
are Oxygen, Fuel and Heat. Electricity Plays major role to provide 'HEAT'
most of the Times.
SOURCES for the 'HEAT' in the 'ELECTRICAL SYSTEMS' :
Most of the Time, Fire happens in the Electrical Panels, Which we observed
from the Existing Cases. So it is better to mention that, Sources for the
'HEAT' in the Electrical Panels.
a) SHORT CIRCUIT.
b) OVER LOAD.
c) POOR QUALITY IN EARTHING DESIGN.
d) ABSENCE OF VENTILATION IN THE PANELS.
e) POOR QUALITY IN DESIGNING. [Ex. Under Sized Cables].
Anything else apart from the Above,...........................................Yes. That
Source should be Top in the above list.
What is that 'Important Factor'??... It is none other than 'UNDER SIZED
BUSBAR IN THE PANELS'...
This Article Gives Clear Picture of 'BUSBAR SIZING CALCULATION' and
What Care We should have to take 'Sizing of Busbar'. Here I will like to
describe Busbar Sizing of LT & HT Panel System. While This Methodology
doesn't have any relation with 'CALCULATION OF CONDUCTOR BUS
SIZING [ACSR]' for the Switch yard Projects. Both Calculations having
different Steps & Procedure to find Final Results.
The 'Electrical Design Engineer' Should have in-depth knowledge of 'Sizing
of BUSBAR for the Electrical Panels [Both HT & LT]. I have seen many times
in my past experience, Most of the Engineers doing Busbar Sizing
Calculation by 'Thumb Rule' Method, Even though Some of the Senior](https://image.slidesharecdn.com/busbarsizing-180524062341/75/Busbar-sizing-1-2048.jpg)

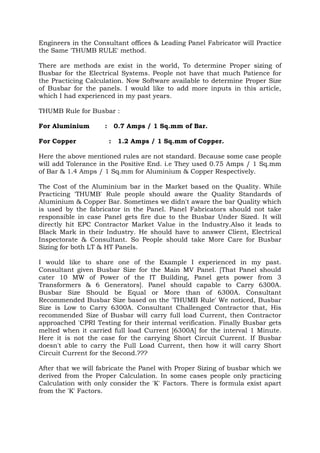

![Engineers in the Consultant offices & Leading Panel Fabricator will Practice
the Same 'THUMB RULE' method.
There are methods are exist in the world, To determine Proper sizing of
Busbar for the Electrical Systems. People not have that much Patience for
the Practicing Calculation. Now Software available to determine Proper Size
of Busbar for the panels. I would like to add more inputs in this article,
which I had experienced in my past years.
THUMB Rule for Busbar :
For Aluminium : 0.7 Amps / 1 Sq.mm of Bar.
For Copper : 1.2 Amps / 1 Sq.mm of Copper.
Here the above mentioned rules are not standard. Because some case people
will add Tolerance in the Positive End. i.e They used 0.75 Amps / 1 Sq.mm
of Bar & 1.4 Amps / 1 Sq.mm for Aluminium & Copper Respectively.
The Cost of the Aluminium bar in the Market based on the Quality. While
Practicing 'THUMB' Rule people should aware the Quality Standards of
Aluminium & Copper Bar. Sometimes we didn't aware the bar Quality which
is used by the fabricator in the Panel. Panel Fabricators should not take
responsible in case Panel gets fire due to the Busbar Under Sized. It will
directly hit EPC Contractor Market Value in the Industry.Also it leads to
Black Mark in their Industry. He should have to answer Client, Electrical
Inspectorate & Consultant. So People should take More Care for Busbar
Sizing for both LT & HT Panels.
I would like to share one of the Example I experienced in my past.
Consultant given Busbar Size for the Main MV Panel. [That Panel should
cater 10 MW of Power of the IT Building, Panel gets power from 3
Transformers & 6 Generators]. Panel should capable to Carry 6300A.
Busbar Size Should be Equal or More than of 6300A. Consultant
Recommended Busbar Size based on the 'THUMB Rule' We noticed, Busbar
Size is Low to Carry 6300A. Consultant Challenged Contractor that, His
recommended Size of Busbar will carry full load Current, then Contractor
approached 'CPRI Testing for their internal verification. Finally Busbar gets
melted when it carried full load Current [6300A] for the interval 1 Minute.
Here it is not the case for the carrying Short Circuit Current. If Busbar
doesn't able to carry the Full Load Current, then how it will carry Short
Circuit Current for the Second.???
After that we will fabricate the Panel with Proper Sizing of busbar which we
derived from the Proper Calculation. In some cases people only practicing
Calculation with only consider the 'K' Factors. There is formula exist apart
from the 'K' Factors.](https://image.slidesharecdn.com/busbarsizing-180524062341/85/Busbar-sizing-2-320.jpg)

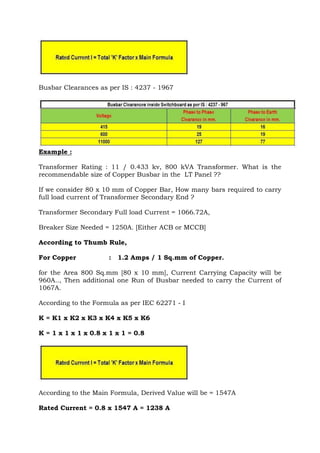

![Busbar Clearances as per IS : 4237 - 1967
Example :
Transformer Rating : 11 / 0.433 kv, 800 kVA Transformer. What is the
recommendable size of Copper Busbar in the LT Panel ??
If we consider 80 x 10 mm of Copper Bar, How many bars required to carry
full load current of Transformer Secondary End ?
Transformer Secondary Full load Current = 1066.72A,
Breaker Size Needed = 1250A. [Either ACB or MCCB]
According to Thumb Rule,
For Copper : 1.2 Amps / 1 Sq.mm of Copper.
for the Area 800 Sq.mm [80 x 10 mm], Current Carrying Capacity will be
960A.., Then additional one Run of Busbar needed to carry the Current of
1067A.
According to the Formula as per IEC 62271 - I
K = K1 x K2 x K3 x K4 x K5 x K6
K = 1 x 1 x 1 x 0.8 x 1 x 1 = 0.8
According to the Main Formula, Derived Value will be = 1547A

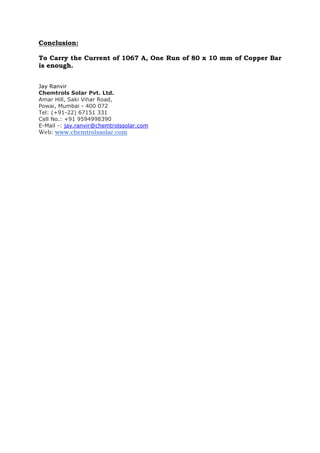

Rated Current = 0.8 x 1547 A = 1238 A](https://image.slidesharecdn.com/busbarsizing-180524062341/85/Busbar-sizing-4-320.jpg)
