Building RightScale’s Globally
Distributed Datastore
Josep M. Blanquer, Chief Architect

2. #2#2
#RightscaleCompute

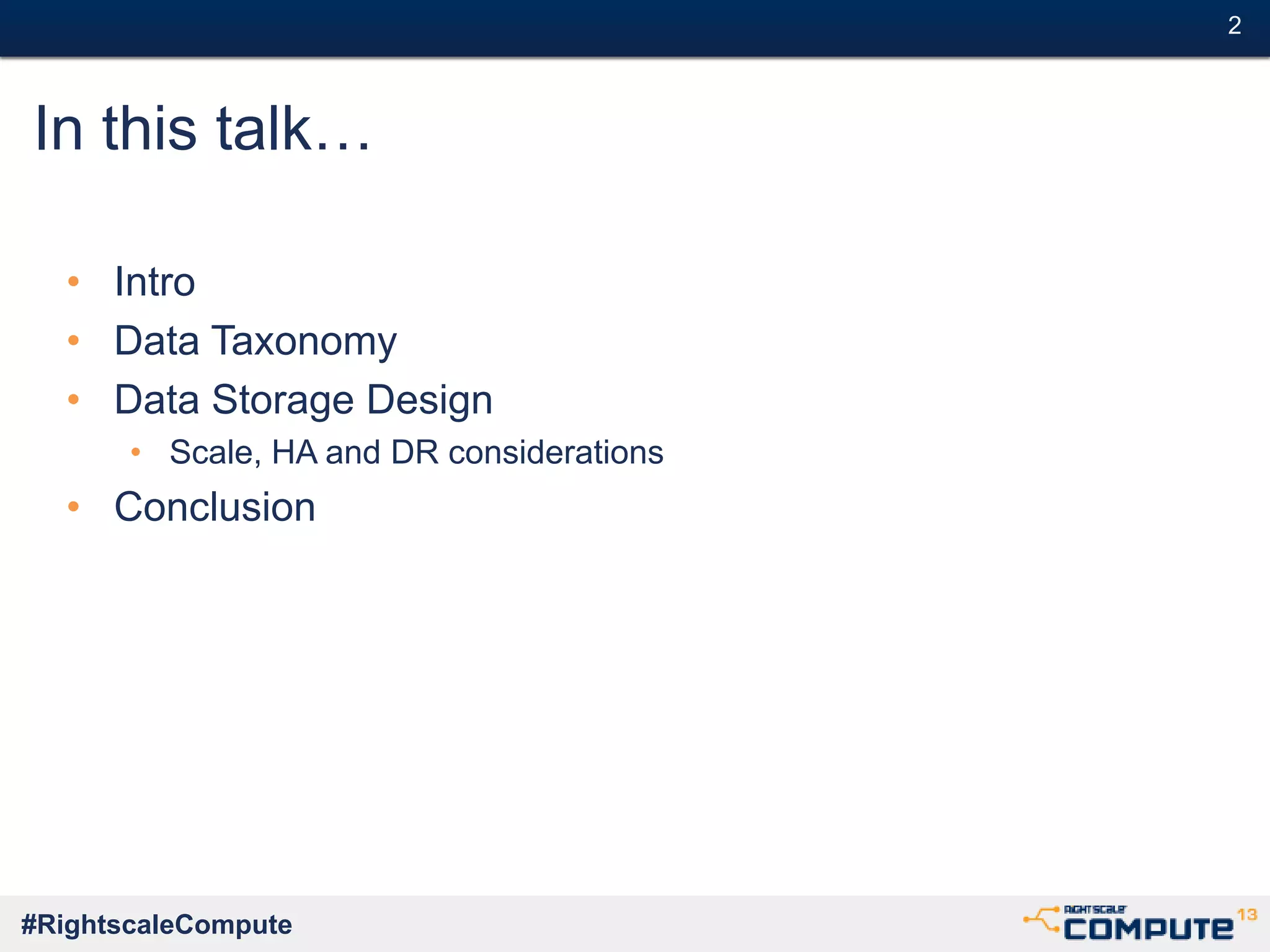

In this talk…
• Intro
• Data Taxonomy
• Data Storage Design
• Scale, HA and DR considerations
• Conclusion

3. #3#3
#RightscaleCompute
Intro: Expectations and scope
What this is and what is not
• IS a talk about:
• how RightScale has designed and implemented its backing datastores
• …for a few of the most representative internal systems
• …with the rationale behind it
• Is NOT a talk about
• RightScale’s overall architecture
• Nodes or hosts, it’s about Systems
• RightScale’s data modeling

4. #4#4
#RightscaleCompute
Intro: Tools and Technologies
• RightScale uses a mix of RDBMS and NoSQL technologies:
• MySQL , Cassandra and S3 (for backups and archiving)
• Transactionality:
• MySQL: strong ACID properties
• Cassandra: no Atomicity, eventually Consistent, some Isolation, Durable
• Availability:
• MySQL: async replication. Master-SlaveN or Master-Master
• Cassandra: Distributed, master-less, highly-replicated (multi-DC)
• Queryability:
• MySQL: Extremely flexible at adding indexes and changing data model
• Cassandra: More difficult to change the querying patterns

5. #5#5
#RightscaleCompute
Taxonomy of RightScale’s Data
Representative systems
with different data semantics:
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog

6. #6#6
#RightscaleCompute
Taxonomy of RightScale’s Data
Representative systems
with different data semantics:
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Common across accounts:
 Users
 Plans
 Settings
 MultiCloud Marketplace:
 Published Assets
 Sharing Groups
 …

7. #7#7
#RightscaleCompute
Taxonomy of RightScale’s Data
Representative systems
with different data semantics:
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Private to each account:
 Deployments
 Imported assets
 Alert Specifications
 Server Inputs
 Audit
 Tags
 User Events
 …

8. #8#8
#RightscaleCompute
Taxonomy of RightScale’s Data
Representative systems
with different data semantics:
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Private to each account:
 Cloud resource states (cache)
 Cloud credentials

9. #9#9
#RightscaleCompute
Taxonomy of RightScale’s Data
Representative systems
with different data semantics:
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Private to each account:
 Instance agents location
 Core agents location
 Agent action registry
 …

10. #10#10
#RightscaleCompute
Taxonomy of RightScale’s Data
Representative systems
with different data semantics:
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Private to each account:
 Collected metric data
 Collected syslog data
 …

11. #11#11
#RightscaleCompute
Taxonomy of RightScale’s Data
UsersInstances
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Who uses the data?
• Users through the Dash/API
• Instances from the Cloud
Data close to the Users
Data close to the Cloud
Data Placement

12. #12#12
#RightscaleCompute
Taxonomy of RightScale’s DataX-acctAccount
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Which data do we need?
• Data for all accounts
• Data for a single account
Data shared between accounts
Data required within scope
of a single account
Data scope and containment

13. #13#13
Talk with the Experts.
Users
Taxonomy of RightScale’s Data
Instances
X-acctAccount
Global Objects
 Marketplace Assets
Dashboard Objects
 Audits
 Tags
 Recent Events
Cloud Polling Data
Routing Data
Monitoring/Syslog
Who uses the data? Proximity to User vs. Cloud
Which data do we need? Scope of data available
Close to cloud resources
Account-shardable* data
Close to user
Account-shardable data
Close to user
Globally accessible data

14. #14#14
#RightscaleCompute
UsersInstances
AccountX-Account

15. #15#15
#RightscaleCompute
UsersInstances
global
X-Account
Custom replication
Why custom? More control
• Multiple sources
• Individual columns
• Apply transformations
• Smart re-sync features
Global: MySQL
• ACID semantics
• Master-Slave replication

16. #16#16
#RightscaleCompute
UsersInstances
Account
global dash
S3
events
tags
audit
X-Account
Dashboard: MySQL
• ACID semantics
• Master-SlaveN replication
• Slave reads
• Rows tagged by account
Other systems: Cassandra
• Simpler Key-Value access
• Great scalability
• Great replica control
• High write availability
• Time-to-live expiration as cache
• Rows tagged by account
Data archive: S3
• Low read rate
• Globally accessible

17. #17#17
#RightscaleCompute
UsersInstances
Account
global dash
S3
events
tags
audit
X-Account
dash
events
tags
audit
So we can horizontally scale our
dashboard by partitioning objects
based on account groups:
Clusters

18. #18#18
#RightscaleCompute
Users
AccountCluster1
dash
S3
events
tags
audit
ClusterN
dash
S3
events
tags
audit
Account Set 1 Account Set 2
RightScale Accounts
Cluster3
dash
S3
events
tags
audit
…
Features:
• 1 cluster: N accounts
• 1 account: 1 home
• Migratable accounts
Benefits:
• Great horizontal growth
• Better failure isolation
• Independent scale
• Load rebalancing
• Versionable code
• Differentiated service

19. #19#19
#RightscaleCompute
dash
events
tags
audit
UsersInstances
Account
global dash
S3
events
tags
audit
routing
polling
monitor
X-Account

20. #20#20
#RightscaleCompute
routing
polling
monitor
routing
polling
monitor
UsersInstances
Account
global dash
S3
events
tags
audit
X-Account
And partition our cloud objects based on the cloud
the instances of an account run on:
Islands

21. #21#21
#RightscaleCompute
Account
Instances
Services co-located
with resources
Services co-located
with resources
Services co-located
with resources
routing
polling
monitor
Island1
Island2
IslandN
routing
polling
monitor
routing
polling
monitor
Cloud 1 Cloud 2 Cloud N

22. #22#22
#RightscaleCompute
Account
Instances
Features:
• 1 instance: 1 home island
• 1 Island can serve N clouds
• Core Agents: global data
Benefits:
• Close to cloud resources
• Good failure isolation
• As good as cloud 
• Good scale: global replicas
across cassandra DCs
routing
polling
monitor
Island1
Island2
IslandN
routing
polling
monitor
routing
polling
monitor
routing
polling
monitor
routing
polling
monitor
routing
polling
monitor
Island1
Island2
IslandN
Polling Clouds: MySQL
• Master-Slave replication
• Can port to NoSQL easily
• Mostly a resource cache
• But cloud partitionable
Monitoring: Custom
• Replicated files
• Backup to S3
• Archive to S3
Routing: Cassandra
• Simpler Key-Value access
• Very high availability
• Great scalability
• Great replica control
• Plus cross DC replication*

23. #23#23
#RightscaleCompute
Users
AccountCluster1
dash
S3
events
tags
audit
ClusterN
dash
S3
events
tags
audit
Cluster3
dash
S3
events
tags
audit
…
routing
polling
monitor
routing
polling
monitor
routing
polling
monitor
Island1
Island2
IslandN
Instances
Different Geographies
Different Clouds
What if the cloud
where the cluster
is deployed on…
Fails?
What if the cloud
where the island
is deployed on…
Fails?

24. #24#24
#RightscaleCompute
Users
AccountCluster1
dash
S3
events
tags
audit
ClusterN
dash
S3
events
tags
audit
Cluster3
dash
S3
events
tags
audit
…
routing
polling
monitor
routing
polling
monitor
routing
polling
monitor
Island1
Island2
IslandN
Instances
Sister Clusters
Full replica
Features:
• Each master has an extra remote slave
• Each cluster in a pair is a DC replica of the other’s
localring
At Disaster Recovery time:
• Apps are told to start serving an extra shard
• No need to provision more infrastructure to recover
(try to avoid since everybody is on the same boat)
• New resources can be allocated over time to help
offload existing ones

25. #25#25
#RightscaleCompute
Conclusions
• Shown that RightScale uses multiple database technologies:
• RDBMS – MySQL for the ACID semantics and ‘queryability’
• Using a Master to N-Slaves for RO scale, and quick failure recovery
• And ReadOnly Provisioning – To increase RO availability and scale remote systems
• NoSQL: Cassandra for Availability and Scalability
• for higher Read/Write availability within a cluster
• For fully replicated regions across the globe (for Read/Write!)
• Shown how RightScale uses them in different techniques
• It partitions resource data into Islands based on cloud proximity
• Can achieve in-cloud polling,and keep monitoring/syslog data storage next to instances
• Can provide routing availability, colocated with instances for any world region
• It partitions core data into Clusters based on account groups
• To scale the core horizontally, and independently and achieve account isolation/differentiation
• Enhances fault isolation: Assigning accounts to Clusters deployed away their cloud resources
• It maintains cluster pairs (sister sites)
• To recover from full cloud region failures
• It doesn’t require massive amounts of new resources to recover
