The document provides instructions for modeling a 5-story balsa wood building in SAP2000 to analyze its earthquake resistance. Key steps include: 1) defining the building dimensions and braced frame layout; 2) assigning balsa wood material properties with lower density, elasticity and cost than steel; 3) applying gravity, wind and earthquake loads; and 4) analyzing deflections under different load cases and bracing configurations to find the design with minimum weight and displacement damage. Comparing balsa wood to steel shows balsa's lower density offers design advantages if structural integrity can be achieved.
The aim of this manual is to give the design application of the basic requirements of EC8 for new concrete and steel buildings using ETABS. This book can be used by users of ETABS modeler. Is not cover all the steps that you have to carry during designing model using ETABS but is a good manual for those who using Eurocodes.
The aim of this manual is to give the design application of the basic requirements of EC8 for new concrete and steel buildings using ETABS. This book can be used by users of ETABS modeler. Is not cover all the steps that you have to carry during designing model using ETABS but is a good manual for those who using Eurocodes.
The Pushover Analysis from basics - Rahul LeslieRahul Leslie
Pushover analysis has been in the academic-research arena for quite long. The papers published in this field usually deals mostly with proposed improvements to the approach, expecting the reader to know the basics of the topic... while the common structural design practitioner, not knowing the basics, is left out from participating in those discussions. Here I’m making an effort to bridge that gap by explaining the Pushover analysis, from basics, in its simplicity.
A write up on this topic can be found at http://rahulleslie.blogspot.in/p/blog-page.html, though does not cover the full spectrum presented in this slide show.
Book for Beginners, RCC Design by ETABSYousuf Dinar
Advancement of softwares is main cause behind comparatively quick and simple
design while avoiding complexity and time consuming manual procedure. However
mistake or mislead could be happened during designing the structures because of not
knowing the proper procedure depending on the situation. Design book based on
manual or hand design is sometimes time consuming and could not be good aids with
softwares as several steps are shorten during finite element modeling. This book may
work as a general learning hand book which bridges the software and the manual
design properly. The writers of this book used linear static analysis under BNBC and
ACI code to generate a six story residential building which could withstand wind load
of 210 kmph and seismic event of that region. The building is assumed to be designed
in Dhaka, Bangladesh under RAJUK rules to get legality of that concern organization.
For easy and explained understanding the book chapters are oriented in 2 parts. Part A
is concern about modeling and analysis which completed in only one chapter. Part B
is organized with 8 chapters. From chapter 1 to 7 the writers designed the model
building and explained with references how to consider during design so that
creativity of readers could not be threated. Chapter 8 is dedicated for estimation. As a
whole the book will help the readers to experience a building construction related all
facts and how to progress in design. Although the volume I is limited to linear static
analysis, upcoming volume will eventually consider dynamic facts to perform
dynamic analysis. Implemented equations are organized in the appendix section for
easy memorizing.
BNBC and other codes are improving and expending day by day, by covering new
and improved information as civil engineering is a vast field to continue the research.
Before designing something or taking decision judge the contemporary codes and
choose data, equations, factors and coefficient from the updated one.
Book for Beginners series is basic learning book of YDAS outlines. Here only
rectangular grid system modeling and a particular model is shown. Round shape grid
is avoided to keep the study simple. No advanced analysis is described and it is kept
simple for beginners. Only two way slab is elaborated with direct design method,
avoiding other procedures. In case of beam, only flexural and shear designs are made.
T- Beam, L- Beam or other shapes are not shown as rectangular beam was enough for
this study. Bi-axial column and foundation design is not shown. During column and
foundation design only pure axial load is considered. Use of interaction diagram is not
shown in manual design. Load centered isolated and combined footing designs are
shown, avoiding eccentric loading conditions. Pile and pile cap design, Mat
foundation design, strap footing design and sand pile concept are not included in this
Tower design using Dynamic analysis method is now became easier than ever with this simple and effective PDF manual. Starting from modeling, defining till computing results based on Dynamic Analysis you can build the tower of your dream.
Engineering is fun and so does this PDF !
This publication provides a concise compilation of selected rules in the Eurocode 8, together with relevant Cyprus National Annex, that relate to the design of common forms of concrete building structure in the South Europe. It id offers a detail view of the design of steel framed buildings to the structural Eurocodes and includes a set of worked examples showing the design of structural elements with using software (CSI ETABS). It is intended to be of particular to the people who want to become acquainted with design to the Eurocodes. Rules from EN 1998-1-1 for global analysis, type of analysis and verification checks are presented. Detail design rules for steel composite beam, steel column, steel bracing and composite slab with steel sheeting from EN 1998-1-1, EN1993-1-1 and EN1994-1-1 are presented. This guide covers the design of orthodox members in steel frames. It does not cover design rules for regularities. Certain practical limitations are given to the scope.
In this presentation you will get knowledge about shear force and bending moment diagram and this topic very useful for civil as well as mechanical engineering department students.
The Pushover Analysis from basics - Rahul LeslieRahul Leslie
Pushover analysis has been in the academic-research arena for quite long. The papers published in this field usually deals mostly with proposed improvements to the approach, expecting the reader to know the basics of the topic... while the common structural design practitioner, not knowing the basics, is left out from participating in those discussions. Here I’m making an effort to bridge that gap by explaining the Pushover analysis, from basics, in its simplicity.
A write up on this topic can be found at http://rahulleslie.blogspot.in/p/blog-page.html, though does not cover the full spectrum presented in this slide show.
Book for Beginners, RCC Design by ETABSYousuf Dinar
Advancement of softwares is main cause behind comparatively quick and simple
design while avoiding complexity and time consuming manual procedure. However
mistake or mislead could be happened during designing the structures because of not
knowing the proper procedure depending on the situation. Design book based on
manual or hand design is sometimes time consuming and could not be good aids with
softwares as several steps are shorten during finite element modeling. This book may
work as a general learning hand book which bridges the software and the manual
design properly. The writers of this book used linear static analysis under BNBC and
ACI code to generate a six story residential building which could withstand wind load
of 210 kmph and seismic event of that region. The building is assumed to be designed
in Dhaka, Bangladesh under RAJUK rules to get legality of that concern organization.
For easy and explained understanding the book chapters are oriented in 2 parts. Part A
is concern about modeling and analysis which completed in only one chapter. Part B
is organized with 8 chapters. From chapter 1 to 7 the writers designed the model
building and explained with references how to consider during design so that
creativity of readers could not be threated. Chapter 8 is dedicated for estimation. As a
whole the book will help the readers to experience a building construction related all
facts and how to progress in design. Although the volume I is limited to linear static
analysis, upcoming volume will eventually consider dynamic facts to perform
dynamic analysis. Implemented equations are organized in the appendix section for
easy memorizing.
BNBC and other codes are improving and expending day by day, by covering new
and improved information as civil engineering is a vast field to continue the research.
Before designing something or taking decision judge the contemporary codes and
choose data, equations, factors and coefficient from the updated one.
Book for Beginners series is basic learning book of YDAS outlines. Here only
rectangular grid system modeling and a particular model is shown. Round shape grid
is avoided to keep the study simple. No advanced analysis is described and it is kept
simple for beginners. Only two way slab is elaborated with direct design method,
avoiding other procedures. In case of beam, only flexural and shear designs are made.
T- Beam, L- Beam or other shapes are not shown as rectangular beam was enough for
this study. Bi-axial column and foundation design is not shown. During column and
foundation design only pure axial load is considered. Use of interaction diagram is not
shown in manual design. Load centered isolated and combined footing designs are
shown, avoiding eccentric loading conditions. Pile and pile cap design, Mat
foundation design, strap footing design and sand pile concept are not included in this
Tower design using Dynamic analysis method is now became easier than ever with this simple and effective PDF manual. Starting from modeling, defining till computing results based on Dynamic Analysis you can build the tower of your dream.
Engineering is fun and so does this PDF !
This publication provides a concise compilation of selected rules in the Eurocode 8, together with relevant Cyprus National Annex, that relate to the design of common forms of concrete building structure in the South Europe. It id offers a detail view of the design of steel framed buildings to the structural Eurocodes and includes a set of worked examples showing the design of structural elements with using software (CSI ETABS). It is intended to be of particular to the people who want to become acquainted with design to the Eurocodes. Rules from EN 1998-1-1 for global analysis, type of analysis and verification checks are presented. Detail design rules for steel composite beam, steel column, steel bracing and composite slab with steel sheeting from EN 1998-1-1, EN1993-1-1 and EN1994-1-1 are presented. This guide covers the design of orthodox members in steel frames. It does not cover design rules for regularities. Certain practical limitations are given to the scope.
In this presentation you will get knowledge about shear force and bending moment diagram and this topic very useful for civil as well as mechanical engineering department students.
1 | P a g e
2105 ENG, Mechanics of Materials 2, Semester 2, 2016 SPACE GASS Project Instructions
Before you start get to know these useful keyboard shortcut keys in SAPCEGASS
2 | P a g e
Q.1 Beam (50 Marks)
All dimensions are in meters. For example d=8 m
Total length L=d+e+f+g=8+3+4+7=22m
All distributed loads are in kN/m. For instance d=8 kN/m
All concentrated loads are in kN. For instance f=4 kN
Part 1-Using SPACE GASS:
(1) Illustration of the model. You need to show the end fixities, loads and dimensions (similar to the Figure above). (10 Marks)
Hint- Insert a snapshot of the beam model from SPACEGASS here. Use the “PrtScn” button on your keyboard to take a snapshot of the
computer screen, then edit and crop the picture in paint or similar software. The snapshot should clearly show the end restraints (fixed and
roller), the distributed force and the concentrated load. Also show the dimensions between the loads which correspond to your student
number. To add dimensions to your model, right click on the beam and from the menu that pops up select “measure/dimension”, then “add
dimension”. See the sample below which corresponds to the student number shown above:
d e f g
d f
3 | P a g e
(2) Show the maximum deflection in the beam using 200 UB 25.4 Aust300 Universal Beam section. In SPACE GASS use ‘show envelope’ and
‘absolute maximum’ setting. (5 Marks)
Hint- To assign 200 UB 25.4 profile to all elements, right click on them, then from the right tab select Properties on the top right of the screen,
under section click on the book symbol and select the section. The snapshot from SPACEGASS below shoes the window that will pop up.
4 | P a g e
To show the section name on each element, from the left bar click on the ‘T’ button (shown below) to enable it.
Then click on the arrow next to it and in the window that pops up, tick “show section names”. The ‘T’ button is used to show the values of the
load, deflection and shear force and bending moment diagrams, etc.
Run the model from the top menu “Analysis”, “Linear elastic analysis” with program defaults. Click on the ‘show displacements’ button on the
left tab right under the ‘T’ button to see the deflection in the beam. If you have defined more than one load case (for example one for the
distributed force and one for the concentrated force) then you need to press on the “Envelope” button on the left tab to show the minimum
(negative deflection) or maximum (positive deflection). If you only have one load case, then simply show the displacements. Below is a sample
from the minimum displacements of the envelope.
5 | P a g e
(3) Show maximum reactions and the bending moment diagram of the beam in separate images. (5 Marks)
Hint- To show the reaction click on the reaction button from the ...
The whole manual is divided into three part: Beginning, Intermediate and Expert. Under Beginning part the Basic Geometry- co-ordinate system, loading, supporting, defining and Analysis will be shown for various types of structure; when under Intermediate part both analysis and design will be shown for various types of structure in static linear method. Under Expert part dynamic analysis method will be discussed with sequence. Remember one thing that learning a StaadPro analysis software is a practice work whereas this manual will act as a guideline.
Engr. Yousuf Dinar
Assistant Structural Engineer, Tropical Limited
Lecturer, ATI Training and Consultants
Email: Yousufdinar2012@gmail.com,
Cell: 01675585448.. for inquiry and training service
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Tobias Schneck
As AI technology is pushing into IT I was wondering myself, as an “infrastructure container kubernetes guy”, how get this fancy AI technology get managed from an infrastructure operational view? Is it possible to apply our lovely cloud native principals as well? What benefit’s both technologies could bring to each other?
Let me take this questions and provide you a short journey through existing deployment models and use cases for AI software. On practical examples, we discuss what cloud/on-premise strategy we may need for applying it to our own infrastructure to get it to work from an enterprise perspective. I want to give an overview about infrastructure requirements and technologies, what could be beneficial or limiting your AI use cases in an enterprise environment. An interactive Demo will give you some insides, what approaches I got already working for real.
UiPath Test Automation using UiPath Test Suite series, part 3DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 3. In this session, we will cover desktop automation along with UI automation.
Topics covered:
UI automation Introduction,
UI automation Sample
Desktop automation flow
Pradeep Chinnala, Senior Consultant Automation Developer @WonderBotz and UiPath MVP
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
JMeter webinar - integration with InfluxDB and GrafanaRTTS
Watch this recorded webinar about real-time monitoring of application performance. See how to integrate Apache JMeter, the open-source leader in performance testing, with InfluxDB, the open-source time-series database, and Grafana, the open-source analytics and visualization application.
In this webinar, we will review the benefits of leveraging InfluxDB and Grafana when executing load tests and demonstrate how these tools are used to visualize performance metrics.
Length: 30 minutes
Session Overview
-------------------------------------------
During this webinar, we will cover the following topics while demonstrating the integrations of JMeter, InfluxDB and Grafana:
- What out-of-the-box solutions are available for real-time monitoring JMeter tests?
- What are the benefits of integrating InfluxDB and Grafana into the load testing stack?
- Which features are provided by Grafana?
- Demonstration of InfluxDB and Grafana using a practice web application
To view the webinar recording, go to:
https://www.rttsweb.com/jmeter-integration-webinar
Essentials of Automations: Optimizing FME Workflows with ParametersSafe Software
Are you looking to streamline your workflows and boost your projects’ efficiency? Do you find yourself searching for ways to add flexibility and control over your FME workflows? If so, you’re in the right place.
Join us for an insightful dive into the world of FME parameters, a critical element in optimizing workflow efficiency. This webinar marks the beginning of our three-part “Essentials of Automation” series. This first webinar is designed to equip you with the knowledge and skills to utilize parameters effectively: enhancing the flexibility, maintainability, and user control of your FME projects.
Here’s what you’ll gain:
- Essentials of FME Parameters: Understand the pivotal role of parameters, including Reader/Writer, Transformer, User, and FME Flow categories. Discover how they are the key to unlocking automation and optimization within your workflows.
- Practical Applications in FME Form: Delve into key user parameter types including choice, connections, and file URLs. Allow users to control how a workflow runs, making your workflows more reusable. Learn to import values and deliver the best user experience for your workflows while enhancing accuracy.
- Optimization Strategies in FME Flow: Explore the creation and strategic deployment of parameters in FME Flow, including the use of deployment and geometry parameters, to maximize workflow efficiency.
- Pro Tips for Success: Gain insights on parameterizing connections and leveraging new features like Conditional Visibility for clarity and simplicity.
We’ll wrap up with a glimpse into future webinars, followed by a Q&A session to address your specific questions surrounding this topic.
Don’t miss this opportunity to elevate your FME expertise and drive your projects to new heights of efficiency.
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...James Anderson
Effective Application Security in Software Delivery lifecycle using Deployment Firewall and DBOM
The modern software delivery process (or the CI/CD process) includes many tools, distributed teams, open-source code, and cloud platforms. Constant focus on speed to release software to market, along with the traditional slow and manual security checks has caused gaps in continuous security as an important piece in the software supply chain. Today organizations feel more susceptible to external and internal cyber threats due to the vast attack surface in their applications supply chain and the lack of end-to-end governance and risk management.
The software team must secure its software delivery process to avoid vulnerability and security breaches. This needs to be achieved with existing tool chains and without extensive rework of the delivery processes. This talk will present strategies and techniques for providing visibility into the true risk of the existing vulnerabilities, preventing the introduction of security issues in the software, resolving vulnerabilities in production environments quickly, and capturing the deployment bill of materials (DBOM).
Speakers:
Bob Boule
Robert Boule is a technology enthusiast with PASSION for technology and making things work along with a knack for helping others understand how things work. He comes with around 20 years of solution engineering experience in application security, software continuous delivery, and SaaS platforms. He is known for his dynamic presentations in CI/CD and application security integrated in software delivery lifecycle.
Gopinath Rebala
Gopinath Rebala is the CTO of OpsMx, where he has overall responsibility for the machine learning and data processing architectures for Secure Software Delivery. Gopi also has a strong connection with our customers, leading design and architecture for strategic implementations. Gopi is a frequent speaker and well-known leader in continuous delivery and integrating security into software delivery.
Generating a custom Ruby SDK for your web service or Rails API using Smithyg2nightmarescribd
Have you ever wanted a Ruby client API to communicate with your web service? Smithy is a protocol-agnostic language for defining services and SDKs. Smithy Ruby is an implementation of Smithy that generates a Ruby SDK using a Smithy model. In this talk, we will explore Smithy and Smithy Ruby to learn how to generate custom feature-rich SDKs that can communicate with any web service, such as a Rails JSON API.
Key Trends Shaping the Future of Infrastructure.pdfCheryl Hung
Keynote at DIGIT West Expo, Glasgow on 29 May 2024.
Cheryl Hung, ochery.com
Sr Director, Infrastructure Ecosystem, Arm.
The key trends across hardware, cloud and open-source; exploring how these areas are likely to mature and develop over the short and long-term, and then considering how organisations can position themselves to adapt and thrive.
Connector Corner: Automate dynamic content and events by pushing a buttonDianaGray10
Here is something new! In our next Connector Corner webinar, we will demonstrate how you can use a single workflow to:
Create a campaign using Mailchimp with merge tags/fields
Send an interactive Slack channel message (using buttons)
Have the message received by managers and peers along with a test email for review
But there’s more:
In a second workflow supporting the same use case, you’ll see:
Your campaign sent to target colleagues for approval
If the “Approve” button is clicked, a Jira/Zendesk ticket is created for the marketing design team
But—if the “Reject” button is pushed, colleagues will be alerted via Slack message
Join us to learn more about this new, human-in-the-loop capability, brought to you by Integration Service connectors.
And...
Speakers:
Akshay Agnihotri, Product Manager
Charlie Greenberg, Host
DevOps and Testing slides at DASA ConnectKari Kakkonen
My and Rik Marselis slides at 30.5.2024 DASA Connect conference. We discuss about what is testing, then what is agile testing and finally what is Testing in DevOps. Finally we had lovely workshop with the participants trying to find out different ways to think about quality and testing in different parts of the DevOps infinity loop.
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...Jeffrey Haguewood
Sidekick Solutions uses Bonterra Impact Management (fka Social Solutions Apricot) and automation solutions to integrate data for business workflows.
We believe integration and automation are essential to user experience and the promise of efficient work through technology. Automation is the critical ingredient to realizing that full vision. We develop integration products and services for Bonterra Case Management software to support the deployment of automations for a variety of use cases.
This video focuses on the notifications, alerts, and approval requests using Slack for Bonterra Impact Management. The solutions covered in this webinar can also be deployed for Microsoft Teams.
Interested in deploying notification automations for Bonterra Impact Management? Contact us at sales@sidekicksolutionsllc.com to discuss next steps.
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...
Building model-sap2000-tutorial-guide
1. EARTHQUAKE RESISTANT DESIGN
THE BALSA WOOD BUILDING PROJECT
MODEL DIMENSIONS AND DETAILS
• Number of floors = 5
• Building Plan Dimensions = 12 in x 12 in (outside-to-outside)
• Floor height = 6 in (floor level to floor level)
• Building height = 30 in
• Diaphragms (floors) = 12 in x 12 in made of flat balsa wood sheets or of
hardboard adjusted at edges to be properly attached to beams and
columns
• Use two bays on each side (see attached sketch). No interior columns.
• Select the bracing type such that top floor horizontal movements is
minimized. Adding more bracing will lower the displacement, but keep in
mind, that the building with the minimum weight and the minimum
displacement (least damage) is the best design. You can get the total
weight of the building form the vertical reactions at the base joints.
SAP2000 PROGRAM
1. run the program from the START button
2. go to units in the lower right hand corner of the screen and input LB-IN
3. under the FILE tab select NEW MODEL FROM TEMPLATE
4. select the second template in the second row
5. input the following: Number of stories = 5
Bays in the X direction = 2
Bays in the Y-direction = 2
Story height = 6
Bay width along X = 6
Bay width along Y = 6
6. two screens will pop up showing your model in 3-D and in the X-Y plane.
7. now we are going to remove the interior columns from the middle of the building
8. click with the mouse on all the middle columns. There should a total of 5
columns that need to be removed. Once you marked all the columns that need to

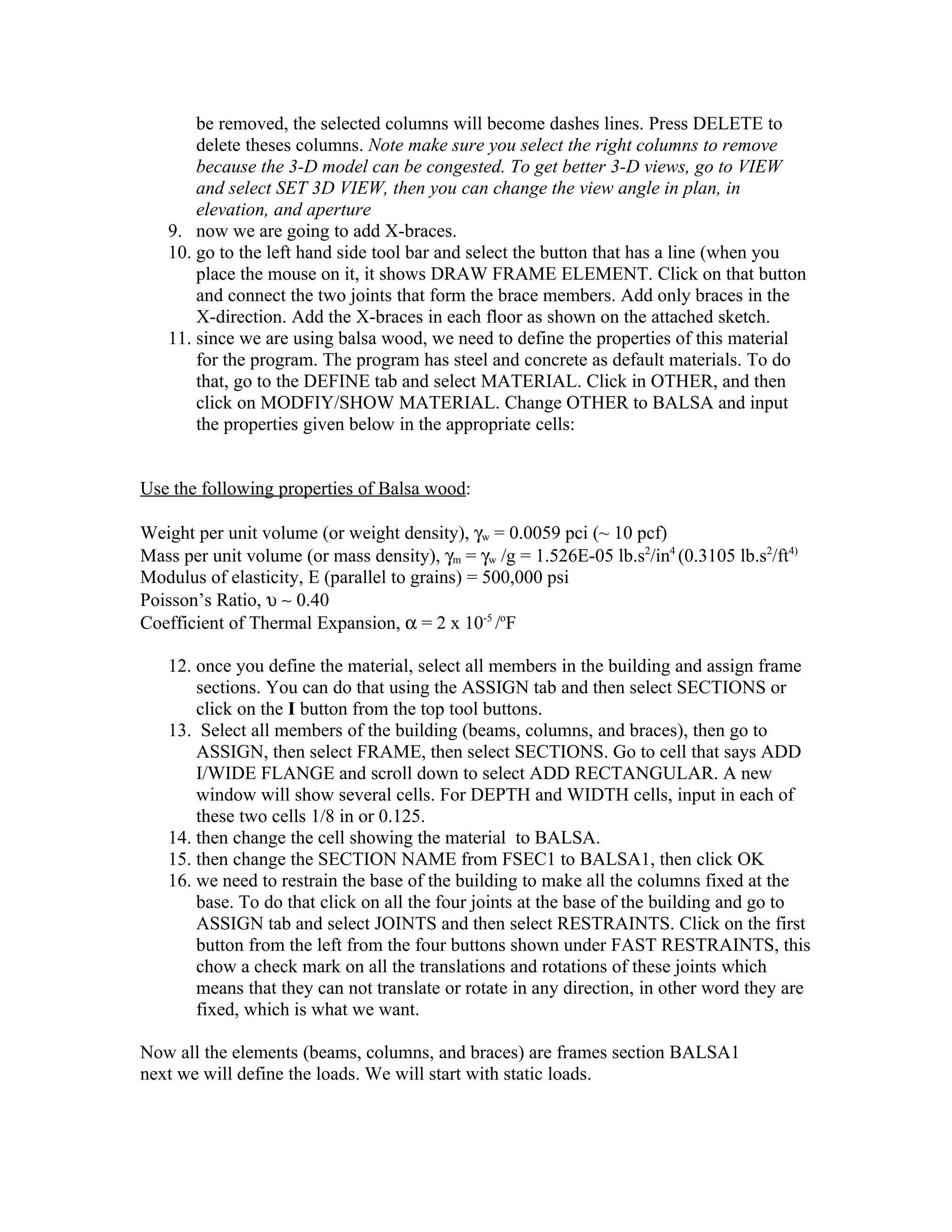

2. be removed, the selected columns will become dashes lines. Press DELETE to
delete theses columns. Note make sure you select the right columns to remove
because the 3-D model can be congested. To get better 3-D views, go to VIEW
and select SET 3D VIEW, then you can change the view angle in plan, in
elevation, and aperture
9. now we are going to add X-braces.
10. go to the left hand side tool bar and select the button that has a line (when you
place the mouse on it, it shows DRAW FRAME ELEMENT. Click on that button
and connect the two joints that form the brace members. Add only braces in the
X-direction. Add the X-braces in each floor as shown on the attached sketch.
11. since we are using balsa wood, we need to define the properties of this material
for the program. The program has steel and concrete as default materials. To do
that, go to the DEFINE tab and select MATERIAL. Click in OTHER, and then
click on MODFIY/SHOW MATERIAL. Change OTHER to BALSA and input
the properties given below in the appropriate cells:
Use the following properties of Balsa wood:
Weight per unit volume (or weight density), γw = 0.0059 pci (~ 10 pcf)
Mass per unit volume (or mass density), γm = γw /g = 1.526E-05 lb.s2/in4 (0.3105 lb.s2/ft4)
Modulus of elasticity, E (parallel to grains) = 500,000 psi
Poisson’s Ratio, υ ∼ 0.40
Coefficient of Thermal Expansion, α = 2 x 10-5 /oF
12. once you define the material, select all members in the building and assign frame
sections. You can do that using the ASSIGN tab and then select SECTIONS or
click on the I button from the top tool buttons.
13. Select all members of the building (beams, columns, and braces), then go to
ASSIGN, then select FRAME, then select SECTIONS. Go to cell that says ADD
I/WIDE FLANGE and scroll down to select ADD RECTANGULAR. A new
window will show several cells. For DEPTH and WIDTH cells, input in each of
these two cells 1/8 in or 0.125.
14. then change the cell showing the material to BALSA.
15. then change the SECTION NAME from FSEC1 to BALSA1, then click OK
16. we need to restrain the base of the building to make all the columns fixed at the
base. To do that click on all the four joints at the base of the building and go to
ASSIGN tab and select JOINTS and then select RESTRAINTS. Click on the first
button from the left from the four buttons shown under FAST RESTRAINTS, this
chow a check mark on all the translations and rotations of these joints which
means that they can not translate or rotate in any direction, in other word they are
fixed, which is what we want.
Now all the elements (beams, columns, and braces) are frames section BALSA1
next we will define the loads. We will start with static loads.
3. 17. go to the DEFINE tab and select STATIC LOAD CASES
18. you will see LOAD1 – leave that load as is – do not change – this static load case
is typically reserved for the self weight loads.
19. in the cell where it shows LOAD1, type DL for dead load and change the SELF
WEIGHT MULTIPLIER form 1 to 0, then click ADD NEW LOAD
20. do the same thing you did for DL and add W for wind loads, and click ADD
NEW LOAD, then click OK
21. to add W on certain joints on the structure, click on the joint (s) that want to load,
then go to ASSIGN tab and select JOINT STATIC LOADS, then select FORCES
or you can use the button.
22. remember that direction 1 is the X, direction 2 is the Y and direction 3 is the Z.
23. let us say, you want to add wind load = 0.5 lbs on the top joint in the + Y
direction.
24. to do that, follow the steps in 23, and then input +0.5 lb in GLOBAL Y cell. Then
click ok.
25. to add earthquake loads, go to DEFINE, select, TIME HISTORY FUNCTIONS
26. click on the ADD FUNCTION FROM FILE, then click on OPEN FILE, then type
file name, then check TIME AND FUNCTION VALUES, then click OK.
27. then under DEFINE, select TIME HISTORY CASES, and then click on ADD
NEW HISTORY. The program will add time history case 1 or HIST1
28. in the new window, input in NUMBER OF OUTPUT STEPS = 600 and input in
TIME STEP SIZE = 0.05, check ENVELOPES, then under LOAD
ASSIGMENTS, change the cell that says RAMP to FUNC1, then click ADD,
then click OK
29. Run the program either using the ANALYZE tab or from the button that has an
arrow in it.
30. when the run is complete, the program will tell you ANALYSIS COMPLETE.
31. to view joint displacements, click on the ∆ button, then select which load you
want to check (LOAD1, DL, W, or HIST1), let us say you want joint
displacements due to earthquake loads, then select HIST1, then right click on the
joint you want to check and you will see joint movements in direction 1, 2, and 3
give in inches.
Balsa wood compared to structural Steel
Properties of Structural Steel:
Weight per unit volume (or weight density), γw = 0.283 pci (~ 490 pcf)
Mass per unit volume (or mass density), γm = γw /g = 7.234E-04 lb.s2/in4 (15.21 lb.s2/ft4)
Modulus of elasticity, E (parallel to grains) = 29,000,000 psi
Poisson’s Ratio, υ ∼ 0.30
Coefficient of Thermal Expansion, α = .65 x 10-5 /oF
