1. BUILDING MEP SYSTEM

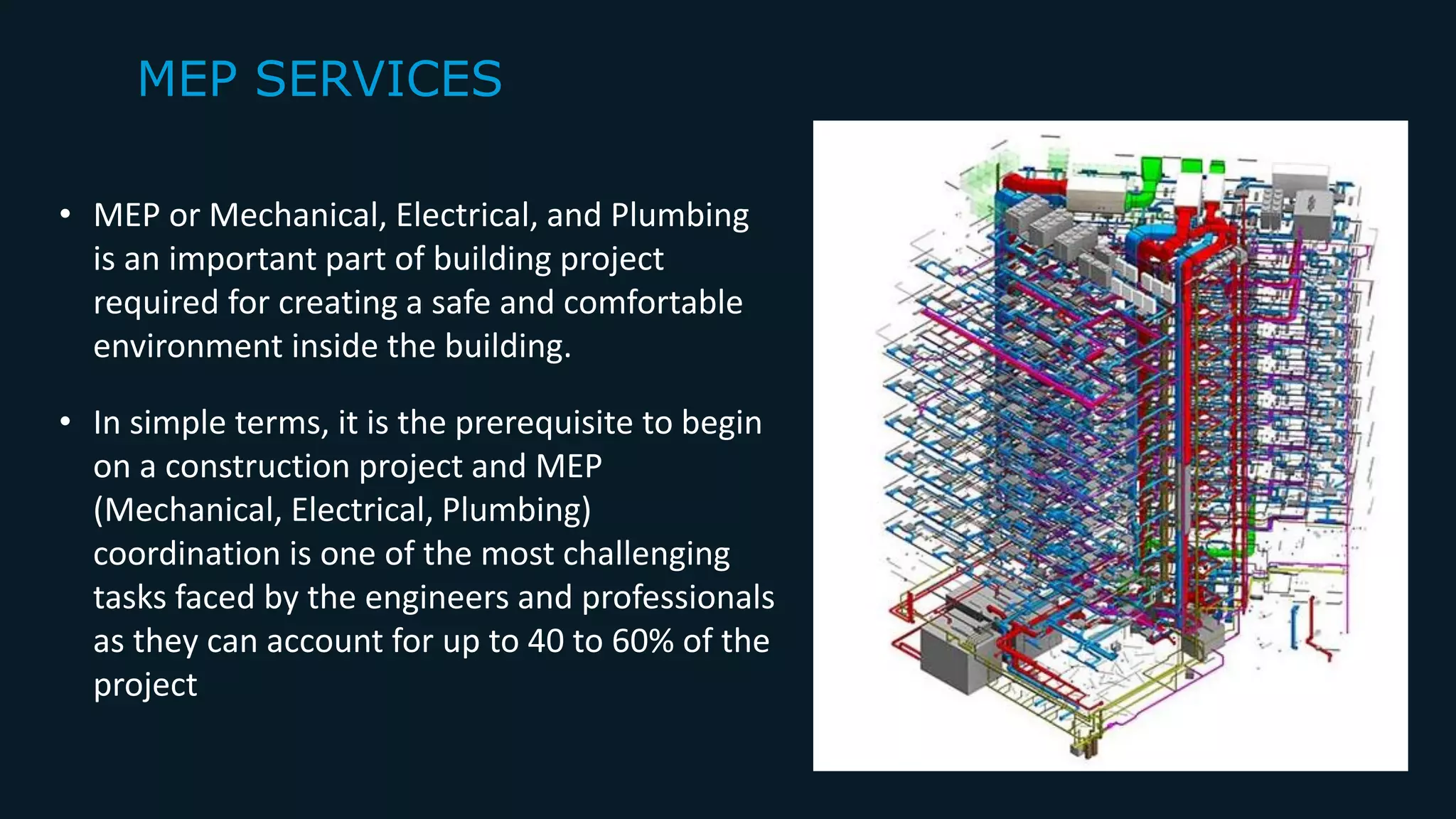

2. MEP SERVICES
• MEP or Mechanical, Electrical, and Plumbing
is an important part of building project
required for creating a safe and comfortable
environment inside the building.
• In simple terms, it is the prerequisite to begin
on a construction project and MEP
(Mechanical, Electrical, Plumbing)
coordination is one of the most challenging
tasks faced by the engineers and professionals
as they can account for up to 40 to 60% of the
project

3. INTRODUCTION TO MEP
PLUMBING SYSTEM
ELECTRICAL SYSTEM
MEPMECHANICAL SYSTEM
CIVIL CO-ORDINATION

4. MECHNICAL SYSTEM
• HVAC SYSTEM
 Air Conditioning
 Ventilation, Exhaust ,Pressurization & smoke extraction
• FIRE FIGHTING SYSTEM

5. REFERENCE STANDARD OF HVAC
• National Building Code of India (NBC) 2005 / NBC 2015
• Energy Conservation Building Code (2009)
• ASHRAE Hand Books.
• Refrigeration 2014
• Fundamentals 2013
• HVAC Systems and Equipment 2012
• HVAC Applications 2011
• Air filters as per ASHRAE 52.1-1992 and 52.2-2010
• Duct construction standards as per relevant BIS Codes &
DW-144, SMACNA standards
• Indoor Air Quality as per ASHRAE 62.1-2010
• Motors, cabling, wiring and accessories as per BIS Codes
• ASHRAE Standard 90.1 2010

6.  AIR CONDITIONING

7. TYPES OF AIR CONDITIONING
AIR CONDITONING
NON DUCTED PRODUCTS DUCTABLE SYSTEMS
SPLIT AIR CONDITIONING WINDOW AIR CONDITIONING PACKAGED AIR CONDITIONING CENTRAL PLANT
FLOOR
MOUNTED
WALL
MOUNTED
CEILING
MOUNTED
EXPOSED
TYPE
CASSETTE
TYPE
HIDE AWAY
TYPE
FLOOR STANDING PACKAGED AC
AIR COOLED
DUCTABLE SPLITS
AIR COOLED
WATER
COOLED
DX SYSTEM
CHILLED WATER
SYSTEM
VAPOUR
COMPRESSION UNIT
VAPOUR
ABSORPTION UNIT
RECIPROCATING
UNITS AIR &
WATER
COOLED
CENTRIFUGAL
UNITS WATER
COOLED
SCREW TYPE
UNITS AIR &
WATER COOLED
RECIPROCATIN
G UNITS AIR &
WATER COOLED
CENTRIFUGAL
UNITS WATER
COOLED
SCREW TYPE
UNITS AIR &
WATER COOLED

8.  Ventilation, Exhaust ,Pressurization & smoke extraction
Requirements:
• To supply oxygen for breathing (respiration).
• To dilute pollutants such as body odors and
exhaled carbon dioxide.
• To remove unwanted heat from the building.
• To supply air for combustion appliances
• To lower the relative humidity and so avoid
condensation.
• To clear smoke in the event of fire.

9.  CAR PARKING SCHEMATIC

10.  CFD ANALYSIS

11.  SCHEMATIC SECTOIN OF STAIRCASE PRESSURIZATION

12. • FIRE FIGHTING SYSTEM
FIRE FIGHTING SYSTEM CONSIST OF :
• HYDRANT SYSTEM (INTERNAL & EXTERNAL)
• AUTOMATIC SPRINKLER SYSTEM
• FIRE PUMPS
• FIRE WATER RESERVOIR
• PORTABLE FIRE EXTINGUISHERS
• WATER CURTAINS

13. APPLICATION DESIGN STANDARD AND CODES
The National Building Code (NBC) and Local Fire Authority together form the basis
for the fire protection design.
 NFPA 13 - Standard for the Installation of Automatic Sprinkler Systems.
NFPA 14 - Standard for the Installation of Standpipe Systems - 2003 edition.
Recommendations of the local CFO.

14. • HYDRANT SYSTEM
INTERNAL EXTERNAL

15. • AUTOMATIC SPRINKLER SYSTEM

16. • FIRE PUMPS

17. • FIRE WATER RESERVOIR

18. • PORTABLE FIRE EXTINGUISHERS

19. • WATER CURTAINS

20. • TYPICAL FIRE PROTECTION SCHEMATIC
J
MUNCIPAL WATER SUPPLY TANKER WATER /BOREWELL
FIRE WATER TANKBRIDGE INLET
DP
HYDRANT
EXTERNAL HYDRANT
SP BHP
SPRINKLER
INTERNAL HYDRANT
DP : Diesel Pump
HP : Hydrant Pump
SP : Sprinkler Pump
J : Jockey Pump
B : Booster Pump

21. PLUMBING SYSTEM
THE PLUMBING SYSTEM IS REALLY MADE UP OF TWO SYSTEMS:
 The supply system that brings in fresh water
 The drain-waste-vent system that takes out used water and
sewage
• THE DRAIN-WASTE-VENT SYSTEM ALSO LETS AIR IN AND WASTE
• GASES OUT.
• BETWEEN THESE TWO SYSTEMS ARE THE FIXTURES (SINKS,
TUBS, TOILETS, AND SO ON).

22. DESIGN STANDARD AND CODES
IS 5329 – 1983 Code of practice for sanitary pipe work above ground for buildings
IS 2064 – 1973 Code of practice for selection, installation and maintenance of sanitary appliances
IS 1239 Part 1 & Part 2 Steel tubes & tubulars and fittings
IS 783 – 1959 Code of practice for laying of concrete pipes
IS 2527 – 1984 Code of practice for fixing rainwater gutters and down pipes for roof drainage
IS 6784 – 1984 Method of performance testing of water meters (Domestic type)
IS 12235 (Parts 1to11) Methods of test for un plasticized PVC pipes
IS 458 – 1988 Specification for pre-cast concrete pipes (with or without reinforcement)
IS 771 – (Part 3to6) Specific requirements for urinals
IS 2548 (Part 1&2) Specification for plastic seats and covers for water closets
IS 3004 – 1979 Specification for plug cocks for water supply purposes
IS 1703 – 1977 Specification for ball valves (Horizontal plunger type) including floats for water supply purposes
IS 4038 – 1979 Specification for foot valves for water works purposes
IS 1172 – 1983 Code of basic requirements for water supply, drainage & sanitation
IS : 3989 Centrifugally cast iron pipes
IS : 13592 PVC SWR Pipes & Fittings
IS 1726 – 1991 Code for cast iron manhole frame and cover
IS 1742 – 1983 Code of practice for building drainage
IS 2064 – 1973 Code of practice for selection, installation and maintenance of sanitary appliances
IS 2065 – 1983 Code of practice for water supply to buildings
IS 4111 – 1986 Code of practice for Ancillary structures in sewerage system
IS 4985 – 1988 Specification for un plasticized PVC pipes
IS 778 Specification for gunmetal gate, globe and check valves for water, steam and oil only

23. PHE Services
 Water Storage
 Water Pumping and Distribution Supply System
 Sewage Treatment Plant
 Water Treatment
 Rain Water Harvesting

24. • WATER STORAGE

25. Water Pumping and Distribution Supply System
WATER DISTRIBUTION SYSTEM
DOMESTIC FLUSHING
GRAVITY
HYDRO
PNEUMATIC
GRAVITY
HYDRO
PNEUMATIC

26. SCHEMATIC DOMESTIC WATER SUPPLY SYSTEM
MUNCIPAL WATER SUPPLY TANKER WATER/BOREWELL
FIRE TANK
RAW WATER TANK
WTP
DOMESTIC WATER TANK
TOILETS& PANTRY/KITCHEN
OVERFLOW FROM FIRE
TANK

27. SCHEMATIC FLUSHING WATER SYSTEM
SEWAGE FROM TOILET
INSPECTION CHAMBER
STP
FLUSHING WATER TANK
FLUSHING WATER FOR TOILETS
PANTRY/ KITCHEN
GREASE TRAP
DISPOSAL TO MUNICIPAL LINE
TREATED WATER WASTE WATER

28. SEWAGE TREATMENT PLANT

29. RAIN WATER HARVESTING

30. ELECTRICAL SYSTEM

31. • Local By – laws
• National Building Code of India – 2005 / Draft
NBC 2015
• Energy Conservation Building Codes 2009
• Relevant codes of Bureau of Indian Standards
• Institute of Electrical & Electronic Engineers
(Design Hand Book)
• NEC – NFPA 70, National Electric Code
• NFPA 101, Life safety code
• NEC, National Electric Code of India
• Indian Electrical Act
• Indian Electrical Rule
REFERENCE STANDARD OF ELECTRICAL

32. EXTERNAL INTERNAL
ELECTRICAL SYSTEMS
TRANSFORMERS
HT PANELS
METERING
BUSDUCT/CABLING
SOLAR SYSTEM
DG SETS
LIGHTING ARRESTORS
EARTHPIT/EARTHING
LT PANELS
DISTRIBUTION BOARDS
EARTHING
CABLE TRAY
UPS/EMERGENCY
WIRING
POWER/ LIGHTING
WIRING
LT CABLING
RECEPTACLES
LUMINAIRES
CLASSIFICATION OF
ELECTRICAL SYSTEMS
ELECTRICAL SYSTEM

33. DG SETS
UPS
POWERLIGHTING Common area
TRANSFORMERS
LT PANELS
BUS DUCTS / CABLES
DISTRIBUTION
BOARDS
BUSDUCTS/ CABLES
CAPACITOR
BANKS
CABLES
HT INCOMING SUPPLY
HT CABLE
METERING KIOSK
HTCABLE
HT PANEL
HTCABLE
ELECTRICAL SCHEMATIC
FROM UTILITY

34. • FIRE ALARM SYSTEM
• PUBLIC ADDRESS SYSTEM
• CCTV SYSTEM
• ACCESS CONTROL SYSTEM
• BUILDING MANAGEMENT SYSTEM
EXTRA VOLTAGE SYSTEM

35. FIRE ALARM SYSTEM

36. PUBLIC ADDRESS SYSTEM

37. PUBLIC ADDRESS SYSTEM

38. CCTV SYSTEM

39. ACCESS CONTROL SYSTEM

40. BUILDING MANAGEMENT SYSTEM
