Building a Secure DevOps Pipeline - for your AppSec Program

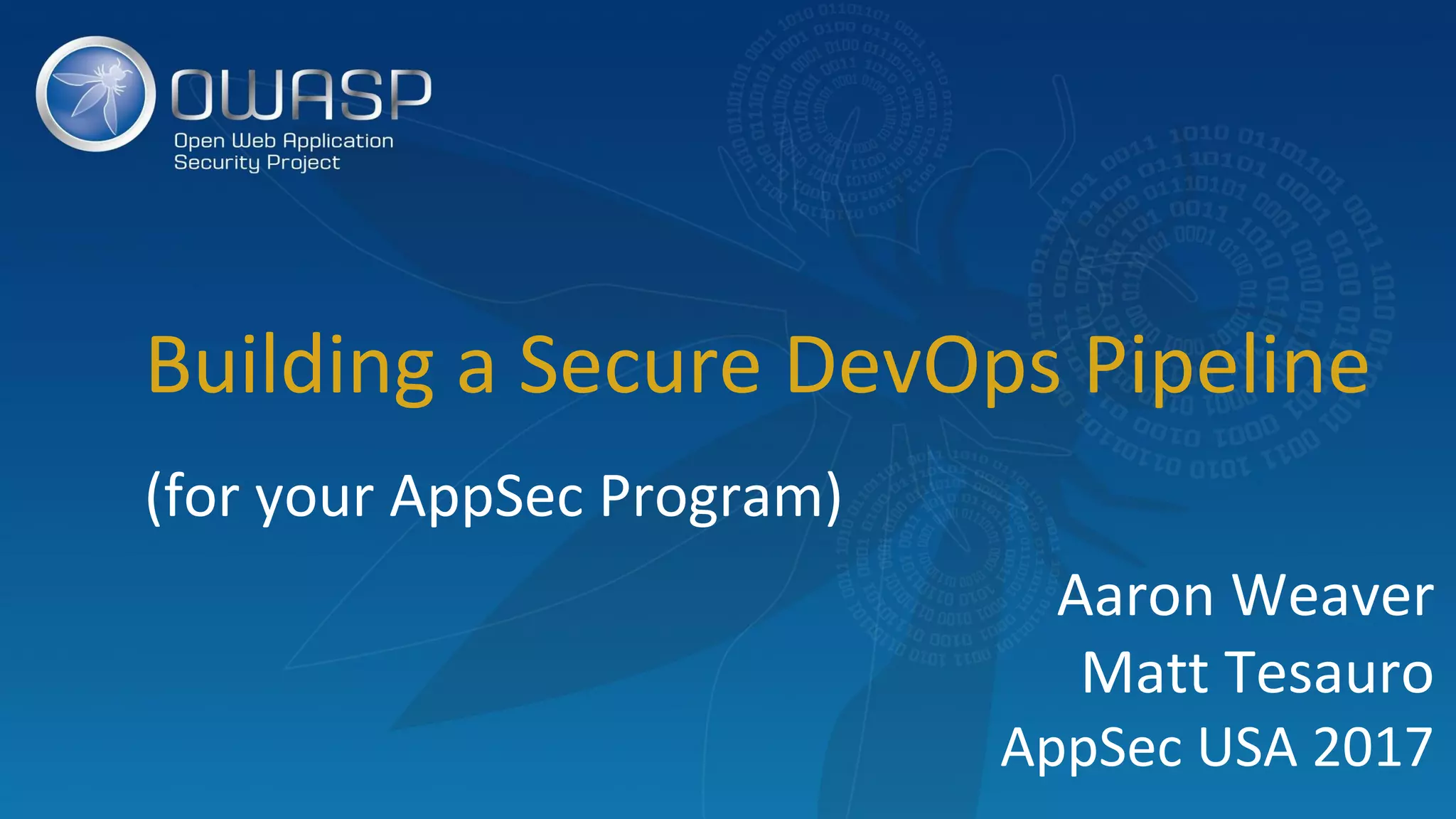

- 1. Building a SecureDevOps Pipeline (for your AppSec Program) Aaron Weaver Matt Tesauro AppSec USA 2017
- 2. Building a Secure DevOpsPipeline (for your appSec program) Matt Tesauro Aaron Weaver AppSec USA 2017
- 3. Hello! I am AaronWeaver All around good guy and craftsman of wood and coffee aaron@sec.training / @weavera
- 4. Hello! I am MattTesauro I think AppSec needs to change and I’m going to tell you how I see it changing matt.tesauro@owasp.org / @matt_tesauro
- 5.

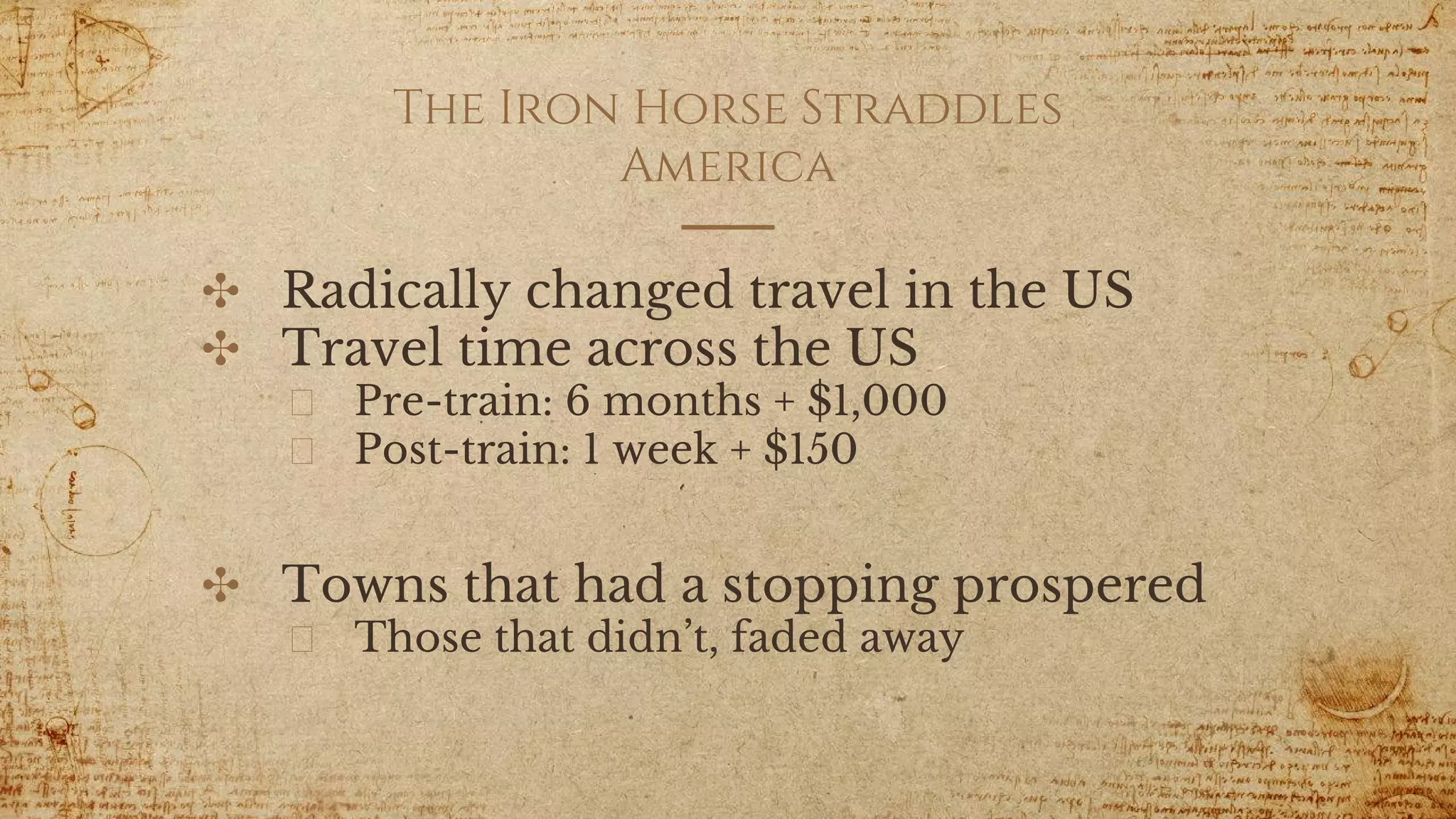

- 7. ✣ Radically changedtravel in the US ✣ Travel time across the US Pre-train: 6 months + $1,000 Post-train: 1 week + $150 ✣ Towns that had a stopping prospered Those that didn’t, faded away The Iron Horse Straddles America

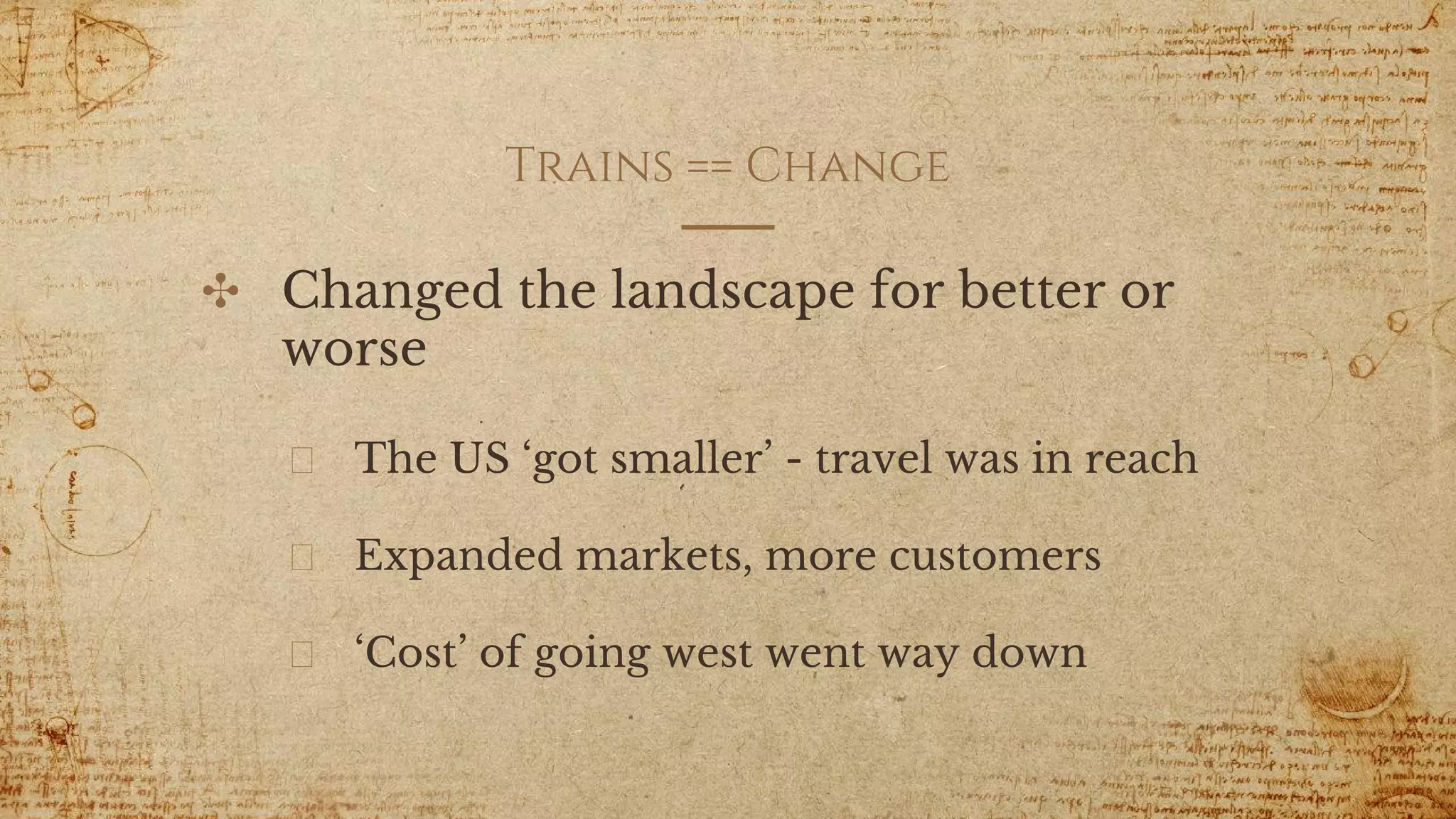

- 8. Trains == Change ✣Changed the landscape for better or worse The US ‘got smaller’ - travel was in reach Expanded markets, more customers ‘Cost’ of going west went way down

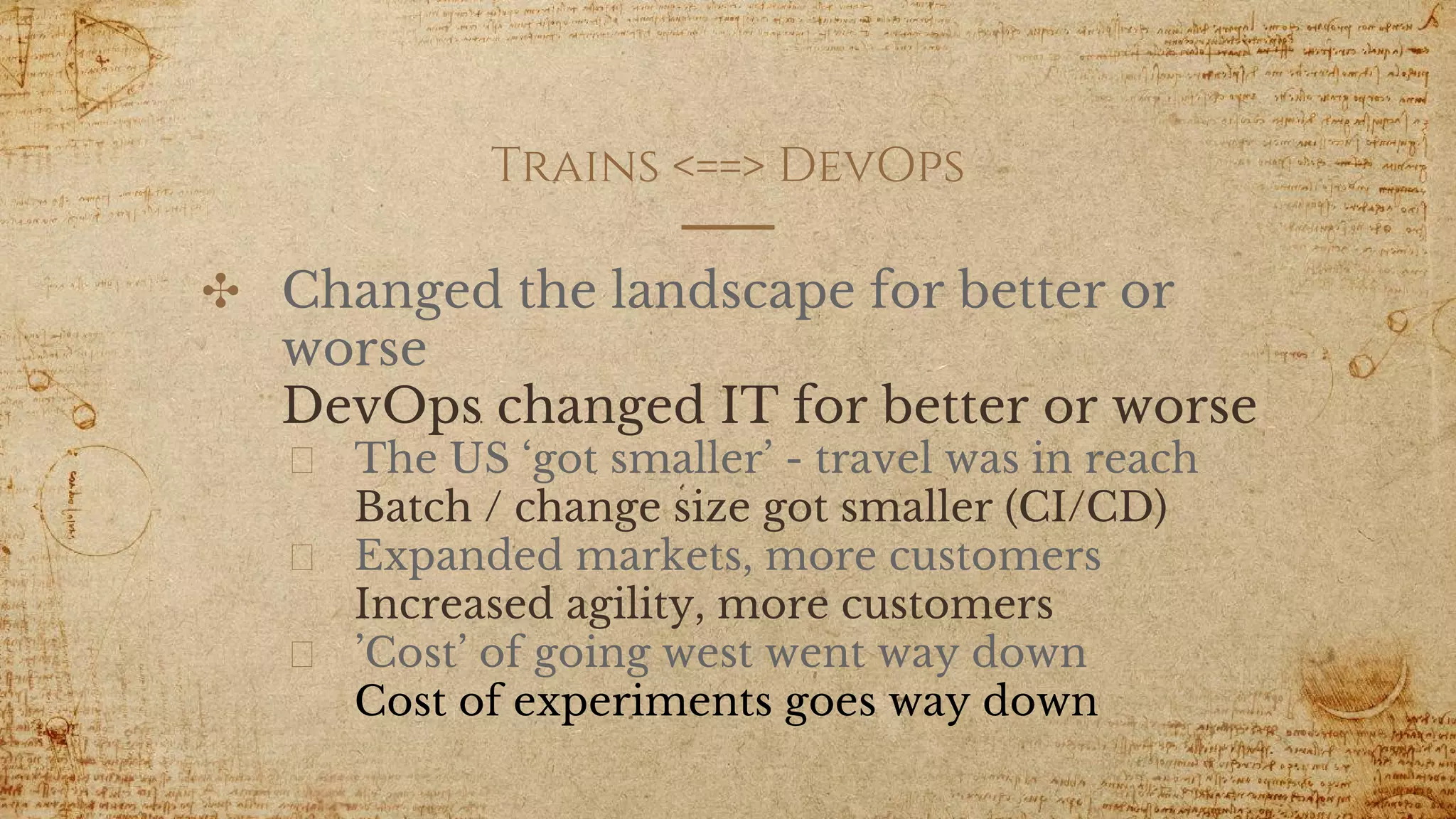

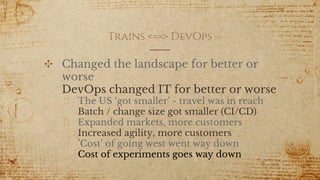

- 9. Trains <==> DevOps ✣Changed the landscape for better or worse DevOps changed IT for better or worse The US ‘got smaller’ - travel was in reach Batch / change size got smaller (CI/CD) Expanded markets, more customers Increased agility, more customers ’Cost’ of going west went way down Cost of experiments goes way down
- 10. When will wesee this? DevOps AppSec
- 11. Genis: Pipeline Species: AppSec Anew evolution of AppSec
- 12. AppSec Pipelines Using CI/CDas inspiration, figure out your AppSec workflow

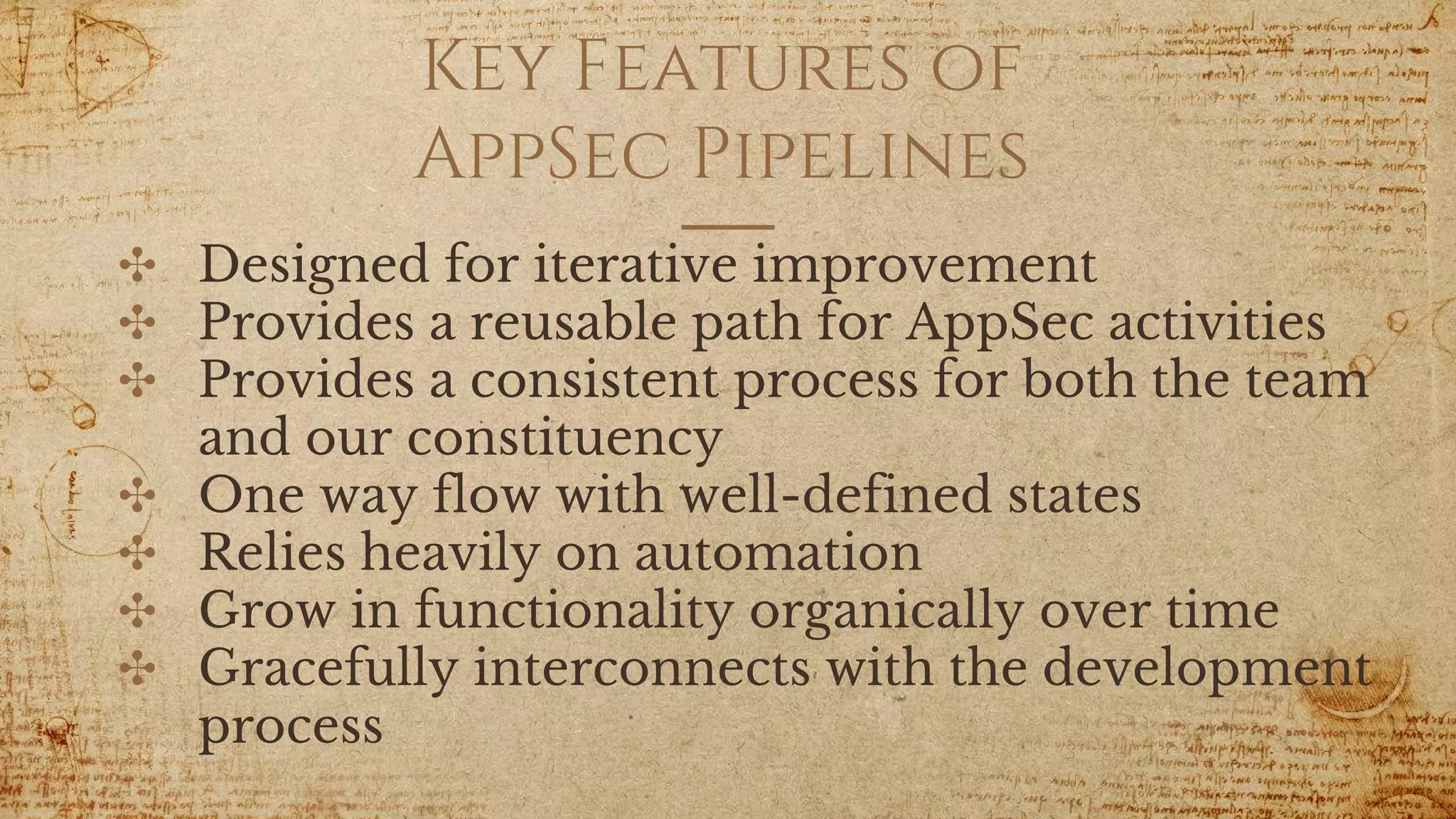

- 13. Key Features of AppSecPipelines ✣ Designed for iterative improvement ✣ Provides a reusable path for AppSec activities ✣ Provides a consistent process for both the team and our constituency ✣ One way flow with well-defined states ✣ Relies heavily on automation ✣ Grow in functionality organically over time ✣ Gracefully interconnects with the development process
- 15. What we wantis ala carte - Just with a limited number of choices
- 16.
- 17. Gen 1 Pipelines Lookat your team's purpose and those processes which aid it
- 18. Spending time optimizing anythingother than the critical resource is an illusion. W. Edwards Deming

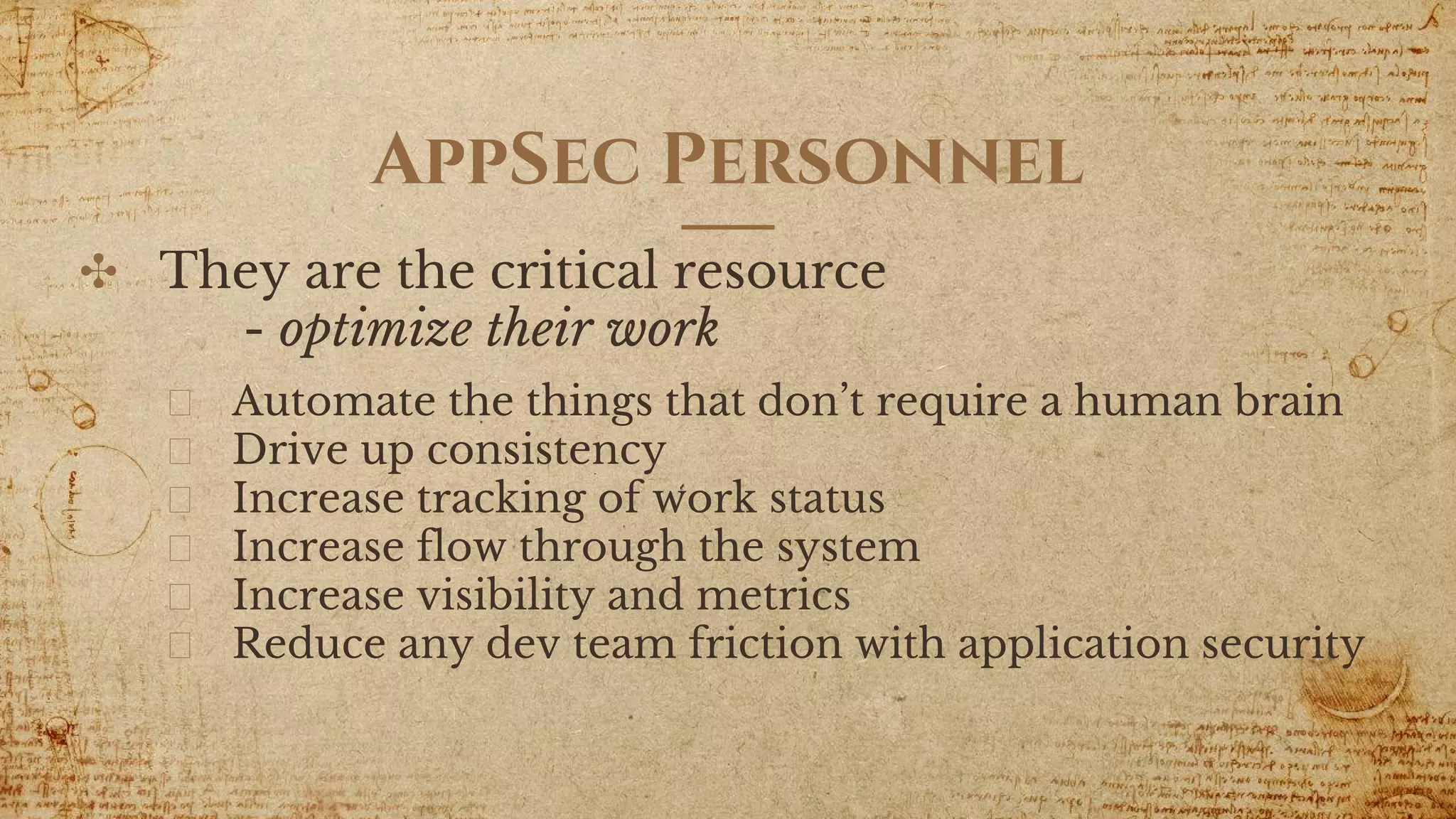

- 19. AppSec Personnel ✣ Theyare the critical resource - optimize their work Automate the things that don’t require a human brain Drive up consistency Increase tracking of work status Increase flow through the system Increase visibility and metrics Reduce any dev team friction with application security

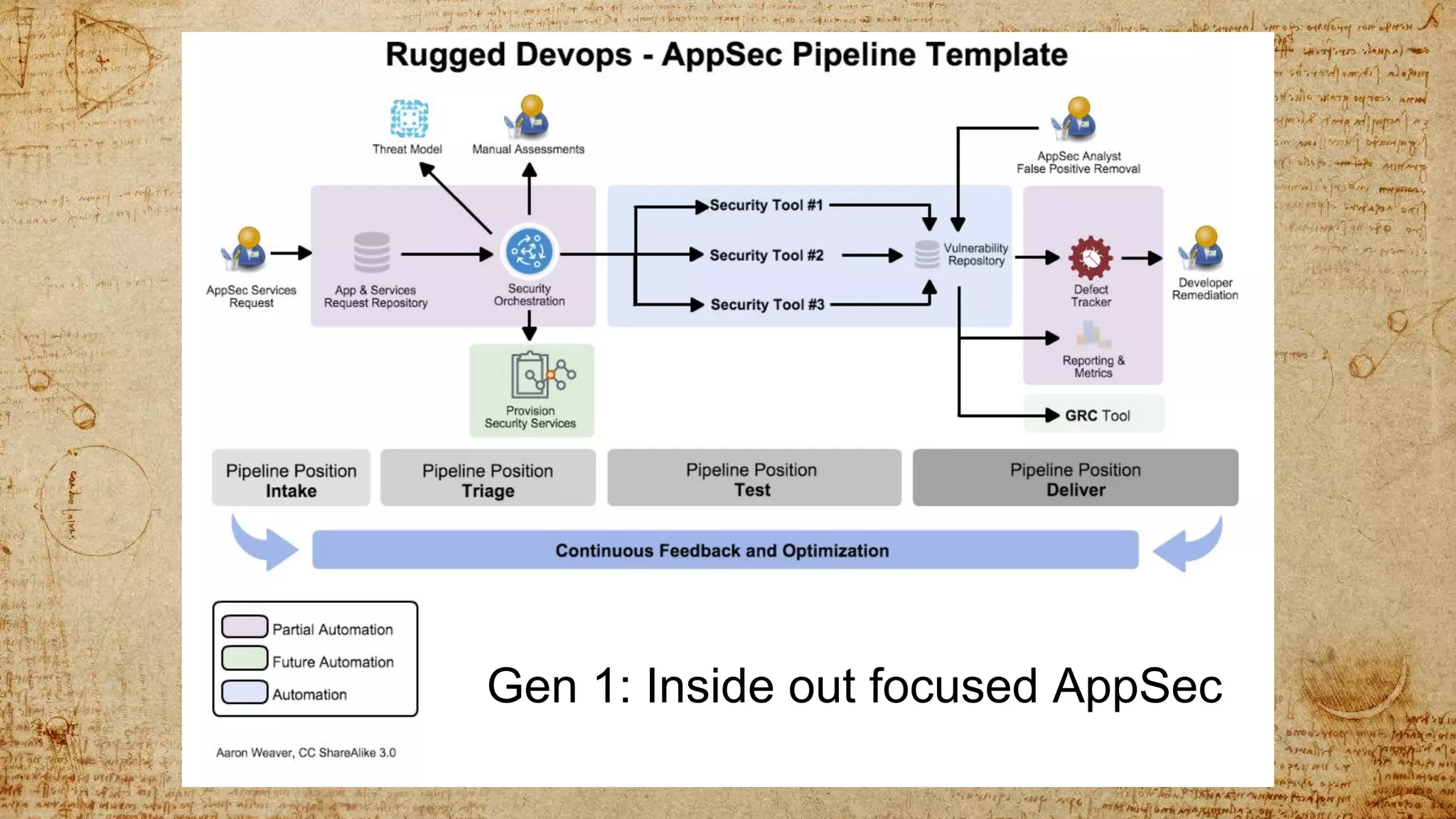

- 20. Gen 1: Insideout focused AppSec

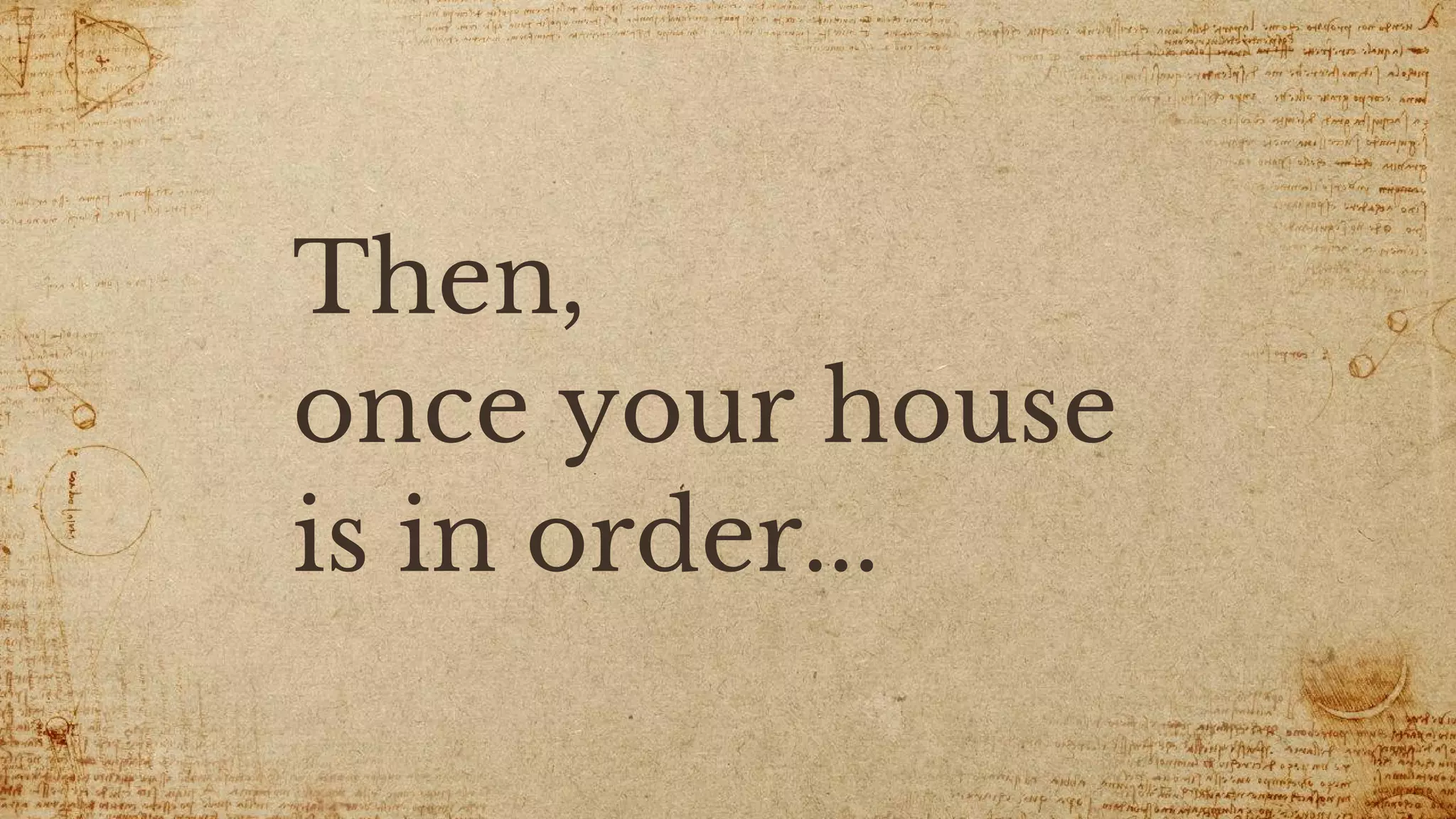

- 21. Then, once your house isin order...

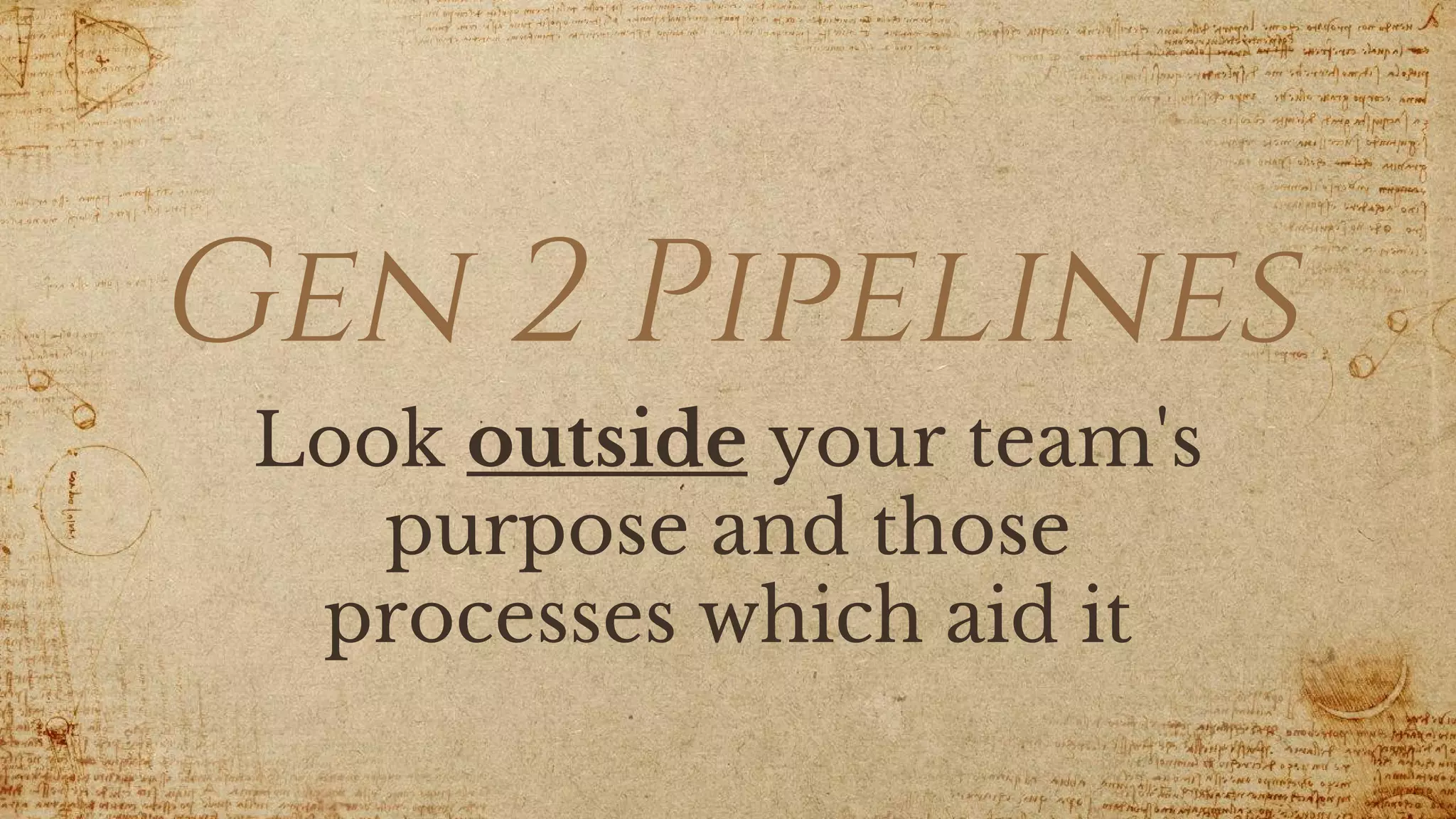

- 22. Gen 2 Pipelines Lookoutside your team's purpose and those processes which aid it

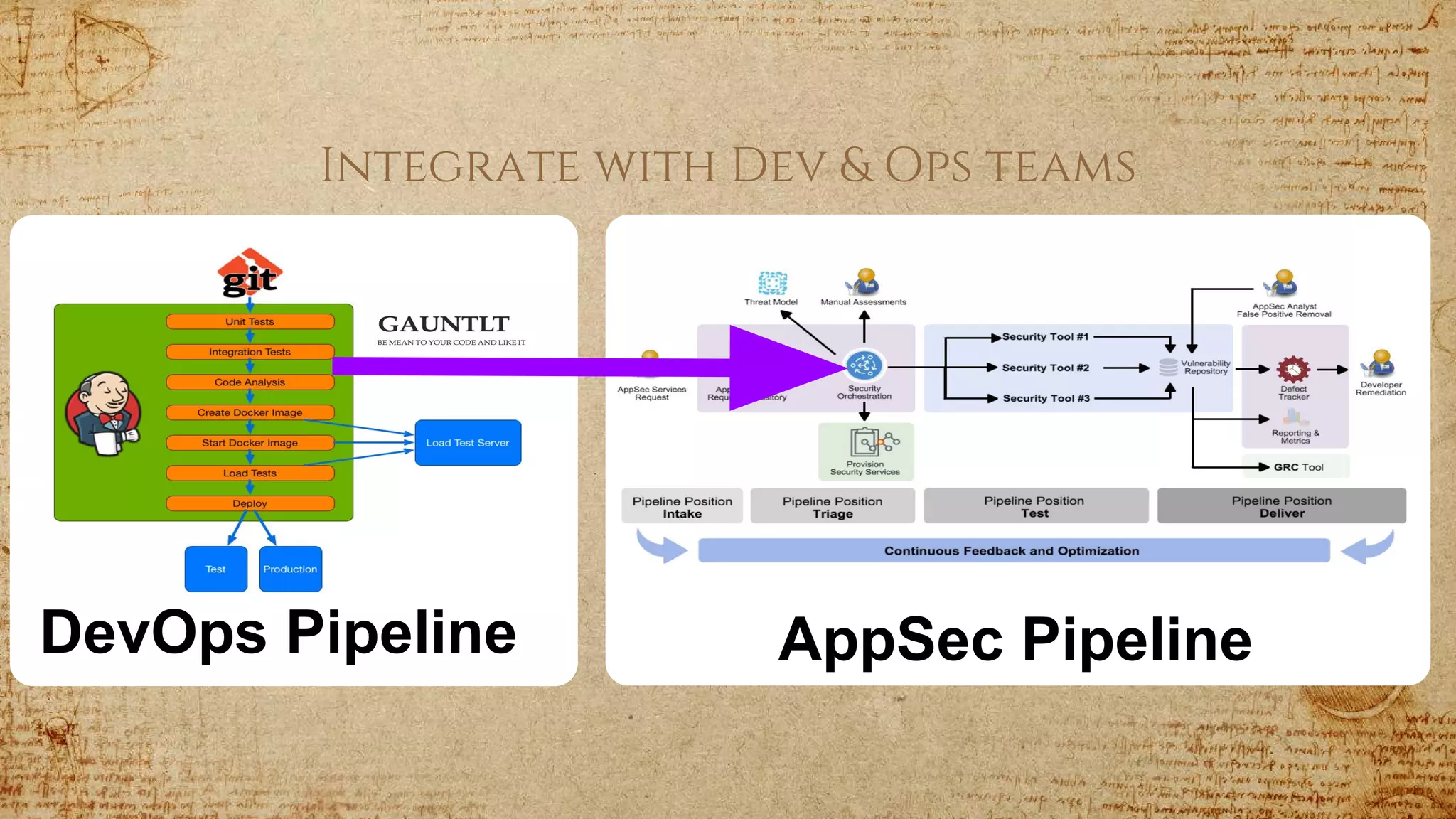

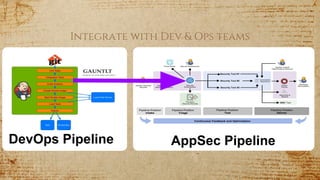

- 23. DevOps Pipeline AppSecPipeline Integrate with Dev & Ops teams

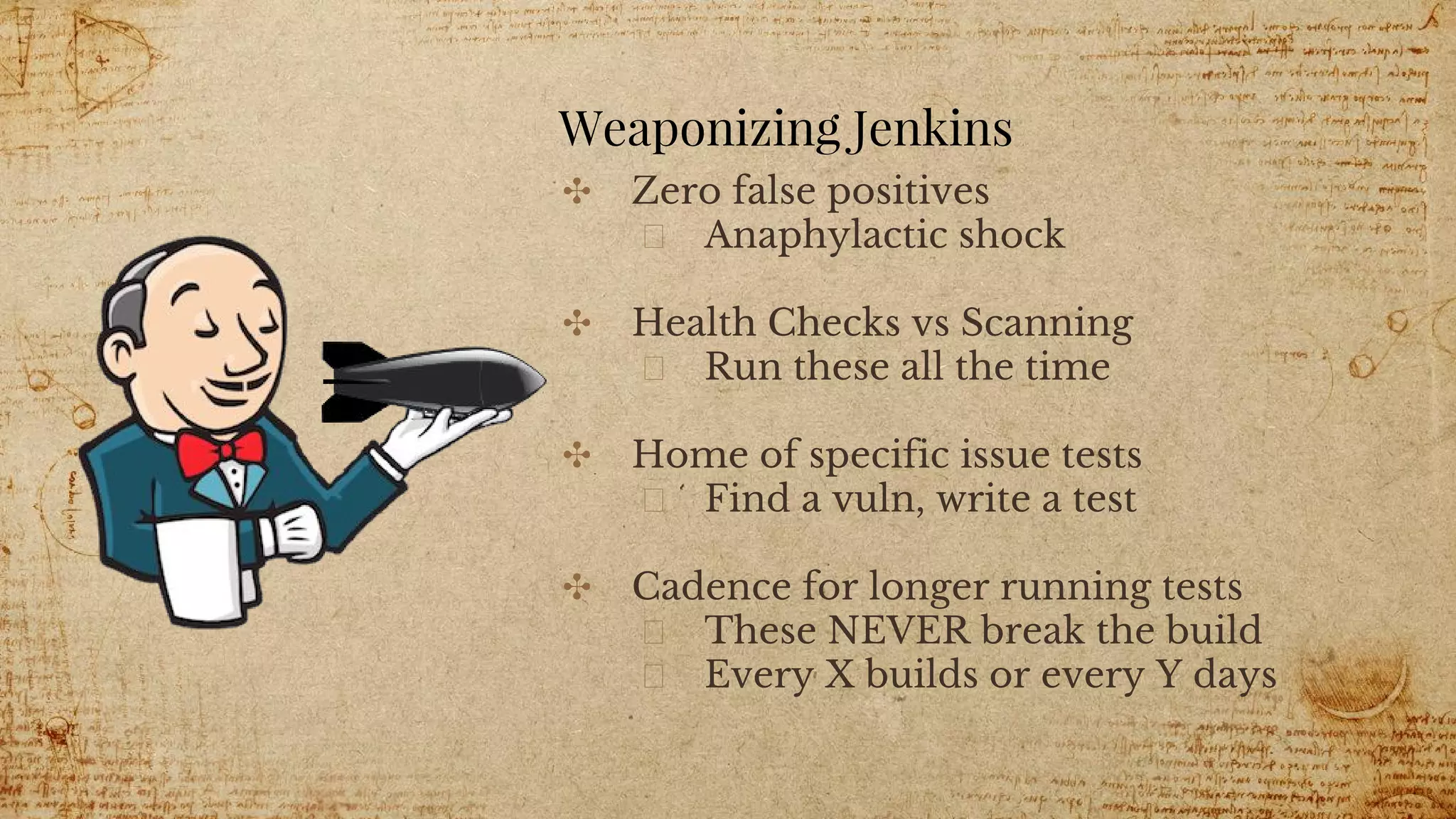

- 24. Weaponizing Jenkins ✣ Zerofalse positives Anaphylactic shock ✣ Health Checks vs Scanning Run these all the time ✣ Home of specific issue tests Find a vuln, write a test ✣ Cadence for longer running tests These NEVER break the build Every X builds or every Y days

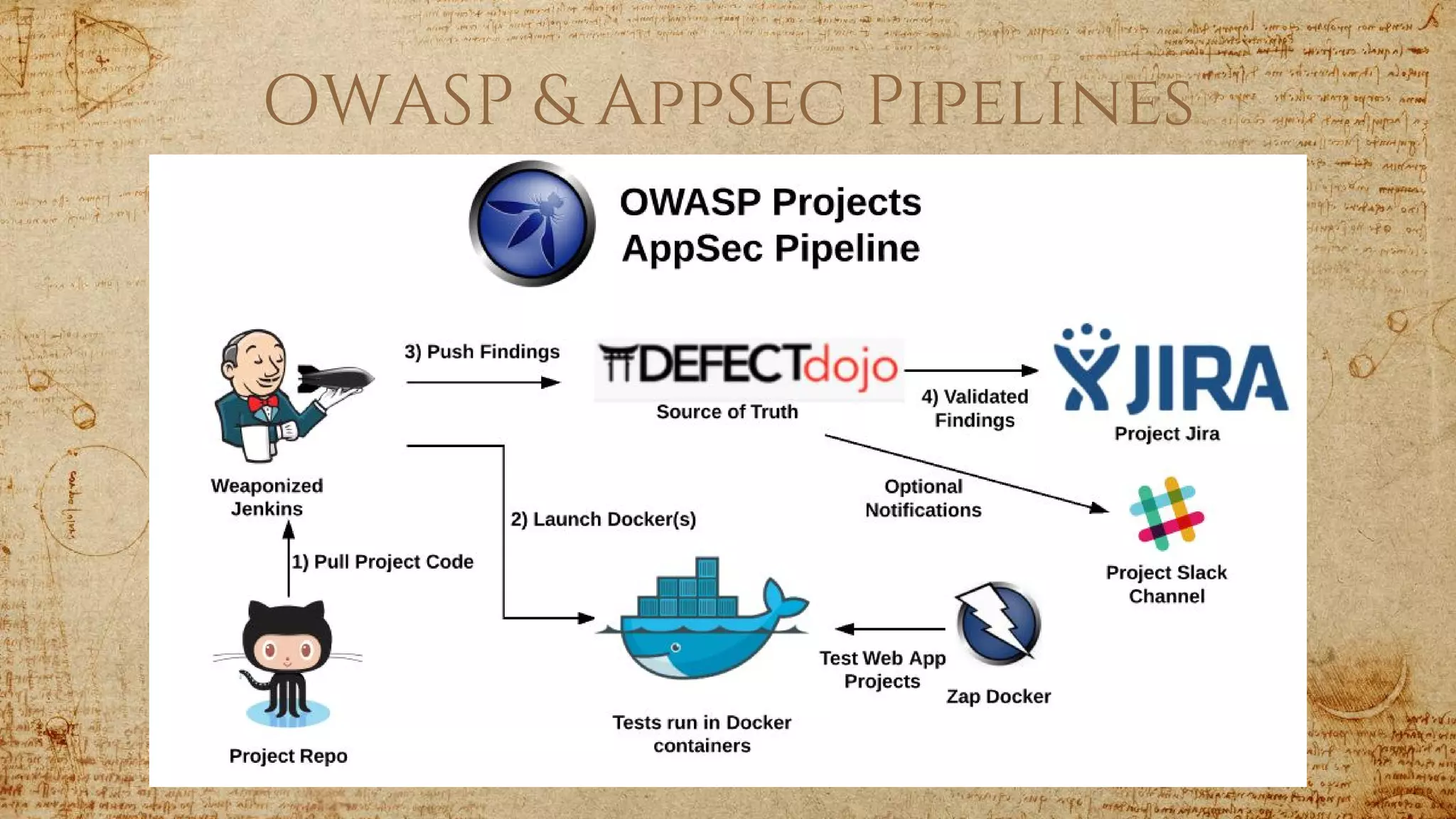

- 25. OWASP & AppSecPipelines

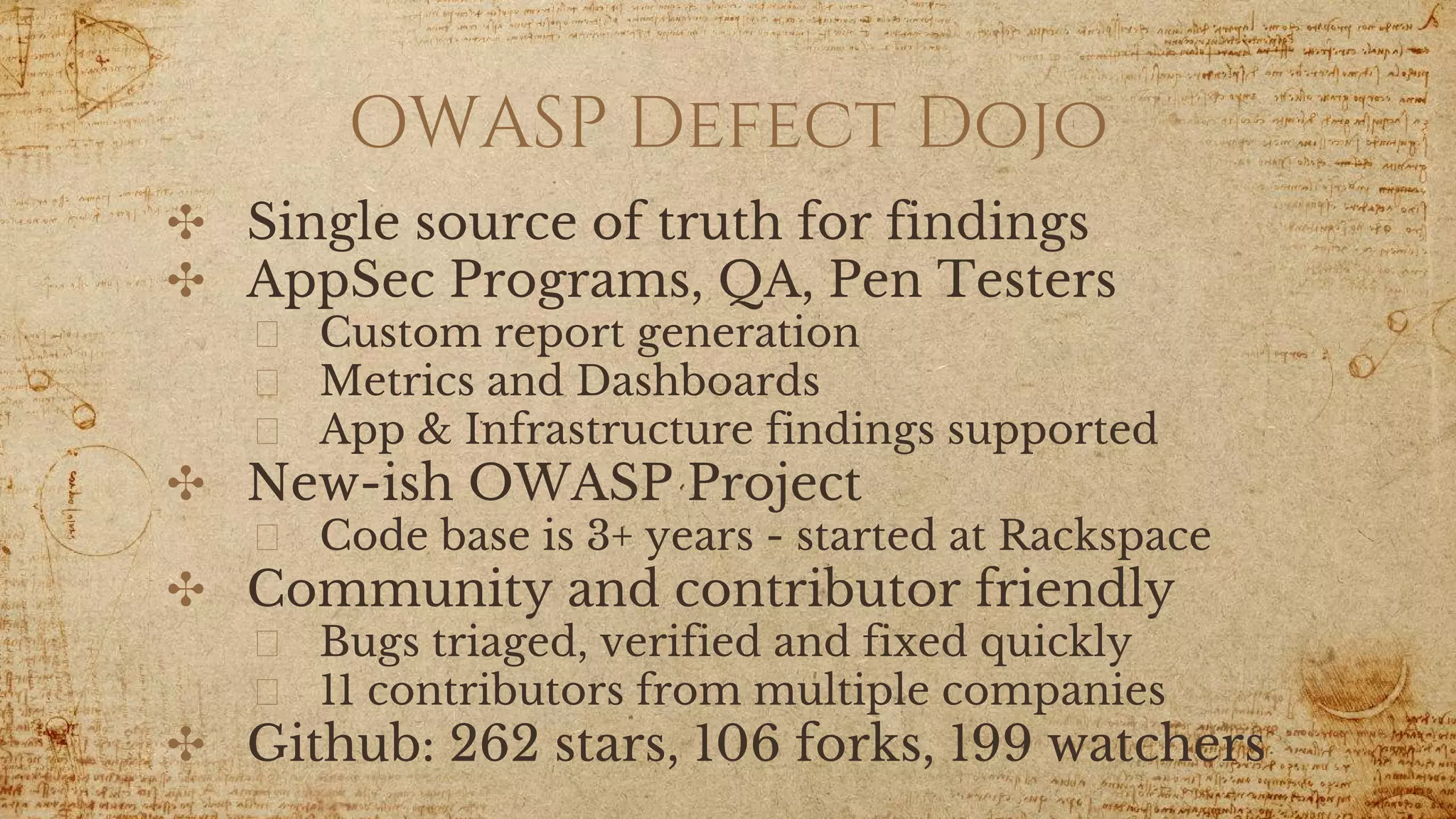

- 26. OWASP Defect Dojo ✣Single source of truth for findings ✣ AppSec Programs, QA, Pen Testers Custom report generation Metrics and Dashboards App & Infrastructure findings supported ✣ New-ish OWASP Project Code base is 3+ years - started at Rackspace ✣ Community and contributor friendly Bugs triaged, verified and fixed quickly 11 contributors from multiple companies ✣ Github: 262 stars, 106 forks, 199 watchers
- 27. Species: AppSec Family: Automation EvolvingAppSec faster
- 28. What went handin hand with the transcontinental railroad expansion?
- 29.
- 30. Telegraph | Automation ✣Sped up signaling and communication Enhanced benefits of easier travel Followed the existing tracks ✣ Linked cities using a standard protocol Morse code

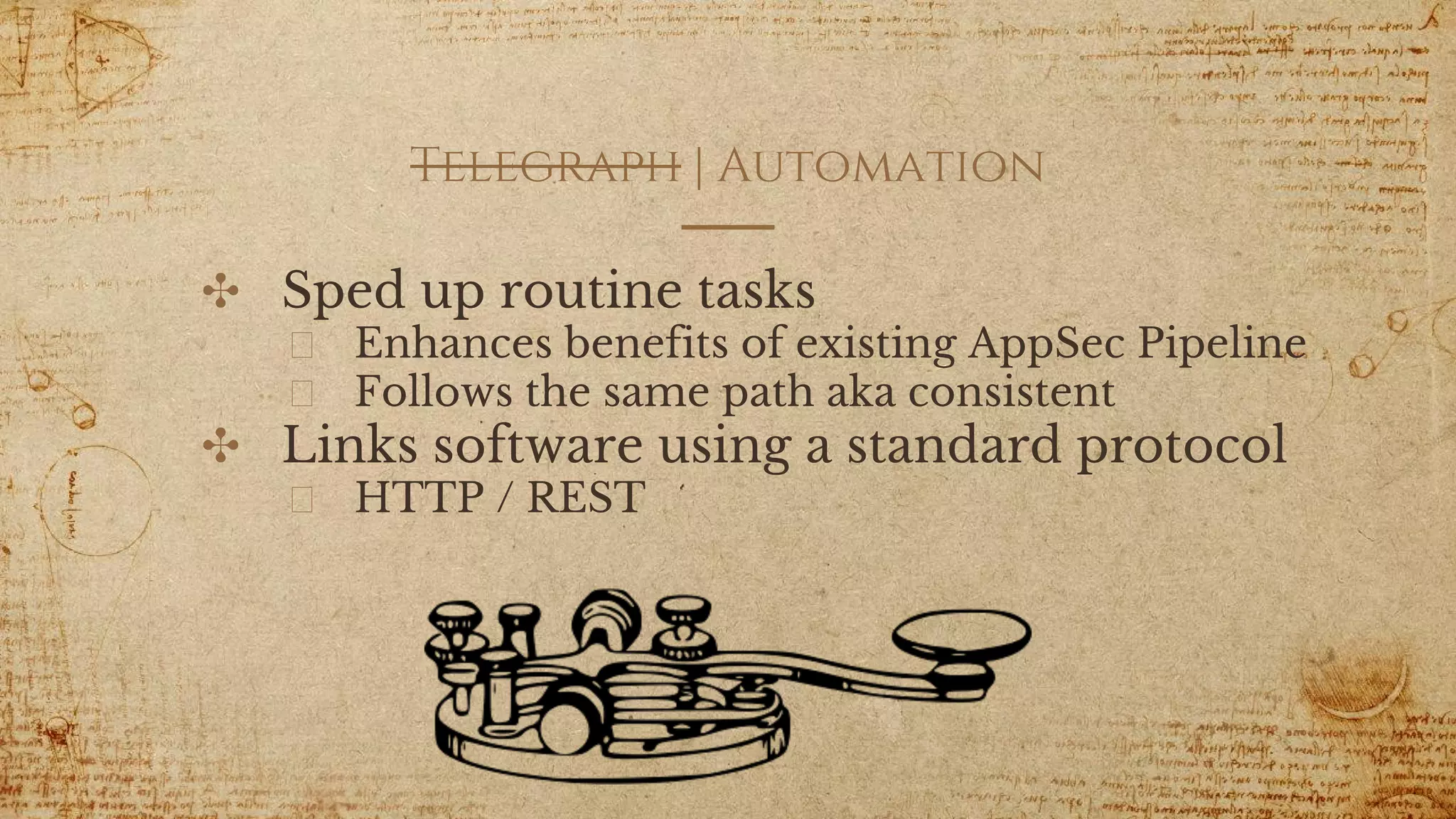

- 31. Telegraph | Automation ✣Sped up routine tasks Enhances benefits of existing AppSec Pipeline Follows the same path aka consistent ✣ Links software using a standard protocol HTTP / REST

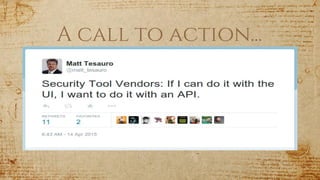

- 32. A call toaction...
- 33. AppSec Chat Ops Making chatthe way you do security

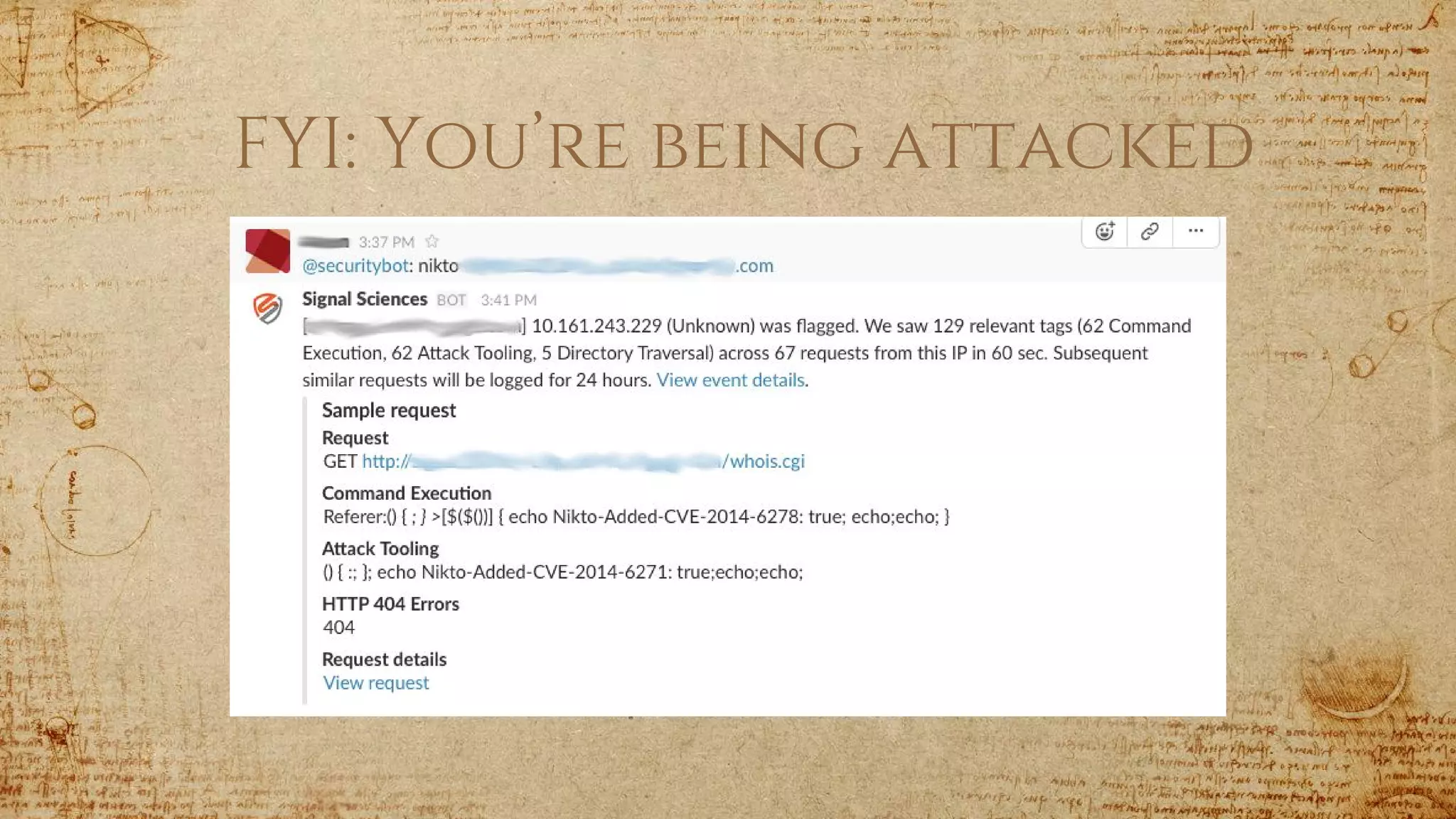

- 34. FYI: You’re beingattacked

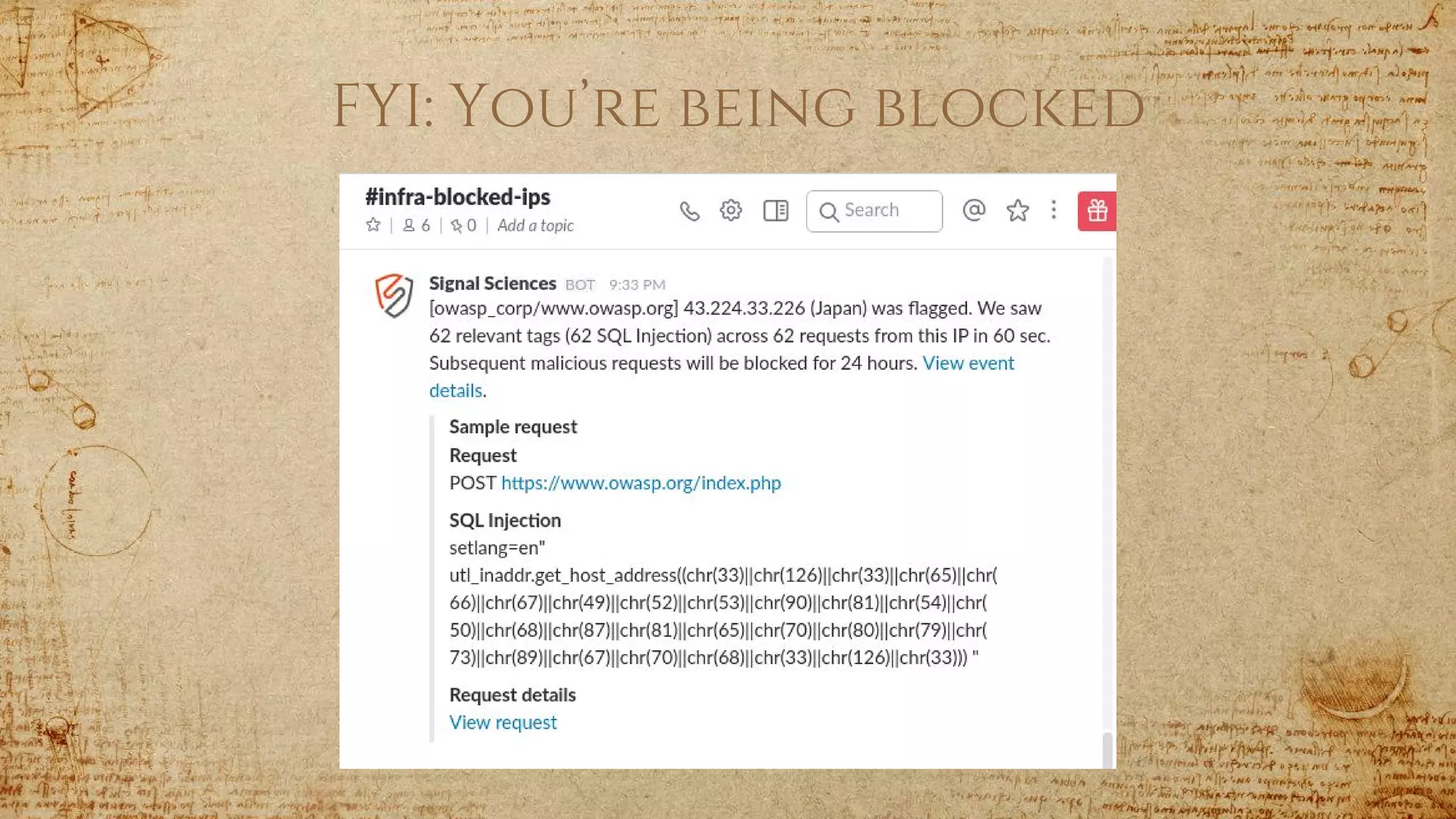

- 35. FYI: You’re beingblocked

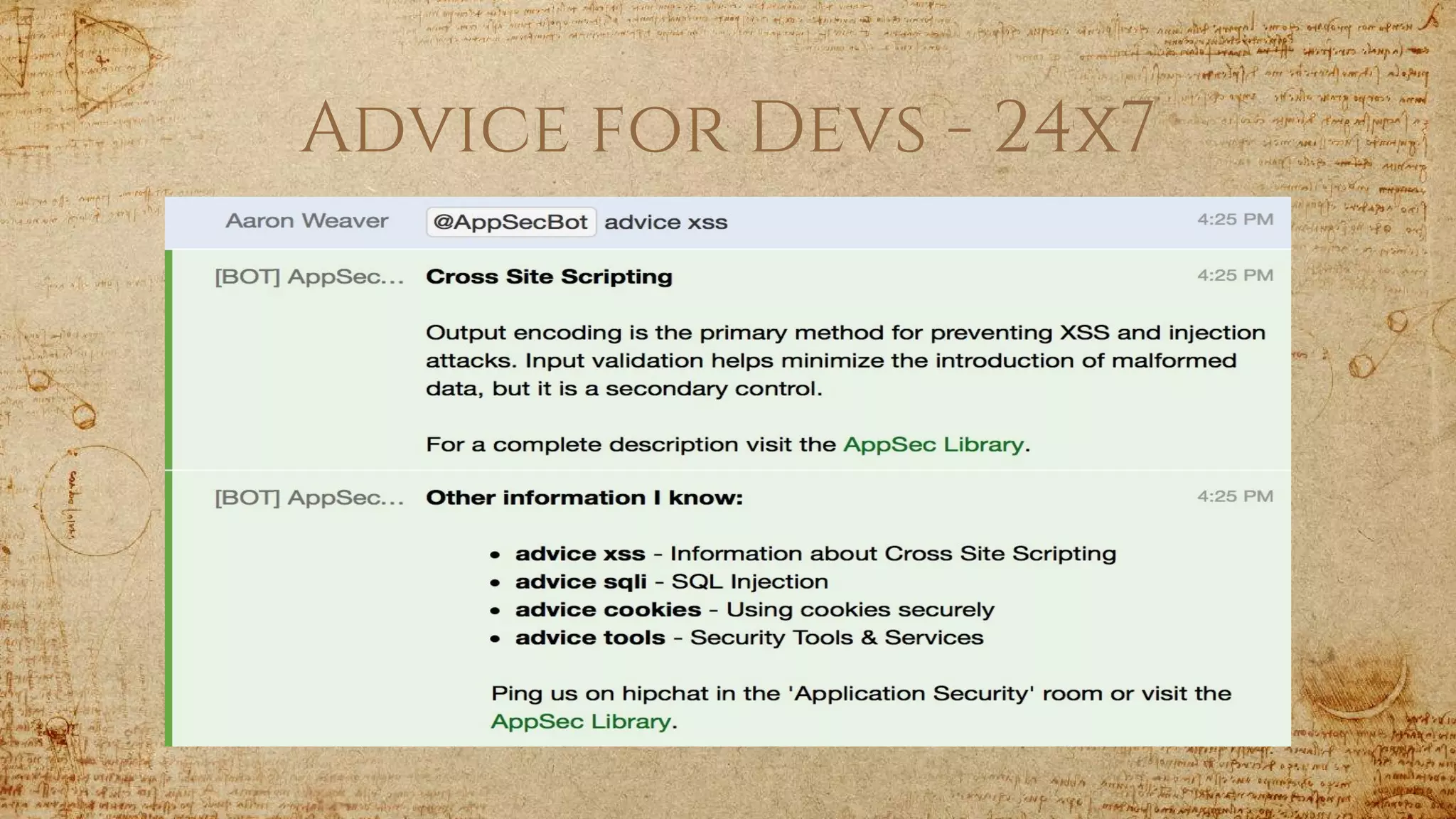

- 36. Advice for Devs- 24x7

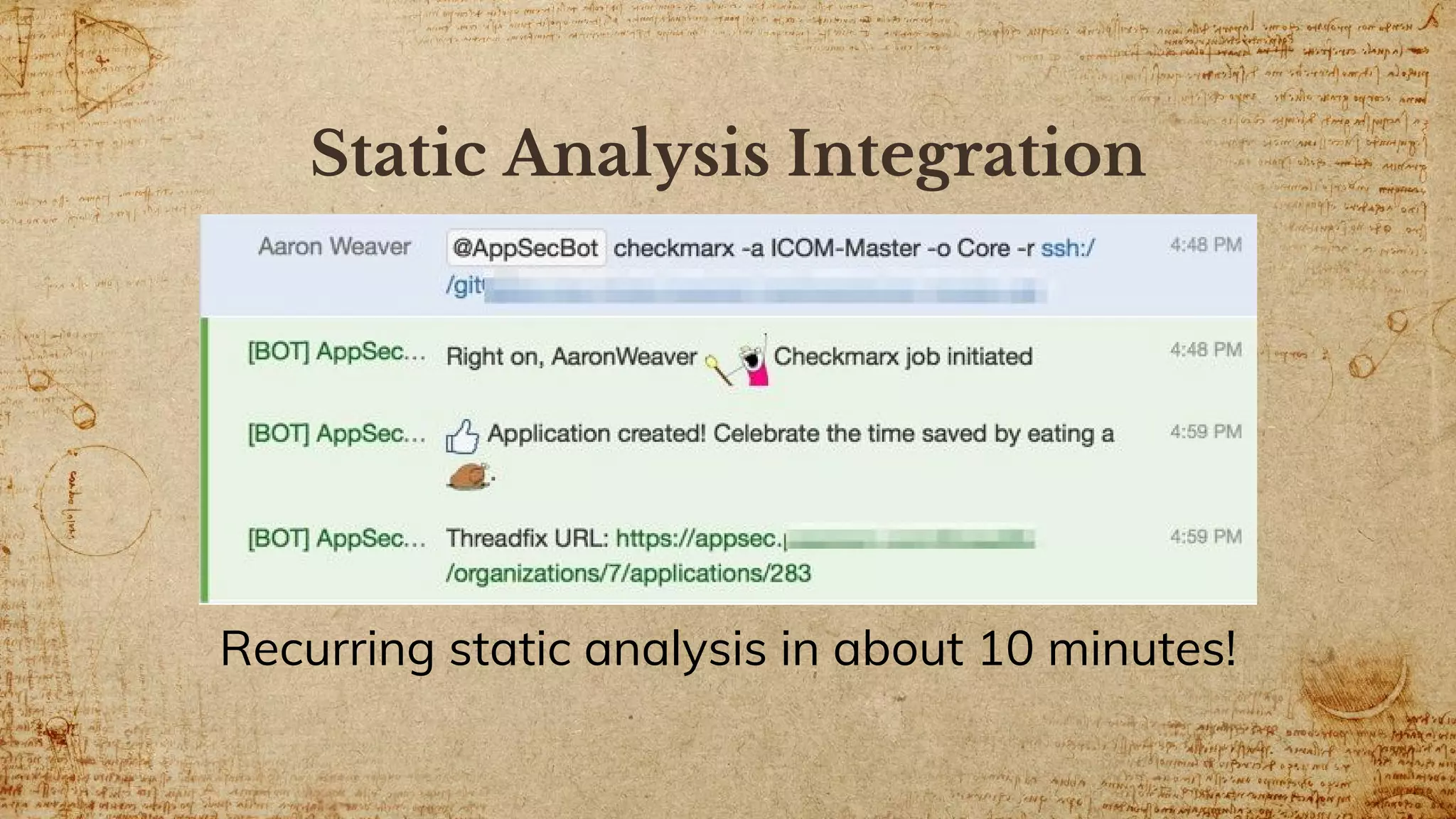

- 37. Static Analysis Integration Recurringstatic analysis in about 10 minutes!
- 38.

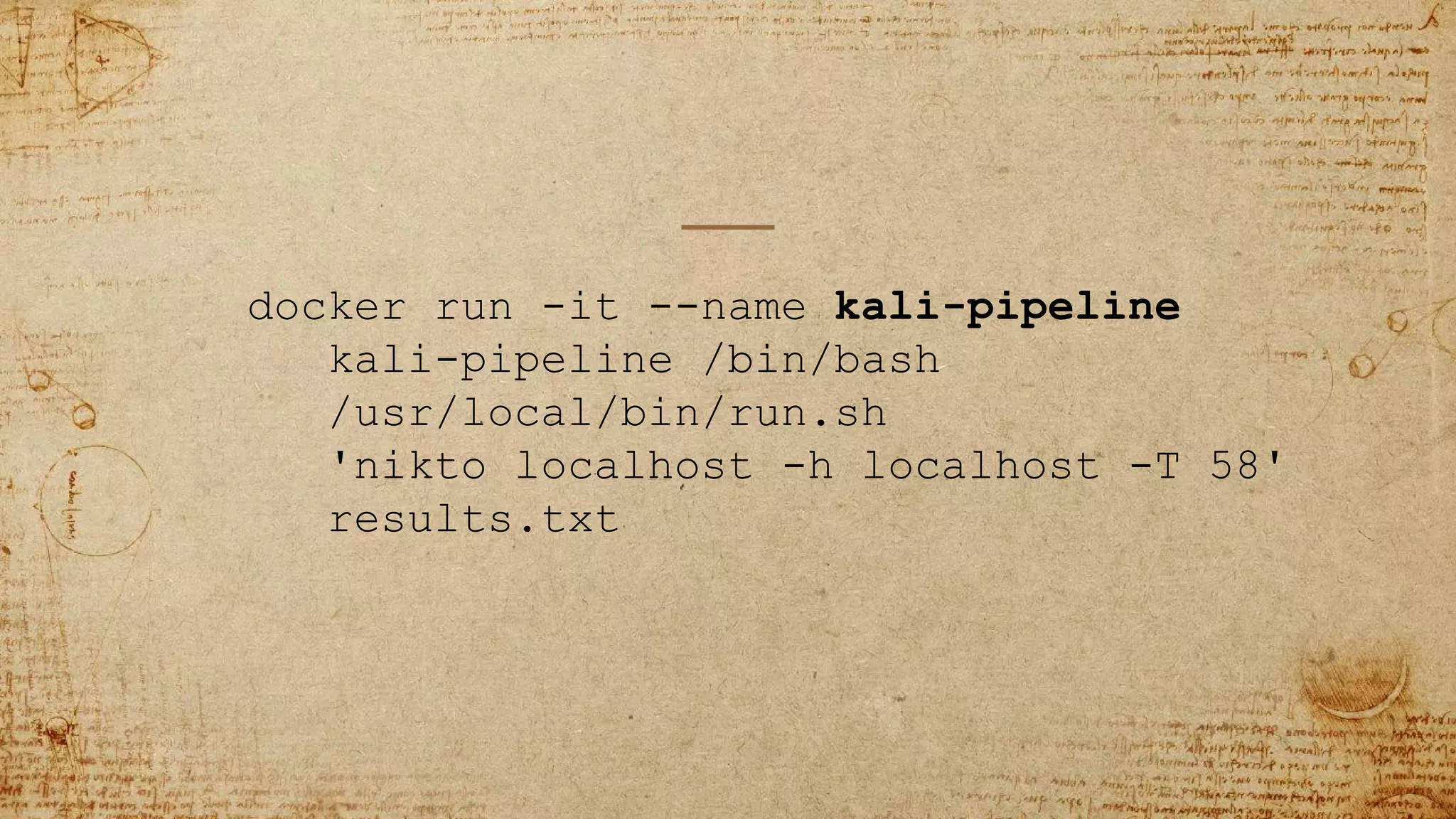

- 39. docker run -it--name kali-pipeline kali-pipeline /bin/bash /usr/local/bin/run.sh 'nikto localhost -h localhost -T 58' results.txt

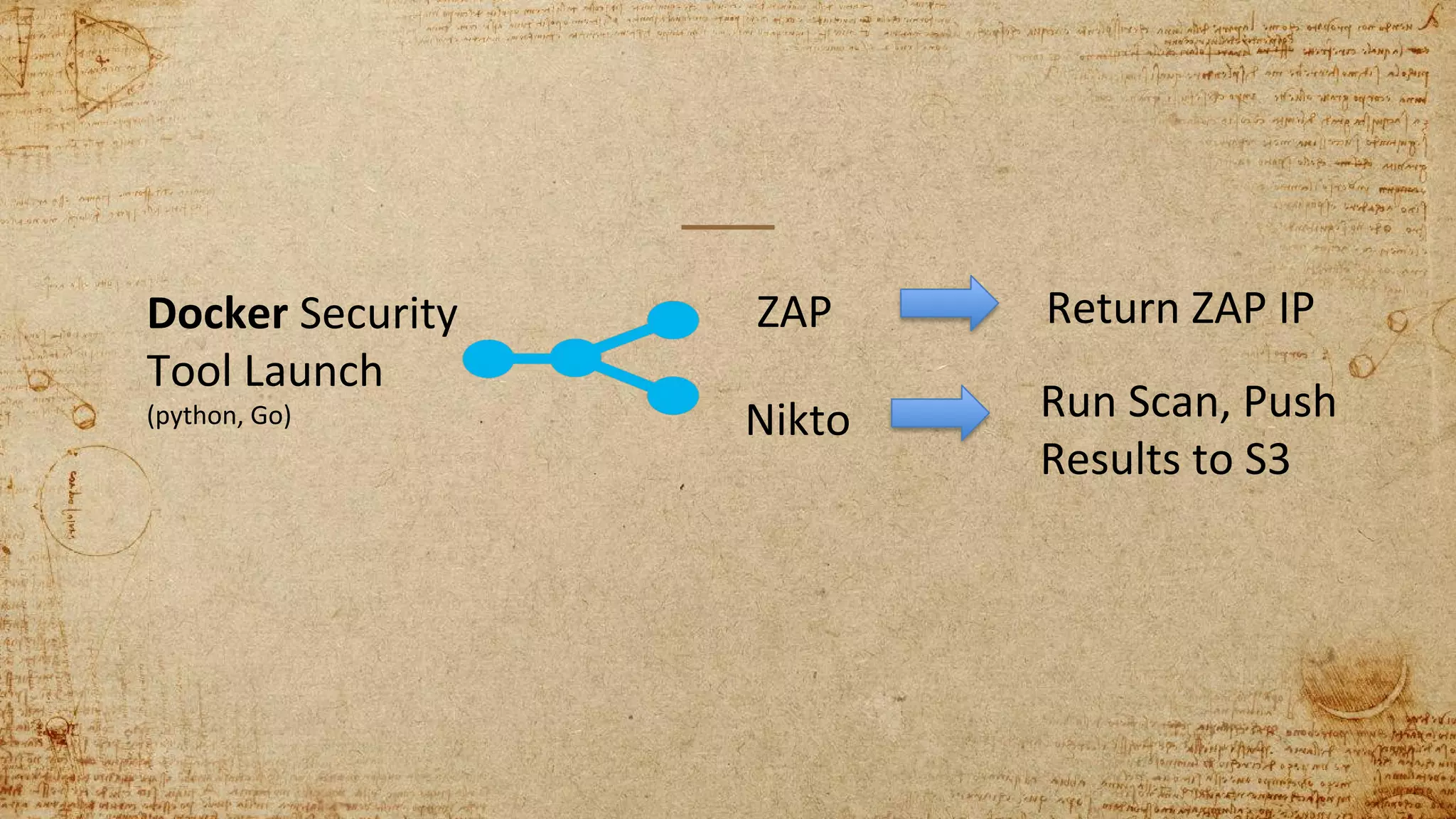

- 40. Docker Security Tool Launch (python,Go) ZAP Nikto Return ZAP IP Run Scan, Push Results to S3

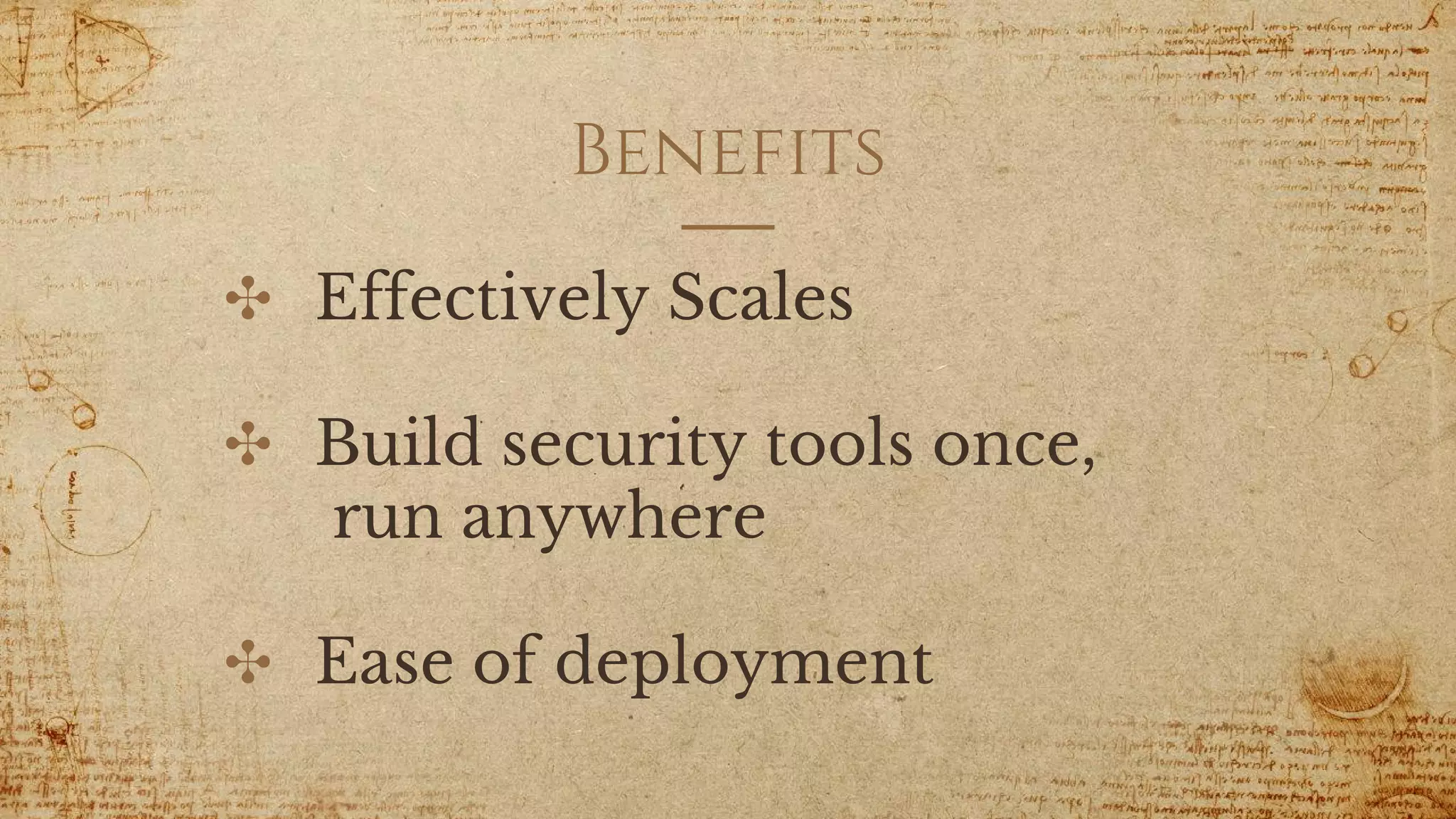

- 41. Benefits ✣ Effectively Scales ✣Build security tools once, run anywhere ✣ Ease of deployment

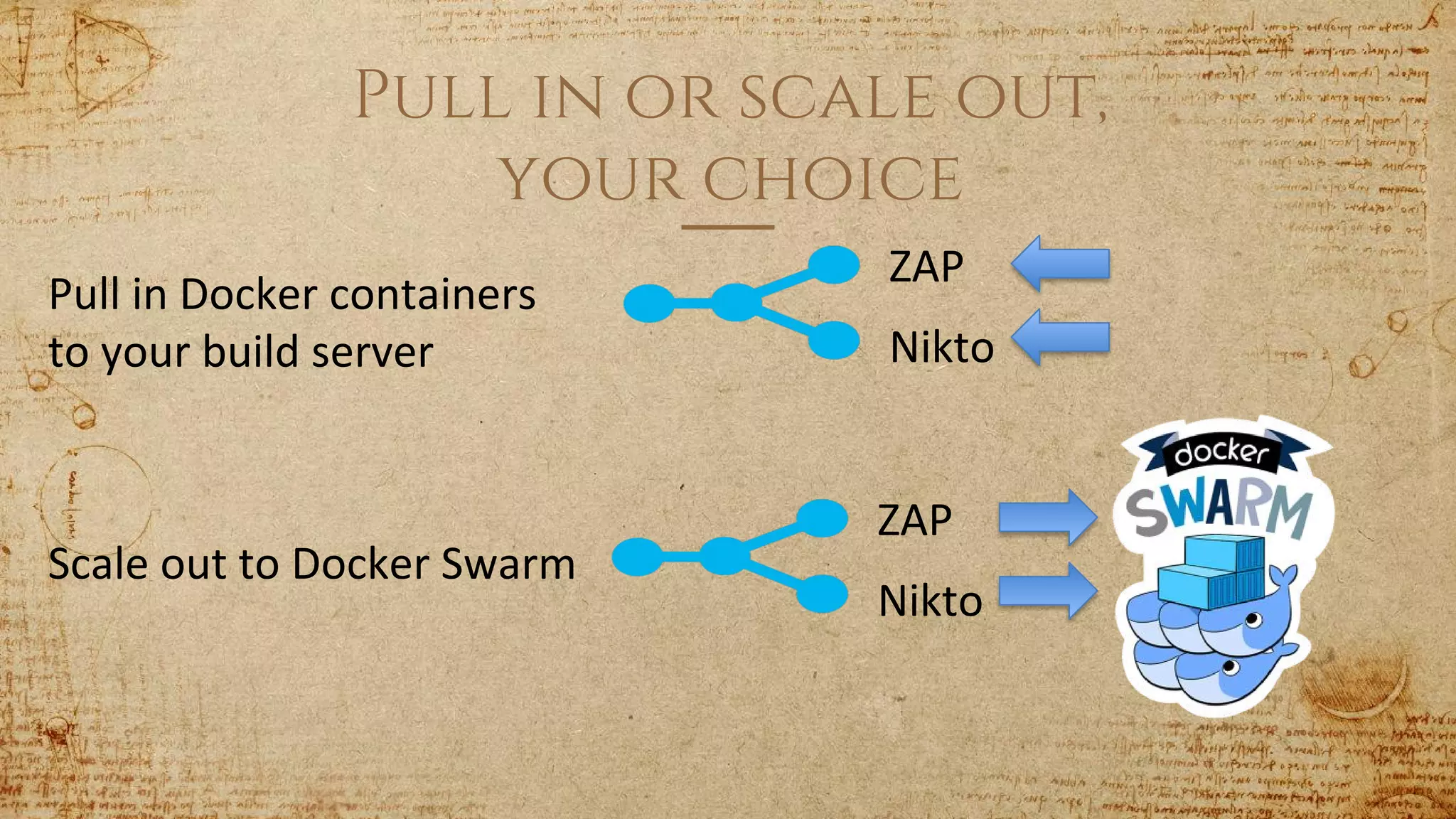

- 42. Pull in orscale out, your choice Pull in Docker containers to your build server ZAP Nikto Scale out to Docker Swarm ZAP Nikto
- 43.

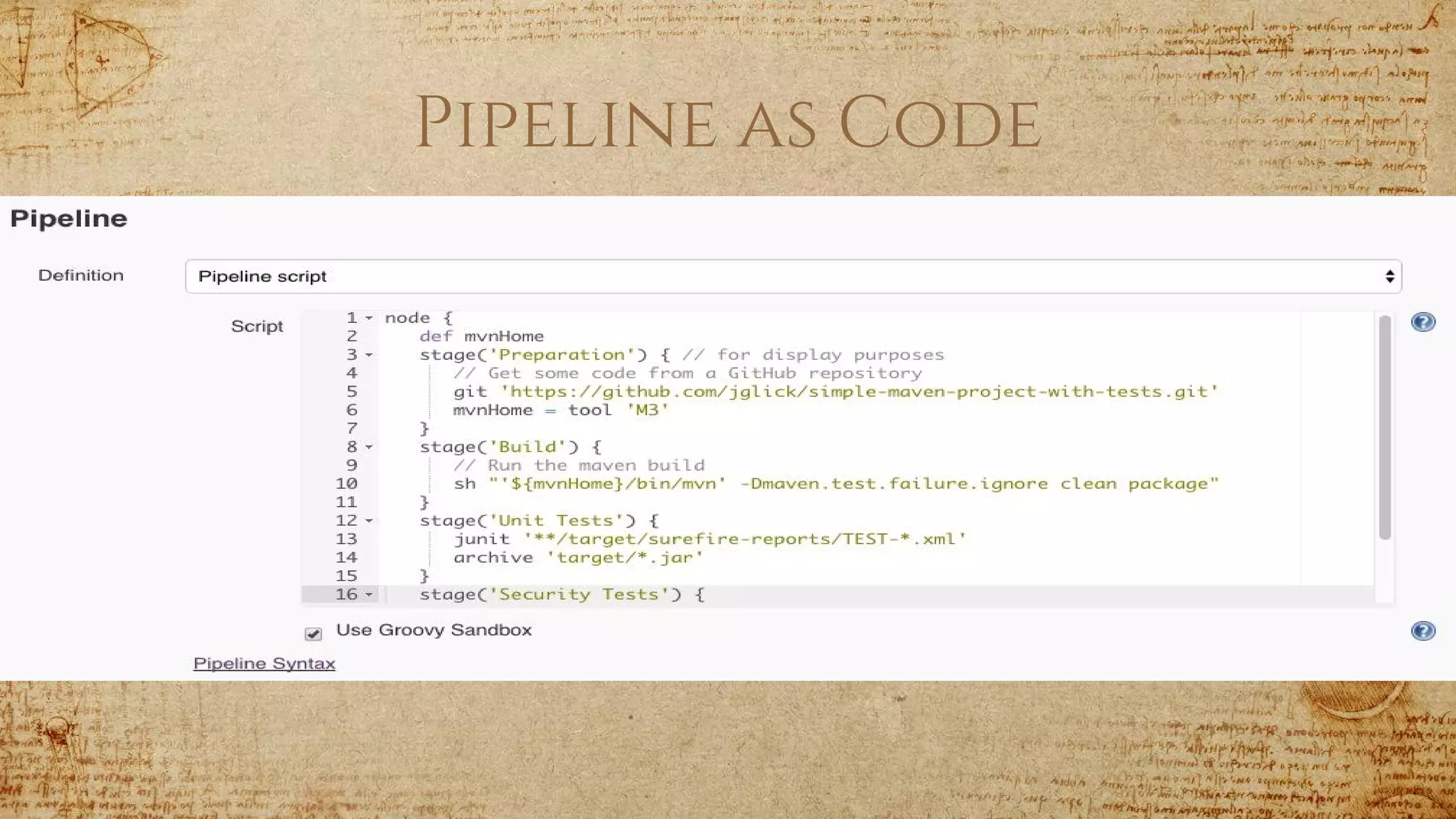

- 44.
- 45. Conduct your own AppSecPipeline Experiment Come down out of the traditional AppSec trees

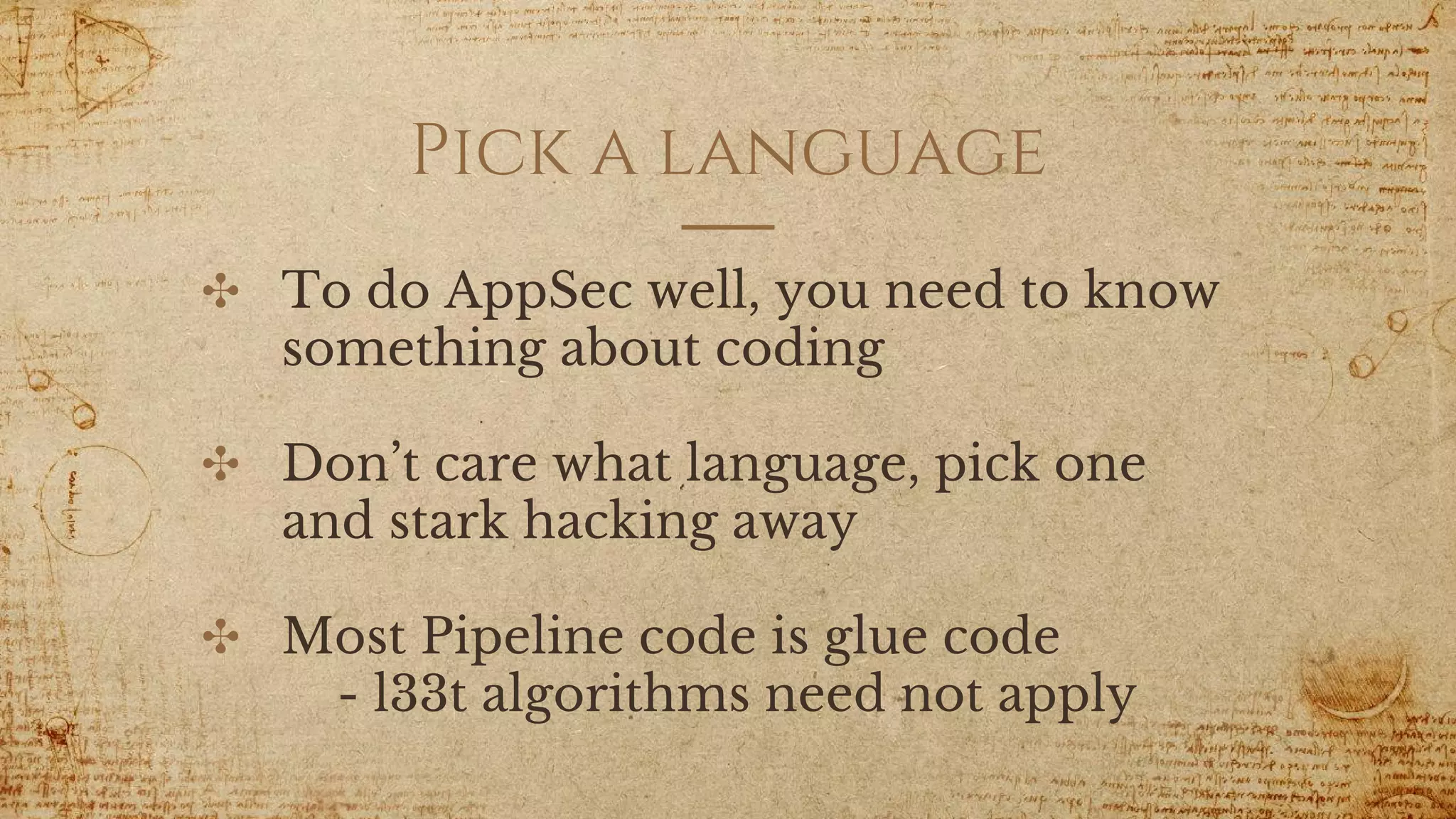

- 46. Pick a language ✣To do AppSec well, you need to know something about coding ✣ Don’t care what language, pick one and stark hacking away ✣ Most Pipeline code is glue code - l33t algorithms need not apply
- 47.

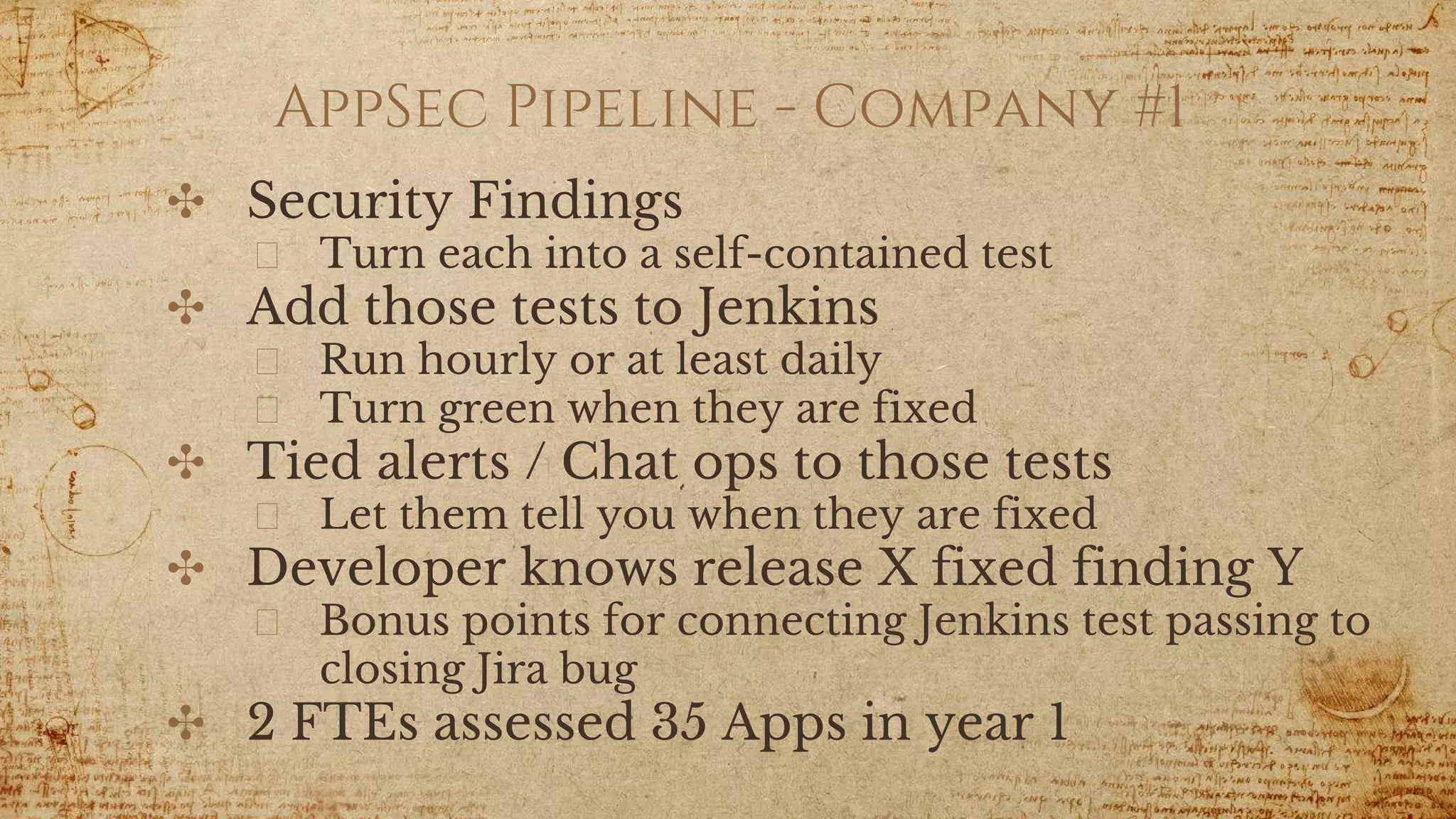

- 48. AppSec Pipeline -Company #1 ✣ Security Findings Turn each into a self-contained test ✣ Add those tests to Jenkins Run hourly or at least daily Turn green when they are fixed ✣ Tied alerts / Chat ops to those tests Let them tell you when they are fixed ✣ Developer knows release X fixed finding Y Bonus points for connecting Jenkins test passing to closing Jira bug ✣ 2 FTEs assessed 35 Apps in year 1

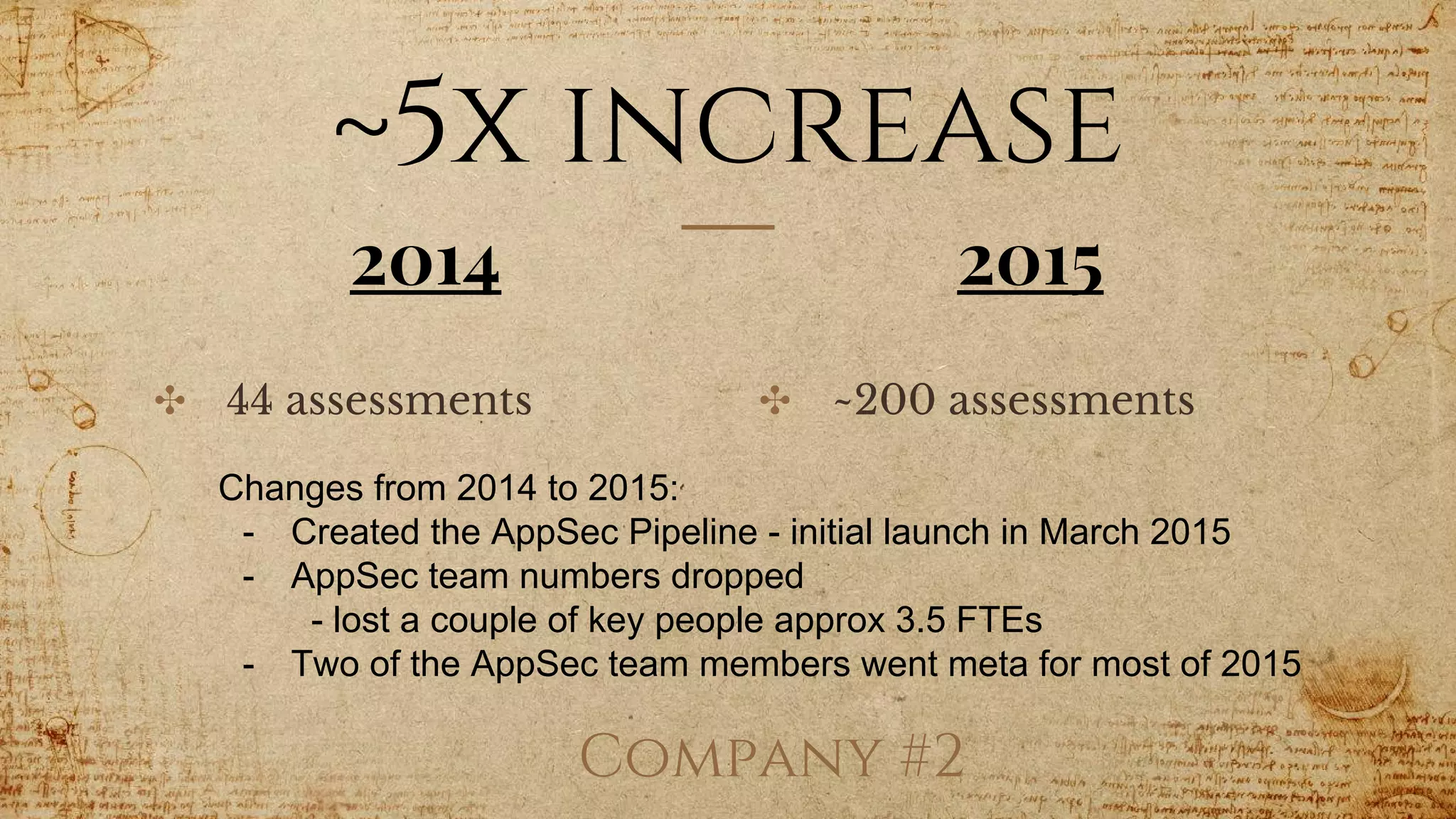

- 49. 2014 ✣ 44 assessments ~5xincrease 2015 ✣ ~200 assessments Changes from 2014 to 2015: - Created the AppSec Pipeline - initial launch in March 2015 - AppSec team numbers dropped - lost a couple of key people approx 3.5 FTEs - Two of the AppSec team members went meta for most of 2015 Company #2

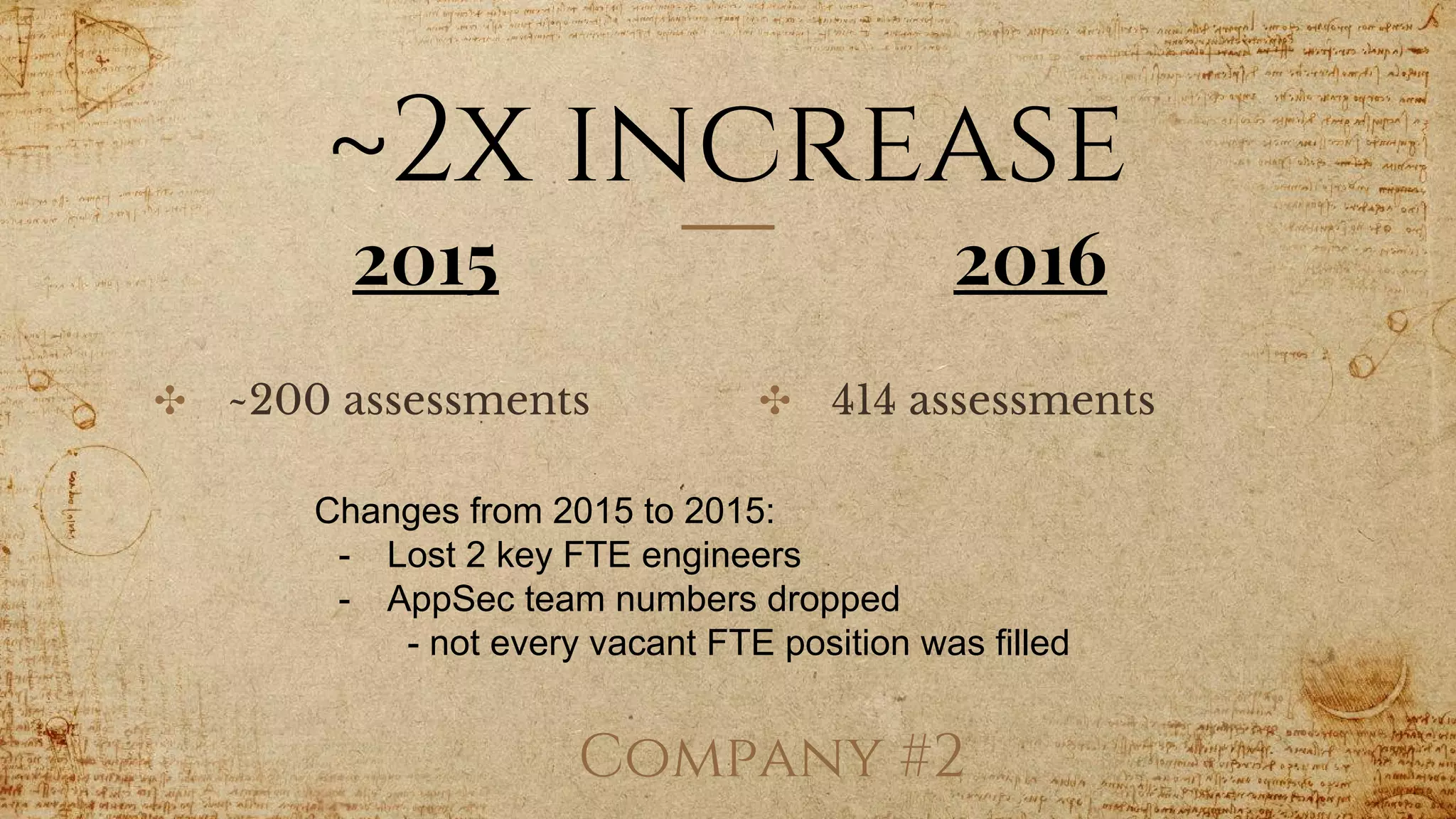

- 50. 2015 ✣ ~200 assessments ~2xincrease 2016 ✣ 414 assessments Changes from 2015 to 2015: - Lost 2 key FTE engineers - AppSec team numbers dropped - not every vacant FTE position was filled Company #2

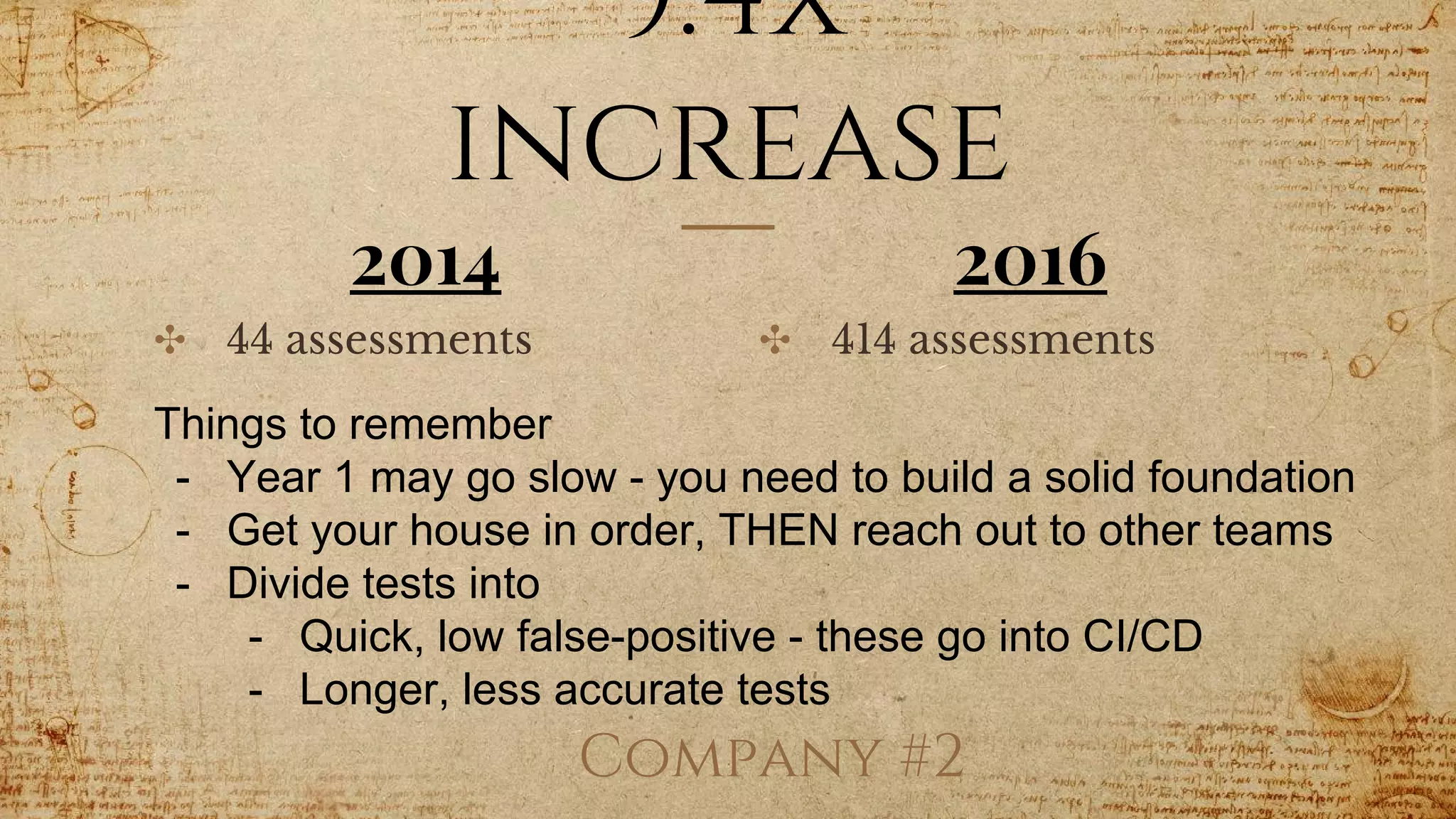

- 51. 2014 ✣ 44 assessments 9.4x increase 2016 ✣414 assessments Things to remember - Year 1 may go slow - you need to build a solid foundation - Get your house in order, THEN reach out to other teams - Divide tests into - Quick, low false-positive - these go into CI/CD - Longer, less accurate tests Company #2
- 52.
- 53. @weavera@weavera “I am anice shark, not a mindless eating machine. If I am to change this image, I must first change myself. Fish are friends, not food.” -Bruce, Chum and Anchor
- 54. @weavera@weavera “I am anice security professional, not a mindless vulnerability spewing machine. If I am to change this image, I must first change myself. Developers are friends, not fools.” -Bruce, Aaron and Matt
- 55.

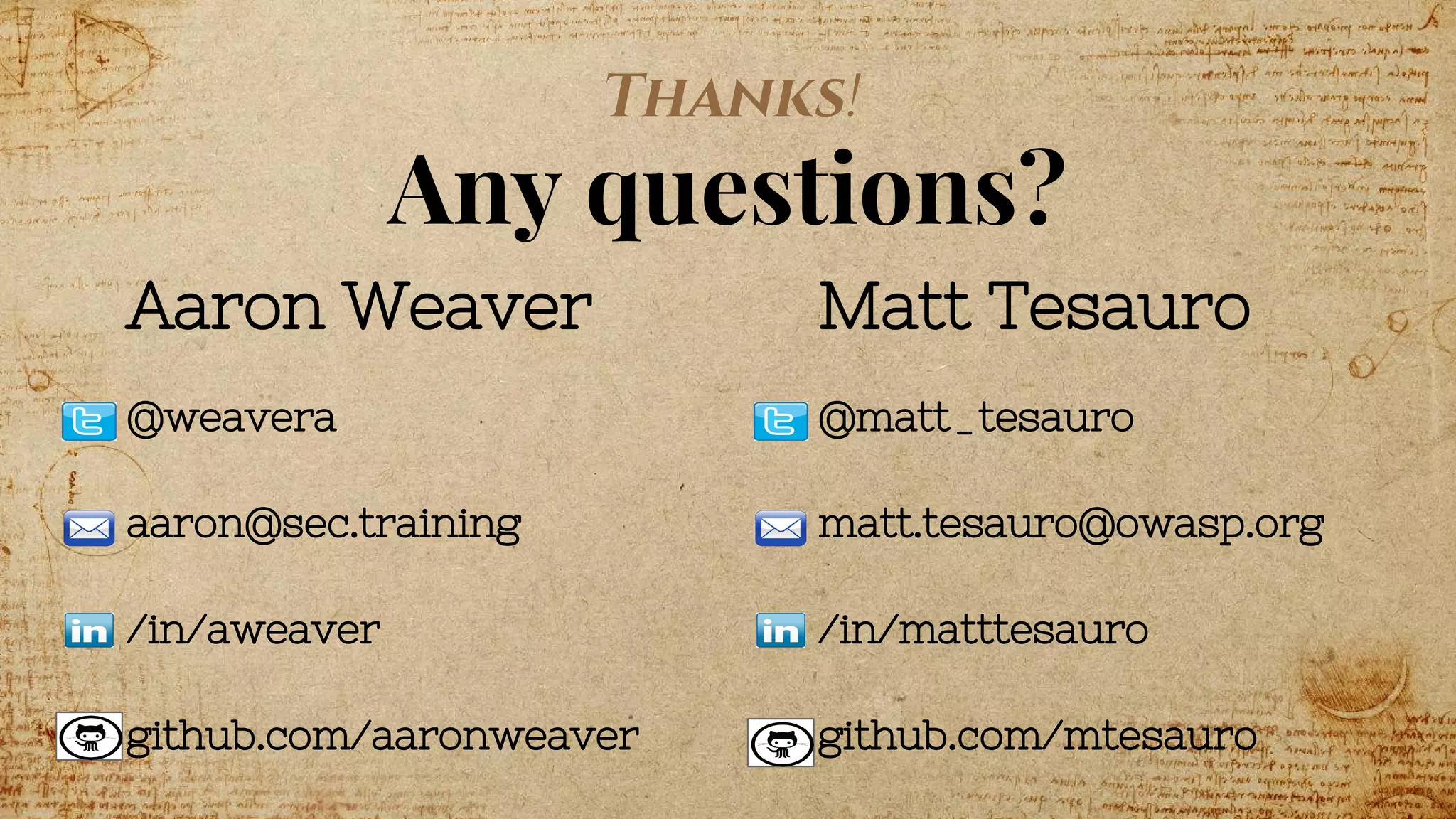

- 56. Thanks! Any questions? Aaron Weaver @weavera aaron@sec.training /in/aweaver github.com/aaronweaver MattTesauro @matt_tesauro matt.tesauro@owasp.org /in/matttesauro github.com/mtesauro

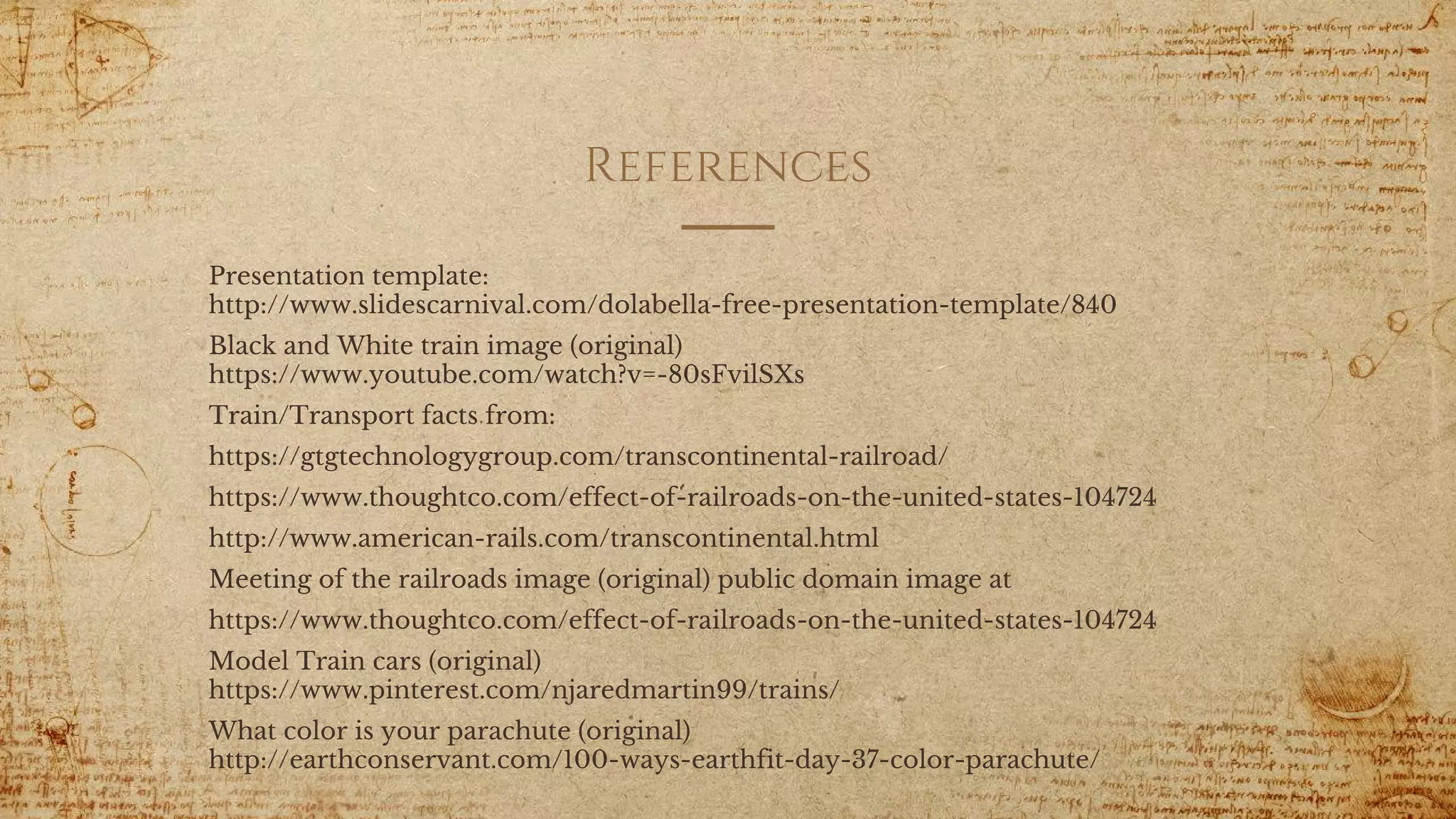

- 57. References Presentation template: http://www.slidescarnival.com/dolabella-free-presentation-template/840 Black andWhite train image (original) https://www.youtube.com/watch?v=-80sFvilSXs Train/Transport facts from: https://gtgtechnologygroup.com/transcontinental-railroad/ https://www.thoughtco.com/effect-of-railroads-on-the-united-states-104724 http://www.american-rails.com/transcontinental.html Meeting of the railroads image (original) public domain image at https://www.thoughtco.com/effect-of-railroads-on-the-united-states-104724 Model Train cars (original) https://www.pinterest.com/njaredmartin99/trains/ What color is your parachute (original) http://earthconservant.com/100-ways-earthfit-day-37-color-parachute/

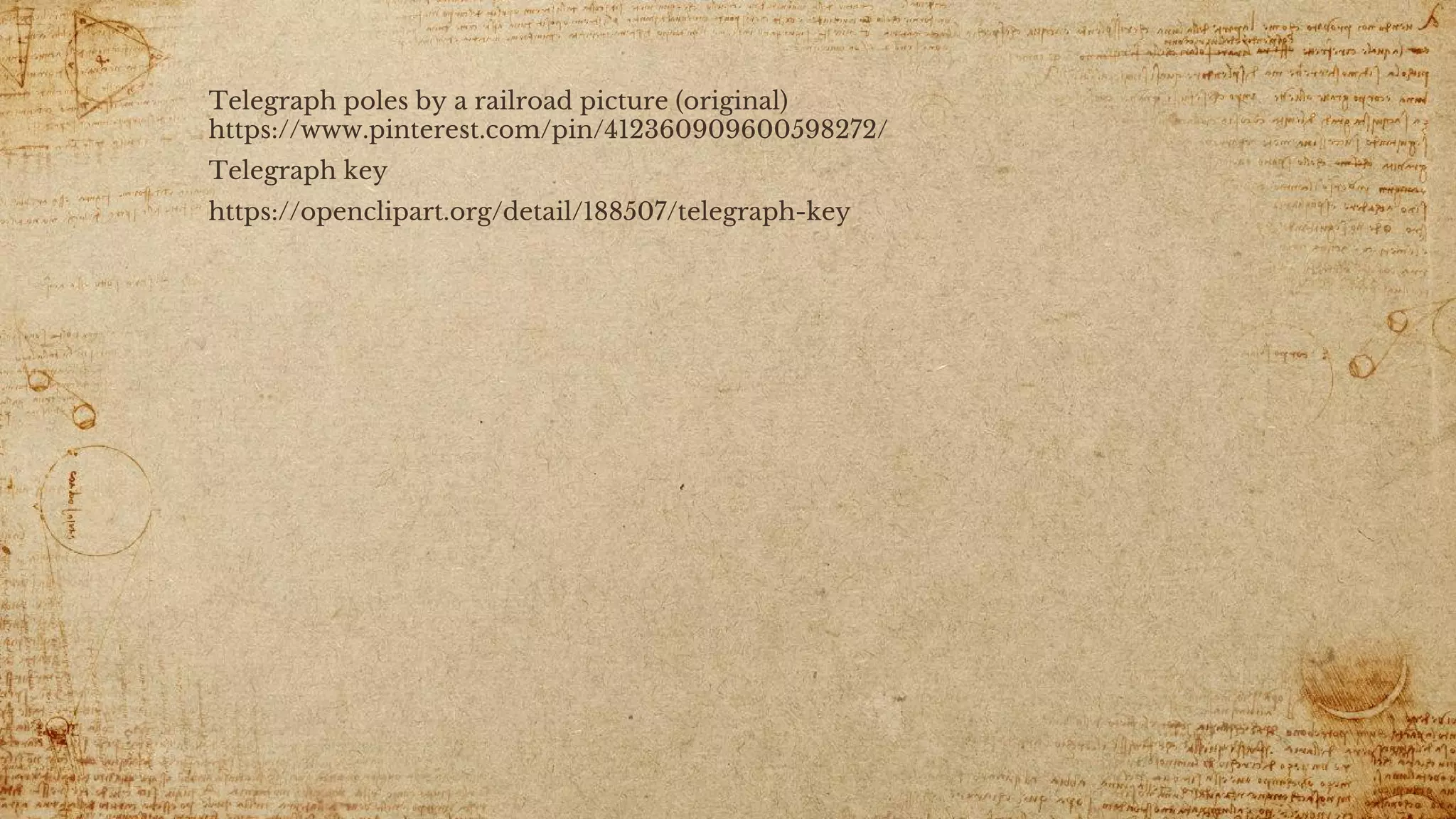

- 58. Telegraph poles bya railroad picture (original) https://www.pinterest.com/pin/412360909600598272/ Telegraph key https://openclipart.org/detail/188507/telegraph-key

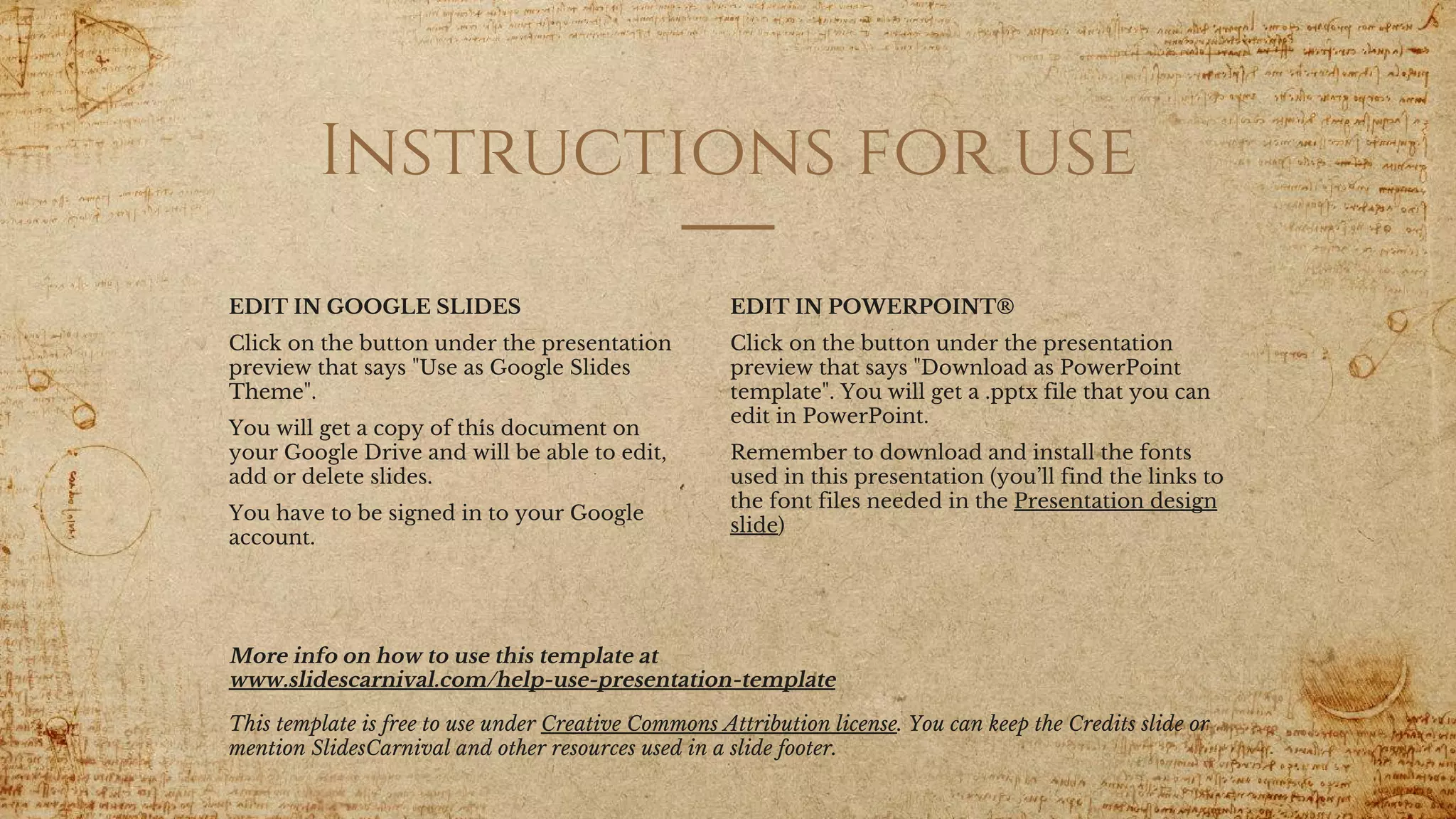

- 59. Instructions for use EDITIN GOOGLE SLIDES Click on the button under the presentation preview that says "Use as Google Slides Theme". You will get a copy of this document on your Google Drive and will be able to edit, add or delete slides. You have to be signed in to your Google account. EDIT IN POWERPOINT® Click on the button under the presentation preview that says "Download as PowerPoint template". You will get a .pptx file that you can edit in PowerPoint. Remember to download and install the fonts used in this presentation (you’ll find the links to the font files needed in the Presentation design slide) More info on how to use this template at www.slidescarnival.com/help-use-presentation-template This template is free to use under Creative Commons Attribution license. You can keep the Credits slide or mention SlidesCarnival and other resources used in a slide footer.

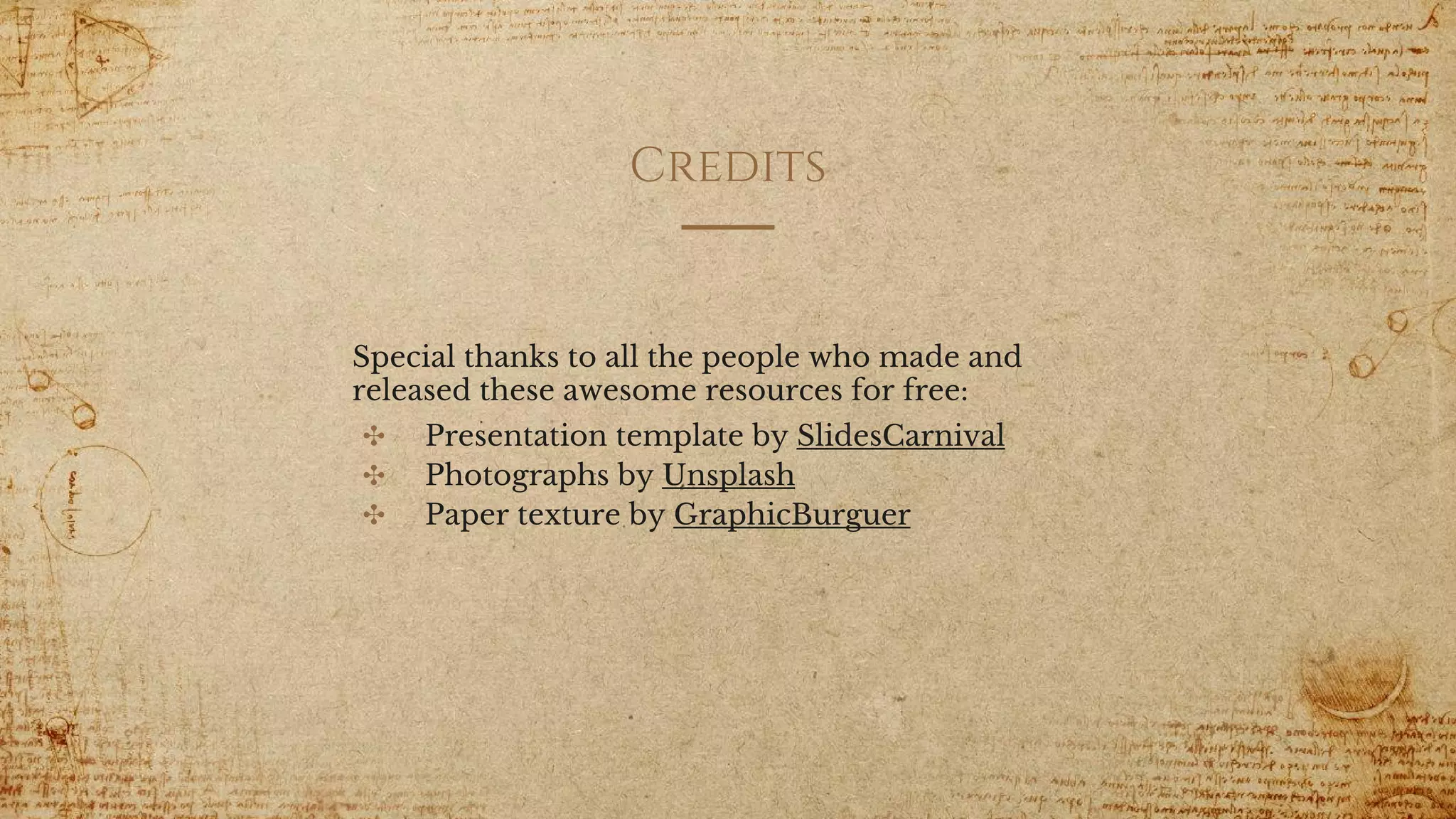

- 60. Credits Special thanks toall the people who made and released these awesome resources for free: ✣ Presentation template by SlidesCarnival ✣ Photographs by Unsplash ✣ Paper texture by GraphicBurguer
