1. Workshop - Building a cart
Aishwarya Venkataraman
Software Engineer

2. What is a Cart?
Site Specific Pallets
▪ Contains site-specific RPM
▪ Contains site-specific configurations
▪ Structurally and Functionally equivalent to a Pallet
Example: Client Cart
▪ Contains RPMS to install DevOps tools
▪ Contains custom post-install scripts to configure DevOps tools
▪ Contains custom post-install scripts to run DevOps tools to bring system up to
requisite configuration.

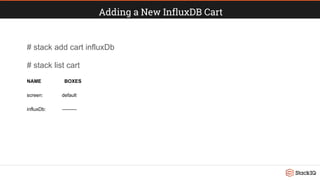

3. Adding a New InfluxDB Cart
# stack add cart influxDb
# stack list cart
NAME BOXES
screen: default
influxDb: ---------

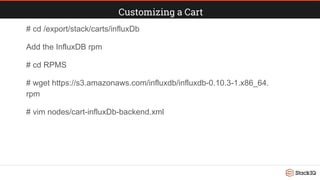

4. Customizing a Cart
# cd /export/stack/carts/influxDb
Add the InfluxDB rpm
# cd RPMS
# wget https://s3.amazonaws.com/influxdb/influxdb-0.10.3-1.x86_64.
rpm
# vim nodes/cart-influxDb-backend.xml

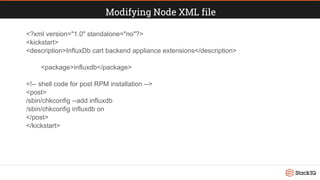

5. Modifying Node XML file
<?xml version="1.0" standalone="no"?>
<kickstart>
<description>InfluxDb cart backend appliance extensions</description>
<package>influxdb</package>
<!-- shell code for post RPM installation -->
<post>
/sbin/chkconfig --add influxdb
/sbin/chkconfig influxdb on
</post>
</kickstart>

6. Adding Cart to a Box
# stack list box
NAME OS PALLETS CARTS
default: redhat os-6.7-6.x stacki-3.0-6.x ipmi-1.0-3.0 screen
# stack enable cart influxDb
# stack list box
NAME OS PALLETS CARTS
default: redhat os-6.7-6.x stacki-3.0-6.x ipmi-1.0-3.0 screen influxDb

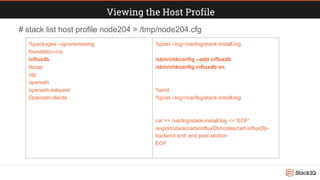

7. Viewing the Host Profile
%packages --ignoremissing
foundation-rcs
influxdb
libcap
ntp
openssh
openssh-askpass
Openssh-clients
%post --log=/var/log/stack-install.log
/sbin/chkconfig --add influxdb
/sbin/chkconfig influxdb on
%end
%post --log=/var/log/stack-install.log
cat >> /var/log/stack-install.log << 'EOF'
/export/stack/carts/influxDb/nodes/cart-influxDb-
backend.xml: end post section
EOF
# stack list host profile node204 > /tmp/node204.cfg

8. Adding Conditionals to Node XML
<?xml version="1.0" standalone="no"?>
<kickstart>
<description>
influxDb cart backend appliance extensions
</description>
<package>influxdb</package>
<!-- shell code for post RPM installation -->
<post cond="'&appliance;' == 'prod'">
/sbin/chkconfig --add influxdb
/sbin/chkconfig influxdb on
</post>
</kickstart>

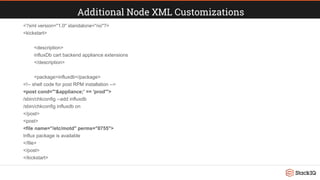

9. Additional Node XML Customizations
<?xml version="1.0" standalone="no"?>
<kickstart>
<description>
influxDb cart backend appliance extensions
</description>
<package>influxdb</package>
<!-- shell code for post RPM installation -->
<post cond="'&appliance;' == 'prod'">
/sbin/chkconfig --add influxdb
/sbin/chkconfig influxdb on
</post>
<post>
<file name="/etc/motd" perms="0755">
Influx package is available
</file>
</post>
</kickstart>

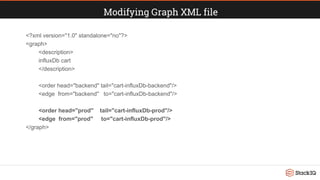

10. Modifying Graph XML file
<?xml version="1.0" standalone="no"?>
<graph>
<description>
influxDb cart
</description>
<order head="backend" tail="cart-influxDb-backend"/>
<edge from="backend" to="cart-influxDb-backend"/>
<order head="prod" tail="cart-influxDb-prod"/>
<edge from="prod" to="cart-influxDb-prod"/>
</graph>

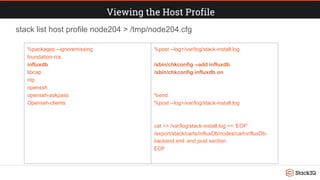

11. Viewing the Host Profile
stack list host profile node204 > /tmp/node204.cfg
%packages --ignoremissing
foundation-rcs
influxdb
libcap
ntp
openssh
openssh-askpass
Openssh-clients
%post --log=/var/log/stack-install.log
/sbin/chkconfig --add influxdb
/sbin/chkconfig influxdb on
%end
%post --log=/var/log/stack-install.log
cat >> /var/log/stack-install.log << 'EOF'
/export/stack/carts/influxDb/nodes/cart-influxDb-
backend.xml: end post section
EOF

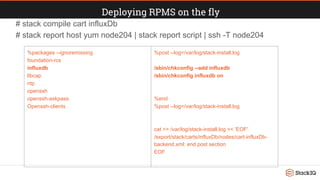

12. Deploying RPMS on the fly
# stack compile cart influxDb
# stack report host yum node204 | stack report script | ssh -T node204
%packages --ignoremissing
foundation-rcs
influxdb
libcap
ntp
openssh
openssh-askpass
Openssh-clients
%post --log=/var/log/stack-install.log
/sbin/chkconfig --add influxdb
/sbin/chkconfig influxdb on
%end
%post --log=/var/log/stack-install.log
cat >> /var/log/stack-install.log << 'EOF'
/export/stack/carts/influxDb/nodes/cart-influxDb-
backend.xml: end post section
EOF

13. Viewing the Host Profile
stack list host profile node204 > /tmp/node204.cfg
%packages --ignoremissing
foundation-rcs
influxdb
libcap
ntp
openssh
openssh-askpass
Openssh-clients
%post --log=/var/log/stack-install.log
/sbin/chkconfig --add influxdb
/sbin/chkconfig influxdb on
%end
%post --log=/var/log/stack-install.log
cat >> /var/log/stack-install.log << 'EOF'
/export/stack/carts/influxDb/nodes/cart-influxDb-
backend.xml: end post section
EOF

14. Cart is ready to roll!
