Secure IoT Firmware for RISC-V
MultiZone is an IoT firmware that provides a trusted execution environment (TEE) for securing IoT applications on RISC-V processors. It includes pre-integrated libraries for TCP/IP, TLS, ECC and FreeRTOS to handle basic and advanced IoT requirements. MultiZone provides four separated execution environments called zones that are enforced by hardware to isolate trusted applications from untrusted third party code and libraries. It allows for building secure IoT devices, remote firmware updates, and real-time device monitoring and management without needing proprietary hardware extensions.
More Related Content
Similar to Secure IoT Firmware for RISC-V
![5G Explained! A High Level Overview [Introduction]](https://cdn.slidesharecdn.com/ss_thumbnails/5gexplainedahighleveloverview-260119165306-cc137a3e-thumbnail.jpg?width=640&height=640&fit=bounds)
Secure IoT Firmware for RISC-V
- 1. MultiZone® IoT Firmware Thequick and safe way to build secure IoT applications with any RISC-V processor Cesare Garlati – Hex Five Security Sandro Pinto – Hex Five Security
- 2. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited ▪ Market requirements ― Consumer products: high volume / low cost ― Battery operated: small processor / limited ram & rom Building Secure IoT Devices Is Challenging Resource-constrained MCUs (no MMU) 100’ of KB of 3rd party untrusted code base No RISC-V specs for TrustZone®-like TEE ▪ Basic IoT requirements ― SW foundation: multitask RTOS, peripherals drivers, ... ― Connectivity libraries: tcp/ip, dhcp, dns, sntp, mqtt, ... ― Security libraries: TLS, ECC, PKI, RoT, TEE, ... ▪ Advanced IoT requirements ― New IoT regulations, access to commercial clouds, ... ― Secure boot, remote updates, OTA provisioning, ...

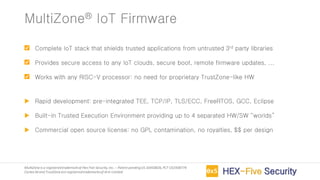

- 3. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Complete IoT stack that shields trusted applications from untrusted 3rd party libraries Provides secure access to any IoT clouds, secure boot, remote firmware updates, ... Works with any RISC-V processor: no need for proprietary TrustZone-like HW Rapid development: pre-integrated TEE, TCP/IP, TLS/ECC, FreeRTOS, GCC, Eclipse Built-in Trusted Execution Environment providing up to 4 separated HW/SW “worlds” Commercial open source license: no GPL contamination, no royalties, $$ per design MultiZone® IoT Firmware
- 4. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited MultiZone® IoT Firmware Architecture MultiZone Trusted Execution Environment (TEE) Any RISC-V 32-bit or 64-bit with ‘U’ extension ‘M’ mode ‘U’ Mode ‘U’ Mode HW Drivers Zone ... RTOS or bare metal app PMP HW HW Drivers Zone #3 RTOS or bare metal app HW Drivers Zone #2 RTOS or bare metal app ETHERNET driver Zone #1 MQTT Lib TLS Lib TCP Lib PMP PMP

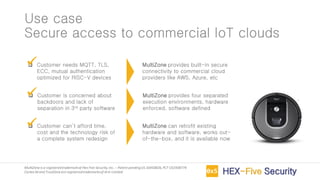

- 5. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case Secure access to commercial IoT clouds ❑ Customer needs MQTT, TLS, ECC, mutual authentication optimized for RISC-V devices ❑ Customer is concerned about backdoors and lack of separation in 3rd party software ❑ Customer can’t afford time, cost and the technology risk of a complete system redesign MultiZone provides built-in secure connectivity to commercial cloud providers like AWS, Azure, etc ✓ MultiZone provides four separated execution environments, hardware enforced, software defined ✓ MultiZone can retrofit existing hardware and software, works out- of-the-box, and it is available now ✓

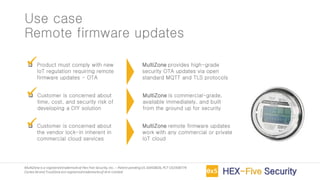

- 6. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case Remote firmware updates ❑ Product must comply with new IoT regulation requiring remote firmware updates - OTA ❑ Customer is concerned about time, cost, and security risk of developing a DIY solution ❑ Customer is concerned about the vendor lock-in inherent in commercial cloud services MultiZone provides high-grade security OTA updates via open standard MQTT and TLS protocols ✓ MultiZone is commercial-grade, available immediately, and built from the ground up for security ✓ MultiZone remote firmware updates work with any commercial or private IoT cloud ✓

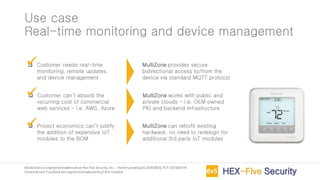

- 7. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case Real-time monitoring and device management ❑ Customer needs real-time monitoring, remote updates, and device management ❑ Customer can’t absorb the recurring cost of commercial web services – i.e. AWS, Azure ❑ Project economics can’t justify the addition of expensive IoT modules to the BOM MultiZone provides secure bidirectional access to/from the device via standard MQTT protocol ✓ MultiZone works with public and private clouds – i.e. OEM owned PKI and backend infrastructure ✓ MultiZone can retrofit existing hardware, no need to redesign for additional 3rd party IoT modules ✓

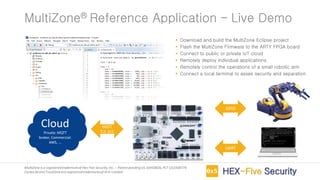

- 8. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited ▪ Download and build the MultiZone Eclipse project ▪ Flash the MultiZone Firmware to the ARTY FPGA board ▪ Connect to public or private IoT cloud ▪ Remotely deploy individual applications ▪ Remotely control the operations of a small robotic arm ▪ Connect a local terminal to asses security and separation MultiZone® Reference Application – Live Demo Cloud Private: MQTT broker, Commercial: AWS, ... MQTT TLS ECC UART GPIO
- 9. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited How To Get Started Hardware ▪ Artix-7 35T FPGA Evaluation Kit http://www.xilinx.com/products/boards-and- kits/arty.html ▪ Olimex debug head ARM-USB-TINY-H http://www.olimex.com/Products/ARM/JTAG/ARM-USB-TINY-H/ ▪ OWI Robot (optional) http://owirobot.com/robotic-arm-edge/ Software ▪ Eclipse IDE CDT http://www.eclipse.org/cdt/ ▪ Hex Five X300 SoC bitstream http://github.com/hex-five/multizone-fpga ▪ MultiZone Firmware https://github.com/hex-five/multizone-iot-firmware Documentation ▪ https://github.com/hex-five/multizone-iot-firmware/blob/master/manual.pdf
- 10. MultiZone Security MultiZone Securityis the quick and safe way to add security and separation to billions of IoT devices. MultiZone can retrofit existing hardware. If you don’t have TrustZone, or if you require finer granularity than one trusted area, you can take advantage of high security separation without the need for a redesign – see http://hex-five.com
- 11. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited MultiZone® IoT Firmware – Data Sheet Stack Component Features Size License Reference Hardware ▪ Digilent ARTY7 35T FPGA ▪ Hex Five X300 SoC IP ▪ RISC-V core RV32ACIMU 4-way i-cahe 65MHz ▪ Ethernet: Xilinx EthernetLite Ethernet core Apache 2.0 license permissive commercial use ok IDE & Toolchain • Eclipse IDE + openOCD debug • GNU GCC, GDB, … ▪ GCC multi-lib rv32, rv32e, rv64, GDB, openOCD ▪ Hex Five pre-built GCC binaries (optional) ▪ Hex Five pre-built OpenOCD binaries (optional) GNU General Public License version 3 TCP/IP library ▪ LWIP 2.1.1 ▪ Hex Five security extensions ▪ IP, ICMP, UDP, TCP, ARP, DHCP, DNS, SNTP, MQTT ▪ Light weight single threaded execution ▪ Fully integrated with SSL stack 40KB ROM 16KB RAM Modified BSD permissive commercial use ok SSL library ▪ mbed TLS 2.23.0 ▪ Hex Five secure configuration ▪ TLSv1.2, Cipher TLS_AES_128_GCM_SHA256 ▪ ECC: prime256v1, Private Key NIST CURVE: P-256 ▪ Mutual authentication, Cert expiration verification, TLS large fragment 64KB ROM 32KB RAM Apache 2.0 license permissive commercial use ok Real Time OS (optional) ▪ FreeRTOS 10.3.0 ▪ Hex Five integration with TEE ▪ Secure unprivileged execution of kernel, tasks, and interrupt handlers ▪ No memory shared with TCP/IP and SSL library code ▪ No memory shared with other applications running in separate zones 32KB ROM 16KB RAM MIT open source license permissive commercial use ok Trusted Execution Environment ▪ MultiZone Security TEE 2.0 ▪ RISC-V secure DMA extension ▪ RISC-V shared PLIC extension ▪ 4 separated Trusted Execution Environments (zones) enforced via PMP ▪ 8 memory-mapped resources per zone – i.e. ram, rom, i/o, uart, gpio, eth, … ▪ Secure inter-zone messaging – no shared memory, no buffers, no stack, etc ▪ Protected user-mode interrupt handlers mapped to zones – plic / clint 4KB ROM 4KB RAM Free for evaluation, commercial license priced per design – perpetual, no royalties, no GPL contamination Minimal Attack Surface (compare with TrustZone Secure Firmware) 4KB RAM 4KB ROM

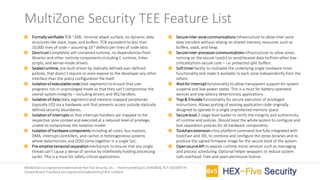

- 12. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited MultiZone Security TEE Feature List Formallyverifiable TCB ~2KB, minimal attack surface, no dynamic data structures like stack, hype, and buffers. TCB equivalent to less than 10,000 lines of code – assuming 10-4 defects per lines of code ratio. Zerotrust Completely self-contained runtime, no dependencies from libraries and other runtime components including C runtime, linker scripts, and kernel-mode drivers. Sealedruntime, pre-built driven by statically defined user-defined policies, that doesn’t require or even expose to the developer any other interface than the policy configuration file itself. Isolationof executablecode(text segments) to ensure that user programs run in unprivileged mode so that they can’t compromise the overall system integrity – including drivers and IRQ handlers. Isolationof data(data segments) and memory-mapped peripherals (typically I/O) via a hardware unit that prevents access outside statically defined security boundaries. Isolationof interruptsso that interrupt handlers are mapped to the respective zone context and executed at a reduced level of privilege, unable to compromise the isolation model. Isolationof hardwarecomponents including all cores, bus masters, DMA, interrupt controllers, and caches in heterogeneoussystems where deterministic and OOO come together in a single SoC. Pre-emptivetemporalseparationmechanism to ensure that any single thread can’t cause a denial of service by indefinitely holding processing cycles. This is a must for safety-critical applications. Secureinter-zonecommunicationsinfrastructure to allow inter-zone data transfers without relying on shared memory resources such as buffers, stack, and heap. Secureinter-processorcommunications infrastructure to allow zones running on the secure core(s) to send/receive data to/from other low- criticality/non-secure core – i.e. protected split buffers. Softtimerfacility to multiplex the underlying single hardware timer functionality and make it available to each zone independently from the others. Waitfor interruptfunctionality to allow transparent support for system suspend and low-power states. This is a must for battery-operated devices and low-latency deterministic applications . Trap& Emulate functionality for secure execution of privileged instructions. Allows porting of existing application code originally designed to operate in a single unprotected memory space. Secureboot 2-stage boot loader to verify the integrity and authenticity of runtime and policies. Should boot the whole system to configure and lock separation policies for all hardware components. Toolchainextension cross-platform command line fully integrated with toolchain and IDE, to combine and configure the zones binaries and to produce the signed firmware image for the secure boot of the system. OpensourceAPI to expose runtime micro-services such as messaging and process scheduling. Optional helper wrappers to reduce system calls overhead. Free and open permissive license.
- 13. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited MultiZone TEE Vs Arm TrustZone Patent pending US 16450826, PCT US1938774 - Configuring, Enforcing, And Monitoring Separation Of Trusted Execution Environments. Arm and TrustZone are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. TrustZone: Two Domains Hardcoded in Silicon Cortex-M23/M33 MPC Memory OS Apps Normal World MPC Peripherals Arm Trusted Firmware-M Trusted Apps Secure World NS Bit SAU/IDAU U-Thread mode P-Thread mode TZ-M HW MultiZone: Multiple Domains Defined In Software MultiZone TEE RISC-V 32-bit or 64-bit PMP OS Apps Zone #1 Zone #2 Trusted OS Trusted Apps PMP HW Machine mode User Mode Memory Peripherals Zone #3 Zone #4 App App User Mode

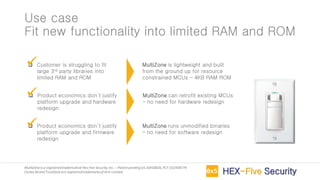

- 14. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case Fit new functionality into limited RAM and ROM ❑ Customer is struggling to fit large 3rd party libraries into limited RAM and ROM ❑ Product economics don’t justify platform upgrade and hardware redesign ❑ Product economics don’t justify platform upgrade and firmware redesign MultiZone is lightweight and built from the ground up for resource constrained MCUs – 4KB RAM ROM ✓ MultiZone can retrofit existing MCUs – no need for hardware redesign ✓ MultiZone runs unmodified binaries – no need for software redesign ✓

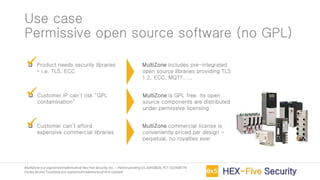

- 15. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case Permissive open source software (no GPL) ❑ Product needs security libraries – i.e. TLS, ECC ❑ Customer IP can’t risk “GPL contamination” ❑ Customer can’t afford expensive commercial libraries MultiZone includes pre-integrated open source libraries providing TLS 1.2, ECC, MQTT, ... ✓ MultiZone is GPL free. Its open source components are distributed under permissive licensing ✓ MultiZone commercial license is conveniently priced per design – perpetual, no royalties ever ✓

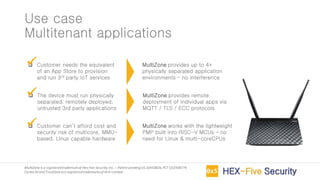

- 16. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case Multitenant applications ❑ Customer needs the equivalent of an App Store to provision and run 3rd party IoT services ❑ The device must run physically separated, remotely deployed, untrusted 3rd party applications ❑ Customer can’t afford cost and security risk of multicore, MMU- based, Linux capable hardware MultiZone provides up to 4+ physically separated application environments – no interference ✓ MultiZone provides remote deployment of individual apps via MQTT / TLS / ECC protocols ✓ MultiZone works with the lightweight PMP built into RISC-V MCUs – no need for Linux & multi-coreCPUs ✓

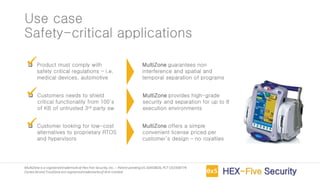

- 17. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case Safety-critical applications ❑ Product must comply with safety critical regulations – i.e. medical devices, automotive ❑ Customers needs to shield critical functionality from 100’s of KB of untrusted 3rd party sw ❑ Customer looking for low-cost alternatives to proprietary RTOS and hypervisors MultiZone guarantees non interference and spatial and temporal separation of programs ✓ MultiZone provides high-grade security and separation for up to 8 execution environments ✓ MultiZone offers a simple convenient license priced per customer’s design – no royalties ✓

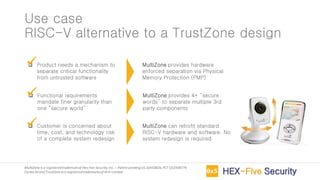

- 18. MultiZoneis a registeredtrademarkofHex Five Security,Inc. – Patent pendingUS 16450826,PCT US1938774 Cortex-M and TrustZoneare registeredtrademarksof Arm Limited Use case RISC-V alternative to a TrustZone design ❑ Product needs a mechanism to separate critical functionality from untrusted software ❑ Functional requirements mandate finer granularity than one “secure world” ❑ Customer is concerned about time, cost, and technology risk of a complete system redesign MultiZone provides hardware enforced separation via Physical Memory Protection (PMP) ✓ MultiZone provides 4+ “secure words” to separate multiple 3rd party components ✓ MultiZone can retrofit standard RISC-V hardware and software. No system redesign is required. ✓
- 19. MultiZone® Security MultiZone Securityis the quick and safe way to add security and separation to billions of IoT devices. MultiZone can retrofit existing hardware. If you don’t have TrustZone, or if you require finer granularity than one trusted area, you can take advantage of high security separation without the need for a redesign – see http://hex-five.com
