The DV-E viscometer is Brookfield's lowest cost digital viscometer. It directly reads viscosity in centipoise or mPa*s without calculations. It has 18 speeds for measuring a wide viscosity range and auto-ranges to determine the full scale reading. It is easy to use by simply flipping switches and turning knobs to select speed and spindle. The accuracy is ±1% of range with ±0.2% repeatability. It comes with spindles, a stand, case, and measures viscosities from 1 cP to over 100 million cP depending on the model.

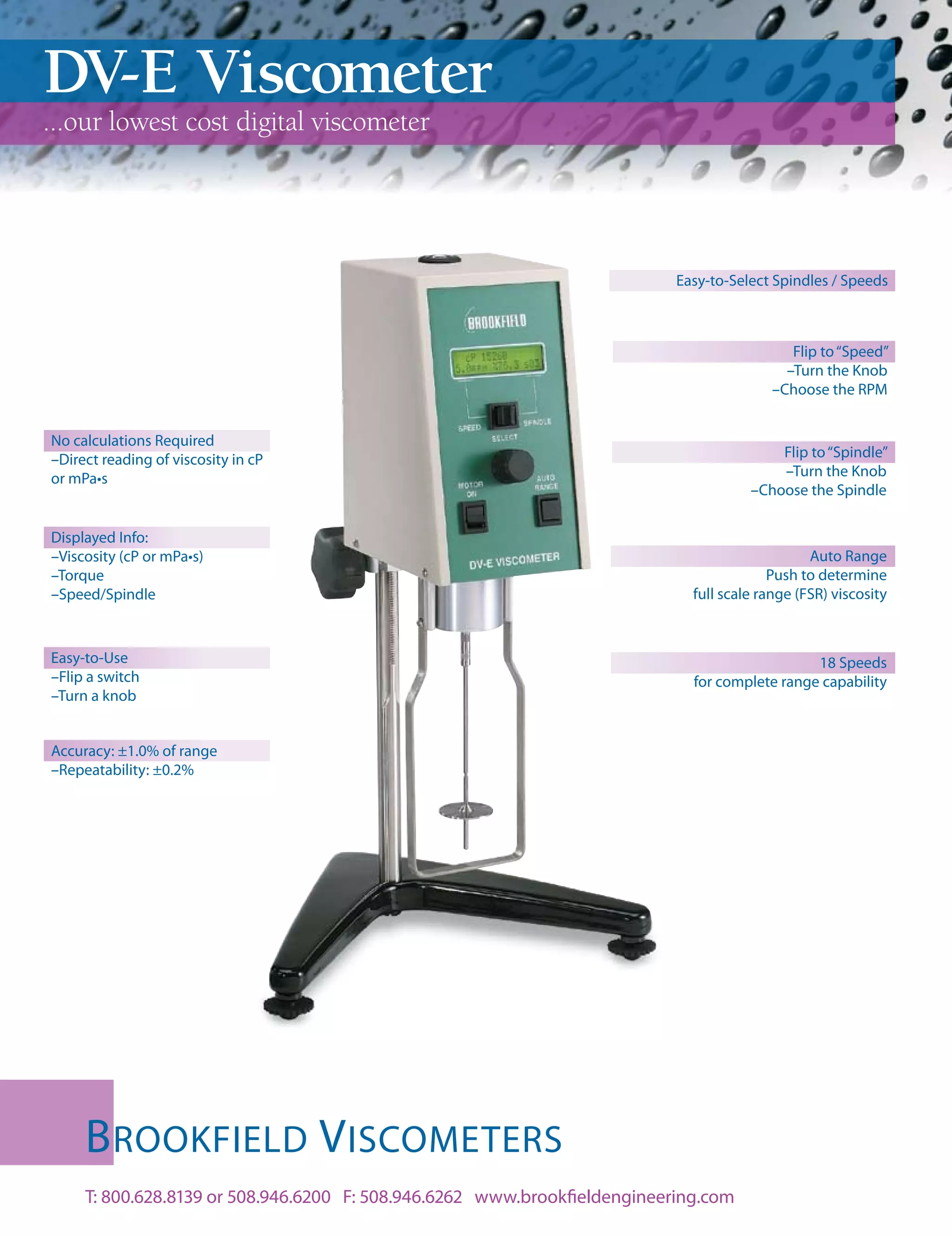

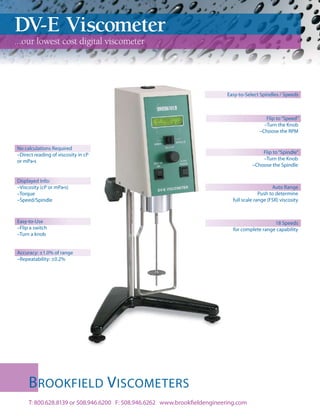

1. DV-E Viscometer
...our lowest cost digital viscometer
Easy-to-Select Spindles / Speeds
Flip to “Speed”
–Turn the Knob
–Choose the RPM
No calculations Required
–Direct reading of viscosity in cP Flip to “Spindle”
or mPa•s –Turn the Knob
–Choose the Spindle
Displayed Info:
–Viscosity (cP or mPa•s) Auto Range
–Torque Push to determine
–Speed/Spindle full scale range (FSR) viscosity
Easy-to-Use 18 Speeds
–Flip a switch for complete range capability
–Turn a knob
Accuracy: ±1.0% of range
–Repeatability: ±0.2%
B ROOKFIELD V ISCOMETERS
T: 800.628.8139 or 508.946.6200 F: 508.946.6262 www.brookfieldengineering.com

2. What’s Included? Model Selection Table
Instrument
6 spindles (RV/HA/HB)
Brookfield DV-E Viscometers
or 4 spindles (LV) VISCOSITY
RANGE
Spindle Guard Leg* cP(mPa•s) SPEEDS
Lab Stand (Model A) MODEL Min. Max. RPM
Number of
Increments
Carrying Case LVDV-E 1† 2M .3-100 18
*Not applicable to HA or HB versions RVDV-E 100†† 13M .3-100 18
HADV-E 200†† 26M .3-100 18
HBDV-E 800†† 104M .3-100 18
† 1 cP achieved with UL Adapter accessory. 15 cP on LV with standard spindles.
Optional Accessories †† Minimum viscosity is achieved with optional RV/HA/HB-1 spindle.
M = 1 million cP = Centipoise mPa•s = Millipascal/seconds
Viscosity Standards
RV/HA/HB-1 Spindle
Quick Action Lab Stand
Temperature Bath Applications
Small Sample Adapter Consider application and viscosity range when selecting model (LV, RV, HA, HB)
UL Adapter LV SERIES – RV SERIES – HA/HB SERIES –
Thermosel LOW VISCOSITY MEDIUM VISCOSITY HIGH VISCOSITY
Adhesives (solvent base) Adhesives (hot melt) Caulking Compounds / Putty
Spiral Adapter Biological Fluids Asphalt (SHRP) Chocolate
DIN Adapter Chemicals Ceramic Slurries Epoxies
Dairy Products Food Products Inks (ballpoint, offset, lithographic)
Quick Connect/Extension Links Inks Gums Pastes
Vane Spindles Juices Ointments / Creams Peanut Butter
Oils / Solvents Paints / Inks / Coatings Roofing Compounds
Pharmaceuticals Paper Pulp Sealants
Polymer Solutions Shampoos / Lotions Tars
Brookfield Engineering Laboratories, Inc.
11 Commerce Boulevard
Middleboro, MA 02346-1031 USA
T: 800.628.8139 or 508.946.6200 F: 508.946.6262
W: www.brookfieldengineering.com
