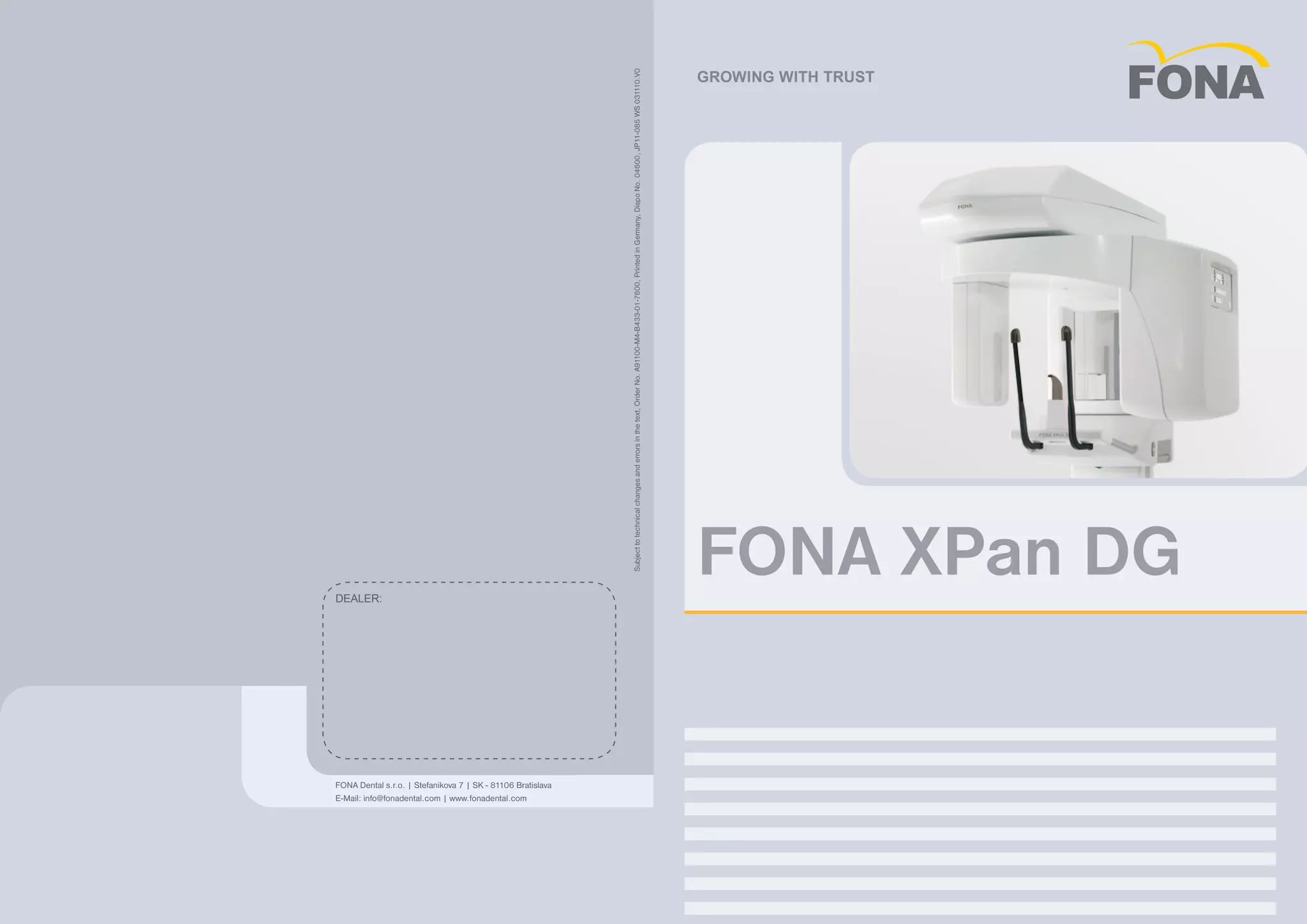

1. GROWING WITH TRUST
DEALER:
FONA Dental s.r.o. | Stefanikova 7 | SK - 81106 Bratislava
E-Mail: info@fonadental.com | www.fonadental.com
Subjecttotechnicalchangesanderrorsinthetext,OrderNo.A91100-M4-B433-01-7600,PrintedinGermany,DispoNo.04600,JP11-085WS031110.V0
FONA XPan DG

2. FONA XPan DG
Efficient, safe and cost-effective: simply digital
Fona XPan DG is a robust but elegant digital panoramic system
which features diagnostic imaging functions that are essential
for daily use as well as implant applications.
Panoramic projections
° Adult standard with constant vertical
magnification of the dental arch (1)
° Child panoramic (2)
° Left-side dentition (3)
° Right-side dentition (4)
° Anterior dentition (5)
° TMJ in normal occlusion and fully open (6)
° Frontal view of maxillary sinuses (7)
Image acquisition
° CCD Sensor
° Spatial resolution > 5 line pairs per mm
° Acquisition dynamics on 12 levels,
16-bit internal processing
° Acquisition area equivalent to 15 x 30 cm
° Connection to computer via USB
Accessories
° Bite block
° Chin rest
° Temporo-mandibular resting bars (option)
° Free-standing base plate (option)
Technical data
° Microprocessor-controlled high frequency
X-ray generator (40/80 kHz)
° Focal spot: 0.5 mm IEC 336
° Anode voltage: 61 - 85 kV
° Anode current: 4 - 10 mA
° Exposure time: 15 s (maximum)
° Dental arch magnification: 27%
° Vertical travel of occlusal plane reference point:
90 - 176 cm
° Wheelchair accessible
° Weight: 98 kg
° Dimensions: Minimum height 220 cm,
maximum height 227 cm, minimum width 96 cm,
useful width 126 cm, minimum depth 103 cm
The system is easy to use thanks to its automatic image acquisition and immediate display on the
computer screen. It is also time saving since there is no need to wait for films to be developed or for
phosphor plates to be laser scanned.
Patient individual adjustments
There are seven diagnostic programs provided and the system
can work with four patient sizes. Carriage movements of rota-
tion and translation for panoramic imaging are carried out
using computer-controlled stepper motors thus offering greater
freedom of movement for optimal diagnostic results. Technique
factors relating to proper image darkening are automatically
controlled and can be adjusted as needed.
Ease of use
Operating the unit is both easy and efficient. The workflow is
supported by an ergonomically designed user interface with
intuitive symbols and alphanumeric display. Patient position-
ing is carried out quickly and three laser beams ensure perfect
centering. The mirror allows the patient to support the operator
and to maintain the proper position. Protrusion or retrusion is
rectified with motorized horizontal translation of the carriage.
The carriage can be moved vertically to such an extent that
patients in wheelchairs can be easily accommodated.
Radiological safety
The constant potential microprocessor-controlled high frequency
X- ray generator is an essential element in the imaging chain. The
small focal spot ensures acquisition of the maximum resolution?
generated in panoramic tomography. The system incorporates
anode voltage modulation to increase the penetration of dense
structures. The software, heat dissipation and load management
for waiting time reduction guarantee excellent operating efficiency.
Precise examination
The unit offers superb resolution delivered by highly sensitive
CCD sensor with a 16-bit internal processing system which
provides a maximum definition in panoramic tomographic
images. Diagnostic images can be processed and magnified as
required to highlight important details. The data can then be
printed, stored or sent by e-mail. Panoramic projection allows
the simulated insertion of implants and to show patients a highly
professional realistic treatment plan even on their first visit.
(*) The functionality for simulation of placement of dental implant is not part of basic supply.
