ScaNeo is a digital x-ray plate scanner designed for dental use. It has a high resolution of 12.5 lp/mm and fast readout times of 4.7-10.1 seconds. ScaNeo is compact, weighing 10 kg and measuring 375x242x451 mm. It integrates with the OrisWin DG Suite imaging software for storing, viewing and processing scans. ScaNeo provides efficient scanning for both chairside and multi-room use and intuitive operation through its display interface.

1. DEALER:
FONA Dental s.r.o. | Stefanikova 7 | SK - 81106 Bratislava
E-Mail: info@fonadental.com | www.fonadental.com
Technical Specifications
Pixel Size 40μm
Bit depth 16 bit
Resolution 12.5 lp/mm
Readout time 4.7–10.1 seconds
Connection Ethernet
Operating Voltage 100–240 V, 50/60 Hz
Dimensions (375x242x451) mm
Weight 10 kg
ScaNeo
THE NEW WAY TO SCAN

2. ScaNeo is your reliable digital image plate scanner designed
to deliver excellent radiographic images quickly and easily.
Operation is intuitive for the dentist and positioning comfor-
table for the patient. Benefit from the advantages of digital
imaging whilst maintaining a familiar acquisition process.
Excellent image quality
ScaNeo is built to fulfill the daily requirements in image quality. High resolution radiographs ensure
precise diagnosis even in case of accidental under- or overexposure. With OrisWin DG Suite imaging
software radiographs are easily displayed, stored and post-processed. In addition, tested with over
20.000 cycles ScaNeo offers long lasting durability and reliability.
Efficient and profitable
ScaNeo is a compact unit that can be used either directly at the chair side or centrally located
to ­service multiple treatment rooms, which makes it an efficient and cost effective solution. Scan
r­esults are transmitted via Ethernet directly to your work­station. There is no waiting time as the plates
are ready to be used again immediately after automatic deletion.
Intuitive handling and patient comfort
FONA Dental Imaging Plates have an anti-scratch coating, and are thin and flexible which makes
their handling easy for the user and their positioning comfortable for the patient. Relearning is not
required as the handling of imaging plates is similar to that of traditional intraoral films. Operation of
ScaNeo is made even easier thanks to the display which guides the user through the scan process.
Integrated solution
ScaNeo is supplied with OrisWin DG Suite, the imaging software that integrates the full range of
FONA products. Together with our intraoral x-ray systems FONA provides a complete and perfectly
compatible intraoral solution to guarantee excellent image quality.
ScaNeo
the new way to scan
Ease of Use
° Display guidance for an
­intuitive use
° Film-like imaging plates,
thin and flexible
Excellent Image Quality
° High resolution radiographs
for precise diagnosis
° OrisWin DG Suite – the
complete digital imaging
software solution
Profitable Solution Built to Last
° Compact and stable
° Tested with over 20.000 ­
cycles
° Services multiple treatment
rooms
ScaNeo supports all standard intraoral imaging plate sizes available. Portable plate tray and storage box all in one.
Size 0:
22x31 mm
Size 1:
24x40 mm
Size 2:
31x41 mm
Size 3:
27x54 mm

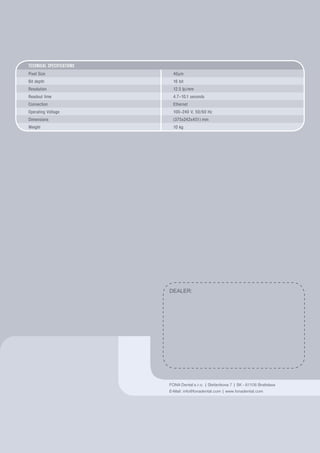

3. DEALER:
FONA Dental s.r.o. | Stefanikova 7 | SK - 81106 Bratislava
E-Mail: info@fonadental.com | www.fonadental.com
Technical Specifications
Pixel Size 40μm
Bit depth 16 bit
Resolution 12.5 lp/mm
Readout time 4.7–10.1 seconds
Connection Ethernet
Operating Voltage 100–240 V, 50/60 Hz
Dimensions (375x242x451) mm
Weight 10 kg
ScaNeo
THE NEW WAY TO SCAN
