Brocade: Storage Networking For the Virtual Enterprise

Storage Networking
For the Virtual
Enterprise
AJ Casamento

© Copyright 2012 EMC Corporation. All rights reserved. 1

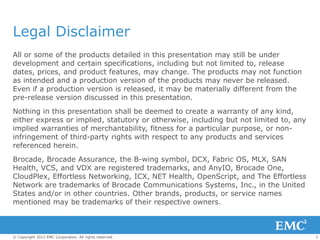

Legal Disclaimer
All or some of the products detailed in this presentation may still be under
development and certain specifications, including but not limited to, release
dates, prices, and product features, may change. The products may not function
as intended and a production version of the products may never be released.
Even if a production version is released, it may be materially different from the
pre-release version discussed in this presentation.
Nothing in this presentation shall be deemed to create a warranty of any kind,
either express or implied, statutory or otherwise, including but not limited to, any
implied warranties of merchantability, fitness for a particular purpose, or non-
infringement of third-party rights with respect to any products and services
referenced herein.
Brocade, Brocade Assurance, the B-wing symbol, DCX, Fabric OS, MLX, SAN
Health, VCS, and VDX are registered trademarks, and AnyIO, Brocade One,
CloudPlex, Effortless Networking, ICX, NET Health, OpenScript, and The Effortless
Network are trademarks of Brocade Communications Systems, Inc., in the United
States and/or in other countries. Other brands, products, or service names
mentioned may be trademarks of their respective owners.


Abstract
Storage Networking For the Virtual Enterprise

 This Session will review the latest in storage networking
protocols for EMC storage platforms. Topics include new
architecture for scaling SAN fabrics, new features for enhancing
SAN metro connectivity, and powerful new capabilities for
enhancing SAN Management. We will also review Ethernet
Fabric architectures for FCOE, iSCSI and NAS.
 At the end of this session you will be able to:
– Understand how to deploy large SAN Fabrics using multiple
directors without sacrificing server and storage ports.
– Learn about the new SAN capabilities that will significantly
improve Metro connectivity over DWDM or dark fiber.
– Understand how Ethernet Fabrics provide performance, scale and
ease of manageability compared to traditional Ethernet
hierarchical topologies.

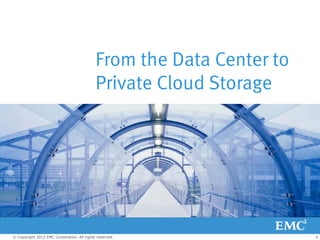

From the Data Center to
Private Cloud Storage


Business Objectives

 Non-stop access to information
– Fast, reliable
 Move at speed of business
– Scale with growth and application
needs
– Deliver new services on demand
– Rapidly adjust to changing conditions

 Reduce costs
– CapEx and OpEx
– Maximize investments
– Gain efficiencies

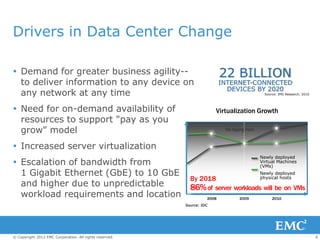

Drivers in Data Center Change

 Demand for greater business agility-- 22 BILLION
to deliver information to any device on INTERNET-CONNECTED
DEVICES BY 2020
any network at any time Source: IMS Research, 2010

 Need for on-demand availability of Virtualization Growth
resources to support "pay as you
grow" model The Tipping Point

 Increased server virtualization
Newly deployed
 Escalation of bandwidth from Virtual Machines
(VMs)
1 Gigabit Ethernet (GbE) to 10 GbE Newly deployed
By 2018 physical hosts
and higher due to unpredictable 86% of server workloads will be on VMs
workload requirements and location 2008 2009 2010
Source: IDC


Evolution of the Data Center

Hybrid
Cloud

Private Public
Clouds Clouds

Hybrid Cloud

Private Cloud

Virtualization

Consolidation

2002 2008 2011 2014

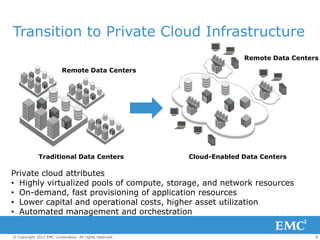

Transition to Private Cloud Infrastructure
Remote Data Centers
Remote Data Centers

Traditional Data Centers Cloud-Enabled Data Centers

Private cloud attributes
• Highly virtualized pools of compute, storage, and network resources
• On-demand, fast provisioning of application resources
• Lower capital and operational costs, higher asset utilization
• Automated management and orchestration

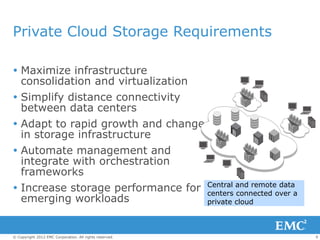

Private Cloud Storage Requirements

 Maximize infrastructure
consolidation and virtualization
 Simplify distance connectivity
between data centers
 Adapt to rapid growth and change
in storage infrastructure
 Automate management and
integrate with orchestration
frameworks
 Increase storage performance for Central and remoteover a
centers connected
data

emerging workloads private cloud


DATA CENTER FABRICS

Fibre Channel Ethernet
Fabrics Fabrics


 15 years of industry leadership
in performance, reliability,
BROCADE scalability, and energy efficiency

FIBRE  90% of Global 1000 data centers

CHANNEL  324 patents issued worldwide
and 328 patents pending
FABRICS  Consistently first to market

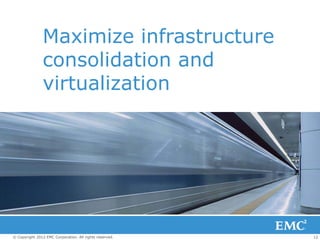

Maximize infrastructure
consolidation and
virtualization

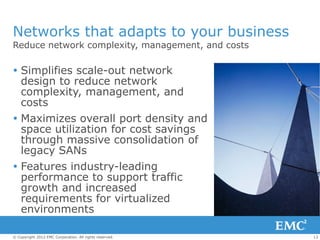

Networks that adapts to your business
Reduce network complexity, management, and costs

 Simplifies scale-out network
design to reduce network
complexity, management, and
costs
 Maximizes overall port density and
space utilization for cost savings
through massive consolidation of
legacy SANs
 Features industry-leading
performance to support traffic
growth and increased
requirements for virtualized
environments

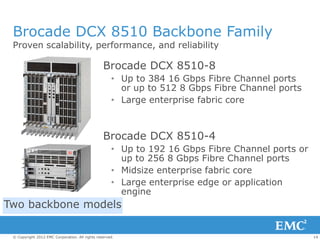

Brocade DCX 8510 Backbone Family
Proven scalability, performance, and reliability

Brocade DCX 8510-8
• Up to 384 16 Gbps Fibre Channel ports
or up to 512 8 Gbps Fibre Channel ports
• Large enterprise fabric core

Brocade DCX 8510-4
• Up to 192 16 Gbps Fibre Channel ports or
up to 256 8 Gbps Fibre Channel ports
• Midsize enterprise fabric core
• Large enterprise edge or application
engine
Two backbone models

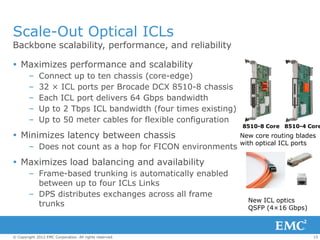

Scale-Out Optical ICLs
Backbone scalability, performance, and reliability

 Maximizes performance and scalability
– Connect up to ten chassis (core-edge)
– 32 × ICL ports per Brocade DCX 8510-8 chassis
– Each ICL port delivers 64 Gbps bandwidth
– Up to 2 Tbps ICL bandwidth (four times existing)
– Up to 50 meter cables for flexible configuration
8510-8 Core 8510-4 Core
 Minimizes latency between chassis New core routing blades
with optical ICL ports
– Does not count as a hop for FICON environments
 Maximizes load balancing and availability
– Frame-based trunking is automatically enabled
between up to four ICLs Links
– DPS distributes exchanges across all frame
New ICL optics
trunks QSFP (4×16 Gbps)

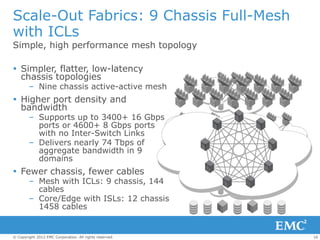

Scale-Out Fabrics: 9 Chassis Full-Mesh
with ICLs
Simple, high performance mesh topology

 Simpler, flatter, low-latency
chassis topologies
– Nine chassis active-active mesh
 Higher port density and
bandwidth
– Supports up to 3400+ 16 Gbps
ports or 4600+ 8 Gbps ports
with no Inter-Switch Links
– Delivers nearly 74 Tbps of
aggregate bandwidth in 9
domains
 Fewer chassis, fewer cables
– Mesh with ICLs: 9 chassis, 144
cables
– Core/Edge with ISLs: 12 chassis
1458 cables

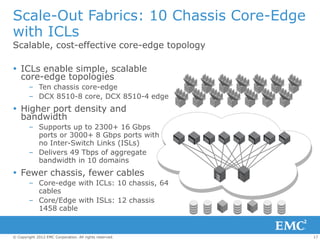

Scale-Out Fabrics: 10 Chassis Core-Edge
with ICLs
Scalable, cost-effective core-edge topology

 ICLs enable simple, scalable
core-edge topologies
– Ten chassis core-edge
– DCX 8510-8 core, DCX 8510-4 edge
 Higher port density and
bandwidth
– Supports up to 2300+ 16 Gbps
ports or 3000+ 8 Gbps ports with
no Inter-Switch Links (ISLs)
– Delivers 49 Tbps of aggregate
bandwidth in 10 domains
 Fewer chassis, fewer cables
– Core-edge with ICLs: 10 chassis, 64
cables
– Core/Edge with ISLs: 12 chassis
1458 cable

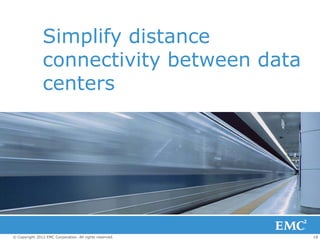

Simplify distance
connectivity between data
centers

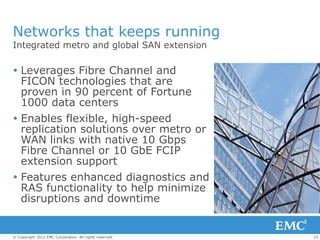

Networks that keeps running
Integrated metro and global SAN extension

 Leverages Fibre Channel and
FICON technologies that are
proven in 90 percent of Fortune
1000 data centers
 Enables flexible, high-speed
replication solutions over metro or
WAN links with native 10 Gbps
Fibre Channel or 10 GbE FCIP
extension support
 Features enhanced diagnostics and
RAS functionality to help minimize
disruptions and downtime

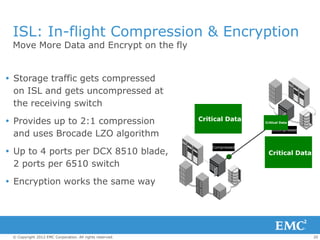

ISL: In-flight Compression & Encryption
Move More Data and Encrypt on the fly

 Storage traffic gets compressed
on ISL and gets uncompressed at
the receiving switch
 Provides up to 2:1 compression Critical Data Critical Data
Critical Data

and uses Brocade LZO algorithm
Uncompressed

Compressed
 Up to 4 ports per DCX 8510 blade, Critical Data
2 ports per 6510 switch
 Encryption works the same way

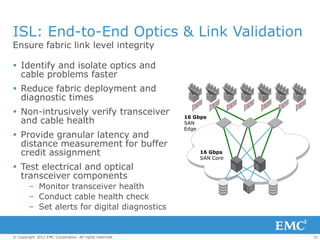

ISL: End-to-End Optics & Link Validation
Ensure fabric link level integrity

 Identify and isolate optics and
cable problems faster
 Reduce fabric deployment and
diagnostic times
 Non-intrusively verify transceiver 16 Gbps
and cable health SAN
Edge
 Provide granular latency and
distance measurement for buffer
credit assignment 16 Gbps
SAN Core

 Test electrical and optical
transceiver components
– Monitor transceiver health
– Conduct cable health check
– Set alerts for digital diagnostics

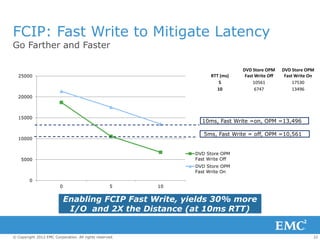

FCIP: Fast Write to Mitigate Latency
Go Farther and Faster

DVD Store OPM DVD Store OPM
25000 RTT (ms) Fast Write Off Fast Write On
5 10561 17530
10 6747 13496
20000

15000
10ms, Fast Write =on, OPM =13,496

5ms, Fast Write = off, OPM =10,561
10000

DVD Store OPM
5000 Fast Write Off
DVD Store OPM
Fast Write On
0
0 5 10

Enabling FCIP Fast Write, yields 30% more
I/O and 2X the Distance (at 10ms RTT)

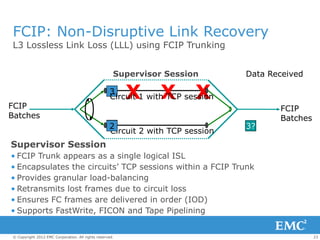

FCIP: Non-Disruptive Link Recovery
L3 Lossless Link Loss (LLL) using FCIP Trunking

Supervisor Session Data Received

3
1
X X X
Circuit 1 with TCP session
FCIP FCIP
Batches Batches
4
2
3 3?
Circuit 2 with TCP session
Supervisor Session
• FCIP Trunk appears as a single logical ISL
• Encapsulates the circuits’ TCP sessions within a FCIP Trunk
• Provides granular load-balancing
• Retransmits lost frames due to circuit loss
• Ensures FC frames are delivered in order (IOD)
• Supports FastWrite, FICON and Tape Pipelining


Automate management
and integrate with
orchestration frameworks

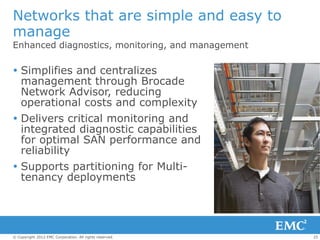

Networks that are simple and easy to
manage
Enhanced diagnostics, monitoring, and management

 Simplifies and centralizes
management through Brocade
Network Advisor, reducing
operational costs and complexity
 Delivers critical monitoring and
integrated diagnostic capabilities
for optimal SAN performance and
reliability
 Supports partitioning for Multi-
tenancy deployments

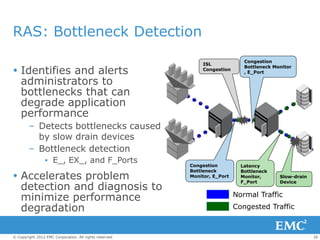

RAS: Bottleneck Detection
Congestion
ISL
 Identifies and alerts
Bottleneck Monitor
Congestion
, E_Port

administrators to
bottlenecks that can
degrade application
performance
– Detects bottlenecks caused
by slow drain devices
– Bottleneck detection
▪ E_, EX_, and F_Ports
Congestion Latency
Bottleneck Bottleneck
 Accelerates problem Monitor, E_Port Monitor,
F_Port
Slow-drain
Device
detection and diagnosis to
Normal Traffic
minimize performance
degradation Congested Traffic

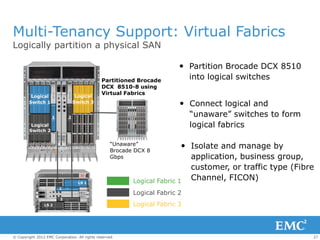

Multi-Tenancy Support: Virtual Fabrics
Logically partition a physical SAN

 Partition Brocade DCX 8510
Partitioned Brocade
into logical switches
DCX 8510-8 using
Virtual Fabrics
Logical Logical
Switch 1 Switch 3
 Connect logical and
1 2 “unaware” switches to form
Logical logical fabrics
Switch 2

“Unaware”
Brocade DCX 8
 Isolate and manage by
Gbps application, business group,
customer, or traffic type (Fibre
LS 1 Logical Fabric 1 Channel, FICON)
1
Logical Fabric 2
2
LS 2 Logical Fabric 3

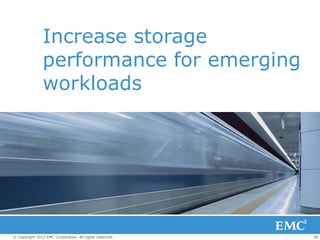

Increase storage
performance for emerging
workloads

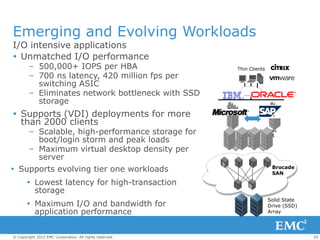

Emerging and Evolving Workloads
I/O intensive applications
 Unmatched I/O performance
– 500,000+ IOPS per HBA Thin Clients
– 700 ns latency, 420 million fps per
switching ASIC
– Eliminates network bottleneck with SSD
storage
 Supports (VDI) deployments for more
than 2000 clients
– Scalable, high-performance storage for ~1000 VDIs
POD-1
~1000 VDIs
POD-X
boot/login storm and peak loads
– Maximum virtual desktop density per
server
 Supports evolving tier one workloads Brocade
SAN

 Lowest latency for high-transaction
storage
Solid State
 Maximum I/O and bandwidth for Drive (SSD)
application performance Array

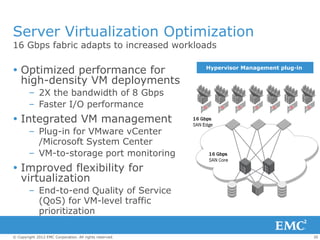

Server Virtualization Optimization
16 Gbps fabric adapts to increased workloads

 Optimized performance for Hypervisor Management plug-in

high-density VM deployments
– 2X the bandwidth of 8 Gbps
– Faster I/O performance
 Integrated VM management
– Plug-in for VMware vCenter
/Microsoft System Center
– VM-to-storage port monitoring
 Improved flexibility for
virtualization
– End-to-end Quality of Service
(QoS) for VM-level traffic
prioritization

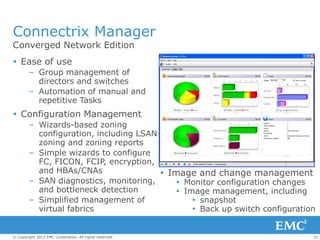

Connectrix Manager
Converged Network Edition
 Ease of use
– Group management of
directors and switches
– Automation of manual and
repetitive Tasks
 Configuration Management
– Wizards-based zoning
configuration, including LSAN
zoning and zoning reports
– Simple wizards to configure
FC, FICON, FCIP, encryption,
and HBAs/CNAs  Image and change management
– SAN diagnostics, monitoring,  Monitor configuration changes
and bottleneck detection  Image management, including
– Simplified management of  snapshot
virtual fabrics  Back up switch configuration

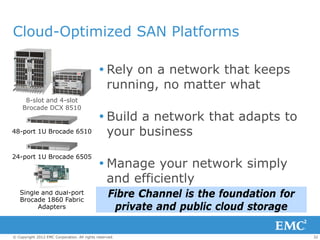

Cloud-Optimized SAN Platforms

 Rely on a network that keeps
running, no matter what
8-slot and 4-slot
Brocade DCX 8510
 Build a network that adapts to
48-port 1U Brocade 6510 your business
24-port 1U Brocade 6505
 Manage your network simply
and efficiently
Single and dual-port
Brocade 1860 Fabric
Fibre Channel is the foundation for
Adapters private and public cloud storage


DATA CENTER FABRICS

Fibre Channel Ethernet
Fabrics Fabrics

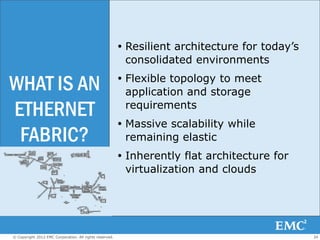

 Resilient architecture for today’s
consolidated environments

WHAT IS AN  Flexible topology to meet
application and storage
ETHERNET requirements
 Massive scalability while
FABRIC? remaining elastic
 Inherently flat architecture for
virtualization and clouds


“Everything should be as simple
as possible, but no simpler.”
–Albert
Einstein


Brocade VCS Ethernet Fabric
Scalable Flat layer 2
Core

Classic
Aggregation

Ethernet
Hierarchical
Fabric
Edge

Ethernet
Scalability
Architecture
Architecture
Access

Servers with 1 or 10 Gbps
Connections

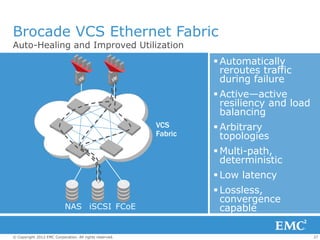

Auto-Healing and Improved Utilization
 Automatically
reroutes traffic
during failure
 Active—active
resiliency and load
balancing
VCS  Arbitrary
Fabric topologies
 Multi-path,
deterministic
 Low latency
 Lossless,
convergence
NAS iSCSI FCoE capable

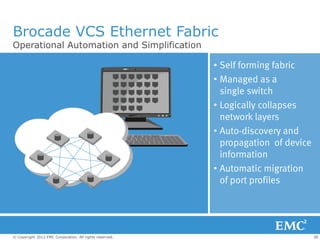

Operational Automation and Simplification

• Self forming fabric
• Managed as a
single switch
• Logically collapses
network layers
• Auto-discovery and
propagation of device
information
• Automatic migration
of port profiles

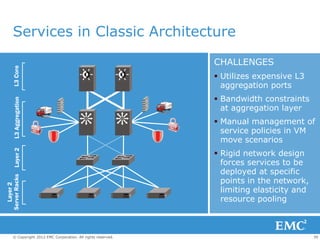

Services in Classic Architecture

CHALLENGES
L3 Core

 Utilizes expensive L3
aggregation ports
 Bandwidth constraints
L3 Aggregation

at aggregation layer
 Manual management of
service policies in VM
move scenarios
Layer 2

 Rigid network design
forces services to be
deployed at specific
Server Racks

points in the network,
Layer 2

limiting elasticity and
resource pooling

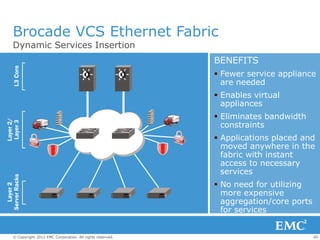

Dynamic Services Insertion
BENEFITS
L3 Core

 Fewer service appliance
are needed
 Enables virtual
appliances
 Eliminates bandwidth
Layer 2/

constraints
Layer 3

 Applications placed and
moved anywhere in the
fabric with instant
access to necessary
services
Server Racks

 No need for utilizing
Layer 2

more expensive
aggregation/core ports
for services

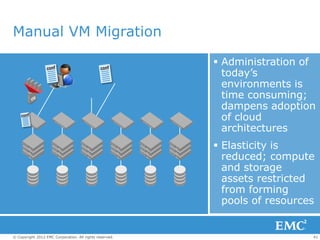

Manual VM Migration

 Administration of
today’s
environments is
time consuming;
dampens adoption
of cloud
architectures
 Elasticity is
reduced; compute
and storage
assets restricted
from forming
pools of resources

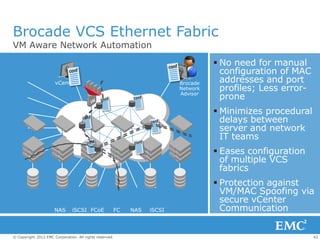

VM Aware Network Automation
 No need for manual
configuration of MAC
vCenter Brocade addresses and port
Network profiles; Less error-
Advisor
prone
 Minimizes procedural
delays between
server and network
IT teams
 Eases configuration
of multiple VCS
fabrics
 Protection against
VM/MAC Spoofing via
secure vCenter
NAS iSCSI FCoE FC NAS iSCSI Communication

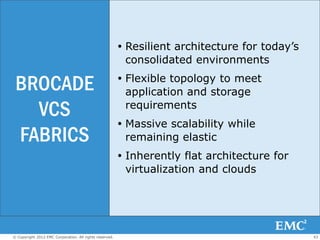

 Resilient architecture for today’s
consolidated environments

BROCADE  Flexible topology to meet
application and storage
VCS requirements
 Massive scalability while
FABRICS remaining elastic
 Inherently flat architecture for
virtualization and clouds

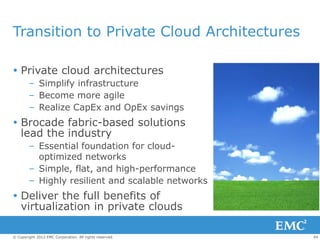

Transition to Private Cloud Architectures

 Private cloud architectures
– Simplify infrastructure
– Become more agile
– Realize CapEx and OpEx savings
 Brocade fabric-based solutions
lead the industry
– Essential foundation for cloud-
optimized networks
– Simple, flat, and high-performance
– Highly resilient and scalable networks
 Deliver the full benefits of
virtualization in private clouds


Thank You


Brocade: Storage Networking For the Virtual Enterprise

Brocade: Storage Networking For the Virtual Enterprise

More Related Content

What's hot

Viewers also liked

Similar to Brocade: Storage Networking For the Virtual Enterprise

More from EMC

Recently uploaded

Brocade: Storage Networking For the Virtual Enterprise
