全新IBM Power10 入門和中階
伺服器介紹
運算效能再提升, 具備高階系統的靈活力和安全性

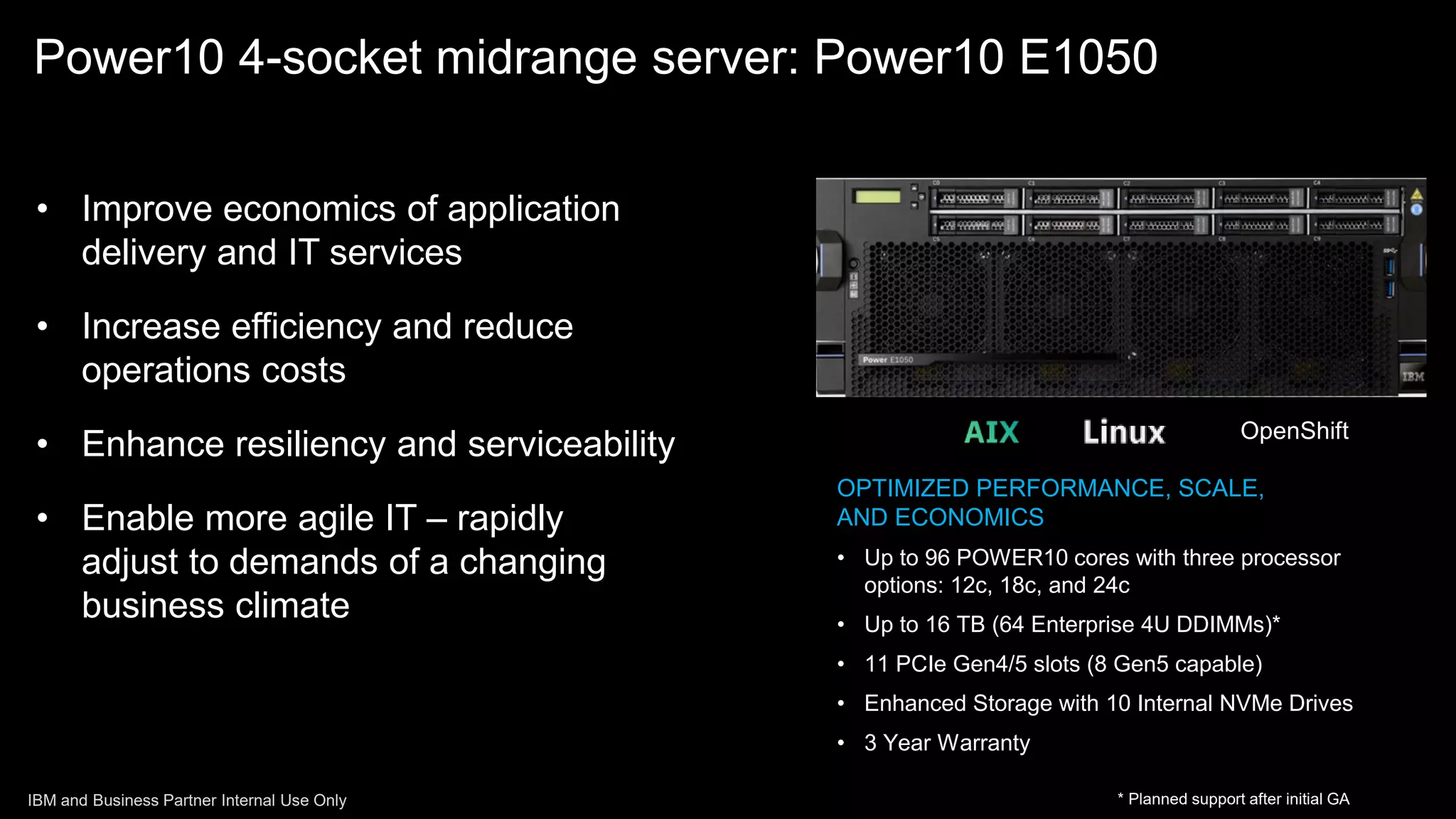

- E1050
- S1024,S1022,S1022s,S1014
- L1024,L1022
- 支持彈性計費: CuOD 和 Pay as U Go (Pools 2.0)

1. Power10處理器重點介紹
2. Power10伺服器獨有特色
3. Power10全新靈活消費計價模式
4. Power10入門,中階伺服器深入導讀
5. 開始汰舊換新!! 從P6, P7, P8 換到 P10
6. Q&A
Agenda

AIX / IBM i
通過 IT 和應用現代化優化基礎架構，
提高效率、敏捷性和數位轉型
Enterprise Linux
適用於 Linux 應用程式（如 SAP HANA
、OpenShift 容器和 AI 推理）的
關鍵業務功能
可靠和敏捷
實現業務連續性
彈性、可擴展且安全
開源雲創新
跨私有雲和公有雲的敏捷性、靈活性和
自動化
應用現代化
企業 AI、高級分析、容器化、通過微服務
進行擴展
3

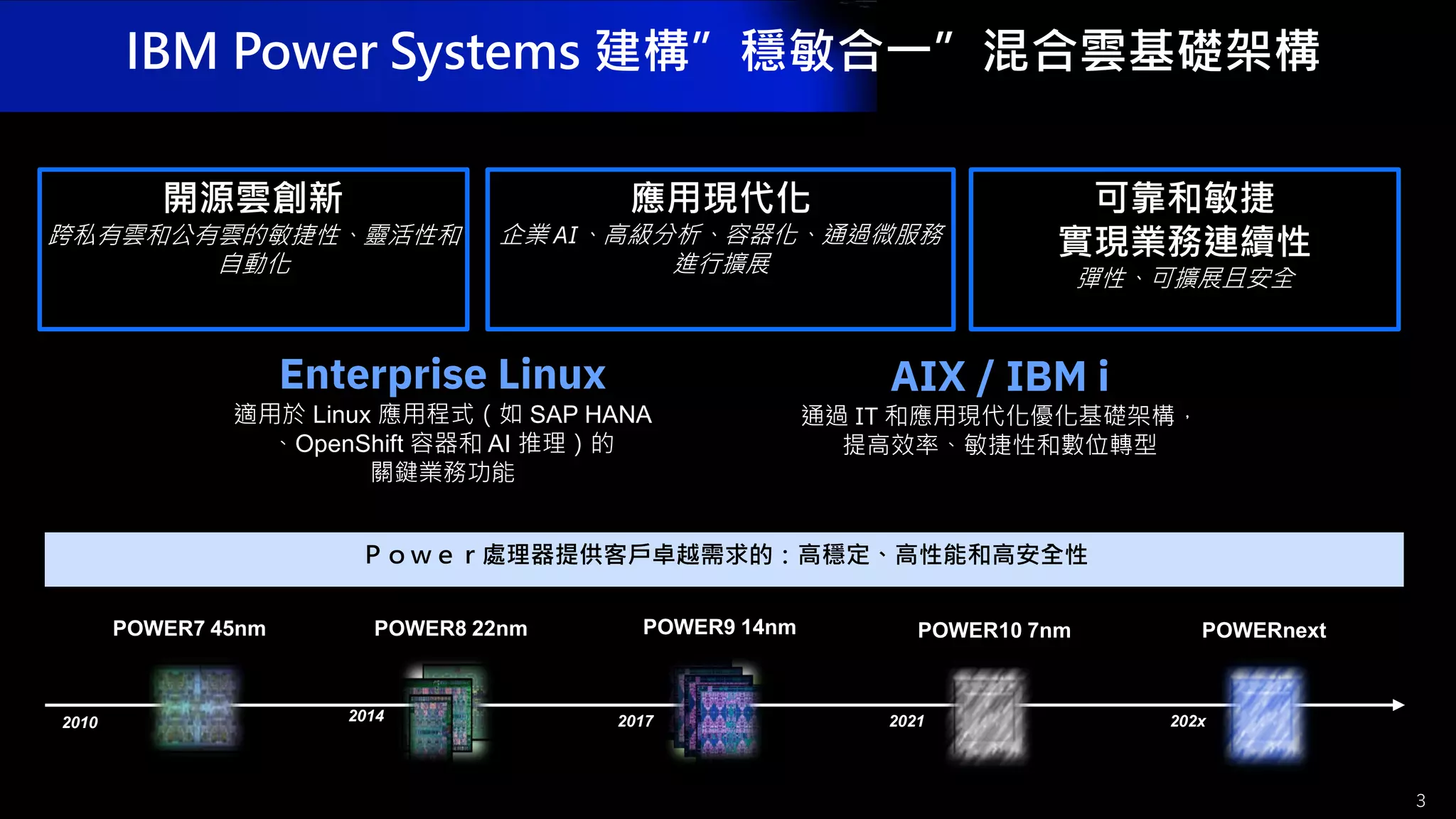

IBM Power Systems 建構”穩敏合一”混合雲基礎架構
POWER7 45nm POWER9 14nm POWERnext
Ｐｏｗｅｒ處理器提供客戶卓越需求的：高穩定、高性能和高安全性
POWER8 22nm POWER10 7nm
2010 2014 2017 2021 202x

POWER2 POWER3 POWER4 POWER5 POWER6 POWER7 POWER8
• SuperScalar
RISC CPU
• Single Chip
system but
faster than
SMP
• World’s First
Chip using
Copper, SOI
Technology
• IBM’s First
SMP arch.
• World’s First
Dual Core CPU
• World’s First
CPU >1GHz
• World’s First
Logical Partition
Midrange Server
• World’s First
RISC CPU
with SMT2
• IBM First
Micro Partition
Midrange
Server
• World’s Fastest
CPU at 5GHz
• RAS :
Instruction
Retry & Storage
Keys
• 8 Core CPU with
SMT4 & 256
Core Scalability
• World’s First
Chip with
eDRAM
technology
• 12 Core CPU with
SMT8 & 192 Core
Scalability
• World’s First CPU
with L4 Cache
• OpenPOWER &
CAPI Open Tech.
1993 1998 2001 2004 2007 2010 2014
Deep Blue /
IBM
RS/6000 SP
World’s Fastest
Supercomputer
BlueGene
(PowerPC core)
IBM 100th Anniversary
Grand Challenge –
Jeopardy / 2nd win against
Man (2880 x POWER7
cores)
Watson
Solutions
NASA Mars Rover
PathFinder (equipped
with radiation
hardened RAD6000
POWER core)
3
POWER9
SMT8 & 192 Core
Scalability
• World’s 2 Fastest
Supercomputer
Summit & Sierra
2017
World’s #1 & #2
Supercomputers
Summit & Sierra
(POWER9)
Win against Chess
Champion Garry
Kasparov (32 x
POWER2 + ASIC)
SMT8 & 240 Core
Scalability
• 7nm Processor,
Memory Encryption,
AI Acceleration
Power10
2021

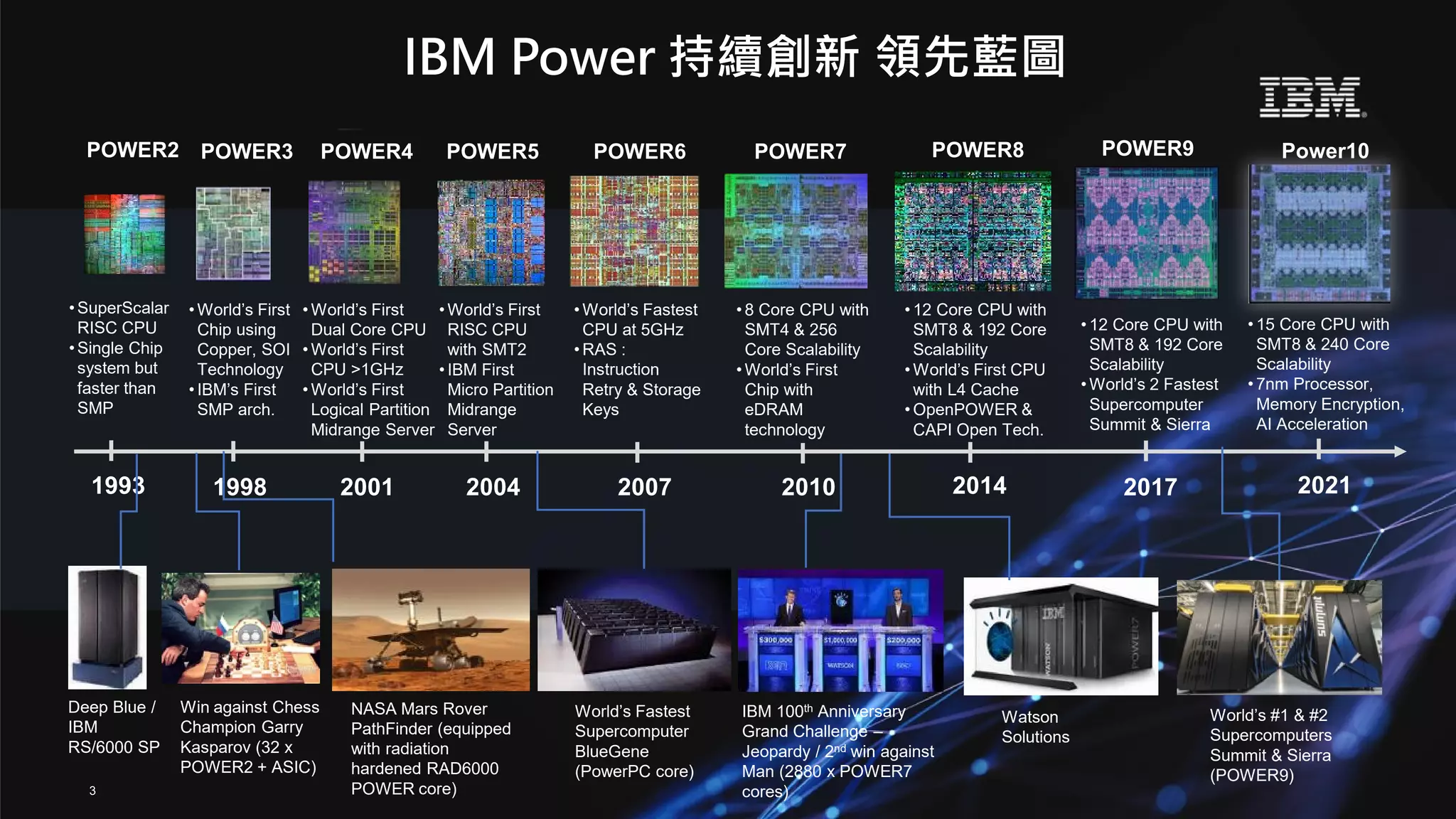

IBM Power 持續創新領先藍圖

S1014/S1022*/S1024*
L1022/L1024/S1022s
Power E1050
Power 企業伺服器
Up to 96
cores, 16TB
按需擴容 (CuOD)*
增強型 RAS
具有動態容量的 IBM Power Systems 私有雲方案（企業池 2.0）*
Up to 48
cores, 8TB
Power
擴展伺服器
5
多租戶、自我管理、強大的
計算即服務，基於消費的運
營支出定價;
可以訪問IBM Cloud服務
IBM Power Systems
虛擬伺服器
Off - Prem
On - Prem
Power E1080
Up to 240
cores, 64TB

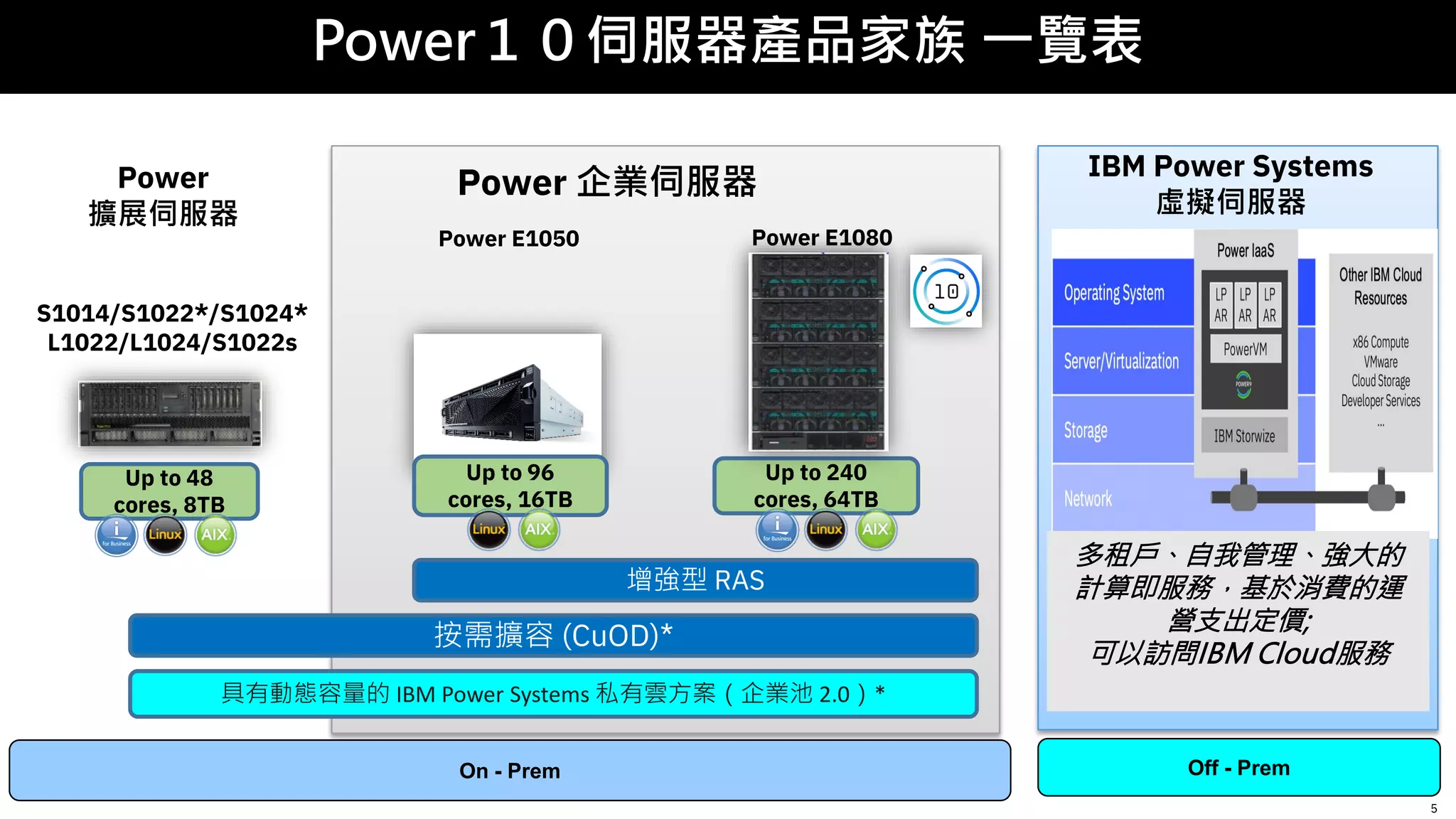

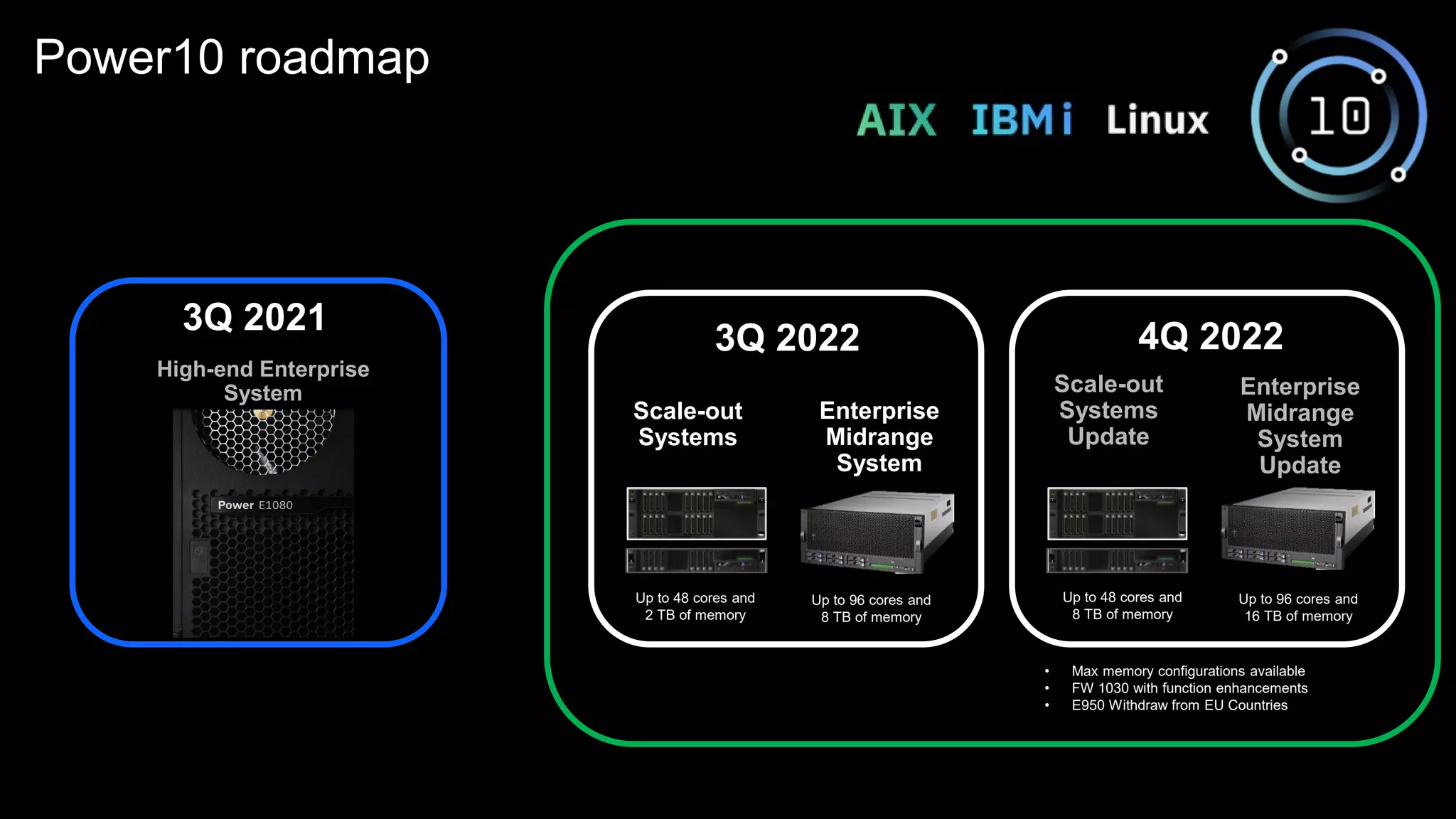

Power１０伺服器產品家族一覽表

Power10 roadmap
3Q 2021
Scale-out
Systems
High-end Enterprise
System
Enterprise
Midrange
System
Up to 48 cores and
2 TB of memory
3Q 2022
Scale-out
Systems
Update
Enterprise
Midrange
System
Update
4Q 2022
Up to 96 cores and
8 TB of memory
Up to 48 cores and
8 TB of memory
Up to 96 cores and
16 TB of memory
: All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only
• Max memory configurations available
• FW 1030 with function enhancements
• E950 Withdraw from EU Countries

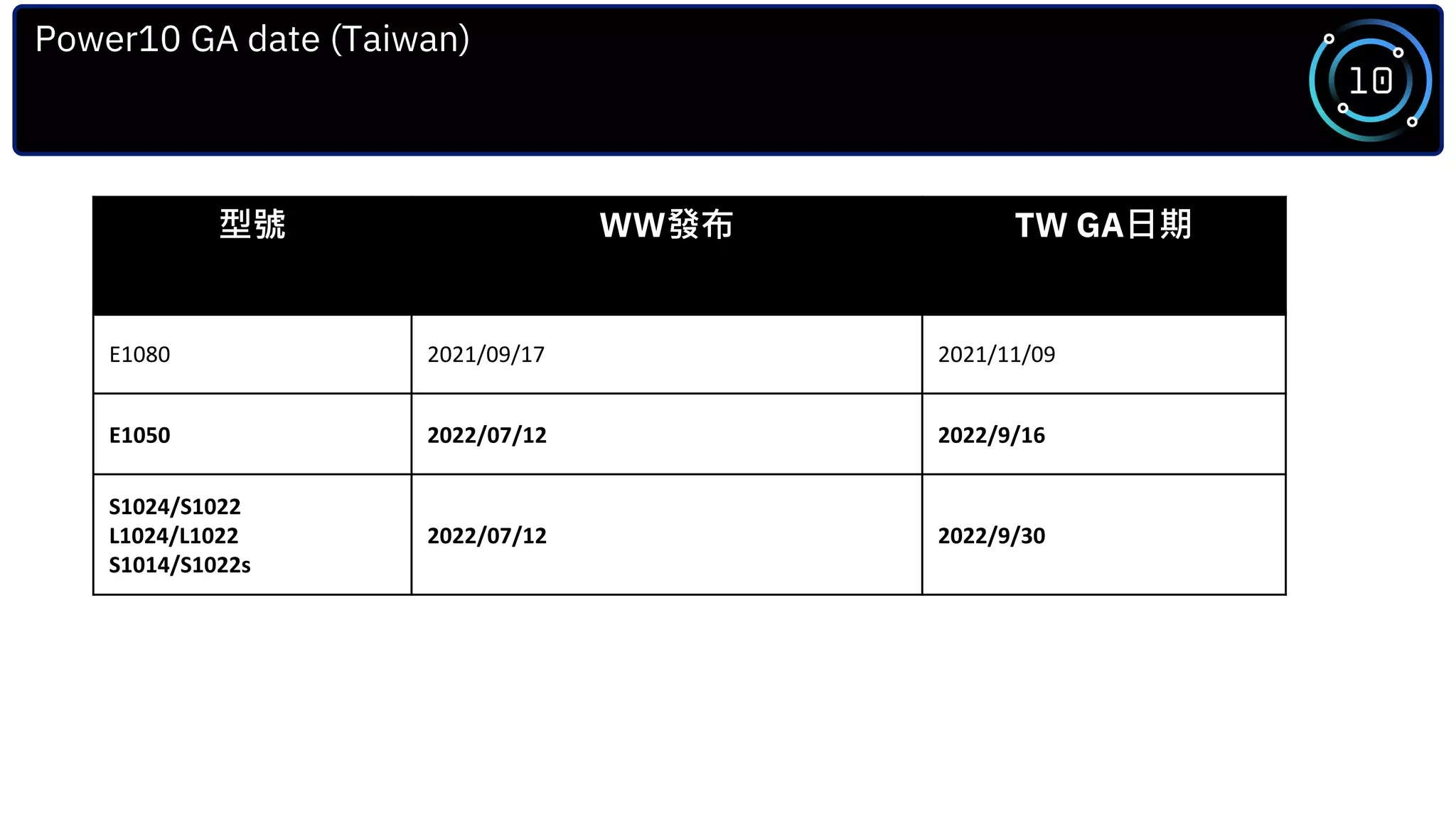

型號 WW發布 TW GA日期
E1080 2021/09/17 2021/11/09
E1050 2022/07/12 2022/9/16
S1024/S1022
L1024/L1022
S1014/S1022s
2022/07/12 2022/9/30
Power10 GA date (Taiwan)

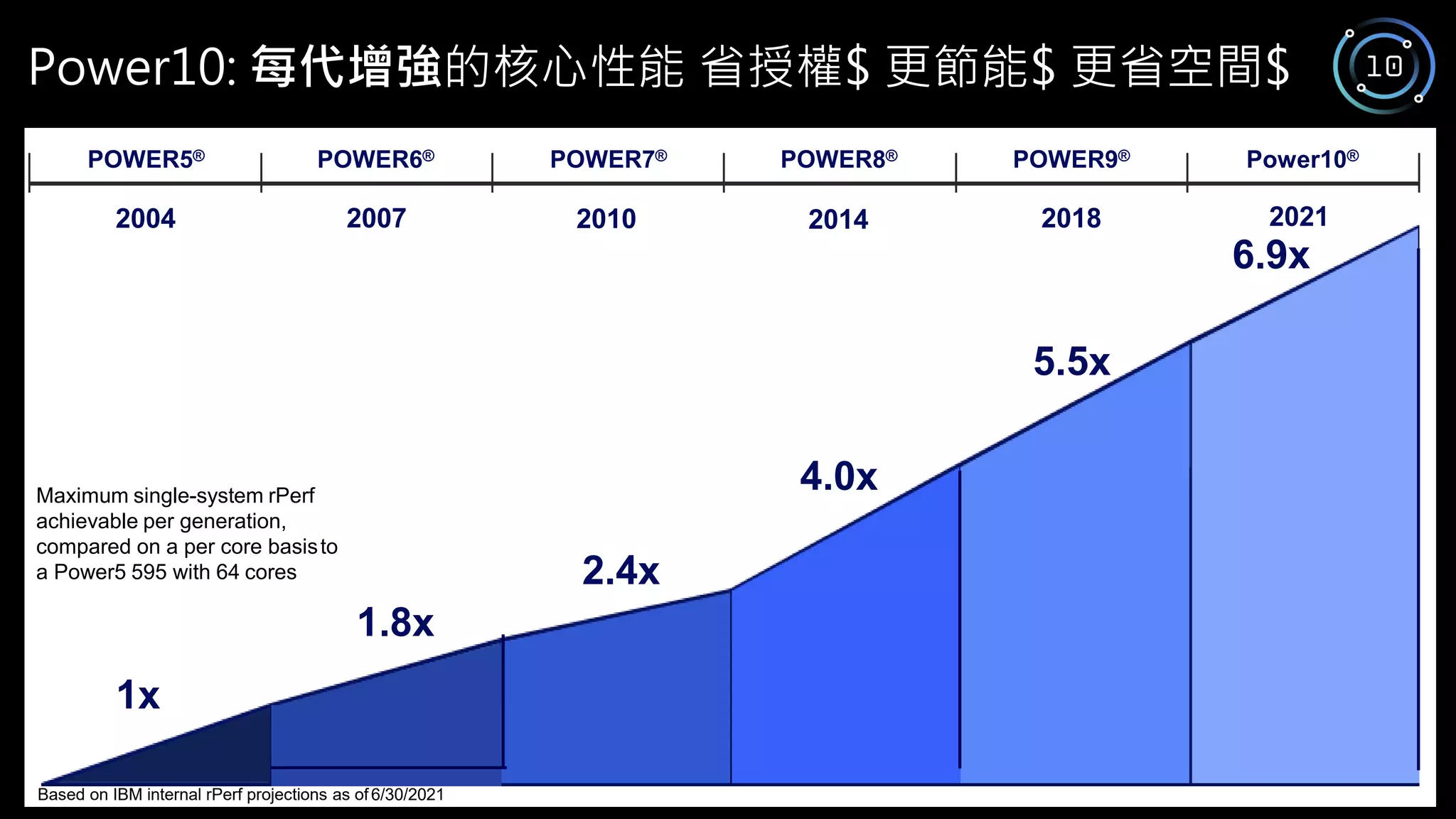

Power10: 每代增強的核心性能省授權$ 更節能$ 更省空間$
2004 2007 2010 2014 2018
POWER5® POWER6® POWER7® POWER8® POWER9® Power10®
1.8x
1x
2.4x
4.0x
5.5x
2021
6.9x
Maximum single-system rPerf
achievable per generation,
compared on a per core basisto
a Power5 595 with 64 cores
Based on IBM internal rPerf projections as of 6/30/2021

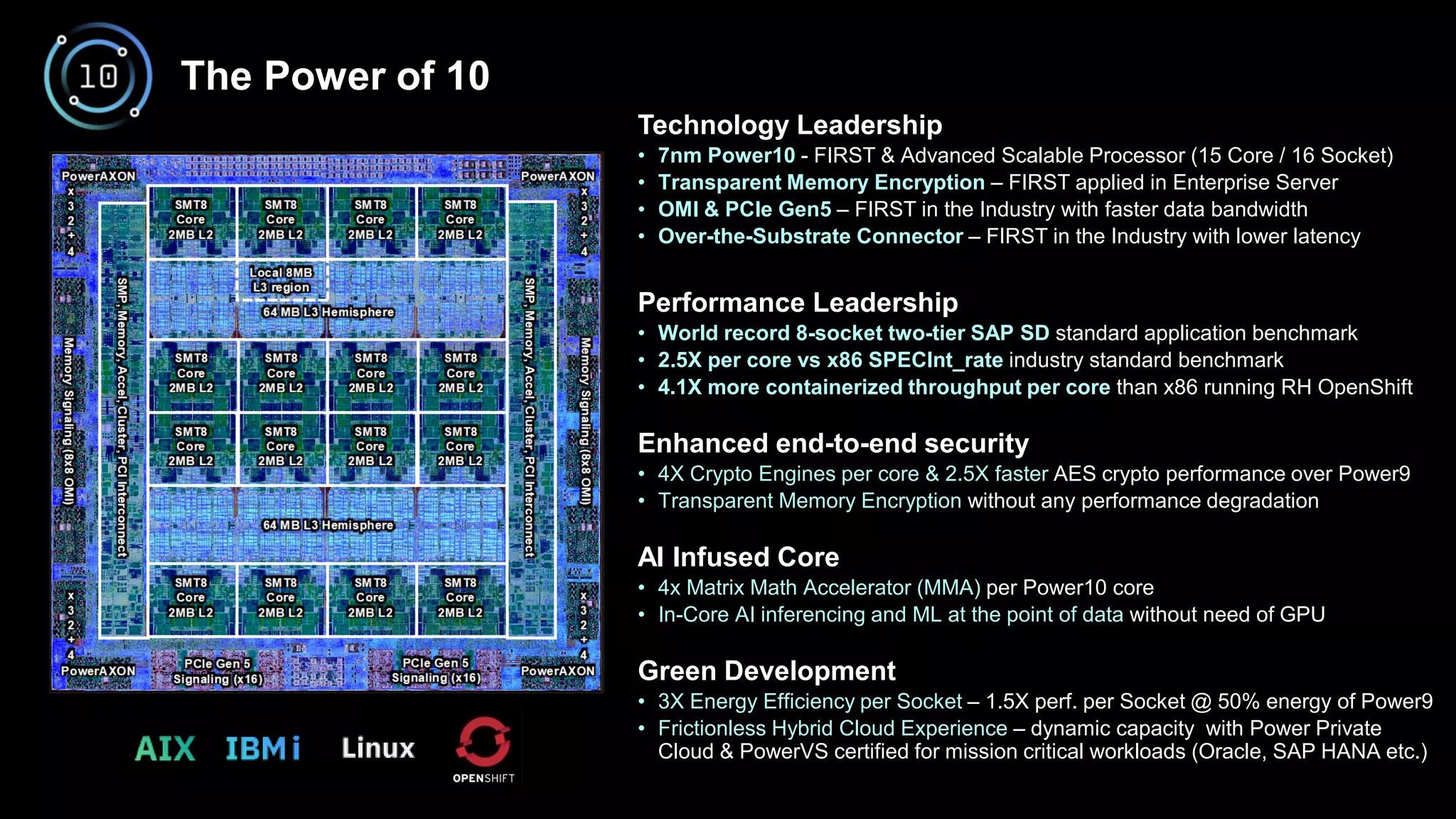

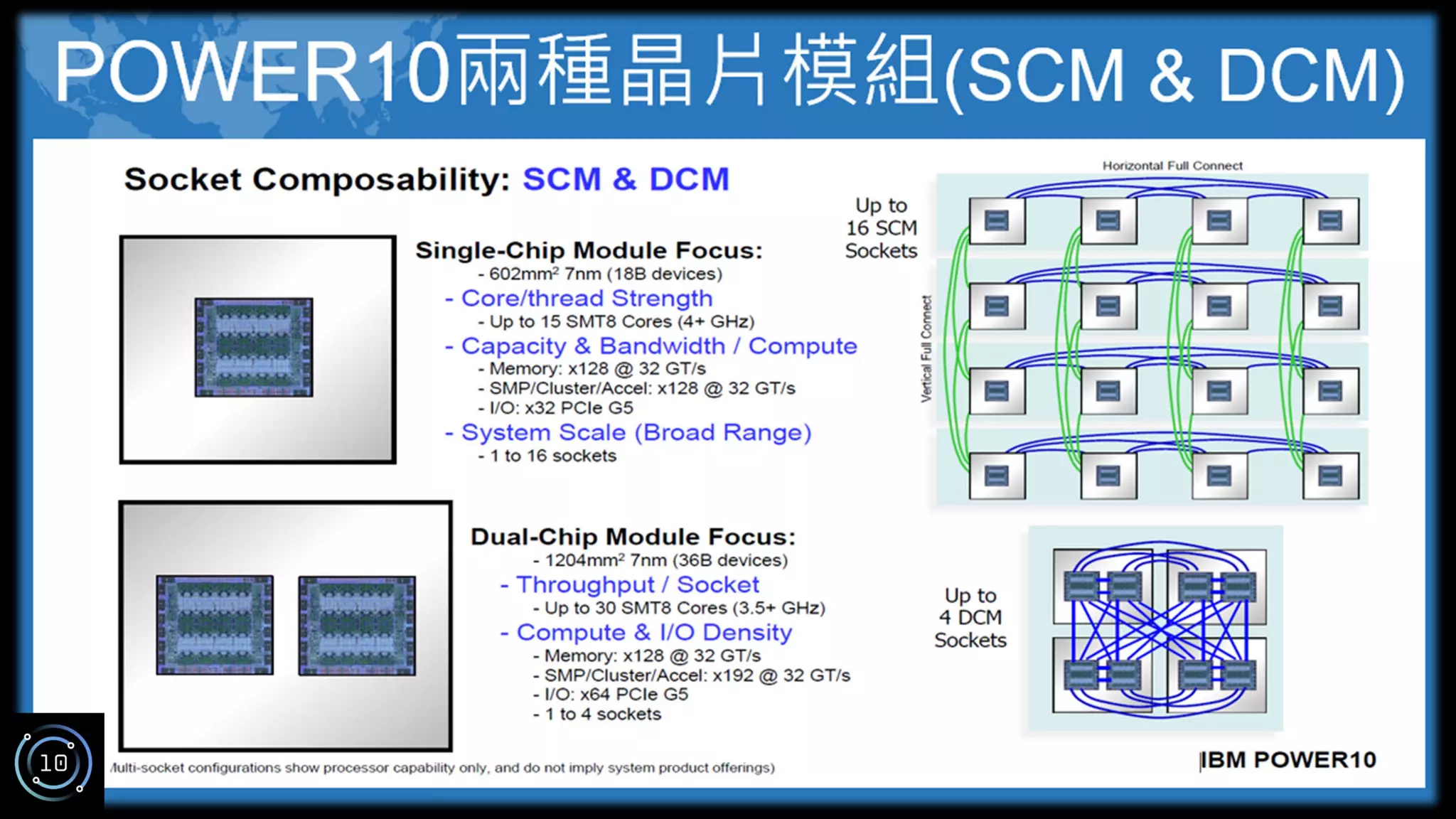

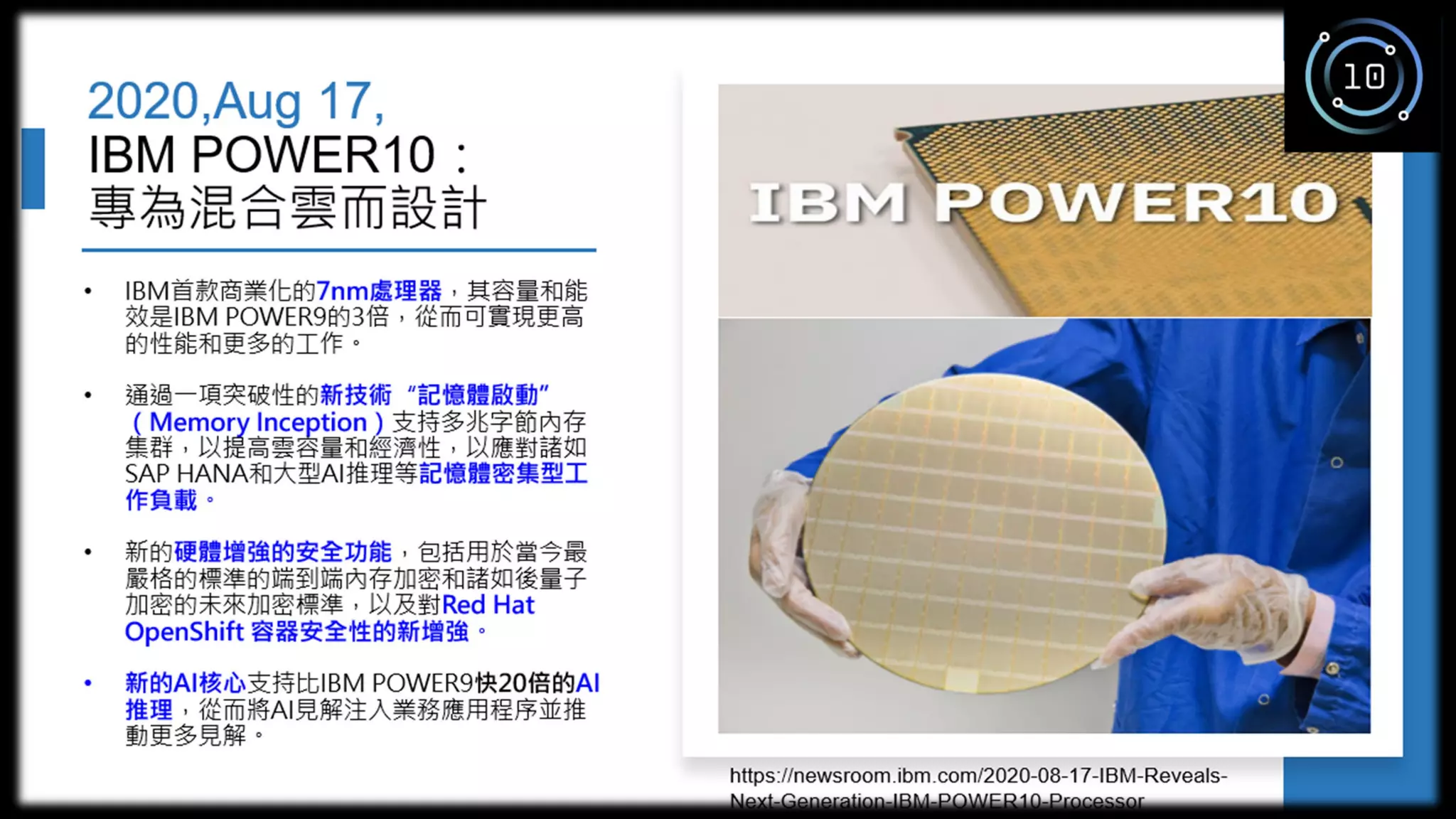

The Power of 10
Technology Leadership
• 7nm Power10 - FIRST & Advanced Scalable Processor (15 Core / 16 Socket)
• Transparent Memory Encryption – FIRST applied in Enterprise Server
• OMI & PCIe Gen5 – FIRST in the Industry with faster data bandwidth
• Over-the-Substrate Connector – FIRST in the Industry with lower latency
Performance Leadership
• World record 8-socket two-tier SAP SD standard application benchmark
• 2.5X per core vs x86 SPECInt_rate industry standard benchmark
• 4.1X more containerized throughput per core than x86 running RH OpenShift
Enhanced end-to-end security
• 4X Crypto Engines per core & 2.5X faster AES crypto performance over Power9
• Transparent Memory Encryption without any performance degradation

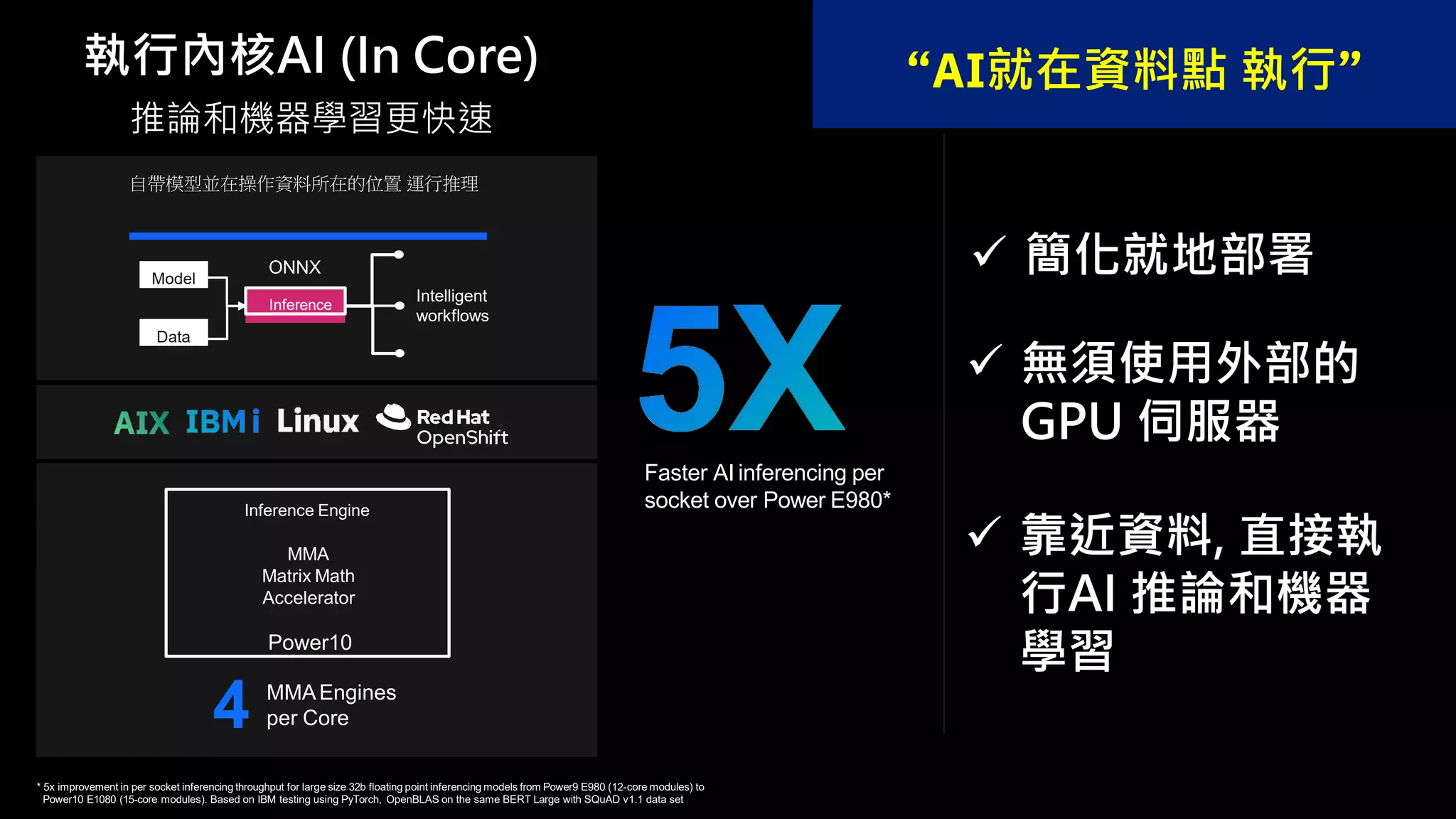

AI Infused Core
• 4x Matrix Math Accelerator (MMA) per Power10 core
• In-Core AI inferencing and ML at the point of data without need of GPU
Green Development
• 3X Energy Efficiency per Socket – 1.5X perf. per Socket @ 50% energy of Power9
• Frictionless Hybrid Cloud Experience – dynamic capacity with Power Private
Cloud & PowerVS certified for mission critical workloads (Oracle, SAP HANA etc.)

IBM Power

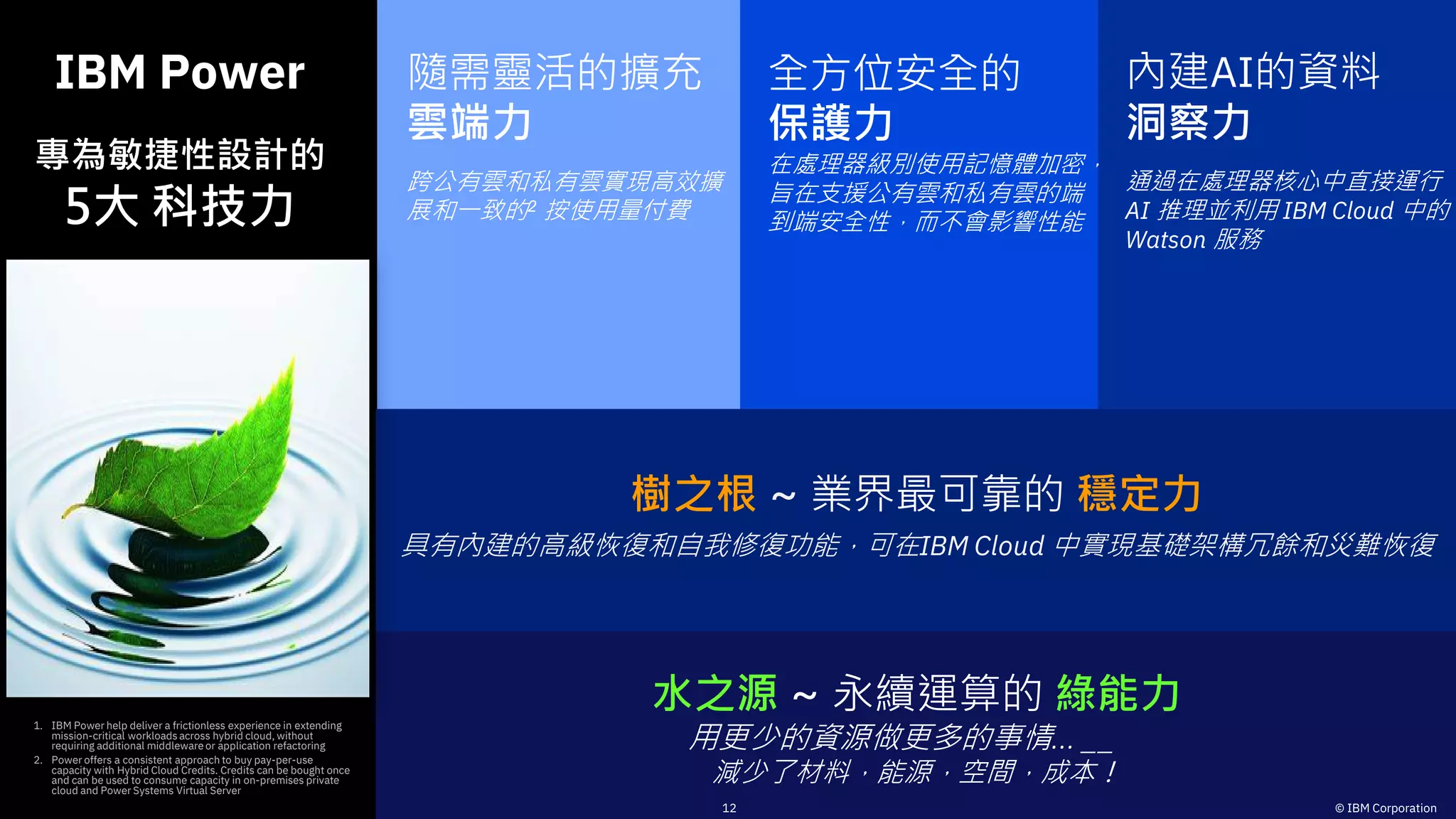

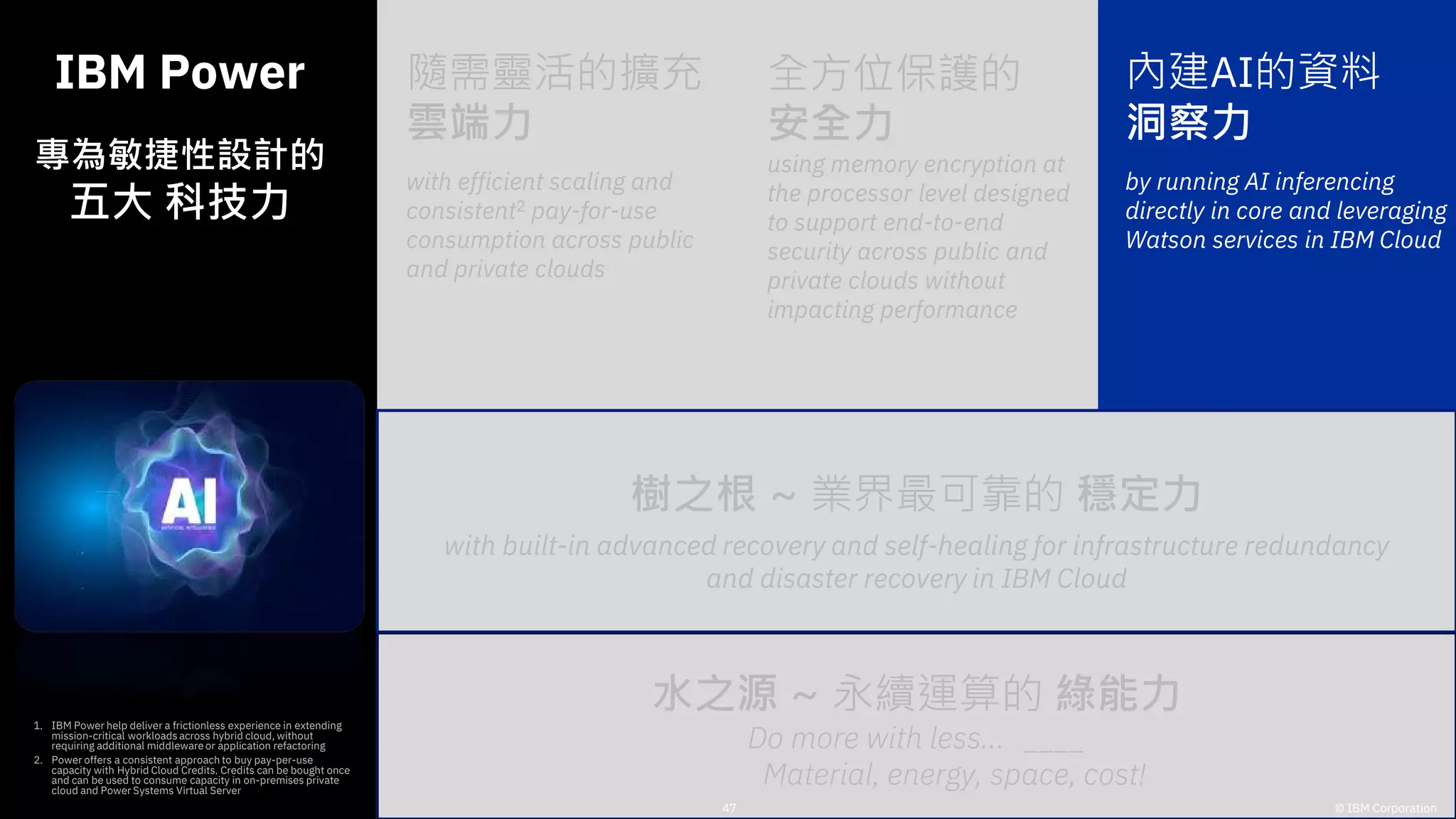

專為敏捷性設計的
5大科技力

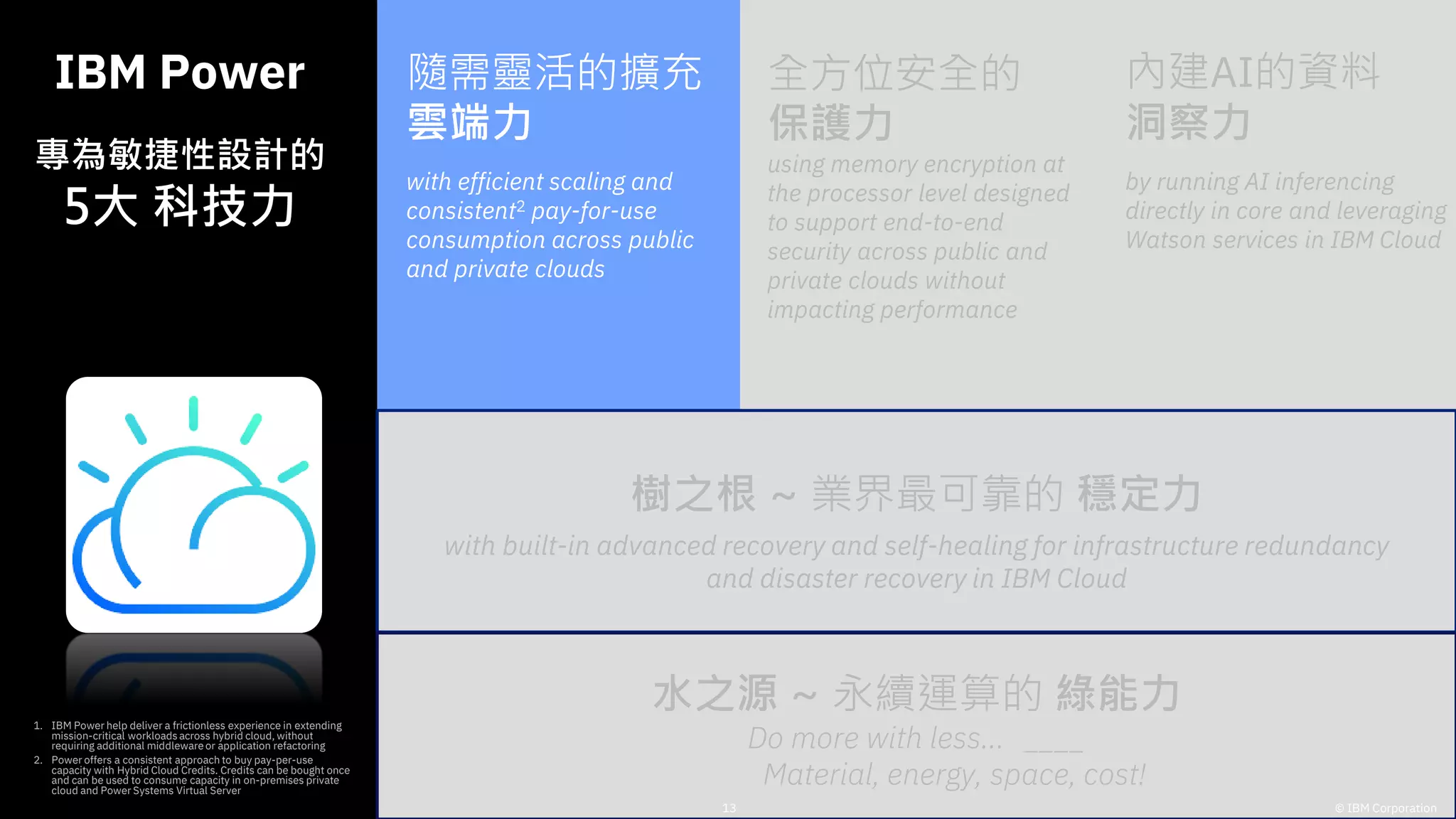

1. IBM Power help deliver a frictionless experience in extending
mission-critical workloadsacross hybrid cloud, without
requiring additional middleware or application refactoring
2. Power offers a consistent approach to buy pay-per-use
capacity with Hybrid Cloud Credits. Credits can be bought once
and can be used to consume capacity in on-premises private
cloud and Power Systems Virtual Server

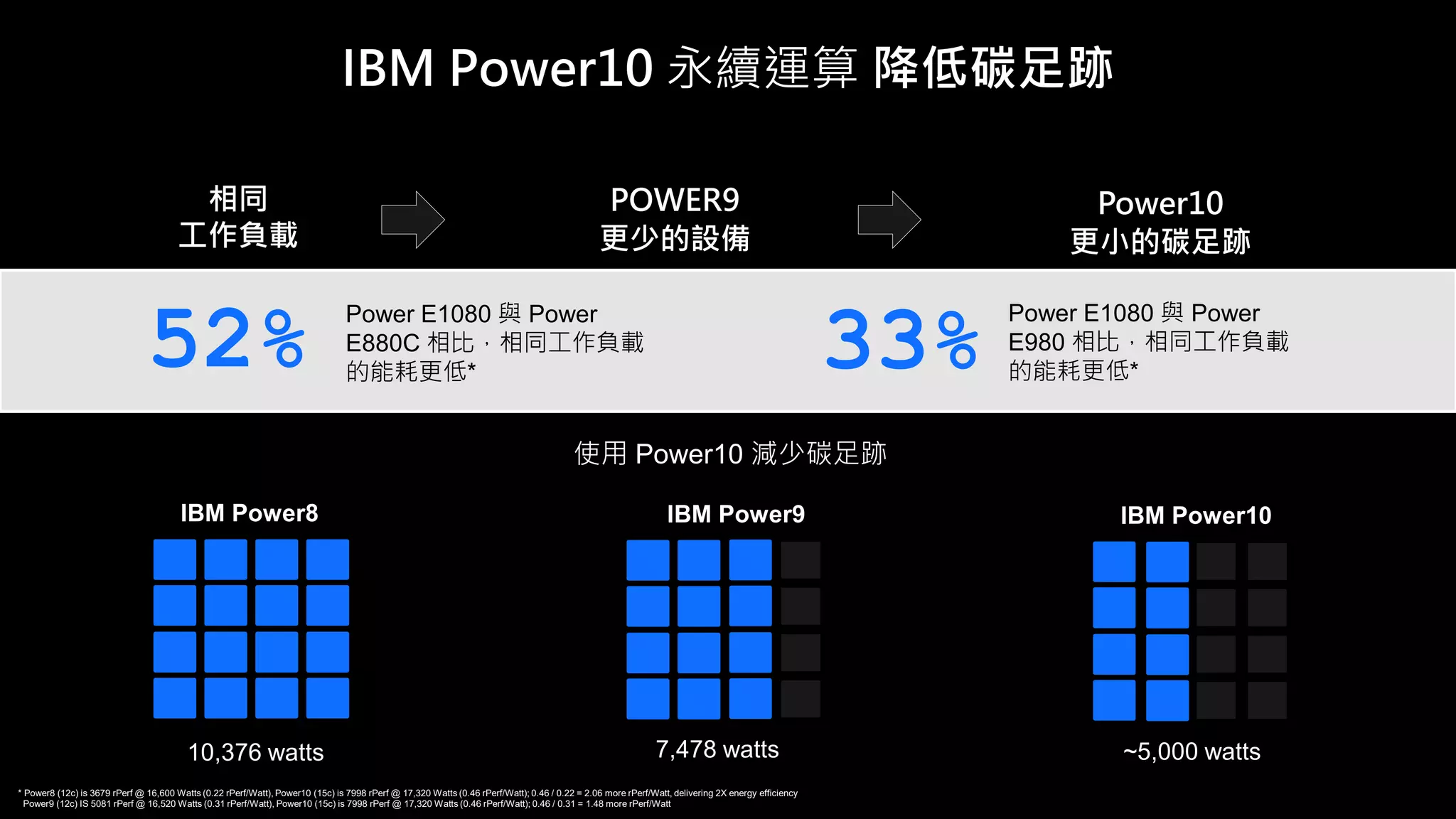

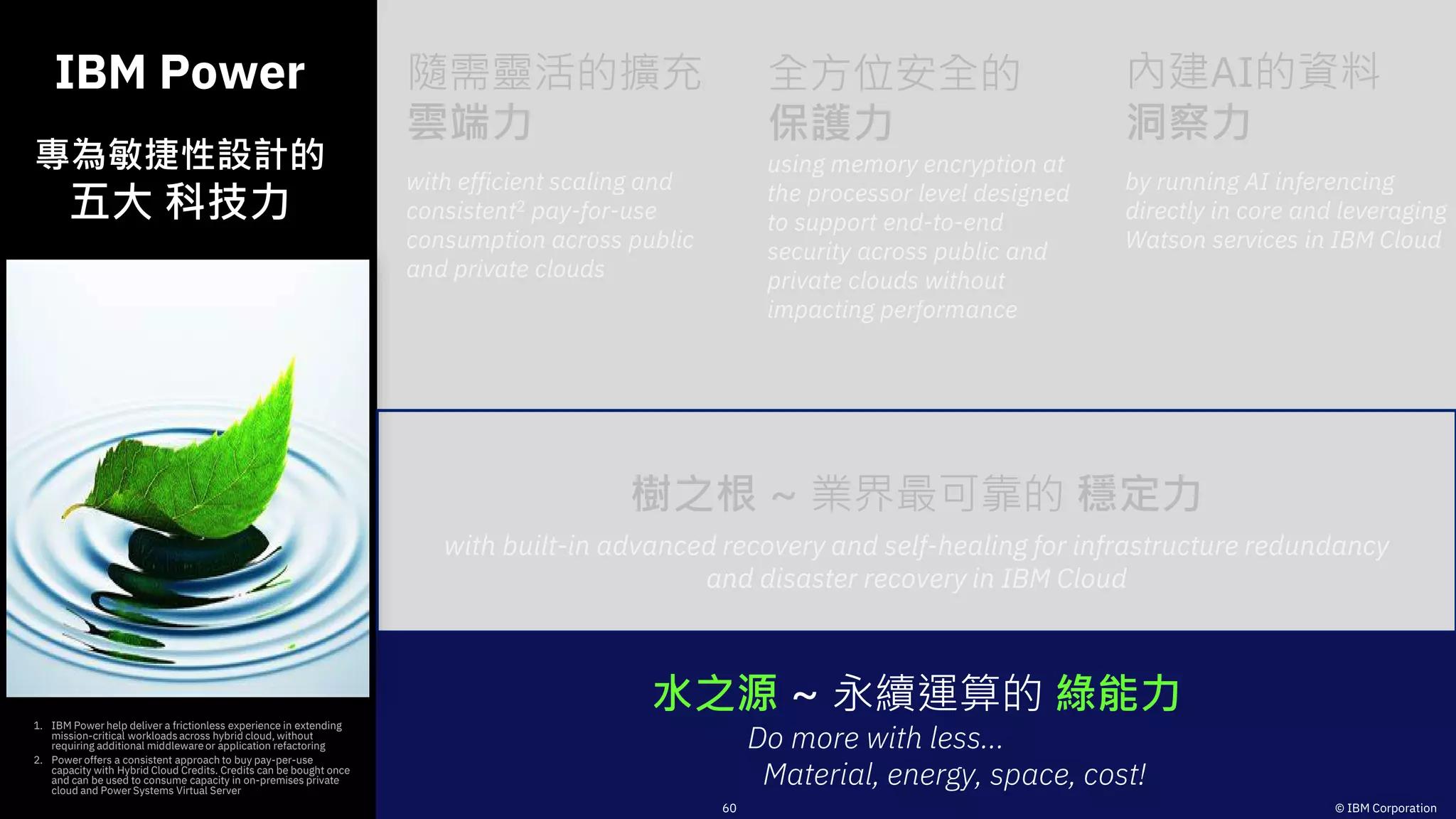

水之源 ~ 永續運算的綠能力
用更少的資源做更多的事情... ____
減少了材料，能源，空間，成本！
樹之根 ~ 業界最可靠的穩定力
具有內建的高級恢復和自我修復功能，可在IBM Cloud 中實現基礎架構冗餘和災難恢復
隨需靈活的擴充
雲端力
跨公有雲和私有雲實現高效擴
展和一致的2 按使用量付費

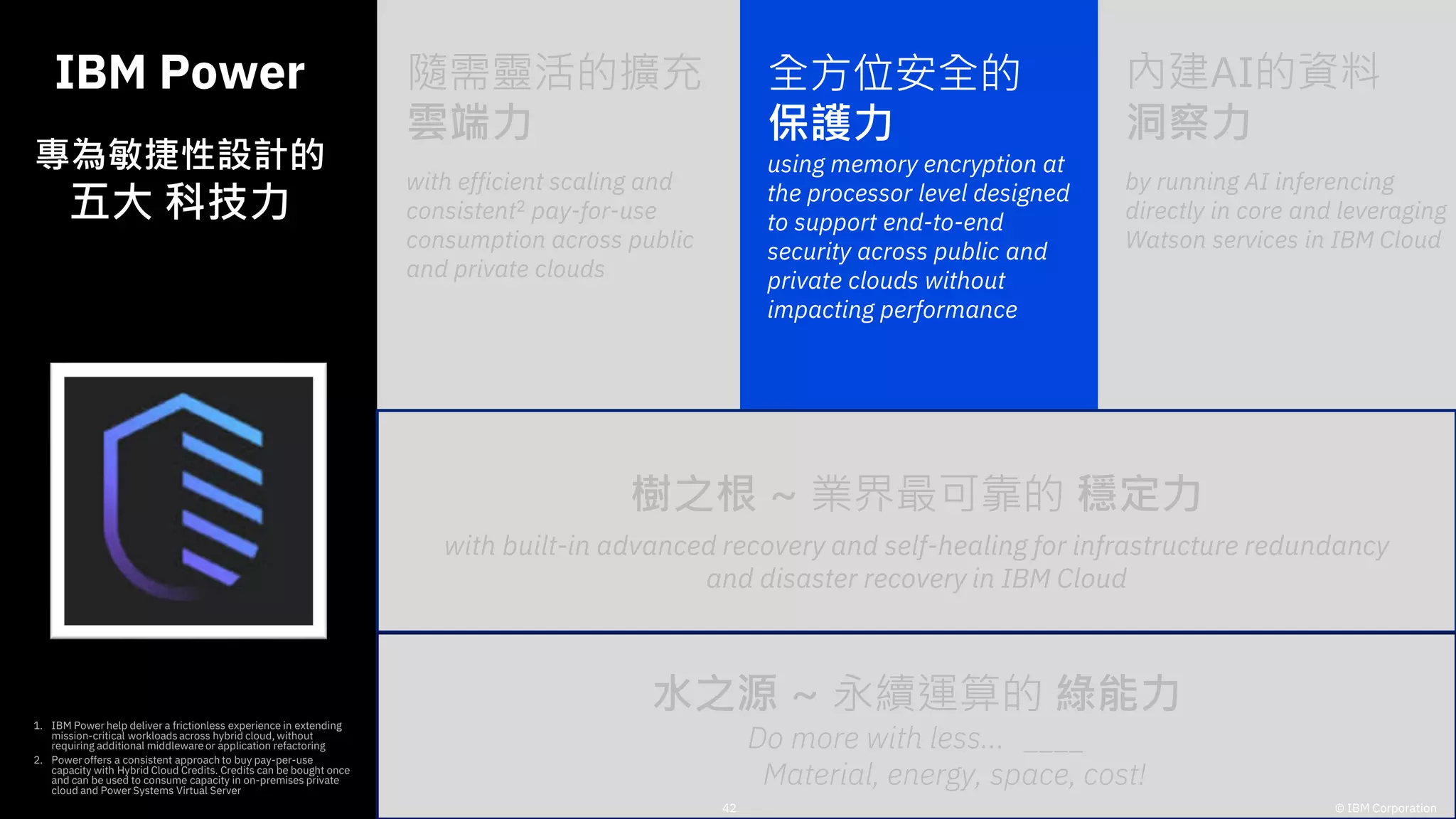

全方位安全的
保護力
在處理器級別使用記憶體加密，
旨在支援公有雲和私有雲的端
到端安全性，而不會影響性能
內建AI的資料
洞察力
通過在處理器核心中直接運行
AI 推理並利用 IBM Cloud 中的
Watson 服務
12 © IBM Corporation

IBM Power
5大科技力
Do more with less… ____
Material, energy, space, cost!
with built-in advanced recovery and self-healing for infrastructure redundancy
and disaster recovery in IBM Cloud
雲端力
with efficient scaling and
consistent2 pay-for-use
consumption across public
and private clouds
全方位安全的
保護力
using memory encryption at
the processor level designed
to support end-to-end
security across public and
private clouds without
impacting performance
內建AI的資料
洞察力
by running AI inferencing
directly in core and leveraging
Watson services in IBM Cloud

IBM Power
專為敏捷性而
設計
通過無摩擦的混合
雲體驗實現現代化
14

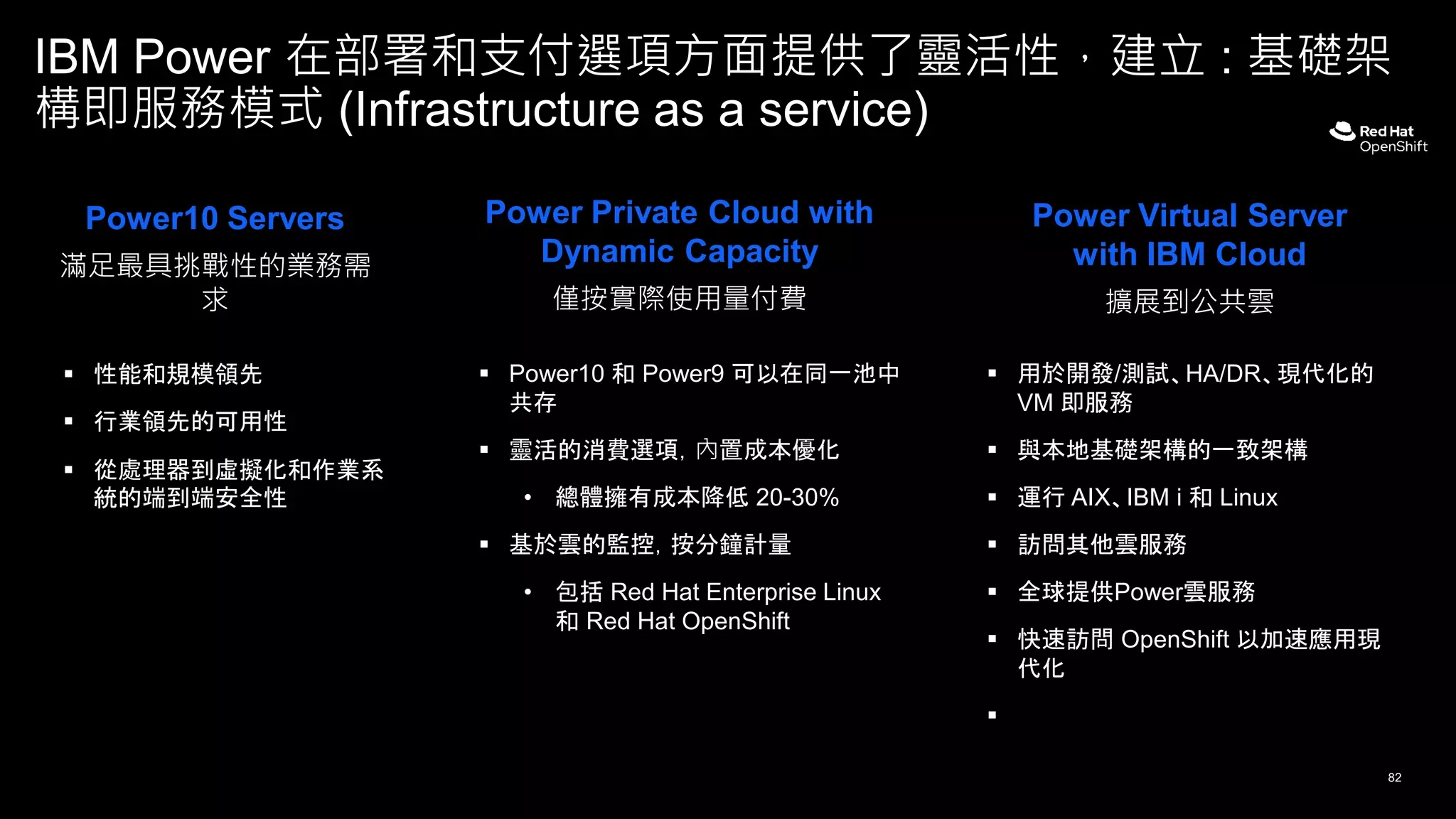

Consume Infrastructure-as-a-Service
部署、管理和支付選項的靈活性
 Flexible consumption
options with built-in cost
optimization
 20-30% lower
TCO
 ~ 50% lower TCA
 Simple agility to respond
to business demands
 Cloud-based monitoring,
metering by the minute &
Real Time
 Leadership Performance
and Scale
 Industry-leading
Availability
 Flexibility & Agility
 End to end Security
from the processor to
virtualization and OS
 VM-as-a-Service
 Consistent architecture to
on-prem infrastructure
 AIX, IBM i and Linux
 Access to other cloud
services
 Expanding locations and
capability
Power Private Cloud
with Dynamic Capacity
Pay only for what you use
Cloud Capabilities On-Prem. with
Advanced Monitoring
Power Virtual Server
with IBM Cloud
Extend to Cloud
Same mission Critical Infrastructure as on-prem,
for Dev/Test, HA/DR, Modernization
IBM Power
Business Continuity and Agility
Designed for the most challenging
business requirements

Optimize IT costs with flexible, pay for use consumption
具有雲經濟性、領先業務連續性和安全性的本地系統基礎架構
Power E1050/E950
Power E980
Power E1080
*Available on Power E1080, E980 and E950 systems
Power
S1022/S1024/
S922/S924

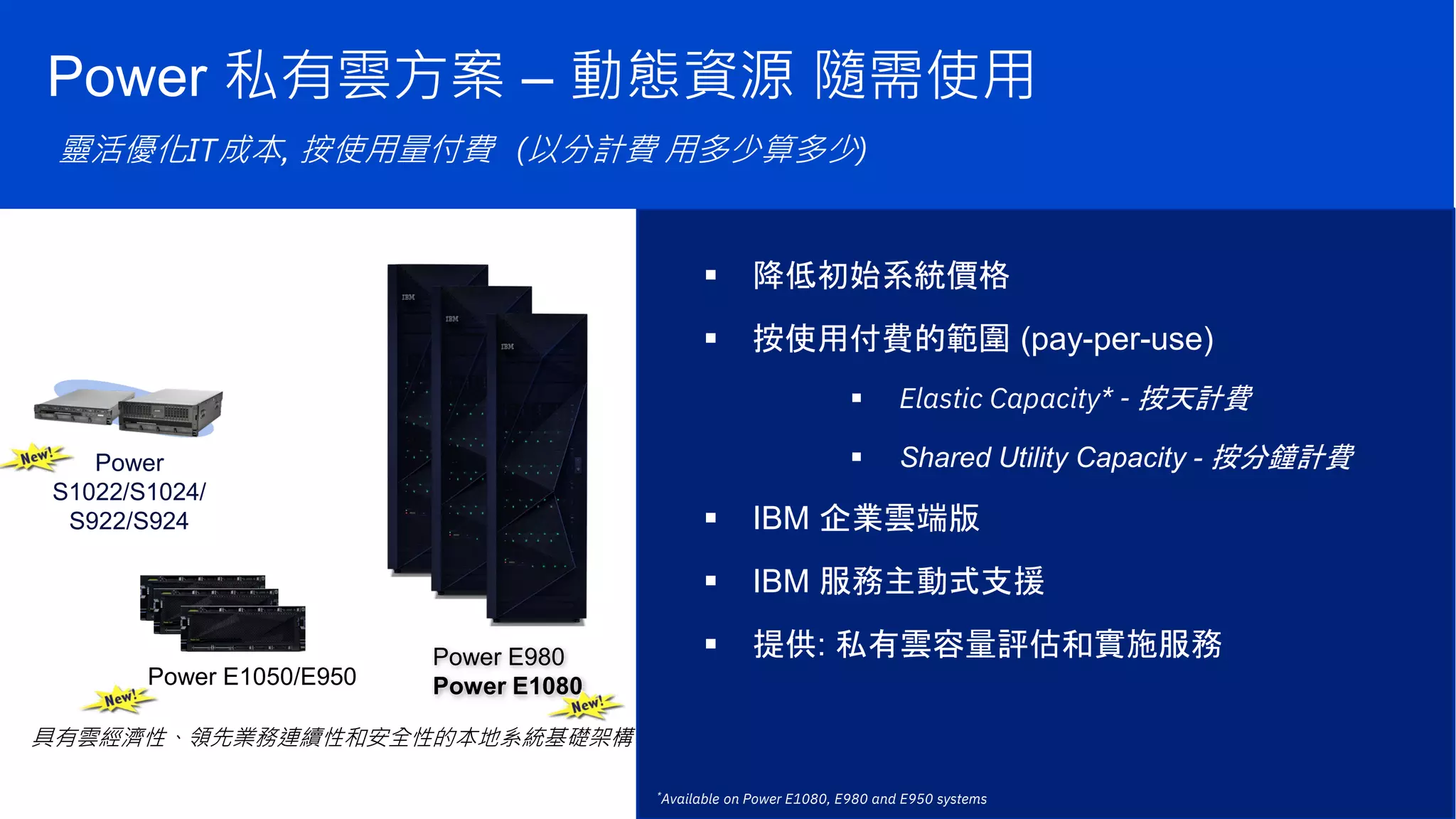

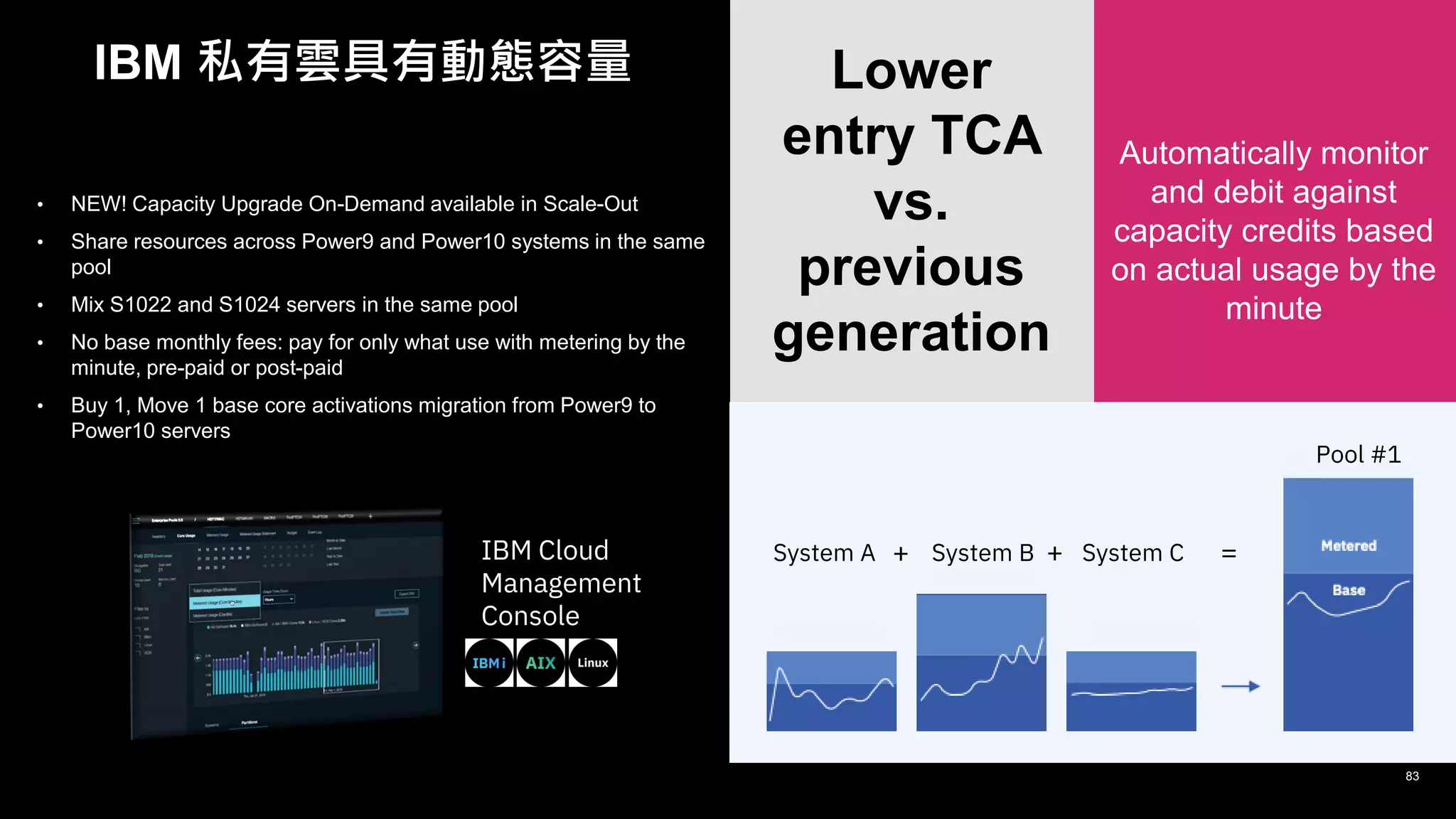

Power 私有雲方案 – 動態資源隨需使用
靈活優化IT成本, 按使用量付費 (以分計費用多少算多少)
 降低初始系統價格
 按使用付費的範圍 (pay-per-use)
 Elastic Capacity* - 按天計費
 Shared Utility Capacity - 按分鐘計費
 IBM 企業雲端版
 IBM 服務主動式支援
 提供: 私有雲容量評估和實施服務

© 2022 IBM Corporation

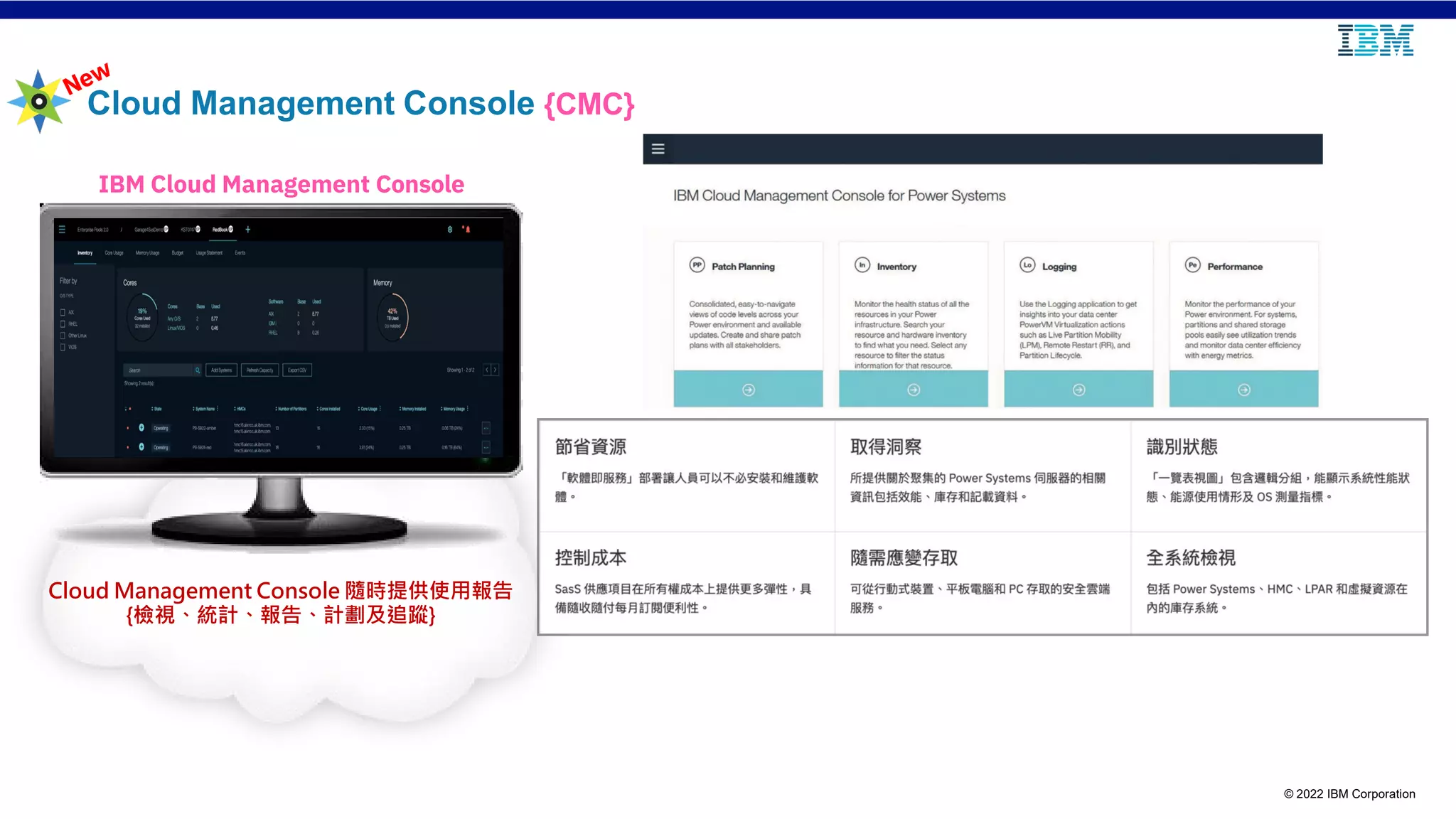

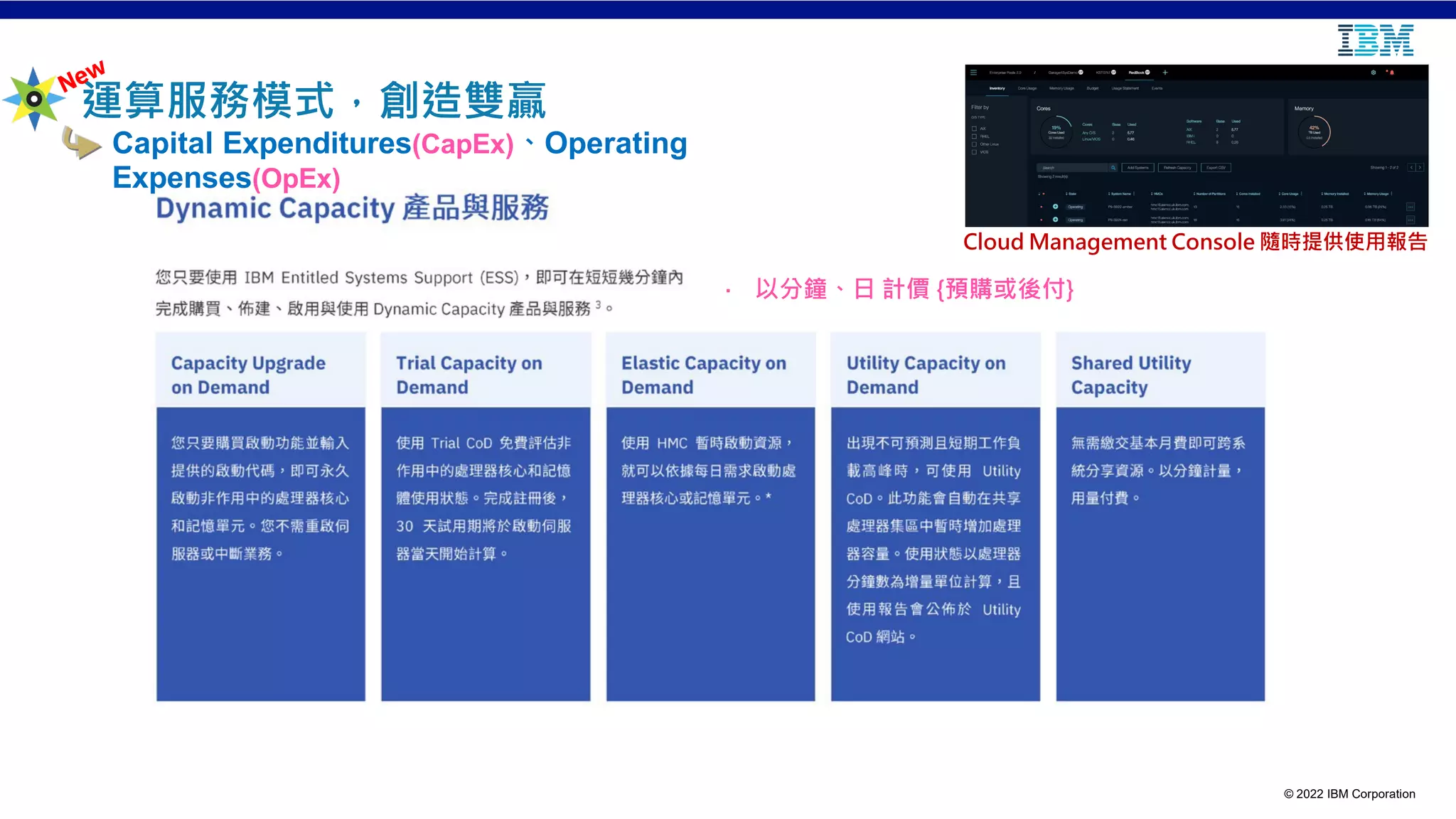

Power Private Cloud with Dynamic Capacity
Shared Utility Capacity across a pool of Power systems
• 購買一個或多個具有基本容量的系統（Base Capacity）
• 通過購買計量容量的容量積分解決可變需求(Capacity Credits)
• Cloud Management Console with HMC自動跟蹤池內的資源消耗並
扣除任何費用用於針對容量積分的計量容量使用 (Meter capacity
and Capacity Credits)
Utility Capacity由基本容量(Base Capacity)和計量容量
(Meter Capacity)組成
• Processor activations
• Memory activations
• AIX and IBM i licenses
每個資源的使用方式按分鐘跟蹤，通過以下方式
Cloud Management Console (CMC)
Base
Metered
All processor & memory resources are fully activated
Enterprise Pools為私有、公共與混合雲端架構提供強大基
礎，具有極高彈性。當工作量或架構產生變化，即能迅速反
應。
16
好處: 當工作量或架構產生變化，即能迅速反
應
Available
Base Activations
(purchased / permanent /
sharable / CapEx)
Metered via Credits
(pay for use / dynamic
/ OpEx)

探索 IBM Power

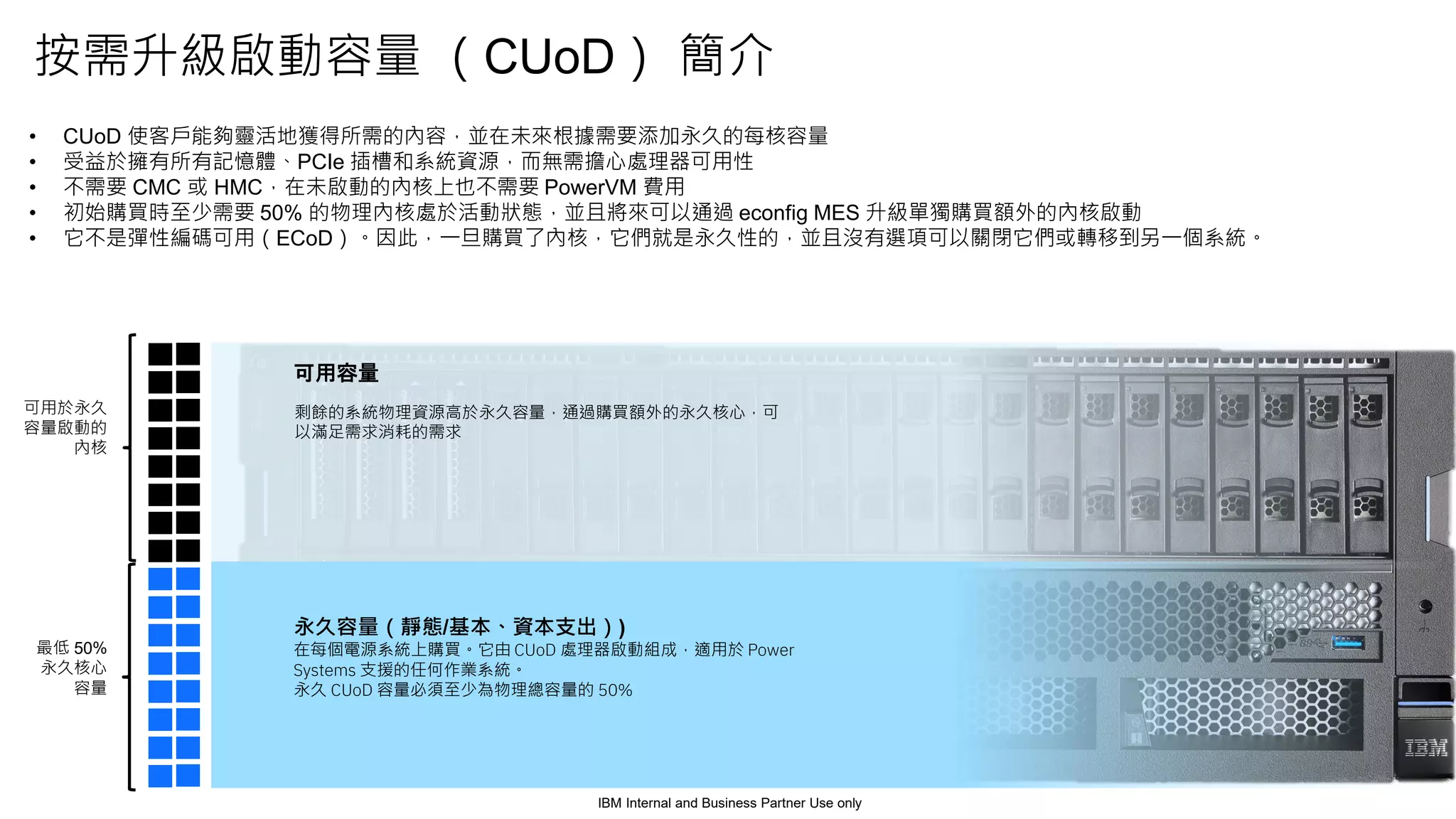

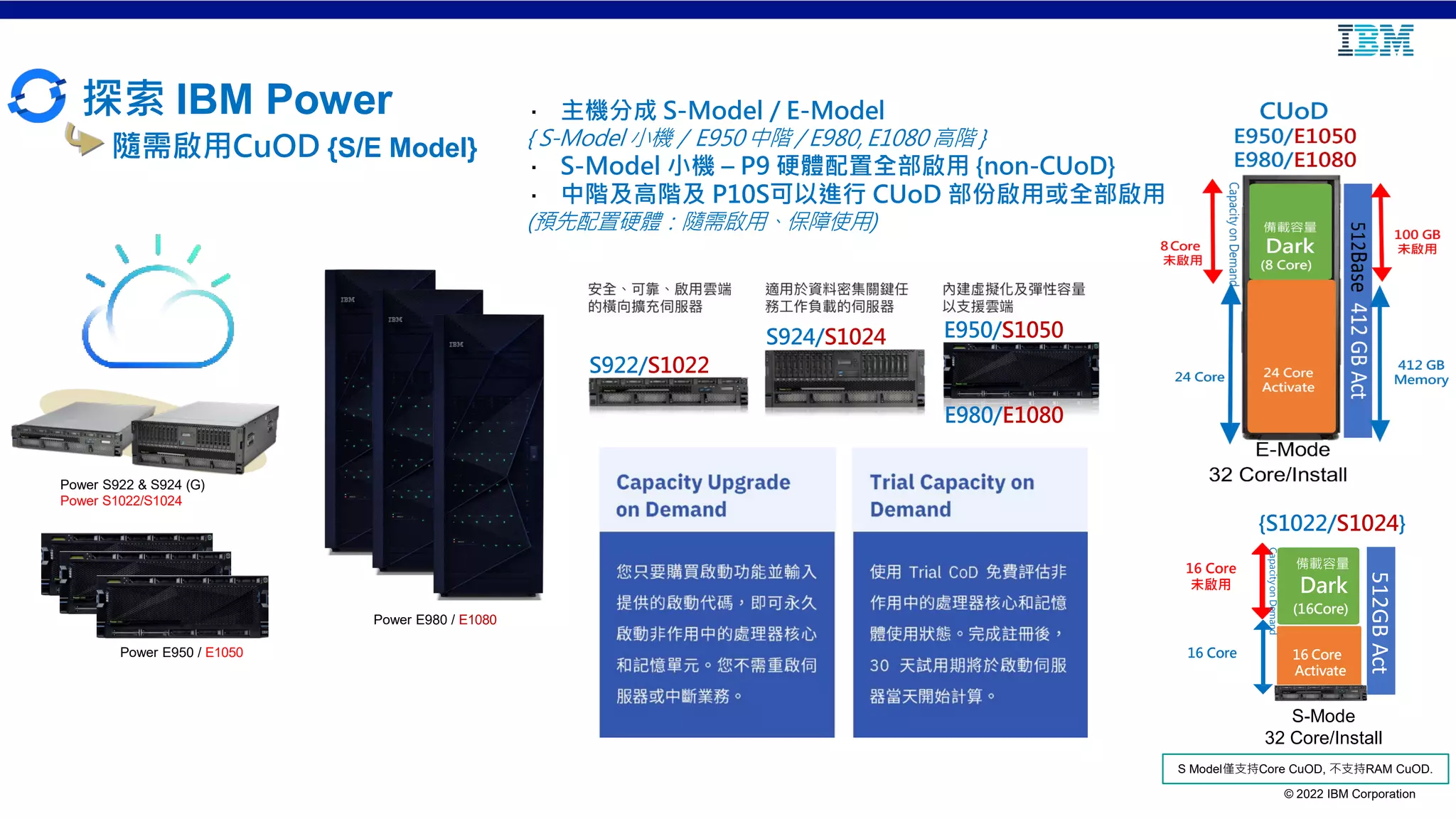

隨需啟用CuOD {S/E Model}
Power E950 / E1050
Power E980 / E1080
Power S922 & S924 (G)
Power S1022/S1024
· 主機分成 S-Model / E-Model
{ S-Model 小機 / E950中階 / E980, E1080 高階 }
· S-Model 小機 – P9 硬體配置全部啟用 {non-CUoD}
· 中階及高階及 P10S可以進行 CUoD 部份啟用或全部啟用
(預先配置硬體：隨需啟用、保障使用)
S922/S1022
S924/S1024 E950/S1050
E980/E1080
{S1022/S1024}
512GB
Act
16 Core
Activate
備載容量
Dark
(16Core)
16 Core
16 Core
未啟用
Capacity
on
Demand
S-Mode
32 Core/Install
S Model僅支持Core CuOD, 不支持RAM CuOD.

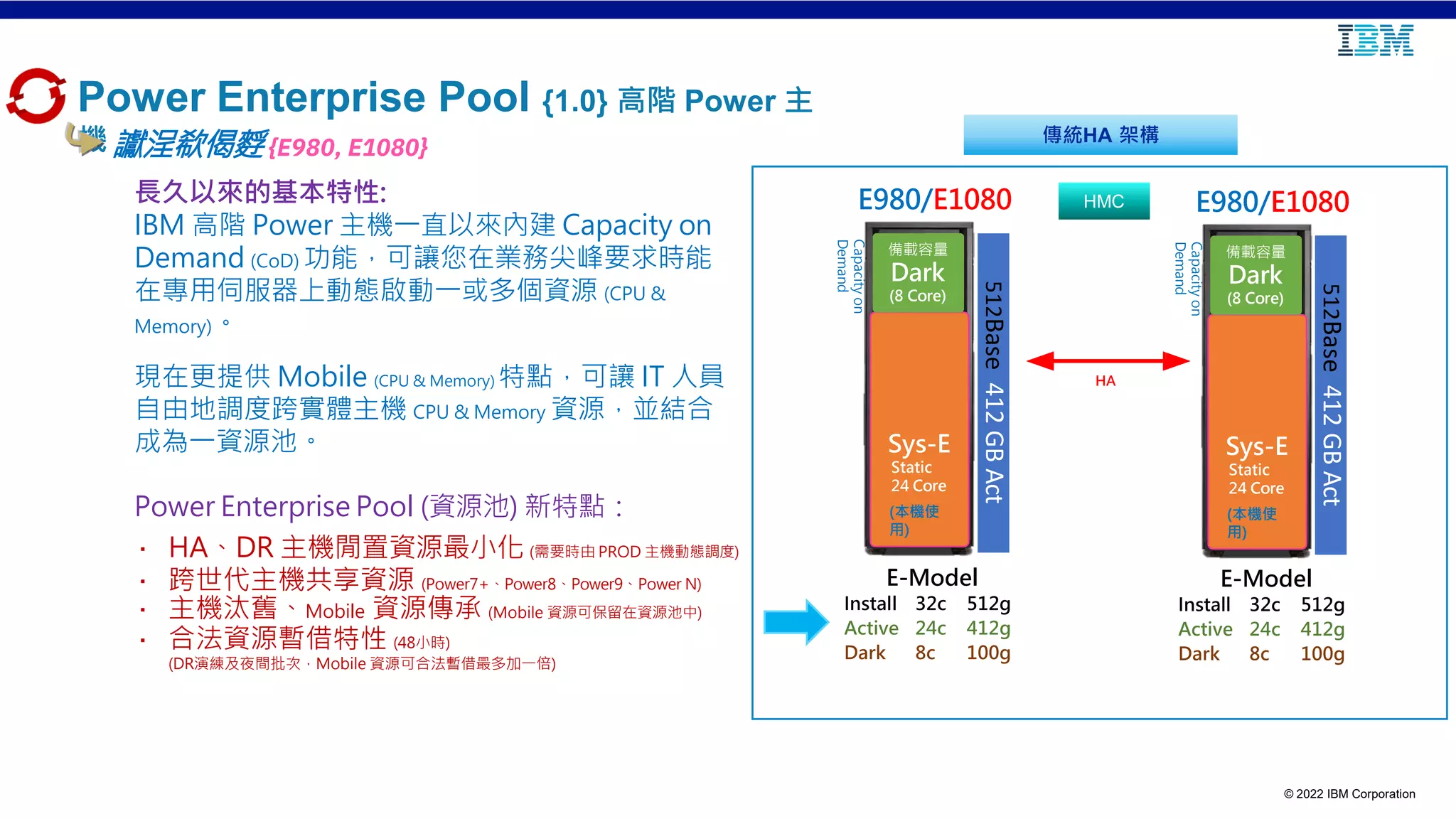

Power Enterprise Pool {1.0} 高階 Power 主
機讞浧欷偈䴸{E980, E1080}
長久以來的基本特性:
IBM 高階 Power 主機一直以來內建 Capacity on
Demand (CoD) 功能，可讓您在業務尖峰要求時能
在專用伺服器上動態啟動一或多個資源 (CPU &
Memory)。
現在更提供 Mobile (CPU & Memory) 特點，可讓 IT 人員
自由地調度跨實體主機 CPU & Memory 資源，並結合
成為一資源池。
Power Enterprise Pool (資源池) 新特點：
· HA、DR 主機閒置資源最小化 (需要時由 PROD 主機動態調度)
· 跨世代主機共享資源 (Power7+、Power8、Power9、Power N)
· 主機汰舊、Mobile 資源傳承 (Mobile 資源可保留在資源池中)
· 合法資源暫借特性 (48小時)
(DR演練及夜間批次，Mobile 資源可合法暫借最多加一倍)
E980/E1080
512
Base
412
GB
Act
Sys-E
Static
24 Core
備載容量
Dark
(8 Core)
Capacity
on
Demand
(本機使
用)
E980/E1080
512
Base
412
GB
Act
Sys-E
Static
24 Core
備載容量
Dark
(8 Core)
Capacity
on
Demand
(本機使
用)
HA
E-Model
Install 32c 512g
Active 24c 412g
Dark 8c 100g
E-Model
Install 32c 512g
Active 24c 412g
Dark 8c 100g
傳統HA 架構
HMC

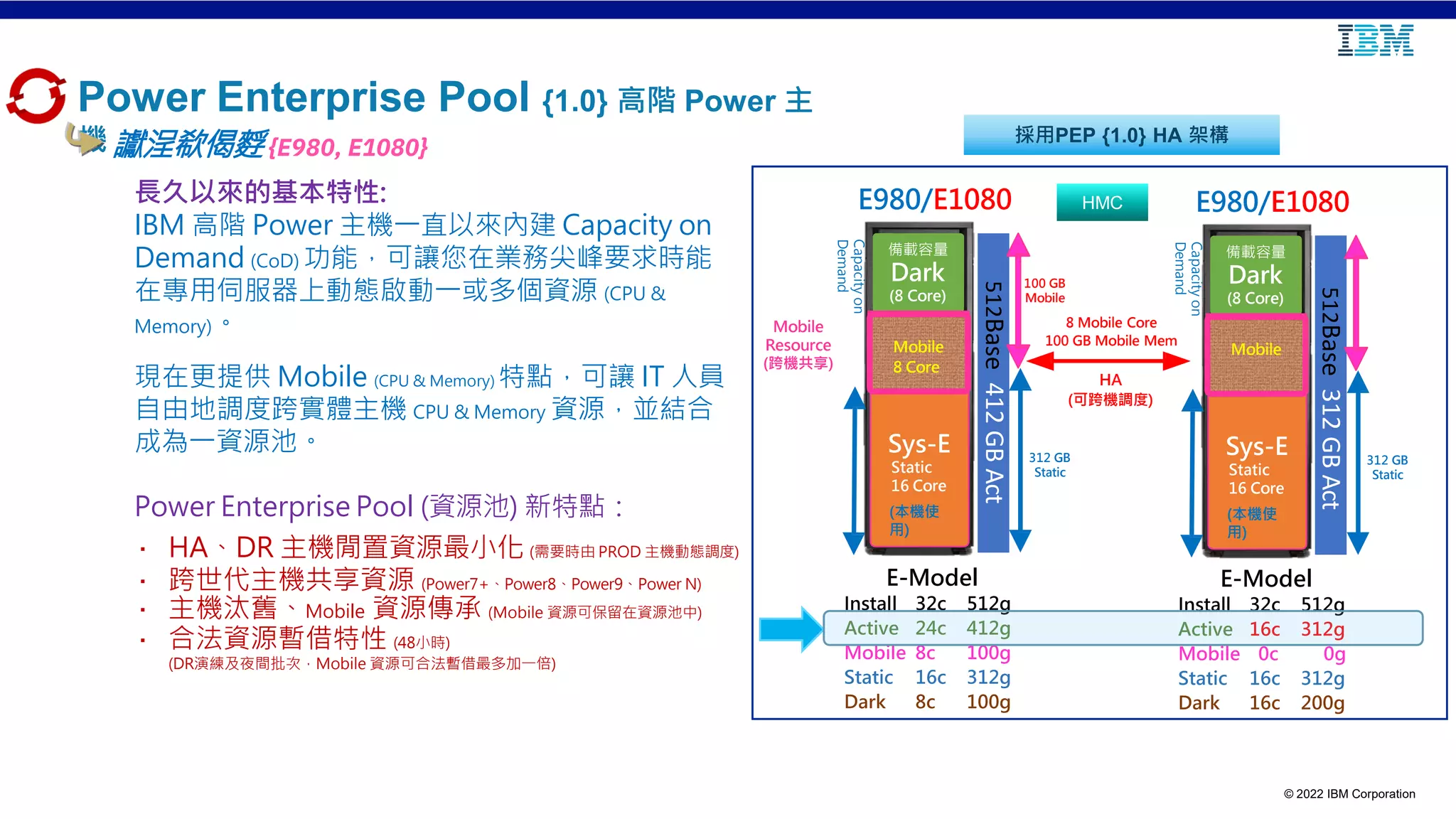

Power Enterprise Pool {1.0} 高階 Power 主
機讞浧欷偈䴸{E980, E1080}
長久以來的基本特性:
IBM 高階 Power 主機一直以來內建 Capacity on
Demand (CoD) 功能，可讓您在業務尖峰要求時能
在專用伺服器上動態啟動一或多個資源 (CPU &
Memory)。
現在更提供 Mobile (CPU & Memory) 特點，可讓 IT 人員
自由地調度跨實體主機 CPU & Memory 資源，並結合
成為一資源池。
Power Enterprise Pool (資源池) 新特點：
· HA、DR 主機閒置資源最小化 (需要時由 PROD 主機動態調度)
· 跨世代主機共享資源 (Power7+、Power8、Power9、Power N)
· 主機汰舊、Mobile 資源傳承 (Mobile 資源可保留在資源池中)
· 合法資源暫借特性 (48小時)
(DR演練及夜間批次，Mobile 資源可合法暫借最多加一倍)
E980/E1080
512
Base
412
GB
Act
Sys-E
Static
16 Core
備載容量
Dark
(8 Core)
312 GB
Static
Capacity
on
Demand
Mobile
8 Core
100 GB
Mobile
(本機使
用)
E980/E1080
512
Base
312
GB
Act
Sys-E
Static
16 Core
備載容量
Dark
(8 Core)
312 GB
Static
Capacity
on
Demand
Mobile
(本機使
用)
8 Mobile Core
100 GB Mobile Mem
HA
(可跨機調度)
E-Model
Install 32c 512g
Active 24c 412g
Mobile 8c 100g
Static 16c 312g
Dark 8c 100g
E-Model
Install 32c 512g
Active 16c 312g
Mobile 0c 0g
Static 16c 312g
Dark 16c 200g
Mobile
Resource
(跨機共享)
採用PEP {1.0} HA 架構
HMC

Power Enterprise

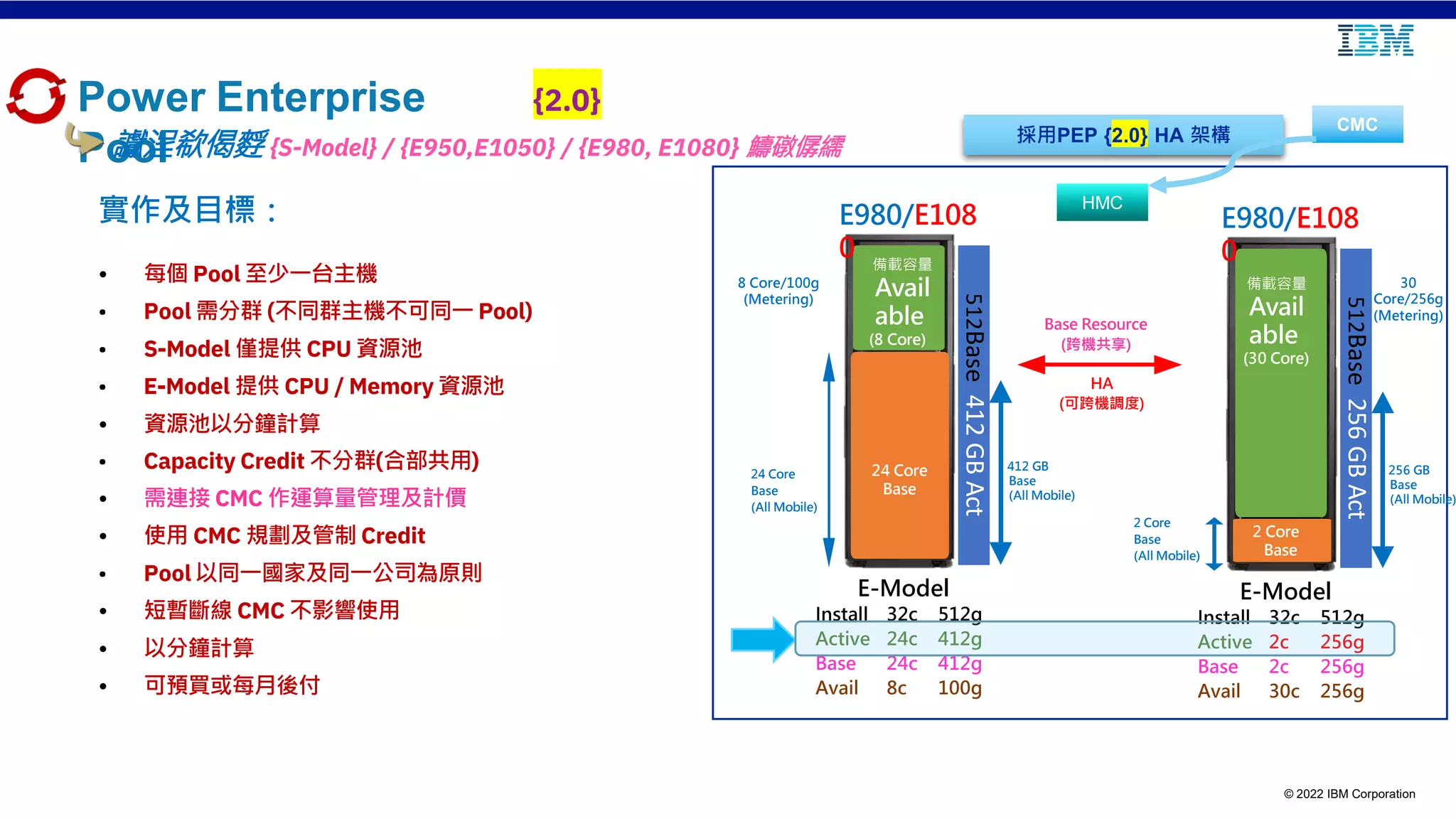

Pool
{2.0}
讞浧欷偈䴸 {S-Model} / {E950,E1050} / {E980, E1080} 䲖礅僝繻
512
Base
412
GB
Act
24 Core
Base
24 Core
Base
(All Mobile)
412 GB
Base
(All Mobile)
實作及目標：
• 每個 Pool 至少一台主機
• Pool 需分群 (不同群主機不可同一 Pool)
• S-Model 僅提供 CPU 資源池
• E-Model 提供 CPU / Memory 資源池
• 資源池以分鐘計算
• Capacity Credit 不分群(合部共用)
• 需連接 CMC 作運算量管理及計價
• 使用 CMC 規劃及管制 Credit
• Pool 以同一國家及同一公司為原則
• 短暫斷線 CMC 不影響使用
• 以分鐘計算
• 可預買或每月後付
E-Model
Install 32c 512g
Active 24c 412g
Base 24c 412g
Avail 8c 100g
E980/E108
0
512
Base
256
GB
Act
2 Core
Base
備載容量
Avail
able
(30 Core)
E-Model
Install 32c 512g
Active 2c 256g
Base 2c 256g
Avail 30c 256g
E980/E108
0
256 GB
Base
(All Mobile)
2 Core
Base
(All Mobile)
HA
(可跨機調度)
Base Resource
(跨機共享)
HMC
CMC
備載容量
Avail
able
(8 Core)
8 Core/100g
(Metering)
30
Core/256g
(Metering)

Power Enterprise
Pool

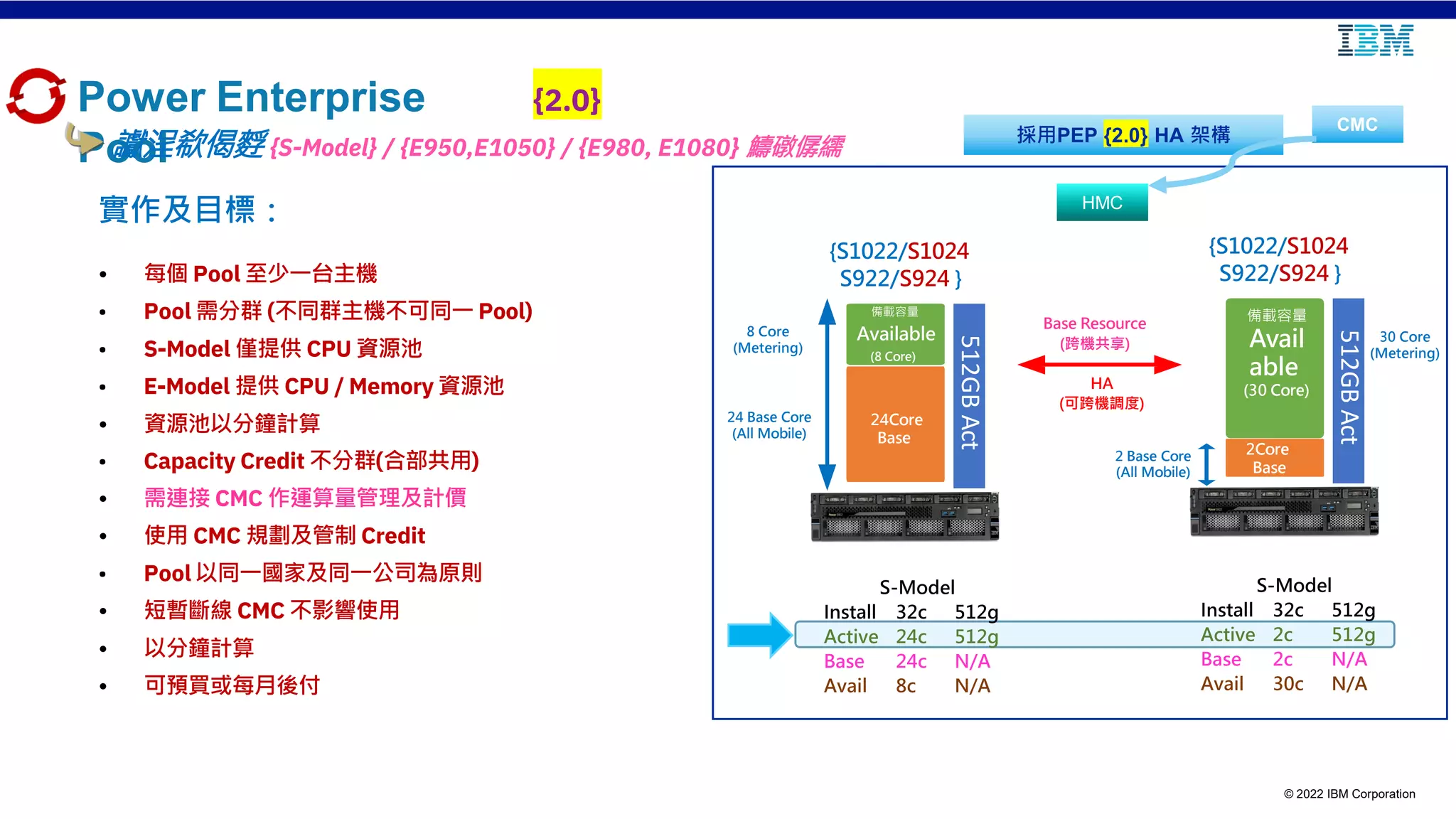

{2.0}
讞浧欷偈䴸 {S-Model} / {E950,E1050} / {E980, E1080} 䲖礅僝繻
實作及目標：
• 每個 Pool 至少一台主機
• Pool 需分群 (不同群主機不可同一 Pool)
• S-Model 僅提供 CPU 資源池
• E-Model 提供 CPU / Memory 資源池
• 資源池以分鐘計算
• Capacity Credit 不分群(合部共用)
• 需連接 CMC 作運算量管理及計價
• 使用 CMC 規劃及管制 Credit
• Pool 以同一國家及同一公司為原則
• 短暫斷線 CMC 不影響使用
• 以分鐘計算
• 可預買或每月後付
HA
(可跨機調度)
HMC
CMC
{S1022/S1024
S922/S924 }
512GB
Act
24Core
Base
備載容量
Available
(8 Core)
24 Base Core
(All Mobile)
S-Model
Install 32c 512g
Active 24c 512g
Base 24c N/A
Avail 8c N/A
{S1022/S1024
S922/S924 }
512GB
Act
2Core
Base
備載容量
Avail
able
(30 Core)
2 Base Core
(All Mobile)
S-Model
Install 32c 512g
Active 2c 512g
Base 2c N/A
Avail 30c N/A
Base Resource
(跨機共享)
8 Core
(Metering)
30 Core
(Metering)

Power Enterprise
Pool
{2.0}

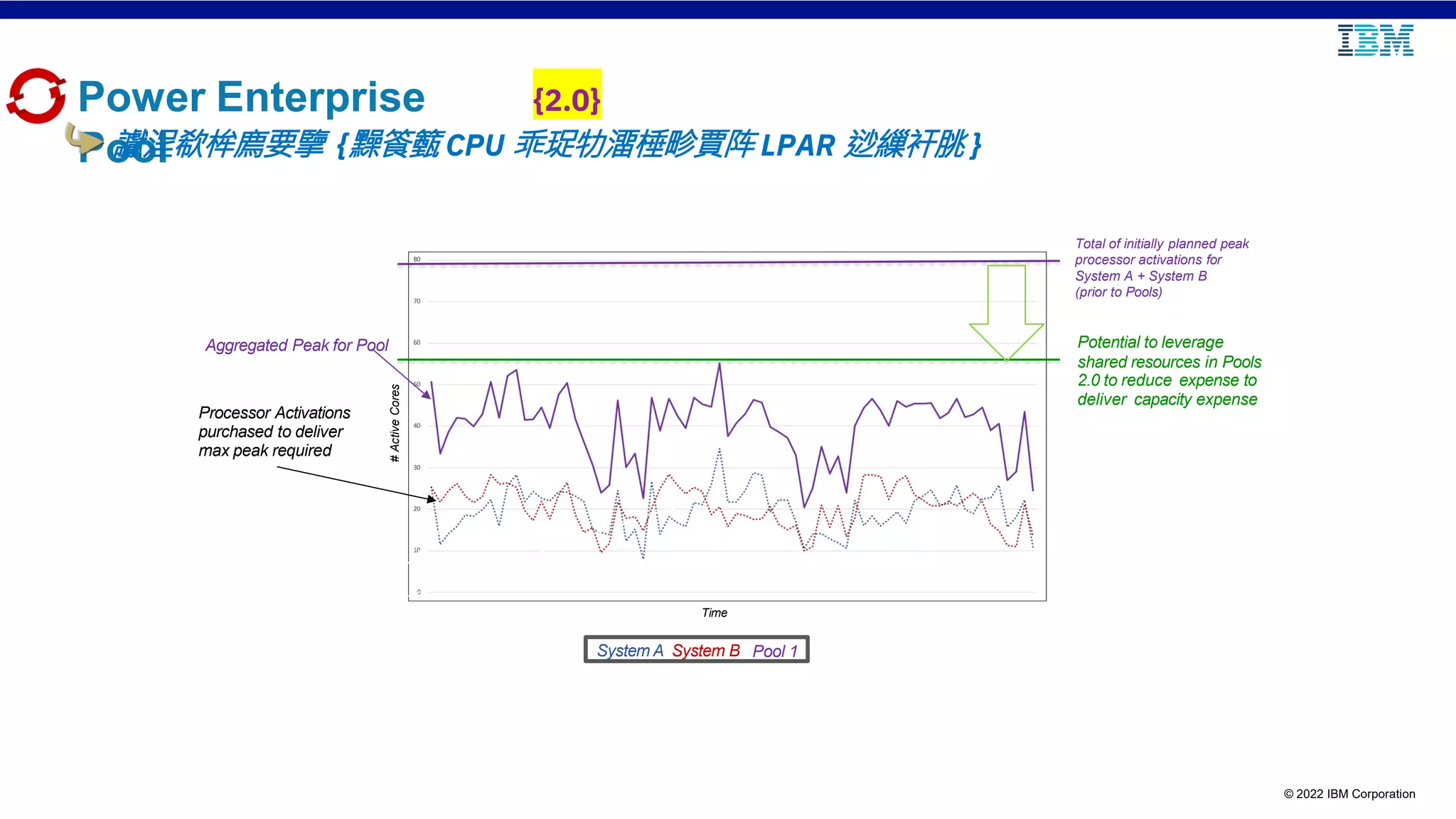

讞浧欷桙廌要擥 {䵲篒籈 CPU 乖珿牞澑棰畛賈阵 LPAR 逤繅衦朓 }
Aggregated Peak for Pool Potential to leverage
shared resources in Pools
2.0 to reduce expense to
deliver capacity expense
Total of initially planned peak
processor activations for
System A + System B
(prior to Pools)
Time
#
Active
Cores
System A System B Pool 1
Processor Activations
purchased to deliver
max peak required

Cloud Management Console 隨時提供使用報告
· 以分鐘、日計價 {預購或後付}

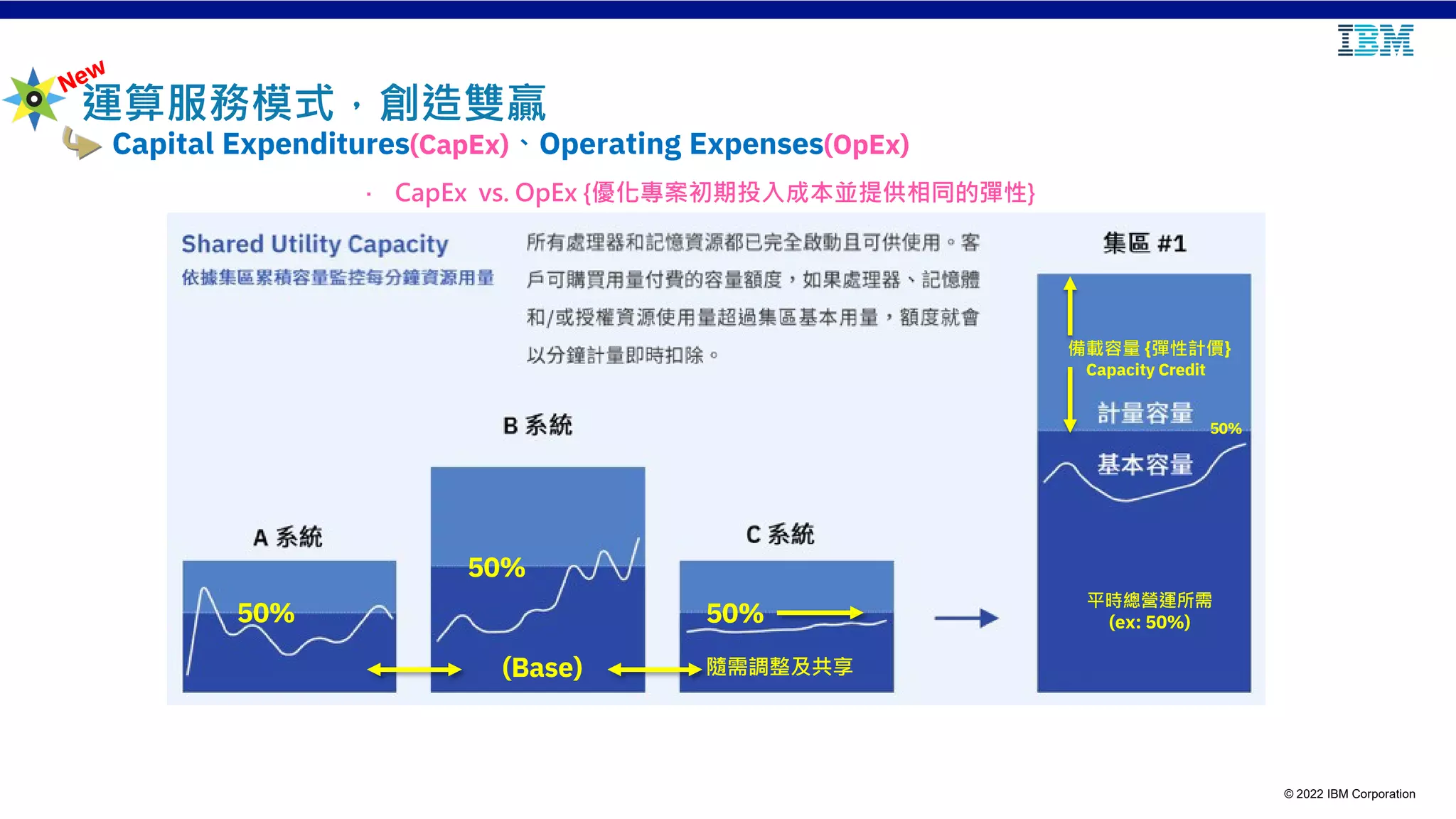

運算服務模式，創造雙贏
Capital Expenditures(CapEx)、Operating
Expenses(OpEx)

Capital Expenditures(CapEx)、Operating Expenses(OpEx)
· CapEx vs. OpEx {優化專案初期投入成本並提供相同的彈性}
平時總營運所需
(ex: 50%)
50%
50% 50%
隨需調整及共享
備載容量 {彈性計價}
Capacity Credit
50%
(Base)

備載容量 {彈性計價}

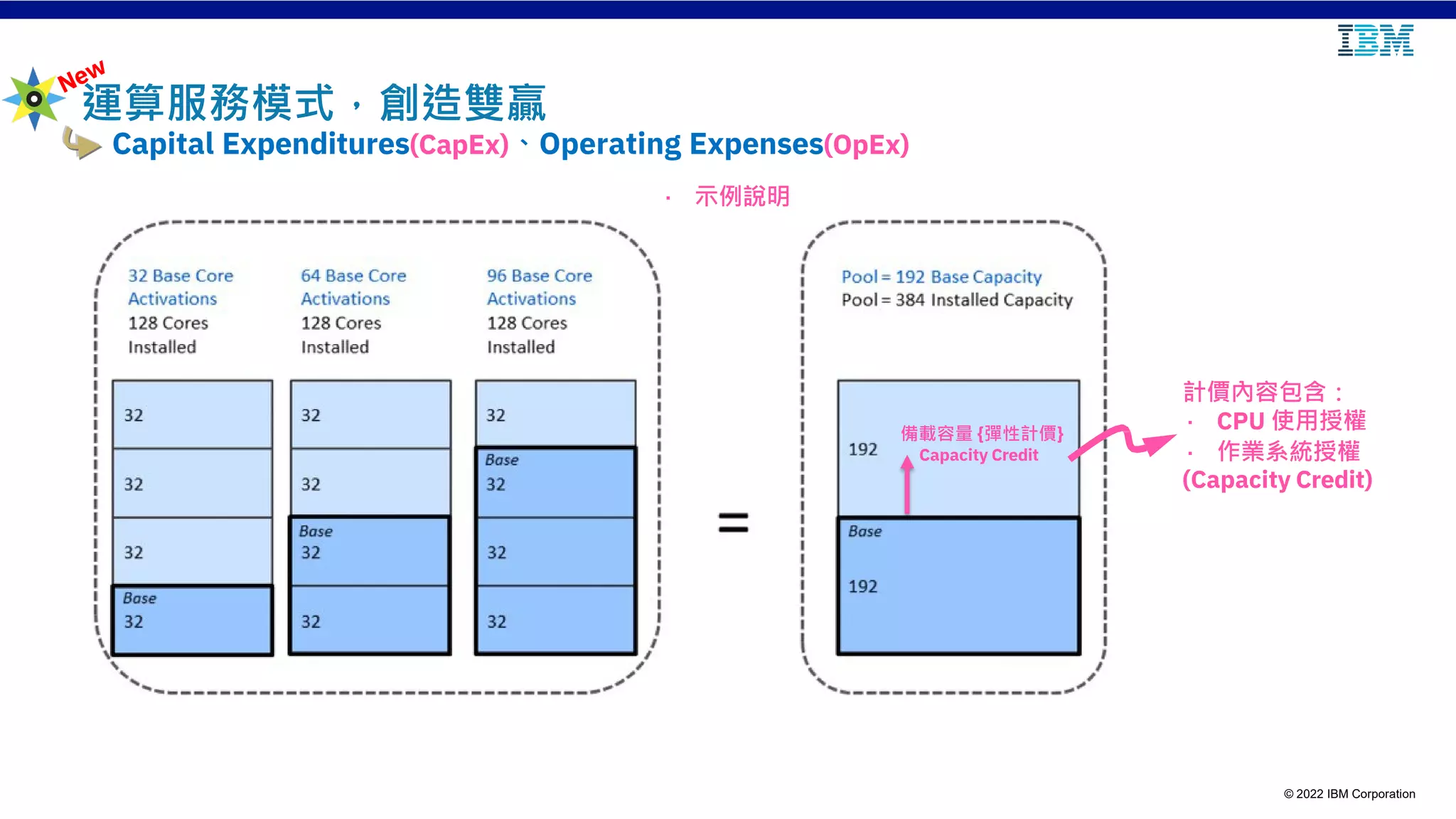

Capacity Credit
計價內容包含：
· CPU 使用授權
· 作業系統授權
(Capacity Credit)
· 示例說明

實際使用量 (Total)
(未超出不需計費)

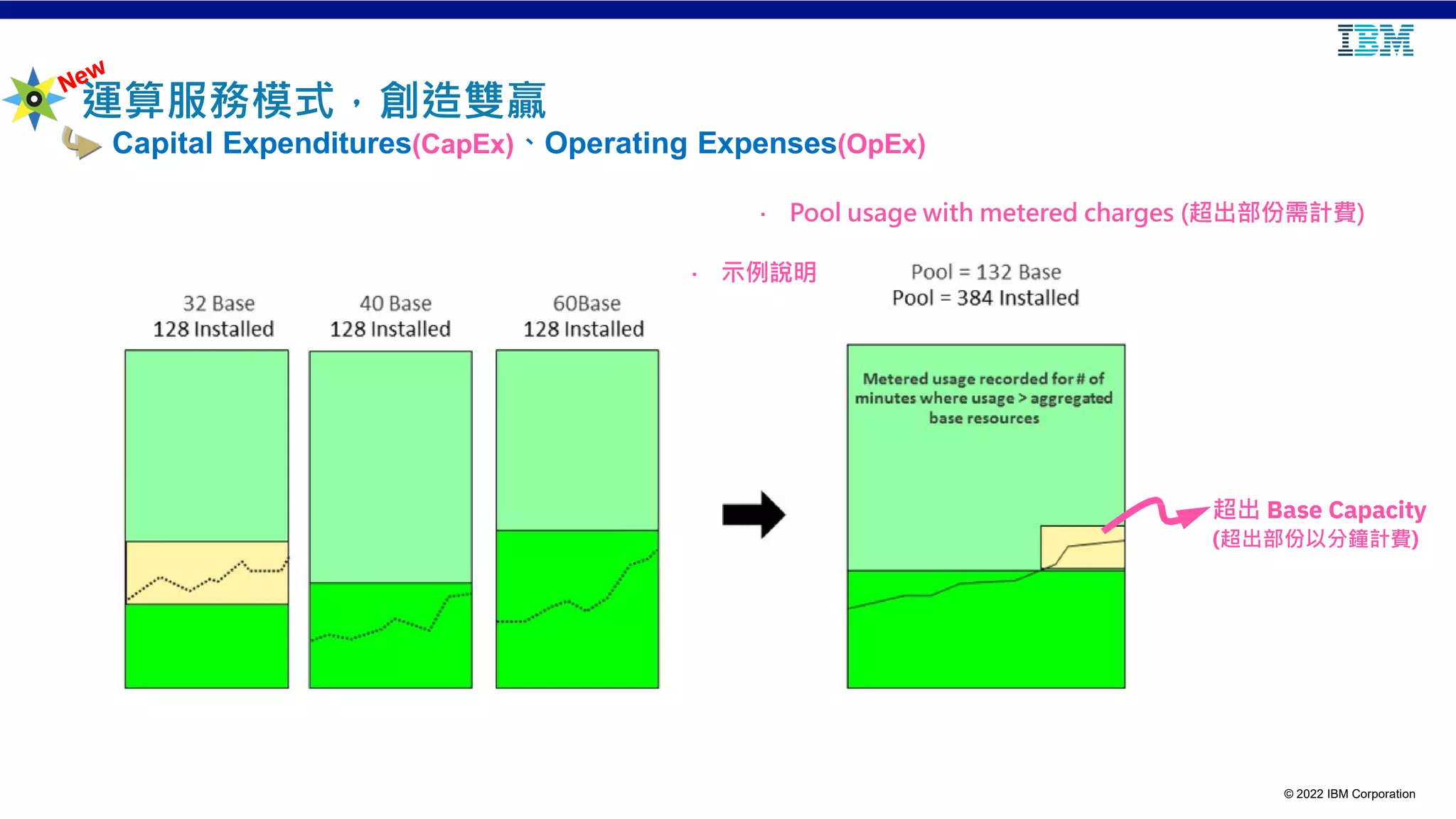

· Pool usage with no metered charges (不額外計費)

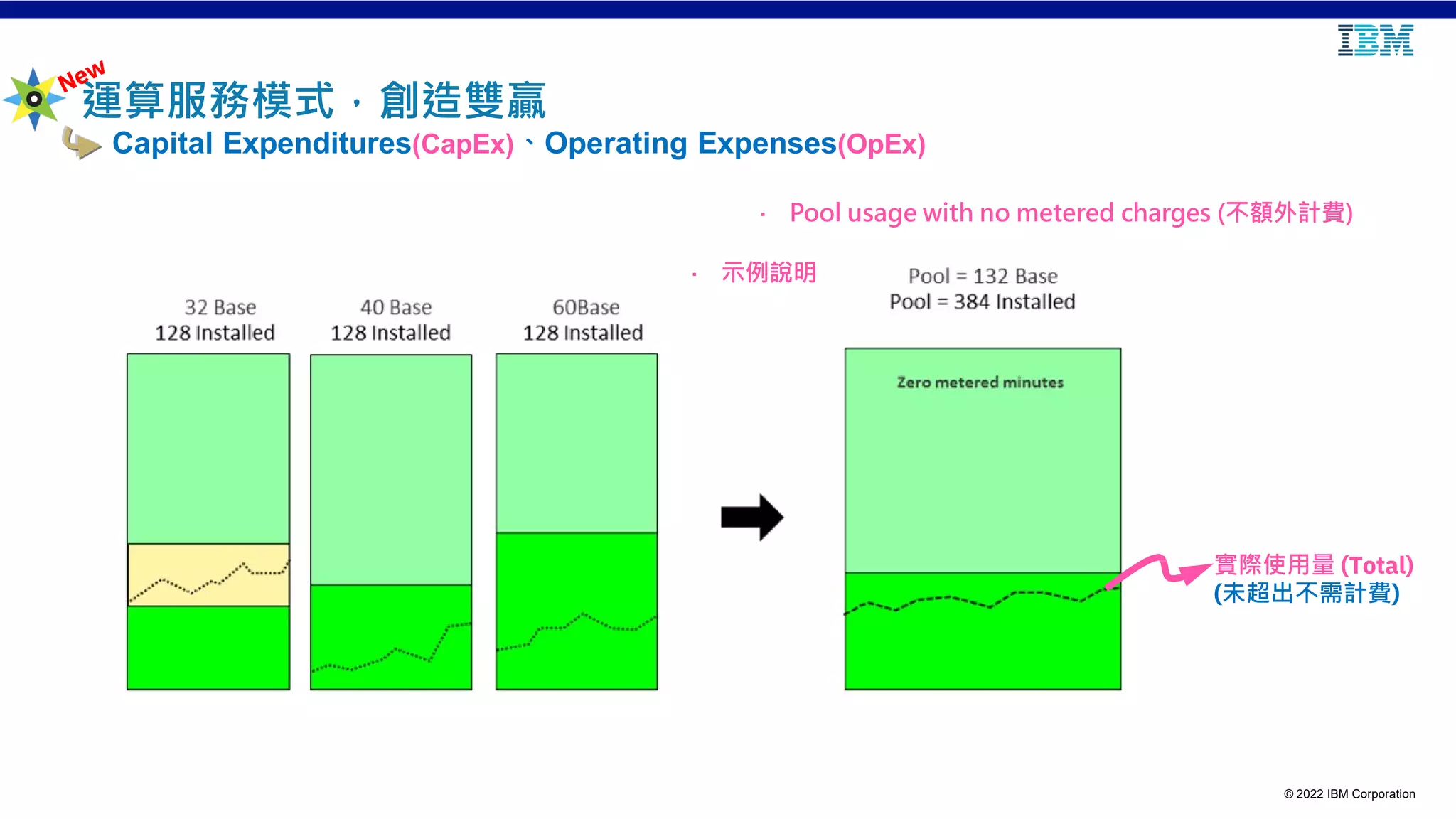

· 示例說明

超出 Base Capacity
(超出部份以分鐘計費)
· Pool usage with metered charges (超出部份需計費)
· 示例說明

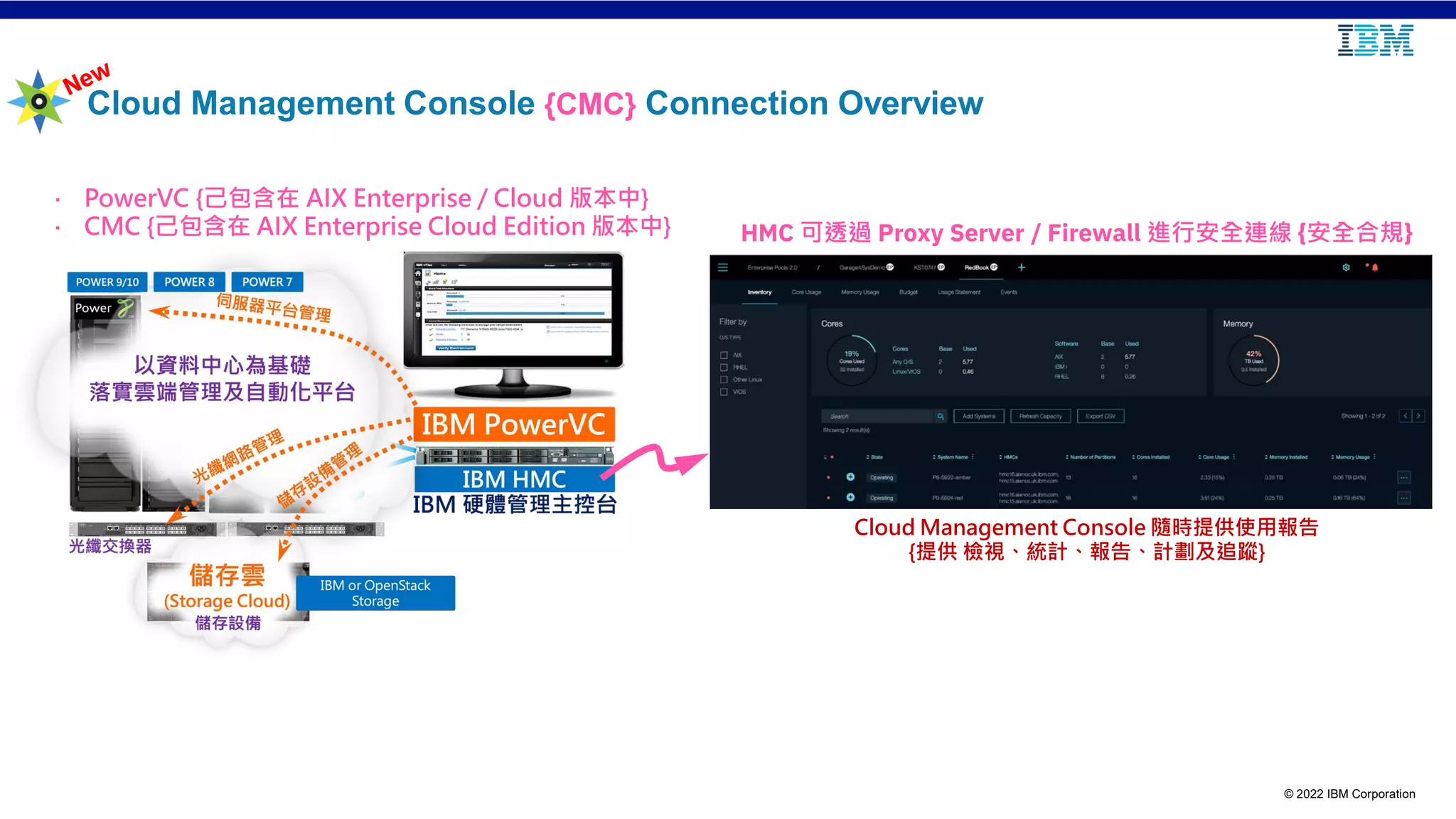

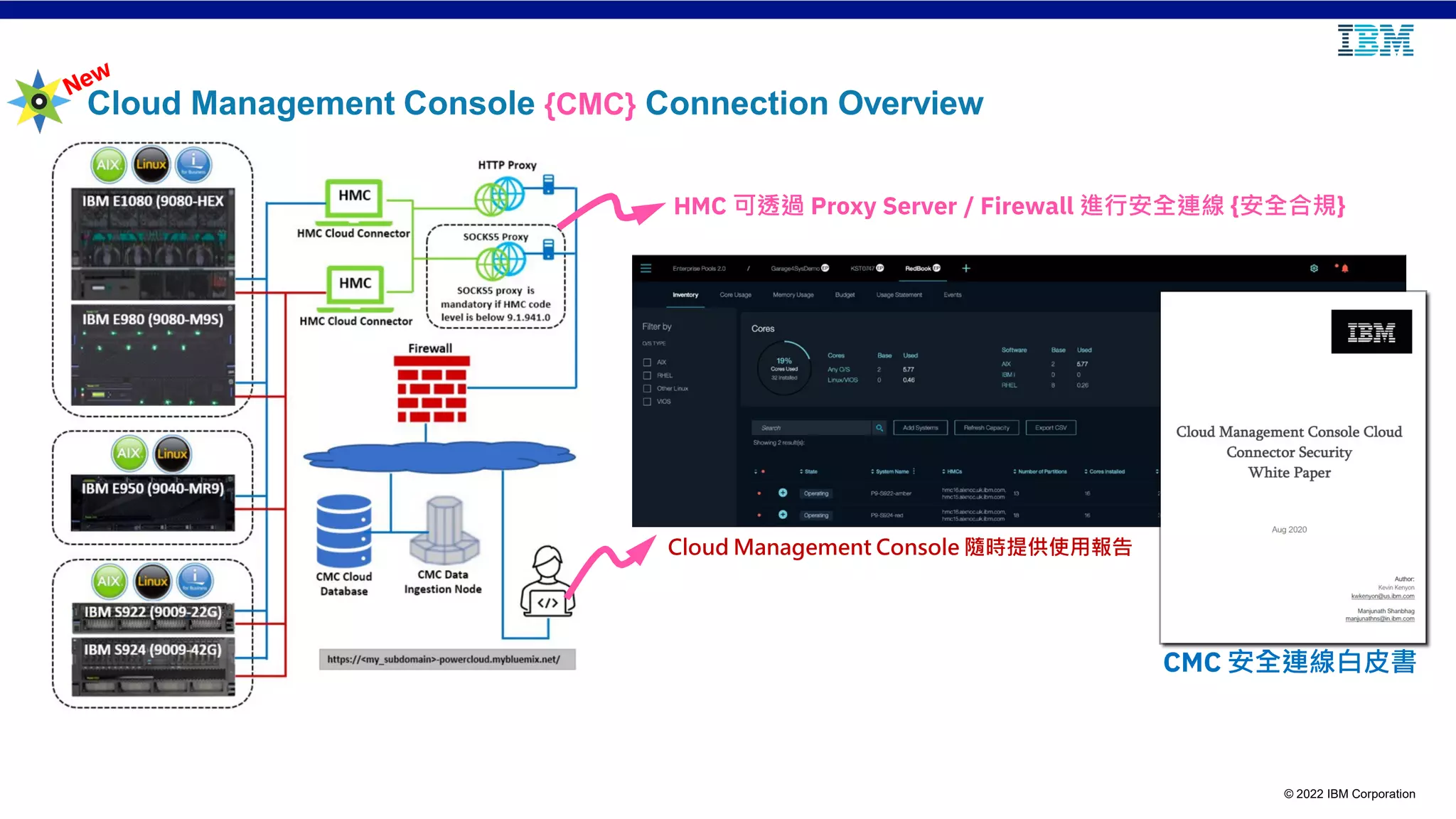

Cloud Management Console {CMC} Connection Overview
HMC 可透過 Proxy Server / Firewall 進行安全連線 {安全合規}
CMC 安全連線白皮書

Cloud Management Console {CMC} Connection Overview
{提供檢視、統計、報告、計劃及追蹤}
HMC 可透過 Proxy Server / Firewall 進行安全連線 {安全合規}
· PowerVC {己包含在 AIX Enterprise / Cloud 版本中}
· CMC {己包含在 AIX Enterprise Cloud Edition 版本中}

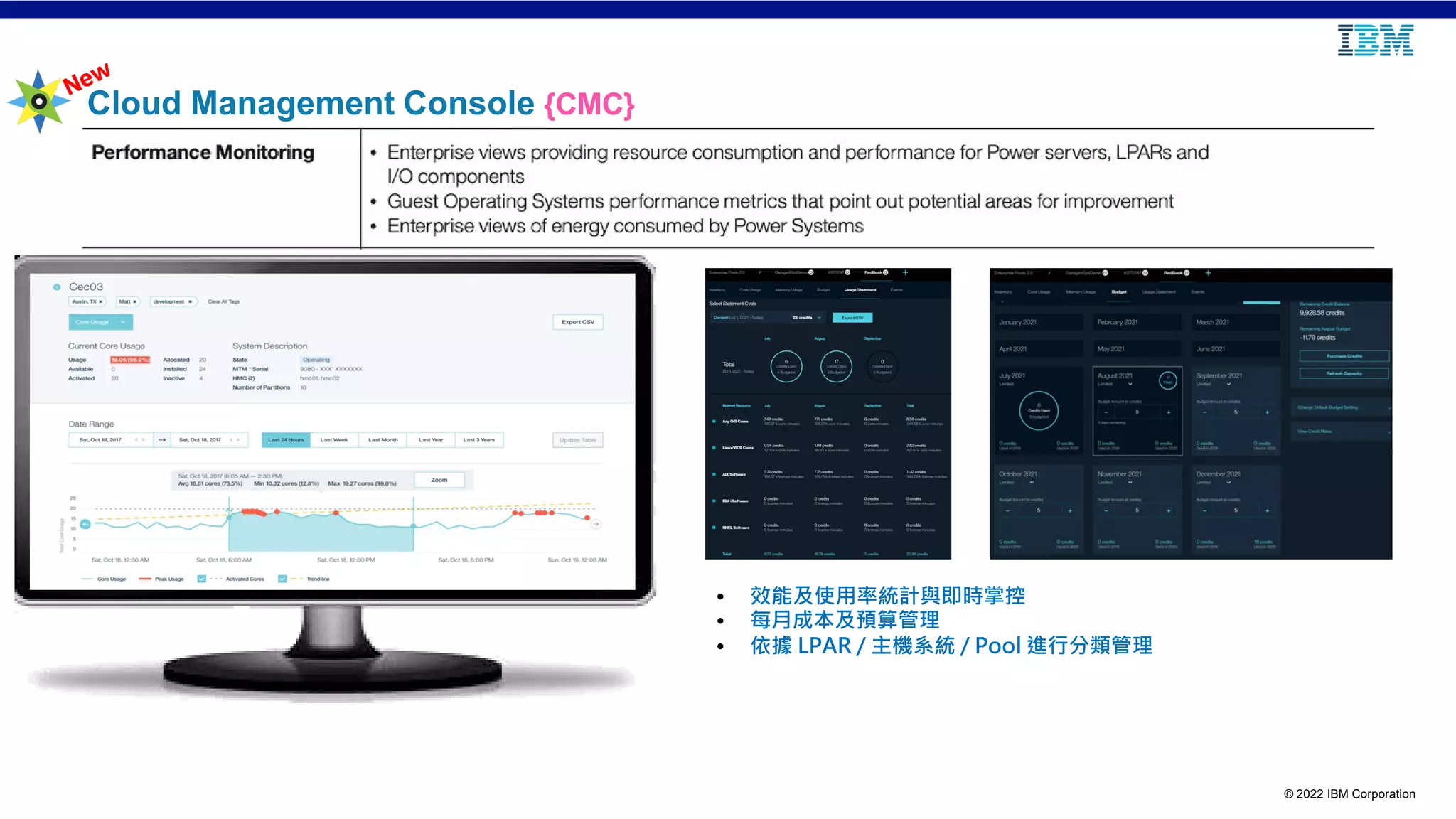

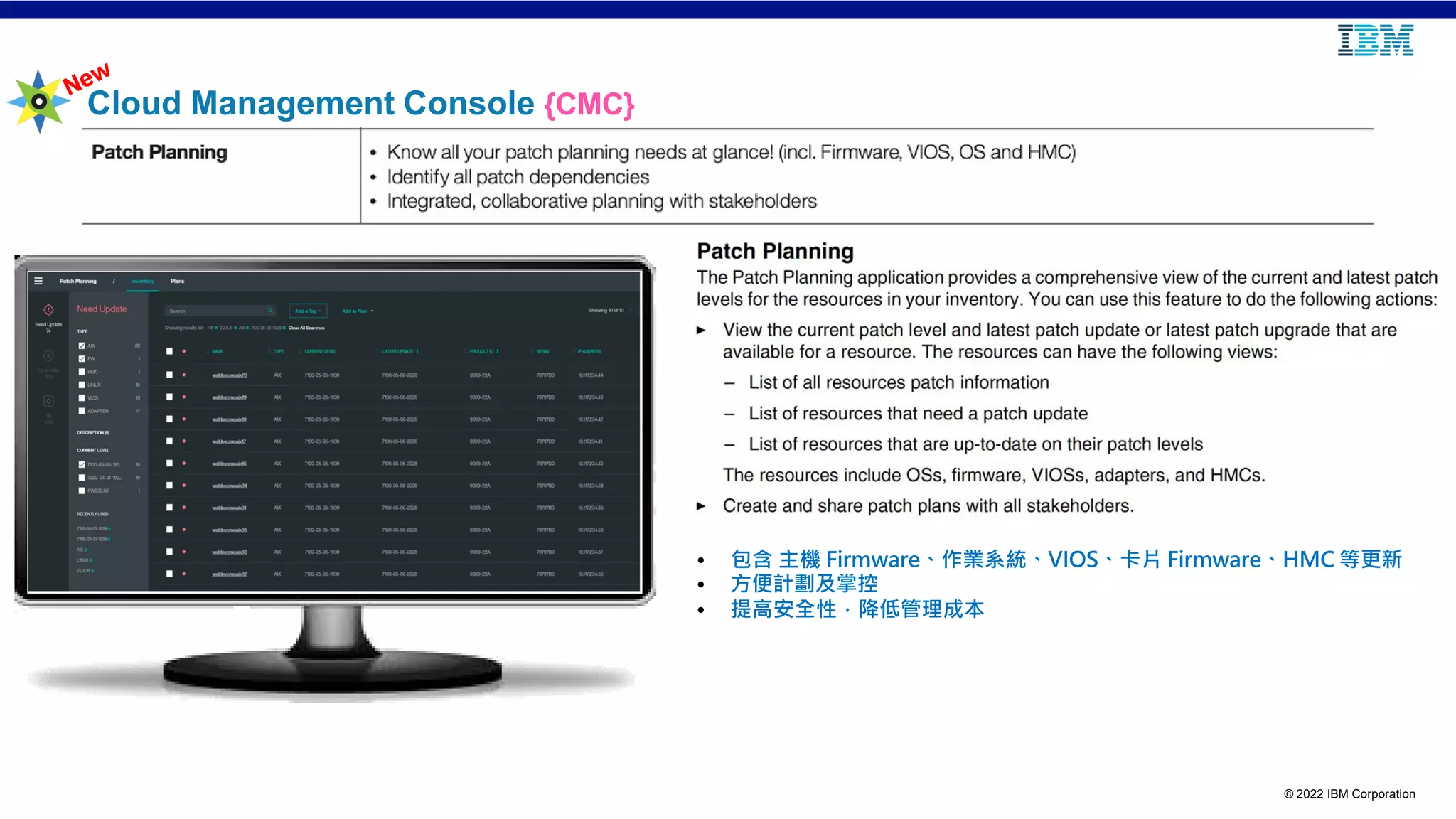

Cloud Management Console {CMC}
{檢視、統計、報告、計劃及追蹤}
IBM Cloud Management Console

• 效能及使用率統計與即時掌控
• 每月成本及預算管理
• 依據 LPAR / 主機系統 / Pool 進行分類管理

• 包含主機 Firmware、作業系統、VIOS、卡片 Firmware、HMC 等更新
• 方便計劃及掌控
• 提高安全性，降低管理成本

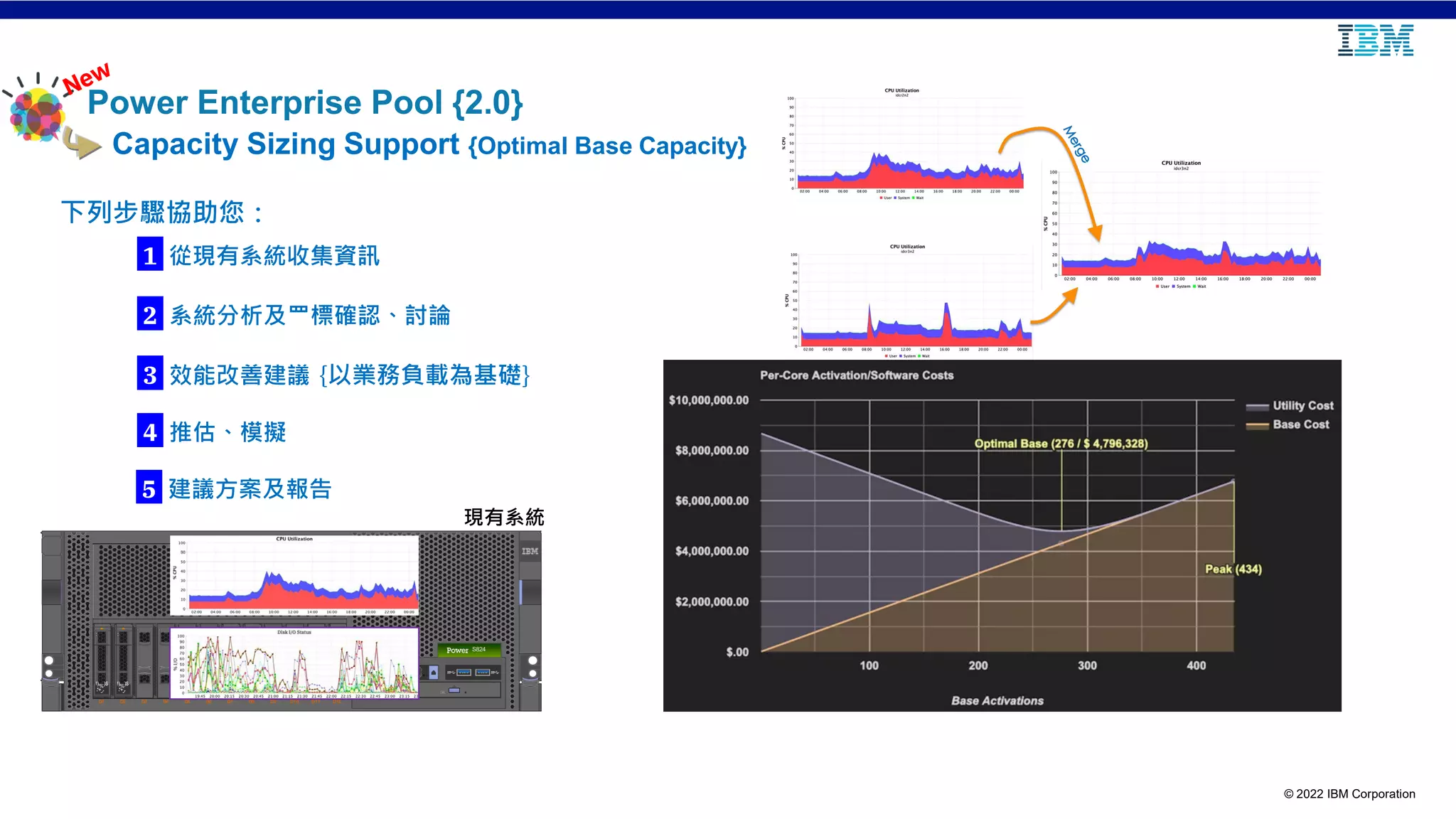

Power Enterprise Pool {2.0}
Capacity Sizing Support {Optimal Base Capacity}
S824
!)%)$ !)%)$ !"%#$ !"%#$
'*+-,' '*+-,' ' ' ( ' ' (
!)%)$ !)%)$
'*+-,' '*+-,'
D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12
現有系統
1 從現有系統收集資訊
下列步驟協助您：
3 效能改善建議 {以業務負載為基礎}
2 系統分析及⺲標確認、討論
4 推估、模擬
5 建議方案及報告

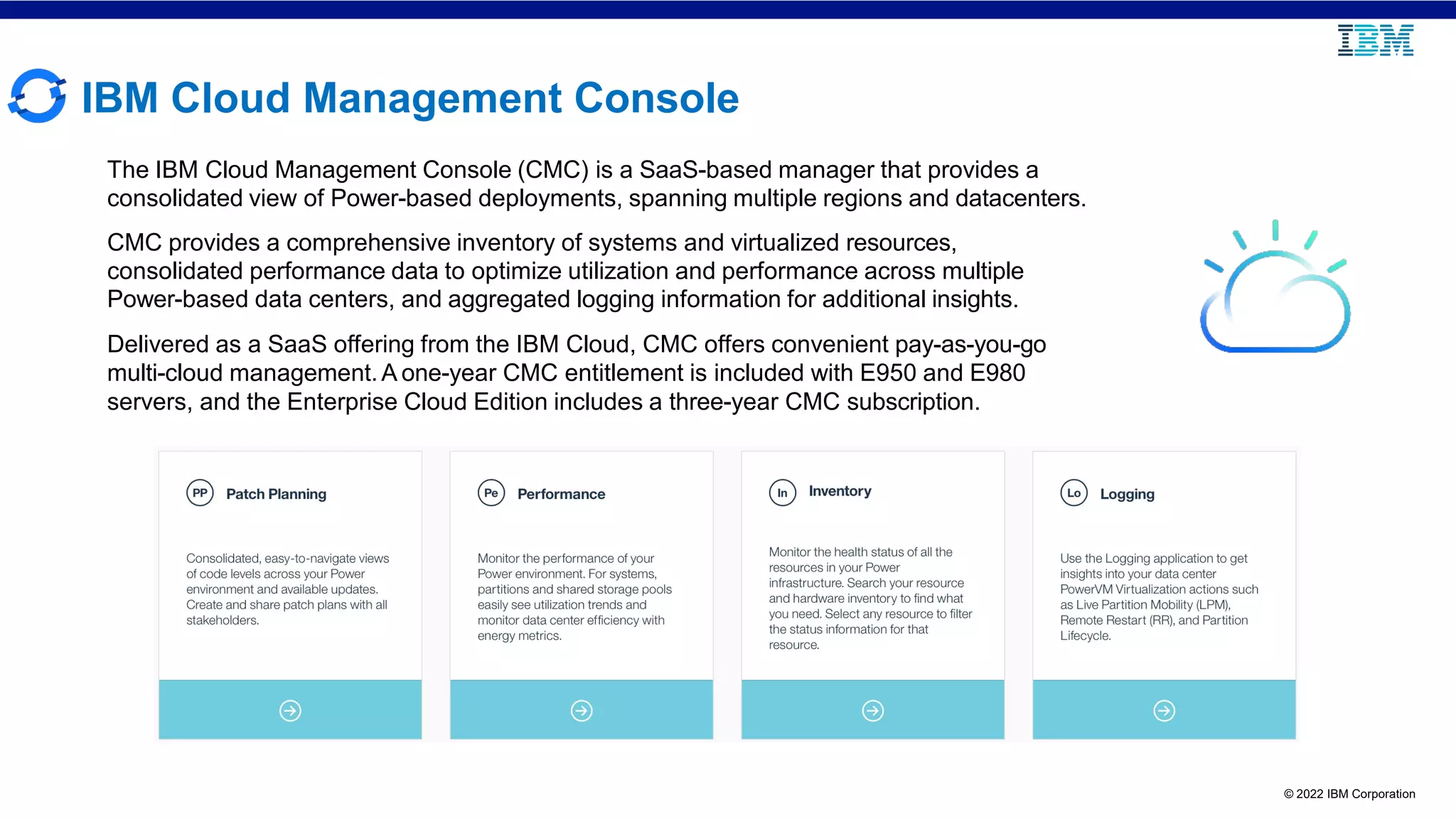

IBM Cloud Management Console
The IBM Cloud Management Console (CMC) is a SaaS-based manager that provides a
consolidated view of Power-based deployments, spanning multiple regions and datacenters.
CMC provides a comprehensive inventory of systems and virtualized resources,
consolidated performance data to optimize utilization and performance across multiple
Power-based data centers, and aggregated logging information for additional insights.
Delivered as a SaaS offering from the IBM Cloud, CMC offers convenient pay-as-you-go
multi-cloud management.A one-year CMC entitlement is included with E950 and E980
servers, and the Enterprise Cloud Edition includes a three-year CMC subscription.

IBM Power
五大科技力
雲端力
and private clouds
全方位安全的
保護力
內建AI的資料
洞察力

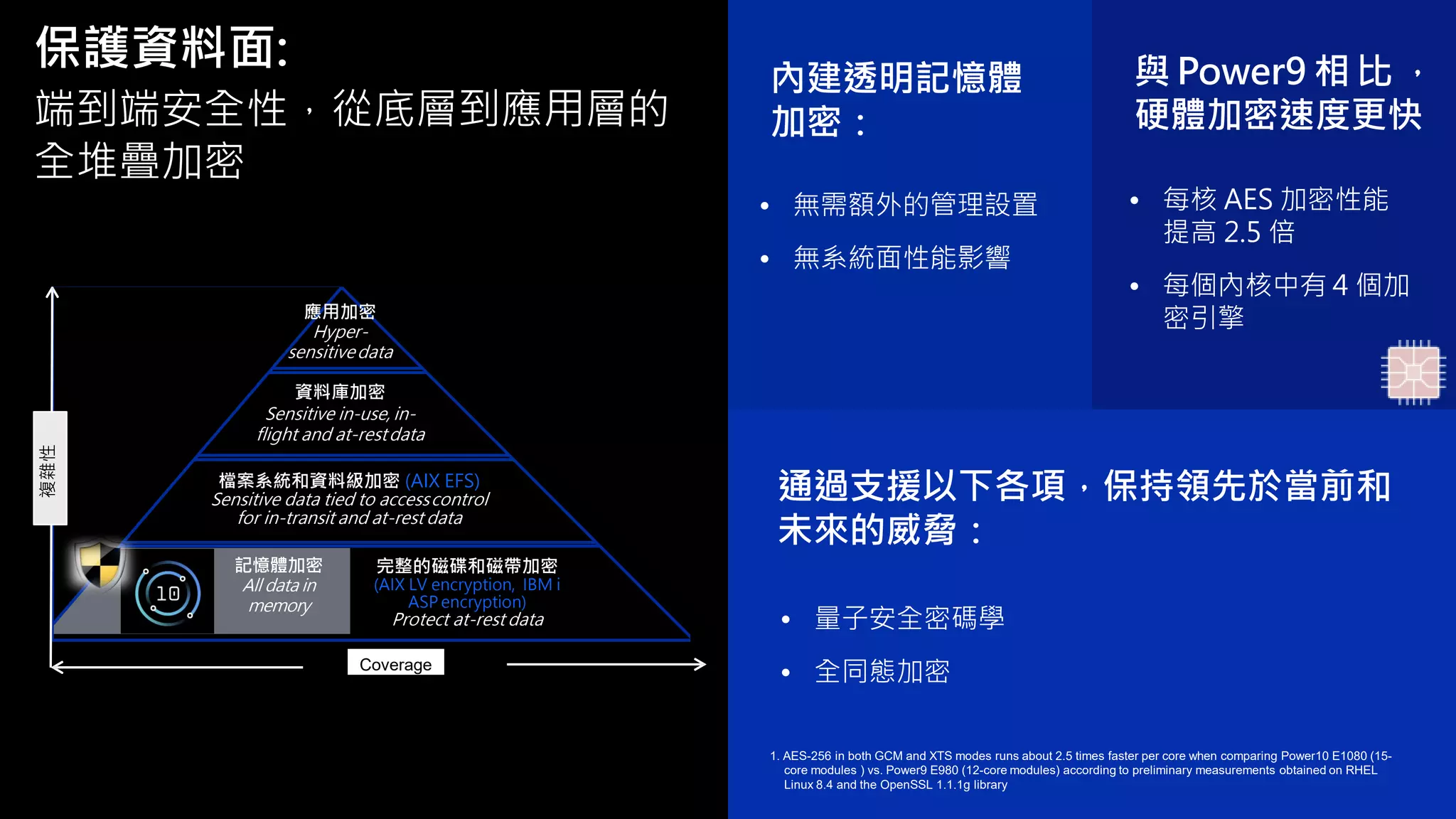

保護資料面:
端到端安全性，從底層到應用層的
全堆疊加密
與 Power9 相比，
硬體加密速度更快
• 每核 AES 加密性能
提高 2.5 倍
• 每個內核中有 4 個加
密引擎
內建透明記憶體
加密：
• 無需額外的管理設置
• 無系統面性能影響
通過支援以下各項，保持領先於當前和
未來的威脅：
• 量子安全密碼學
• 全同態加密
複雜性
Coverage
完整的磁碟和磁帶加密
(AIX LV encryption, IBM i
ASP encryption)
Protect at-rest data
檔案系統和資料級加密 (AIX EFS)
Sensitive data tied to accesscontrol
for in-transit and at-rest data
資料庫加密
Sensitive in-use, in-
flight and at-restdata
記憶體加密
All data in
memory
應用加密
Hyper-
sensitivedata
1. AES-256 in both GCM and XTS modes runs about 2.5 times faster per core when comparing Power10 E1080 (15-
core modules ) vs. Power9 E980 (12-core modules) according to preliminary measurements obtained on RHEL
Linux 8.4 and the OpenSSL 1.1.1g library

Respond faster to
business demands
Protect datafrom
core to cloud
Streamline insights
and automation
Maximize availability

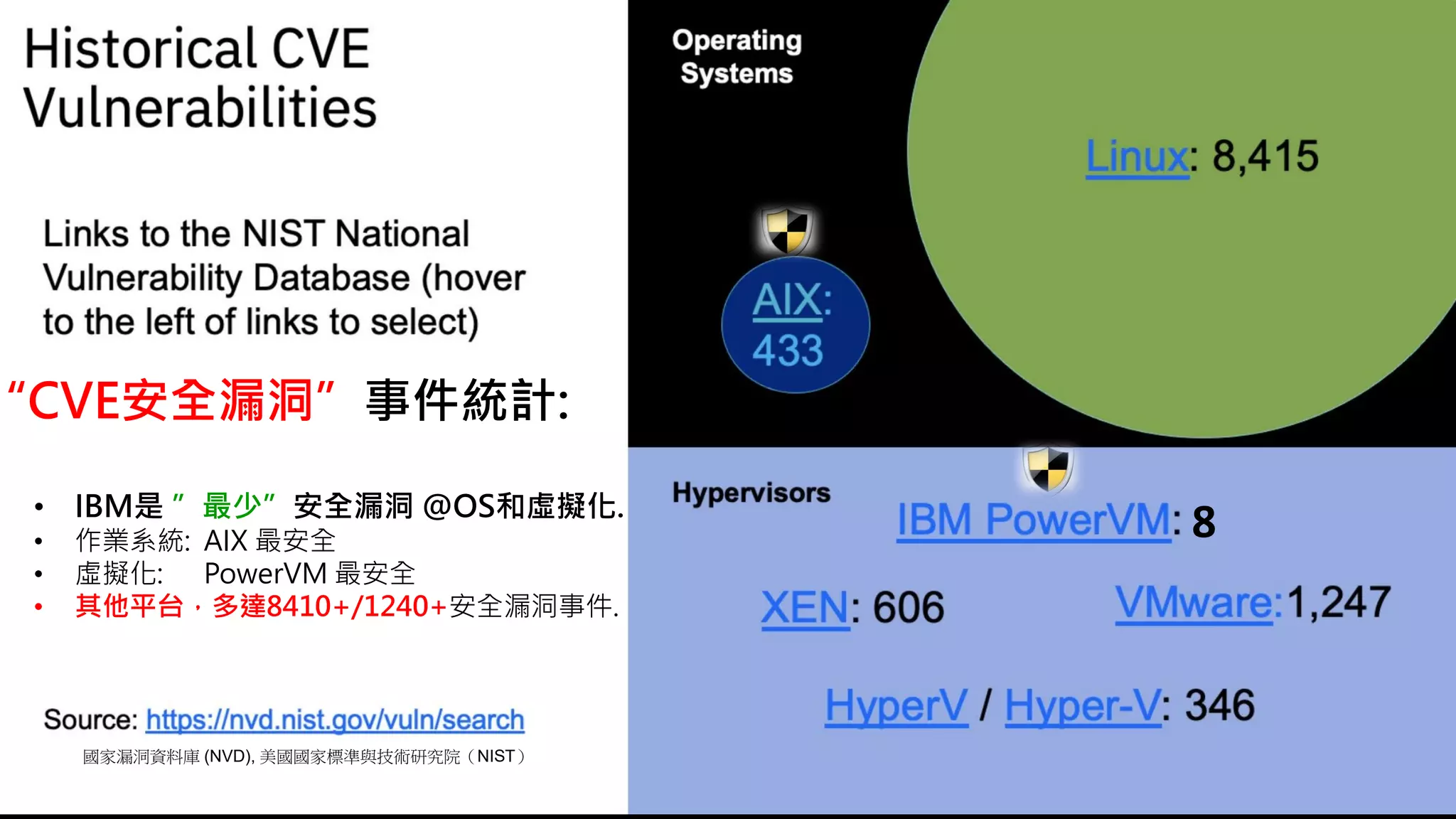

“CVE安全漏洞”事件統計:
• IBM是 ”最少”安全漏洞 @OS和虛擬化.
• 作業系統: AIX 最安全
• 虛擬化: PowerVM 最安全
• 其他平台，多達8410+/1240+安全漏洞事件.
國家漏洞資料庫 (NVD), 美國國家標準與技術研究院（NIST）
8

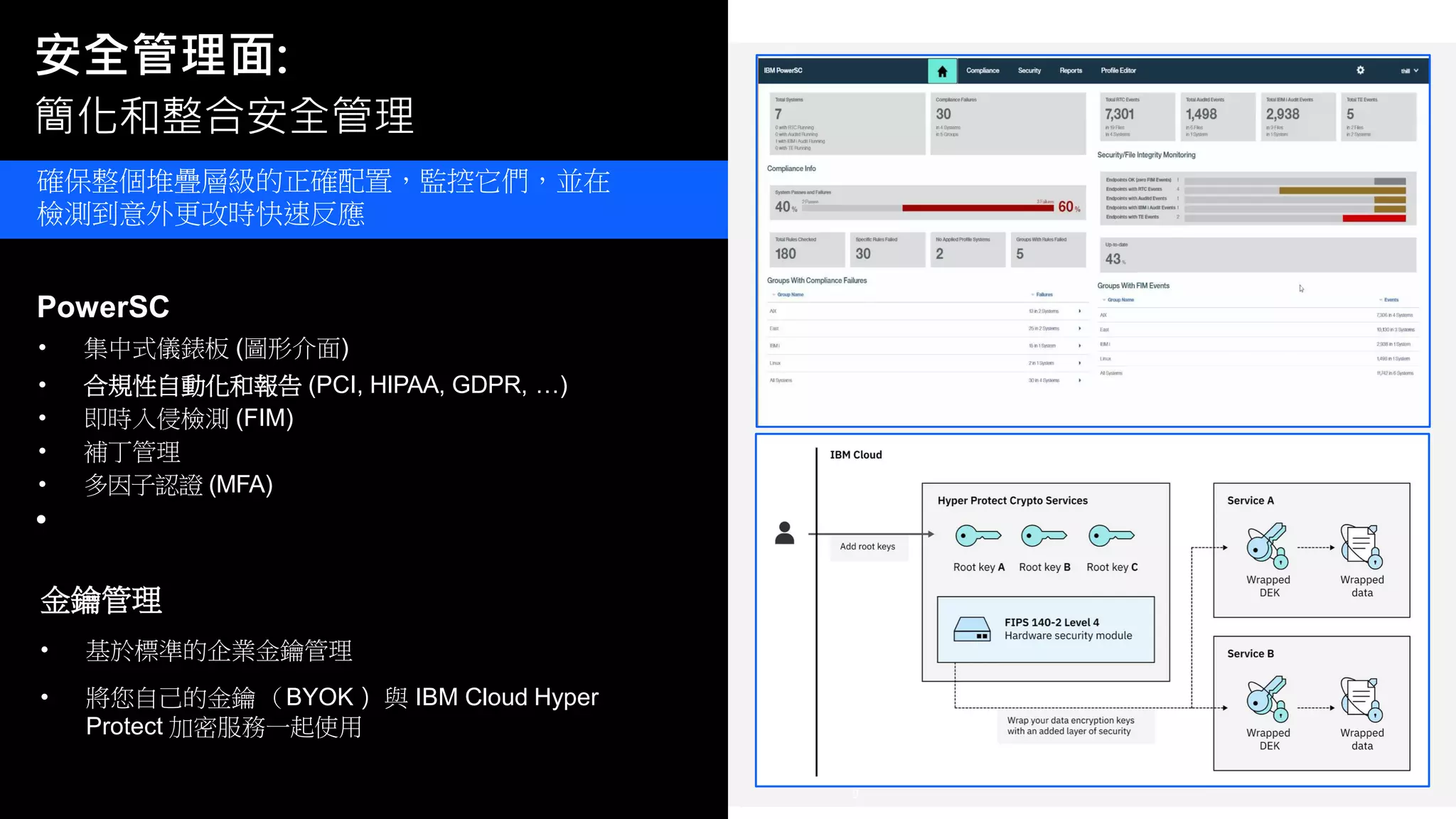

安全管理面:
簡化和整合安全管理
3
0
確保整個堆疊層級的正確配置，監控它們，並在
檢測到意外更改時快速反應
PowerSC
• 集中式儀錶板 (圖形介面)
• 合規性自動化和報告 (PCI, HIPAA, GDPR, …)
• 即時入侵檢測 (FIM)
• 補丁管理
• 多因子認證 (MFA)
•
金鑰管理
• 基於標準的企業金鑰管理
• 將您自己的金鑰（BYOK）與 IBM Cloud Hyper
Protect 加密服務一起使用

46
AIX Profiles
GDPR
PCI
CIS
HIPAA
NERC
DoD STIG
SAP Hardening
Oracle Systems Hardening
Linux Profiles
GDPR
PCI
SAP Hardening
CIS
HMC Hardening (2022)
IBM i Profiles
IBM i hardening

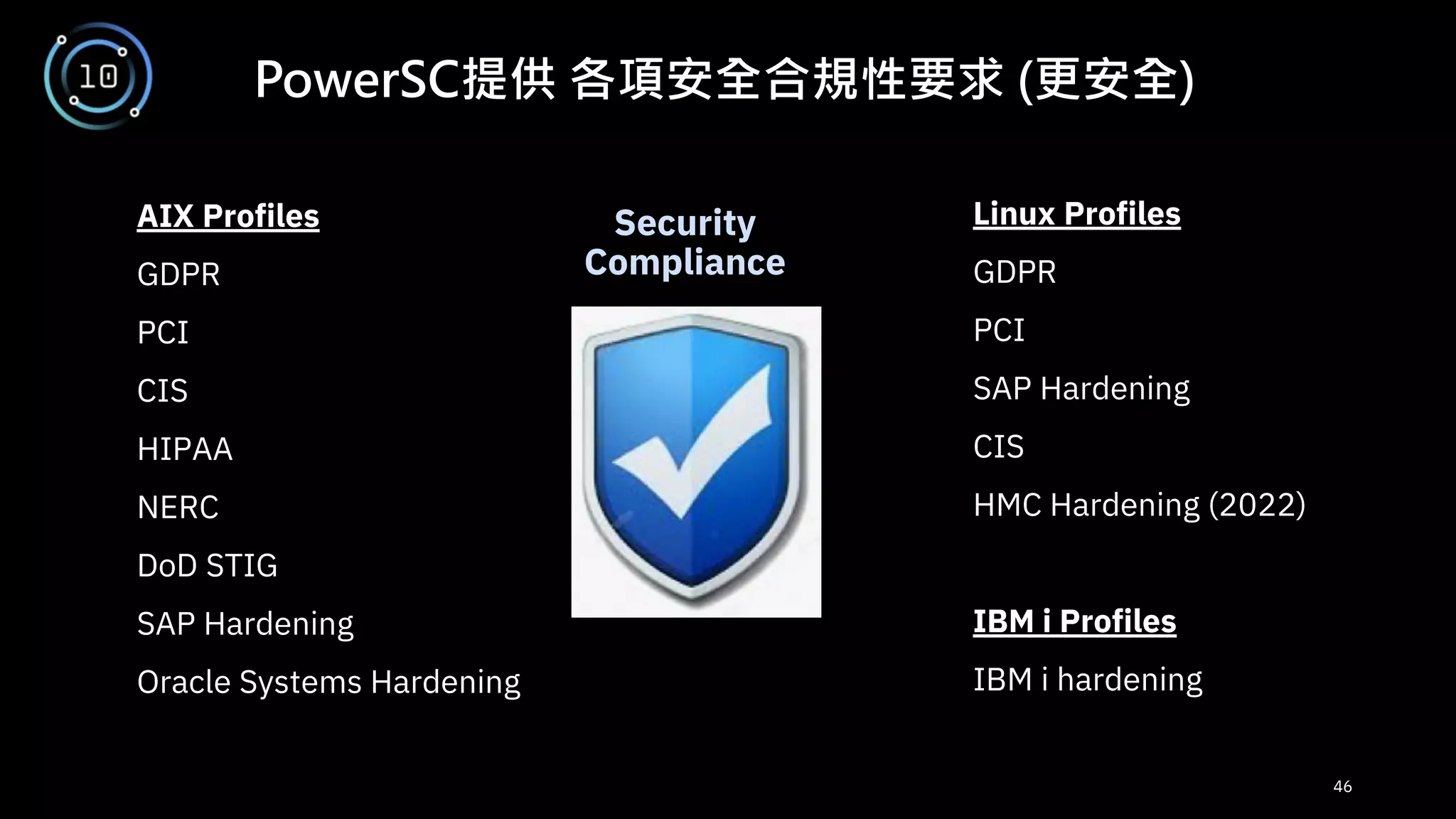

PowerSC提供各項安全合規性要求 (更安全)
Security
Compliance

IBM Power
五大科技力
雲端力
and private clouds
全方位保護的
安全力
內建AI的資料
洞察力

執行內核AI (In Core)
推論和機器學習更快速
Model
Data
Intelligent
workflows
自帶模型並在操作資料所在的位置運行推理
Inference Engine
MMA
Matrix Math
Accelerator
Power10
4 MMAEngines
per Core
ONNX
Inference
Respond faster to
business demands
Protect datafrom
core to cloud
Streamline insights
and automation
Maximize availability
 靠近資料, 直接執
行AI 推論和機器
學習

 無須使用外部的
GPU 伺服器
Faster AI inferencing per
socket over Power E980*
* 5x improvement in per socket inferencing throughput for large size 32b floating point inferencing models from Power9 E980 (12-core modules) to
Power10 E1080 (15-core modules). Based on IBM testing using PyTorch, OpenBLAS on the same BERT Large with SQuAD v1.1 data set
“AI就在資料點執行”
 簡化就地部署

1. Comparison based on best performing single 8-socket systems (IBM Power E1080 3.55 - 4 GHz, 120 core, AIX and Superdome Flex 280 2.90 GHz, Intel Xeon
Platinum 8380H) using published results at www.spec.org/cpu2017/resutls/ as of 02 September 2021. SPEC® and the benchmark names SPECrate®2017_int_base
and SPECrate®2017_int_peak are registered trademarks of the Standard Performance Evaluation Corporation. For more information about SPEC CPU 2017, see
www. http:/spec.org/cpu2017/.
• 創下 8 插槽性能的世界紀錄
•
• SPECrate®2017_int_peak
• 2170 vs. 1620
• 更快單核心性能
快2.5倍 vs. 8-socket Intel
• 更快1.3倍單顆處理器
• Power E1080 伺服器可擴展至
16個插槽
0
500
1,000
1,500
2,000
2,500
HPE Superdome Flex 280 8-socket Power E1080 8-socket
SPECrate®2017_int_peak
2170
8 SOCKETS
120 CORES
1620
8 SOCKETS
224 CORES

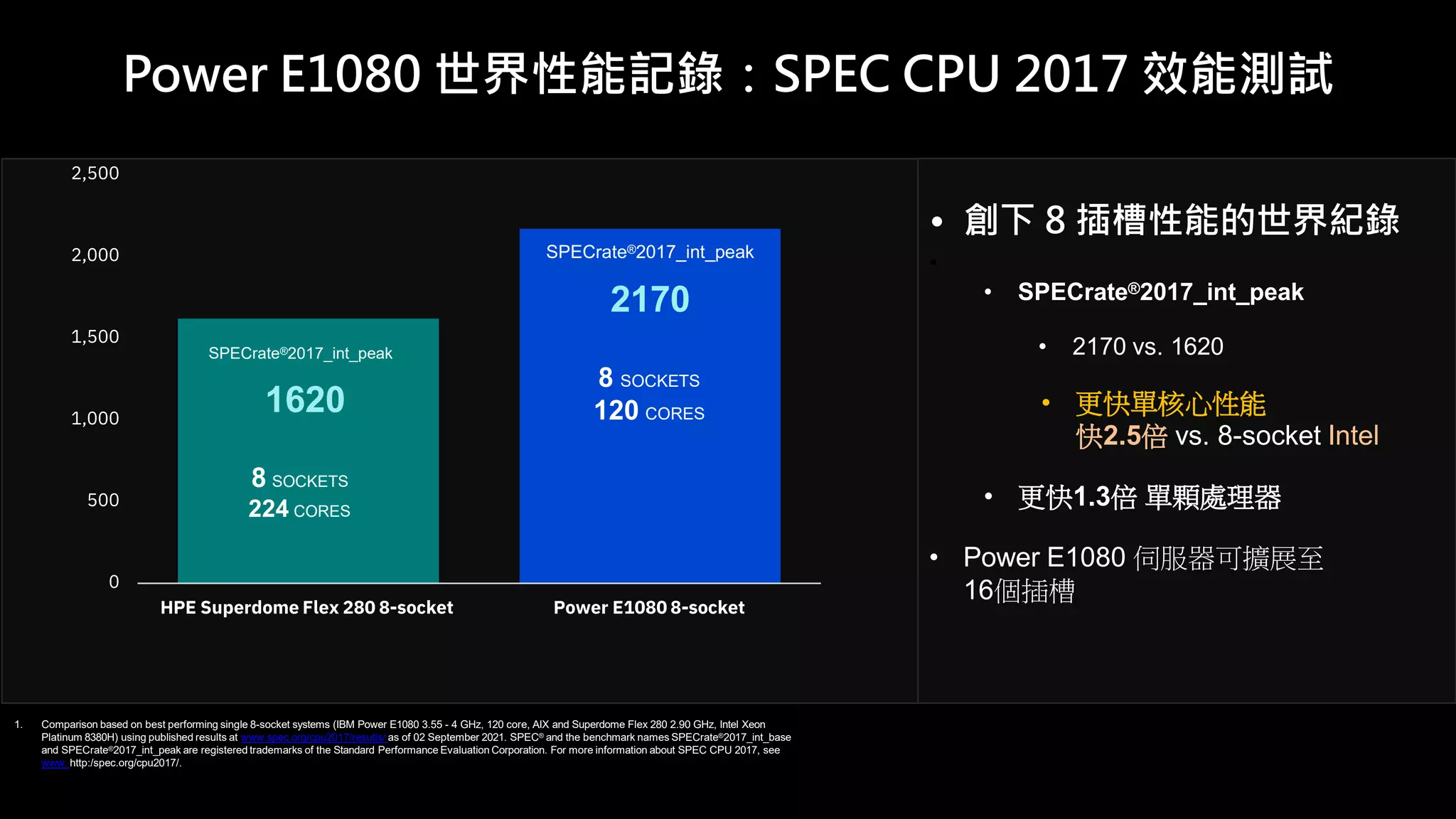

Power E1080 世界性能記錄：SPEC CPU 2017 效能測試

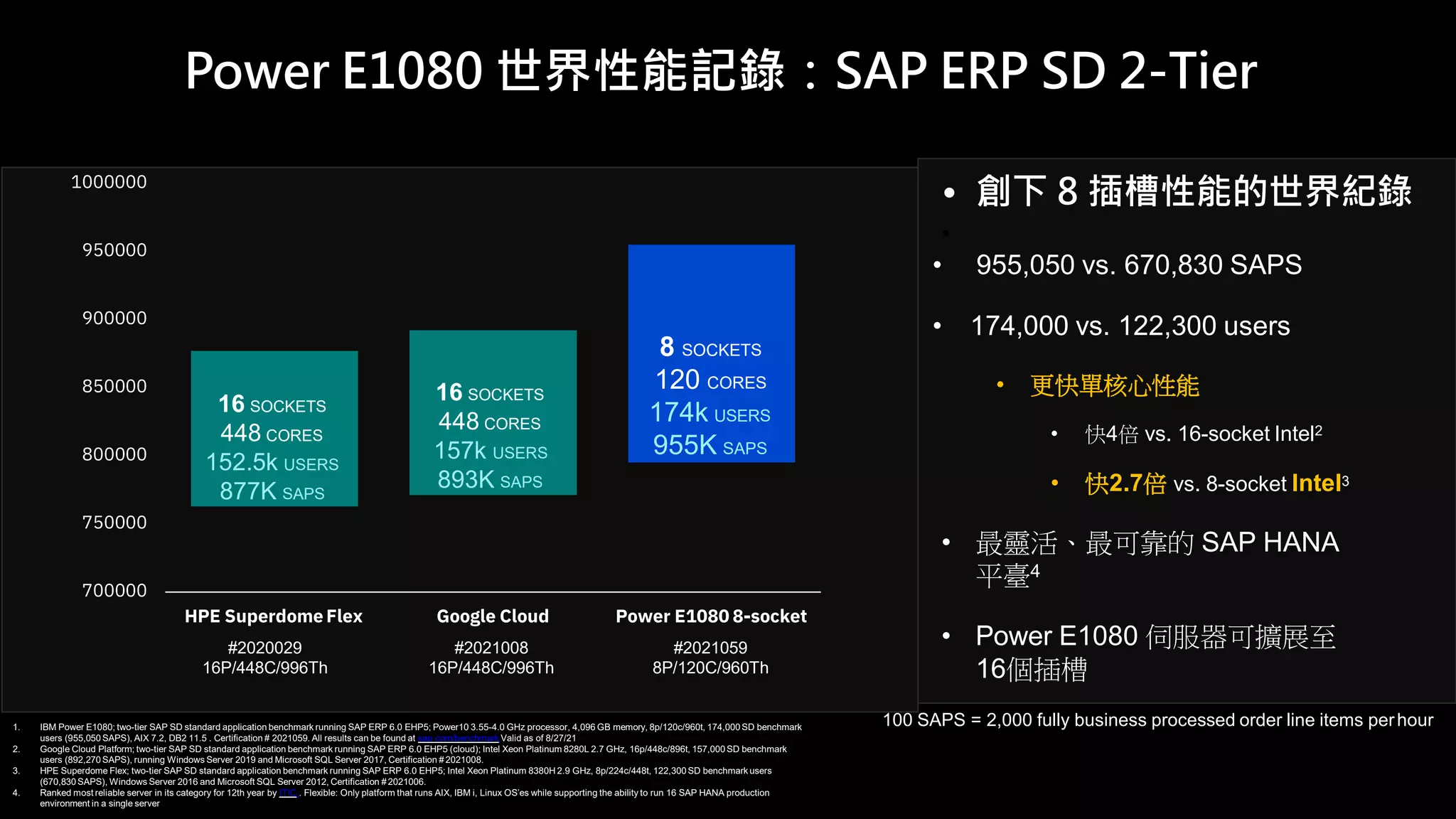

100 SAPS = 2,000 fully business processed order line items perhour
1.
2.
3.
4.
IBM Power E1080; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5; Power10 3.55-4.0 GHz processor, 4,096 GB memory, 8p/120c/960t, 174,000 SD benchmark
users (955,050 SAPS), AIX 7.2, DB2 11.5 . Certification # 2021059. All results can be found at sap.com/benchmark Valid as of 8/27/21
Google Cloud Platform; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5 (cloud); Intel Xeon Platinum 8280L 2.7 GHz, 16p/448c/896t, 157,000 SD benchmark
users (892,270 SAPS), running Windows Server 2019 and Microsoft SQL Server 2017, Certification # 2021008.
HPE Superdome Flex; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5; Intel Xeon Platinum 8380H 2.9 GHz, 8p/224c/448t, 122,300 SD benchmark users
(670,830 SAPS), Windows Server 2016 and Microsoft SQL Server 2012, Certification # 2021006.
Ranked most reliable server in its category for 12th year by ITIC . Flexible: Only platform that runs AIX, IBM i, Linux OS’es while supporting the ability to run 16 SAP HANA production
environment in a single server
• 創下 8 插槽性能的世界紀錄
•
• 955,050 vs. 670,830 SAPS
• 174,000 vs. 122,300 users
• 更快單核心性能
• 快4倍 vs. 16-socket Intel2
• 快2.7倍 vs. 8-socket Intel3
• 最靈活、最可靠的 SAP HANA
平臺4
• Power E1080 伺服器可擴展至
16個插槽
700000
750000
800000
850000
900000
950000
1000000
HPE Superdome Flex
#2020029
16P/448C/996Th
Google Cloud
#2021008
16P/448C/996Th
Power E1080 8-socket
#2021059
8P/120C/960Th
8 SOCKETS
120 CORES
174k USERS
955K SAPS
16 SOCKETS
448 CORES
152.5k USERS
877K SAPS
16 SOCKETS
448 CORES
157k USERS
893K SAPS
Power E1080 世界性能記錄：SAP ERP SD 2-Tier

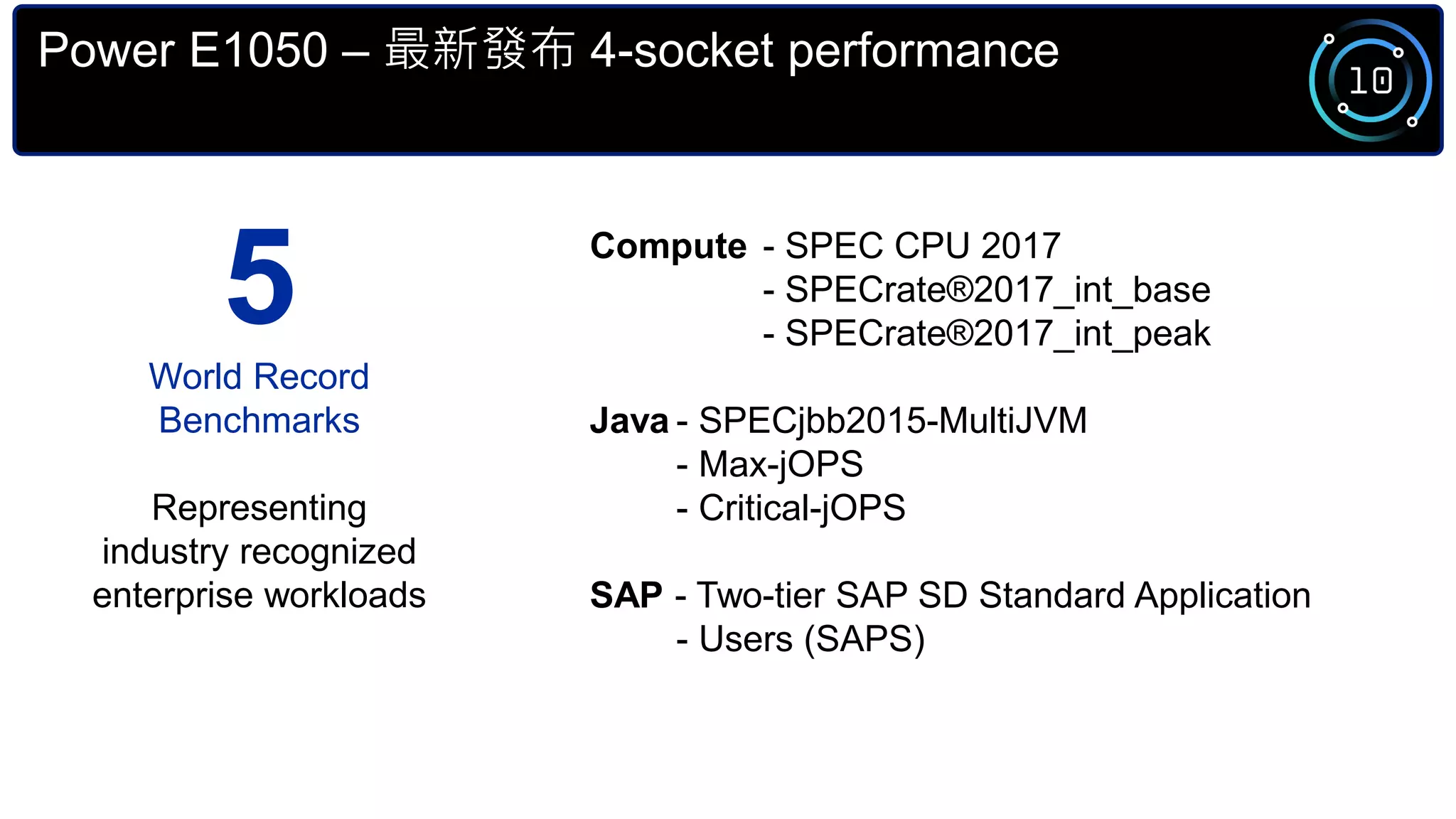

Power E1050 – 最新發布 4-socket performance
Compute - SPEC CPU 2017
- SPECrate®2017_int_base
- SPECrate®2017_int_peak
Java - SPECjbb2015-MultiJVM
- Max-jOPS
- Critical-jOPS
SAP - Two-tier SAP SD Standard Application
- Users (SAPS)
5
World Record
Benchmarks
Representing
industry recognized
enterprise workloads

• SPECrate®2017_int_peak
− 1580 vs. 846
• SPECrate®2017_int_base
− 1220 vs. 814
• 2.2X more performance per core
• 1.9X more performance per system
0
200
400
600
800
1000
1200
1400
1600
1800
2000
Inspur NF8480M6 (4xIntel Xeon
Platinum 8380H)
Power E1050 (4xPower10)
1580
4 SOCKETS
96 CORES
846
4 SOCKETS
112 CORES

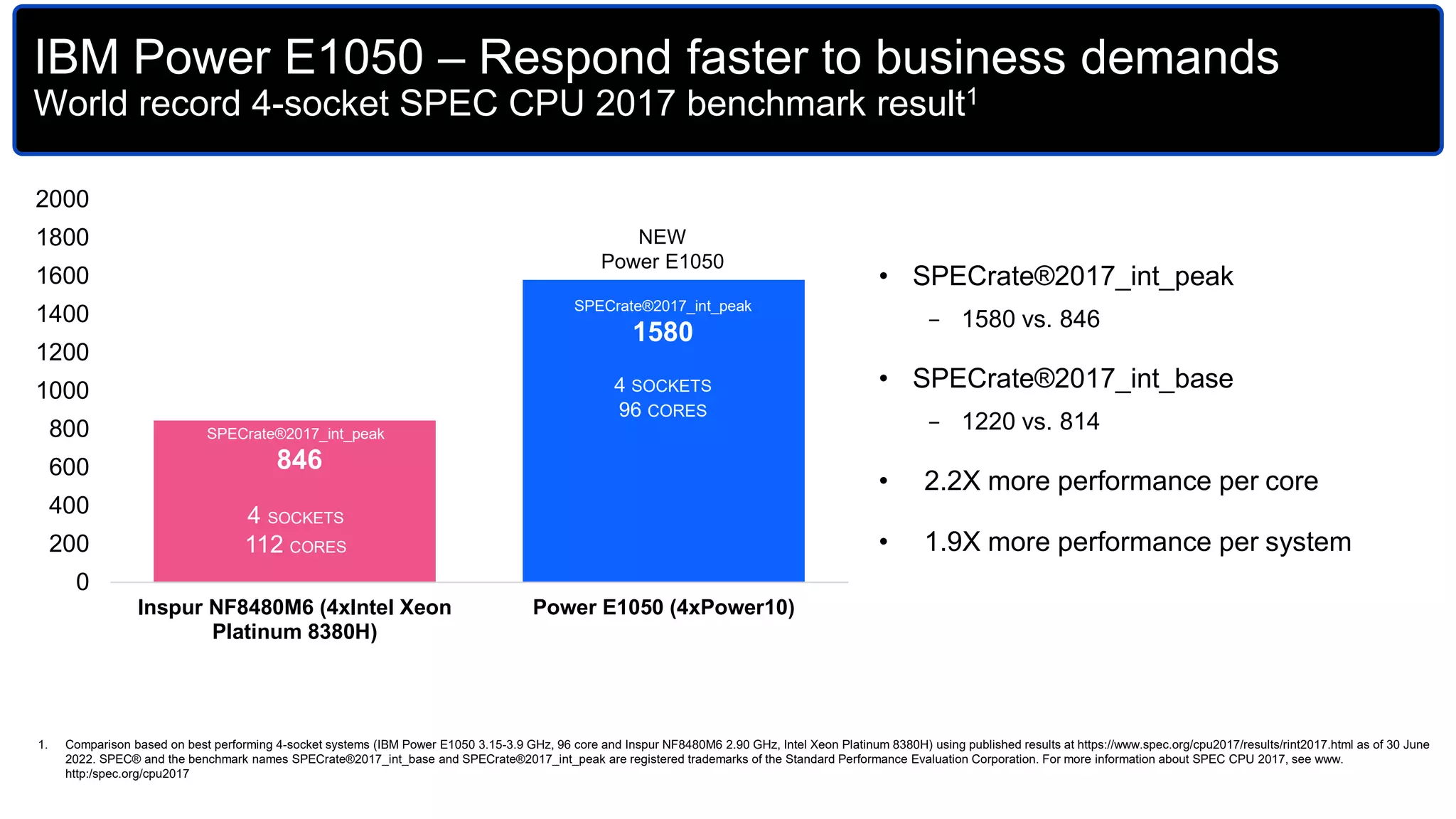

IBM Power E1050 – Respond faster to business demands
World record 4-socket SPEC CPU 2017 benchmark result1
NEW
Power E1050
1. Comparison based on best performing 4-socket systems (IBM Power E1050 3.15-3.9 GHz, 96 core and Inspur NF8480M6 2.90 GHz, Intel Xeon Platinum 8380H) using published results at https://www.spec.org/cpu2017/results/rint2017.html as of 30 June
2022. SPEC® and the benchmark names SPECrate®2017_int_base and SPECrate®2017_int_peak are registered trademarks of the Standard Performance Evaluation Corporation. For more information about SPEC CPU 2017, see www.
http:/spec.org/cpu2017

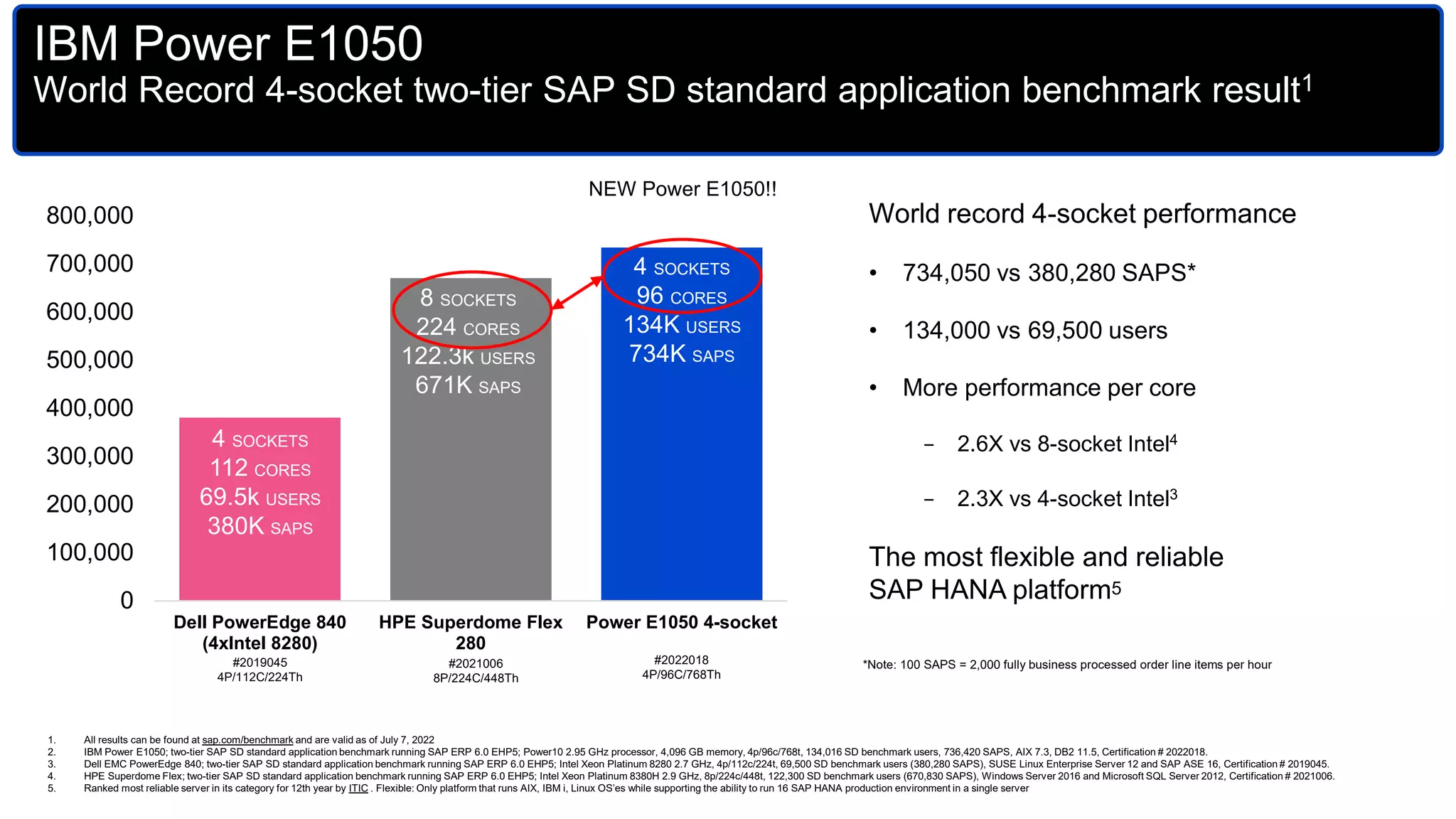

100 SAPS = 2,000 fully business processed order line items per hour
#2021006
8P/224C/448Th
#2022018
4P/96C/768Th
World record 4-socket performance

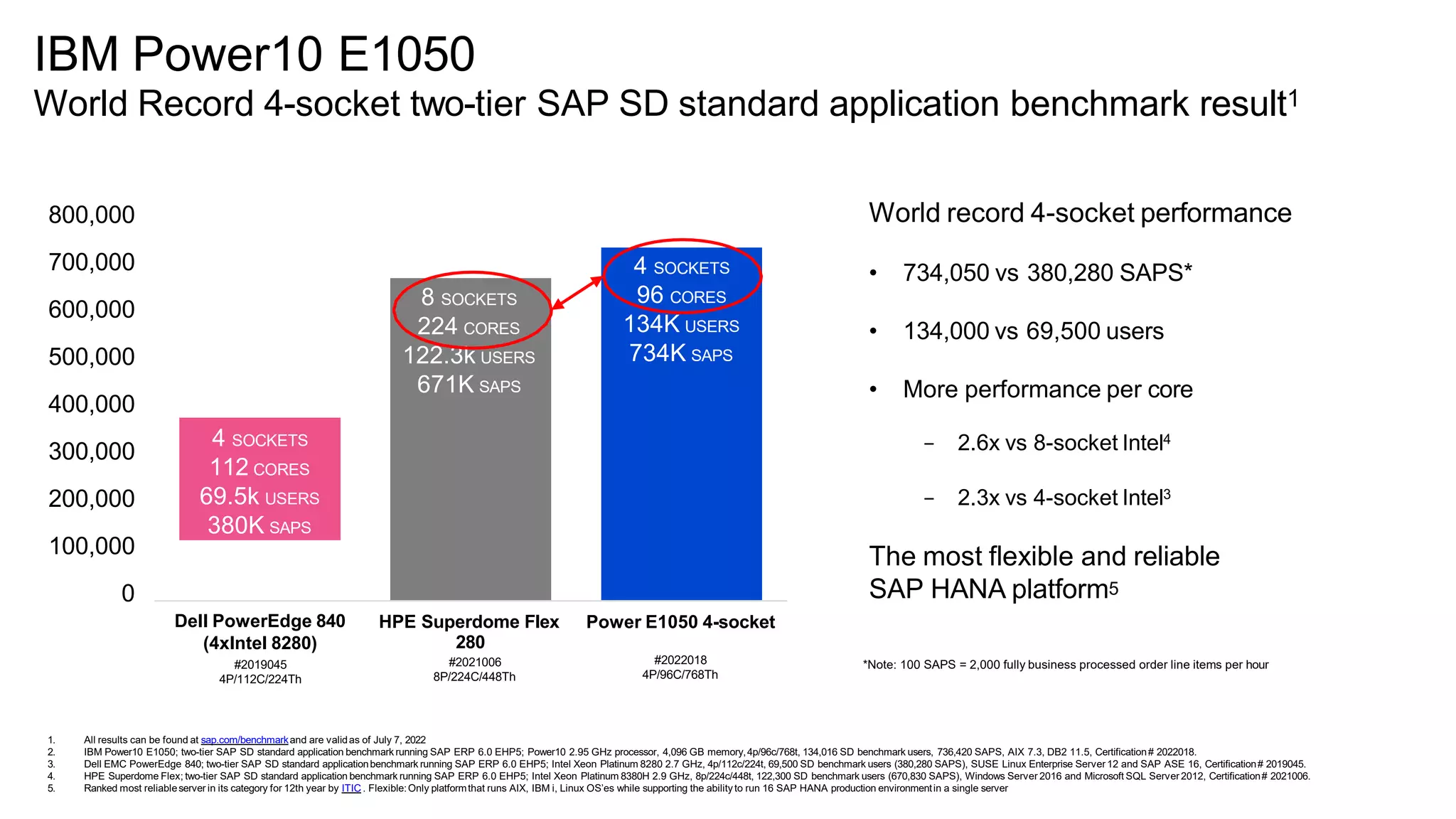

• 734,050 vs 380,280 SAPS*
• 134,000 vs 69,500 users
• More performance per core
− 2.6X vs 8-socket Intel4
− 2.3X vs 4-socket Intel3
The most flexible and reliable
SAP HANA platform5
0
100,000
200,000
300,000
400,000
500,000
600,000
700,000
800,000
Dell PowerEdge 840
(4xIntel 8280)
HPE Superdome Flex
280
4 SOCKETS
96 CORES
134K USERS
734K SAPS
4 SOCKETS
112 CORES
69.5k USERS
380K SAPS
8 SOCKETS
224 CORES
122.3k USERS
671K SAPS
#2019045
4P/112C/224Th
NEW Power E1050!!
IBM Power E1050
World Record 4-socket two-tier SAP SD standard application benchmark result1
*Note: 100 SAPS = 2,000 fully business processed order line items per hour
1. All results can be found at sap.com/benchmark and are valid as of July 7, 2022
2. IBM Power E1050; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5; Power10 2.95 GHz processor, 4,096 GB memory, 4p/96c/768t, 134,016 SD benchmark users, 736,420 SAPS, AIX 7.3, DB2 11.5, Certification # 2022018.
3. Dell EMC PowerEdge 840; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5; Intel Xeon Platinum 8280 2.7 GHz, 4p/112c/224t, 69,500 SD benchmark users (380,280 SAPS), SUSE Linux Enterprise Server 12 and SAP ASE 16, Certification # 2019045.
4. HPE Superdome Flex; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5; Intel Xeon Platinum 8380H 2.9 GHz, 8p/224c/448t, 122,300 SD benchmark users (670,830 SAPS), Windows Server 2016 and Microsoft SQL Server 2012, Certification # 2021006.
5. Ranked most reliable server in its category for 12th year by ITIC . Flexible: Only platform that runs AIX, IBM i, Linux OS’es while supporting the ability to run 16 SAP HANA production environment in a single server

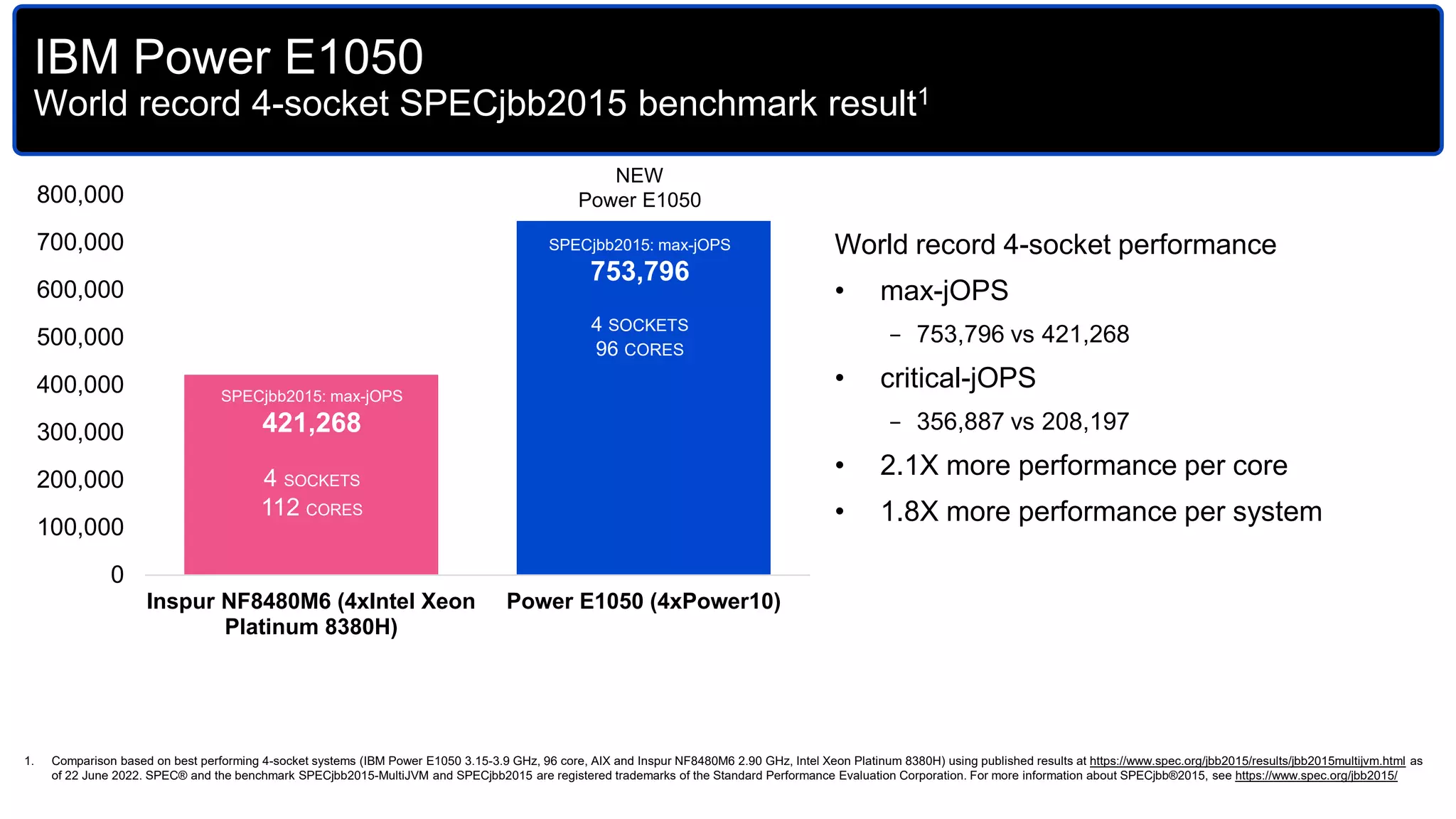

• max-jOPS
− 753,796 vs 421,268
• critical-jOPS
− 356,887 vs 208,197
• 2.1X more performance per core
• 1.8X more performance per system
0
100,000
200,000
300,000
400,000
500,000
600,000
700,000
800,000
Inspur NF8480M6 (4xIntel Xeon
Platinum 8380H)
Power E1050 (4xPower10)
SPECjbb2015: max-jOPS
753,796
4 SOCKETS
96 CORES
SPECjbb2015: max-jOPS
421,268
4 SOCKETS
112 CORES
NEW
Power E1050
IBM Power E1050
World record 4-socket SPECjbb2015 benchmark result1
1. Comparison based on best performing 4-socket systems (IBM Power E1050 3.15-3.9 GHz, 96 core, AIX and Inspur NF8480M6 2.90 GHz, Intel Xeon Platinum 8380H) using published results at https://www.spec.org/jbb2015/results/jbb2015multijvm.html as
of 22 June 2022. SPEC® and the benchmark SPECjbb2015-MultiJVM and SPECjbb2015 are registered trademarks of the Standard Performance Evaluation Corporation. For more information about SPECjbb®2015, see https://www.spec.org/jbb2015/

IBM Power
五大科技力
雲端力
and private clouds
全方位安全的
保護力
內建AI的資料
洞察力

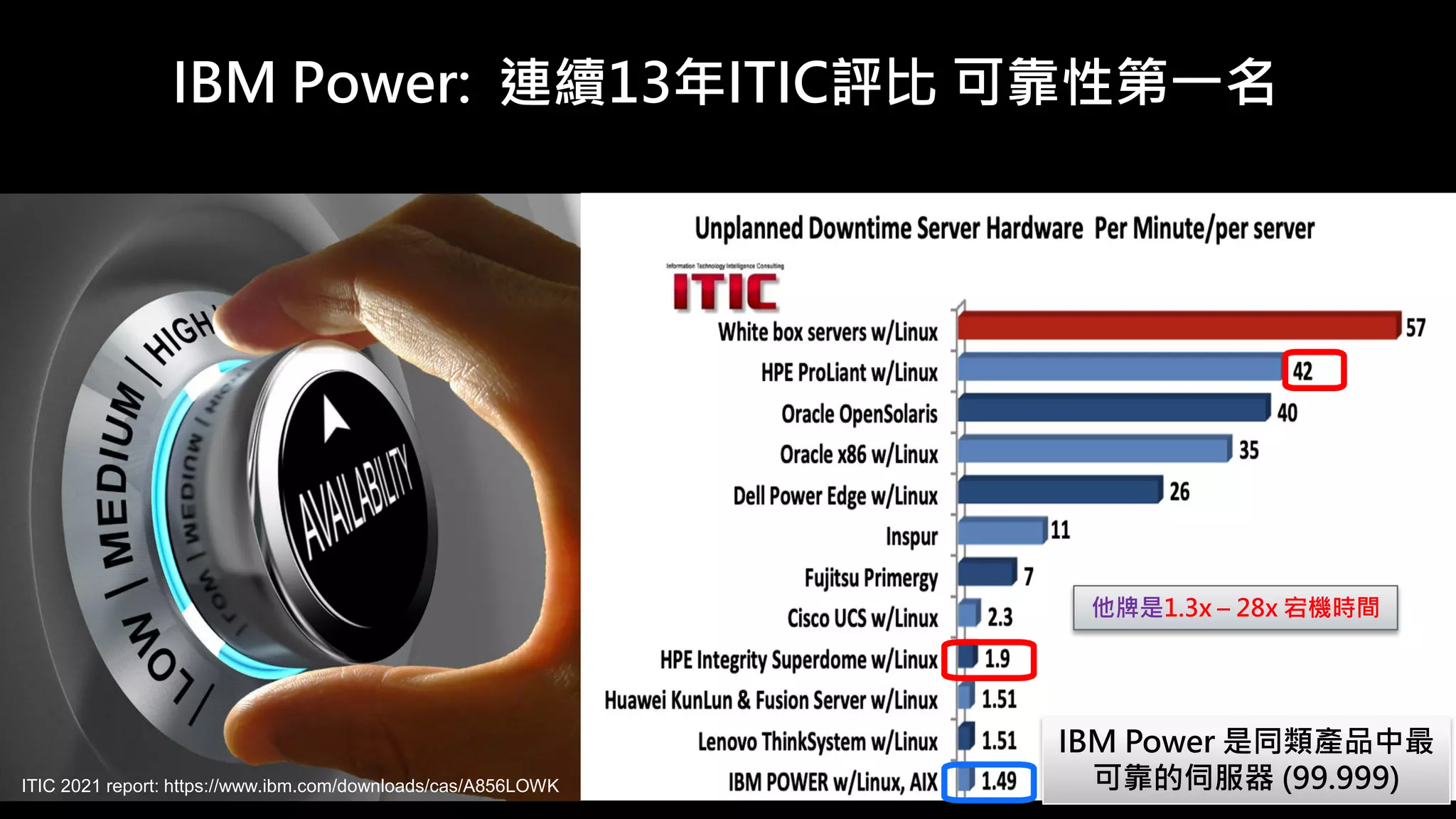

IBM Power: 連續13年ITIC評比可靠性第一名
IBM Power 是同類產品中最
可靠的伺服器 (99.999)
他牌是1.3x – 28x 宕機時間
ITIC 2021 report: https://www.ibm.com/downloads/cas/A856LOWK

Transparent memory
encryption with no
additional management
setup and no
performance impact
Chipkill technology with
advanced ECC protects
from memory chip failure -
plus spare

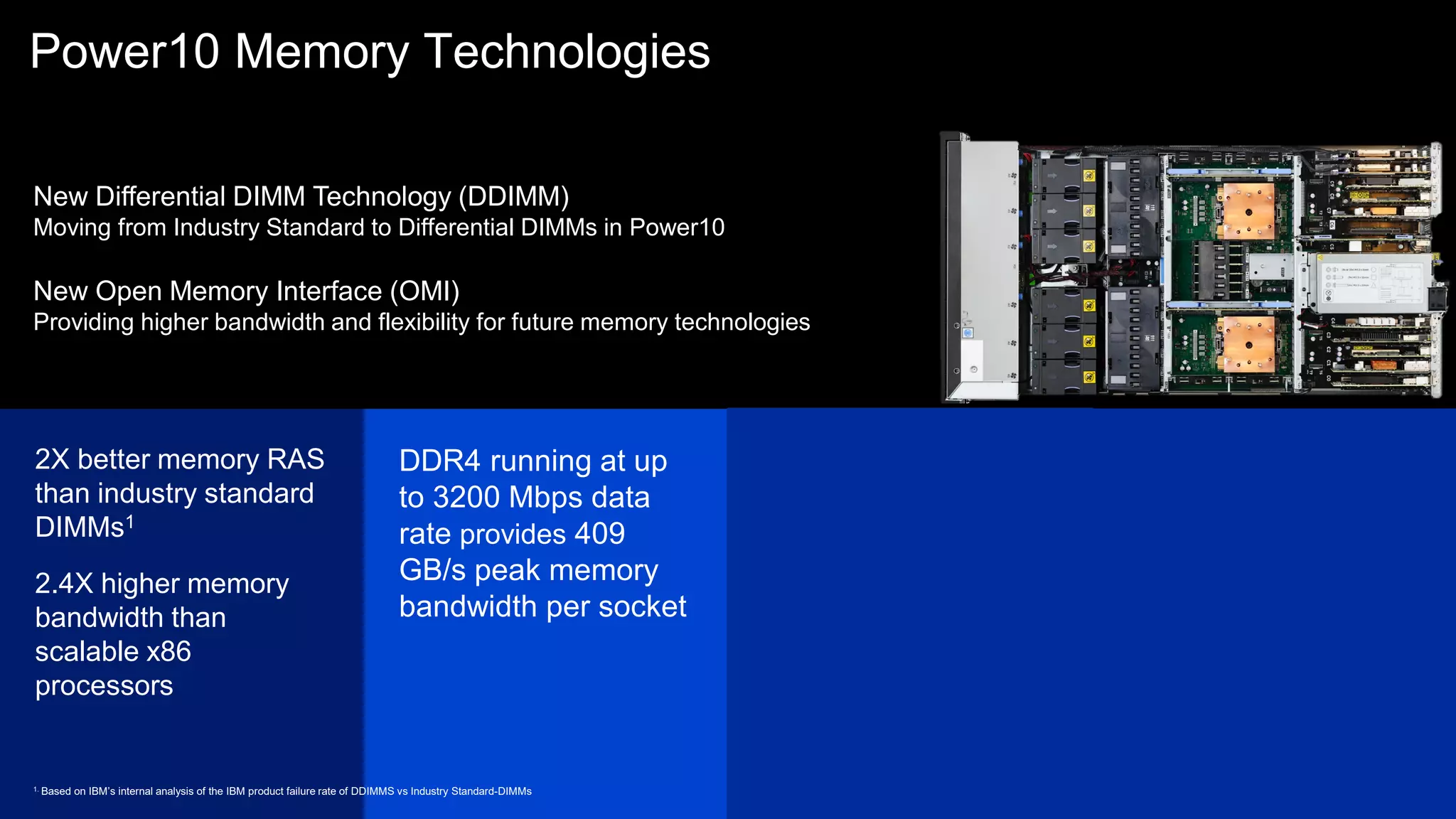

Power10 Memory Technologies
2X better memory RAS
than industry standard
DIMMs1
2.4X higher memory
bandwidth than
scalable x86
processors
Active Memory
Mirroring (AMM)
feature supported -
Mirrors hypervisor
memory to provide
resiliency from
uncorrectable memory
errors
DDR4 running at up
to 3200 Mbps data
rate provides 409
GB/s peak memory
bandwidth per socket
1. Based on IBM’s internal analysis of the IBM product failure rate of DDIMMS vs Industry Standard-DIMMs
New Differential DIMM Technology (DDIMM)
Moving from Industry Standard to Differential DIMMs in Power10
New Open Memory Interface (OMI)
Providing higher bandwidth and flexibility for future memory technologies
58

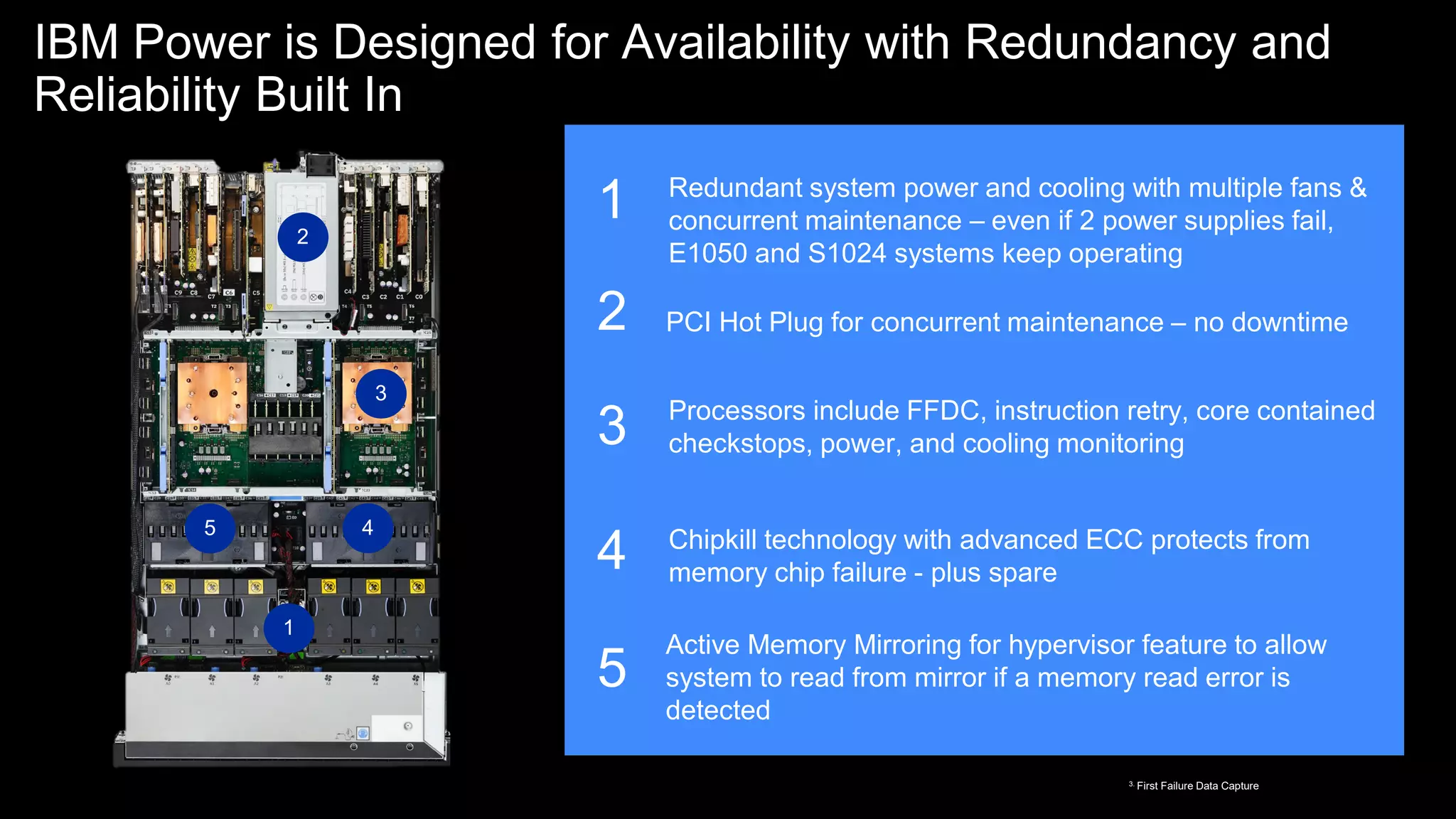

IBM Power is Designed for Availability with Redundancy and
Reliability Built In
Active Memory Mirroring for hypervisor feature to allow
system to read from mirror if a memory read error is
detected
1
2
3
4
5
1
2
3
4
5
Redundant system power and cooling with multiple fans &
concurrent maintenance – even if 2 power supplies fail,
E1050 and S1024 systems keep operating
PCI Hot Plug for concurrent maintenance – no downtime
Processors include FFDC, instruction retry, core contained
checkstops, power, and cooling monitoring
Chipkill technology with advanced ECC protects from
memory chip failure - plus spare
59
3. First Failure Data Capture

IBM Power
五大科技力
雲端力
and private clouds
全方位安全的
保護力
內建AI的資料
洞察力

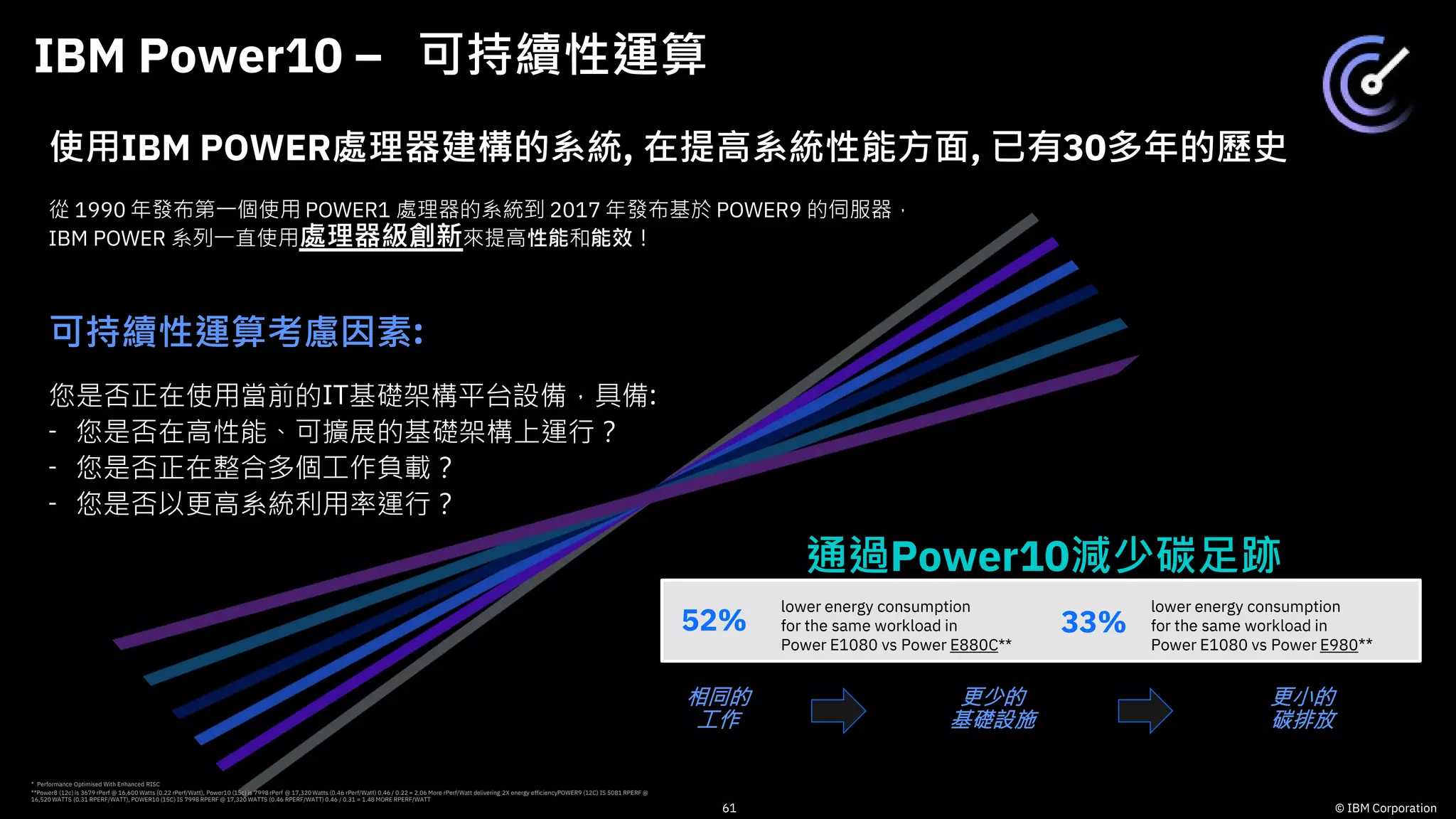

IBM Power10 – 可持續性運算
可持續性運算考慮因素:
您是否正在使用當前的IT基礎架構平台設備，具備:
- 您是否在高性能、可擴展的基礎架構上運行？
- 您是否正在整合多個工作負載？
- 您是否以更高系統利用率運行？
使用IBM POWER處理器建構的系統, 在提高系統性能方面, 已有30多年的歷史！
從 1990 年發布第一個使用 POWER1 處理器的系統到 2017 年發布基於 POWER9 的伺服器，
IBM POWER 系列一直使用處理器級創新來提高性能和能效！
相同的
工作
更少的
基礎設施
更小的
碳排放
33%
52%
lower energy consumption
for the same workload in
Power E1080 vs Power E880C**
lower energy consumption
for the same workload in
Power E1080 vs Power E980**
通過Power10減少碳足跡
* Performance Optimised With Enhanced RISC
**Power8 (12c) is 3679 rPerf @ 16,600 Watts (0.22 rPerf/Watt), Power10 (15c) is 7998 rPerf @ 17,320 Watts (0.46 rPerf/Watt) 0.46 / 0.22 = 2.06 More rPerf/Watt delivering 2X energy efficiencyPOWER9 (12C) IS 5081 RPERF @
16,520 WATTS (0.31 RPERF/WATT), POWER10 (15C) IS 7998 RPERF @ 17,320 WATTS (0.46 RPERF/WATT) 0.46 / 0.31 = 1.48 MORE RPERF/WATT

IBM Power8 IBM Power9 IBM Power10
IBM Power10 永續運算降低碳足跡
相同
工作負載
POWER9
更少的設備
Power10
更小的碳足跡
使用 Power10 減少碳足跡
33%
52% Power E1080 與 Power
E880C 相比，相同工作負載
的能耗更低*
10,376 watts 7,478 watts ~5,000 watts
Power E1080 與 Power
E980 相比，相同工作負載
的能耗更低*
* Power8 (12c) is 3679 rPerf @ 16,600 Watts (0.22 rPerf/Watt), Power10 (15c) is 7998 rPerf @ 17,320 Watts (0.46 rPerf/Watt); 0.46 / 0.22 = 2.06 more rPerf/Watt, delivering 2X energy efficiency
Power9 (12c) IS 5081 rPerf @ 16,520 Watts (0.31 rPerf/Watt), Power10 (15c) is 7998 rPerf @ 17,320 Watts (0.46 rPerf/Watt); 0.46 / 0.31 = 1.48 more rPerf/Watt

IBM Power
5大科技力
雲端力
and private clouds
全方位安全的
保護力
內建AI的資料
洞察力

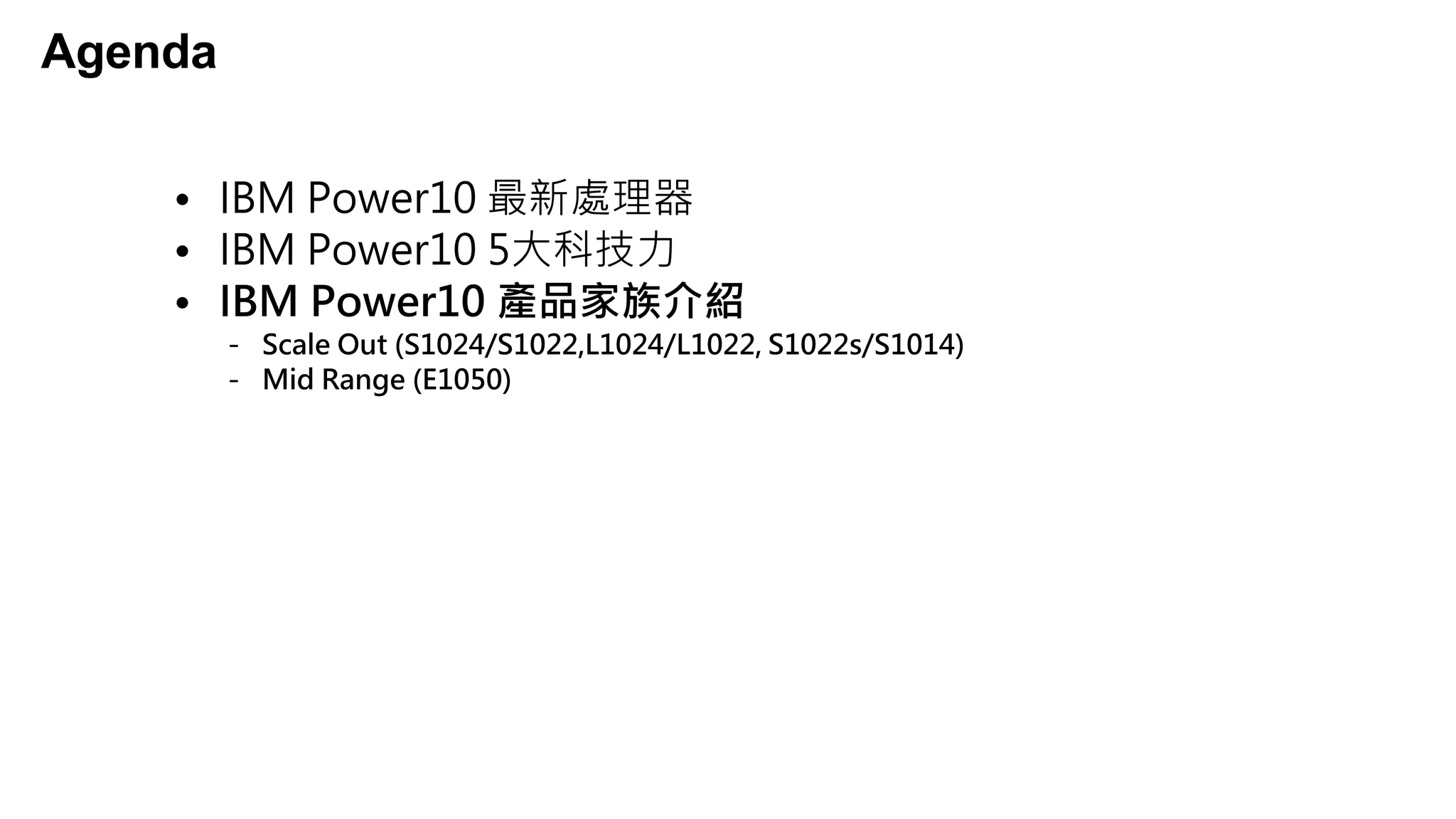

Agenda
• IBM Power10 最新處理器
• IBM Power10 5大科技力
• IBM Power10 產品家族介紹
- Scale Out (S1024/S1022,L1024/L1022, S1022s/S1014)
- Mid Range (E1050)

IBM Power Scale-Out
Systems with Power10
S1014 • S1022 • S1024 • L1022 • L1024

技術再領先最佳1-2 Socket 伺服器平台

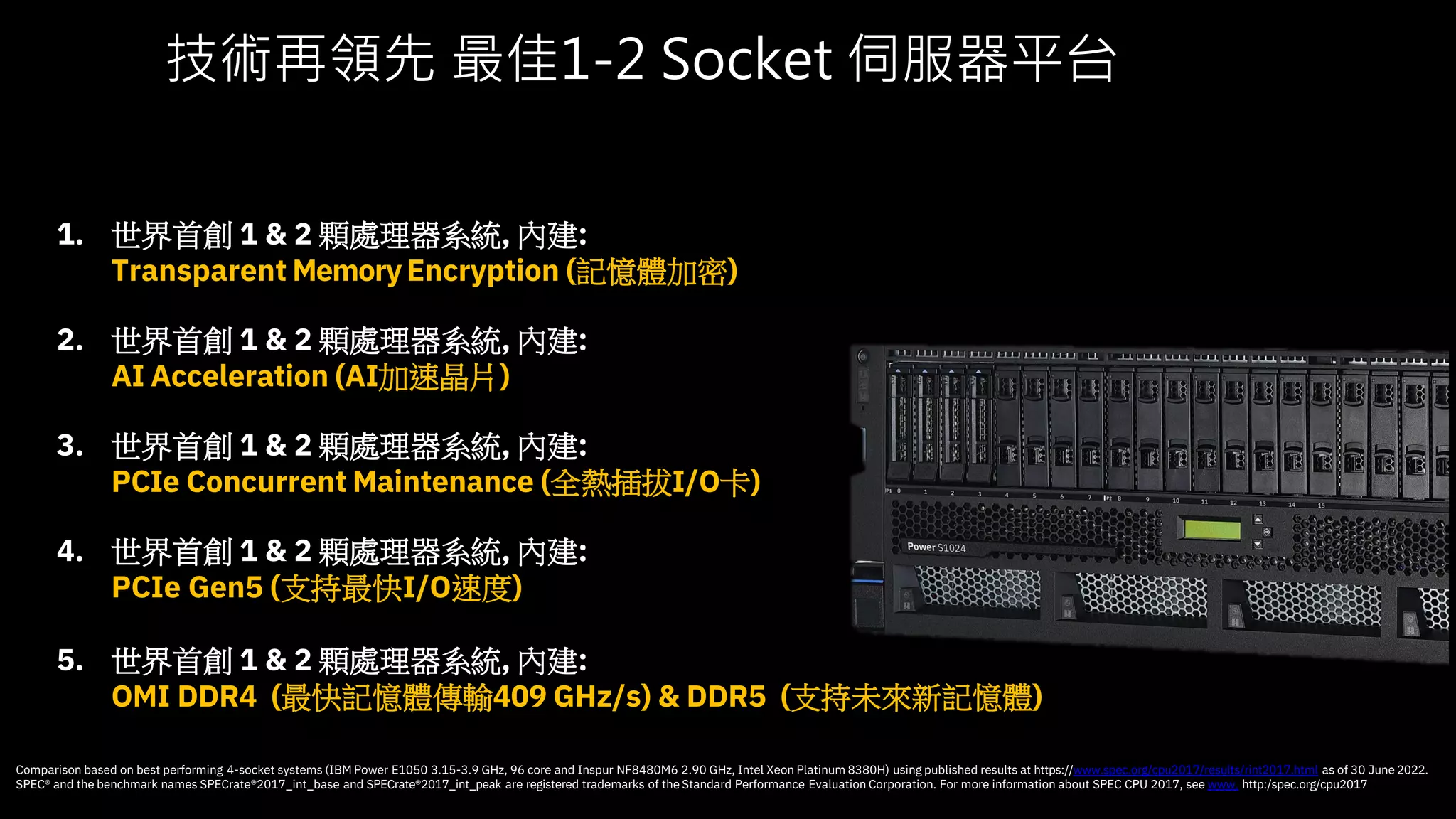

1. 世界首創 1 & 2 顆處理器系統, 內建:
Transparent MemoryEncryption (記憶體加密)
AI Acceleration (AI加速晶片)
PCIe Concurrent Maintenance (全熱插拔I/O卡)
PCIe Gen5 (支持最快I/O速度)
OMI DDR4 (最快記憶體傳輸409 GHz/s) & DDR5 (支持未來新記憶體)
Comparison based on best performing 4-socket systems (IBM Power E1050 3.15-3.9 GHz, 96 core and Inspur NF8480M6 2.90 GHz, Intel Xeon Platinum 8380H) using published results at https://www.spec.org/cpu2017/results/rint2017.html as of 30 June 2022.
SPEC® and the benchmark names SPECrate®2017_int_base and SPECrate®2017_int_peak are registered trademarks of the Standard Performance Evaluation Corporation. For more information about SPEC CPU 2017, see www. http:/spec.org/cpu2017

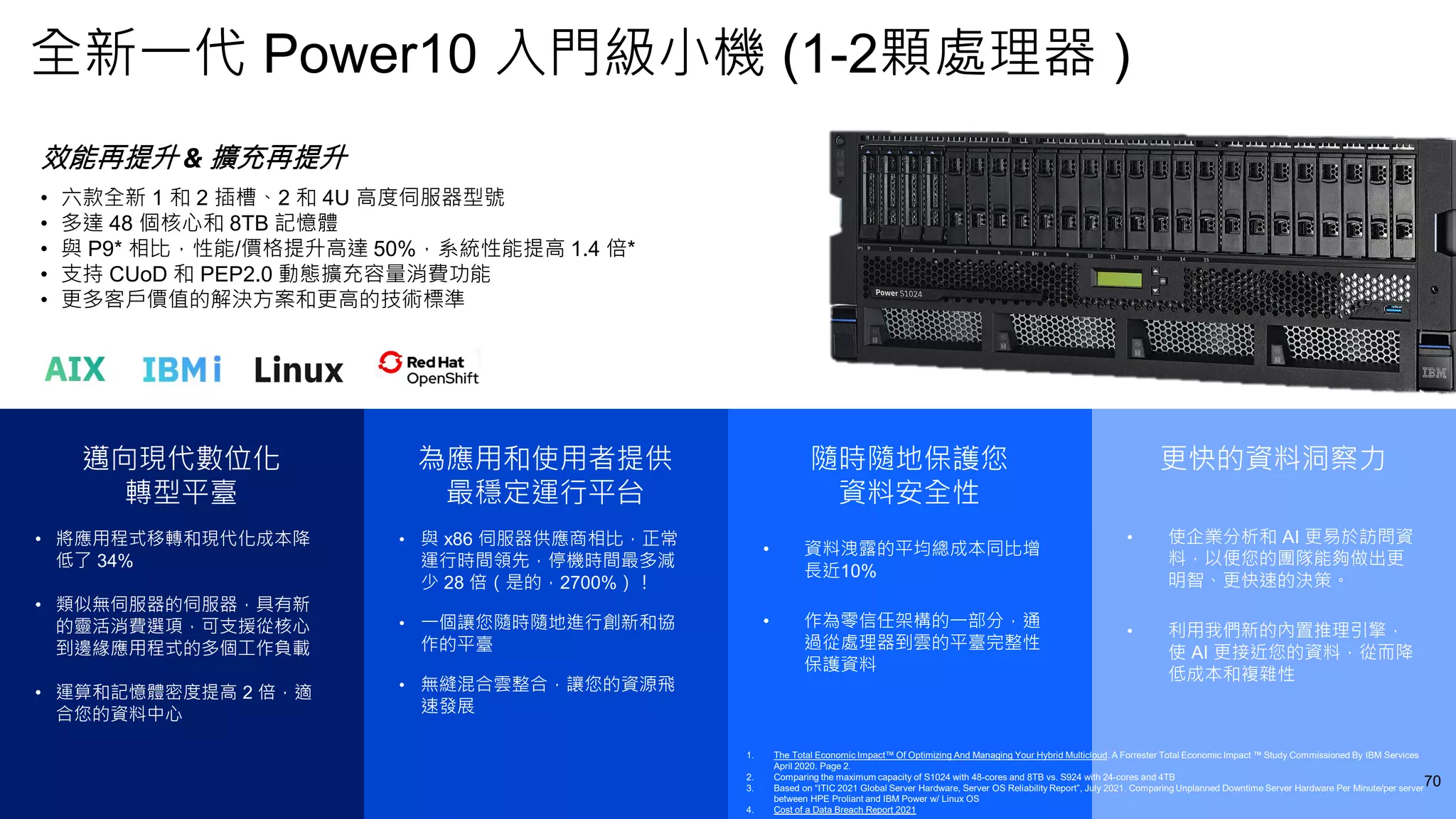

全新一代 Power10 入門級小機 (1-2顆處理器 )
邁向現代數位化
轉型平臺
• 將應用程式移轉和現代化成本降
低了 34%
• 類似無伺服器的伺服器，具有新
的靈活消費選項，可支援從核心
到邊緣應用程式的多個工作負載
• 運算和記憶體密度提高 2 倍，適
合您的資料中心
為應用和使用者提供
最穩定運行平台
• 與 x86 伺服器供應商相比，正常
運行時間領先，停機時間最多減
少 28 倍（是的，2700%）！
• 一個讓您隨時隨地進行創新和協
作的平臺
• 無縫混合雲整合，讓您的資源飛
速發展
隨時隨地保護您
資料安全性
• 資料洩露的平均總成本同比增
長近10%
• 作為零信任架構的一部分，通
過從處理器到雲的平臺完整性
保護資料
更快的資料洞察力
• 使企業分析和 AI 更易於訪問資
料，以便您的團隊能夠做出更
明智、更快速的決策。
• 利用我們新的內置推理引擎，
使 AI 更接近您的資料，從而降
低成本和複雜性
70
1. The Total Economic Impact™ Of Optimizing And Managing Your Hybrid Multicloud. A Forrester Total Economic Impact ™ Study Commissioned By IBM Services
April 2020. Page 2.
2. Comparing the maximum capacity of S1024 with 48-cores and 8TB vs. S924 with 24-cores and 4TB
3. Based on “ITIC 2021 Global Server Hardware, Server OS Reliability Report”, July 2021. Comparing Unplanned Downtime Server Hardware Per Minute/per server
between HPE Proliant and IBM Power w/ Linux OS
4. Cost of a Data Breach Report 2021
效能再提升 & 擴充再提升
• 六款全新 1 和 2 插槽、2 和 4U 高度伺服器型號
• 多達 48 個核心和 8TB 記憶體
• 與 P9* 相比，性能/價格提升高達 50%，系統性能提高 1.4 倍*
• 支持 CUoD 和 PEP2.0 動態擴充容量消費功能
• 更多客戶價值的解決方案和更高的技術標準

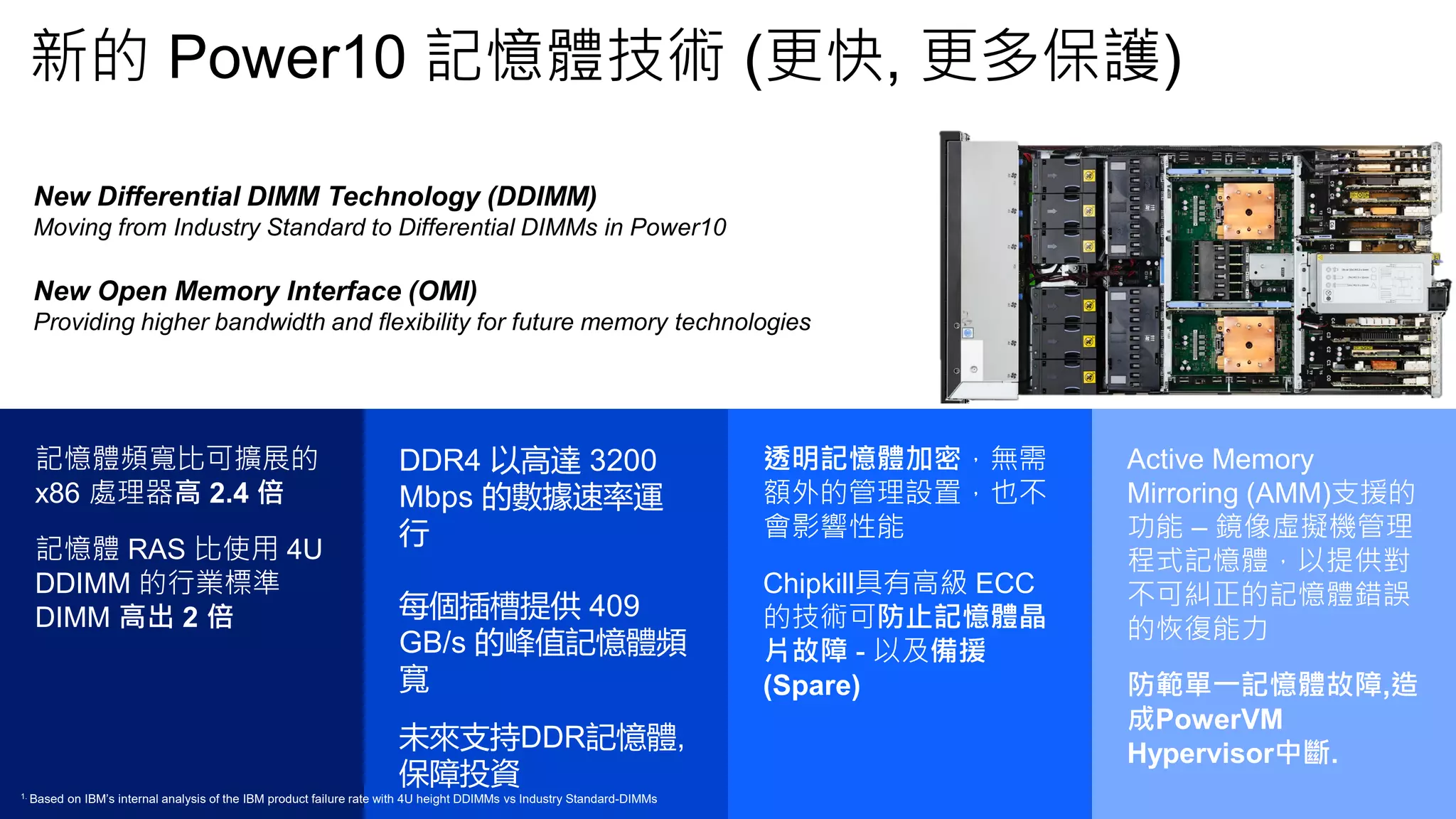

新的 Power10 記憶體技術 (更快, 更多保護)
記憶體頻寬比可擴展的
x86 處理器高 2.4 倍
記憶體 RAS 比使用 4U
DDIMM 的行業標準
DIMM 高出 2 倍
Active Memory
Mirroring (AMM)支援的
功能 – 鏡像虛擬機管理
程式記憶體，以提供對
不可糾正的記憶體錯誤
的恢復能力
防範單一記憶體故障,造
成PowerVM
Hypervisor中斷.
DDR4 以高達 3200
Mbps 的數據速率運
行
每個插槽提供 409
GB/s 的峰值記憶體頻
寬
未來支持DDR記憶體,
保障投資
透明記憶體加密，無需
額外的管理設置，也不
會影響性能
Chipkill具有高級 ECC
的技術可防止記憶體晶
片故障 - 以及備援
(Spare)
1. Based on IBM’s internal analysis of the IBM product failure rate with 4U height DDIMMs vs Industry Standard-DIMMs
New Differential DIMM Technology (DDIMM)
Moving from Industry Standard to Differential DIMMs in Power10
New Open Memory Interface (OMI)
Providing higher bandwidth and flexibility for future memory technologies

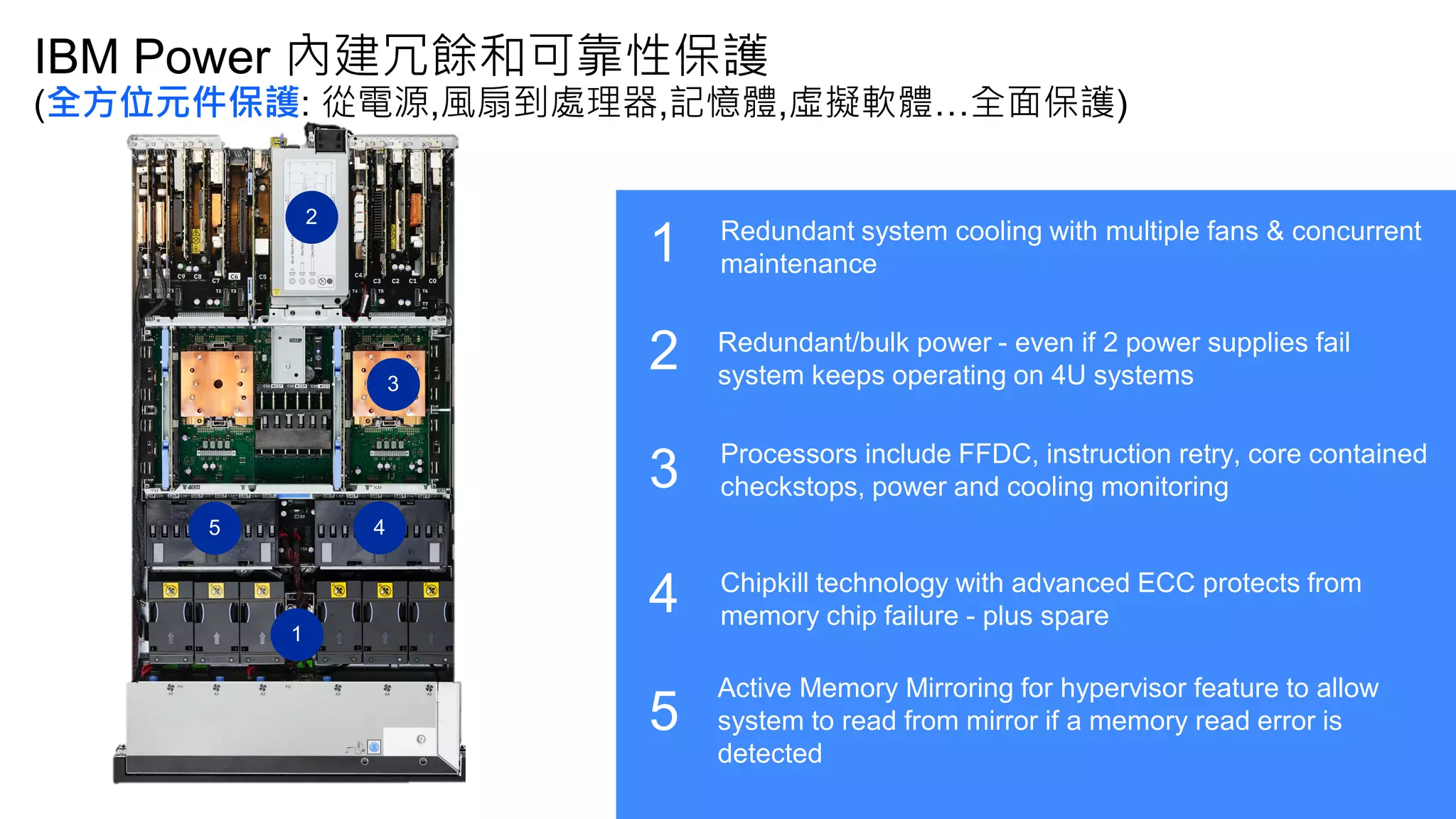

IBM Power 內建冗餘和可靠性保護
(全方位元件保護: 從電源,風扇到處理器,記憶體,虛擬軟體…全面保護)
Active Memory Mirroring for hypervisor feature to allow
system to read from mirror if a memory read error is
detected
1
2
3
4
5
1
2
3
4
5
Redundant system cooling with multiple fans & concurrent
maintenance
Redundant/bulk power - even if 2 power supplies fail
system keeps operating on 4U systems
Processors include FFDC, instruction retry, core contained
checkstops, power and cooling monitoring
Chipkill technology with advanced ECC protects from
memory chip failure - plus spare

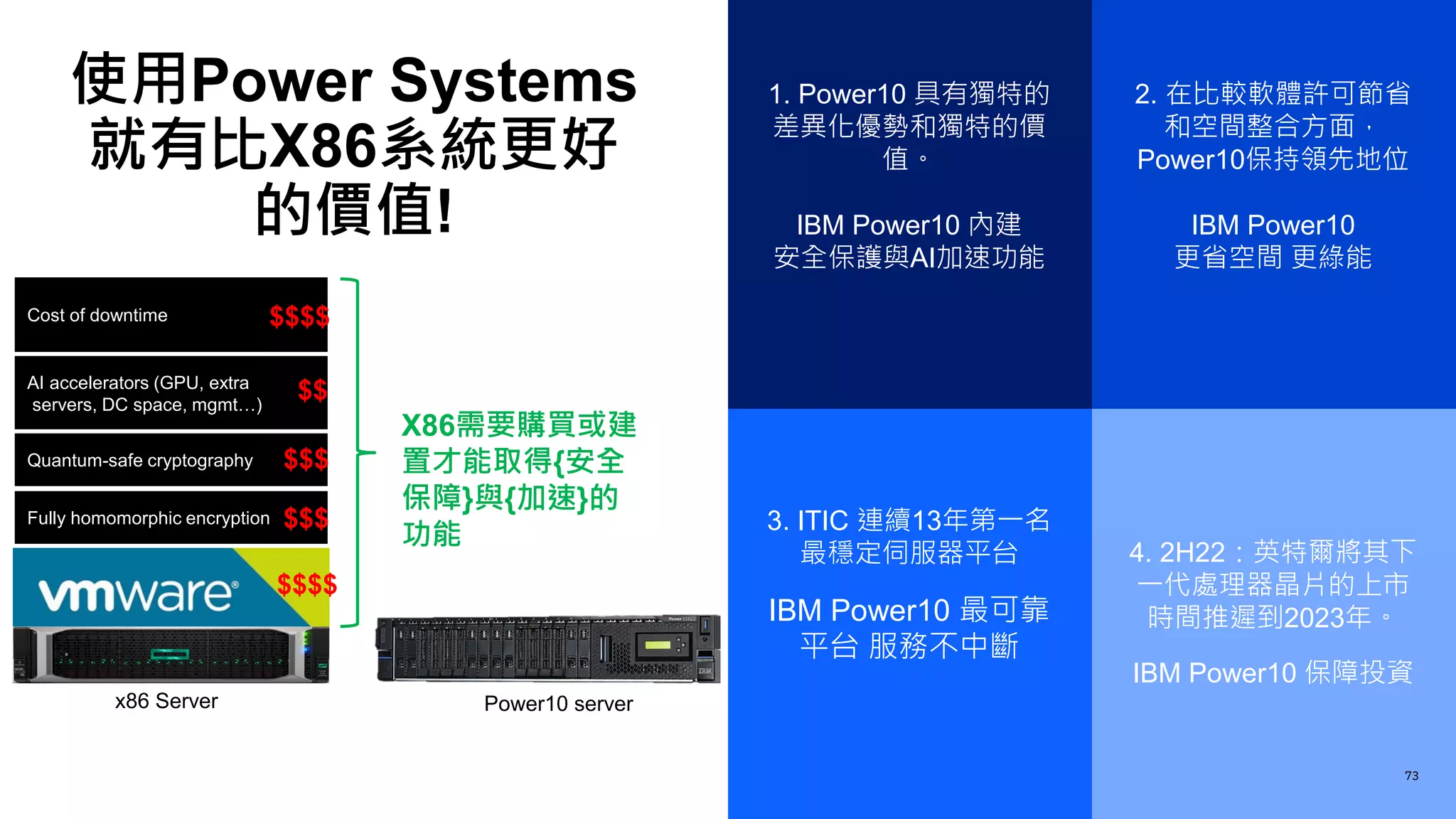

使用Power Systems
就有比X86系統更好
的價值!
1. Power10 具有獨特的
差異化優勢和獨特的價
值。
IBM Power10 內建
安全保護與AI加速功能
2. 在比較軟體許可節省
和空間整合方面，
Power10保持領先地位
IBM Power10
更省空間更綠能
3. ITIC 連續13年第一名
最穩定伺服器平台
IBM Power10 最可靠
平台服務不中斷
4. 2H22：英特爾將其下
一代處理器晶片的上市
時間推遲到2023年。
IBM Power10 保障投資
73
Fully homomorphic encryption
AI accelerators (GPU, extra
servers, DC space, mgmt…)
Cost of downtime
Quantum-safe cryptography
$$$$
$$$
$$$
$$
$$$$
x86 Server Power10 server
X86需要購買或建
置才能取得{安全
保障}與{加速}的
功能

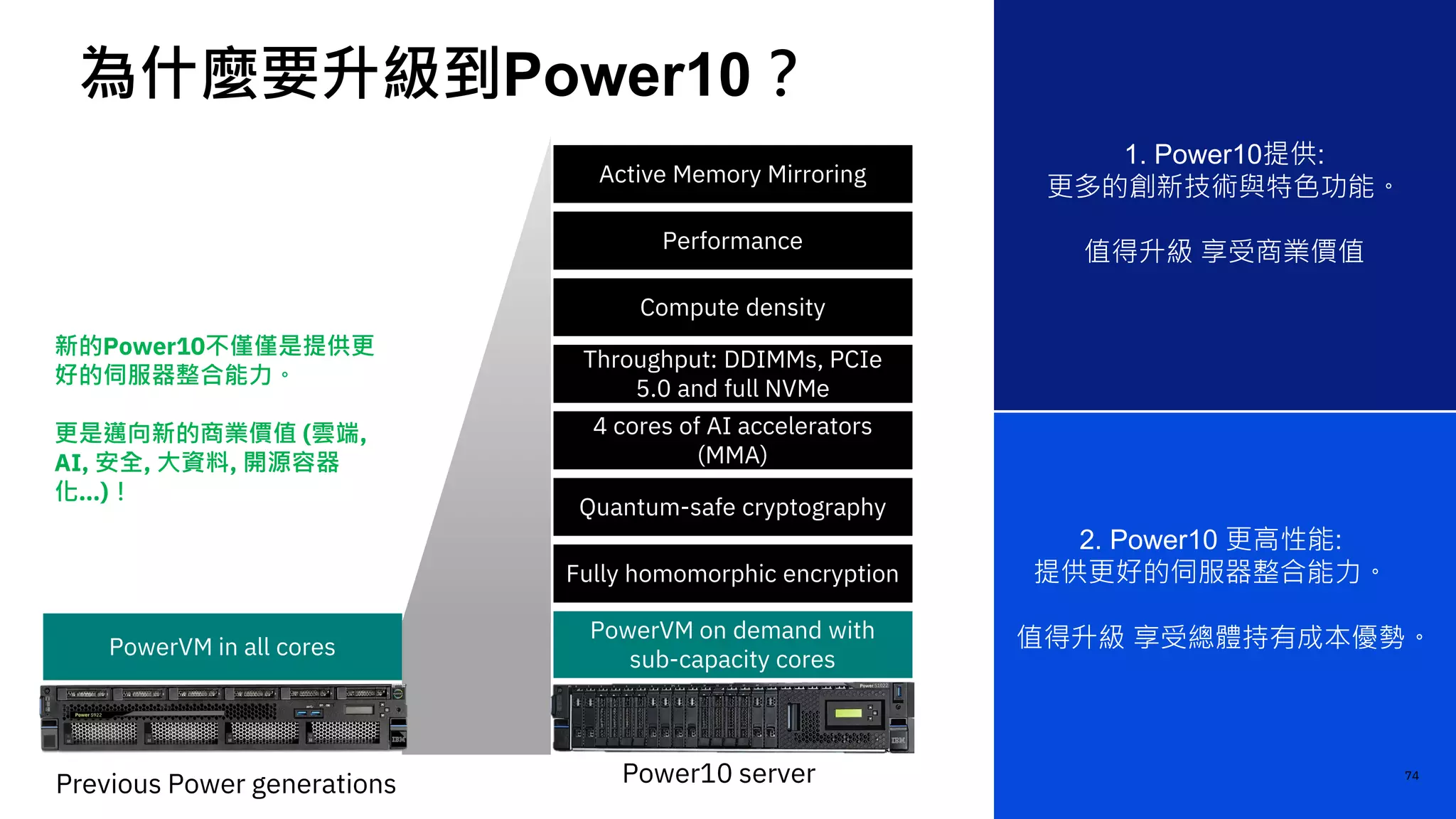

為什麼要升級到Power10？
1. Power10提供:
更多的創新技術與特色功能。
值得升級享受商業價值
2. Power10 更高性能:
提供更好的伺服器整合能力。
值得升級享受總體持有成本優勢。
74
Fully homomorphic encryption
4 cores of AI accelerators
(MMA)
Quantum-safe cryptography
Previous Power generations Power10 server
PowerVM in all cores
PowerVM on demand with
sub-capacity cores
Throughput: DDIMMs, PCIe
5.0 and full NVMe
Compute density
Performance
Active Memory Mirroring
新的Power10不僅僅是提供更
好的伺服器整合能力。
更是邁向新的商業價值 (雲端,
AI, 安全, 大資料, 開源容器
化…)！

IBM Power S1022
(32-core, 1TB)
Intel Xeon
Platinum 8380
(80-core, 1TB)
Solution Cost
-Server + (CP4D base @ $25,164/core and
DB2 @ $17,920/core) with 3 years support
$1,537,007 $3,542,552
Server price
- Power S1022
- Xeon Platinum 8380-based server
- Includes OS/Virt
- Both with 3-yr warranty
$166,127 $115,352
QpH
Total Queries/Hour
4,700 QpH 3,337 QpH
QpH per $1000 3.1 QpH/$K 0.94 QpH/$K
57%
Lower solution costs over 3 years
3.3X
Better Price-
Performance
3.5X
per core
performance

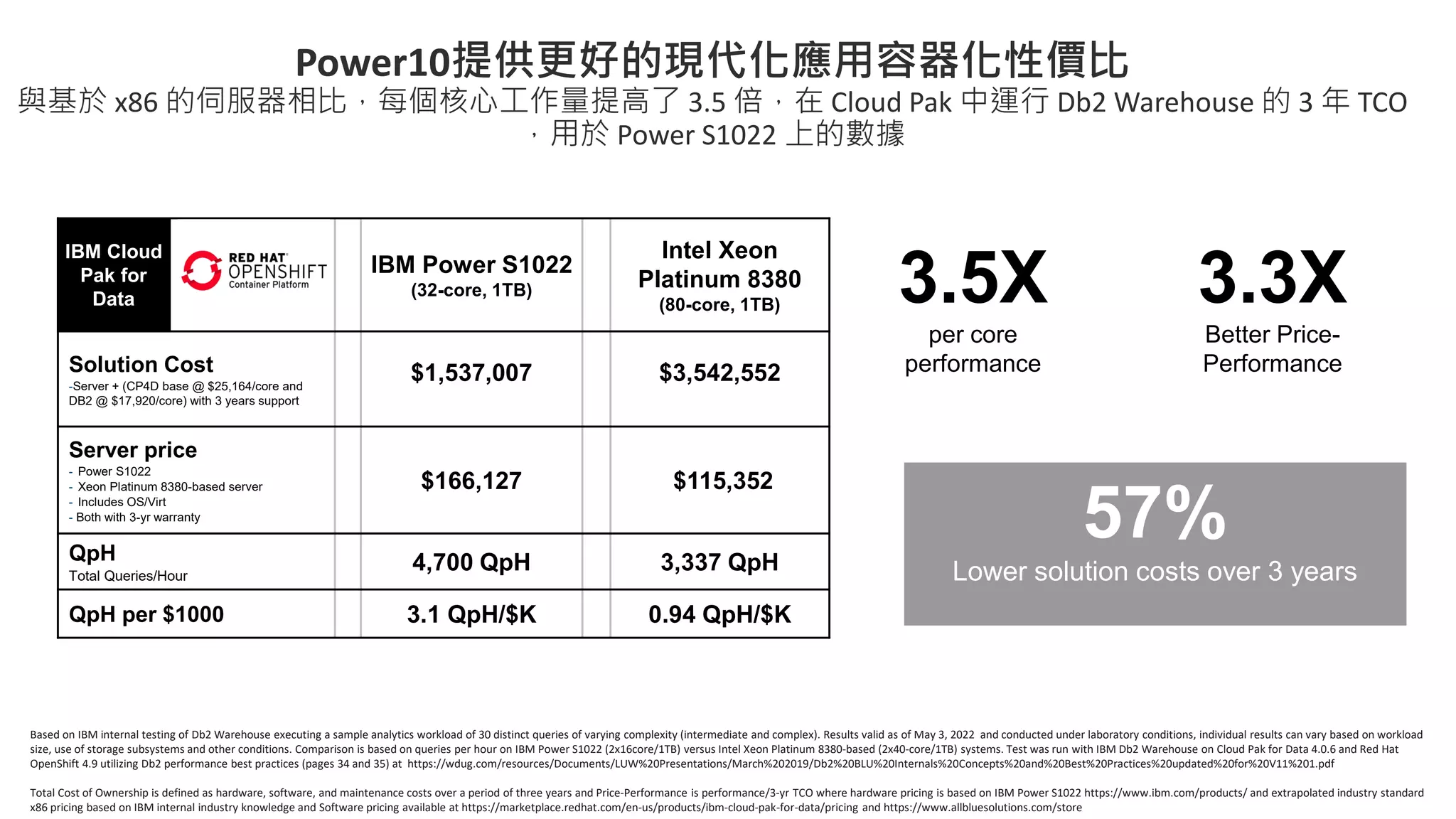

Power10提供更好的現代化應用容器化性價比
與基於 x86 的伺服器相比，每個核心工作量提高了 3.5 倍，在 Cloud Pak 中運行 Db2 Warehouse 的 3 年 TCO
，用於 Power S1022 上的數據
IBM Cloud
Pak for
Data
Based on IBM internal testing of Db2 Warehouse executing a sample analytics workload of 30 distinct queries of varying complexity (intermediate and complex). Results valid as of May 3, 2022 and conducted under laboratory conditions, individual results can vary based on workload
size, use of storage subsystems and other conditions. Comparison is based on queries per hour on IBM Power S1022 (2x16core/1TB) versus Intel Xeon Platinum 8380-based (2x40-core/1TB) systems. Test was run with IBM Db2 Warehouse on Cloud Pak for Data 4.0.6 and Red Hat
OpenShift 4.9 utilizing Db2 performance best practices (pages 34 and 35) at https://wdug.com/resources/Documents/LUW%20Presentations/March%202019/Db2%20BLU%20Internals%20Concepts%20and%20Best%20Practices%20updated%20for%20V11%201.pdf
Total Cost of Ownership is defined as hardware, software, and maintenance costs over a period of three years and Price-Performance is performance/3-yr TCO where hardware pricing is based on IBM Power S1022 https://www.ibm.com/products/ and extrapolated industry standard
x86 pricing based on IBM internal industry knowledge and Software pricing available at https://marketplace.redhat.com/en-us/products/ibm-cloud-pak-for-data/pricing and https://www.allbluesolutions.com/store

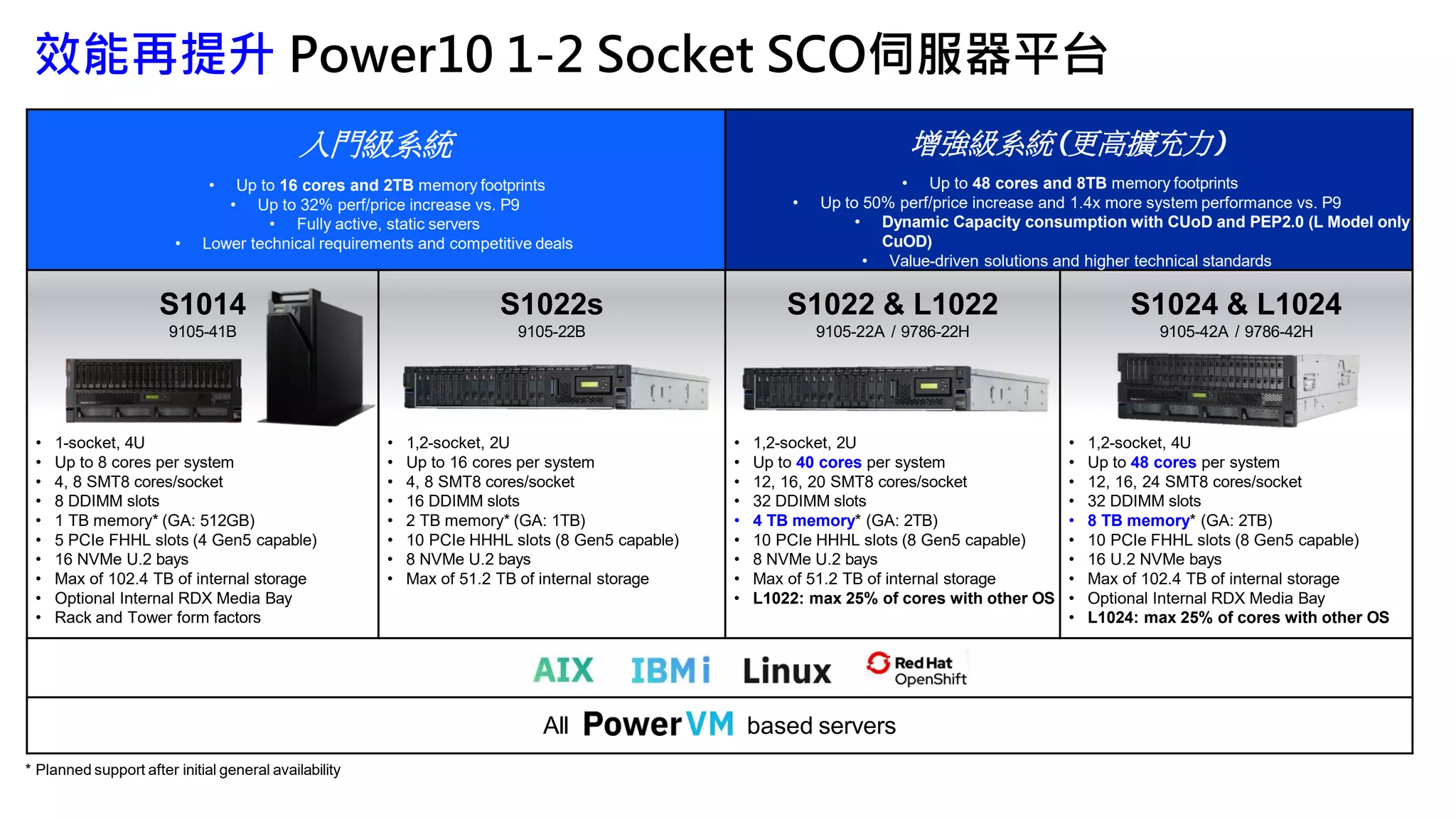

效能再提升 Power10 1-2 Socket SCO伺服器平台
* Planned support after initial general availability
入門級系統
• Up to 16 cores and 2TB memory footprints
• Up to 32% perf/price increase vs. P9
• Fully active, static servers
• Lower technical requirements and competitive deals
增強級系統 (更高擴充力 )
• Up to 48 cores and 8TB memory footprints
• Up to 50% perf/price increase and 1.4x more system performance vs. P9
• Dynamic Capacity consumption with CUoD and PEP2.0 (L Model only
CuOD)
• Value-driven solutions and higher technical standards
S1014
9105-41B
S1022s
9105-22B
S1022 & L1022
9105-22A / 9786-22H
S1024 & L1024
9105-42A / 9786-42H
• 1-socket, 4U
• Up to 8 cores per system
• 4, 8 SMT8 cores/socket
• 8 DDIMM slots
• 1 TB memory* (GA: 512GB)
• 5 PCIe FHHL slots (4 Gen5 capable)
• 16 NVMe U.2 bays
• Max of 102.4 TB of internal storage
• Optional Internal RDX Media Bay
• Rack and Tower form factors
• 1,2-socket, 2U
• 4, 8 SMT8 cores/socket
• 16 DDIMM slots
• 2 TB memory* (GA: 1TB)
• 10 PCIe HHHL slots (8 Gen5 capable)
• 8 NVMe U.2 bays
• 1,2-socket, 2U
• 12, 16, 20 SMT8 cores/socket
• 32 DDIMM slots
• 10 PCIe HHHL slots (8 Gen5 capable)
• 8 NVMe U.2 bays
• L1022: max 25% of cores with other OS
• 1,2-socket, 4U
• 12, 16, 24 SMT8 cores/socket
• 32 DDIMM slots
• 10 PCIe FHHL slots (8 Gen5 capable)
• 16 U.2 NVMe bays
• Optional Internal RDX Media Bay
• L1024: max 25% of cores with other OS
All based servers

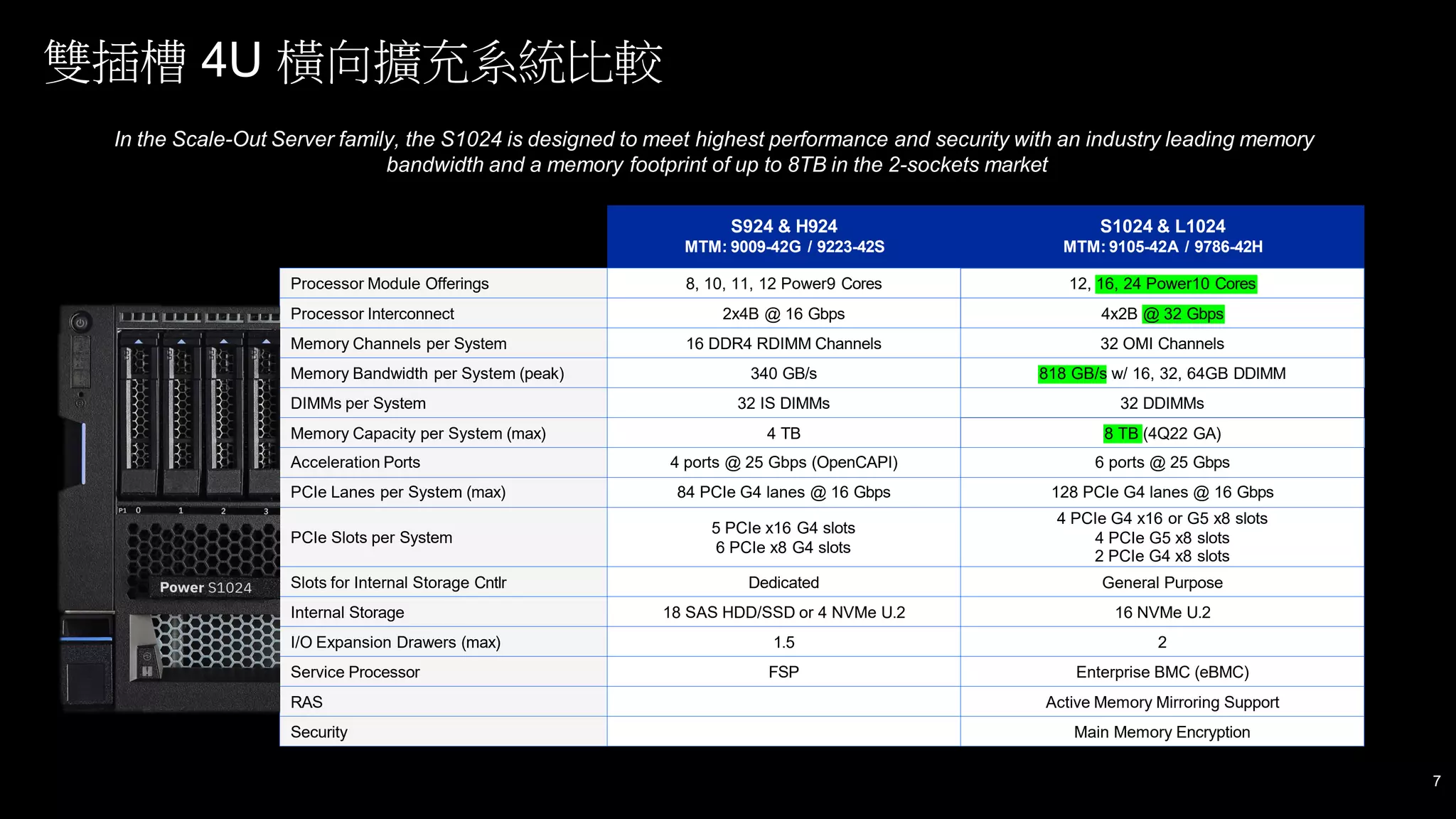

雙插槽 4U 橫向擴充系統比較
S924 & H924 S1024 & L1024
MTM: 9009-42G / 9223-42S MTM: 9105-42A / 9786-42H
Processor Module Offerings 8, 10, 11, 12 Power9 Cores 12, 16, 24 Power10 Cores
Processor Interconnect 2x4B @ 16 Gbps 4x2B @ 32 Gbps
Memory Channels per System 16 DDR4 RDIMM Channels 32 OMI Channels
Memory Bandwidth per System (peak) 340 GB/s 818 GB/s w/ 16, 32, 64GB DDIMM
DIMMs per System 32 IS DIMMs 32 DDIMMs
Memory Capacity per System (max) 4 TB 8 TB (4Q22 GA)
Acceleration Ports 4 ports @ 25 Gbps (OpenCAPI) 6 ports @ 25 Gbps
PCIe Lanes per System (max) 84 PCIe G4 lanes @ 16 Gbps 128 PCIe G4 lanes @ 16 Gbps
PCIe Slots per System
5 PCIe x16 G4 slots
6 PCIe x8 G4 slots
4 PCIe G4 x16 or G5 x8 slots
4 PCIe G5 x8 slots
2 PCIe G4 x8 slots
Slots for Internal Storage Cntlr Dedicated General Purpose
Internal Storage 18 SAS HDD/SSD or 4 NVMe U.2 16 NVMe U.2
I/O Expansion Drawers (max) 1.5 2
Service Processor FSP Enterprise BMC (eBMC)
RAS Active Memory Mirroring Support
Security Main Memory Encryption
7
In the Scale-Out Server family, the S1024 is designed to meet highest performance and security with an industry leading memory
bandwidth and a memory footprint of up to 8TB in the 2-sockets market

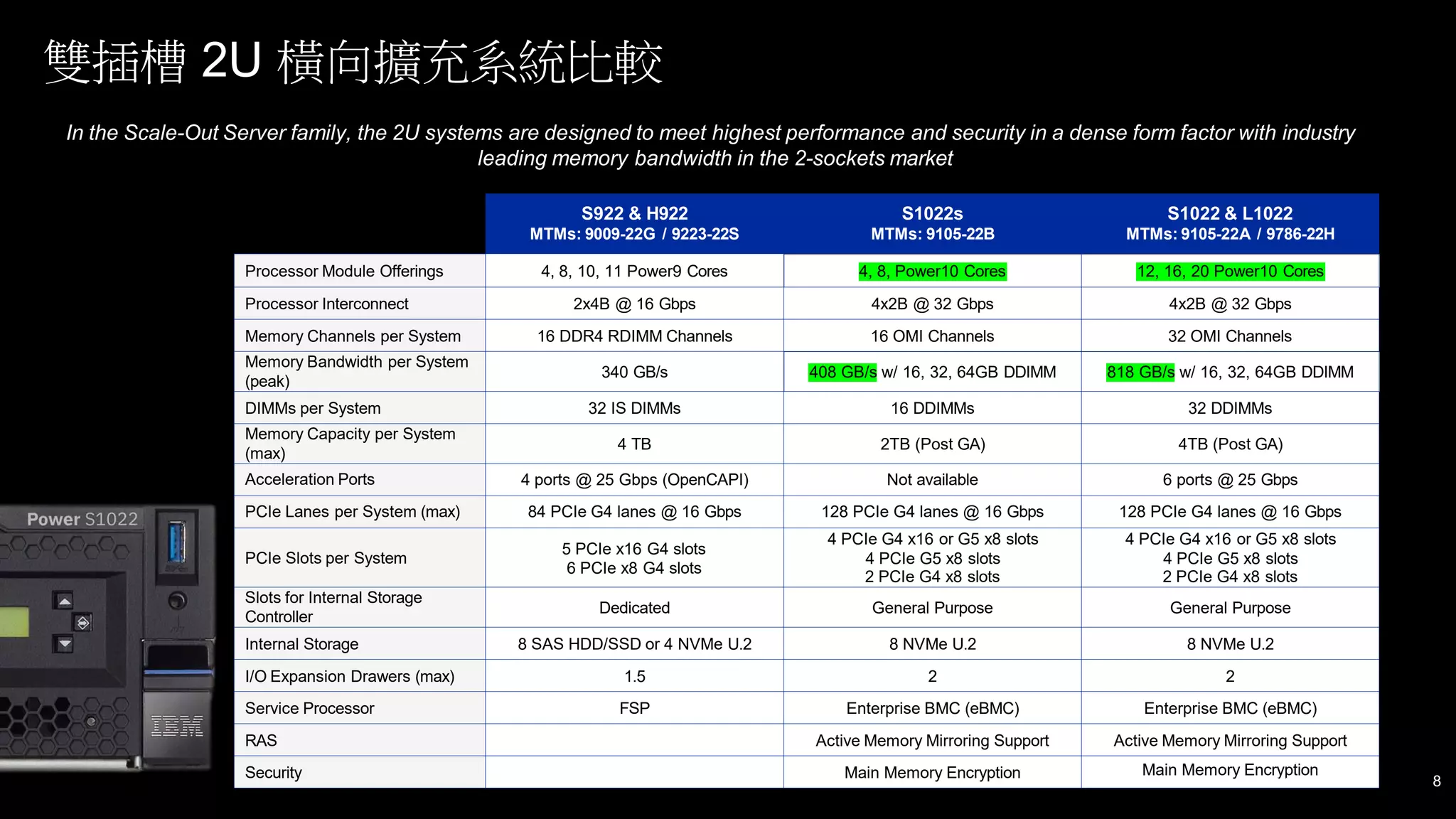

雙插槽 2U 橫向擴充系統比較
8
S922 & H922
MTMs: 9009-22G / 9223-22S
S1022s
MTMs: 9105-22B
S1022 & L1022
MTMs: 9105-22A / 9786-22H
Processor Module Offerings 4, 8, 10, 11 Power9 Cores 4, 8, Power10 Cores 12, 16, 20 Power10 Cores
Processor Interconnect 2x4B @ 16 Gbps 4x2B @ 32 Gbps 4x2B @ 32 Gbps
Memory Channels per System 16 DDR4 RDIMM Channels 16 OMI Channels 32 OMI Channels
Memory Bandwidth per System
(peak)
340 GB/s 408 GB/s w/ 16, 32, 64GB DDIMM 818 GB/s w/ 16, 32, 64GB DDIMM
DIMMs per System 32 IS DIMMs 16 DDIMMs 32 DDIMMs
Memory Capacity per System
(max)
4 TB 2TB (Post GA) 4TB (Post GA)
Acceleration Ports 4 ports @ 25 Gbps (OpenCAPI) Not available 6 ports @ 25 Gbps
PCIe Lanes per System (max) 84 PCIe G4 lanes @ 16 Gbps 128 PCIe G4 lanes @ 16 Gbps 128 PCIe G4 lanes @ 16 Gbps
5 PCIe x16 G4 slots
6 PCIe x8 G4 slots
4 PCIe G5 x8 slots
2 PCIe G4 x8 slots
4 PCIe G5 x8 slots
2 PCIe G4 x8 slots
Slots for Internal Storage
Controller
Dedicated General Purpose General Purpose
Internal Storage 8 SAS HDD/SSD or 4 NVMe U.2 8 NVMe U.2 8 NVMe U.2
I/O Expansion Drawers (max) 1.5 2 2
Service Processor FSP Enterprise BMC (eBMC) Enterprise BMC (eBMC)
RAS Active Memory Mirroring Support Active Memory Mirroring Support
Security Main Memory Encryption Main Memory Encryption
* Enable future support for Accelerator technologies.
In the Scale-Out Server family, the 2U systems are designed to meet highest performance and security in a dense form factor with industry
leading memory bandwidth in the 2-sockets market

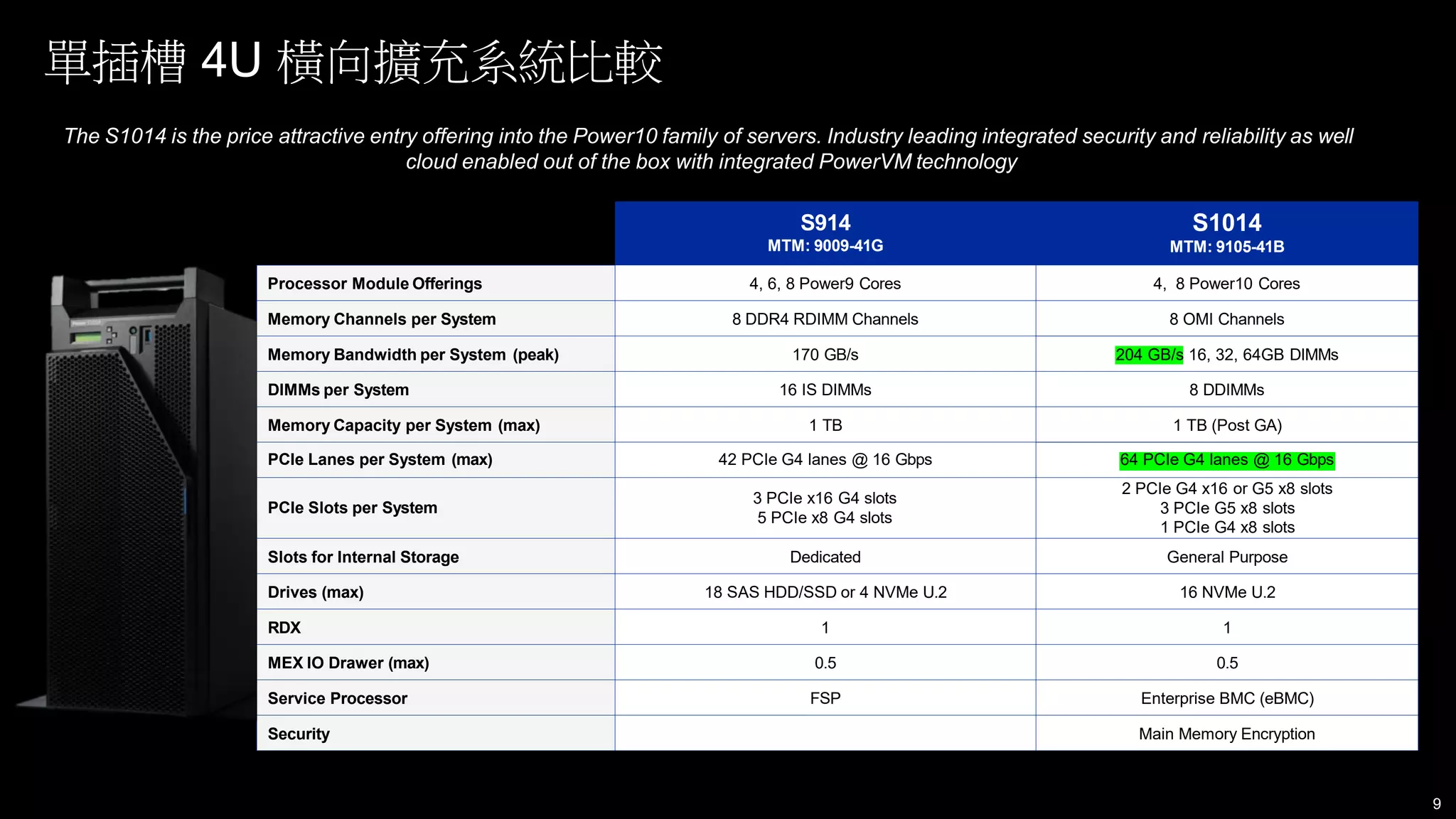

單插槽 4U 橫向擴充系統比較
S914
MTM: 9009-41G
S1014
MTM: 9105-41B
Processor Module Offerings 4, 6, 8 Power9 Cores 4, 8 Power10 Cores
Memory Channels per System 8 DDR4 RDIMM Channels 8 OMI Channels
Memory Bandwidth per System (peak) 170 GB/s 204 GB/s 16, 32, 64GB DIMMs
Memory Capacity per System (max) 1 TB 1 TB (Post GA)
PCIe Lanes per System (max) 42 PCIe G4 lanes @ 16 Gbps 64 PCIe G4 lanes @ 16 Gbps
3 PCIe x16 G4 slots
5 PCIe x8 G4 slots
3 PCIe G5 x8 slots
1 PCIe G4 x8 slots
Slots for Internal Storage Dedicated General Purpose
Drives (max) 18 SAS HDD/SSD or 4 NVMe U.2 16 NVMe U.2
RDX 1 1
MEX IO Drawer (max) 0.5 0.5
9
The S1014 is the price attractive entry offering into the Power10 family of servers. Industry leading integrated security and reliability as well
cloud enabled out of the box with integrated PowerVM technology

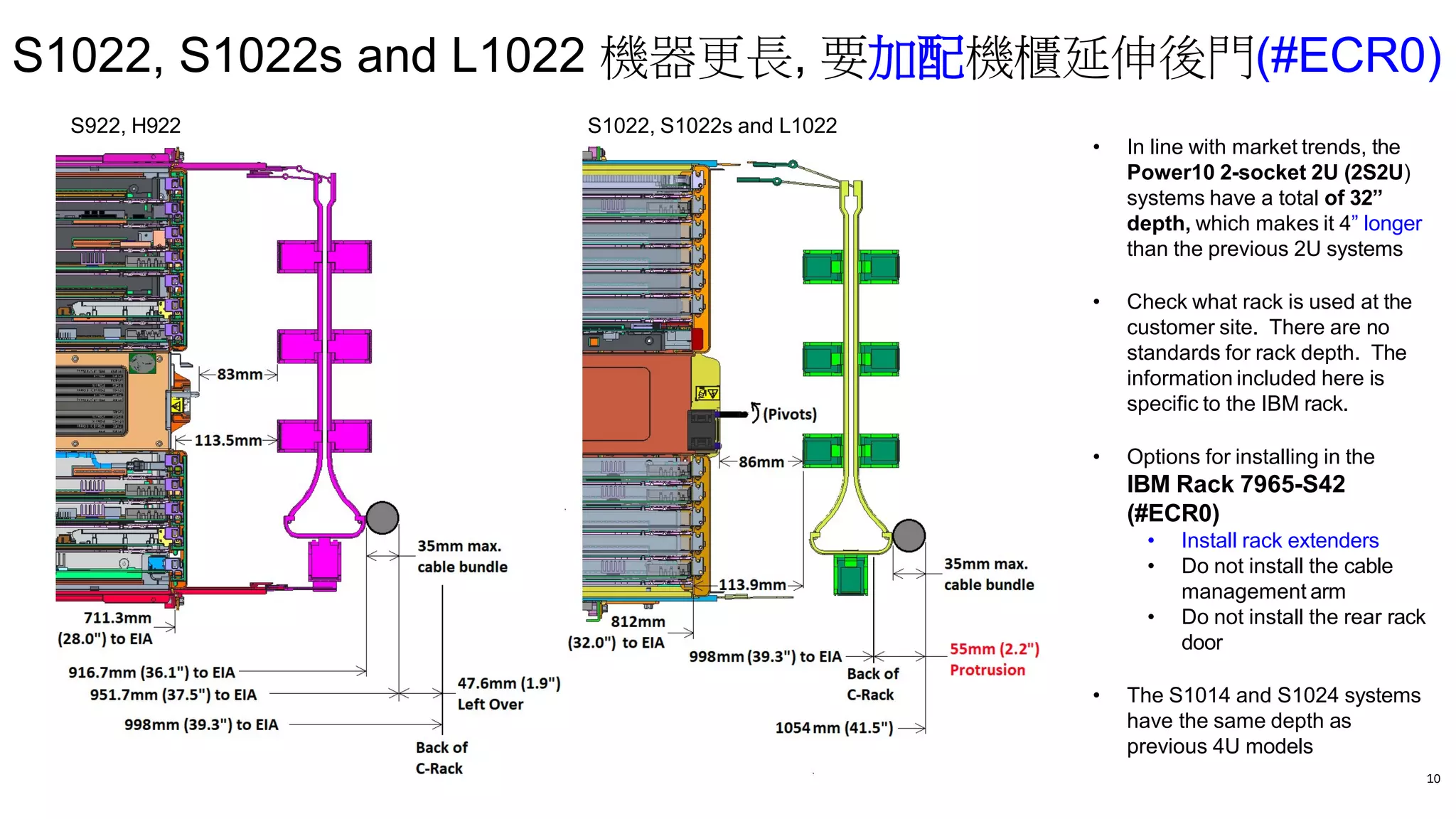

• In line with market trends, the
Power10 2-socket 2U (2S2U)
systems have a total of 32”
depth, which makes it 4” longer
than the previous 2U systems
• Check what rack is used at the
customer site. There are no
standards for rack depth. The
information included here is
specific to the IBM rack.
• Options for installing in the
IBM Rack 7965-S42
(#ECR0)
• Install rack extenders
• Do not install the cable
management arm
• Do not install the rear rack
door
• The S1014 and S1024 systems
have the same depth as
previous 4U models
S1022, S1022s and L1022 機器更長, 要加配機櫃延伸後門(#ECR0)
10
S922, H922 S1022, S1022s and L1022

靈活消費
(Flexible
Consumption)
S1022 and S1024 models

 Power10 和 Power9 可以在同一池中
共存
 靈活的消費選項，內置成本優化
• 總體擁有成本降低 20-30%
 基於雲的監控，按分鐘計量
• 包括 Red Hat Enterprise Linux
和 Red Hat OpenShift
 性能和規模領先
 行業領先的可用性
 從處理器到虛擬化和作業系
統的端到端安全性
 用於開發/測試、HA/DR、現代化的
VM 即服務
 與本地基礎架構的一致架構
 運行 AIX、IBM i 和 Linux
 訪問其他雲服務
 全球提供Power雲服務
 快速訪問 OpenShift 以加速應用現
代化

82
Power10 Servers
滿足最具挑戰性的業務需
求
Power Private Cloud with
Dynamic Capacity
僅按實際使用量付費
Power Virtual Server
with IBM Cloud
擴展到公共雲
IBM Power 在部署和支付選項方面提供了靈活性，建立 : 基礎架
構即服務模式 (Infrastructure as a service)

IBM 私有雲具有動態容量
83
• NEW! Capacity Upgrade On-Demand available in Scale-Out
• Share resources across Power9 and Power10 systems in the same
pool
• Mix S1022 and S1024 servers in the same pool
• No base monthly fees: pay for only what use with metering by the
minute, pre-paid or post-paid
• Buy 1, Move 1 base core activations migration from Power9 to
Power10 servers
Automatically monitor
and debit against
capacity credits based
on actual usage by the
minute
Lower
entry TCA
vs.
previous
generation
System A System B System C
+ + =
Pool #1
IBM Cloud
Management
Console

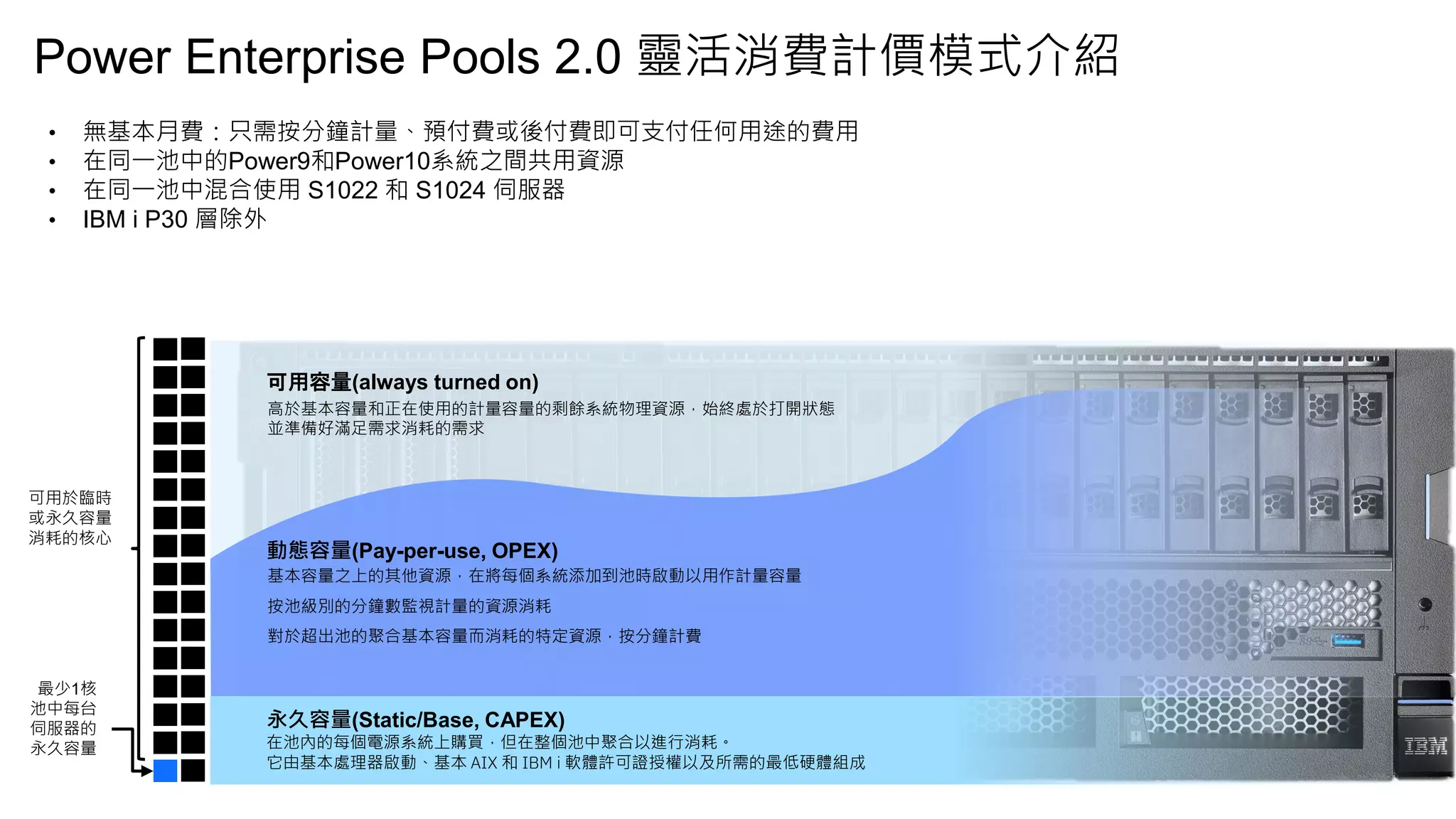

Power Enterprise Pools 2.0 靈活消費計價模式介紹
可用容量(always turned on)
動態容量(Pay-per-use, OPEX)
永久容量(Static/Base, CAPEX)
基本容量之上的其他資源，在將每個系統添加到池時啟動以用作計量容量
按池級別的分鐘數監視計量的資源消耗
對於超出池的聚合基本容量而消耗的特定資源，按分鐘計費
高於基本容量和正在使用的計量容量的剩餘系統物理資源，始終處於打開狀態
並準備好滿足需求消耗的需求
在池內的每個電源系統上購買，但在整個池中聚合以進行消耗。
它由基本處理器啟動、基本 AIX 和 IBM i 軟體許可證授權以及所需的最低硬體組成
• 無基本月費：只需按分鐘計量、預付費或後付費即可支付任何用途的費用
• 在同一池中的Power9和Power10系統之間共用資源
• 在同一池中混合使用 S1022 和 S1024 伺服器
• IBM i P30 層除外
最少1核
池中每台
伺服器的
永久容量
可用於臨時
或永久容量
消耗的核心

按需升級啟動容量（CUoD）簡介
• CUoD 使客戶能夠靈活地獲得所需的內容，並在未來根據需要添加永久的每核容量
• 受益於擁有所有記憶體、PCIe 插槽和系統資源，而無需擔心處理器可用性
• 不需要 CMC 或 HMC，在未啟動的內核上也不需要 PowerVM 費用
• 初始購買時至少需要 50% 的物理內核處於活動狀態，並且將來可以通過 econfig MES 升級單獨購買額外的內核啟動
• 它不是彈性編碼可用（ECoD）。因此，一旦購買了內核，它們就是永久性的，並且沒有選項可以關閉它們或轉移到另一個系統。
可用容量
永久容量（靜態/基本、資本支出）)
剩餘的系統物理資源高於永久容量，通過購買額外的永久核心，可
以滿足需求消耗的需求
在每個電源系統上購買。它由 CUoD 處理器啟動組成，適用於 Power
Systems 支援的任何作業系統。
永久 CUoD 容量必須至少為物理總容量的 50%
最低 50%
永久核心
容量
可用於永久
容量啟動的
內核
IBM Internal and Business Partner Use only

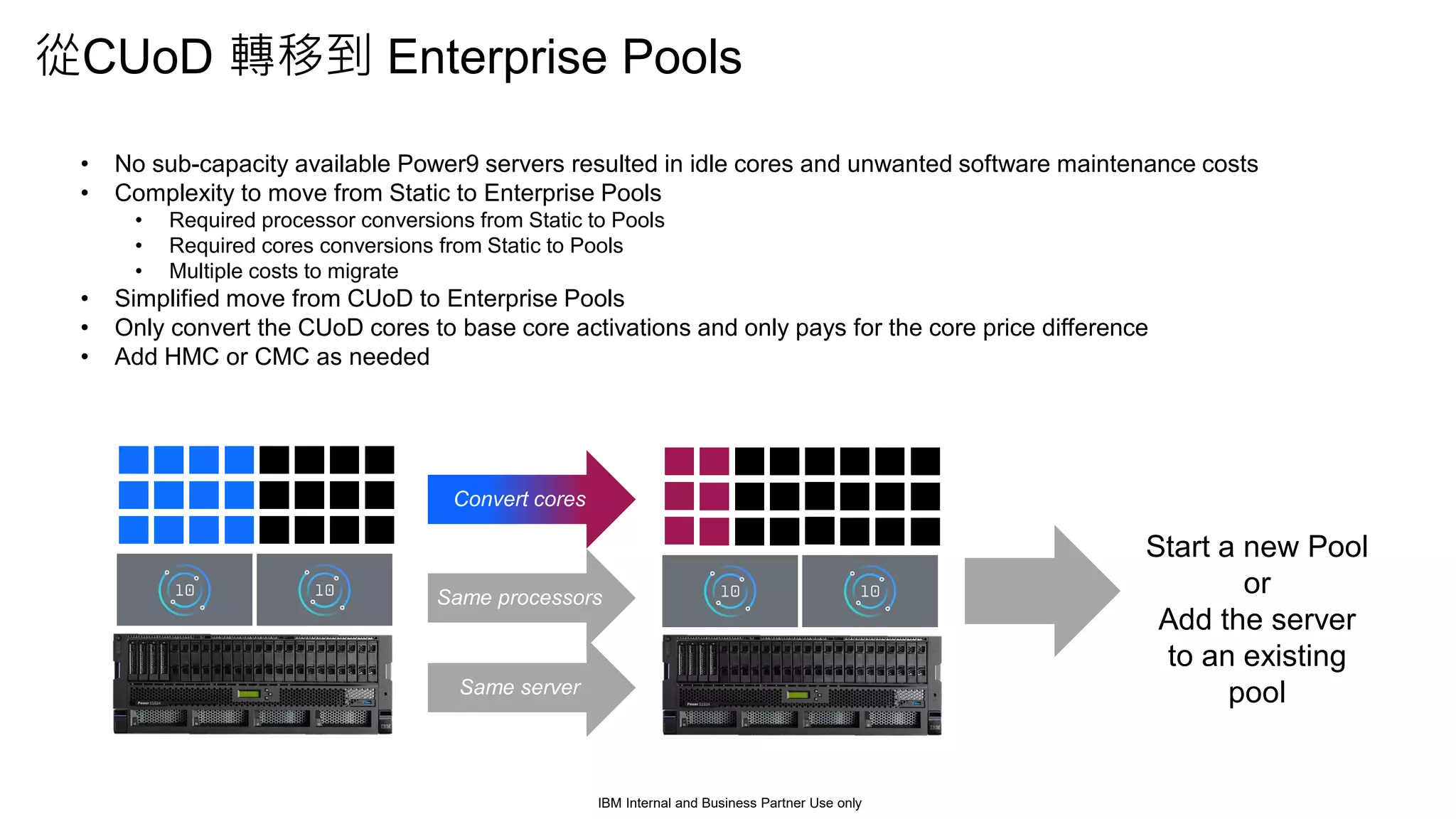

從CUoD 轉移到 Enterprise Pools
• No sub-capacity available Power9 servers resulted in idle cores and unwanted software maintenance costs
• Complexity to move from Static to Enterprise Pools
• Required processor conversions from Static to Pools
• Required cores conversions from Static to Pools
• Multiple costs to migrate
• Simplified move from CUoD to Enterprise Pools
• Only convert the CUoD cores to base core activations and only pays for the core price difference
• Add HMC or CMC as needed
Same server
Same processors
Convert cores
Start a new Pool
or
Add the server
to an existing
pool

IBM offers flexible
support options
Select services tiers at
the time of hardware
purchase — Basic,
Advanced or Premium
Select coverage
term of 3-5 years

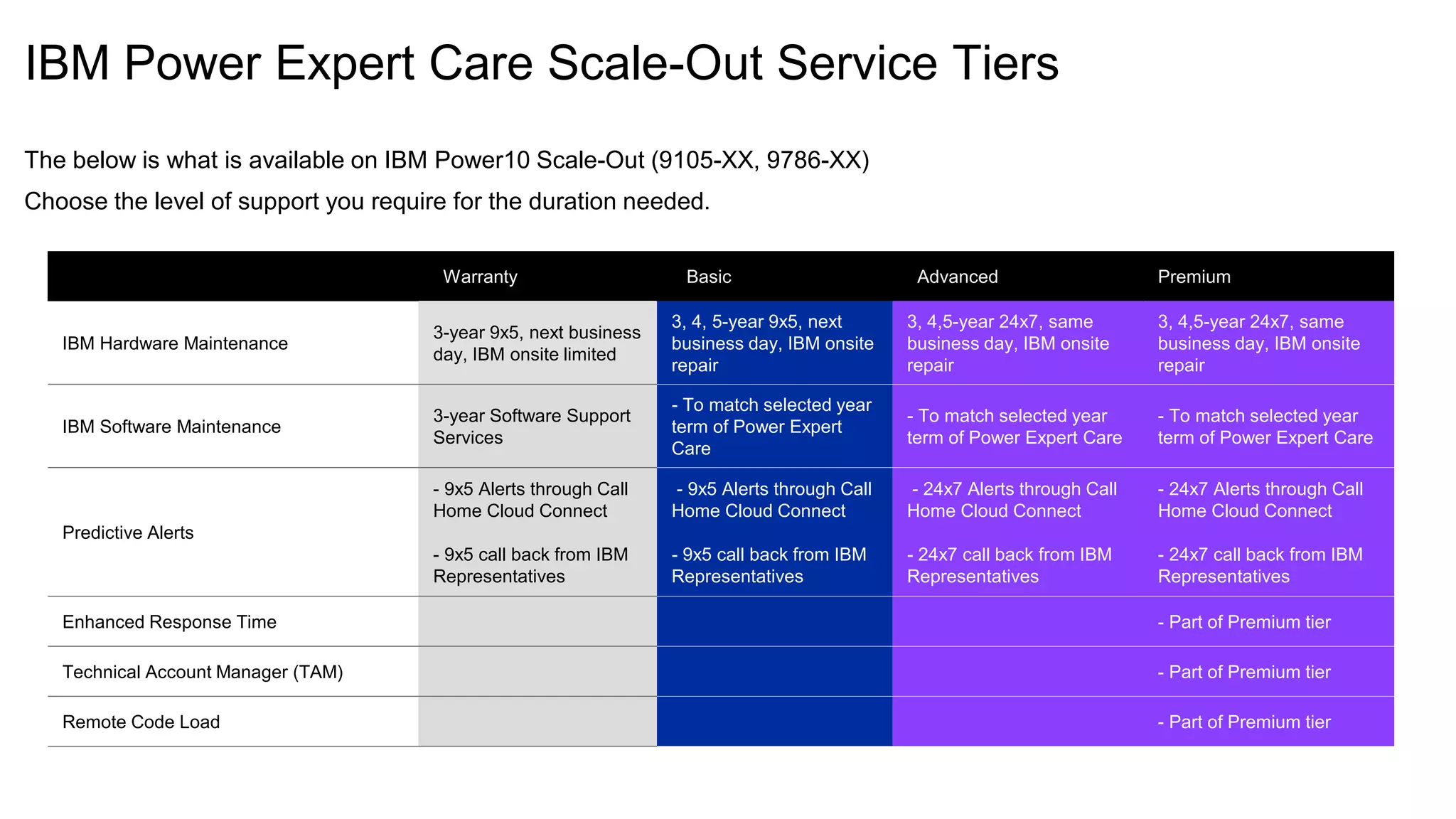

IBM Power Expert Care Scale-Out Service Tiers
Warranty Basic Advanced Premium
IBM Hardware Maintenance
3-year 9x5, next business
day, IBM onsite limited
3, 4, 5-year 9x5, next
business day, IBM onsite
repair
3, 4,5-year 24x7, same
repair
repair
IBM Software Maintenance
3-year Software Support
Services
- To match selected year
term of Power Expert
Care
term of Power Expert Care
term of Power Expert Care
Predictive Alerts
- 9x5 Alerts through Call
Home Cloud Connect
- 9x5 call back from IBM
Representatives
Home Cloud Connect
Representatives
Home Cloud Connect
Representatives
Home Cloud Connect
Representatives
Enhanced Response Time - Part of Premium tier
Technical Account Manager (TAM) - Part of Premium tier
Remote Code Load - Part of Premium tier
The below is what is available on IBM Power10 Scale-Out (9105-XX, 9786-XX)
Choose the level of support you require for the duration needed.

IBM Power Mid-Range
System with Power10
E1050

OPTIMIZED PERFORMANCE, SCALE,
AND ECONOMICS
• Up to 96 POWER10 cores with three processor
options: 12c, 18c, and 24c
• Up to 16 TB (64 Enterprise 4U DDIMMs)*
• 11 PCIe Gen4/5 slots (8 Gen5 capable)
• Enhanced Storage with 10 Internal NVMe Drives
• 3 Year Warranty
• Improve economics of application
delivery and IT services
• Increase efficiency and reduce
operations costs
• Enhance resiliency and serviceability
• Enable more agile IT – rapidly
adjust to demands of a changing
business climate
Power10 4-socket midrange server: Power10 E1050
* Planned support after initial GA
OpenShift
IBM and Business Partner Internal Use Only

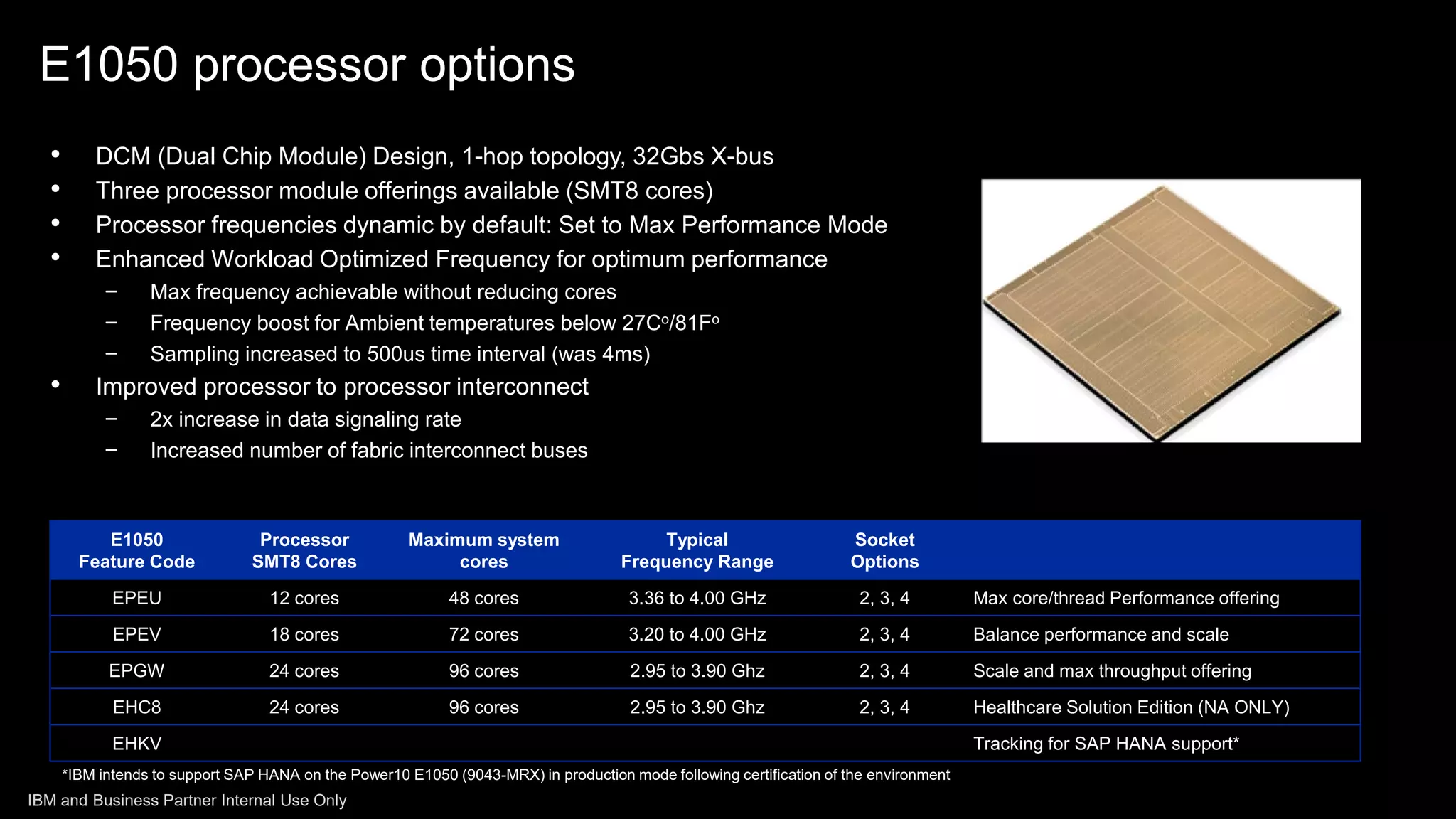

• DCM (Dual Chip Module) Design, 1-hop topology, 32Gbs X-bus
• Three processor module offerings available (SMT8 cores)
• Processor frequencies dynamic by default: Set to Max Performance Mode
• Enhanced Workload Optimized Frequency for optimum performance
− Max frequency achievable without reducing cores
− Frequency boost for Ambient temperatures below 27Co/81Fo
− Sampling increased to 500us time interval (was 4ms)
• Improved processor to processor interconnect
− 2x increase in data signaling rate
− Increased number of fabric interconnect buses
E1050
Feature Code
Processor
SMT8 Cores
Maximum system
cores
Typical
Frequency Range
Socket
Options
EPEU 12 cores 48 cores 3.36 to 4.00 GHz 2, 3, 4 Max core/thread Performance offering
EPEV 18 cores 72 cores 3.20 to 4.00 GHz 2, 3, 4 Balance performance and scale
EPGW 24 cores 96 cores 2.95 to 3.90 Ghz 2, 3, 4 Scale and max throughput offering
EHC8 24 cores 96 cores 2.95 to 3.90 Ghz 2, 3, 4 Healthcare Solution Edition (NA ONLY)
EHKV Tracking for SAP HANA support*
*IBM intends to support SAP HANA on the Power10 E1050 (9043-MRX) in production mode following certification of the environment
E1050 processor options

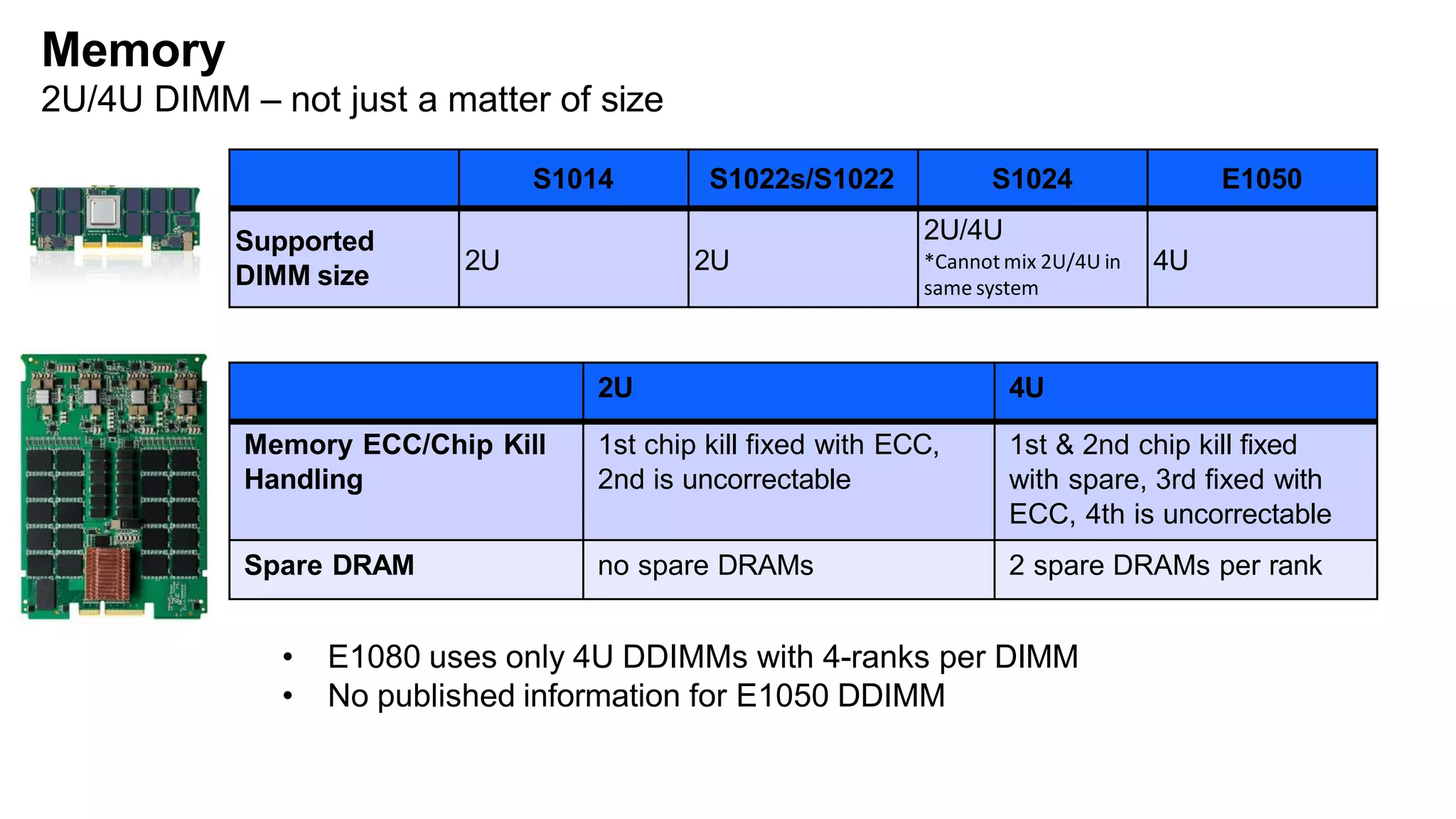

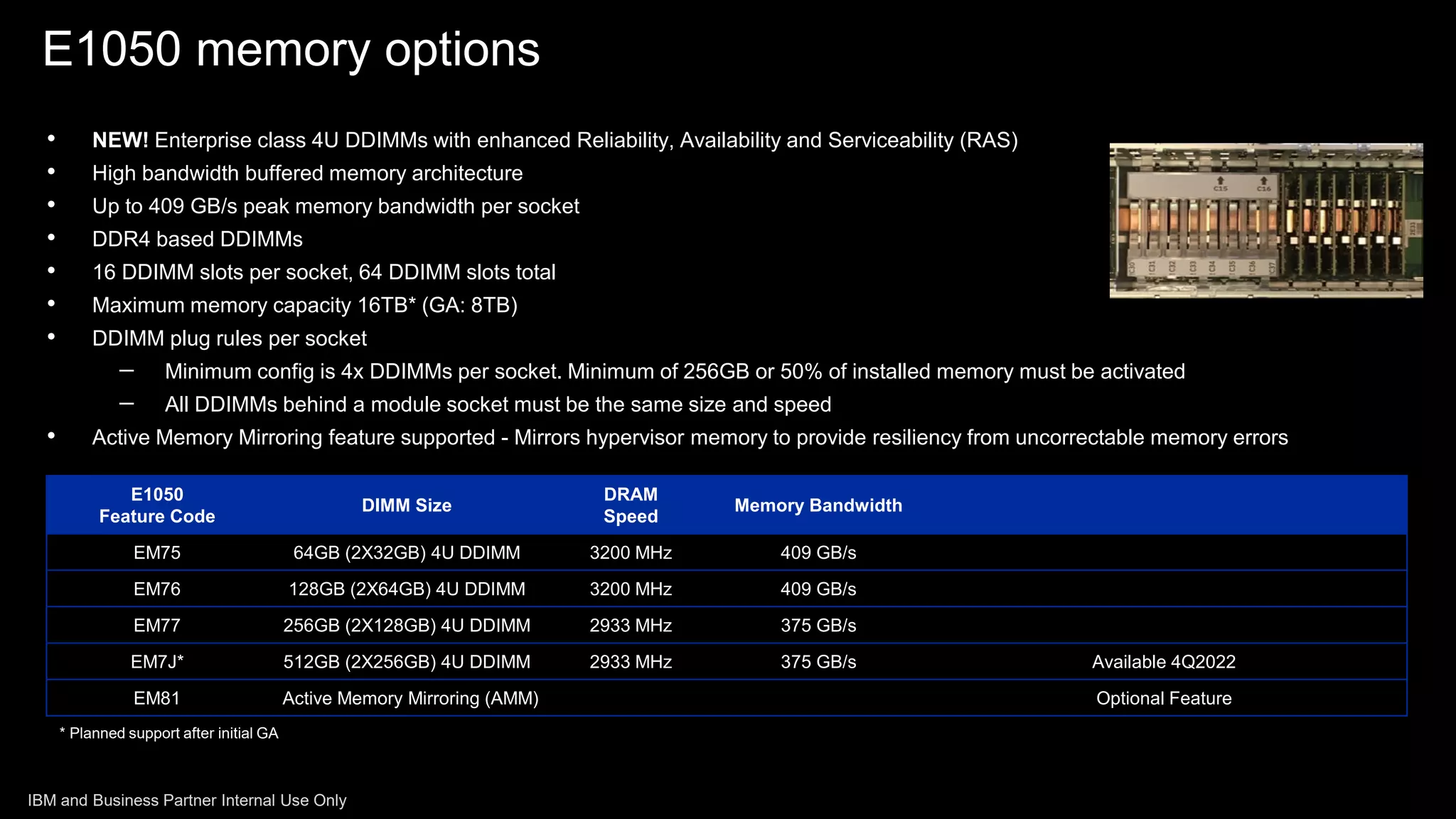

• NEW! Enterprise class 4U DDIMMs with enhanced Reliability, Availability and Serviceability (RAS)
• High bandwidth buffered memory architecture
• Up to 409 GB/s peak memory bandwidth per socket
• DDR4 based DDIMMs
• 16 DDIMM slots per socket, 64 DDIMM slots total
• Maximum memory capacity 16TB* (GA: 8TB)
• DDIMM plug rules per socket
– Minimum config is 4x DDIMMs per socket. Minimum of 256GB or 50% of installed memory must be activated
– All DDIMMs behind a module socket must be the same size and speed
• Active Memory Mirroring feature supported - Mirrors hypervisor memory to provide resiliency from uncorrectable memory errors
E1050
Feature Code
DIMM Size
DRAM
Speed
Memory Bandwidth
EM75 64GB (2X32GB) 4U DDIMM 3200 MHz 409 GB/s
EM7J* 512GB (2X256GB) 4U DDIMM 2933 MHz 375 GB/s Available 4Q2022
EM81 Active Memory Mirroring (AMM) Optional Feature
* Planned support after initial GA
E1050 memory options

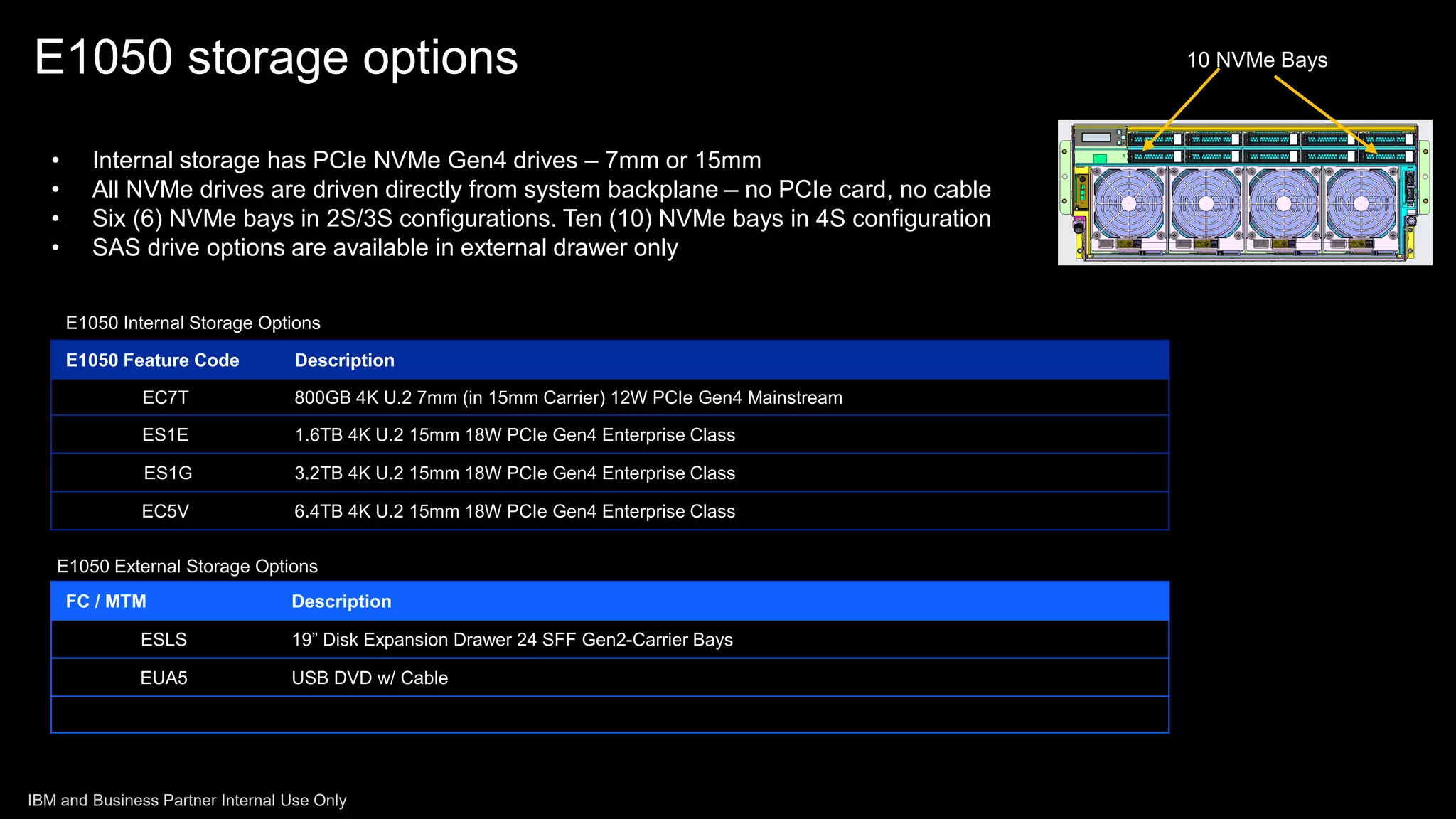

E1050 storage options
• Internal storage has PCIe NVMe Gen4 drives – 7mm or 15mm
• All NVMe drives are driven directly from system backplane – no PCIe card, no cable
• Six (6) NVMe bays in 2S/3S configurations. Ten (10) NVMe bays in 4S configuration
• SAS drive options are available in external drawer only
10 NVMe Bays
E1050 Feature Code Description
EC7T 800GB 4K U.2 7mm (in 15mm Carrier) 12W PCIe Gen4 Mainstream
ES1E 1.6TB 4K U.2 15mm 18W PCIe Gen4 Enterprise Class
ES1G 3.2TB 4K U.2 15mm 18W PCIe Gen4 Enterprise Class
EC5V 6.4TB 4K U.2 15mm 18W PCIe Gen4 Enterprise Class
E1050 Internal Storage Options
FC / MTM Description
ESLS 19” Disk Expansion Drawer 24 SFF Gen2-Carrier Bays
EUA5 USB DVD w/ Cable
E1050 External Storage Options

Slot Attributes Note
C1 PCIe Gen4 x8
1st Power10
Socket
DCM0
C6 PCIe Gen4 x8
2nd Power10
Socket
DCM1
C7 PCIe Gen5 x8
C8 PCIe Gen4 x16 or Gen5 x8
C9 PCIe Gen4 x8
C10 PCIe Gen5 x8
3rd Power10
Socket
DCM2

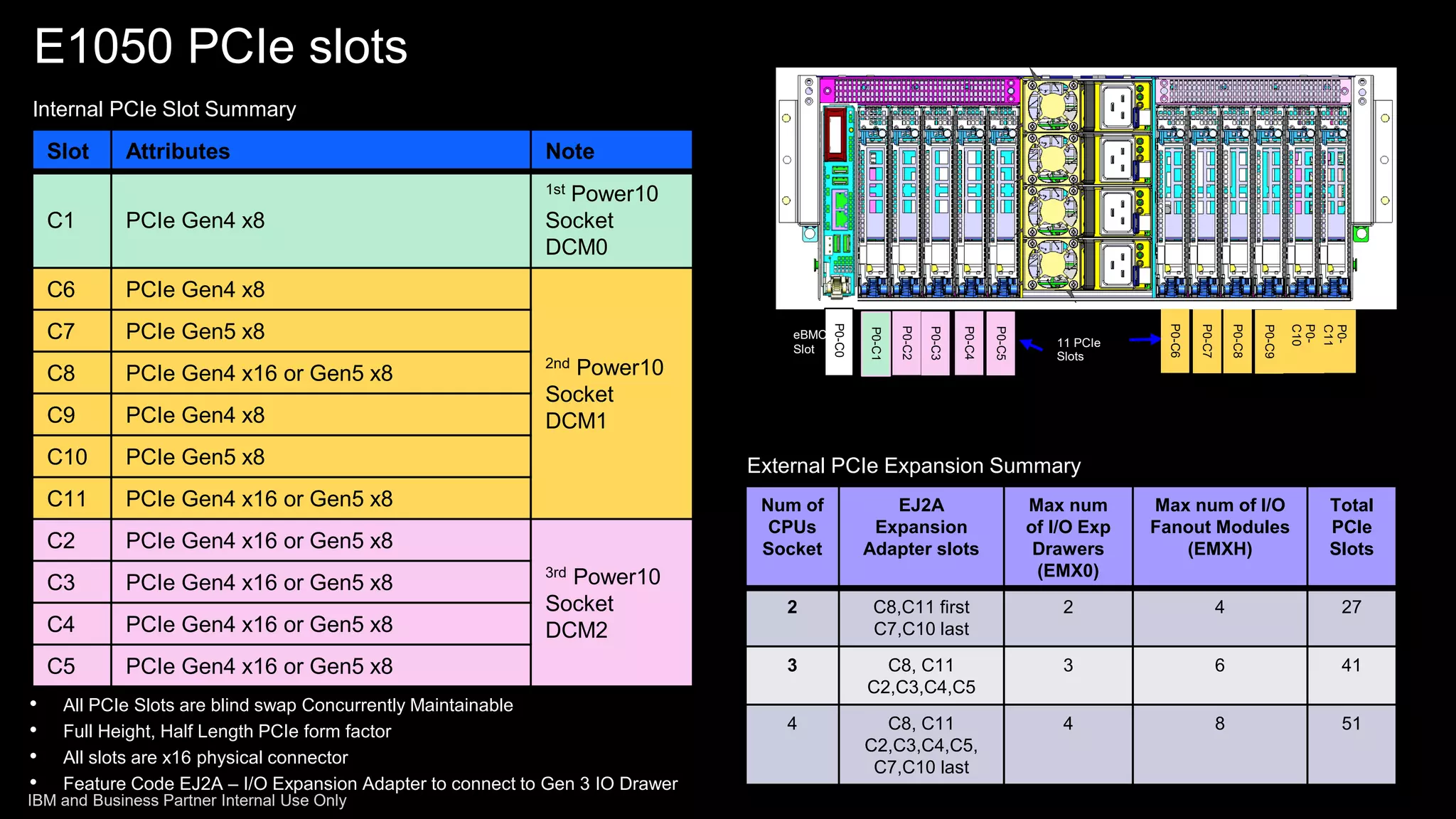

Internal PCIe Slot Summary
Num of
CPUs
Socket
EJ2A
Expansion
Adapter slots
Max num
of I/O Exp
Drawers
(EMX0)
Max num of I/O
Fanout Modules
(EMXH)
Total
PCIe
Slots
2 C8,C11 first
C7,C10 last
2 4 27
3 C8, C11
C2,C3,C4,C5
3 6 41
4 C8, C11
C2,C3,C4,C5,
C7,C10 last
4 8 51
• All PCIe Slots are blind swap Concurrently Maintainable
• Full Height, Half Length PCIe form factor
• All slots are x16 physical connector
• Feature Code EJ2A – I/O Expansion Adapter to connect to Gen 3 IO Drawer
E1050 PCIe slots
11 PCIe
Slots
P0-C0
P0-
C11
P0-
C10
P0-C9
P0-C8
P0-C7
P0-C6
P0-C5
P0-C4
P0-C3
P0-C2
P0-C1
External PCIe Expansion Summary
eBMC
Slot

E1050 – Supported I/O expansion drawer (EMX0)
New
Desi
gn
New
Desi
gn
• EMX0 I/O Expansion Drawer which support 2 Fanout Module - Feature Code EMXH
• EMXH PCIe Gen3 Fanout Module supporting 6 PCIe Gen3 (2 x16, 4 x8) Full High, Full Length Slots
• New Cable Card to connect E1050 to I/O Expansion Drawer - Feature EJ2A

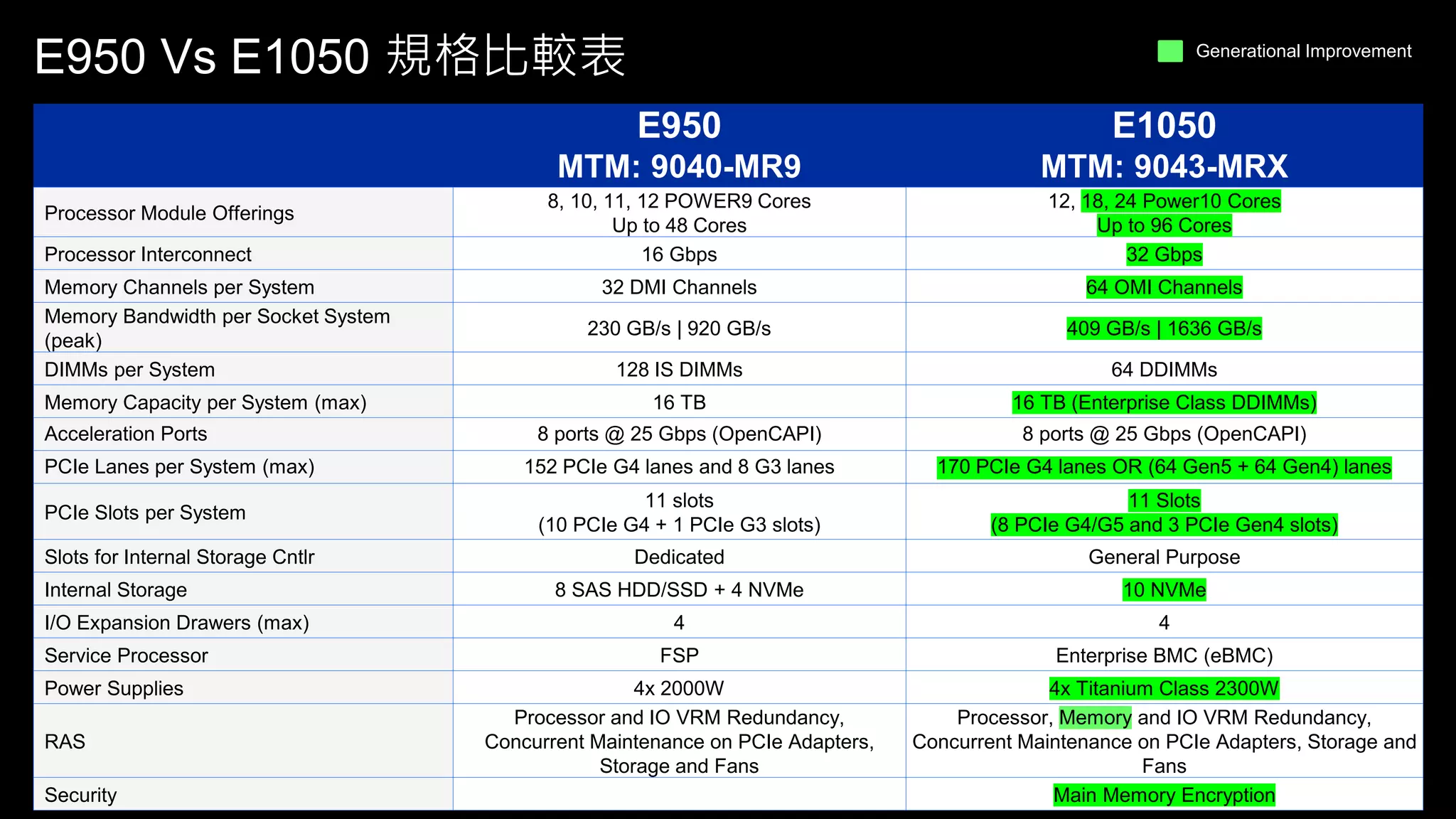

E950 Vs E1050 規格比較表
E950
MTM: 9040-MR9
E1050
MTM: 9043-MRX
Processor Module Offerings
8, 10, 11, 12 POWER9 Cores
Up to 48 Cores
12, 18, 24 Power10 Cores
Up to 96 Cores
Processor Interconnect 16 Gbps 32 Gbps
Memory Channels per System 32 DMI Channels 64 OMI Channels
Memory Bandwidth per Socket System
(peak)
230 GB/s | 920 GB/s 409 GB/s | 1636 GB/s
Memory Capacity per System (max) 16 TB 16 TB (Enterprise Class DDIMMs)
Acceleration Ports 8 ports @ 25 Gbps (OpenCAPI) 8 ports @ 25 Gbps (OpenCAPI)
PCIe Lanes per System (max) 152 PCIe G4 lanes and 8 G3 lanes 170 PCIe G4 lanes OR (64 Gen5 + 64 Gen4) lanes
11 slots
(10 PCIe G4 + 1 PCIe G3 slots)
11 Slots
(8 PCIe G4/G5 and 3 PCIe Gen4 slots)
Slots for Internal Storage Cntlr Dedicated General Purpose
Internal Storage 8 SAS HDD/SSD + 4 NVMe 10 NVMe
I/O Expansion Drawers (max) 4 4
Power Supplies 4x 2000W 4x Titanium Class 2300W
RAS
Processor and IO VRM Redundancy,
Concurrent Maintenance on PCIe Adapters,
Storage and Fans
Processor, Memory and IO VRM Redundancy,
Concurrent Maintenance on PCIe Adapters, Storage and
Fans
Generational Improvement

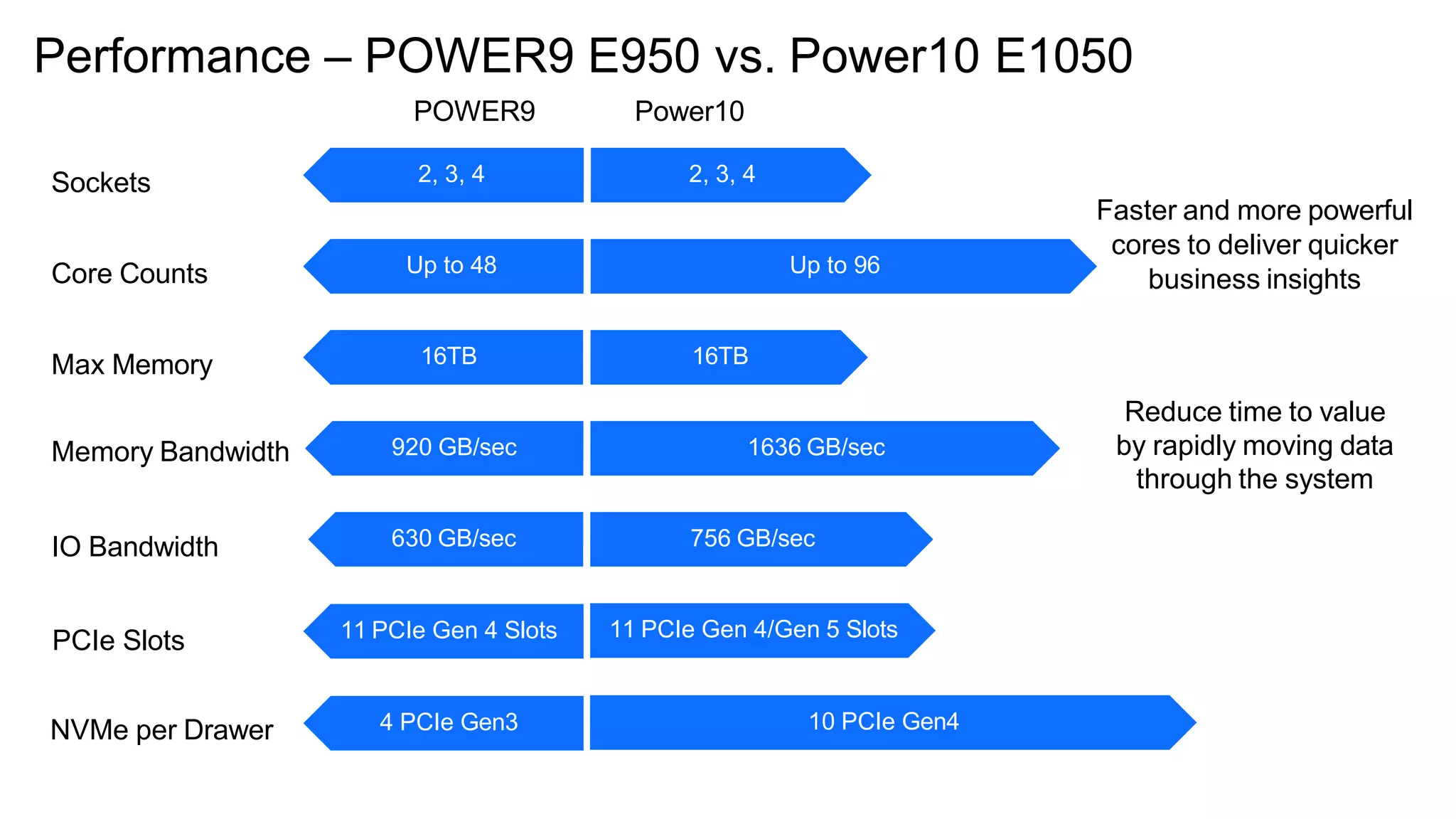

Performance – POWER9 E950 vs. Power10 E1050
Up to 96
Up to 48
16TB
1636 GB/sec
920 GB/sec
756 GB/sec
630 GB/sec
11 PCIe Gen 4/Gen 5 Slots
Sockets
Core Counts
Max Memory
Memory Bandwidth
IO Bandwidth
10 PCIe Gen4
NVMe per Drawer
2, 3, 4 2, 3, 4
11 PCIe Gen 4 Slots
PCIe Slots
4 PCIe Gen3
16TB
Faster and more powerful
cores to deliver quicker
business insights
Reduce time to value
by rapidly moving data
through the system
POWER9 Power10

HPE Superdome Flex
280
#2021006
8P/224C/448Th
#2022018
4P/96C/768Th
• 734,050 vs 380,280 SAPS*
• 134,000 vs 69,500 users
• More performance per core
− 2.6x vs 8-socket Intel4
− 2.3x vs 4-socket Intel3
The most flexible and reliable
SAP HANA platform5
800,000
700,000
600,000
500,000
400,000
300,000
200,000
100,000
0
Dell PowerEdge 840
(4xIntel 8280)
#2019045
4P/112C/224Th
4 SOCKETS
96 CORES
134K USERS
734K SAPS
4 SOCKETS
112 CORES
69.5k USERS
380K SAPS
8 SOCKETS
224 CORES
122.3k USERS
671K SAPS
IBM Power10 E1050
World Record 4-socket two-tier SAP SD standard application benchmark result1
*Note: 100 SAPS = 2,000 fully business processed order line items per hour
1.
2.
3.
4.
5.
All results can be found at sap.com/benchmarkand are validas of July 7, 2022
IBM Power10 E1050; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5; Power10 2.95 GHz processor, 4,096 GB memory,4p/96c/768t, 134,016 SD benchmark users, 736,420 SAPS, AIX 7.3, DB2 11.5, Certification# 2022018.
Dell EMC PowerEdge 840; two-tier SAP SD standard applicationbenchmark running SAP ERP 6.0 EHP5; Intel Xeon Platinum 8280 2.7 GHz, 4p/112c/224t, 69,500 SD benchmark users (380,280 SAPS), SUSE Linux Enterprise Server12 and SAP ASE 16, Certification# 2019045.
HPE Superdome Flex; two-tier SAP SD standard application benchmark running SAP ERP 6.0 EHP5; Intel Xeon Platinum 8380H 2.9 GHz, 8p/224c/448t, 122,300 SD benchmark users (670,830 SAPS), Windows Server 2016 and Microsoft SQL Server2012, Certification# 2021006.
Ranked most reliableserver in its category for 12th year by ITIC . Flexible:Only platformthat runs AIX, IBM i, Linux OS’es while supporting the abilityto run 16 SAP HANA production environmentin a single server

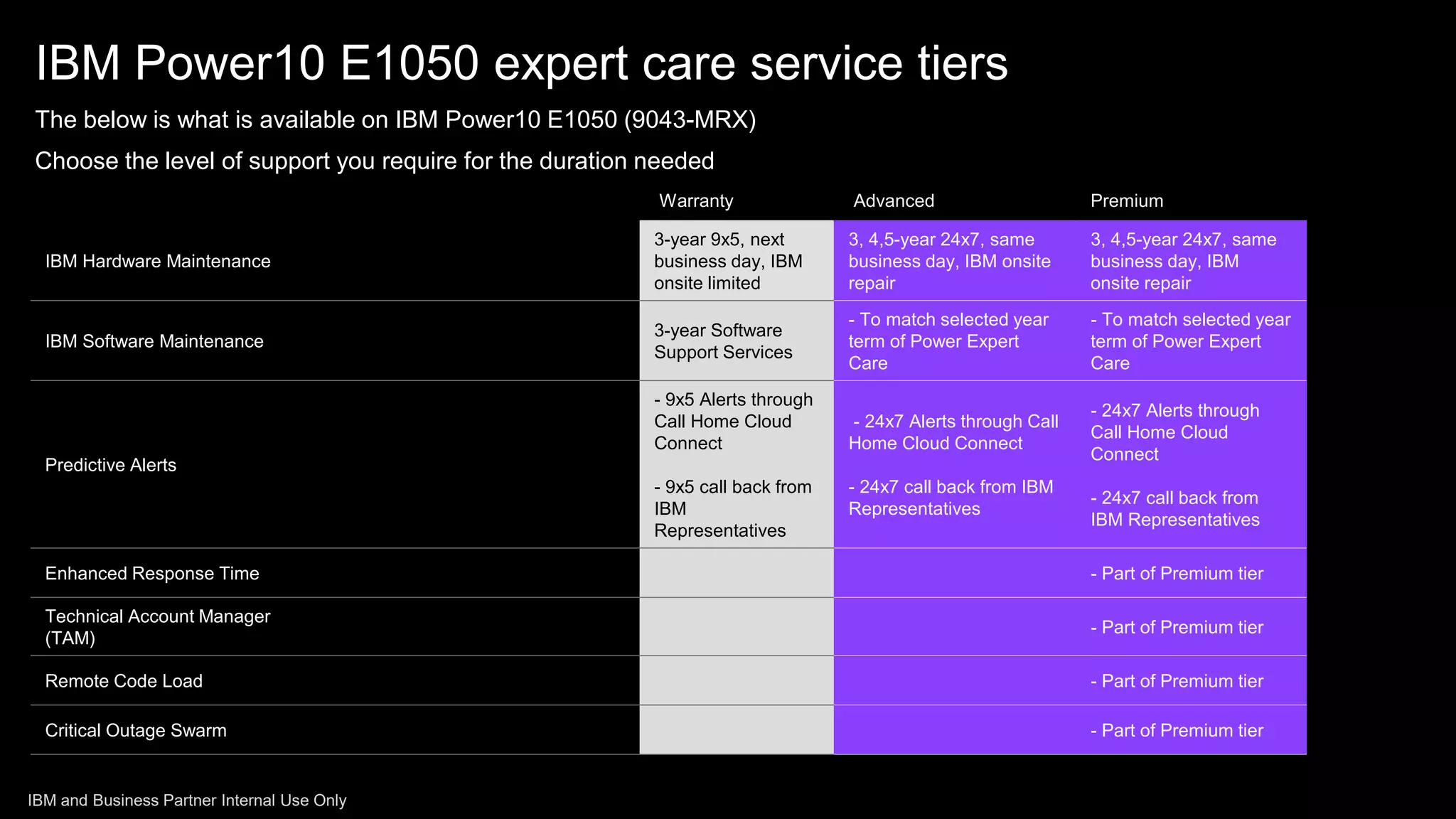

IBM Power10 E1050 expert care service tiers
Warranty Advanced Premium
IBM Hardware Maintenance
3-year 9x5, next
business day, IBM
onsite limited
repair
business day, IBM
onsite repair
IBM Software Maintenance
3-year Software
Support Services
Care
Care
Predictive Alerts
- 9x5 Alerts through
Call Home Cloud
Connect
- 9x5 call back from
IBM
Representatives
Home Cloud Connect
Representatives
- 24x7 Alerts through
Call Home Cloud
Connect
- 24x7 call back from
IBM Representatives
Enhanced Response Time - Part of Premium tier
Technical Account Manager
(TAM)
- Part of Premium tier
Remote Code Load - Part of Premium tier
Critical Outage Swarm - Part of Premium tier
The below is what is available on IBM Power10 E1050 (9043-MRX)
Choose the level of support you require for the duration needed

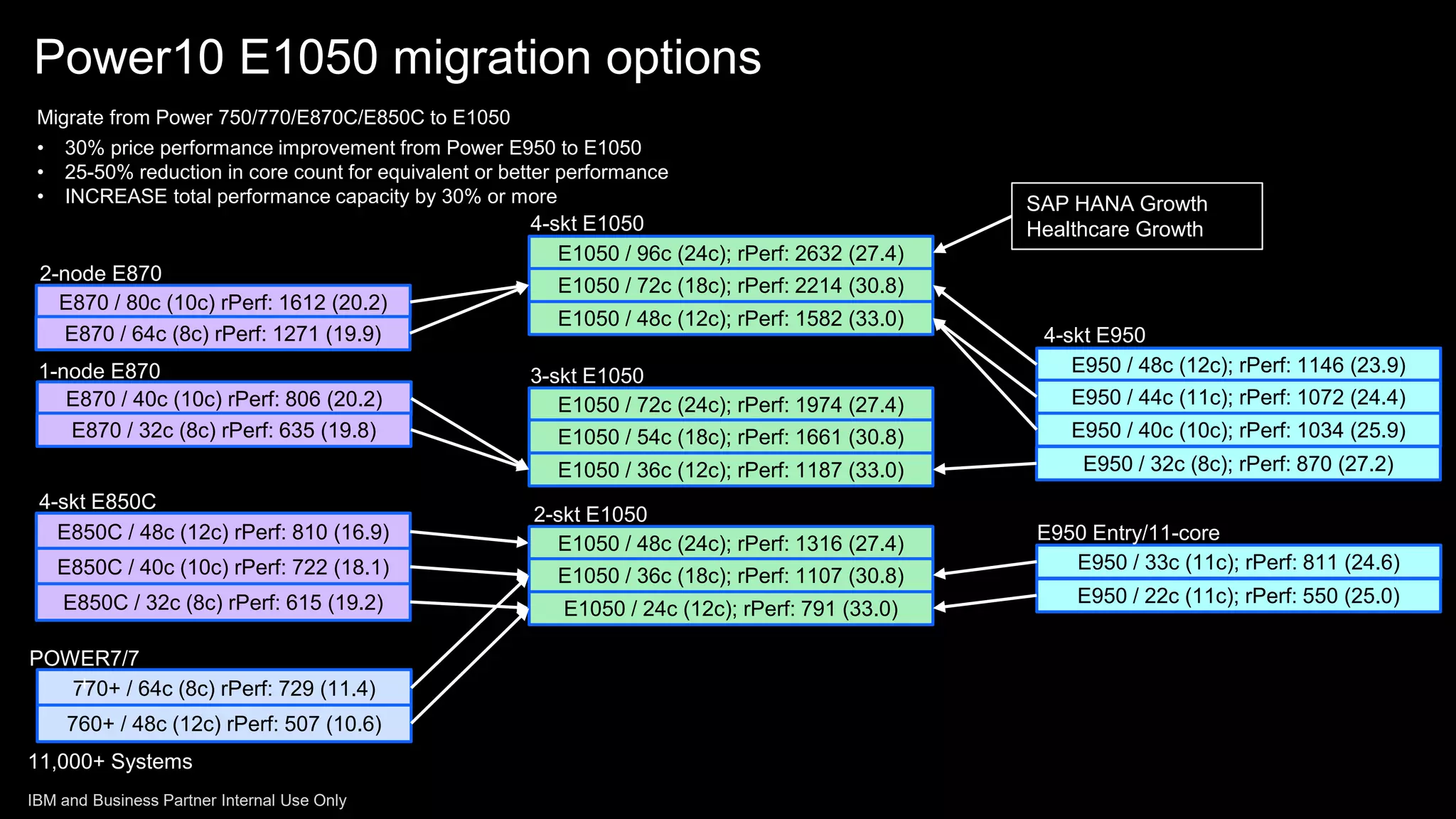

Power10 E1050 migration options
E850C / 48c (12c) rPerf: 810 (16.9)
E850C / 40c (10c) rPerf: 722 (18.1)
Migrate from Power 750/770/E870C/E850C to E1050
• 30% price performance improvement from Power E950 to E1050
• 25-50% reduction in core count for equivalent or better performance
• INCREASE total performance capacity by 30% or more
E850C / 32c (8c) rPerf: 615 (19.2)
E870 / 80c (10c) rPerf: 1612 (20.2)
E1050 / 24c (12c); rPerf: 791 (33.0)
E1050 / 36c (12c); rPerf: 1187 (33.0)
E1050 / 48c (24c); rPerf: 1316 (27.4)
E1050 / 36c (18c); rPerf: 1107 (30.8)
E1050 / 48c (12c); rPerf: 1582 (33.0)
E1050 / 72c (24c); rPerf: 1974 (27.4)
E1050 / 54c (18c); rPerf: 1661 (30.8)
E1050 / 96c (24c); rPerf: 2632 (27.4)
E1050 / 72c (18c); rPerf: 2214 (30.8)
4-skt E1050
2-node E870
4-skt E850C
3-skt E1050
2-skt E1050
E870 / 64c (8c) rPerf: 1271 (19.9)
1-node E870
E870 / 40c (10c) rPerf: 806 (20.2)
E870 / 32c (8c) rPerf: 635 (19.8)
11,000+ Systems
770+ / 64c (8c) rPerf: 729 (11.4)
760+ / 48c (12c) rPerf: 507 (10.6)
POWER7/7
+
E950 / 40c (10c); rPerf: 1034 (25.9)
E950 / 48c (12c); rPerf: 1146 (23.9)
E950 / 44c (11c); rPerf: 1072 (24.4)
4-skt E950
E950 / 32c (8c); rPerf: 870 (27.2)
E950 / 33c (11c); rPerf: 811 (24.6)
E950 / 22c (11c); rPerf: 550 (25.0)
E950 Entry/11-core
SAP HANA Growth
Healthcare Growth

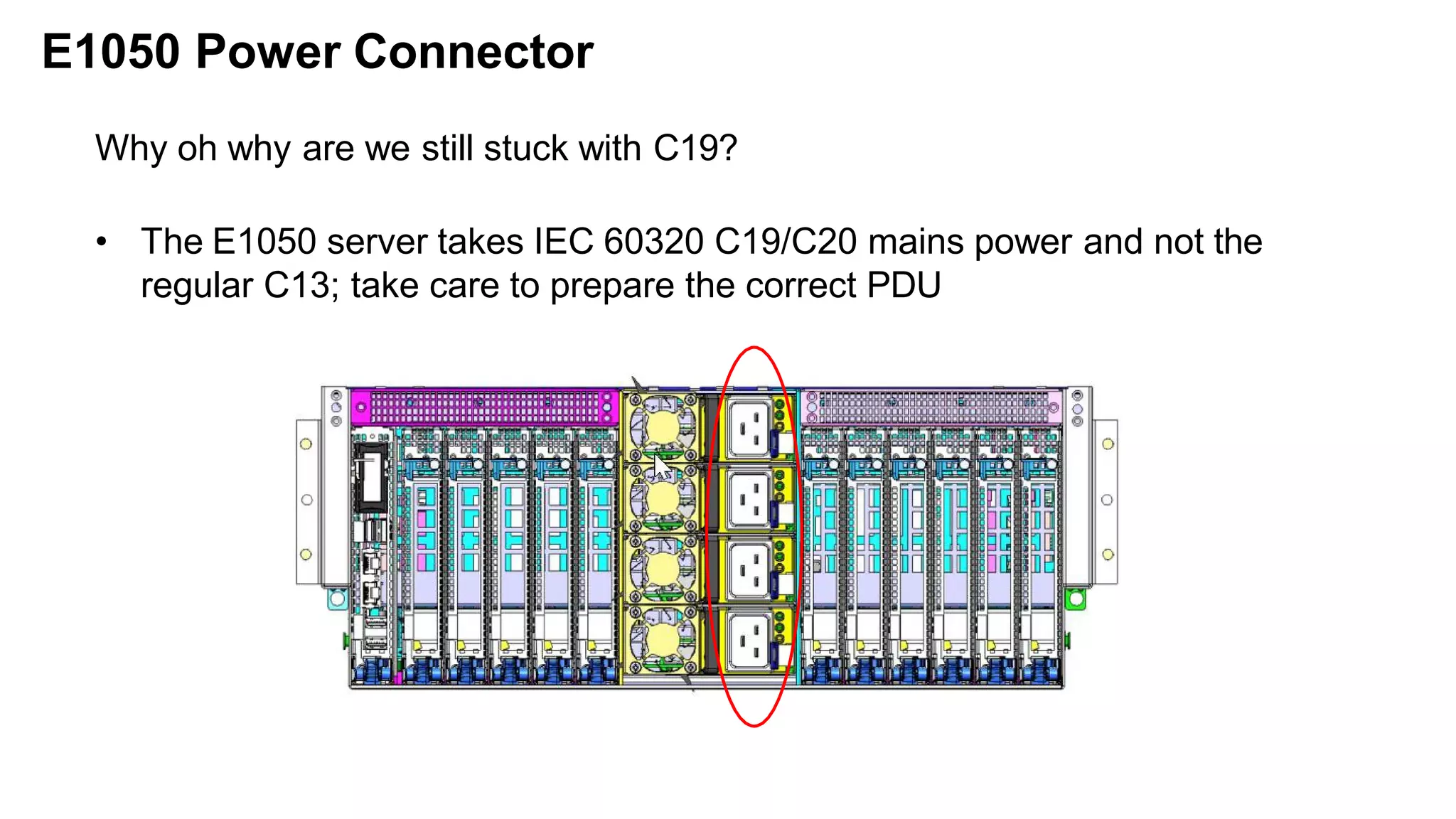

Why oh why are we still stuck with C19?
• The E1050 server takes IEC 60320 C19/C20 mains power and not the
regular C13; take care to prepare the correct PDU
E1050 Power Connector

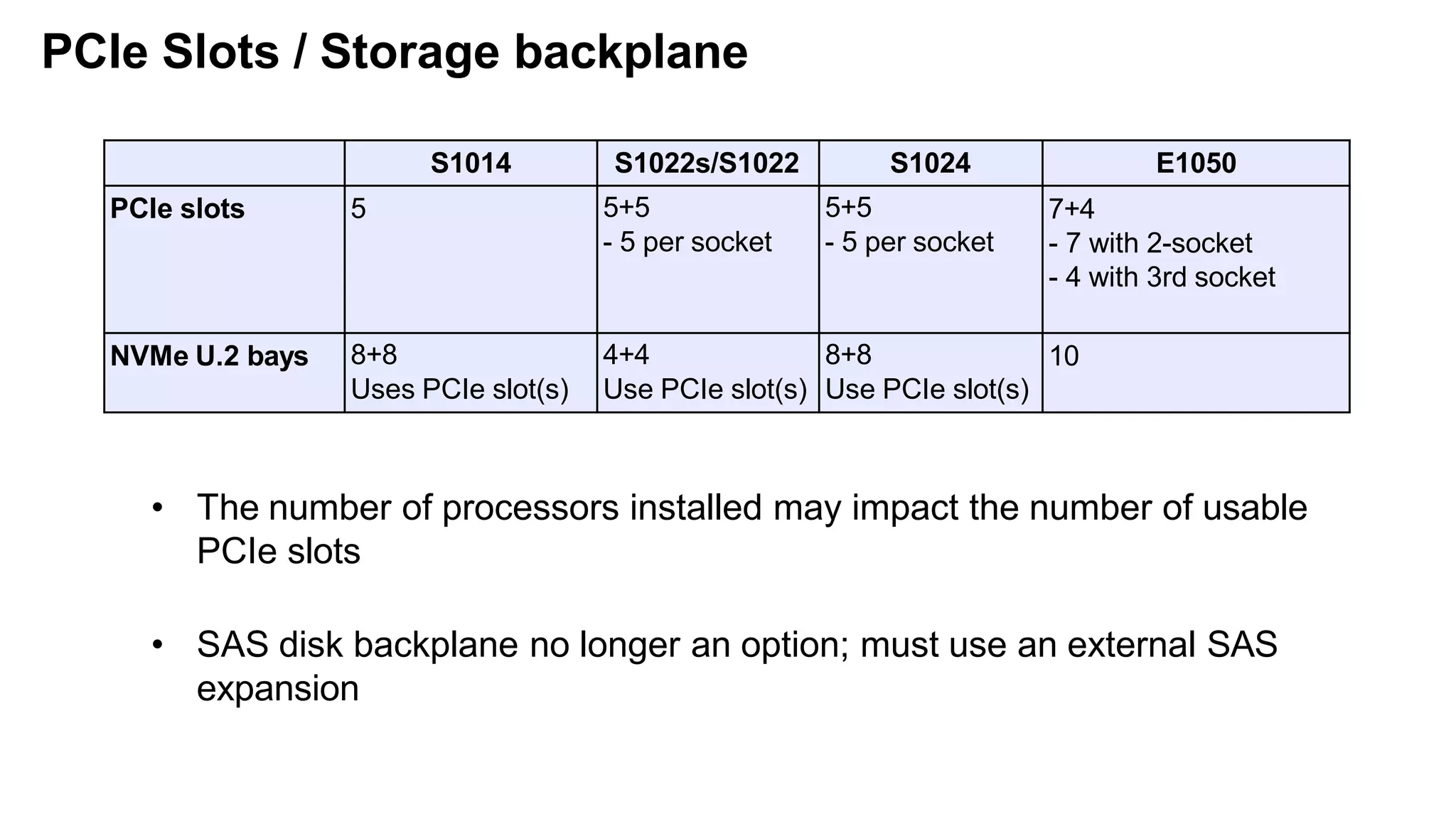

PCIe Slots / Storage backplane
S1014 S1022s/S1022 S1024 E1050
PCIe slots 5 5+5
- 5 per socket
5+5
- 5 per socket
7+4
- 7 with 2-socket
- 4 with 3rd socket
NVMe U.2 bays 8+8
Uses PCIe slot(s)
4+4
Use PCIe slot(s)
8+8
Use PCIe slot(s)
10
• The number of processors installed may impact the number of usable
PCIe slots
• SAS disk backplane no longer an option; must use an external SAS
expansion

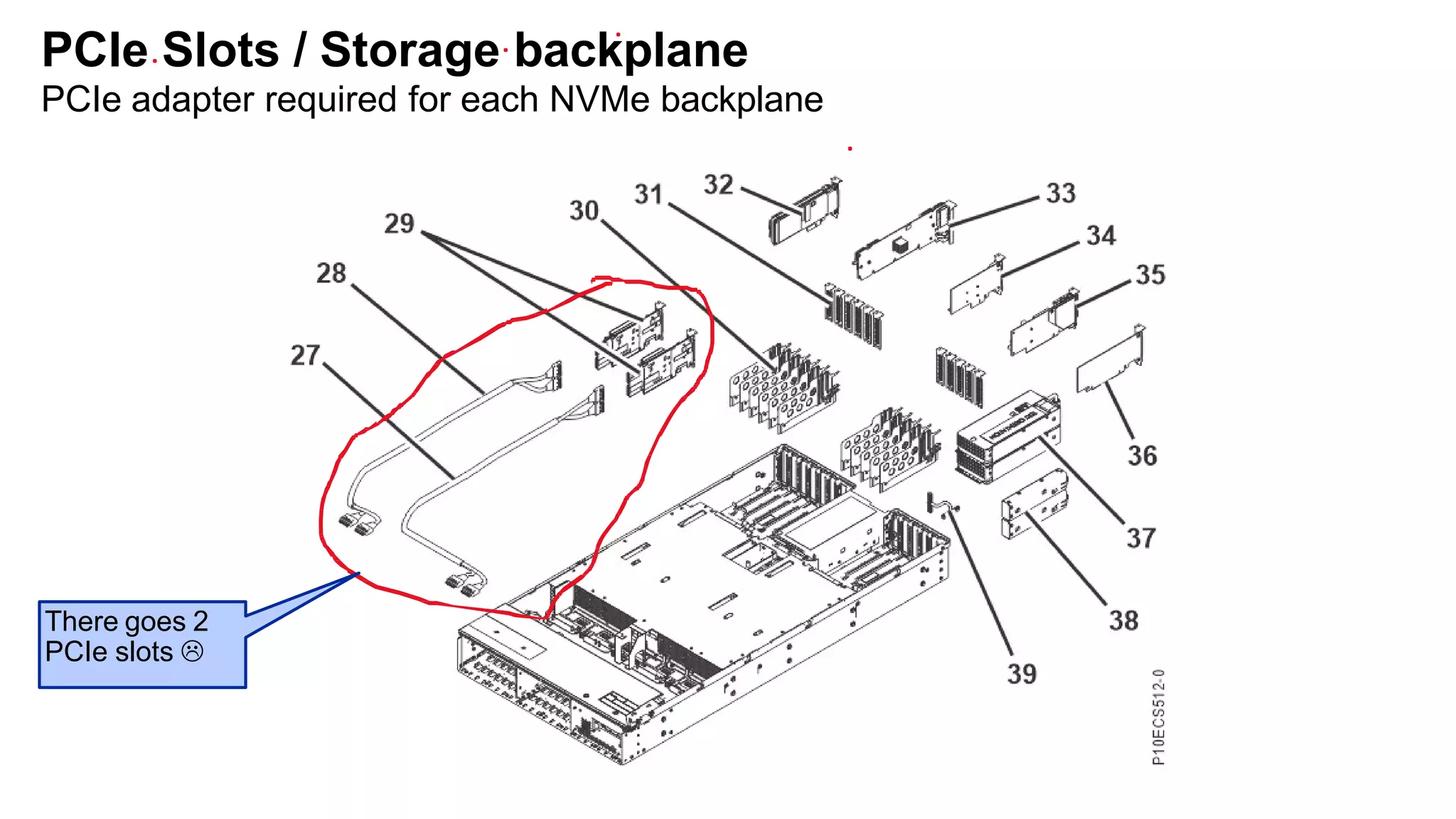

PCIe Slots / Storage backplane
PCIe adapter required for each NVMe backplane
There goes 2
PCIe slots 

Memory
2U/4U DIMM – not just a matter of size
2U 4U
Memory ECC/Chip Kill
Handling
1st chip kill fixed with ECC,
2nd is uncorrectable
1st & 2nd chip kill fixed
with spare, 3rd fixed with
ECC, 4th is uncorrectable
Spare DRAM no spare DRAMs 2 spare DRAMs per rank
S1014 S1022s/S1022 S1024 E1050
Supported
DIMM size
2U 2U
2U/4U
*Cannot mix 2U/4U in
same system
4U
• E1080 uses only 4U DDIMMs with 4-ranks per DIMM
• No published information for E1050 DDIMM

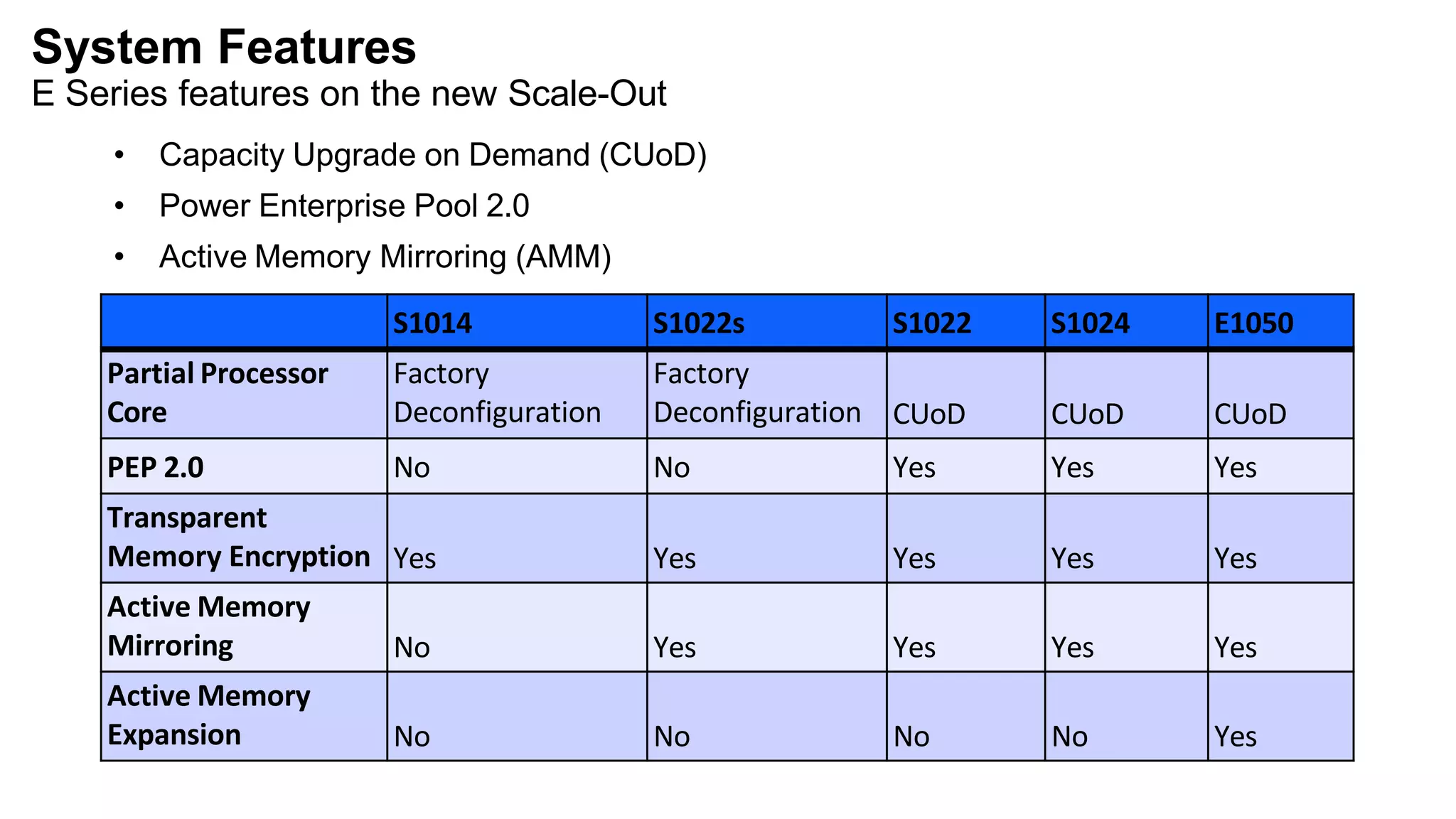

System Features
E Series features on the new Scale-Out
• Capacity Upgrade on Demand (CUoD)
• Power Enterprise Pool 2.0
• Active Memory Mirroring (AMM)
S1014 S1022s S1022 S1024 E1050
Partial Processor
Core
Factory
Deconfiguration
Factory
Deconfiguration CUoD CUoD CUoD
PEP 2.0 No No Yes Yes Yes
Transparent
Memory Encryption Yes Yes Yes Yes Yes
Active Memory
Mirroring No Yes Yes Yes Yes
Active Memory
Expansion No No No No Yes

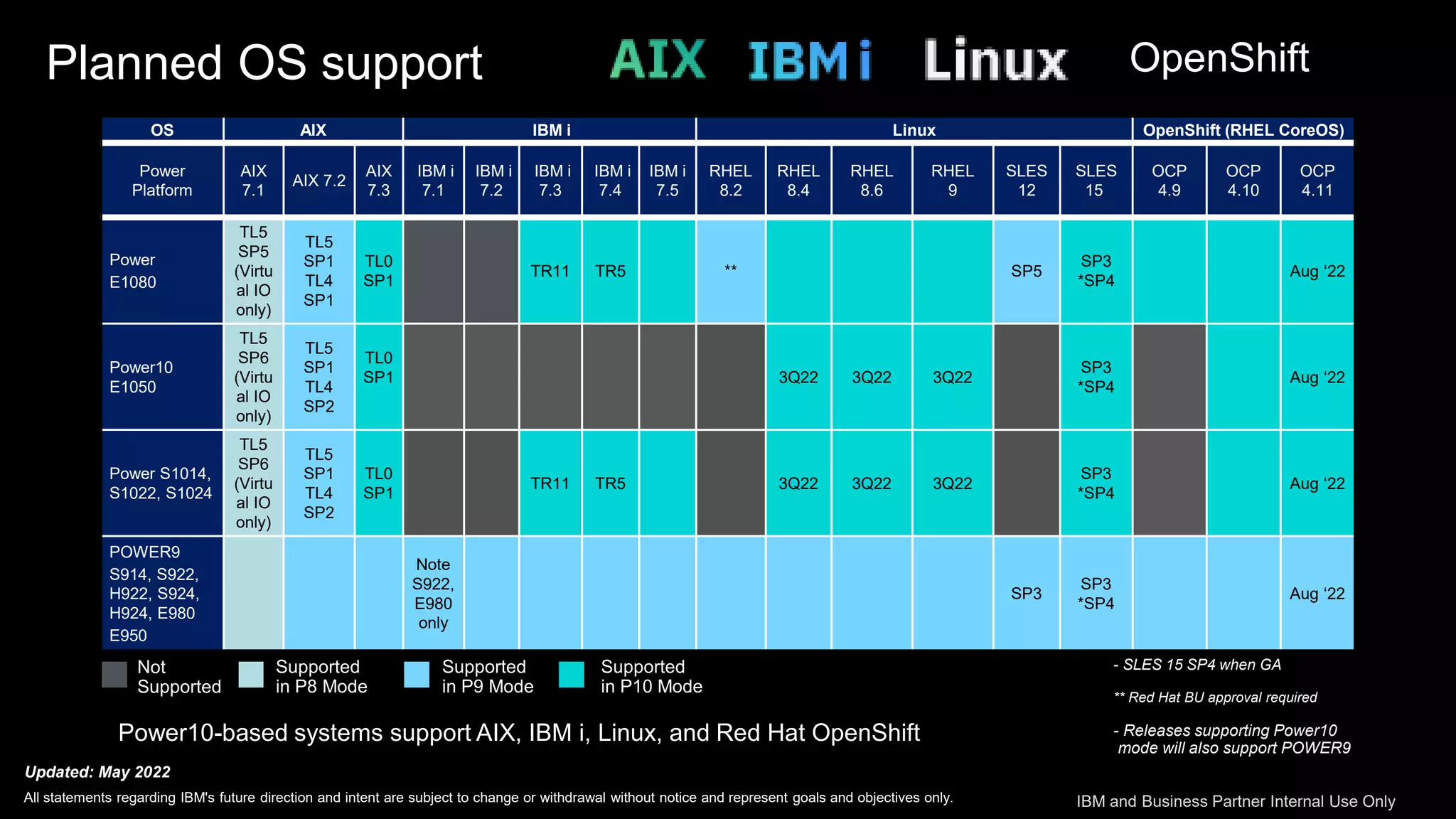

Planned OS support
Power10-based systems support AIX, IBM i, Linux, and Red Hat OpenShift
- SLES 15 SP4 when GA
** Red Hat BU approval required
- Releases supporting Power10
mode will also support POWER9
Supported
in P8 Mode
Supported
in P10 Mode
Supported
in P9 Mode
Not
Supported
OS AIX IBM i Linux OpenShift (RHEL CoreOS)
Power
Platform
AIX
7.1
AIX 7.2
AIX
7.3
IBM i
7.1
IBM i
7.2
IBM i
7.3
IBM i
7.4
IBM i
7.5
RHEL
8.2
RHEL
8.4
RHEL
8.6
RHEL
9
SLES
12
SLES
15
OCP
4.9
OCP
4.10
OCP
4.11
Power
E1080
TL5
SP5
(Virtu
al IO
only)
TL5
SP1
TL4
SP1
TL0
SP1
TR11 TR5 ** SP5
SP3
*SP4
Aug ‘22
Power10
E1050
TL5
SP6
(Virtu
al IO
only)
TL5
SP1
TL4
SP2
TL0
SP1 3Q22 3Q22 3Q22
SP3
*SP4
Aug ‘22
Power S1014,
S1022, S1024
TL5
SP6
(Virtu
al IO
only)
TL5
SP1
TL4
SP2
TL0
SP1
TR11 TR5 3Q22 3Q22 3Q22
SP3
*SP4
Aug ‘22
POWER9
S914, S922,
H922, S924,
H924, E980
E950
Note
S922,
E980
only
SP3
SP3
*SP4
Aug ‘22
All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice and represent goals and objectives only.
Updated: May 2022
OpenShift

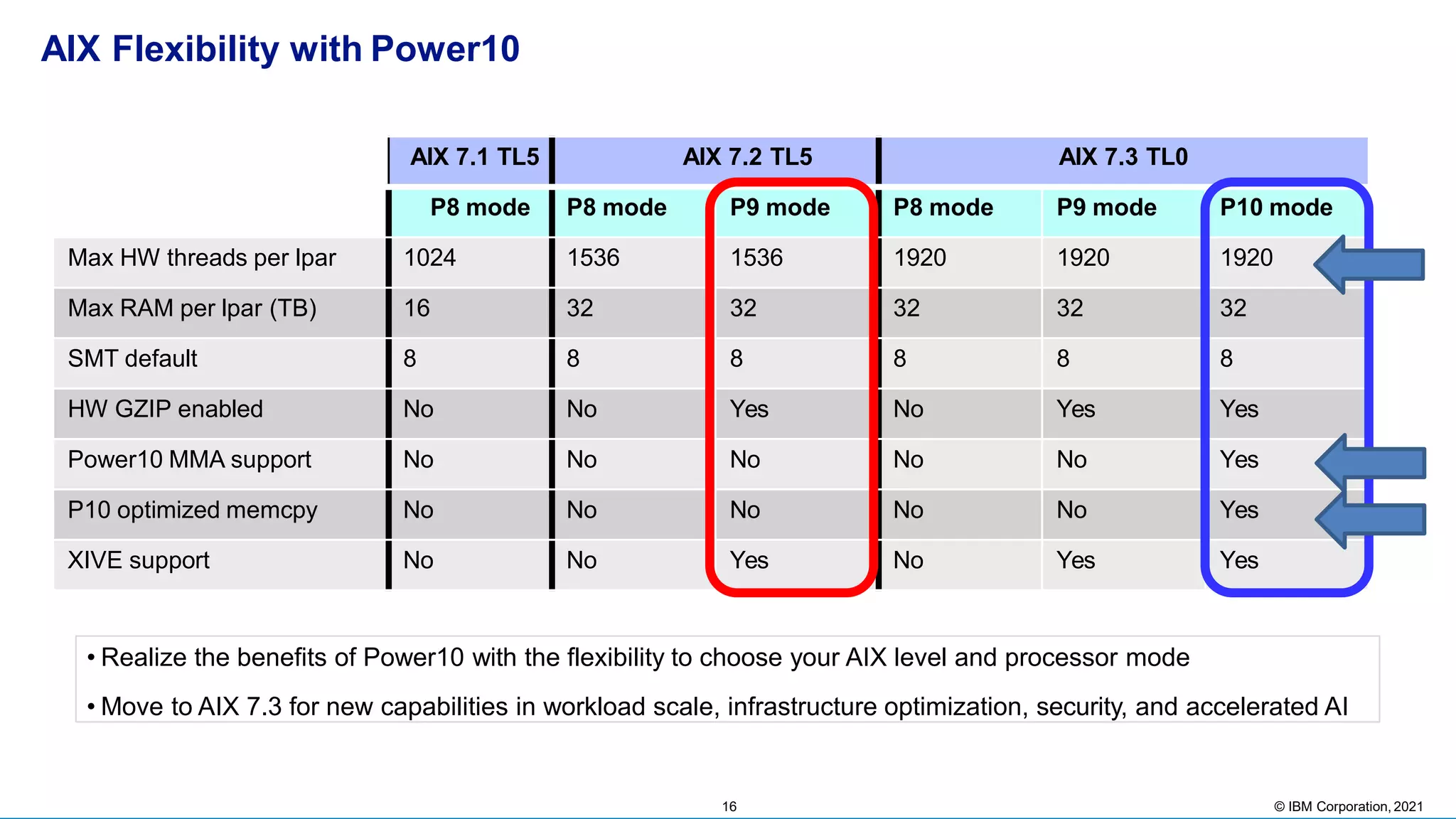

AIX Flexibility with Power10
16 © IBM Corporation, 2021
AIX 7.1 TL5 AIX 7.2 TL5 AIX 7.3 TL0
P8 mode P8 mode P9 mode P8 mode P9 mode P10 mode
Max HW threads per lpar 1024 1536 1536 1920 1920 1920
Max RAM per lpar (TB) 16 32 32 32 32 32
SMT default 8 8 8 8 8 8
HW GZIP enabled No No Yes No Yes Yes
Power10 MMA support No No No No No Yes
P10 optimized memcpy No No No No No Yes
XIVE support No No Yes No Yes Yes
• Realize the benefits of Power10 with the flexibility to choose your AIX level and processor mode
• Move to AIX 7.3 for new capabilities in workload scale, infrastructure optimization, security, and accelerated AI

Power 伺服器
3D實境展示
3D animation tours of
IBM Power servers
Click image above for sample video showing the processor in the E1080 server

Power藏寶庫 (公開資源)
• Power-related content in Seismic (link)
• Redbooks: POWER9-related content (link)
• Redbooks: Power10-related content (link)
• Dispelling top myths about Power blog series (link)
• Power Systems claims deck (link)
• IBM Power performance report (link)
• POWER9 performance proof points (link)
• Power10 performance proof points (link)
• Power marketing page (link)
• Power glossary (link)
• Power RAS features (link)
• Systems Maintenance training course (link) (IBM only)

Seismic: Power銷售資源 (IBMers and IBM BPs獨享)
Main IBM Power
Navigation Page
Servers
• Power10 E1080 Server
• Power10 E1050 Server
• Power10 Scale-out Servers
• POWER9 Family
• POWER9 Scale-out Servers
• POWER9 Enterprise Servers
• POWER9 LC Servers
• POWER9 AC922 Server
• POWER9 IC922 Server
Solutions & ISVs
• Partner with ISVs
• SAP HANA on Power
• Oracle on Power
OS & Software
• AIX
• IBM i
• Virtualization Software
• HA & DR
• Security
Hybrid Multicloud
• Red Hat and Private Cloud Solutions
• Power Private Cloud
• Public Cloud Solutions for Power
• Power Private Cloud Edition
• IBM Cloud Paks for Power
Sales Plays
• Power Sales Plays

Thank you
© Copyright IBM Corporation 2022 All rights reserved. The information contained in these materials is provided for informational purposes only, and is provided AS IS without warranty of
any kind, express or implied. Any statement of direction represents IBM’s current intent, is subject to change or withdrawal, and represent only goals and objectives. IBM, the IBM logo, and
ibm.com are trademarks of IBM Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM
trademarks is available at Copyright and trademark information.
26

20221122-IBM Power10全新IBM Power10 入門和中階 .pdf

More Related Content

What's hot

Similar to 20221122-IBM Power10全新IBM Power10 入門和中階 .pdf

Recently uploaded

20221122-IBM Power10全新IBM Power10 入門和中階 .pdf
