BRAINSTEM EVOKED RESPONSE AUDIOMETRY (BERA), AUDIOTORY BRAINSTEM RESPONSE (ABR)

•Download as PPTX, PDF•

51 likes•9,029 views

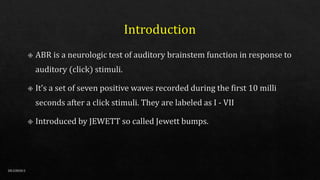

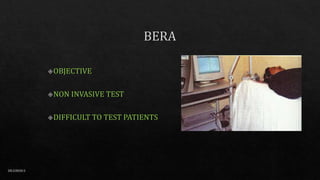

Neurologic objective, noninvasive test of auditory brainstem function in response to auditory (click) stimuli. It’s a set of seven positive waves recorded during the first 10 milli seconds after a click stimuli. They are labeled as I - VII. Also called Jewet bumps.

Healthcare

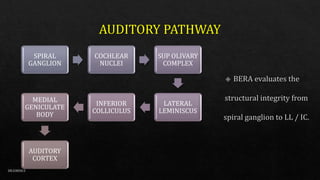

SPIRAL
GANGLION
COCHLEAR
NUCLEI
SUP OLIVARY
COMPLEX
LATERAL
LEMINISCUS
INFERIOR
COLLICULUS
MEDIAL
GENICULATE
BODY
AUDITORY
CORTEX
DR.GIRISH.S

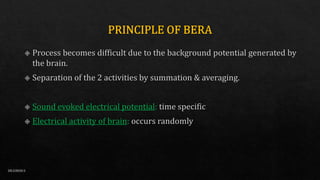

Processing at different levels
Generates electrical activity

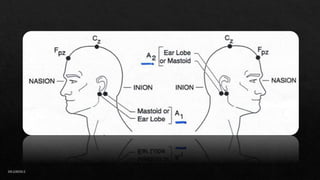

Monitored by surface electrode

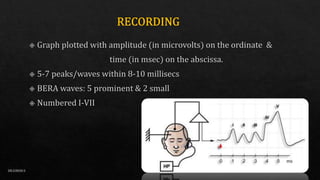

Graphic recording presents a waveform with discrete peaks
Depends on the functional integrity of the pathway
DR.GIRISH.S

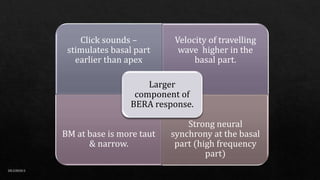

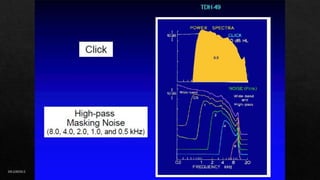

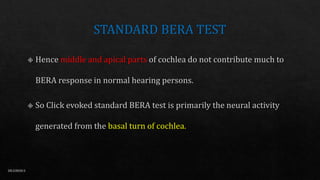

Click sounds –
stimulates basal part
earlier than apex
Velocity of travelling
wave higher in the
basal part.
BM at base is more taut
& narrow.
Strong neural
synchrony at the basal
part (high frequency
part)
Larger
component of
BERA response.
DR.GIRISH.S

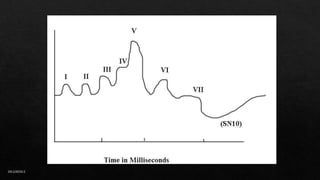

Wave Site of Neural Generator
I Cochlear nerve (distal end)
II Cochlear nerve ( proximal end)
III Cochlear nucleus
IV Superior Olivary Complex
V Lateral Leminiscus & Inferior
Colliculus
VI & VII Not definitely known
DR.GIRISH.S

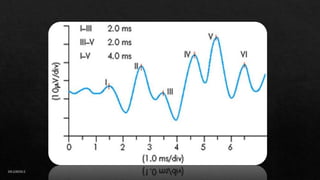

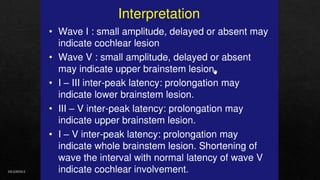

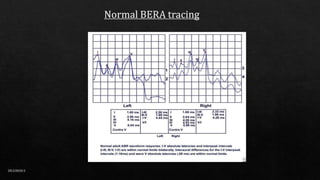

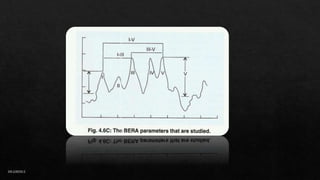

Parameter measured Normal value (ms) Criteria for
abnormality (ms)
I to III IPL 2 More than 2.4
III to V IPL 2 More than 2.4
I to V IPL 4 More than 4.4

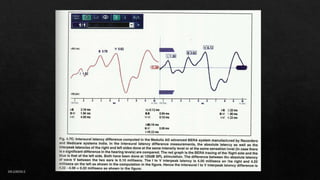

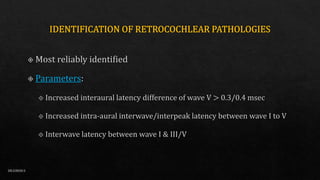

Interaural difference
of wave V
Less than 0.3 More than 0.3
Morphology of wave V Present Absent
DR.GIRISH.S

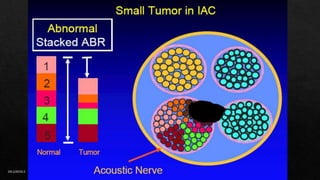

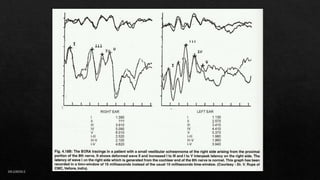

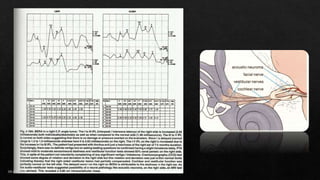

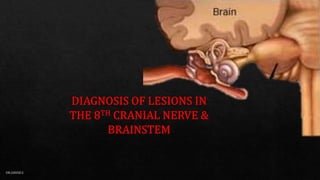

Large AN arising
from I/L 8th nerve
compressing
brainstem on C/L
side.
DR.GIRISH.S

ECochG is a variant of brainstem audio evoked response (ABR) where the recording electrode is placed as close as practical to the cochlea. We will use the abbreviation ECOG and ECochG interchangeably below. ECOG is preferable to us as it is shorter. ECOG is intended to diagnose Meniere's disease, and particular, hydrops (swelling of the inner ear). ECOG may also be abnormal in perilymph fistula, and in superior canal dehiscence. The common feature connecting these illnesses is an imbalance in pressure between the endolymphatic and perilymphatic compartment of the inner ear. ECOG can also be used to show that the cochlea is normal, in persons who are deaf. The cochlear microphonic of ECOG may be normal in auditory neuropathy (Santarelli and Arslan 2002) as well as other disorders in which the cochlea is preserved but the auditory nerve is damaged (Yokoyama, Nishida et al. 1999). Finally, ECOG's have also been used to as a indicator of the temporary threshold shift that may follow noise injury (Nam et al, 2004).

Stroboscopy

Sanjay Maharjan

Physilogy of phonation by Dr.Ashwin Menon

Dr.Ashwin Menon

Cochlear implant surgery

Mamoon Ameen

RhinomanometrySupreet Sn

3051.pptx

Girish S

trigeminal-neuralgia-AIHS.ppsx

Girish S

What's hot

VEMP (PPT) Dr.dr.HR Yusa Herwanto, MKed(ORL-HNS), Sp.THTKL(K)

florensiapratiwi

Electronystagmography

Ram shankar Renganathan

Acoustic Reflex (AR) and Tone decay (TDT)

Eatedal Al-qahtany

Abr presentation

Pele Nzanzu

Superior Semicircular Canal Dehiscence Syndrome

Ade Wijaya

Baha & active middle ear implants

Utpal Sarmah

Seminar phy of middle ear

Prashant Sesodia

Vestibular function test (dr.rajeev gupta,igmc shimla)

Rajeev Gupta

Otoacoustic emission

Dr. Pruthvi Raj S

Audiometric maskingbethfernandezaud

Cochlear implant 1

Disha Sharma

Auditory brainstem response (ABR)

Dr Pankaj Yadav

Pure tone audiometrydrdhiman2

Hearing Screening in Newborns.. Dr.Padmesh

Dr Padmesh Vadakepat

Bone Anchored Hearing Aid JC

Nehasish Sahu

ecochG.pptx

MANJUSINGH948460

Stroboscopy

Sanjay Maharjan

Physilogy of phonation by Dr.Ashwin Menon

Dr.Ashwin Menon

Cochlear implant surgery

Mamoon Ameen

RhinomanometrySupreet Sn

What's hot (20)

VEMP (PPT) Dr.dr.HR Yusa Herwanto, MKed(ORL-HNS), Sp.THTKL(K)

Electronystagmography

Acoustic Reflex (AR) and Tone decay (TDT)

Abr presentation

Superior Semicircular Canal Dehiscence Syndrome

Baha & active middle ear implants

Seminar phy of middle ear

Vestibular function test (dr.rajeev gupta,igmc shimla)

Otoacoustic emission

Audiometric masking

Cochlear implant 1

Auditory brainstem response (ABR)

Pure tone audiometry

Hearing Screening in Newborns.. Dr.Padmesh

Bone Anchored Hearing Aid JC

ecochG.pptx

Stroboscopy

Physilogy of phonation by Dr.Ashwin Menon

Cochlear implant surgery

Rhinomanometry

Recently uploaded

CANCER CANCER CANCER CANCER CANCER CANCER

KRISTELLEGAMBOA2

The Impact of Meeting: How It Can Change Your Life

ranishasharma67

HEAT WAVE presented by priya bhojwani..pptx

priyabhojwani1200

The Docs PPG - 30.05.2024.pptx..........

TheDocs

Empowering ACOs: Leveraging Quality Management Tools for MIPS and Beyond

Health Catalyst

Join us as we delve into the crucial realm of quality reporting for MSSP (Medicare Shared Savings Program) Accountable Care Organizations (ACOs). In this session, we will explore how a robust quality management solution can empower your organization to meet regulatory requirements and improve processes for MIPS reporting and internal quality programs. Learn how our MeasureAble application enables compliance and fosters continuous improvement.

How many patients does case series should have In comparison to case reports.pdf

pubrica101

Pubrica’s team of researchers and writers create scientific and medical research articles, which may be important resources for authors and practitioners. Pubrica medical writers assist you in creating and revising the introduction by alerting the reader to gaps in the chosen study subject. Our professionals understand the order in which the hypothesis topic is followed by the broad subject, the issue, and the backdrop. https://pubrica.com/academy/case-study-or-series/how-many-patients-does-case-series-should-have-in-comparison-to-case-reports/

ICH Guidelines for Pharmacovigilance.pdf

NEHA GUPTA

The "ICH Guidelines for Pharmacovigilance" PDF provides a comprehensive overview of the International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use (ICH) guidelines related to pharmacovigilance. These guidelines aim to ensure that drugs are safe and effective for patients by monitoring and assessing adverse effects, ensuring proper reporting systems, and improving risk management practices. The document is essential for professionals in the pharmaceutical industry, regulatory authorities, and healthcare providers, offering detailed procedures and standards for pharmacovigilance activities to enhance drug safety and protect public health.

PET CT beginners Guide covers some of the underrepresented topics in PET CT

MiadAlsulami

一比一原版纽约大学毕业证(NYU毕业证)成绩单留信认证

o6ov5dqmf

原版定制【微信:41543339】【纽约大学毕业证(NYU毕业证)】【微信:41543339】成绩单、外壳、offer、留信学历认证（永久存档真实可查）采用学校原版纸张、特殊工艺完全按照原版一比一制作（包括：隐形水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠，文字图案浮雕，激光镭射，紫外荧光，温感，复印防伪）行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备，十五年致力于帮助留学生解决难题，业务范围有加拿大、英国、澳洲、韩国、美国、新加坡，新西兰等学历材料，包您满意。【我们承诺采用的是学校原版纸张（纸质、底色、纹路），我们拥有全套进口原装设备，特殊工艺都是采用不同机器制作，仿真度基本可以达到98%以上，所有工艺效果都可提前给客户展示，不满意可以根据客户要求进行调整，直到满意为止！】【业务选择办理准则】一、工作未确定，回国需先给父母、亲戚朋友看下文凭的情况，办理一份就读学校的毕业证【微信41543339】文凭即可二、回国进私企、外企、自己做生意的情况，这些单位是不查询毕业证真伪的，而且国内没有渠道去查询国外文凭的真假，也不需要提供真实教育部认证。鉴于此，办理一份毕业证【微信41543339】即可三、进国企，银行，事业单位，考公务员等等，这些单位是必需要提供真实教育部认证的，办理教育部认证所需资料众多且烦琐，所有材料您都必须提供原件，我们凭借丰富的经验，快捷的绿色通道帮您快速整合材料，让您少走弯路。留信网认证的作用: 1:该专业认证可证明留学生真实身份 2:同时对留学生所学专业登记给予评定 3:国家专业人才认证中心颁发入库证书 4:这个认证书并且可以归档倒地方 5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息 6:个人职称评审加20分 7:个人信誉贷款加10分 8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才留信网服务项目： 1、留学生专业人才库服务（留信分析） 2、国（境）学习人员提供就业推荐信服务 3、留学人员区块链存储服务 → 【关于价格问题（保证一手价格）】我们所定的价格是非常合理的，而且我们现在做得单子大多数都是代理和回头客户介绍的所以一般现在有新的单子我给客户的都是第一手的代理价格，因为我想坦诚对待大家不想跟大家在价格方面浪费时间对于老客户或者被老客户介绍过来的朋友，我们都会适当给一些优惠。选择实体注册公司办理，更放心，更安全！我们的承诺：客户在留信官方认证查询网站查询到认证通过结果后付款，不成功不收费！

10 Ideas for Enhancing Your Meeting Experience

ranishasharma67

Haridwar ❤CALL Girls 🔝 89011★83002 🔝 ❤ℂall Girls IN Haridwar ESCORT SERVICE❤

ranishasharma67

Tips for Pet Care in winters How to take care of pets.

Dinesh Chauhan

Artificial Intelligence to Optimize Cardiovascular Therapy

Iris Thiele Isip-Tan

ABDOMINAL COMPARTMENT SYSNDROME

Rommel Luis III Israel

Jaipur ❤cALL gIRLS 89O1183002 ❤ℂall Girls IN JaiPuR ESCORT SERVICE

ranishasharma67

Nursing Care of Client With Acute And Chronic Renal Failure.ppt

Rommel Luis III Israel

GURGAON Call Girls ❤8901183002❤ #ℂALL# #gIRLS# In GURGAON ₹,2500 Cash Payment...

ranishasharma67

CHAPTER 1 SEMESTER V - ROLE OF PEADIATRIC NURSE.pdf

Sachin Sharma

Pediatric nurses play a vital role in the health and well-being of children. Their responsibilities are wide-ranging, and their objectives can be categorized into several key areas: 1. Direct Patient Care: Objective: Provide comprehensive and compassionate care to infants, children, and adolescents in various healthcare settings (hospitals, clinics, etc.). This includes tasks like: Monitoring vital signs and physical condition. Administering medications and treatments. Performing procedures as directed by doctors. Assisting with daily living activities (bathing, feeding). Providing emotional support and pain management. 2. Health Promotion and Education: Objective: Promote healthy behaviors and educate children, families, and communities about preventive healthcare. This includes tasks like: Administering vaccinations. Providing education on nutrition, hygiene, and development. Offering breastfeeding and childbirth support. Counseling families on safety and injury prevention. 3. Collaboration and Advocacy: Objective: Collaborate effectively with doctors, social workers, therapists, and other healthcare professionals to ensure coordinated care for children. Objective: Advocate for the rights and best interests of their patients, especially when children cannot speak for themselves. This includes tasks like: Communicating effectively with healthcare teams. Identifying and addressing potential risks to child welfare. Educating families about their child's condition and treatment options. 4. Professional Development and Research: Objective: Stay up-to-date on the latest advancements in pediatric healthcare through continuing education and research. Objective: Contribute to improving the quality of care for children by participating in research initiatives. This includes tasks like: Attending workshops and conferences on pediatric nursing. Participating in clinical trials related to child health. Implementing evidence-based practices into their daily routines. By fulfilling these objectives, pediatric nurses play a crucial role in ensuring the optimal health and well-being of children throughout all stages of their development.

Global launch of the Healthy Ageing and Prevention Index 2nd wave – alongside...

ILC- UK

The Healthy Ageing and Prevention Index is an online tool created by ILC that ranks countries on six metrics including, life span, health span, work span, income, environmental performance, and happiness. The Index helps us understand how well countries have adapted to longevity and inform decision makers on what must be done to maximise the economic benefits that comes with living well for longer. Alongside the 77th World Health Assembly in Geneva on 28 May 2024, we launched the second version of our Index, allowing us to track progress and give new insights into what needs to be done to keep populations healthier for longer. The speakers included: Professor Orazio Schillaci, Minister of Health, Italy Dr Hans Groth, Chairman of the Board, World Demographic & Ageing Forum Professor Ilona Kickbusch, Founder and Chair, Global Health Centre, Geneva Graduate Institute and co-chair, World Health Summit Council Dr Natasha Azzopardi Muscat, Director, Country Health Policies and Systems Division, World Health Organisation EURO Dr Marta Lomazzi, Executive Manager, World Federation of Public Health Associations Dr Shyam Bishen, Head, Centre for Health and Healthcare and Member of the Executive Committee, World Economic Forum Dr Karin Tegmark Wisell, Director General, Public Health Agency of Sweden

India Clinical Trials Market: Industry Size and Growth Trends [2030] Analyzed...

Kumar Satyam

According to TechSci Research report, "India Clinical Trials Market- By Region, Competition, Forecast & Opportunities, 2030F," the India Clinical Trials Market was valued at USD 2.05 billion in 2024 and is projected to grow at a compound annual growth rate (CAGR) of 8.64% through 2030. The market is driven by a variety of factors, making India an attractive destination for pharmaceutical companies and researchers. India's vast and diverse patient population, cost-effective operational environment, and a large pool of skilled medical professionals contribute significantly to the market's growth. Additionally, increasing government support in streamlining regulations and the growing prevalence of lifestyle diseases further propel the clinical trials market. Growing Prevalence of Lifestyle Diseases The rising incidence of lifestyle diseases such as diabetes, cardiovascular diseases, and cancer is a major trend driving the clinical trials market in India. These conditions necessitate the development and testing of new treatment methods, creating a robust demand for clinical trials. The increasing burden of these diseases highlights the need for innovative therapies and underscores the importance of India as a key player in global clinical research.

Recently uploaded (20)

CANCER CANCER CANCER CANCER CANCER CANCER

The Impact of Meeting: How It Can Change Your Life

HEAT WAVE presented by priya bhojwani..pptx

The Docs PPG - 30.05.2024.pptx..........

Empowering ACOs: Leveraging Quality Management Tools for MIPS and Beyond

How many patients does case series should have In comparison to case reports.pdf

ICH Guidelines for Pharmacovigilance.pdf

PET CT beginners Guide covers some of the underrepresented topics in PET CT

一比一原版纽约大学毕业证(NYU毕业证)成绩单留信认证

10 Ideas for Enhancing Your Meeting Experience

Haridwar ❤CALL Girls 🔝 89011★83002 🔝 ❤ℂall Girls IN Haridwar ESCORT SERVICE❤

Tips for Pet Care in winters How to take care of pets.

Artificial Intelligence to Optimize Cardiovascular Therapy

ABDOMINAL COMPARTMENT SYSNDROME

Jaipur ❤cALL gIRLS 89O1183002 ❤ℂall Girls IN JaiPuR ESCORT SERVICE

Nursing Care of Client With Acute And Chronic Renal Failure.ppt

GURGAON Call Girls ❤8901183002❤ #ℂALL# #gIRLS# In GURGAON ₹,2500 Cash Payment...

CHAPTER 1 SEMESTER V - ROLE OF PEADIATRIC NURSE.pdf

Global launch of the Healthy Ageing and Prevention Index 2nd wave – alongside...

India Clinical Trials Market: Industry Size and Growth Trends [2030] Analyzed...

BRAINSTEM EVOKED RESPONSE AUDIOMETRY (BERA), AUDIOTORY BRAINSTEM RESPONSE (ABR)

10. DR.GIRISH.S

11. DR.GIRISH.S

12. SPIRAL GANGLION COCHLEAR NUCLEI SUP OLIVARY COMPLEX LATERAL LEMINISCUS INFERIOR COLLICULUS MEDIAL GENICULATE BODY AUDITORY CORTEX DR.GIRISH.S

13. Processing at different levels Generates electrical activity Monitored by surface electrode Graphic recording presents a waveform with discrete peaks Depends on the functional integrity of the pathway DR.GIRISH.S

14. DR.GIRISH.S

15. DR.GIRISH.S

16. DR.GIRISH.S

17. DR.GIRISH.S

18. Click sounds – stimulates basal part earlier than apex Velocity of travelling wave higher in the basal part. BM at base is more taut & narrow. Strong neural synchrony at the basal part (high frequency part) Larger component of BERA response. DR.GIRISH.S

19. DR.GIRISH.S

20. DR.GIRISH.S

21. DR.GIRISH.S

22. DR.GIRISH.S

23. DR.GIRISH.S

24. DR.GIRISH.S

25. DR.GIRISH.S

26. DR.GIRISH.S

27. DR.GIRISH.S

28. DR.GIRISH.S

29. DR.GIRISH.S

30. DR.GIRISH.S

31. DR.GIRISH.S

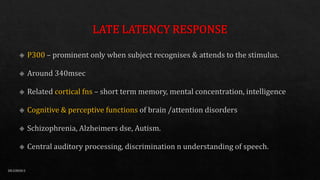

32. P3 DR.GIRISH.S

33. DR.GIRISH.S

34. DR.GIRISH.S

35. DR.GIRISH.S

36. DR.GIRISH.S

37. DR.GIRISH.S

38. DR.GIRISH.S

39. DR.GIRISH.S

40. DR.GIRISH.S

41. Wave Site of Neural Generator I Cochlear nerve (distal end) II Cochlear nerve ( proximal end) III Cochlear nucleus IV Superior Olivary Complex V Lateral Leminiscus & Inferior Colliculus VI & VII Not definitely known DR.GIRISH.S

42. DR.GIRISH.S

43. 1 2 3 4 5 6 7 1 2 3 4 5 6 7 DR.GIRISH.S

44. DR.GIRISH.S

45. 1 2 3 4 5 6 7 1 2 3 4 5 6 7 DR.GIRISH.S

46. DR.GIRISH.S

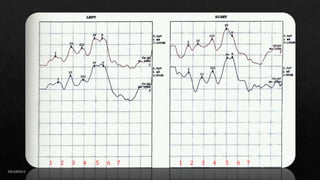

47. 1 2 3 4 5 6 7 1 2 3 4 5 6 7 DR.GIRISH.S

48. 1 2 3 4 5 6 7 DR.GIRISH.S

49. DR.GIRISH.S

50. DR.GIRISH.S

51. DR.GIRISH.S

52. DR.GIRISH.S

53. DR.GIRISH.S

54. DR.GIRISH.S

55. DR.GIRISH.S

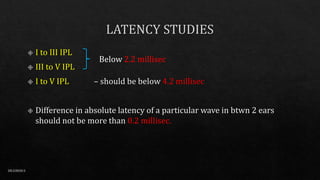

56. Below 2.2 millisec DR.GIRISH.S
