CRA Clad & Lined Pipe Manufacturer and Company Introduction

1. Jiangsu Zhongxin Pipe Sci-tec Co.,Ltd.
CRA-Clad & CRA-Lined Steel Pipe Green the World
Design by Victor
BOBPIPE Engineering (Shanghai) Co.,Ltd.

2. What is CRA-Clad & CRA-Lined Steel Pipe and Why need this?
CRA means Corrosion Resistant Alloy;
Those special pipe composited by two different
materials including inner pipe and outer pipe.
Inner CRA layer (0.25~6.0mm) normally such as
Stainless steel, Duplex, Nickel alloy, Titanium,
Hastelloy, Monel etc. which are suitable for high
corrosion environment.
Outer base material could be seamless or welded,
SAWL, SAWH, ERW, HFW, or DSAW carbon steel pipe.
Inner Lined special metal
with outer C.S Composite
The Clad & Lined Pipe (Zhongxin Brand ) can provides
the best combination of corrosion resistance of
stainless steel (including other alloy) and high
strength of carbon steel with cost effectiveness.
And just as normal C.S pipe, Zhongxin pipe can be on-
site cutting without any separation risk, together with
high once time welding pass conformity rate.
Advantage is to avoid
Corrosion with lower cost

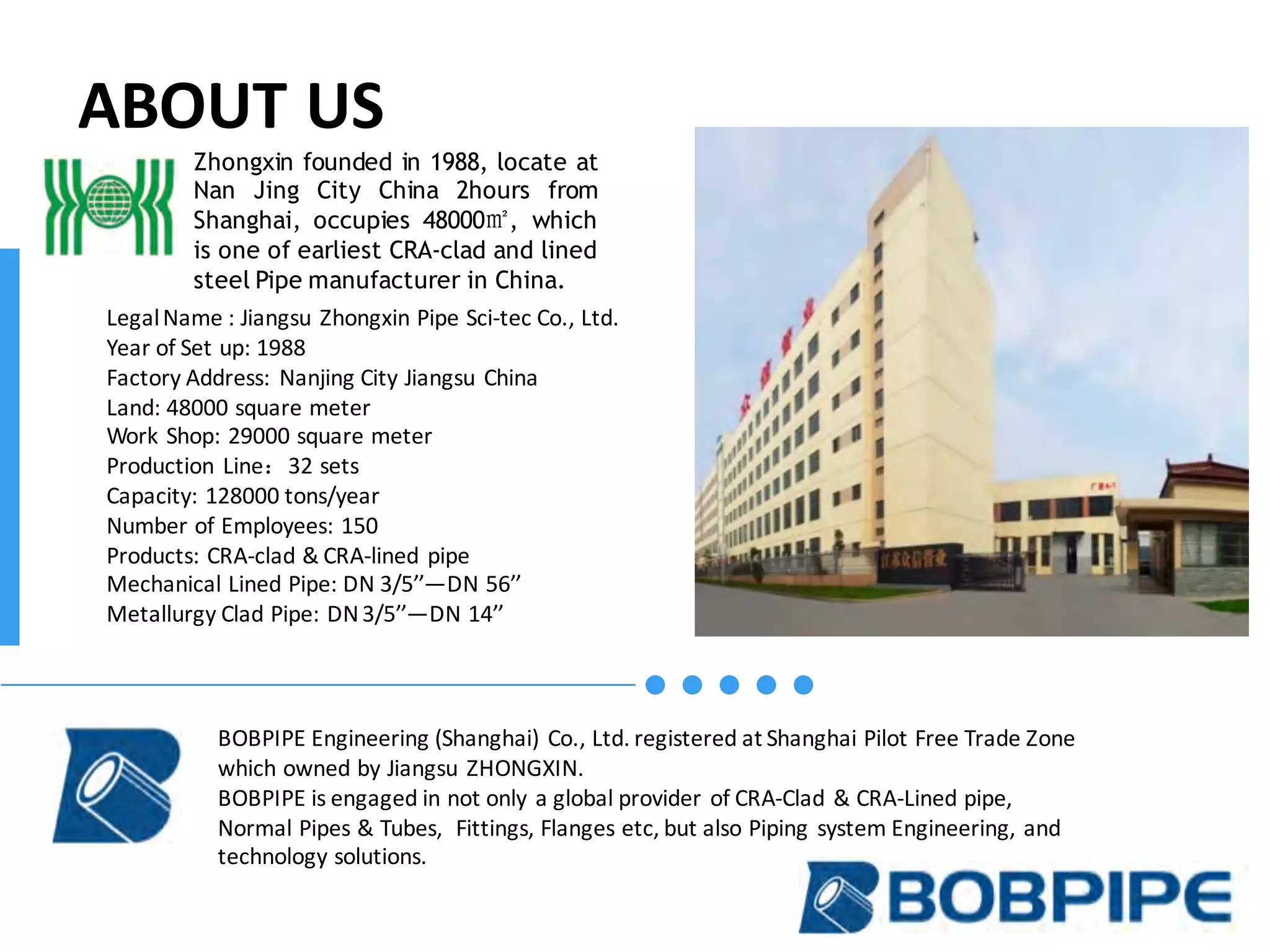

3. ABOUT US
Legal Name : Jiangsu Zhongxin Pipe Sci-tec Co., Ltd.
Year of Set up: 1988
Factory Address: Nanjing City Jiangsu China
Land: 48000 square meter
Work Shop: 29000 square meter
Production Line：32 sets
Capacity: 128000 tons/year
Number of Employees: 150
Products: CRA-clad & CRA-lined pipe
Mechanical Lined Pipe: DN 3/5’’—DN 56’’
Metallurgy Clad Pipe: DN 3/5’’—DN 14’’
Zhongxin founded in 1988, locate at
Nan Jing City China 2hours from
Shanghai, occupies 48000㎡, which
is one of earliest CRA-clad and lined
steel Pipe manufacturer in China.
BOBPIPE Engineering (Shanghai) Co., Ltd. registered at Shanghai Pilot Free Trade Zone
which owned by Jiangsu ZHONGXIN.
BOBPIPE is engaged in not only a global provider of CRA-Clad & CRA-Lined pipe,
Normal Pipes & Tubes, Fittings, Flanges etc, but also Piping system Engineering, and
technology solutions.

4. 28 years experience focus on pipe industry
Development Milestone

5. Allocation of Employees
General Manager
Financial
Dept.
Quality Dept. Production
Dept.
Marketing
&Sales
Delivery
Technical
Dept.
Warehouse
1. Organization Chart
Marketing & Sales 8%
Administative 12%
Safety & Delivery 3%
Quality Management 17%
Production 47%
Technical & Research 13%

6. 2. Certification
ISO 9001 OHSAS 18001ISO 14000
API 5LD CU-TR GOST
CNPC HSE

7. Licensed patents: 1 invention
Certificate; 11 utility model
Patents
Our products was granted
the key project research
support of state science and
technology creation
program plan.（2013-2015，
Item No.2013-Z5-3）
Nanjing leading Sci-tech
talent plan enterprise.
(2012 Item No. 132106)
3.1 Research Ability & Patents

8. 4. Manufacture Process

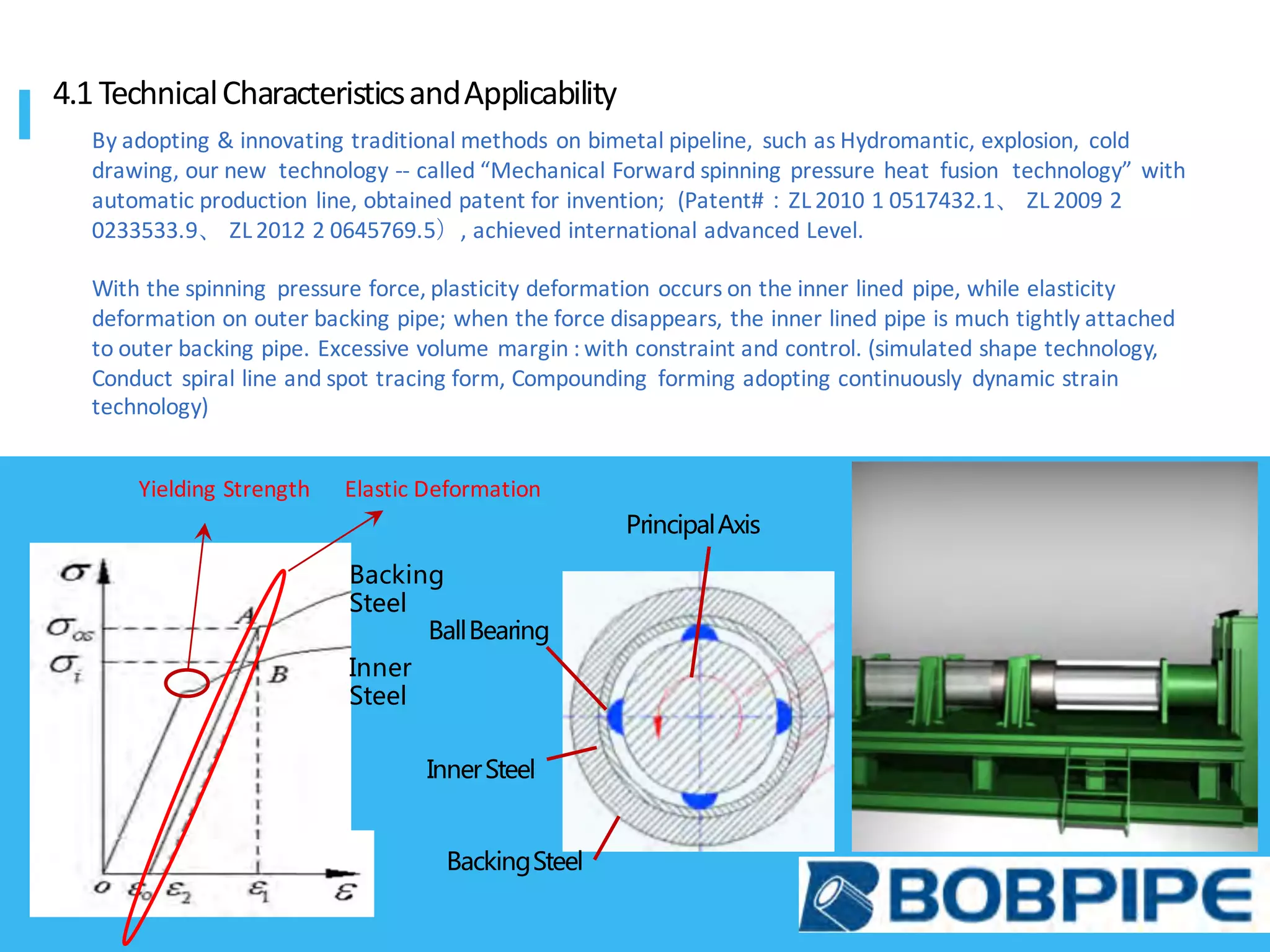

9. 4.1 Technical Characteristics and Applicability
BackingSteel
InnerSteel
BallBearing
PrincipalAxis
Backing
Steel
Inner
Steel
By adopting & innovating traditional methods on bimetal pipeline, such as Hydromantic, explosion, cold
drawing, our new technology -- called “Mechanical Forward spinning pressure heat fusion technology” with
automatic production line, obtained patent for invention; (Patent#：ZL 2010 1 0517432.1、 ZL 2009 2
0233533.9、 ZL 2012 2 0645769.5）, achieved international advanced Level.
With the spinning pressure force, plasticity deformation occurs on the inner lined pipe, while elasticity
deformation on outer backing pipe; when the force disappears, the inner lined pipe is much tightly attached
to outer backing pipe. Excessive volume margin : with constraint and control. (simulated shape technology,
Conduct spiral line and spot tracing form, Compounding forming adopting continuously dynamic strain
technology)
Yielding Strength Elastic Deformation

10. 5. Why Choose Zhongxin CRA-Clad & CRA-Lined Steel ?
Original Processed
Surface of inner pipe Composite section
Fine Grain Size Improved Original Surface
Increased Hardness Good Smooth Combined
Resistance Stress Corrosion No Interspace

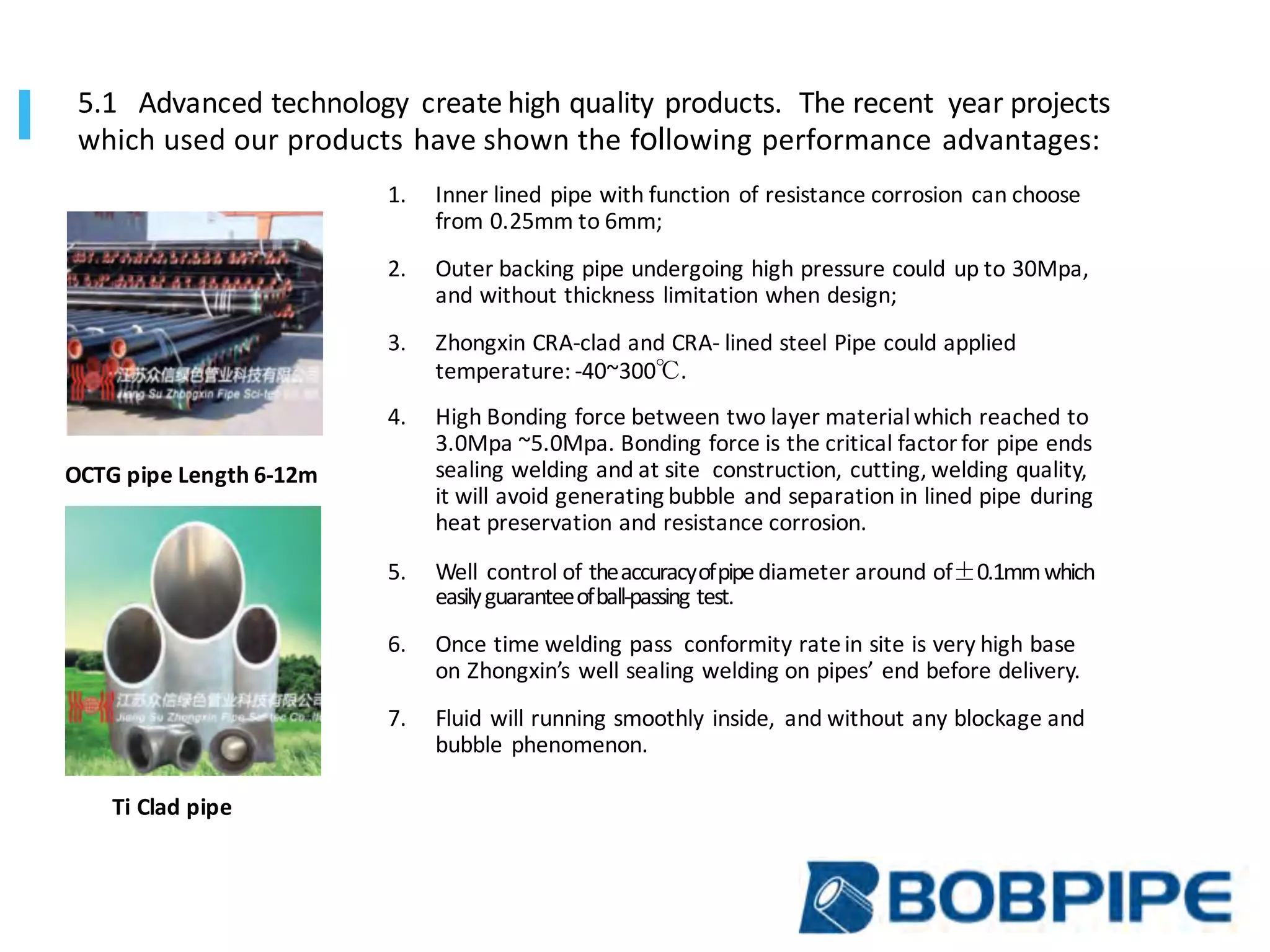

11. 1. Inner lined pipe with function of resistance corrosion can choose
from 0.25mm to 6mm;
2. Outer backing pipe undergoing high pressure could up to 30Mpa,
and without thickness limitation when design;
3. Zhongxin CRA-clad and CRA- lined steel Pipe could applied
temperature: -40~300℃.
4. High Bonding force between two layer material which reached to
3.0Mpa ~5.0Mpa. Bonding force is the critical factor for pipe ends
sealing welding and at site construction, cutting, welding quality,
it will avoid generating bubble and separation in lined pipe during
heat preservation and resistance corrosion.
5. Well control of the accuracy of pipe diameter around of±0.1mm which
easily guarantee of ball-passing test.
6. Once time welding pass conformity rate in site is very high base
on Zhongxin’s well sealing welding on pipes’ end before delivery.
7. Fluid will running smoothly inside, and without any blockage and
bubble phenomenon.
OCTG pipe Length 6-12m
Ti Clad pipe
5.1 Advanced technology create high quality products. The recent year projects
which used our products have shown the following performance advantages:

12. 5.2 Good Facility & Advanced self developed Equipment
Straight welding CRA pipe Workshop
Composite pipe Workshop
Pipe Workshop

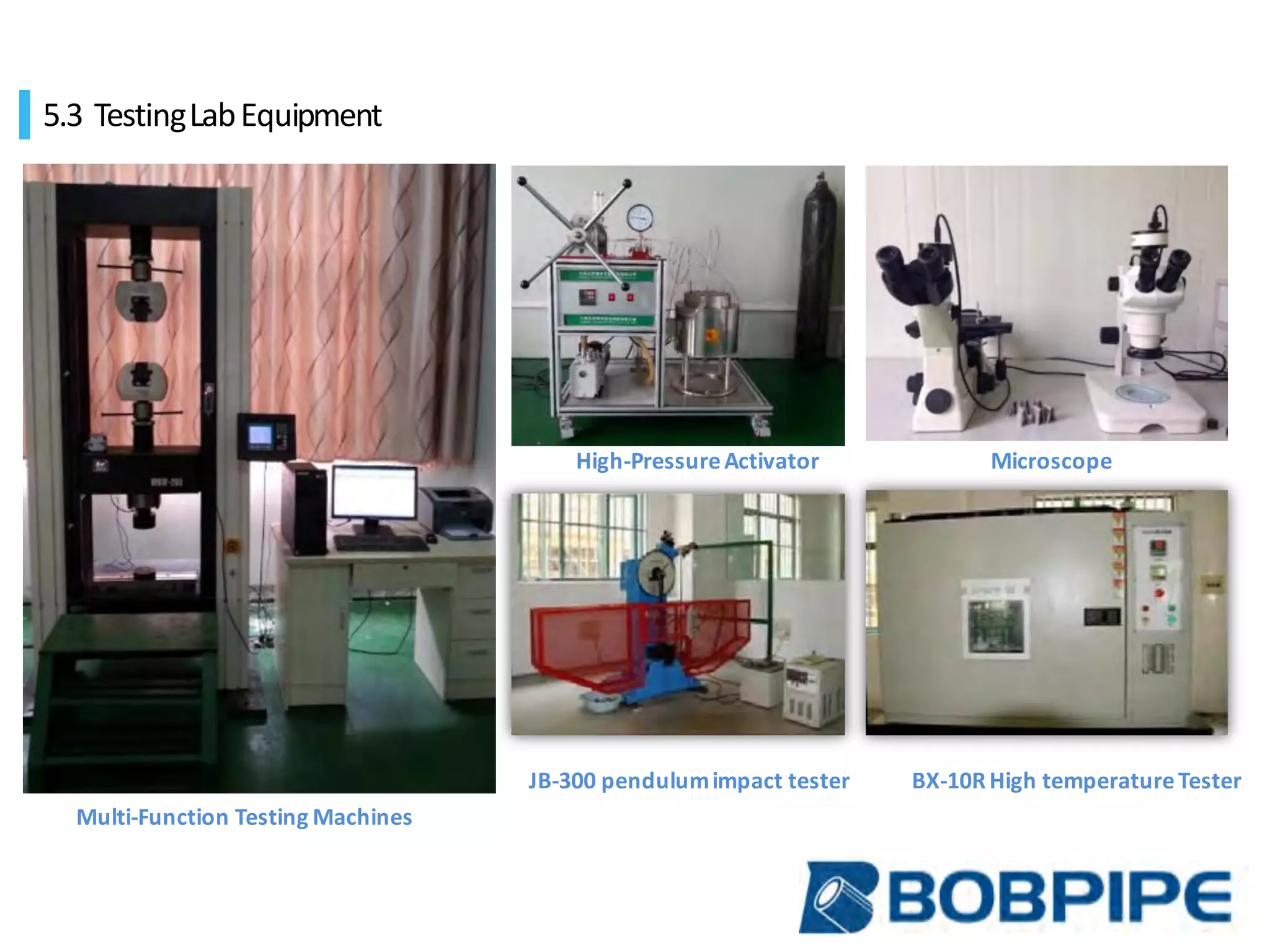

13. Multi-Function Testing Machines
High-Pressure Activator Microscope
JB-300 pendulumimpact tester BX-10R High temperature Tester

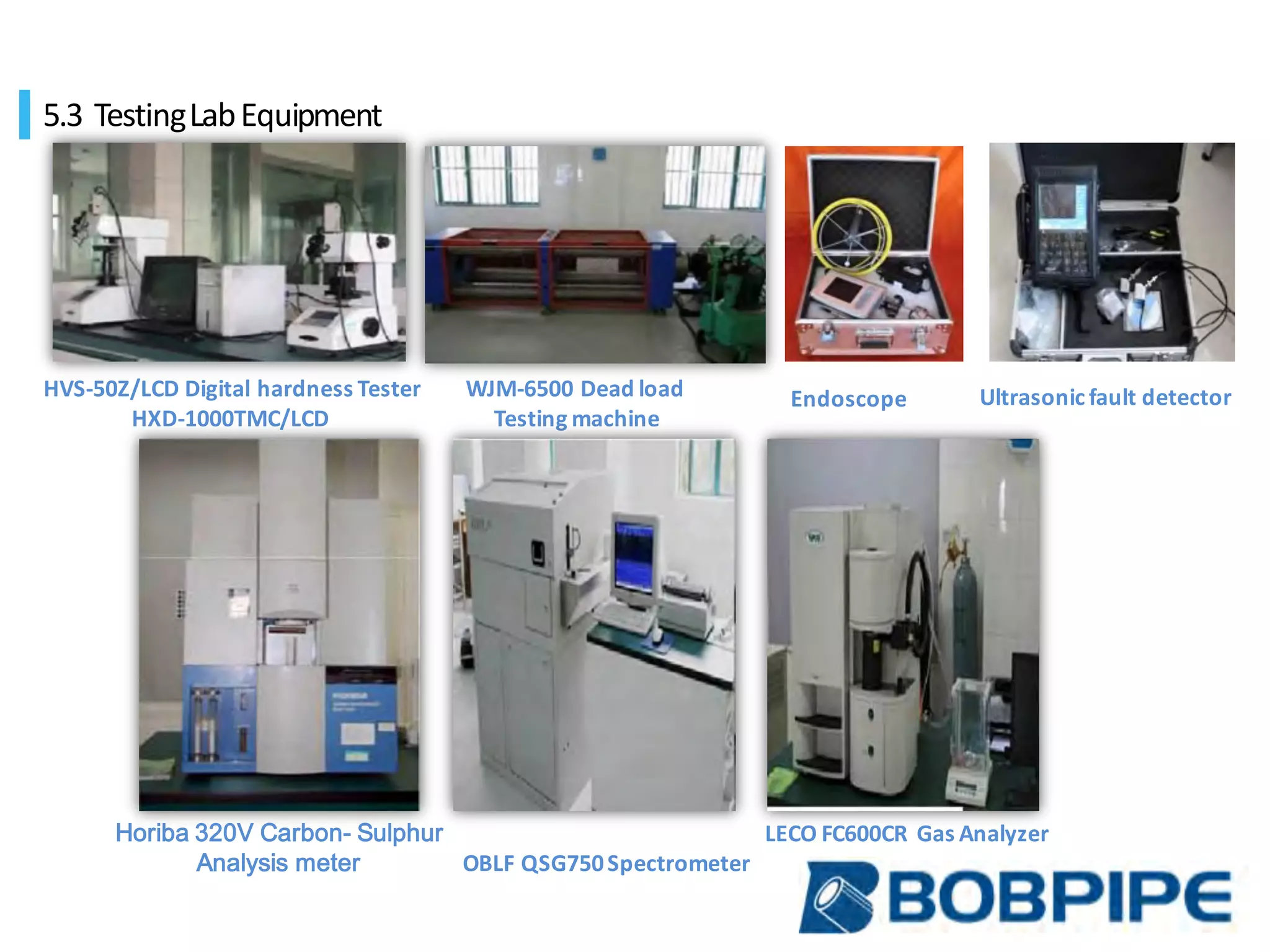

5.3 Testing Lab Equipment

14. HVS-50Z/LCD Digital hardness Tester
HXD-1000TMC/LCD
WJM-6500 Dead load
Testing machine
OBLF QSG750 Spectrometer
LECO FC600CR Gas AnalyzerHoriba 320V Carbon- Sulphur
Analysis meter
Endoscope Ultrasonic fault detector
5.3 Testing Lab Equipment

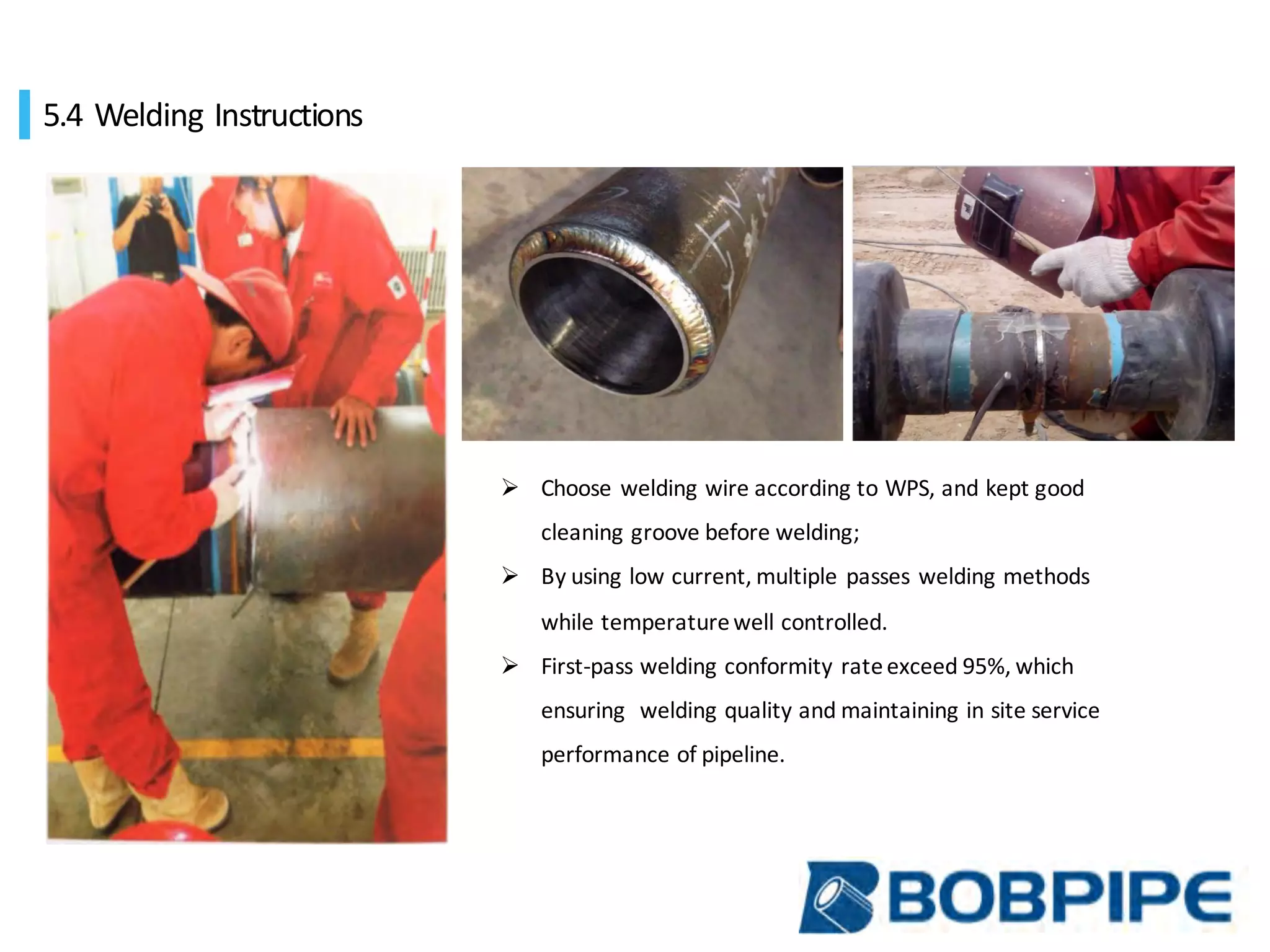

15. 5.4 Welding Instructions
Ø Choose welding wire according to WPS, and kept good
cleaning groove before welding;
Ø By using low current, multiple passes welding methods
while temperature well controlled.
Ø First-pass welding conformity rate exceed 95%, which
ensuring welding quality and maintaining in site service
performance of pipeline.

16. Our CRA-Clad & CRA-Lined Steel
Pipe will strictly base on following
International and China Standards.
6. Quality Assurance
GB 28883-2012API 5LD-2015 DNV-OS-F101 CJ/T192-2004
TSG D0001
GB 50253
GB 50251

17. ASME B31.8
ASME B31.3ASME B31.1 ASME B31.9
ASME B31.11
ASME B31.4
ISO 15649 EN 13480

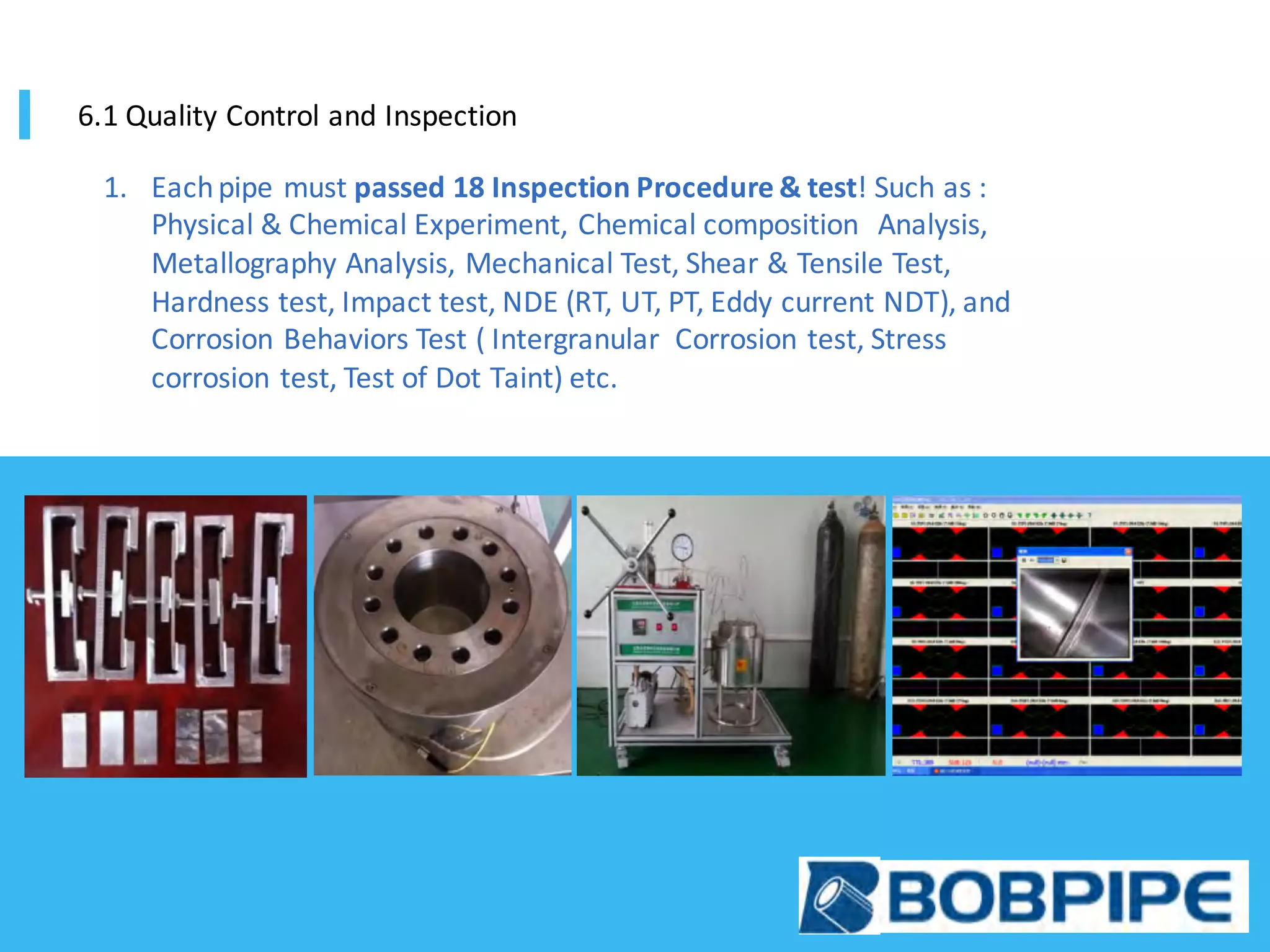

18. 1. Each pipe must passed 18 Inspection Procedure & test! Such as :
Physical & Chemical Experiment, Chemical composition Analysis,
Metallography Analysis, Mechanical Test, Shear & Tensile Test,
Hardness test, Impact test, NDE (RT, UT, PT, Eddy current NDT), and
Corrosion Behaviors Test ( Intergranular Corrosion test, Stress
corrosion test, Test of Dot Taint) etc.
6.1 Quality Control and Inspection

19. Shear Testing
(Sample Duplex
S31803 with C.S
4.3MPa bounded
force)
Sample testing
Duplex S31803
with C.S lined
Inner material &
Sealing welding
Metallography of Base Material(×500)
Material metallographic phase:
Ferrite(45%)＋Austenite(55%).
Metallography of Welding Joints(×500)
Welding seam metallographic phase:
Ferrite(50%)＋Austenite(50%).

20. Materials Sample
Yield
Strength
Tensile
Strength
Percentage
elongation
S31803
Duplex Material 574MPa 929 MPa 27%
Welding Seam — 900 MPa —
API 5LC
≥448MP
a
≥621 MPa ≥25%
20#
SA516
Tranverse 290MPa 469 MPa 32%
GB/T 8163
≥245MP
a
410-530
MPa
≥20%
Mechanical Test
C.S lined S31803
Position HV10
Base
Tube
Material A 210，200，205，207，209
HAZ B 190，185，182，190，184
Welding Joints C 278，280，277，260，256
Lining
Tube
HAZ D 255，257，250，248，247
Material E 255，262，266，250，252
API Spec 5LD Base Tube≤248，Lining Tube≤310
Hardness Test

21. 1. Base on more than 10 years operation, Zhongxin comes out strictly
manufacture Operation Manual and detail Procedure to ensure each
pipe’s steady quality. And professional QC always strictly perform
accordingly.
2. Besides our own internal quality control, some time also witnessed
and inspected by international 3rd party such as ABS，BV， DNV，TUV，
SGS， INTERTECK etc.
6.2 Quality Assurance Procedure & 3rd Party Cooperation
People & Rules
Contribute Quality

22. CRA Metallurgy Clad Steel
Pipe (Bonding force Max.
300MPa )
Duplex stainless steel clad
pipe (S31803, Φ273×（14 +
4）mm)
Three-Tee joint and other
fittings
Straight Welding CRA pipes
7. Products Line & Featured Products
Zhongxin products covers: Straight welding CRA pipe, CRA lined pipe, CRA
Metallurgy Clad pipe, Three-Tee Joint, Elbow, Fittings, Flange, Seal Element,
Pipe Module, Pipe prefabrication, Support, Insulation, Oil & Gas gathering
and oilfield back-injection Line pipe, OCTG pipe, Steam pipe for power
station, Heat Exchange lined tube, Offshore use pipe etc.

23. Oil & Gas gathering and
oilfield back-injection Line
Pipe Series
Large diameter CRA lined
Steel pipe
Size：Φ610×（22.5+3）mm
Heat Exchanger & Boiler
pipe
OCTG pipe series, Oil & Gas
downhole casing pipe
Offshore Oil & Gas lined
pipe
High Sulfur, High CO2
condition
Pure water,
Demineralized water use
Many other kinds of
Fittings

24. Project Reference
Those pipe has been widely used in Oil & Gas transportation,
Petrochemicals, Fertilizers, Off-Shore & On-Shore, Marine, Platform,
Nuclear & Power, CO2 Recovery, Steel, Construction, Paper & Pulp,
Water, Food & Beverages etc.

25. CNPC Tarim Oilfield Company
Product：Lined Bi-Metal Pipe
Time：2014 Year
Transmission：Including Cl
-
, CO₂
Quantity：5.3Km, Specification：Φ457×(14+2.5)

26. CNPC Jilin Oilfield Company
Product：Lined Seamless Pipe
Time：2011 Year
Transmission：Including Cl
-
, CO₂
Quantity：11 Km, Specification：Φ457×(14+2.5)

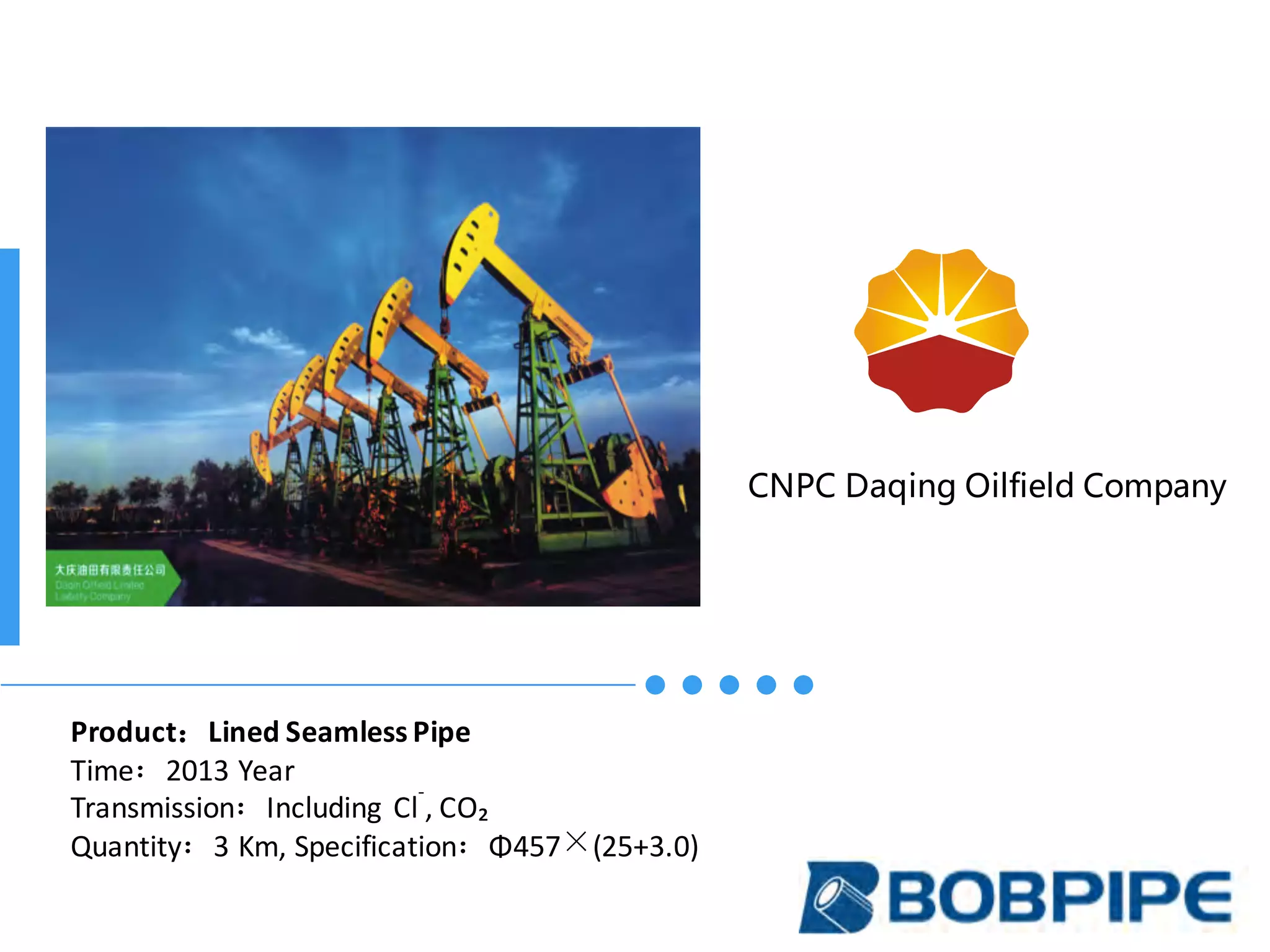

27. CNPC Daqing Oilfield Company
Product：Lined Seamless Pipe
Time：2013 Year
Transmission：Including Cl
-
, CO₂
Quantity：3 Km, Specification：Φ457×(25+3.0)

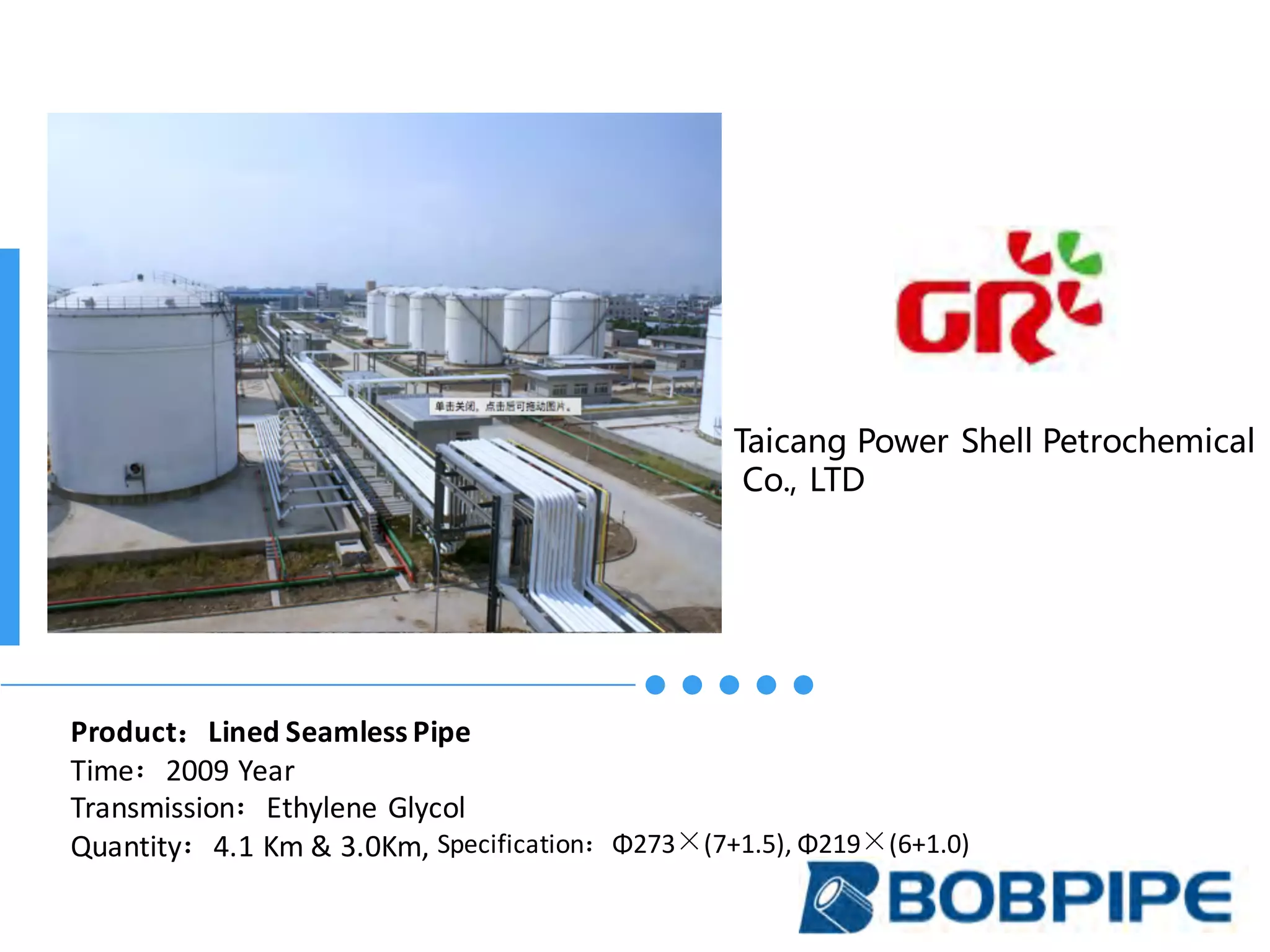

28. Taicang Power Shell Petrochemical
Co., LTD
Product：Lined Seamless Pipe
Time：2009 Year
Transmission：Ethylene Glycol
Quantity：4.1 Km & 3.0Km, Specification：Φ273×(7+1.5), Φ219×(6+1.0)

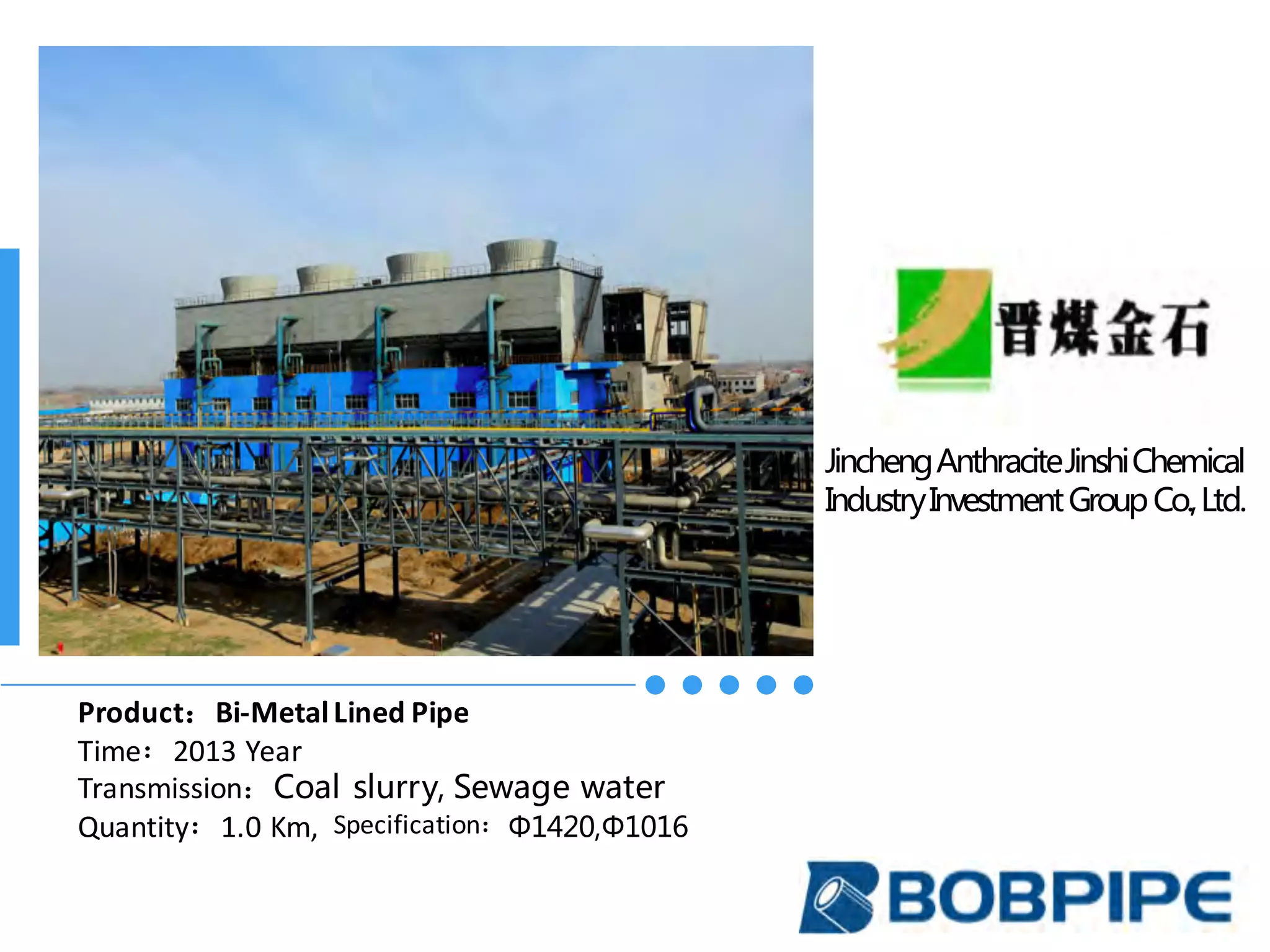

29. JinchengAnthraciteJinshiChemical
IndustryInvestmentGroupCo.,Ltd.
Product：Bi-Metal Lined Pipe
Time：2013 Year
Transmission：Coal slurry, Sewage water
Quantity：1.0 Km, Specification：Φ1420,Φ1016

30. China Power Investment
Corporation
Product：Lined Seamless Pipe
Time：2009-2015 Year
Transmission : Recycling Water
Quantity：2.1 Km & 2.8 Km, Specification：Φ325

31. Many other Power Projects
China Huadian Corporation(CHD)
Product: Lined Seamless Pipe
Time：2014 Year
Transmission ：Recycling Water
Quantity：2.1Km, Specification : Φ273
·Xuchang Yuzhou Henan Power
·HUANENG Gansu Energy Development Co.,Ltd
·Changzhi Xiangyuan Shanxi Coal Mine Chengfeng Power
·Datang Heilongjiang Power Generation Co.,Ltd

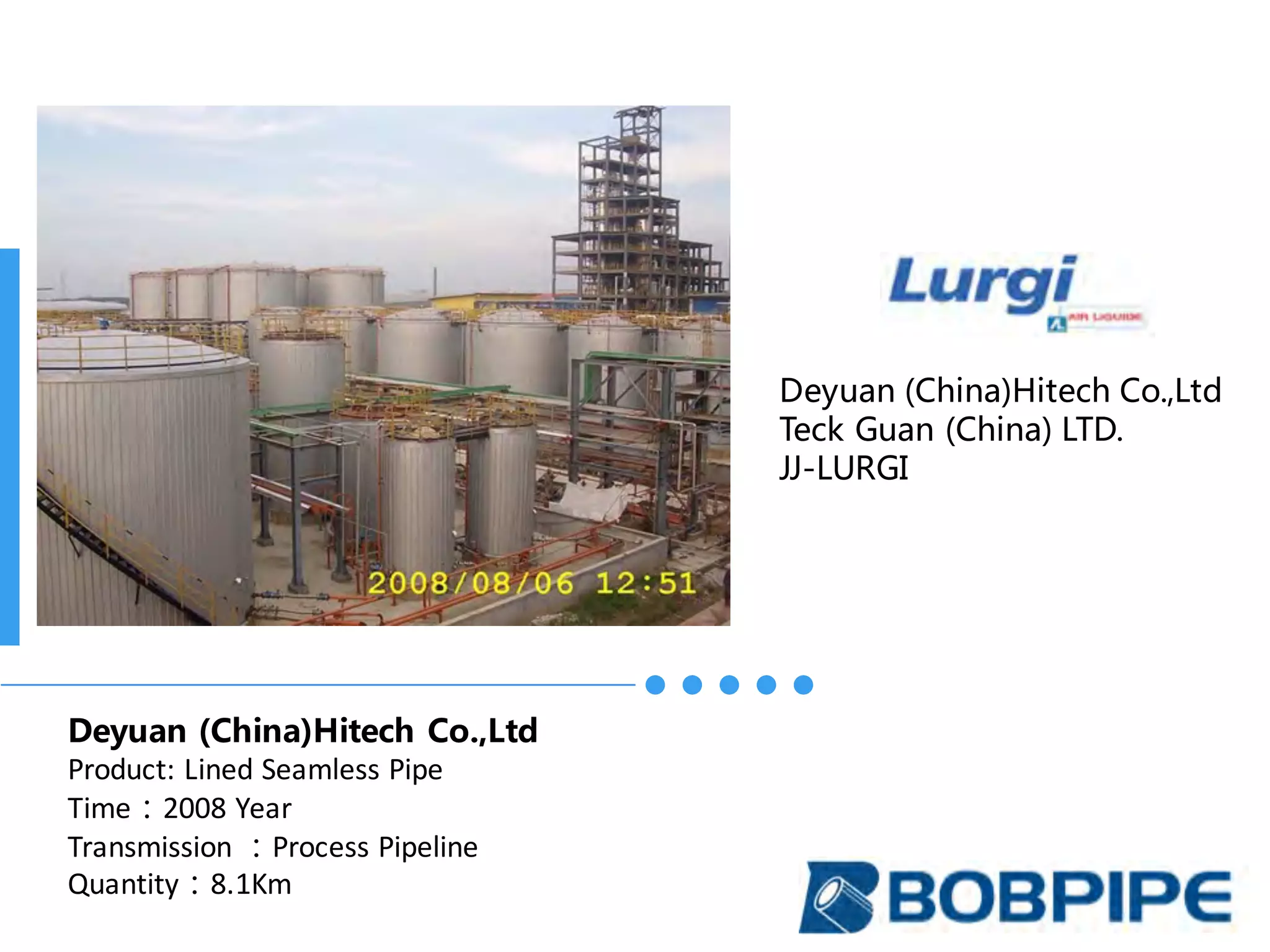

32. Deyuan (China)Hitech Co.,Ltd
Teck Guan (China) LTD.
JJ-LURGI
Deyuan (China)Hitech Co.,Ltd
Product: Lined Seamless Pipe
Time：2008 Year
Transmission ：Process Pipeline
Quantity：8.1Km

33. India TALWANDI SABO POWER LIMITED（TSPL）BOILER
Product: Lined Seamless Pipe
Time:2012 Year
Transmission ：Recycling Water

34. India Desalted Pipeline
Product：Bi-Metal Lined Pipe
Time ： 2011 Year
Transmission ：Waste Salt Water
Quantity : 1.1Km
Specification ：Φ273/Φ 325 mm

35. Conveying Sylvine Powder Pipeline in Congo
Product: Bi-Metal Lined Pipe
Time: 2014 Year
Transmission ： Sylvine Powder
Quantity : 43 KM , Specification： Φ273

36. Customer as 1st Priority
Response on time
Free installation training
Study solution together with client
After-Sale Service
Environment, Medium
Analysis
Solution Confirmation
Maintaining & Tracking
service
Customer’s Needs
analysis
Analysis solution
Service Diagram

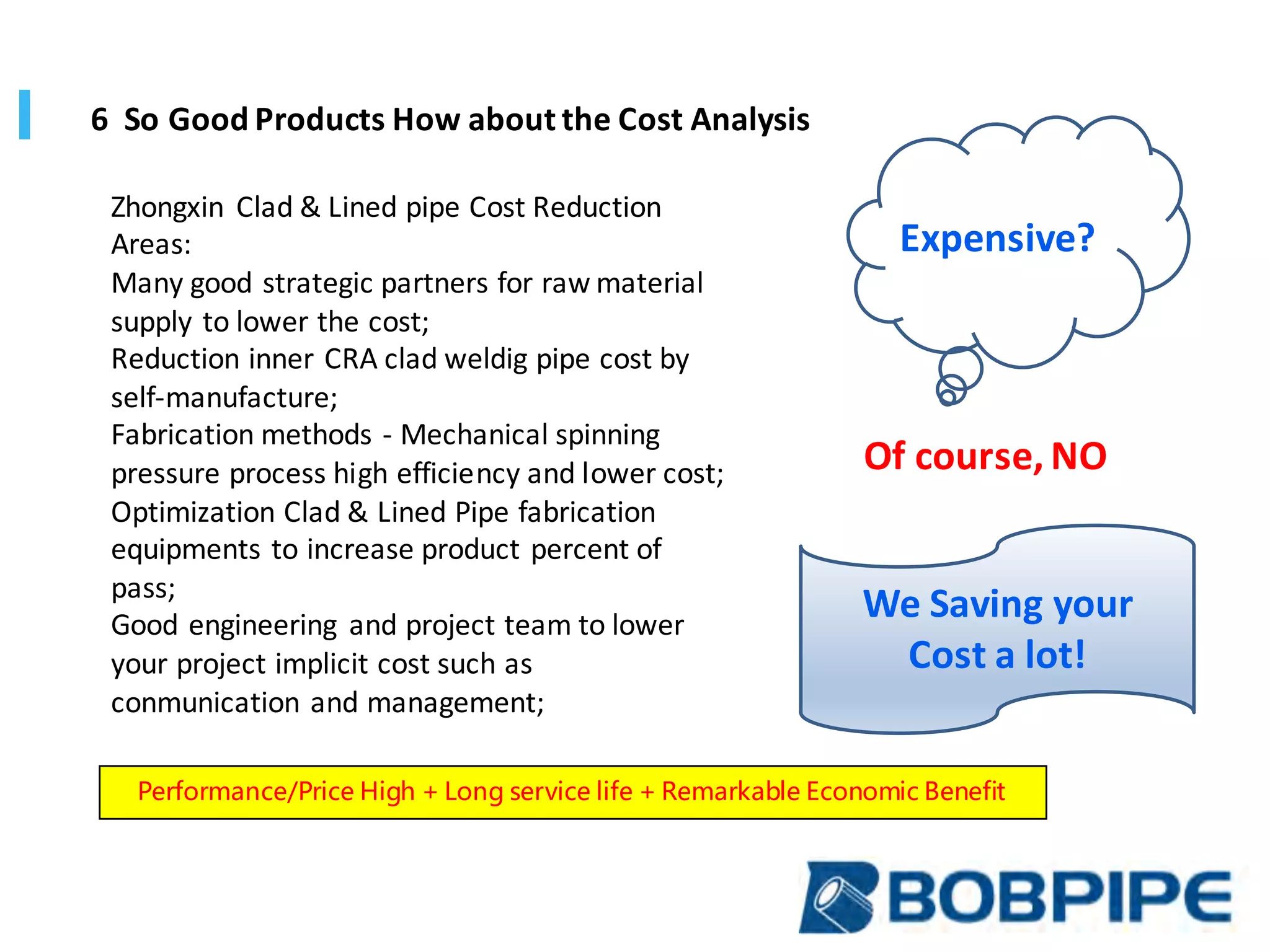

37. Zhongxin Clad & Lined pipe Cost Reduction
Areas:
Many good strategic partners for raw material
supply to lower the cost;
Reduction inner CRA clad weldig pipe cost by
self-manufacture;
Fabrication methods - Mechanical spinning
pressure process high efficiency and lower cost;
Optimization Clad & Lined Pipe fabrication
equipments to increase product percent of
pass;
Good engineering and project team to lower
your project implicit cost such as
conmunication and management;
6 So Good Products How about the Cost Analysis
We Saving your
Cost a lot!
Expensive?
Of course, NO
Performance/Price High + Long service life + Remarkable Economic Benefit

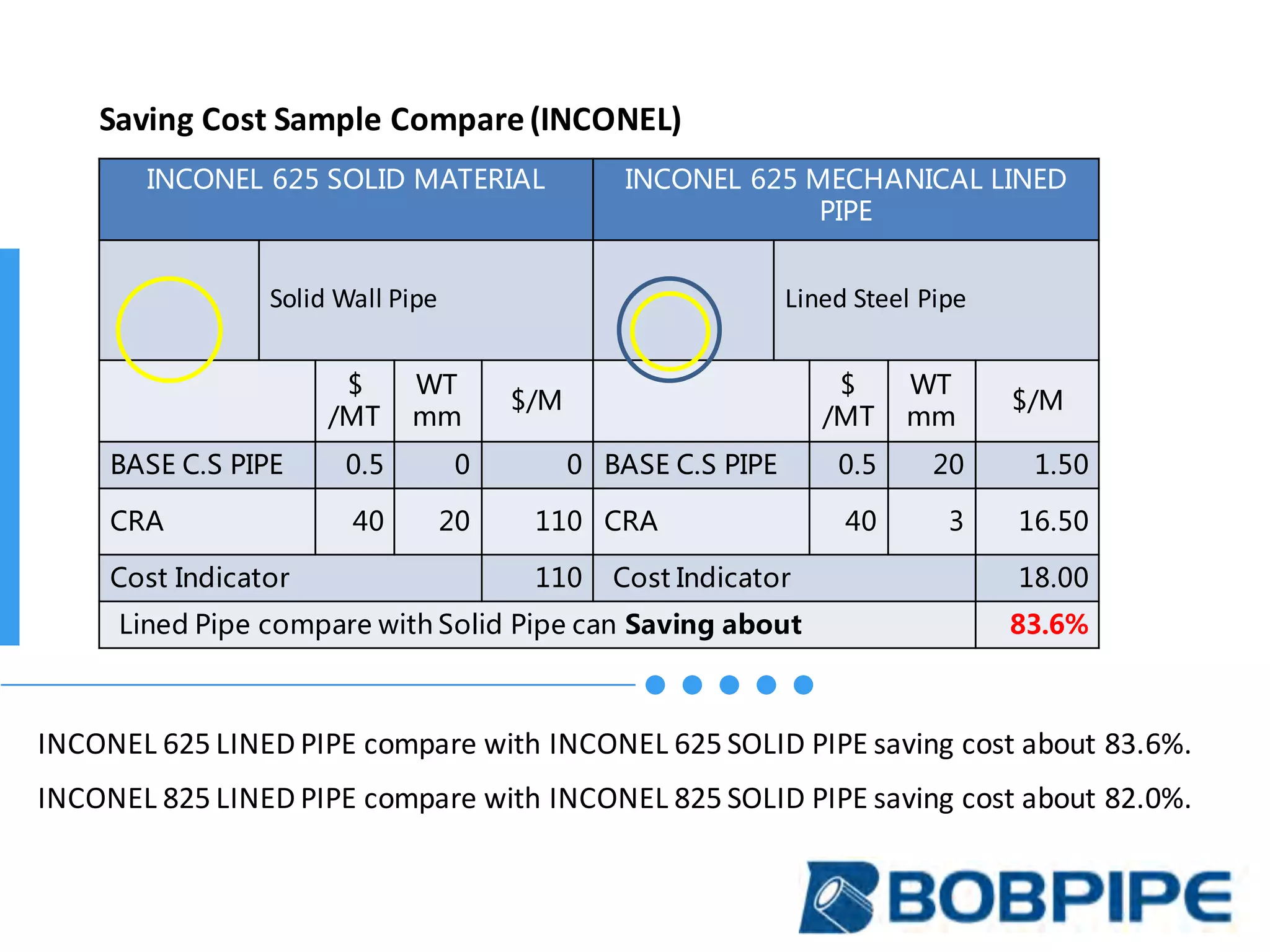

38. Saving Cost Sample Compare (INCONEL)
INCONEL 625 SOLID MATERIAL INCONEL 625 MECHANICAL LINED
PIPE
Solid Wall Pipe Lined Steel Pipe
$
/MT
WT
mm
$/M
$
/MT
WT
mm
$/M
BASE C.S PIPE 0.5 0 0 BASE C.S PIPE 0.5 20 1.50
CRA 40 20 110 CRA 40 3 16.50
Cost Indicator 110 Cost Indicator 18.00
Lined Pipe compare with Solid Pipe can Saving about 83.6%
INCONEL 625 LINED PIPE compare with INCONEL 625 SOLID PIPE saving cost about 83.6%.
INCONEL 825 LINED PIPE compare with INCONEL 825 SOLID PIPE saving cost about 82.0%.

39. 316L S.S SOLID MATERIAL 316lL S.S MECHANICAL LINED PIPE
Solid Wall Pipe Lined Steel Pipe
$
/MT
WT
mm
$/M
$
/MT
WT
mm
$
/x mm
BASE C.S PIPE 0.5 0 0 BASE C.S PIPE 0.5 20 1.5
CRA 4.0 20 10.5 CRA 3.0 3 1.58
Cost Indicator 10.5 Cost Indicator 3.08
Lined Pipe compare with Solid Pipe can Saving about 70.6%
Saving Cost Sample Compare (316L, S.S, DUPLEX)
316L LINED PIPE compare with 316L SOLID PIPE saving cost about 70.6%.
DUPLEX S31803 LINED PIPE compare with S31803 SOLID PIPE saving cost about 76.9%.

40. Strategic Partner & Sub-contractor
Nanjing University of Technology
Nanjing University of Science and Technology
Nanjing University of Aeronautics and Astronautics
Bao steel, TISCO, POSCO, SANDVIK
Zhejaing Jiuli,Changzhou Wujin,Haotian,Wuxi Yinhuan,
Jiangsu Yulong, Huayou Pipe, Zhonghai Jinzhou, Hualing,
Tianjin pipe, Chengdu pipe, Jiangyin pipe

41. Important Customers
• ALSTOM
• CNPC
• SINOPEC
• HQCEC
• Food & Beverages
• GEA Process
• Teck Guan
• JEBSEN
• SWIRE

42. Thank You
• BOBPIPE Engineering (Shanghai) Co.,Ltd.
• ADD: 8th Floor, Area C, HIGH-TECH Building, No. 900 YishanRd., Xuhui
District, Shanghai, China,200233
• Factory Add: No 6,Jinying Road,Hu Shu Industry Park,Jiangning
District,Nanjing,China, 211121
• Tel:+86-21-61119089 Phone:+8615151590891
• Email：victor@bobpipe.com / victorjiang6@gmail.com
• Web: www.bobpipe.com
BOBPIPE ENGINEERING (SHANGHAI) CO.,LTD.
Whats App:+8615151590891
LinkedIn:victor@bobpipe.com
Skype：live：bob-pipe
