Biodiesel Process Flow Diagram

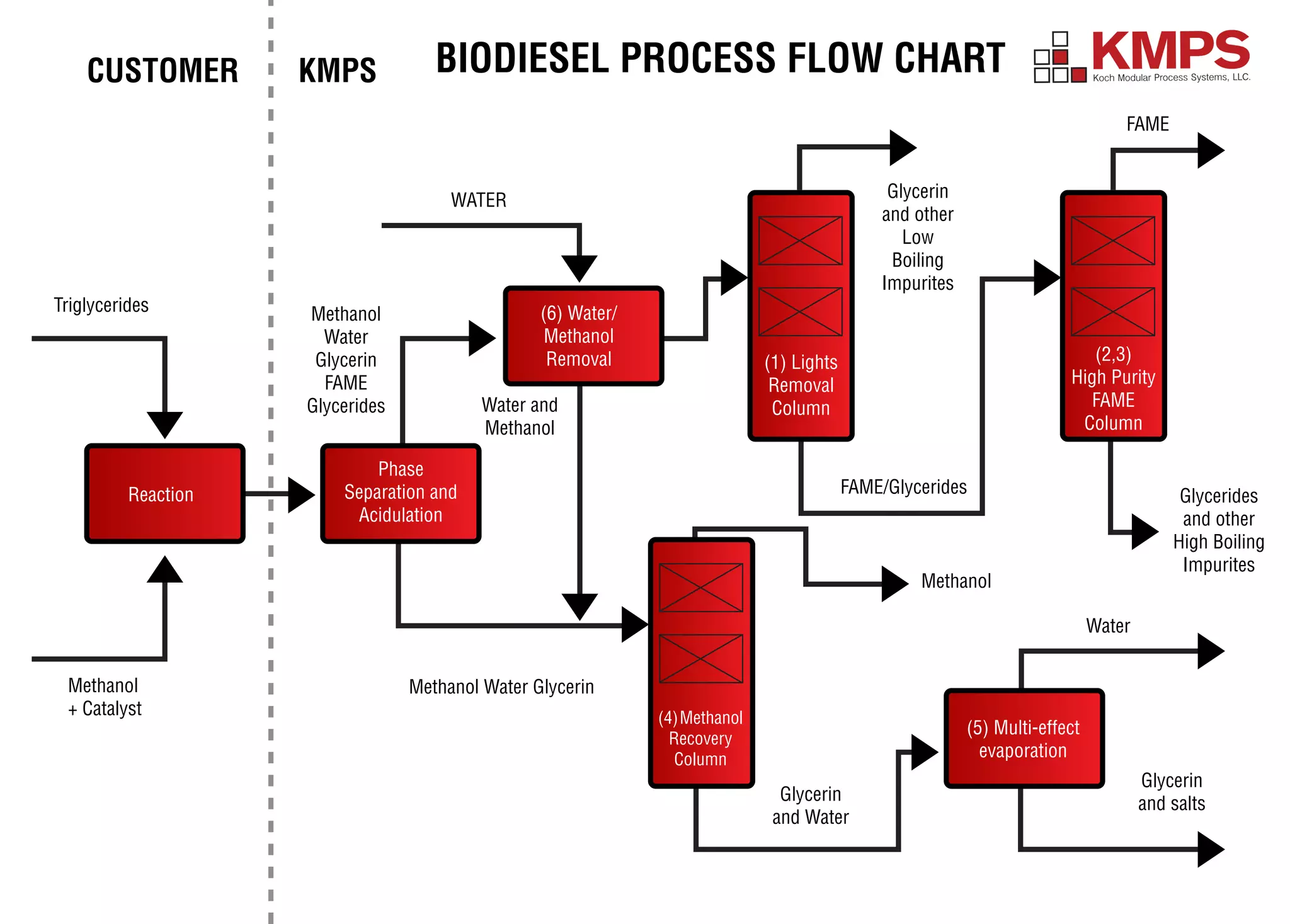

- 1. Triglycerides CUSTOMER KMPS Methanol + Catalyst Methanol MethanolWater Glycerin Reaction Phase Separation and Acidulation Water and Methanol Methanol Water Glycerin FAME Glycerides (5) Multi-effect evaporation (1) Lights Removal Column FAME/Glycerides (4)Methanol Recovery Column Glycerin and Water Water Glycerin and salts Glycerides and other High Boiling Impurites (2,3) High Purity FAME Column Glycerin and other Low Boiling Impurites FAME WATER (6) Water/ Methanol Removal BIODIESEL PROCESS FLOW CHART
