The BXLI binocular microscope, in use since 1954, features advanced optical design and is ideal for research, with multiple specifications for versatility and comfort. Key components include ergonomic design, high-resolution eyepieces, and various achromatic objectives, ensuring optimal performance. The microscope is equipped with a durable mechanical stage, sophisticated focusing system, built-in illumination, and is backed by a two-year warranty.

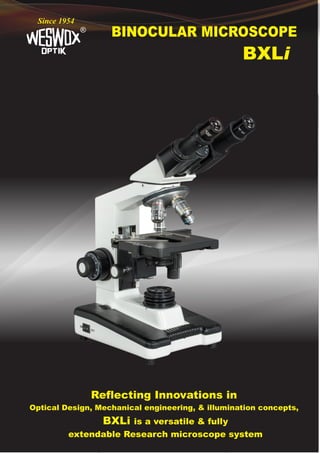

1. BINOCULAR MICROSCOPE
®
Since 1954
BXLi
Reflecting Innovations in
Optical Design, Mechanical engineering, & illumination concepts,
BXLi is a versatile & fully
extendable Research microscope system

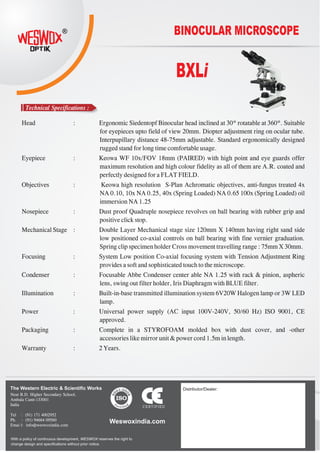

2. BINOCULAR MICROSCOPE
®
Technical Specifications :
The Western Electric & Scientific Works
Near B.D. Higher Secondary School,
Ambala Cantt-133001
India
Tel : (91) 171 4002952
Ph. : (91) 94664 09560
Emai l: info@weswoxindia.com
With a policy of continuous development, WESWOX reserves the right to
change design and specifications without prior notice.
Weswoxindia.com
Distributor/Dealer:
Head : Ergonomic Siedentopf Binocular head inclined at 30º rotatable at 360º. Suitable
for eyepieces upto field of view 20mm. Diopter adjustment ring on ocular tube.
Interpupillary distance 48-75mm adjustable. Standard ergonomically designed
rugged stand for long time comfortable usage.
Eyepiece : Keowa WF 10x/FOV 18mm (PAIRED) with high point and eye guards offer
maximum resolution and high colour fidelity as all of them are A.R. coated and
perfectly designed for a FLAT FIELD.
Objectives : Keowa high resolution S-Plan Achromatic objectives, anti-fungus treated 4x
NA 0.10, 10x NA 0.25, 40x (Spring Loaded) NA 0.65 100x (Spring Loaded) oil
immersion NA 1.25
Nosepiece : Dust proof Quadruple nosepiece revolves on ball bearing with rubber grip and
positive click stop.
Mechanical Stage : Double Layer Mechanical stage size 120mm X 140mm having right sand side
low positioned co-axial controls on ball bearing with fine vernier graduation.
Spring clip specimen holder Cross movement travelling range : 75mm X 30mm.
Focusing : System Low position Co-axial focusing system with Tension Adjustment Ring
provides a soft and sophisticated touch to the microscope.
Condenser : Focusable Abbe Condenser center able NA 1.25 with rack & pinion, aspheric
lens, swing out filter holder, Iris Diaphragm with BLUE filter.
Illumination : Built-in-base transmitted illumination system 6V20W Halogen lamp or 3W LED
lamp.
Power : Universal power supply (AC input 100V-240V, 50/60 Hz) ISO 9001, CE
approved.
Packaging : Complete in a STYROFOAM molded box with dust cover, and -other
accessories like mirror unit & power cord 1.5m in length.
Warranty : 2 Years.
BXLi
