The FM-4000 fluoresent microscope is a versatile research system featuring advanced optical and mechanical design for enhanced imaging clarity and precision. It includes adjustable eyepieces, a reverse angle sextuple nosepiece, and a high-precision focusing system for user comfort. The microscope supports LED illumination and comes with various optional features, along with a 2-year warranty.

1. FLUORESENT
MICROSCOPE
®
Since 1954
FM-4000
Reflecting Innovations in
Optical Design, Mechanical engineering, & illumination concepts,
FM-4000 is a versatile & fully
extendable Research microscope system
n Wide-field eyepiece,
high light illumination
and superior optical
parts make the image
clear, sharp & bright.
n Backward nosepiece
w i t h s u p e r i o r
objectives make the
best viewing effect and
more space for the
operation.
n H i g h p r e c i s i o n
focussing adjustment
system and humanised
configuration design
provides operator
more comfort.
®

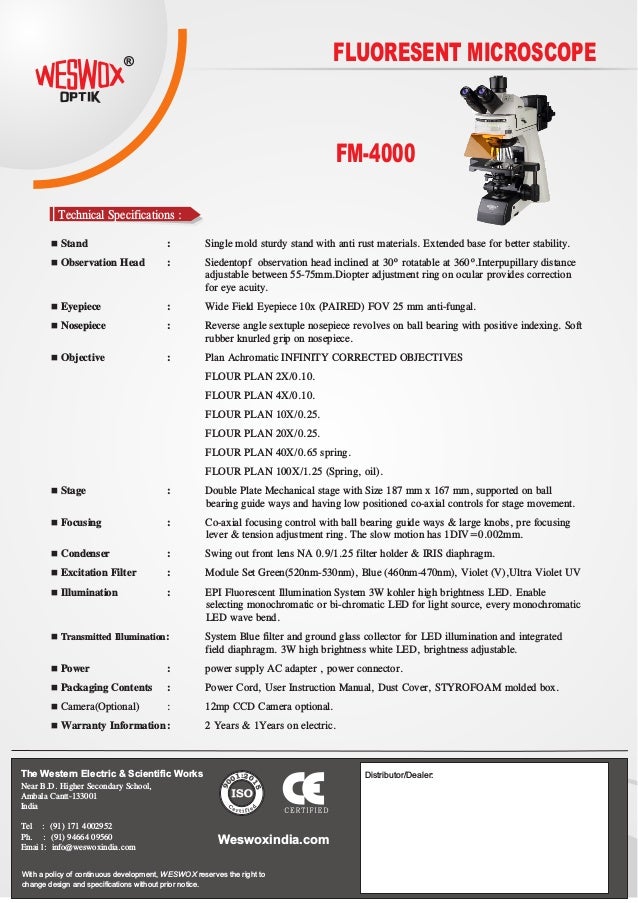

2. FLUORESENT MICROSCOPE
FM-4000
®
Technical Specifications :
The Western Electric & Scientific Works
Near B.D. Higher Secondary School,
Ambala Cantt-133001
India
Tel : (91) 171 4002952
Ph. : (91) 94664 09560
Emai l: info@weswoxindia.com
With a policy of continuous development, WESWOX reserves the right to
change design and specifications without prior notice.
Weswoxindia.com
Distributor/Dealer:
n Stand : Single mold sturdy stand with anti rust materials. Extended base for better stability.
n Observation Head : Siedentopf observation head inclined at 30º rotatable at 360º.Interpupillary distance
adjustable between 55-75mm.Diopter adjustment ring on ocular provides correction
for eye acuity.
n Eyepiece : Wide Field Eyepiece 10x (PAIRED) FOV 25 mm anti-fungal.
n Nosepiece : Reverse angle sextuple nosepiece revolves on ball bearing with positive indexing. Soft
rubber knurled grip on nosepiece.
n Objective : Plan Achromatic INFINITY CORRECTED OBJECTIVES
FLOUR PLAN 2X/0.10.
FLOUR PLAN 4X/0.10.
FLOUR PLAN 10X/0.25.
FLOUR PLAN 20X/0.25.
FLOUR PLAN 40X/0.65 spring.
FLOUR PLAN 100X/1.25 (Spring, oil).
n Stage : Double Plate Mechanical stage with Size 187 mm x 167 mm, supported on ball
bearing guide ways and having low positioned co-axial controls for stage movement.
n Focusing : Co-axial focusing control with ball bearing guide ways & large knobs, pre focusing
lever & tension adjustment ring. The slow motion has 1DIV=0.002mm.
n Condenser : Swing out front lens NA 0.9/1.25 filter holder & IRIS diaphragm.
n Excitation Filter : Module Set Green(520nm-530nm), Blue (460nm-470nm), Violet (V),Ultra Violet UV
n Illumination : EPI Fluorescent Illumination System 3W kohler high brightness LED. Enable
selecting monochromatic or bi-chromatic LED for light source, every monochromatic
LED wave bend.
n Transmitted Illumination: System Blue filter and ground glass collector for LED illumination and integrated
field diaphragm. 3W high brightness white LED, brightness adjustable.
n Power : power supply AC adapter , power connector.
n Packaging Contents : Power Cord, User Instruction Manual, Dust Cover, STYROFOAM molded box.
n Camera(Optional) : 12mp CCD Camera optional.
n Warranty Information: 2 Years & 1Years on electric.
®
®
