The document describes the specifications and features of the DHP-1090A hot plate, including its microprocessor control, high thermal conductivity, and durable heating elements. It operates within a temperature range from ambient to 90°C with a maximum surface temperature of 85°C. The product also comes with a two-year warranty and has specific dimensions of 335 x 250mm.

1. HOT PLATE
®
Since 1954
DHP-1090A

2. The Western Electric & Scientific Works
Near B.D. Higher Secondary School,
Ambala Cantt-133001
India
Tel : (91) 171 4002952
Ph. : (91) 94664 09560
Email: info@weswoxindia.com
With a policy of continuous development, WESWOX reserves the right to
change design and specifications without prior notice.
Weswoxindia.com

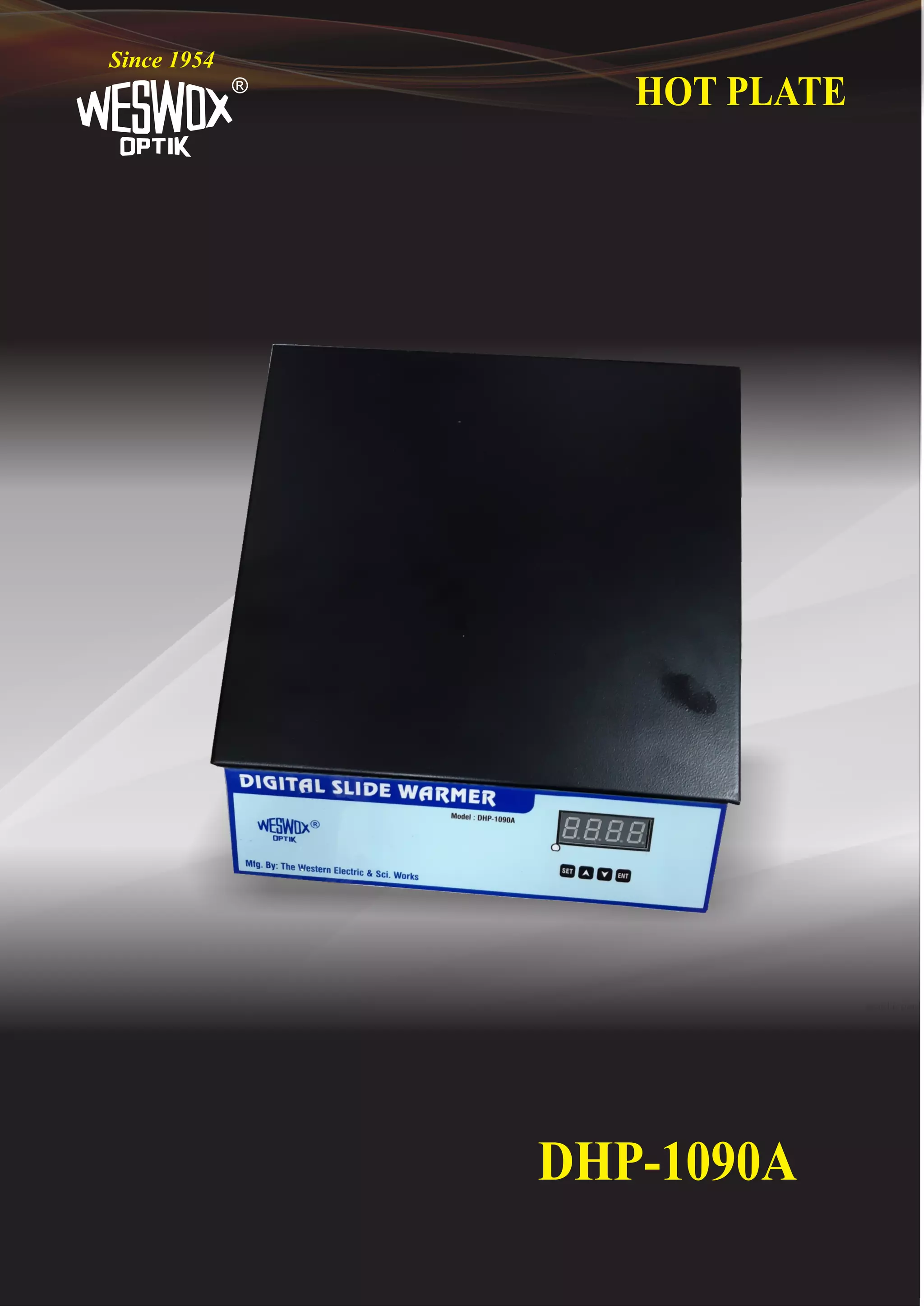

HOT PLATE
DHP - 1090A
It is a rectangular flattering table. Microprocessor based control system. Anoidized surface ensuring
very high thermal conductivity rates & exceptional resistance to mechanical exploitation. Durable
cast-iron heating elements that heat up fast. Feather keypad with LED display for current and set
temperatures. Temperature and working indicator light. Variable heat control. Uniform temperature
throughout the warmer surface. Maximum surface temperature - 85degree C.
Specification
 Temperature tolerance : +1 deg. C
o
 Temperature range: ambient to 90 C.
 Power : 220 ± 10 V, 50Hz.
 Warranty : Two Years.
o
 Maximum Surface Temperature : -85 C.
 Slide Warmer Dimension : 335 x 250mm.
