The document describes the Junior Rotary Microtome EMT-1070A, a versatile sectioning device designed for medical, research, and industrial applications. It features a robust cast iron base for stability, precise mechanical controls for varying section thickness, and is constructed with high-quality materials for optimal performance. Additionally, it includes specifications such as feed adjustment, dimensions, and a list of accessories provided with the microtome.

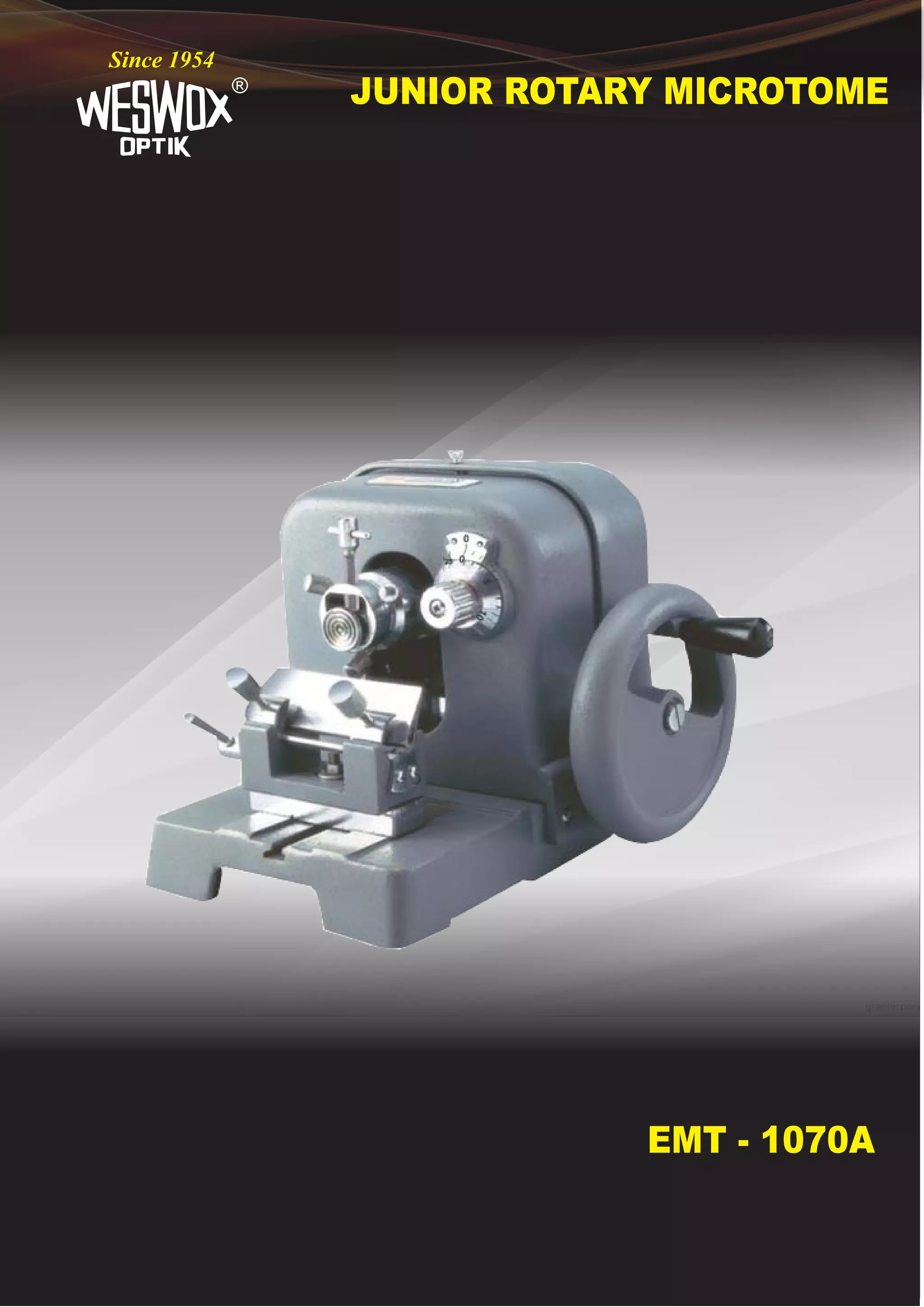

1. JUNIOR ROTARY MICROTOME
®
Since 1954
EMT - 1070A

2. The Western Electric & Scientific Works
Near B.D. Higher Secondary School,
Ambala Cantt-133001
India
Tel : (91) 171 4002952
Ph. : (91) 94664 09560
Emai l: info@weswoxindia.com
Weswoxindia.com
With a policy of continuous development, WESWOX reserves the right to
change design and specifications without prior notice.
 Weswox Erma Type Microtome is a highly versatile sectioning device suitable for Medical Institutions,
Research & Pathological Laboratories.
 The entire mechanism stands on a heavy cast iron base ensuring stability and rigidity.
 Cutting sections are obtained in different thickness by mechanically operated crank through a knurled knob
in front of the instrument.
 Smooth & accurate specimen movement is achieved with the time proven operating principles of the feed
mechanism.
 This microtome has special application for cutting thin sections of histo-pathological specimens and also
caters to the demands of industries such as Plastic, Leather, Textiles, and Rubber & Fertilizer.
 It has forward and backward movements to ensure contact of specimen with the knife and lateral
movement to get maximum use of knife edge.
 All parts are fabricated from selected alloys and the Microtome knife is manufactured from fine grain steel
tested to maintain optimum sharpness strength.
JUNIOR ROTARY MICROTOME
EMT - 1090A
ures:
 Feed adjustment : 1-25 um.
 Minimum thickness : 1um.
 Toatl feed excursions : 28 mm.
 Overall dimensions : 30x33x28 cms.
 Net weight : 25 kgs. approx.
 Gross weight : 35 kgs approx.
 Object holders (3nos) : 1set.
 Knife 120mm in a box.
 Honing stone.
 Lubricant bottle oil.
 Dust cover.
 Operating manual.
 Razor attachments,
 Microtome razor/knives.
 L-moulds.
 Object holder.
 Honing stones.
 Leather straps.
 Micro abrasives,
 Razor/knife Sharpeners and ribbon conveyer
etc.
Optional Accessories :-
Technical specification :-
Feature :-
Accessories :-
