The FM-1000 is a versatile research microscope system with advanced optical design, offering clear and sharp images through high light illumination and superior optical components. It features ergonomic design with a stable stand, trinocular observation head, and various plan achromatic objectives for enhanced viewing. The microscope includes advanced focusing systems, LED illumination, and a warranty of two years with optional accessories available.

1. FLUORESENT
MICROSCOPE
®
Since 1954
FM-1000
Reflecting Innovations in
Optical Design, Mechanical engineering, & illumination concepts,
FM-1000 is a versatile & fully
extendable Research microscope system
 Wide-field eyepiece,
high light illumination
and superior optical
parts make the image
clear, sharp & bright.
 Backward nosepiece
w i t h s u p e r i o r
objectives make the
best viewing effect and
more space for the
operation.
 H i g h p r e c i s i o n
focussing adjustment
system and humanised
configuration design
provides operator
more comfort. ®

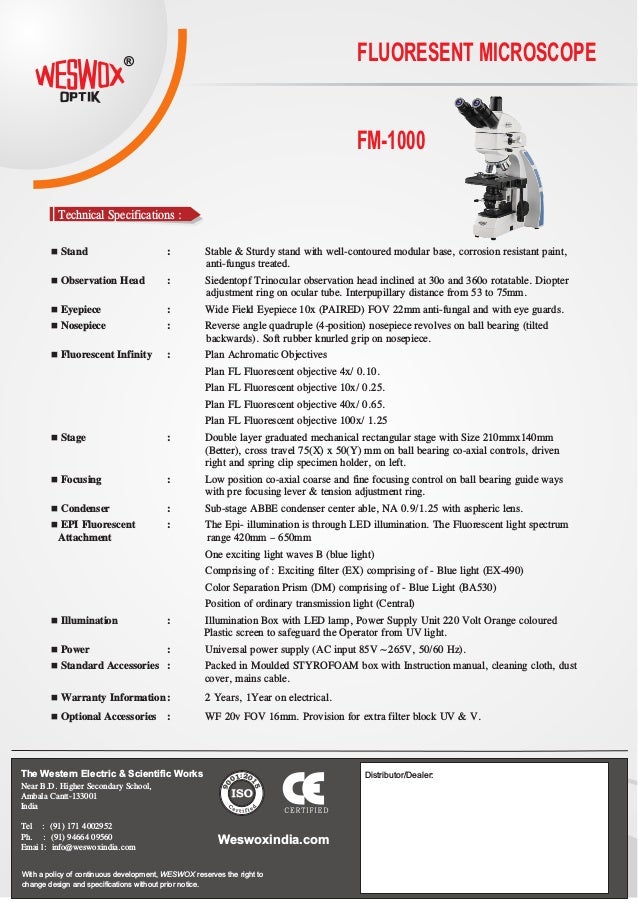

2. FLUORESENT MICROSCOPE
FM-1000
®
Technical Specifications :
The Western Electric & Scientific Works
Near B.D. Higher Secondary School,
Ambala Cantt-133001
India
Tel : (91) 171 4002952
Ph. : (91) 94664 09560
Emai l: info@weswoxindia.com
With a policy of continuous development, WESWOX reserves the right to
change design and specifications without prior notice.
Weswoxindia.com
Distributor/Dealer:
 Stand : Stable & Sturdy stand with well-contoured modular base, corrosion resistant paint,
anti-fungus treated.
 Observation Head : Siedentopf Trinocular observation head inclined at 30o and 360o rotatable. Diopter
adjustment ring on ocular tube. Interpupillary distance from 53 to 75mm.
 Eyepiece : Wide Field Eyepiece 10x (PAIRED) FOV 22mm anti-fungal and with eye guards.
 Nosepiece : Reverse angle quadruple (4-position) nosepiece revolves on ball bearing (tilted
backwards). Soft rubber knurled grip on nosepiece.
 Fluorescent Infinity : Plan Achromatic Objectives
Plan FL Fluorescent objective 4x/ 0.10.
Plan FL Fluorescent objective 10x/ 0.25.
Plan FL Fluorescent objective 40x/ 0.65.
Plan FL Fluorescent objective 100x/ 1.25
 Stage : Double layer graduated mechanical rectangular stage with Size 210mmx140mm
(Better), cross travel 75(X) x 50(Y) mm on ball bearing co-axial controls, driven
right and spring clip specimen holder, on left.
 Focusing : Low position co-axial coarse and fine focusing control on ball bearing guide ways
with pre focusing lever & tension adjustment ring.
 Condenser : Sub-stage ABBE condenser center able, NA 0.9/1.25 with aspheric lens.
 EPI Fluorescent : The Epi- illumination is through LED illumination. The Fluorescent light spectrum
Attachment range 420mm – 650mm
One exciting light waves B (blue light)
Comprising of : Exciting filter (EX) comprising of - Blue light (EX-490)
Color Separation Prism (DM) comprising of - Blue Light (BA530)
Position of ordinary transmission light (Central)
 Illumination : Illumination Box with LED lamp, Power Supply Unit 220 Volt Orange coloured
Plastic screen to safeguard the Operator from UV light.
 Power : Universal power supply (AC input 85V~265V, 50/60 Hz).
 Standard Accessories : Packed in Moulded STYROFOAM box with Instruction manual, cleaning cloth, dust
cover, mains cable.
 Warranty Information: 2 Years, 1Year on electrical.
 Optional Accessories : WF 20v FOV 16mm. Provision for extra filter block UV & V.
®
®
