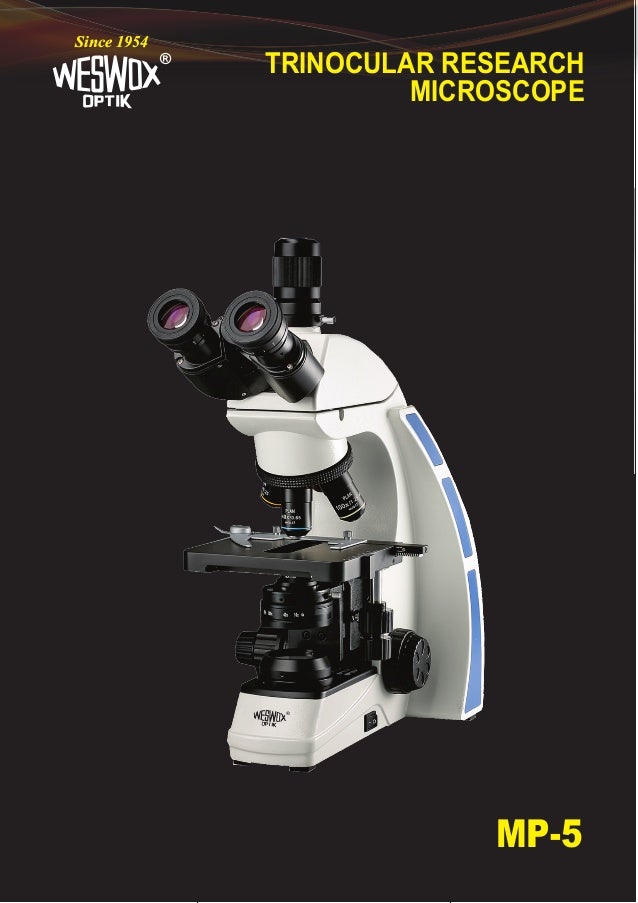

1. TRINOCULAR RESEARCH
MICROSCOPE
®
Since 1954
MP-5

2. TRINOCULAR RESEARCH MICROSCOPE
®
Technical Specifications :
Packing Contents : Warranty Information :
The Western Electric & Scientific Works
Near B.D. Higher Secondary School,
Ambala Cantt-133001
India
Tel : (91) 171 4002952
Ph. : (91) 94664 09560
Emai l: info@weswoxindia.com
With a policy of continuous development, WESWOX reserves the right to
change design and specifications without prior notice.
Weswoxindia.com
Distributor/Dealer:
STAND : Single mold sturdy stand with anti rust materials. Extended base for better stability.
o o
OBSERVATION HEAD : Siedentopf Trinocular 30 inclined, 360 rotatable. Interpupillary distance adjustable
between 55-75mm. Diopter adjustment ring on ocular provides correction for eye
acuity.
EYEPIECE : EWF Eyepiece 10x (PAIRED) FOV 22mm.
NOSEPIECE : Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing.
Soft rubber knurled grip on nosepiece.
OBJECTIVES (Infinity Plan Objectives)
• Infinity Plan achromatic 4x
• Infinity Plan achromatic 10x
• Infinity Plan achromatic 40x (SL)
• Infinity Plan achromatic 100x (SL) oil
STAGE : Rackless Ceramic coated Mechanical stage Size 140mmx132mm, supported on ball
bearing guideways and having low positioned co-axial controls for stage movement.
Cross movement 55mmX 75mm.
FOCUSING : Co-axial focusing control with ball bearing guideways & large knobs, pre focusing
lever & tension adjustment ring. The slow motion has 1DIV=0.002mm.
CONDENSER : Sub stage abbe condenser NA 1. 25 having a spherical lens, adjustable iris diaphragm
and swing out filter holder.
ILLUMINATION : Incorporates 3W LED lamp with adjustable iris diaphragm.
MP-5
:2
1 0
0
1
0
5
9
 Blue filter.
 STYRO FOAM Molded pack.
 2 Years parts.
 1 year Electronics.
