The document provides information about the Vortex RECCE Pro tactical monocular, including: 1) Key features such as fully multi-coated lenses, argon gas purging, and weatherproofing. 2) Instructions on using the integrated lens caps, lanyard, utility clip, and MOLLE compatible pouch. 3) Guidance on adjusting the reticle focus, image focus, and folding eyecup.

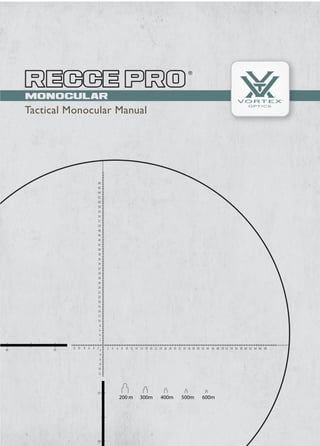

1. 68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10 8 6 4 2 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 682
4
6
8
10
12
2040
20
40
200 m 300m 400m 500m 600m

2. 32
tactical monocular
recce Pro
®
Image Focus
Fold-down
Flared Eyecup
Strap Attachment
The RECCE Pro features XR fully multi-coated lenses and
HD glass. Argon gas-purging, o-ring-seals, and ArmorTek
coatings ensure the RECCE Pro is fully water and weather
proof and can be used anywhere, any time, and any place.
The Vortex®
RECCE Pro®
Tactical Monocular
Monoculars are not intended for looking at the sun, or any other
intense light source. Such viewing could damage the retina and
cornea of your eyes—even to the point of causing blindness.
Caution:
Reticle Focus
Objective Lens
Utility Clip
US Patent 7,877,886

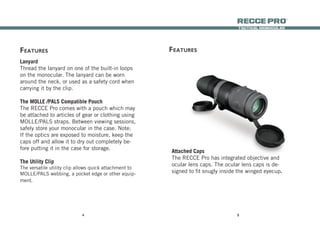

3. 54
tactical monocular
recce Pro
®
Lanyard
Thread the lanyard on one of the built-in loops
on the monocular. The lanyard can be worn
around the neck, or used as a safety cord when
carrying it by the clip.
The MOLLE /PALS Compatible Pouch
The RECCE Pro comes with a pouch which may
be attached to articles of gear or clothing using
MOLLE/PALS straps. Between viewing sessions,
safely store your monocular in the case. Note:
If the optics are exposed to moisture, keep the
caps off and allow it to dry out completely be-
fore putting it in the case for storage.
The Utility Clip
The versatile utility clip allows quick attachment to
MOLLE/PALS webbing, a pocket edge or other equip-
ment.
featUres
Attached Caps
The RECCE Pro has integrated objective and
ocular lens caps. The ocular lens caps is de-
signed to fit snugly inside the winged eyecup.
featUres

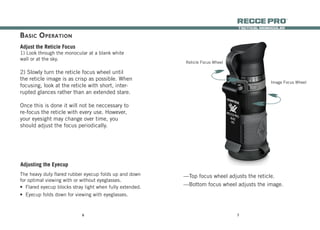

4. 76
tactical monocular
recce Pro
®
Adjust the Reticle Focus
1) Look through the monocular at a blank white
wall or at the sky.
2) Slowly turn the reticle focus wheel until
the reticle image is as crisp as possible. When
focusing, look at the reticle with short, inter-
rupted glances rather than an extended stare.
Once this is done it will not be neccessary to
re-focus the reticle with every use. However,
your eyesight may change over time, you
should adjust the focus periodically.
Adjusting the Eyecup
The heavy duty flared rubber eyecup folds up and down
for optimal viewing with or without eyeglasses.
• Flared eyecup blocks stray light when fully extended.
• Eyecup folds down for viewing with eyeglasses.
Reticle Focus Wheel
Image Focus Wheel
—Top focus wheel adjusts the reticle.
—Bottom focus wheel adjusts the image.
Basic Operation

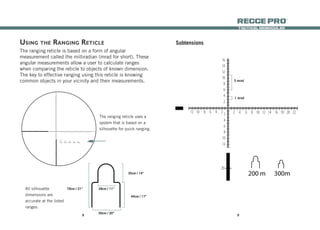

5. 98
tactical monocular
recce Pro
®
Subtensions
5 mrad
1 mrad
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10 8 6 4 2 2 4 6 8 10 12 14 16 18 20 22 24 26 28 302
4
6
8
10
12
2040
20
40
200 m 300m 400m
The ranging reticle is based on a form of angular
measurement called the milliradian (mrad for short). These
angular measurements allow a user to calculate ranges
when comparing the reticle to objects of known dimension.
The key to effective ranging using this reticle is knowing
common objects in your vicinity and their measurements.
Using the Ranging Reticle
28cm / 11”
50cm / 20”
35cm / 14”
44cm / 17”
79cm / 31”All silhouette
dimensions are
accurate at the listed
ranges.
The ranging reticle uses a
system that is based on a
silhouette for quick ranging.
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10 8 6 4 2 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 682
4
6
8
10
12
2040
20
40
200 m 300m 400m 500m 600m

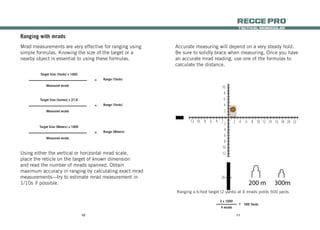

6. 1110
tactical monocular
recce Pro
®
Ranging with mrads
Mrad measurements are very effective for ranging using
simple formulas. Knowing the size of the target or a
nearby object is essential to using these formulas.
Using either the vertical or horizontal mrad scale,
place the reticle on the target of known dimension
and read the number of mrads spanned. Obtain
maximum accuracy in ranging by calculating exact mrad
measurements—try to estimate mrad measurement in
1/10s if possible.
Range (Yards)=
Target Size (Yards) x 1000
Measured mrads
Range (Yards)=
Target Size (Inches) x 27.8
Measured mrads
Range (Meters)=
Target Size (Meters) x 1000
Measured mrads
Accurate measuring will depend on a very steady hold.
Be sure to solidly brace when measuring. Once you have
an accurate mrad reading, use one of the formulas to
calculate the distance.
Ranging a 6-foot target (2 yards) at 4 mrads yields 500 yards.
2 x 1000
4 mrads
500 Yards=
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10 8 6 4 2 2 4 6 8 10 12 14 16 18 20 22 24 26 28 302
4
6
8
10
12
2040
20
200 m 300m 400m

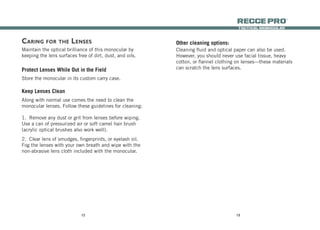

7. 1312
tactical monocular
recce Pro
®
Caring for the Lenses
Maintain the optical brilliance of this monocular by
keeping the lens surfaces free of dirt, dust, and oils.
Protect Lenses While Out in the Field
Store the monocular in its custom carry case.
Keep Lenses Clean
Along with normal use comes the need to clean the
monocular lenses. Follow these guidelines for cleaning:
1. Remove any dust or grit from lenses before wiping.
Use a can of pressurized air or soft camel hair brush
(acrylic optical brushes also work well).
2. Clear lens of smudges, fingerprints, or eyelash oil.
Fog the lenses with your own breath and wipe with the
non-abrasive lens cloth included with the monocular.
Cleaning fluid and optical paper can also be used.
However, you should never use facial tissue, heavy
cotton, or flannel clothing on lenses—these materials
can scratch the lens surfaces.
Other cleaning options:

8. The VIP Warranty
We build optics based on our commitment to your
absolute satisfaction. That’s why Vortex products are
unconditionally guaranteed and we make this Very
Important Promise to you—a Very Important Person.
Rest assured that in the event your
monocular becomes damaged or
defective, Vortex Optics will repair
or replace the monocular at no
charge to you. Call Vortex Optics
at 800-426-0048 for prompt,
professional, and friendly service.
Vortex Optics
2120 West Greenview Drive
Middleton, WI 53562
service@vortexoptics.com
Visit www.vortexoptics.com for more information.
Canadian customers may visit www.vortexcanada.net for
customer service information.
Note: The VIP Warranty does not cover loss, theft,
deliberate damage or cosmetic damage that does not
hinder the performance of the product.
Lifetime Warranty
Unlimited
Unconditional
