BigDataTech 2016 How to manage authorization rules on Hadoop cluster with Apache Ranger
The document provides guidance on managing authorization rules in a Hadoop cluster with Apache Ranger, highlighting its integration with authentication methods like Kerberos and tools like Apache Knox. It addresses security measures, the performance issues associated with user synchronization, and recommendations for audit storage. The author also shares best practices for securing a Hadoop environment and upcoming Ranger features to enhance security management.
More Related Content
Similar to BigDataTech 2016 How to manage authorization rules on Hadoop cluster with Apache Ranger
BigDataTech 2016 How to manage authorization rules on Hadoop cluster with Apache Ranger
- 1. How to manageauthorization rules on Hadoop cluster with Apache Ranger Krzysztof Adamski
- 3. 3 We deliver innovative ITservices for the ING Group all over the world. ING Services Polska
- 4. 4 SocialHarmonisation Digitalisation Customer Call Centres Webservices Inthe Cloud Virtual Bank Software as a Service Infrastructure as a Service Seamless Concept of ONE No geographical boundaries Exception Handling APIs My identity Straight through processing Customer experience Personalisation Automation Standardisation Agile Self Service Mobile First Real Time Security 24/7 ‘Outside in and Inside out’ Omnichannel Zero Touch Customer journeys Analytics Big Data Digitalised branches Building standard for new generation digital bank Cloud Platform as a service Data Centre

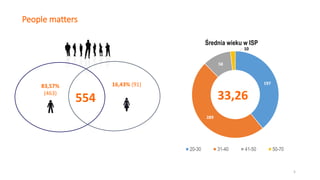

- 5. 197 289 58 10 Średnia wieku wISP 20-30 31-40 41-50 50-70 33,26 People matters 554 16,43% (91)83,57% (463) 5

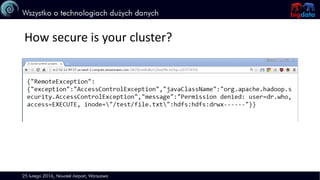

- 6. How secure isyour cluster?

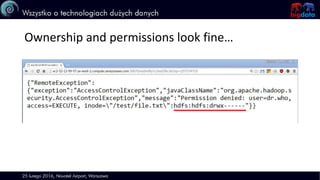

- 7. Ownership and permissionslook fine…
- 8. How secure isyour cluster?

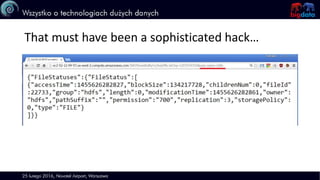

- 9. That must havebeen a sophisticated hack…
- 10. 3 x Aor 4 as you wish

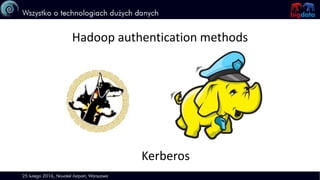

- 11.
- 12.

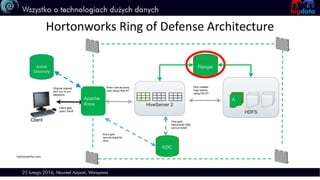

- 13. HDFS HiveServer 2 A BC KDC Use Hive ST, submit query Hive gets Namenode (NN) service ticket Hive creates map reduce using NN ST Ranger Knox gets service ticket for Hive Knox runs as proxy user using Hive ST Original request with user id and password Client gets query result Client Apache Knox Active Directory Hortonworks Ring of Defense Architecture hortonworks.com
- 14.
- 15.
- 16.

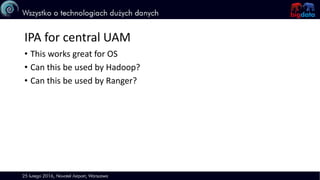

- 17. IPA for centralUAM • This works great for OS • Can this be used by Hadoop? • Can this be used by Ranger?
- 18. HDFS HiveServer 2 A BC KDC Use Hive ST, submit query Hive gets Namenode (NN) service ticket Hive creates map reduce using NN ST Ranger Knox gets service ticket for Hive Knox runs as proxy user using Hive ST Original request with user id and password Client gets query result Client Apache Knox Active Directory Hortonworks Ring of Defense Architecture hortonworks.com
- 19.

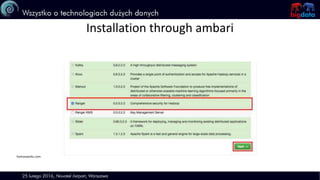

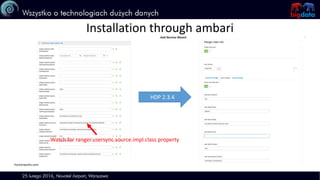

- 20. Installation through ambari hortonworks.com HDP2.3.4 Watch for ranger.usersync.source.impl.class property

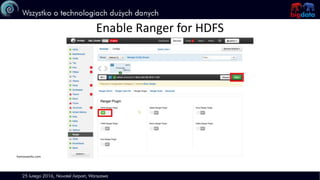

- 21. Enable Ranger forHDFS hortonworks.com
- 23.
- 24.
- 26. Ranger audit • Itis recommended that you store audits in Solr and HDFS, and disable Audit to DB. • Otherwise you can expect performance issues • Audit is stored in a single table • No partitions • No data retention

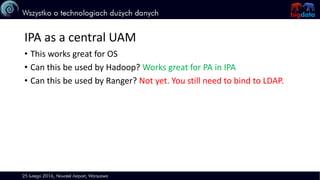

- 28. IPA as acentral UAM • This works great for OS • Can this be used by Hadoop? Works great for PA in IPA • Can this be used by Ranger? Not yet. You still need to bind to LDAP.

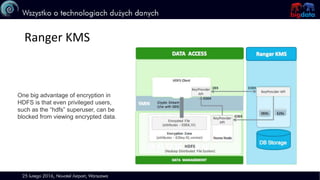

- 29. Ranger KMS One bigadvantage of encryption in HDFS is that even privileged users, such as the “hdfs” superuser, can be blocked from viewing encrypted data.

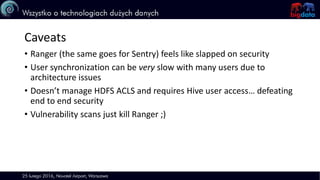

- 30. Caveats • Ranger (thesame goes for Sentry) feels like slapped on security • User synchronization can be very slow with many users due to architecture issues • Doesn’t manage HDFS ACLS and requires Hive user access… defeating end to end security • Vulnerability scans just kill Ranger ;)
- 31.
- 32. mysql> select count(*)from x_user; +----------+ | count(*) | +----------+ | 99 | +----------+ 1 row in set (0.00 sec)

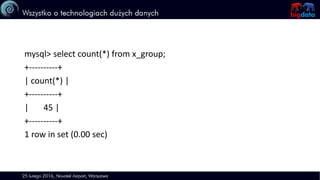

- 33. mysql> select count(*)from x_group; +----------+ | count(*) | +----------+ | 45 | +----------+ 1 row in set (0.00 sec)

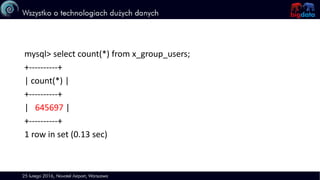

- 34. mysql> select count(*)from x_group_users; +----------+ | count(*) | +----------+ | 645697 | +----------+ 1 row in set (0.13 sec)

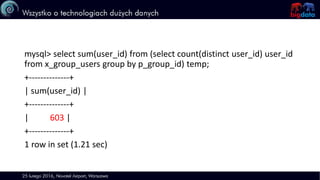

- 35. mysql> select sum(user_id)from (select count(distinct user_id) user_id from x_group_users group by p_group_id) temp; +--------------+ | sum(user_id) | +--------------+ | 603 | +--------------+ 1 row in set (1.21 sec)

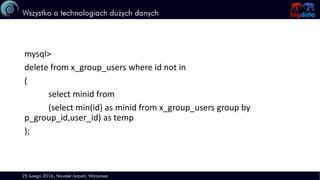

- 36. mysql> delete from x_group_userswhere id not in ( select minid from (select min(id) as minid from x_group_users group by p_group_id,user_id) as temp );

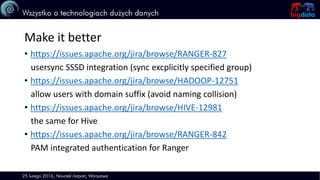

- 37. Make it better •https://issues.apache.org/jira/browse/RANGER-827 usersync SSSD integration (sync excplicitly specified group) • https://issues.apache.org/jira/browse/HADOOP-12751 allow users with domain suffix (avoid naming collision) • https://issues.apache.org/jira/browse/HIVE-12981 the same for Hive • https://issues.apache.org/jira/browse/RANGER-842 PAM integrated authentication for Ranger

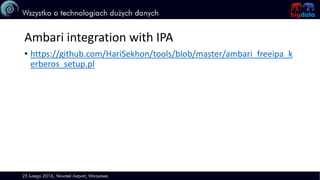

- 38. Ambari integration withIPA • https://github.com/HariSekhon/tools/blob/master/ambari_freeipa_k erberos_setup.pl

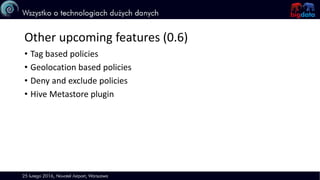

- 39. Other upcoming features(0.6) • Tag based policies • Geolocation based policies • Deny and exclude policies • Hive Metastore plugin

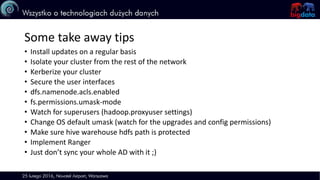

- 41. Some take awaytips • Install updates on a regular basis • Isolate your cluster from the rest of the network • Kerberize your cluster • Secure the user interfaces • dfs.namenode.acls.enabled • fs.permissions.umask-mode • Watch for superusers (hadoop.proxyuser settings) • Change OS default umask (watch for the upgrades and config permissions) • Make sure hive warehouse hdfs path is protected • Implement Ranger • Just don’t sync your whole AD with it ;)
- 42.
