MySQL Day Paris 2016 - Introducing Oracle MySQL Cloud Service

Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Olivier Dasini
MySQL Principal Solutions Architect EMEA
olivier.dasini@oracle.com
@freshdaz
Introducing
Oracle MySQL Cloud Service

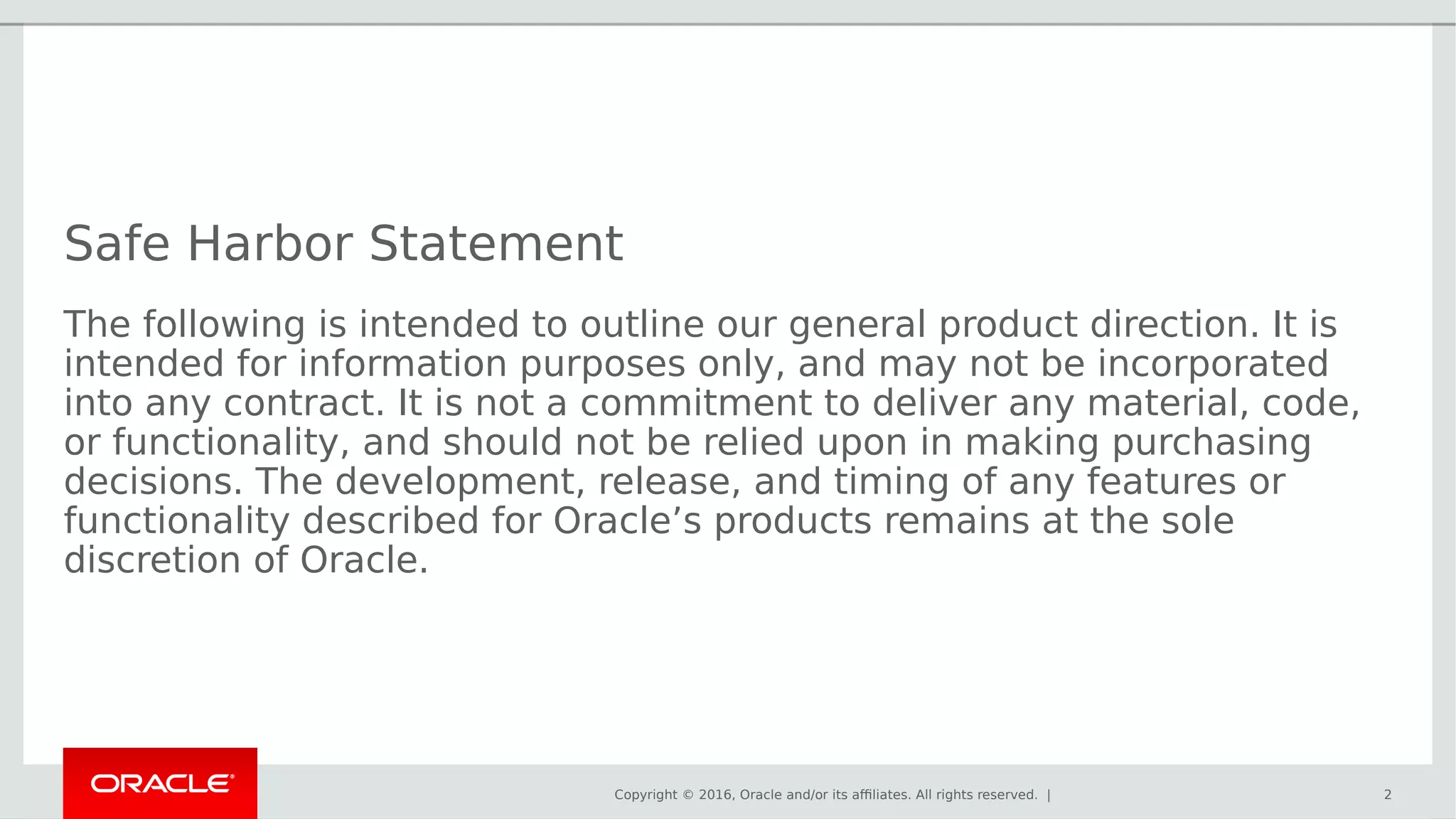

Safe Harbor Statement
The following is intended to outline our general product direction. It is
intended for information purposes only, and may not be incorporated
into any contract. It is not a commitment to deliver any material, code,
or functionality, and should not be relied upon in making purchasing
decisions. The development, release, and timing of any features or
functionality described for Oracle’s products remains at the sole
discretion of Oracle.
2

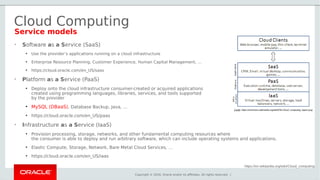

Cloud Computing
• Software as a Service (SaaS)
●
Use the provider’s applications running on a cloud infrastructure
●
Enterprise Resource Planning, Customer Experience, Human Capital Management, …
●
https://cloud.oracle.com/en_US/saas
• Platform as a Service (PaaS)
●
Deploy onto the cloud infrastructure consumer-created or acquired applications
created using programming languages, libraries, services, and tools supported
by the provider
●
MySQL (DBaaS), Database Backup, Java, …
●
https://cloud.oracle.com/en_US/paas
• Infrastructure as a Service (IaaS)
●
Provision processing, storage, networks, and other fundamental computing resources where
the consumer is able to deploy and run arbitrary software, which can include operating systems and applications.
●
Elastic Compute, Storage, Network, Bare Metal Cloud Services, …
●
https://cloud.oracle.com/en_US/iaas
Service models
https://en.wikipedia.org/wiki/Cloud_computing
Credit: https://commons.wikimedia.org/wiki/File:Cloud_computing_layers.png

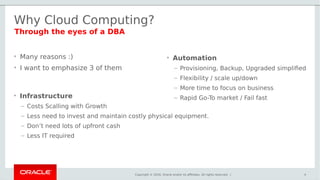

Why Cloud Computing?
• Many reasons :)
• I want to emphasize 3 of them
4
• Automation
– Provisioning, Backup, Upgraded simplified
– Flexibility / scale up/down
– More time to focus on business
– Rapid Go-To market / Fail fast
Through the eyes of a DBA
• Infrastructure
– Costs Scalling with Growth
– Less need to invest and maintain costly physical equipment.
– Don’t need lots of upfront cash
– Less IT required

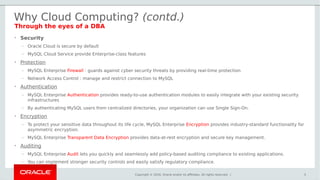

Why Cloud Computing? (contd.)
5
Through the eyes of a DBA
• Security
– Oracle Cloud is secure by default
– MySQL Cloud Service provide Enterprise-class features
• Protection
– MySQL Enterprise Firewall : guards against cyber security threats by providing real-time protection
– Network Access Control : manage and restrict connection to MySQL
• Authentication
– MySQL Enterprise Authentication provides ready-to-use authentication modules to easily integrate with your existing security
infrastructures
– By authenticating MySQL users from centralized directories, your organization can use Single Sign-On.
• Encryption
– To protect your sensitive data throughout its life cycle, MySQL Enterprise Encryption provides industry-standard functionality for
asymmetric encryption.
– MySQL Enterprise Transparent Data Encryption provides data-at-rest encryption and secure key management.
• Auditing
– MySQL Enterprise Audit lets you quickly and seamlessly add policy-based auditing compliance to existing applications.
– You can implement stronger security controls and easily satisfy regulatory compliance.

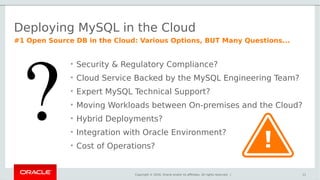

Deploying MySQL in the Cloud
• Security & Regulatory Compliance?
• Cloud Service Backed by the MySQL Engineering Team?
• Expert MySQL Technical Support?
• Moving Workloads between On-premises and the Cloud?
• Hybrid Deployments?
• Integration with Oracle Environment?
• Cost of Operations?
#1 Open Source DB in the Cloud: Various Options, BUT Many Questions...
11

12

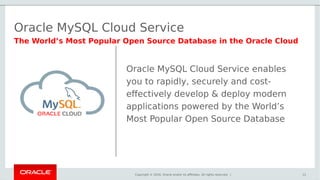

The World’s Most Popular Open Source Database in the Oracle Cloud
Oracle MySQL Cloud Service enables
you to rapidly, securely and cost-
effectively develop & deploy modern
applications powered by the World’s
Most Popular Open Source Database

• Simple
– Quickly provision MySQL database
instances with only a few clicks
• Automated
– Database management made easy with
tools that automate administrative tasks
• Integrated
– Integrated with Oracle Cloud Services for
quick development and deployment
• Enterprise Ready
– Oracle’s proven MySQL Enterprise Edition
for performance, security & uptime
13
+

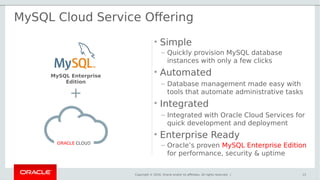

MySQL Cloud Service Offering
MySQL Enterprise
Edition

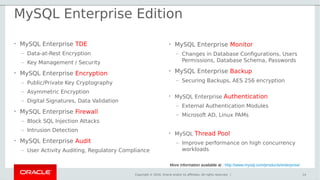

MySQL Enterprise Edition
• MySQL Enterprise TDE
– Data-at-Rest Encryption
– Key Management / Security
• MySQL Enterprise Encryption
– Public/Private Key Cryptography
– Asymmetric Encryption
– Digital Signatures, Data Validation
• MySQL Enterprise Firewall
– Block SQL Injection Attacks
– Intrusion Detection
• MySQL Enterprise Audit
– User Activity Auditing, Regulatory Compliance
14
• MySQL Enterprise Monitor
– Changes in Database Configurations, Users
Permissions, Database Schema, Passwords
• MySQL Enterprise Backup
– Securing Backups, AES 256 encryption
• MySQL Enterprise Authentication
– External Authentication Modules
– Microsoft AD, Linux PAMs
• MySQL Thread Pool
– Improve performance on high concurrency
workloads
More information available at : http://www.mysql.com/products/enterprise/

Highest Levels of Security Scalability & Availability Expert MySQL
Technical Support
Integration into Oracle
Cloud Environment
Hybrid deployments across
cloud & on-premises Lower TCO
15

• Increase Business Agility: Focus your
resources on innovation and rapidly deliver
new modern applications.
• Ensure Security, Performance & Uptime:
relying on the most comprehensive MySQL
cloud platform – straight from the source .
• Reduce Total Cost of Ownership: Saving
on infrastructure and database management
operations costs while improving uptime.

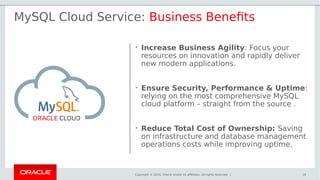

MySQL Cloud Service: Business Benefits
16

MySQL Cloud Service
Overview
17

Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | 1818

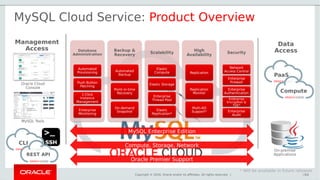

MySQL Cloud Service: Product Overview
* Will be available in future releases
PaaS
Compute
Oracle Premier Support
Compute, Storage, Network
MySQL Enterprise Edition
Database
Administration
Database
Administration
Automated
Provisioning
Automated
Provisioning
Push Button
Patching
Push Button
Patching
1-Click
Instance
Management
1-Click
Instance
Management
Enterprise
Monitoring
Enterprise
Monitoring
Backup &
Recovery
Backup &
Recovery
Automated
Backup
Automated
Backup
Point-in-time
Recovery
Point-in-time
Recovery
On-demand
Snapshot
On-demand
Snapshot
ScalabilityScalability
Elastic
Compute
Elastic
Compute
Elastic StorageElastic Storage
Enterprise
Thread Pool
Enterprise
Thread Pool
Elastic
Replication*
Elastic
Replication*
High
Availability
High
Availability
ReplicationReplication
Replication
Monitor
Replication
Monitor
Multi-AD
Support*
Multi-AD
Support*
SecuritySecurity
Network
Access Control
Network
Access Control
Enterprise
Firewall
Enterprise
Firewall
Enterprise
Authentication
Enterprise
Authentication
Enterprise
Encryption &
TDE*
Enterprise
Encryption &
TDE*
Enterprise
Audit
Enterprise
Audit
Management
Access
Data
Access
CLI
Oracle Cloud
Console
MySQL Tools
On-premise
ApplicationsREST API

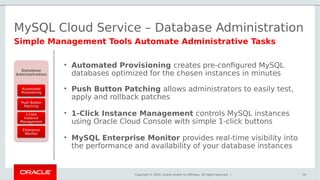

MySQL Cloud Service – Database Administration
19
Simple Management Tools Automate Administrative Tasks
Database
Administration
Automated
Provisioning
Push Button
Patching
1-Click
Instance
Management
Enterprise
Monitor
• Automated Provisioning creates pre-configured MySQL
databases optimized for the chosen instances in minutes

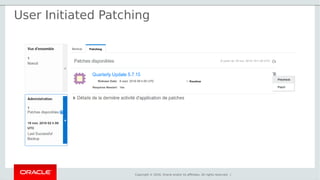

• Push Button Patching allows administrators to easily test,
apply and rollback patches
• 1-Click Instance Management controls MySQL instances
using Oracle Cloud Console with simple 1-click buttons
• MySQL Enterprise Monitor provides real-time visibility into
the performance and availability of your database instances

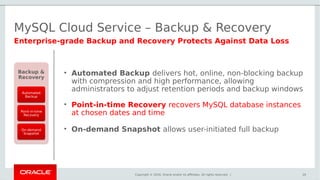

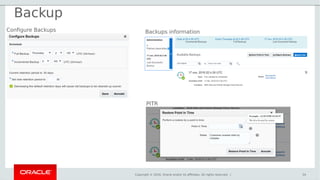

MySQL Cloud Service – Backup & Recovery
20
Enterprise-grade Backup and Recovery Protects Against Data Loss
• Automated Backup delivers hot, online, non-blocking backup
with compression and high performance, allowing
administrators to adjust retention periods and backup windows
• Point-in-time Recovery recovers MySQL database instances
at chosen dates and time
• On-demand Snapshot allows user-initiated full backup
Backup &
Recovery
Automated
Backup
Point-in-time
Recovery
On-demand
Snapshot

MySQL Cloud Service - Scalability
21
Scale MySQL Instances to Meet Your Varying Workloads
Scalability
Elastic
Compute
Elastic Storage
Enterprise
Thread Pool
Elastic
Replication*
• Elastic Compute scales up or down the compute resources
as needed
• Elastic Storage increases block storage for your MySQL
instance when the amount of data grows
• MySQL Enterprise Thread Pool scales MySQL thread counts
as workload and client connections change
• Elastic Replication automates adding or removing replicated
MySQL instances, distributing workloads dynamically based on
demands

MySQL Cloud Service – High Availability
22
A Cost-Effective High Availability Solution for Business Critical Applications
High
Availability
Replication
Replication
Monitor
Multi-AD
Support*
• Replication provides flexible topologies for high availability
• Replication Monitor offers visibility into the performance,
availability and health of all MySQL Masters and Slaves
• Multi-AD Support replicates MySQL instances across
different availability domains

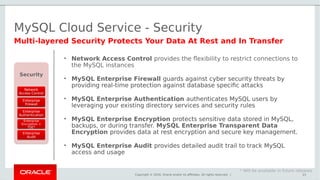

MySQL Cloud Service - Security
23
Multi-layered Security Protects Your Data At Rest and In Transfer
Security
Network
Access Control
Enterprise
Firewall
Enterprise
Authentication
Enterprise
Encryption +
TDE*
Enterprise
Audit
• Network Access Control provides the flexibility to restrict connections to
the MySQL instances
• MySQL Enterprise Firewall guards against cyber security threats by
providing real-time protection against database specific attacks
• MySQL Enterprise Authentication authenticates MySQL users by
leveraging your existing directory services and security rules
• MySQL Enterprise Encryption protects sensitive data stored in MySQL,
backups, or during transfer. MySQL Enterprise Transparent Data
Encryption provides data at rest encryption and secure key management.
• MySQL Enterprise Audit provides detailed audit trail to track MySQL
access and usage

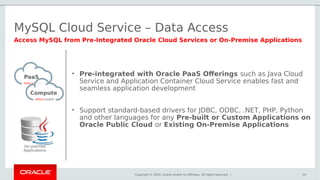

MySQL Cloud Service – Data Access
24
Access MySQL from Pre-Integrated Oracle Cloud Services or On-Premise Applications
PaaS
Compute
On-premise
Applications
• Pre-integrated with Oracle PaaS Offerings such as Java Cloud
Service and Application Container Cloud Service enables fast and
seamless application development
• Support standard-based drivers for JDBC, ODBC, .NET, PHP, Python
and other languages for any Pre-built or Custom Applications on
Oracle Public Cloud or Existing On-Premise Applications

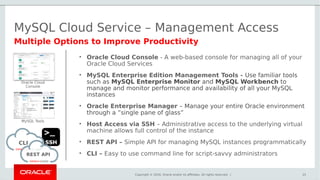

MySQL Cloud Service – Management Access
25
Multiple Options to Improve Productivity
CLI
REST API
Oracle Cloud
Console
MySQL Tools
• Oracle Cloud Console - A web-based console for managing all of your
Oracle Cloud Services
• MySQL Enterprise Edition Management Tools - Use familiar tools
such as MySQL Enterprise Monitor and MySQL Workbench to
manage and monitor performance and availability of all your MySQL
instances
• Oracle Enterprise Manager – Manage your entire Oracle environment
through a ”single pane of glass”
• Host Access via SSH – Administrative access to the underlying virtual
machine allows full control of the instance
• REST API – Simple API for managing MySQL instances programmatically
• CLI – Easy to use command line for script-savvy administrators

Oracle Premier Support for MySQL + Oracle Cloud Support
• Largest MySQL engineering and support organization
• Backed by the MySQL developers
• World-class support, in 29 languages
• Hot fixes & maintenance releases
• 24x7x365
• Unlimited incidents
• Consultative support
• Global scale and reach
• Oracle Cloud Support
Get immediate help for any
MySQL & Oracle Cloud
issues, plus expert advice
Get immediate help for any
MySQL & Oracle Cloud
issues, plus expert advice

MySQL Cloud Service: Only From Oracle
• Oracle’s Proven MySQL Enterprise Edition on Oracle Cloud
– MySQL Enterprise Edition reduces the risk, cost and time to develop, deploy and manage MySQL
applications
– Advanced features to achieve the highest levels of MySQL performance, security & uptime
– Seamlessly integrated with Oracle Cloud, providing a highly available, scalable, and secure database
service
• Tight Integration with Oracle’s Platform-as-a-Service Offerings
– Pre-integrated with Oracle’s PaaS offerings such as Java Cloud Service and Application Container Cloud
Service for quick application development and deployment
• Enterprise Grade Tools
– Easy to use management tools for managing both Cloud and Hybrid environments
– Best-in Class MySQL management tools, developed by the MySQL Engineering team
– Unified Management with Oracle Enterprise Manager: Save time & avoid cloud silos
• Expert MySQL Technical Support
– Provided by the Experts, straight from the source
– Backed by the MySQL Engineering Team
– Single point of contact for support across your entire cloud infrastructure

New “Born in the Cloud” MySQL
Applications
Build new apps relying on the #1
Open Source DB, on Oracle’s
enterprise-class cloud
Lift & Shift: Migrate Existing
MySQL Applications
Migrate from on-premises or other 3rd
party clouds to ensure security,
flexibility & optimize management
Hybrid Cloud Deployments
• Easily move workloads between on
prem & cloud, using the same DB
platform
• Portability for Multi-tier architectures
(e.g. deployed across both the cloud &
on-premises)
Dev/Test
• Spin up database instances in
minutes
• Tear down when not needed
MySQL Cloud Service: Recommended Use Cases
New Apps
SaaS Apps powered by MySQL
SaaS Applications powered by
Oracle’s MySQL Cloud Service for
global scalability

MySQL Cloud Service
Under the hood
29

MySQL Cloud Service Deep Dive
• Database as a Service (PaaS / DBaaS)
• MySQL with the annoying bits managed for
you
– Backup
– Patches
– Monitoring
– etc.
30
• Powered by MySQL Enterprise 5.7
• Same software used on Cloud as on
premise
– You'll be able to migrate workloads in
both directions
• Optimized configuration
– In my.cnf file
– In compute and storage

Under the Hood
Optimized Configuration of MySQL
• InnoDB IO Configuration optimized
– Number of IO threads
– O_DIRECT
– Redo log size and buffer
– Plus more...
• Thread Pool enable by default
• Memory optimized to compute shape
– Buffer Pool
• Plus more...
31
Optimized Compute and Storage
• Oracle Linux 6
– Ext4 Filesystem
• Storage is powered by ZFS Appliances
• Optimized for latency
– Binary logs
– Redo Logs
• Optimized for throughput
– Data files
• GTIDs Enable by default
• UTF8 by default
• Event Scheduler Enabled
• Physically Separate Undo Log
– With automatic truncation enable

Create a MySQL instance
32
3/ Instance created
1/ Create an instance
2/ Provisioning

Backup
• Powered by MySQL Enterprise Backup
• Fully Managed
– On Demand
– Scheduled
– Incremental
• Default
– Weekly full backup
– Daily incremental backup
– 30 day retention (in Cloud Storage)
– 7 day retention (locally)
• Access to Raw Backup Files
33

Backup
34
Configure Backups
PITR
Backups information

User Initiated Patching
35
• Time maintenance to opportune time
• Click of a Button
• Delay upgrade if desired
– Very occasionally patches need to change behavior
– Security being example
• Automatic backup before patching
• Rollback option if required

User Initiated Patching

Moving Data In and out
SSH Access
Oracle Public Cloud Exclusive Feature
• Log into your MySQL Cloud Service instance
• Works well with MySQL Workbench
– SSH Tunnel direct from Workbench to
Cloud Service
– Port 3306 does not need to be exposed
37
MySQL Root Access
• Connect via Command line or Workbench
• Perform administration tasks as MySQL root:
– Set offline mode, read only

Scaling Up / Down
38
1.
2.
3.

Replication
39
• Binary log already enabled
– Service already fully configured to be a master
– Binary log defaults to 90 day retention
• Can replicate to/from on premise
– Restricted only by firewall rules
• Can replicate to other instances of MySQL Cloud Services
• Not automated so far
• Can be monitored with MEM

The World’s Most Popular Open Source Database in the Oracle Cloud
for Your Enterprise Needs
Rapidly, Securely and Cost-effectively Develop & Deploy Modern
Applications & Drive Digital Transformation
Learn more & Get Started Today! Cloud.oracle.com/mysql
40

Thank you!

MySQL Day Paris 2016 - Introducing Oracle MySQL Cloud Service

MySQL Day Paris 2016 - Introducing Oracle MySQL Cloud Service

More Related Content

What's hot

Viewers also liked

Similar to MySQL Day Paris 2016 - Introducing Oracle MySQL Cloud Service

More from Olivier DASINI

Recently uploaded

MySQL Day Paris 2016 - Introducing Oracle MySQL Cloud Service
