This document provides documentation on ODBC functions in the Ring programming language. It describes functions for initializing an ODBC connection, getting driver and data source lists, connecting to and disconnecting from databases, executing queries, fetching results, and managing transactions. Examples are given showing how to use the functions to print ODBC information, execute queries, and commit or rollback transactions. The functions provided allow for full functionality in connecting Ring programs to databases using ODBC.

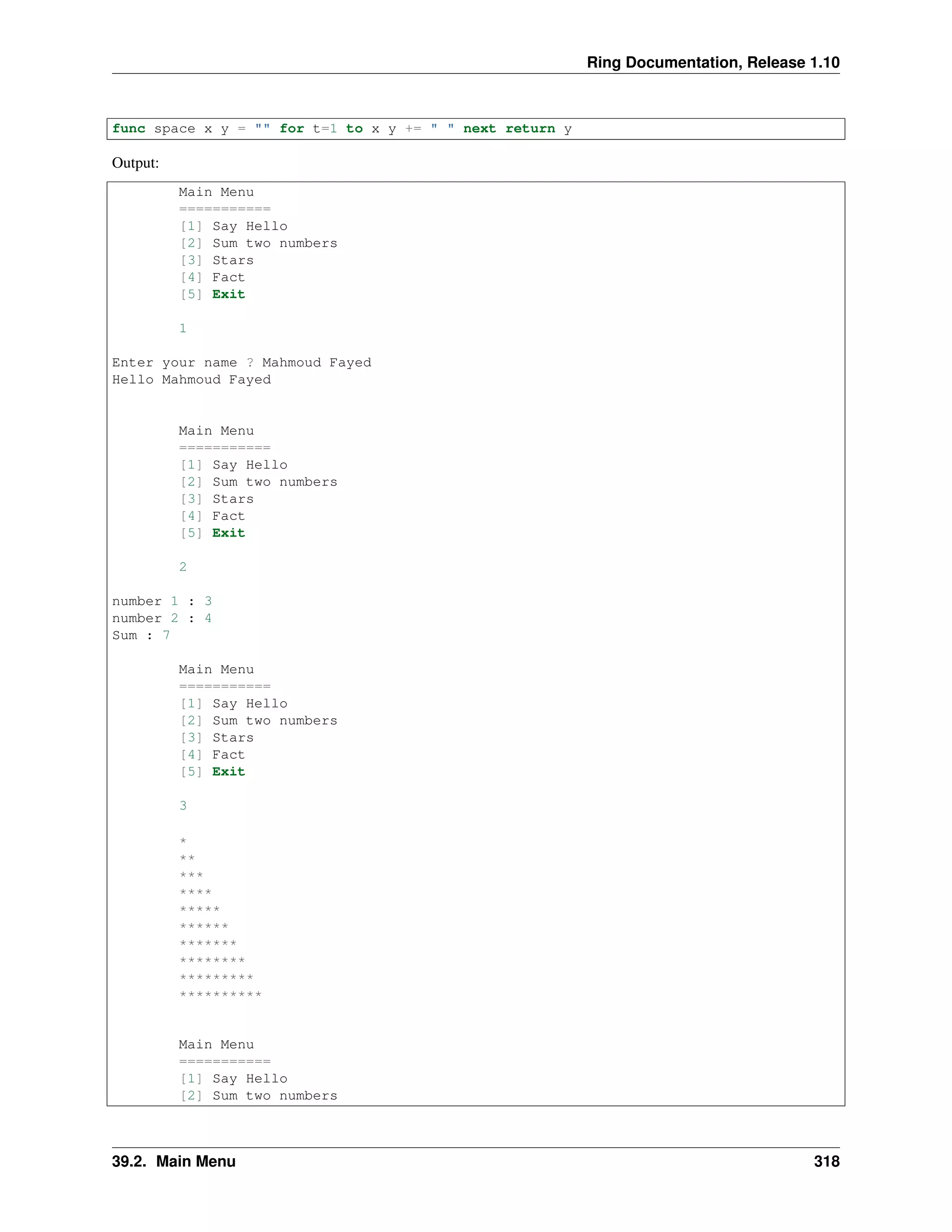

1. Ring Documentation, Release 1.10
func space x y = "" for t=1 to x y += " " next return y
Output:
Main Menu
===========
[1] Say Hello
[2] Sum two numbers
[3] Stars
[4] Fact
[5] Exit
1
Enter your name ? Mahmoud Fayed
Hello Mahmoud Fayed
Main Menu
===========
[1] Say Hello
[2] Sum two numbers
[3] Stars
[4] Fact
[5] Exit
2
number 1 : 3
number 2 : 4
Sum : 7
Main Menu
===========
[1] Say Hello
[2] Sum two numbers
[3] Stars
[4] Fact
[5] Exit
3
*
**
***
****
*****
******
*******
********
*********
**********
Main Menu
===========
[1] Say Hello
[2] Sum two numbers
39.2. Main Menu 318

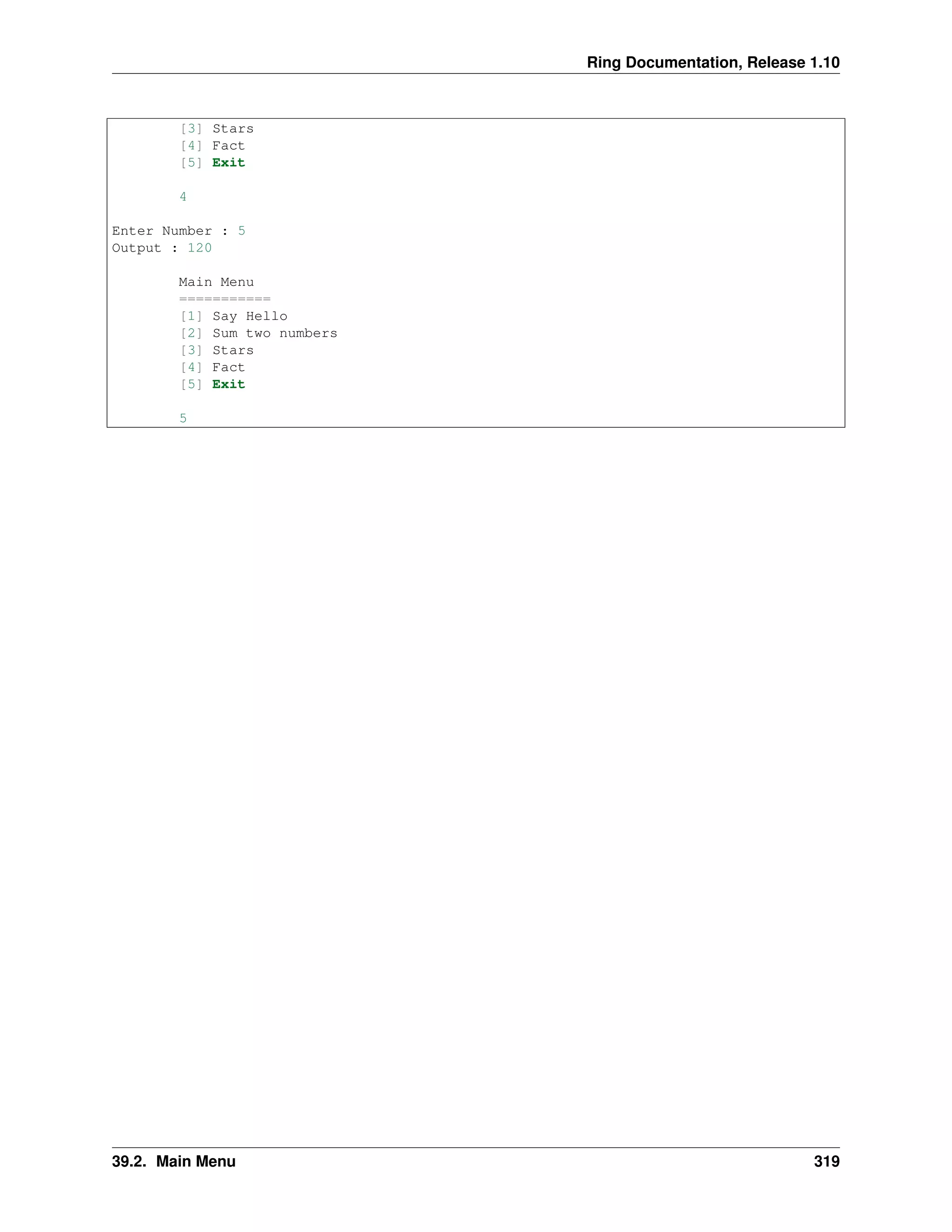

2. Ring Documentation, Release 1.10
[3] Stars
[4] Fact
[5] Exit
4
Enter Number : 5
Output : 120
Main Menu
===========
[1] Say Hello
[2] Sum two numbers
[3] Stars
[4] Fact
[5] Exit
5
39.2. Main Menu 319

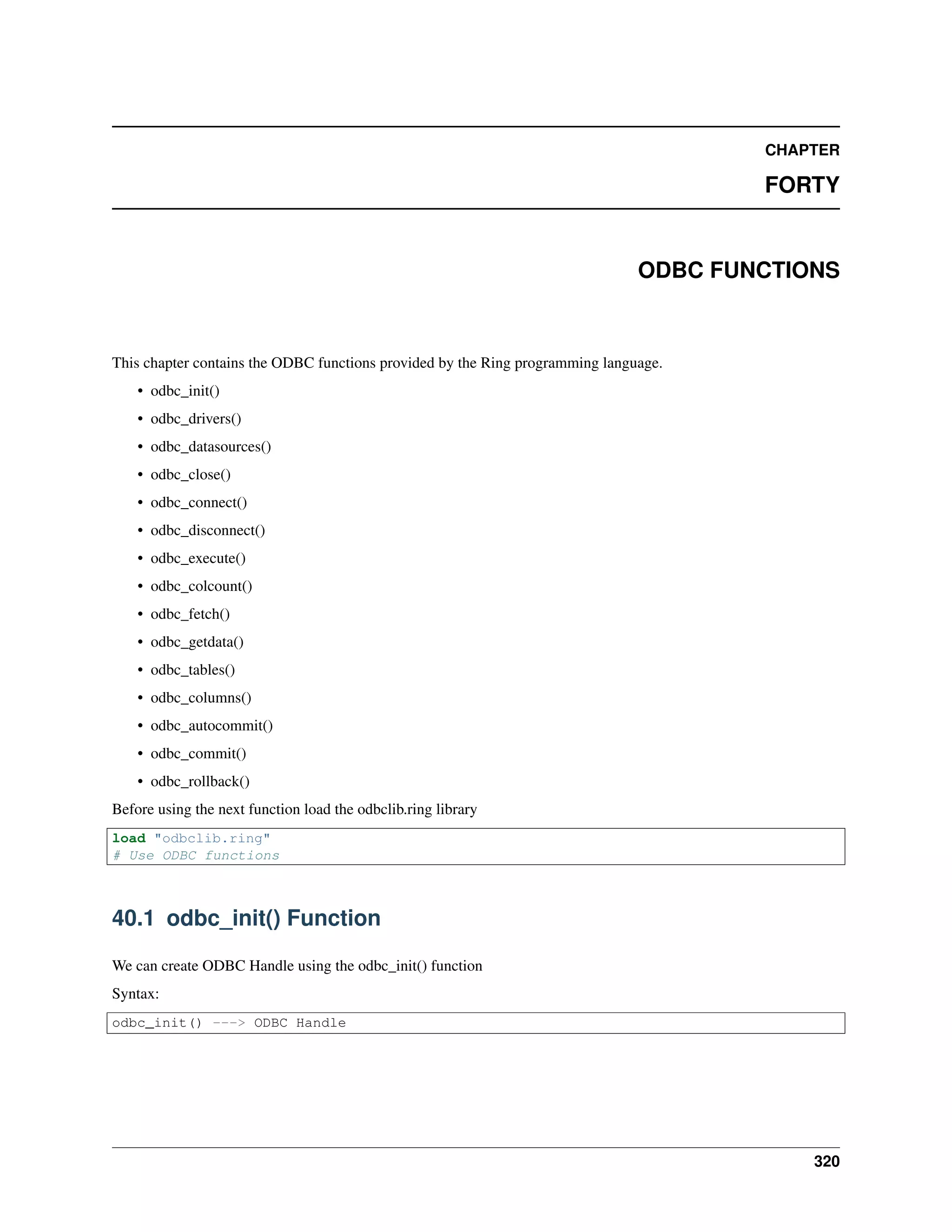

3. CHAPTER
FORTY
ODBC FUNCTIONS
This chapter contains the ODBC functions provided by the Ring programming language.
• odbc_init()
• odbc_drivers()
• odbc_datasources()
• odbc_close()
• odbc_connect()
• odbc_disconnect()
• odbc_execute()
• odbc_colcount()
• odbc_fetch()
• odbc_getdata()
• odbc_tables()
• odbc_columns()
• odbc_autocommit()
• odbc_commit()
• odbc_rollback()
Before using the next function load the odbclib.ring library
load "odbclib.ring"
# Use ODBC functions
40.1 odbc_init() Function
We can create ODBC Handle using the odbc_init() function
Syntax:
odbc_init() ---> ODBC Handle
320

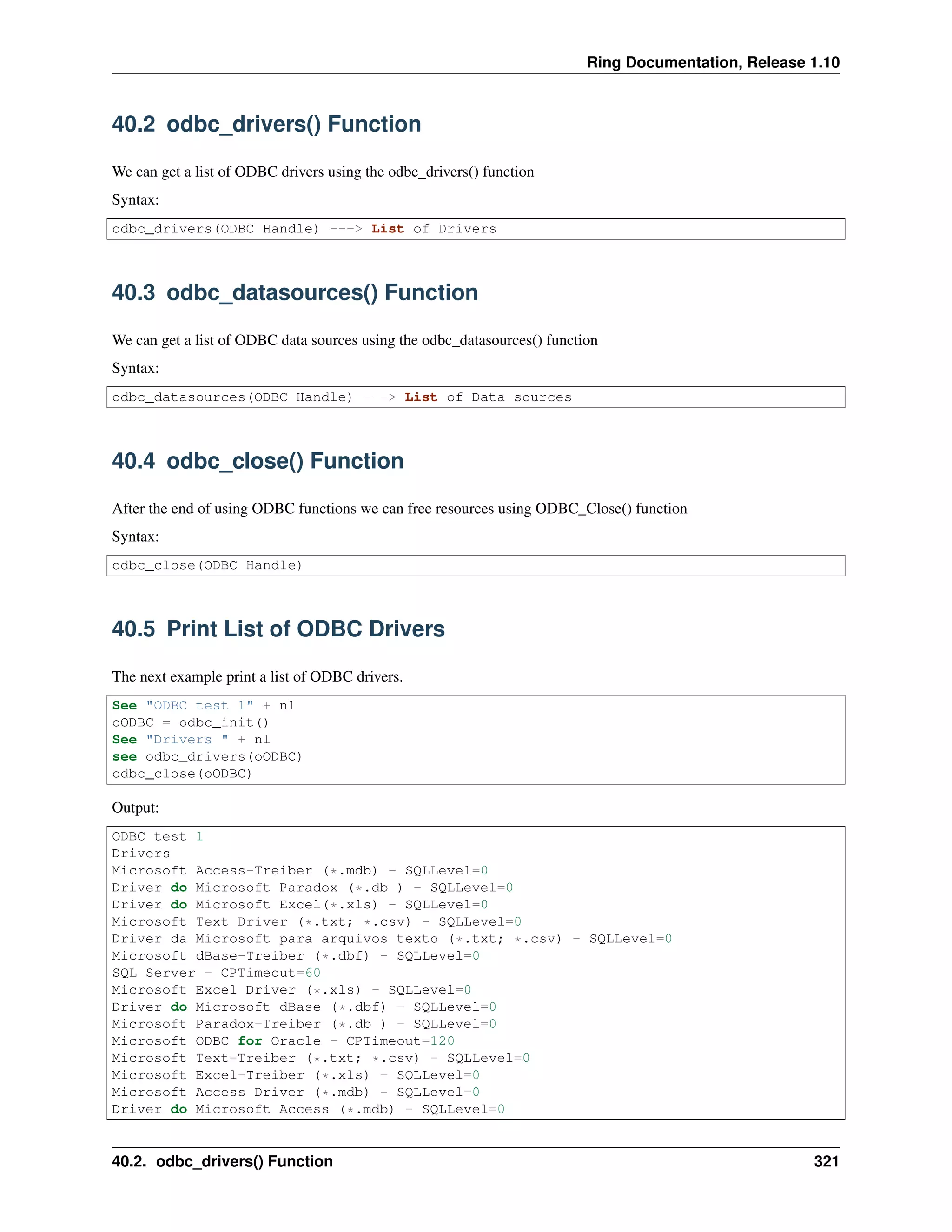

4. Ring Documentation, Release 1.10
40.2 odbc_drivers() Function
We can get a list of ODBC drivers using the odbc_drivers() function
Syntax:
odbc_drivers(ODBC Handle) ---> List of Drivers
40.3 odbc_datasources() Function
We can get a list of ODBC data sources using the odbc_datasources() function
Syntax:
odbc_datasources(ODBC Handle) ---> List of Data sources
40.4 odbc_close() Function
After the end of using ODBC functions we can free resources using ODBC_Close() function
Syntax:
odbc_close(ODBC Handle)
40.5 Print List of ODBC Drivers
The next example print a list of ODBC drivers.
See "ODBC test 1" + nl
oODBC = odbc_init()
See "Drivers " + nl
see odbc_drivers(oODBC)
odbc_close(oODBC)
Output:
ODBC test 1
Drivers
Microsoft Access-Treiber (*.mdb) - SQLLevel=0
Driver do Microsoft Paradox (*.db ) - SQLLevel=0
Driver do Microsoft Excel(*.xls) - SQLLevel=0
Microsoft Text Driver (*.txt; *.csv) - SQLLevel=0
Driver da Microsoft para arquivos texto (*.txt; *.csv) - SQLLevel=0
Microsoft dBase-Treiber (*.dbf) - SQLLevel=0
SQL Server - CPTimeout=60
Microsoft Excel Driver (*.xls) - SQLLevel=0
Driver do Microsoft dBase (*.dbf) - SQLLevel=0
Microsoft Paradox-Treiber (*.db ) - SQLLevel=0
Microsoft ODBC for Oracle - CPTimeout=120
Microsoft Text-Treiber (*.txt; *.csv) - SQLLevel=0
Microsoft Excel-Treiber (*.xls) - SQLLevel=0
Microsoft Access Driver (*.mdb) - SQLLevel=0
Driver do Microsoft Access (*.mdb) - SQLLevel=0
40.2. odbc_drivers() Function 321

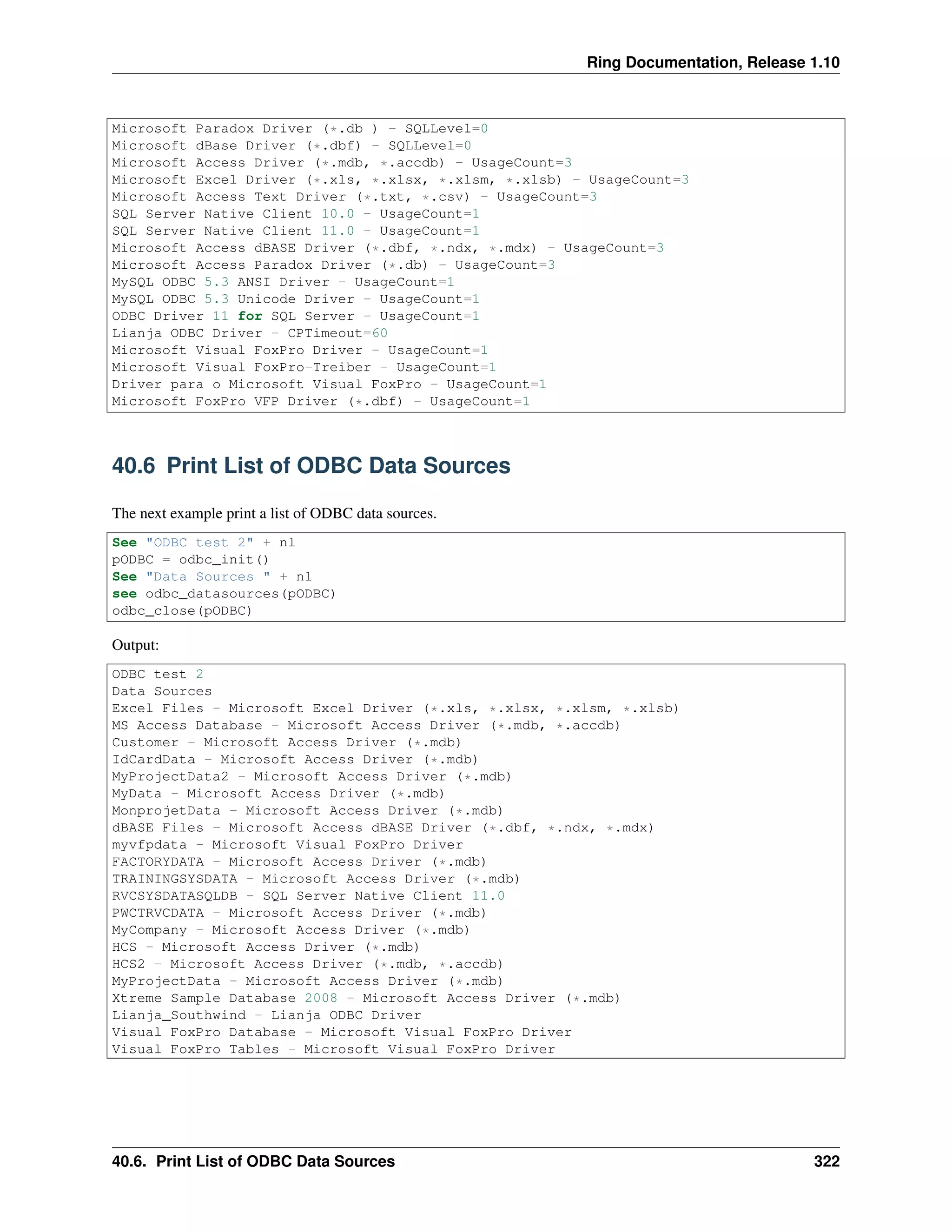

5. Ring Documentation, Release 1.10
Microsoft Paradox Driver (*.db ) - SQLLevel=0
Microsoft dBase Driver (*.dbf) - SQLLevel=0
Microsoft Access Driver (*.mdb, *.accdb) - UsageCount=3
Microsoft Excel Driver (*.xls, *.xlsx, *.xlsm, *.xlsb) - UsageCount=3
Microsoft Access Text Driver (*.txt, *.csv) - UsageCount=3
SQL Server Native Client 10.0 - UsageCount=1
SQL Server Native Client 11.0 - UsageCount=1
Microsoft Access dBASE Driver (*.dbf, *.ndx, *.mdx) - UsageCount=3
Microsoft Access Paradox Driver (*.db) - UsageCount=3
MySQL ODBC 5.3 ANSI Driver - UsageCount=1
MySQL ODBC 5.3 Unicode Driver - UsageCount=1
ODBC Driver 11 for SQL Server - UsageCount=1
Lianja ODBC Driver - CPTimeout=60
Microsoft Visual FoxPro Driver - UsageCount=1
Microsoft Visual FoxPro-Treiber - UsageCount=1
Driver para o Microsoft Visual FoxPro - UsageCount=1
Microsoft FoxPro VFP Driver (*.dbf) - UsageCount=1
40.6 Print List of ODBC Data Sources
The next example print a list of ODBC data sources.
See "ODBC test 2" + nl
pODBC = odbc_init()
See "Data Sources " + nl
see odbc_datasources(pODBC)
odbc_close(pODBC)
Output:
ODBC test 2
Data Sources
Excel Files - Microsoft Excel Driver (*.xls, *.xlsx, *.xlsm, *.xlsb)
MS Access Database - Microsoft Access Driver (*.mdb, *.accdb)
Customer - Microsoft Access Driver (*.mdb)
IdCardData - Microsoft Access Driver (*.mdb)
MyProjectData2 - Microsoft Access Driver (*.mdb)
MyData - Microsoft Access Driver (*.mdb)
MonprojetData - Microsoft Access Driver (*.mdb)
dBASE Files - Microsoft Access dBASE Driver (*.dbf, *.ndx, *.mdx)
myvfpdata - Microsoft Visual FoxPro Driver
FACTORYDATA - Microsoft Access Driver (*.mdb)
TRAININGSYSDATA - Microsoft Access Driver (*.mdb)
RVCSYSDATASQLDB - SQL Server Native Client 11.0
PWCTRVCDATA - Microsoft Access Driver (*.mdb)
MyCompany - Microsoft Access Driver (*.mdb)
HCS - Microsoft Access Driver (*.mdb)
HCS2 - Microsoft Access Driver (*.mdb, *.accdb)
MyProjectData - Microsoft Access Driver (*.mdb)
Xtreme Sample Database 2008 - Microsoft Access Driver (*.mdb)
Lianja_Southwind - Lianja ODBC Driver
Visual FoxPro Database - Microsoft Visual FoxPro Driver
Visual FoxPro Tables - Microsoft Visual FoxPro Driver
40.6. Print List of ODBC Data Sources 322

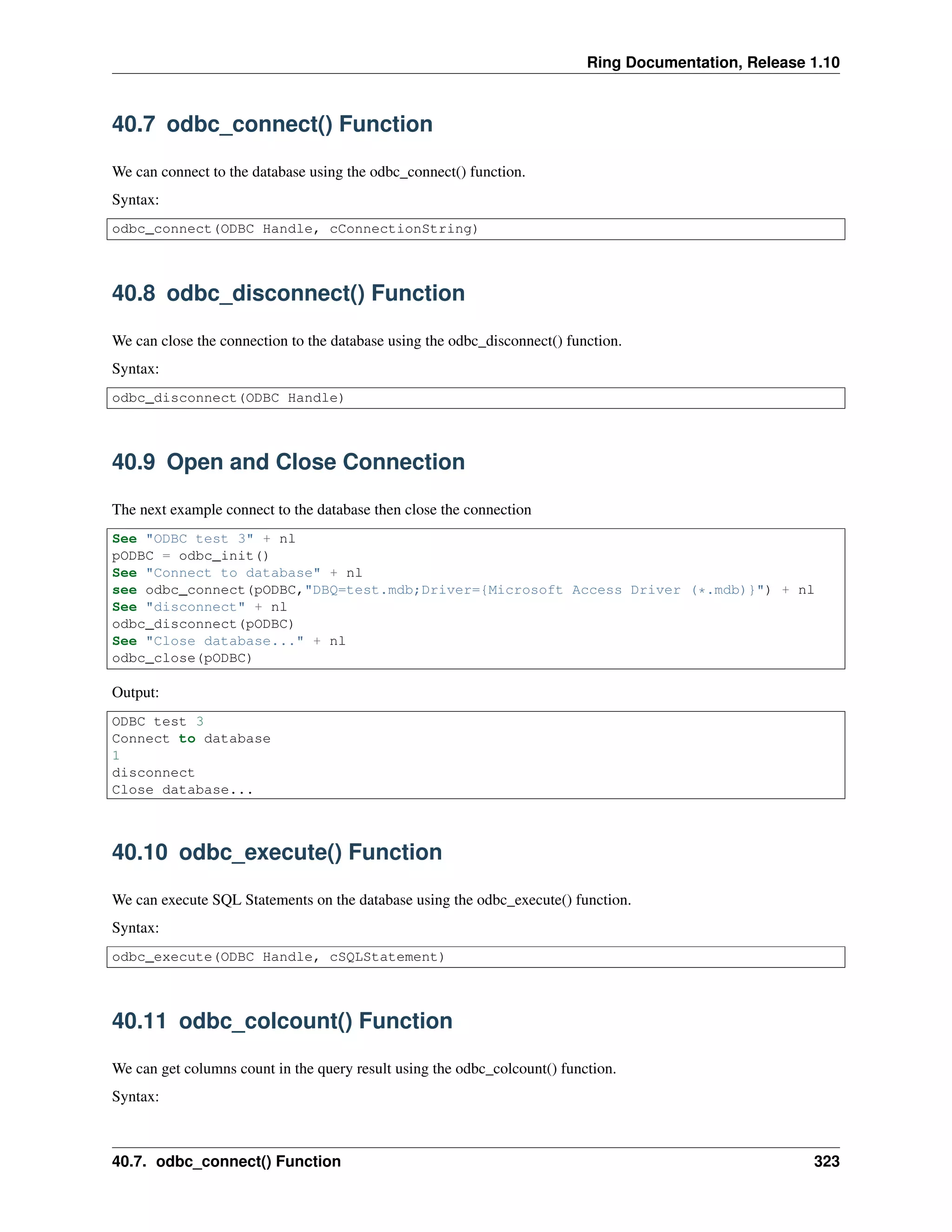

6. Ring Documentation, Release 1.10
40.7 odbc_connect() Function
We can connect to the database using the odbc_connect() function.
Syntax:
odbc_connect(ODBC Handle, cConnectionString)
40.8 odbc_disconnect() Function
We can close the connection to the database using the odbc_disconnect() function.
Syntax:
odbc_disconnect(ODBC Handle)
40.9 Open and Close Connection
The next example connect to the database then close the connection
See "ODBC test 3" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "disconnect" + nl
odbc_disconnect(pODBC)
See "Close database..." + nl
odbc_close(pODBC)
Output:
ODBC test 3
Connect to database
1
disconnect
Close database...
40.10 odbc_execute() Function
We can execute SQL Statements on the database using the odbc_execute() function.
Syntax:
odbc_execute(ODBC Handle, cSQLStatement)
40.11 odbc_colcount() Function
We can get columns count in the query result using the odbc_colcount() function.
Syntax:
40.7. odbc_connect() Function 323

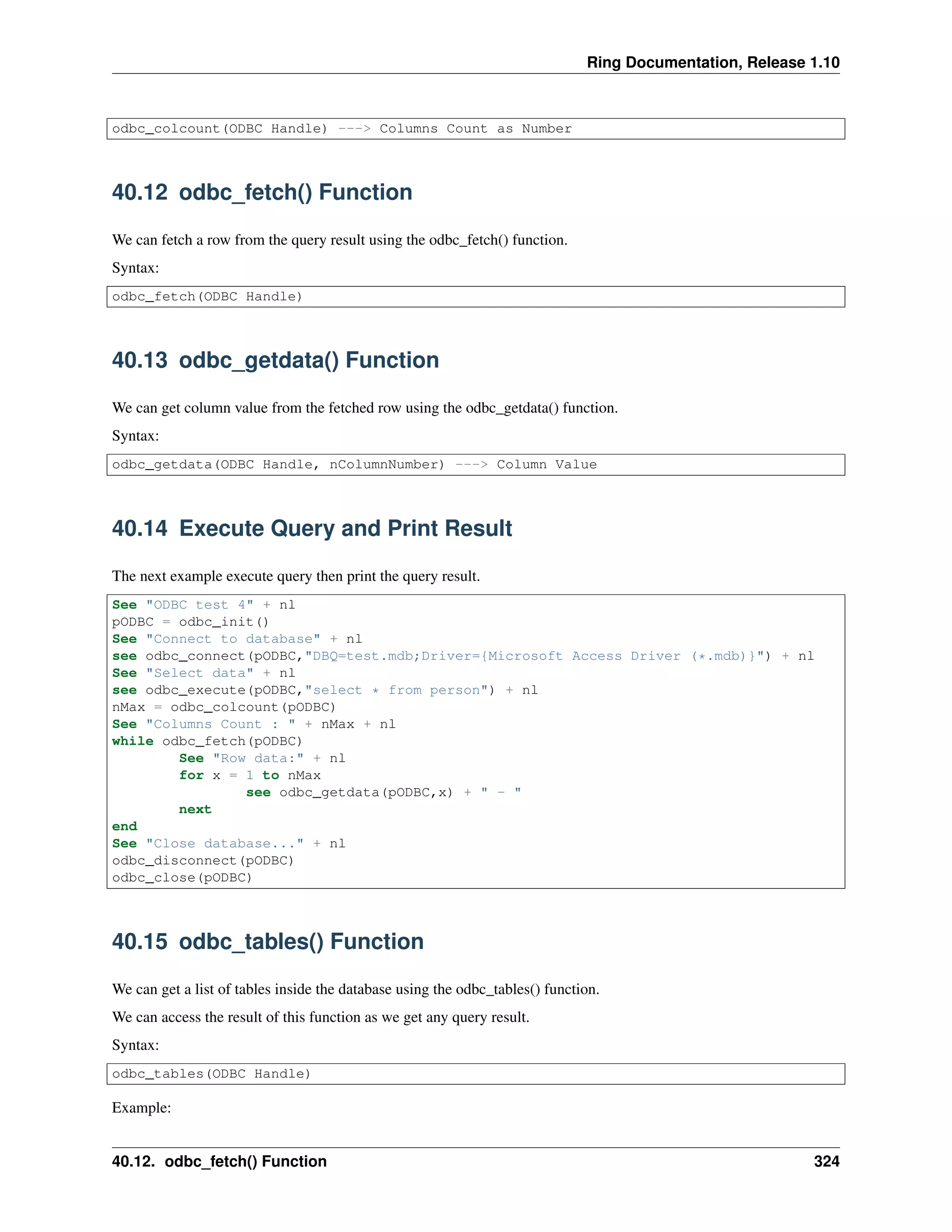

7. Ring Documentation, Release 1.10
odbc_colcount(ODBC Handle) ---> Columns Count as Number
40.12 odbc_fetch() Function
We can fetch a row from the query result using the odbc_fetch() function.
Syntax:
odbc_fetch(ODBC Handle)
40.13 odbc_getdata() Function
We can get column value from the fetched row using the odbc_getdata() function.
Syntax:
odbc_getdata(ODBC Handle, nColumnNumber) ---> Column Value
40.14 Execute Query and Print Result
The next example execute query then print the query result.
See "ODBC test 4" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Select data" + nl
see odbc_execute(pODBC,"select * from person") + nl
nMax = odbc_colcount(pODBC)
See "Columns Count : " + nMax + nl
while odbc_fetch(pODBC)
See "Row data:" + nl
for x = 1 to nMax
see odbc_getdata(pODBC,x) + " - "
next
end
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
40.15 odbc_tables() Function
We can get a list of tables inside the database using the odbc_tables() function.
We can access the result of this function as we get any query result.
Syntax:
odbc_tables(ODBC Handle)
Example:
40.12. odbc_fetch() Function 324

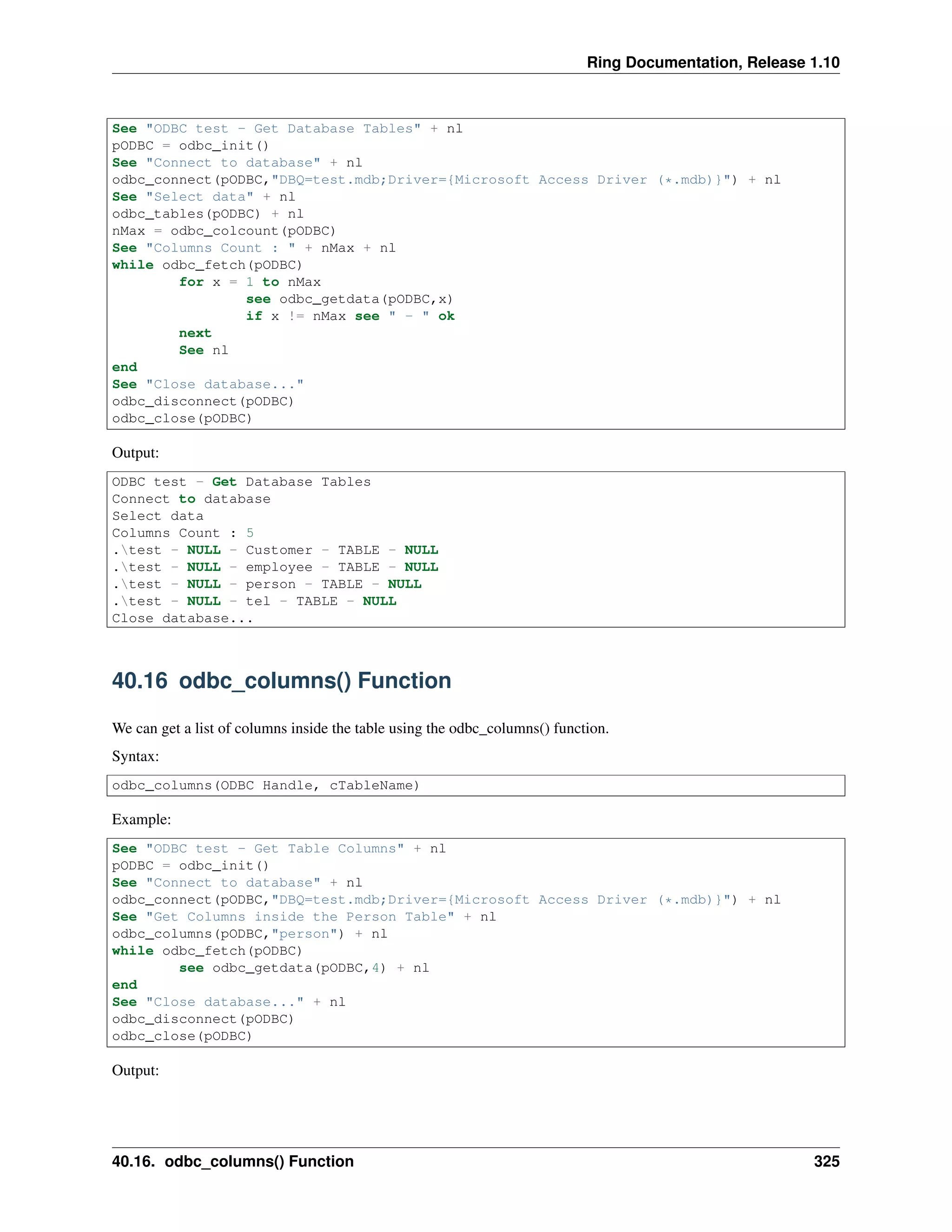

8. Ring Documentation, Release 1.10
See "ODBC test - Get Database Tables" + nl
pODBC = odbc_init()
See "Connect to database" + nl
odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Select data" + nl
odbc_tables(pODBC) + nl
nMax = odbc_colcount(pODBC)
See "Columns Count : " + nMax + nl
while odbc_fetch(pODBC)
for x = 1 to nMax
see odbc_getdata(pODBC,x)
if x != nMax see " - " ok
next
See nl
end
See "Close database..."
odbc_disconnect(pODBC)
odbc_close(pODBC)
Output:
ODBC test - Get Database Tables
Connect to database
Select data
Columns Count : 5
.test - NULL - Customer - TABLE - NULL
.test - NULL - employee - TABLE - NULL
.test - NULL - person - TABLE - NULL
.test - NULL - tel - TABLE - NULL
Close database...
40.16 odbc_columns() Function
We can get a list of columns inside the table using the odbc_columns() function.
Syntax:
odbc_columns(ODBC Handle, cTableName)
Example:
See "ODBC test - Get Table Columns" + nl
pODBC = odbc_init()
See "Connect to database" + nl
odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Get Columns inside the Person Table" + nl
odbc_columns(pODBC,"person") + nl
while odbc_fetch(pODBC)
see odbc_getdata(pODBC,4) + nl
end
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
Output:
40.16. odbc_columns() Function 325

9. Ring Documentation, Release 1.10

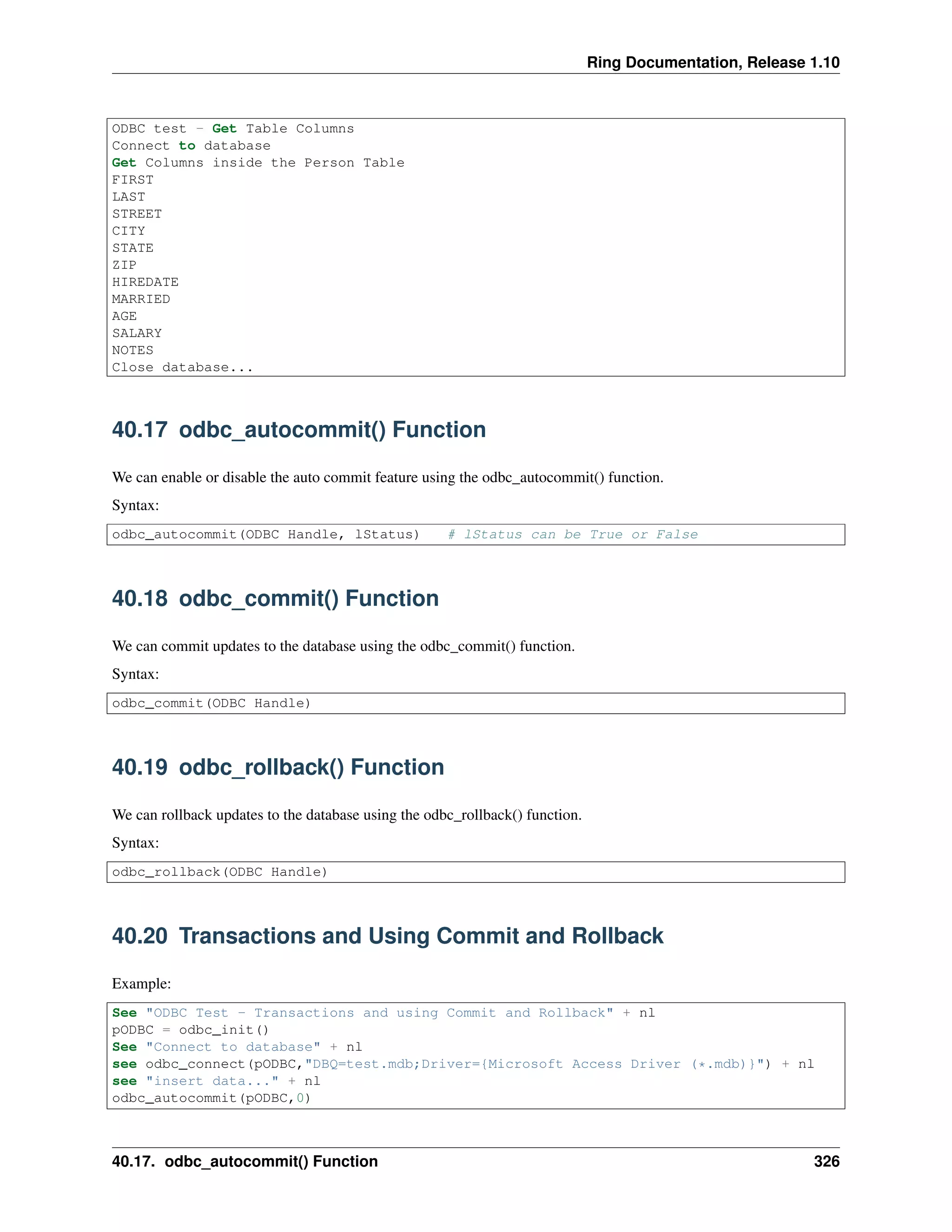

ODBC test - Get Table Columns
Connect to database
Get Columns inside the Person Table
FIRST
LAST
STREET
CITY
STATE
ZIP
HIREDATE
MARRIED
AGE
SALARY
NOTES
Close database...
40.17 odbc_autocommit() Function
We can enable or disable the auto commit feature using the odbc_autocommit() function.
Syntax:
odbc_autocommit(ODBC Handle, lStatus) # lStatus can be True or False
40.18 odbc_commit() Function
We can commit updates to the database using the odbc_commit() function.
Syntax:
odbc_commit(ODBC Handle)
40.19 odbc_rollback() Function
We can rollback updates to the database using the odbc_rollback() function.
Syntax:
odbc_rollback(ODBC Handle)
40.20 Transactions and Using Commit and Rollback
Example:
See "ODBC Test - Transactions and using Commit and Rollback" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
see "insert data..." + nl
odbc_autocommit(pODBC,0)
40.17. odbc_autocommit() Function 326

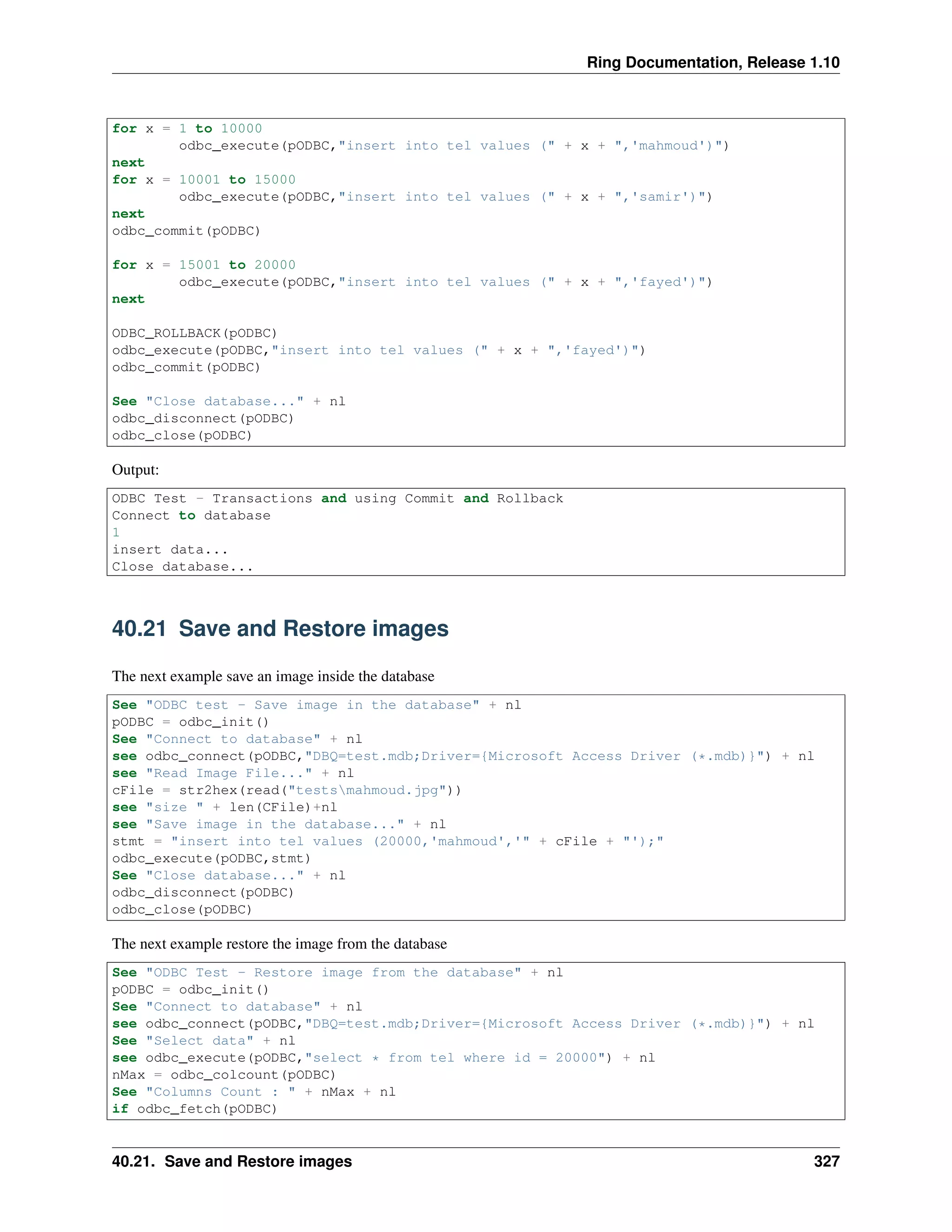

10. Ring Documentation, Release 1.10
for x = 1 to 10000
odbc_execute(pODBC,"insert into tel values (" + x + ",'mahmoud')")
next
for x = 10001 to 15000
odbc_execute(pODBC,"insert into tel values (" + x + ",'samir')")
next
odbc_commit(pODBC)
for x = 15001 to 20000
odbc_execute(pODBC,"insert into tel values (" + x + ",'fayed')")
next
ODBC_ROLLBACK(pODBC)
odbc_execute(pODBC,"insert into tel values (" + x + ",'fayed')")
odbc_commit(pODBC)
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
Output:
ODBC Test - Transactions and using Commit and Rollback
Connect to database
1
insert data...
Close database...
40.21 Save and Restore images
The next example save an image inside the database
See "ODBC test - Save image in the database" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
see "Read Image File..." + nl
cFile = str2hex(read("testsmahmoud.jpg"))
see "size " + len(CFile)+nl
see "Save image in the database..." + nl
stmt = "insert into tel values (20000,'mahmoud','" + cFile + "');"
odbc_execute(pODBC,stmt)
See "Close database..." + nl
odbc_disconnect(pODBC)
odbc_close(pODBC)
The next example restore the image from the database
See "ODBC Test - Restore image from the database" + nl
pODBC = odbc_init()
See "Connect to database" + nl
see odbc_connect(pODBC,"DBQ=test.mdb;Driver={Microsoft Access Driver (*.mdb)}") + nl
See "Select data" + nl
see odbc_execute(pODBC,"select * from tel where id = 20000") + nl
nMax = odbc_colcount(pODBC)
See "Columns Count : " + nMax + nl
if odbc_fetch(pODBC)
40.21. Save and Restore images 327
