1. Beginning iCloud
development
Rocchi Cesare
@_funkyboy studiomagnolia.com

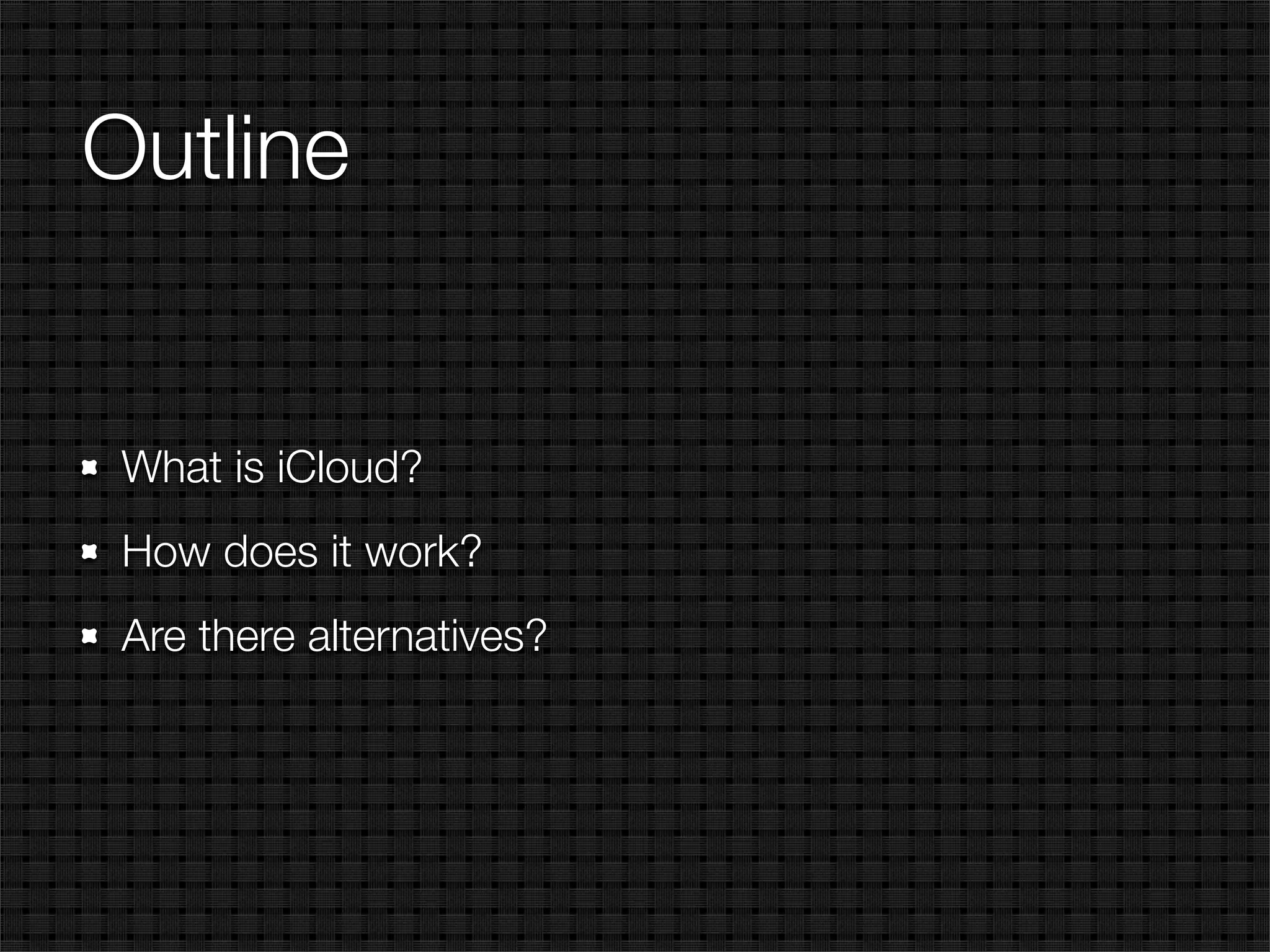

2. Outline
What is iCloud?
How does it work?

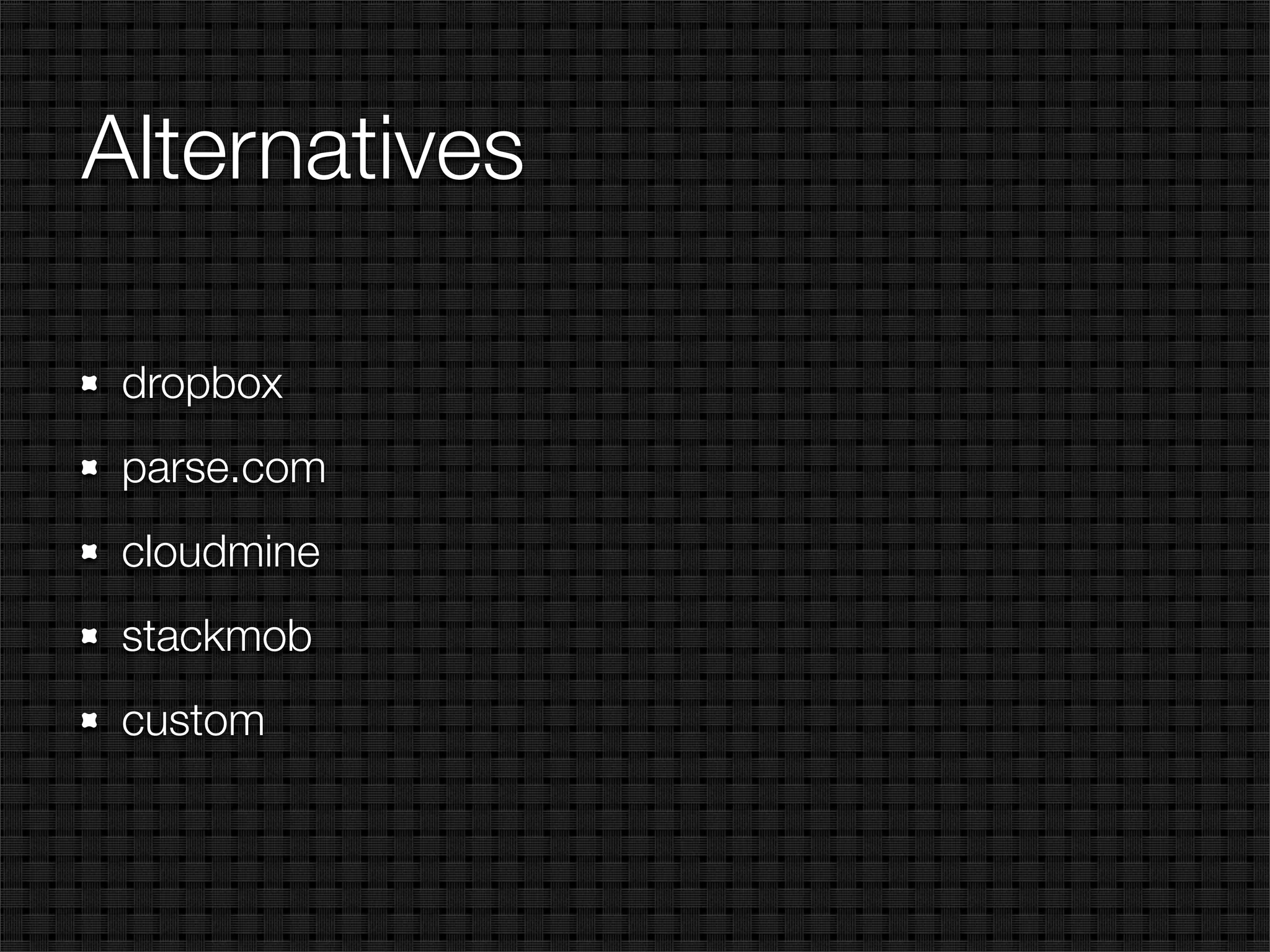

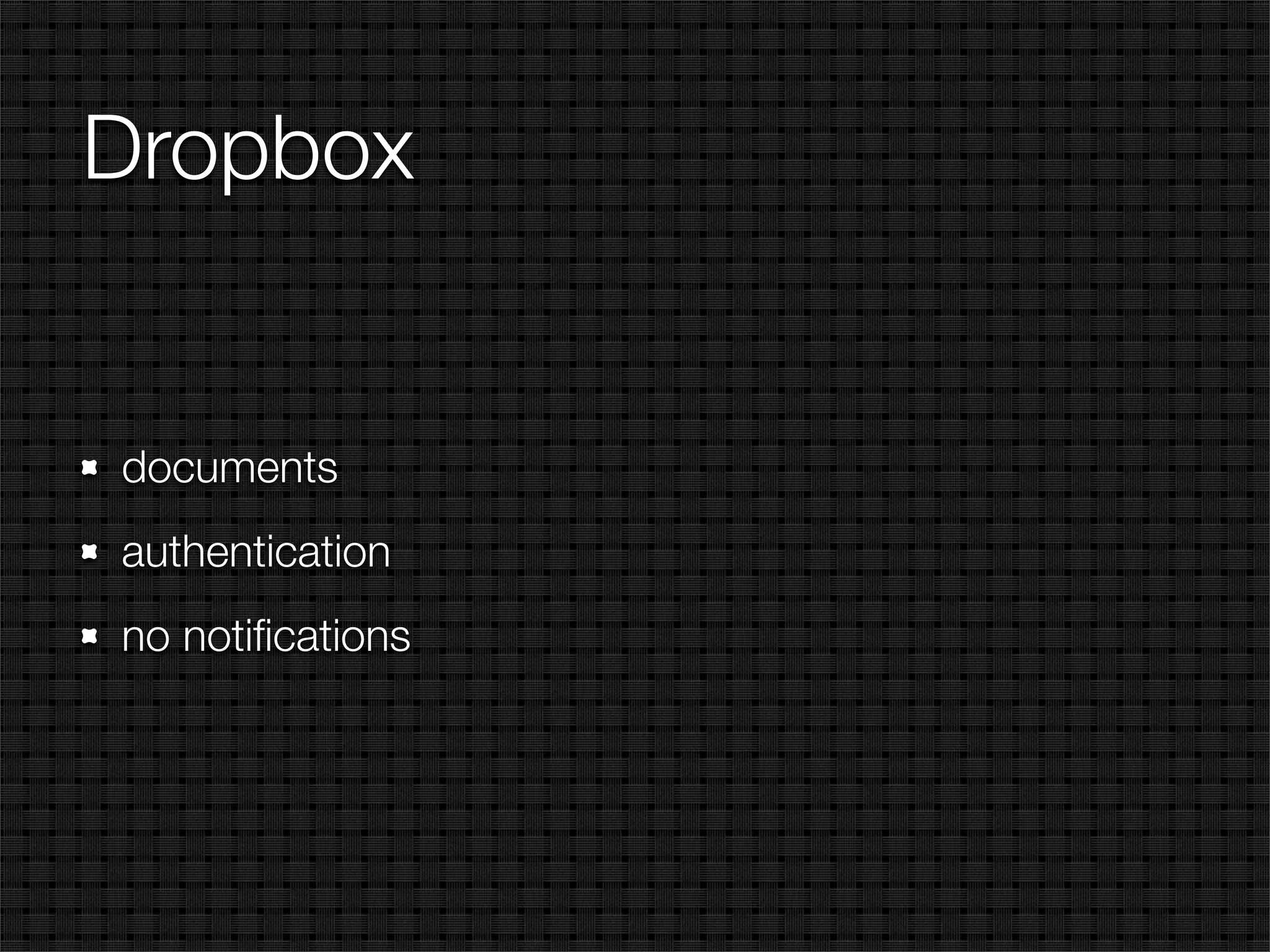

Are there alternatives?

3. Who am I?

4. UX designer and developer

5. mnml

6. < is >

7. execution matters

8. lean approach

9. 1000 details coming together

10. Giveaway

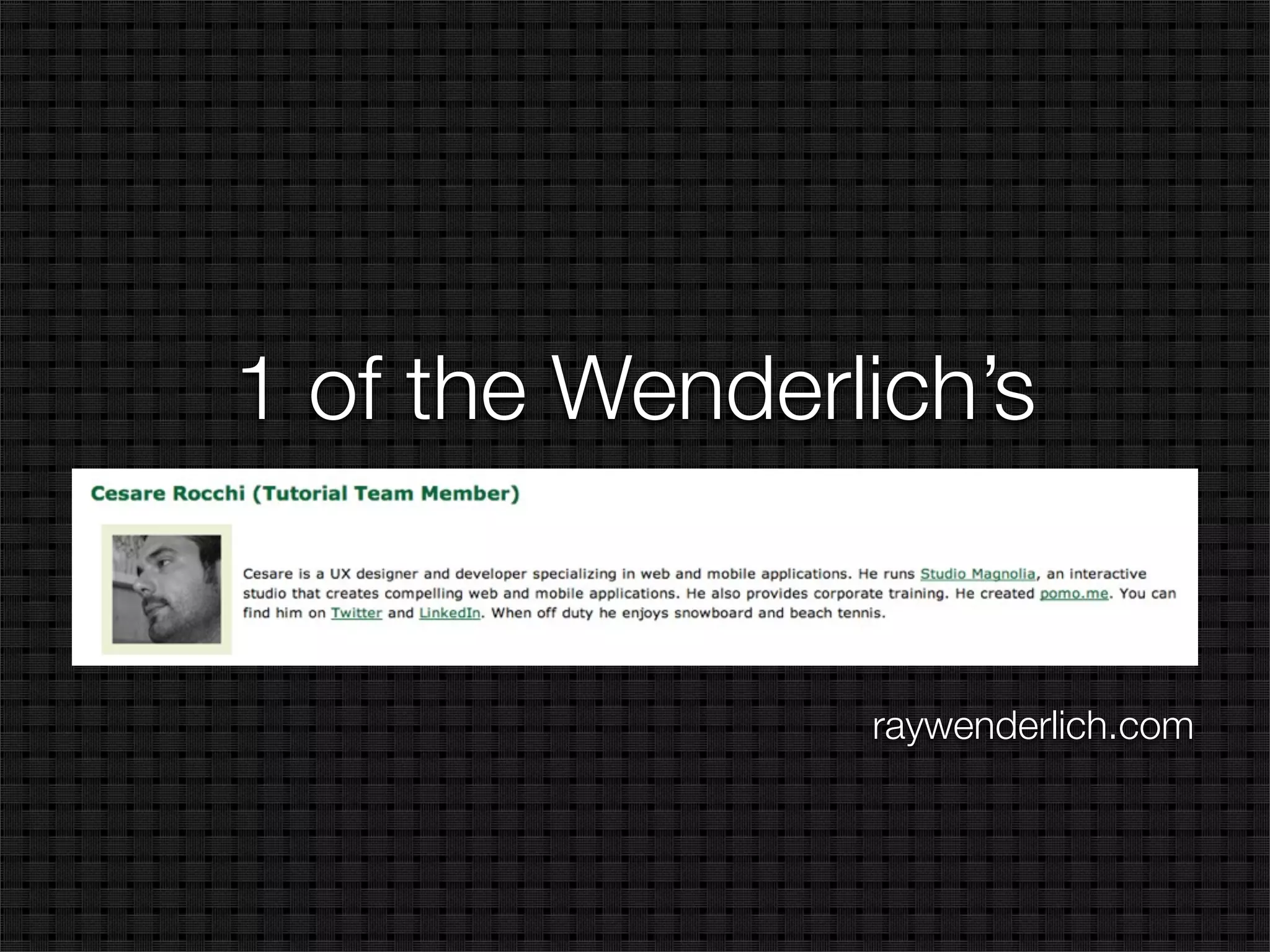

11. 1 of the Wenderlich’s
raywenderlich.com

13. ARC GameCenter API
Storyboards
News Stand
iCloud
Turn Based Gaming OpenGL ES 2.0

14. twitter.com/_funkyboy
cesare@studiomagnolia.com

15. Giveaway

16. Giveaway
(yes, another)

17. www.icloudfordevelopers.com

18. UIDocument
Key-Value store

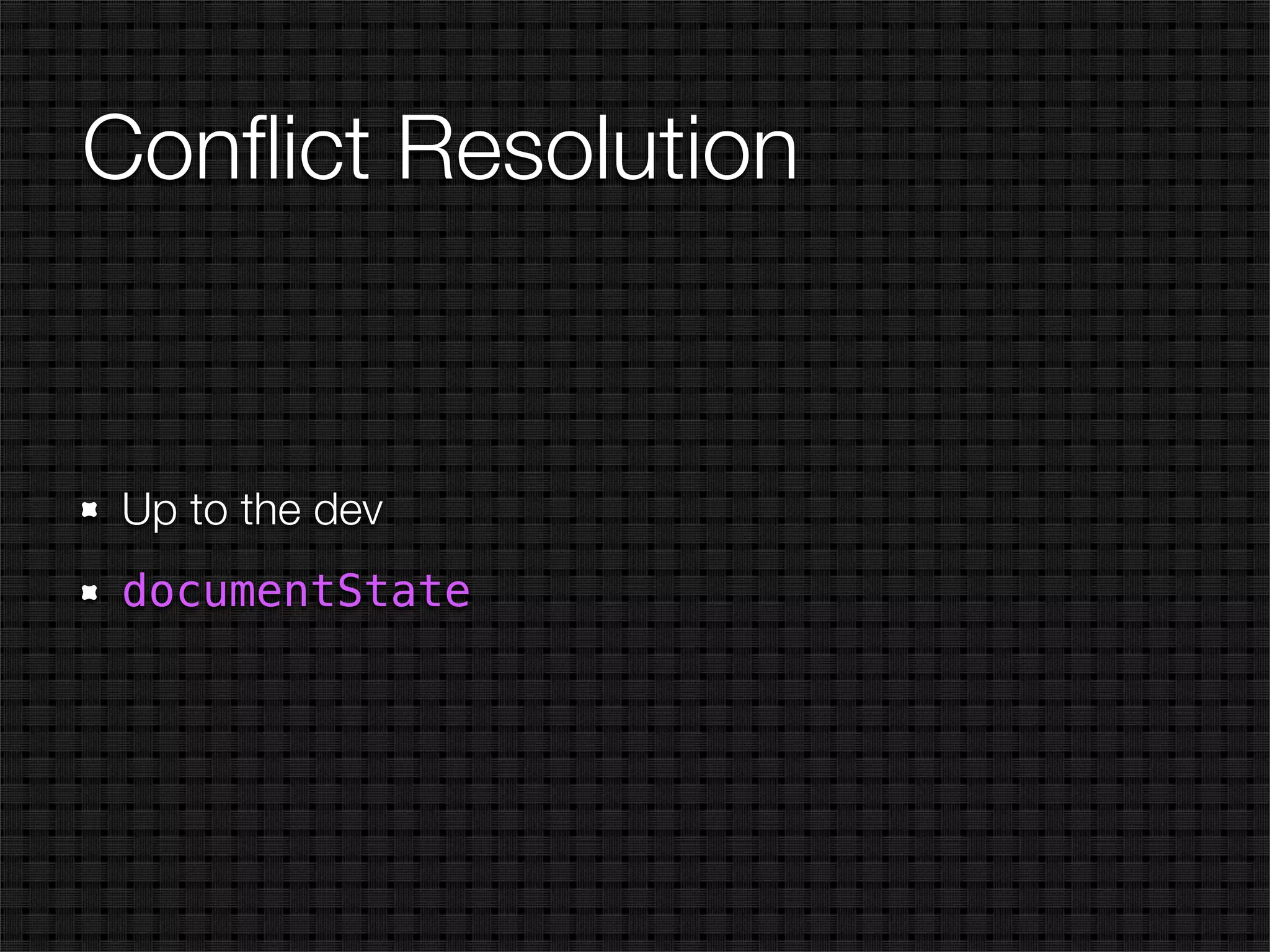

Conflict
Resolution
CoreData
Custom
Documents
www.icloudfordevelopers.com

19. twitter.com/_funkyboy
cesare@studiomagnolia.com
www.icloudfordevelopers.com

20. Who are you?

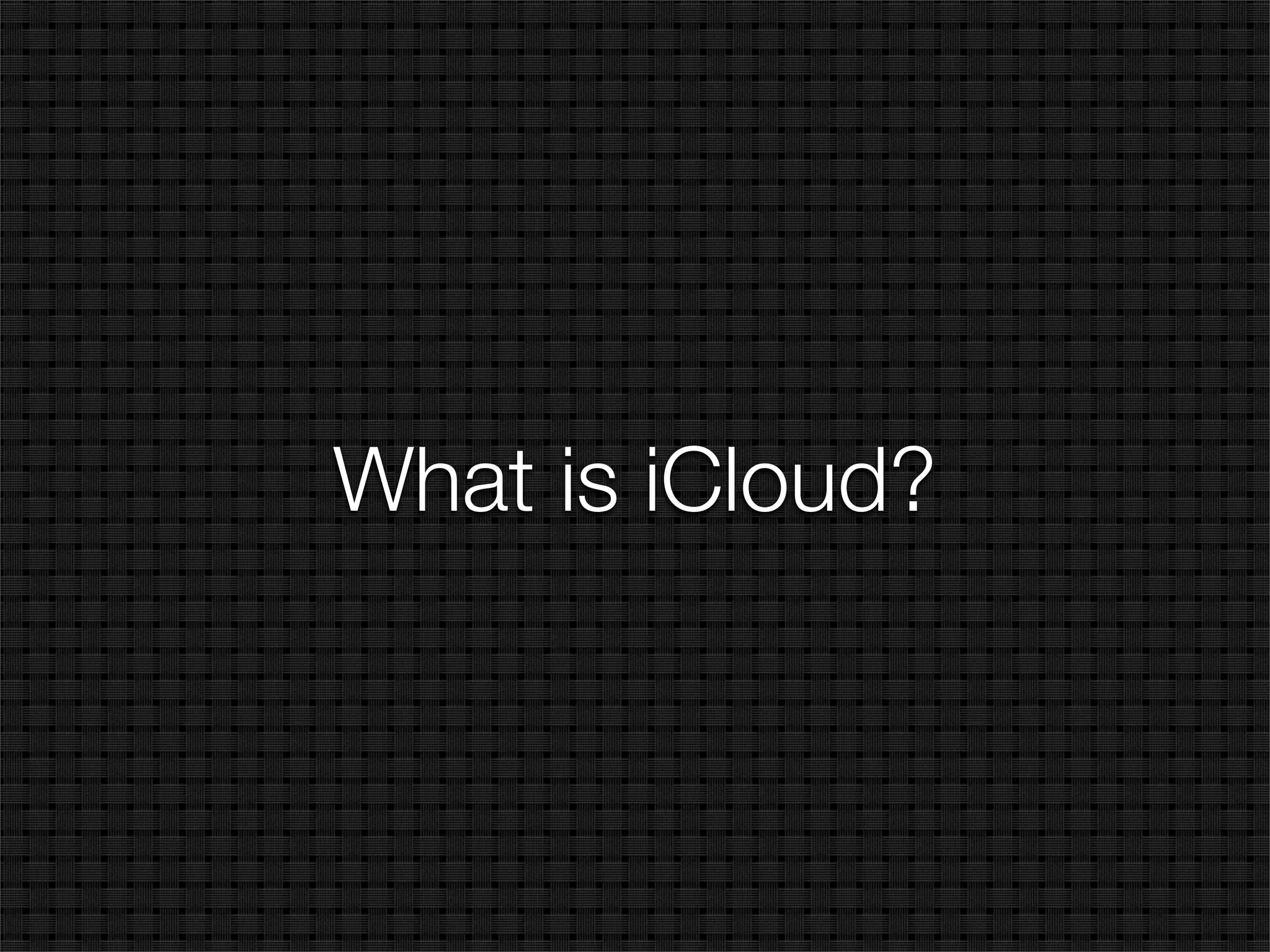

21. What is iCloud?

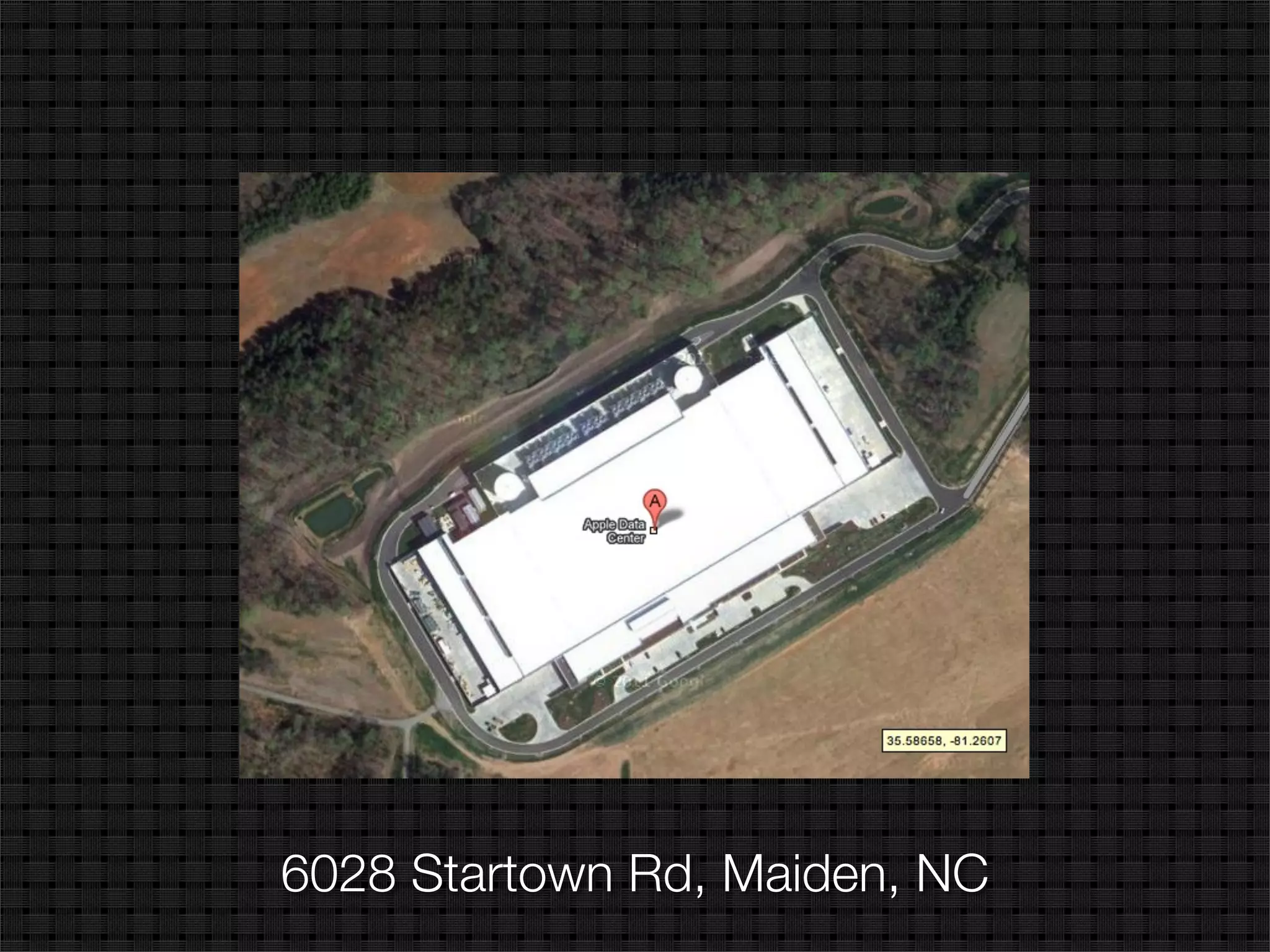

22. 6028 Startown Rd, Maiden, NC

23. Stores and synchs stuff

24. It just works ...

25. ... when it works

26. Seamlessness can be a limit

27. Pros (for devs)
No server setup
No costs
No rumination on synch

28. Cons (for devs)
Stick to a synch model
No http API

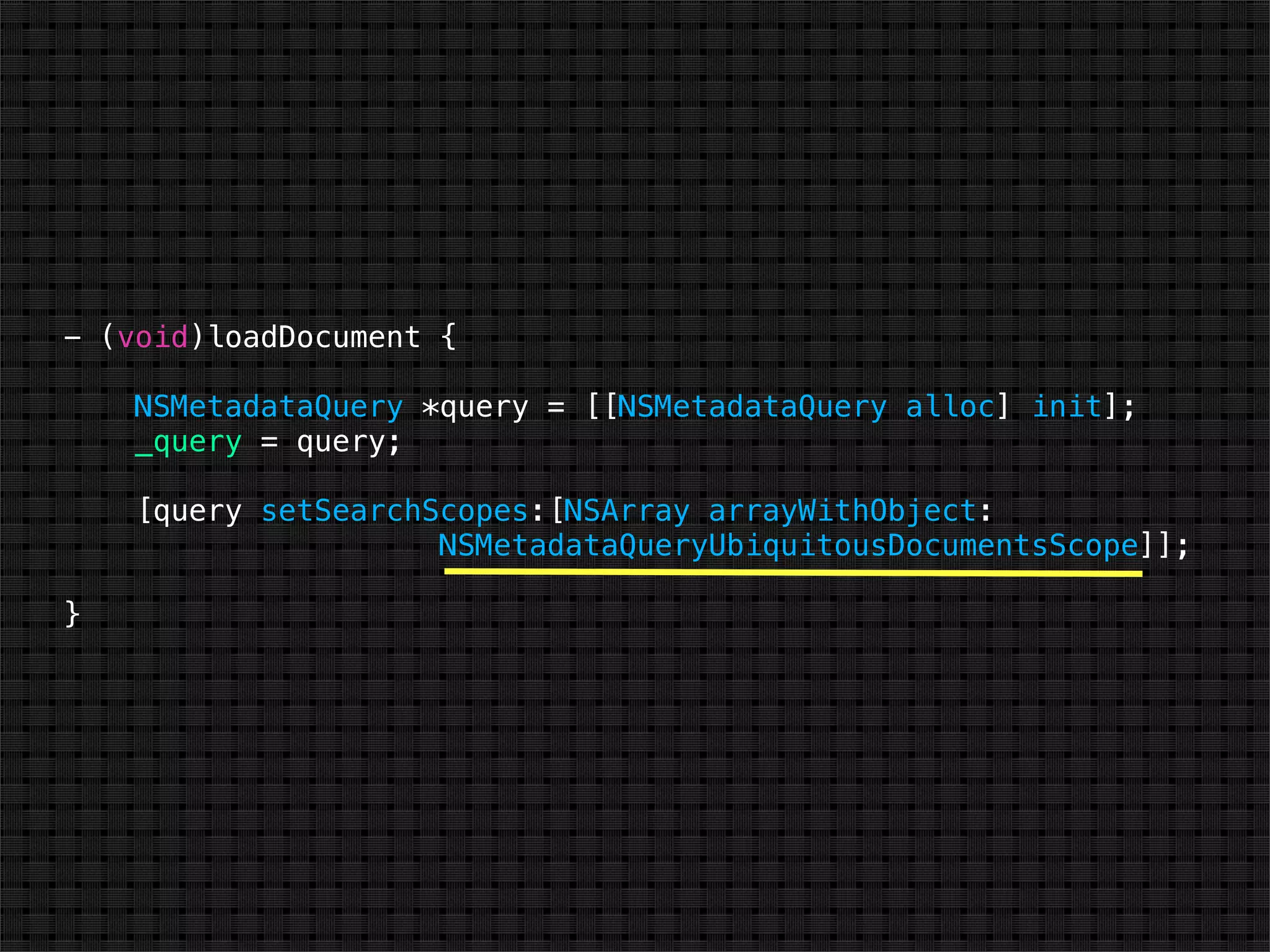

No control on upload

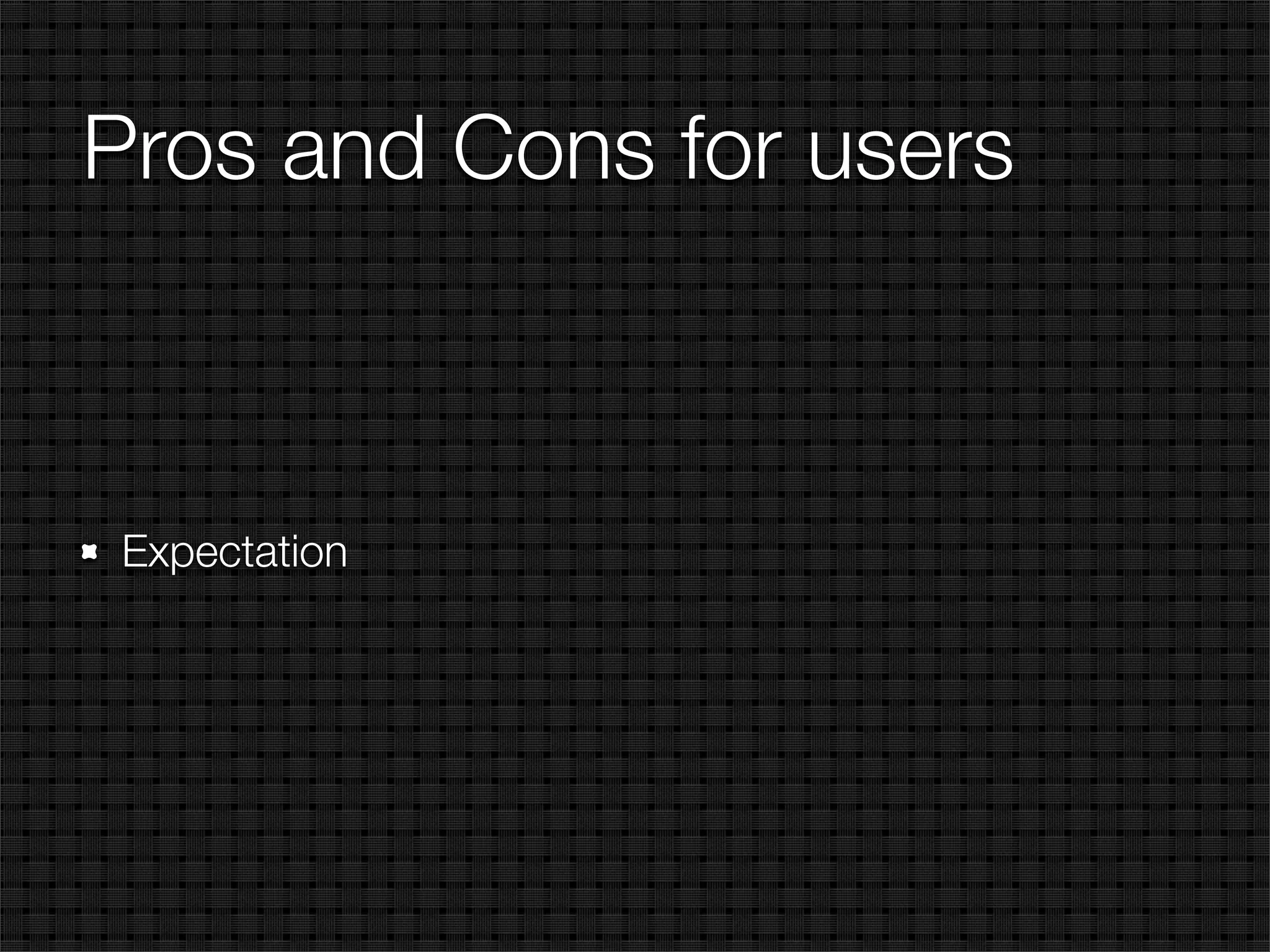

29. Pros and Cons for users
Expectation

30. Under the hood

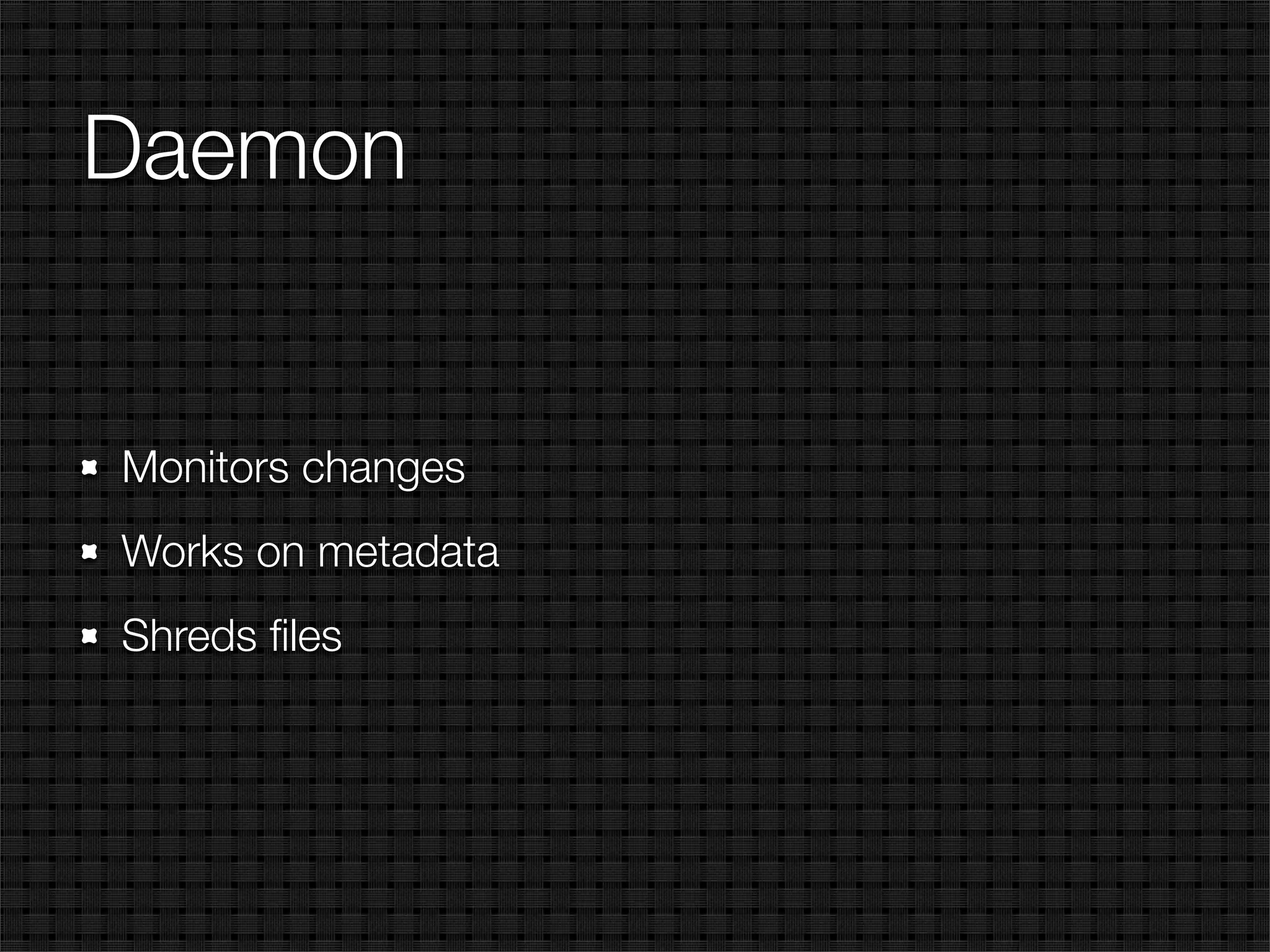

32. Daemon
Monitors changes
Works on metadata
Shreds files

33. Special folder, synched

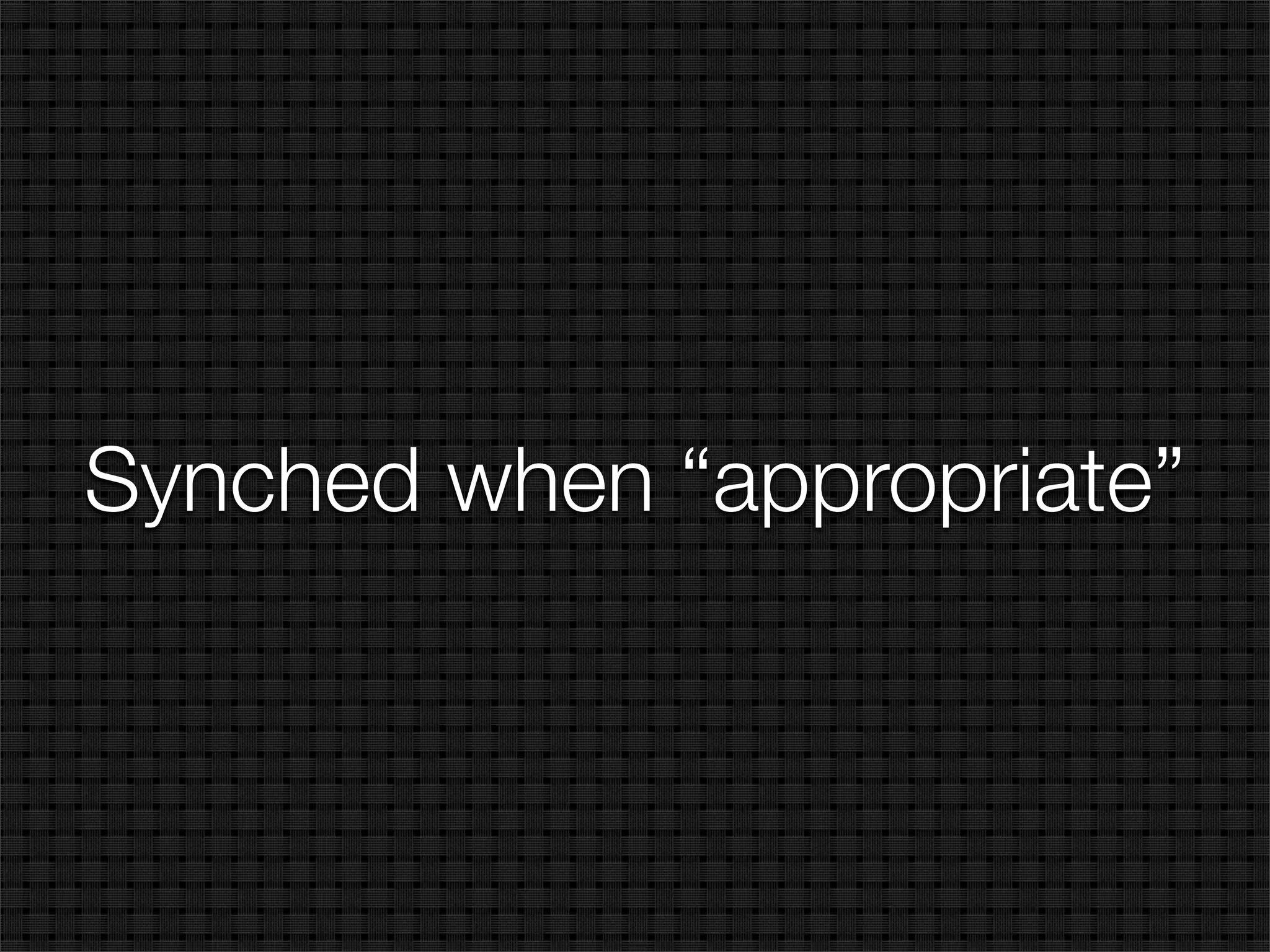

34. Synched when “appropriate”

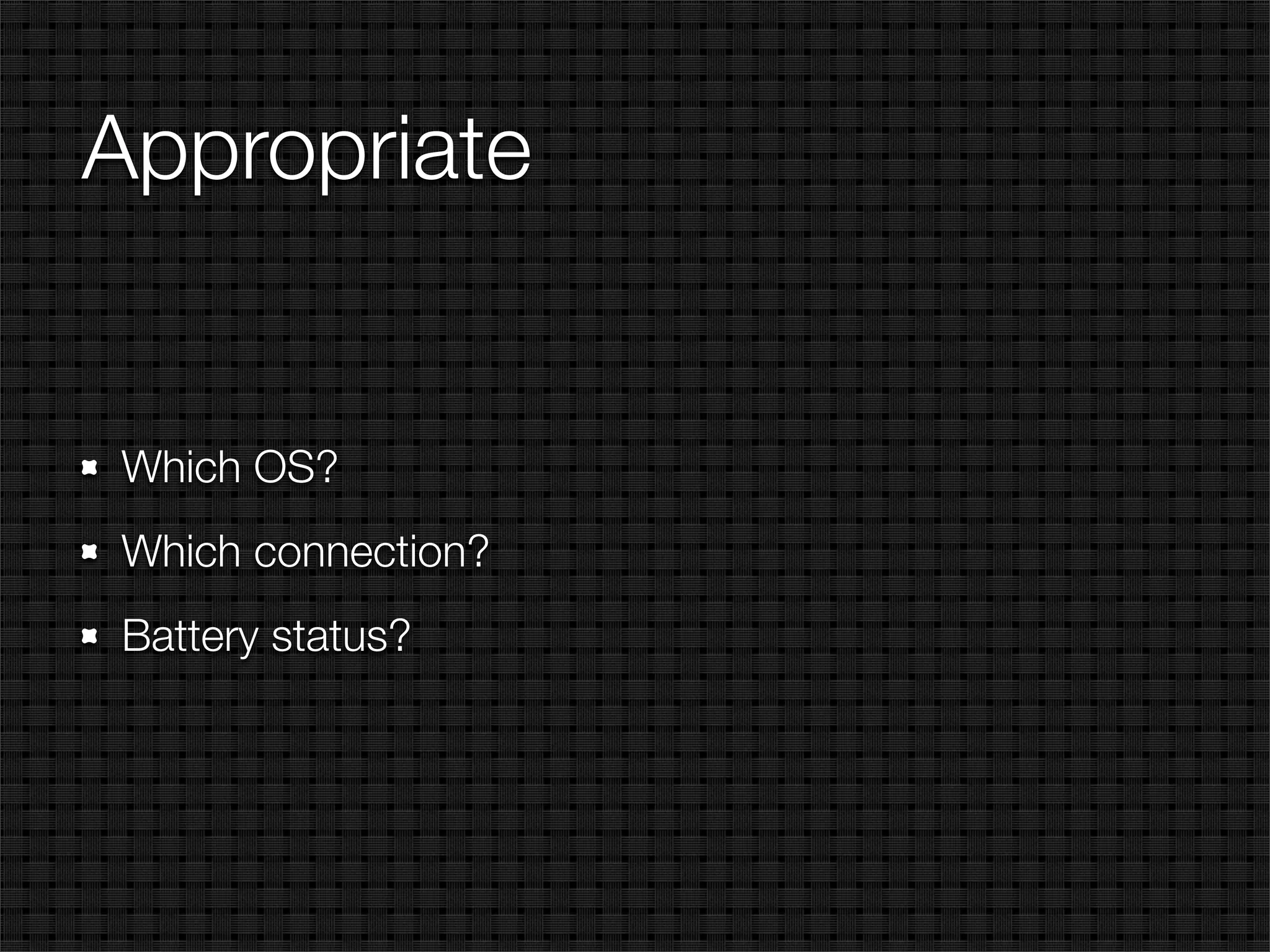

35. Appropriate
Which OS?
Which connection?
Battery status?

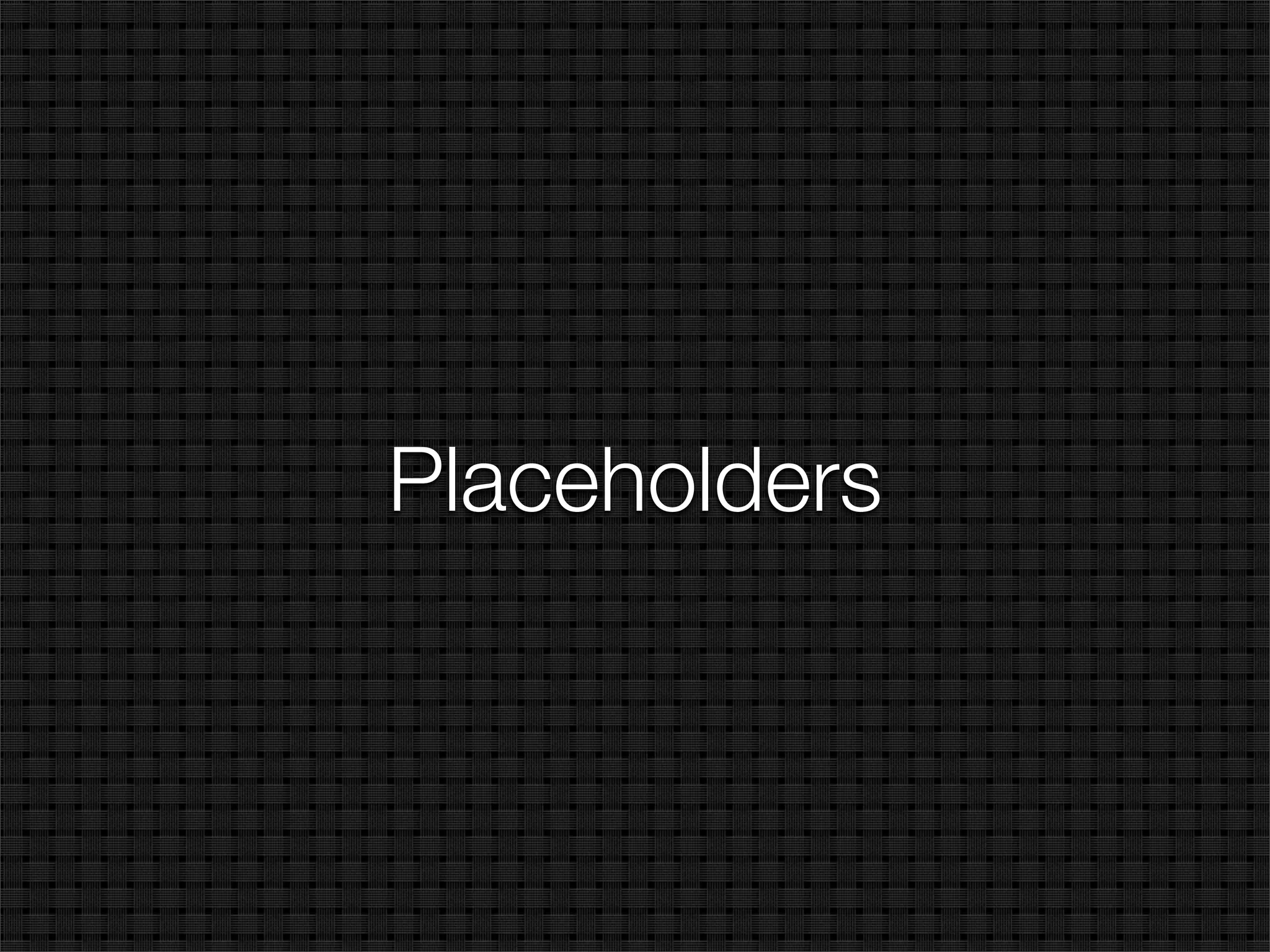

36. Placeholders

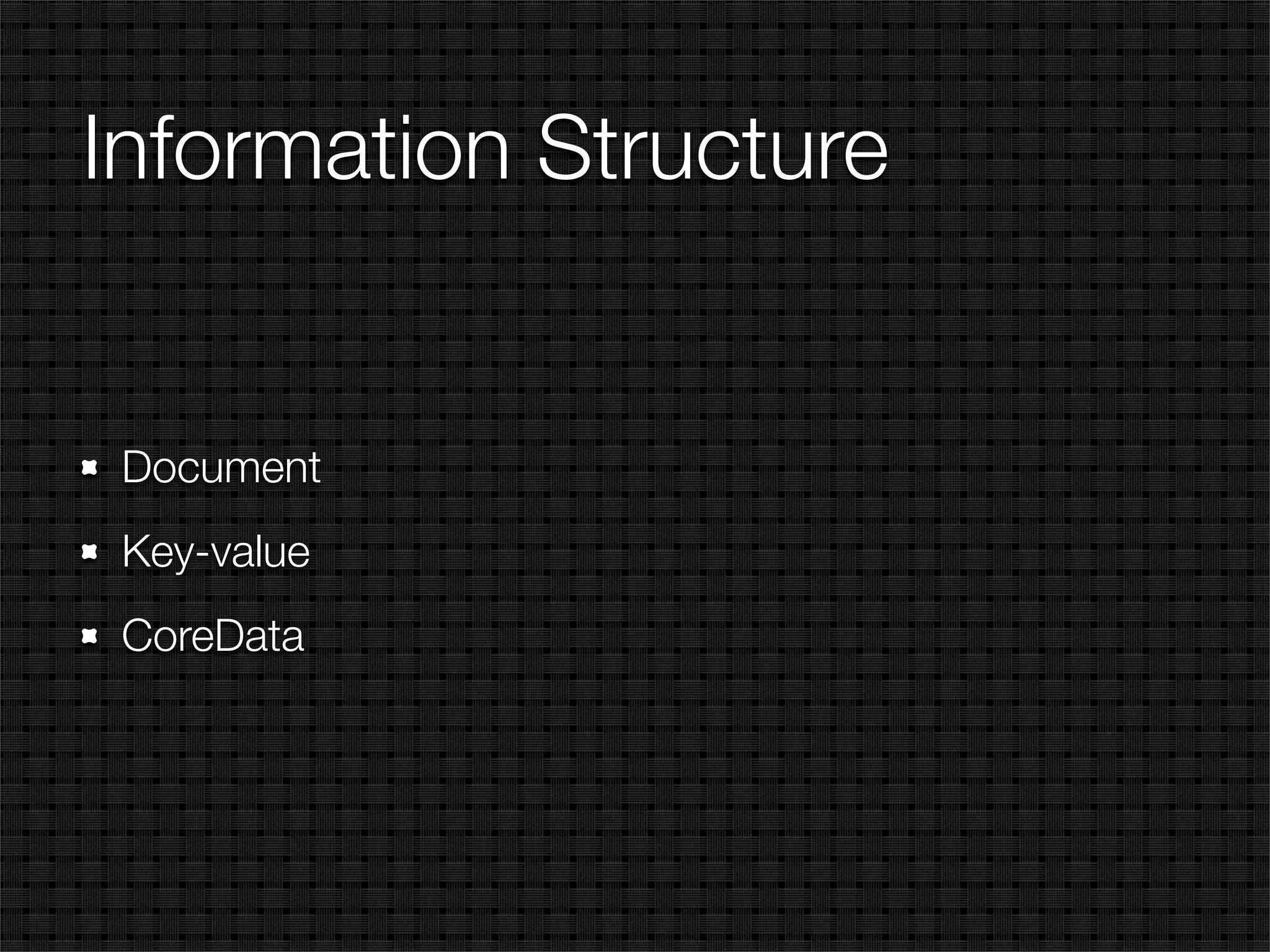

39. Information Structure
Document
Key-value
CoreData

40. UIDocument

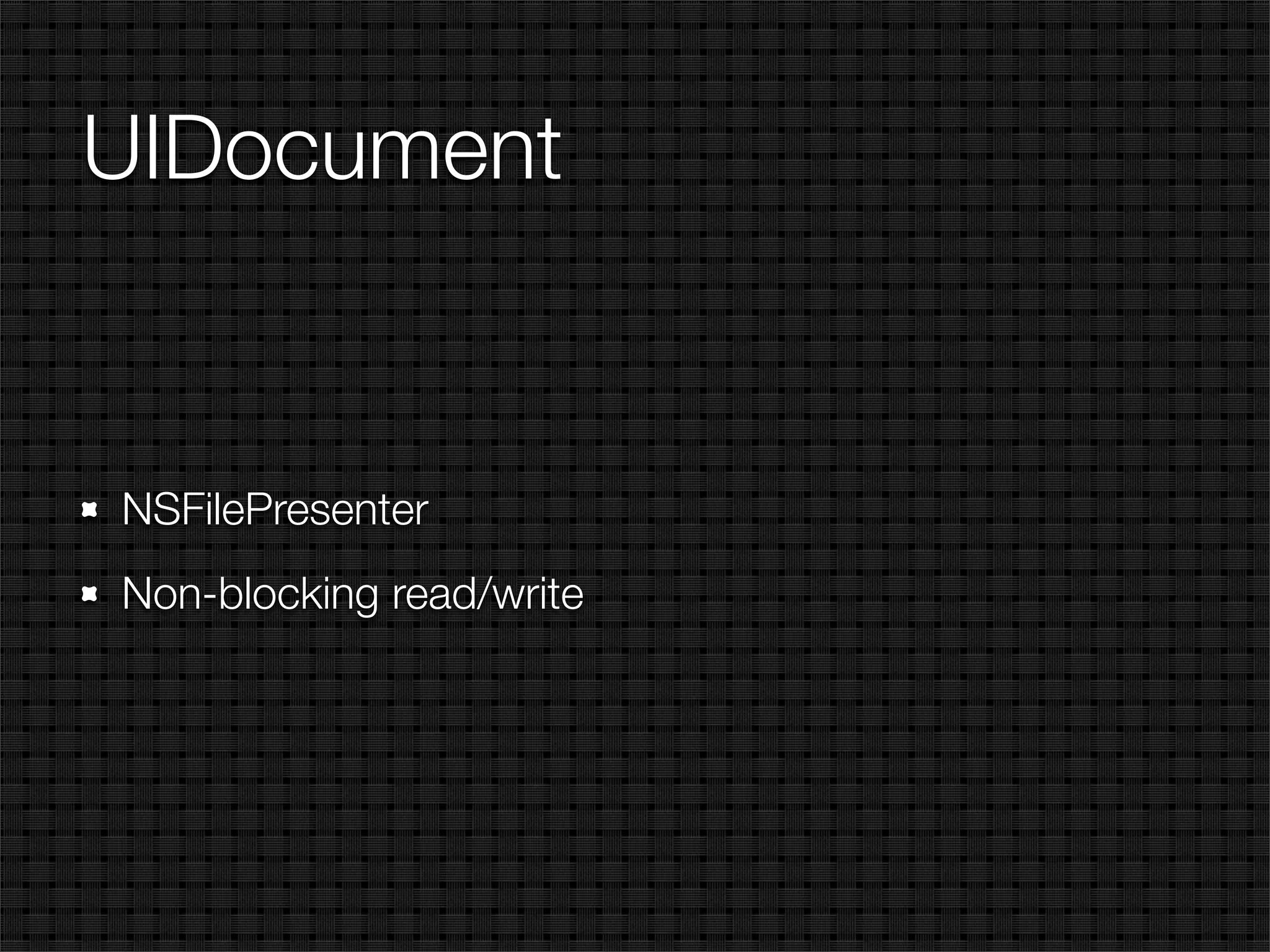

41. UIDocument
NSFilePresenter
Non-blocking read/write

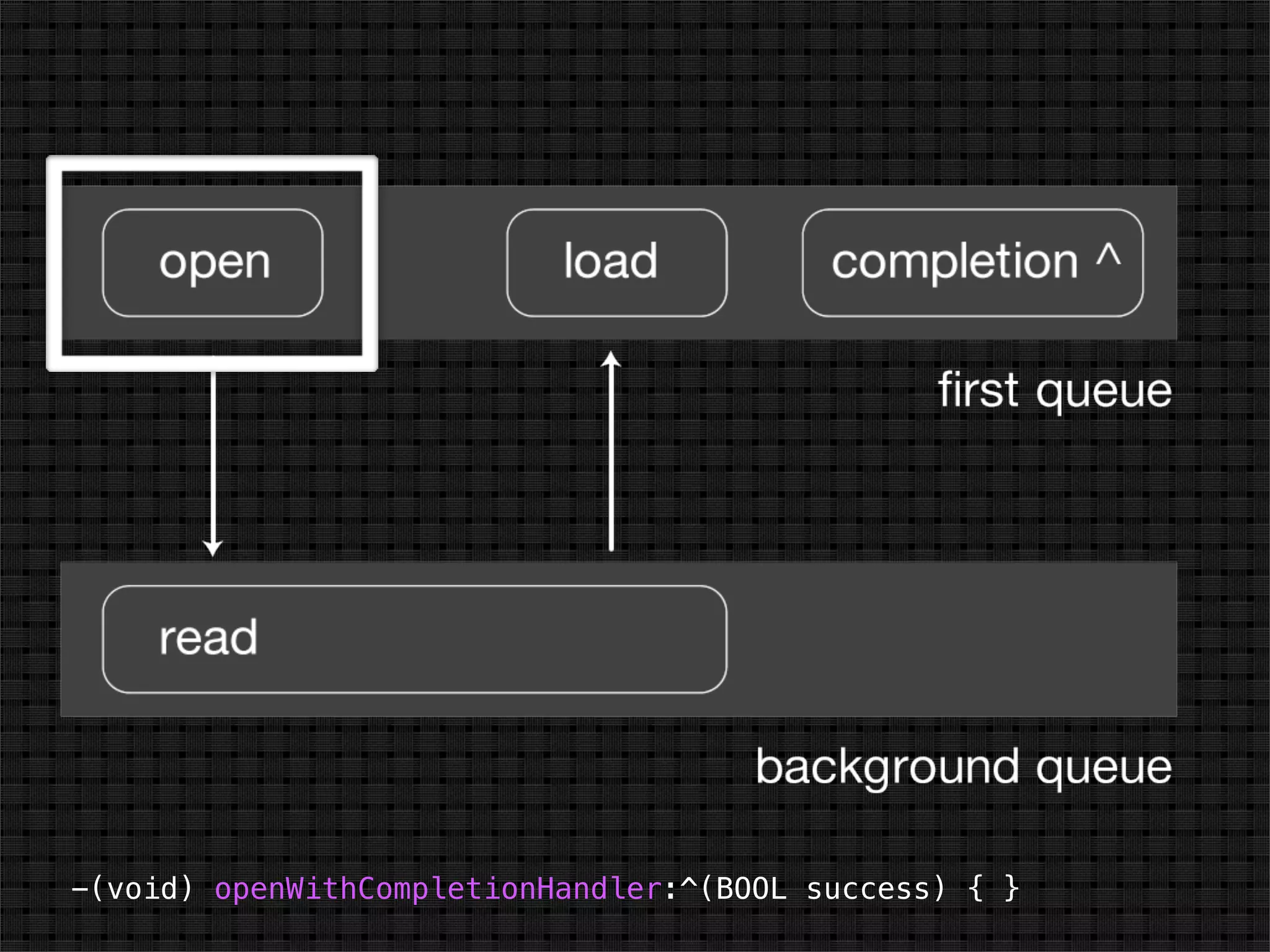

43. -(void) openWithCompletionHandler:^(BOOL success) { }

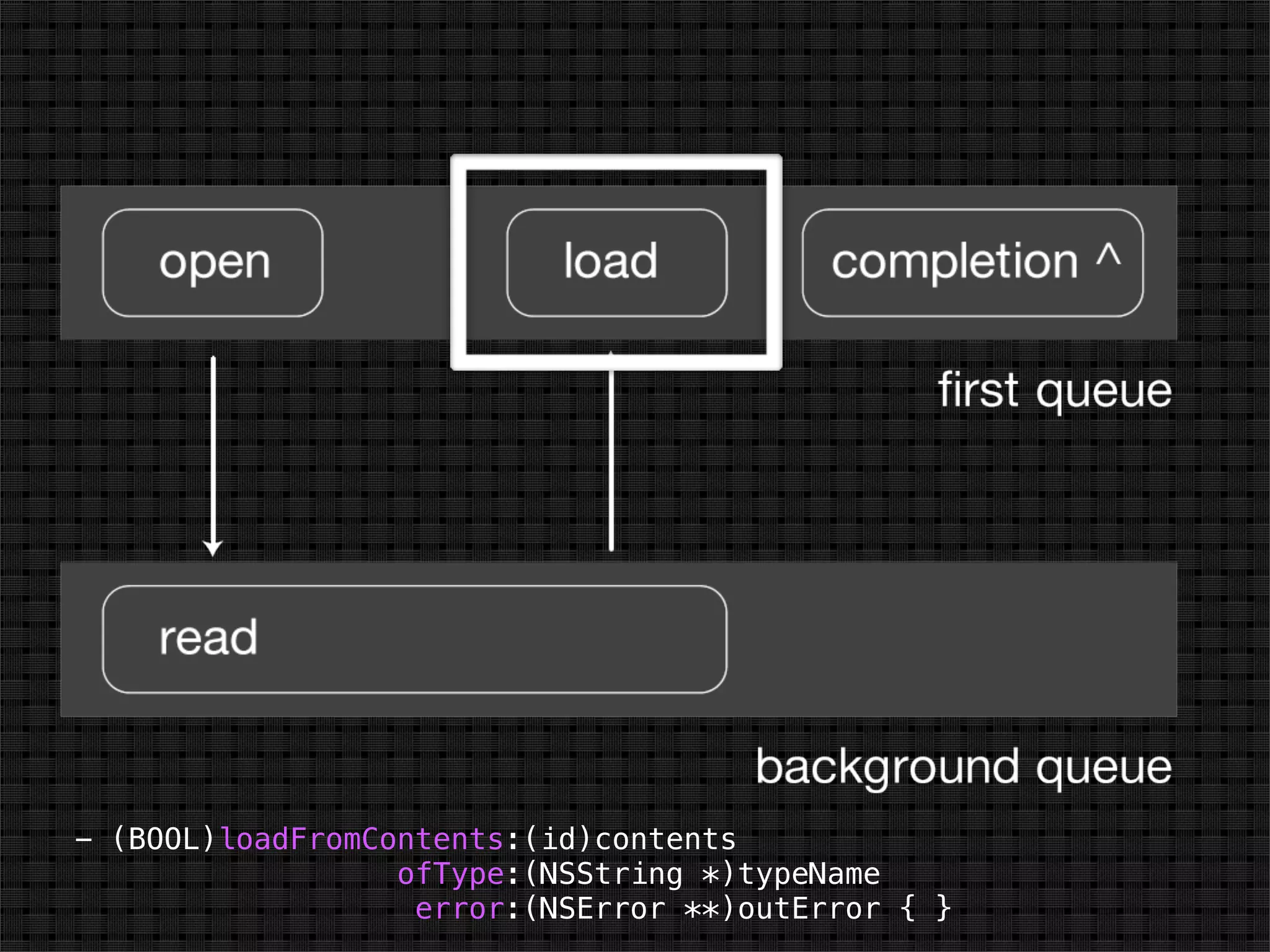

44. - (BOOL)loadFromContents:(id)contents
ofType:(NSString *)typeName
error:(NSError **)outError { }

45. @interface SMNote : UIDocument

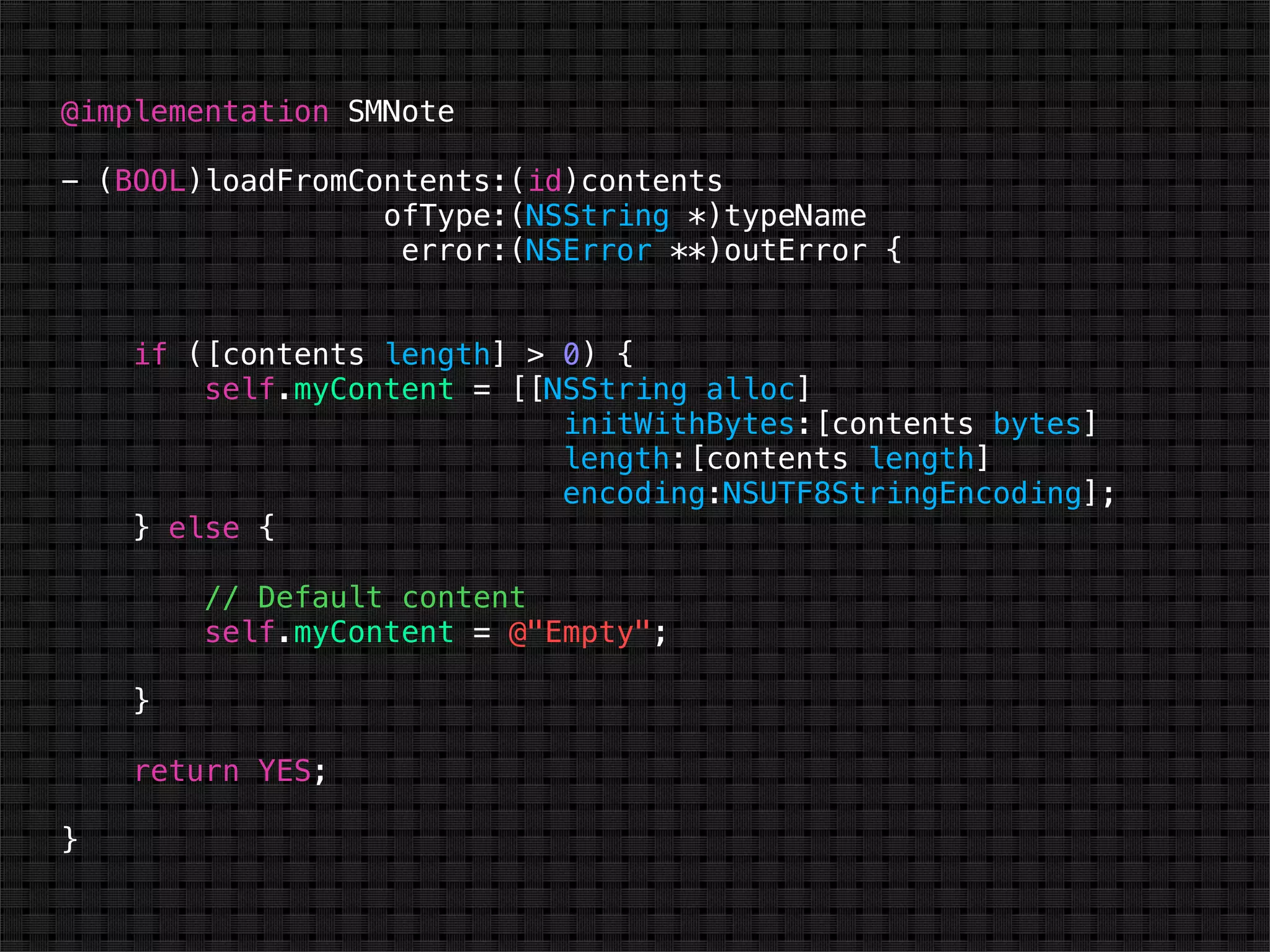

46. @implementation SMNote
- (BOOL)loadFromContents:(id)contents
ofType:(NSString *)typeName
error:(NSError **)outError {
if ([contents length] > 0) {
self.myContent = [[NSString alloc]
initWithBytes:[contents bytes]
length:[contents length]
encoding:NSUTF8StringEncoding];
} else {
// Default content
self.myContent = @"Empty";
}
return YES;
}

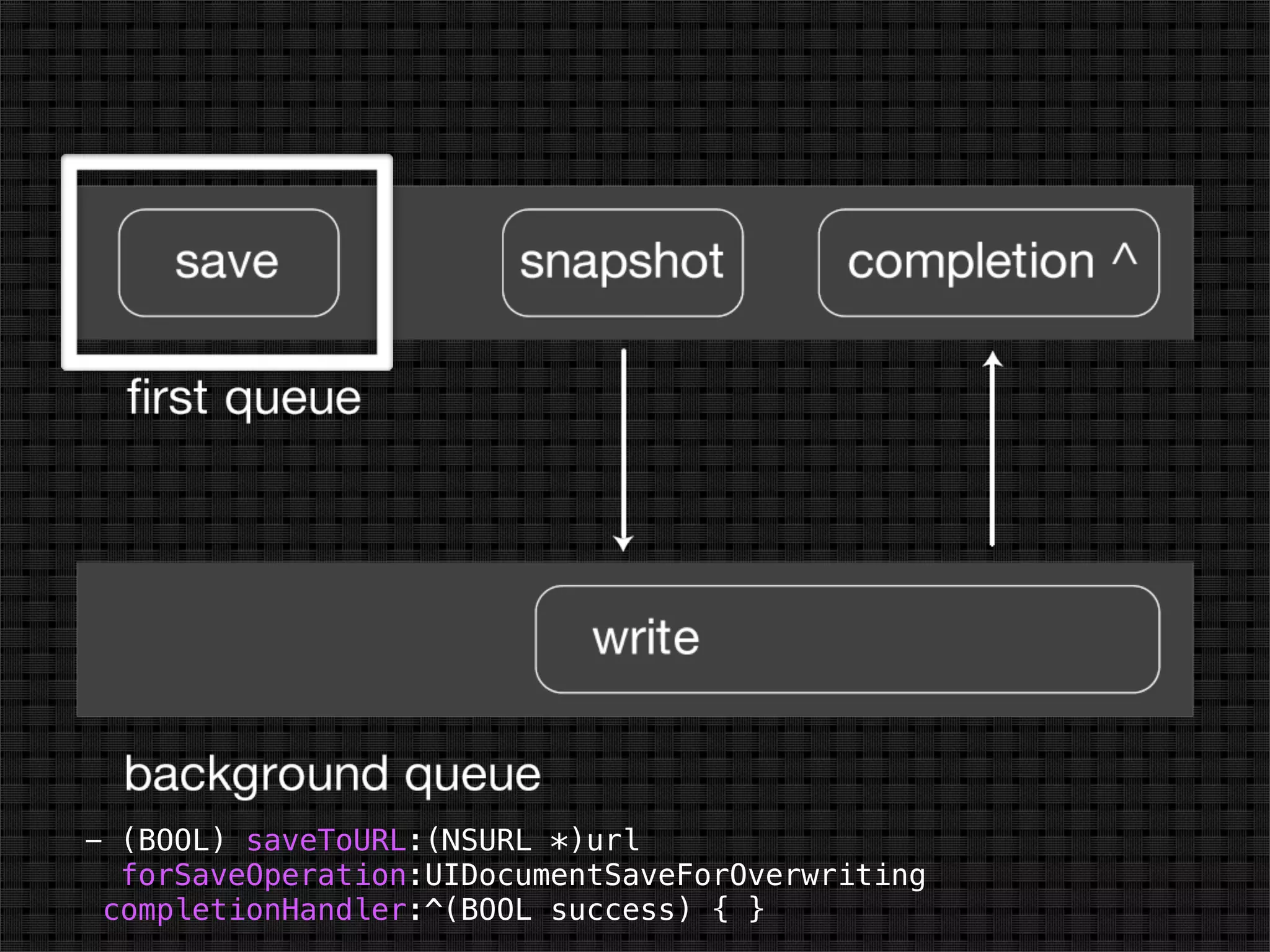

47. - (BOOL) saveToURL:(NSURL *)url
forSaveOperation:UIDocumentSaveForOverwriting
completionHandler:^(BOOL success) { }

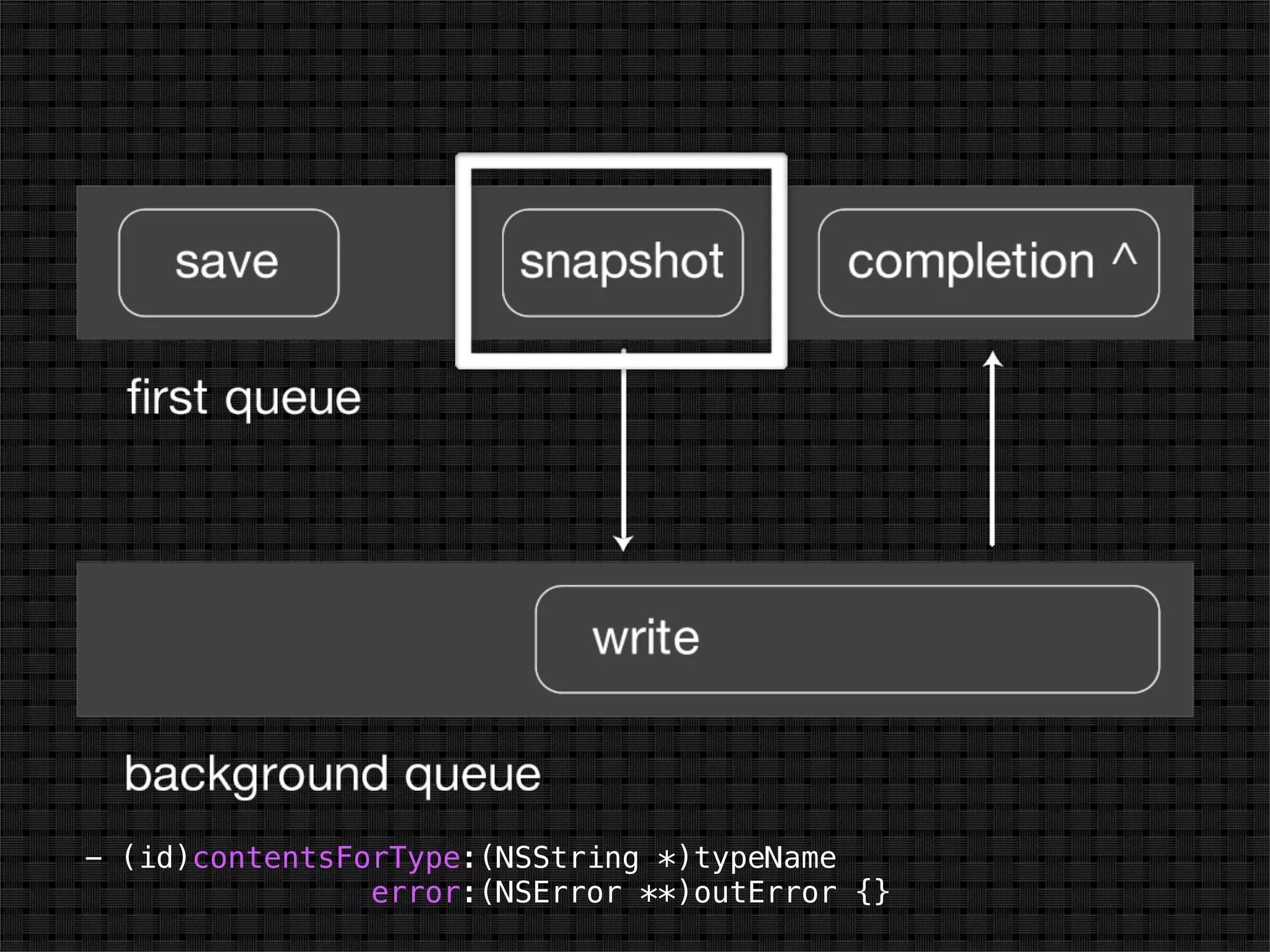

48. - (id)contentsForType:(NSString *)typeName
error:(NSError **)outError {}

49. - (id)contentsForType:(NSString *)typeName
error:(NSError **)outError {
return [NSData dataWithBytes:[self.myContent UTF8String]
length:[self.myContent length]];
}

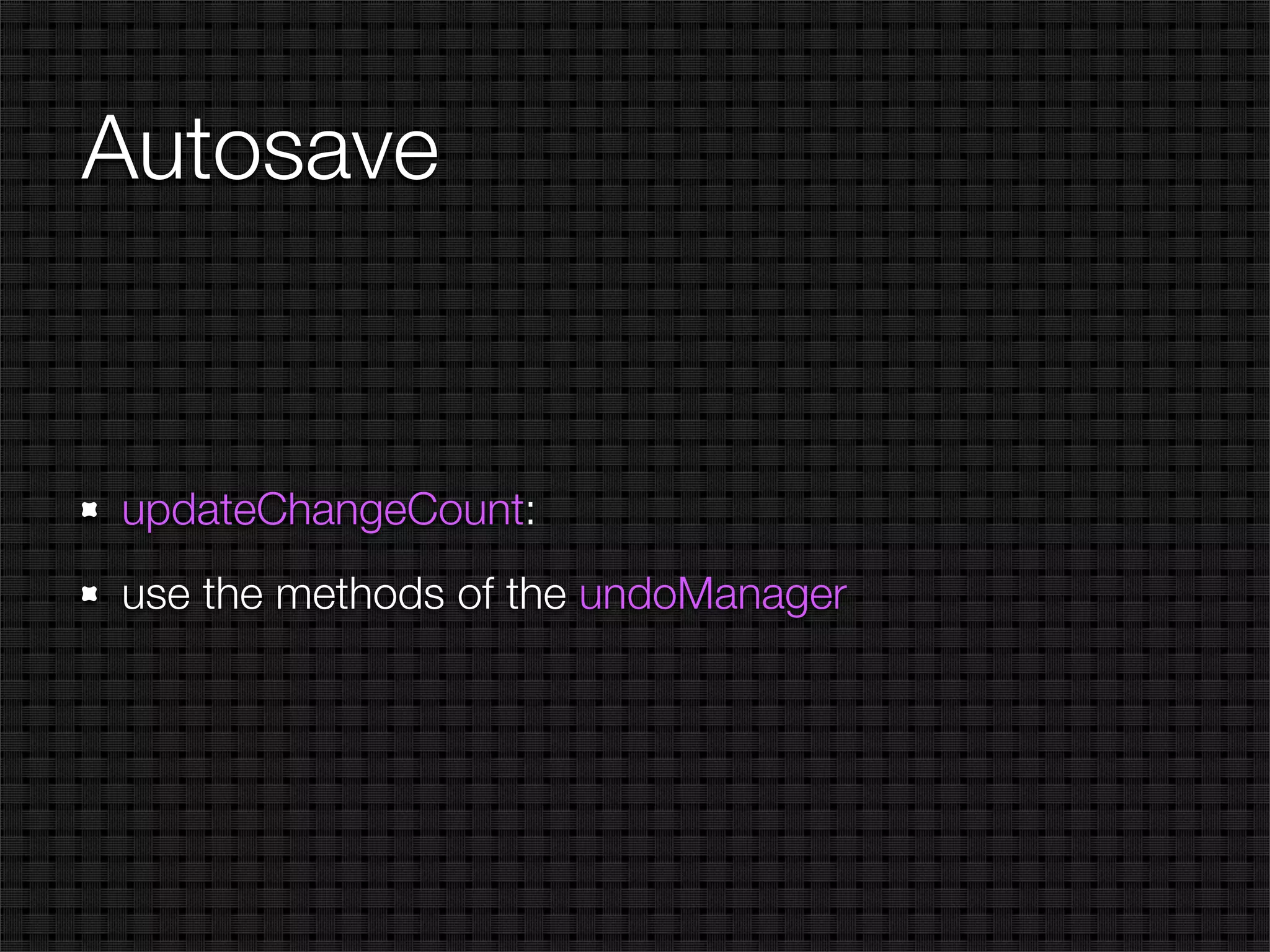

50. Autosave
updateChangeCount:
use the methods of the undoManager

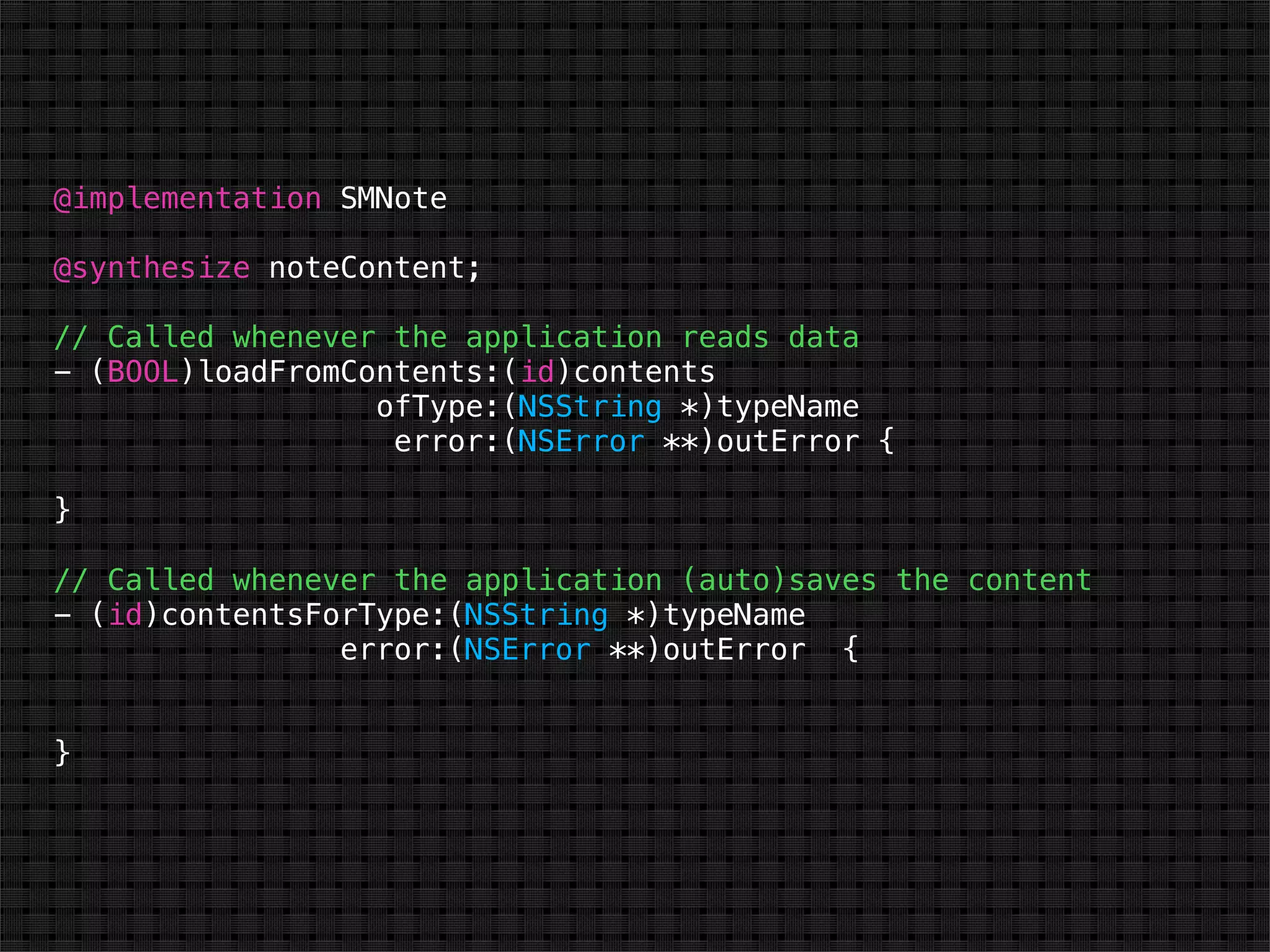

51. @implementation SMNote
@synthesize noteContent;
// Called whenever the application reads data
- (BOOL)loadFromContents:(id)contents
ofType:(NSString *)typeName
error:(NSError **)outError {
}
// Called whenever the application (auto)saves the content
- (id)contentsForType:(NSString *)typeName
error:(NSError **)outError {
}

52. Opening a document

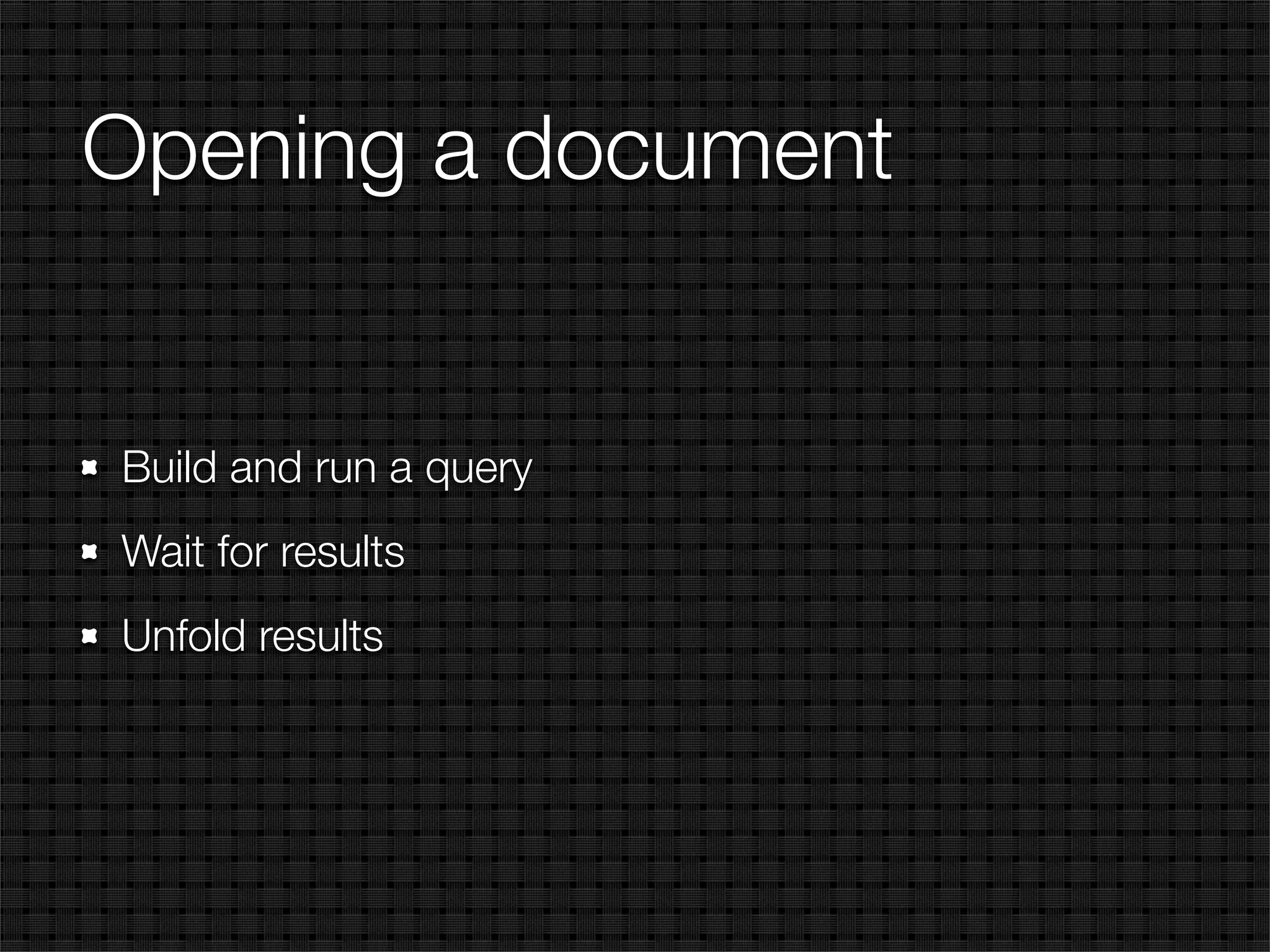

53. Opening a document
Build and run a query
Wait for results
Unfold results

54. #import "SMNote.h"
@interface SMAppDelegate : UIResponder <UIApplicationDelegate>
@property (strong, nonatomic) UIWindow *window;
@property (strong, nonatomic) SMViewController *viewController;
@property (strong) SMNote *doc;
@property (strong) NSMetadataQuery *query;
- (void)loadDocument;
@end

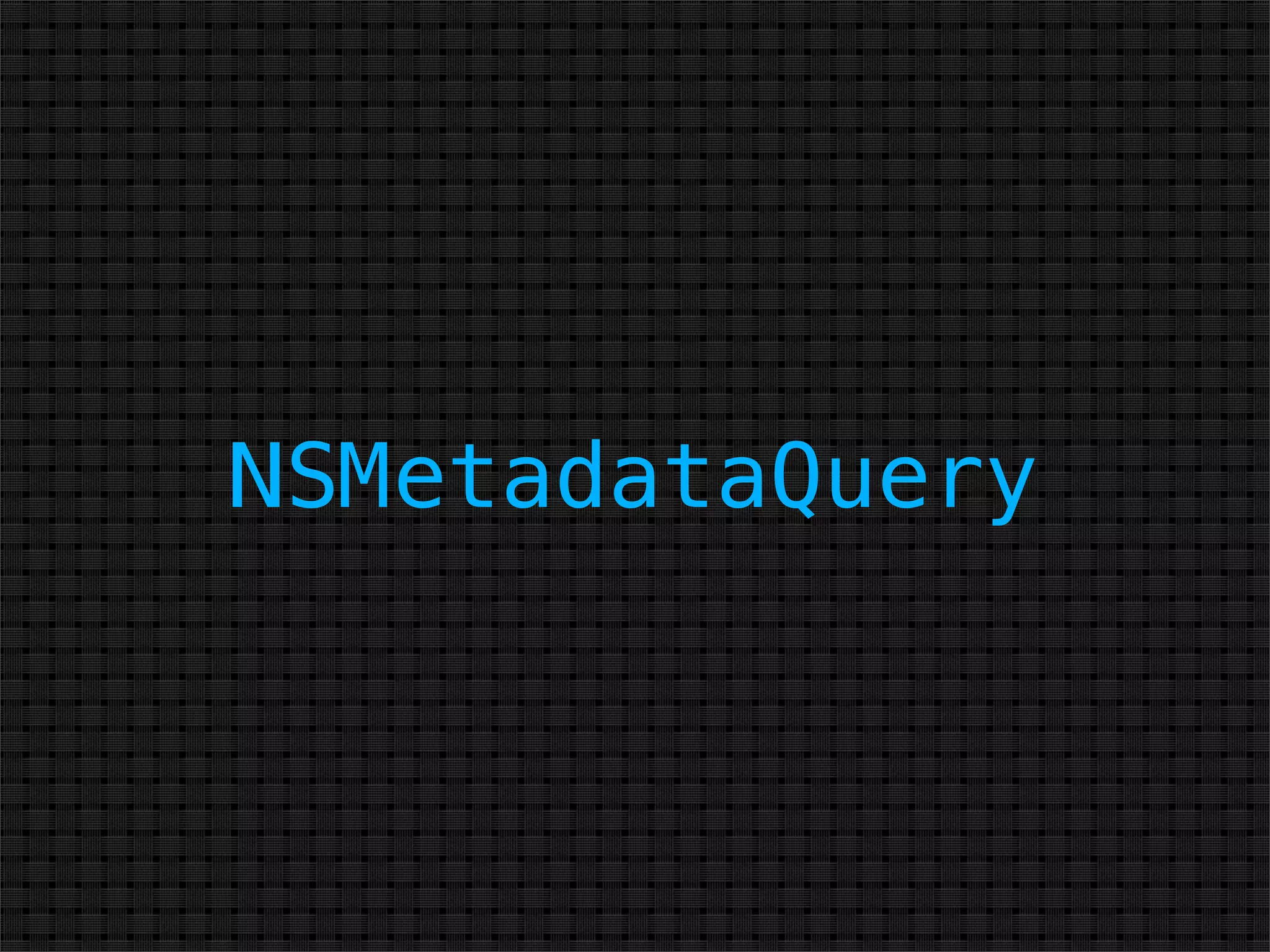

55. NSMetadataQuery

56. - (void)loadDocument {
NSMetadataQuery *query = [[NSMetadataQuery alloc] init];
_query = query;
[query setSearchScopes:[NSArray arrayWithObject:
NSMetadataQueryUbiquitousDocumentsScope]];
}

57. - (void)loadDocument {
NSMetadataQuery *query = [[NSMetadataQuery alloc] init];
_query = query;
[query setSearchScopes:[NSArray arrayWithObject:
NSMetadataQueryUbiquitousDocumentsScope]];
NSPredicate *pred = [NSPredicate predicateWithFormat:
@"%K == %@",
NSMetadataItemFSNameKey, kFILENAME];
[query setPredicate:pred];
}

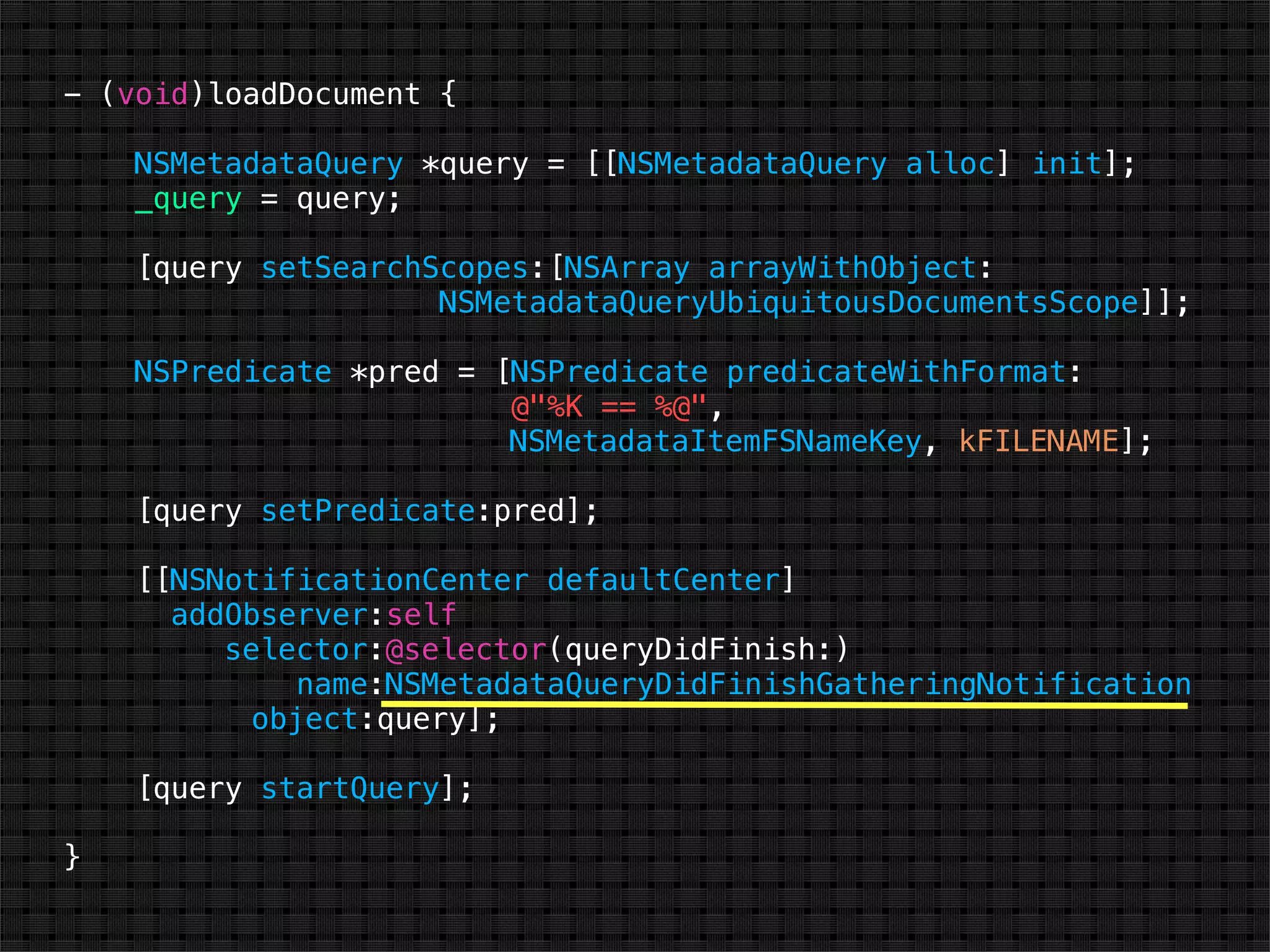

58. - (void)loadDocument {
NSMetadataQuery *query = [[NSMetadataQuery alloc] init];
_query = query;
[query setSearchScopes:[NSArray arrayWithObject:
NSMetadataQueryUbiquitousDocumentsScope]];
NSPredicate *pred = [NSPredicate predicateWithFormat:
@"%K == %@",
NSMetadataItemFSNameKey, kFILENAME];
[query setPredicate:pred];
[[NSNotificationCenter defaultCenter]
addObserver:self
selector:@selector(queryDidFinish:)
name:NSMetadataQueryDidFinishGatheringNotification
object:query];
[query startQuery];
}

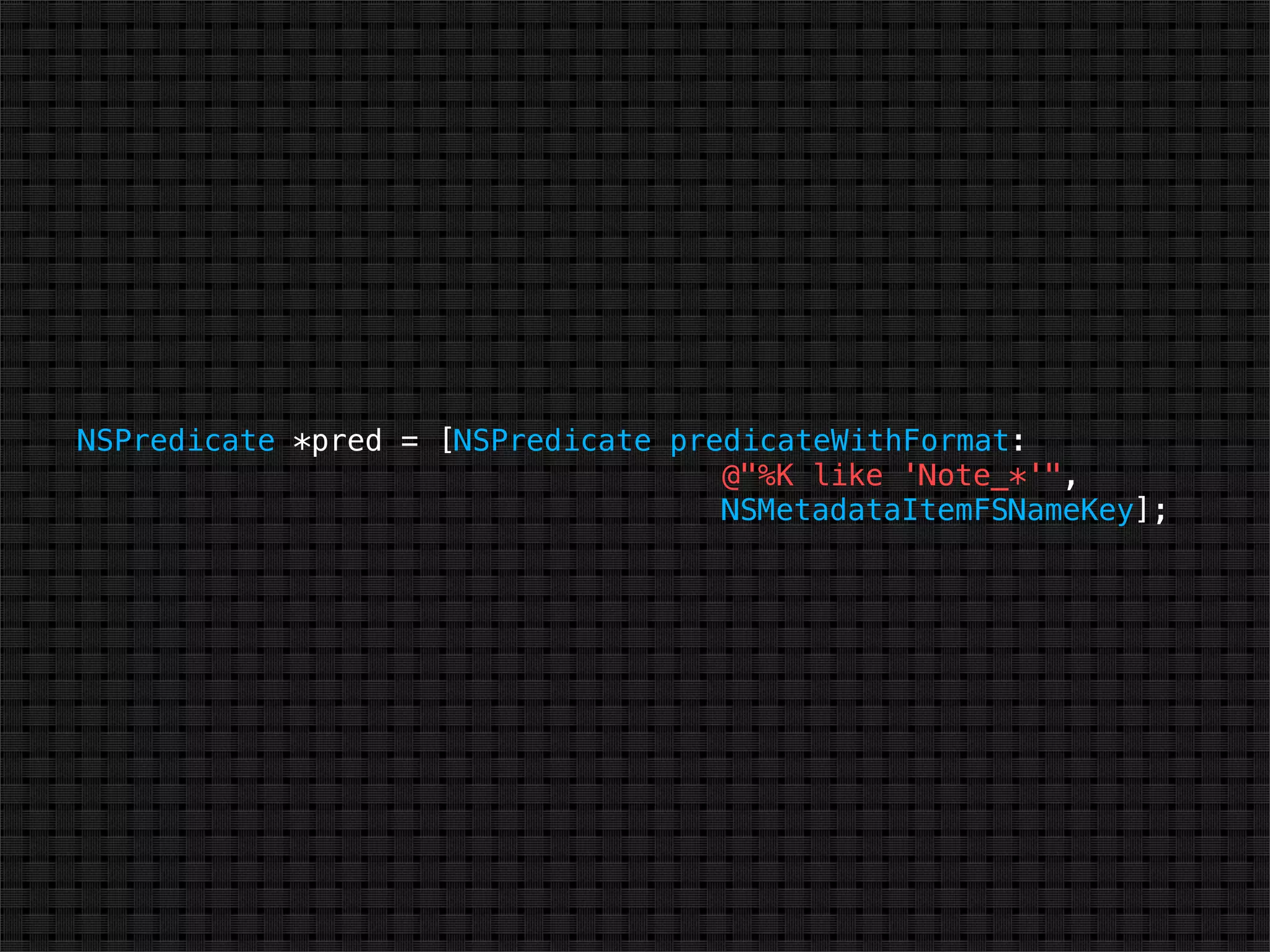

59. NSPredicate *pred = [NSPredicate predicateWithFormat:
@"%K like 'Note_*'",
NSMetadataItemFSNameKey];

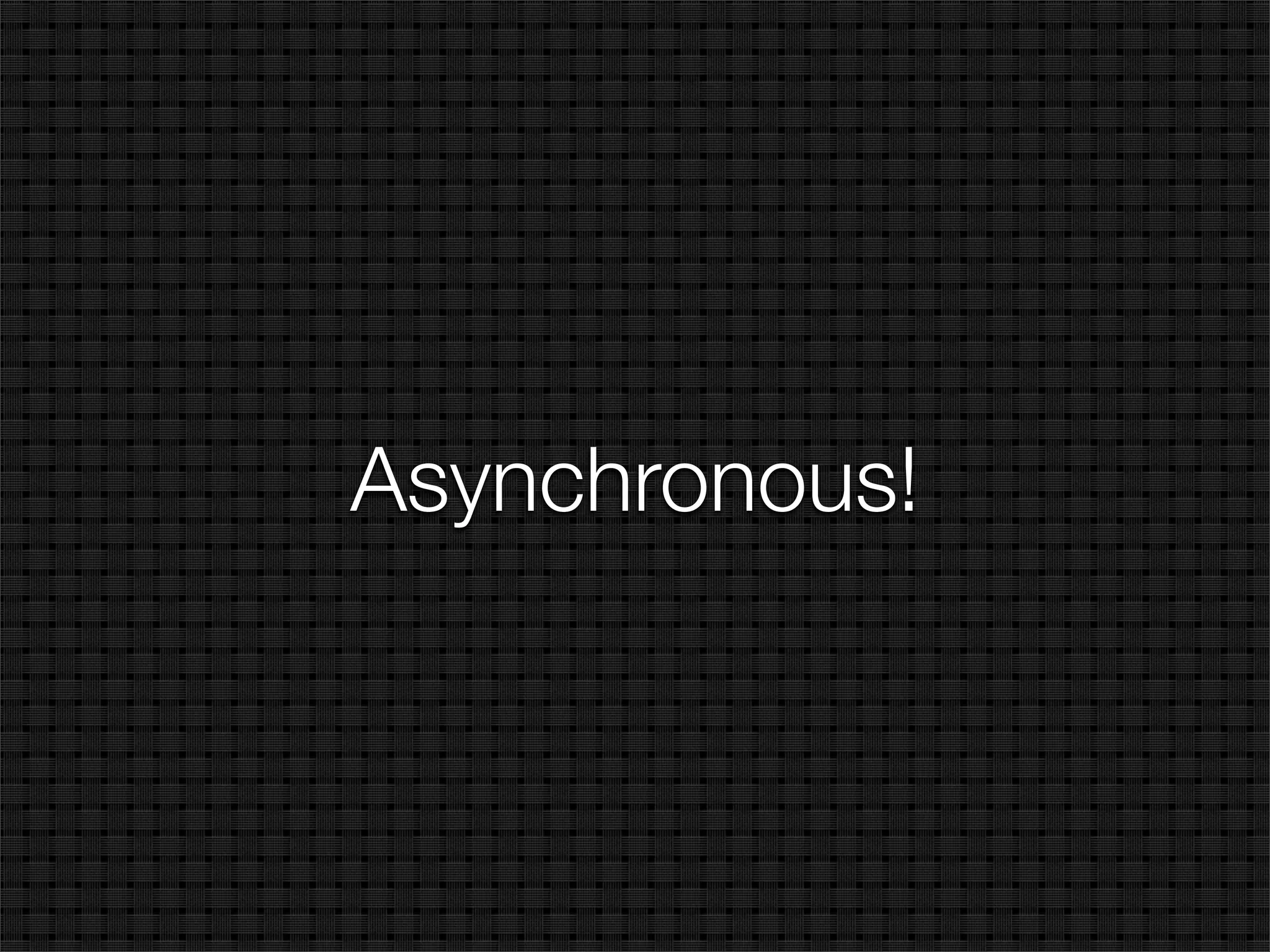

60. Asynchronous!

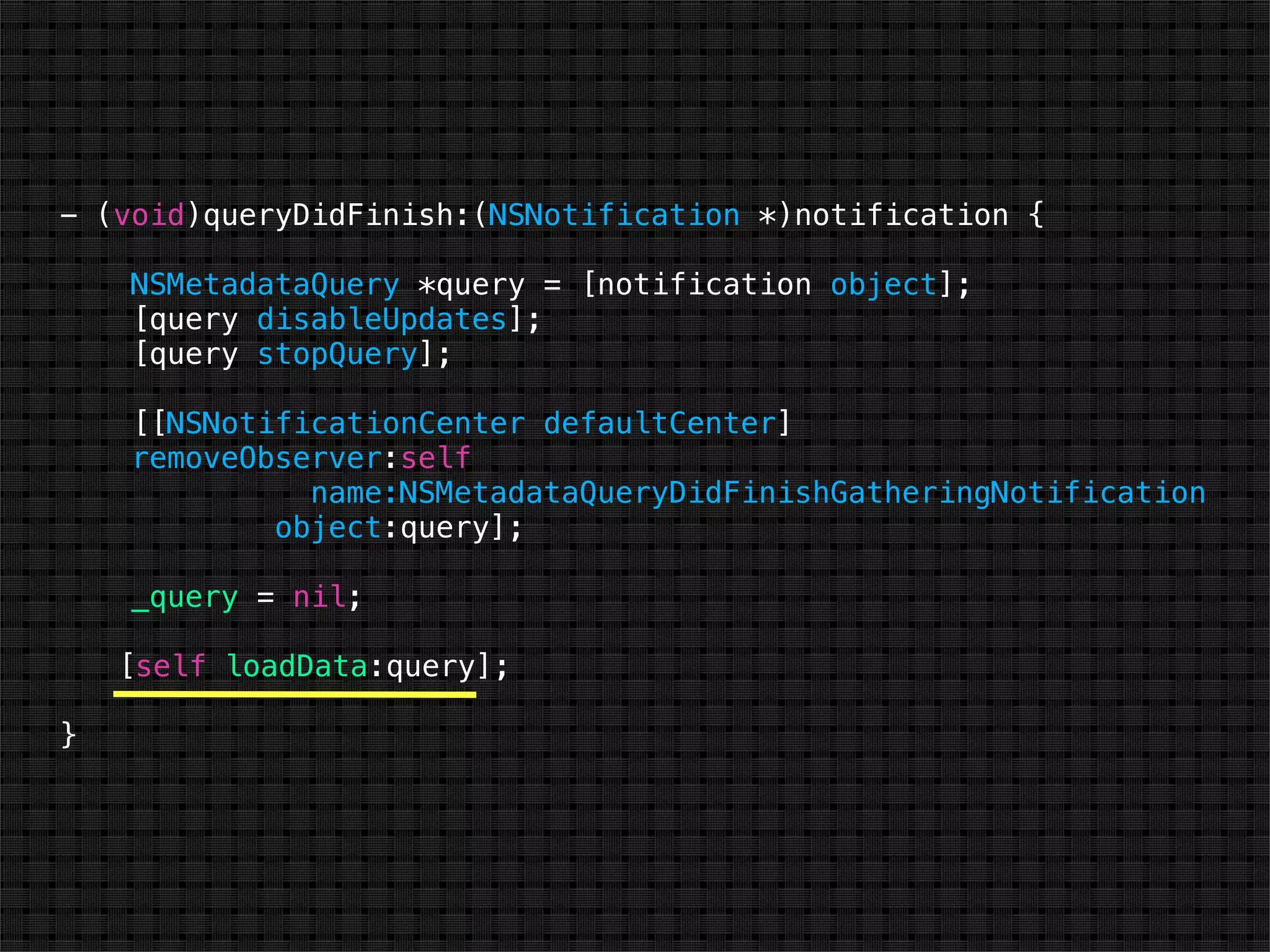

61. - (void)queryDidFinish:(NSNotification *)notification {
NSMetadataQuery *query = [notification object];
[query disableUpdates];
[query stopQuery];
[[NSNotificationCenter defaultCenter]
removeObserver:self
name:NSMetadataQueryDidFinishGatheringNotification
object:query];
_query = nil;
! [self loadData:query];
}

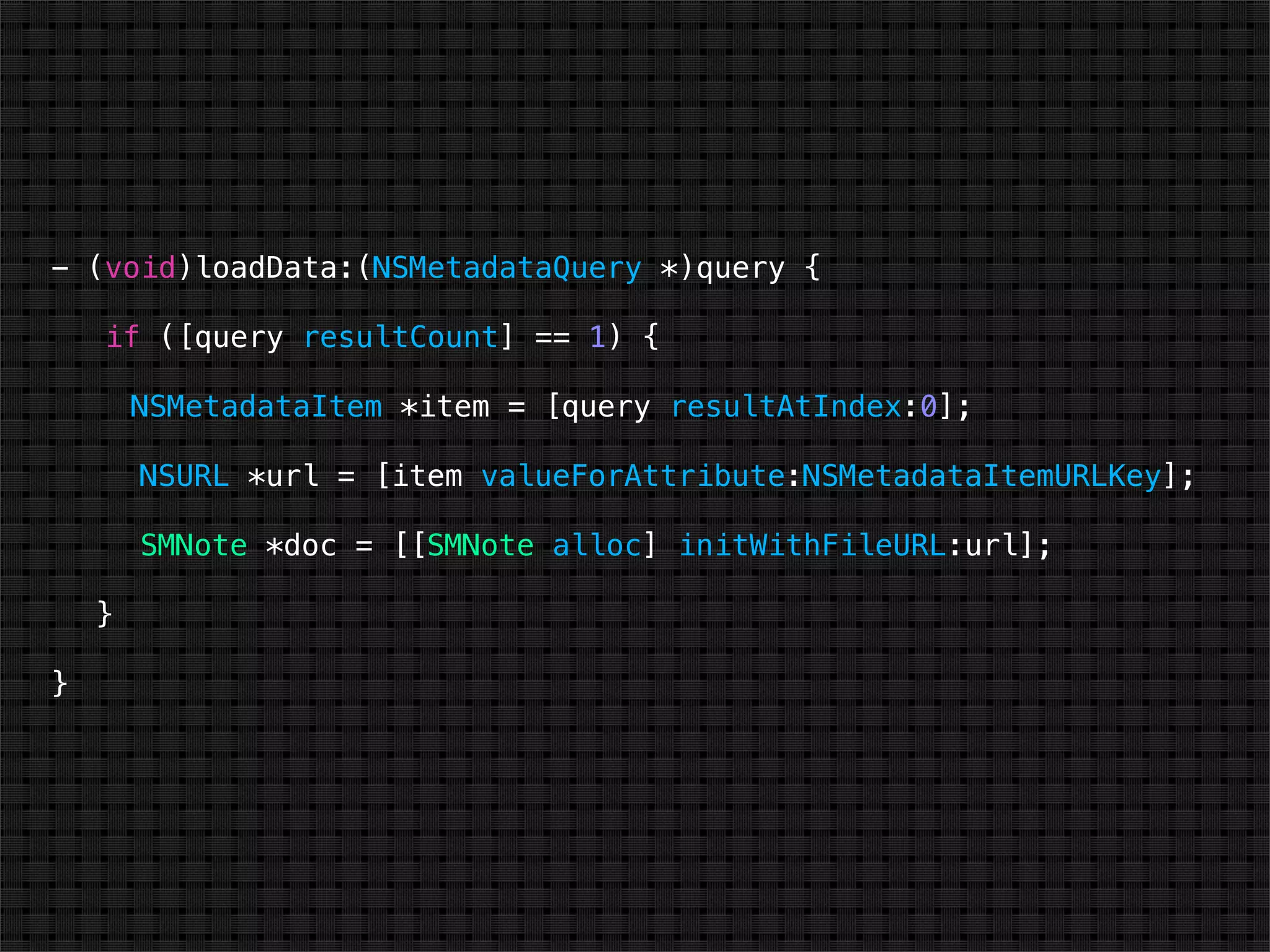

62. - (void)loadData:(NSMetadataQuery *)query {
if ([query resultCount] == 1) {
NSMetadataItem *item = [query resultAtIndex:0];
NSURL *url = [item valueForAttribute:NSMetadataItemURLKey];
SMNote *doc = [[SMNote alloc] initWithFileURL:url];
}
}

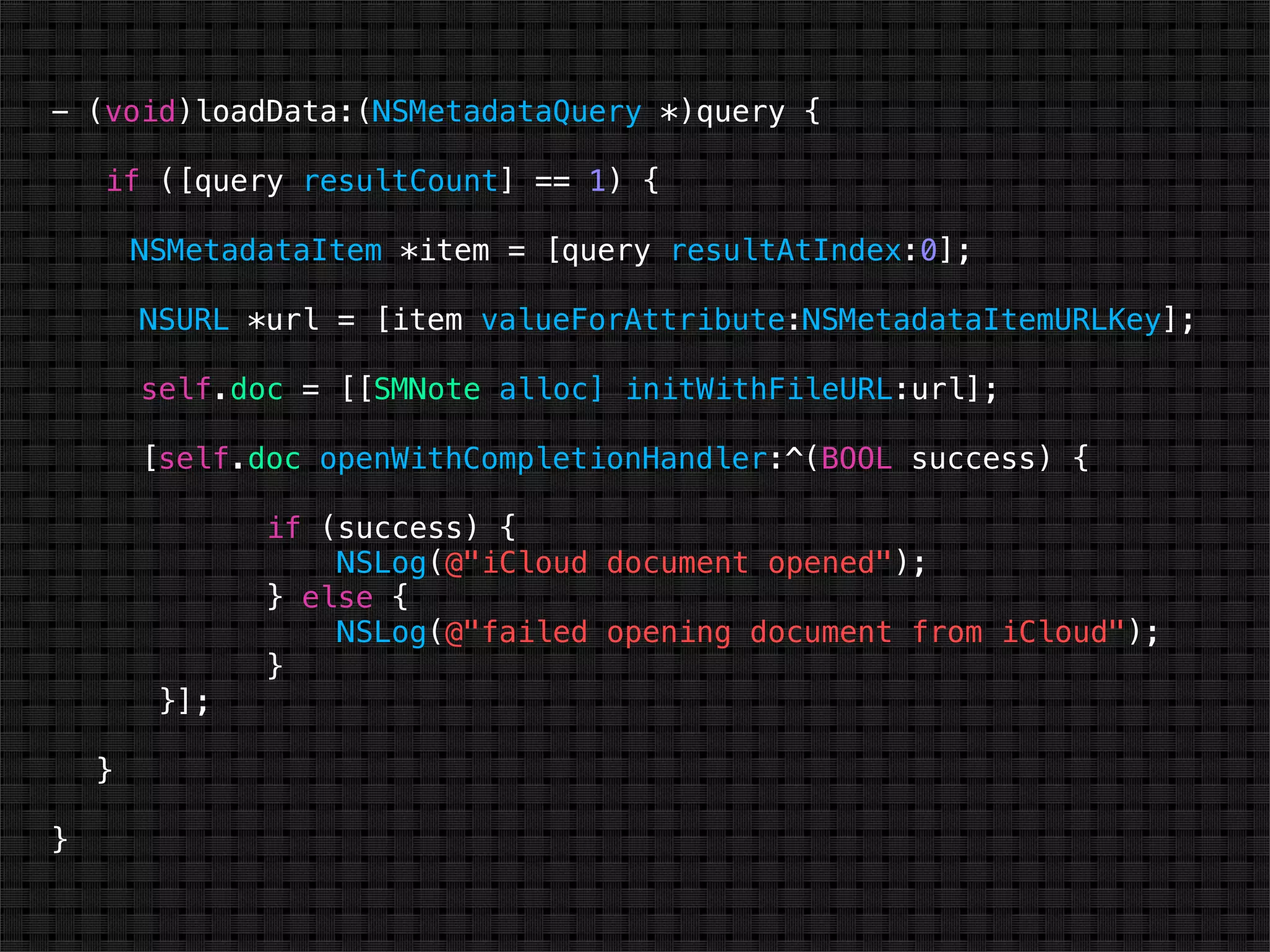

63. - (void)loadData:(NSMetadataQuery *)query {
if ([query resultCount] == 1) {
NSMetadataItem *item = [query resultAtIndex:0];
NSURL *url = [item valueForAttribute:NSMetadataItemURLKey];
self.doc = [[SMNote alloc] initWithFileURL:url];
[self.doc openWithCompletionHandler:^(BOOL success) {
if (success) {
NSLog(@"iCloud document opened");
} else {
NSLog(@"failed opening document from iCloud");
}
}];
}
}

64. else {
NSURL *ubiq = [[NSFileManager defaultManager]
URLForUbiquityContainerIdentifier:nil];
NSURL *ubiquitousPackage =
[[ubiq URLByAppendingPathComponent: @"Documents"]
URLByAppendingPathComponent:kFILENAME];
SMNote *doc = [[SMNote alloc]
initWithFileURL:ubiquitousPackage];
}

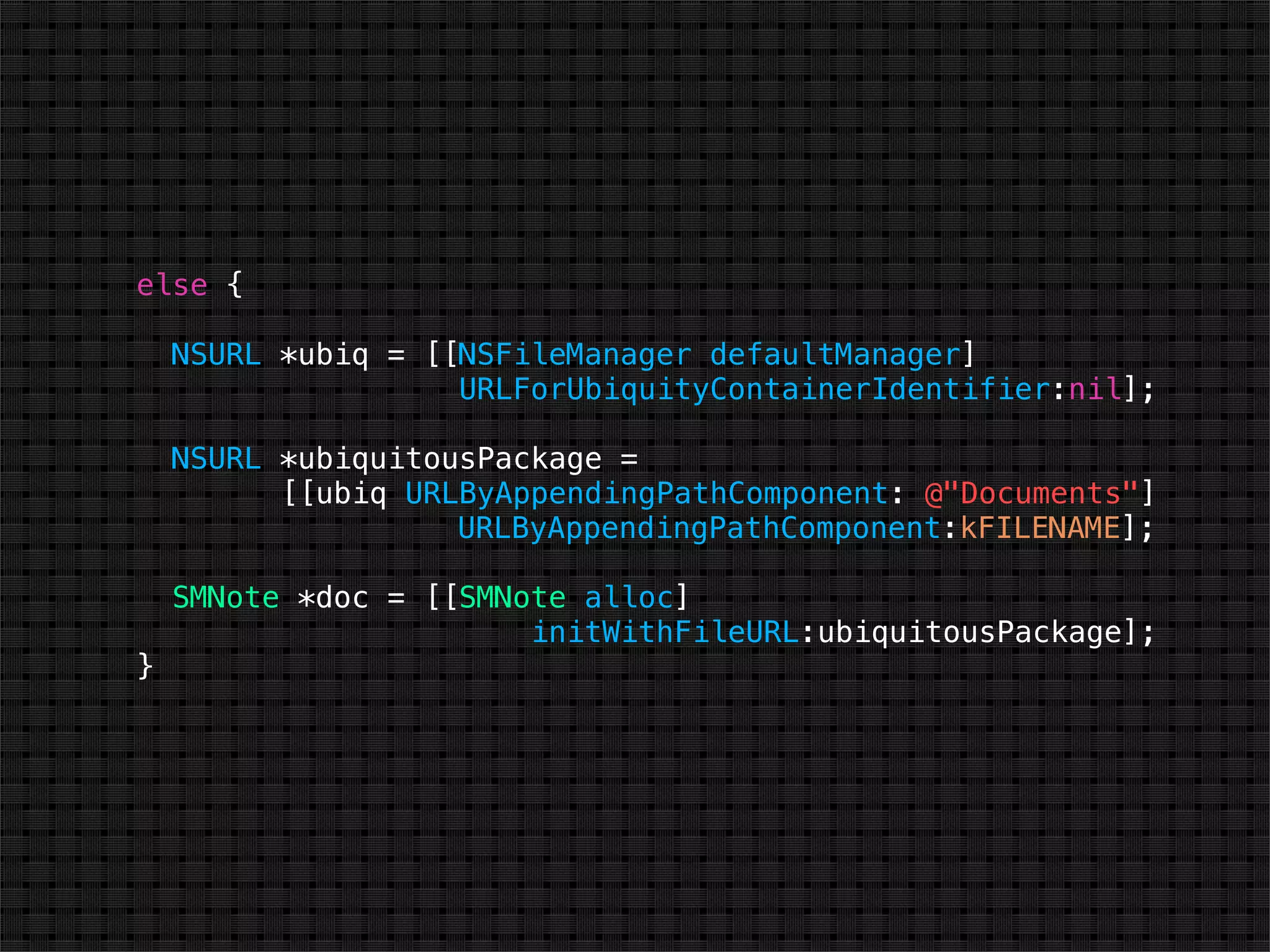

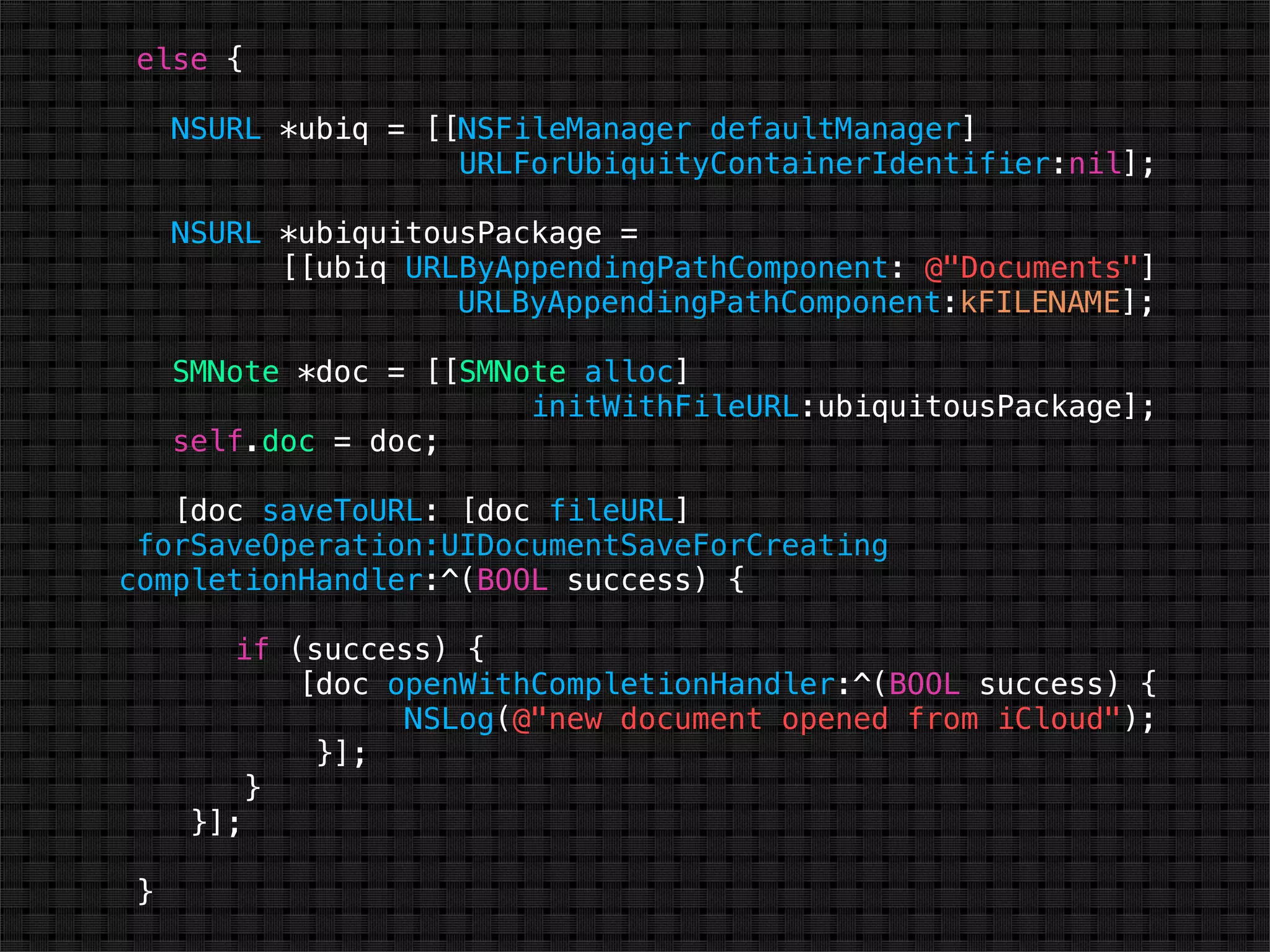

65. else {
NSURL *ubiq = [[NSFileManager defaultManager]
URLForUbiquityContainerIdentifier:nil];
NSURL *ubiquitousPackage =
[[ubiq URLByAppendingPathComponent: @"Documents"]
URLByAppendingPathComponent:kFILENAME];
SMNote *doc = [[SMNote alloc]
initWithFileURL:ubiquitousPackage];
self.doc = doc;
[doc saveToURL: [doc fileURL]
forSaveOperation:UIDocumentSaveForCreating
completionHandler:^(BOOL success) {
if (success) {
[doc openWithCompletionHandler:^(BOOL success) {
NSLog(@"new document opened from iCloud");
}];
}
}];
}

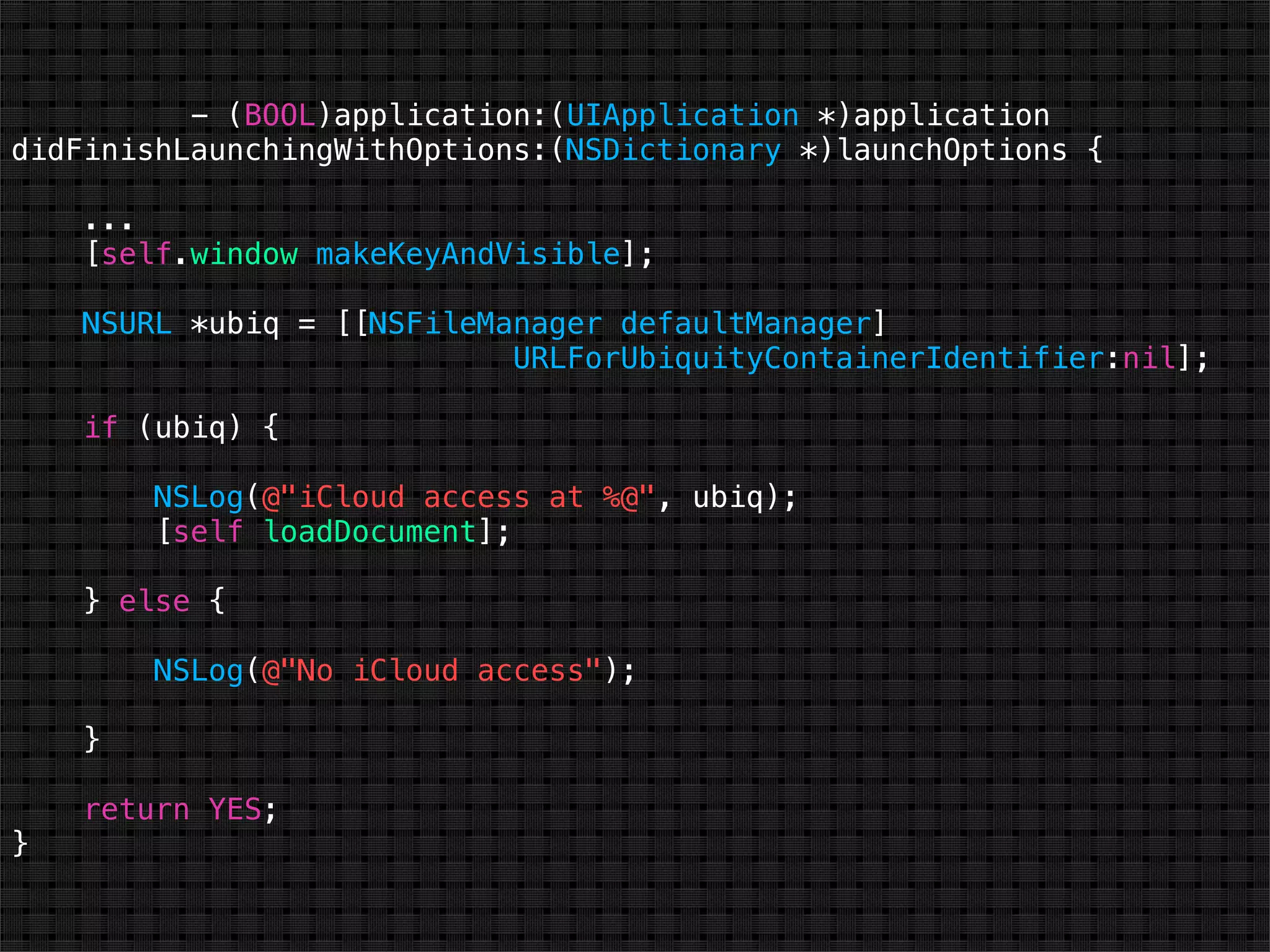

66. - (BOOL)application:(UIApplication *)application
didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
...
[self.window makeKeyAndVisible];
NSURL *ubiq = [[NSFileManager defaultManager]
URLForUbiquityContainerIdentifier:nil];
if (ubiq) {
NSLog(@"iCloud access at %@", ubiq);
[self loadDocument];
} else {
NSLog(@"No iCloud access");
}
return YES;
}

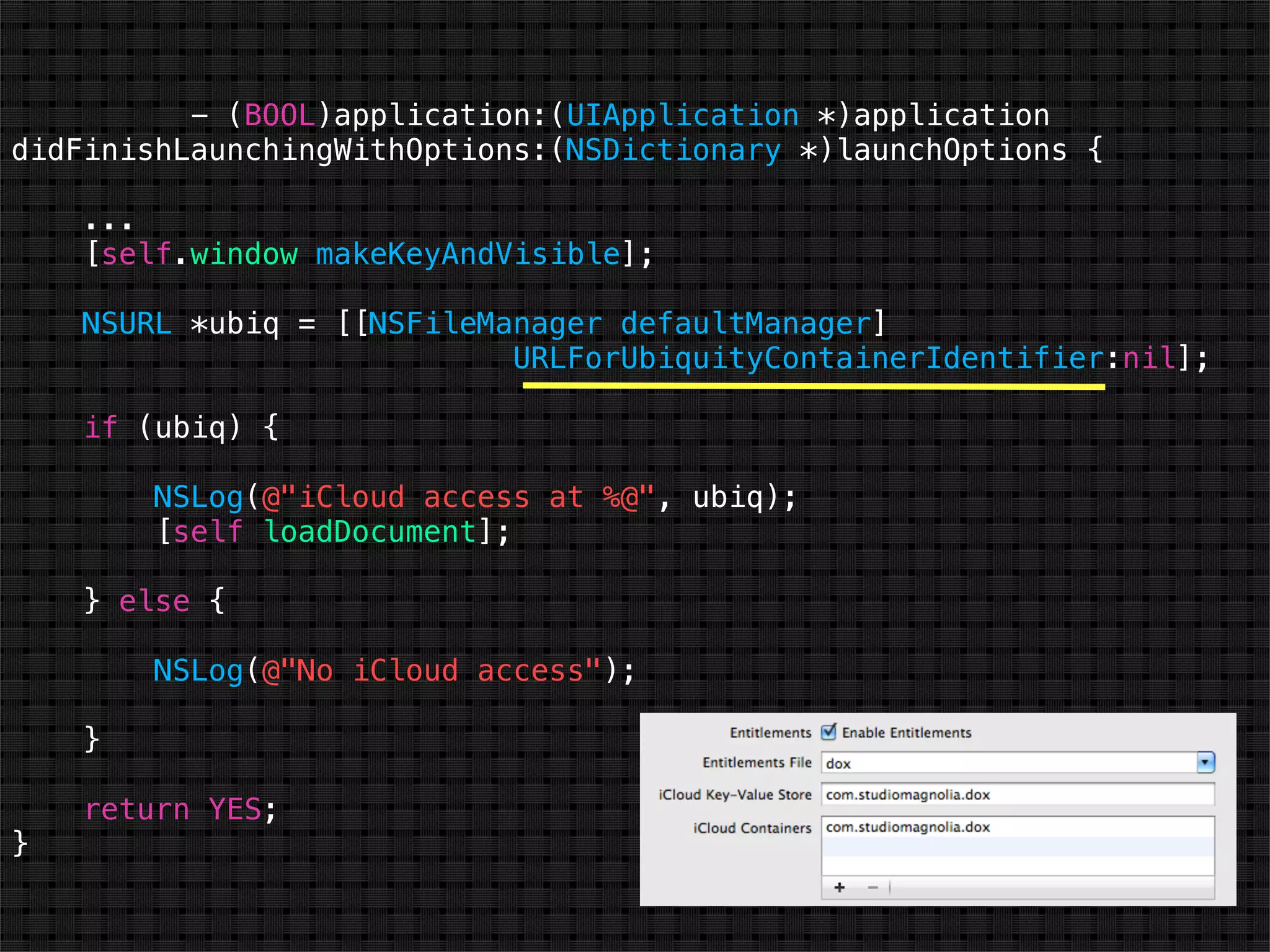

67. - (BOOL)application:(UIApplication *)application
didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
...
[self.window makeKeyAndVisible];
NSURL *ubiq = [[NSFileManager defaultManager]
URLForUbiquityContainerIdentifier:nil];
if (ubiq) {
NSLog(@"iCloud access at %@", ubiq);
[self loadDocument];
} else {
NSLog(@"No iCloud access");
}
return YES;
}

68. - (void)viewDidLoad {
[super viewDidLoad];
[[NSNotificationCenter defaultCenter]
addObserver:self
selector:@selector(dataReloaded:)
name:@"noteModified"
object:nil];
}
- (void)dataReloaded:(NSNotification *)notification {
self.doc = notification.object;
self.noteView.text = self.doc.noteContent;
}

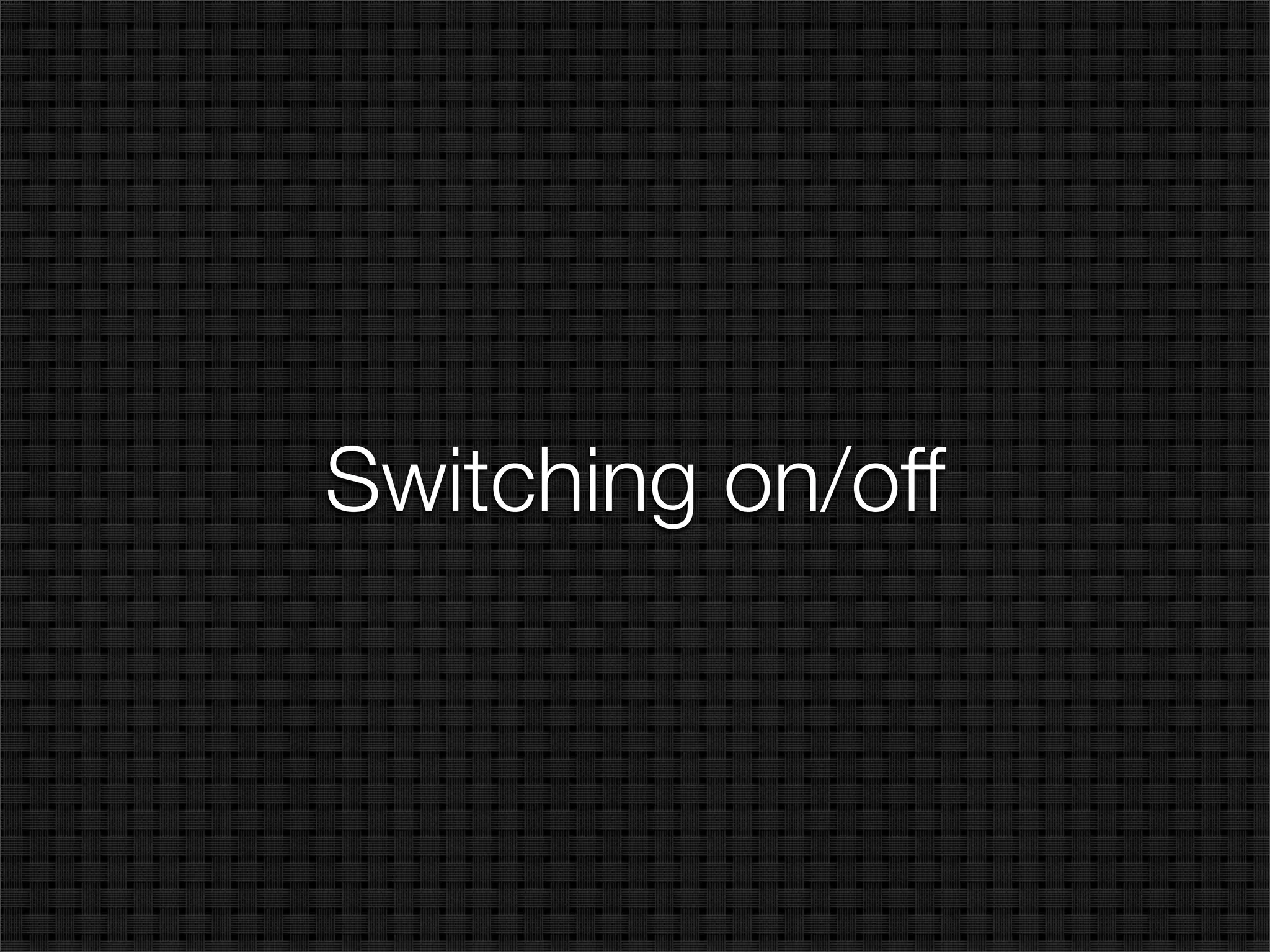

69. Switching on/off

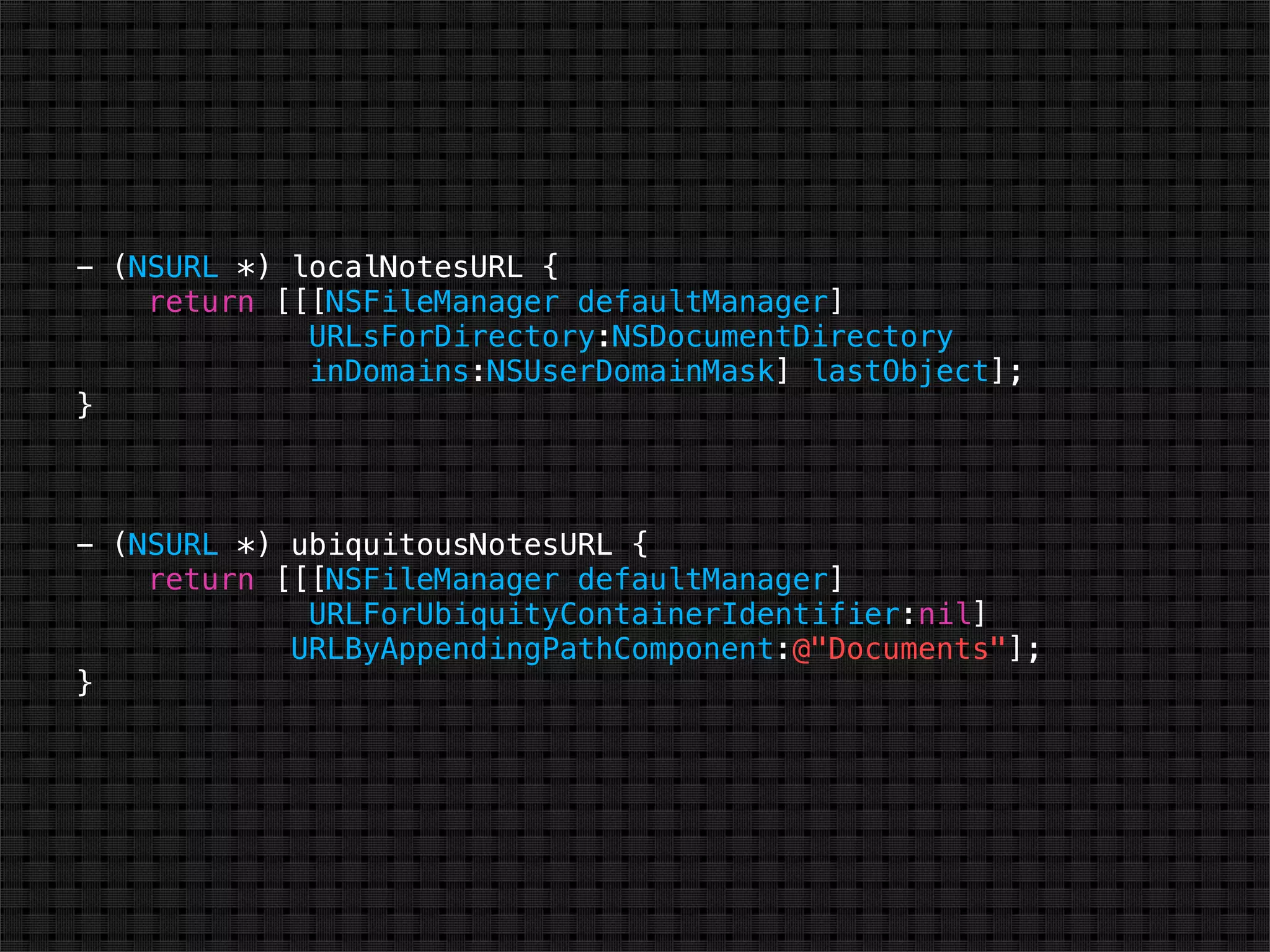

70. - (NSURL *) localNotesURL {
return [[[NSFileManager defaultManager]
URLsForDirectory:NSDocumentDirectory
inDomains:NSUserDomainMask] lastObject];
}
- (NSURL *) ubiquitousNotesURL {
return [[[NSFileManager defaultManager]
URLForUbiquityContainerIdentifier:nil]
URLByAppendingPathComponent:@"Documents"];
}

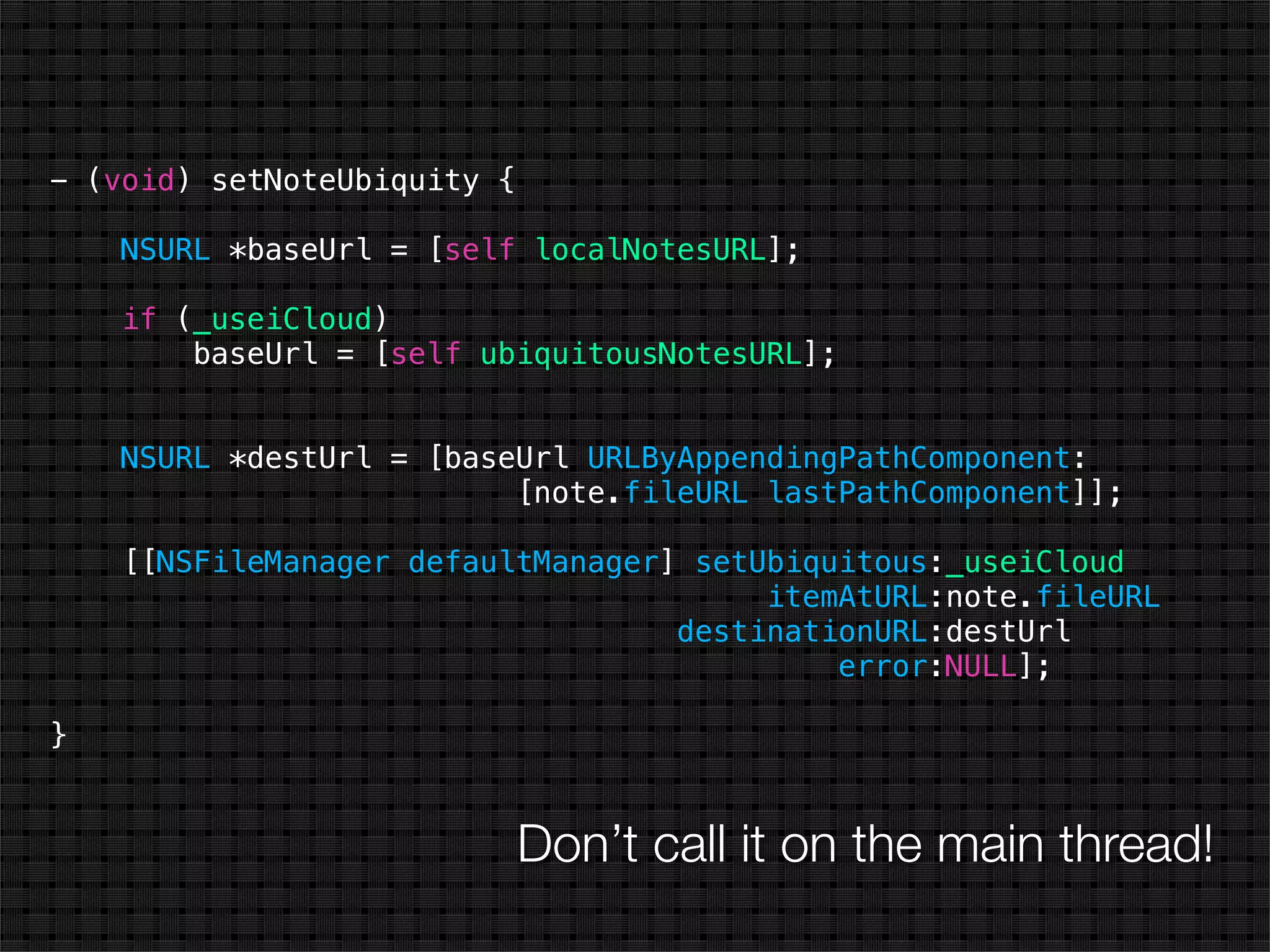

71. - (void) setNoteUbiquity {
NSURL *baseUrl = [self localNotesURL];
if (_useiCloud)
baseUrl = [self ubiquitousNotesURL];
NSURL *destUrl = [baseUrl URLByAppendingPathComponent:
[note.fileURL lastPathComponent]];
[[NSFileManager defaultManager] setUbiquitous:_useiCloud
itemAtURL:note.fileURL
destinationURL:destUrl
error:NULL];
}
Don’t call it on the main thread!

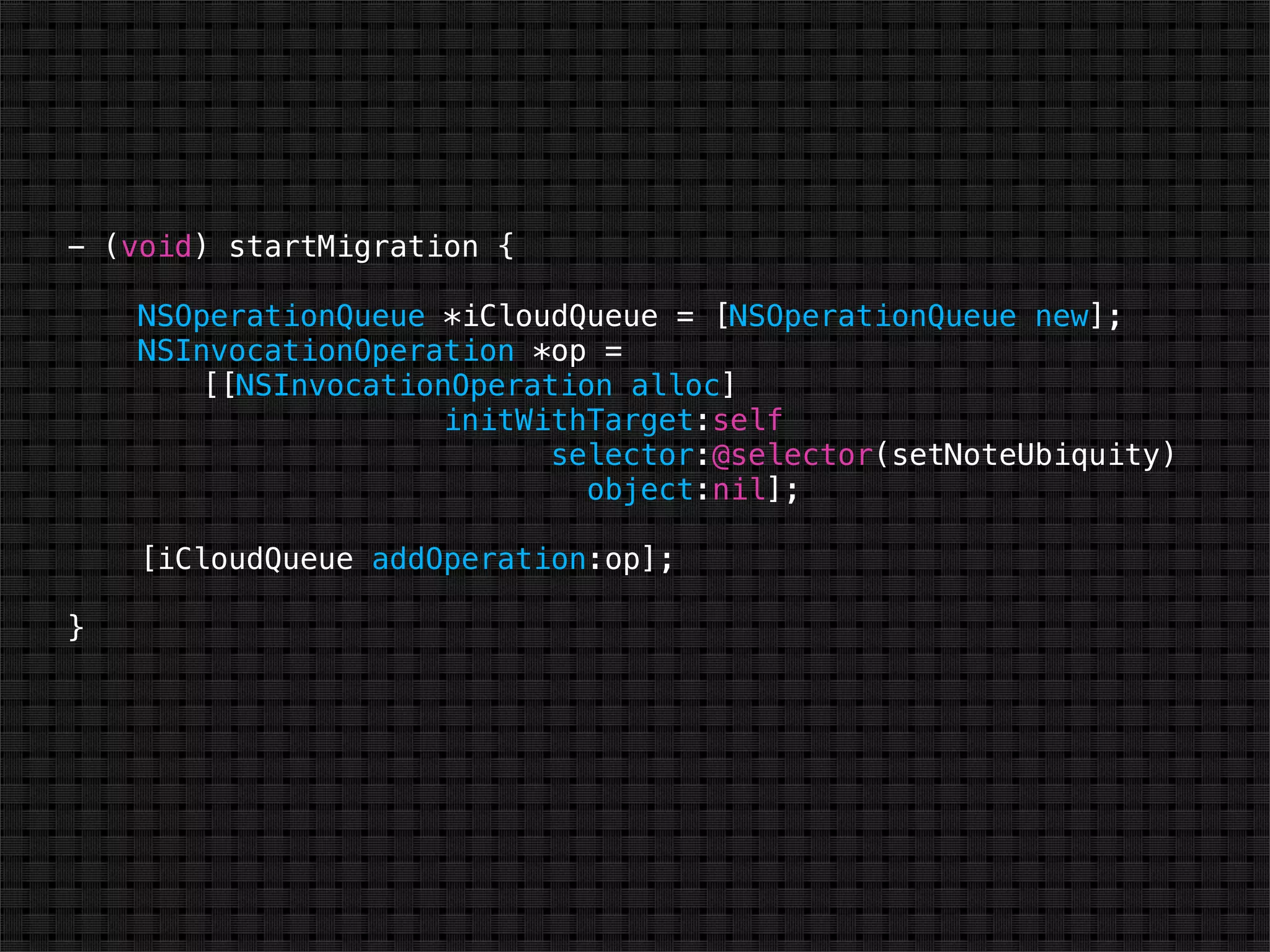

72. - (void) startMigration {
NSOperationQueue *iCloudQueue = [NSOperationQueue new];
NSInvocationOperation *op =
[[NSInvocationOperation alloc]
initWithTarget:self
selector:@selector(setNoteUbiquity)
object:nil];
[iCloudQueue addOperation:op];
}

73. Custom documents

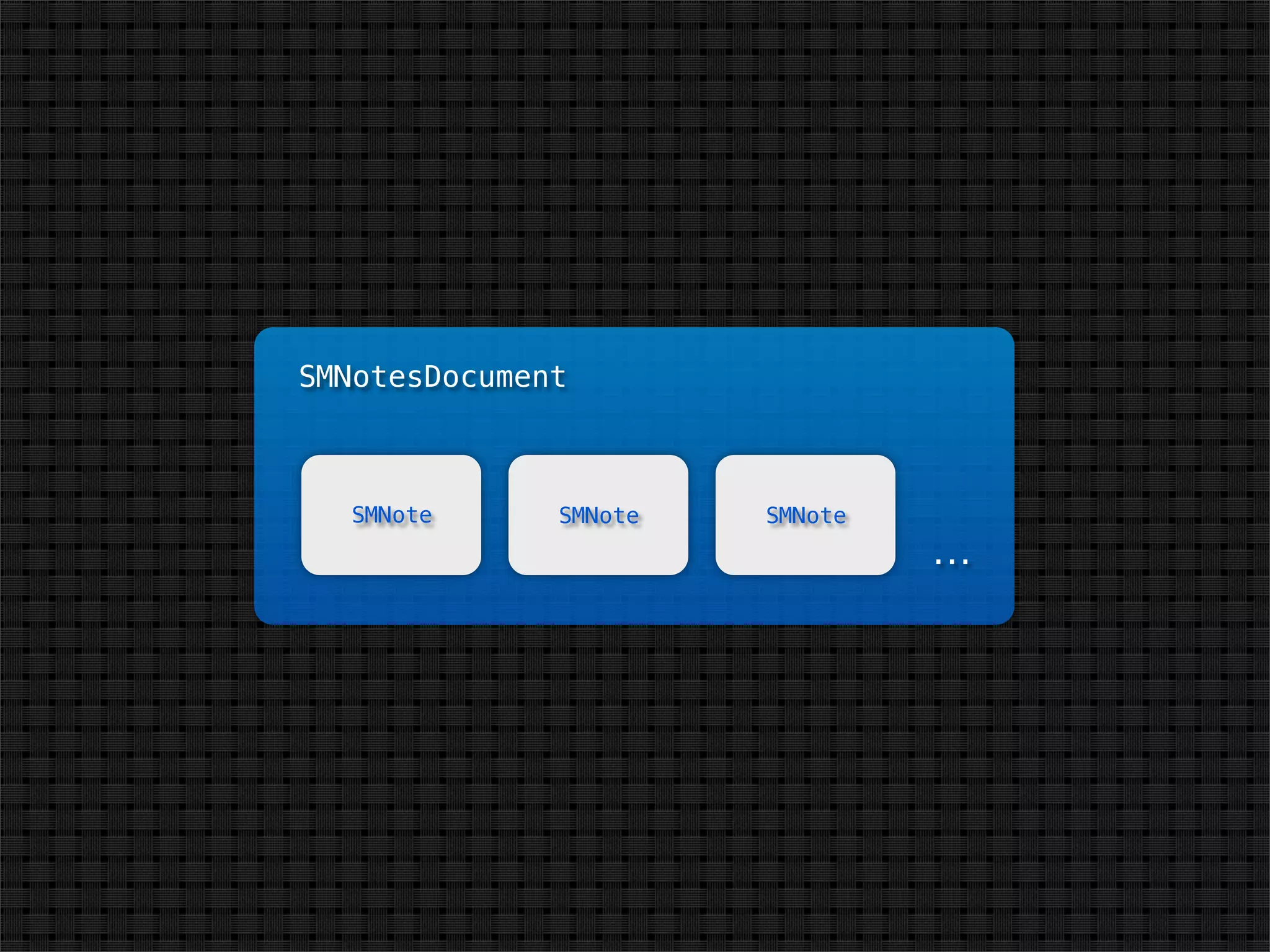

74. SMNotesDocument
SMNote SMNote SMNote
...

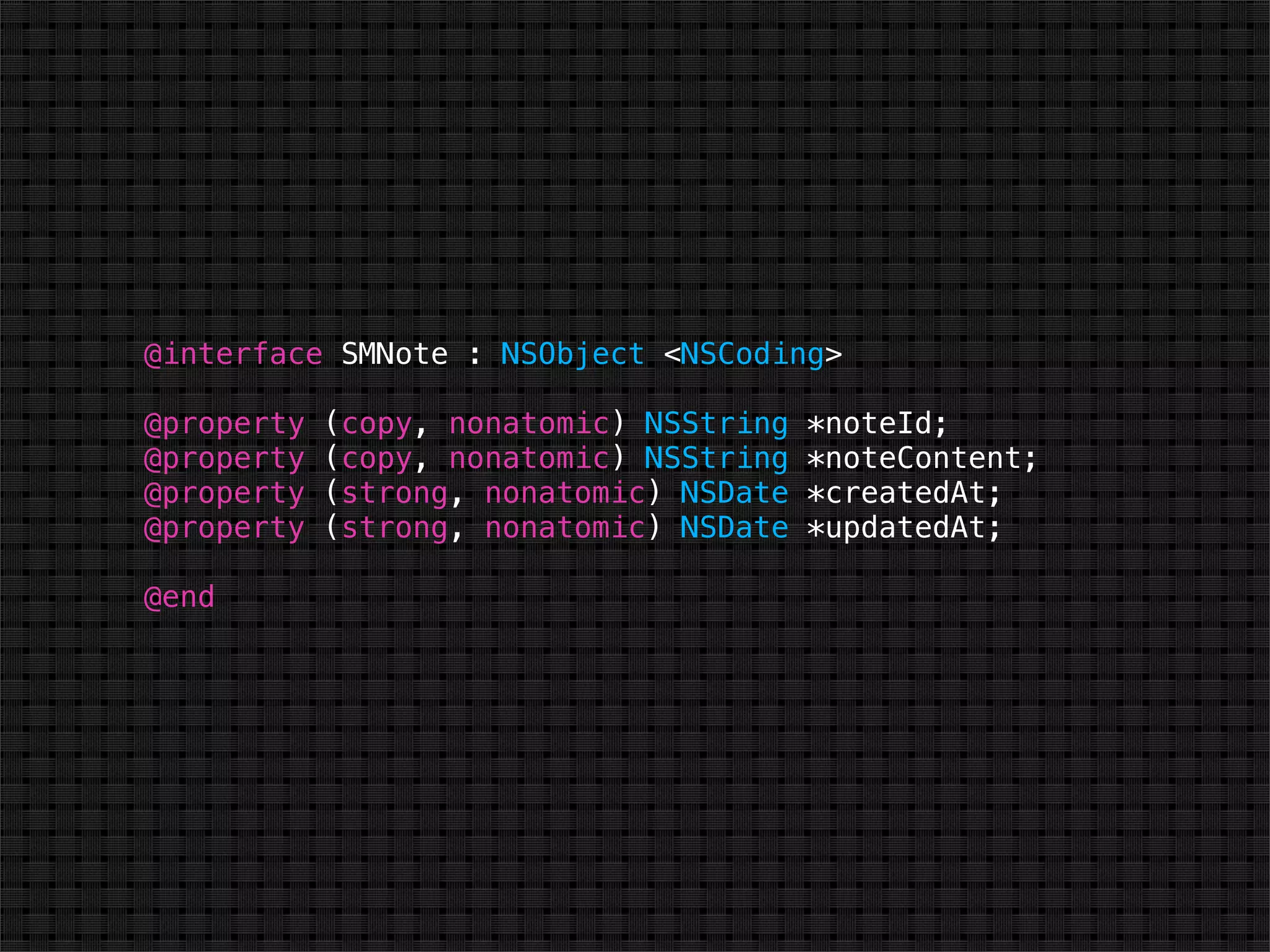

75. @interface SMNote : NSObject <NSCoding>
@property (copy, nonatomic) NSString *noteId;
@property (copy, nonatomic) NSString *noteContent;
@property (strong, nonatomic) NSDate *createdAt;
@property (strong, nonatomic) NSDate *updatedAt;
@end

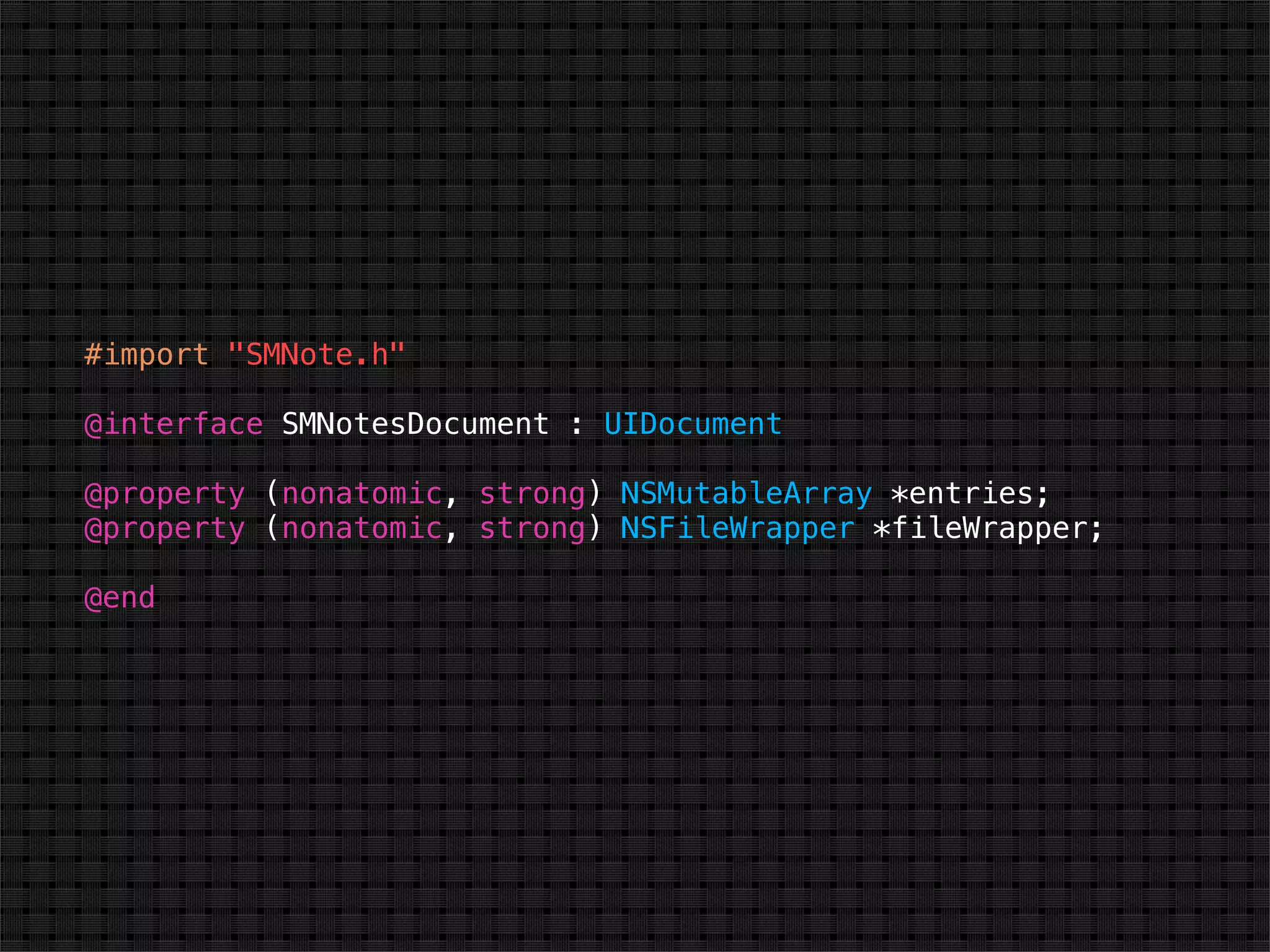

76. #import "SMNote.h"
@interface SMNotesDocument : UIDocument
@property (nonatomic, strong) NSMutableArray *entries;
@property (nonatomic, strong) NSFileWrapper *fileWrapper;
@end

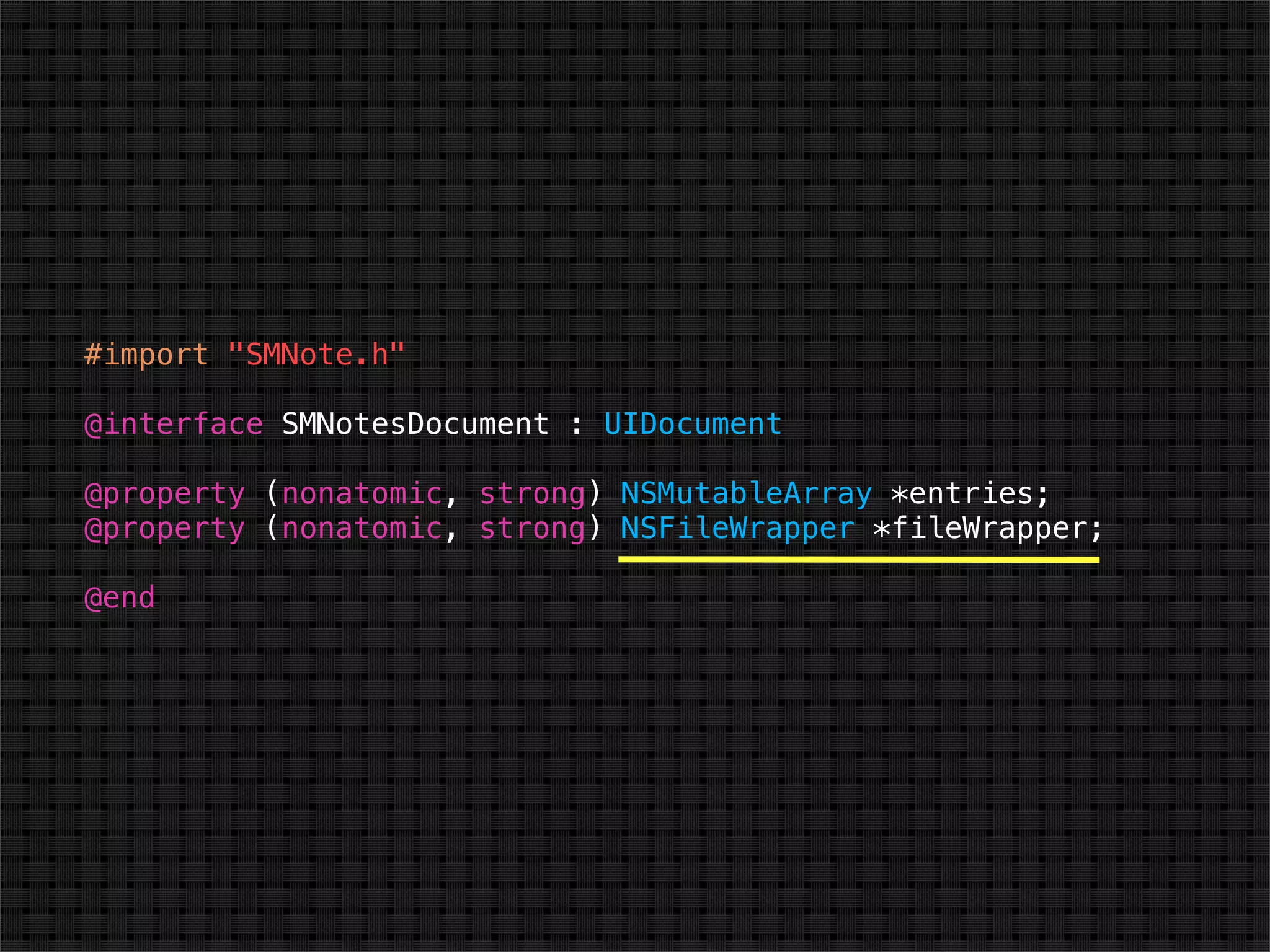

77. #import "SMNote.h"
@interface SMNotesDocument : UIDocument
@property (nonatomic, strong) NSMutableArray *entries;
@property (nonatomic, strong) NSFileWrapper *fileWrapper;
@end

78. - (id)contentsForType:(NSString *)typeName
error:(NSError **)outError {
NSMutableDictionary *w = [NSMutableDictionary dictionary];
NSMutableData *data = [NSMutableData data];
NSKeyedArchiver *arch = [[NSKeyedArchiver alloc]
initForWritingWithMutableData:data];
[arch encodeObject:_entries forKey:@"entries"];
[arch finishEncoding];
}

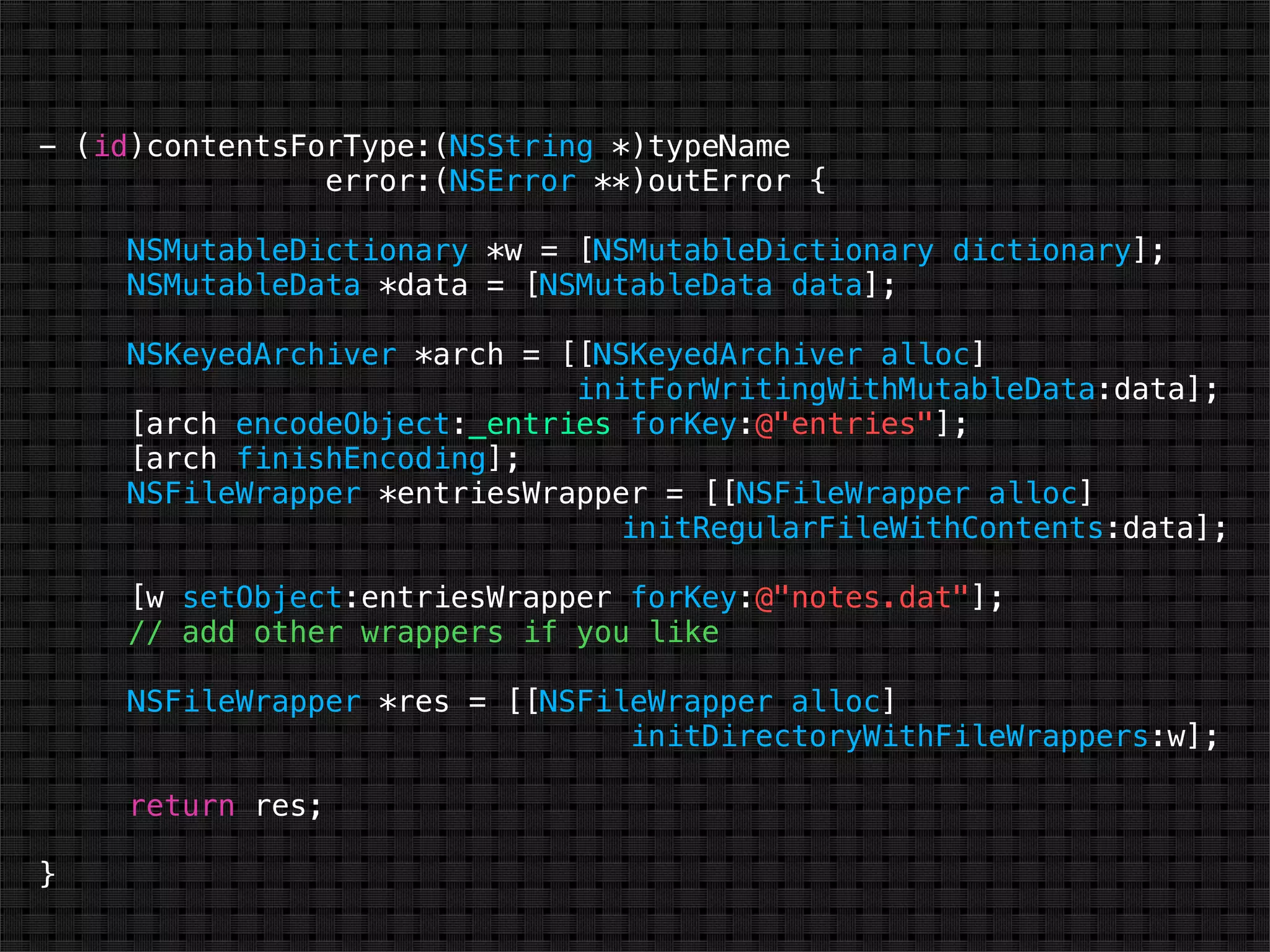

79. - (id)contentsForType:(NSString *)typeName
error:(NSError **)outError {
NSMutableDictionary *w = [NSMutableDictionary dictionary];
NSMutableData *data = [NSMutableData data];
NSKeyedArchiver *arch = [[NSKeyedArchiver alloc]
initForWritingWithMutableData:data];
[arch encodeObject:_entries forKey:@"entries"];
[arch finishEncoding];
NSFileWrapper *entriesWrapper = [[NSFileWrapper alloc]
initRegularFileWithContents:data];
[w setObject:entriesWrapper forKey:@"notes.dat"];
// add other wrappers if you like
NSFileWrapper *res = [[NSFileWrapper alloc]
initDirectoryWithFileWrappers:w];
return res;
}

80. - (BOOL)loadFromContents:(id)contents
ofType:(NSString *)typeName
error:(NSError **)outError {
NSFileWrapper *wrapper = (NSFileWrapper *)contents;
NSDictionary *d = [wrapper fileWrappers];
NSFileWrapper *entriesWrap = [d objectForKey:@"notes.dat"];
}

81. - (BOOL)loadFromContents:(id)contents
ofType:(NSString *)typeName
error:(NSError **)outError {
NSFileWrapper *wrapper = (NSFileWrapper *)contents;
NSDictionary *d = [wrapper fileWrappers];
NSFileWrapper *entriesWrap = [d objectForKey:@"notes.dat"];
NSData *data = [entriesWrap regularFileContents];
NSKeyedUnarchiver *arch = [[NSKeyedUnarchiver alloc]
initForReadingWithData:data];
_entries = [arch decodeObjectForKey:@"entries"];
// Notify the view
}

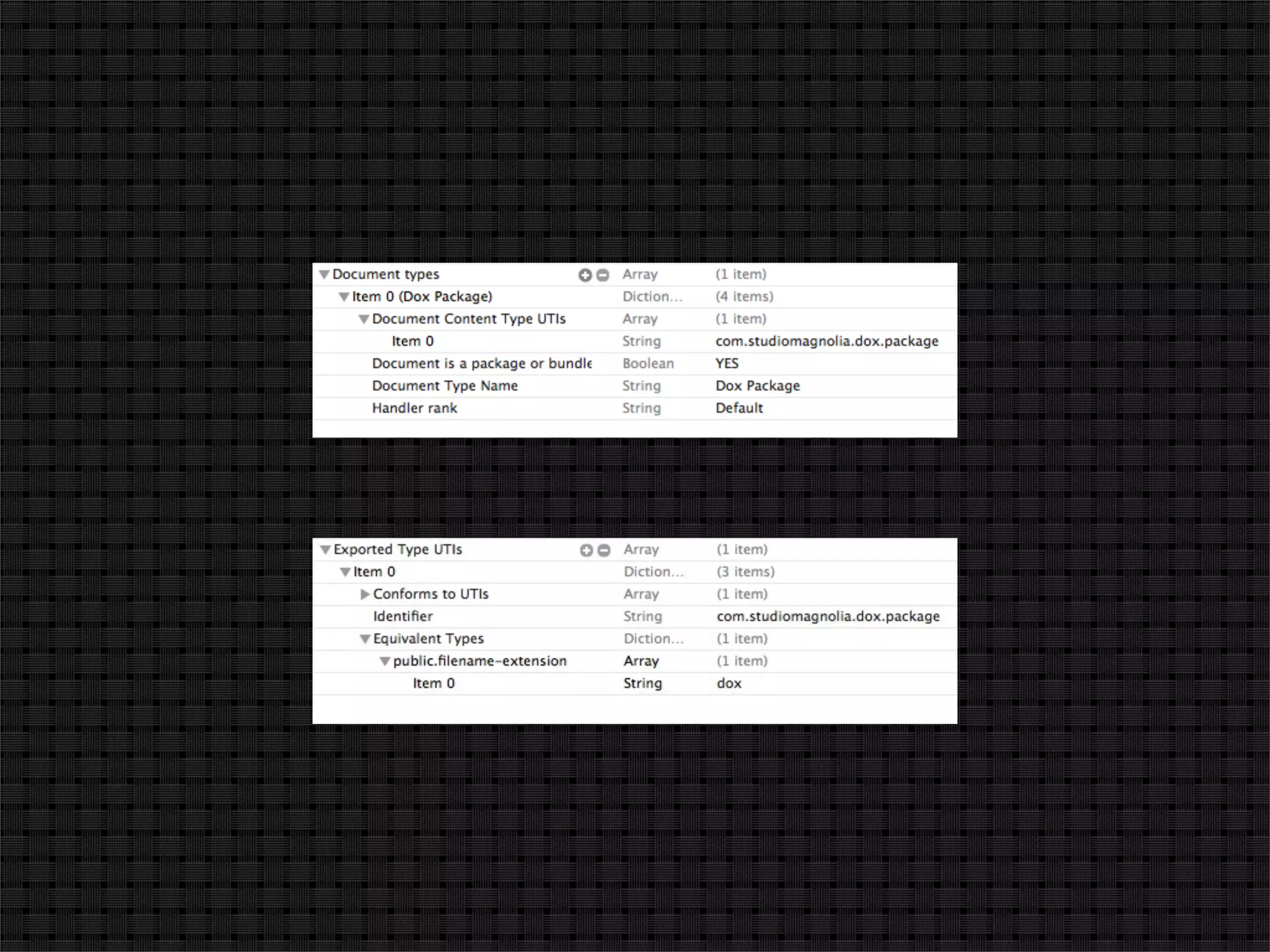

82. Uniform Type Identifier

84. Key-value

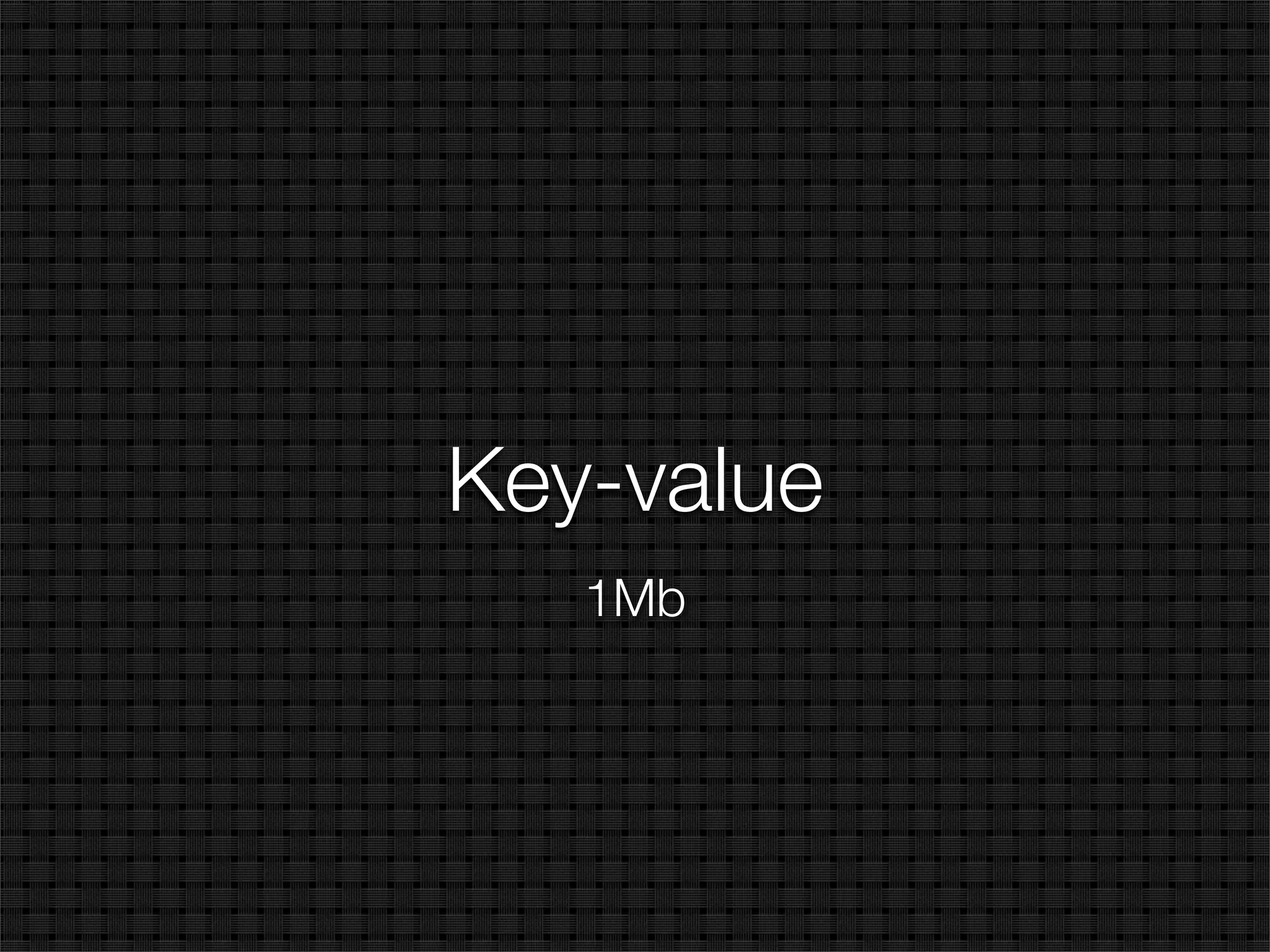

85. Key-value
1Mb

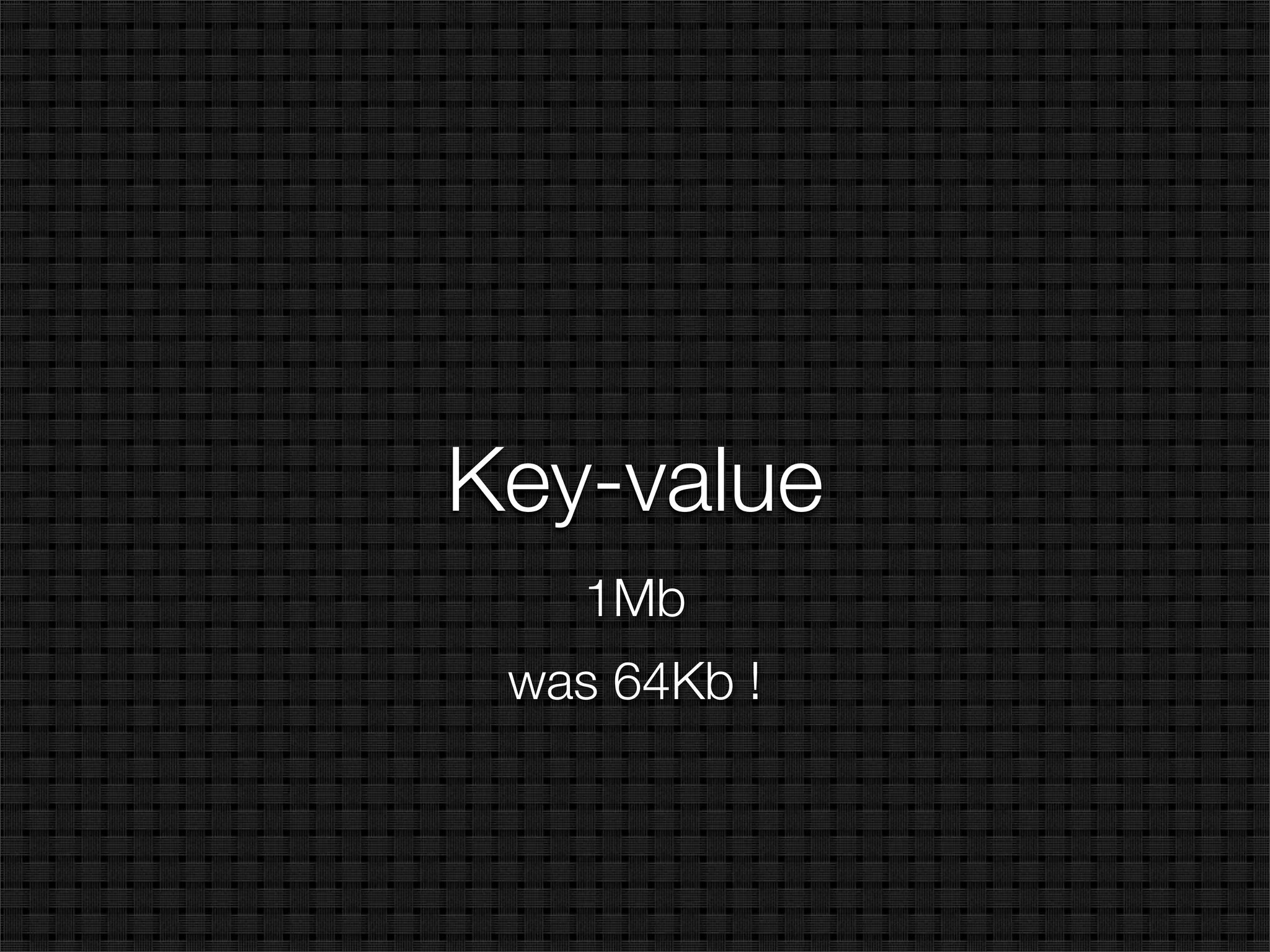

86. Key-value
1Mb
was 64Kb !

87. - (void) saveNoteAsCurrent {
[[NSUbiquitousKeyValueStore defaultStore]
setString:self.currentNote.noteId
forKey:@"com.studiomagnolia.currentNote"];
[[NSUbiquitousKeyValueStore defaultStore] synchronize];
}

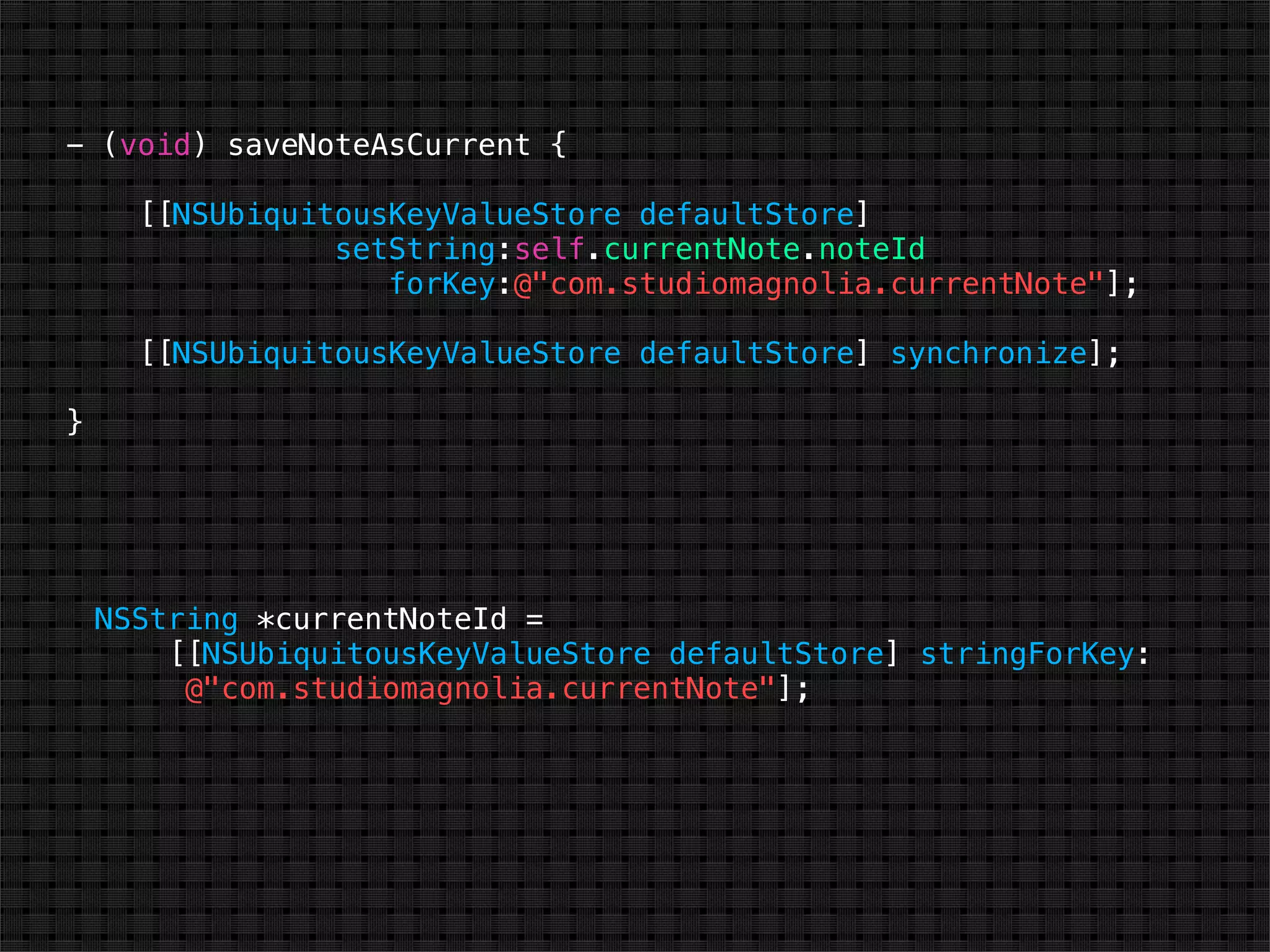

88. - (void) saveNoteAsCurrent {
[[NSUbiquitousKeyValueStore defaultStore]
setString:self.currentNote.noteId
forKey:@"com.studiomagnolia.currentNote"];
[[NSUbiquitousKeyValueStore defaultStore] synchronize];
}
NSString *currentNoteId =
[[NSUbiquitousKeyValueStore defaultStore] stringForKey:
@"com.studiomagnolia.currentNote"];

89. NSUbiquitousKeyValueStore* store =
[NSUbiquitousKeyValueStore defaultStore];
[[NSNotificationCenter defaultCenter]
addObserver:self
selector:@selector(updateCurrentNoteIfNeeded:)
name:NSUbiquitousKeyValueStoreDidChangeExternallyNotification
object:store];
[store synchronize];

90. Conflict Resolution

91. Conflict Resolution
Up to the dev
documentState

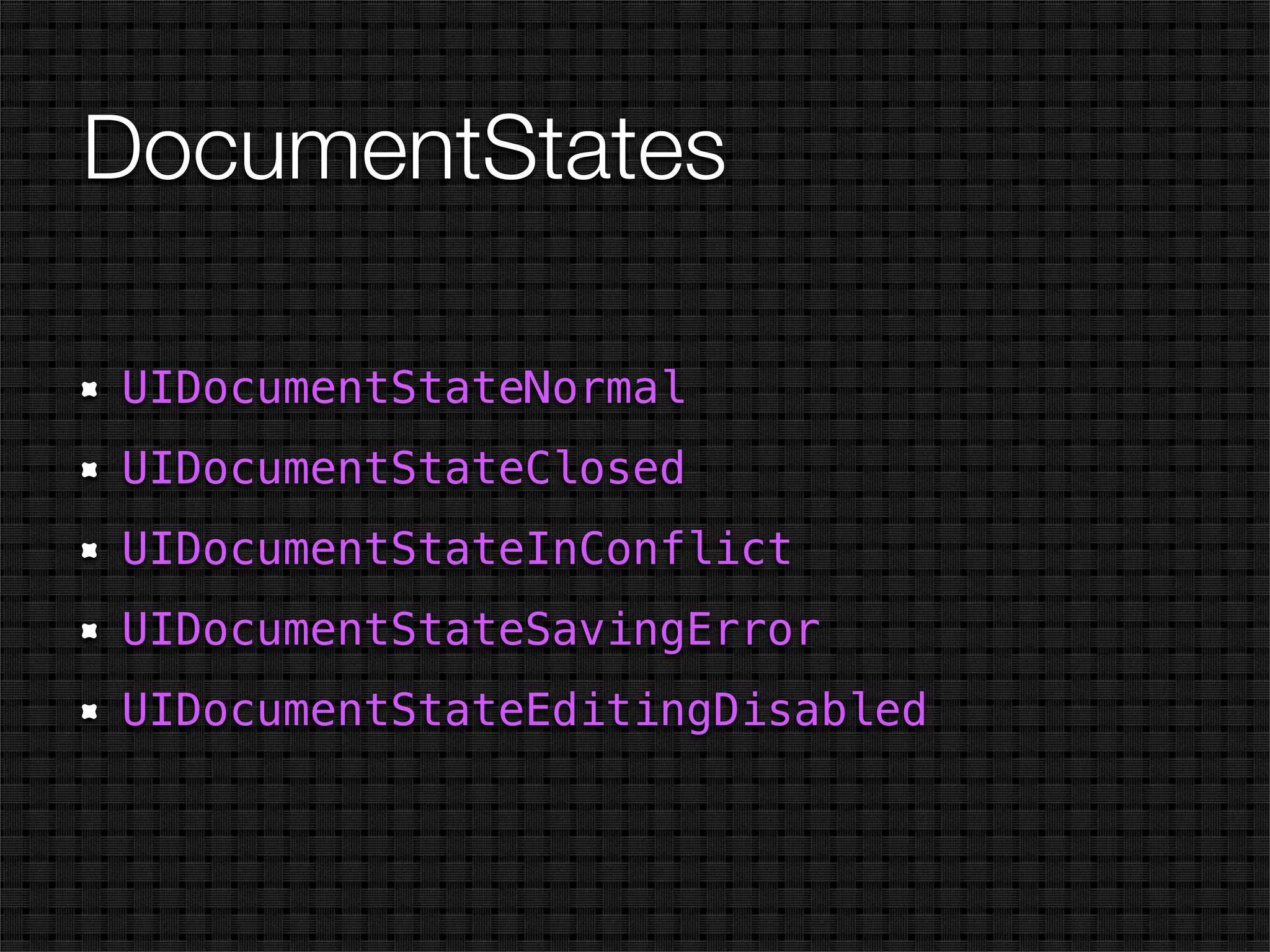

92. DocumentStates
UIDocumentStateNormal
UIDocumentStateClosed
UIDocumentStateInConflict
UIDocumentStateSavingError
UIDocumentStateEditingDisabled

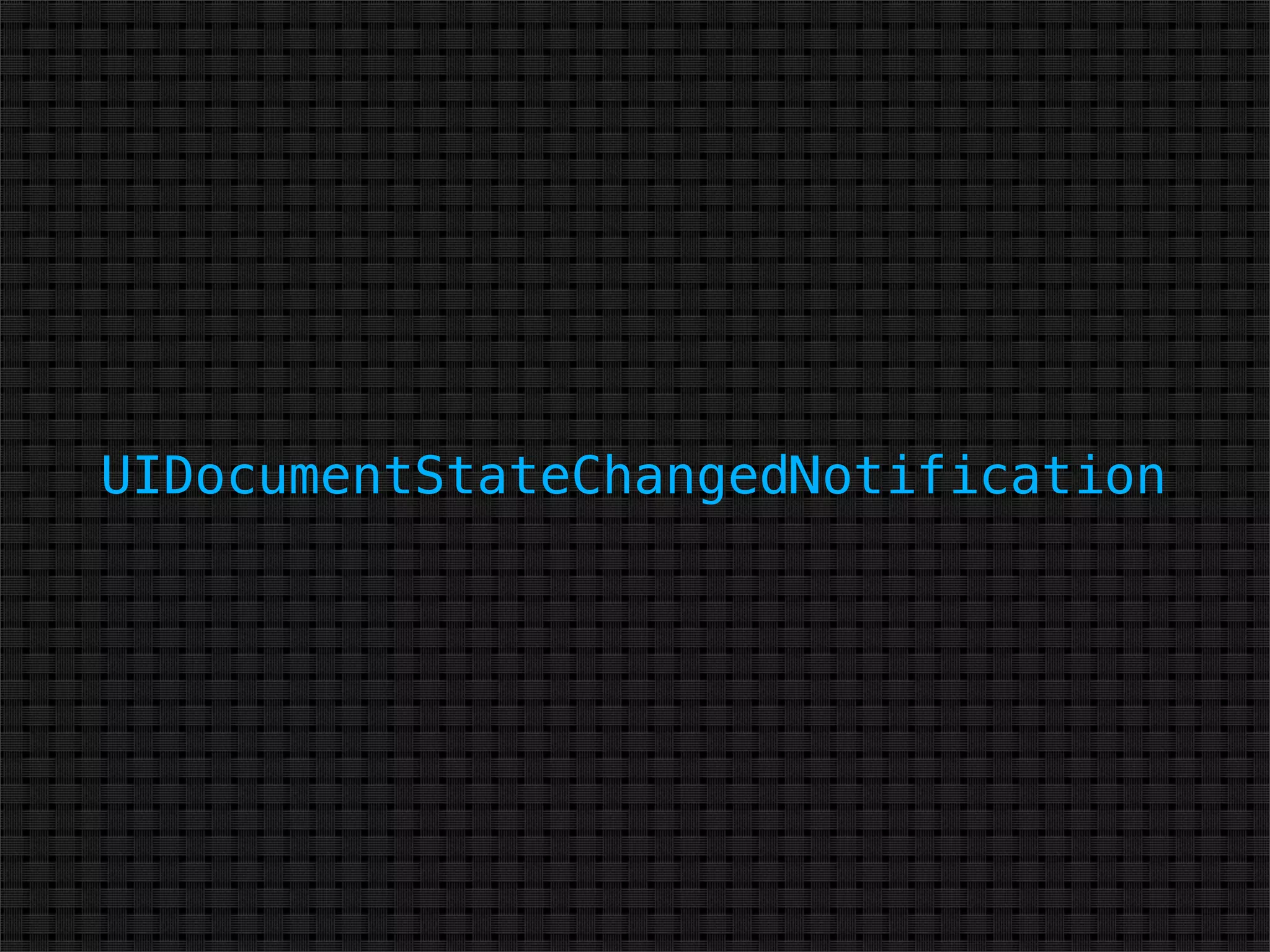

93. UIDocumentStateChangedNotification

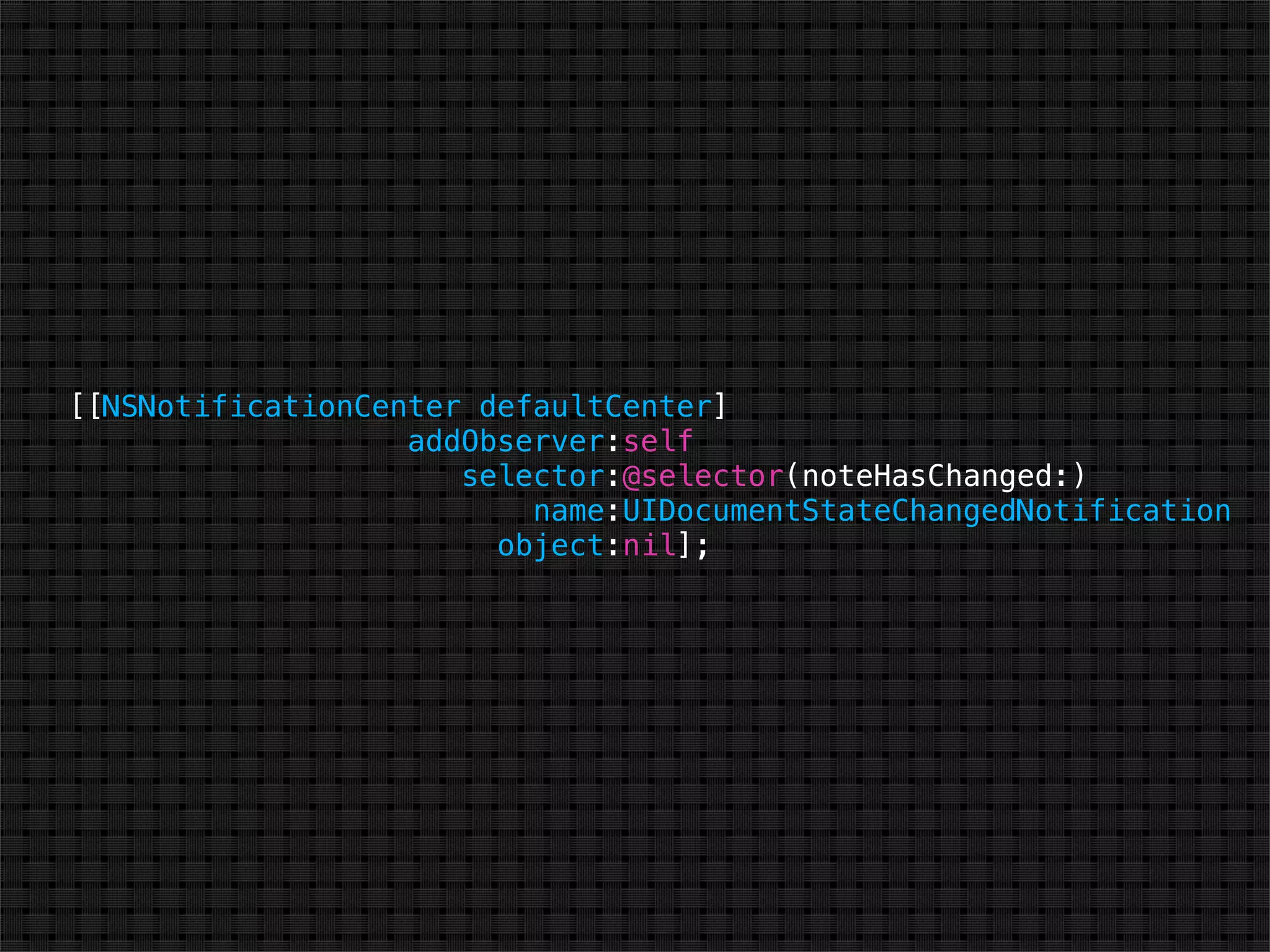

94. [[NSNotificationCenter defaultCenter]
addObserver:self
selector:@selector(noteHasChanged:)
name:UIDocumentStateChangedNotification
object:nil];

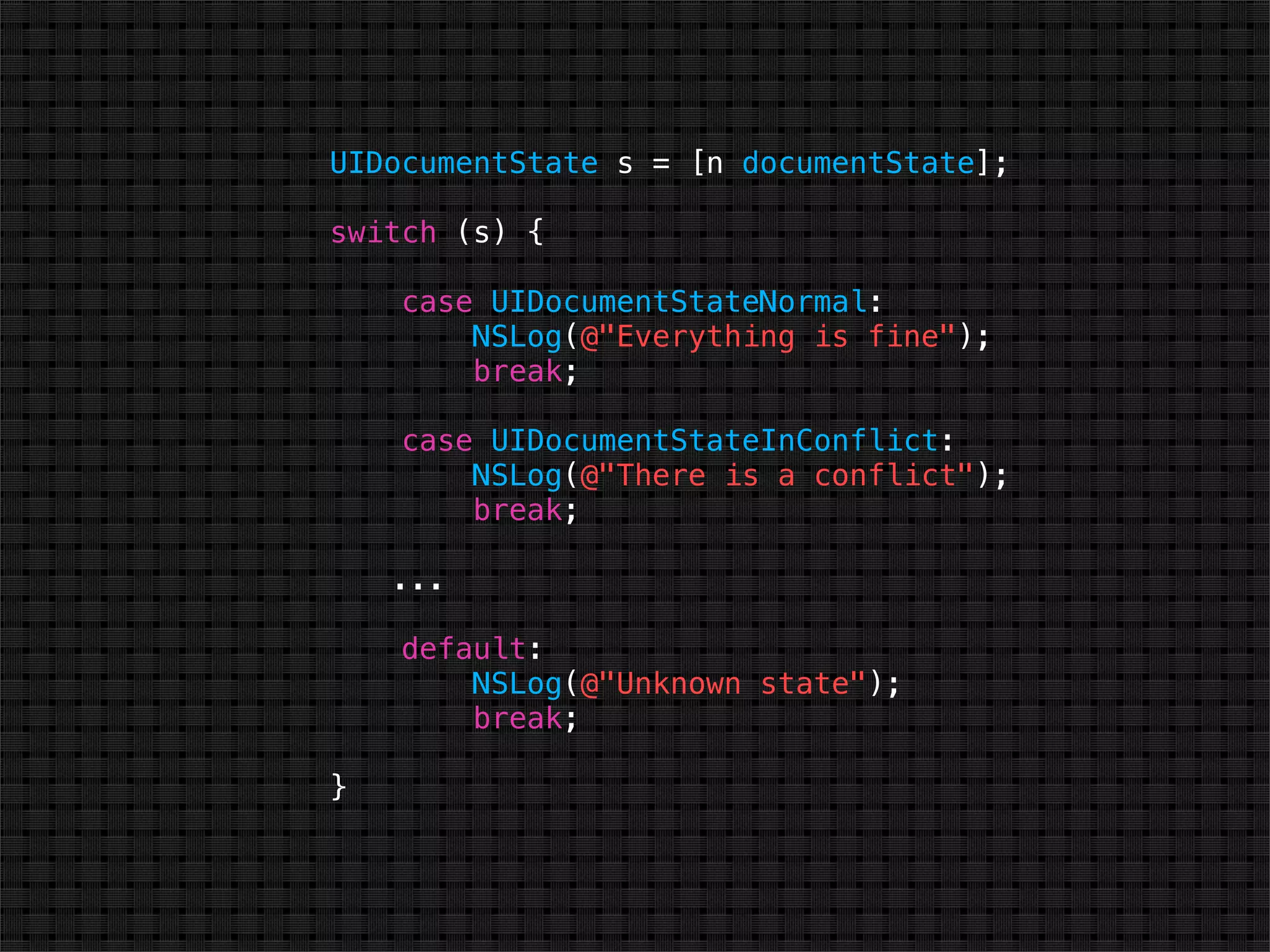

95. UIDocumentState s = [n documentState];
switch (s) {
case UIDocumentStateNormal:
NSLog(@"Everything is fine");
break;
case UIDocumentStateInConflict:
NSLog(@"There is a conflict");
break;
...
default:
NSLog(@"Unknown state");
break;
}

96. UI conflict
vs
iCloud conflict

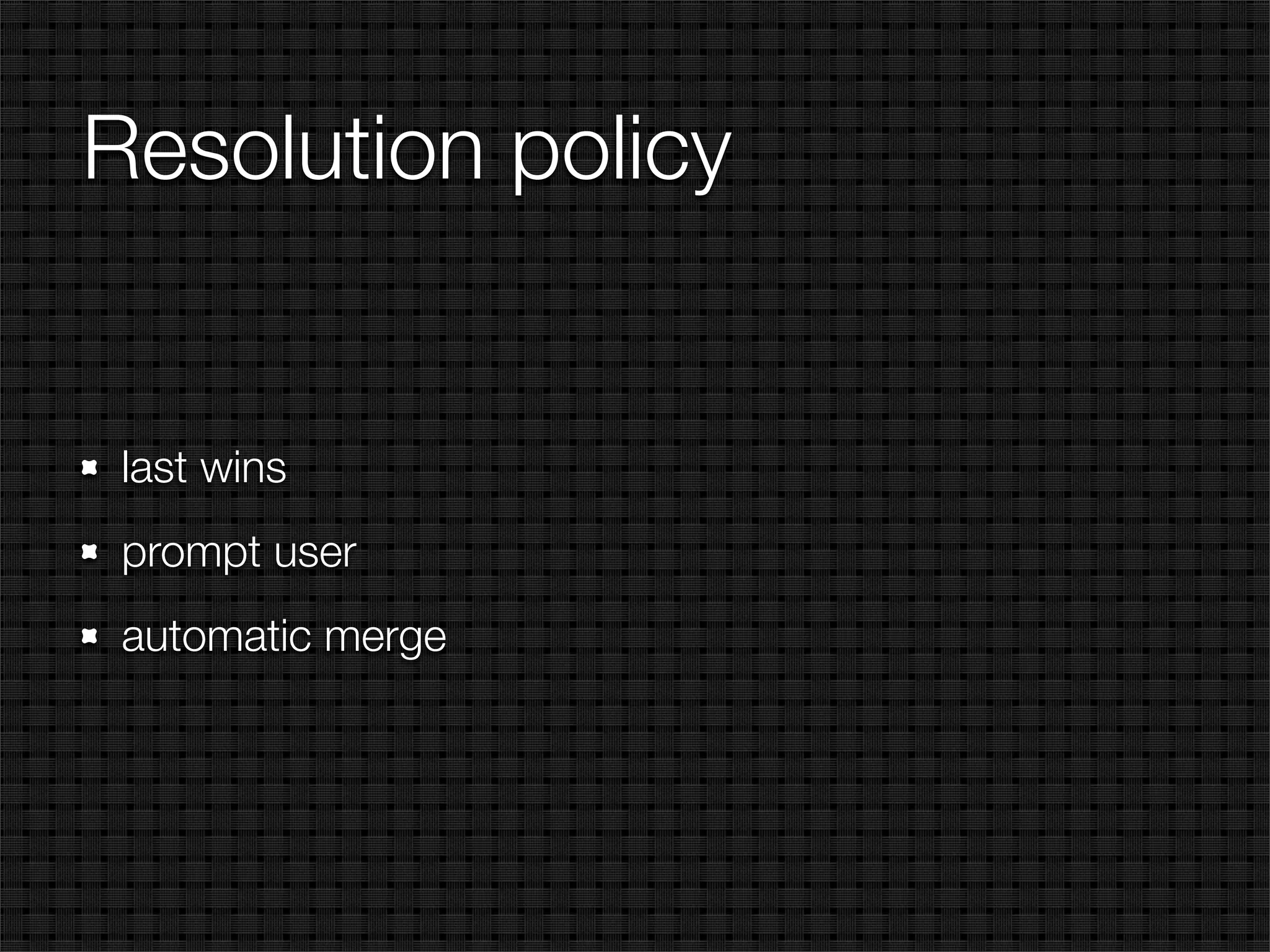

97. Resolution policy
last wins
prompt user
automatic merge

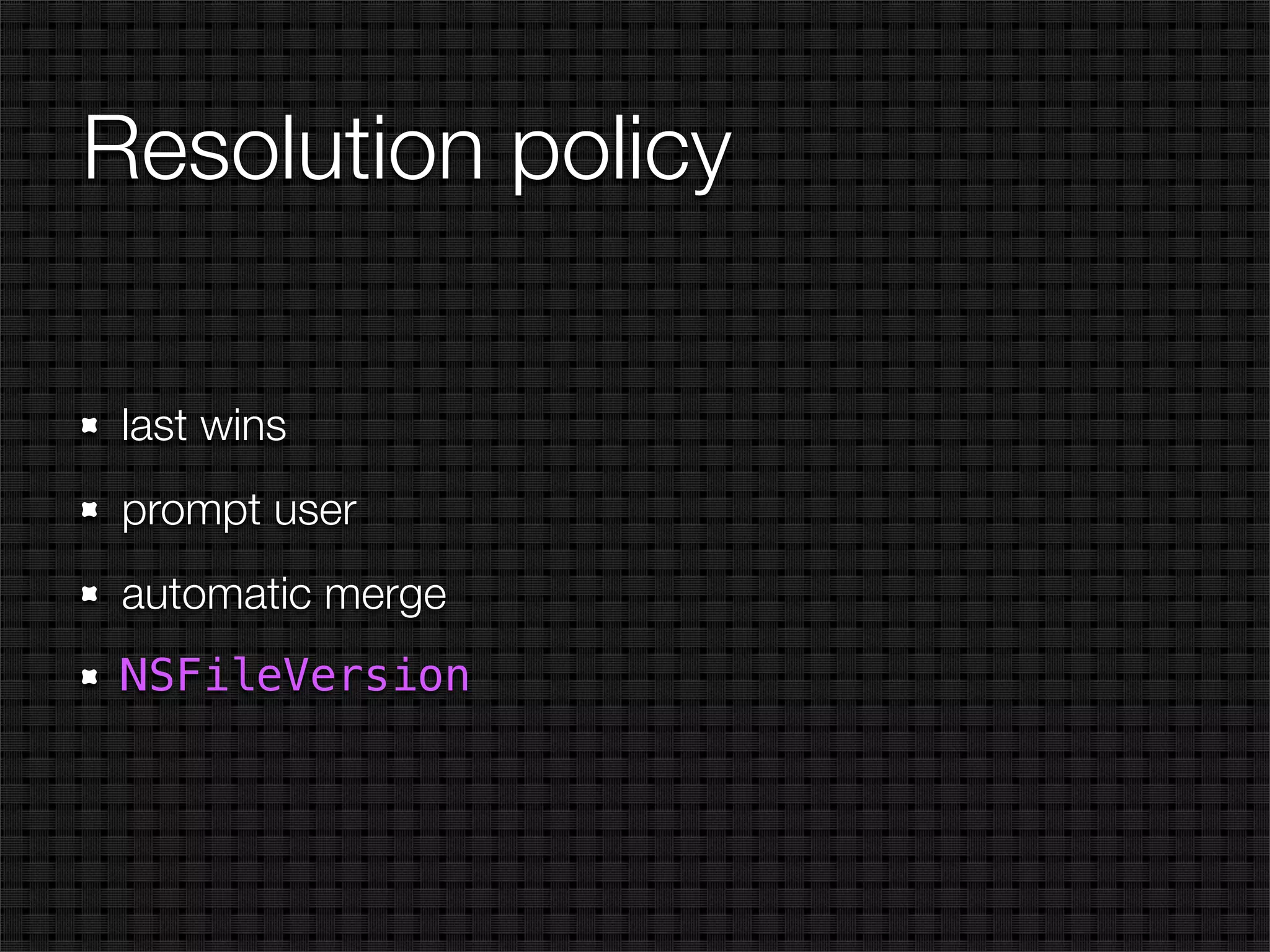

98. Resolution policy
last wins
prompt user
automatic merge
NSFileVersion

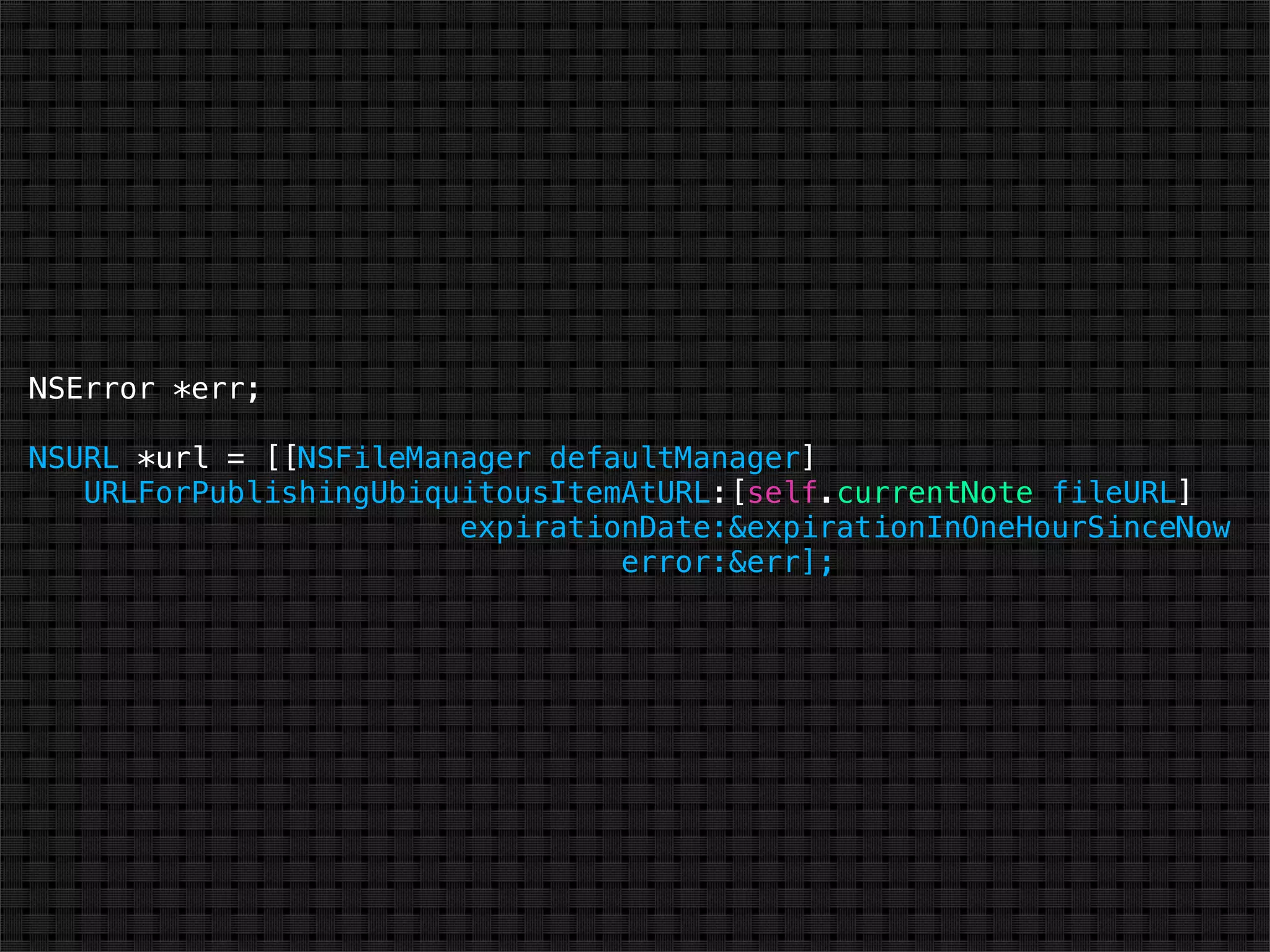

99. NSError *err;
NSURL *url = [[NSFileManager defaultManager]
URLForPublishingUbiquitousItemAtURL:[self.currentNote fileURL]
expirationDate:&expirationInOneHourSinceNow
error:&err];

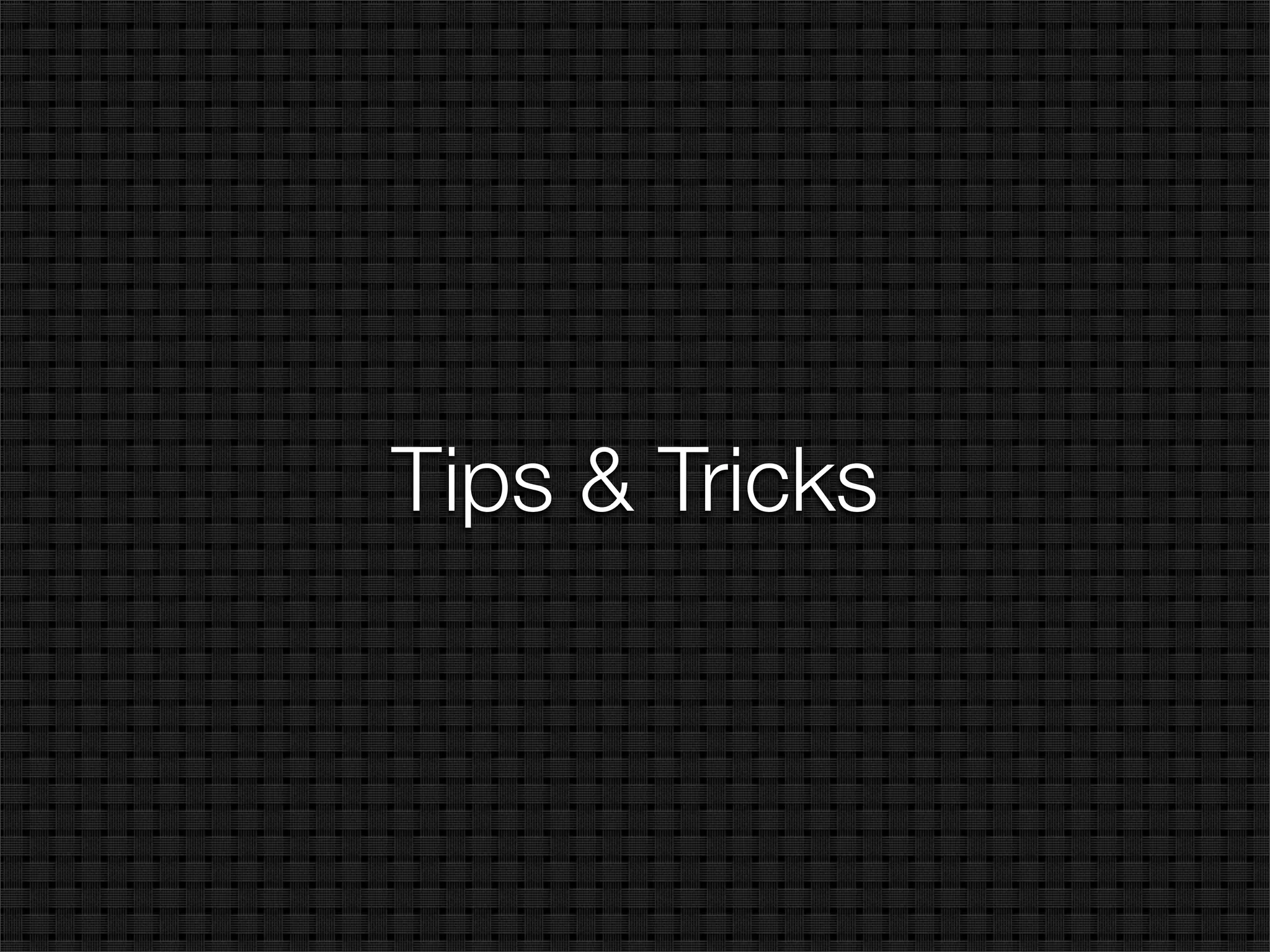

101. Tips & Tricks

102. Patience!

103. Test on wireless & 3G

104. Regenerate provisioning

105. Delete previous data

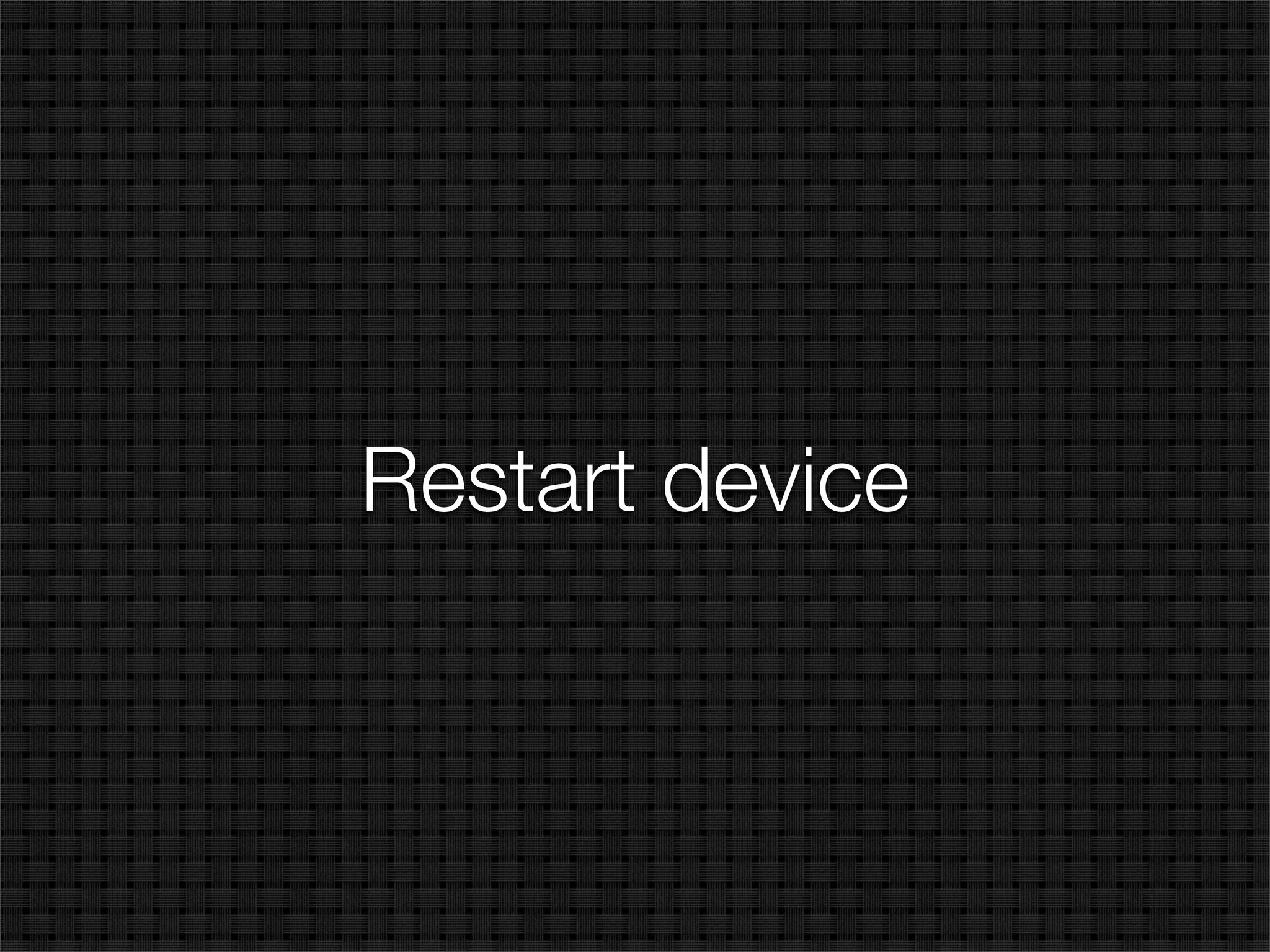

107. Restart device

108. API throttle!

109. App policy
Be gentle with storage
<App_home>/tmp
<App_home>/Library/Caches/

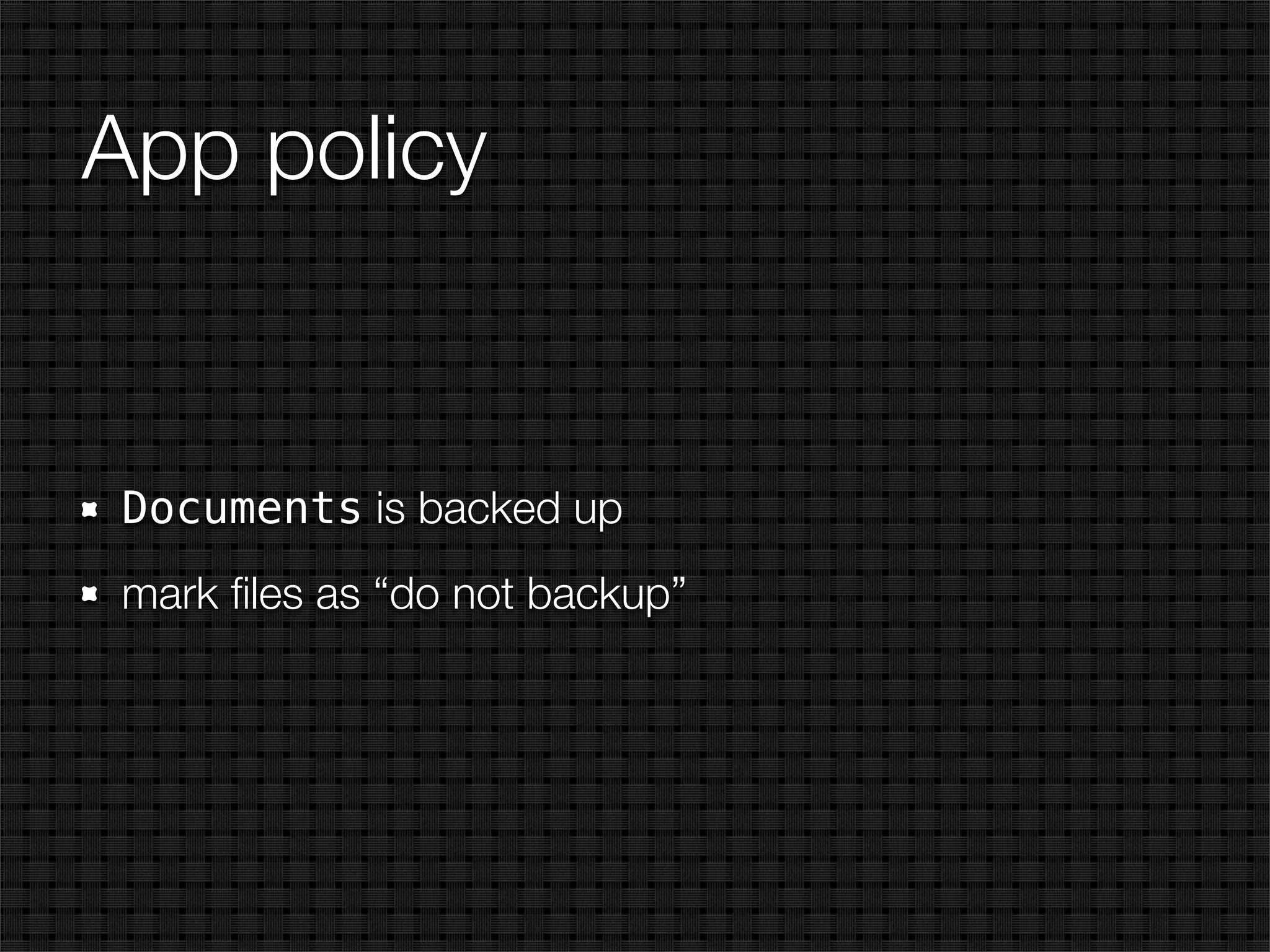

110. App policy
Documents is backed up
mark files as “do not backup”

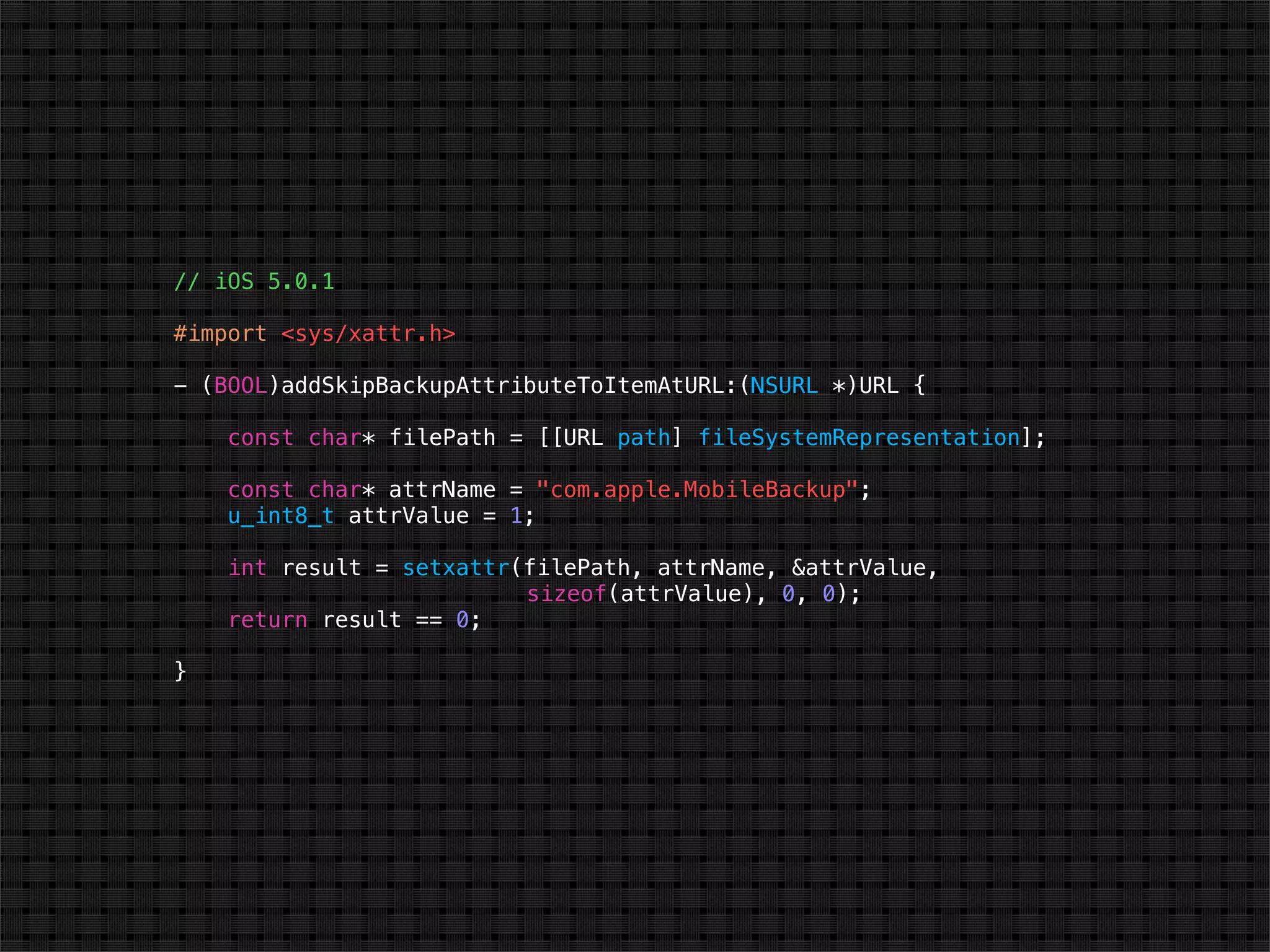

111. // iOS 5.0.1
#import <sys/xattr.h>
- (BOOL)addSkipBackupAttributeToItemAtURL:(NSURL *)URL {
const char* filePath = [[URL path] fileSystemRepresentation];
const char* attrName = "com.apple.MobileBackup";
u_int8_t attrValue = 1;
int result = setxattr(filePath, attrName, &attrValue,
sizeof(attrValue), 0, 0);
return result == 0;
}

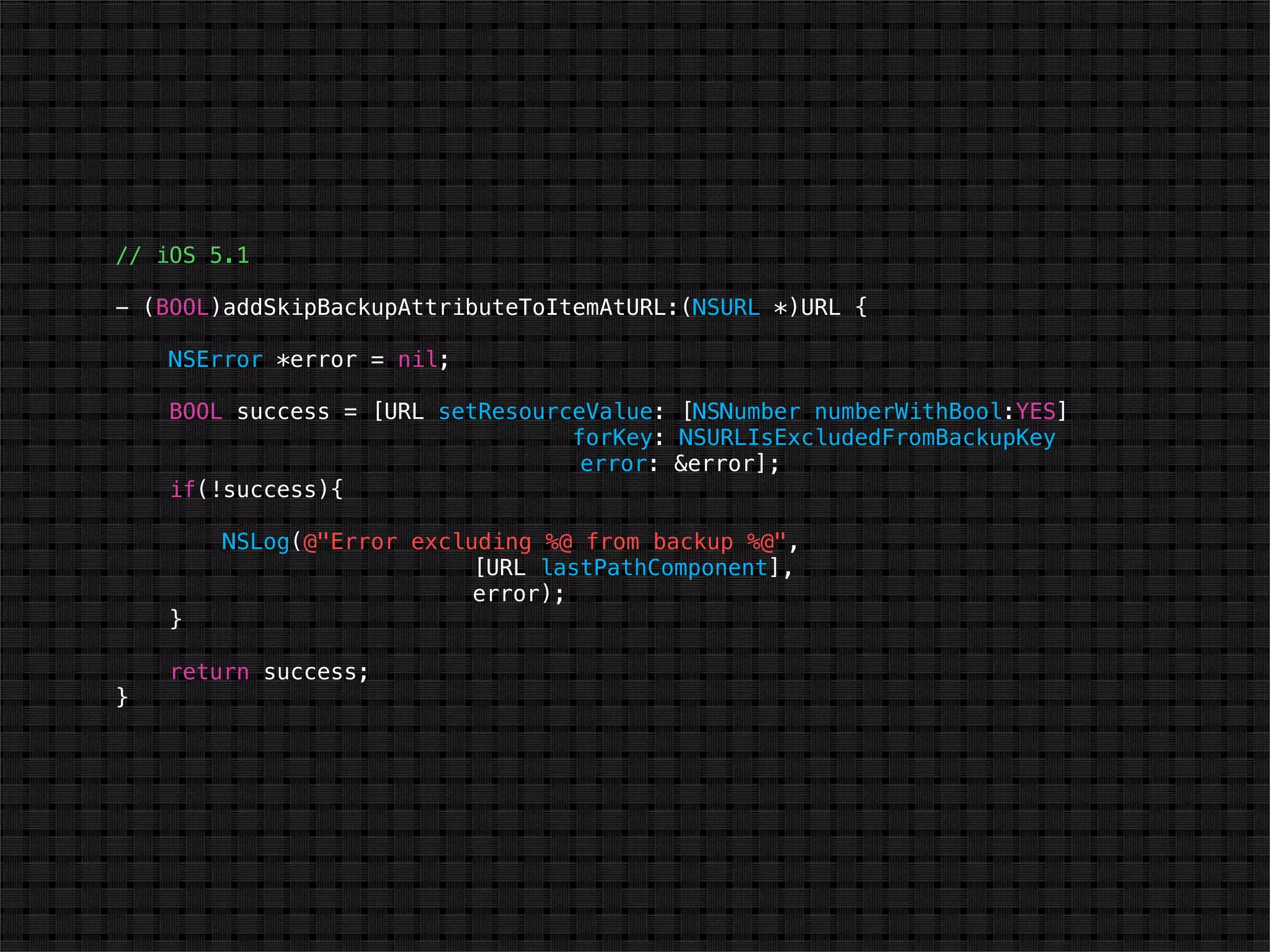

112. // iOS 5.1
- (BOOL)addSkipBackupAttributeToItemAtURL:(NSURL *)URL {
NSError *error = nil;
BOOL success = [URL setResourceValue: [NSNumber numberWithBool:YES]
forKey: NSURLIsExcludedFromBackupKey
error: &error];
if(!success){
NSLog(@"Error excluding %@ from backup %@",
[URL lastPathComponent],
error);
}
return success;
}

113. “To iCloud or not to iCloud?”

114. Alternatives

115. Alternatives
dropbox
parse.com
cloudmine
stackmob
custom

116. Dropbox
documents
authentication
no notifications

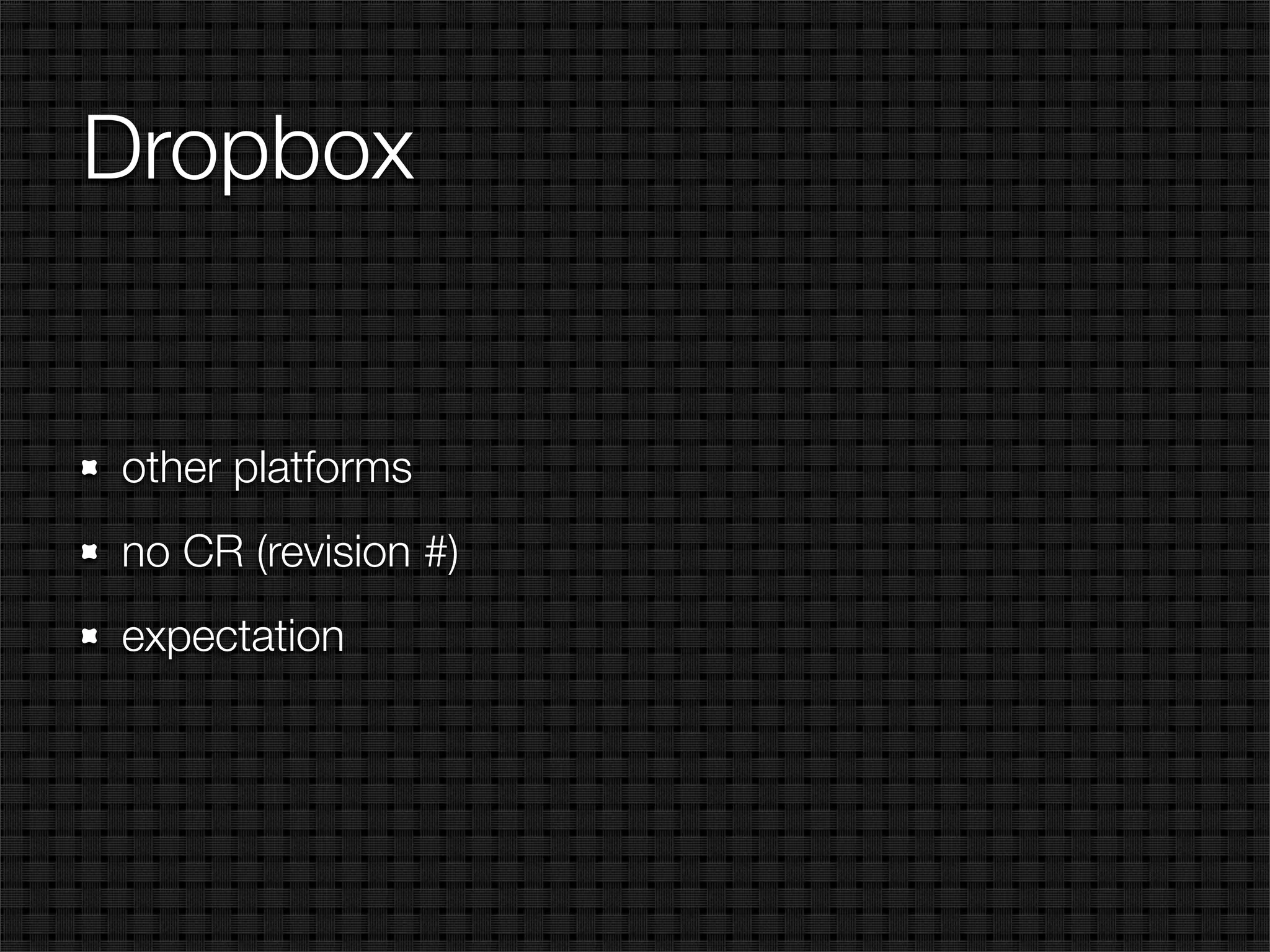

117. Dropbox
other platforms
no CR (revision #)
expectation

118. Parse

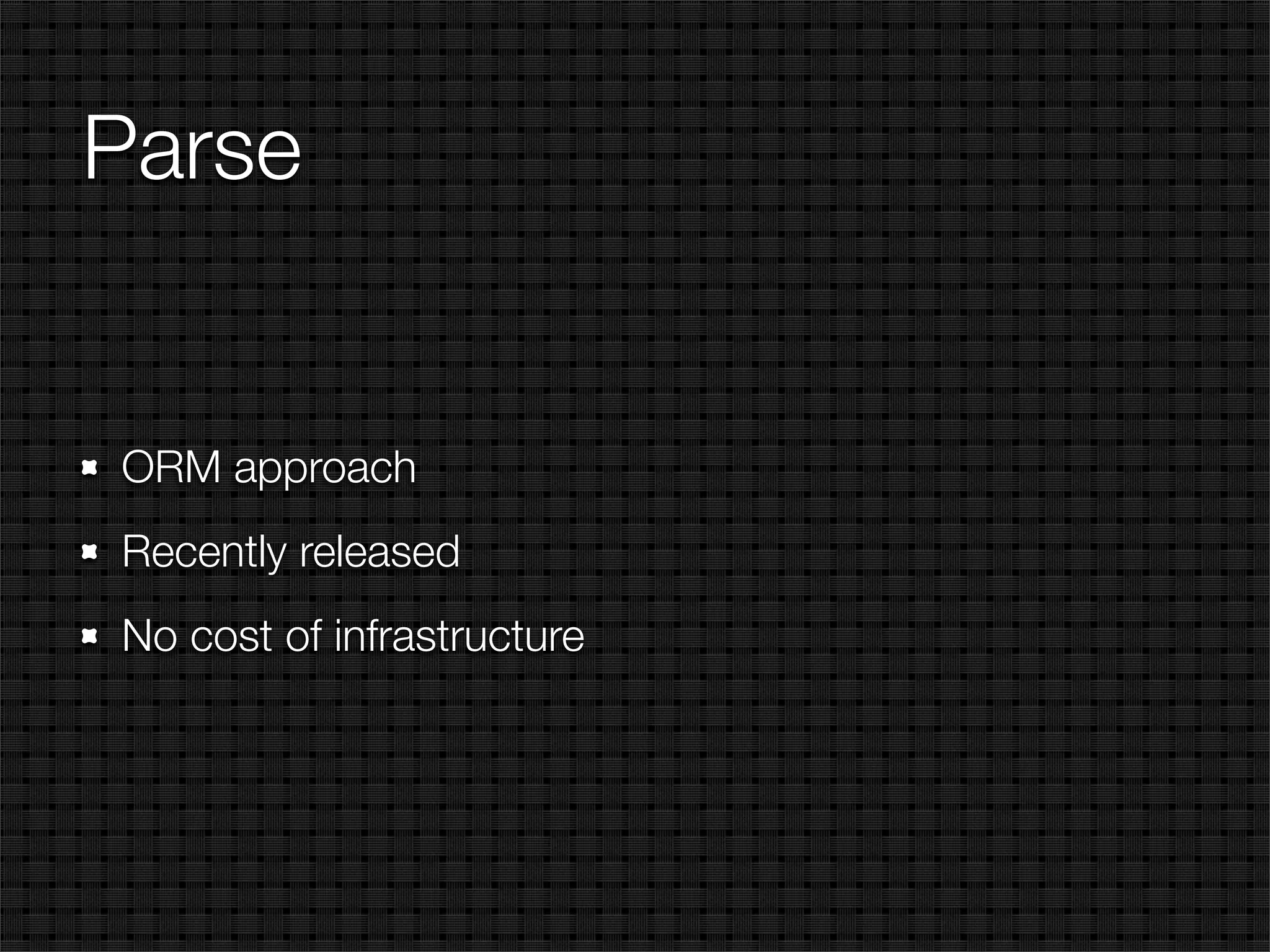

119. Parse
ORM approach
Recently released
No cost of infrastructure

120. Parse
Pay as you use
Limit of calls/mo

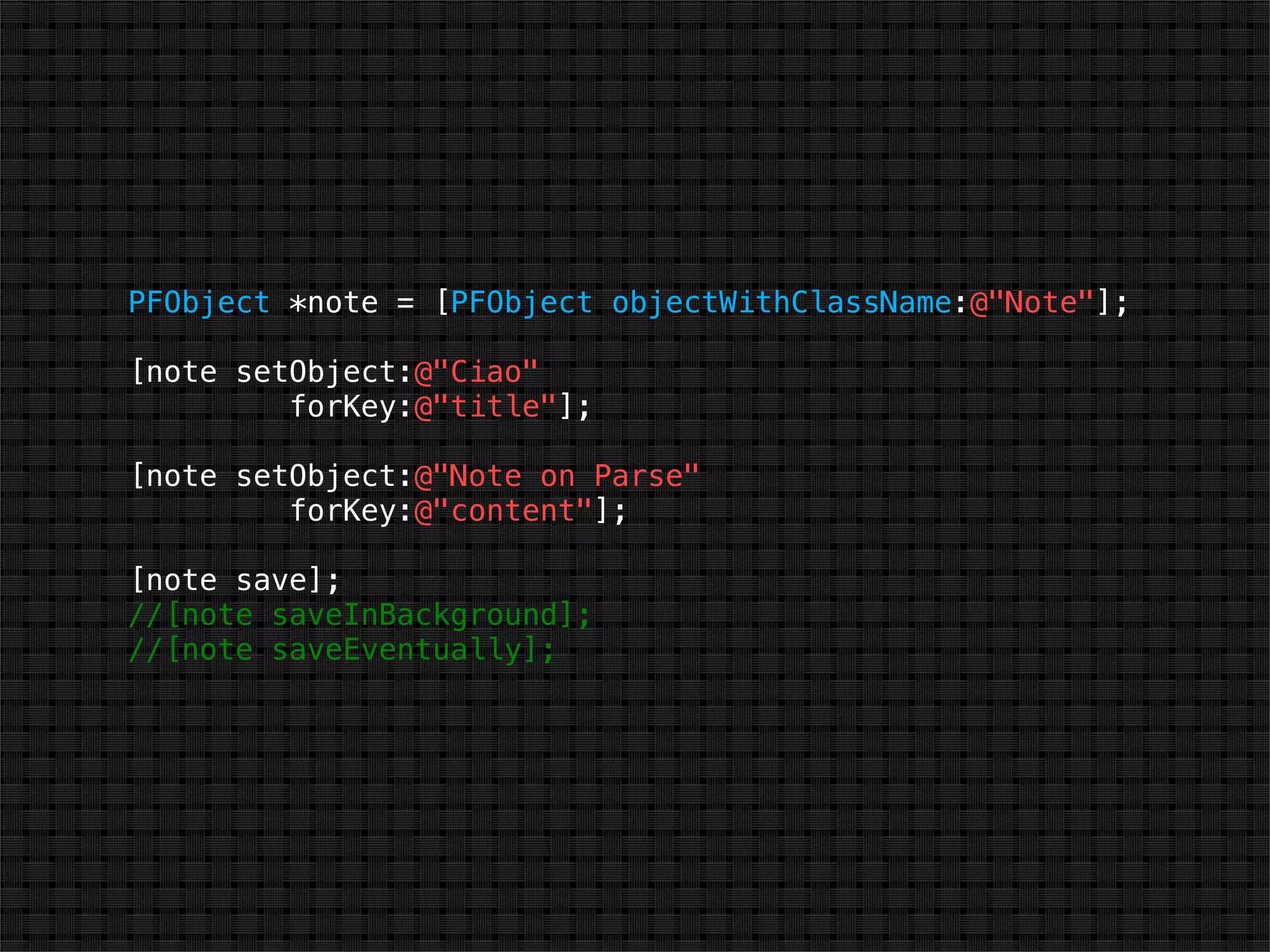

121. PFObject *note = [PFObject objectWithClassName:@"Note"];
[note setObject:@"Ciao"
forKey:@"title"];
[note setObject:@"Note on Parse"
forKey:@"content"];
[note save];
//[note saveInBackground];
//[note saveEventually];

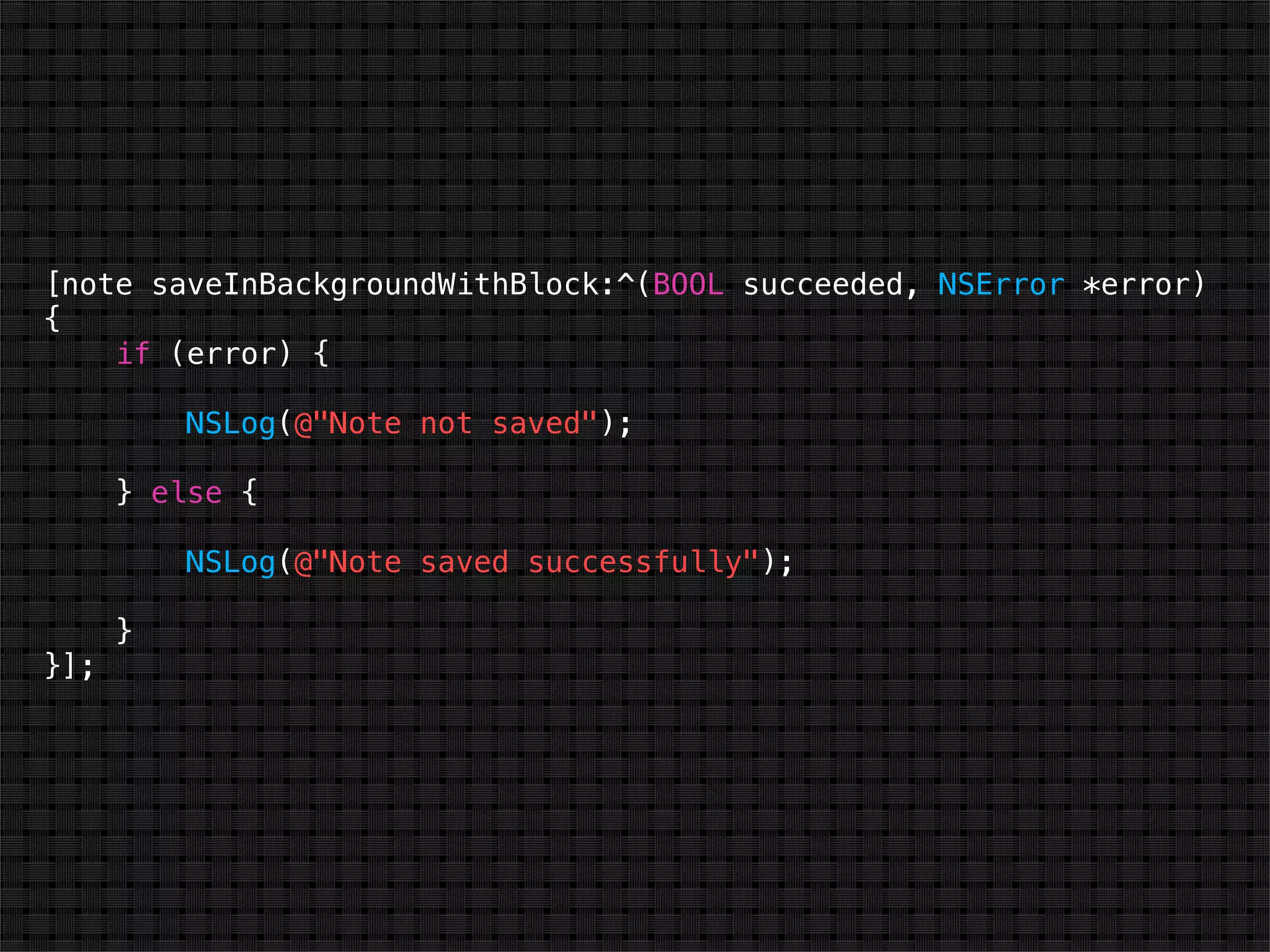

122. [note saveInBackgroundWithBlock:^(BOOL succeeded, NSError *error)
{
if (error) {
NSLog(@"Note not saved");
} else {
NSLog(@"Note saved successfully");
}
}];

123. Parse
Other platforms
REST API
Push notifications
Object browser

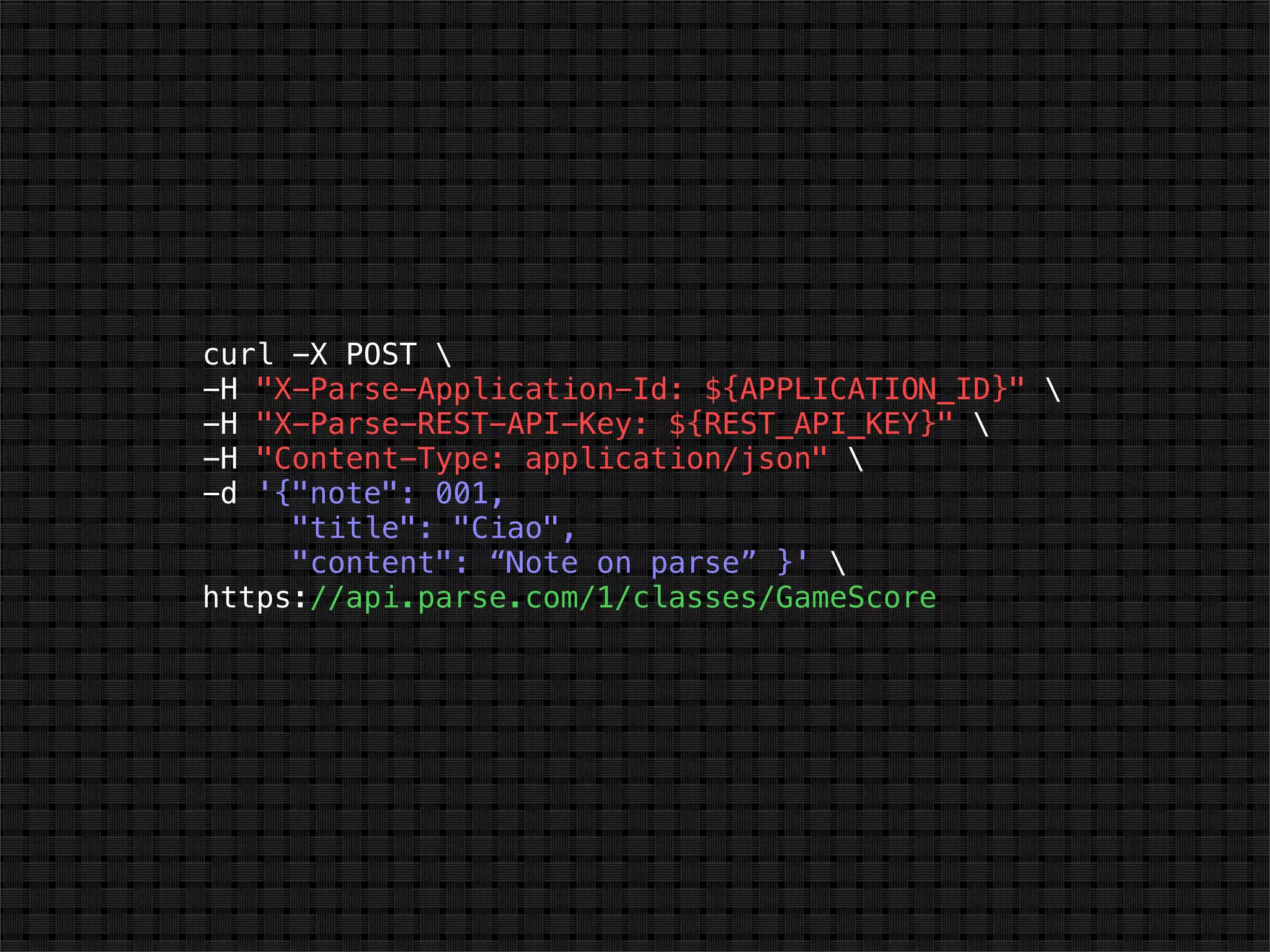

124. curl -X POST
-H "X-Parse-Application-Id: ${APPLICATION_ID}"
-H "X-Parse-REST-API-Key: ${REST_API_KEY}"
-H "Content-Type: application/json"
-d '{"note": 001,
"title": "Ciao",
"content": “Note on parse” }'
https://api.parse.com/1/classes/GameScore

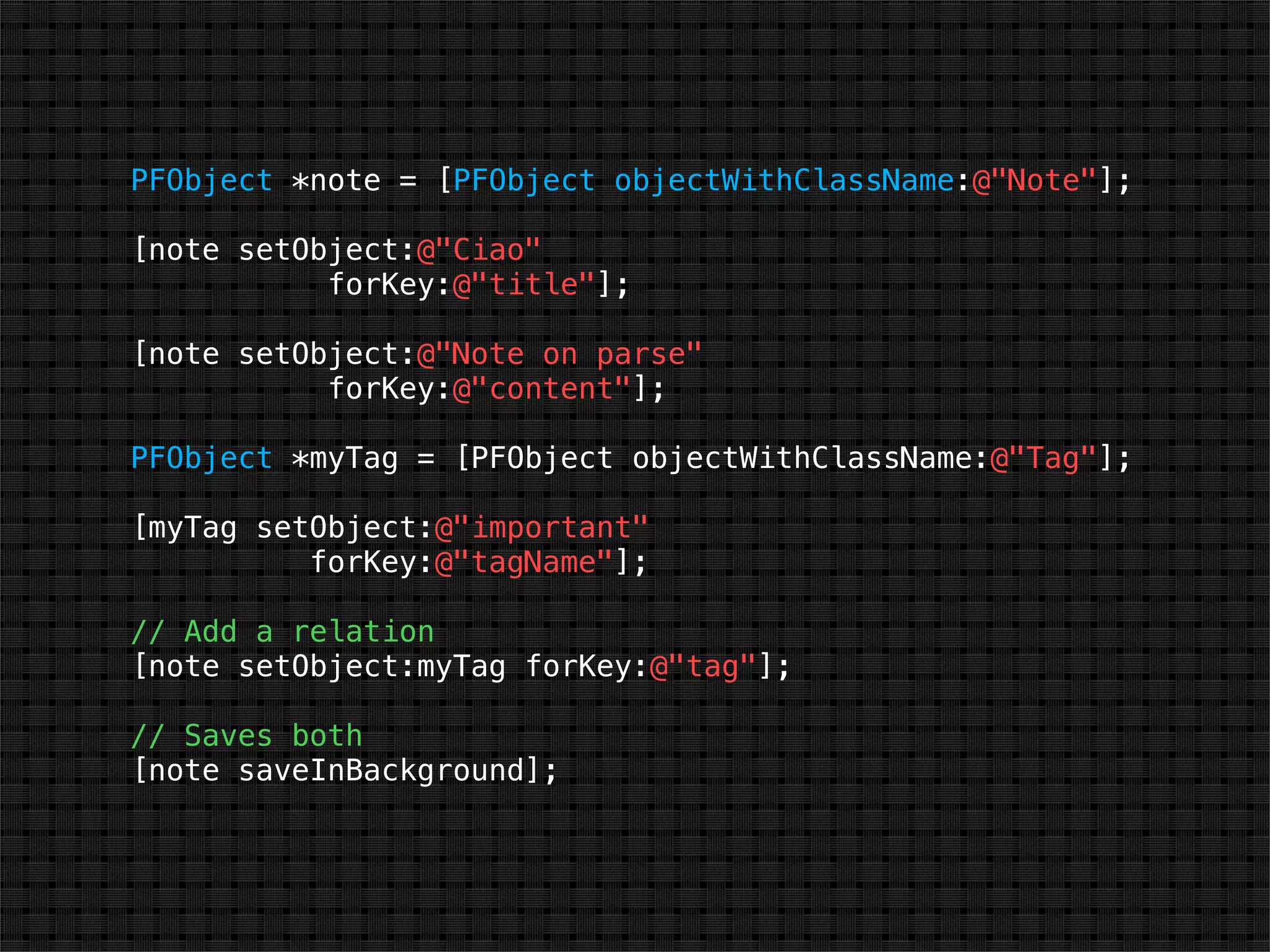

125. PFObject *note = [PFObject objectWithClassName:@"Note"];
[note setObject:@"Ciao"
forKey:@"title"];
[note setObject:@"Note on parse"
forKey:@"content"];
PFObject *myTag = [PFObject objectWithClassName:@"Tag"];
[myTag setObject:@"important"
forKey:@"tagName"];
// Add a relation
[note setObject:myTag forKey:@"tag"];
// Saves both
[note saveInBackground];

126. Recap
UIDocument
Key-Value store
Alternatives

127. “You can’t always get what
you want
but if you try sometime, you
just might find ...”

128. “You can’t always get what
you want
but if you try sometime, you
just might find ...”
Rolling Stones

129. Contact
twitter.com/_funkyboy
cesare@studiomagnolia.com
http://studiomagnolia.com
