1. Data Persistence in iOS
Michał Tuszyński
iOS/Android developer at appvetica
@srgtuszy srgtuszy.github.com

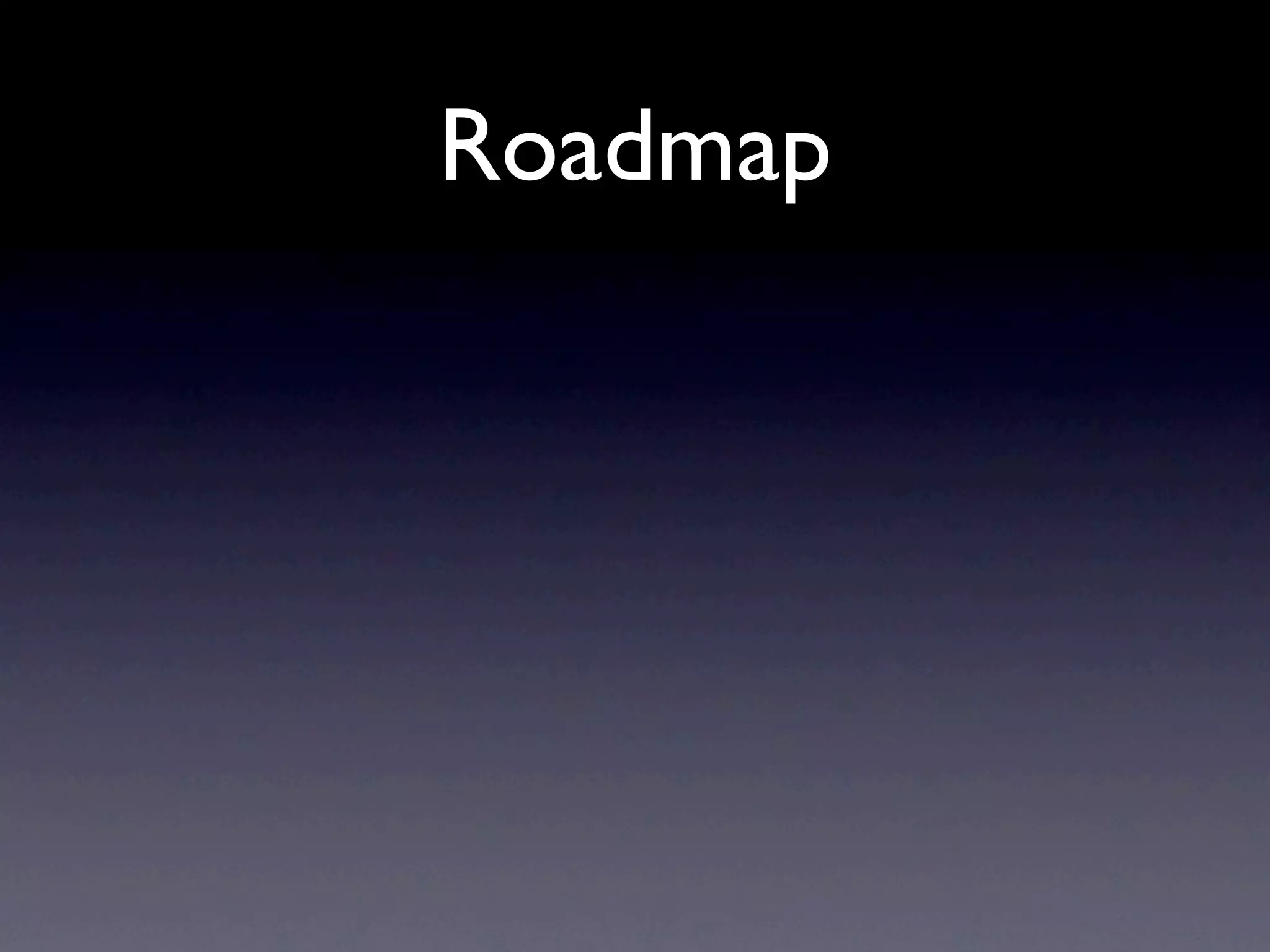

2. Roadmap

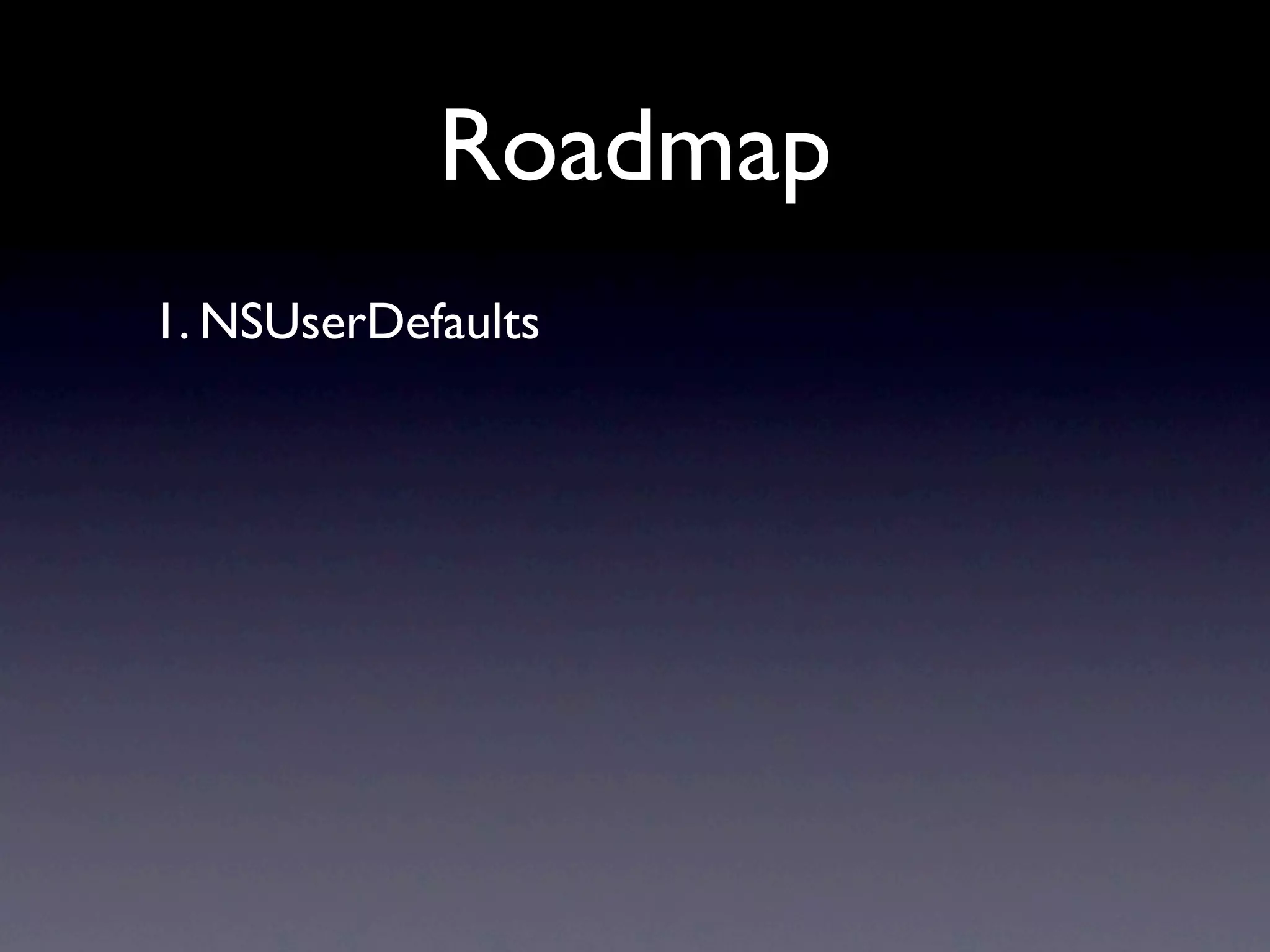

3. Roadmap
1. NSUserDefaults

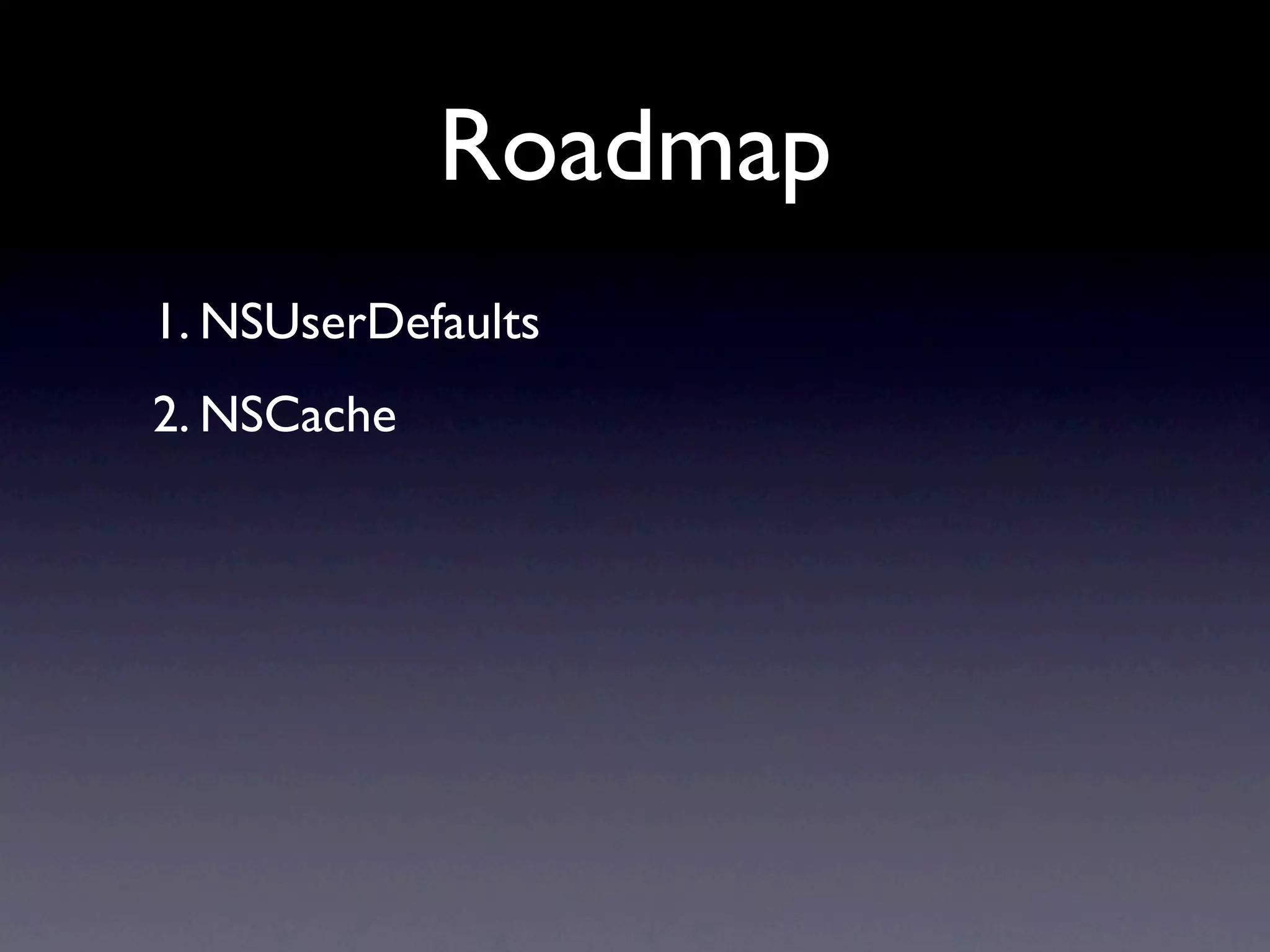

4. Roadmap
1. NSUserDefaults
2. NSCache

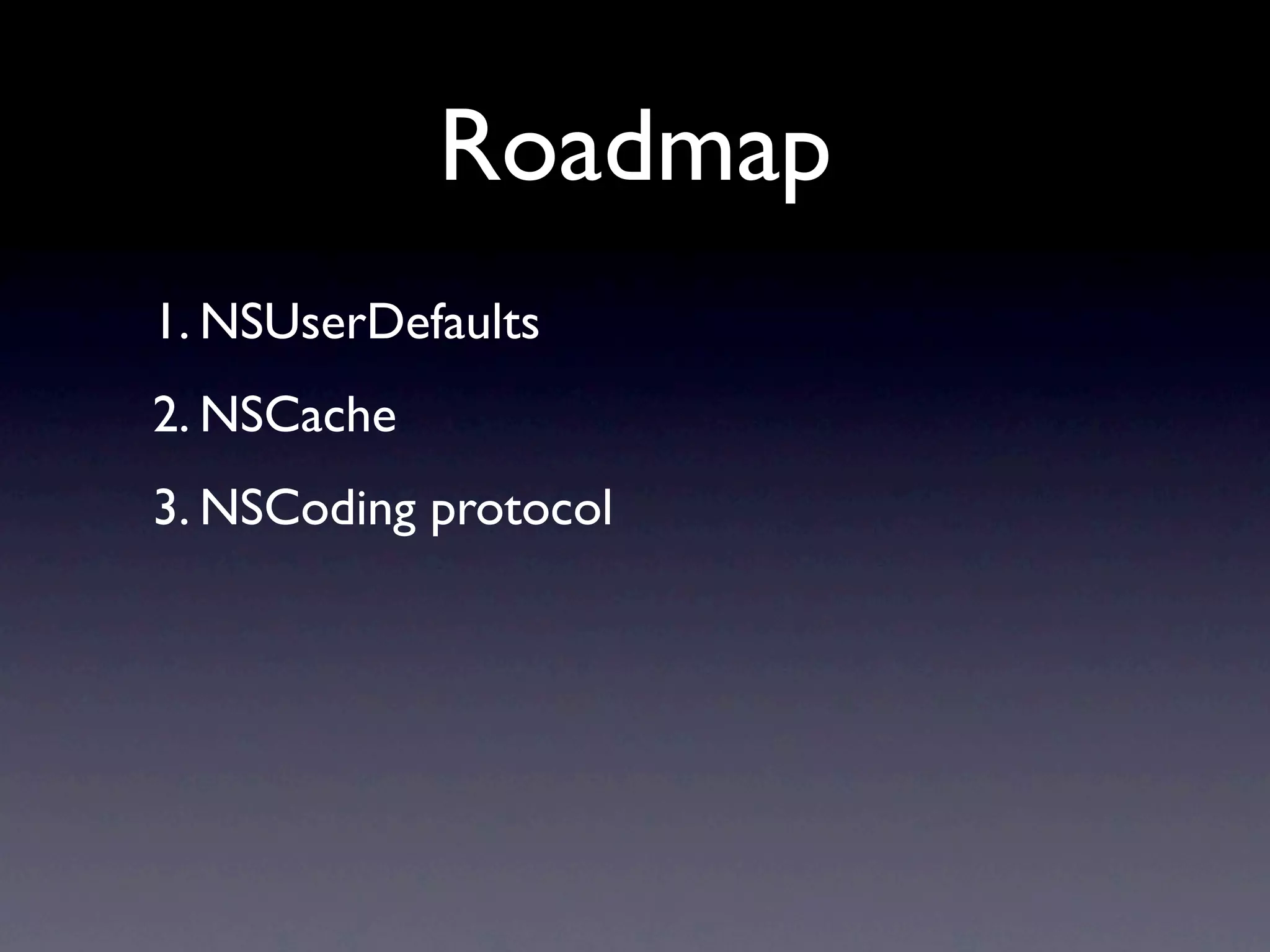

5. Roadmap
1. NSUserDefaults
2. NSCache
3. NSCoding protocol

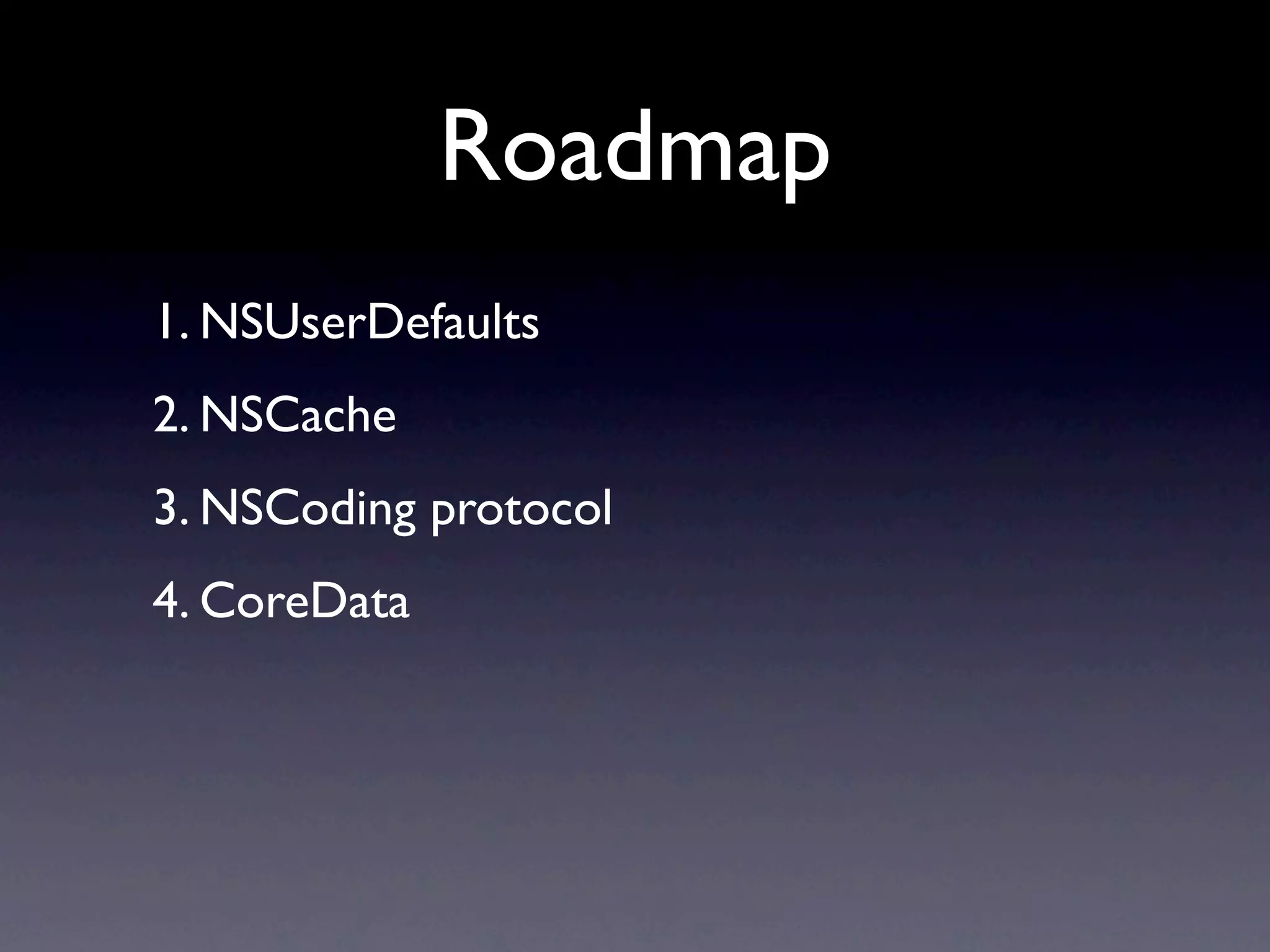

6. Roadmap
1. NSUserDefaults
2. NSCache
3. NSCoding protocol
4. CoreData

7. Roadmap
1. NSUserDefaults
2. NSCache
3. NSCoding protocol
4. CoreData
5. iCloud

8. What are
NSUserDefaults?

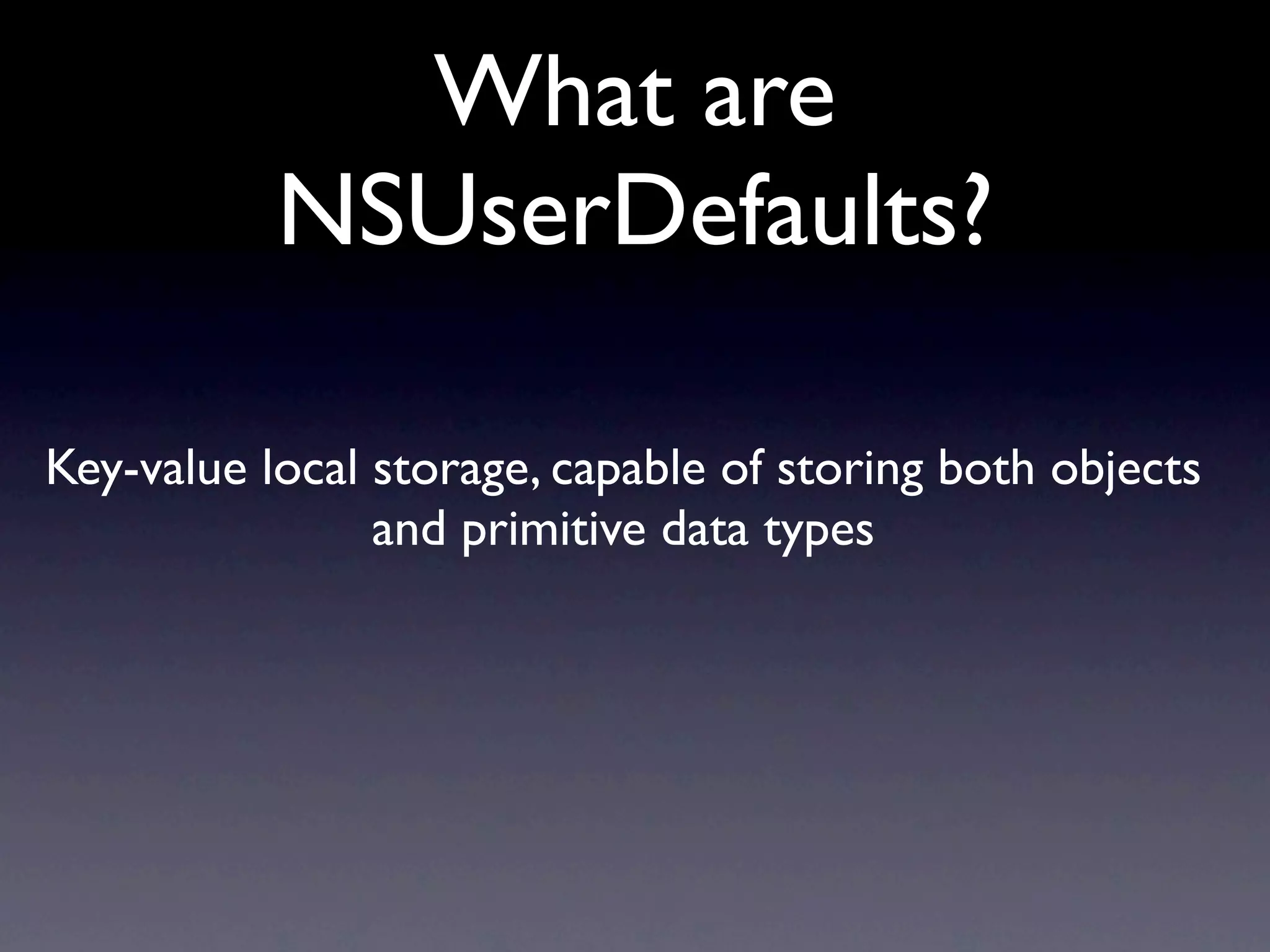

9. What are
NSUserDefaults?
Key-value local storage, capable of storing both objects
and primitive data types

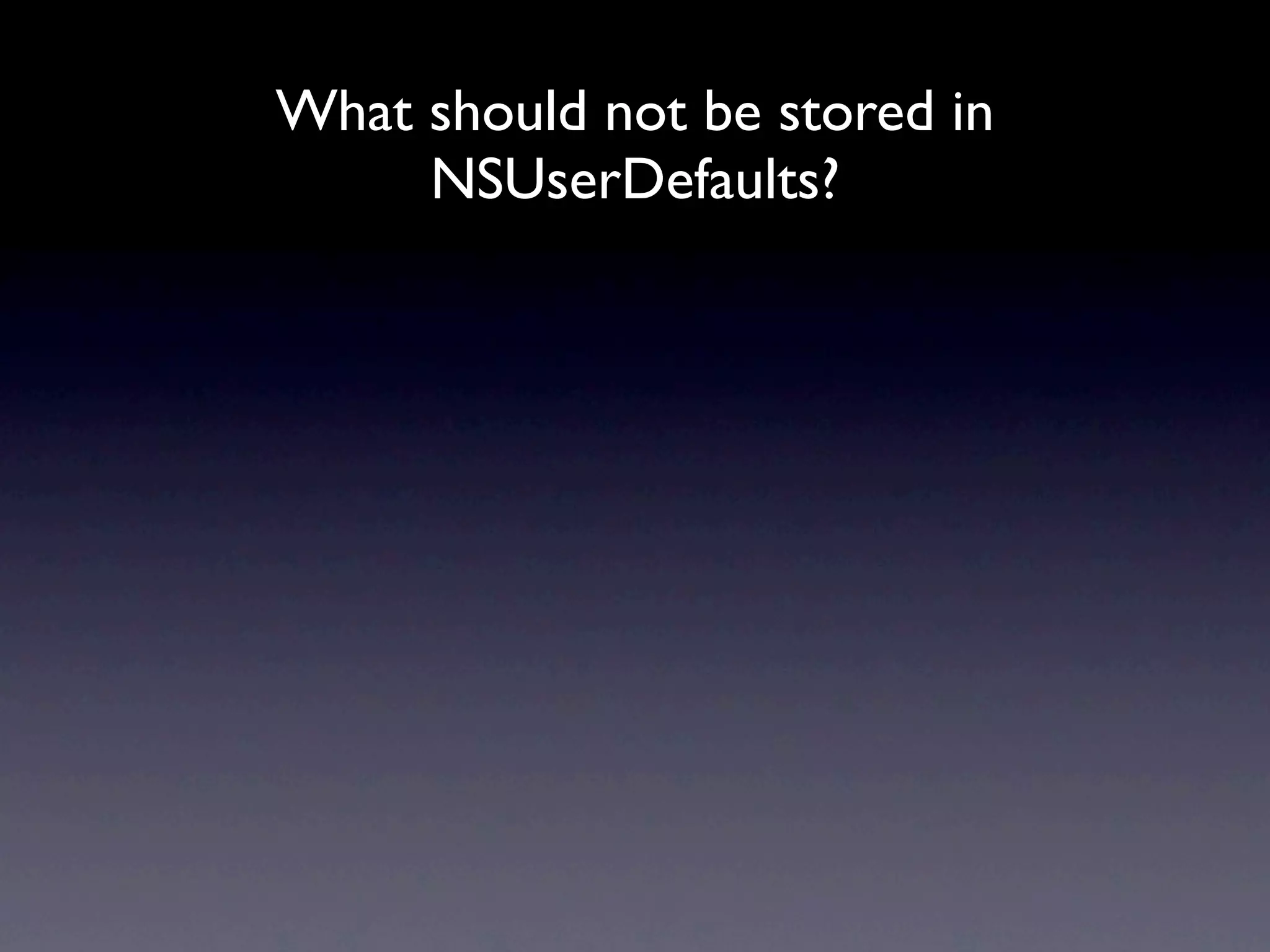

10. What should not be stored in
NSUserDefaults?

11. What should not be stored in
NSUserDefaults?
1. Sensitive data

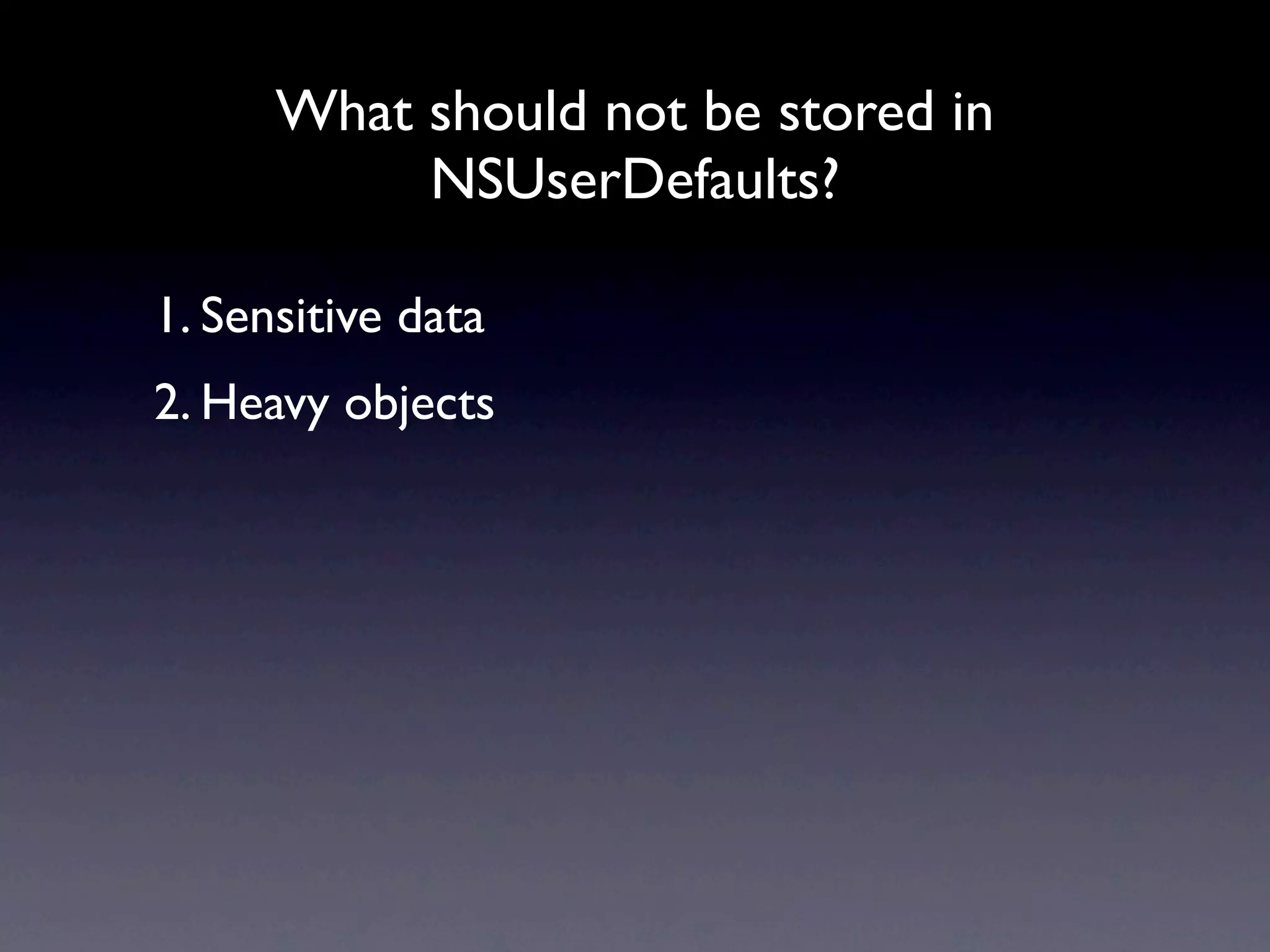

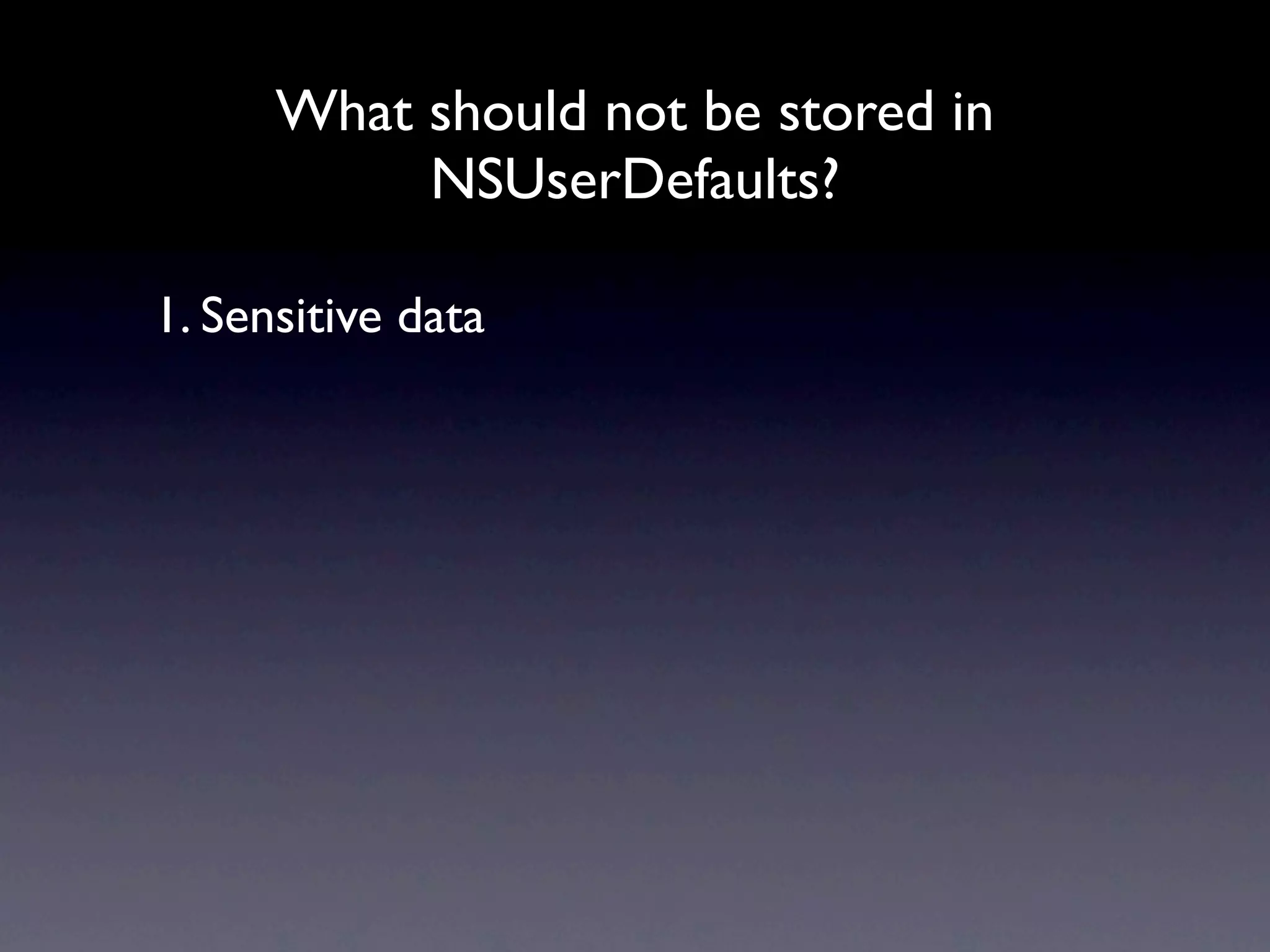

12. What should not be stored in
NSUserDefaults?
1. Sensitive data
2. Heavy objects

13. What should not be stored in
NSUserDefaults?
1. Sensitive data
2. Heavy objects
3. Big amounts of data

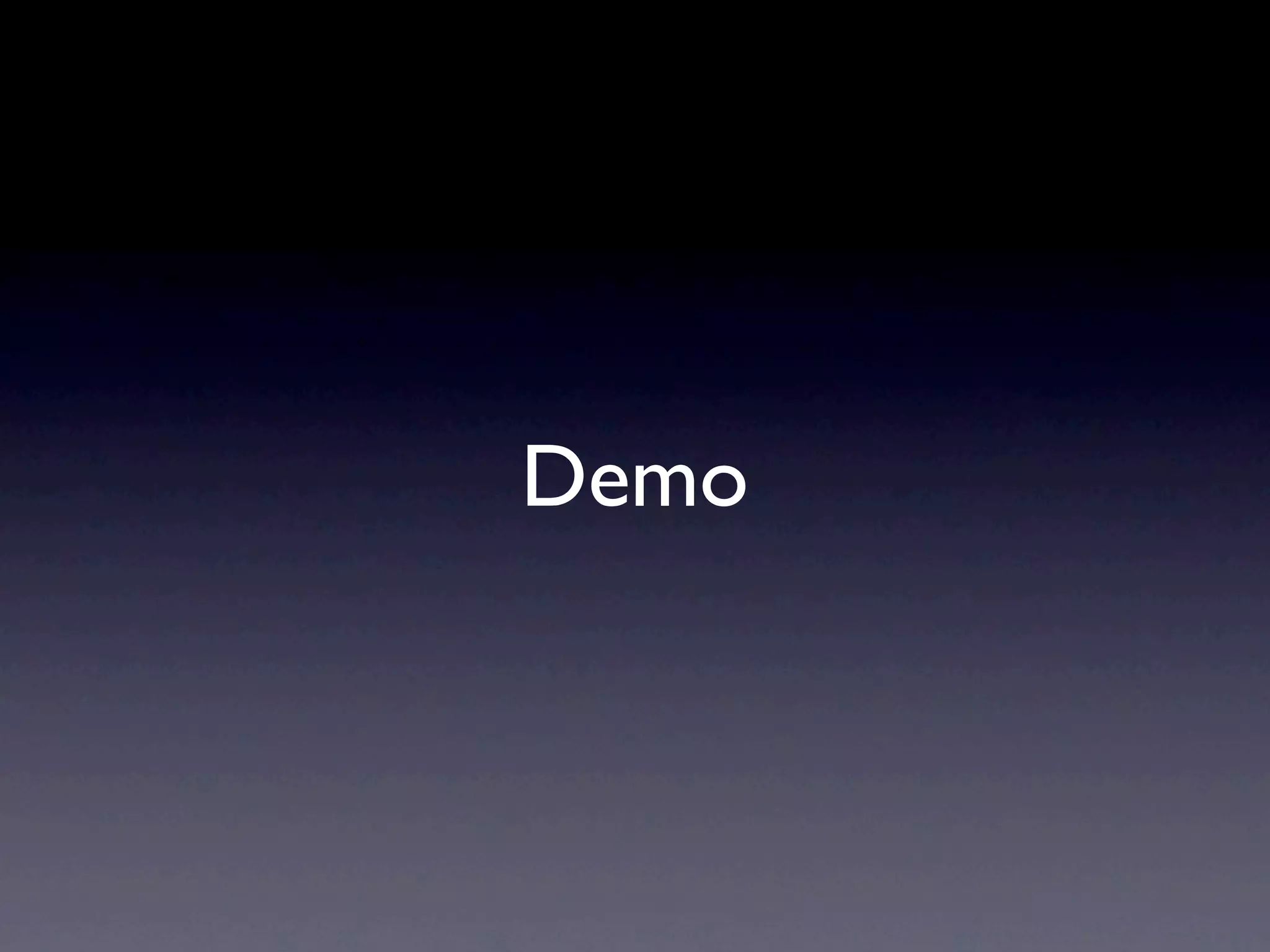

14. Demo

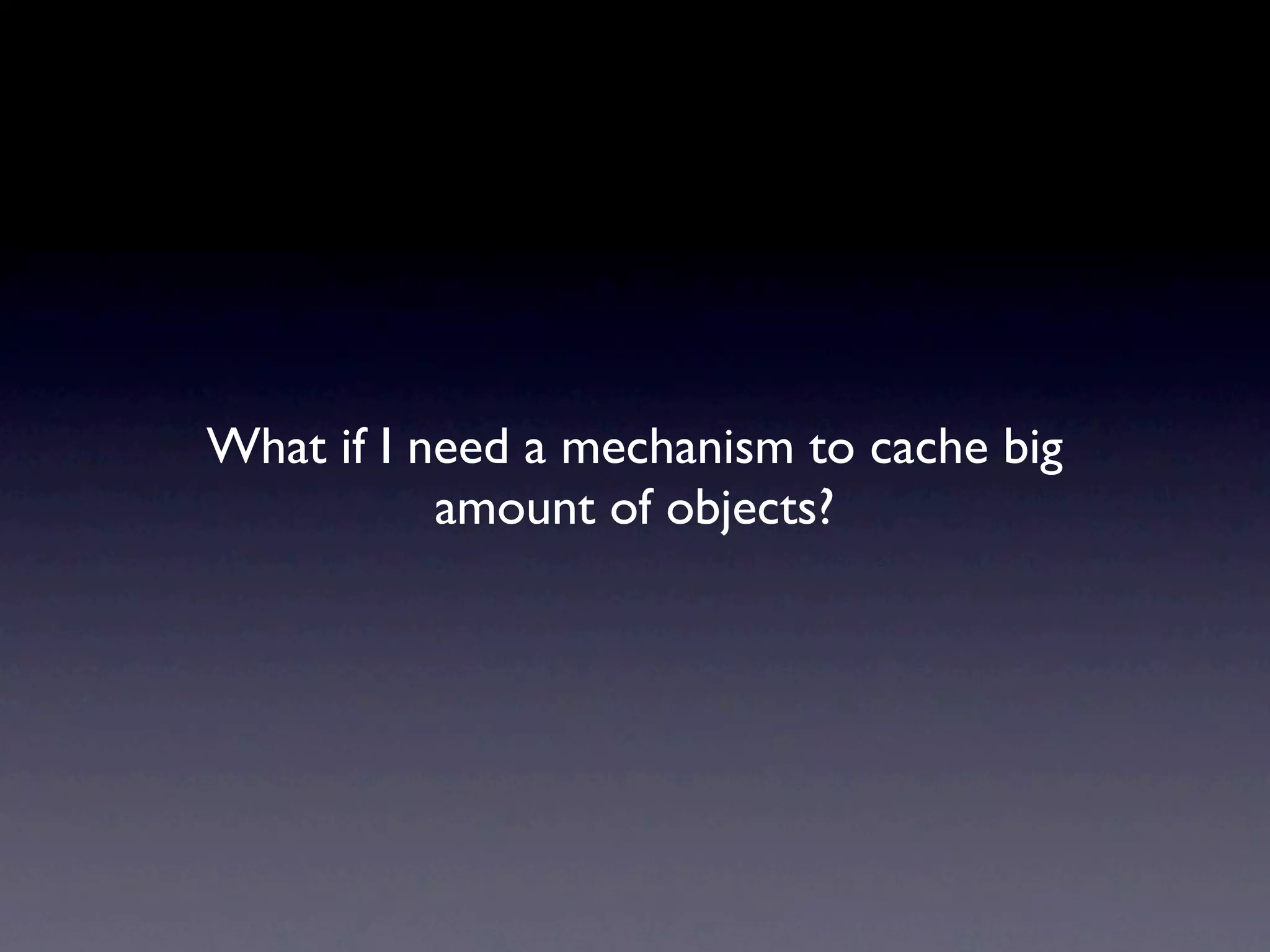

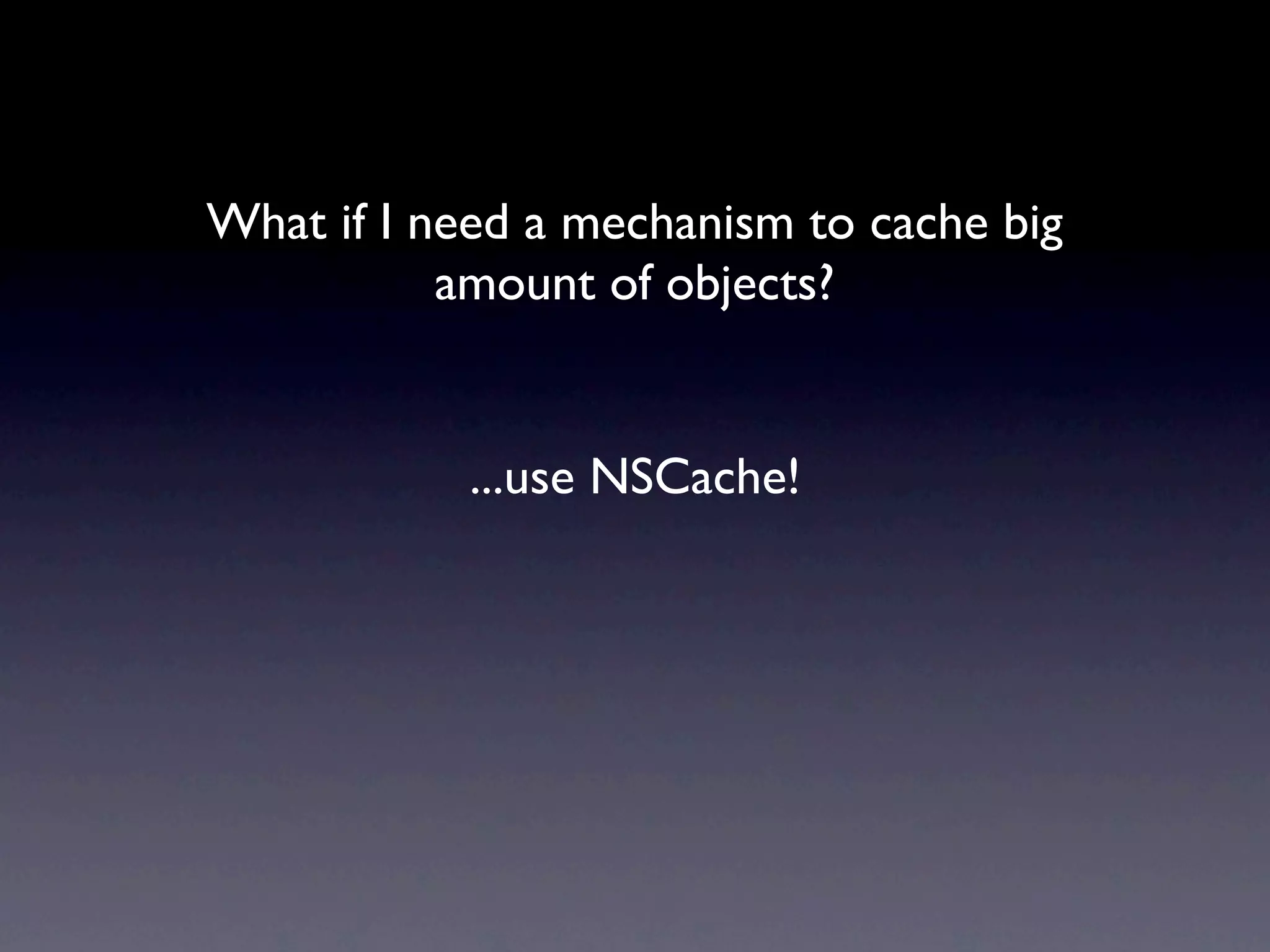

15. What if I need a mechanism to cache big
amount of objects?

16. What if I need a mechanism to cache big
amount of objects?
...use NSCache!

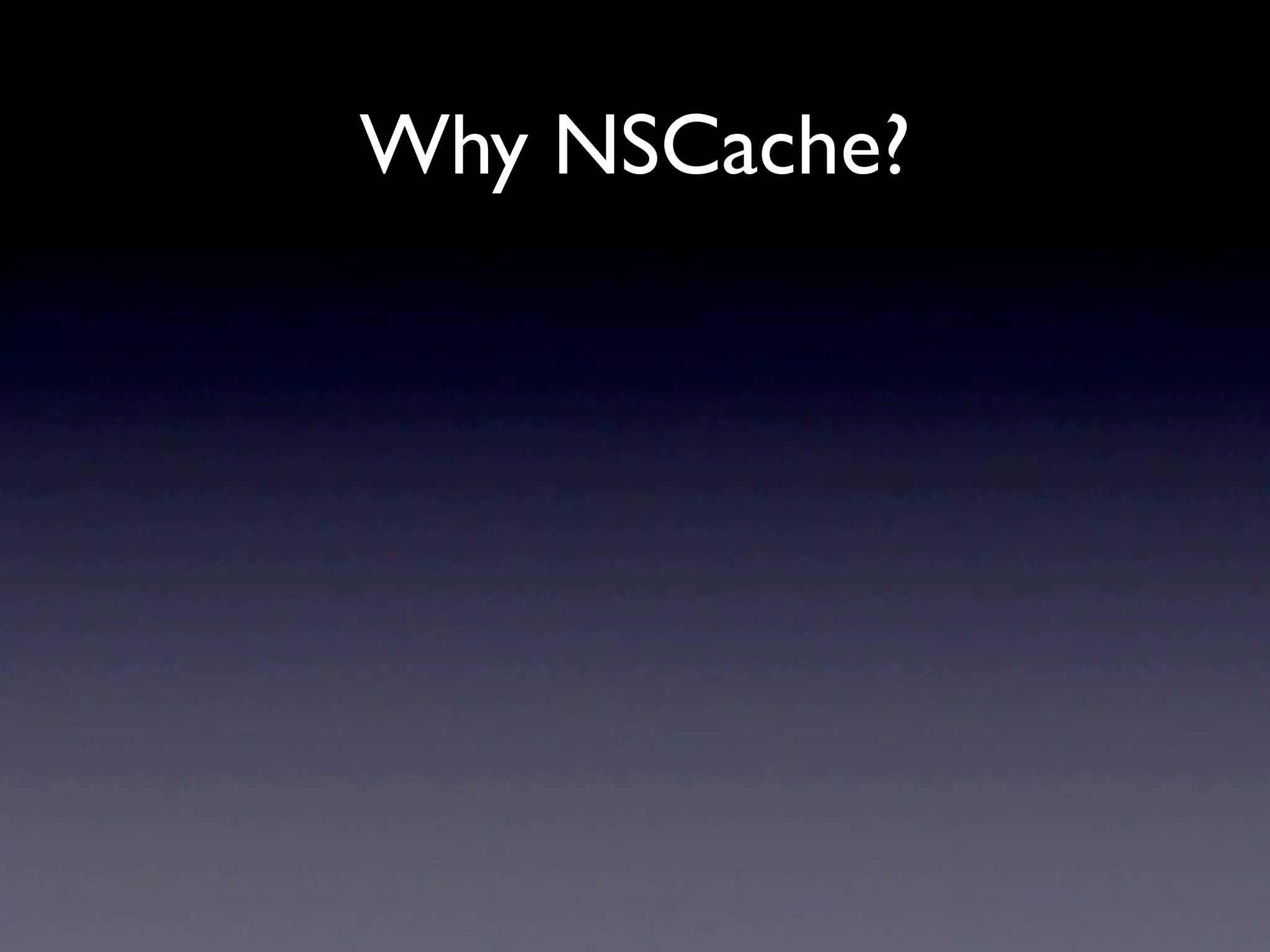

17. Why NSCache?

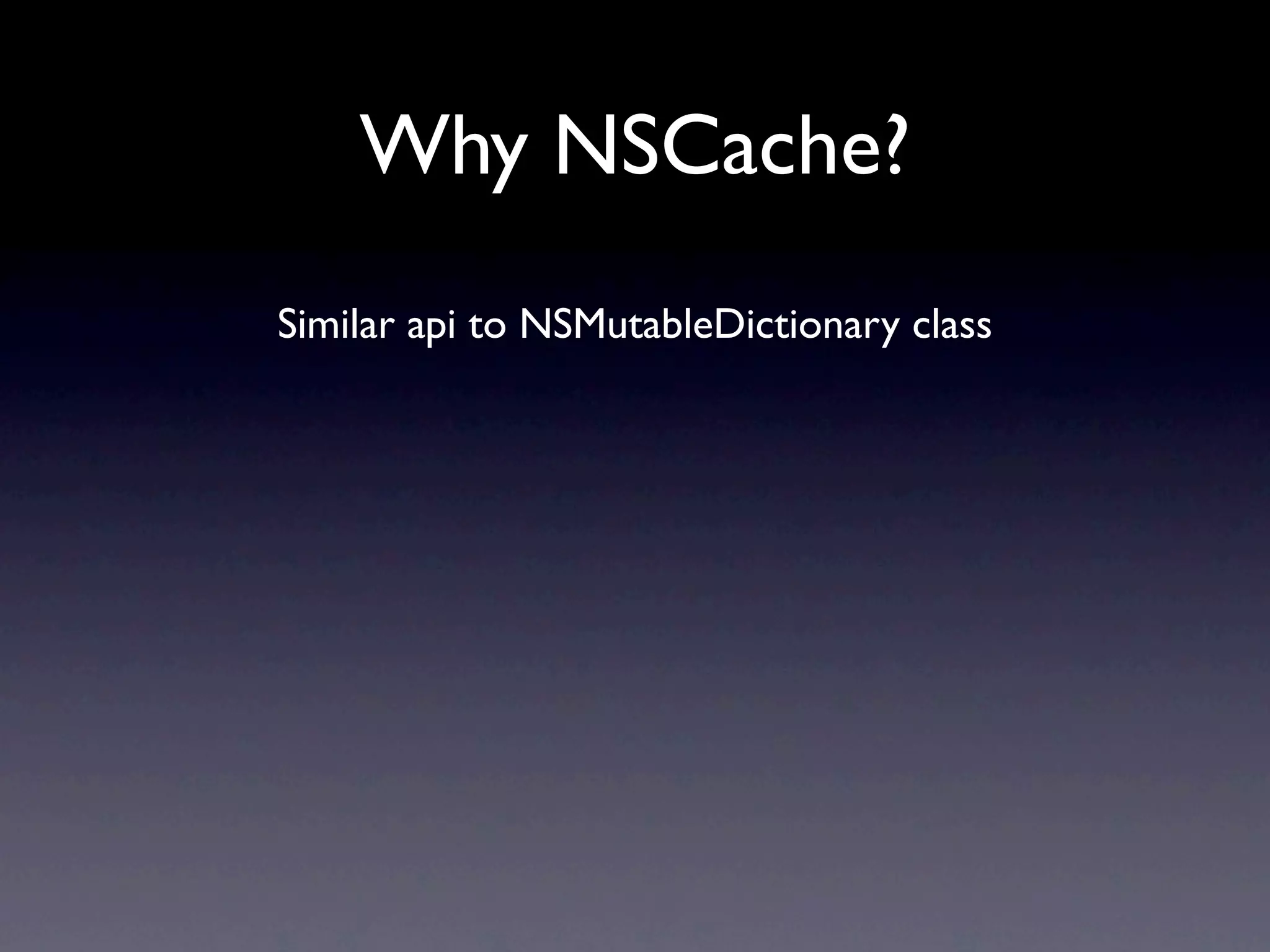

18. Why NSCache?
Similar api to NSMutableDictionary class

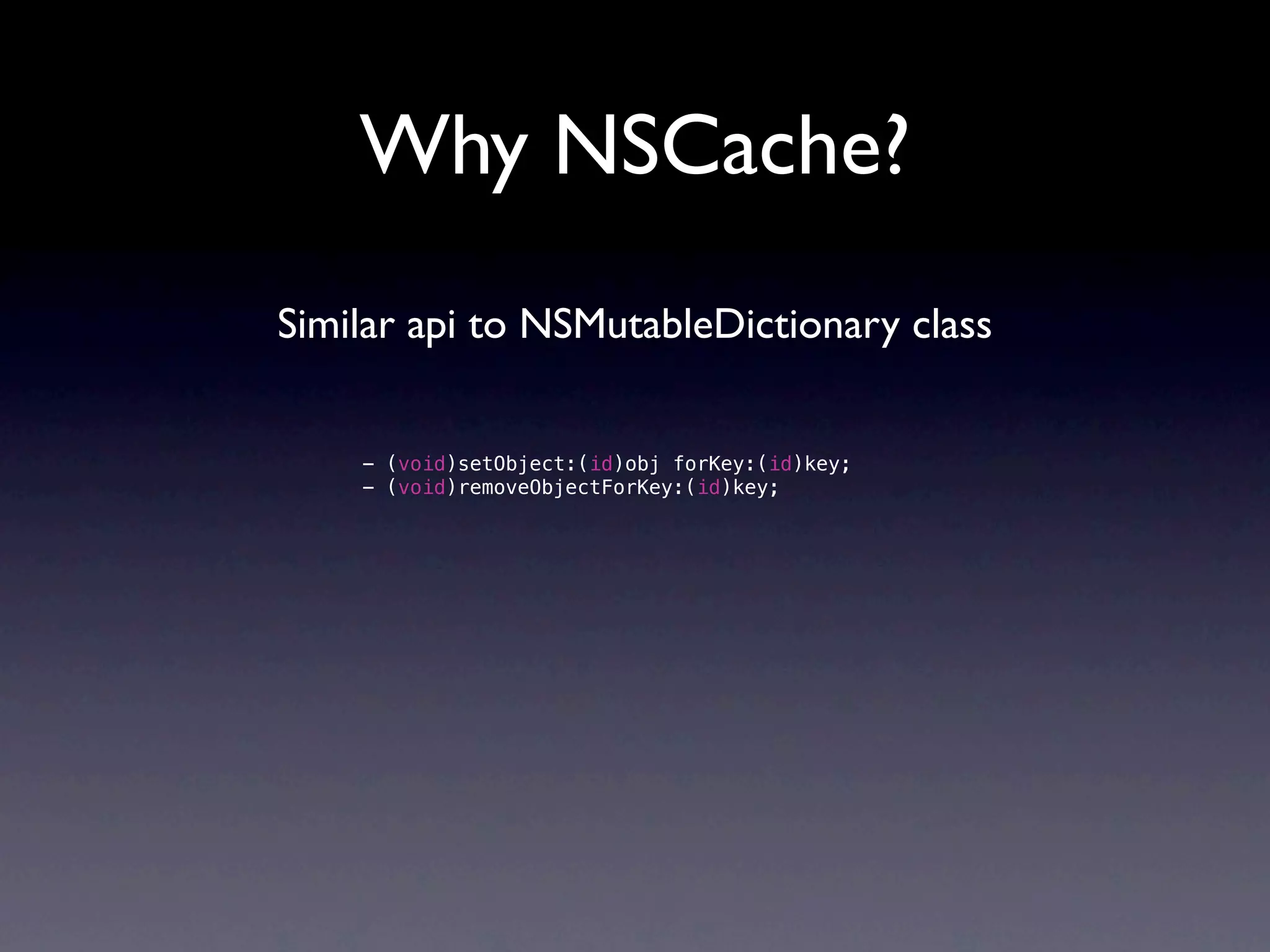

19. Why NSCache?
Similar api to NSMutableDictionary class
- (void)setObject:(id)obj forKey:(id)key;
- (void)removeObjectForKey:(id)key;

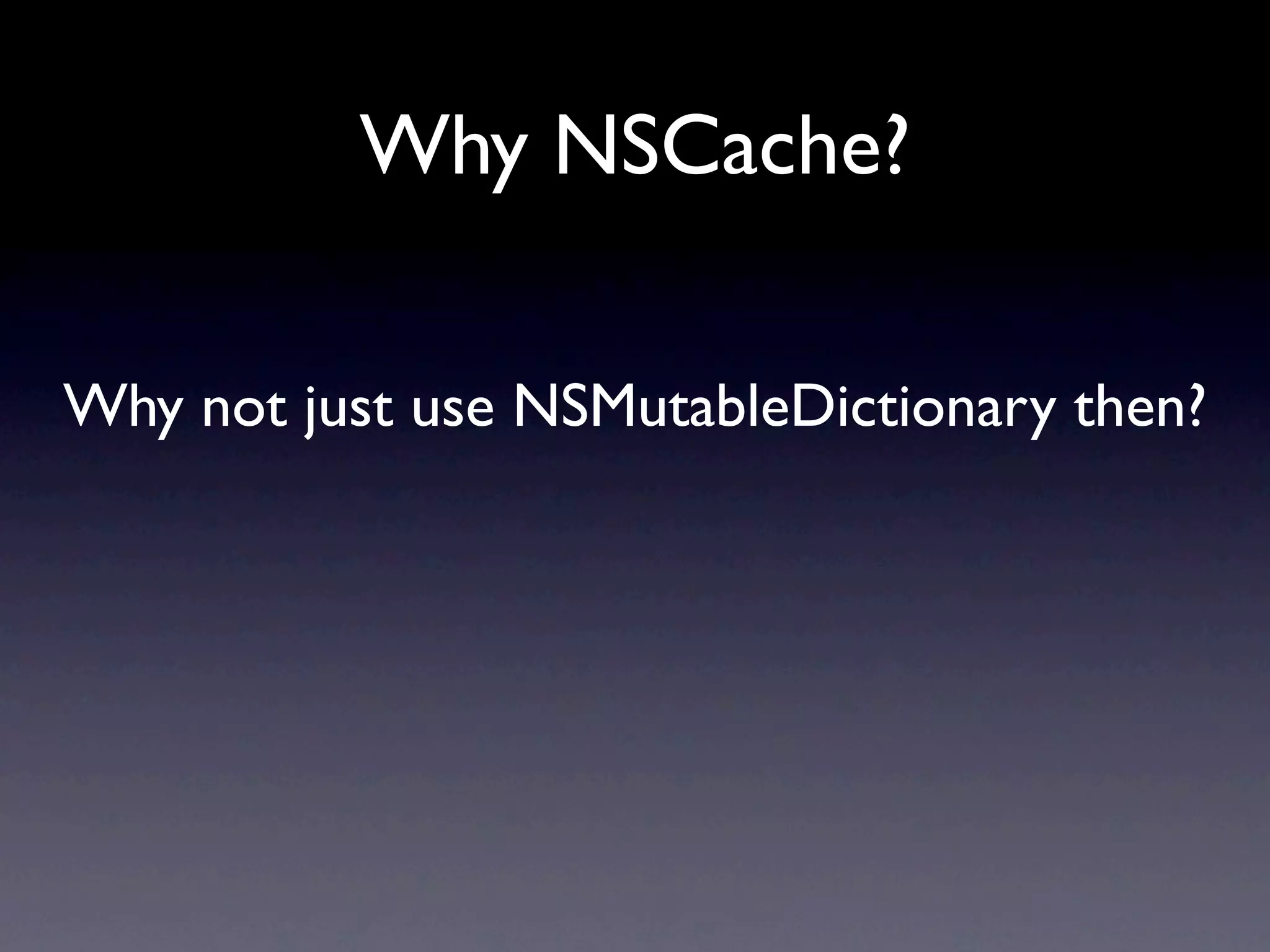

20. Why NSCache?
Why not just use NSMutableDictionary then?

21. Why NSCache?
Why not just use NSMutableDictionary then?

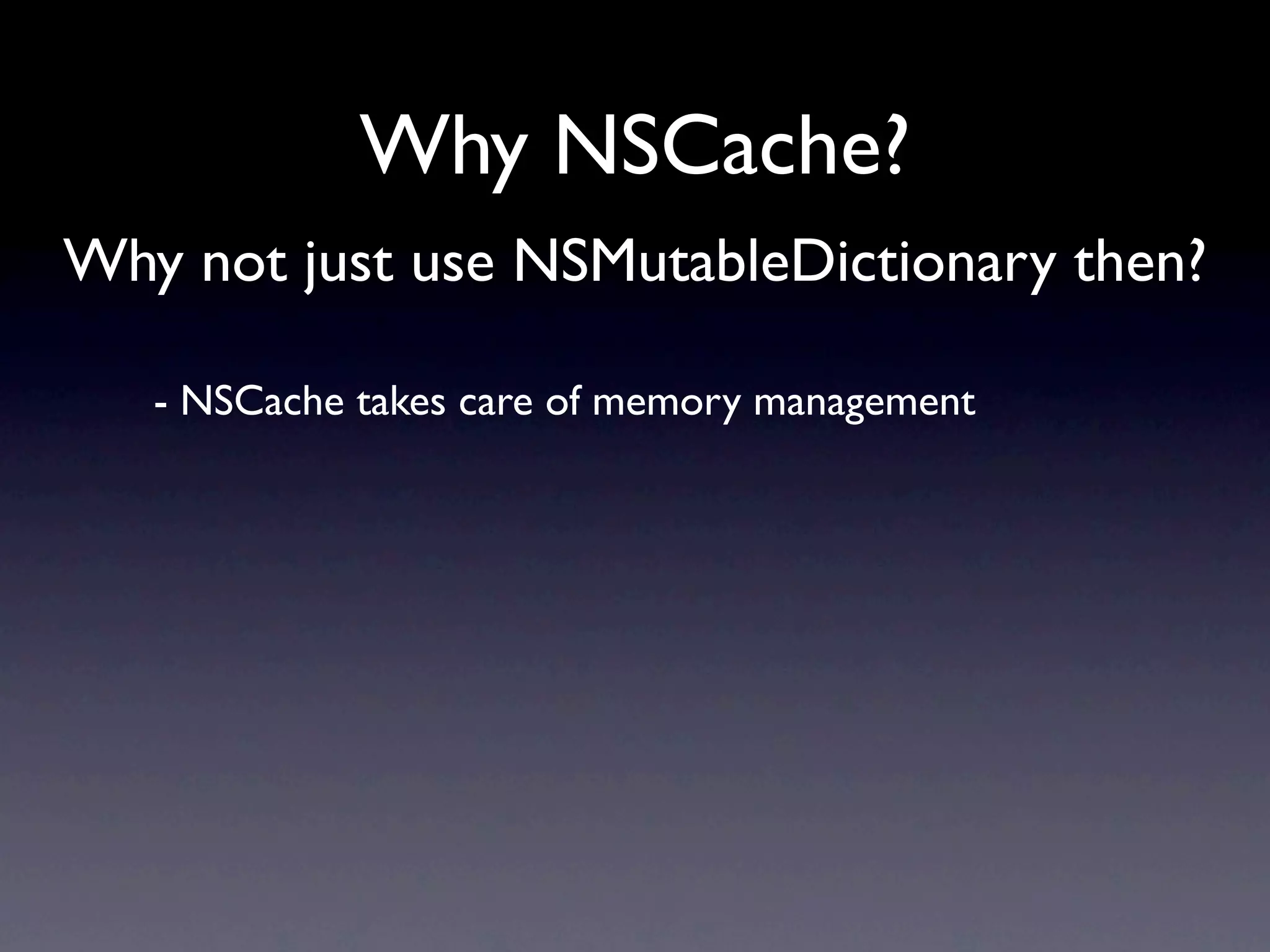

22. Why NSCache?
Why not just use NSMutableDictionary then?
- NSCache takes care of memory management

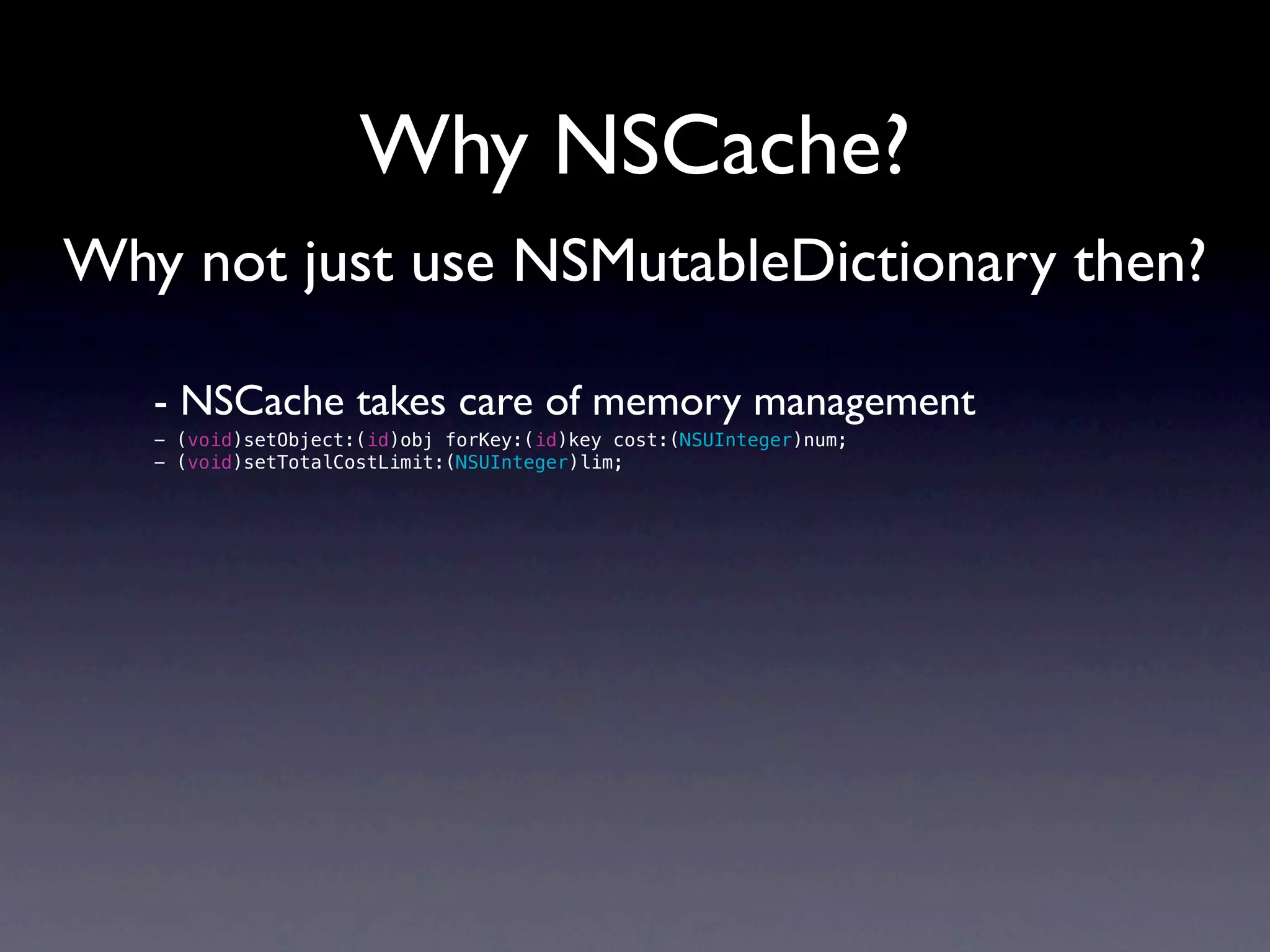

23. Why NSCache?
Why not just use NSMutableDictionary then?
- NSCache takes care of memory management
- (void)setObject:(id)obj forKey:(id)key cost:(NSUInteger)num;
- (void)setTotalCostLimit:(NSUInteger)lim;

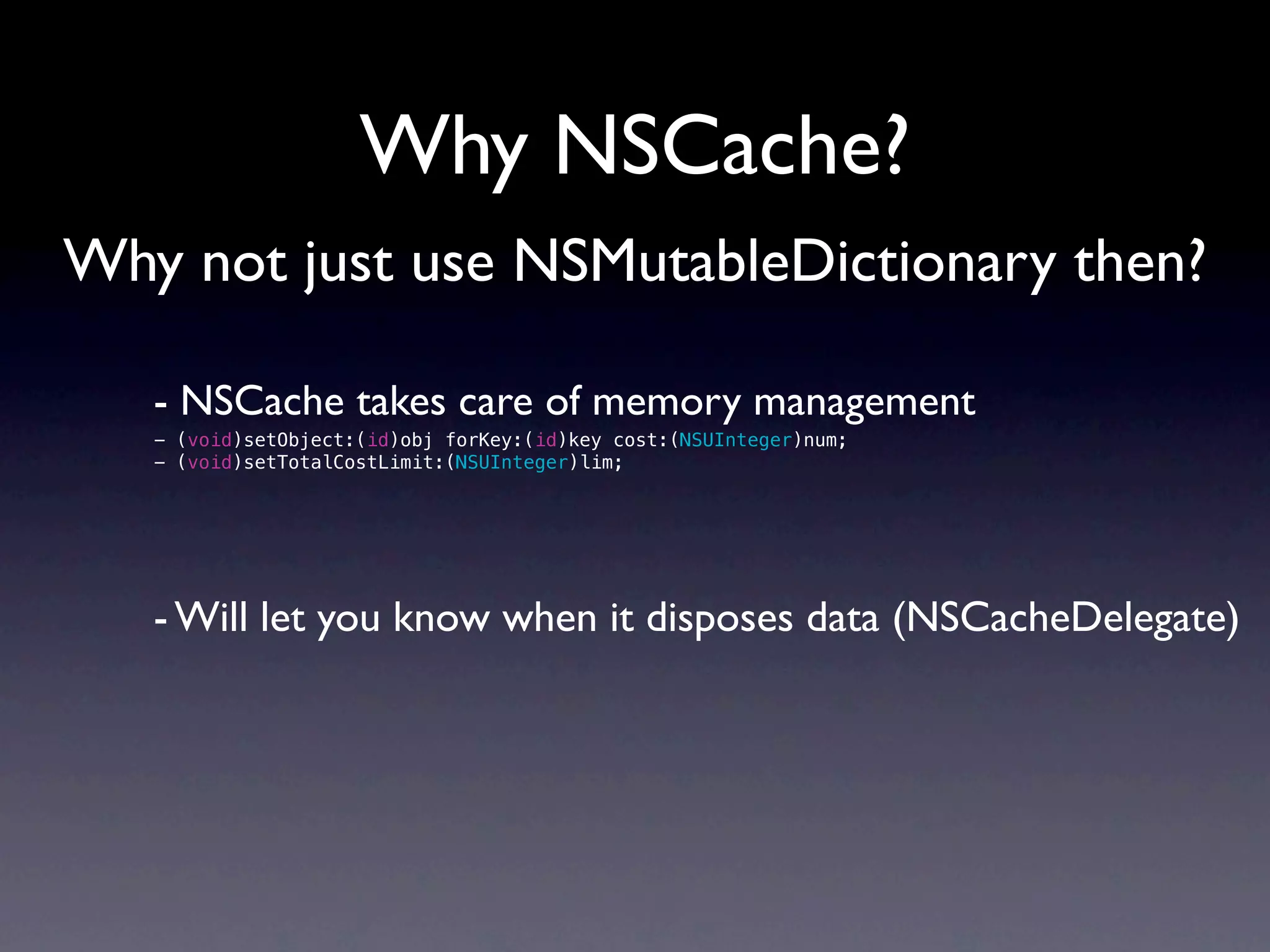

24. Why NSCache?
Why not just use NSMutableDictionary then?
- NSCache takes care of memory management
- (void)setObject:(id)obj forKey:(id)key cost:(NSUInteger)num;
- (void)setTotalCostLimit:(NSUInteger)lim;
- Will let you know when it disposes data (NSCacheDelegate)

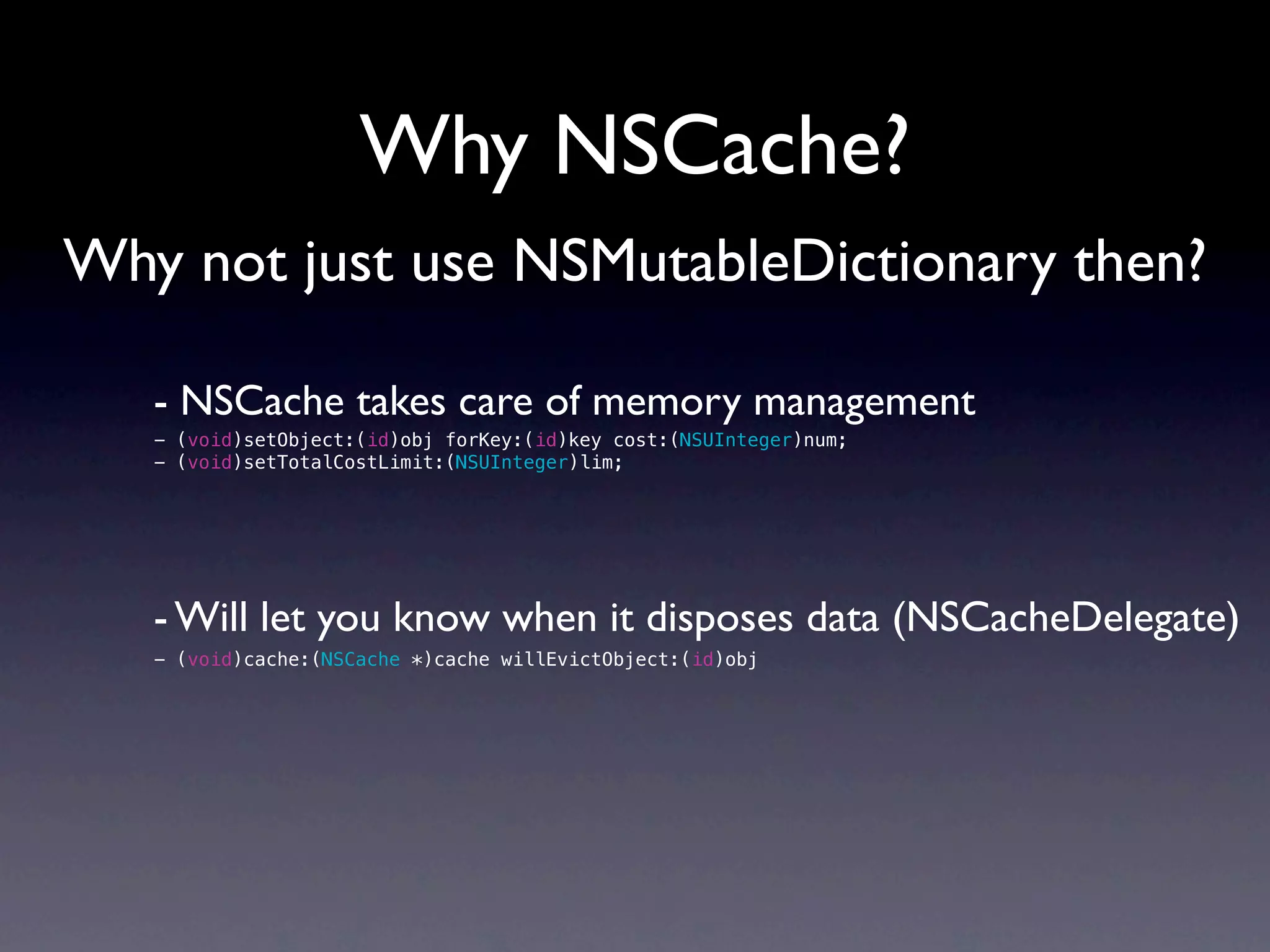

25. Why NSCache?
Why not just use NSMutableDictionary then?
- NSCache takes care of memory management
- (void)setObject:(id)obj forKey:(id)key cost:(NSUInteger)num;
- (void)setTotalCostLimit:(NSUInteger)lim;
- Will let you know when it disposes data (NSCacheDelegate)
- (void)cache:(NSCache *)cache willEvictObject:(id)obj

26. Demo

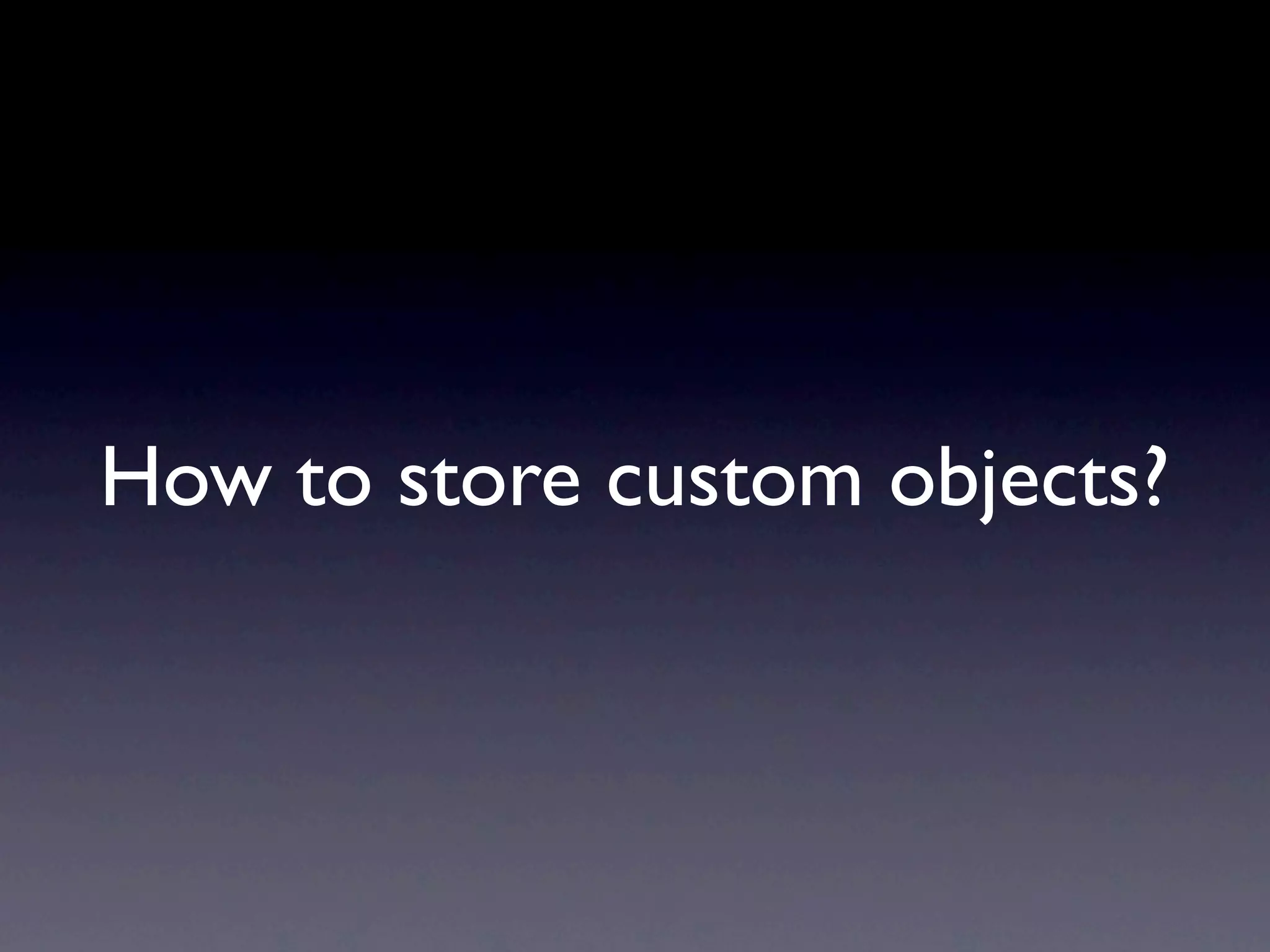

27. How to store custom objects?

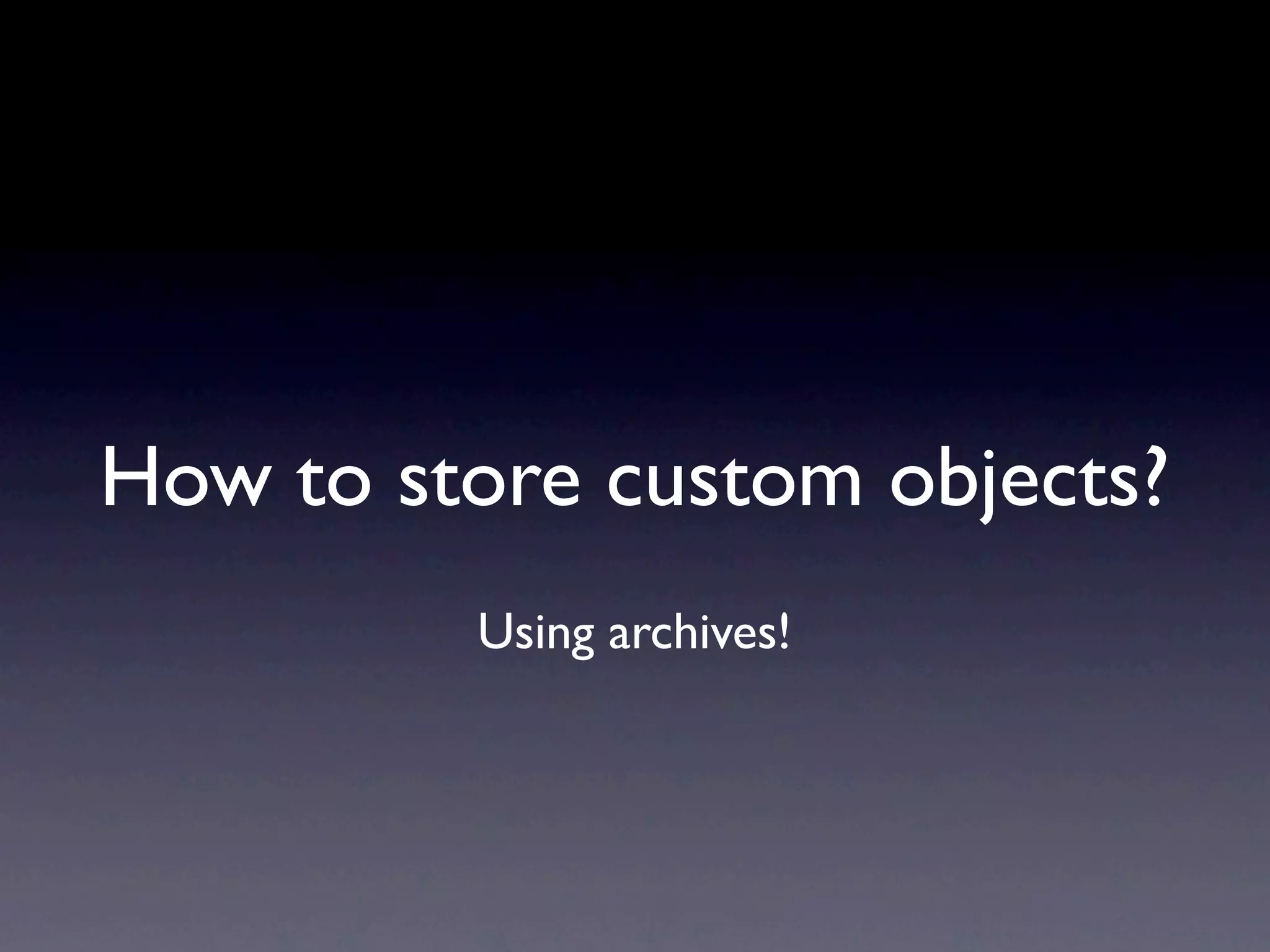

28. How to store custom objects?
Using archives!

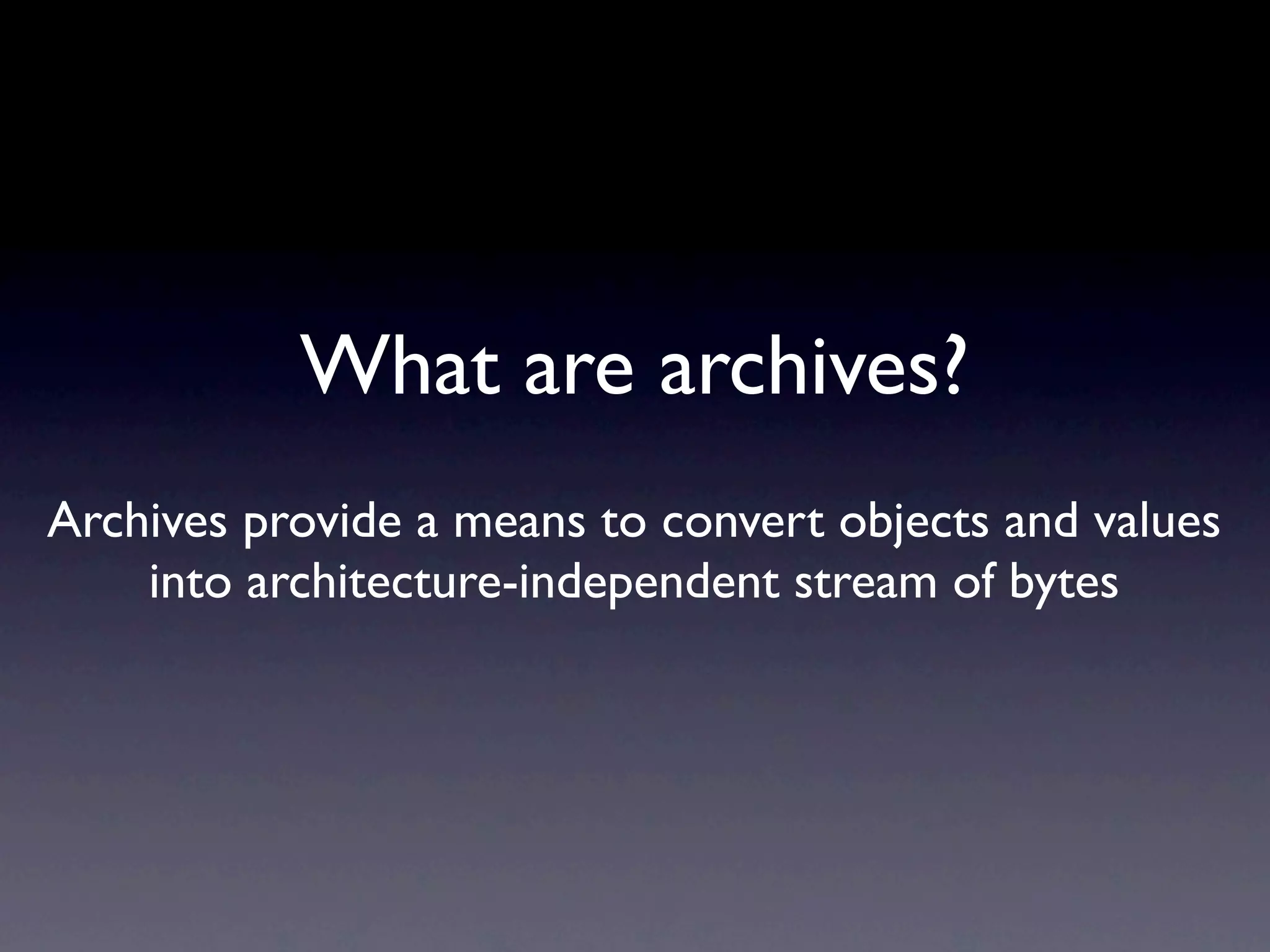

29. What are archives?

30. What are archives?
Archives provide a means to convert objects and values
into architecture-independent stream of bytes

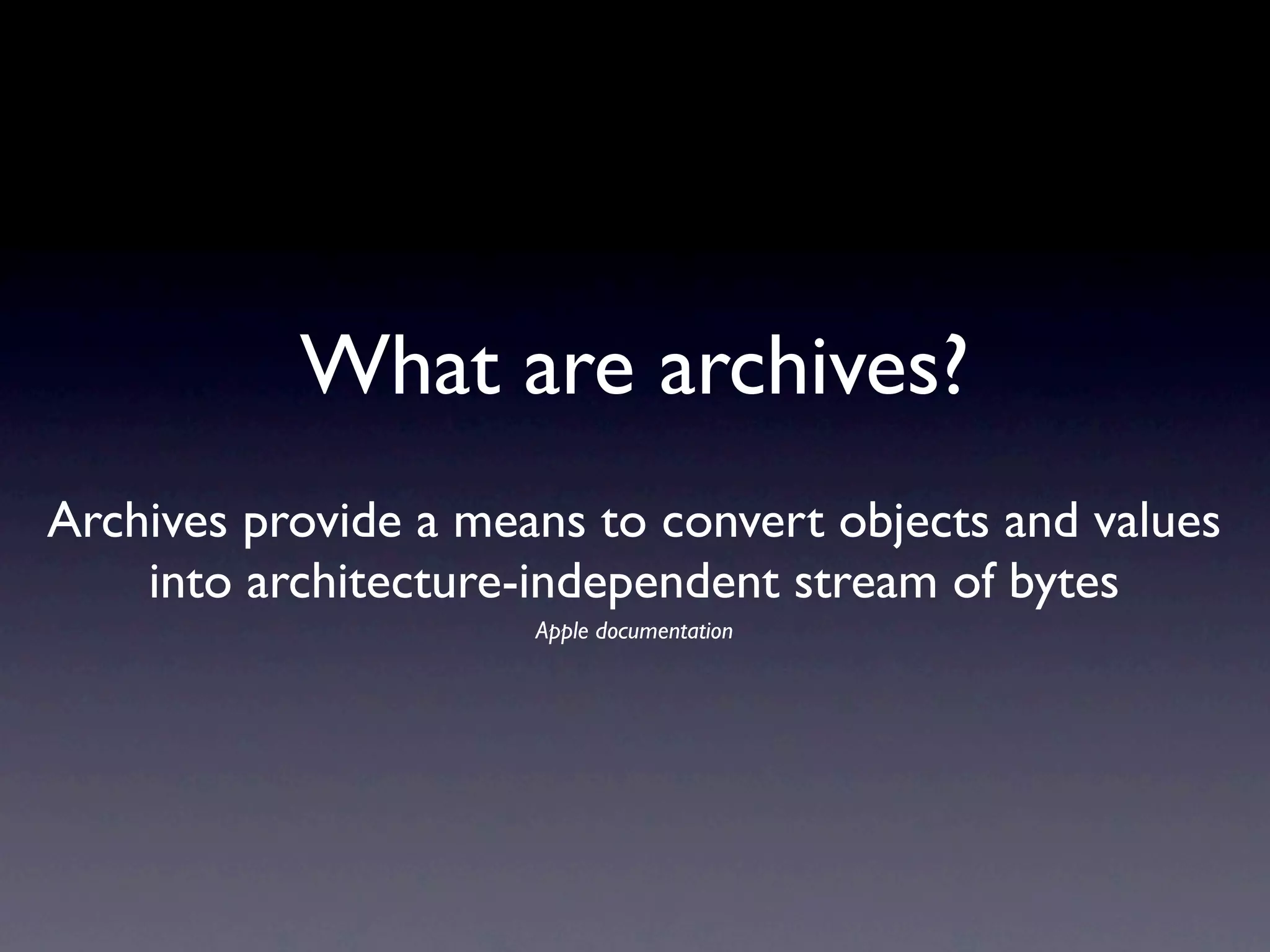

31. What are archives?
Archives provide a means to convert objects and values
into architecture-independent stream of bytes
Apple documentation

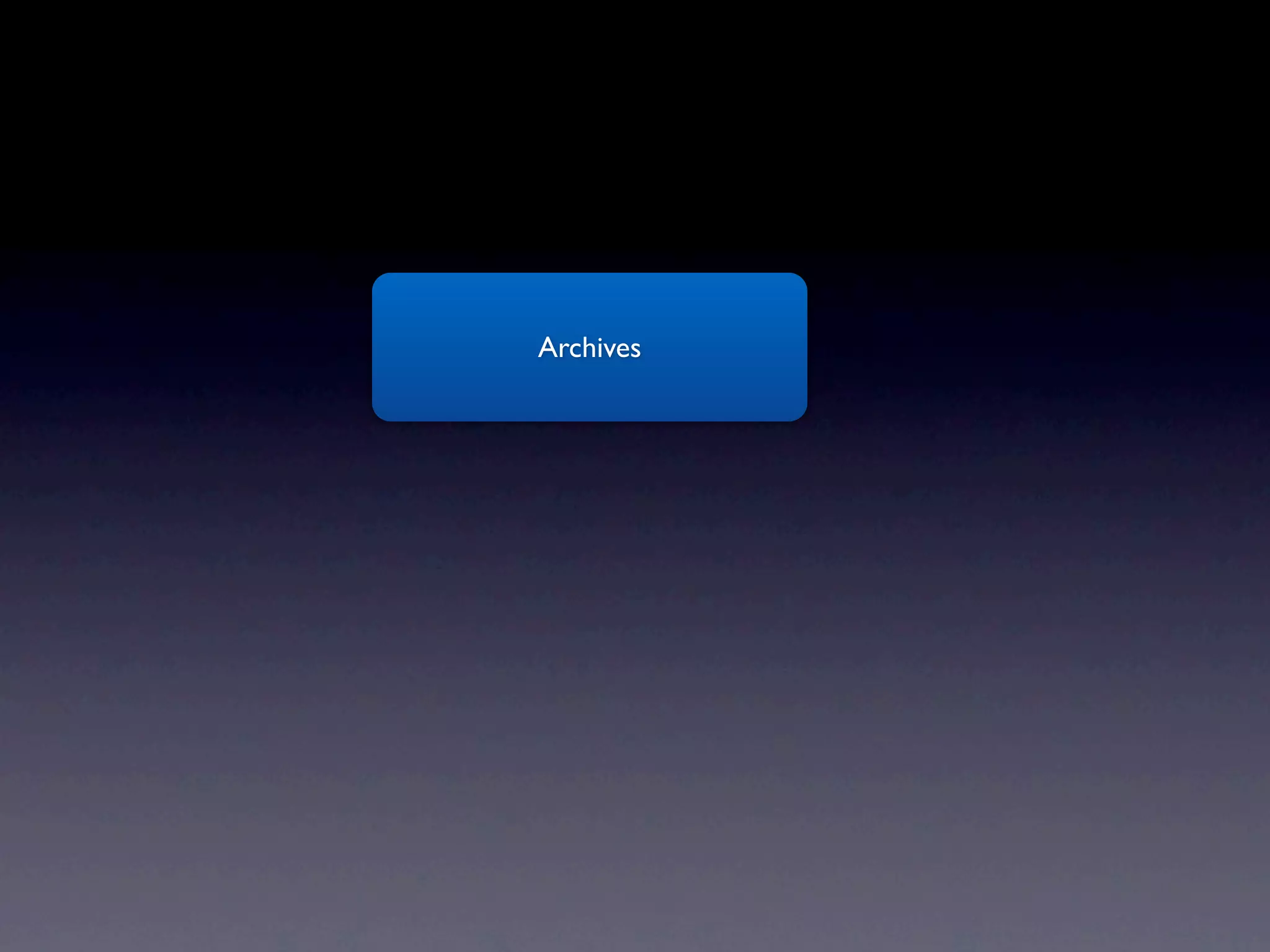

33. Archives

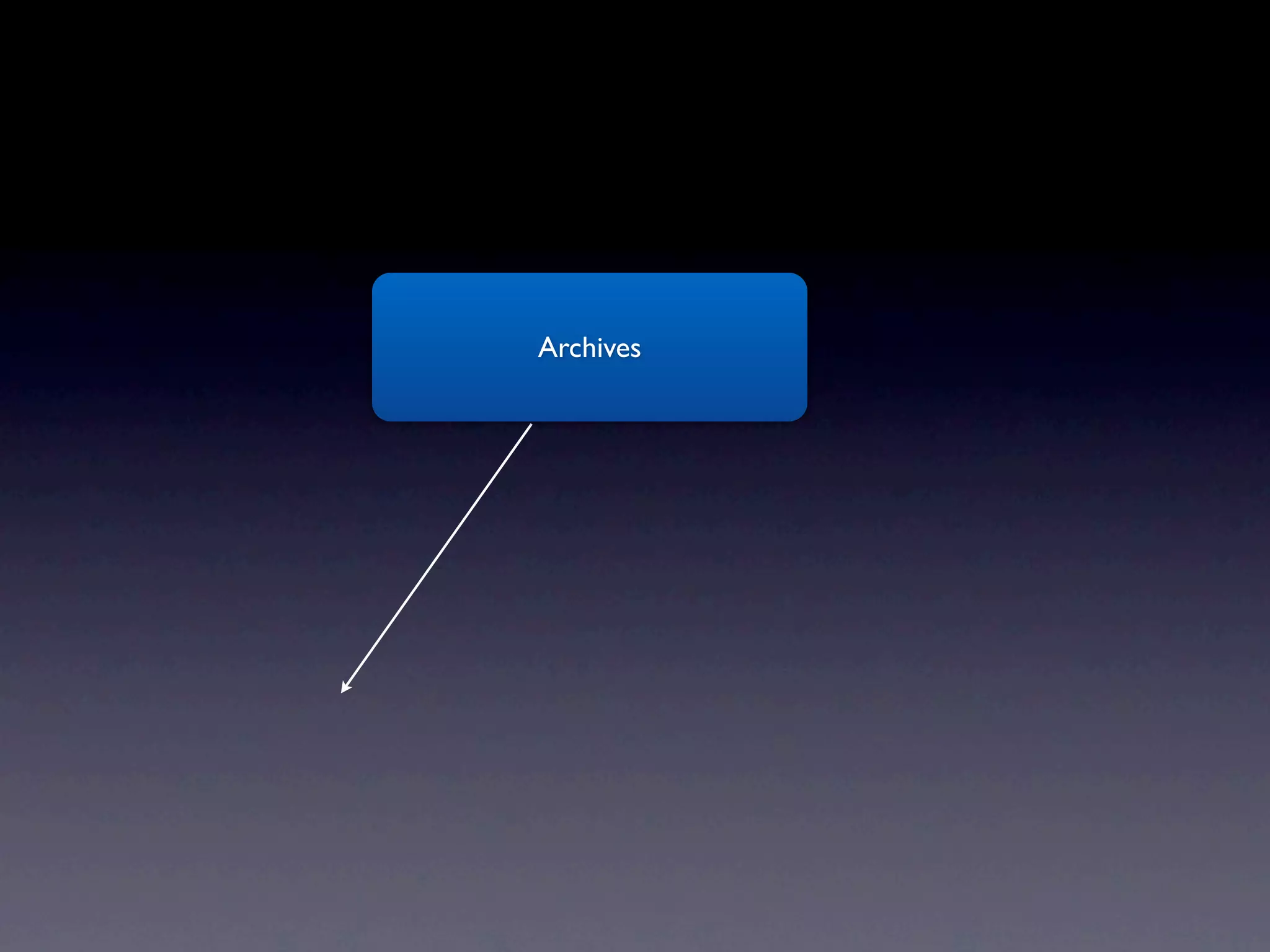

34. Archives

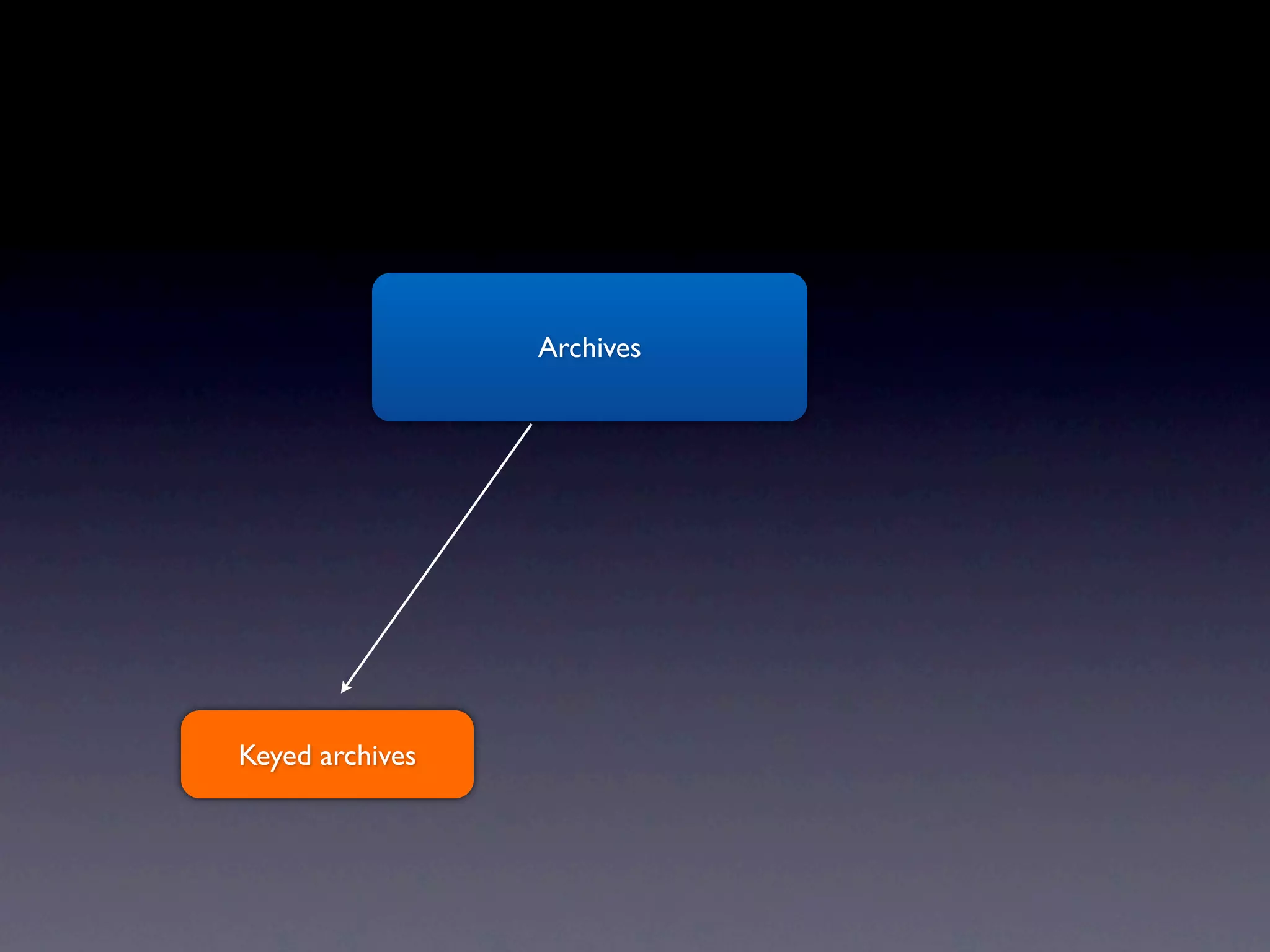

35. Archives
Keyed archives

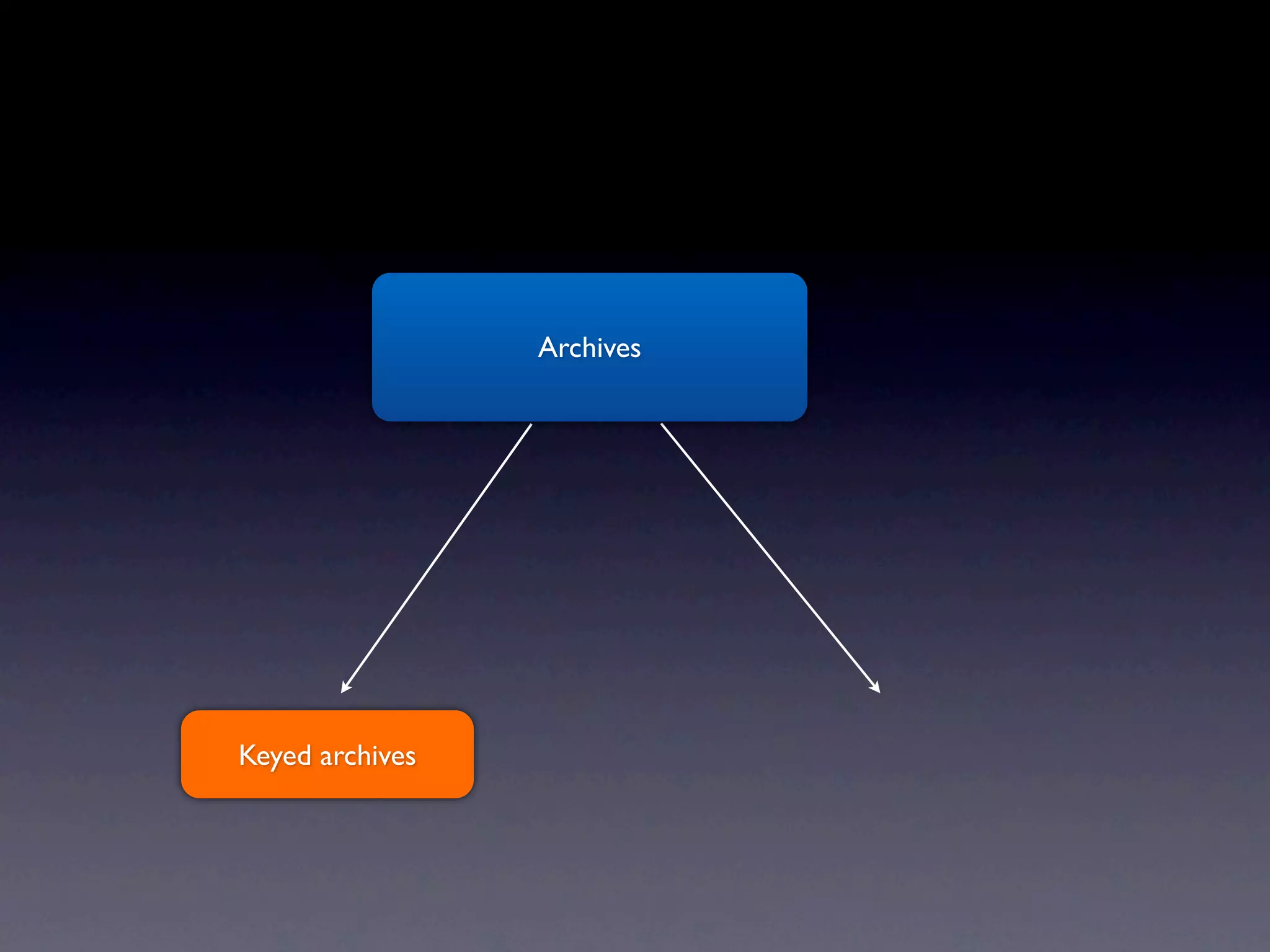

36. Archives
Keyed archives

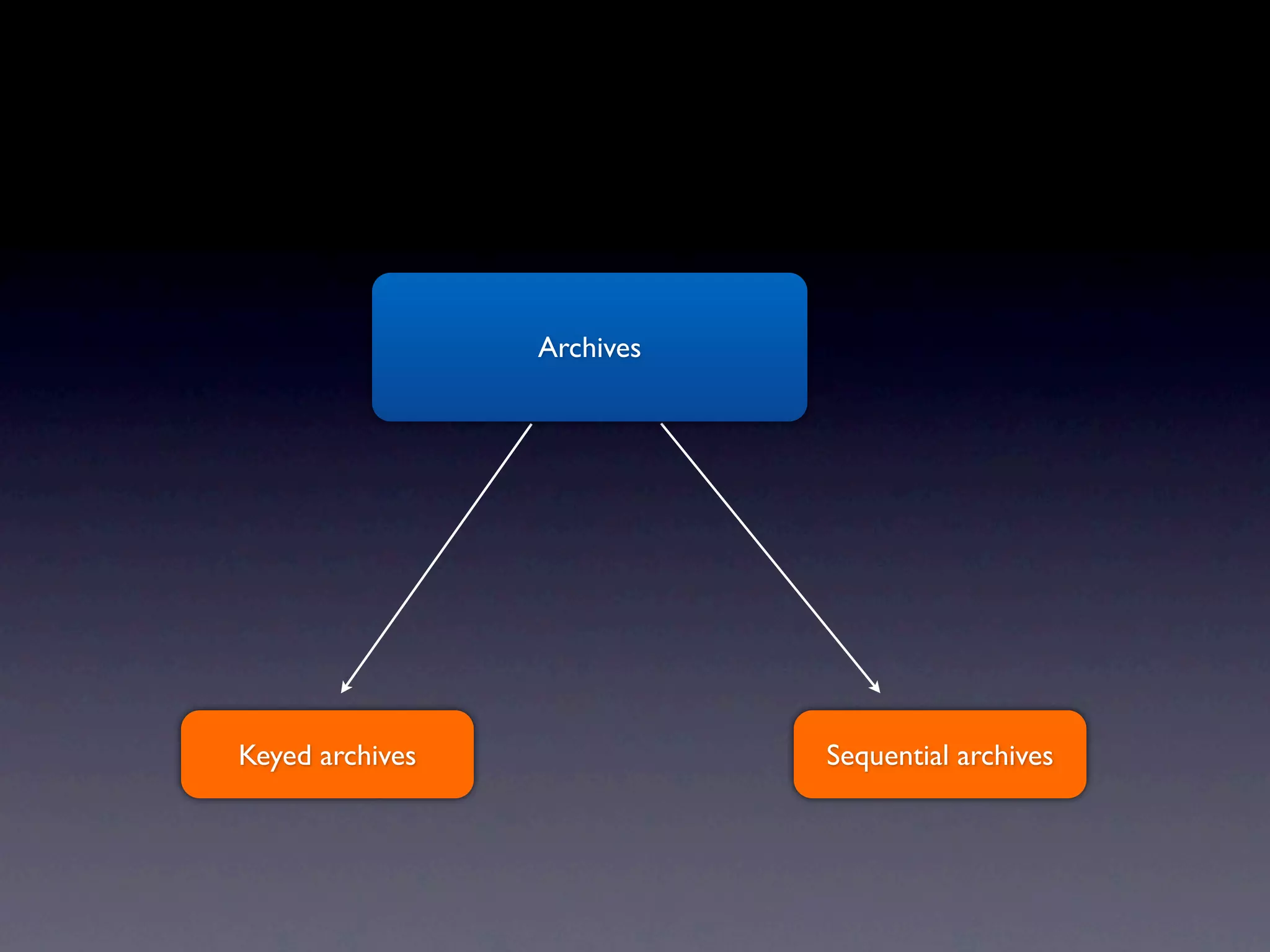

37. Archives
Keyed archives Sequential archives

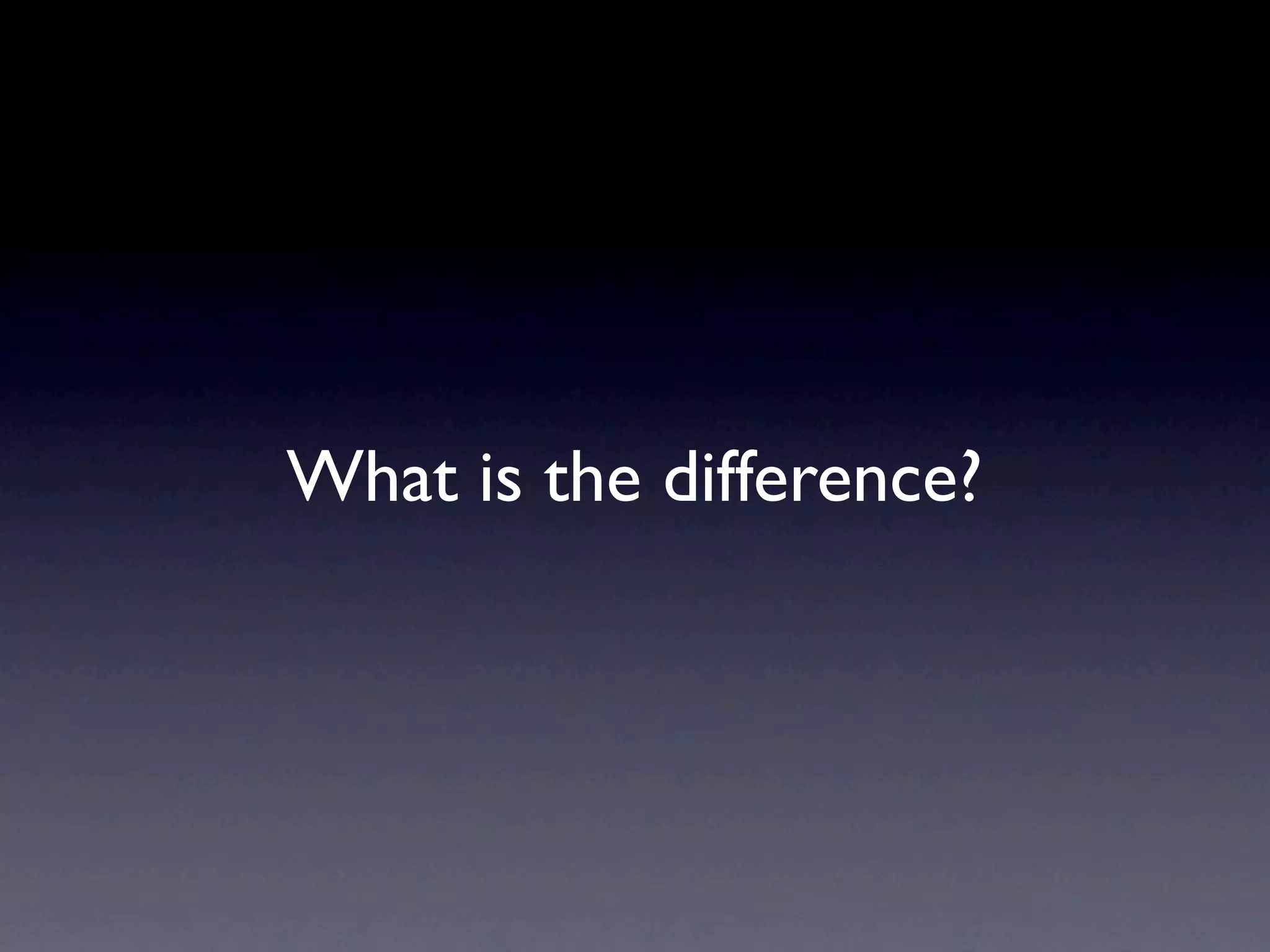

38. What is the difference?

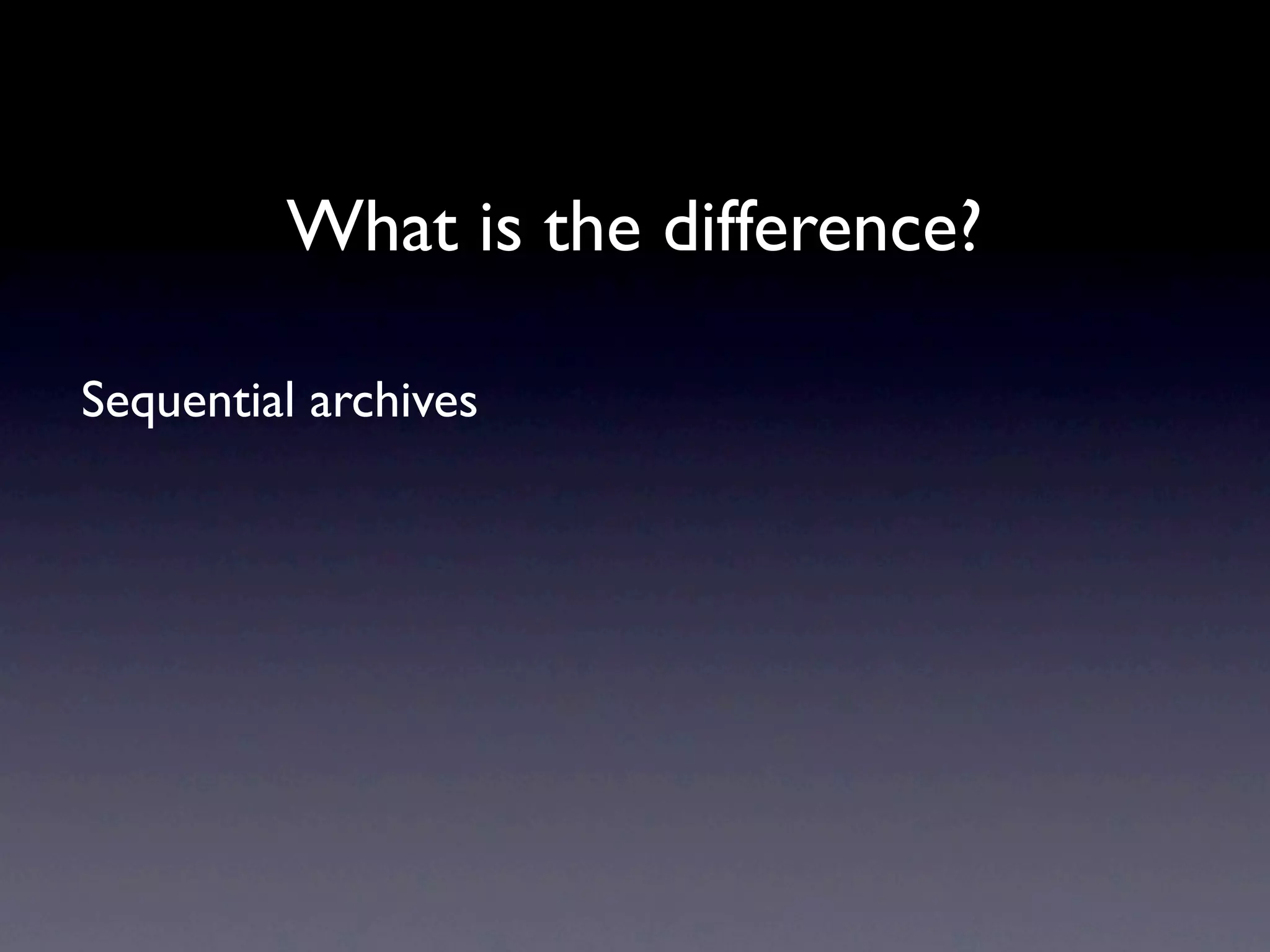

39. What is the difference?

40. What is the difference?
Sequential archives

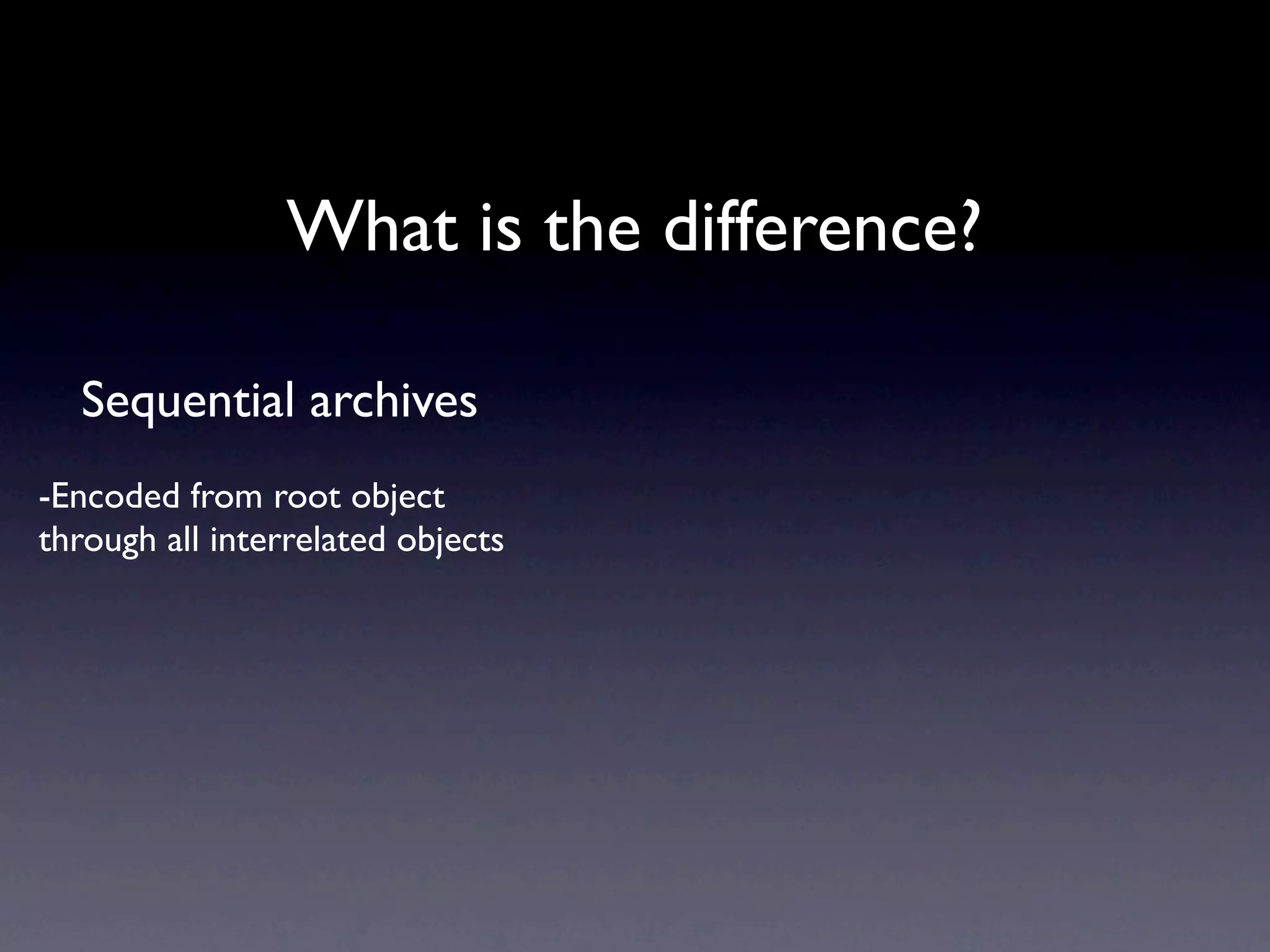

41. What is the difference?
Sequential archives
-Encoded from root object
through all interrelated objects

42. What is the difference?
Sequential archives
-Encoded from root object
through all interrelated objects
-Must be decoded in the same
order it was encoded

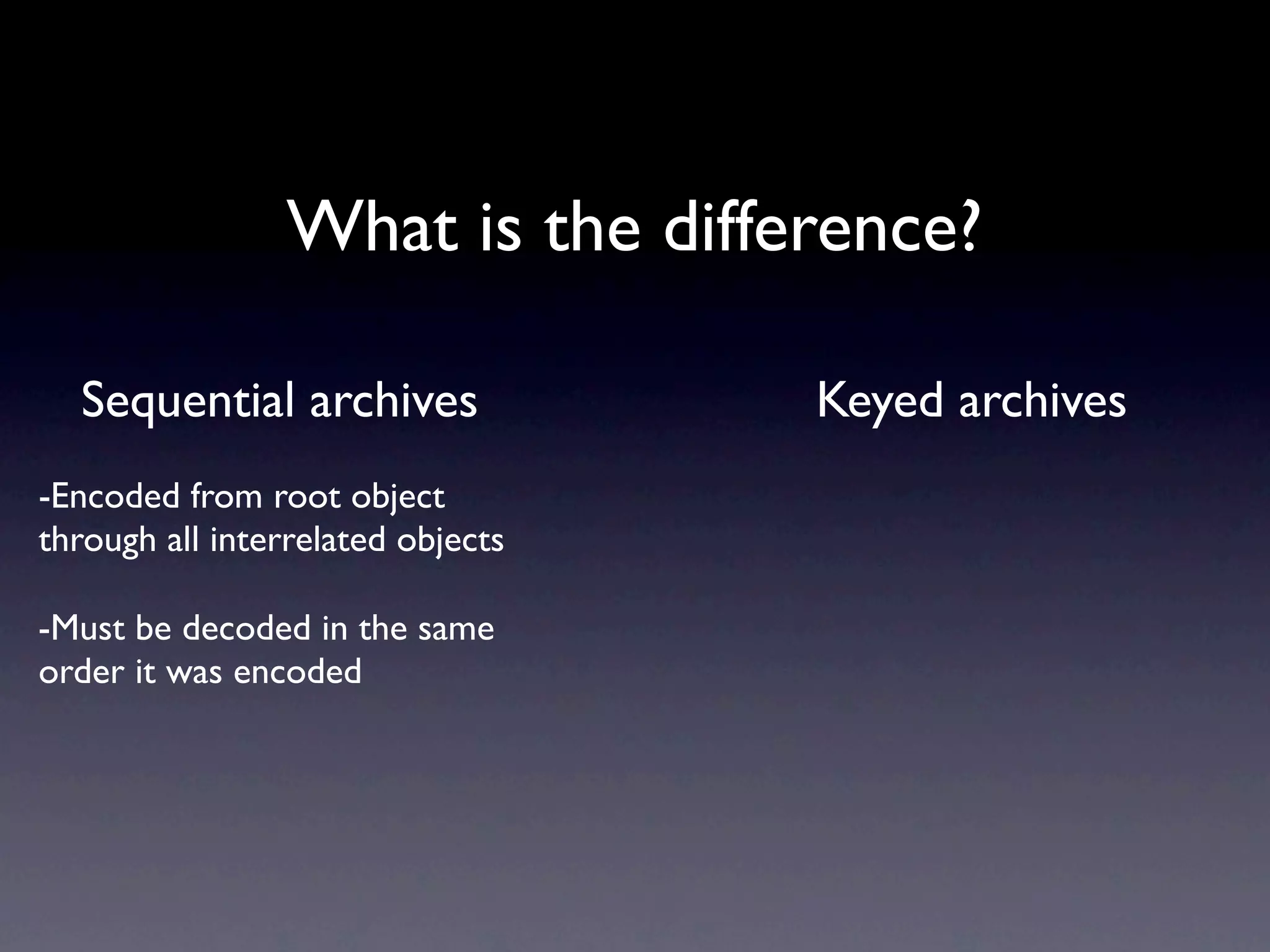

43. What is the difference?
Sequential archives Keyed archives
-Encoded from root object
through all interrelated objects
-Must be decoded in the same
order it was encoded

44. What is the difference?
Sequential archives Keyed archives
-Encoded from root object -Each object is assigned a key
through all interrelated objects
-Must be decoded in the same
order it was encoded

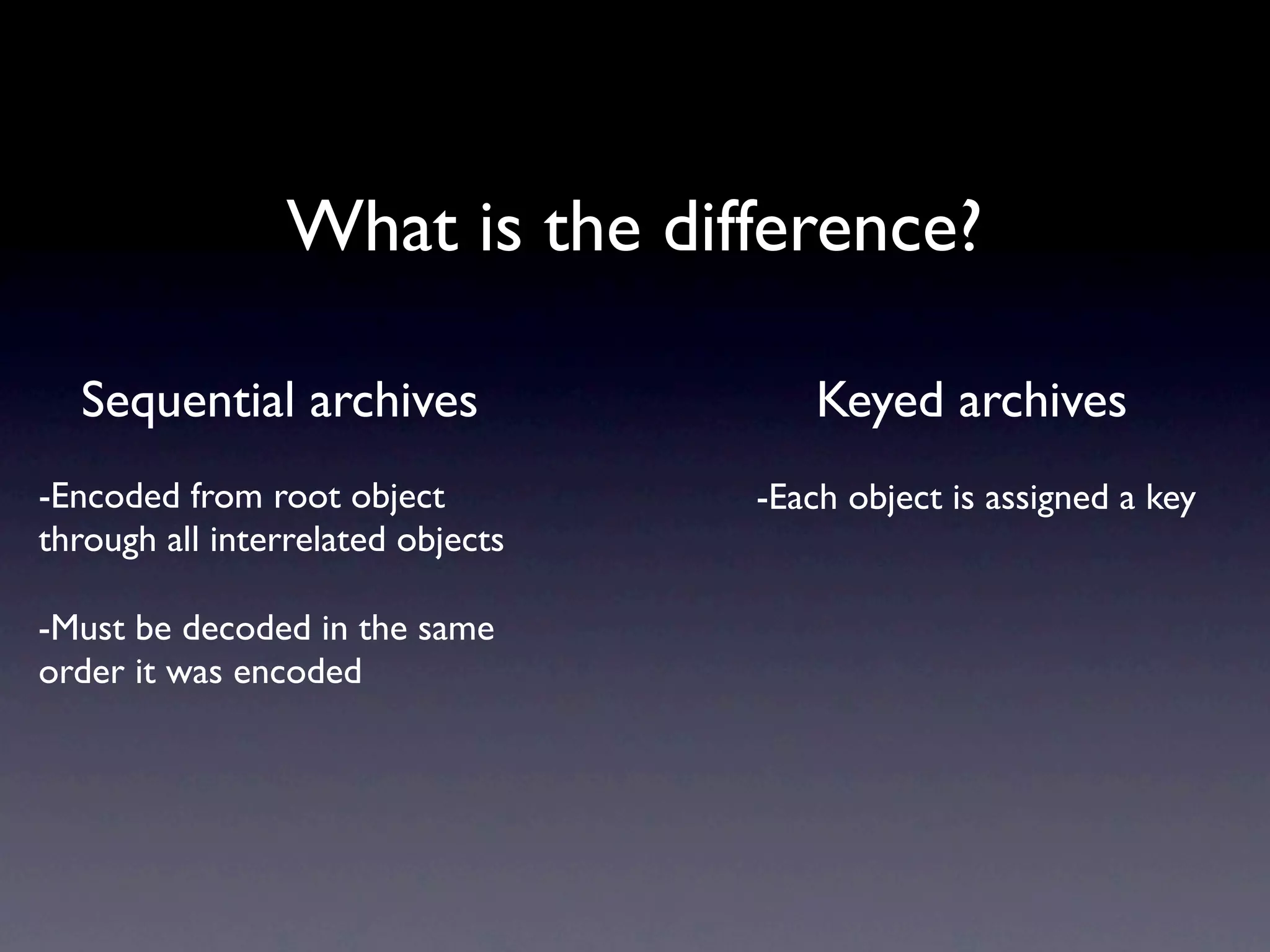

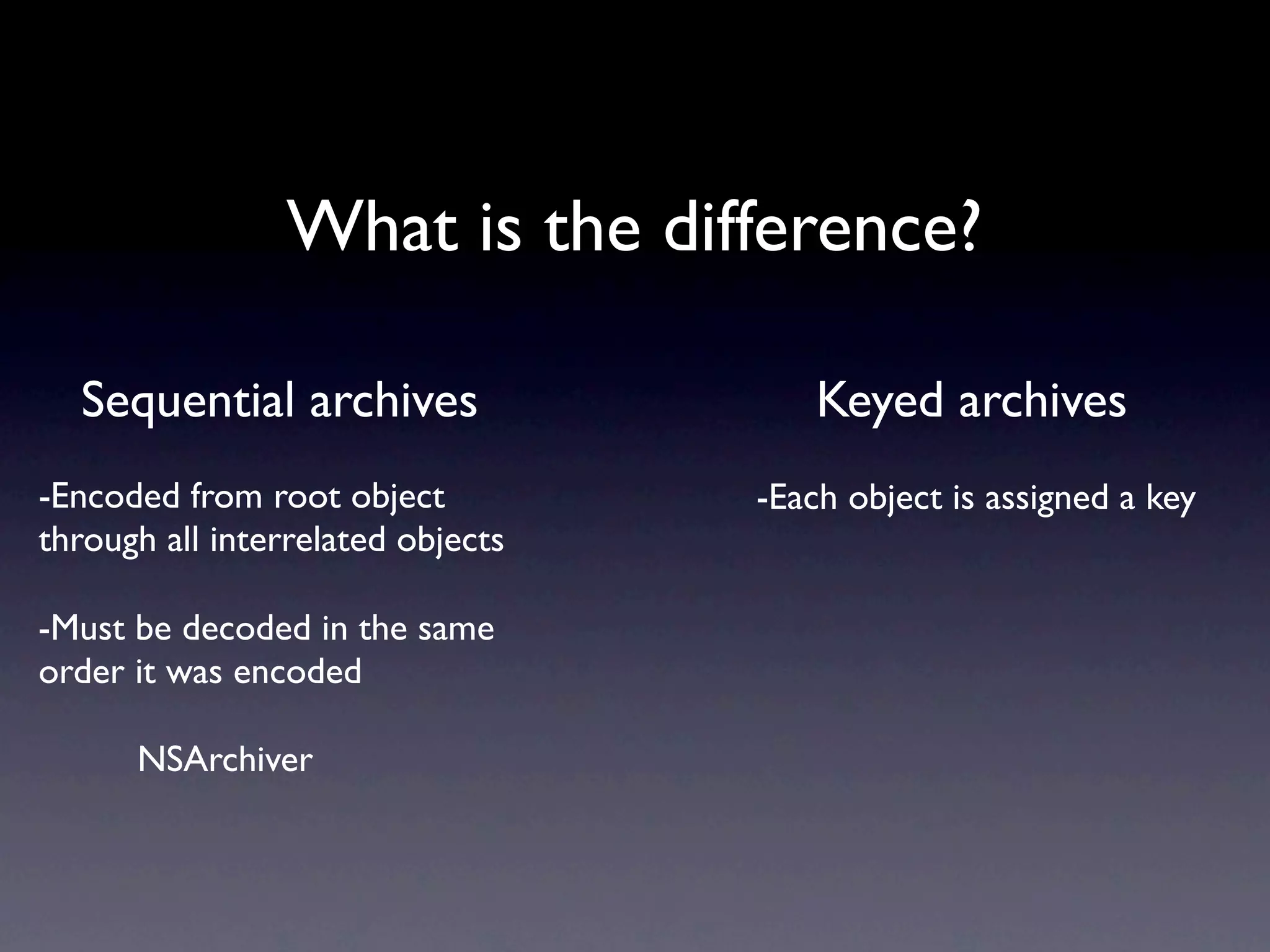

45. What is the difference?
Sequential archives Keyed archives
-Encoded from root object -Each object is assigned a key
through all interrelated objects
-Must be decoded in the same
order it was encoded
NSArchiver

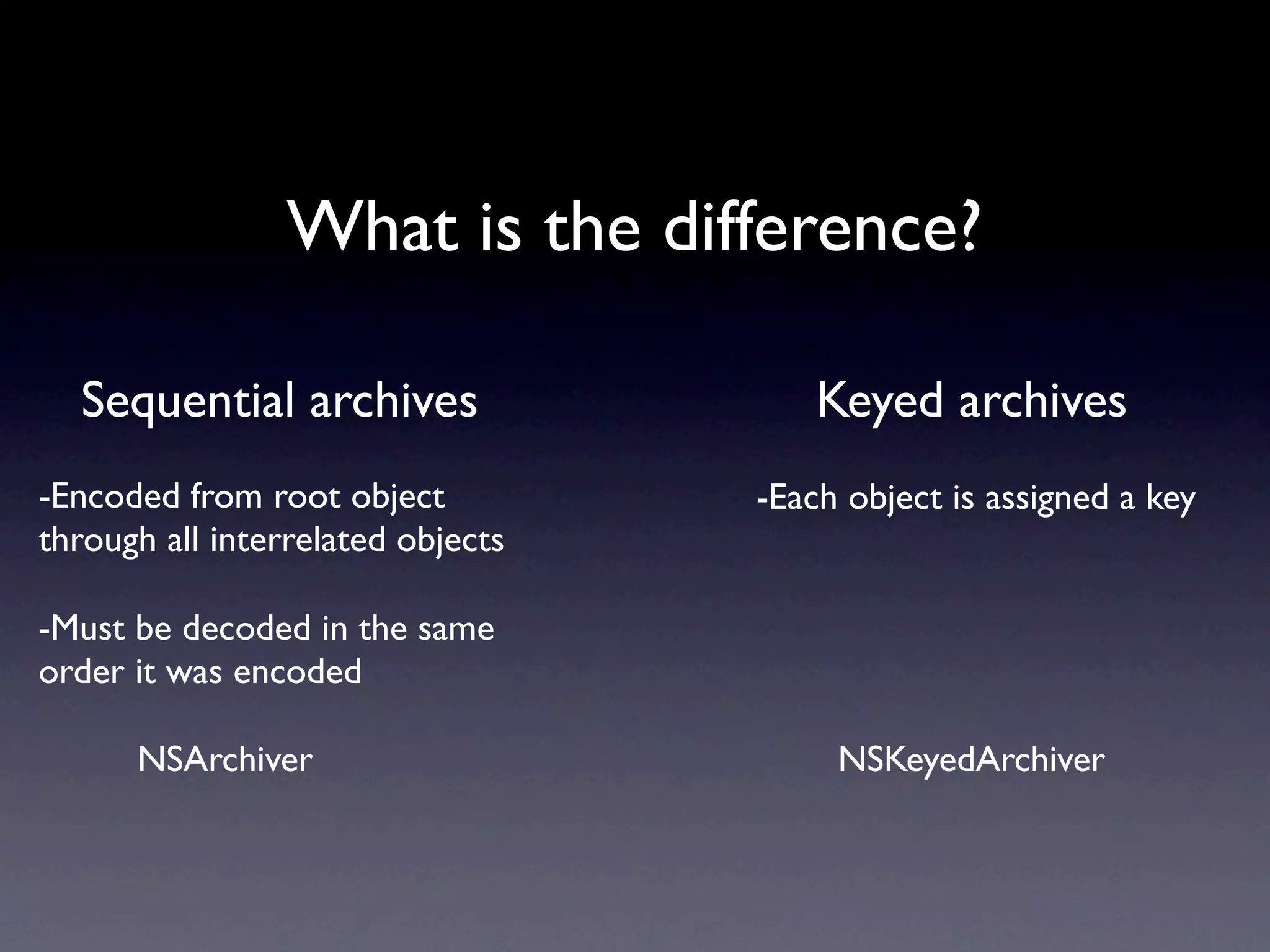

46. What is the difference?
Sequential archives Keyed archives
-Encoded from root object -Each object is assigned a key
through all interrelated objects
-Must be decoded in the same
order it was encoded
NSArchiver NSKeyedArchiver

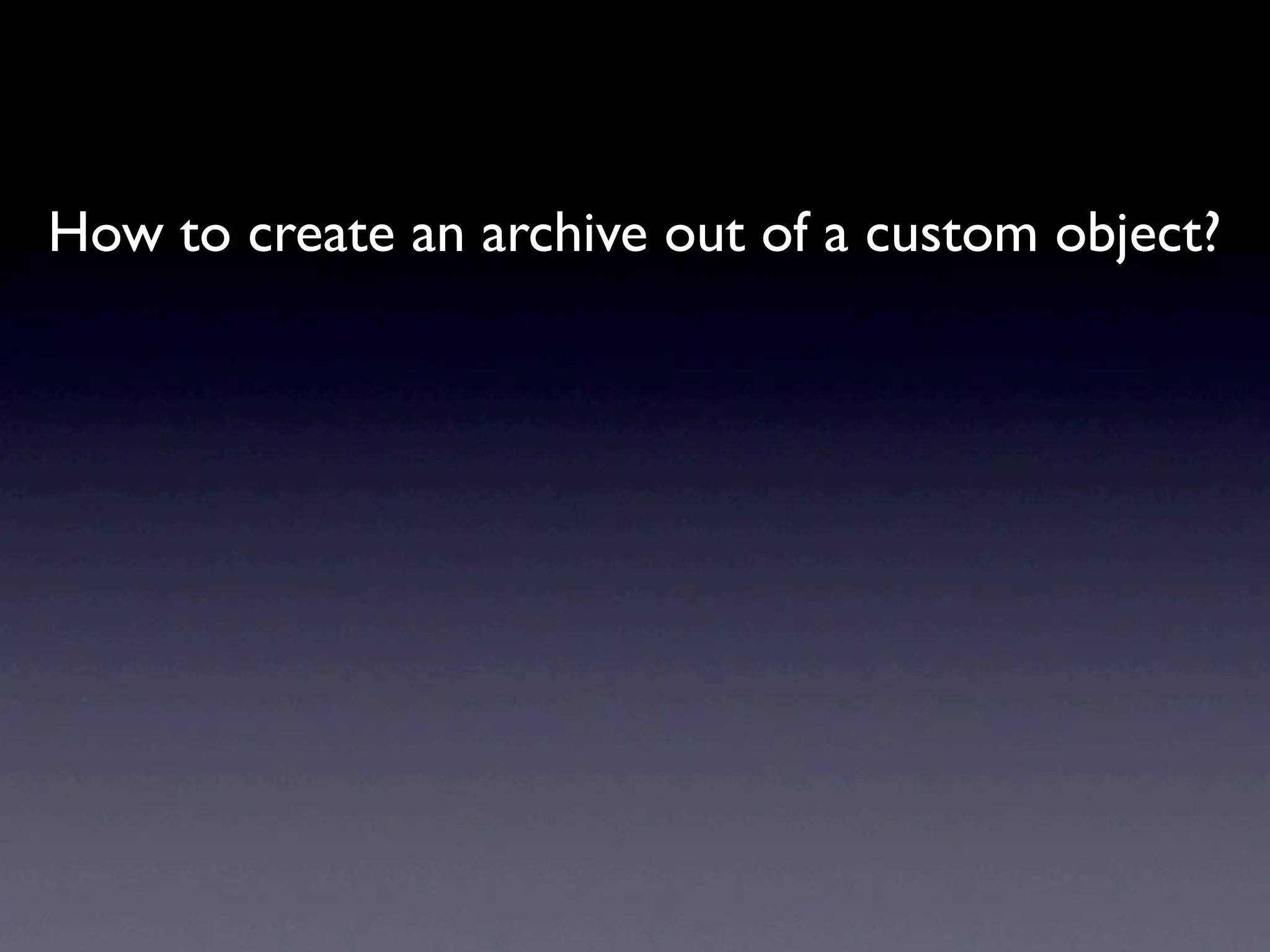

47. How to create an archive out of a custom object?

48. How to create an archive out of a custom object?
1.Implement NSCoding protocol inside the object

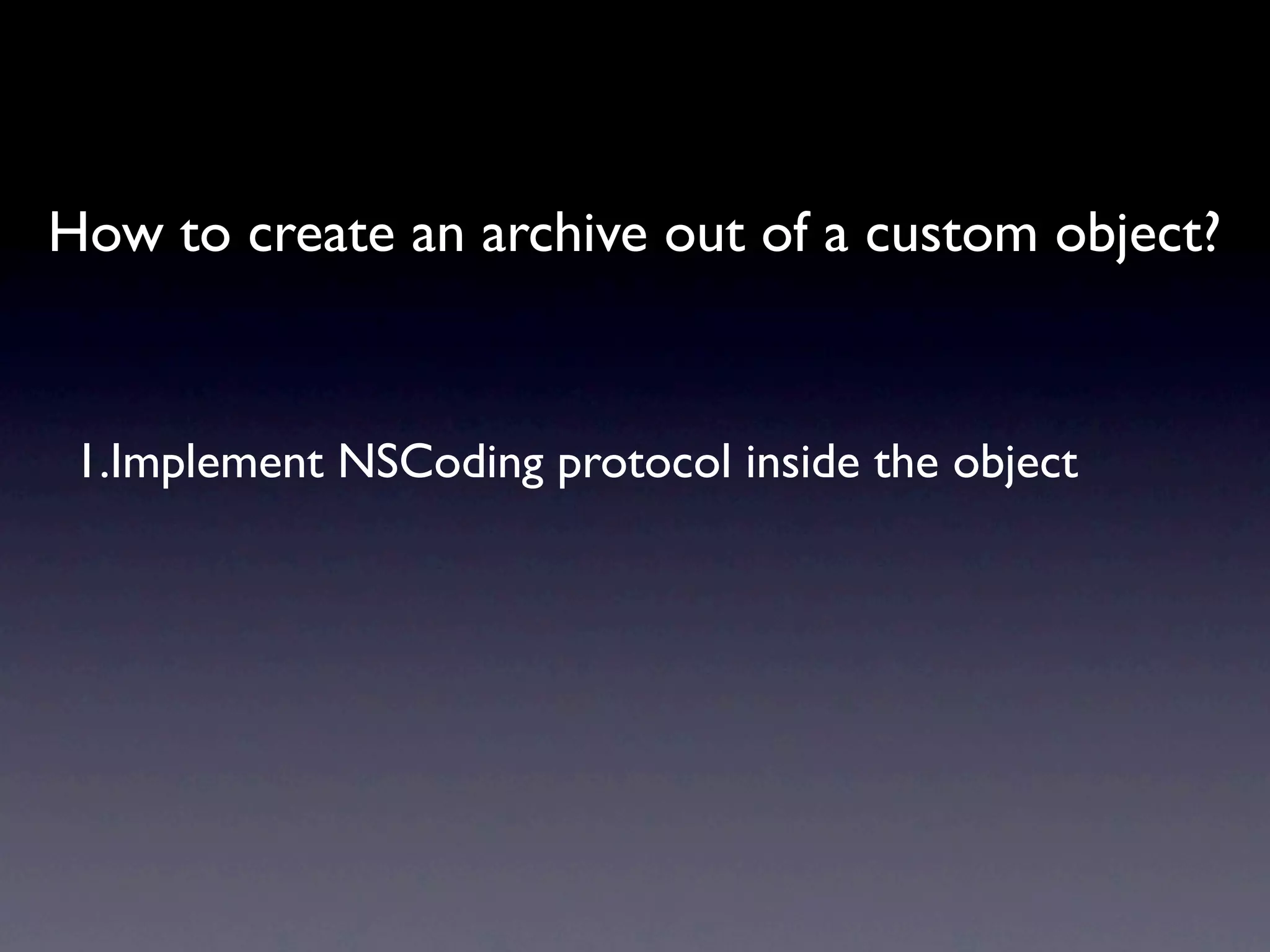

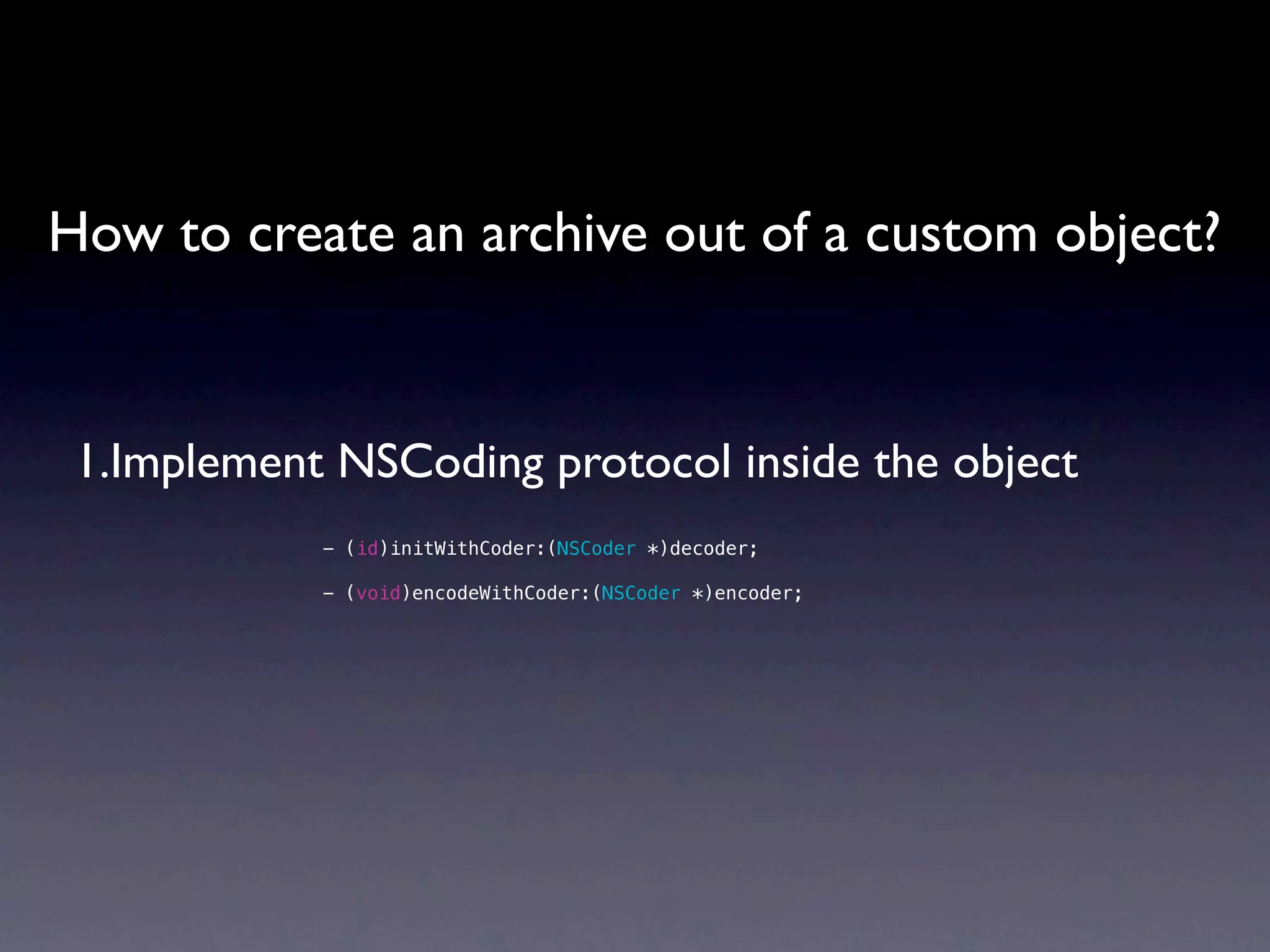

49. How to create an archive out of a custom object?
1.Implement NSCoding protocol inside the object
- (id)initWithCoder:(NSCoder *)decoder;
- (void)encodeWithCoder:(NSCoder *)encoder;

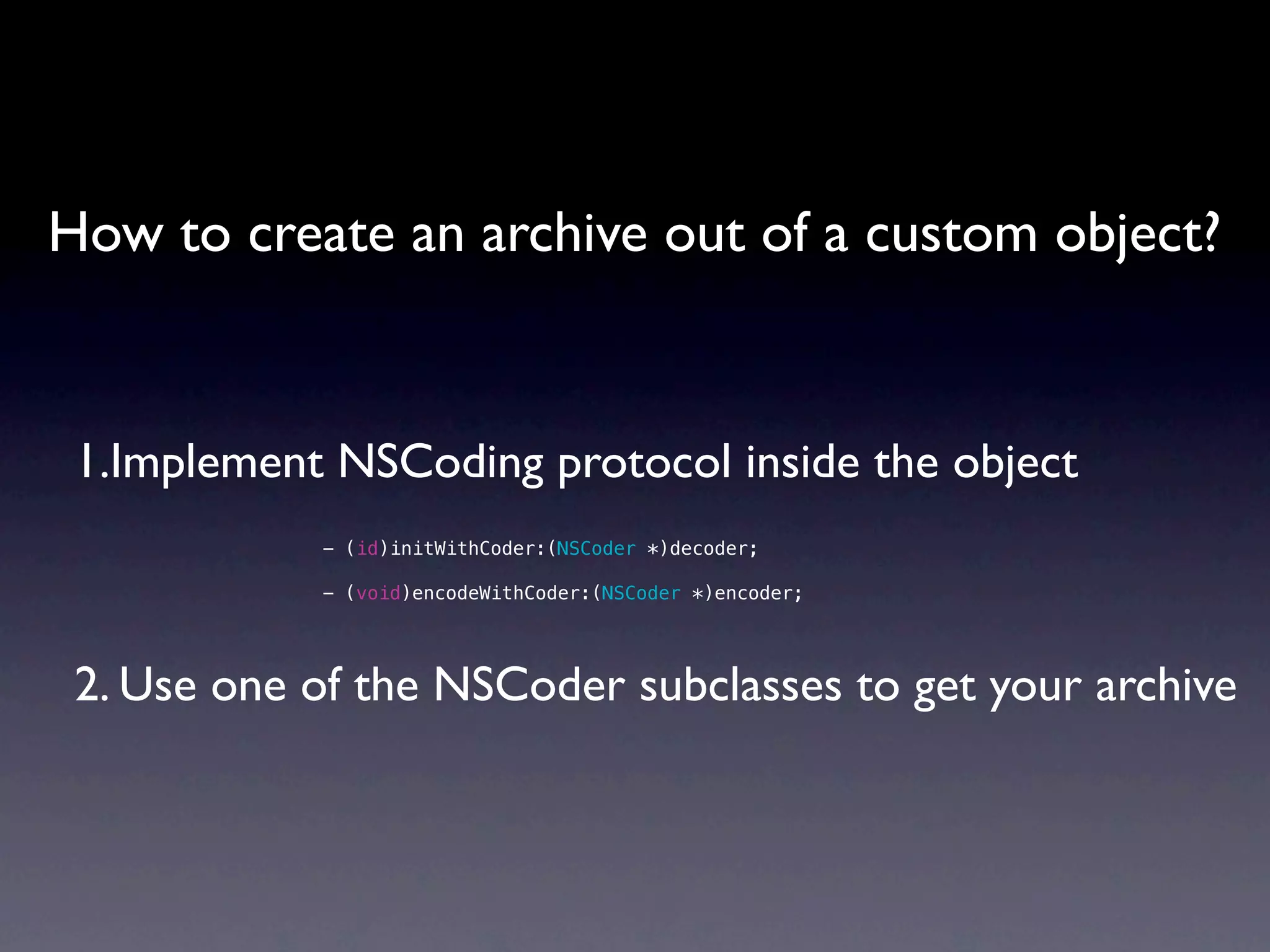

50. How to create an archive out of a custom object?
1.Implement NSCoding protocol inside the object
- (id)initWithCoder:(NSCoder *)decoder;
- (void)encodeWithCoder:(NSCoder *)encoder;
2. Use one of the NSCoder subclasses to get your archive

51. Demo

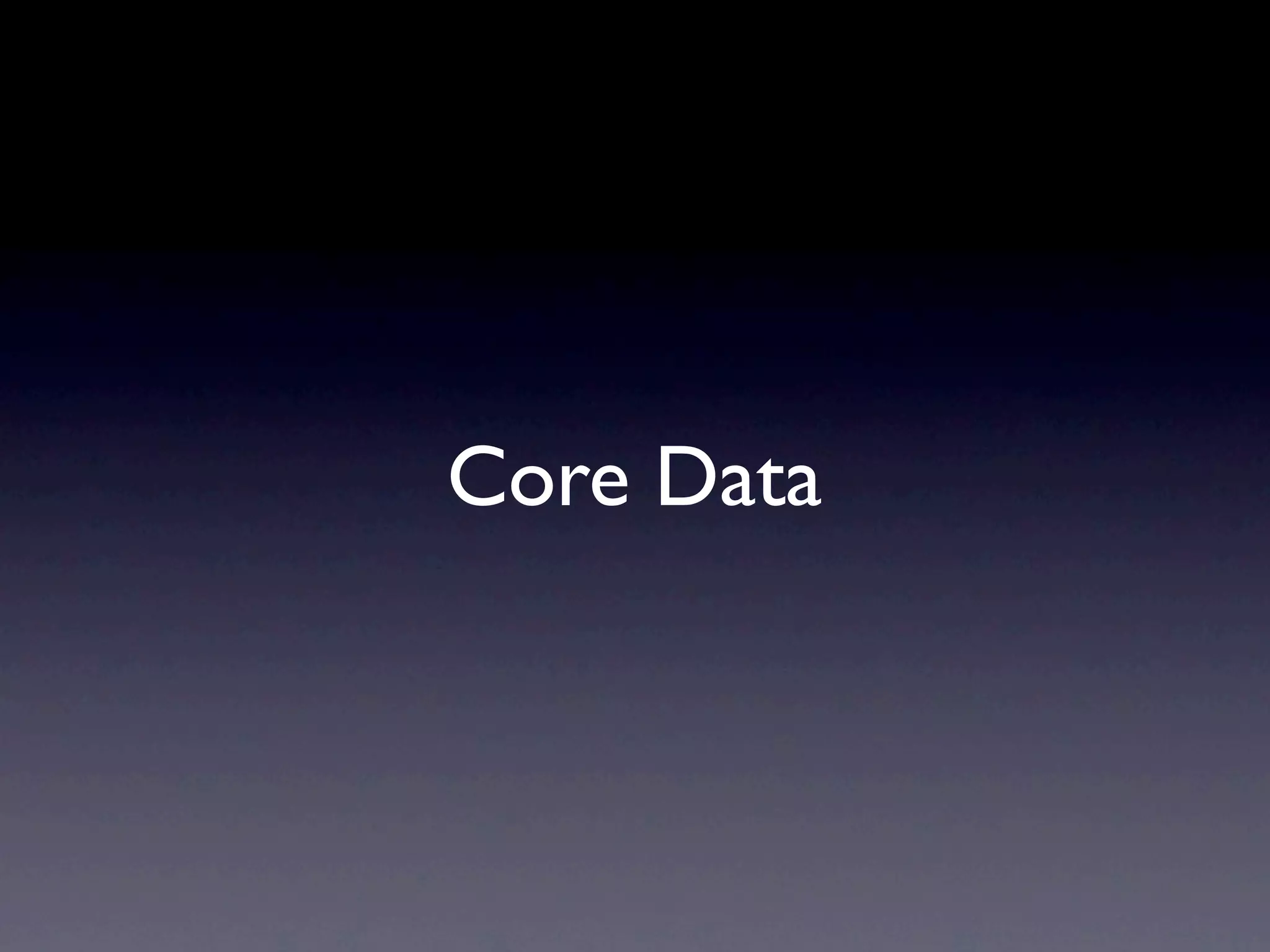

53. Core Data

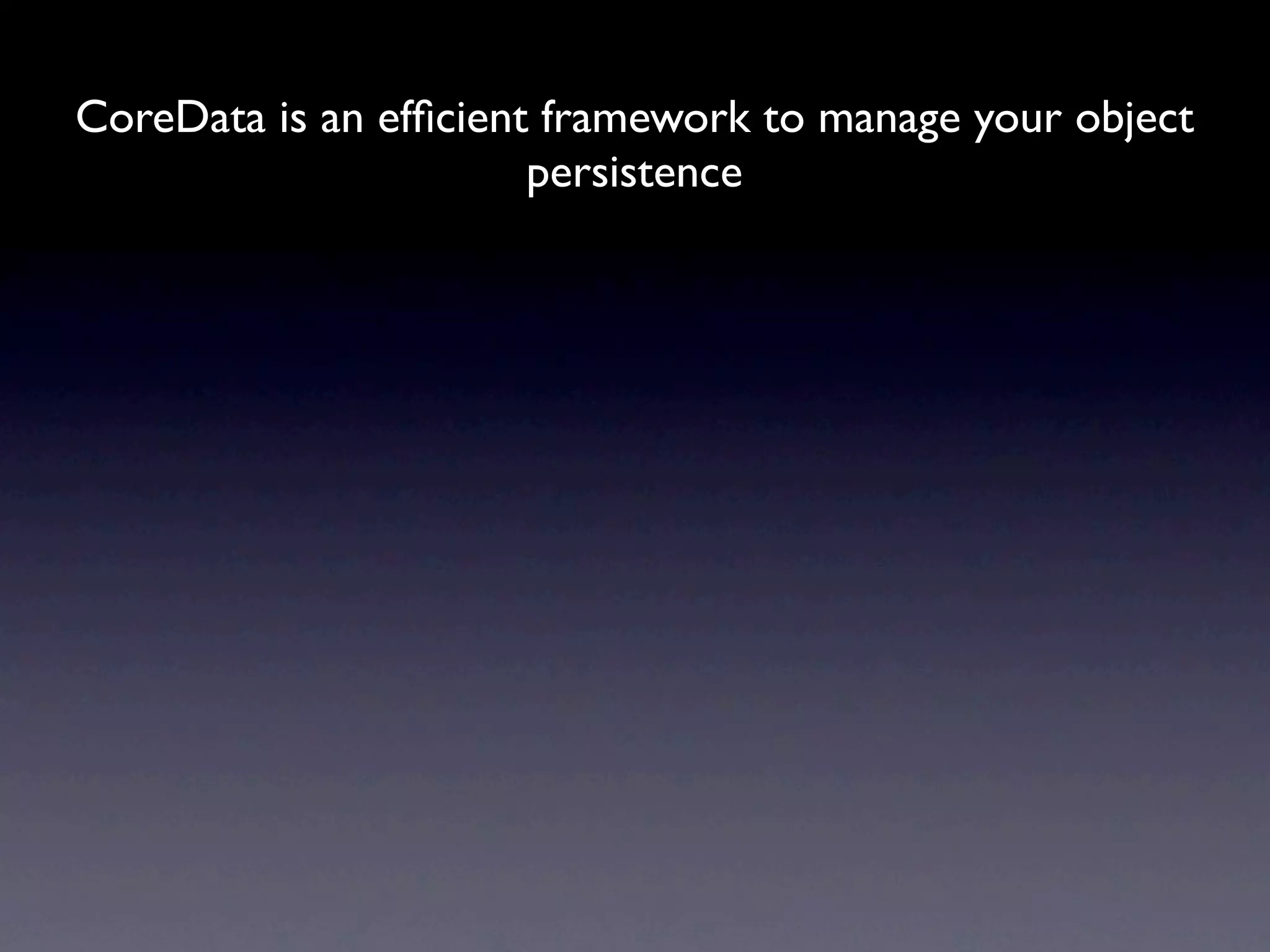

54. CoreData is an efficient framework to manage your object
persistence

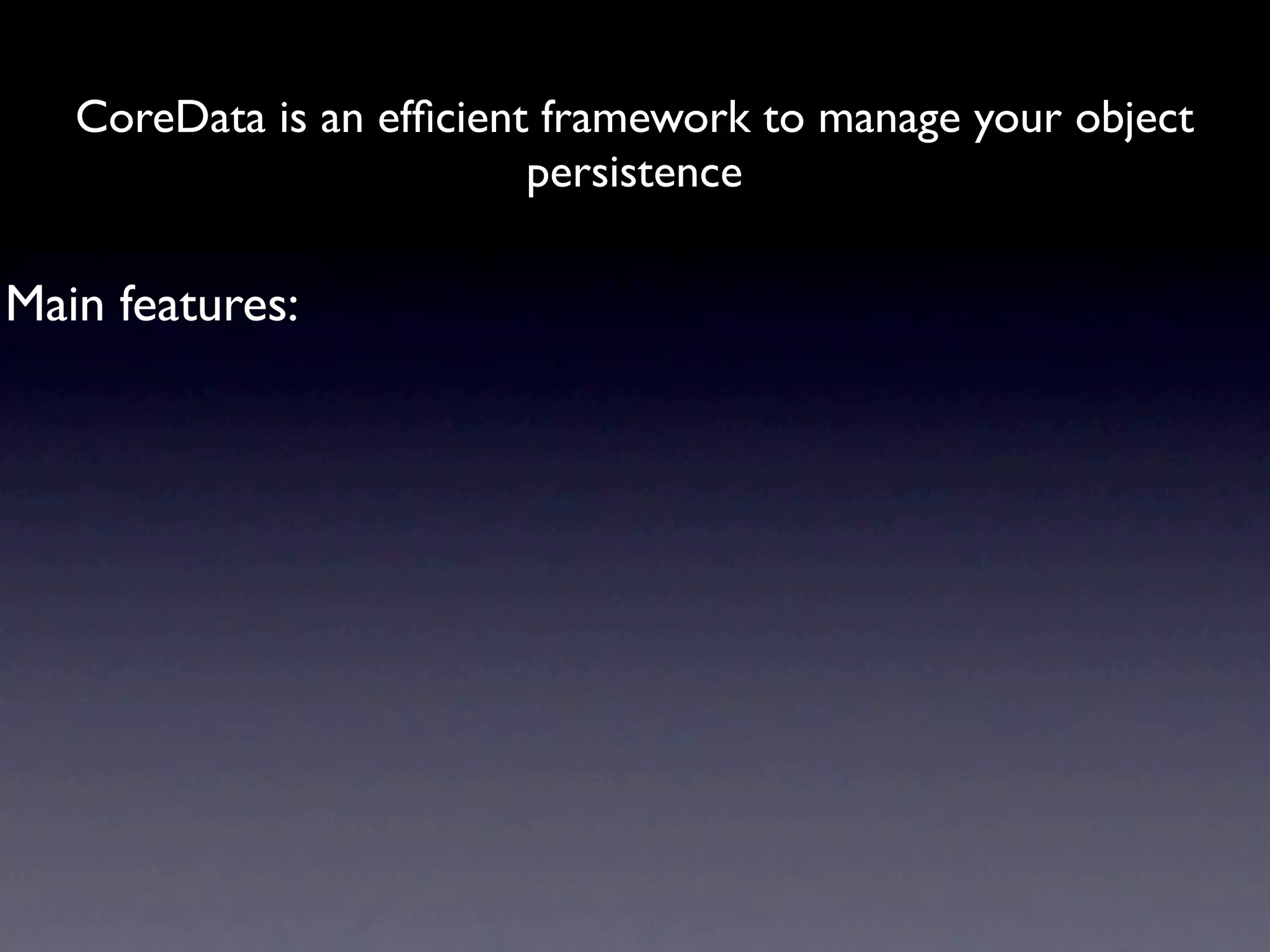

55. CoreData is an efficient framework to manage your object
persistence
Main features:

56. CoreData is an efficient framework to manage your object
persistence
Main features:
-Change tracking and undo support

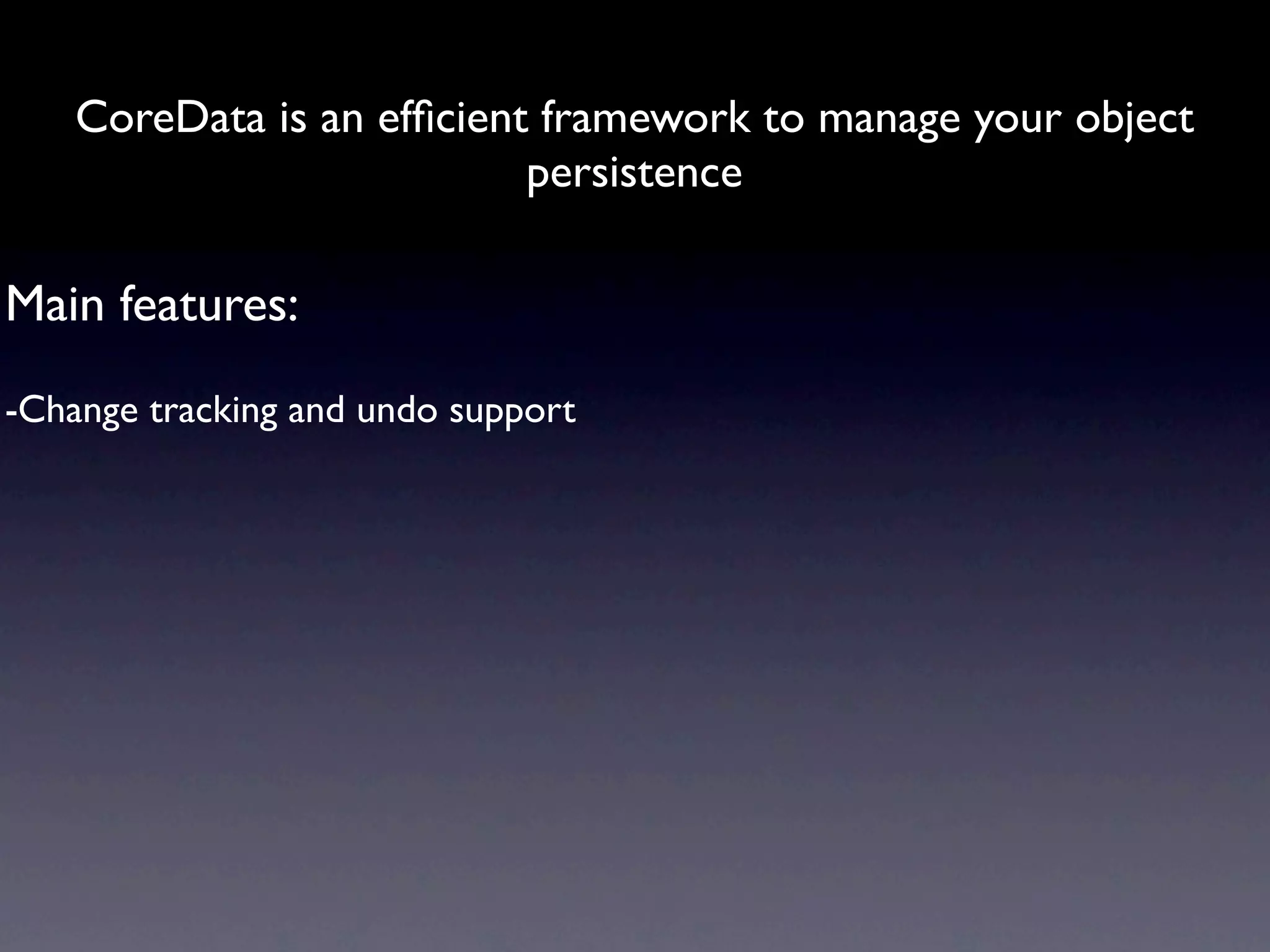

57. CoreData is an efficient framework to manage your object
persistence
Main features:
-Change tracking and undo support
-Relationship between entities maintenance

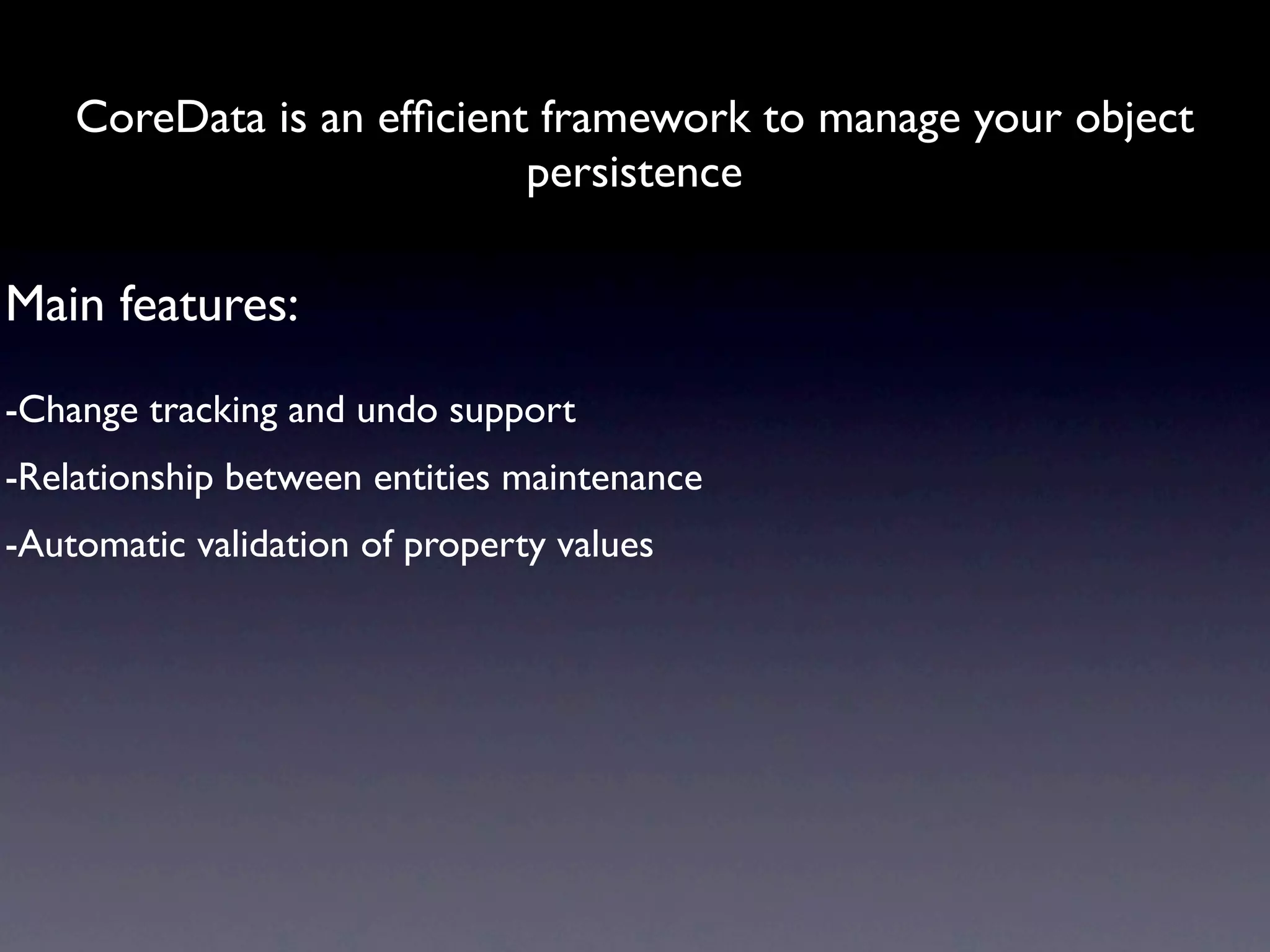

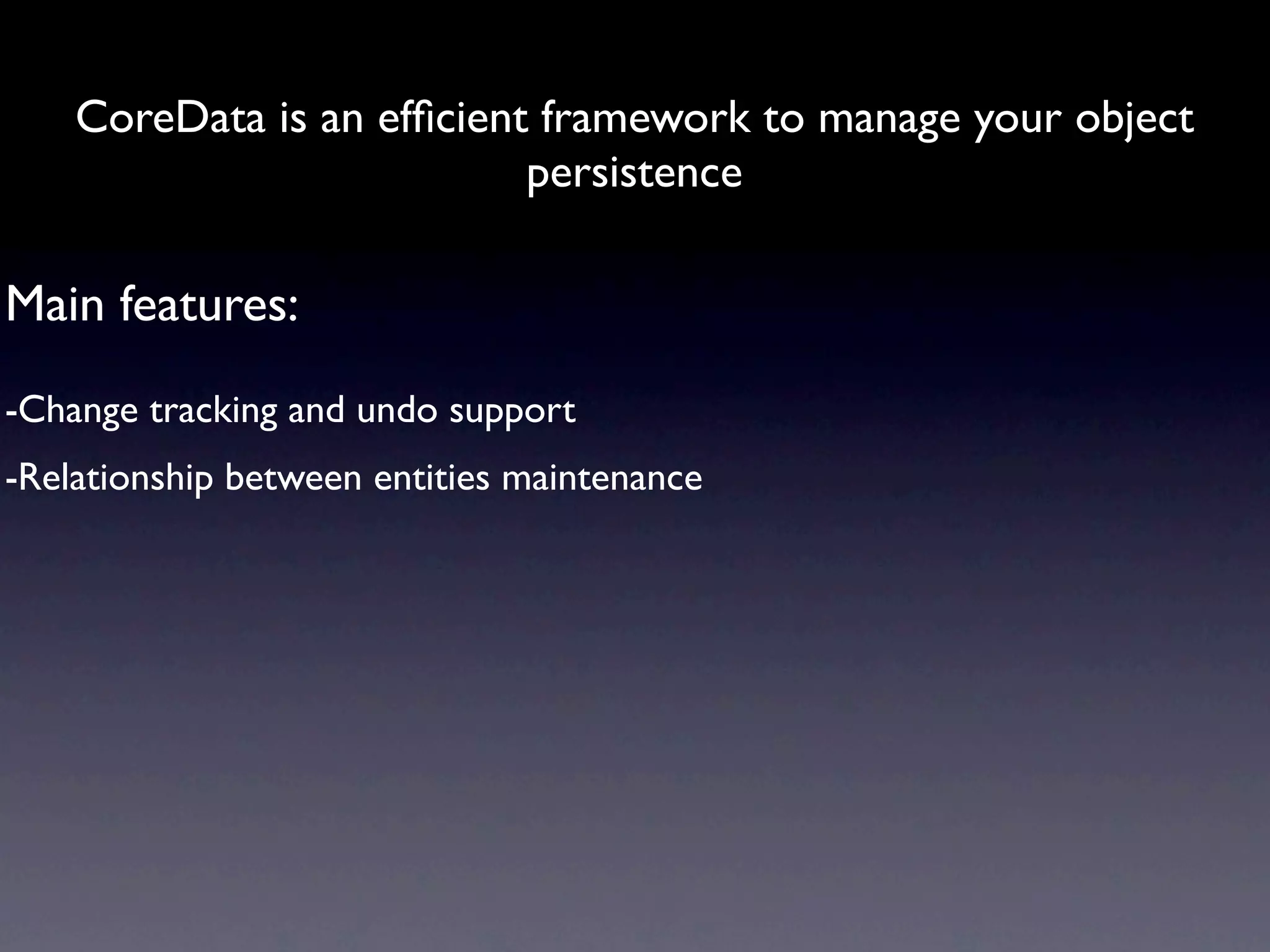

58. CoreData is an efficient framework to manage your object
persistence
Main features:
-Change tracking and undo support
-Relationship between entities maintenance
-Automatic validation of property values

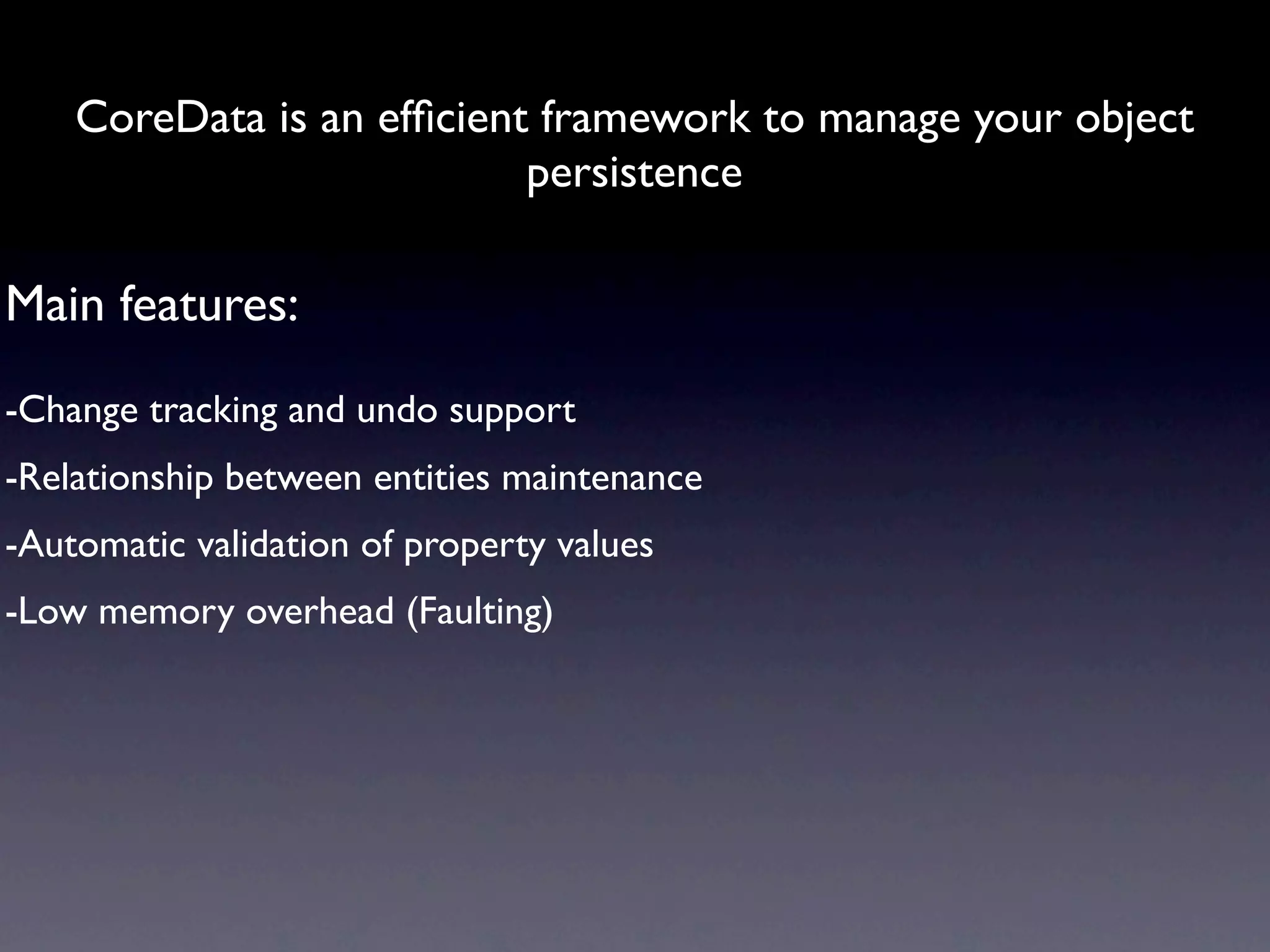

59. CoreData is an efficient framework to manage your object
persistence
Main features:
-Change tracking and undo support
-Relationship between entities maintenance
-Automatic validation of property values
-Low memory overhead (Faulting)

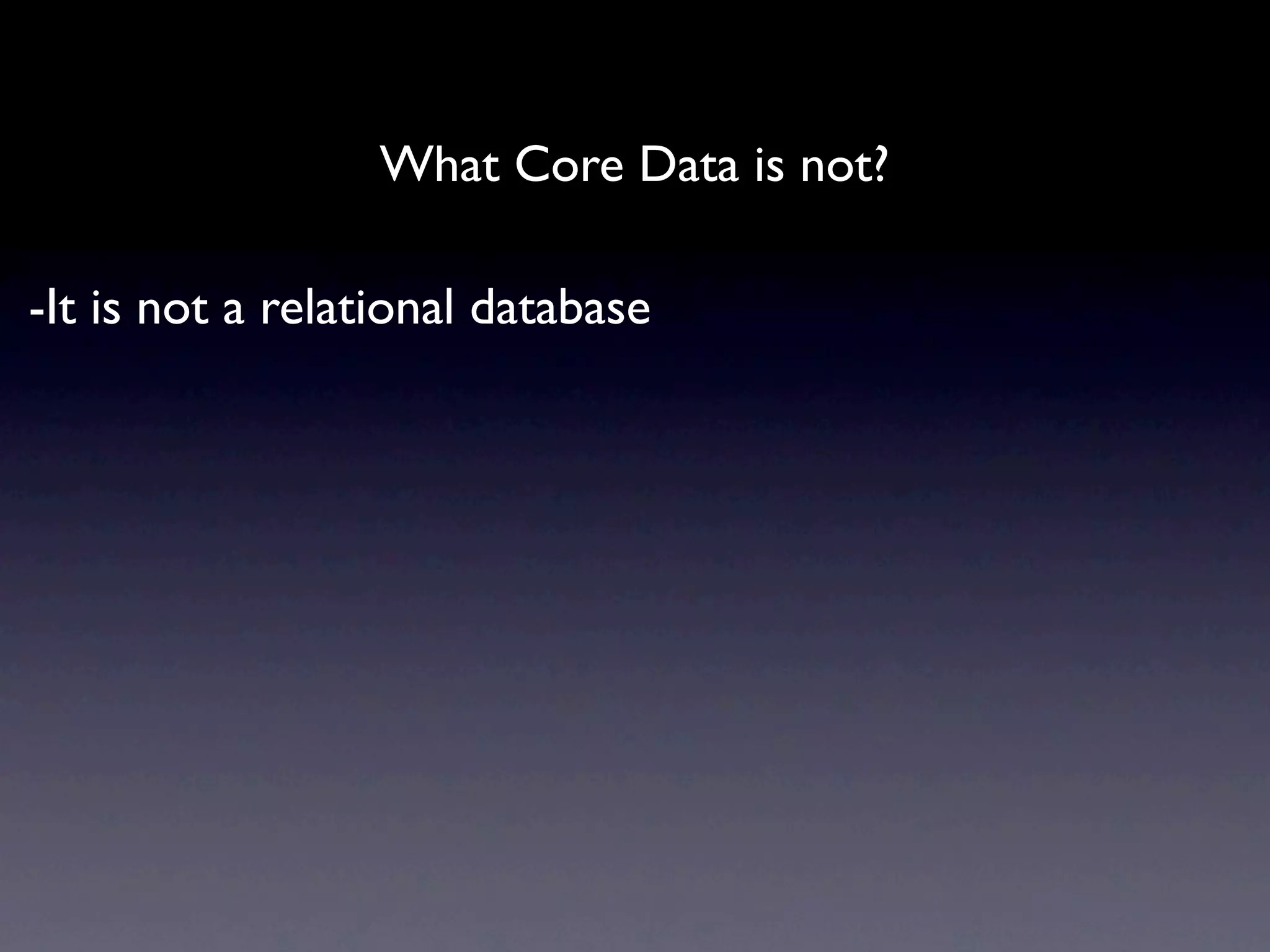

60. What Core Data is not?

61. What Core Data is not?
-It is not a relational database

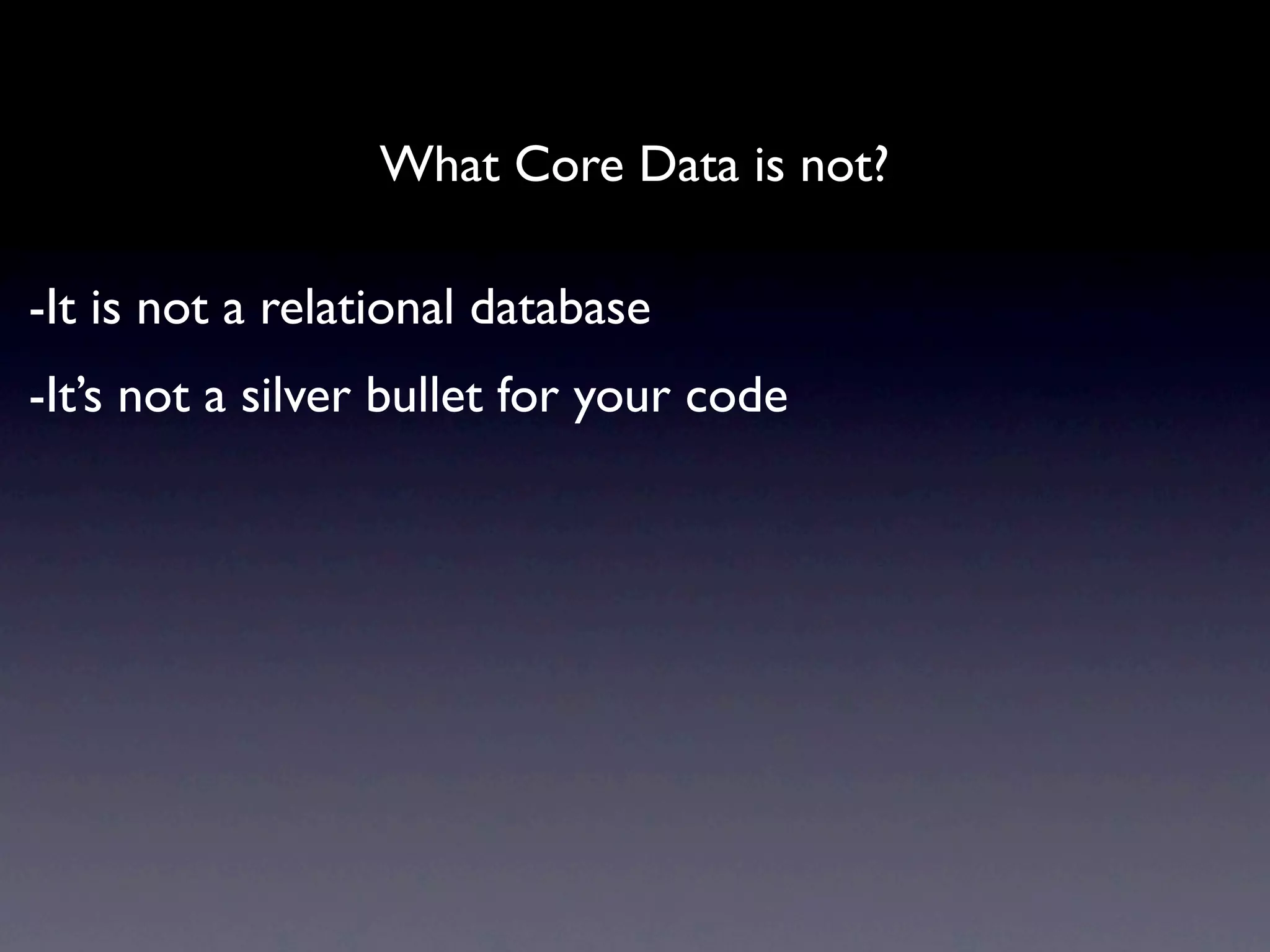

62. What Core Data is not?
-It is not a relational database
-It’s not a silver bullet for your code

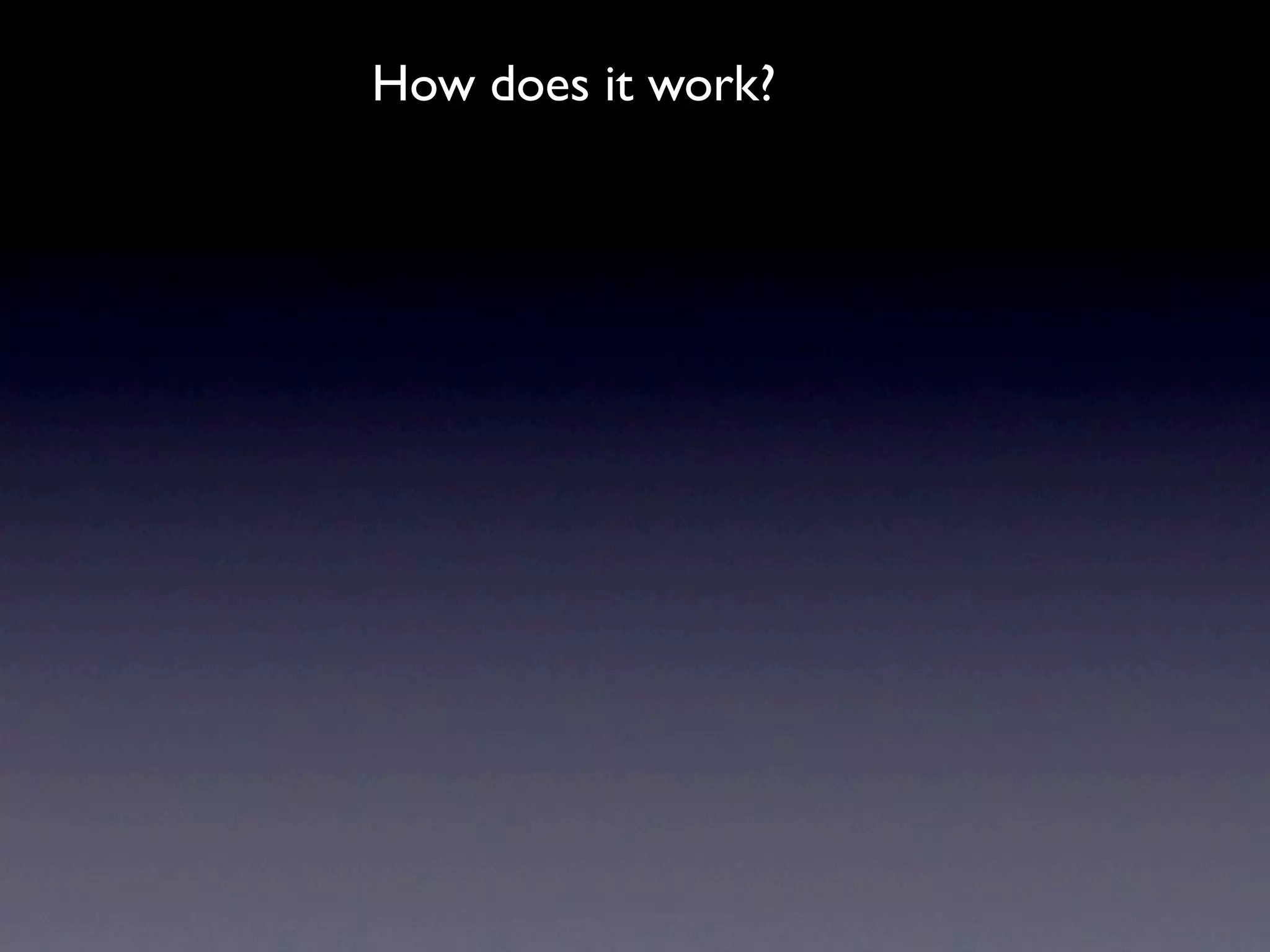

63. How does it work?

64. How does it work?
Storage

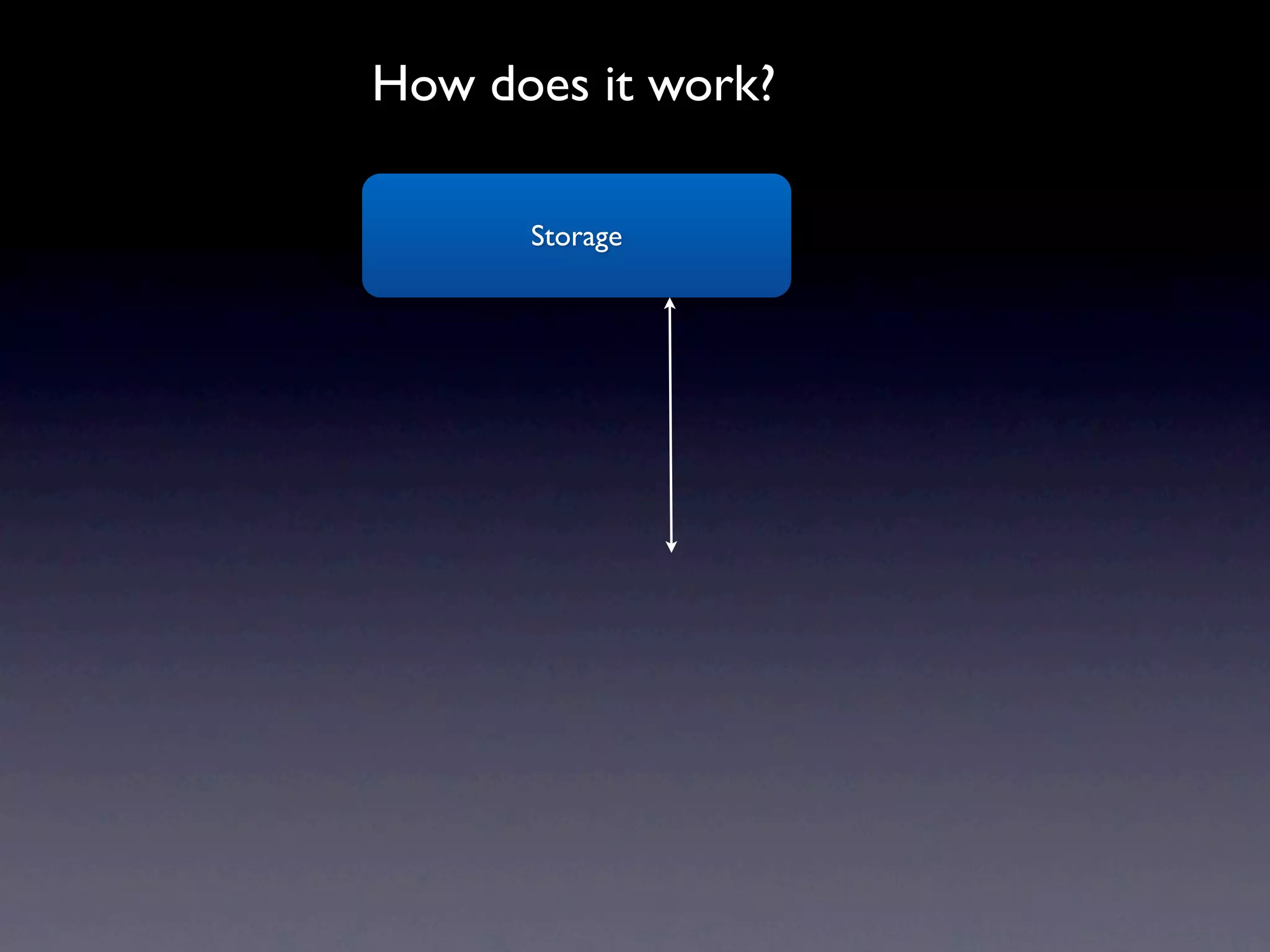

65. How does it work?
Storage

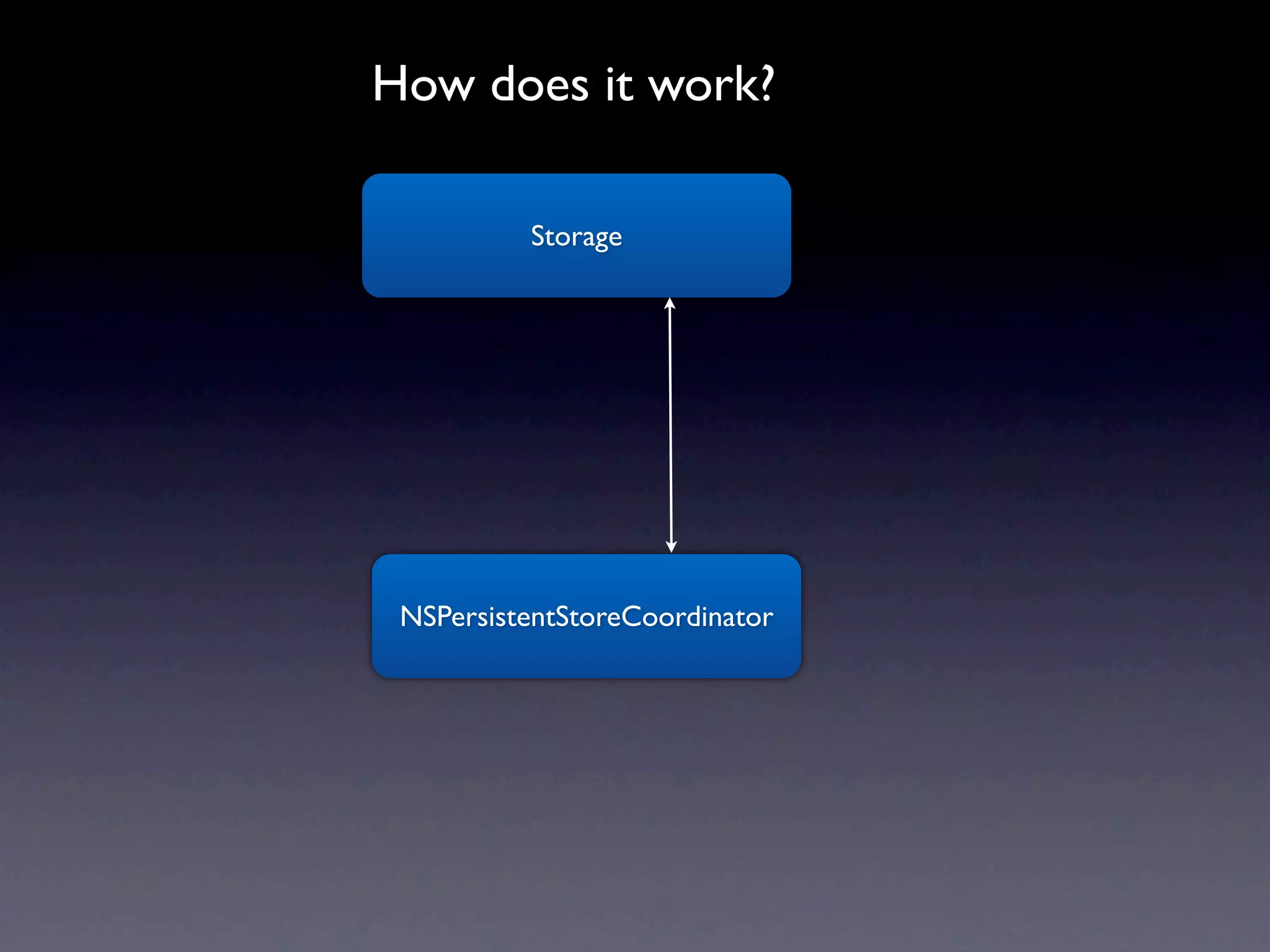

66. How does it work?
Storage
NSPersistentStoreCoordinator

67. How does it work?
Storage
The bridge between the storage
NSPersistentStoreCoordinator and the application

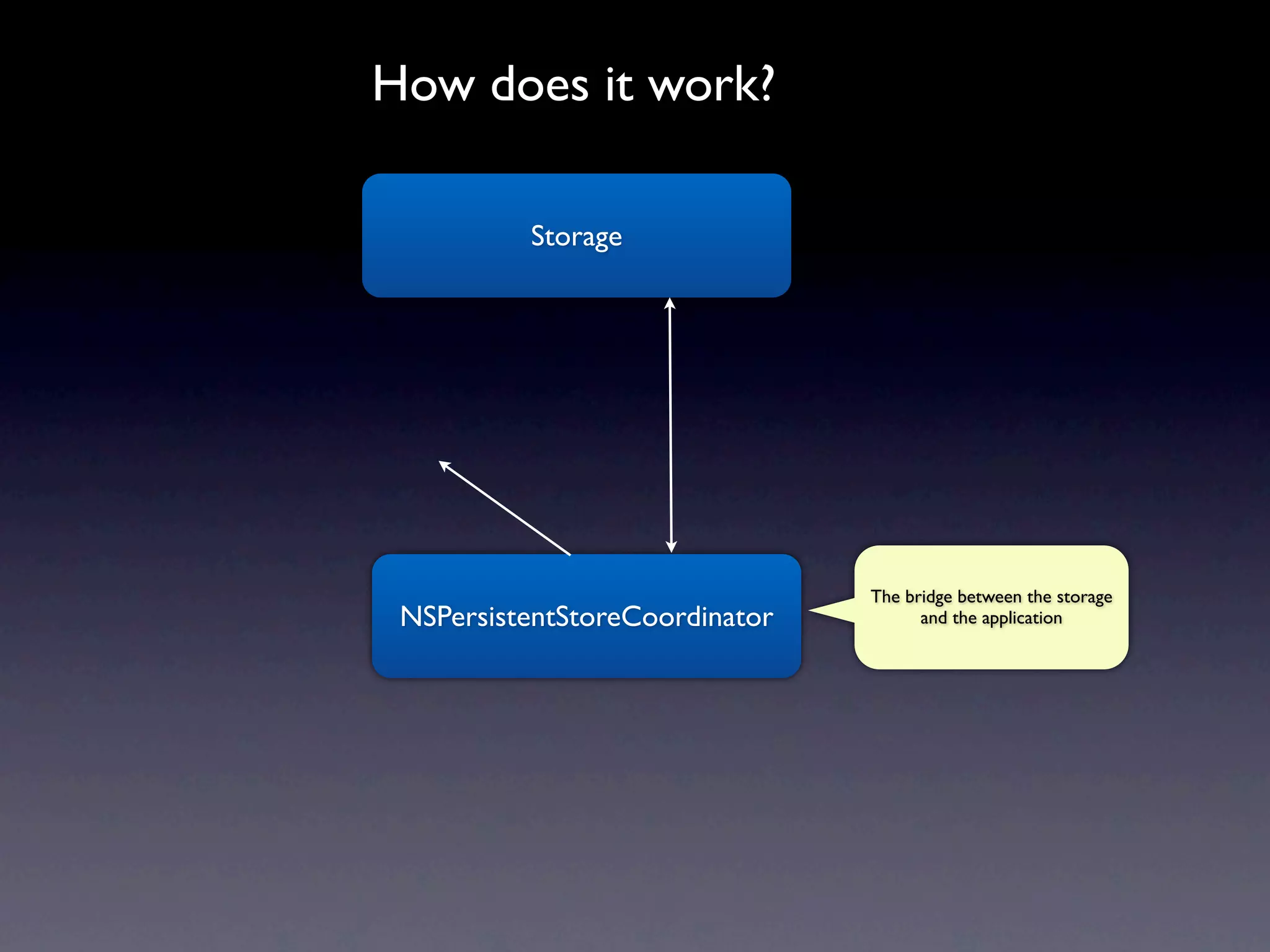

68. How does it work?
Storage
The bridge between the storage
NSPersistentStoreCoordinator and the application

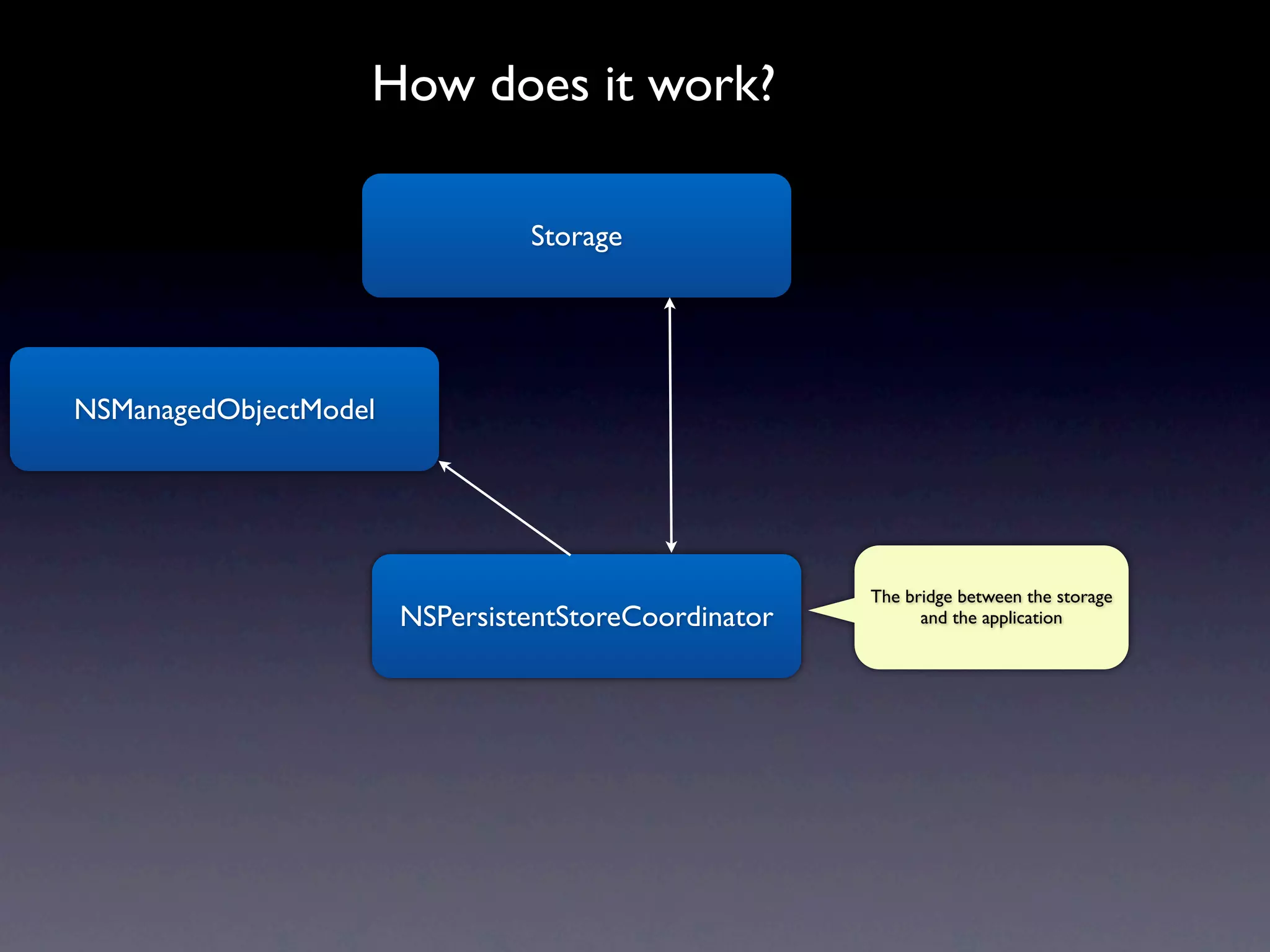

69. How does it work?
Storage
NSManagedObjectModel
The bridge between the storage
NSPersistentStoreCoordinator and the application

70. How does it work?
Storage
NSManagedObjectModel
A collection of data models which
are used in the application
The bridge between the storage
NSPersistentStoreCoordinator and the application

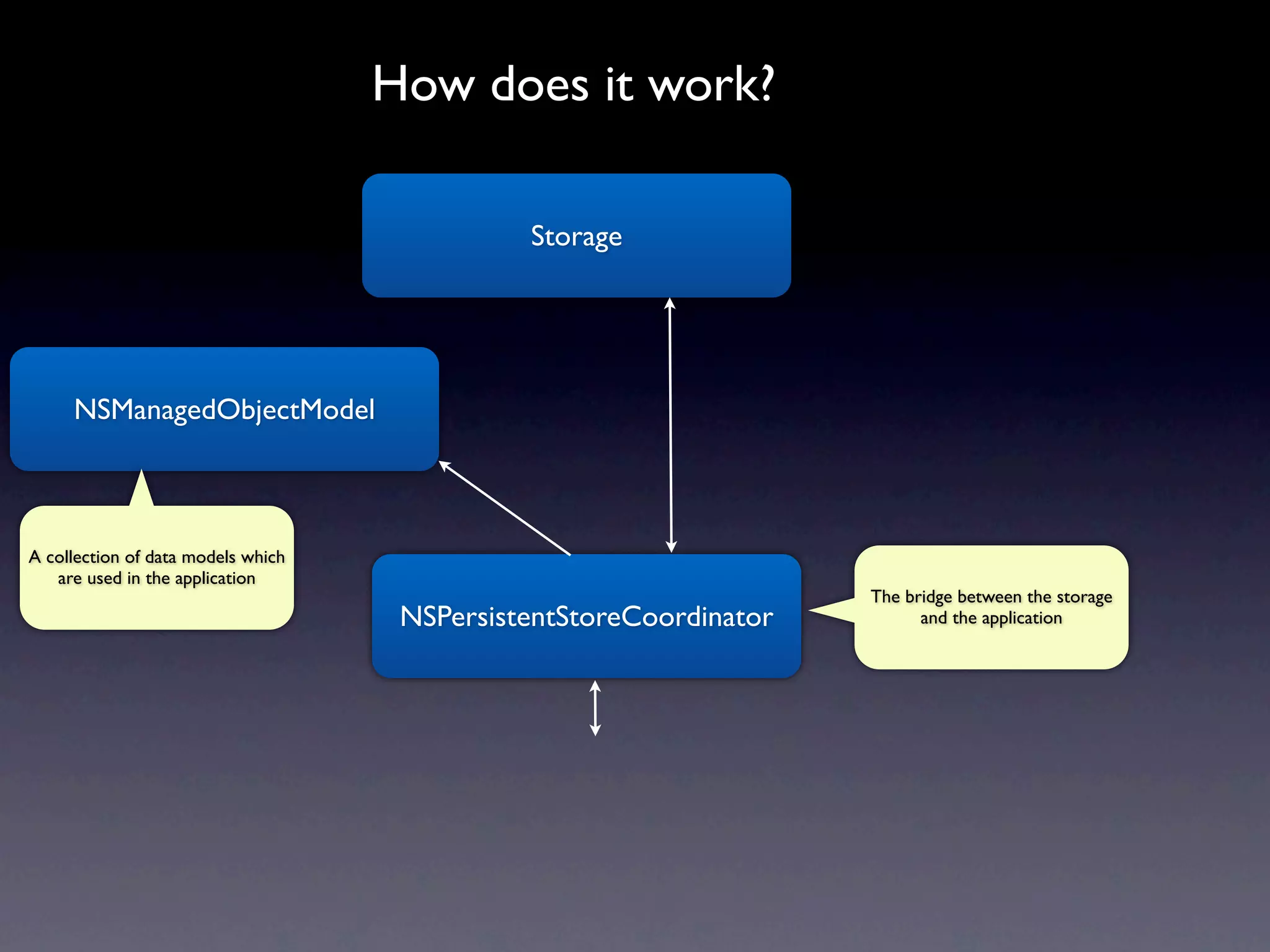

71. How does it work?
Storage
NSManagedObjectModel
A collection of data models which
are used in the application
The bridge between the storage
NSPersistentStoreCoordinator and the application

72. How does it work?
Storage
NSManagedObjectModel
A collection of data models which
are used in the application
The bridge between the storage
NSPersistentStoreCoordinator and the application
NSManagedObjectContext

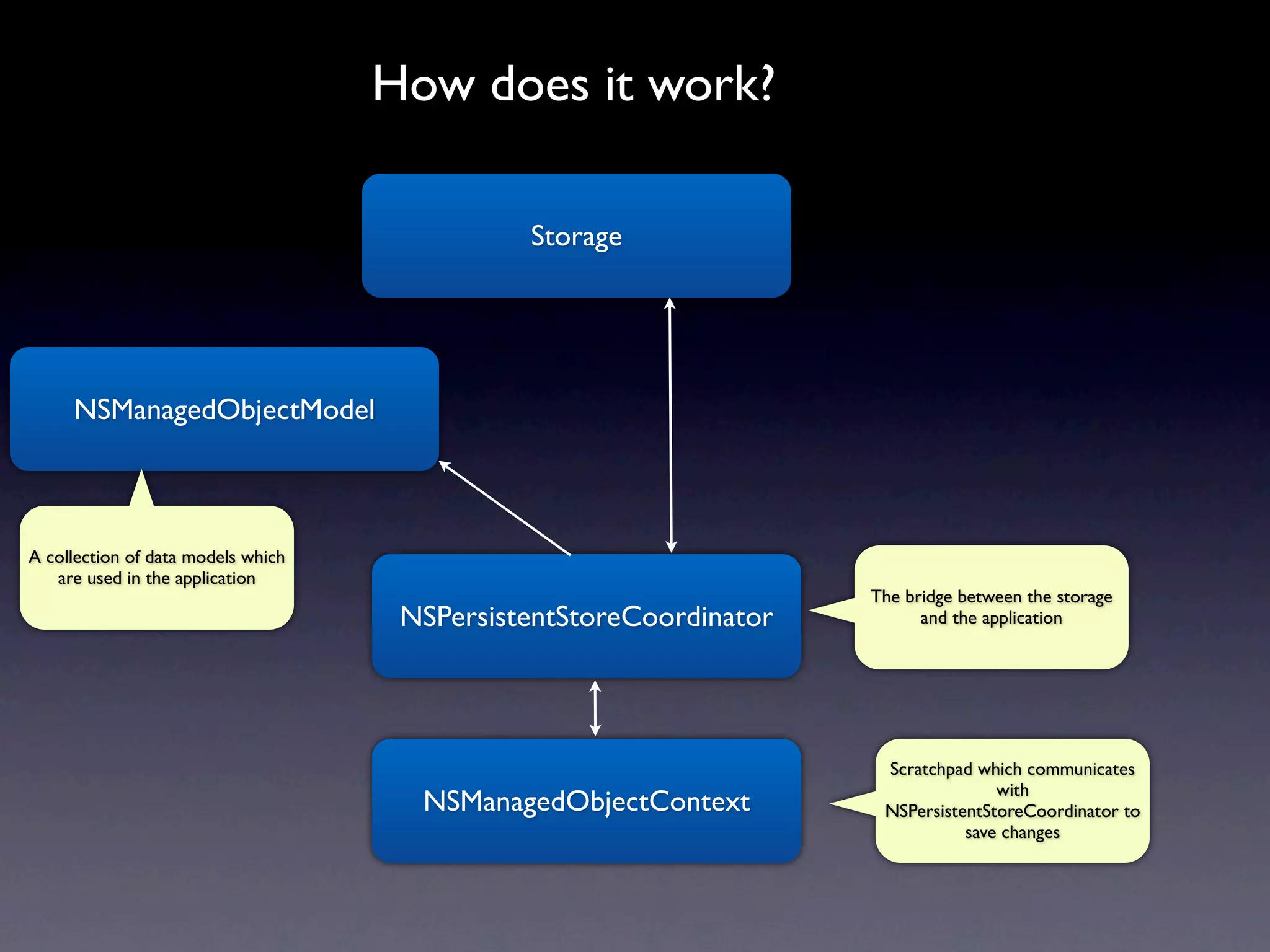

73. How does it work?
Storage
NSManagedObjectModel
A collection of data models which
are used in the application
The bridge between the storage
NSPersistentStoreCoordinator and the application
Scratchpad which communicates
with
NSManagedObjectContext NSPersistentStoreCoordinator to
save changes

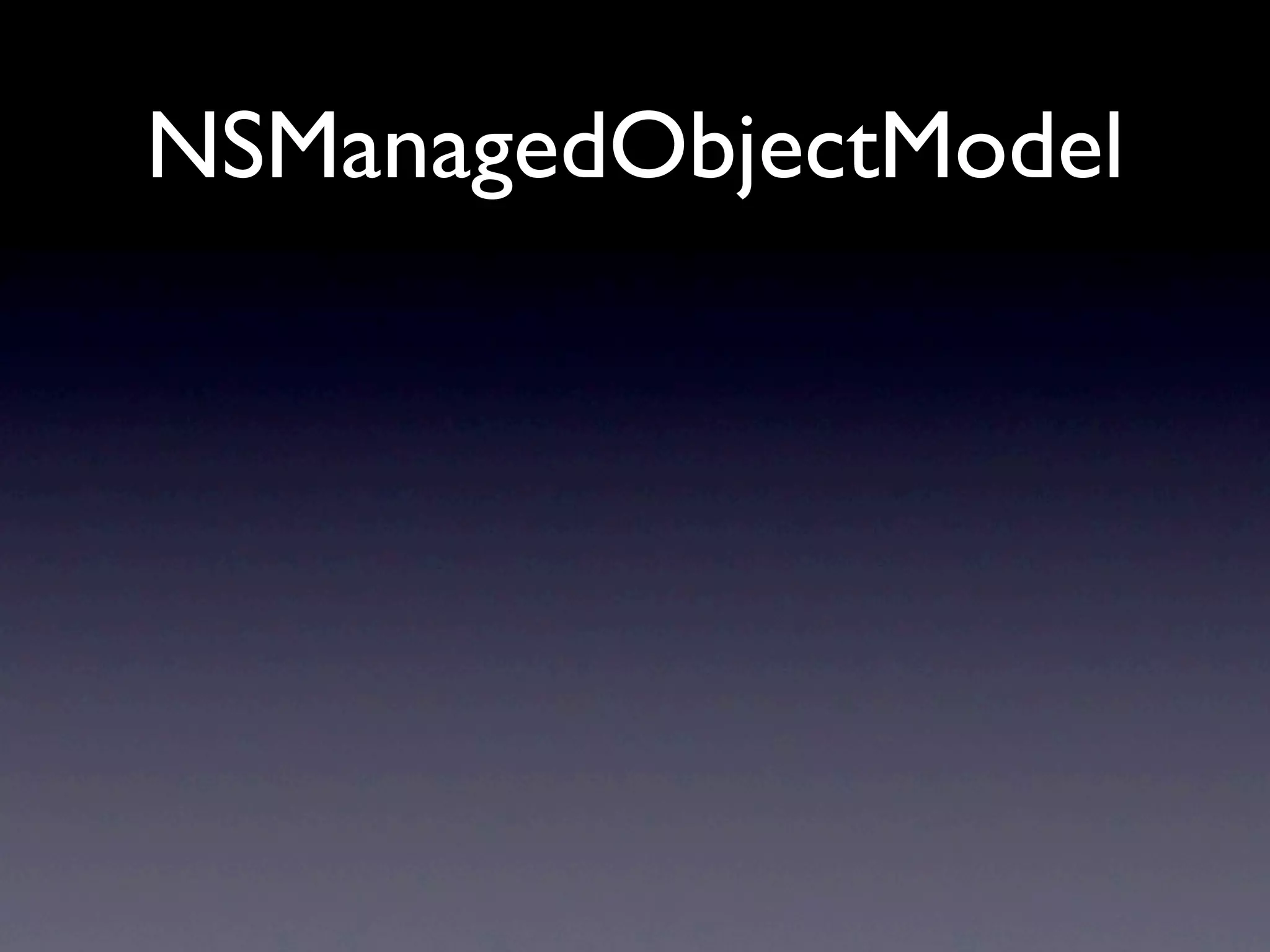

74. NSManagedObjectModel

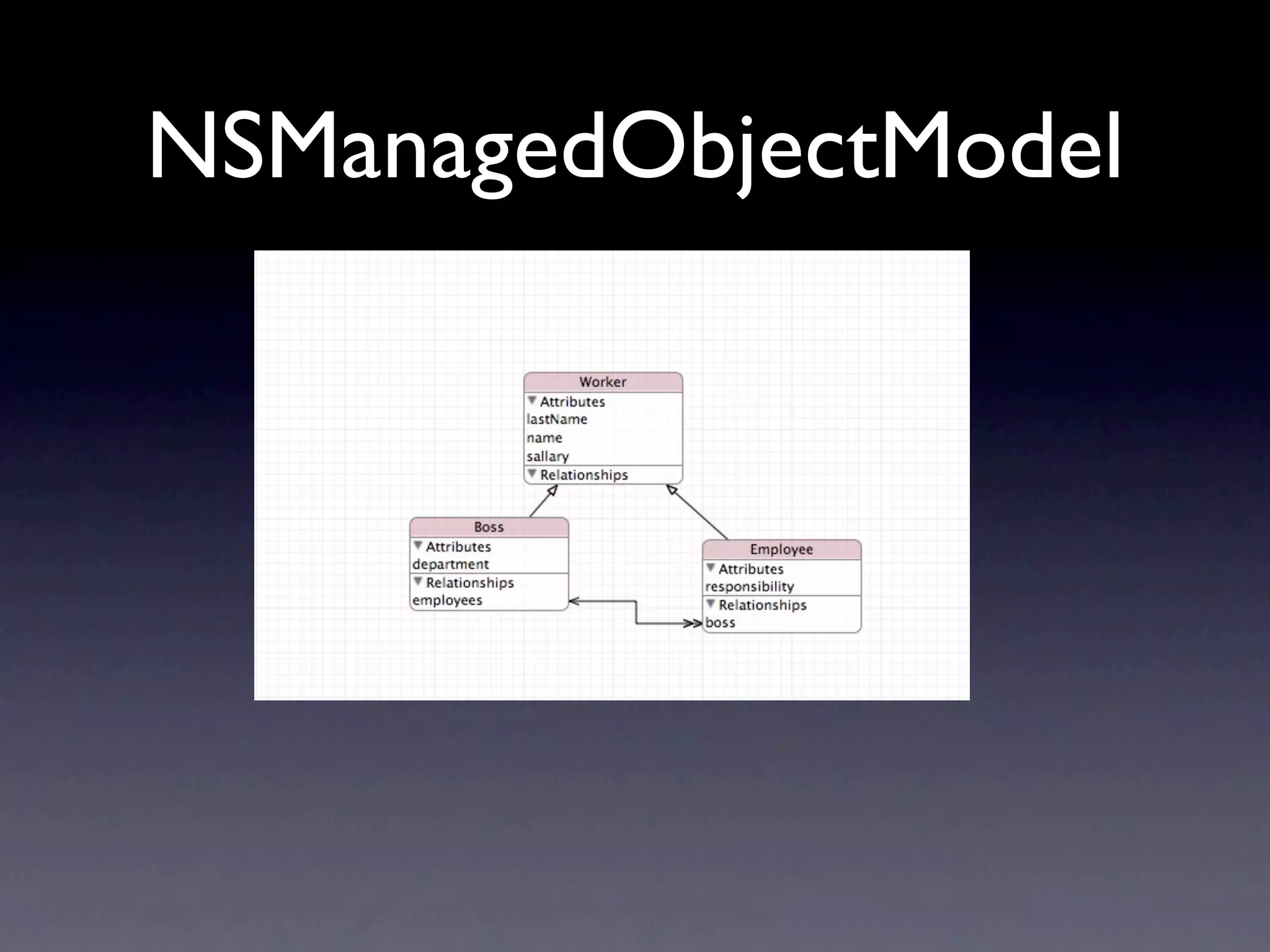

75. NSManagedObjectModel

76. NSManagedObjectModel
Entity

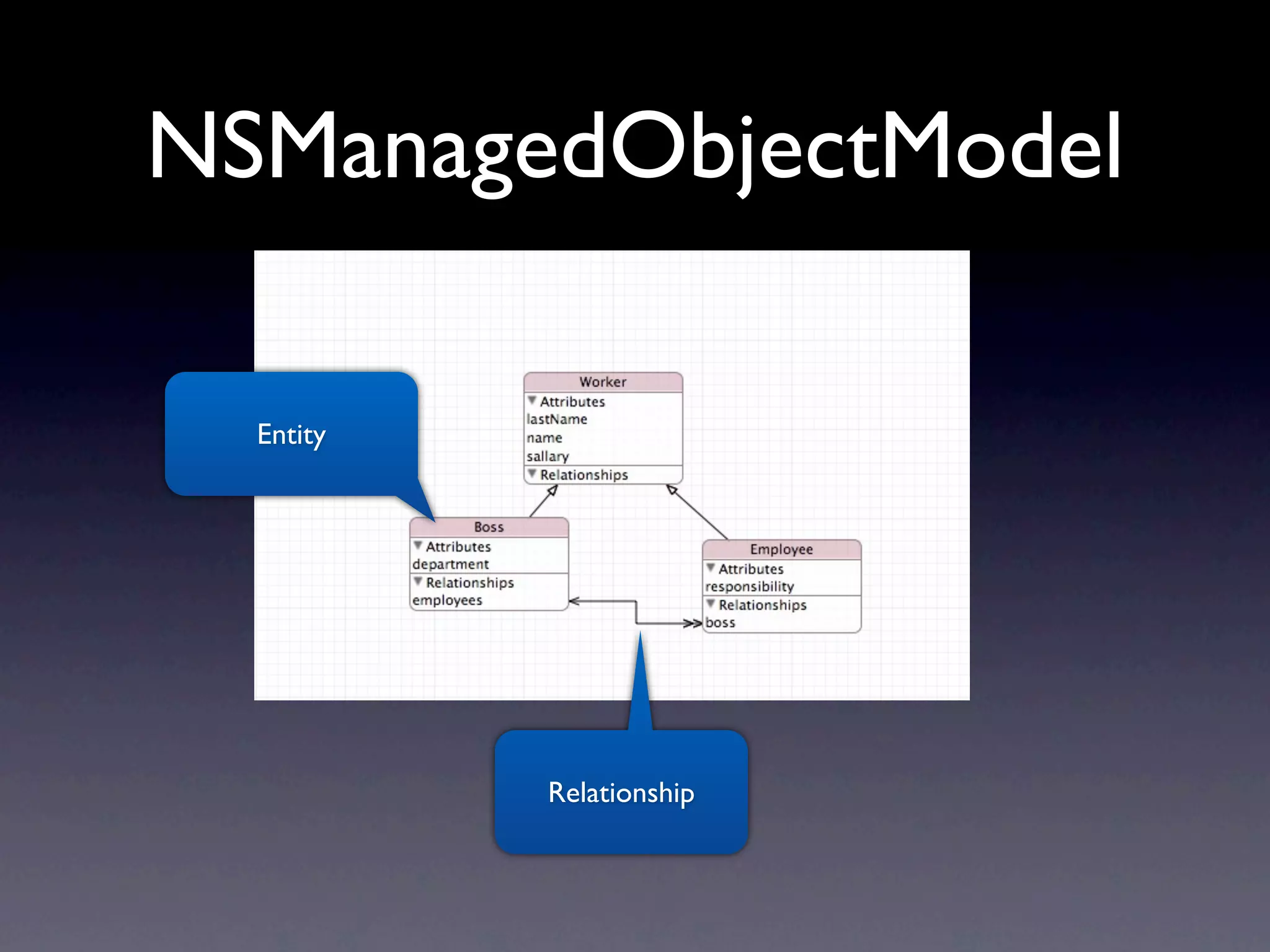

77. NSManagedObjectModel
Entity
Relationship

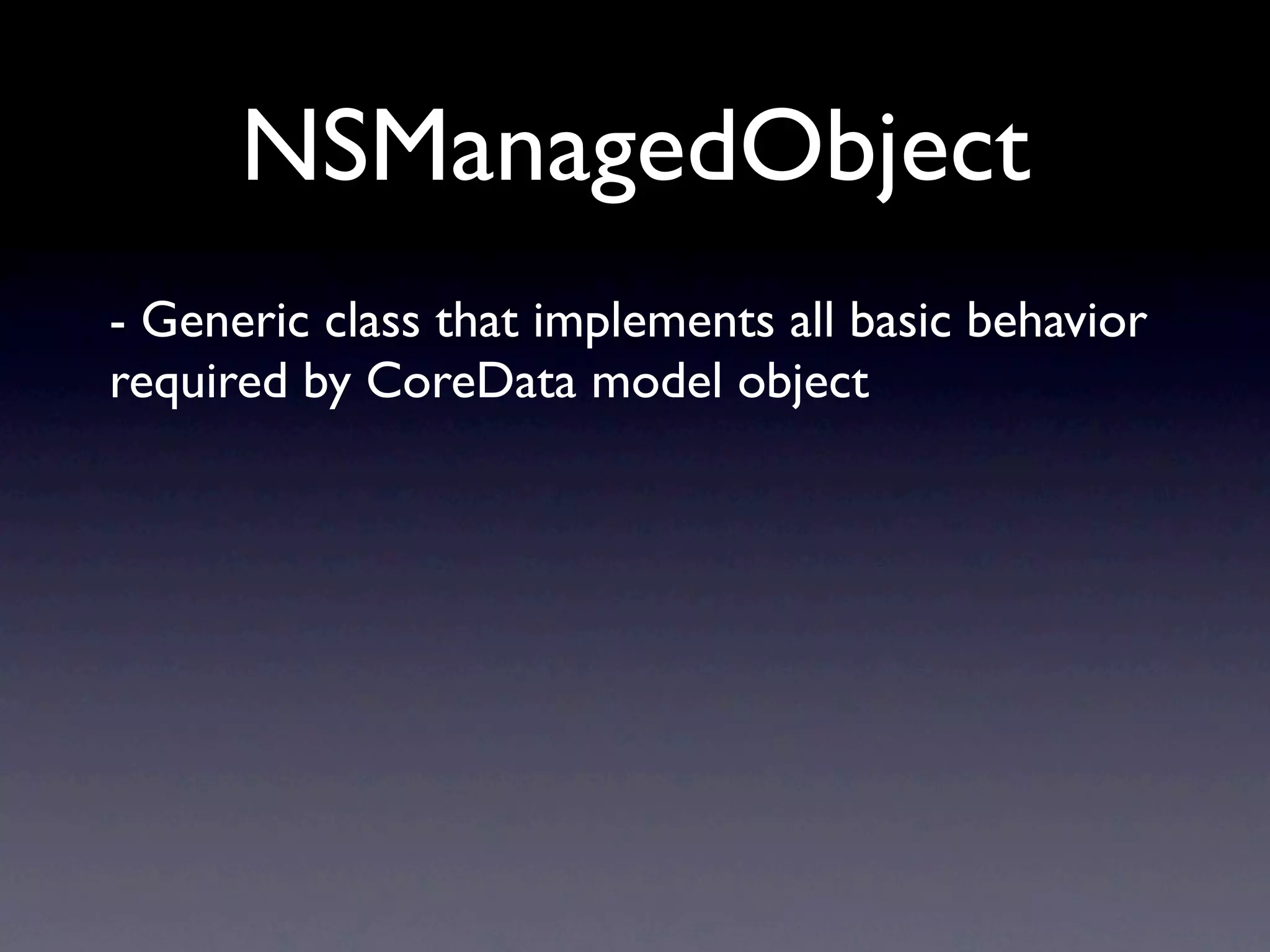

78. NSManagedObject

79. NSManagedObject
- Generic class that implements all basic behavior
required by CoreData model object

80. NSManagedObject
- Generic class that implements all basic behavior
required by CoreData model object
- It’s not possible to use regular NSObjects with
Core Data

81. NSManagedObject
- Generic class that implements all basic behavior
required by CoreData model object
- It’s not possible to use regular NSObjects with
Core Data
Can be created using following ways:

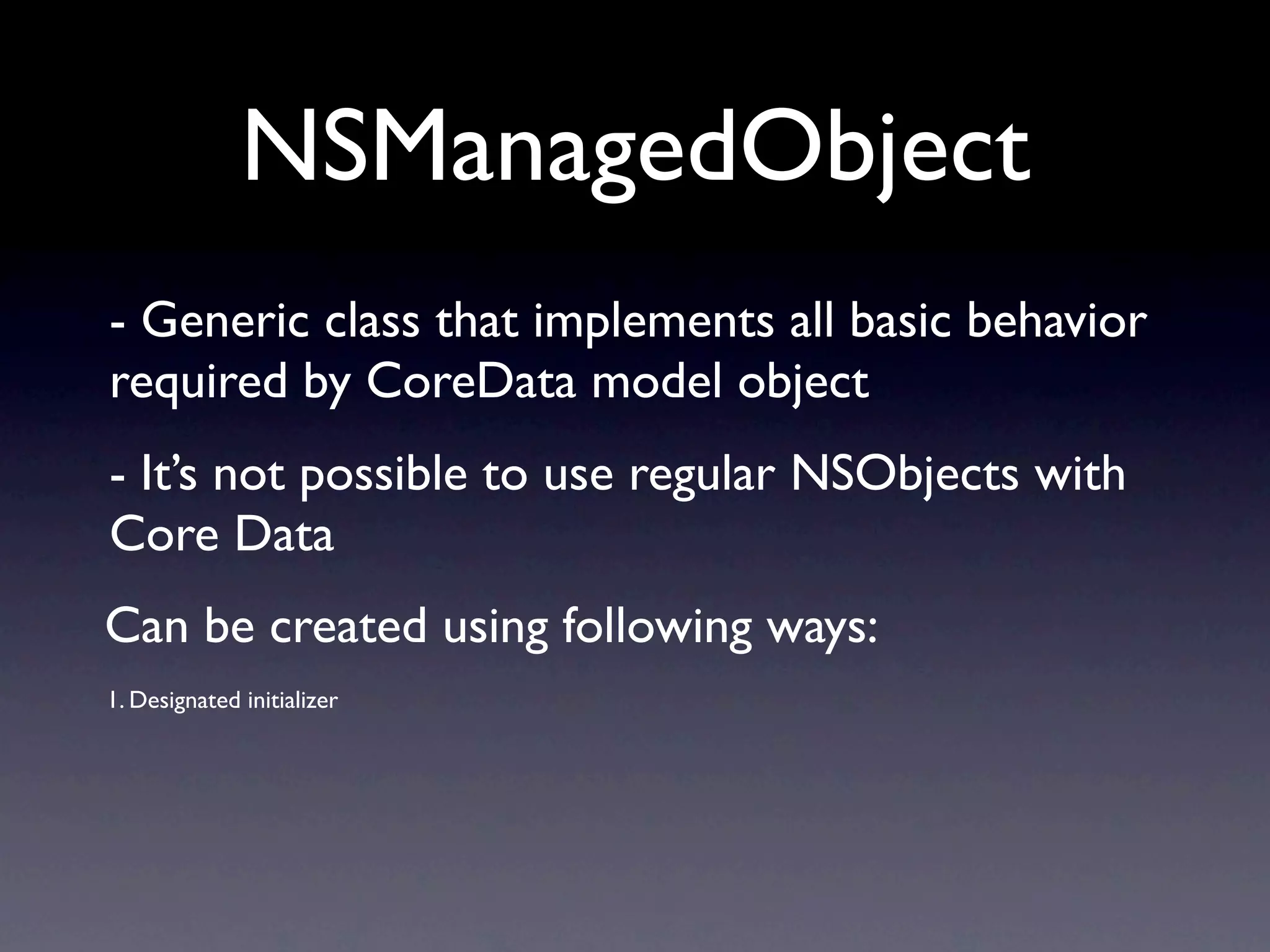

82. NSManagedObject
- Generic class that implements all basic behavior
required by CoreData model object
- It’s not possible to use regular NSObjects with
Core Data
Can be created using following ways:
1. Designated initializer

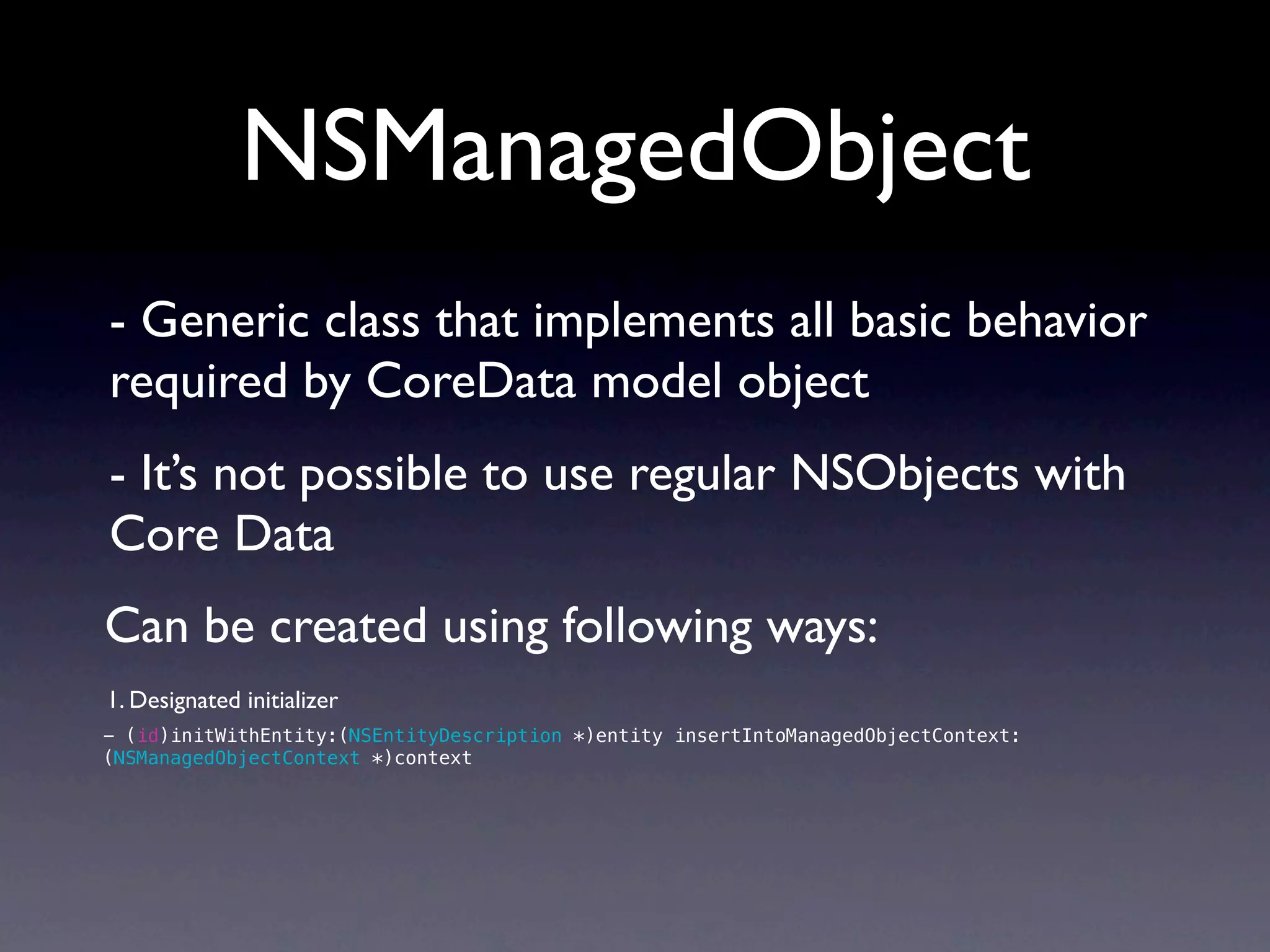

83. NSManagedObject
- Generic class that implements all basic behavior
required by CoreData model object
- It’s not possible to use regular NSObjects with
Core Data
Can be created using following ways:
1. Designated initializer
- (id)initWithEntity:(NSEntityDescription *)entity insertIntoManagedObjectContext:
(NSManagedObjectContext *)context

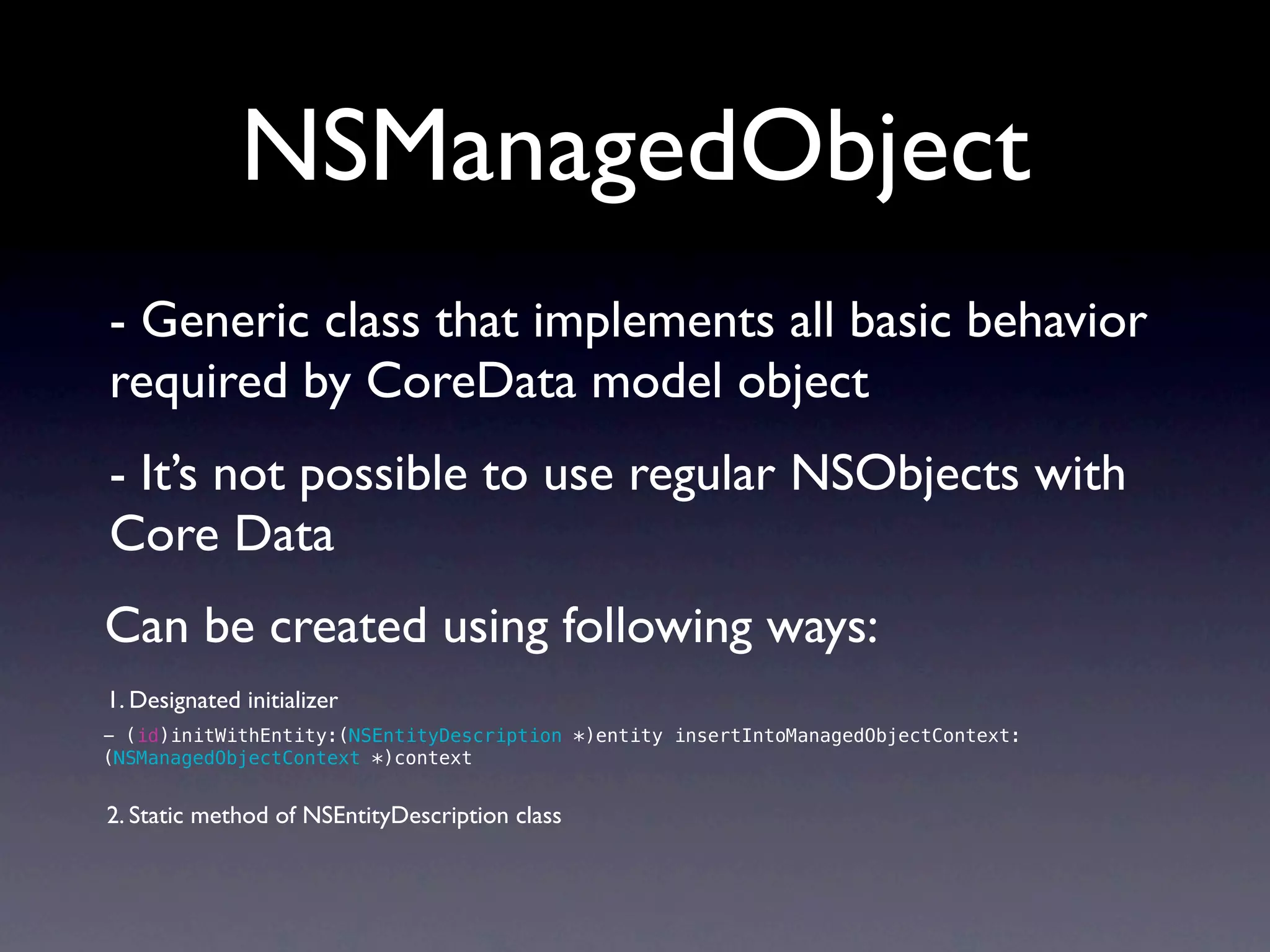

84. NSManagedObject
- Generic class that implements all basic behavior
required by CoreData model object
- It’s not possible to use regular NSObjects with
Core Data
Can be created using following ways:
1. Designated initializer
- (id)initWithEntity:(NSEntityDescription *)entity insertIntoManagedObjectContext:
(NSManagedObjectContext *)context
2. Static method of NSEntityDescription class

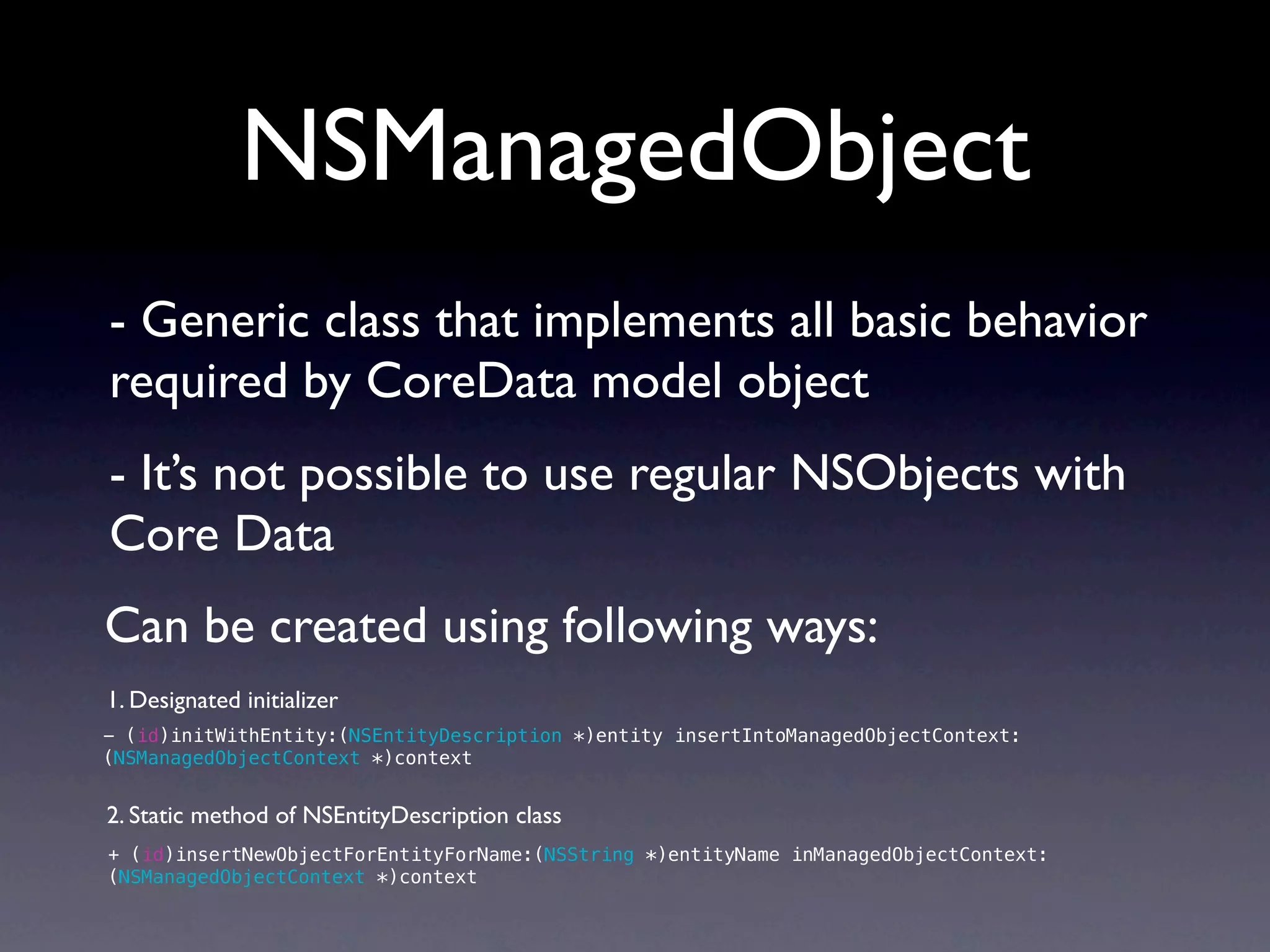

85. NSManagedObject
- Generic class that implements all basic behavior
required by CoreData model object
- It’s not possible to use regular NSObjects with
Core Data
Can be created using following ways:
1. Designated initializer
- (id)initWithEntity:(NSEntityDescription *)entity insertIntoManagedObjectContext:
(NSManagedObjectContext *)context
2. Static method of NSEntityDescription class
+ (id)insertNewObjectForEntityForName:(NSString *)entityName inManagedObjectContext:
(NSManagedObjectContext *)context

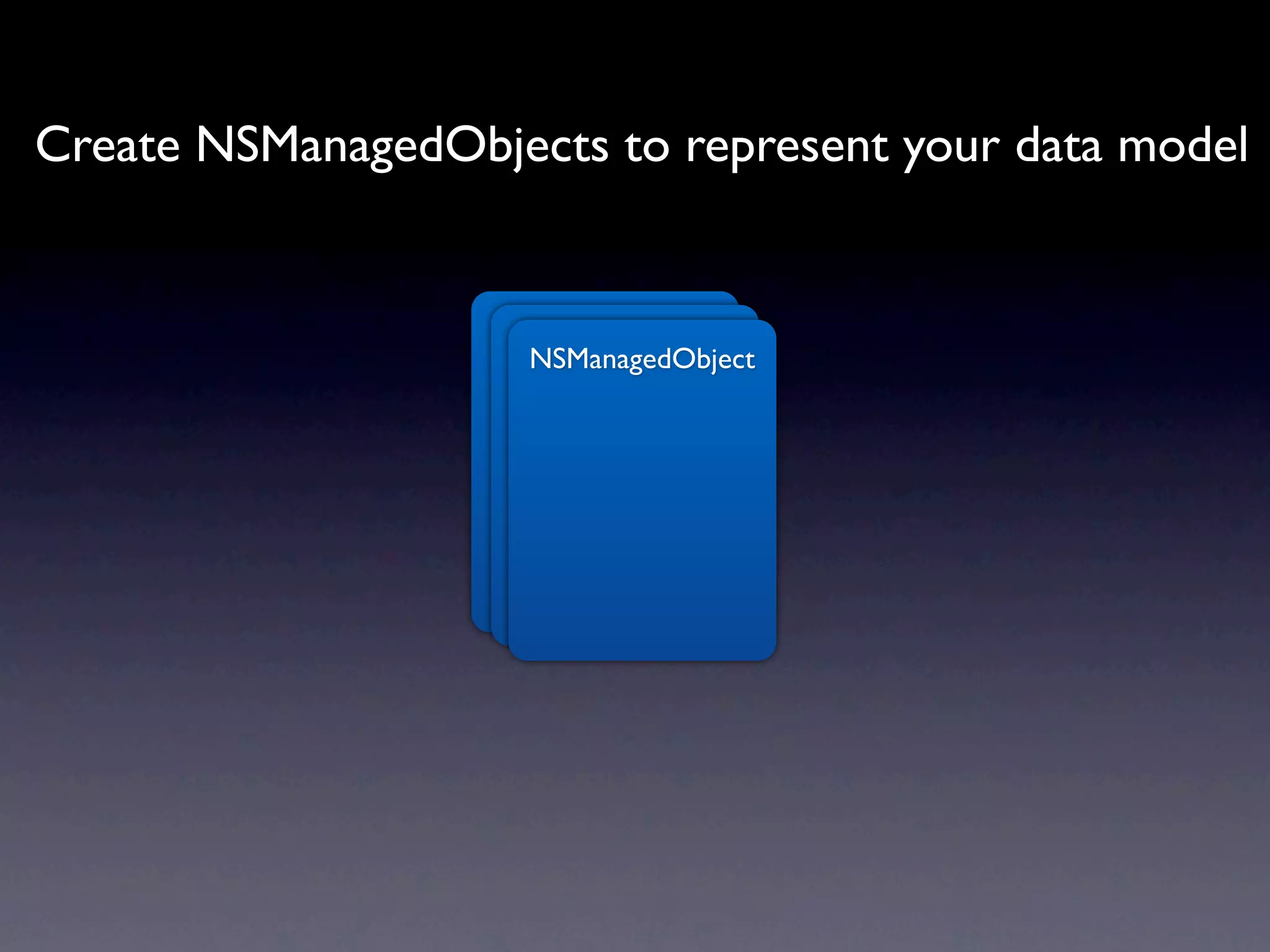

86. Create NSManagedObjects to represent your data model
NSManagedObject
NSManagedObject
NSManagedObject

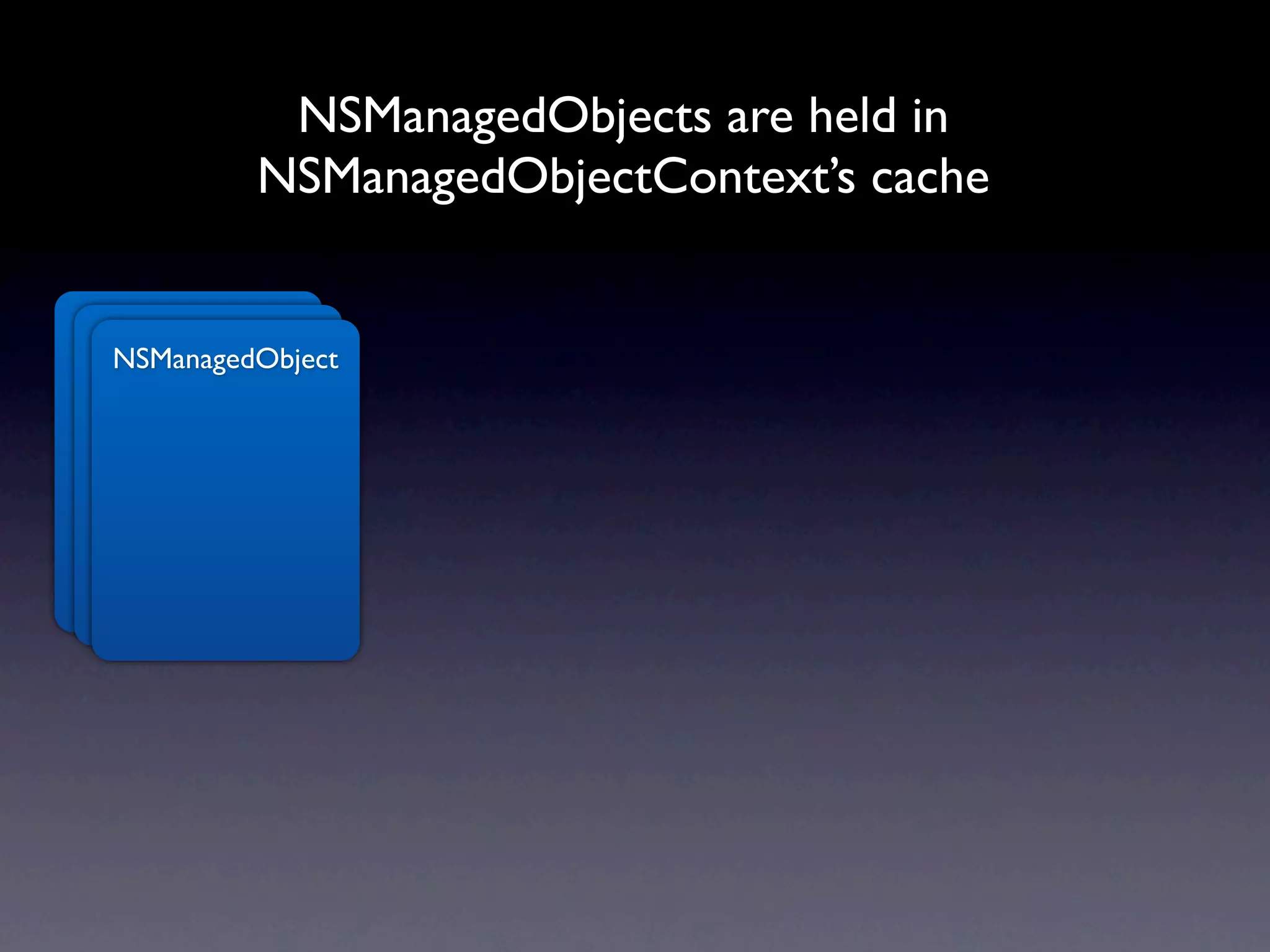

87. NSManagedObjects are held in
NSManagedObjectContext’s cache
NSManagedObject
NSManagedObject
NSManagedObject

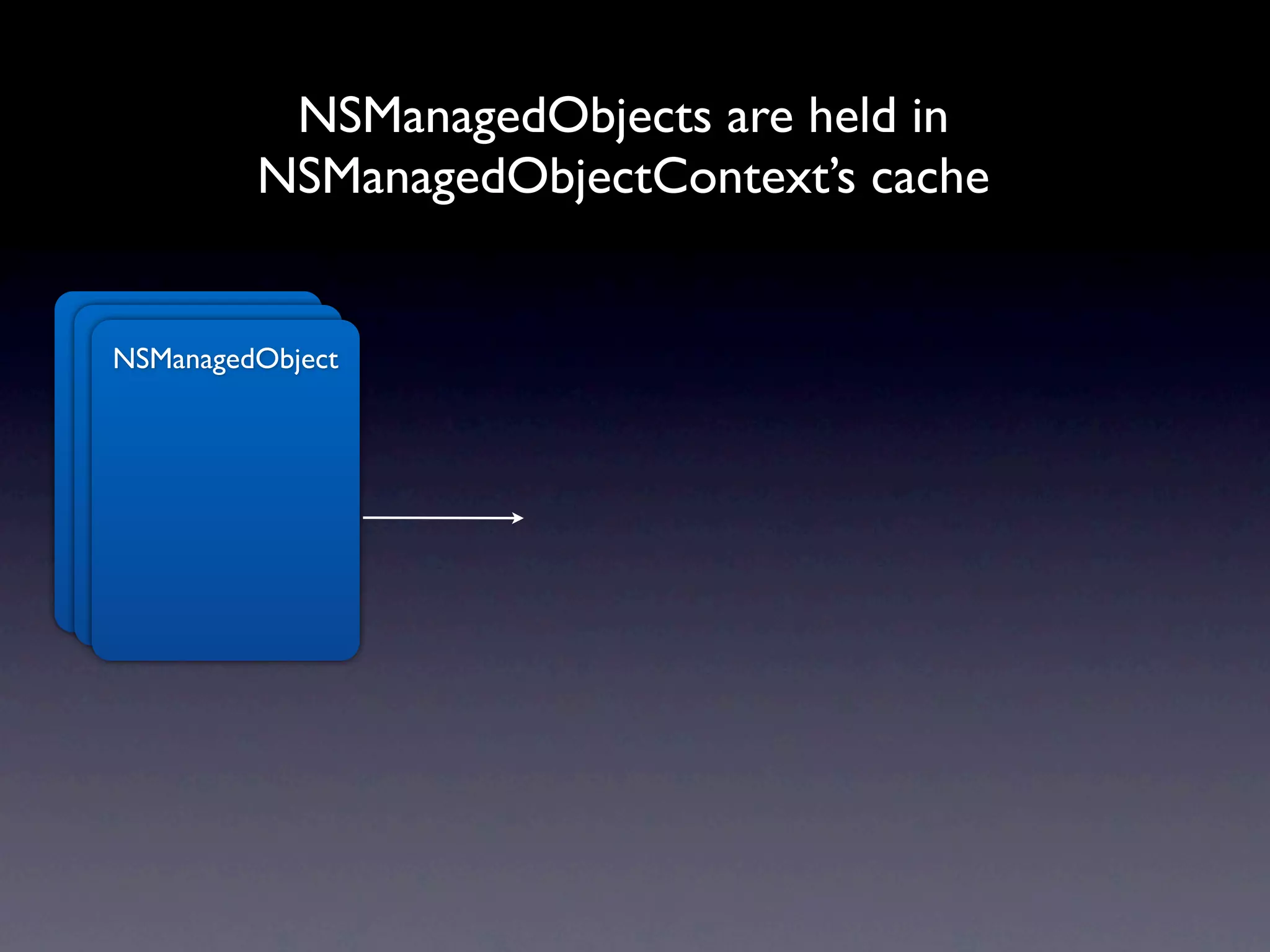

88. NSManagedObjects are held in
NSManagedObjectContext’s cache
NSManagedObject
NSManagedObject
NSManagedObject

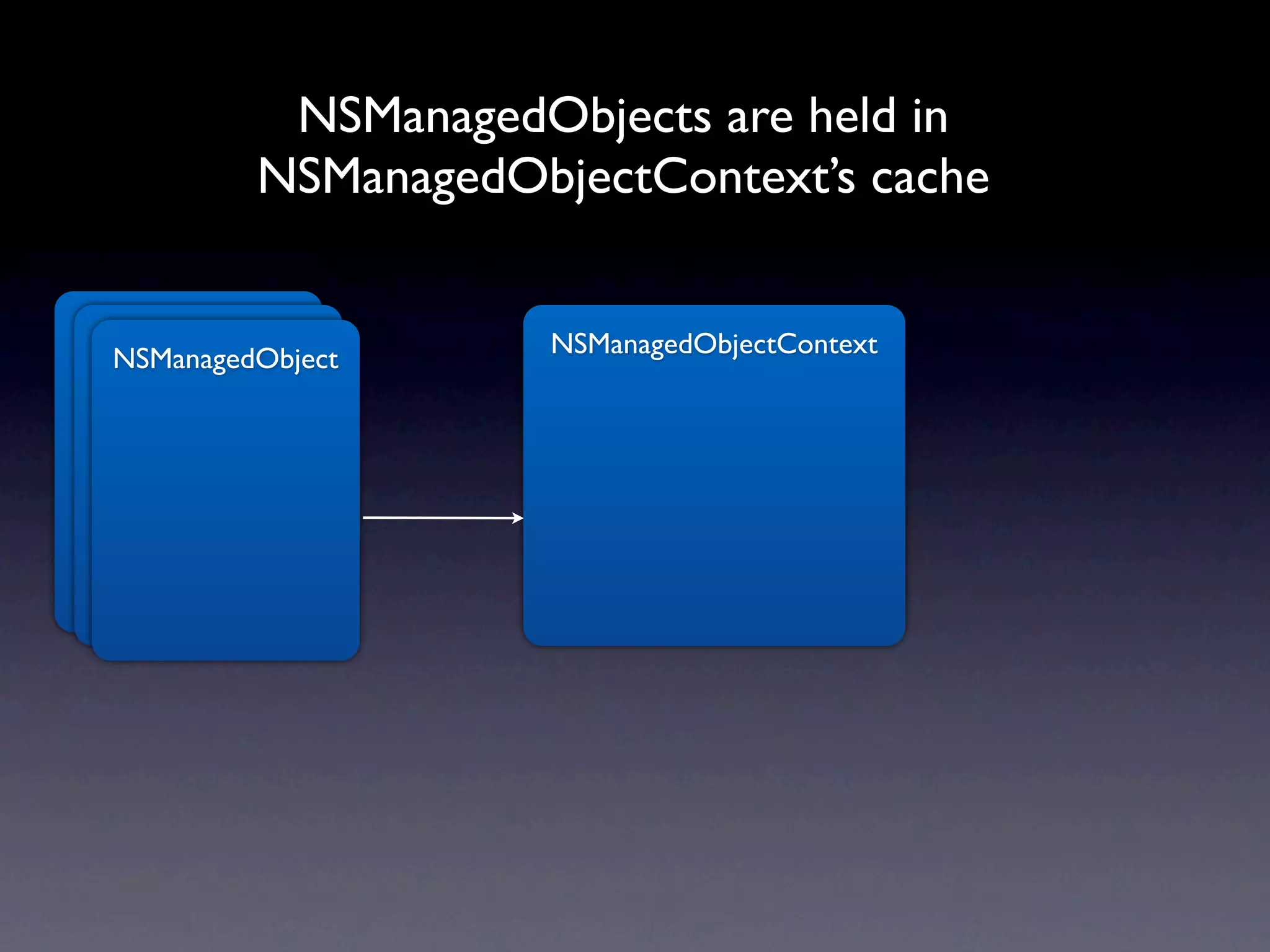

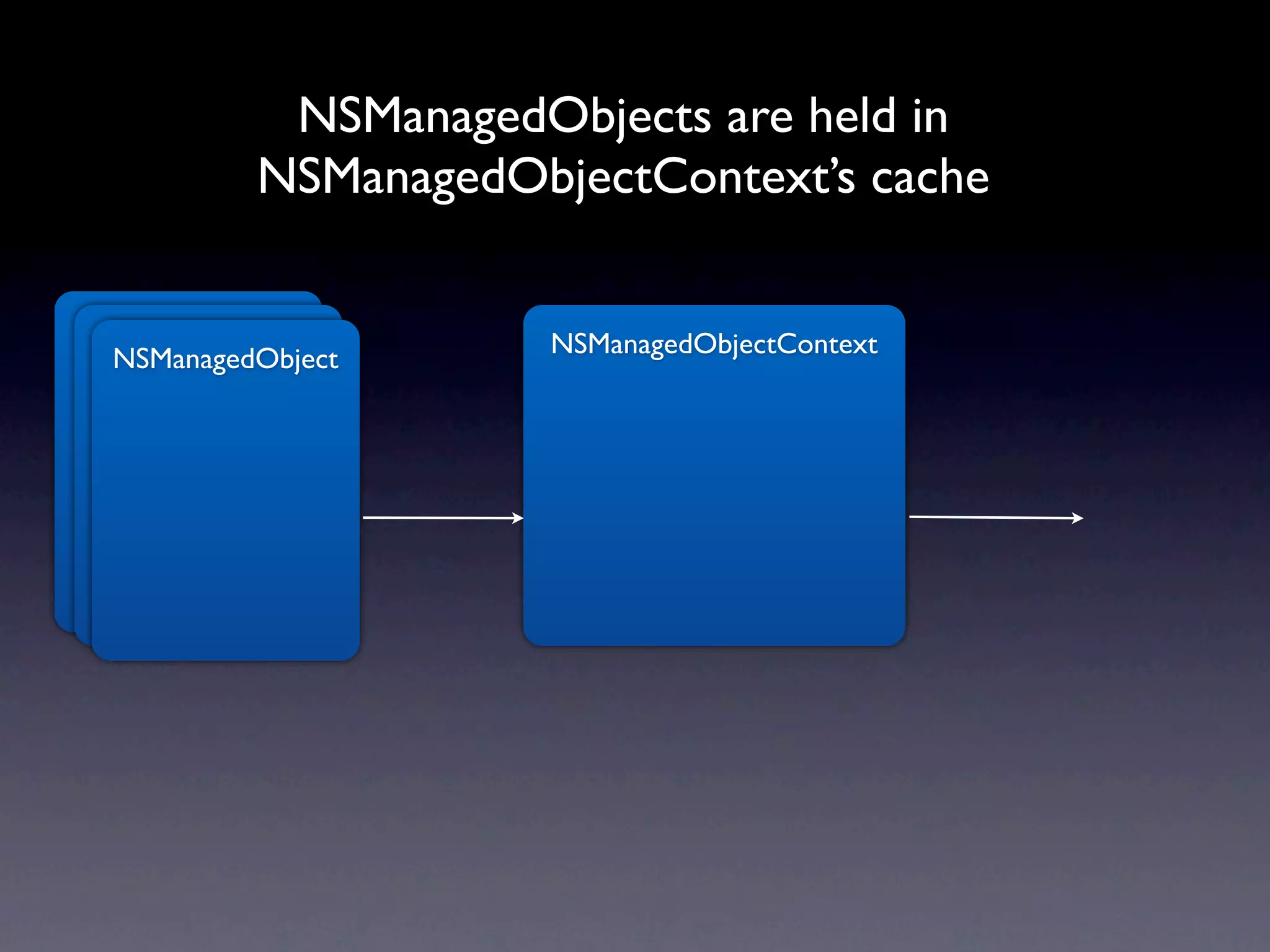

89. NSManagedObjects are held in
NSManagedObjectContext’s cache
NSManagedObject
NSManagedObject NSManagedObjectContext
NSManagedObject

90. NSManagedObjects are held in
NSManagedObjectContext’s cache
NSManagedObject
NSManagedObject NSManagedObjectContext
NSManagedObject

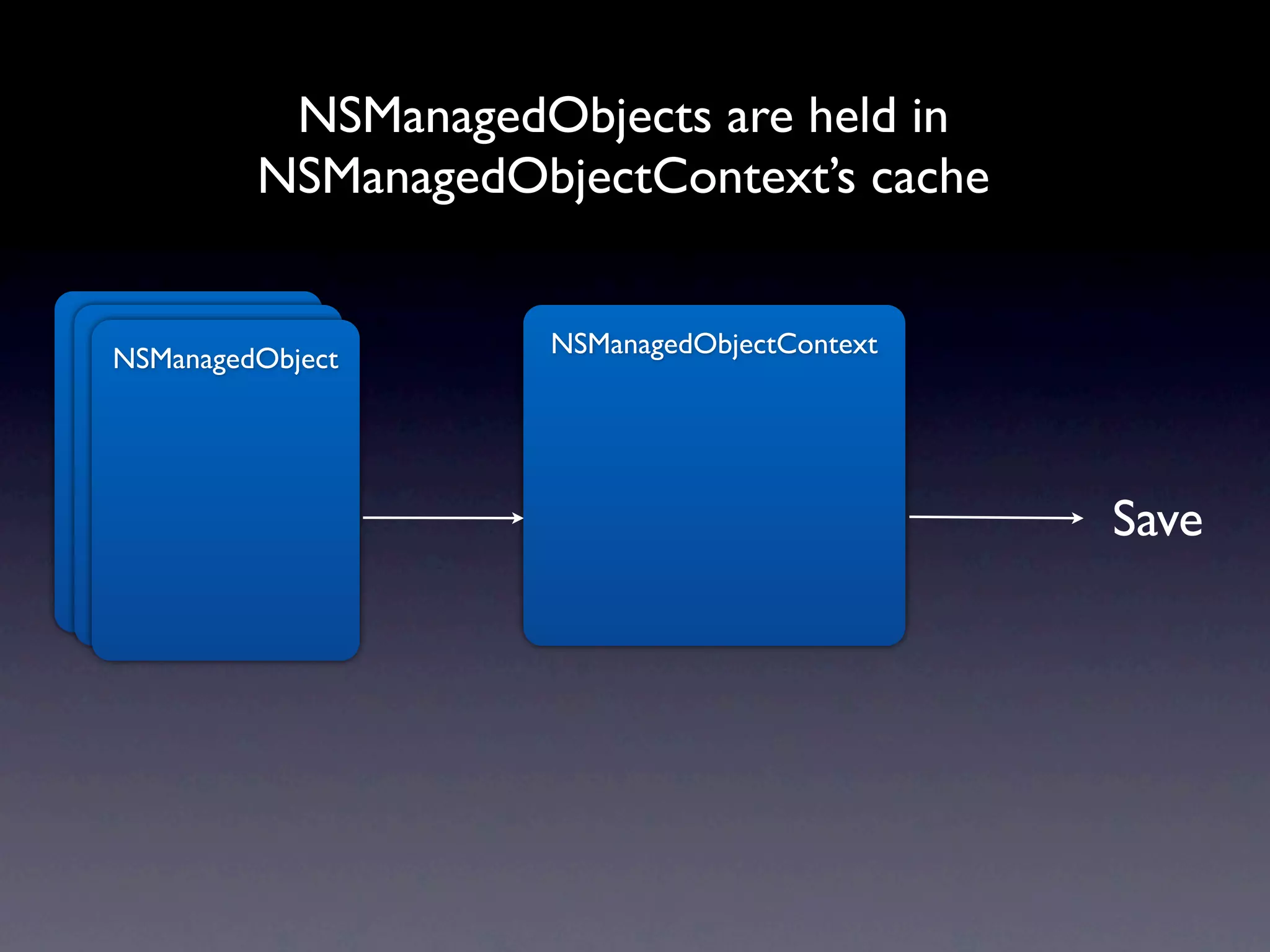

91. NSManagedObjects are held in
NSManagedObjectContext’s cache
NSManagedObject
NSManagedObject NSManagedObjectContext
NSManagedObject
Save

92. Demo

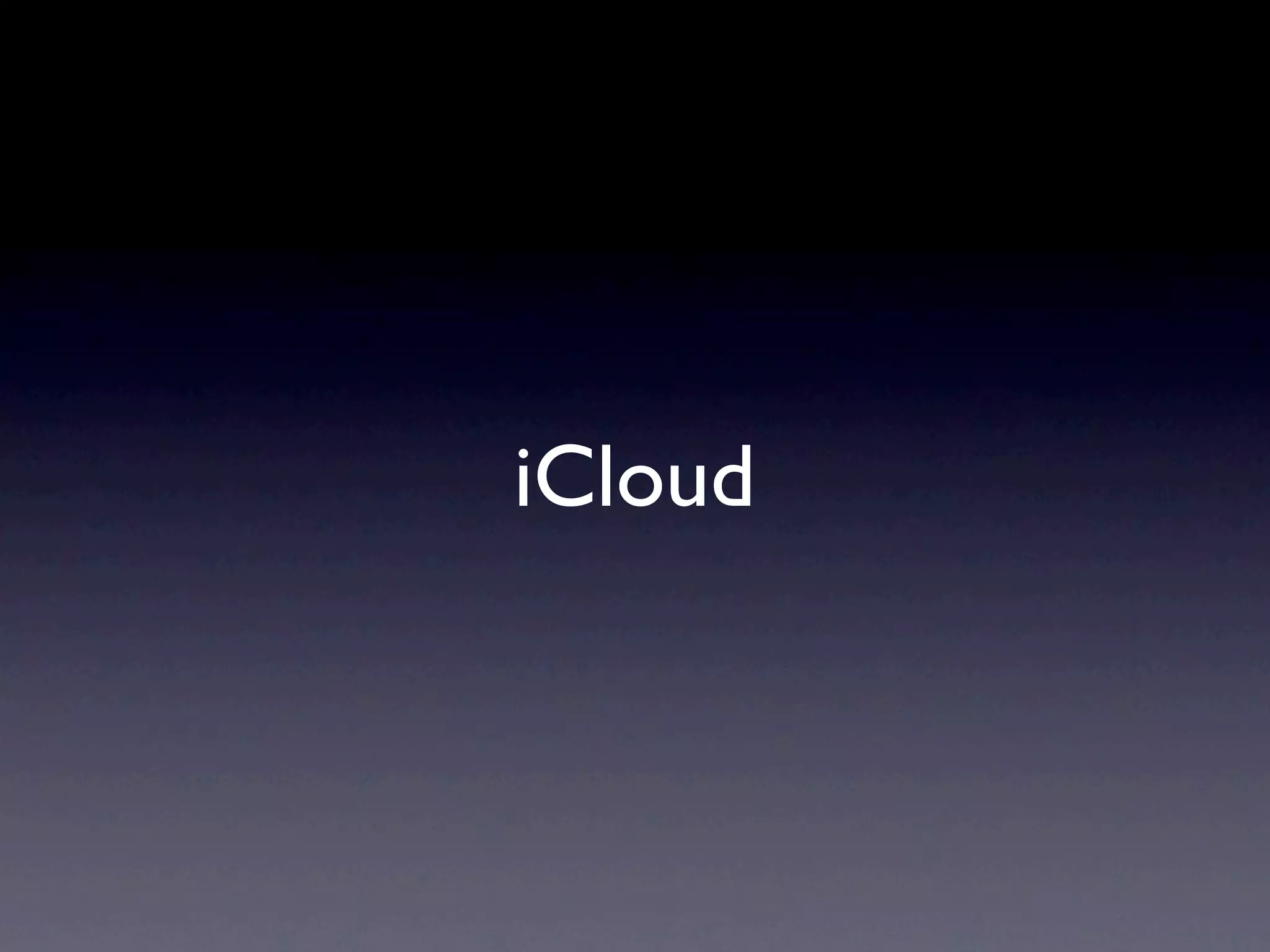

94. iCloud

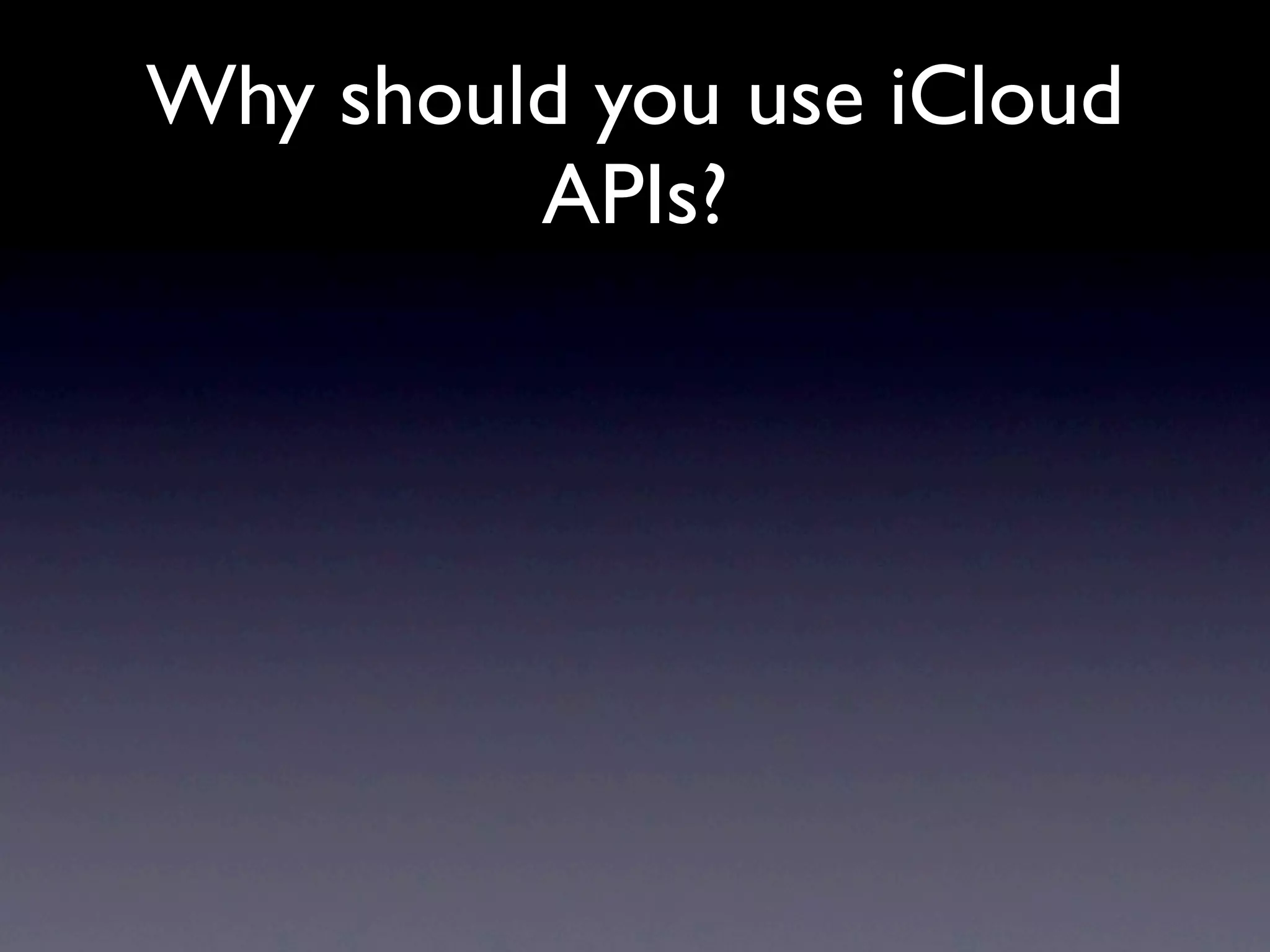

95. Why should you use iCloud
APIs?

96. Why should you use iCloud
APIs?
1. There’s no need to configure and maintain servers

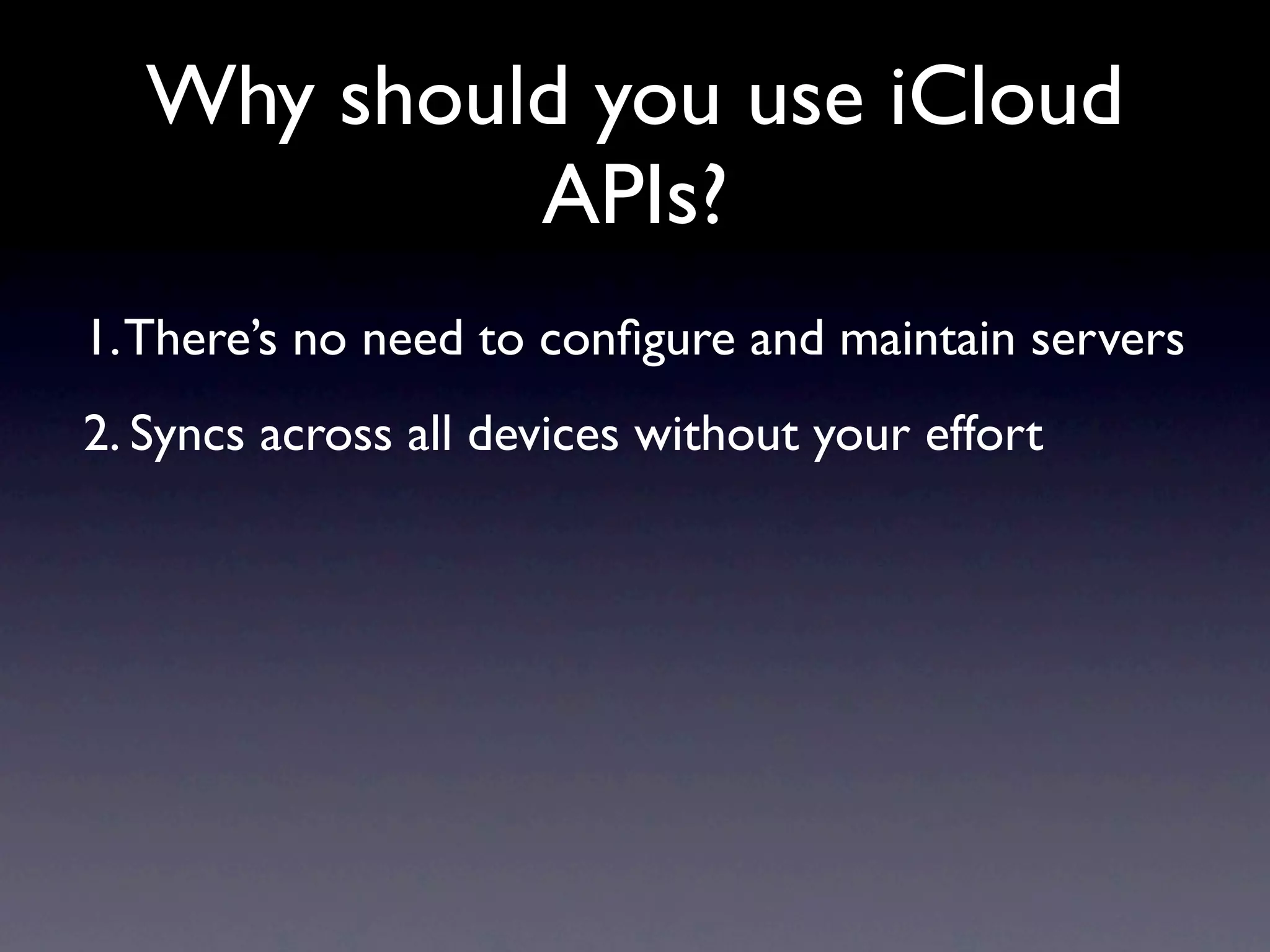

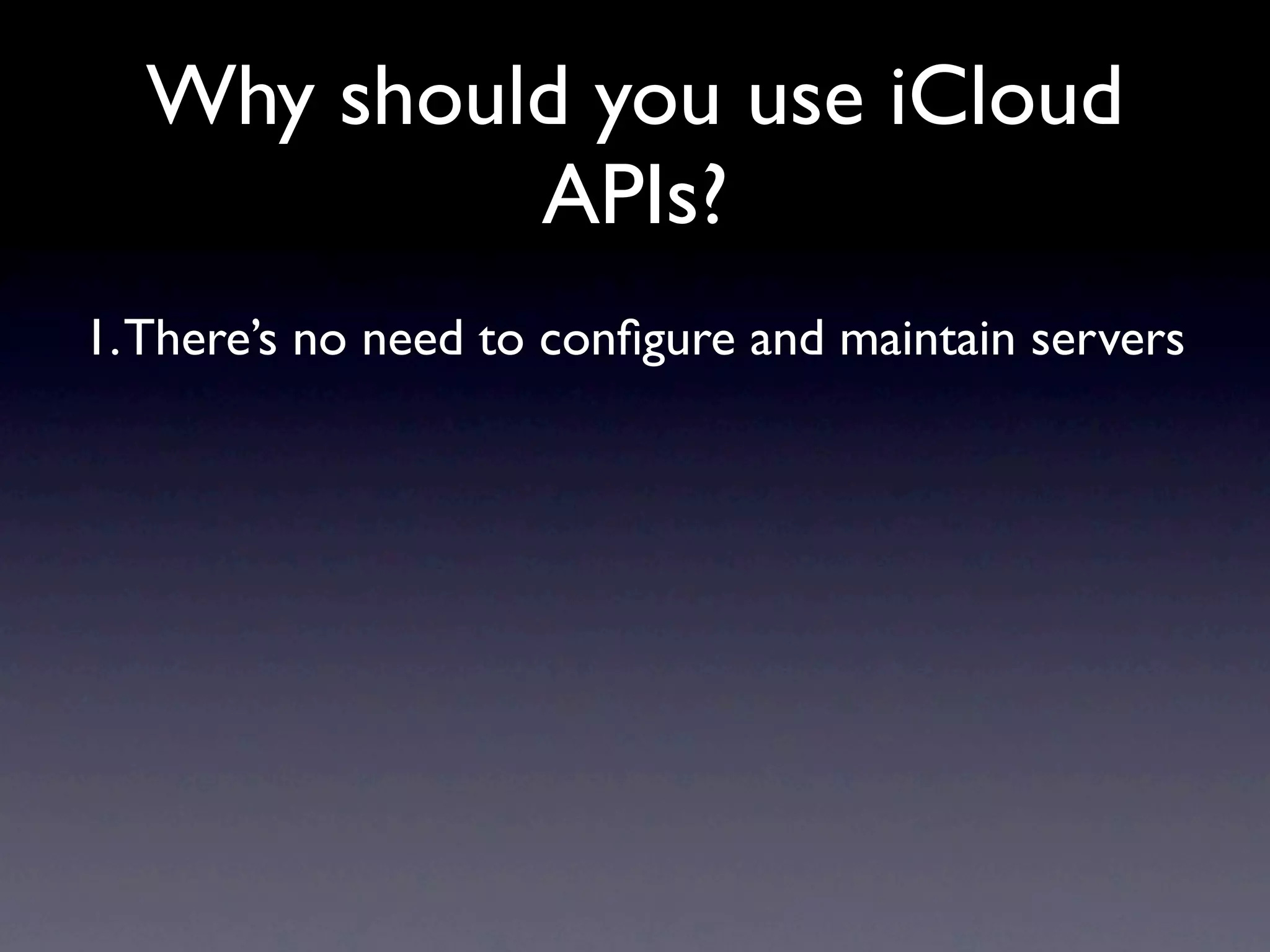

97. Why should you use iCloud
APIs?
1. There’s no need to configure and maintain servers
2. Syncs across all devices without your effort

98. Why should you use iCloud
APIs?
1. There’s no need to configure and maintain servers
2. Syncs across all devices without your effort
3. Autosaving and conflict resolving

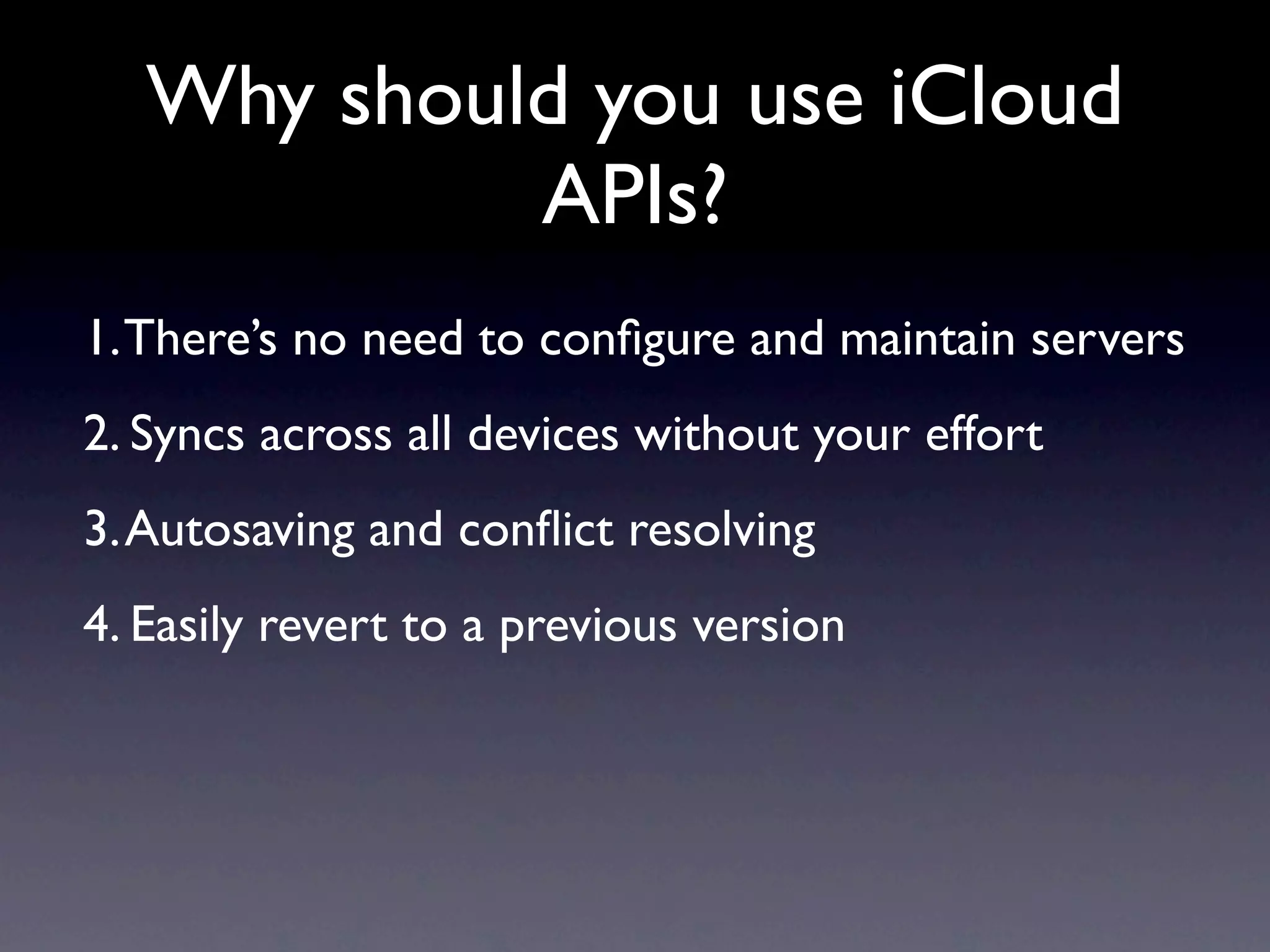

99. Why should you use iCloud
APIs?
1. There’s no need to configure and maintain servers
2. Syncs across all devices without your effort
3. Autosaving and conflict resolving
4. Easily revert to a previous version

100. iCloud

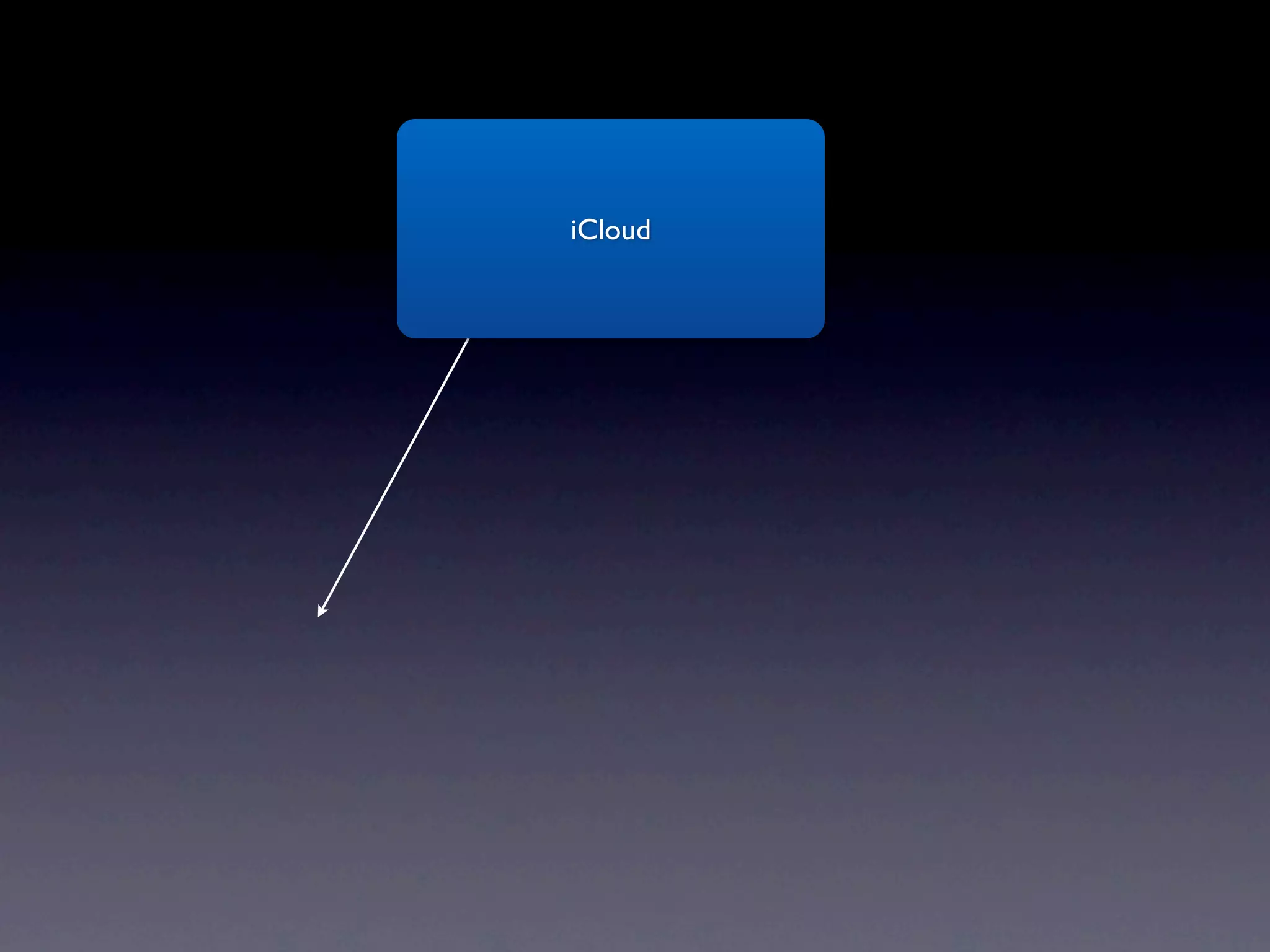

101. iCloud

102. iCloud

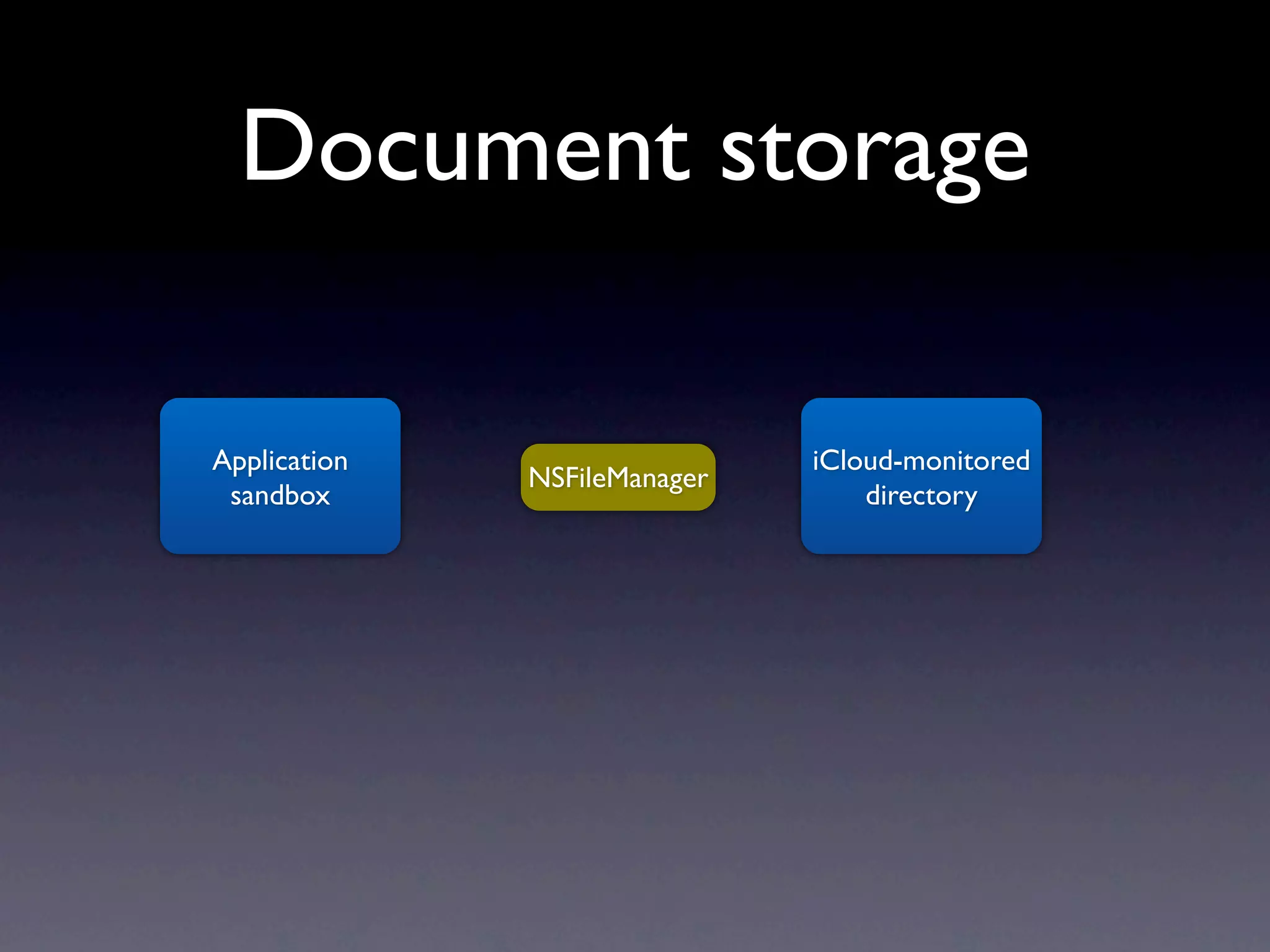

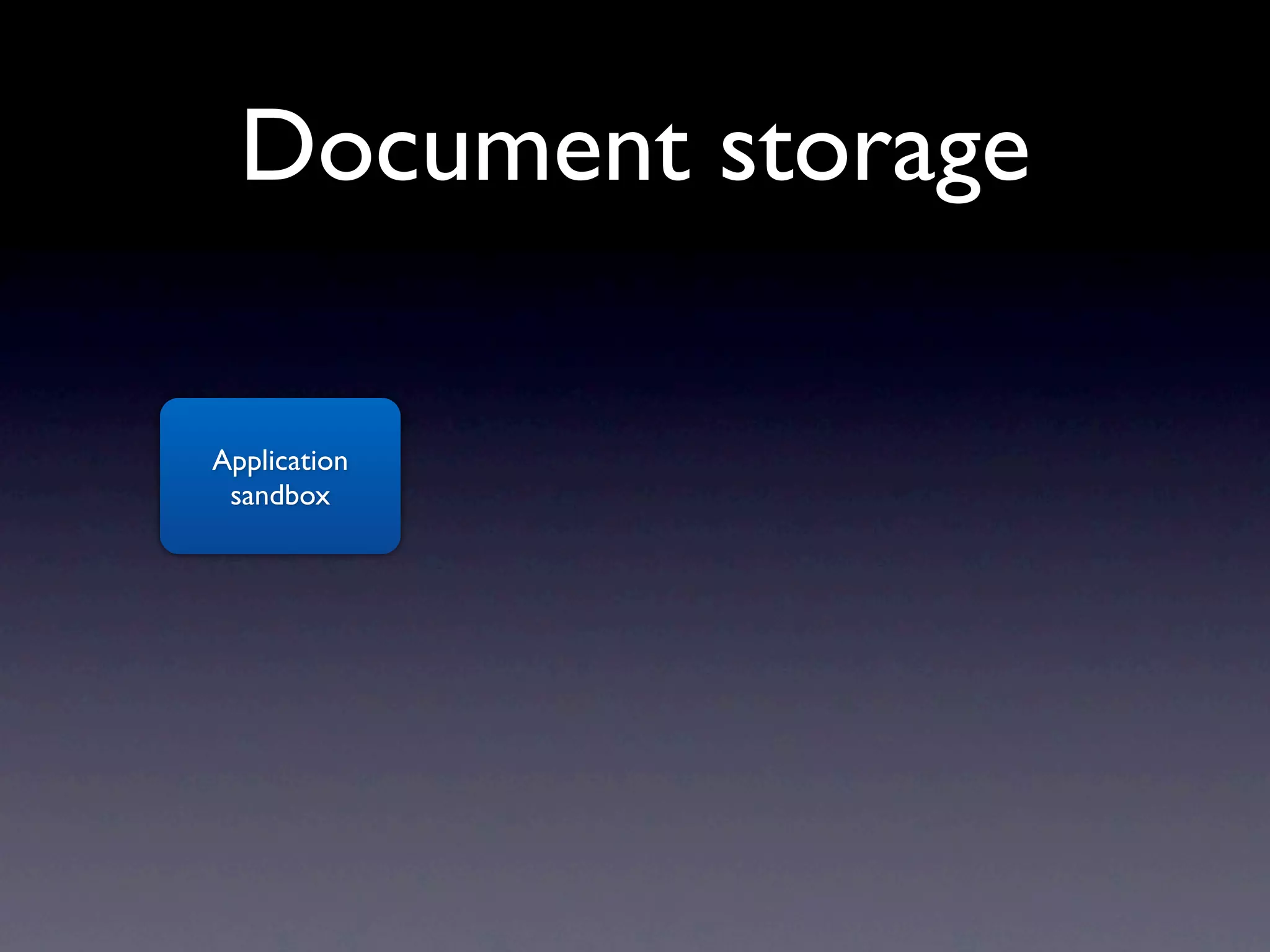

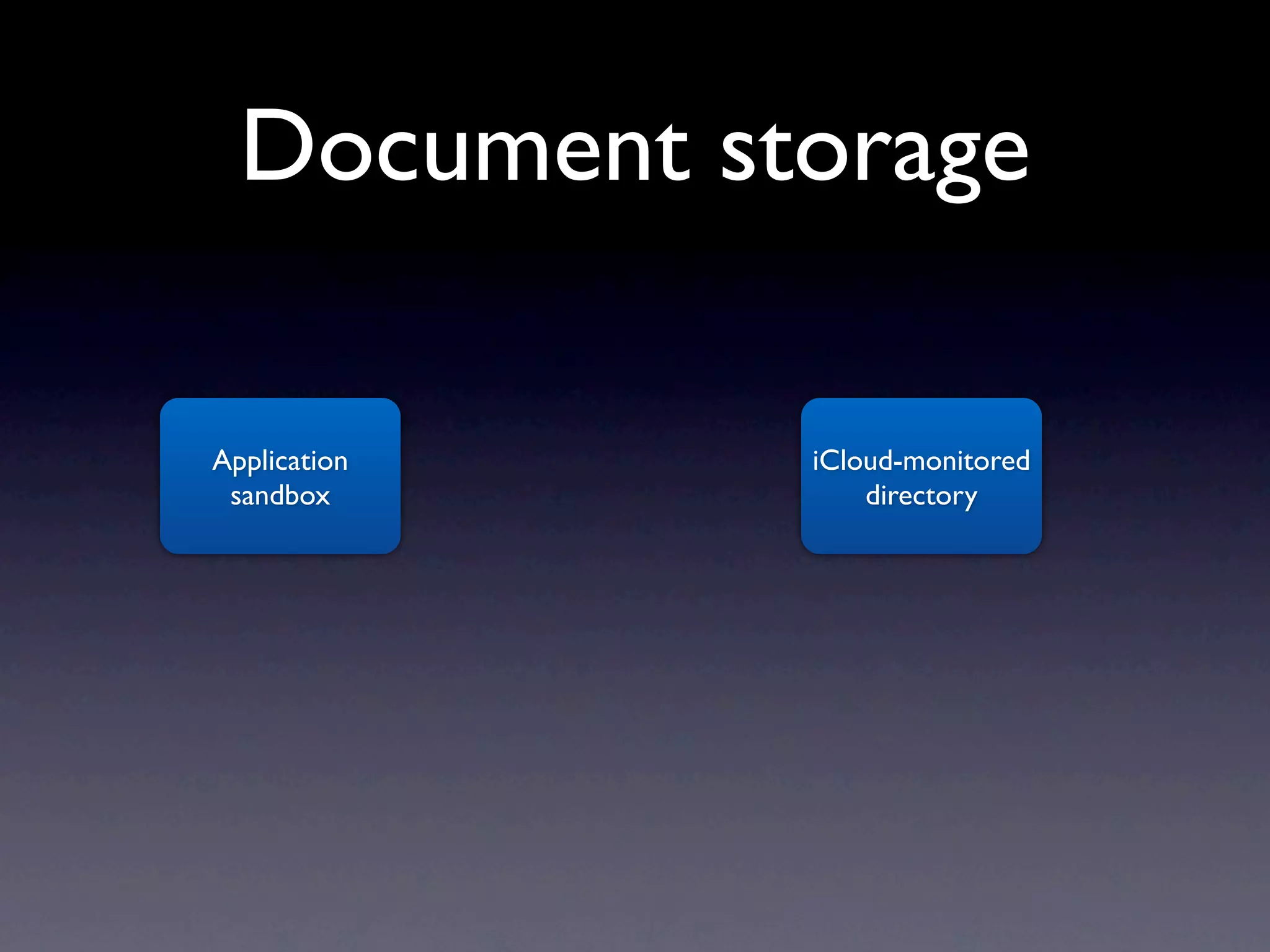

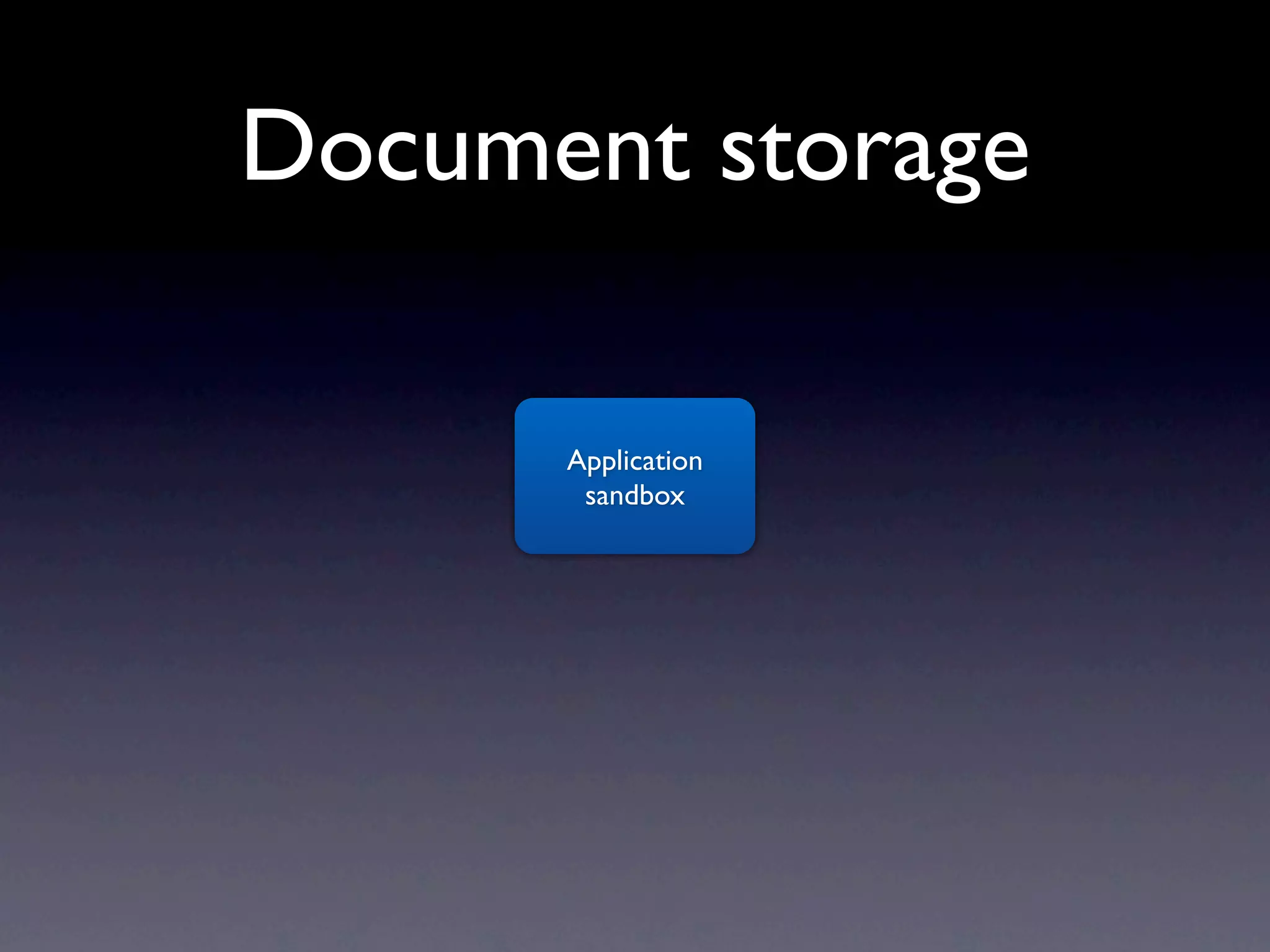

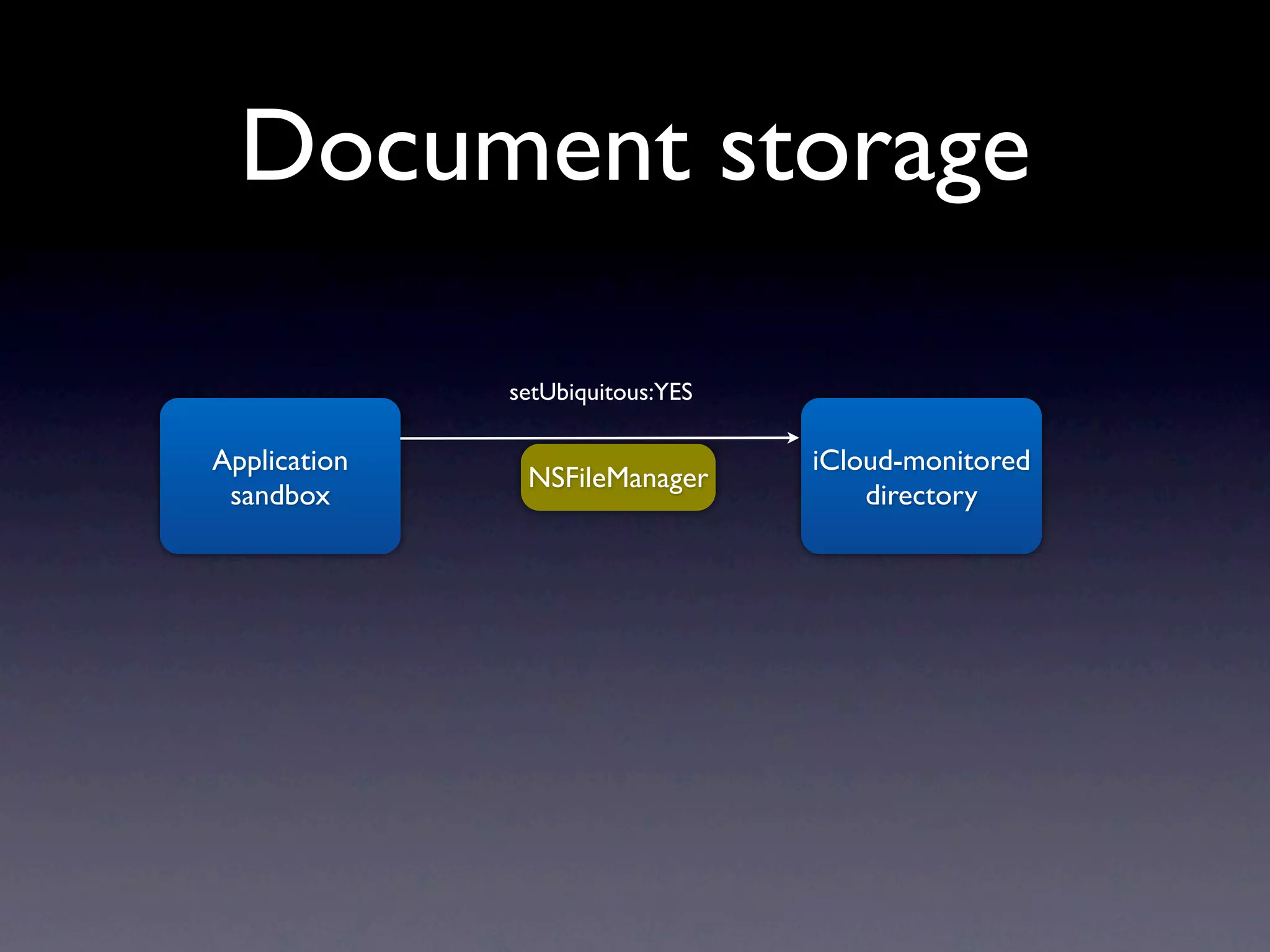

Document storage

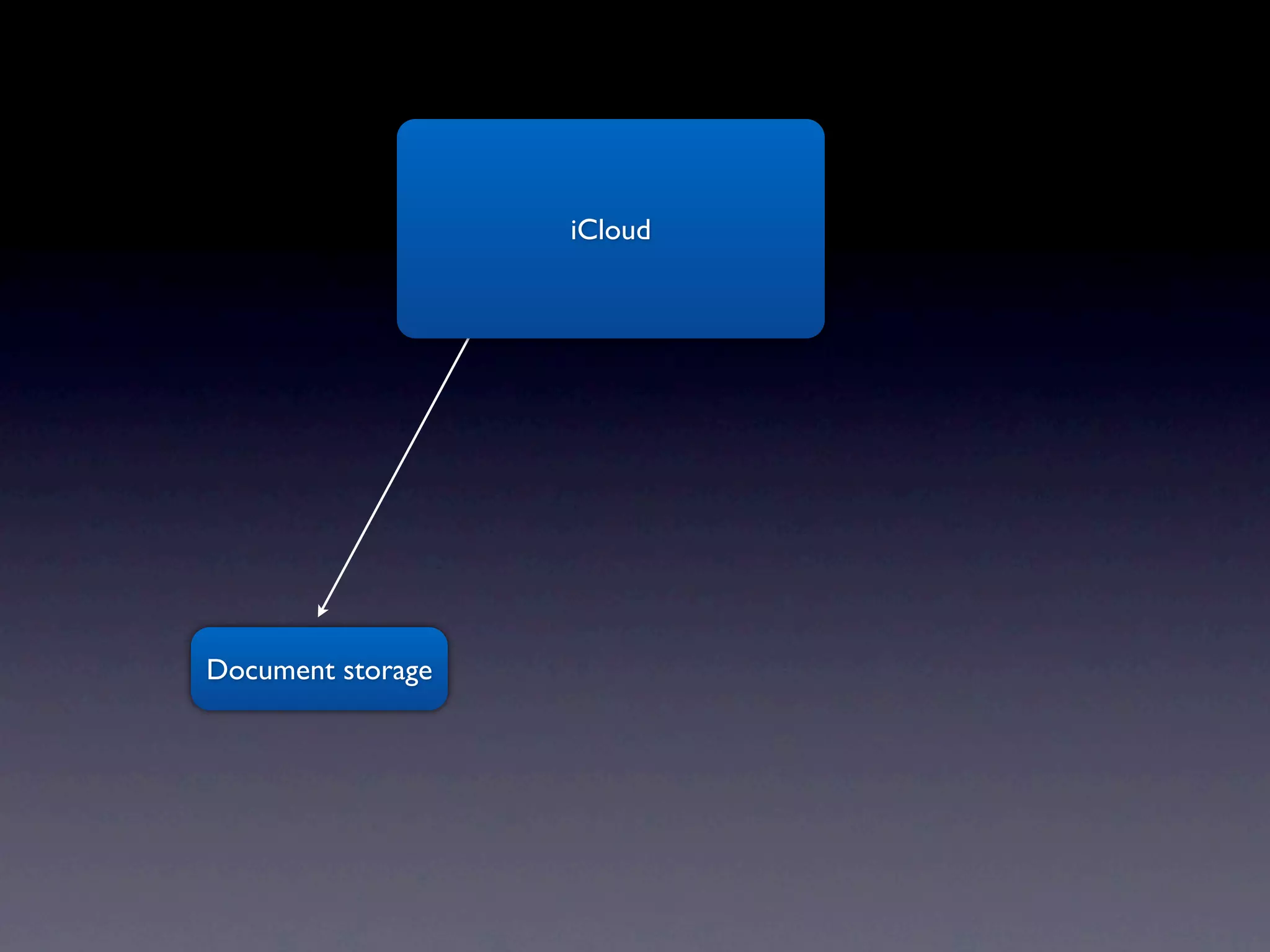

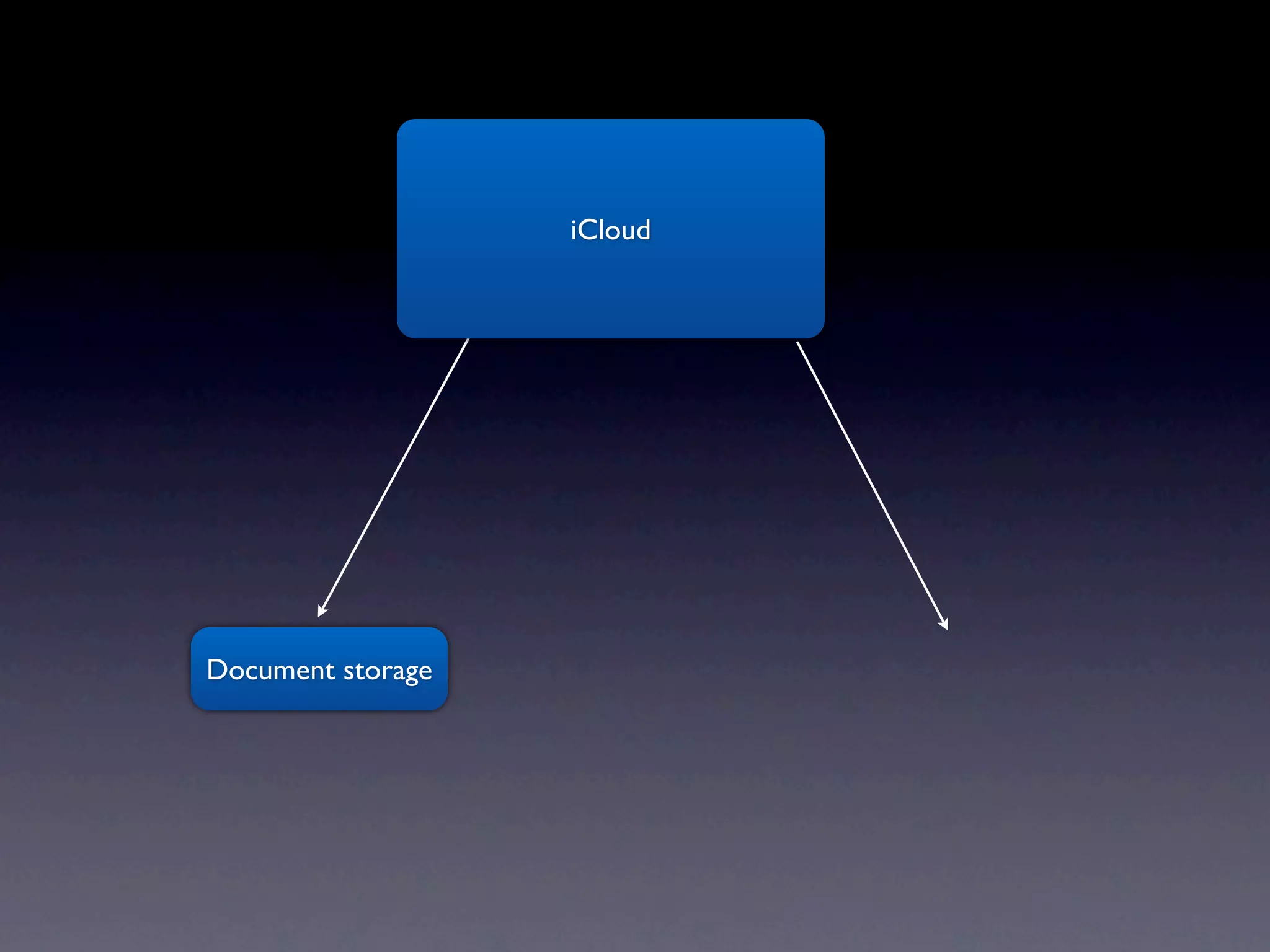

103. iCloud
Document storage

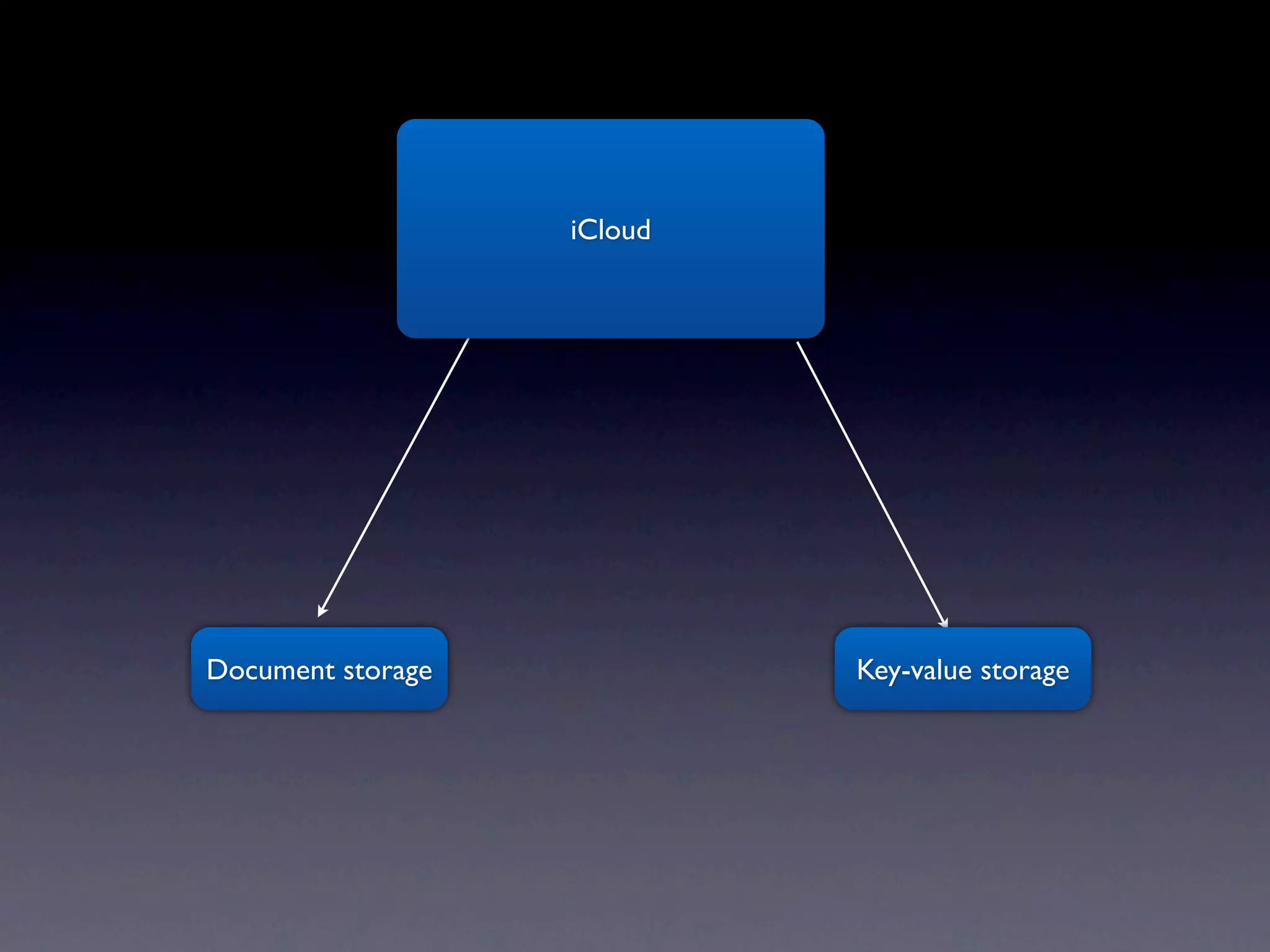

104. iCloud
Document storage Key-value storage

105. Document storage
Application
sandbox

106. Document storage
Application
sandbox

107. Document storage
Application iCloud-monitored
sandbox directory

108. Document storage
Application iCloud-monitored
NSFileManager
sandbox directory

109. Document storage
Application iCloud-monitored
NSFileManager
sandbox directory

110. Document storage
setUbiquitous:YES
Application iCloud-monitored
NSFileManager
sandbox directory

111. Document storage
setUbiquitous:YES
Application iCloud-monitored
NSFileManager
sandbox directory

112. Document storage
setUbiquitous:YES
Application iCloud-monitored
NSFileManager
sandbox directory
setUbiquitous:NO

113. Limitations

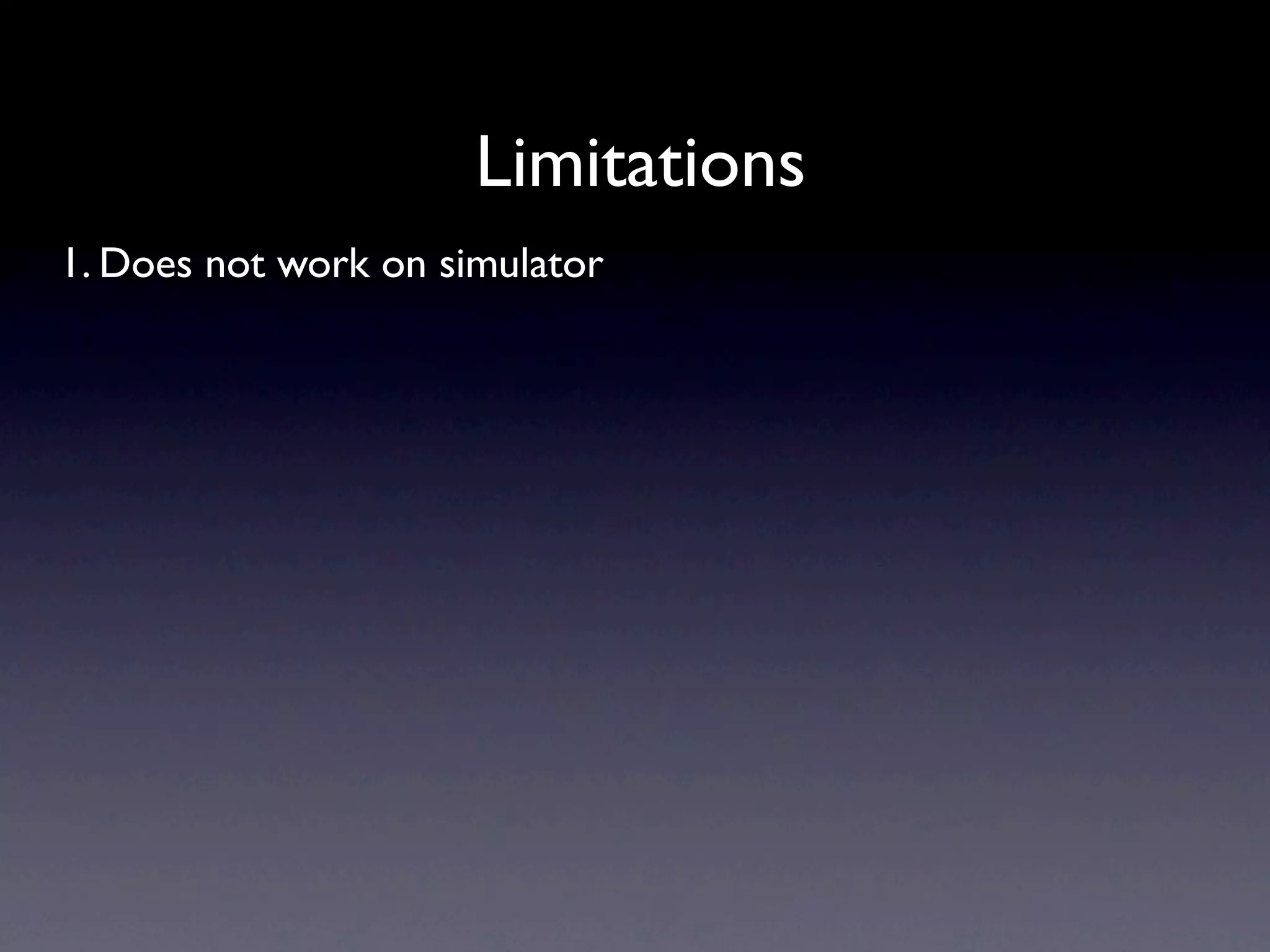

114. Limitations
1. Does not work on simulator

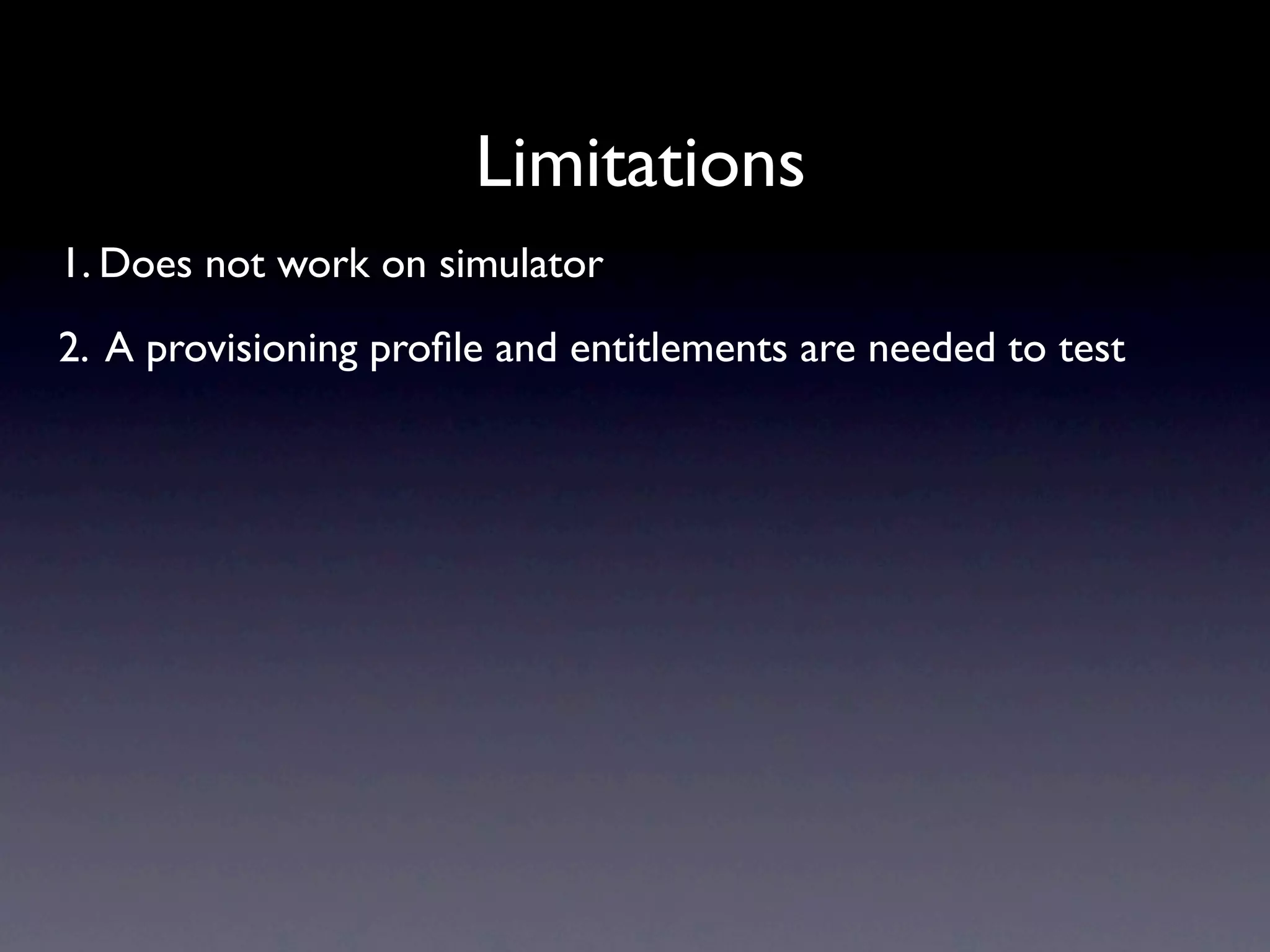

115. Limitations
1. Does not work on simulator
2. A provisioning profile and entitlements are needed to test

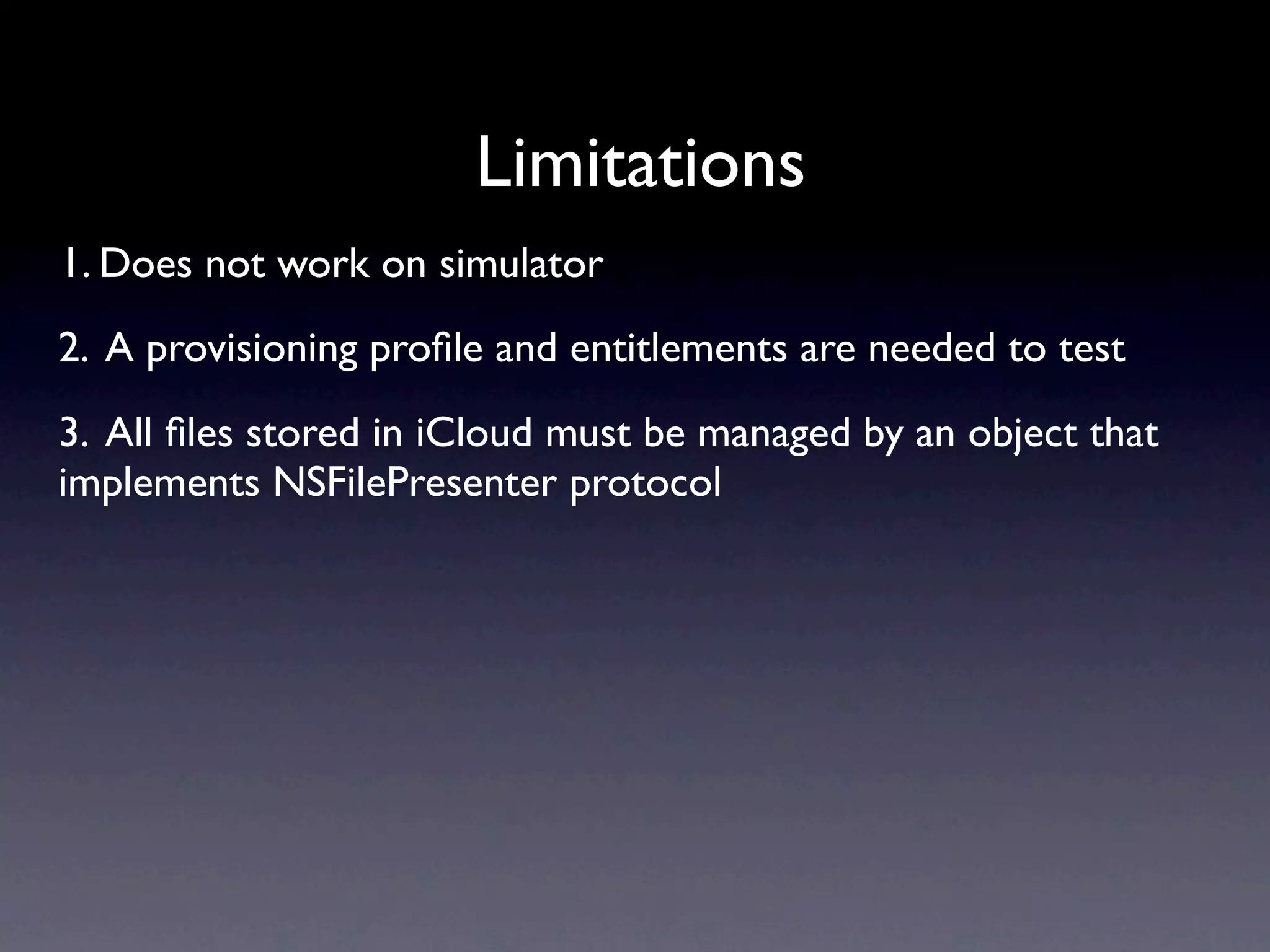

116. Limitations
1. Does not work on simulator
2. A provisioning profile and entitlements are needed to test
3. All files stored in iCloud must be managed by an object that
implements NSFilePresenter protocol

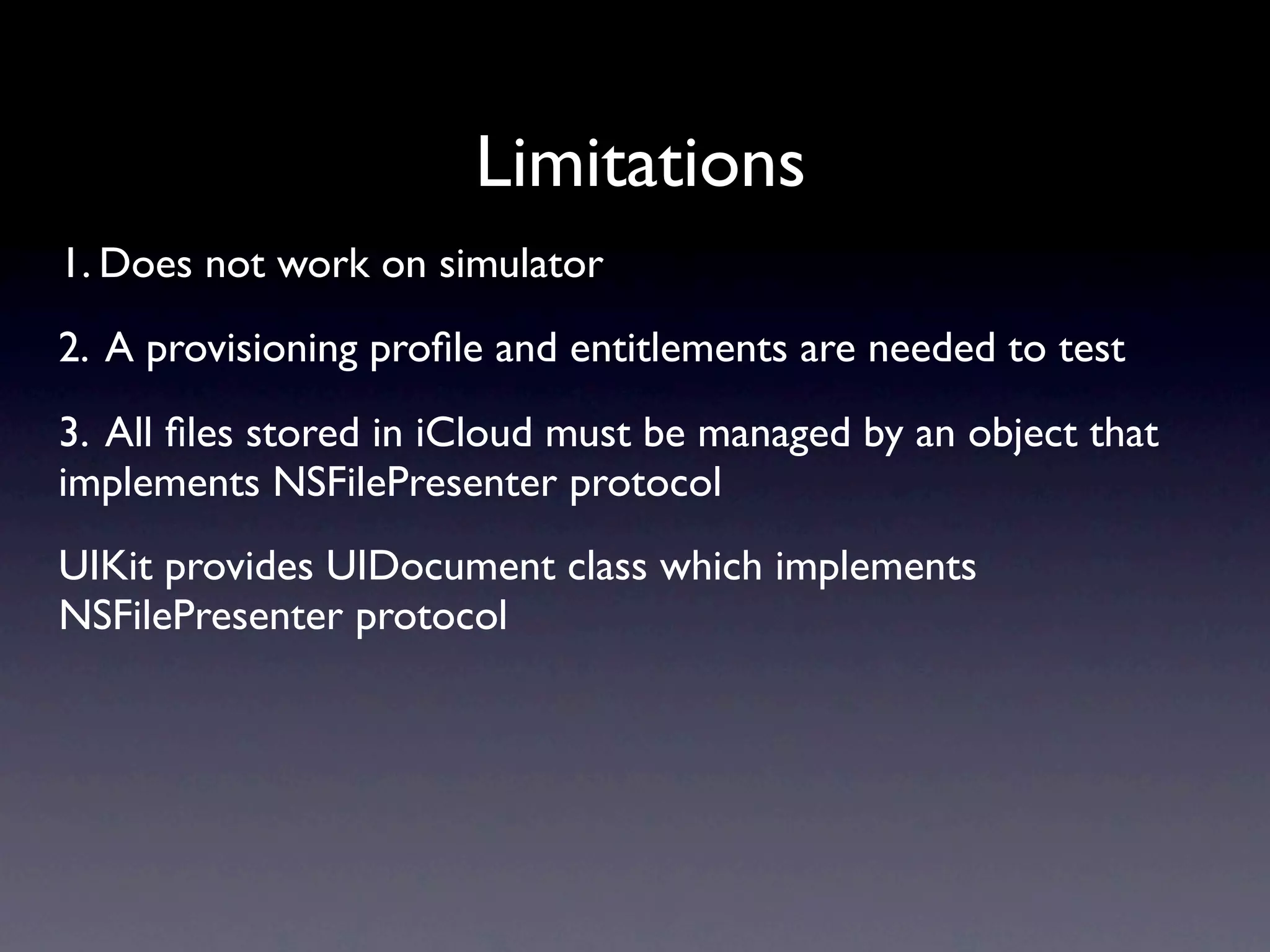

117. Limitations
1. Does not work on simulator
2. A provisioning profile and entitlements are needed to test
3. All files stored in iCloud must be managed by an object that
implements NSFilePresenter protocol
UIKit provides UIDocument class which implements
NSFilePresenter protocol

118. Be responsible!

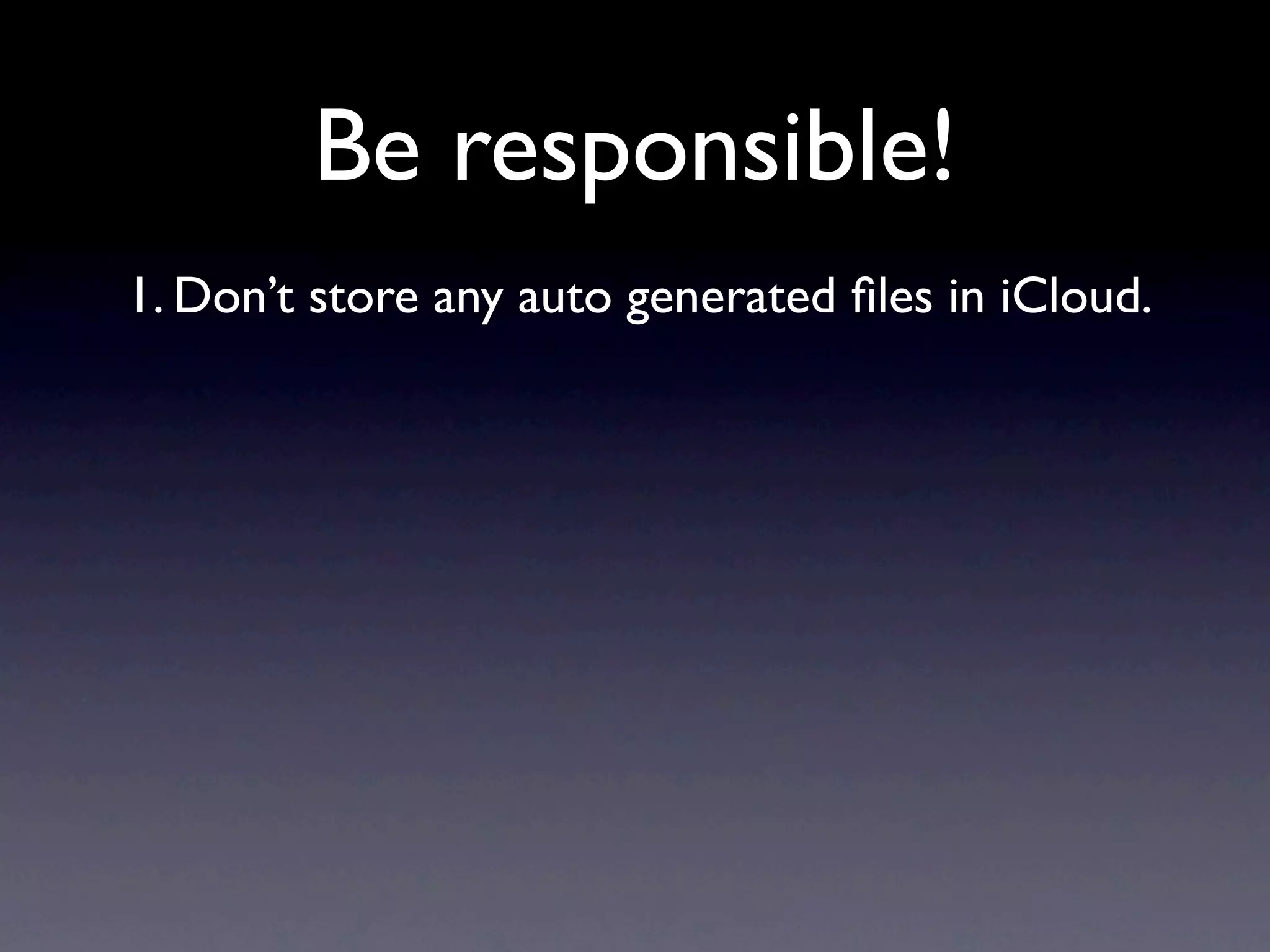

119. Be responsible!
1. Don’t store any auto generated files in iCloud.

120. Be responsible!
1. Don’t store any auto generated files in iCloud.
2. Don’t keep any copies of files tracked by iCloud.

121. Be responsible!
1. Don’t store any auto generated files in iCloud.
2. Don’t keep any copies of files tracked by iCloud.
3. Be careful with large files. Space is limited.

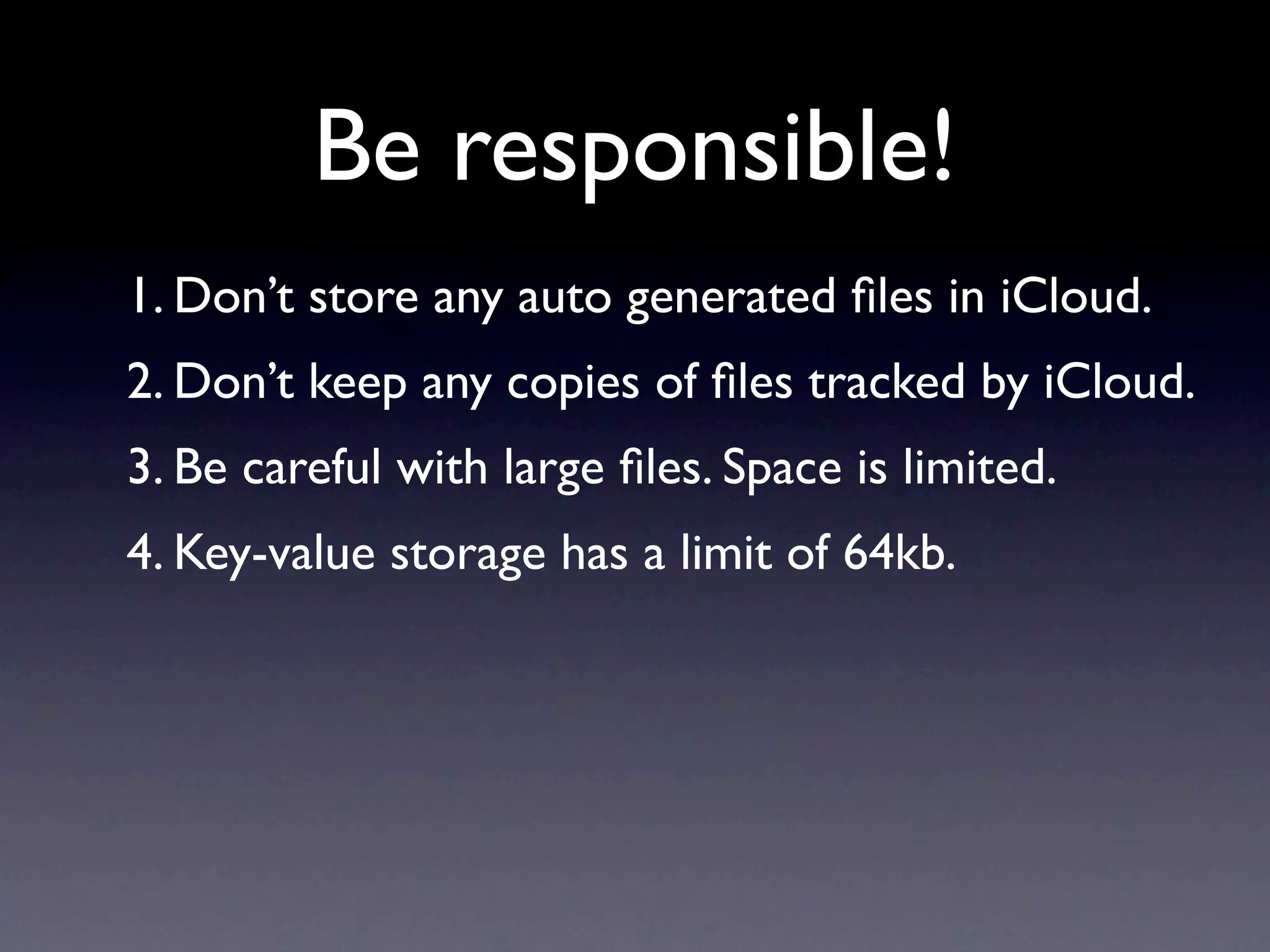

122. Be responsible!
1. Don’t store any auto generated files in iCloud.
2. Don’t keep any copies of files tracked by iCloud.
3. Be careful with large files. Space is limited.
4. Key-value storage has a limit of 64kb.

123. Demo

124. Where to go from here?

125. Where to go from here?

126. Where to go from here?
http://www.raywenderlich.com/934/core-data-tutorial-getting-started

127. Where to go from here?
http://www.raywenderlich.com/934/core-data-tutorial-getting-started
https://developer.apple.com/videos/wwdc/2011/

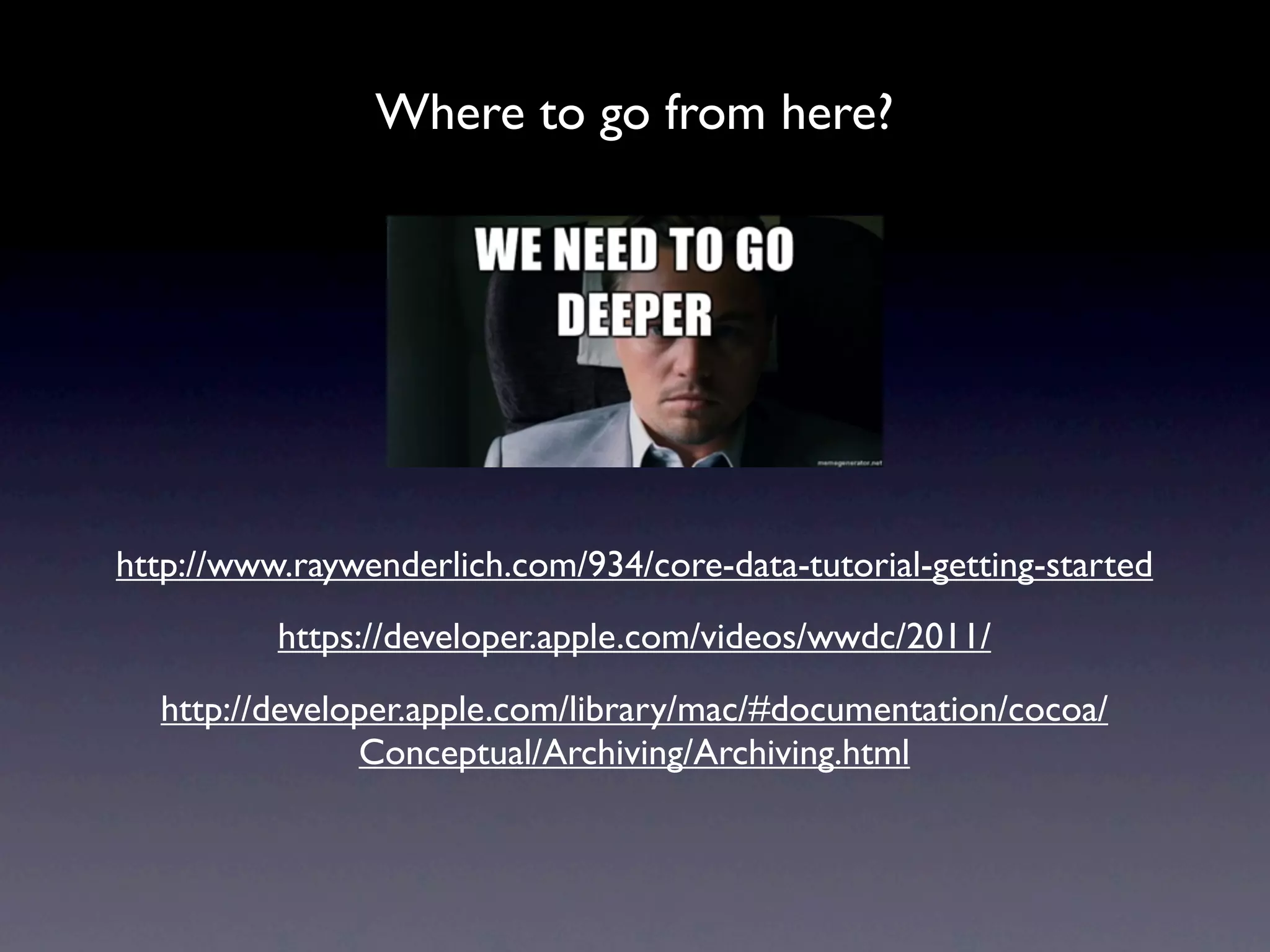

128. Where to go from here?
http://www.raywenderlich.com/934/core-data-tutorial-getting-started
https://developer.apple.com/videos/wwdc/2011/
http://developer.apple.com/library/mac/#documentation/cocoa/
Conceptual/Archiving/Archiving.html

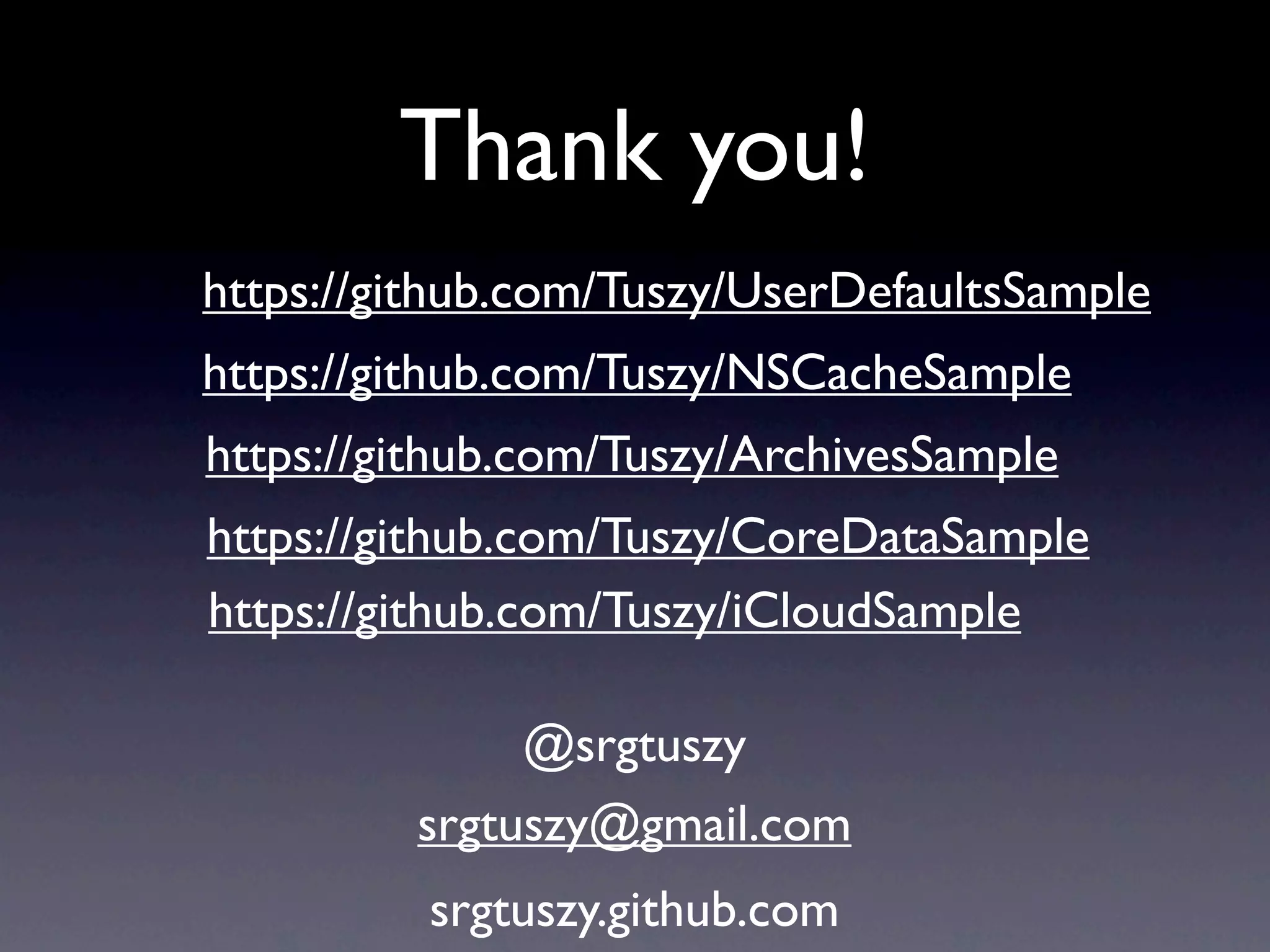

129. Thank you!
https://github.com/Tuszy/UserDefaultsSample
https://github.com/Tuszy/NSCacheSample
https://github.com/Tuszy/ArchivesSample
https://github.com/Tuszy/CoreDataSample
https://github.com/Tuszy/iCloudSample
@srgtuszy
srgtuszy@gmail.com
srgtuszy.github.com
