Uploaded byAgastya Chandra Pandey
Bearing PPT.pptx
This document provides information about bearings: Bearings allow one machine part to support another and reduce friction between moving parts. The main purpose of bearings is to prevent direct contact between elements in relative motion and reduce friction, heat, and wear. There are two main types of bearings: sliding surface or 'plain' bearings, and rolling element or 'anti-friction' bearings. Plain bearings use a sliding surface while rolling element bearings use balls, rollers, or needles to reduce friction. The document then describes various designs within each category.
More Related Content
Similar to Bearing PPT.pptx
Bearing PPT.pptx
- 1. A Presentation onBearing Prepared By Agastya Chandra Pandey
- 2. What is thebearing The term "bearing" is derived from the verb "to bear"; a bearing being a machine element that allows one part to bear (i.e., to support) another part and reduces friction between moving parts शब्द “Bearing” Verb "टू बियर" से लिया गया है; Bearing मशीन का एक हहसा है जो एक भाग को दूसरे भाग को सहन करने (अर्ाात समर्ान करने क े लिए) की अनुमतत देता है और घुमते हुए भागो क े बिच में टकराव को काम करता है l

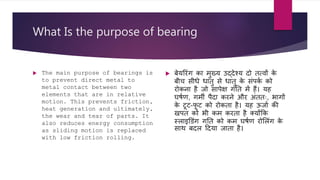

- 3. What Is thepurpose of bearing The main purpose of bearings is to prevent direct metal to metal contact between two elements that are in relative motion. This prevents friction, heat generation and ultimately, the wear and tear of parts. It also reduces energy consumption as sliding motion is replaced with low friction rolling. िेयररिंग का मुख्य उद्देश्य दो तत्वों क े िीच सीधे धातु से धातु क े सिंपक ा को रोकना है जो सापेक्ष गतत में हैं। यह घर्ाण, गमी पैदा करने और अिंततः, भागों क े टूट-फ ू ट को रोकता है। यह ऊजाा की खपत को भी कम करता है क्योंकक स्िाइड िंग गतत को कम घर्ाण रोलििंग क े सार् िदि हदया जाता है।

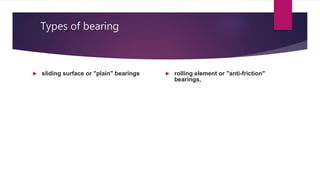

- 4. Types of bearing sliding surface or "plain" bearings rolling element or "anti-friction" bearings,

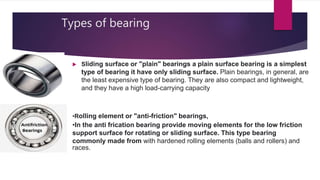

- 5. Types of bearing Sliding surface or "plain" bearings a plain surface bearing is a simplest type of bearing it have only sliding surface. Plain bearings, in general, are the least expensive type of bearing. They are also compact and lightweight, and they have a high load-carrying capacity •Rolling element or "anti-friction" bearings, •In the anti frication bearing provide moving elements for the low friction support surface for rotating or sliding surface. This type bearing commonly made from with hardened rolling elements (balls and rollers) and races.

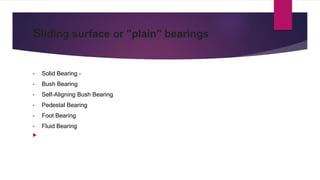

- 6. Sliding surface or"plain" bearings • Solid Bearing - • Bush Bearing • Self-Aligning Bush Bearing • Pedestal Bearing • Foot Bearing • Fluid Bearing

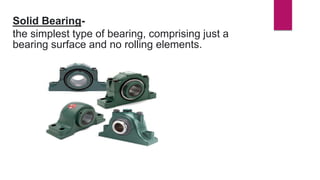

- 7. Solid Bearing- the simplesttype of bearing, comprising just a bearing surface and no rolling elements.

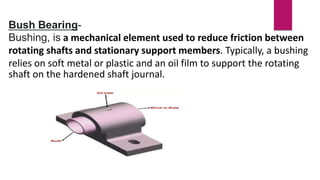

- 8. Bush Bearing- Bushing, isa mechanical element used to reduce friction between rotating shafts and stationary support members. Typically, a bushing relies on soft metal or plastic and an oil film to support the rotating shaft on the hardened shaft journal.
- 9. Self-alignment bush bearing– This type bearing alignment not required. This feature endows them with the self- aligning properties and permits them to work properly even with a slight misalignment of shaft relative to the housing.

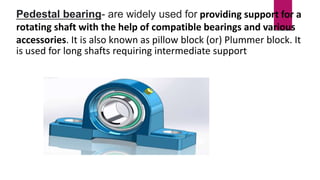

- 10. Pedestal bearing- arewidely used for providing support for a rotating shaft with the help of compatible bearings and various accessories. It is also known as pillow block (or) Plummer block. It is used for long shafts requiring intermediate support
- 12. Fluid bearings arebearings in which the load is supported by a thin layer of rapidly moving pressurized liquid or gas between the bearing surfaces.[1] Since there is no contact between the moving parts, there is no sliding friction, allowing fluid bearings to have lower friction, wear and vibration than many other types of bearings. Thus, it is possible for some fluid bearings to have near-zero wear if operated correctly.[1] They can be broadly classified into two types: fluid dynamic bearings (also known as hydrodynamic bearings) and hydrostatic bearings. Hydrostatic bearings are externally pressurized fluid bearings, where the fluid is usually oil, water or air, and is pressurized by a pump. Hydrodynamic bearings rely on the high speed of the journal (the part of the shaft resting on the fluid) to pressurize the fluid in a wedge between the faces. Fluid bearings are frequently used in high load, high speed or high precision applications where ordinary ball bearings would have shortened life or caused high noise and vibration.

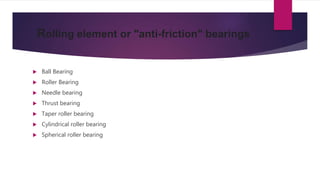

- 13. Rolling element or"anti-friction" bearings Ball Bearing Roller Bearing Needle bearing Thrust bearing Taper roller bearing Cylindrical roller bearing Spherical roller bearing

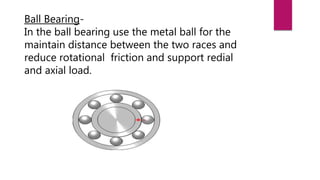

- 14. Ball Bearing- In theball bearing use the metal ball for the maintain distance between the two races and reduce rotational friction and support redial and axial load.

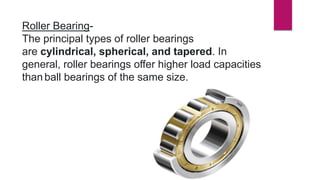

- 15. Roller Bearing- The principaltypes of roller bearings are cylindrical, spherical, and tapered. In general, roller bearings offer higher load capacities thanball bearings of the same size.

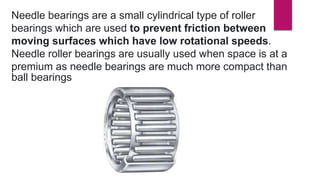

- 16. Needle bearings area small cylindrical type of roller bearings which are used to prevent friction between moving surfaces which have low rotational speeds. Needle roller bearings are usually used when space is at a premium as needle bearings are much more compact than ball bearings

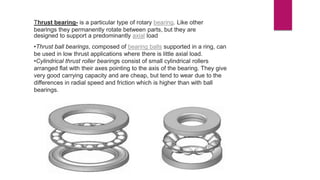

- 17. Thrust bearing- isa particular type of rotary bearing. Like other bearings they permanently rotate between parts, but they are designed to support a predominantly axial load •Thrust ball bearings, composed of bearing balls supported in a ring, can be used in low thrust applications where there is little axial load. •Cylindrical thrust roller bearings consist of small cylindrical rollers arranged flat with their axes pointing to the axis of the bearing. They give very good carrying capacity and are cheap, but tend to wear due to the differences in radial speed and friction which is higher than with ball bearings.
- 18. Tapered roller bearingsfeature tapered inner and outer ring raceways with tapered rollers arranged between them, angled so the surface of the rollers converge at the axis of the bearing. It is ideal for guides that have to undergo extreme loads. It is also found in applications where radial loads are important and rotational speeds are high. Tapered roller bearings are essential in sectors such as agriculture, construction, mining, engines and propellers.

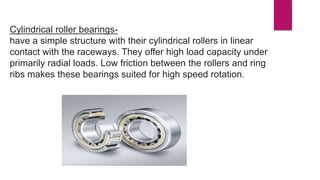

- 19. Cylindrical roller bearings- havea simple structure with their cylindrical rollers in linear contact with the raceways. They offer high load capacity under primarily radial loads. Low friction between the rollers and ring ribs makes these bearings suited for high speed rotation.
- 20. Spherical roller bearings- consistof an inner ring with two raceways inclined at an angle to the bearing axis, an outer ring with a common spherical raceway, spherical rollers, cages and, in certain designs, also internal guide rings or center rings. These bearings can also be sealed.

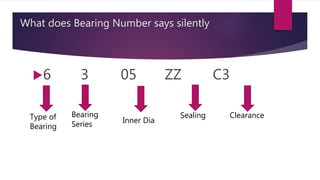

- 22. What does BearingNumber says silently 6 3 05 ZZ C3 Type of Bearing Bearing Series Inner Dia Sealing Clearance
- 23.

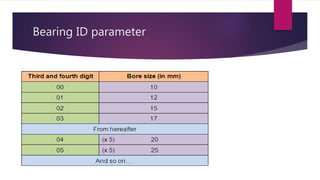

- 24.

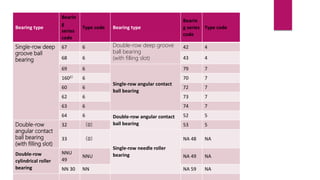

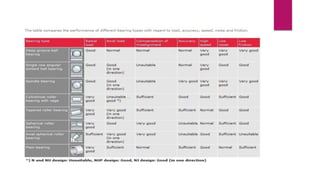

- 26. Bearing type Bearin g series code Type codeBearing type Bearin g series code Type code Single-row deep groove ball bearing 67 6 Double-row deep groove ball bearing (with filling slot) 42 4 68 6 43 4 69 6 Single-row angular contact ball bearing 79 7 1602） 6 70 7 60 6 72 7 62 6 73 7 63 6 74 7 64 6 Double-row angular contact ball bearing 52 5 Double-row angular contact ball bearing (with filling slot) 32 （0） 53 5 33 （0） Single-row needle roller bearing NA 48 NA Double-row cylindrical roller bearing NNU 49 NNU NA 49 NA NN 30 NN NA 59 NA

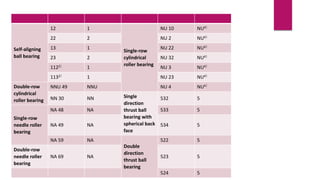

- 27. Self-aligning ball bearing 12 1 Single-row cylindrical rollerbearing NU 10 NU4） 22 2 NU 2 NU4） 13 1 NU 22 NU4） 23 2 NU 32 NU4） 1122） 1 NU 3 NU4） 1132） 1 NU 23 NU4） Double-row cylindrical roller bearing NNU 49 NNU NU 4 NU4） NN 30 NN Single direction thrust ball bearing with spherical back face 532 5 Single-row needle roller bearing NA 48 NA 533 5 NA 49 NA 534 5 NA 59 NA Double direction thrust ball bearing 522 5 Double-row needle roller bearing NA 69 NA 523 5 524 5

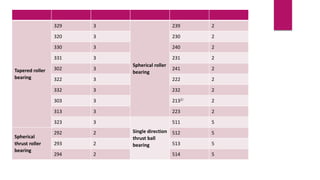

- 28. Tapered roller bearing 329 3 Sphericalroller bearing 239 2 320 3 230 2 330 3 240 2 331 3 231 2 302 3 241 2 322 3 222 2 332 3 232 2 303 3 2132） 2 313 3 223 2 323 3 Single direction thrust ball bearing 511 5 Spherical thrust roller bearing 292 2 512 5 293 2 513 5 294 2 514 5
- 29.
